Impex Fitness Ns 652 Owners Manual PARTS LIST

: Impex-Fitness Impex-Fitness-Ns-652-Owners-Manual-746531 impex-fitness-ns-652-owners-manual-746531 impex-fitness pdf

Open the PDF directly: View PDF .
Page Count: 17

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Pack

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

NS-652

Retain This

Manual for

Reference

140911

OWNER'S

MANUAL

MARCY®

Foldable Bike

NS-652

IMPEX® INC.

2801 S. Towne Ave, Pomona, CA 91766

Tel: (800) 999-8899

www.impex-fitness.com

support@impex-fitness.com

1

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................…. 1

IMPORTANT SAFETY NOTICES..................................................................…. 2

WARNING LABEL PLACEMENT………….....…................................................ 3

PRE-ASSEMBLY CHECK LIST, HARDWARE PACK......................................... 4

ASSEMBLY INSTRUCTIONS........................................................................…. 5

EXPLODED DIAGRAM………………………………………………………………. 11

PARTS LIST...................................................................................................…. 12

COMPUTER................................................................................................…… 13

EXERCISE INSTRUCTIONS............................................................................... 14

WARRANTY.................................................................................................……. 16

ORDERING PARTS.....................................................................................…….. 16

BEFORE YOU BEGIN

Thank you for selecting the MARCY® NS-652 by IMPEX® INC. For your

safety and benefit, read this manual carefully before using the machine. As

a manufacturer, we are committed to provide you complete customer

satisfaction. If you have any questions, or find there are missing or

damaged parts, we guarantee you complete satisfaction through direct

assistance from our factory. To avoid unnecessary delays, please call our

TOLL-FREE customer service number. Our Customer Service Agents will

provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

support@impex-fitness.com

2

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain

precautions apply whenever you operate a piece of exercise equipment. Be

sure to read the entire manual before you assemble or operate your machine.

In particular, note the following safety precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other

abnormal symptoms, STOP the workout at once. CONSULT A PHYSICIAN

IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine

near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear

robes or other clothing that could become caught in the machine. Running

or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO

NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or

physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to

properly warm up.

11. Never operate the machine if the machine is not functioning properly.

12. The Maximum Weight Capacity is 250 lbs.

13. Read all warnings posted on the exercise bike.

14. Inspect the exercise bike for worn or loose component prior to use.

Tighten/replace any loose or wore components prior to use.

15. Care should be taken in mounting or dismounting the exercise bike.

16. This exercise bike is for consumer and home use only.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT

YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS

OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH

PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS

EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR

PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR

THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

3

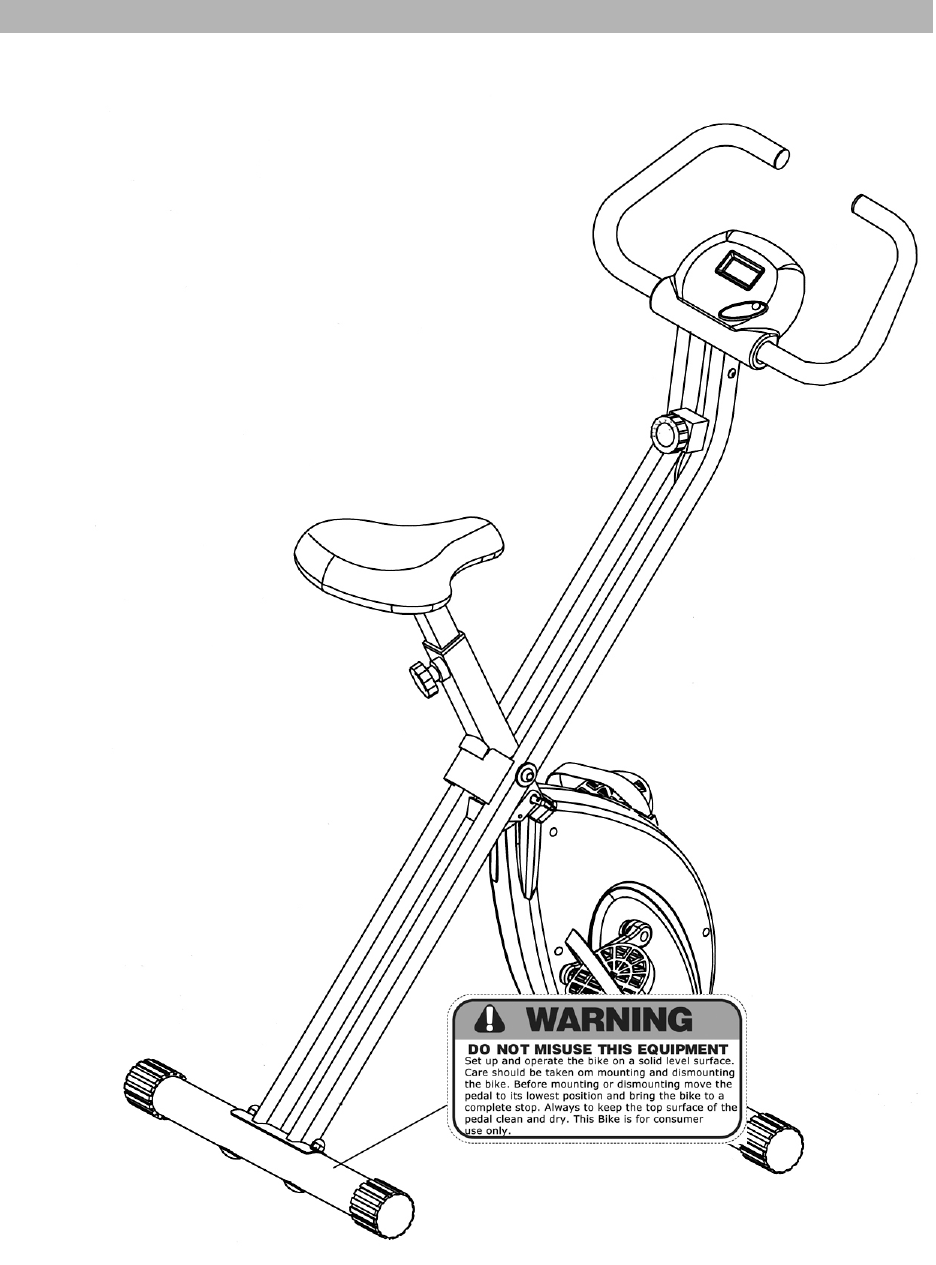

WARNING LABEL REPLACEMENT

The Warning Label shown here has been placed on the rear Stabilizer. If the label is missing or

illegible, please call customer service at 1-800-999-8899 for replacement. Apply the label in

location shown.

4

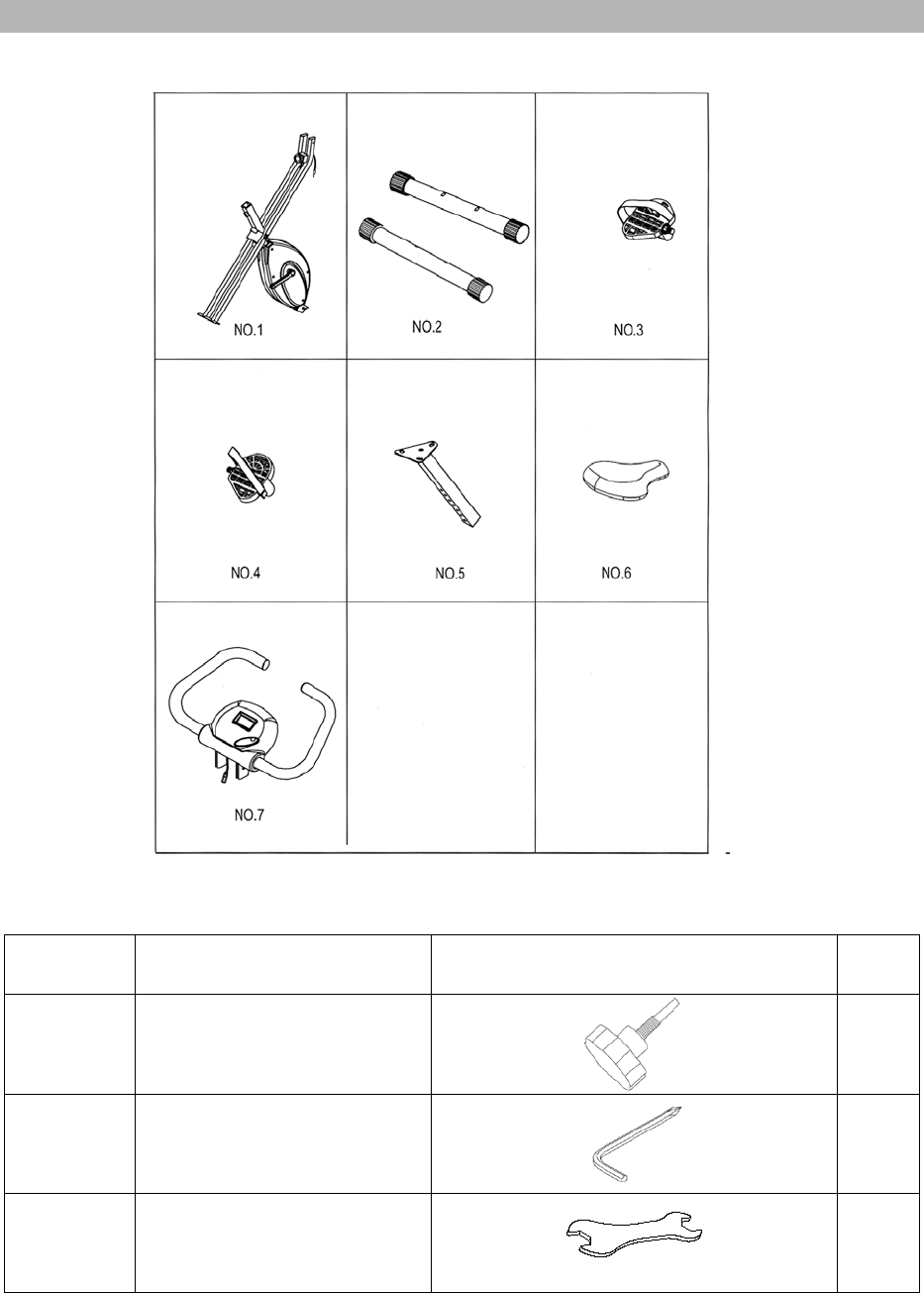

PRE-ASSEMBLY CHECK LIST

HARDWARE PACK

No. Description Identifier Q’ty

12 Adjustment knob

1

Allen Wrench

1

Crossing Wrench 1

Above hardware are all you need to assemble this machine. Before you start to assemble, please check the hardware

pack to make sure they are included.

5

ASSEMBLY INSTRUCTION

NOTE: It is strongly recommended that two or more people assemble this machine to

avoid possible injury.

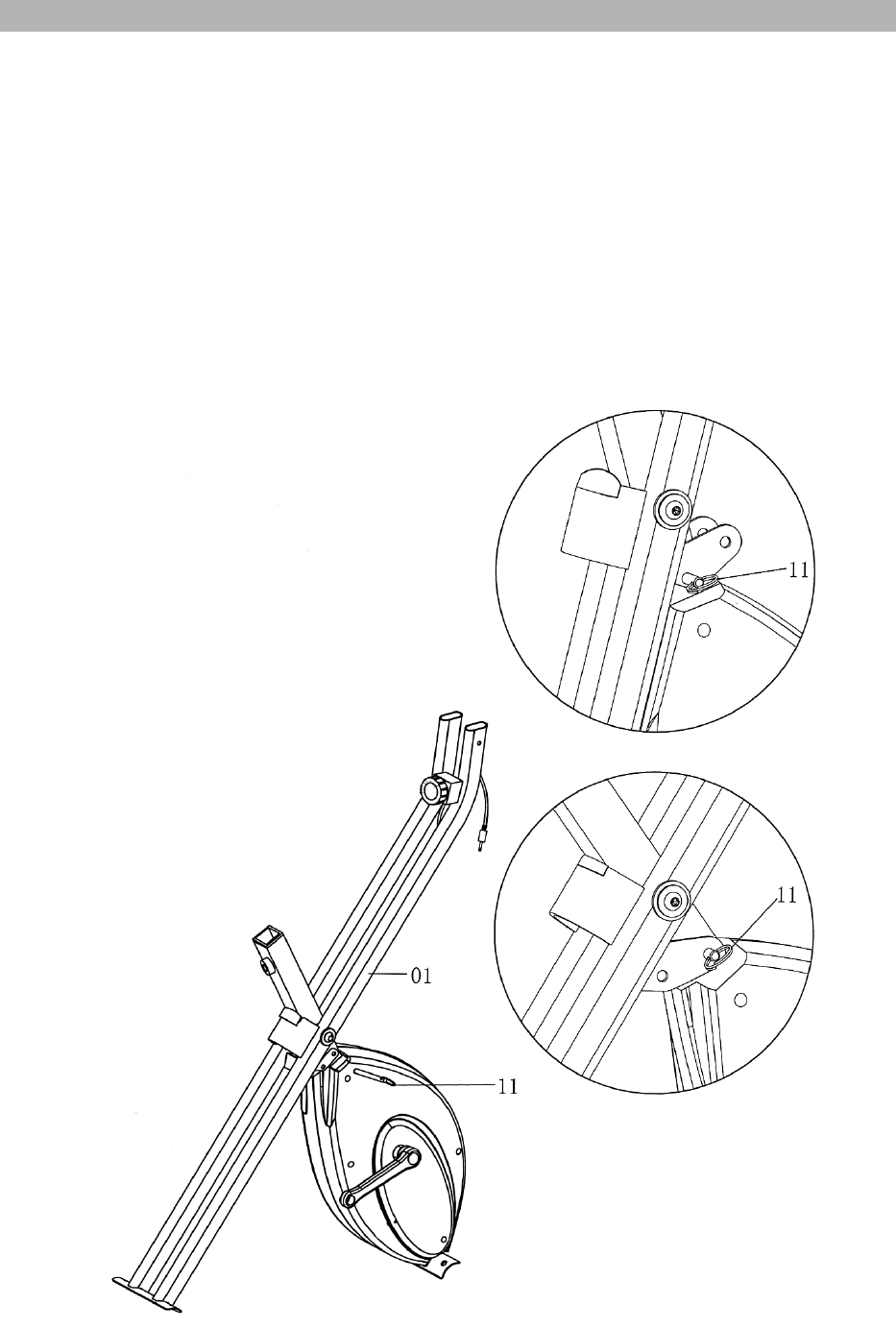

STEP 1 (See Diagram1)

A). Pull the Safety-Pin (#11) from the Main Frame (#1).

B.) Pull the upright frame and the seat post apart, and then insert back the Safety-Pin

to securely lock the Main Frame in X-position.

DIAGRAM 1

6

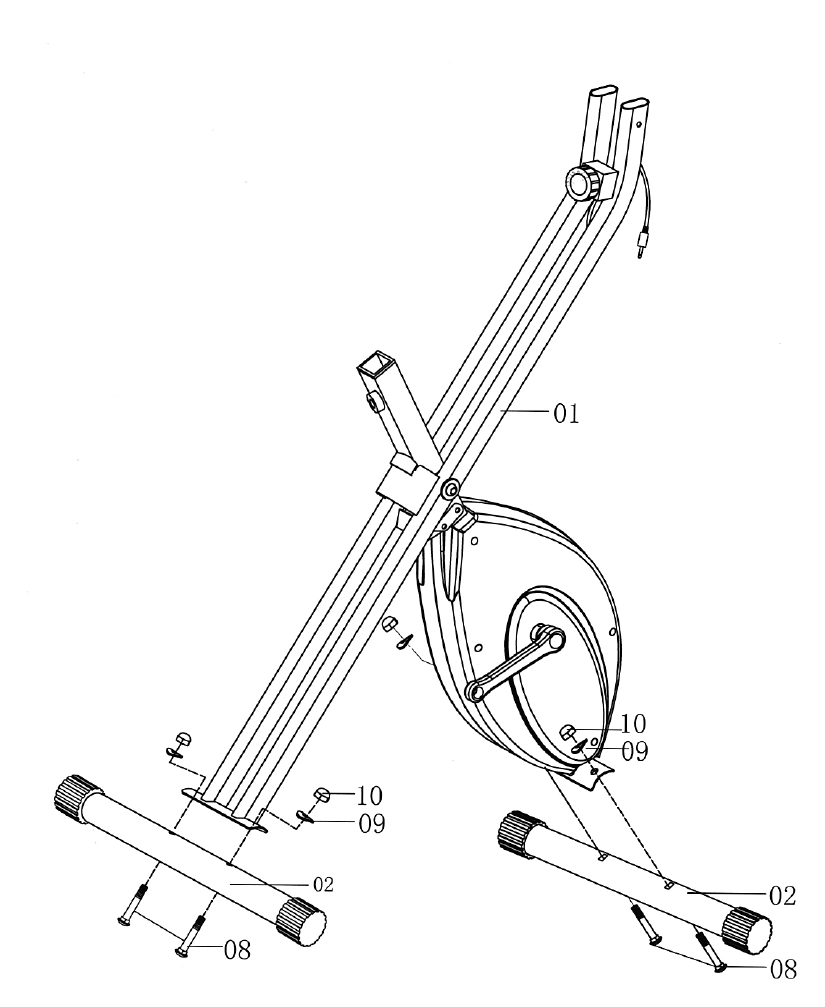

STEP 2 (See Diagram 2)

A.) Remove the two Carriage Bolts (#8), Curved Washers (#9), and Dome Nuts (#10)

from one of the Stabilizers (#2).

B.) Attach the Front Stabilizer to the front of Main Frame (#1). Secure it with the two

Carriage Bolts, Curved Washers, and Dome Nuts.

C.) Repeat Procedure B to install the other Stabilizer on rear.

DIAGRAM 2

7

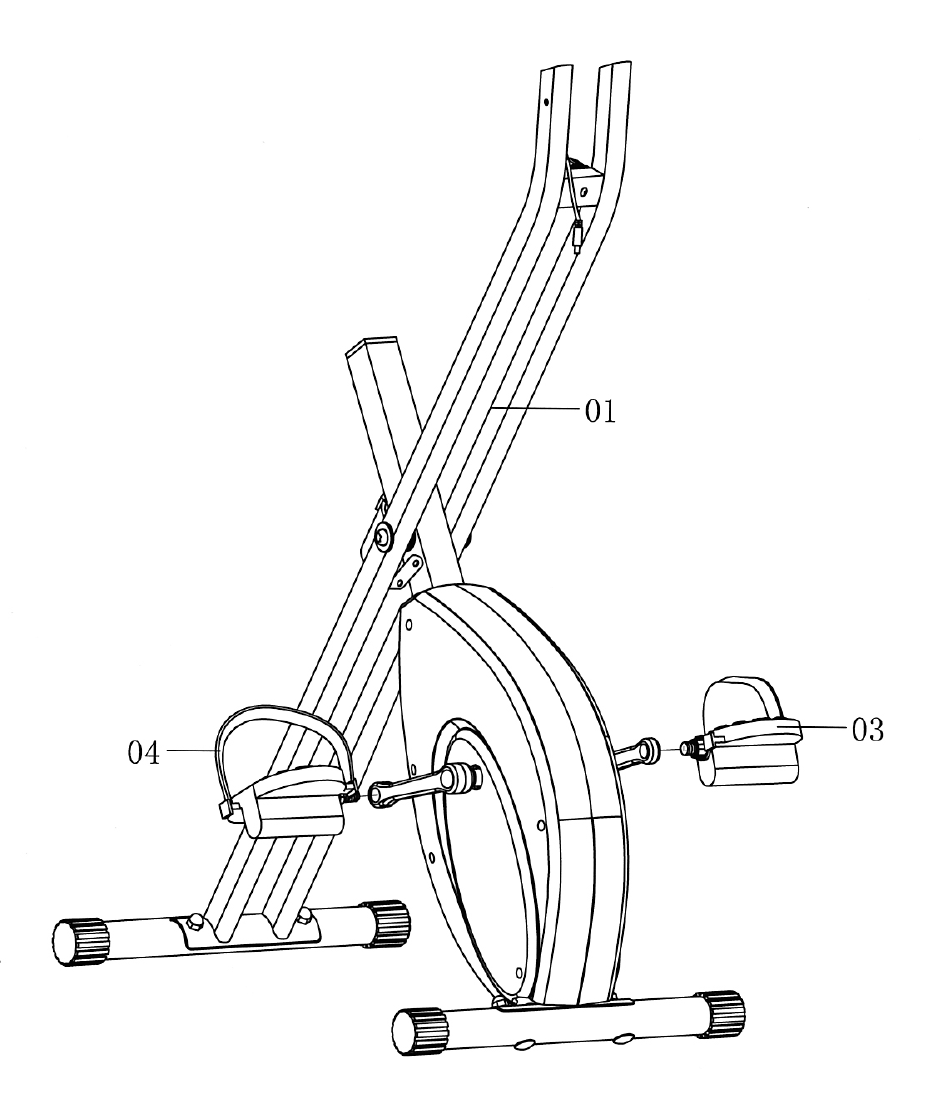

STEP 3 (See Diagram 3)

A.) Firmly thread the Left Pedal (marked “L) (#3) counterclockwise to the left crank.

B.) Firmly thread the Right Pedal (marked “R” (#4) clockwise to the right crank.

DIAGRAM 3

8

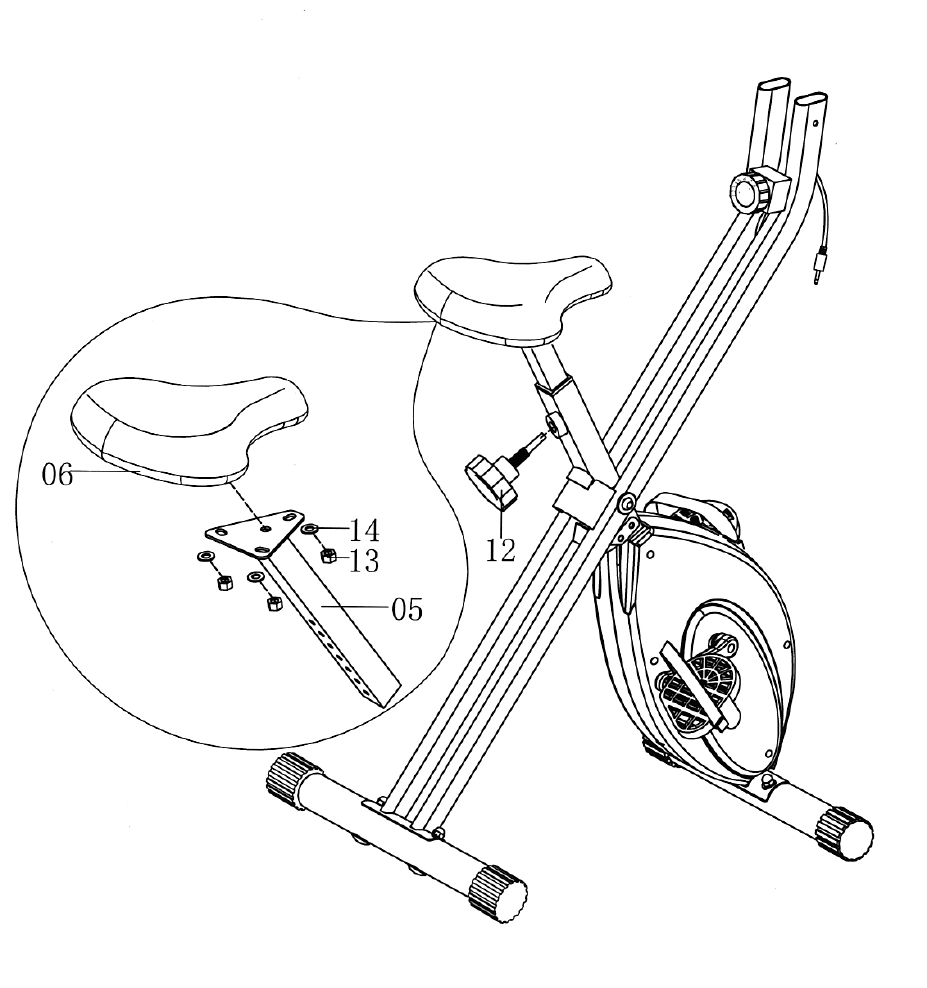

STEP 4 (See Diagram 4)

A.) Remove the three Nylon Nuts (#13) and three Flat Washers (#14) under the

Seat (#6).

B.) Attach the Seat to the Seat Post (#5). Secure it with the three Nylon Nuts (#13)

and three Flat Washers (#14).

C.) Insert the Seat Post into the opening on Main Frame. Use the Adjustment Knob

(#12) to lock the selected seat height in position.

D.) Seat height ranges from 33 ¼” to 36 ½”.

DIAGRAM 4

9

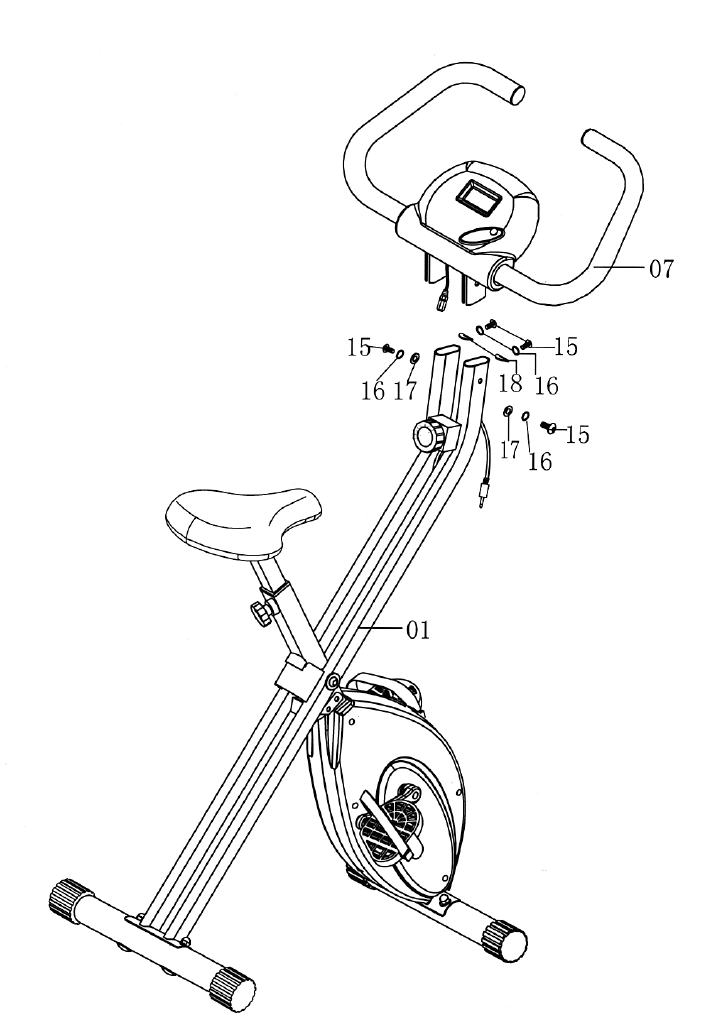

STEP 5 (See Diagram 5)

A.) Remove the four Allen Bolts (#15), four Spring Washers (#16), two Flat Washers

(#17), and two Curved Washers (#18) from the Handlebar (#7).

B.) Attach the Handlebar to the front post of Main Frame (#1). Secure it with two Allen

Bolts (#15), two Spring Washers (#16), and two Flat Washers (#17) from the sides.

Then secure it with two Allen Bolts (#15), two Spring Washers (#16), and two

Curved Washers (#18) from the back.

DIAGRAM 5

10

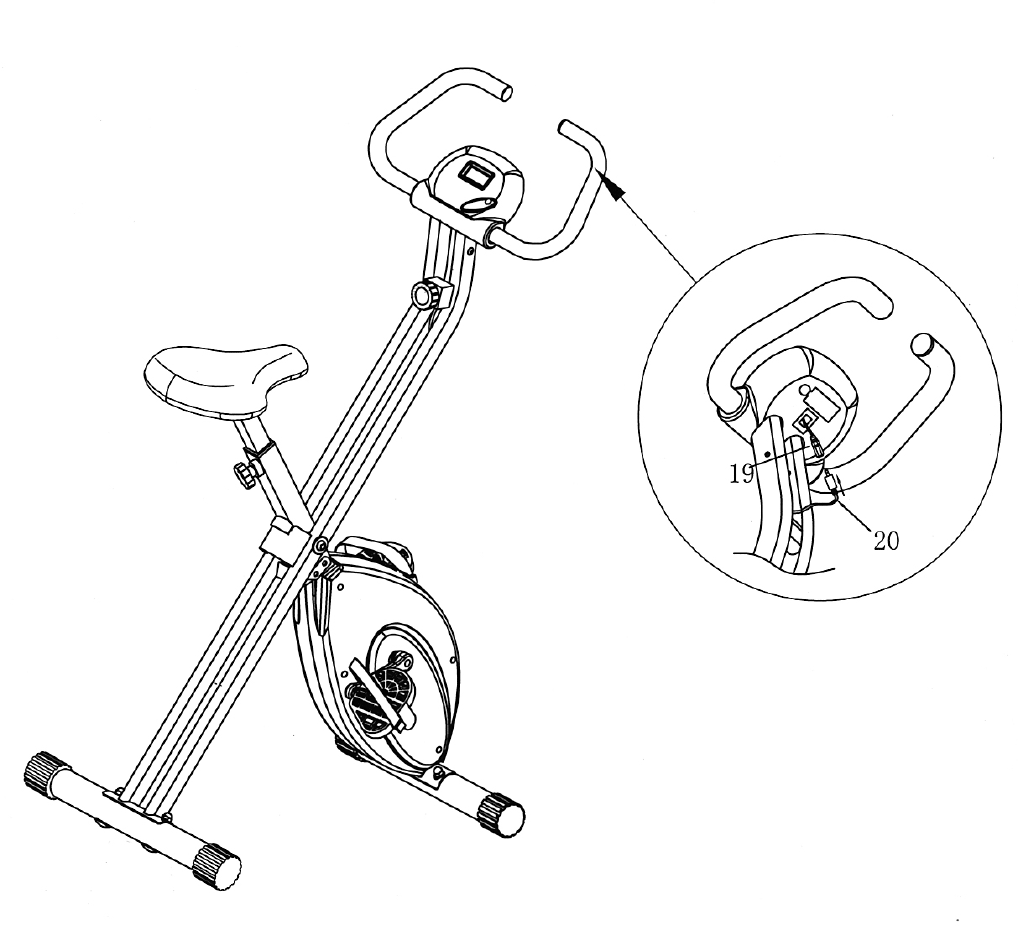

STEP 6 (See Diagram 6)

A.) Connect Sensor Wire (#20) from the front post of the Main Frame and connect to

the Computer wire (#19) from Computer.

DIAGRAM 6

11

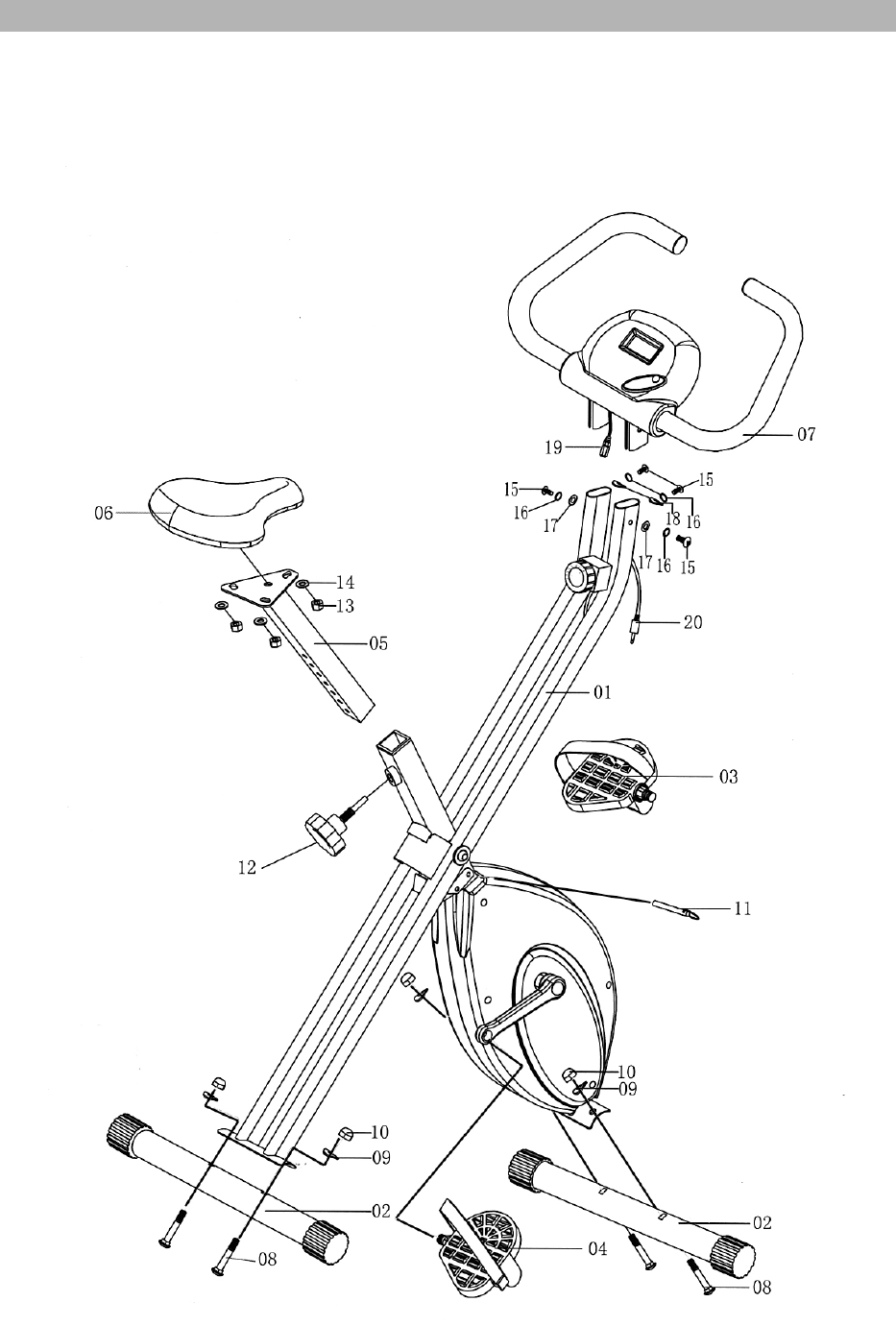

EXPLODED DIAGRAM

12

PARTS LIST

01

KEY NO. DESCRIPTION QUANTITY

Main frame 1

02 Stabilizer 2

03 Left pedal 1

04 Right Pedal 1

05 Seat post 1

06 Seat 1

07 Handlebar w/computer 1

08 Carriage bolt 4

09 Curve washer 4

10 Domed nut 4

11 Safety-pin 1

12 Adjustment knob 1

13 Nylon nut 3

14 Flat washer 3

15 Allen bolt 4

16 Spring washer 4

17 Flat washer 2

18 Curved washer 2

19 Computer wire 1

20 Sensor wire

1

Allen wrench 1

Crossing wrench 1

13

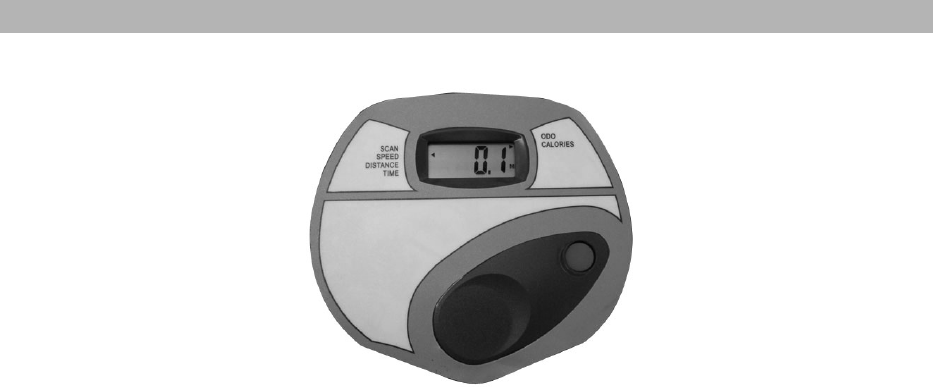

COMPUTER

AUTO START / STOP

When exercise starts, the monitor will automatically turn on and display the progress.

When exercise stops, the monitor will automatically turn off after 5 minutes to save

energy.

Press “MODE” key, will automatically scan Time, Speed, Distance, Calories, and ODO

for every 4 seconds.

The below data will display while pedaling.

Time Display the elapsed time. Max value is up to 99:59

Speed Display the current speed in miles per hour.

Distance Display the distance traveled in Miles. Max value is 99.99 miles.

Calories Display the calorie consumption in cal.

(ODO) Odometer Display the accumulation of distance from previous and current

exercises. Max value is 9999 miles.

REPLACE BATTERY:

1. Always purchase the correct size and grade of battery most suitable for the

intended use.

2. Replace all batteries of a set at the same time.

3. Clean the battery contacts and also those of the device prior to battery installation.

4. Ensure the batteries are installed correctly with regard to polarity (+ and -).

5. Remove batteries from equipment when not in use for extended periods of time.

6. Remove used batteries promptly.

7. The Computer requires two 1.5V (AAA) batteries. Batteries are not included in

packaging.

8. If the display is not clear or only partial segments appeared, remove the batteries

and wait for 15 seconds before re-install them.

9. The battery life is approx. 3 months under normal usage.

10. When the batteries are removed, all the functional values will reset to zero.

Note:

Please note all values on this computer are approximate and they are for

comparison purpose only. Do not use these values for any medical or

rehabilitation purpose.

14

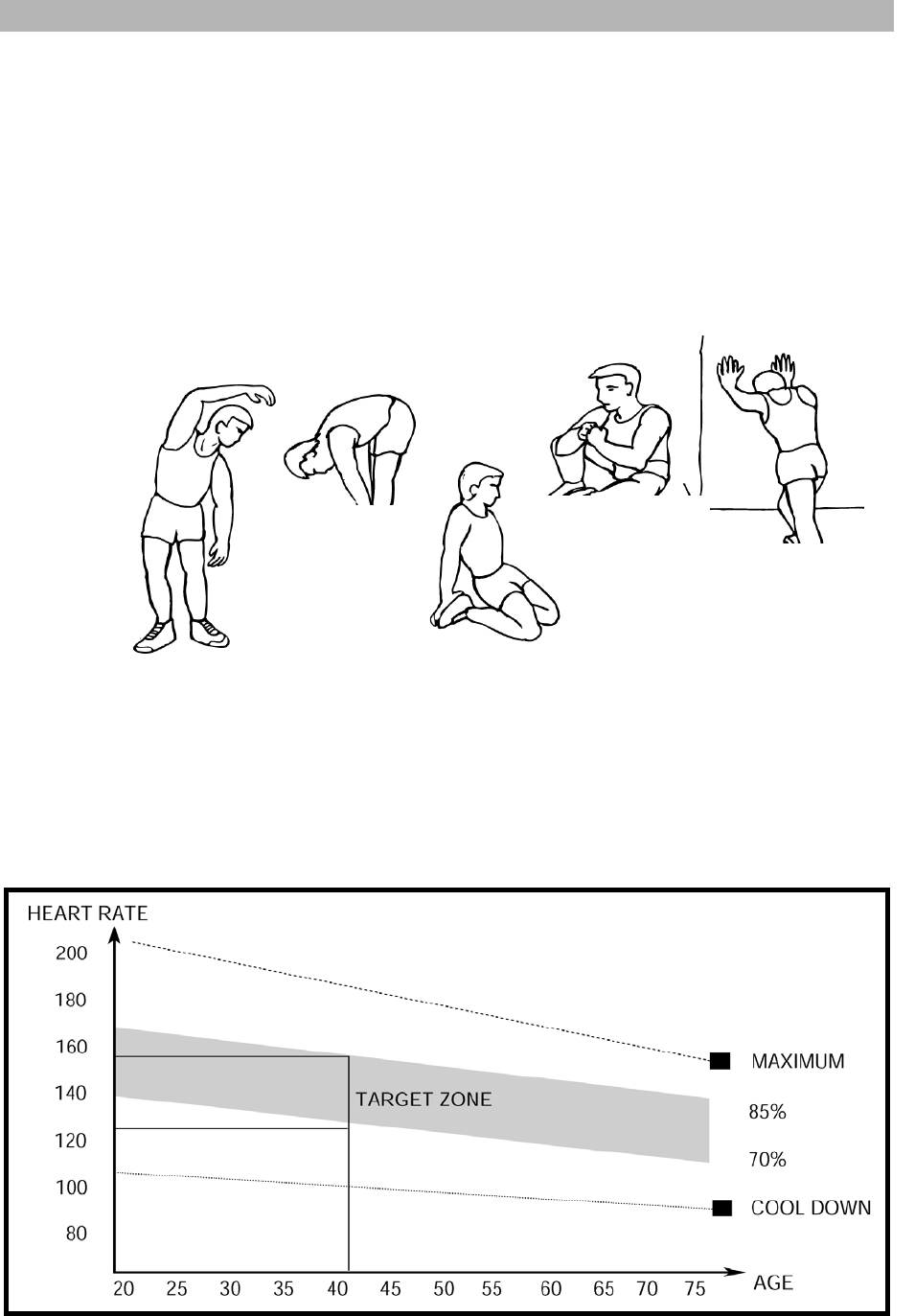

EXERCISE INSTRUCTIONS

Using your FOLDABLE BIKE

will provide you with several benefits, it will improve your

physical fitness, tone muscle and in conjunction with calorie controlled diet help you

lose weight.

1. The Warm Up Phase

This stage helps get the blood flowing around the body and the muscles working

properly. It will also reduce the risk of cramp and muscle injury. It is advisable to do a

few stretching exercises as shown below. Each stretch should be held for

approximately 30 seconds, do not force or jerk your muscles into a stretch - if it hurts,

STOP.

2. The Exercise Phase

This is the stage where you put the effort in. After regular use, the muscles in your legs

will become more flexible. Work to your but it is very important to maintain a steady

tempo throughout. The rate of work should be sufficient to raise your heartbeat into the

target zone shown on the graph below.

This stage should last for a minimum of 12 minutes though most people start at

about 15-20 minutes

SIDE BENDS OUTER THIGH

INNER THIGH

FORWARD

BENDS

CALF / ACHILLES

15

3. The Cool Down Phase

This stage is to let your Cardio-vascular System and muscles wind down. This is a

repeat of the warm up exercise e.g. reduce your tempo, continue for approximately 5

minutes. The stretching exercises should now be repeated, again remembering not to

force or jerk your muscles into the stretch.

As you get fitter you may need to train longer and harder. It is advisable to train at least

three times a week, and if possible space your workouts evenly throughout the week.

MUSCLE TONING

To tone muscle while on your FOLDABLE BIKE you will need to have the resistance

set quite high. This will put more strain on our leg muscles and may mean you cannot

train for as long as you would like. If you are also trying to improve your fitness you

need to alter your training program. You should train as normal during the warm up

and cool down phases, but towards the end of the exercise phase you should increase

resistance making your legs work harder. You will have to reduce your speed to keep

your heart rate in the target zone.

WEIGHT LOSS

The important factor here is the amount of effort you put in. The harder and

longer you work the more calories you will burn. Effectively this is the same as if

you were training to improve your fitness, the difference is the goal.

Operating Notes

1. Set up and operate the bike on a solid level surface.

2. Inspect and tighten all parts each time before using the bike. Replace any worn

parts immediately. Use parts only from manufacturer to maintain/repair the bike.

3. Inspect and test all features and functions before using the bike.

4. Review all warning notices before using the bike.

5. Electronic warning notices may be obtained by contacting customer support

(support@impex-fitness.com).

6. Allow minimum 20” of clear spaces in all directions to operate the bike.

7. Before mounting or dismounting move the pedal on the mounting or dismounting

side to its lowest position and bring the bike to a complete stop.

8. Do not attempt to stop the spinning pedal by feet abruptly. Gradually reduce the

speed of spinning pedal until it is completely stopped.

9. Pull out the Safety-pin, fold up the Main Frame from X position, insert back the

Safety-pin to lock the Main Frame in fold up position to transport.

10. Store the bike in dry and cool storage area when not in use.

16

IMPEX® INC.

LIMITED WARRANTY

IMPEX Inc. ("IMPEX®") warrants this product to be free from defects in workmanship and material, under

normal use and service conditions, for a period of two years on the Frame from the date of purchase.

This warranty extends only to the original purchaser. IMPEX's obligation under this Warranty is limited

to replacing or repairing, at IMPEX's option.

All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX

Customer Service Department at 1-800-999-8899. All freights for products return to IMPEX must be

prepaid by the customer. This warranty does not extend to any product or damage to a product caused

by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided

by an IMPEX authorized service center or for products used for commercial or rental purposes. No other

warranty beyond that specifically set forth above is authorized by IMPEX.

IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in

connection with the use or performance of the product or other damages with respect to any economic

loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation

or other consequential damages or whatsoever natures. Some states do not allow the exclusion or

limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of

merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth

herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the

above limitation may not apply to you.

This warranty gives you specific legal right. You may also have other rights which vary from state to

state. Register on-line www.impex-fitness.com

IMPEX® INC.

2801 S. Towne Ave, Pomona

Pomona, CA 91766

ORDERING REPLACEMENT PARTS

Replacement parts can be ordered by calling our Customer Service Department toll-free at 1-800-999-

8899 during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific standard time.

support@impex-fitness.com

When ordering replacement part, always give the following information.

1. Model

2. Description of Parts

3. Part Number

4. Date of Purchase
