OWNER'S
MANUAL
IRON GRIP STRENGTH
Standard Bench
TSA-5682
IMPEX INC.
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
TABLE OF CONTENTS
BEFORE YOU BEGIN...................................................................................... 1
IMPORTANT SAFETY NOTICE....................................................................... 2
HARDWARE IDENTIFIER.....…....................................................................... 4
ASSEMBLY INSTRUCTIONS........................................................................... 6

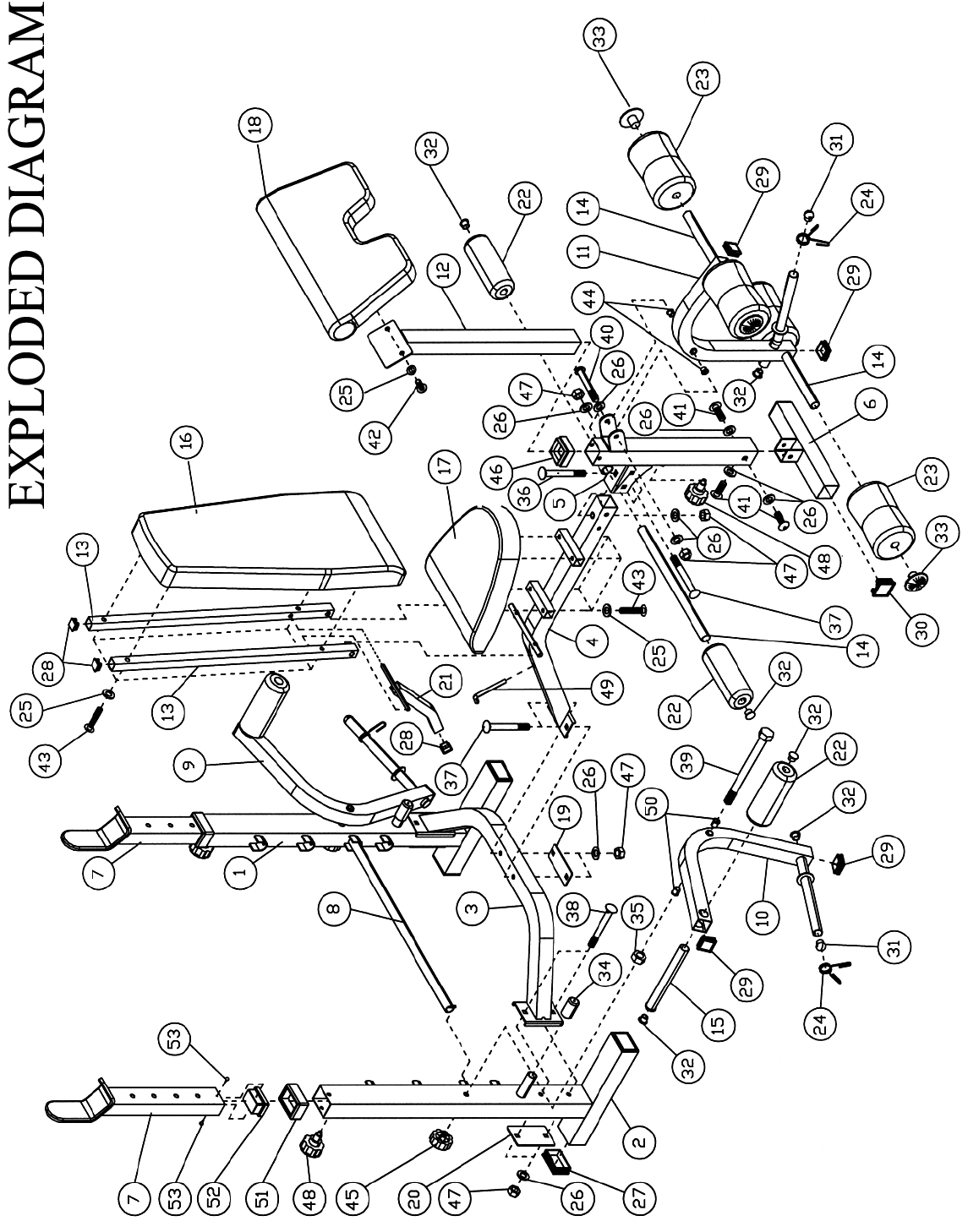

EXPLODED DIAGRAM.........................................................................……... 11
PARTS LIST…………………………………………………………………………. 12
WARRANTY.................................................................................................… 13
ORDERING PARTS......................................................................................... 13
BEFORE YOU BEGIN
Thank you for selecting the IRON GRIP STRENGTH Standard Bench TSA-
5682 by IMPEX INC. For your safety and benefit, read this manual carefully
before using the machine. As a manufacturer, we are committed to provide
you complete customer satisfaction. If you have any questions, or find there
are missing or damaged parts, we guarantee you complete satisfaction
through direct assistance from our factory. To avoid unnecessary delays,
please call our TOLL-FREE customer service number. Our Customer
Service Agents will provide immediate assistance to you.
1
Toll-Free Customer Service Number
1-800-999-8899
Mon. - Fri. 9 a.m. - 5 p.m. PST
www.impex-fitness.com
info@impex-fitness.com
IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
12. A spotter is recommended during exercise.
CARE AND MAINTENANCE
1. Inspect and tighten all parts before using the machine.
2. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.
3. Maximum weight capacity 300 lbs.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.
ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE
SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS. 2

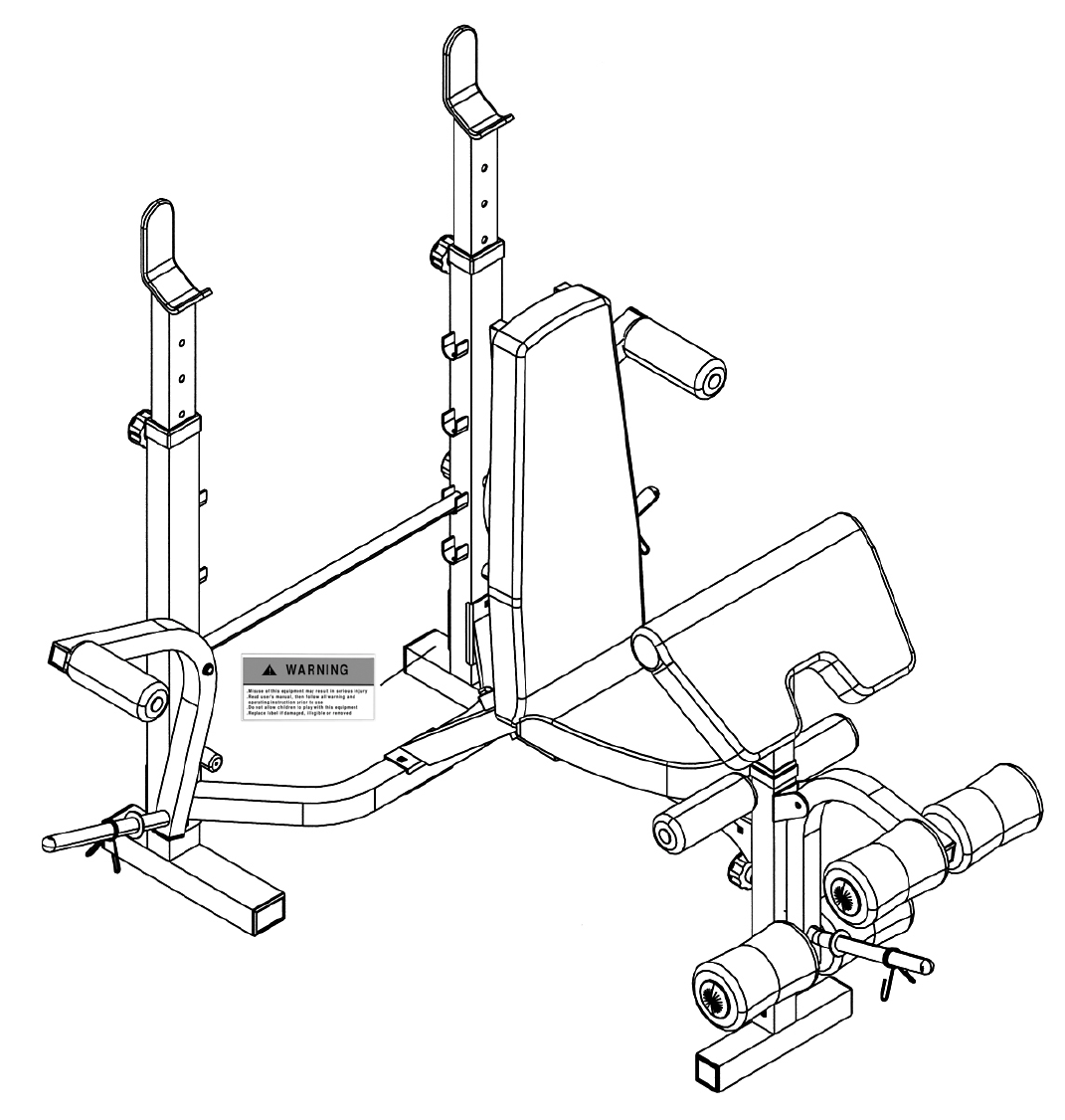

WARNING LABEL PLACEMENT
The Warning Label shown here has been placed on the Cross Brace. If the label is missing or illegible, please
call customer service at 1-800-999-8899 for replacement. Apply the label in location shown.
3

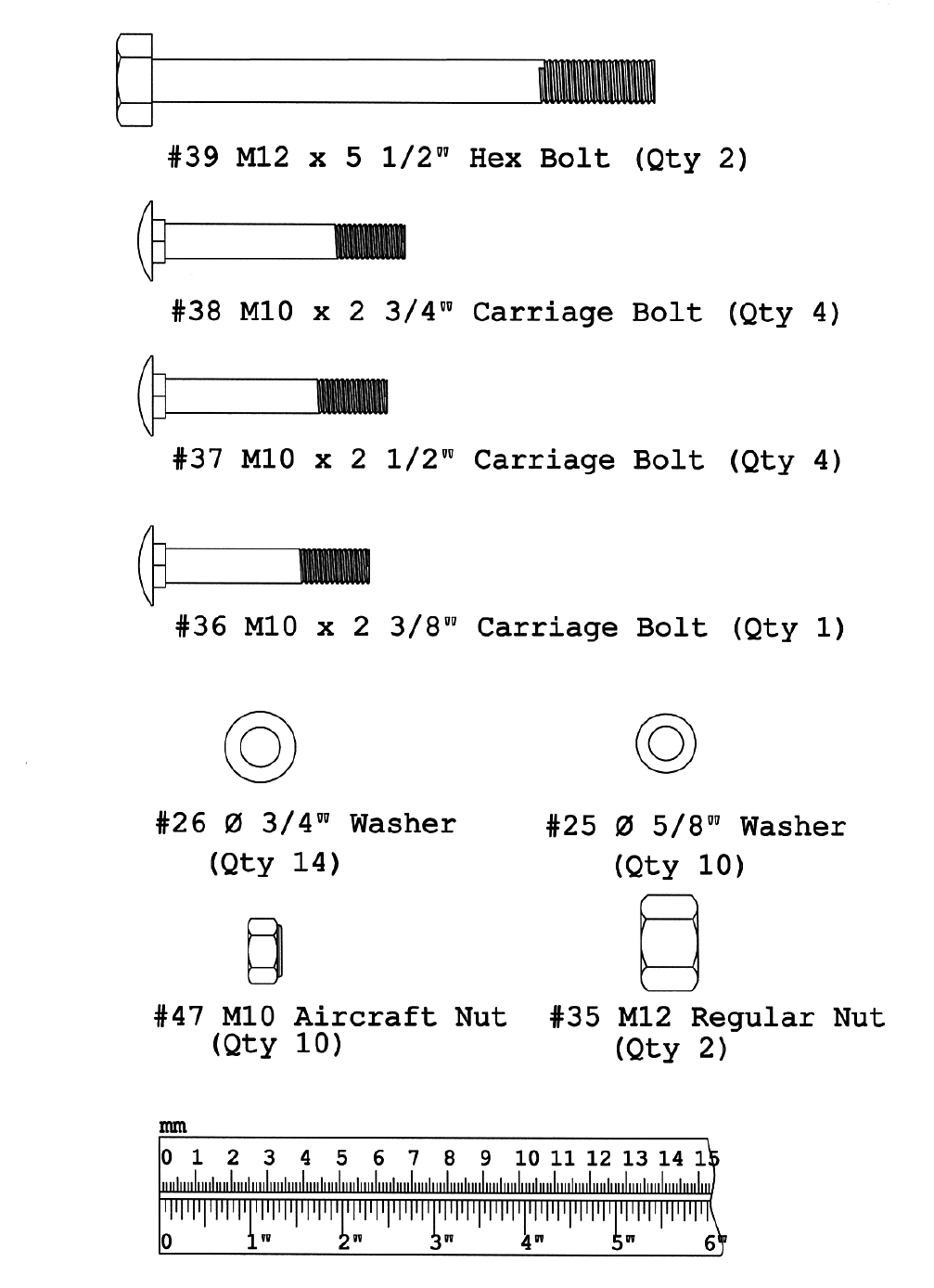

HARDWARE PACK
4

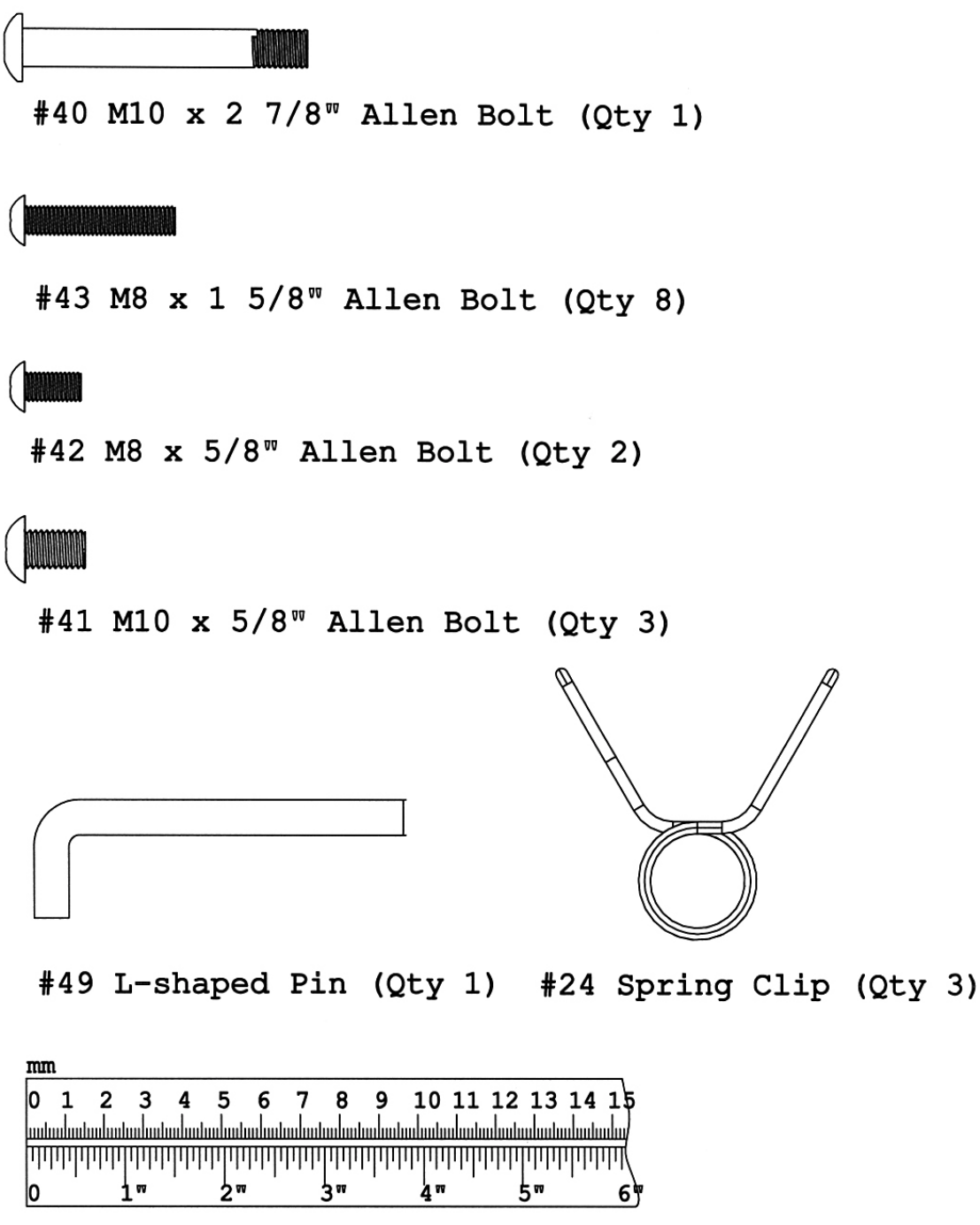

HARDWARE PACK
5
ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches. NOTE: It is strongly recommended two or more people assembling this
machine to avoid possible injury.

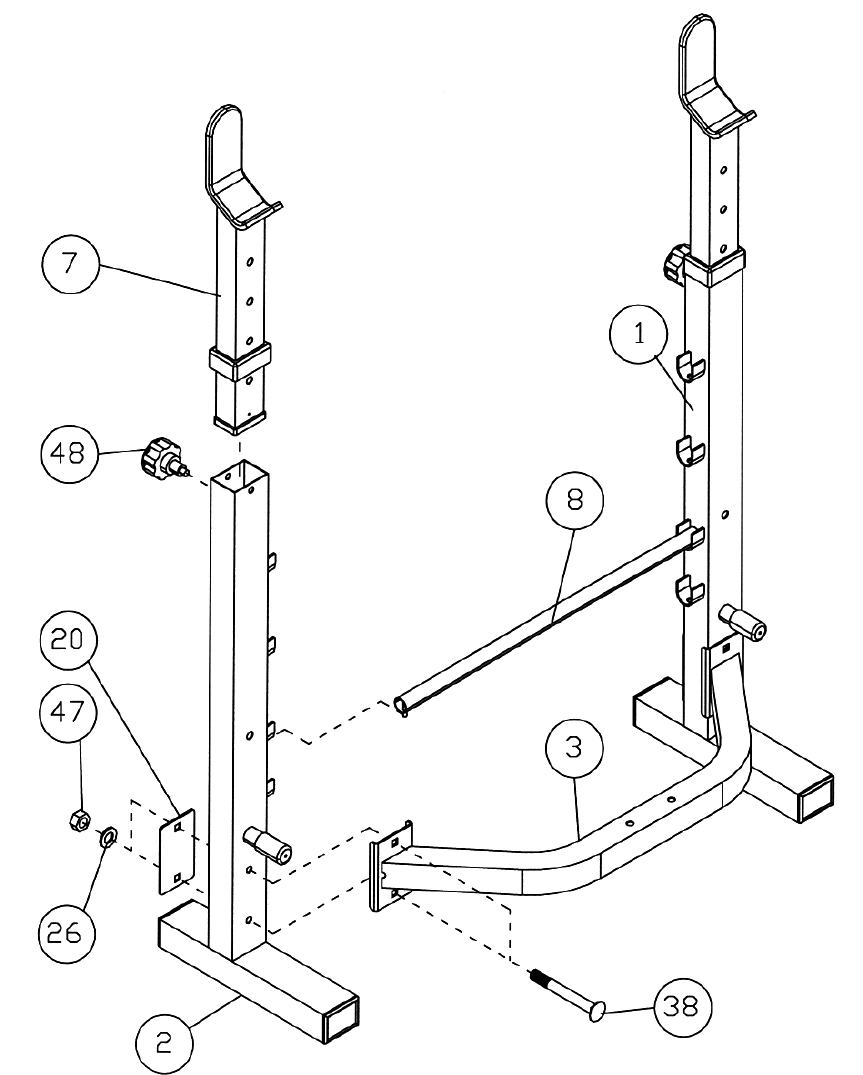

STEP 1 (See Diagram 1)
A.) Connect the Left & Right Upright Beams (#1 & 2) by a Cross Brace (#3) in the mid-span.
Align the holes and secure each end of the Cross Brace with one 4 ¾” x 2 ¾” Bracket
(#20), two M10 x 2 ¾” Carriage Bolts (#38), two ∅ ¾” Washers (#26), and M10 Aircraft
Nuts (#47).
B.) Place Backrest Adjustment Bar (#8) between the two Upright Beams.
C.) Insert two Crutches (#7) into the top openings on the Upright Beams. Secure them with two
M18 Lock Knobs (#48) through selected holes to obtain desired height of the Supports.
6

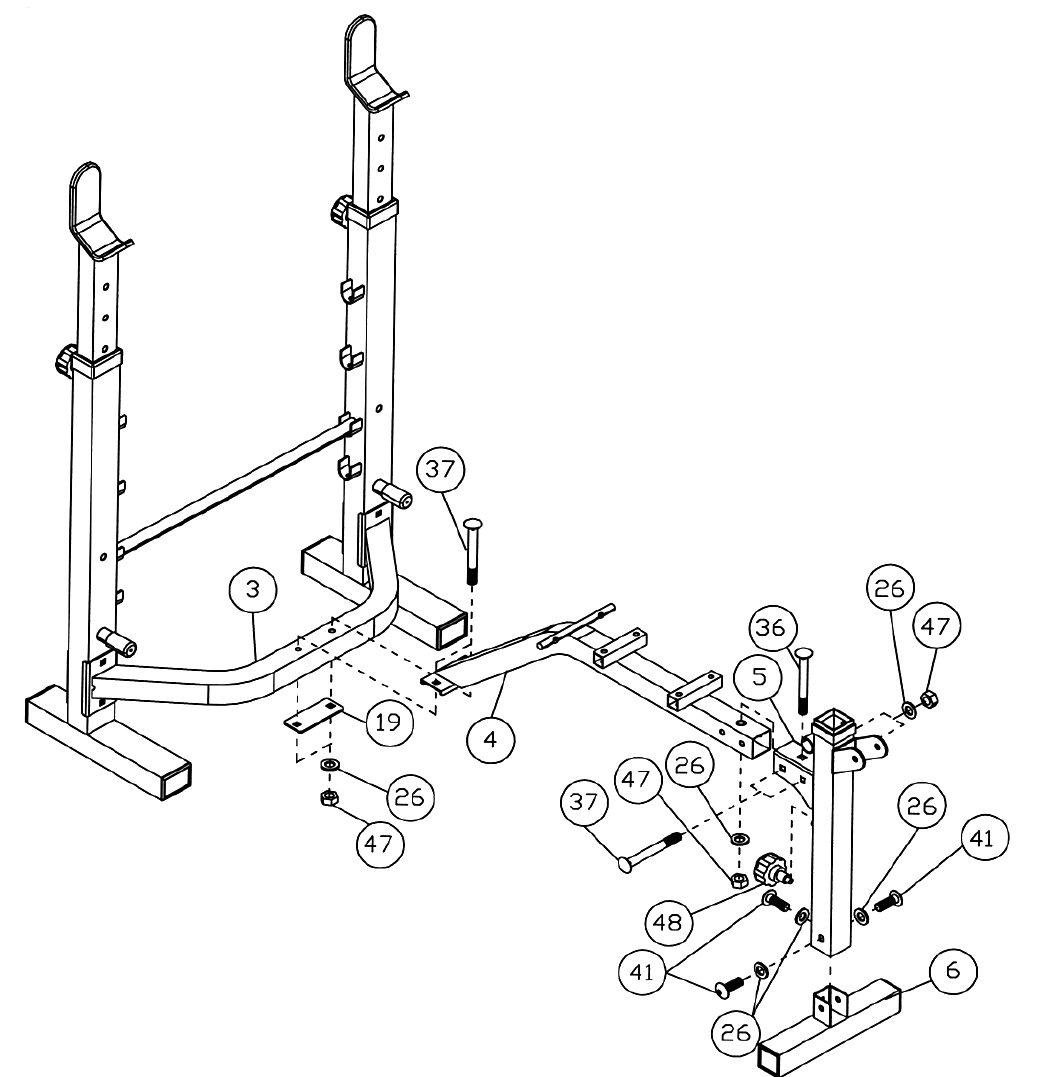

STEP 2 (See Diagram 2)
A.) Attach Main Seat Support (#4) to the Cross Brace (#3). Secure it with a 4 3/8” x 1 ¾”
Bracket (#19), two M10 x 2 ¾” Carriage Bolts (#37), two ∅ ¾” Washers (#26), and two
M10 Aircraft Nuts (#47).
B.) Attach the Leg Developer Holder (#5) to the Front Stabilizer (#6). Secure it with three
M10 x 5/8” Allen Bolts (#41) and Ø ¾” Washers (#26).
C.) Attach the Leg Developer Holder to the Main Seat Support. Secure it with two M10 x 2
½” Carriage Bolts (#37), two ∅ ¾” Washers (#26), and M10 Aircraft Nuts (#43)
horizontally. Secure it with one M10 x 2 3/8” Carriage Bolt (#36), Ø ¾” Washer (#26)
and M10 Aircraft Nut (#47) vertically.
D.) Thread a M18 Lock Knob (#48) into the hole on the Leg Developer Holder.
DIAGRAM 2
7

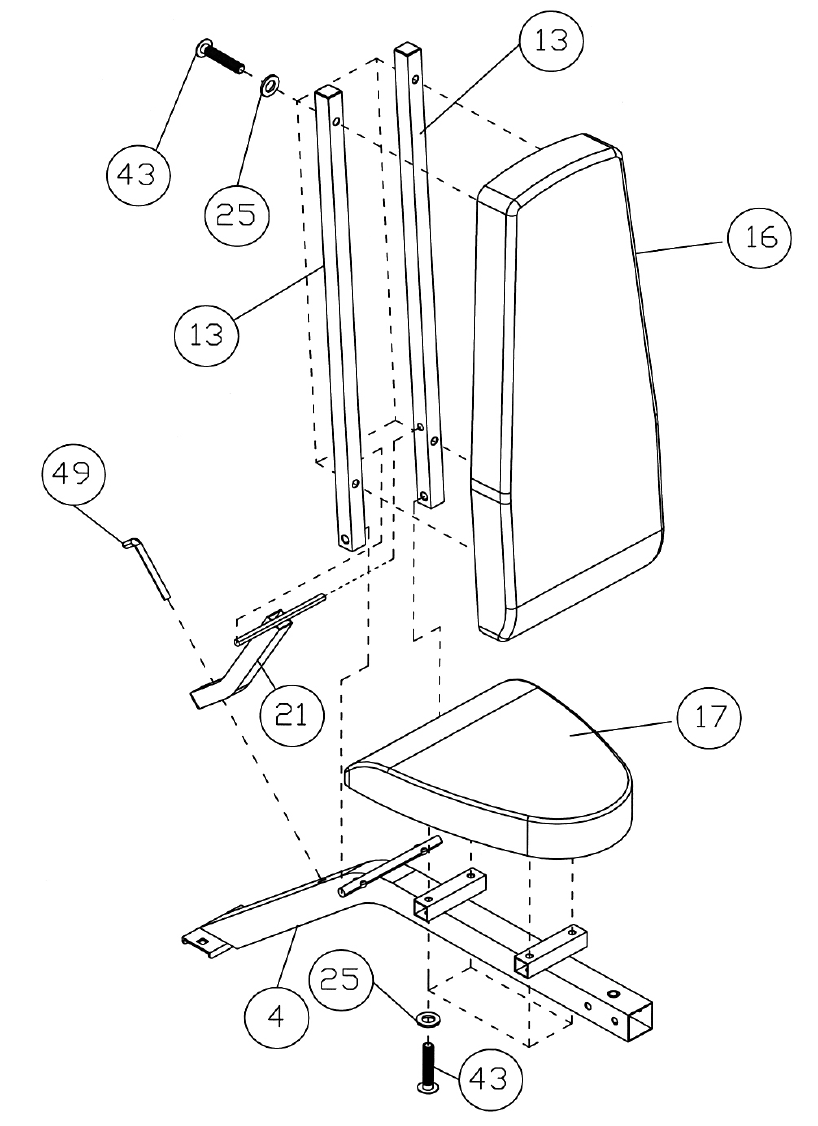

STEP 3 (See Diagram 3)
A.) Attach the Backrest Incline Support (#21) in between the two Backrest Supports (#13). Attach
the lower side-holes on the Backrest Supports to the pivot on the Main Seat Support (#4).
B.) Place the Backrest Board (#16) onto the Backrest Supports. Secure it with four M8 x 1 5/8”
Allen Bolts (#43) and Ø 5/8” Washers (#25).
C.) Place the Seat (#17) onto the Main Seat Support. Secure it with four M8 x 1 5/8” Allen Bolts
(#43) and Ø 5/8” Washers (#25).
D.) When using the Squat from the rear of the bench, lift up the Backrest Board to a near vertical
position and secure it with a L-shaped Pin (#49) into the open slot on the Main Seat Support.
The only purpose of the Backrest Incline Support and the Pin is to get the Backrest Board out
of the way while doing the squat exercise. They are not designed to support any weight or
perform any exercise.
8

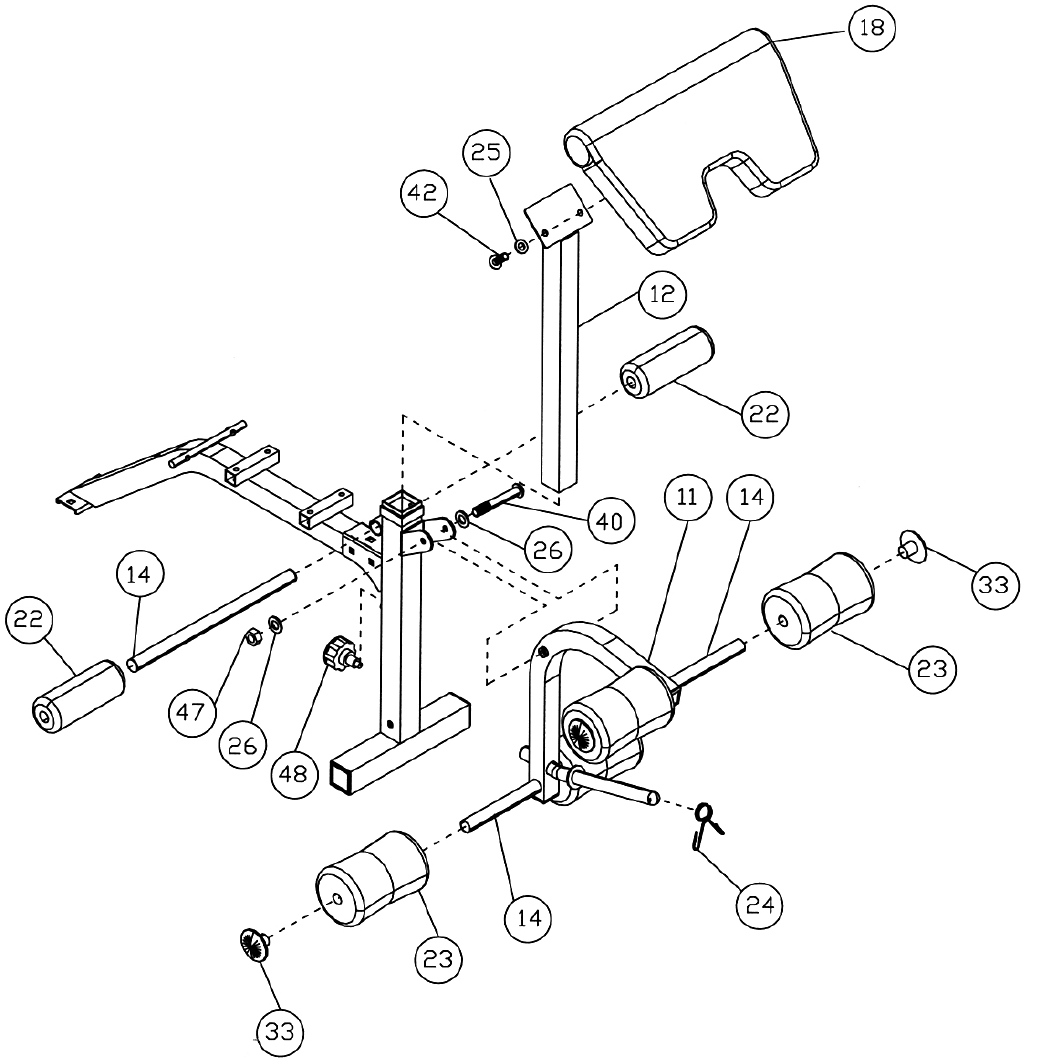

STEP 4 (See Diagram 4)
A.) Attach the Leg Developer (#11) to the Leg Developer Holder. Secure it with one M10
x 2 7/8” Allen Bolt (#40), two Ø ¾” Washers (#26), and one M10 Aircraft Nut (#47).
B.) Insert one Foam Tube (#14) halfway through the hole on the Leg Developer Holder.
Push two Ø 2 ¾” Foam Rolls (#22) onto the Tube from both ends.
C.) Insert two Foam Tubes halfway through the holes on the Leg Developer. Push four Ø
4” Foam Rolls (#23) onto the Tubes from both ends. Insert four Foam Roll End Caps
(#33) into the ends.
D.) Attach the Arm Curl Pad (#18) to the Arm Curl Stand (#12). Secure it with two M8 x
5/8” Allen Bolts (#42) and Ø 5/8” Washers (#25).
E.) Pull the M18 Lock Knob (#48) and insert the Arm Curl Stand into the opening on the
Leg Developer Holder. Remove the Arm Curl Stand when doing leg exercises.
F.) Attach a Spring Clip (#24) to the weight post on the Leg Developer.
DIAGRAM 4
9

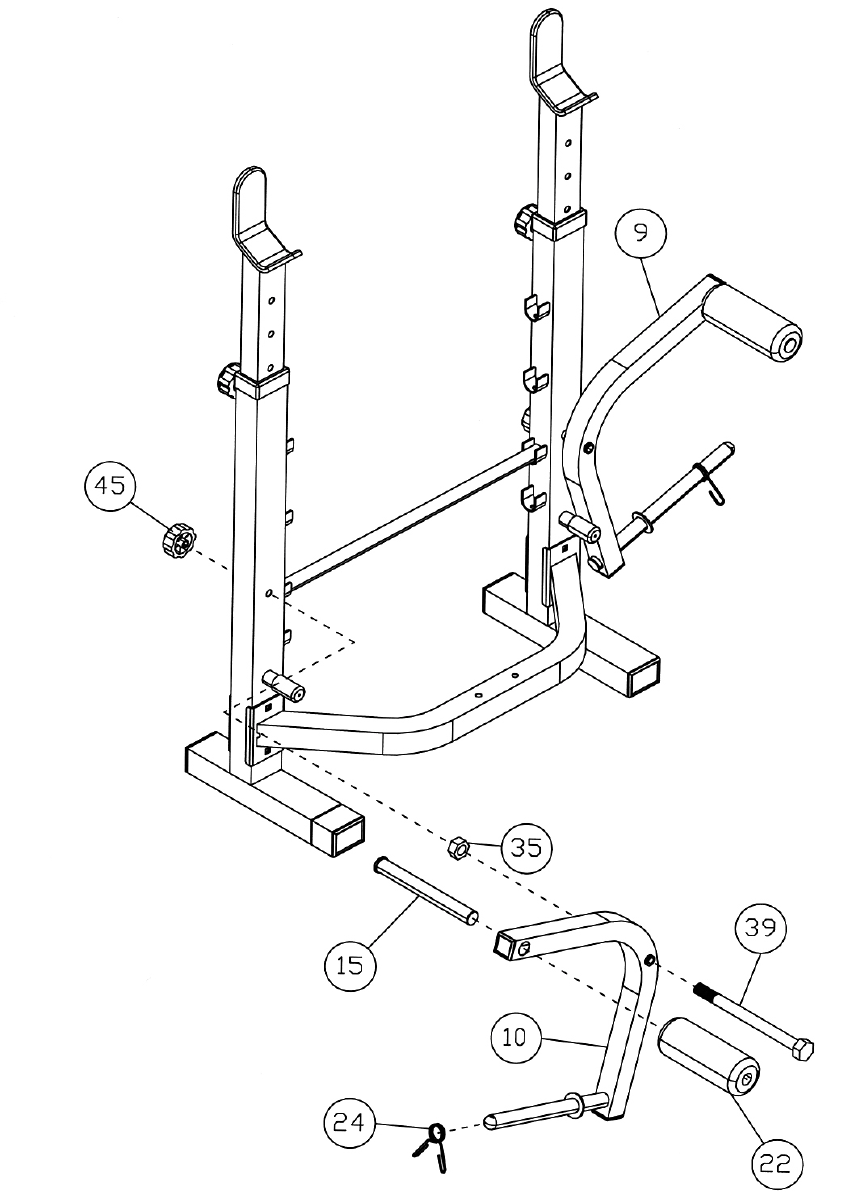

STEP 5 (See Diagram 5)
A.) Insert a M12 x 5 ½” Hex Bolt (#39) through the Right Butterfly (#10). Secure the Bolt
with a M12 Regular Nut (#53). Insert the Bolt through the hole on the Right Upright
Beam and secure it with a M12 Knob (#45).
B.) Insert a Butterfly Handle (#15) through the hole on the Right Butterfly from the rear.
Push a Ø 2 ¾” Foam Roll (#22) onto the Handle.
C.) Attach a Spring Clip (#24) to the weight post on the Butterfly.
D.) Repeat Procedures A, B & C above to install the Left Butterfly (#9). DIAGRAM 5
10
11
PARTS LIST
KEY NO. DESCRIPTION Q’ty
1 Left Upright Beam 1
2 Right Upright Beam 1
3 Cross Brace 1
4 Main Seat Support 1
5 Leg Developer Holder 1
6 Front Stabilizer 1
7 Crutch 2
8 Backrest Adjustment Bar 1
9 Left Butterfly 1
10 Right Butterfly 1
11 Leg Developer 1
12 Arm Curl Stand 1
13 Backrest Support 2
14 Foam Tube 3
15 Butterfly Handle 2
16 Backrest Board 1
17 Seat 1
18 Arm Curl Pad 1
19 4 3/8” x 1 ¾” Bracket 1
20 4 ¾” x 2 ¾” Bracket 2
21 Backrest Incline Support 1
22 Ø 2 ¾” Foam Roll 4
23 Ø 4” Foam Roll 4
24 Spring Clip 3
25 Ø 5/8” Washer 10
26 ∅ ¾” Washer 14
27 2 ¾” x 2” End Cap 4
28 1” Square End Cap 3
29 1 ½” Square End Cap 6
30 2” Square End Cap 2
31 Ø 1” Cone-shaped End Cap 3
32 Ø 1” End Cap 9
33 Foam Roll End Cap 4
34 Rubber Bumper 2
35 M12 Regular Nut 2
36 M10 x 2 3/8” Carriage Bolt 1
37 M10 x 2 ½” Carriage Bolt 4
38 M10 x 2 ¾” Carriage Bolt 4
39 M12 x 5 ½” Hex Bolt 2
40 M10 x 2 7/8” Allen Bolt 1
41 M10 x 5/8” Allen Bolt 3
42 M8 5/8” Allen Bolt 2
43 M8 x 1 5/8” Allen Bolt 8
44 Bushing 2
45 M12 Lock Knob 2
46 2” x 2” Sleeve 1
47 M10 Aircraft Nut 10
48 M18 Lock Knob 3
49 L-shaped Pin 1
50 Butterfly Bushing 4
51 Upright Beam Sleeve 2
52 Inner Cap 2
53 Philip Screw 4
12
IMPEX INC.
LIMITED WARRANTY
IMPEX Inc. ("IMPEX") warrants this product to be free from defects in workmanship and material, under
normal use and service conditions, for a period of two years on the Frame from the date of purchase. This
warranty extends only to the original purchaser. IMPEX's obligation under this Warranty is limited to replacing
or repairing, at IMPEX's option.
All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX Customer
Service Department at 1-800-999-8899. All freights on products returned to IMPEX must be prepaid by the
customer. This warranty does not extend to any product or damage to a product caused by or attributable to
freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an IMPEX authorized
service center or for products used for commercial or rental purposes. No other warranty beyond that
specifically set forth above is authorized by IMPEX.
IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in
connection with the use or performance of the product or other damages with respect to any economic loss,
loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other
consequential damages or whatsoever natures. Some states do not allow the exclusion or limitation of
incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal right. You may also have other rights which vary from state to state.
Register on-line at www.impex-fitness.com
IMPEX INC.
14777 Don Julian
City of Industry, CA 91746
ORDERING REPLACEMENT PARTS
Replacement parts can be ordered by calling our Customer Service Department toll-free at 1-800-999-8899
during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific standard time.
info@impex-fitness.com
When ordering replacement parts, always give the following information.
1. Model
2. Description of Parts
3. Part Number
4. Date of Purchase
13
