Antenna Info

The Times-7 industry leading ultra-low profile design is now available in a compact 250 mm / approx.10 in.
square footprint. IP67 rated for permanent outdoor use and built to Times-7’s high standard for quality and
robustness, the circularly polarized A5010 creates a new benchmark for multi-purpose UHF RFID
antennas.
ABO UT TIMES-7
Pushing the boundaries of RFID
technology worldwide Times-7 are
leaders in RFID antenna design and
manufacture. Our patented award
winning UHF antennas meet the needs
of virtually any industry application;
providing customers with fast accurate
tracking of products, assets & people;
empowering organizations to transform
processes & reduce costs.
Our SlimLine range of antennas are
unique in the RFID industry; offering
high levels of performance & durability
in an aesthetically superior form.
Proven in a diverse & growing range of
markets, applications include: retail &
customer interaction, conference &
people tracking, race timing, baggage
handling, and logistic & supply chain
asset management.
Times-7 Research Ltd
29 Railway Avenue
Lower Hutt 5010
New Zealand
NEW ZEALAND
P: +64 4 974 6566
USA/CANADA
P: +1 408 769 5025
E: info@times-7.com
www.times-7.com

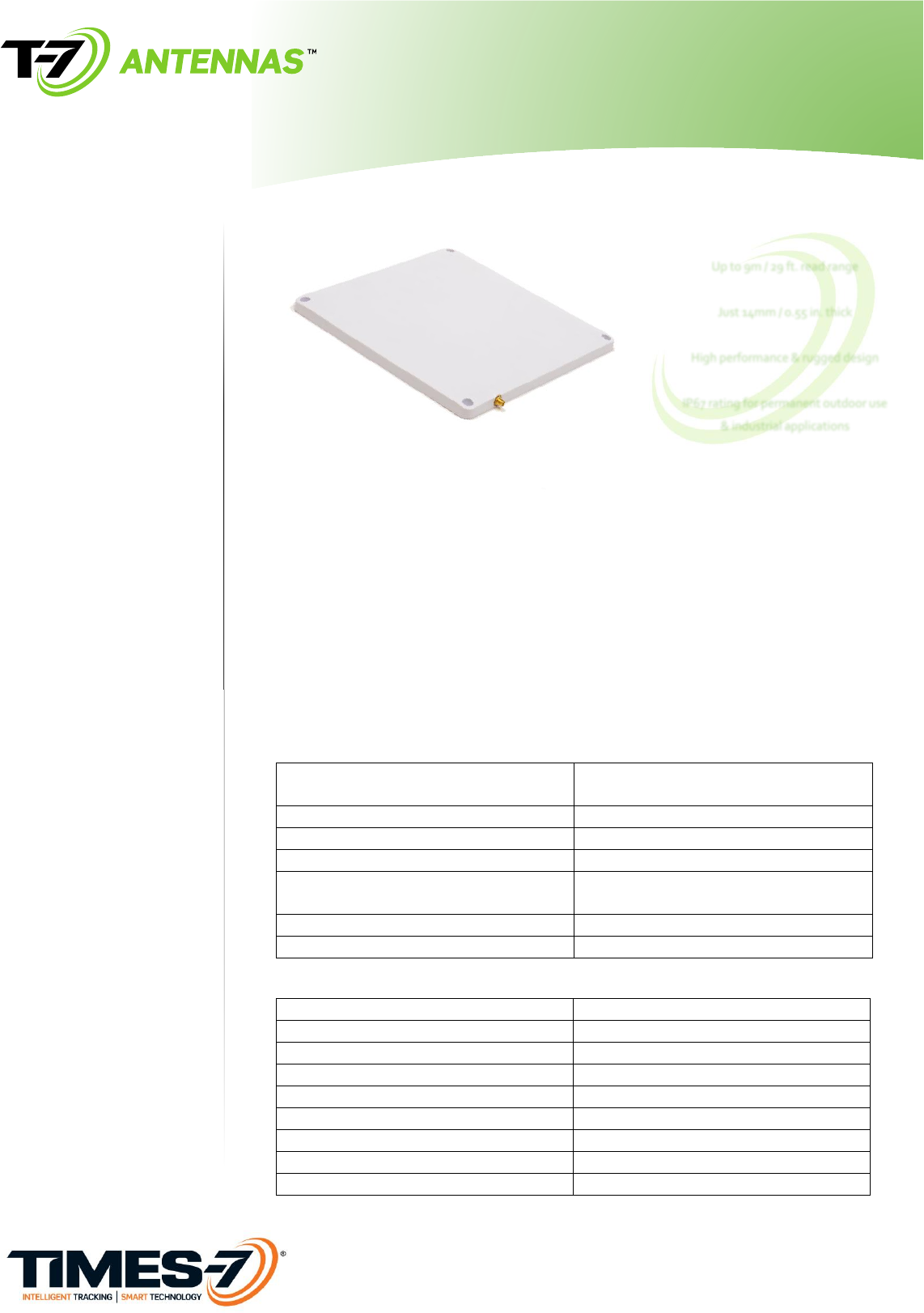

The SlimLine A5010
Dimensions (L x W x D):
250 mm x 250 mm x 14 mm
9.85 “ x 9.85 “ x 0.55 “
Weight:
0.75 kg / 1.6 lbs.
Radome Material:
UV-Resistant ABS
Environmental Rating:
IP67 (with IP67 cable)
Operating / Storage Temperature:
-20° to +55°C / -30° to +65°C
-4° to +131°F / -22° to +149°F
Mounting:
Flush or VESA mount
Connector type / position:
SMA female side connector
Frequency Range:
865-868 MHz / 902-928 MHz
Polarization:
RH Circular
Far-field Gain:
8.5 dBiC Typical
Far-field 3 dB beamwidth:
68 in both planes
Typical VSWR across frequency range:
1.3
Front to back ratio:
20 dB
Axial Ratio:
1 dB typical ; 2 dB Max
Nominal Impedance:
50 Ω
Anti-static protection:
DC Grounded
Specifications:
Up to 9m / 29 ft. read range
Just 14mm / 0.55 in. thick
High performance & rugged design
IP67 rating for permanent outdoor use
& industrial applications
Test
Standard
Duration
Temperature
Notes
Low Temperature
IEC 68-2-1
72 Hrs
-55° C
Thermal Shock (non op)
1 Hr
-45 / 70° C
3 cycles
Humidity
72 Hrs
85° C RH
Dust Resistance
IEC 60529
8 Hrs
with vacuum
Solar Radiation
4 Days
340 nm
Impact Resistance
1 lb ball drop at 24'' X 6
(top/bottom/sides)
Salt Fog
Mil-Std-810G
24 Hrs in-24 Hrs out
2 cycles
Vibration Vehicle
Mil-Std-810G
1 Hr X 3 axes
10-500 Hx, 1.04 Grms,
Shock-Half Sine
Mil-Std-810G
10 G / 11 ms, 5 shocks x 6
directions
Shock-Drop
Mil-Std-810G
26 drops @ 48"
HighTemp Storage
24 Hrs each temp
60C, 65C, 70C, 80C, 85C,
90C & 95C
All reliability and performance measurement have been performed by certified, independent labs. Full report is
available on request.
Ordering Information (please quote both product code & part no.)
Product Code
Band
Part No.
A5010 (Flush Mounted)
FCC 902-928 MHz
60001
A5010 (Flush Mounted)
ETSI 865-868 MHz
60002
A5010 (Stud Mounting)
FCC 902-928 MHz
60003
A5010 (Stud Mounting)
ETSI 865-868 MHz
60004
OUR GLOB AL NETWORK
Constantly increasing market reach
and influence in the global RFID
industry, Times-7’s international
support spans The Americas, Europe,
and Asia Pacific regions through our
distributor, authorized reseller and
integrated solutions provider network.
Times-7 Research Ltd
29 Railway Avenue
Lower Hutt 5010
New Zealand
NEW ZEALAND
P: +64 4 974 6566
USA/CANADA
P: +1 408 769 5025
E: info@times-7.com
www.times-7.com
5010 Mounting Information
The 5010 is designed to support either flush or VESA mount. To accommodate both approaches,
versions with either flush or studded backplates are supported.
With part numbers 60001 and 60002, flush mounting can be accommodated by attaching via screws or
bolts through the corner holes in the housing or by using double sided industrial tape on the backplate.
The studs on part numbers 60003 and 60004 are on 100mm spacing which will support standard VESA
brackets available from a wide range of suppliers.
The technical data contained in this publication is not a guarantee for which Times-7 Research Ltd assumes legal accountability. It is
indicative of typical performance, and if required should be relied on for specific applications only after due verification.
All technical data, specifications and other information contained herein are deemed to be the proprietary intellectual property of Times-7
Research Ltd. No reproduction, copy or use thereof may be made without the express written consent of Times-7 Research Ltd.
Times-7, and the stylized T-7 Antennas logo are trademarks or registered trademarks of Times-7 Research Ltd. All
other trademarks are the property of their respective owners.
© 2017 Times-7 Research Ltd. All rights reserved. Specifications are subject to change without notice.
Datasheet v1.7
Built in the USA in an ISO 9001, 14001, 13485 and fully ITAR compliant/registered facility. ROHS
compliant.
