1. Introduction
INMOTION V3 is a self-balancing unicycle type SCV (Sensor Controlled Vehicle). It is
stylish, fun and practical, integrated with a unique hidden draw-bar, auto-switch lights, a touch
screen, a slide-to-open charging port and built-in high quality Bluetooth speakers. INMOTION V3
is easy to learn, safe to ride, practical to commute.
提手按钮
提手握
复位开关
前/后 灯
装饰板
拉杆组件
脚踝护垫
动力电机
充电口
触摸开关
小腿护垫
脚踏板
橡胶轮胎
停车脚垫
蓝牙音箱
前/后 灯

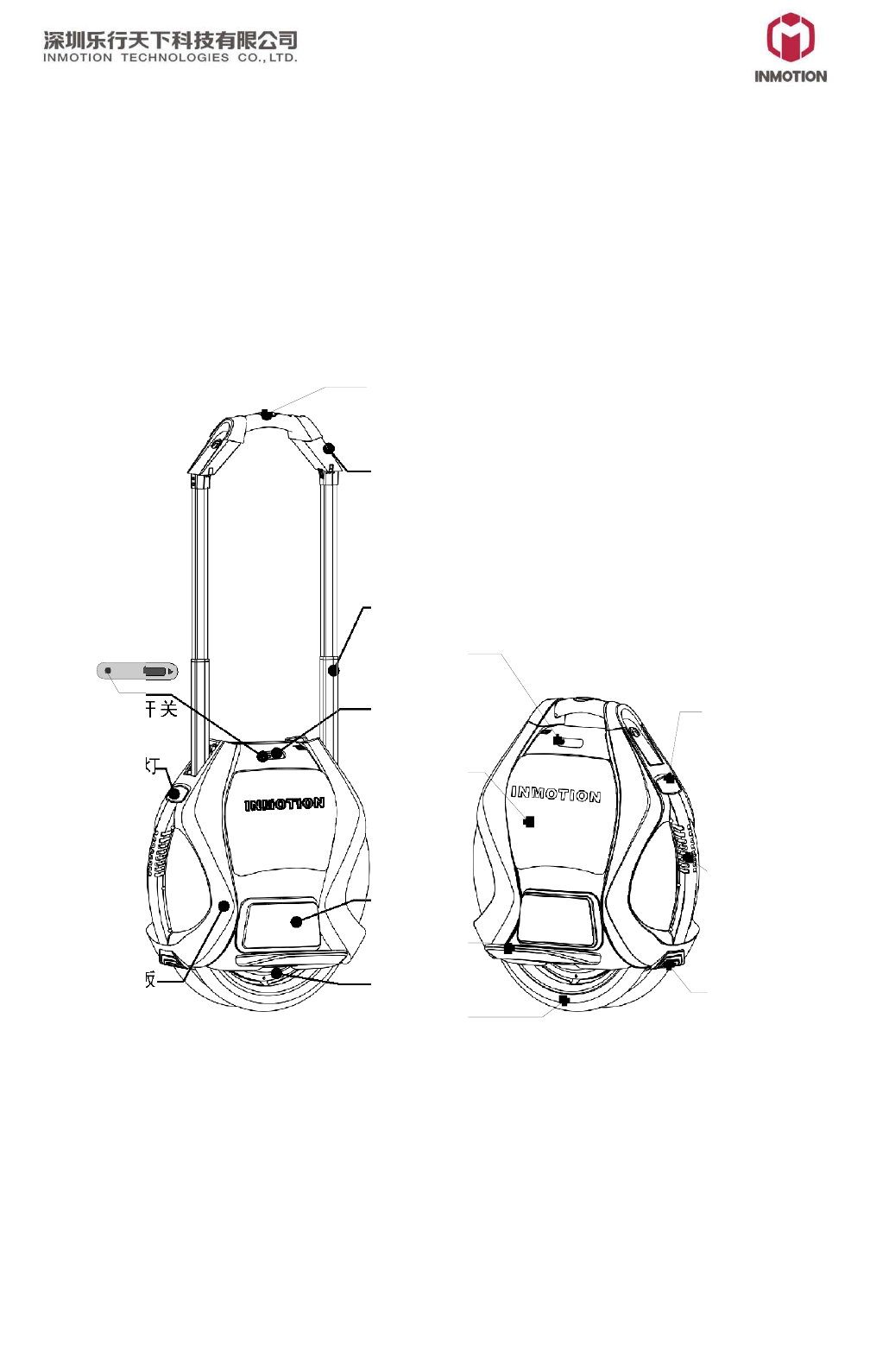

提手按钮 Draw-bar Button
提手握 Handlebar
拉杆组件 Draw-bar Assembly
复位开关 Reset Button
充电口 Charging Port
前/后 灯 Lights
6TH FLOOR, BUILDING 8, TONGFUYU INDUSTRY CITY, XILI, NAN SHAN, SHEN ZHEN, CHINA 518055
Tel: 0755-25722469 Fax: 0755-25727563
2
装饰板 decorating plate
脚踝护垫 Ankle Pad
动力电机 Motor
触摸开关 Touch Screen
小腿护垫 Calf Pad
蓝牙音箱 Bluetooth Speaker
脚踏板 Footboard
停车脚垫 Stop-stand Rubber
橡胶轮胎 Tire
2. Packaging
INMOTION V3 package includes the following parts when leaves the factory. Please check
carefully before using the product, any missing or visible damaged parts should be reported to
your dealer immediately.
1 INMOTOIN V3 2 User’s manual
3 Charger Adaptor 4 Warranty card, Product Certificate
3. Safety Alert
INMOTION V3 balances front and back, and stands by itself with its two tires.
INMOTION V3 is a reliable product and it has gone through many rigid tests. Due to its new idea
of driving, we still ask you to follow all the instructions in this manual and be careful with all the
warnings and cautions.
You may risk falling off/over, crashing, losing control of the vehicle and so on if you do not
follow the instructions to ride INMOTION V3. Again please carefully and thoroughly read this
manual and watch related safety videos.
3.1 Warning
6TH FLOOR, BUILDING 8, TONGFUYU INDUSTRY CITY, XILI, NAN SHAN, SHEN ZHEN, CHINA 518055
Tel: 0755-25722469 Fax: 0755-25727563
3
z Wear a helmet, elbow and knee protection when riding the INMOTION V3.
z Do not ride on steep slopes that are over 20 degrees.
z Do not accelerate and decelerate hardly or abruptly on the slopes.
z Pay attention to obstacles and be careful of skid when riding the INMOTION V3.
z Do not ride on grass.
z Do not ride on pebble roads or any other unsmooth surfaces.
z Do not drive into water that is over 170 mm.
3.2 Prohibition
z Do not go up and down stairs or spring off the ground with the INMOTION V3.
z Do not ride the INMOTION V3 on motor roads. Some local authorities forbid the use of
Sensor Controlled Vehicles on public roads and sidewalks. Please consult local
authorities to become familiar with applicable laws and regulations before riding.
z Do not dip the INMOTION V3 into water.
z Do not drive the INMOTION V3 over 20 km/h (12 mph).
z Do not accelerate hardly when the INMOTION V3 is not totally balanced.
z Do not sit on the draw-bar or any other parts when riding.
4. General Information
4.1 Dimensions

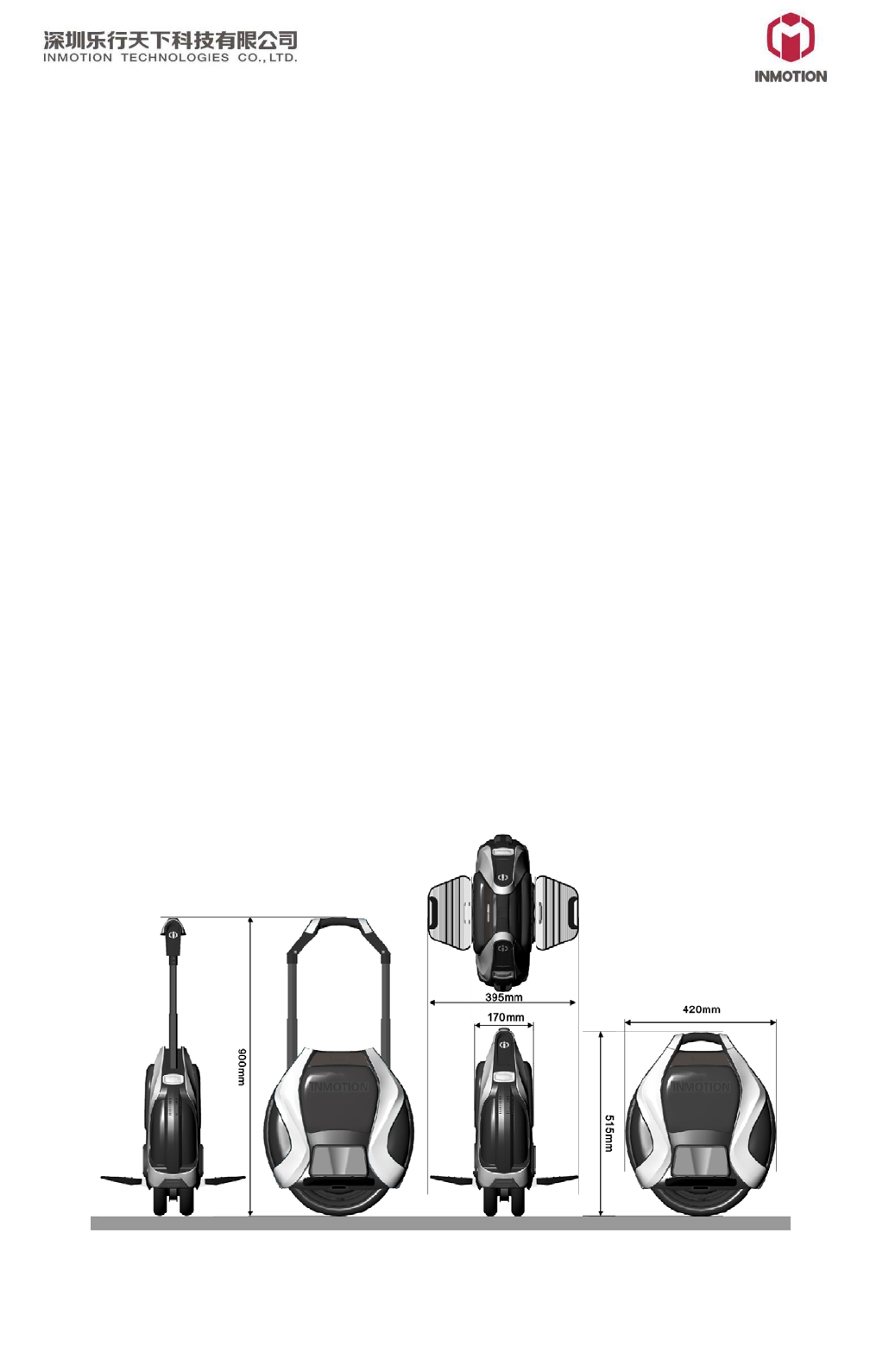

Figure 2.1 INMOTION V3 Dimensions
6TH FLOOR, BUILDING 8, TONGFUYU INDUSTRY CITY, XILI, NAN SHAN, SHEN ZHEN, CHINA 518055
Tel: 0755-25722469 Fax: 0755-25727563
4
4.2 Display Panel

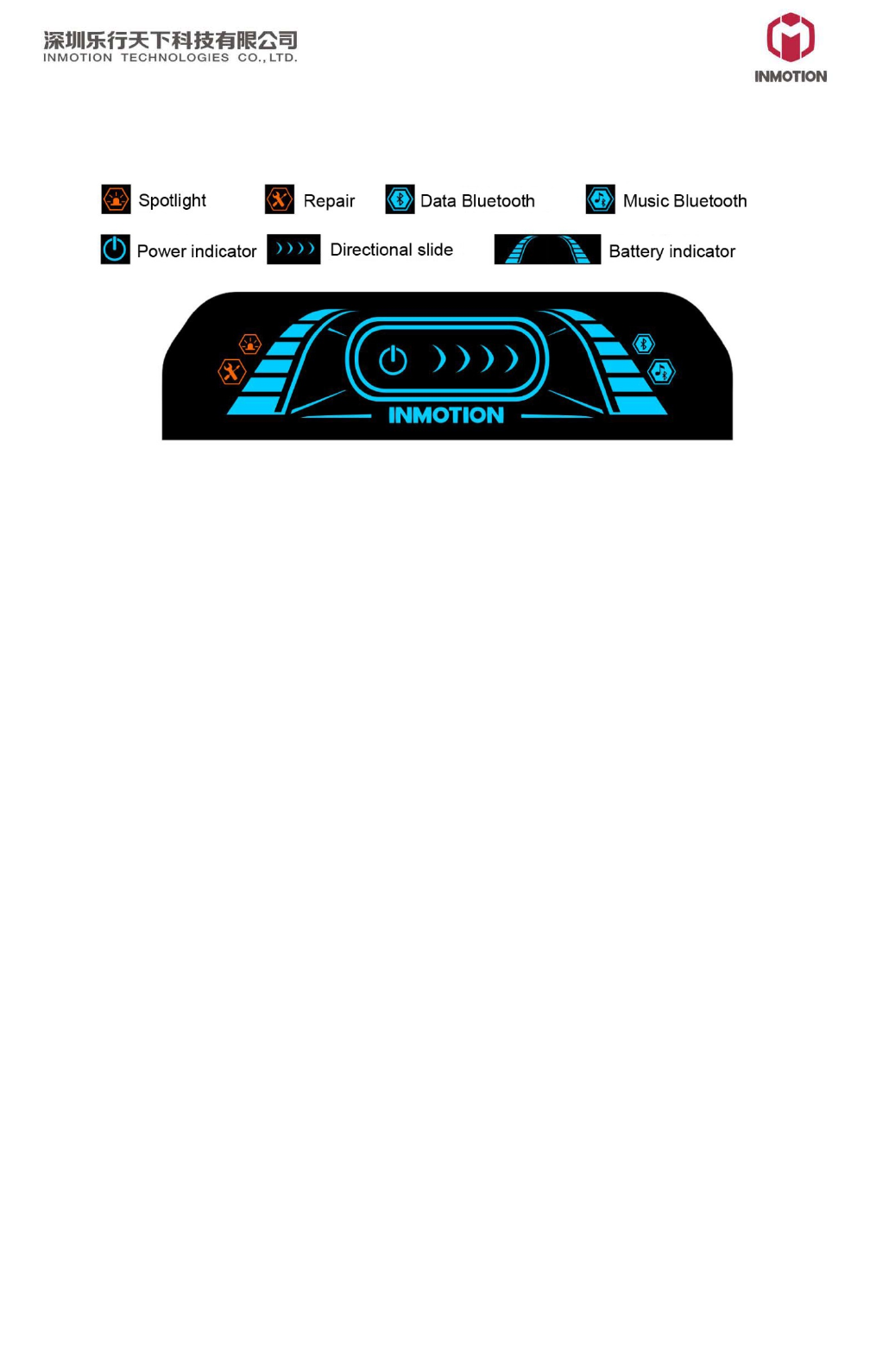

Figure 2.2 Display Panel
Light
Power
Slide Direction
5. How to Use
5.1 Power On

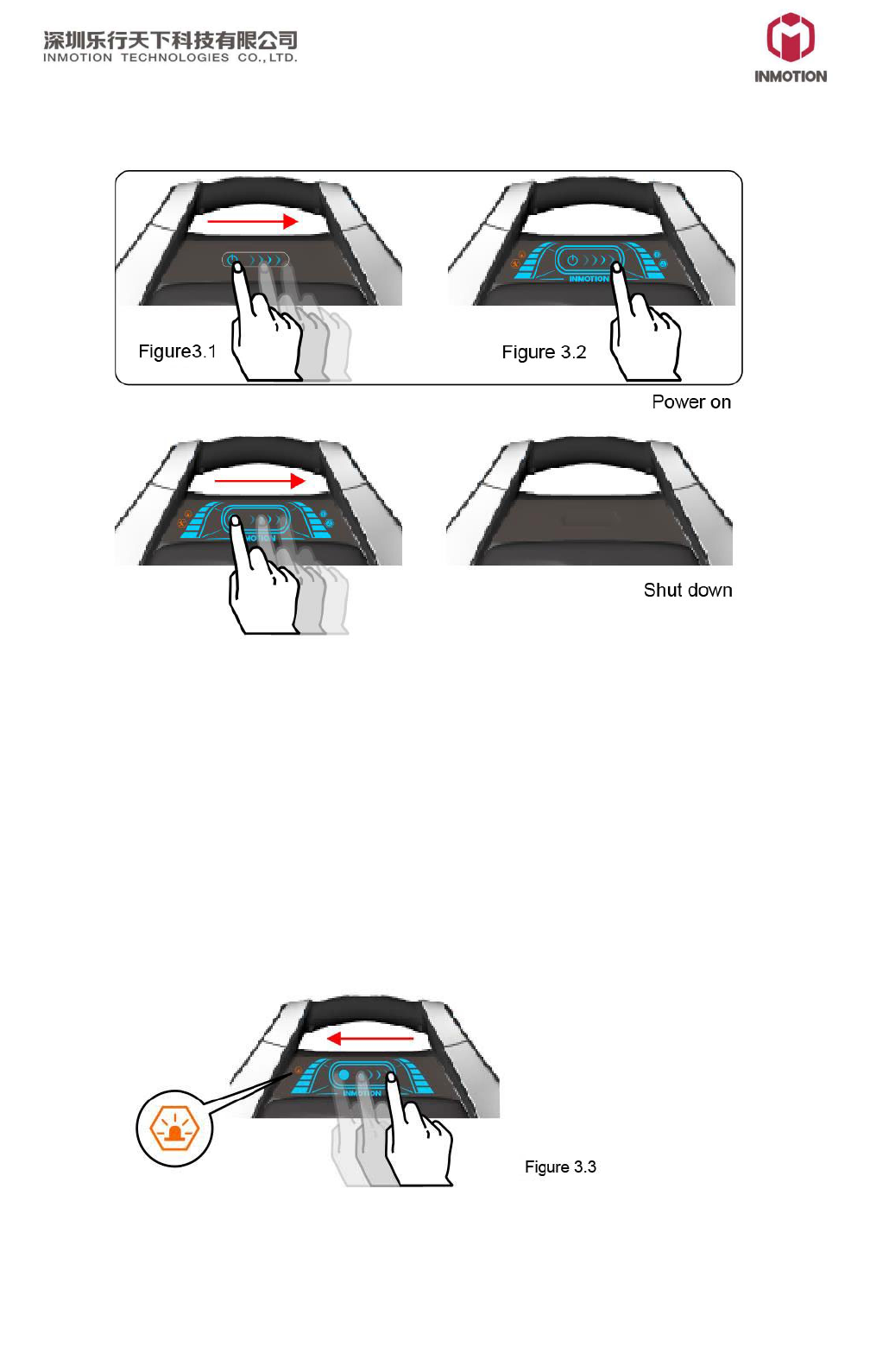

Touch the Power icon and gently slide towards the arrow direction (Figure 3.1).
5.2 Hibernation and Shutdown
z Touch the Power icon and slide towards the arrow direction to hibernate the system. In
between you may also hear a sound prompt. In hibernation mode, if the system is left
unoperated for 2 hours, the system will automatically shut down.
z You can directly shut down the system in hibernation mode by pressing the end of the
scrolling bar for about 5 seconds.
z If the remain power is less than 10%, the hibernation action will also directly shut the
system down.
Tip: if the touch panel is not responding, or the system cannot be shut down in an emergent
situation, please lay flat the INMOTINO V3 for 2 times in 3 seconds and you will hear “Please
be careful”, then you can possibly shut down the system.
6TH FLOOR, BUILDING 8, TONGFUYU INDUSTRY CITY, XILI, NAN SHAN, SHEN ZHEN, CHINA 518055
Tel: 0755-25722469 Fax: 0755-25727563
5
5.3 Light
Power on the system and slide your finger from right end to left end (towards the opposite
arrow direction), the lights on both sides will be illuminated in white. Roll the INMOTION V3
in a direction, the front light will illuminate in white with full brightness and the back light will
turn into red. The lights will automatically change in white and red according to the riding
direction of INMOTION V3.
5.4 Bluetooth Speaker
The built-in Bluetooth module is automatically activated when the INMOTION V3 is
6TH FLOOR, BUILDING 8, TONGFUYU INDUSTRY CITY, XILI, NAN SHAN, SHEN ZHEN, CHINA 518055
Tel: 0755-25722469 Fax: 0755-25727563
6
powered on.

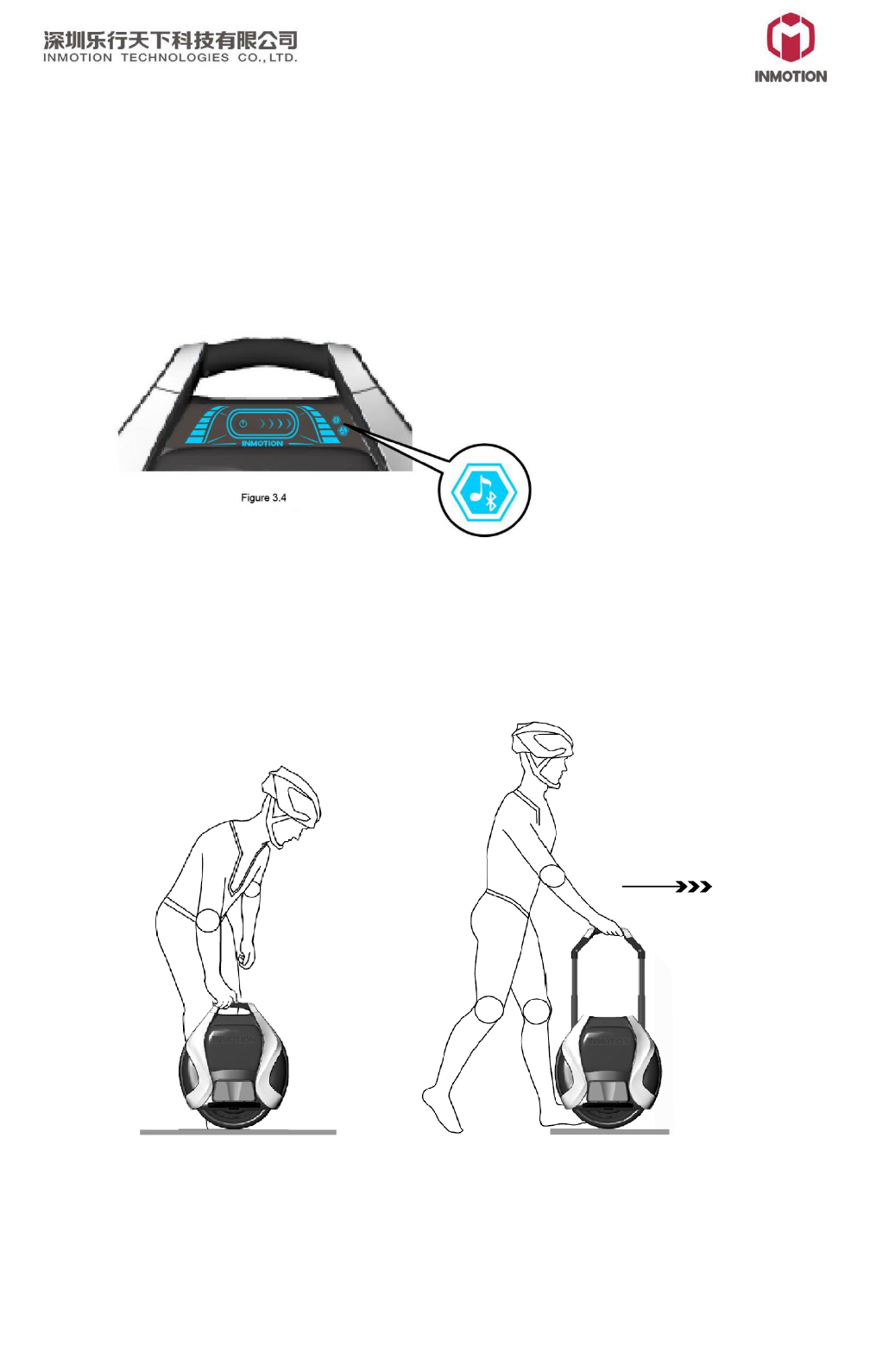

Turn on Bluetooth on your cellphone, search and pair the Bluetooth signal of the INMOTION
V3 (Figure 3.4). If the signals are successfully paired, you may play music through the
INMOTION V3’s Hi-Fi loud speakers.
5.5 Assist Mode
Press down the draw-bar button, pull up the handle till the highest and then release the button.
Now you can trolley the INMOTION V3 like a suitcase.
Figure 3.5
5.6 Power Indicator
There are two battery indicators along the two sides of the touch panel. Each has 6 bars, if the
power is over 90%, all 6 bars are illuminated, and if the power is less than 20%, only 1 bar
6TH FLOOR, BUILDING 8, TONGFUYU INDUSTRY CITY, XILI, NAN SHAN, SHEN ZHEN, CHINA 518055
Tel: 0755-25722469 Fax: 0755-25727563
7
will be illuminated.
5.7 Charge INMOTION V3
Slide to open the charging port to charge. If the INMOTION V3 is charging, the charging
indicator on the Charger Adapter illuminates in red and the Battery Indicator Bars are rolling
up and down. If the INMOTION V3 is fully charged, the charging indicator is in blue.
Figure 3.6
5.8 Voice Prompt
The system’s default prompt language is Chinese or English, you can change to other
languages IF available through INMOTION APP. Here below are some basic voice prompts:
1 Welcome 2 Hibernation
3 Lock 4 Unlock
5 Low Battery 6 Charging
7 Power full 8 Overload, please get off
9 Light is on 10 Light is off
11 Please slow Down 12 Power off
13 Please Repair 14 Please don’t move the device
15 Data Bluetooth connected 16 Data Bluetooth disconnected
17 Music Bluetooth connected 18 Music Bluetooth disconnected
19 Please be careful 20
6TH FLOOR, BUILDING 8, TONGFUYU INDUSTRY CITY, XILI, NAN SHAN, SEN ZHEN, CHINA 518055
Tel: 0755-25722469 Fax: 0755-25727563
8
5.9 Reset
When unknown errors or abnormal situations occurred, you can press the Reset button to turn
off the INMOTION V3 completely.

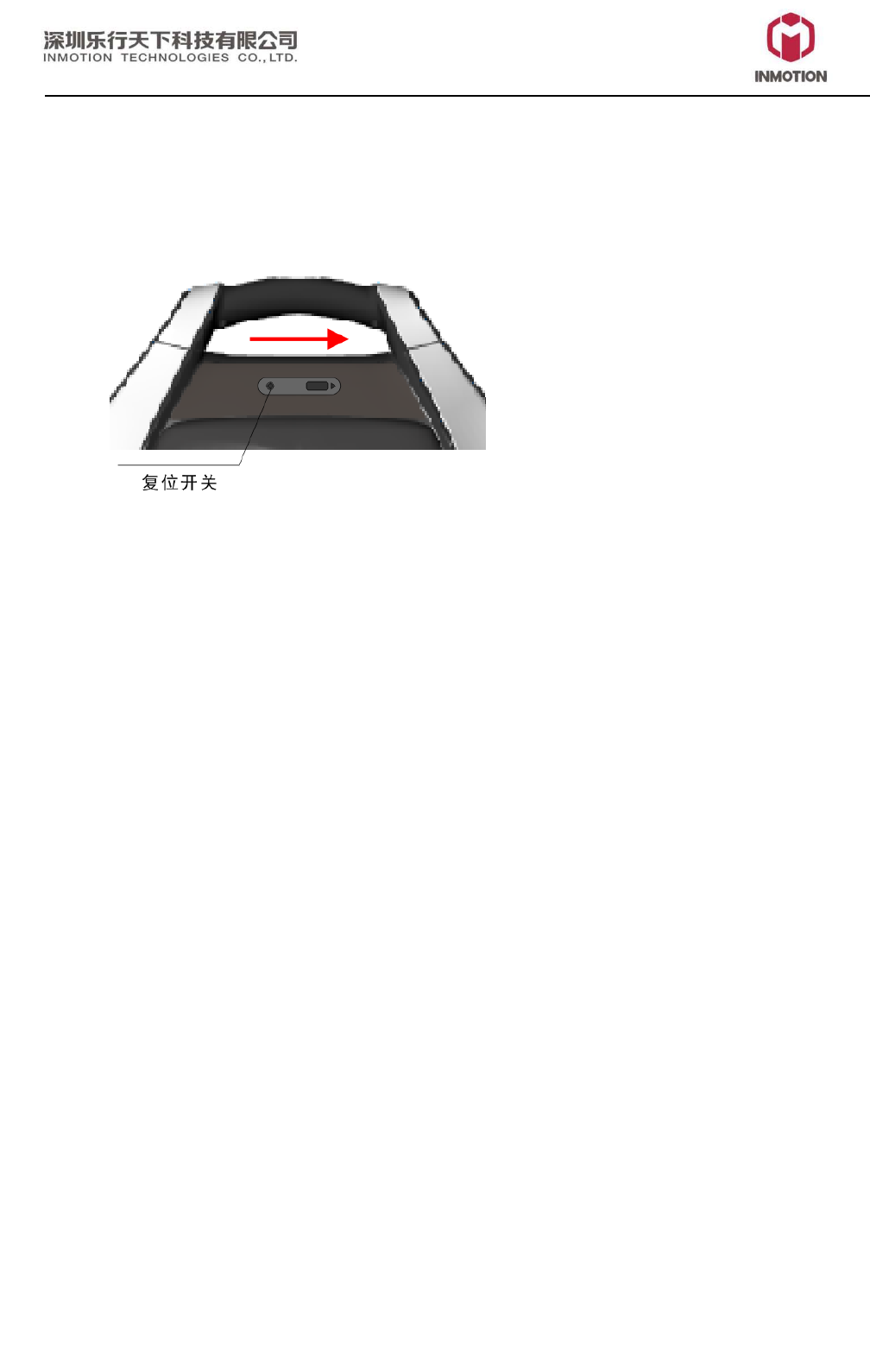

The Reset button can be seen after sliding the charging port cover to the right and it is on the
left side of the charging port.
5.10 Water and Dust Proof
V3 is rated IP55 for water and dust proof. It can maximally pass through 170 mm deep water.
5.11 Over Speed Protection
When the speed is over 18 km/h (11 mph), the footboard will lean back at about 3~4°. The
rider can continuously drive at the current speed. If the speed over 20 km/h (12 mph), the
footboard will lean back to protect the rider’s safety.
5.12 Side-tipping Protection
When the INMOTION V3 is side tipping over 45°, it will regard it as an abnormal situation
and will exit balance mode, while there will be a voice prompt “Please be careful”. Place the
INMOTION V3 to stand and then it will automatically balances itself again.
5.13 Over Discharge Protection
The system of INMOTION V3 will automatically cut off the entire power when the battery is
6TH FLOOR, BUILDING 8, TONGFUYU INDUSTRY CITY, XILI, NAN SHAN, SEN ZHEN, CHINA 518055
Tel: 0755-25722469 Fax: 0755-25727563
9
low under hibernation or power off mode. Low battery will make INMOTION V3 to lean back to
warn the rider, there will also be a voice prompt.
The system will protect the battery from over discharging when it is powered off. You may
wake the V3 by charging the battery, if the INMOTION V3 is still not awaken please contact your
dealer for a diagnosis.
5.14 Smart Phone Application
The Application for INMOTION V3 works via Bluetooth 3.0 to connect the vehicle, it is
suitable for Android 4.3 and above, iOS 7.0 and above (iPhone 4s and later models only). Some
functions are listed as below:
1 My SCV 2 Parameter settings
3 My Profile 4 My Route
5 Firmware Update 6 Sound Customization
7 Social 8 Diagnosis
9 Log 10 Service
For more information about the INMOTION APP, please visit www.imscv.com
6. Maintenance
6.1 Deposit
Inappropriate store the INMOTION V3 may cause damage to the battery, please pay special
attention to below warnings.
z The best storage temperature is about 20 ℃ (68 ℉). Too high or too low temperature
should be avoided.
z Please avoid strong humidity.
z Please charge the INMOTION V3 at least one time a month event it is powered off.
6.2 Inflation
6TH FLOOR, BUILDING 8, TONGFUYU INDUSTRY CITY, XILI, NAN SHAN, SEN ZHEN, CHINA 518055
Tel: 0755-25722469 Fax: 0755-25727563
10
Please inflate tires in time to make sure the pressure of the two tires are the same. The
default tire pressure is 3.5 Bar.
6.3 Change Tire
If you need to change the tires, please contact an authorized INMOTION service center or
your dealer.
6.4 Adjust Footboard
Please use a M8 screwdriver to adjust the tightness of the footboards if needed.
6.5 Cleaning
Please gently clean the INMOTION V3 cases with a piece of soft cloth with clear water or
soap water.
6.6 Warranty
INMOTION provides below warranties for non-human made malfunctions and damages for
INMOTION V3.
One year warranty for the entire vehicle (Battery and Tires excluded)
6 months for the Battery
3 months for both inner/outer tires
6TH FLOOR, BUILDING 8, TONGFUYU INDUSTRY CITY, XILI, NAN SHAN, SEN ZHEN, CHINA 518055
Tel: 0755-25722469 Fax: 0755-25727563
11
Appendix: parameters
No. Item Value Note
1 Max. Speed 18 km/h (11 mph) This speed is tested with a 75 kg
(165 lbs) payload.
2 Distance per charge 20~25km (12.5~15.5
miles)
The distance per charge is obtained
under the following test conditions:
room temperature, 75 kg (165 lbs)
payload and smooth terrain.
3 Climbing Angle 18°
4 Recommended best
operating temperature
-10~40℃
(14~104°F)
5 Max load 120 kg (265 lbs)
6 Charge time 1.5 H
7 Power requirements AC 100-230 V
50~60 Hz
8 Dimensions 420 x 515 x 178 mm
9 Tire size 14 inches
10 Weight 13.5 kg (30 lbs)
7. Operation and Learning
7.1 Preparation
When you attempt the first use, please wear comfortable clothes and shoes. We strongly
suggest the beginners to wear a helmet and other protections to avoid serious injuries.
Please take the INMOTION V3 onto smooth roads in an open space and then start to learn.
7.2 8 Steps
z Hold the INMOTION V3 still and power it on.
z Unfold the footboards and stand one foot on one footboard with force.
z Press your calf against the calf pad and push inward to another leg.
z Now practice sliding the vehicle forward with only one foot on, while another foot
6TH FLOOR, BUILDING 8, TONGFUYU INDUSTRY CITY, XILI, NAN SHAN, SEN ZHEN, CHINA 518055
Tel: 0755-25722469 Fax: 0755-25727563
12
pushing off the ground.
z Make sure that the INMOTION V3 would always be right in the middle of your legs and
not go other directions.
z Keep your body straight up and get relaxed, look forward and naturally get on another
foot. When you lift another foot off the ground, your body weight is slightly shifting to the
foot standing on the footboard.
z It is better that someone can hold your arms to help you get balanced or you can learn to
get on the vehicle by pushing your hands against a wall.
z Try to find your balance standing both feet on the INMOTION V3 and relax your calves.
z Someone can hold your arms and lead you drive forward and backward.
z When you get used to the feeling, now try to learn forward to go forward and lean
backward to go backward.
z Learn how to turn is always hard, make sure you are able to drive forward and backward
very smoothly.
z When you want to turn, twist your upper body towards the direction and push the
INMOTION V3 inward. Your upper body will naturally move to the opposite direction to
keep you balanced.
z Since INMOTION V3 actually has two tires, it is easier to turn with one tire touching the
ground and another off the ground.
7.3 Cautions
z Beginners who are under 18 or over 45 need someone as an assistant to help learn.
z Please make sure the battery is fully charged before use and the tires are properly inflated.
z Please do not drive fast before you are familiar with riding it. Please accelerate slowly.
For more information, please visit our official website www.imscv.com.
6TH FLOOR, BUILDING 8, TONGFUYU INDUSTRY CITY, XILI, NAN SHAN, SEN ZHEN, CHINA 518055
Tel: 0755-25722469 Fax: 0755-25727563
13
INMOTION Customer Care Center: 4000-1000-12
+86 (0)755-8209-1768
6TH FLOOR, BUILDING 8, TONGFUYU INDUSTRY CITY, XILI, NAN SHAN, SEN ZHEN, CHINA 518055
Tel: 0755-25722469 Fax: 0755-25727563
14
8. Warranty Card
Customer purchase information registration
Customer name Serial Number
Purchasing date
Telephone
E-mail
Customer’s address
Dealer’s Name Dealer’s
telephone
Dealer’s address
6TH FLOOR, BUILDING 8, TONGFUYU INDUSTRY CITY, XILI, NAN SHAN, SEN ZHEN, CHINA 518055
Tel: 0755-25722469 Fax: 0755-25727563
15
9. Maintenance record
Date Description of
malfunction Solution Authorized
Signature Remark
Limitation for warranty
The obligations and responsibilities of warranty of INMOTION for the products and
accessories, are restricted to free maintenance of reparation and replacement of defective parts
within warranty periods. INMOTION assumes no responsibility (also does not authorize any third
party to assume the responsibility) for service beyond this scope. Liability exemption is including
but not limited to labor force losses, property losses, and other losses caused during the
maintenance period. This limited warranty term is the only applicable guarantee clause for the
maintenance towards the INMOTION SCV and its spare parts. INMOTION does not endorse any
other guarantee or implied guarantee beyond this limited warranty term. INMOTION assumes no
responsibility for other commitments that you make with the third party. This regulation comes
into force from the day of its promulgation. The PICC (People’s Insurance Company of China)
insures the INMOTION SCV series products. INMOTION Technologies Co., Ltd. Reserves the
right of final explanation, reproduction, and revision for the contents in this warranty card.
6TH FLOOR, BUILDING 8, TONGFUYU INDUSTRY CITY, XILI, NAN SHAN, SEN ZHEN, CHINA 518055
Tel: 0755-25722469 Fax: 0755-25727563
16
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the followingmeasures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
