GB

HOB

PI 640 A GB

PI 640 TC GB

Contents

Installation, 2-6

Positioning

Electrical connections

Gas Connection

Technical data

Characteristic of the burners and nozzles

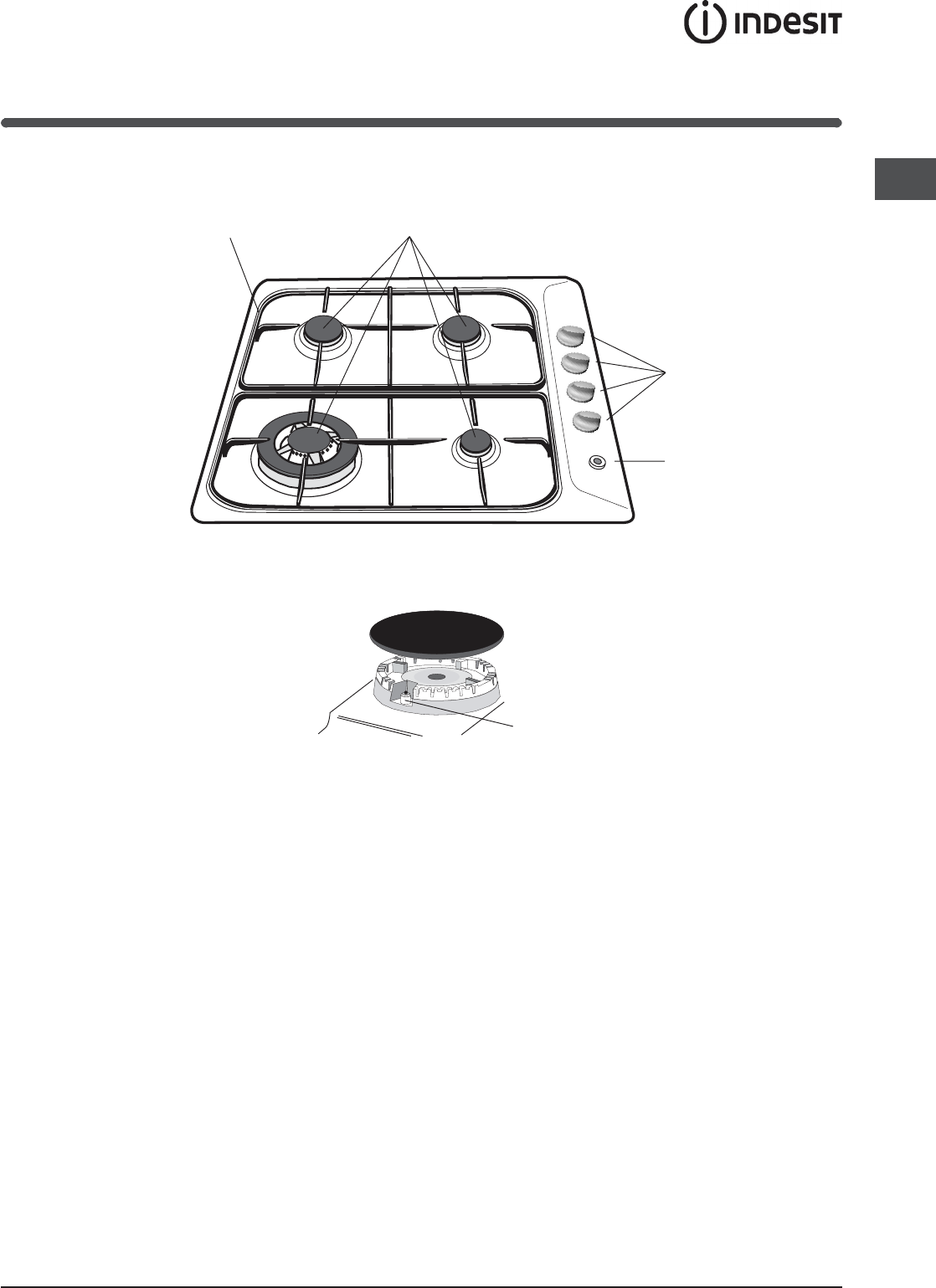

Description of the appliance, 7

Overall view

Start-up and use, 8

Practical Advise on Using the Burners

Precautions and tips, 9

General safety

Disposal

Maintenance and care, 10

Switching the appliance off

Cleaning the appliance

Greasing the Taps

Assistance, 11

Operating Instructions

English, 1

GB

2

GB

 Before operating your new appliance please read this

instruction booklet carefully. It contains important

information for safe use, installation and care of the

appliance.

 Please keep these operating instructions for future

reference. Pass them on to possible new owners of the

appliance.

Positioning

 Keep packaging material out of the reach of children. It

can become a choking or suffocation hazard (see

Precautions and tips).

 The appliance must be installed by a qualified person

according to the instructions provided. Incorrect

installation may damage property or cause harm to

people or animals.

 This unit may be installed and used only in

permanently ventilated rooms according to the British

Stancards Codes Of Practice: B.S.6172 / B.S.5440,

Par. 2 and B.S. 6891 Current Editions. The following

requirements must be observed:

 The hob should not be installed in a bed sitting

room with a volume of less than 20m3. If it is

installed in a room of volume less than 5m3 an air

vent of effective area of 110cm2 is required, if it is

installed in a room of volume between 5m3 and

10m3 an air vent of effective airvent of 50cm2 is

required, while if the volume exceeds 11m3 no

airvent is required. However, if the room has a door

or a window which opens directly to the outside no

air vent is required even with the volume is between

5m3 and 11m3.

 Intensive or prolonged use of the appliance could

mean that extra aeration is needed, such as the

opening of a window or a more powerful fan.

 If there are other fuel burning appliances in the

same room, B.S. 5440 Part 2 Current Edition,

should be consulted to determine the requisite air

vent requirements.

Fitting the appliance

The appliance can be installed next to furniture units

which are no taller than the top of the cooker hob. The

wall in direct contact with the back panel of the cooker

must be made of non-flammable material. During

operation the back panel of the cooker could reach a

temperature of 50°C above room temperature. For

proper installation of the cooker, the following

precautions must be taken:

 The hob may be located in a kitchen, a kitonen/diner

or bed sitting room, but not in a bathroom or shower

room.

 The furniture standing next to the unit, that is higher

than the working boards, must be placed at least

600 mm from the edge of the board.

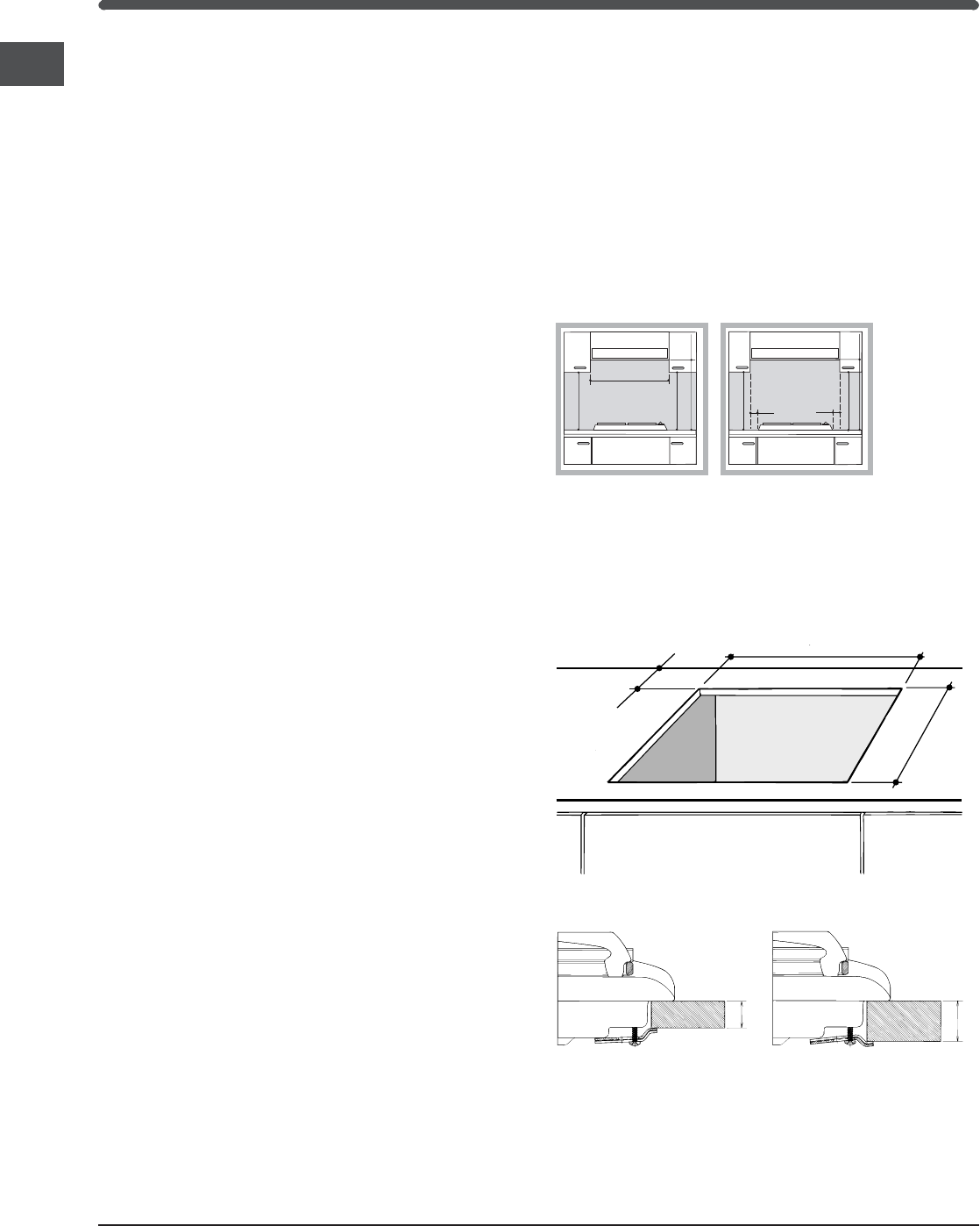

 The minimum distance combustible material can be

fitted above the hob in line with the edges of the

hob is 420mm. If is fitted below 420mm a space of

50mm must be allowed from the edges of the hob.

The minimum distance combustible material

kitchen units can be fitted directly above the hob is

700mm.

 The dimensions of the room for the furniture must

be those indicated in the figures. Fixing hooks are

provided which allow to place the hob plate on

work tops that measure from 20 to 40 mm in

thickness. To obtain a good fixing of the hob plate it

is advisable to use all the hooks supplied.

555 mm

55 mm

475 mm

Fastening Clamps - Assembly Diagram

20

30

Clamp Position for Clamp Position for

H=20mm top H=30mm top

Installation

Min. 600

mm.

HOOD

min. 650 mm. with hood

min. 700 mm. without hood

Min. 420

mm.

Min. 420

mm.

HOOD

min. 650 with hood

min. 700 without hood

LESS THAN 420

LESS THAN 420

min. 50

min. 50

GB

3

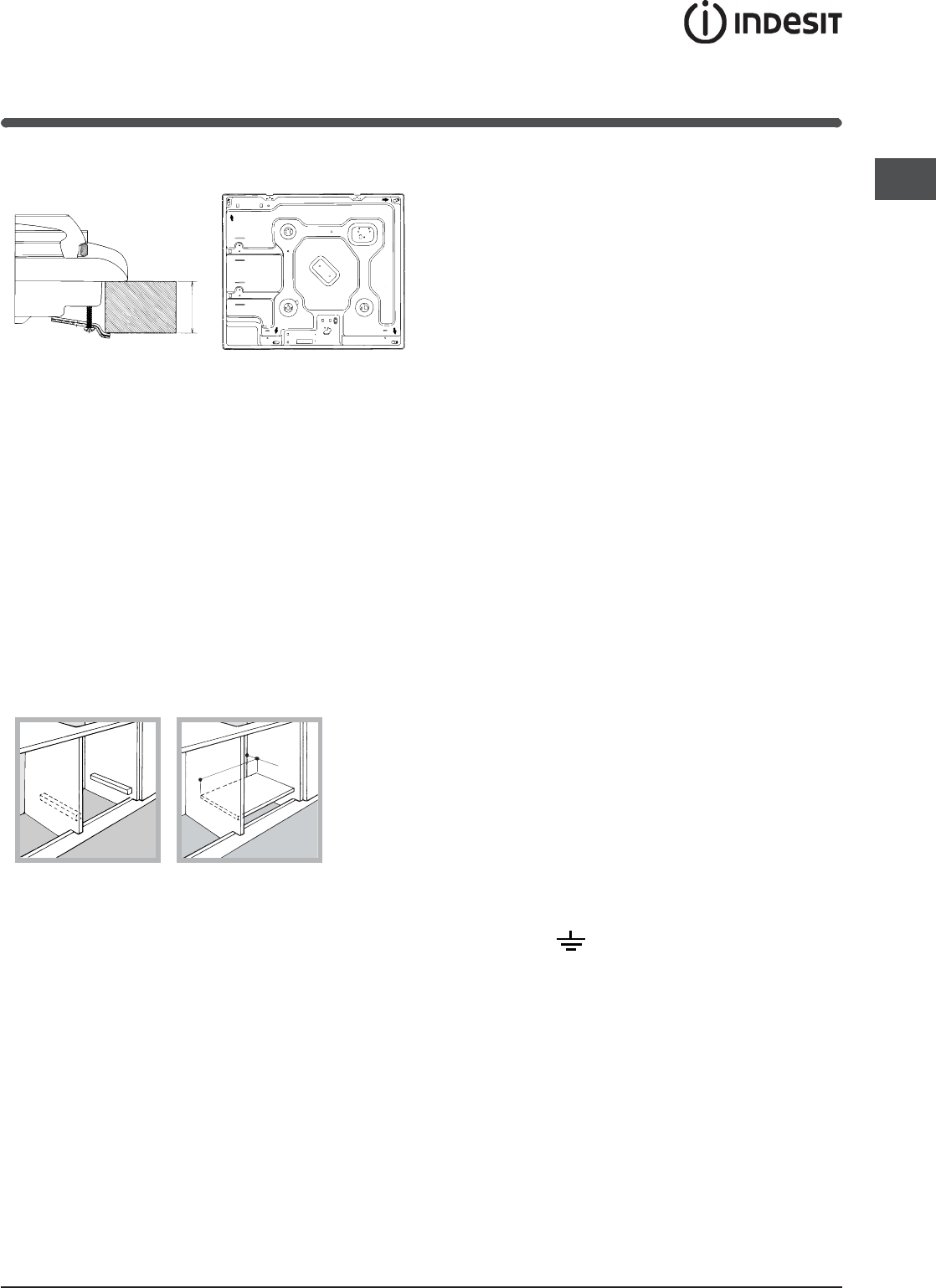

Front

40

Clamp Position for Back

H=40mm top

 Use the clamps contained in the "accessory kit."

 In the event the cooktop is not installed above a

built-in oven, a wood panel must be inserted as

insulation. This panel must be placed at least 20

mm from the bottom of the cooktop itself.

Ventilation

When installing the cooktop above a built-in oven, the

oven should be placed on two wooden strips; in the

case of a joining cabinet surface, remember to leave a

space of at least 45 x 560 mm at the back (see

picture).

 The hob can only be installed above built-in

ovens provided with cooling ventilation.

Electrical connection

The cooktops fitted with a tripolar electrical supply

cord are designed to be be used with alternating

current according to the indications on the rating plate

located under the cooktop. The earthing wire can be

identified by its yellow-green colour.

In the case of installation over a built-in electric oven,

the electrical connections for the cooktop and oven

should be independent, not only for safety purposes,

but also to facilitate removal of one or both in the

future.

Electrical Connection for Gas Cooktop

Fit the supply cord with a standard plug for the

demand rate indicated on the rating plate or connect it

directly to the electrical mains. In the latter case, a

single pole switch must be placed between the

appliance and the mains, with a minimum opening

between the contacts of 3 mm in compliance with

current safety codes (the earthing wire must not be

interrupted by the switch). The power supply cord

must be positioned so that it does not reach a

temperature in excess of 50°C above room

temperature at any point.

 The installer must ensure that the correct electrical

connection has been made and that it is compliant

with safety regulations.

Before making the actual connection, make sure that:

The fuse and electrical system can withstand the

load required by the appliance;

That the electrical supply system is equiped with an

efficient earth hook-up according to the norms and

regulations prescribed by law;

That the plug or switch is easily accessible.

 The wires in the mains lead are coloured in

accordance with the following code:

Green & Yellow - Earth

Blue - Neutral

Brown - Live

As the colours of the wires in the mains lead may not

correspond with the coloured markings identifying the

terminals in your plug, proceed as follows:

Connect the Green & Yellow wire to the terminal

marked E or or coloured Green or Green &

Yellow.

Connect the Brown wire to the terminal marked L or

coloured Red.

Connect the Blue wire to the terminal marked N or

coloured Black.

 The cable must not be bent or compressed.

 The cable must be checked regularly and replaced

by authorised technicians only (see Assistance).

 The manufacturer declines any liability should

these safety measures not be observed.

560 mm.

45 mm.

4

GB

Gas Connection

The cooktop should be connected to the gas supply

by an authorized installer. During installation of this

product it is essential to fit an approved gas tap to

isolate the supply from the appliance for the

convenience of any subsequent removal or servicing.

Connection of the appliance to the gas mains or liquid

gas tanks must be carried out according to the safety

standards currently in force, and only after it is

ascertained that it is suitable for the type of gas to be

used. If not, follow the instructions indicated in the

section entitled, Adapting the Cooktop for Different

Types of Gas. If the cooktop is to be connected to

tanks containing liquid gas, use pressure regulators

that comply with current safety standards.

 To insure that the appliance operates safety, the gas

is regulated correctly and your appliance lasts over

time, make sure that gas pressure levels comply with

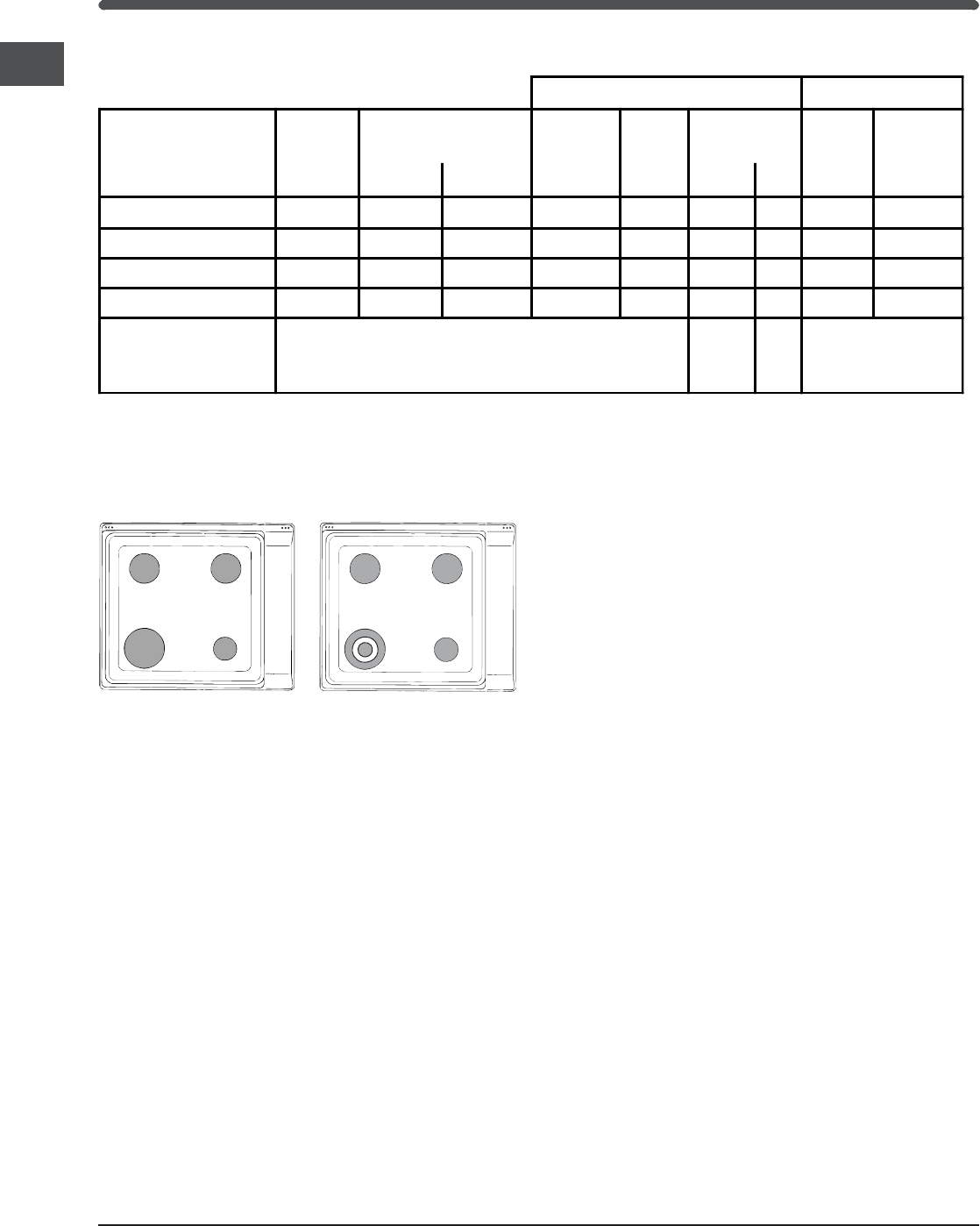

the indications given in Table 1, Nozzle and Burner

Specifications.

Gas Connection to Non-flexible Pipe

(copper or steel)

 Connection to the gas source must be done in such

a way as to not create any stress points at any part of

the appliance.

The appliance is fitted with an adjustable, "L" shaped

connector and a gasket for the attachment to the gas

supply. Should this connector have to be turned, the

gasket must be replaced (supplied with the

appliance).

The gas feed connector to the appliance is a

threaded, male 1/2" connector for round gas pipe.

Gas Connection to Flexible Steel Pipe

The gas feed connector to the appliance is a

threaded, male 1/2" connector for round gas pipe.

Only use pipes, tubes and gaskets that comply with

current safety codes. The maximum length of the

flexible pipes must not exceed 2000 mm. Once the

connection has been made, ensure that the flexible

metal tube does not touch any moving parts and is not

crushed.

Check the Seal

 Once the appliance has been installed, make sure

all the connections are properly sealed, using a soapy

water solution. Never use a flame.

Adapting the Cooktop for Different Types of Gas

To adapt the cooktop to a different type of gas than

that for which it was designed, (see the sticker under

the hob or on the packaging), the burner nozzles must

be changed, as follows:

1. Remove the pan supports and slide the burners out

of the cooktop.

2. Unscrew the nozzles using a 7mm socket wrench

and replace them with those for the new type of

gas. (See table 1, Burner and Nozzle

Specifications).

3. Reassemble the parts following the instructions in

reverse order.

4. On completing the operation, replace the old rating

label with the one showing the new type of gas; the

sticker is available from our Service Centres.

Regulation of Air Supply to the Burner

The burners do not need a primary air regulator.

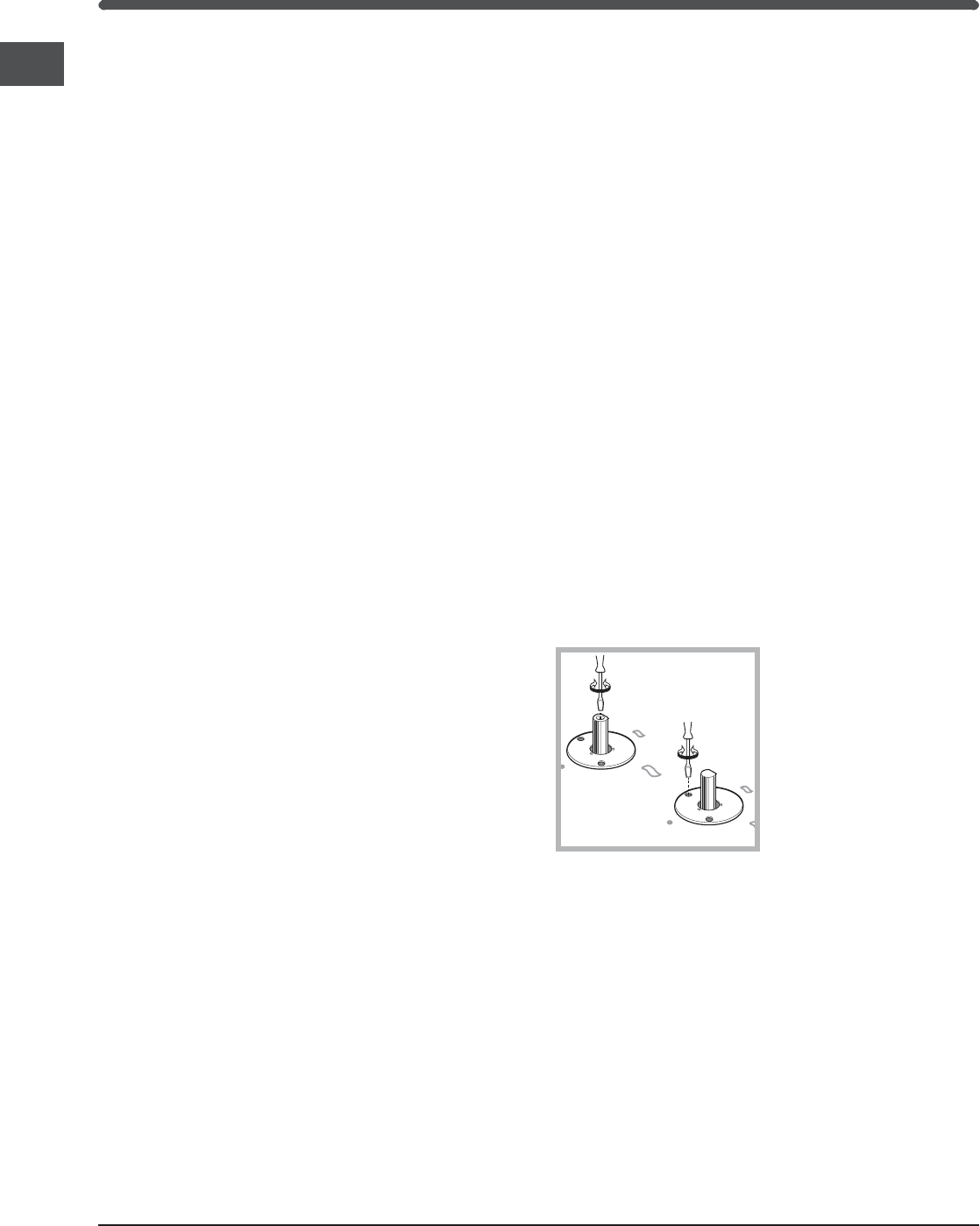

Minimum Regulation

1. Turn the gas valve to minimum.

2. Remove the knob

and turn the regulator

screw (positioned either

on the side of the top or

inside the shaft)

clockwise until the flame

becomes small but

regular.

3. Make sure that, when the knob is turned rapidly

high to low, the flame does not go out.

4. In the event of a malfunction on appliances with the

security device (thermocouple) when the gas

supply is set at minimum, increase the minimum

supply levels using the regulator screw.

 In the case of liquid gas, the regulation screw must

be fully screwed in (clockwise).

 Once the adjustment has been made, apply sealing

wax, or a suitable substitute, to the old seals on the

by-pass.

GB

5

 If the gas pressure is different than that prescribed, a

pressure regulator must be installed at the source, in

compliance with national standards governing the use

of piped gas regulators.

DATA PLATE

Gas section

Class: II2H3+

Rated power kW (1):

8,05 (585 g/h - G30)

(575 g/h - G31)

Electrical section voltage: 220-240V ~ 50/60Hz

This appliance conforms to the

following European Economic

Community directives:

- 2006/95/EEC of 12/12/06 (Low

Voltage) and subsequent

amendments;

- 89/336/EEC of 03/05/89

(Electromagnetic Compatibility) and

subsequent amendments;

- 90/396/EEC of 29/06/90 (Gas)

and subsequent modifications;

- 93/68/EEC of 22/07/93 and

subsequent amendments.

- 2002/96/EC

(1): The values in g/h refer to the capacities with liquid

g

as

(

Butane, Pro

p

ane

)

.

6

GB

Characteristic of the burners and nozzles

Table 1 Liquid Gas Natural Gas

Burner Diameter

(mm)

Thermal power

kW (p.c.s.*)

By-Pass

1/100

Nozzle

1/100

Flow*

g/h

Nozzle

1/100

Flow*

l/h

Nomin. Ridot. (mm) (mm) *** ** (mm)

Fast (R) 100 3,00 0,70 41 86 218 214 116 286

Semi Fast (S) 75 1,90 0,40 30 70 138 136 106 181

Auxiliary (A) 55 1,00 0,40 30 50 73 71 79 95

Triple Crown (TC) 130 3,25 1,30 57 91 236 232 133 309

Supply

Pressures

Nominal (mbar)

Minimum (mbar)

Maximum (mbar)

28-30

20

35

37

25

45

20

17

25

** At 15°C and 1013 mbar-dry gas

** Propane P.C.S. = 50.37 MJ/kg.

*** Butane P.C.S. = 49.47 MJ/kg.

Natural P.C.S. = 37.78 MJ/m3

SS

AR

SS

ATC

PI 640 A GB PI 640 TC GB

GB

7

Description of the appliance

Overall view

Gas Burners

Support Grid for

Cookware

Control Knobs for Gas

Burners

Ignition Button for Gas

Burners

Ignitor for Gas Burners

8

GB

The position of the corresponding gas burner is

indicated on each control knob.

Gas Burners

The burners differ in size and power. Choose the most

appropriate one for the diameter of the cookware

being used.

The burner can be regulated with the corresonding

control knob by using one of the following settings:

 Off

High

Low

To turn on one of the burners, place a lighted match

or lighter near the burner, press the knob all the way in

and turn in the counter-clockwise direction to the

"High" setting.

On those models fitted with an ignitor, the ignition

button, identified by the symbol, must first be

pressed and then the corresponding knob pushed all

the way in and turned in the counter-clockwise

direction to the "High" setting.

 If the burner accidently goes out, turn off the gas

with the control knob and try to light it again after

waiting at least 1 minute.

To turn off a burner, turn the knob in the clockwise

direction until it stops (it should be on the  setting).

Practical Advise on Using the Burners

For best performance, follow these general guidelines:

Use the appropriate cookware for each burner (see

table) in order to prevent the flame from reaching

the sides of the pot or pan;

Alwasy use cookware with a flat bottom and keep

the lid on;

When the contents come to a boil, turn the knob to

"Low".

Burner ø Cookware Diameter (cm)

Fast (R) 24 - 26

Semi Fast (S) 16 - 20

Auxiliary (A) 10 - 14

Triple Crown (TC) 24 - 26

Start-up and use

GB

9

Precautions and tips

 This appliance has been designed and

manufactured in compliance with international safety

standards. The following warnings are provided for

safety reasons and must be read carefully.

General safety

This manual is for a class 3 built-in cooktop.

Gas appliances require regular air exchange to

ensure trouble-free performance. When

installing the cooker, follow the instructions

provided in the paragraph on Positioning the

appliance.

These instructions are only valid for the

countries the symbols for which appear on the

manual and the serial plate.

This appliance was designed for domestic use

inside the home and is not intended for commercial

or industrial use.

The appliance must not be installed outdoors, even

in covered areas. It is extremely dangerous to leave

the appliance exposed to rain and storms.

Do not touch the appliance with bare feet or with

wet or damp hands and feet.

The appliance must be used by adults only, to cook

food according to the instructions in this manual.

Do not use the hob as a worktop or chopping

board.

Ensure that power supply cables of other electrical

appliances do not come into contact with the hot

parts of the hob.

The openings and slots used for ventilation and

heat dispersion must never be covered.

Make sure the knobs are in the •/¡ position when

the appliance is not in use.

When unplugging the appliance always pull the plug

from the mains socket, do not pull on the cable.

Never carry out any cleaning or maintenance work

without having unplugged the plug from the mains.

Always make sure pan handles are turned towards

the centre of the hob in order to avoid accidental

burns.

Avoid closing the cover (if present) while the gas

burners and electric plates are still warm.

Do not use cookware with uneven or deformed

bottoms.

Do not let children play with the appliance.

The appliance should not be operated by people

(including children) with reduced physical,

sensory or mental capacities, by inexperienced

individuals or by anyone who is not familiar with

the product. These individuals should, at the very

least, be supervised by someone who assumes

responsibility for their safety or receive

preliminary instructions relating to the operation of

the appliance.

IMPORTANT SAFETY INFORMATION: Please

note that this product is not fitted with a flame

supervision device. It is NOT suitable for fitting

or use in high rise flats or multiple dwellings.

If you are in any doubt please contact a CORGI

registered gas engineer for advice.

Disposal

When disposing of packaging material: observe

local legislation so that the packaging may be

reused.

The European Directive 2002/96/EC on Waste

Electrical and Electronic Equipment (WEEE),

requires that old household electrical appliances

must not be disposed of in the normal unsorted

municipal waste stream. Old appliances must be

collected separately in order to optimise the

recovery and recycling of the materials they contain

and reduce the impact on human health and the

environment. The crossed out wheeled bin

symbol on the product reminds you of your

obligation, that when you dispose of the appliance

it must be separately collected.

Consumers should contact their local authority or

retailer for information concerning the correct

disposal of their old appliance.

10

GB

Switching the appliance off

Disconnect your appliance from the electricity supply

before carrying out any work on it.

Cleaning the appliance

 Do not use abrasive or corrosive detergents, stain

removers, anti-rust products, powder detergents or

sponges with abrasive surfaces: these may scratch

the surface.

 Never use steam cleaners or pressure cleaners on

the appliance.

It is usually enough to wash the hob with a damp

sponge and dry it with absorbent kitchen roll.

The flame spreaders should be washed frequently

with hot water and detergent, taking care to

eliminate any scale.

In the hob equipped with automatic lighting, the

terminal part of the electronic instant lighting

devices should be cleaned frequently and the gas

outlet holes on the flame spreaders should be

checked to make sure they are free of any

obstructions.

Stainless steel may become marked if it comes into

contact with very hard water or harsh detergents

(containing phosphorous) for long periods of time.

After cleaning, it is advisable to rinse thoroughly

and dry. It is also recommended that drops of water

be dried.

Maintenance and care

Greasing the Taps

The taps may jam in time or they may become difficult

to turn. If so, the tap itself must be replaced.

 This operation must be performed by a technician

authorised by the manufacturer.

GB

11

Assistance

It may occur that the cooktop does not function or does not function properly. Before calling customer service for

assistance, lets see what can be done.

First of all, check to see that there are no interruptions in the gas and electrical supplies, and, in particular, that the

gas valves for the mains are open.

The burner does not light or the flame is not uniform around the burner.

Check to make sure that:

The gas holes on the burner are not clogged;

All of the movable parts that make up the burner are mounted correctly;

There are no draughts around the cooking surface.

The flame does not stay lighted on the model with the safety device.

Check to make sure that:

You press the knob all the way in;

You keep the knob pressed in long enough to activate the safety device.

The gas holes are not clogged in the area corresponding to the safety device.

The burner does not remain on when set to "Low".

Check to make sure that:

The gas holes are not clogged.

There are no draughts near the cooking surface.

The minimum has been adjusted correctly (see the section entitled, "Minimum Regulation").

The cookware is not stable.

Check to make sure that:

The bottom of the cookware is perfectly flat.

The cookware is centered correctly on the burner .

The support grids have not been inverted.

If, despite all of these checks, the cooktop does not function properly and problem persists, call the nearest Merloni

Elettrodomestici Customer Service Centre, Communicating:

appliance model (Mod.)

serial number (S/N)

This information is found on the data plate located on the appliance and/or on the packaging.

 Never call upon technicians not authorized by the manufacturer, and refuse to accept spare parts that are not

original.

12

GB

04/2008 - 195045863.02

XEROX BUSINESS SERVICES
