Industrea Mining Technology PROD10522 CAS-GPS Light Vehicle Fixed Node User Manual CAS GPS DOCU0097
GE MINING AUSTRALIA CAS-GPS Light Vehicle Fixed Node CAS GPS DOCU0097
User Manual
CAS GPS Node User
Manual
CAS GPS User Manual (DOCU0097) A Page 2 of 24
Table of Contents
Table of Contents ......................................................................................................................................................................................................................... 2
Document Revision ..................................................................................................................................................................................................................... 4
Copyright Notice ........................................................................................................................................................................................................................... 4
Disclaimer ......................................................................................................................................................................................................................................... 4
1 Warnings ................................................................................................................................................................................................................................ 5
2 Company Details ................................................................................................................................................................................................................ 5
3 Scope ........................................................................................................................................................................................................................................ 6
3.1 CAS-GPS NODE VARIANTS .............................................................................................................................................................................................. 6
3.2 Abbreviations ........................................................................................................................................................................................................................ 6
3.3 Definitions ............................................................................................................................................................................................................................... 6
4 Transport ................................................................................................................................................................................................................................ 6
5 Storage .................................................................................................................................................................................................................................... 7
6 Unpacking of Equipment ............................................................................................................................................................................................... 7
7 Installation ............................................................................................................................................................................................................................. 7
8 Test & Commission ............................................................................................................................................................................................................ 7
9 Operation ............................................................................................................................................................................................................................... 8
9.1 Principle of Operation ....................................................................................................................................................................................................... 8
9.2 Positional Tracking ............................................................................................................................................................................................................. 9
9.3 Connectivity ........................................................................................................................................................................................................................... 9
9.4 Key Components................................................................................................................................................................................................................. 9
9.4.1 PDA Cradle ........................................................................................................................................................................................................... 9
9.4.2 Node .................................................................................................................................................................................................................... 11
9.4.3 Boomgate Node ............................................................................................................................................................................................ 18
9.4.4 Light Vehicle Node ....................................................................................................................................................................................... 19
9.4.5 Light Vehicle Expandable Node ............................................................................................................................................................ 19
9.4.6 Self Test Node ................................................................................................................................................................................................. 19
10 Service, Maintenance & Disposal ............................................................................................................................................................................ 20
10.1 Equipment Service .......................................................................................................................................................................................................... 20
10.1.1 Display Unit ................................................................................................................................................................................................ 20
10.1.2 System .......................................................................................................................................................................................................... 20
10.1.3 Scheduled System Servicing ............................................................................................................................................................. 20
10.1.4 Equipment Maintenance ..................................................................................................................................................................... 20
11 Decommissioning ........................................................................................................................................................................................................... 21
12 Disposal ................................................................................................................................................................................................................................ 21
13 Authorised Representatives ....................................................................................................................................................................................... 22
13.1 Brazil ....................................................................................................................................................................................................................................... 22
13.2 South Africa ........................................................................................................................................................................................................................ 22
13.3 Indonesia ............................................................................................................................................................................................................................. 22
13.4 Canada .................................................................................................................................................................................................................................. 22
13.5 North America ................................................................................................................................................................................................................... 22
CAS GPS Node User
Manual
CAS GPS User Manual (DOCU0097) A Page 3 of 24
13.6 Australia ............................................................................................................................................................................................................................... 22
14 Warranty Terms ............................................................................................................................................................................................................... 23
15 Regulatory Information................................................................................................................................................................................................ 23
15.1 DECLARATION OF CONFORMITY WITH FCC RULES FOR ELECTROMAGNETIC COMPATIBILITY ................................................ 23
15.1.1 FCC Interference Statement for Class B devices. ................................................................................................................... 23
15.1.2 Federal Communication Commission (FCC) - Radiation Exposure Statement ....................................................... 23
15.2 INDUSTRY CANADA Compliant ................................................................................................................................................................................. 24
15.2.1 Concerning Radio Transmitters ....................................................................................................................................................... 24
15.2.2 Industry Canada - Radiation Exposure Statement ............................................................................................................... 24
15.2.3 Industrie Canada – Déclaration sur l’exposition aux radiations ................................................................................. 24
15.2.4 Conforme aux normes d’INDUSTRIE CANADA ......................................................................................................................... 24
15.2.5 Au sujet des émetteurs radio ............................................................................................................................................................ 24
15.3 Australian Radio Communications Equipment - Radiation Exposure Statement ......................................................................... 24
15.4 Anatel Resolution 506 Statement ........................................................................................................................................................................... 24
CAS GPS Node User
Manual
CAS GPS User Manual (DOCU0097) A Page 4 of 24
Document Revision
REV
DESCRIPTION
Author
Review
Approval
Date
A
Initial Release
APT
Copyright Notice
No part of this publication may be reproduced, transmitted or transcribed into any language by any means without
the express written permission of GE Mining or its subsidiaries.
Disclaimer
These materials are provided for information purposes only, "as is," without express or implied warranty of any kind. GE
makes no EXPRESSED OR IMPLIED WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE OR
ANY OTHER EXPRESSED OR IMPLIED WARRANTY REGARDING ANY PRODUCTS DESCRIBED in these materials. To the
maximum extent permitted by law, GE disclaims any and all implied warranties that might otherwise arise or apply,
including any implied warranty of merchantability or of fitness for a particular purpose. GE further makes no
representation or warranty of accuracy of these materials and GE will have no responsibility or liability for any error or
omission in these materials.
CAS GPS Node User
Manual
CAS GPS User Manual (DOCU0097) A Page 5 of 24
1 Warnings
2 Company Details
GE Mining
PO Box 5107 Chittaway Bay NSW 2258
3 Co-Wyn Close, Fountaindale, NSW 2258 Australia
Industrea Mining Technology
T +61 2 4336 1800
F +61 2 4389 2355
E enquiriesIMT@geindustrea.ge.com
W www.ge.com/au
Installation should be in accordance with the installation procedures defined by
GE Mining and must only be performed by authorised and qualified installers.
The CAS product is a driver’s aid and should not be relied upon as the primary
means of reducing the risks of high potential interactions. Interaction include
between Heavy Vehicles, Light Vehicles, infrastructure and personnel.
GPS based proximity detection may not operate when satellites are not fully visible
in the sky (e.g. in a deep mining pit near a high-wall or under a workshop roof).
Consideration should be given to supplementing GPS with RF proximity detection
and visual aids.
Alarm logic should be determined via site specific risk assessment based on the
end-users specified high risk interactions.
The CAS product does not take control of the vehicle although can provide inhibit
signals to prevent movement from a stationary position – implementation will
require approval from the vehicle OEM, vehicle owner and GE and a detailed risk
assessment conducted.
Do not weld on ROPs!
Do not drill through ROPs!
CAS GPS Node User
Manual
CAS GPS User Manual (DOCU0097) A Page 6 of 24
3 Scope
CAS GPS Node User Manual
This user manual covers the following variants of the CAS GPS Node system:
3.1 CAS-GPS NODE VARIANTS
The CAS-GPS Node family of products are available in region / customer specific configurations for compliance with local
radio regulations.
PROD1052-LRx
Suffix ‘1’ includes 868MHz V2V radio. (South Africa)
Suffix ‘2’ includes 920MHz V2V radio. (Au, US, CAN, Brazil, Indonesia)
Suffix ‘3’ customer specific configuration for V2V radio
3.2 Abbreviations
Abbreviation
Meaning
IVU
In Vehicle Unit
GPS
Global Positioning System
CAS
Collision Avoidance System
LAN
Local Area Network
Wi-Fi
Wireless Communication Medium
GSM
Global System for Mobile Communications
OEM
Original Equipment Manufacture
V2V
Vehicle to Vehicle
RF
Radio Frequency
PDA
Personnel Digital Assistant
3.3 Definitions
Term
Definition
“system”
Refers to the assembled and installed operational elements which together perform
the desired functionality.
“system components”
Refers to the individual single elements which when assembled together at the
point of installation form the “system”. Each of these elements has a unique part
number.
4 Transport
All possible precautions are taken to protect the equipment against damage or losses during shipment, however before
accepting delivery, check all items against the packing list or Bill of Lading. If there are shortages or evidence of
physical damage, notify GE Mining immediately.
Notify GE Mining within 7 days (maximum) in case of shortages or discrepancies, according to the packing list. This
action will help ensure a speedy resolution to any perceived problems. Keep a record of all claims and correspondence.
Photographs are recommended.
Where practicable do not remove protective covers prior to installation unless there are indications of damage. Boxes
opened for inspection and inventory should be carefully repacked to ensure protection of the contents or else the parts
should be packaged and stored in a safe place. Examine all packing boxes, wrappings and covers for items attached to
them, especially if the wrappings are to be discarded.
PROD1052-LRx
Light Vehicle Fixed Expandable Installation Node
PROD1052-LFx
Light Vehicle Fixed Installation Node
PROD1052-LPx
Light Vehicle Portable Node (Bluetooth®)
PROD1052-BGx
Boomgate Node
PROD1052-STx
Self Test Node
CAS GPS Node User
Manual
CAS GPS User Manual (DOCU0097) A Page 7 of 24
5 Storage
Where the equipment is not to be installed immediately, proper storage is important to ensure protection of equipment and
validity of warranty.
All equipment should be stored indoors protected from the elements in a cool dry area. If storing on the ground,
ensure that the storage area is not an area where water will collect.
All equipment which contains batteries, must be placed in “Transit Mode” prior to storage. This mode disables the battery.
6 Unpacking of Equipment
The method of packing used will depend on the size and quantity of equipment.
7 Installation
Installation should be in accordance with the installation procedures defined by GE Mining. The installations must only be
performed by authorised and qualified installers.
8 Test & Commission
At installation time, the system must be checked against the installation test procedure (ITP) to verify the system is
correctly installed and functioning as required. After passing its final installation test, the system is then ready for
use after which inbuilt self- diagnostic testing combined with daily user monitoring ensures that any faults can be acted
upon.
Take care when unpacking the equipment to avoid damage.
CAS GPS Node User
Manual
CAS GPS User Manual (DOCU0097) A Page 8 of 24
9 Operation
9.1 Principle of Operation
The CAS-GPS Intelligent multi-purpose node comprises of a high performance GPS receiver, Vehicle to Vehicle (V2V)
radio transceiver, high accuracy Ranging RF transceiver, CAN bus, RS-232 / RS-485 communications, Digital Input (2) /
Output (1), Bluetooth® wireless technology and internal battery that is available in the following configurations:
1. Light Vehicle roof unit (fixed configuration) – unit communicates with the Display Unit in the Operator’s cabin via a
fixed cable using RS232 communications. The roof unit is powered from the vehicle battery which also serves to
charge the optional internal back-up battery.

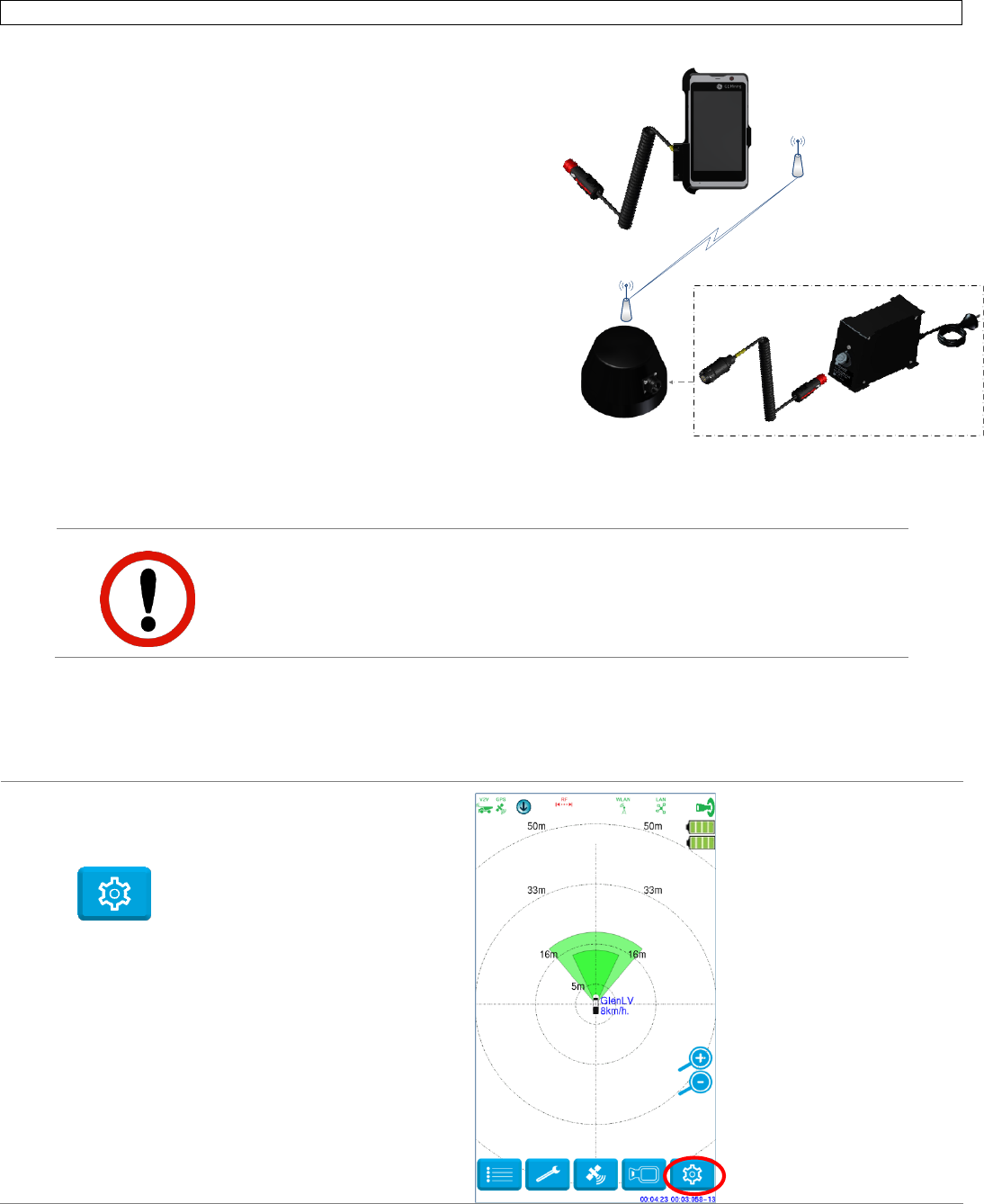

2. Light Vehicle roof unit (portable configuration) – magnetic base unit which communicates with the Display Unit in
the Operator’s cabin via Bluetooth® wireless technology. The roof unit is battery powered. Suited to Light Vehicle
portable installations deployed on a daily basis.
3. Light Vehicle Fixed Expandable Installation Node – same operation as “Light Vehicle roof unit (fixed configuration)”
with the addition of extra connections for downstream use of Light Vehicle Fixed Node unit for additional accuracy.
4. Self-Test – fixed unit that enables automatic real-time functional health monitoring of a primary CAS-GPS/RF
system on a vehicle without the requirement for a remote Test Station or operator interaction. Communicates with
the In-Vehicle-Unit (IVU) or Light Vehicle Display Unit. Suited to Light or Heavy vehicle installations.

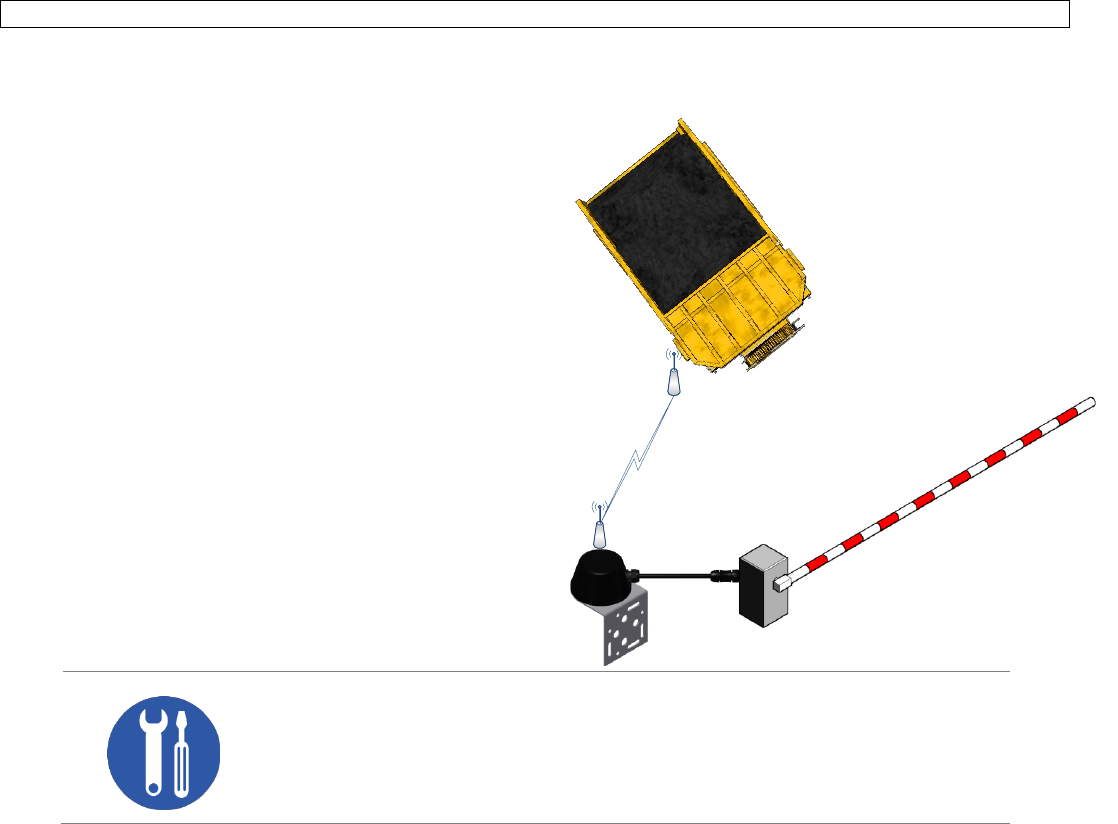

5. Boomgate – unit which communicates with machines via V2V radio and operates a boomgate via contacts.

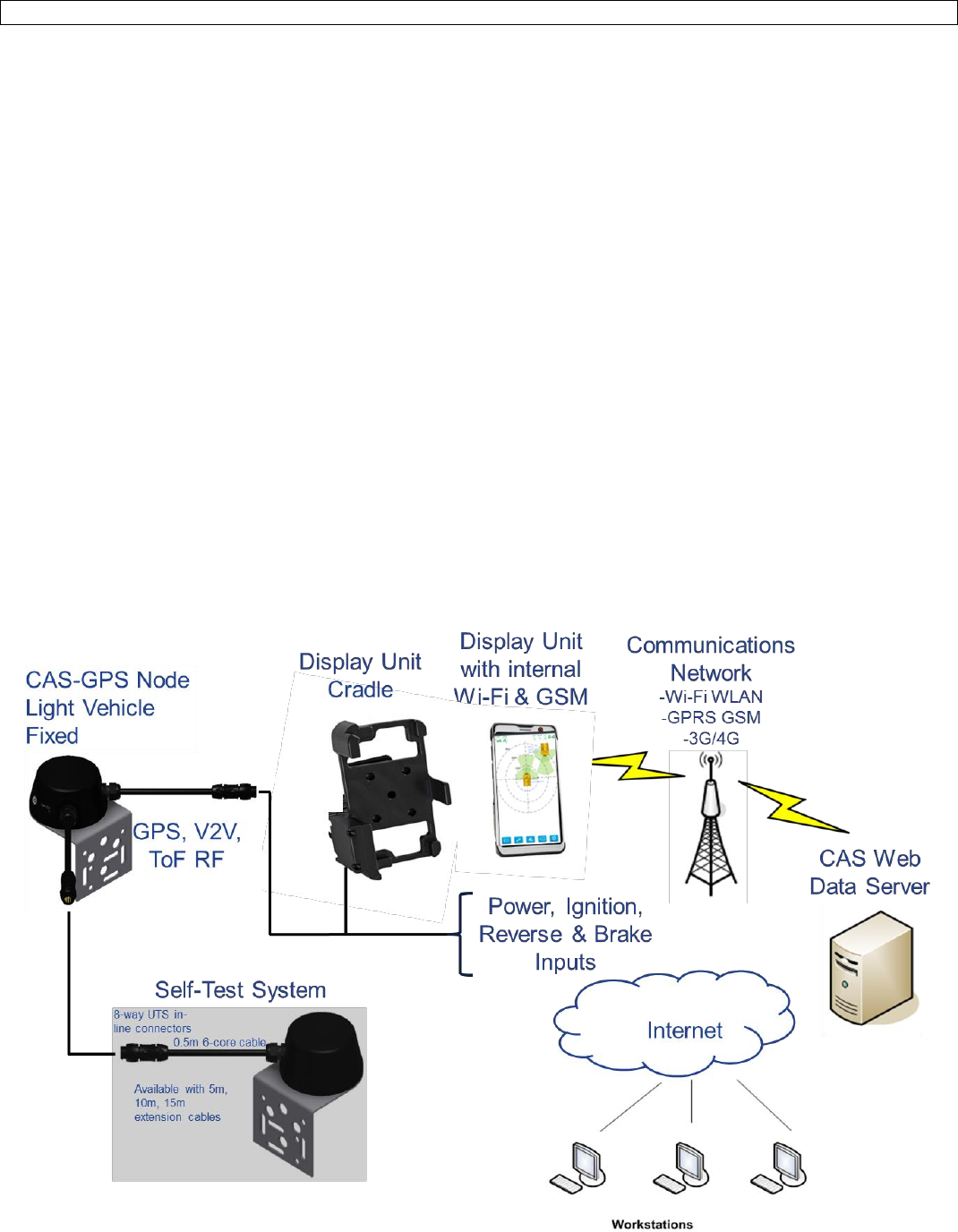

Typical Light Vehicle Topology
CAS GPS Node User
Manual
CAS GPS User Manual (DOCU0097) A Page 9 of 24
9.2 Positional Tracking
The system uses the latest precision point GPS technology which gives accurate location-based tracking.
9.3 Connectivity
The Node communicates in the following ways:-
with the In Vehicle Unit (IVU) via CANBUS + RS485
with the light vehicle PDA via Bluetooth® (Portable) or RS232 (Fixed)
other vehicles and nodes via RF radio
Physical Devices via Inputs and Outputs
9.4 Key Components

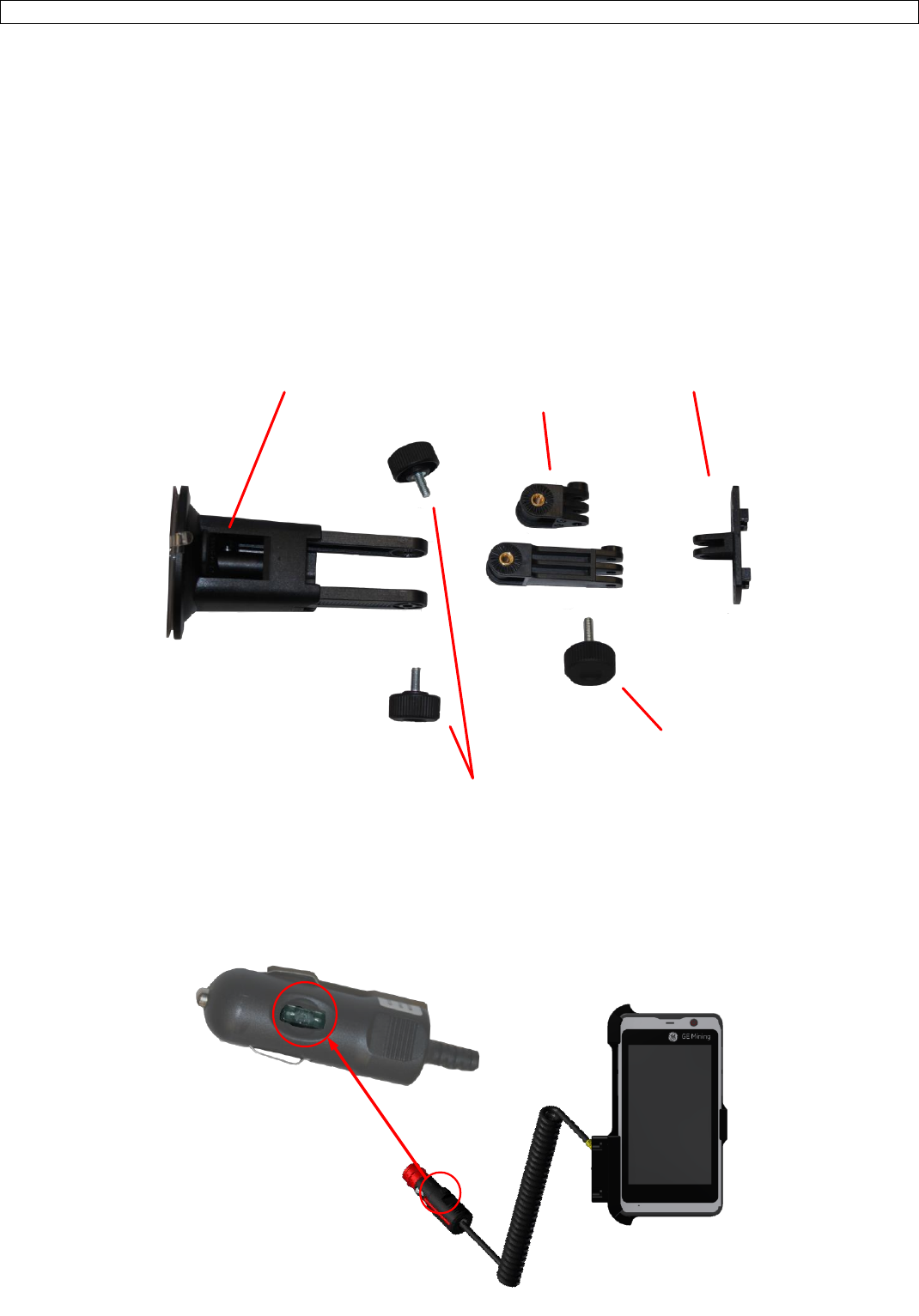

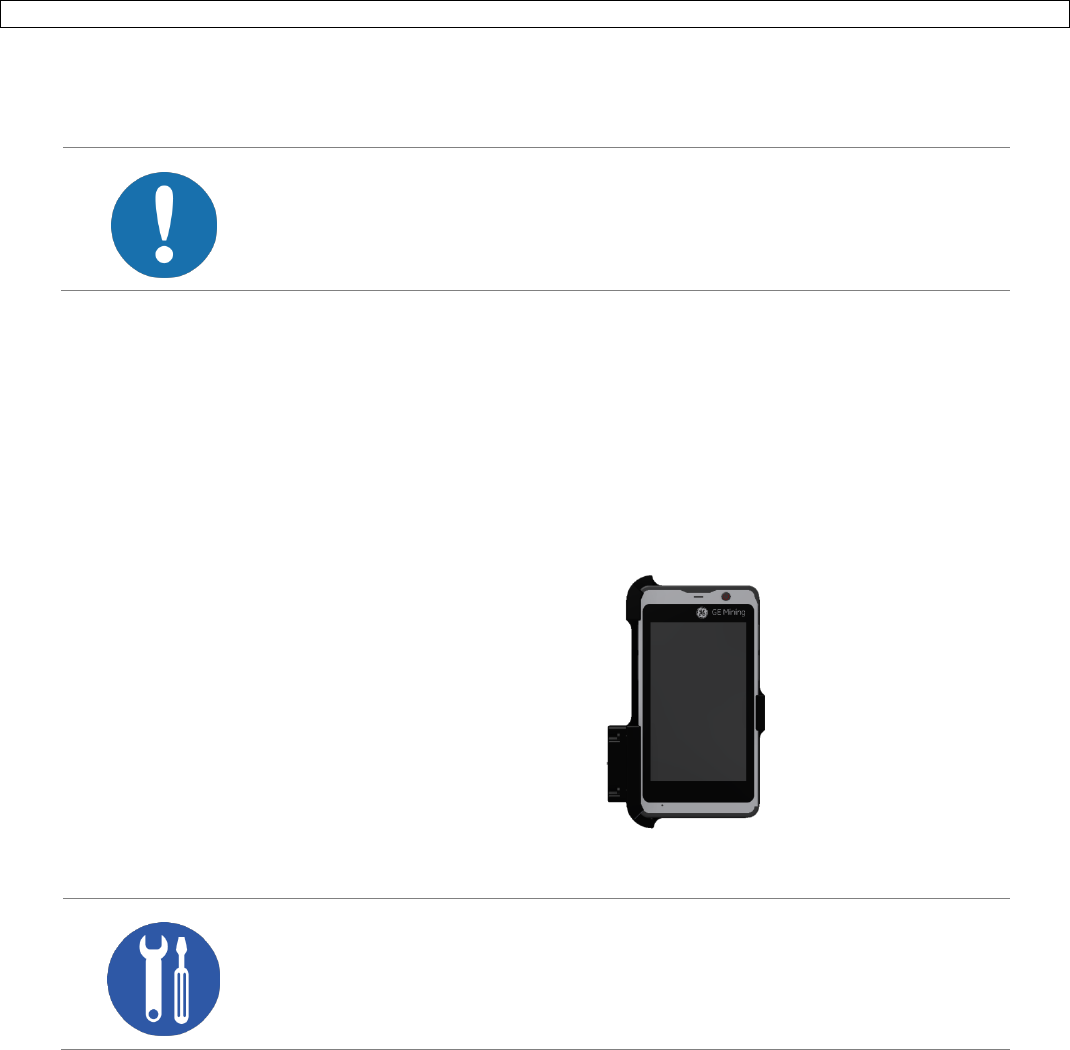

9.4.1 PDA Cradle
The PDA Cradle securely holds the PDA for use in the vehicle.
9.4.1.1 Fixed Installation of PDA Cradle in Vehicle
See Installation manual for detailed instructions.
For the GPS to work accurately the Node must have clear line of sight to the sky.
Obstructions such as machine structure, work roof or deep pit may affect the
accuracy or operation of the GPS.
The PDA Fixed Cradle must only be installed by an authorised person.
CAS GPS Node User
Manual
CAS GPS User Manual (DOCU0097) A Page 10 of 24
9.4.1.2 Suction Cup Installation of PDA Cradle In Vehicle
Clean the mounting surface thoroughly. Ensure that the surface is completely dry and free of any dirt or residue. For
best results use rubbing alcohol or similar to clean the surface prior to installation.
Determine placement of your suction cup by using the cradle as a guide.
Once satisfied with the location for the suction cup, remove the cradle from the suction cup and push the suction
cup into place – the suction cup should hold in this position without any weight on it.
Ensure the rotational alignment is correct.
Push the locking lever towards the mounting surface to secure in place.
Adjust the Up/Down and Left/Right Alignment of the cradle by releasing the adjustment screws and moving the
cradle with your hand.
Ensure all adjustment screws are tight prior to fitting the PDA to the cradle.
Up / Down
Adjustment Screws
Locking Lever
Left / Right
Adjustment Screw
Cradle AdapterShort / Long
Swing Arms
9.4.1.3 Charge Cable for Portable Installation
The charge cable for the Portable Cradle is fixed to the cradle and needs to be plugged into a power outlet in the Light
Vehicle. There is a 2A replaceable fuse in the plug to protect the system.
To Vehicle Power
Outlet
9-30VDC
2A Blade Fuse
CAS GPS Node User
Manual
CAS GPS User Manual (DOCU0097) A Page 11 of 24
9.4.1.4 Cable Connections for Fixed Installation
See Installation manual for detailed instructions.
9.4.2 Node
9.4.2.1 Fixed Node
The CAS-GPS NODE Light Vehicle Fixed unit comprises of a high performance GPS receiver and on-board digital radios for
ranging measurements, Bluetooth® wireless technology and point to multipoint communication.
The unit is powered from 12 – 24VDC vehicle derived power supply and features 2 x digital inputs for control signals & 1 x
RS232 communication port for primary communication to the in-cab GE Personal Digital Assistant (PDA) running the CAS-
GPS application software or communication to a PROD1052-LRx node to provide an on-board system functional test.
This roof mounted unit optionally features an internal battery back-up for continuous operation during a vehicles powered
down state.
Bluetooth® wireless technology provides a secondary communication link to the in-cab PDA to allow for real time situational
awareness of the CAS-GPS enabled fleet.
When used for connection to a PDA, the Light Vehicle Fixed Node requires control signals for reverse and brake to be routed
to the digital inputs for complete system functionality.
9.4.2.1.1 Fixed Node Installation
See Installation manual for detailed instructions.
9.4.2.2 Portable Node
The CAS-GPS NODE Portable Light Vehicle unit comprises of a high performance GPS receiver and on-board digital radios for
ranging measurements, Bluetooth® wireless technology and point to multipoint communication.
The unit is charged from a 12 – 24VDC power supply and features magnetic mounts for quick installation on visiting site
vehicles, allowing full functional situational awareness integration with the existing CAS-GPS enabled fleet.
This roof mounted unit features an internal rechargeable battery for continuous operation for 24 hours without the need for
cabling.
Bluetooth® wireless technology provides a primary communication link to the in-cab PDA to allow for real time situational
awareness of the CAS-GPS enabled fleet.
The PDA Fixed Cradle must only be installed by an authorised person.
The CAS GPS Node must only be installed by an authorised person.
CAS GPS Node User
Manual
CAS GPS User Manual (DOCU0097) A Page 12 of 24
9.4.2.2.1 Portable Node Installation
The Portable Node is attached to the vehicle using a
magnetic base. The Node must be installed on the vehicle
such that:-
It has a flat smooth and clear surface to fix to
It does not protrude from the vehicle or in a
position where it may be damaged
It does not obstruct the driver’s view
It has a clear line of sight to the sky
It is a minimum of 300mm away from any other
communication antenna
Magnets should be kept clean from dust for
maximum effect.
It is mounted in a position so that all 3 magnets
are positively attached to a ferromagnetic
vehicle surface
Avoid harsh braking whilst in use to minimize the chance of the node becoming dislodged in a dangerous manner.
9.4.2.3 Bluetooth® connection setup
When using the Portable Node and PDA the Bluetooth® connection needs to be setup or confirmed each use. To setup the
Bluetooth® connection:-
On the main screen of the
PDA press on the Settings
Button
For the GPS to work accurately the Node must have clear line of sight to the sky.
Obstructions such as machine structure, work roof or deep pit may affect the
accuracy or operation of the GPS.
For Charging
Only
To Vehicle
Power Outlet
Magnetic
Attachment
to Vehicle
Bluetooth®
Communication
Link
Cradle Suction
Mount
CAS GPS Node User
Manual
CAS GPS User Manual (DOCU0097) A Page 13 of 24

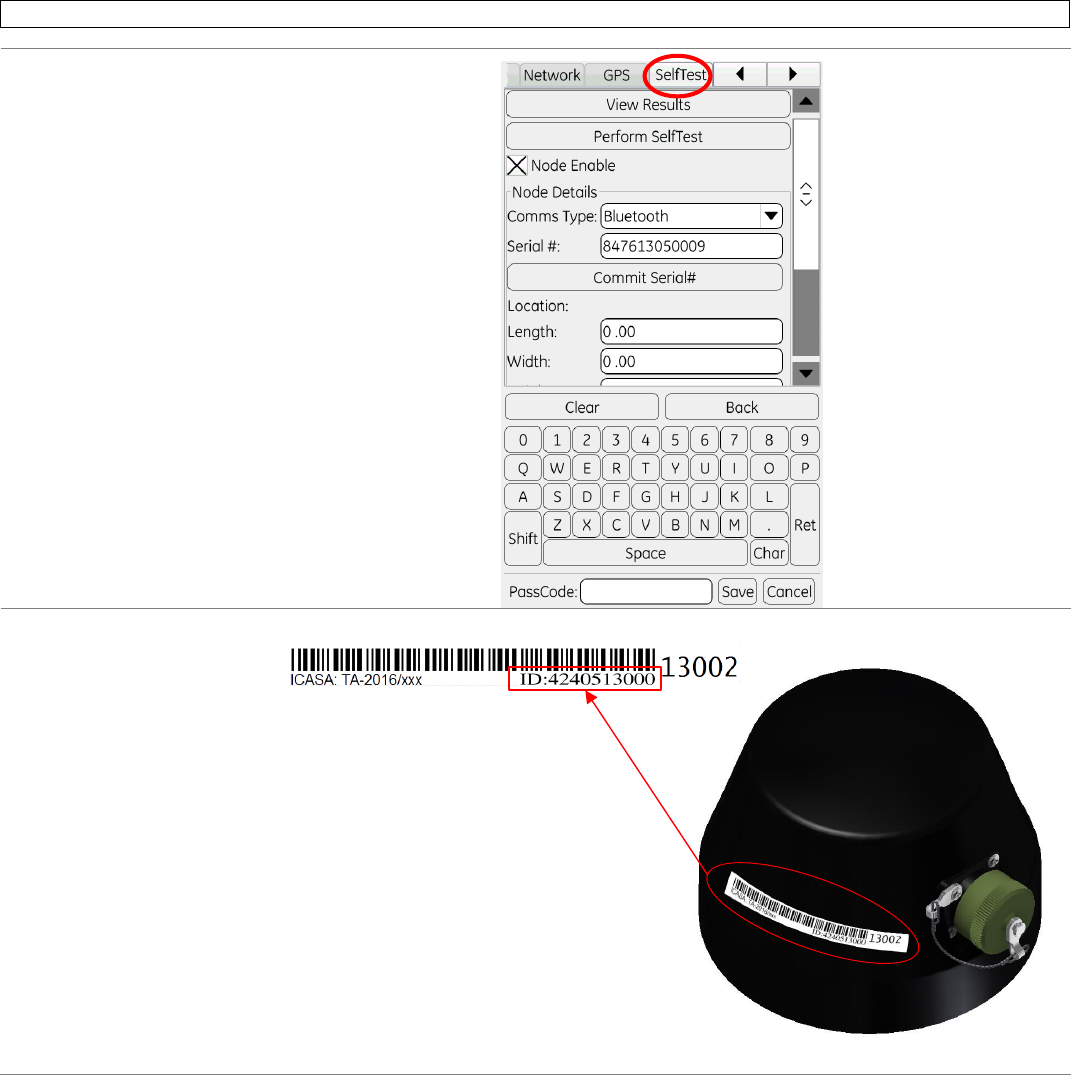

Select the Self Test Setup
Screen
Enter the Node ID Number
from the barcode on the
Node and select ‘Commit
Serial#’
CAS GPS Node User
Manual
CAS GPS User Manual (DOCU0097) A Page 14 of 24

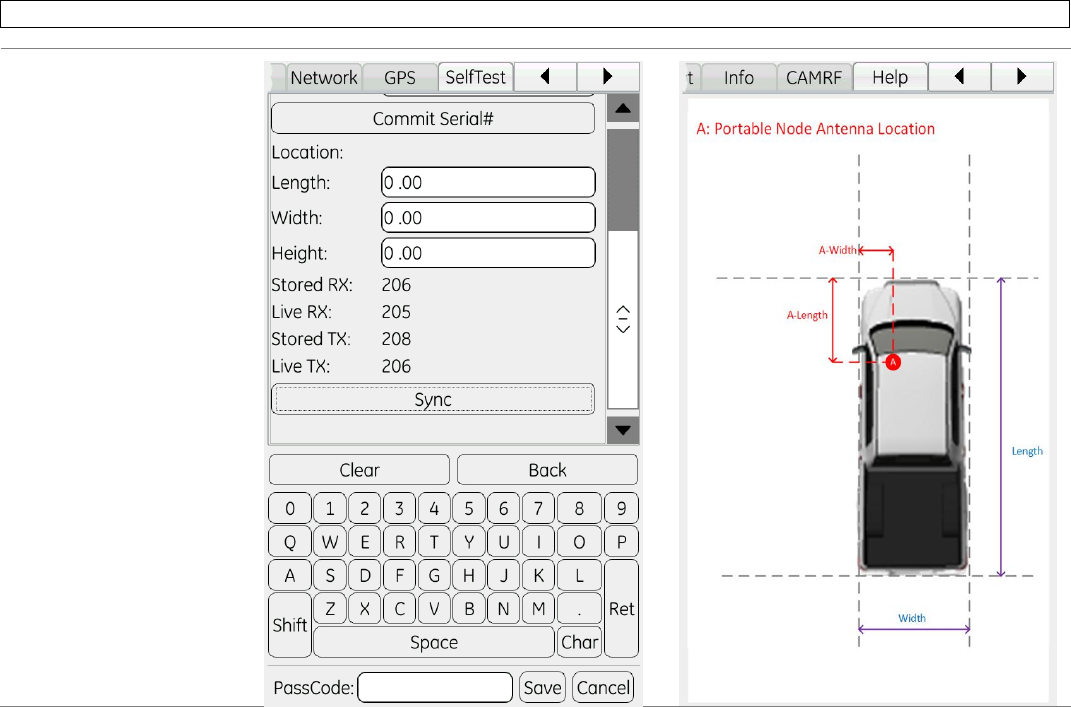

Scroll down the page and
enter the Location details
then select Sync
CAS GPS Node User
Manual
CAS GPS User Manual (DOCU0097) A Page 15 of 24
9.4.2.4 Portable Node Charging
The Portable Light Vehicle Node battery is charged using the specially designed charging station. This charging station takes
care of the battery and takes approximately 6 hours to charge the battery completely.
Battery charge status of the Node can be checked on the PDA Screen.

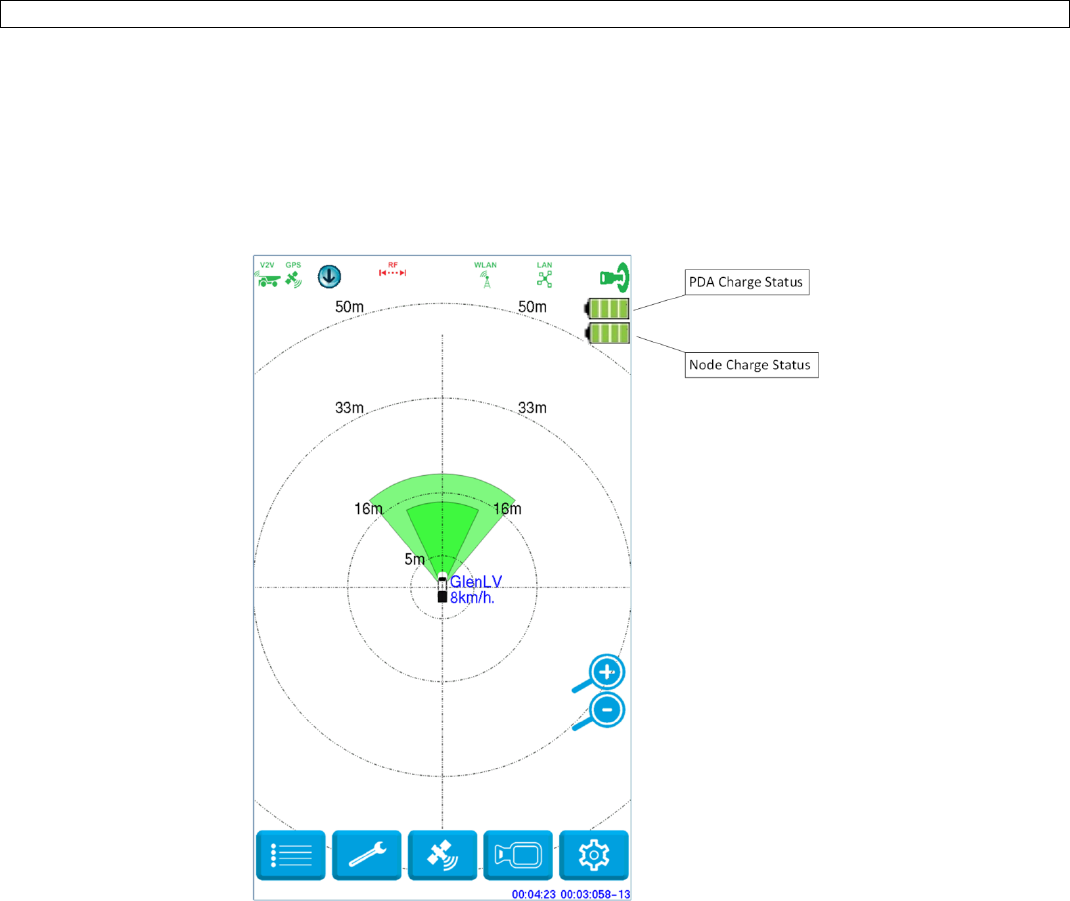

PDA Screen Image for Charge status
CAS GPS Node User
Manual
CAS GPS User Manual (DOCU0097) A Page 16 of 24
9.4.2.5 Charging Warnings
Only use charge cables provided.
Charging can be plugged into a normal vehicle accessory power outlet.
Charging can be carried out during operation.
Do not pass charging cable through vehicle doors or windows.
Do not use damaged power cords or plugs.
Do not bend or damage the power cord.
Do not touch the power cord with wet hands, or disconnect the charger by pulling
the cord.
Do not Short-Circuit the Charger or the Battery.
Do not drop or cause impact to the charger or battery.
Do not charge the battery with chargers that are not approved by the manufacturer.
Incompatible batteries and chargers can cause serious injuries or damage to your
device.
Do not handle a damaged or leaking lithium Ion battery.
Handle and dispose of batteries and chargers with care.
Never crush or puncture the battery. Avoid exposing the battery to high external
pressure, which can lead to an internal short circuit and overheating.
The CAS-GPS Nodes contain no user serviceable parts.
Batteries should be replaced every 2 years by a suitably qualified and trained
technician.
Only replace batteries with OEM supplied parts.
Never dispose of batteries or devices in a fire.
Follow all local regulations when disposing of used batteries or devices.
Never place batteries or devices on or in heating devices, such as microwave ovens,
stoves, radiators, or in an engine bay.
Avoid exposing your device and batteries to very cold or very hot temperatures.
Extreme temperatures can cause the deformation of the device and reduce the
charging capacity and life of your device and batteries.
CAS GPS Node User
Manual
CAS GPS User Manual (DOCU0097) A Page 17 of 24
9.4.2.6 Using the PDA Display
On Vehicle Start-up
Immediately after starting the vehicle and before putting it into motion, perform a quick check of the Display’s status bar.
Check that none of the icons are Red, if so your CAS GPS system is not functioning correctly and its operation cannot be
assured!
Vehicle in Motion
When your vehicle is moving you can operate using your normal safe operating procedures. The Display will sound an
alarm to gain your attention if there is another vehicle that is getting too close. A quick glance at the display will show
the location, type, ID, heading and speed of other vehicles.
If any of the CAS Icons are red the system may not be operating correctly.
On Startup, the GPS will assume you are facing 'North' until a heading has been
established by forward movement.
If a nearby vehicle’s beams are overlapping your vehicles beam an audible
alarm will be sounded. Only when your vehicle is stationary may you silence the
alarm by touching anywhere on the screen.
You cannot silence the alarm whilst your vehicle is in motion.
CAS GPS Node User
Manual
CAS GPS User Manual (DOCU0097) A Page 18 of 24
9.4.3 Boomgate Node
The CAS-GPS NODE Boomgate access control comprises of a
high performance GPS receiver and on-board digital radios for
ranging measurements, Bluetooth® wireless technology and
point to multipoint communication.
The unit accepts power from a 12 – 24VDC power supply and
features 2 digital inputs & 1 digitally controlled output.
The digital output is active with either a GPS derived position of
approaching CAS-GPS enabled fleet or RF Ranging proximity
detection within a configurable activation area.
The digital output is a current limited push/pull switch supplying
voltage from the unit’s source supply.
The Boomgate access control digital output can be connected
to any device that may require control signaling based on CAS-
GPS fleet proximity.
9.4.3.1 Boomgate Node Installation
See Installation manual for detailed instructions.
The CAS GPS Node must only be installed by an authorised person.
CAS GPS Node User
Manual
CAS GPS User Manual (DOCU0097) A Page 19 of 24
9.4.4 Light Vehicle Node
9.4.5 Light Vehicle Expandable Node
The CAS-GPS NODE Light Vehicle Fixed Expandable unit comprises of a high performance GPS receiver and on-board digital
radios for ranging measurements, Bluetooth® wireless technology and point to multipoint communication.
The unit is powered from an 12 – 24VDC vehicle derived power supply and features 2 x digital inputs for control signals, 1 x
RS232 communication port for primary communication to the in-cab GE Personal Digital Assistant running the CAS-GPS
application software & 1 x RS232 communication port for primary communication to an PROD1052-LFx Node used for
system self-test functionality or for connection to an existing CAS/CAM/RF legacy product range.
This roof mounted unit optionally features an internal battery back-up for continuous operation during a vehicles powered
down state.
Bluetooth® wireless technology provides a secondary communication link to the in-cab PDA to allow for real time situational
awareness of the CAS-GPS enabled fleet.
The Light Vehicle Fixed Expandable Node requires control signals for reverse and brake to be routed to the digital inputs for
complete system functionality.
9.4.5.1 Light Node Installation
See Installation manual for detailed instructions.
9.4.6 Self-Test Node
The CAS-GPS NODE Self-Test unit comprises of a high performance GPS receiver and on-board digital radios for ranging
measurements and point to multipoint communication.
The unit accepts power from the CAS-GPS In Vehicle Unit (IVU) as installed on heavy and medium site vehicles.
The Self-Test unit enables automatic real-time functional health monitoring of a primary CAS-GPS/RF system on a vehicle
without the requirement for a remote ‘test station’ or operator interaction.
The self-test GPS receiver and V2V radio also functions as a backup redundancy to the primary GPS and V2V link.
The self-test GPS can be linked to the primary GPS to provide accurate heading for rotational or slow moving machines (e.g.
shovels).
Communication is via a dedicated CAN Bus connection between the CAS-GPS IVU and CAS-GPS NODE.
9.4.6.1 Self Test Node Installation
See Installation manual for detailed instructions.
The CAS GPS Node must only be installed by an authorised person.
The CAS GPS Node must only be installed by an authorised person.
CAS GPS Node User
Manual
CAS GPS User Manual (DOCU0097) A Page 20 of 24
10 Service, Maintenance & Disposal
10.1 Equipment Service
10.1.1 Display Unit
•
Clean screen surface with a clean dry soft cloth - Do not use solvents or cleaners on the screen surface!
•
Check for physical damage to screen surface.
•
Check the cable connector is securely connected at the rear of the cradle.
•
Check the mounting bracket is secure – finger tighten only if loose.
10.1.2 System
•
Check visually that all Nodes are in good condition and the cables (where applicable) are securely connected.
•
Check visually that no cables are loose or damaged.
•
Verify that the system is working correctly prior to starting the vehicle and during operations.
10.1.3 Scheduled System Servicing
It is recommended that the system undergo preventative scheduled maintenance and inspections. These should be
carried out by trained and authorised personnel every 6 months or 1500hrs (whichever occurs first).
10.1.4 Equipment Maintenance
If the system is not functioning as expected and a fault cannot be resolved, please contact your nearest authorised
representative.
It is essential that no attempt be made to repair the equipment (other than
replacement of system components). Opening equipment enclosures should
never be attempted and will void any warranty and could compromise the safe
operation of the system.
CAS GPS Node User
Manual
CAS GPS User Manual (DOCU0097) A Page 21 of 24
11 Decommissioning
•
Removal of the system should only be performed if authorised by the owner of the vehicle.
•
Removal should be performed by a qualified person.
•
All system components and wiring should be removed.
•
All vehicle wiring should be restored back to original condition.
•
Dispose or store removed system in accordance with this manual.
12 Disposal
The electronic equipment discussed in this manual must not be treated as general waste. By ensuring that this product
is disposed of correctly, you will be helping to prevent potentially negative consequences for the environment and
human health which could otherwise be caused by incorrect waste handling of this product.
The system should be disposed of in accordance with local regulations. The electronics of CAS GPS are ROHS compliant.
The system contains a Lithium Ion Battery and should be disposed of in
accordance with local regulations.
CAS GPS Node User
Manual
CAS GPS User Manual (DOCU0097) A Page 22 of 24
13 Authorised Representatives
13.1 Brazil
13.2 South Africa
Avenida Portugal 4511/Bairro Itapoa Belo Horizonte,
M.G. 31710-400, Brazil
P: +55 31 3311 7200
F: +55 31 3311 7205
Email: brasil@joyglobal.com
www.joyglobal.com
Probe CAMS
245 Albert Amon Road
Meadowdale
Germiston 1614
P: +27 11 453 0924
F: +27 11 453 2141
www.probebattery.co.za
13.3 Indonesia
13.4 Canada
PT Intecs Teknikatama Industri
Jl. Ciputat Raya No. 18D Kebayoran Lama Selatan
Jakarta 12240 .
P: +62 21 729 3351
F: +62 21 729 3352
www.intecs.co.id
General Electric Canada
2300 Meadowvale Blvd,
Mississauga, ON, L5N 5P9
P: 1-800-561-3344
P: +1 905-858-5100
www.ge.com
13.5 North America
13.6 Australia
General Electric Company, Mining
2901 East Lake Road, Erie,
Pennsylvania, 16531, US
P: 480 264-2063
F: 480 264-6402
www.getransportation.com
GE Mining, Industrea Mining Technology
3 Co-Wyn Close, Fountaindale,
NSW, 2258, Australia
P: +612 4336 1800
F: +612 4389 2355
www.getransportation.com
CAS GPS Node User
Manual
CAS GPS User Manual (DOCU0097) A Page 23 of 24
14 Warranty Terms
Equipment and Parts:
15 months from delivery, or 12 months from when system is placed in service (whichever occurs first). Modifications to this
product without written consent from the manufacturer or its designated authorised representatives will void all warranty
obligations.
15 Regulatory Information
Warning: Modifications to this product without written consent from the manufacturer or its designated authorised
representatives could void the user’s authority to operate the equipment
15.1 DECLARATION OF CONFORMITY WITH FCC RULES FOR ELECTROMAGNETIC COMPATIBILITY
We, GE Mining, Industrea Mining Technology, of 3 Co-Wyn Close, Fountaindale, NSW, 2258,
Australia declare under our sole responsibility the products:
CAS-GPS Node
YIY-PROD1052LP2
YIY-PROD1052LR2
YIY-PROD1052LF2
YIY-PROD1052ST2
YIY-PROD1052BG2
to which this declaration relates:
Complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause undesired operation.
15.1.1 FCC Interference Statement for Class B devices.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
15.1.2 Federal Communication Commission (FCC) - Radiation Exposure Statement
To comply with FCC RF exposure limits for general population / uncontrolled exposure, the antennas used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-
located or operating in conjunction with any other antenna or transmitter.
CAS GPS Node User
Manual
CAS GPS User Manual (DOCU0097) A Page 24 of 24
15.2 INDUSTRY CANADA Compliant
This Class B digital apparatus complies with Canadian ICES-003. Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.
15.2.1 Concerning Radio Transmitters
This device complies with Industry Canada’s licence-exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including that may cause undesired operation of the device.
15.2.2 Industry Canada - Radiation Exposure Statement
To comply with Industry Canada RF exposure limits for general population / uncontrolled exposure, the antennas used for
this transmitter must be installed to provide a separation distance of 20cm from all persons and must not be co-located or
operating in conjunction with any other antenna or transmitter.
15.2.3 Industrie Canada – Déclaration sur l’exposition aux radiations
Afin de respecter les limites d’exposition pour l’ensemble de la population/l’exposition non contrôlée de la FCC/IC RF, les
antennes utilisées pour cet émetteur doivent être installées de manière à offrir une distance de séparation minimum de
20 cm les personnes et ne doivent pas être utilisées en conjonction avec d’autres antennes ou émetteurs.
15.2.4 Conforme aux normes d’INDUSTRIE CANADA
Cet appareil numérique de classe B est conforme à la norme canadienne ICES-003. Les changements ou les modifications
non approuvés expressément par la partie responsable de la conformité pourraient annuler l’autorisation de l’utilisateur de
faire fonctionner l’équipement.
15.2.5 Au sujet des émetteurs radio
Ce dispositif est conforme à la partie 15 des règles de la Federal Communications Commission (FCC) des États‐Unis et
d'Industrie Canada (IC) exempts de licence RSS norme(s).
Son fonctionnement est assujetti aux deux conditions suivantes:
(1) Ce dispositive ne doit pas provoquer de brouillage préjudiciable, et
(2) il doit accepter tout brouillage reçu, y compris le brouillage pouvant entraîner un mauvais
fonctionnement.
15.3 Australian Radio Communications Equipment - Radiation Exposure Statement
The equipment complies with the Radiocommunications (Electromagnetic Radiation – Human Exposure) Standard 2014 for
General Public Exposure, Non-Aware User, for a Compliance Level 2 Radiocommunications Equipment, when the minimum
safety distance of 20cm is adhered to, and shall bear the RCM.
15.4 Anatel Resolution 506 Statement
This equipment operates in a secondary manner, that is, does not have the right of protection against prejudicial
interference, even from stations of the same type, and nor can they cause interference to systems operating in a primary
manner.
