CAS-GPS PPU
Personnel Protection Unit
Operation Manual
P/N: PROD1006-x
‘x’ = Region Specific Radio Configuration
CLASS B DEVICE
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encourage to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected
Consult the dealer or an experienced radio/TV technician for help
This device complies with Part 15 of the FCC Rules and Industry Canada’s
licence exempt RSS-247. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may
cause undesired operation of the device.
DÉCLARATION DE CONFORMITÉ À LA FCC/IC
Ce dispositif est conforme à la partie 15 des règles de la Federal
Communications Commission (FCC) des États‐Unis et d'Industrie Canada (IC)
exempts de licence RSS norme(s). Son fonctionnement est assujetti aux deux
conditions suivantes:
(1) Ce dispositive ne doit pas provoquer de brouillage préjudiciable, et
(2) il doit accepter tout brouillage reçu, y compris le brouillage pouvant
entraîner un mauvais fonctionnement.
RESOLUÇÃO No 506,
Este equipamento opera em caráter secundário, isto é, não tem direito a
proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e
não pode causar interferência a sistemas operando em caráter primário.
LIFE SUPPORT POLICY
These products are not designed for use in life support
appliances, devices, or systems where malfunction of
these products can reasonably be expected to result in
personal injury. GE Mining Australia customers using or
selling these products for use in such applications do so at
their own risk and agree to fully indemnify GE Mining
Australia from any damages resulting from such improper
use or sale.
ELECTROMAGNETIC INTERFERENCE/COMPATIBILITY
Nearly every electronic device is susceptible to
electromagnetic interference (EMI) if inadequately
shielded, designed, or otherwise configured for
electromagnetic compatibility.
To avoid electromagnetic interference and/or
compatibility conflicts, do not use this device in any facility
where posted notices instruct you to do so. In aircraft, use
of any radio frequency devices must be in accordance
with applicable regulations. Hospitals or health care
facilities may be using equipment that is sensitive to
external RF energy.
With medical devices, maintain a minimum separation of
15 cm (6 inches) between pacemakers and wireless
devices and some wireless radios may interfere with some
hearing aids. If other personal medical devices are being
used in the vicinity of wireless devices, ensure that the
device has been adequately shielded from RF energy. In a
domestic environment this product may cause radio
interference in which case the user may be required to
take adequate measures.
WARNING
Both active components contain rechargeable
lithium- Ion batteries that are not user
replaceable.
Do NOT incinerate, puncture, heat or damage
your battery operated device.
Charge only on approved docking stations sold
with the product. Listed under ‘Charging’ within
this document
Any changes or modifications not expressively
approved by GE could void the user’s authority
to operate this equipment and will void all
product warranties.
POTENTIALLY EXPLOSIVE ATMOSPHERES
Turn off your electronic device before entering an area
with potentially explosive atmosphere. It is rare, but
your electronic device could generate sparks. Sparks in
such areas could cause an explosion or fire resulting in
bodily injury or even death.
Areas with a potentially explosive atmosphere are
often, but not always, clearly marked. They include
fuelling areas, such as petrol station, below deck on
boats, fuel or chemical transfer or storage facilities, and
areas where the air contains chemicals or particles,
such as grain, dust, or metal powders.
DOCU0096 - CAS-GPS Personnel Protection Unit Operation Manual-A2.docm rev A2
Page 2 of 4
Overview

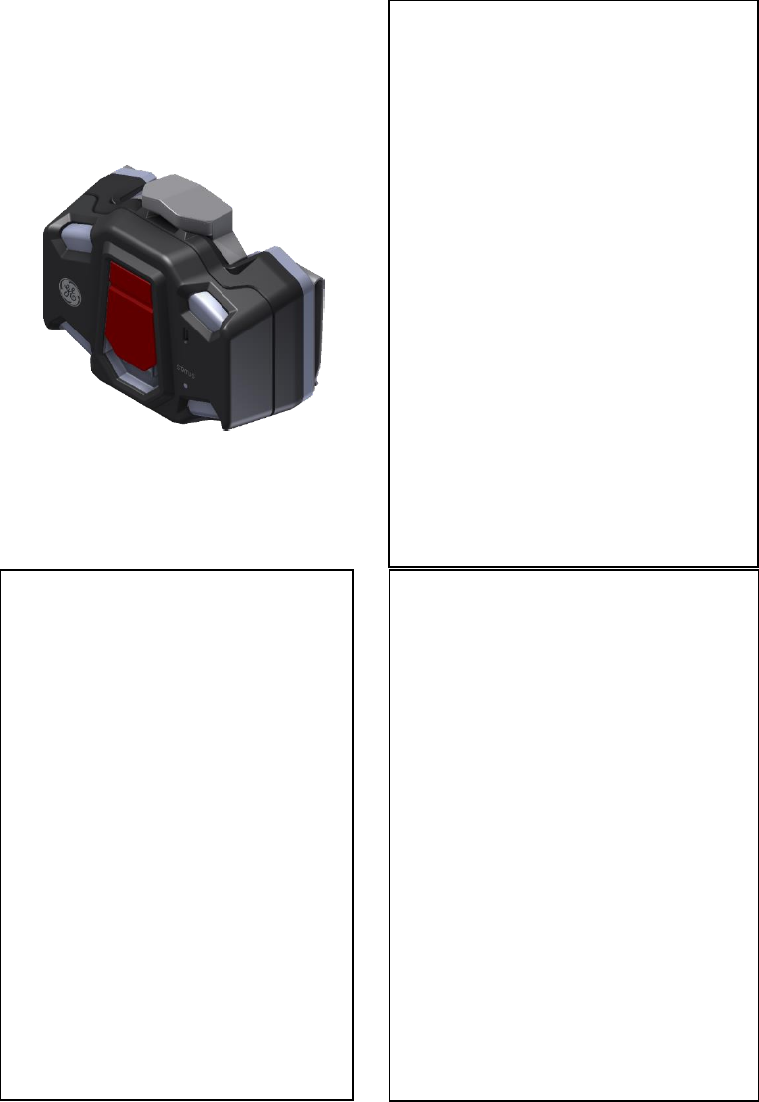

PROD1006-x - The Personnel Protection Unit (PPU) is comprised of three parts:
1. PROD1061 - PPU Remote Alarm
This unit is fitted to the operator’s helmet visor
during normal operation. The Remote Alarm is a
visual indicator extension of the paired host Tag.
The Remote Alarm is fitted to the PPU tag for
pairing, charging and testing the device.
2. PROD1060-x - The PPU Tag
The Tag communicates with CAS-GPS enabled
fleet for situational awareness. The Tag is worn
on the user’s belt. The Tag contains GPS
functionality for Geo-location and should be
worn outside of clothing for maximum
performance.
3. PROD1064 - Remote Alarm Helmet Adaptor
This adaptor is used for fixing the remote alarm
to a helmet visor.

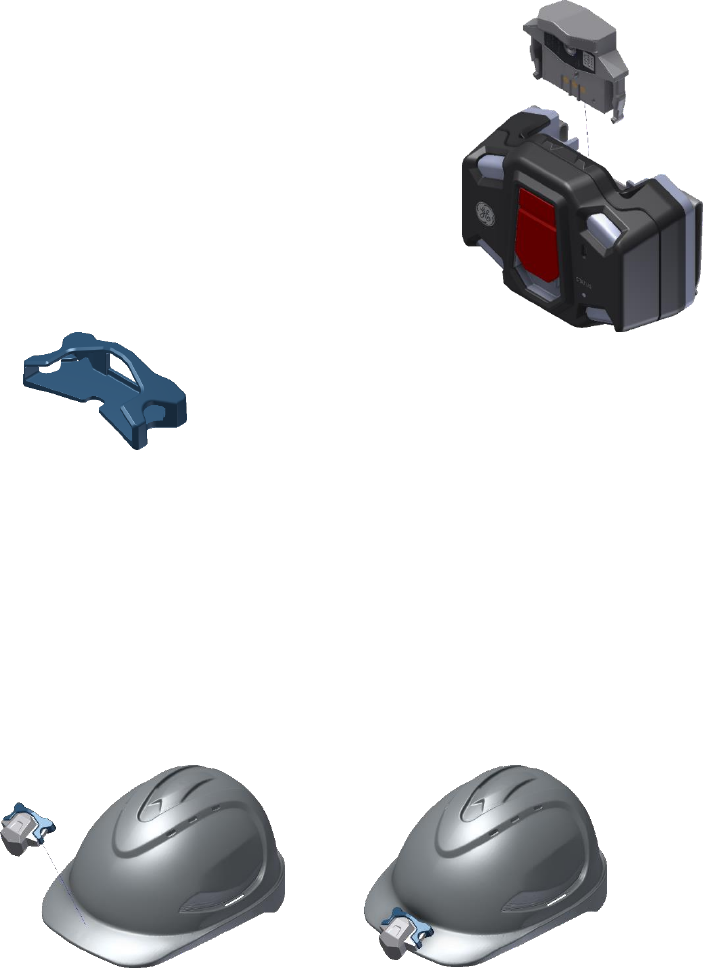

Fitting the Remote Alarm Helmet Adaptor
1. Clean the top surface of the helmet visor as per the helmet manufacturer’s
Instructions.
2. Fit the Remote Alarm to the Helmet Adaptor.
3. Peel the self-adhesive backing from the rear of the helmet adaptor.
4. Apply the Remote Alarm and Adaptor to the helmet visor so that the ledge of
the Remote Alarm will be visible to the helmet user. Press firmly.
5. The Remote Alarm is removed from the Helmet Adaptor for charging, pairing
and testing by depressing the spring levers located on the side of the Remote
Alarm.
DOCU0096 - CAS-GPS Personnel Protection Unit Operation Manual-A2.docm rev A2
Page 3 of 4
Charging
Charge the unit before use.
The PPU is charged using either of the following accessories:
P/N: PROD1007-X20 – 20 Way PPU Gang Docking Station
P/N: PROD1007-X16 – 16 Way PPU Gang Docking Station
P/N: PROD1007-X1 - PPU Desktop Docking Station (shown below)
The tag and remote alarm should be paired together as a
single unit, then clipped into the docking station.

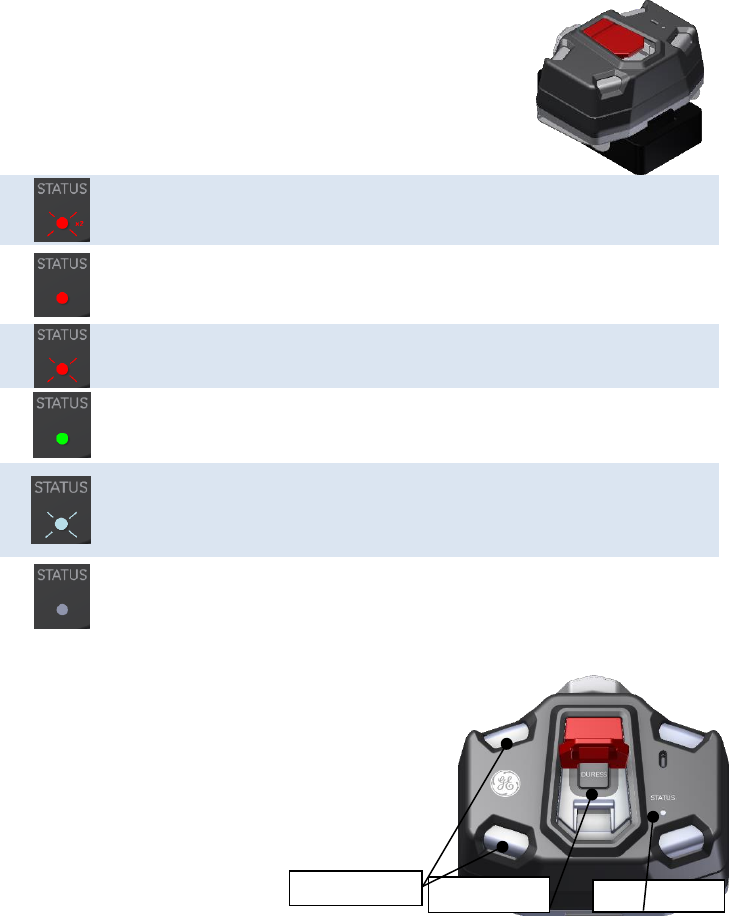

During the charge cycle, the PPU tag will indicate one of
the following states:
Charging commenced,
(2 red flashes)
Leave the tag set on
charge until status
lamp turns green.
Charging continuing,
(Constant red)
Leave the tag set on
charge until status
lamp turns green.
Charging error,
(Continued flashing red)
Faulty Unit.
DO NOT USE
Fully charged,
(Constant green)
Remove unit from
charge receptacle
Disconnected from charger & functioning
normally.
(Slow blue flash)
Attach tags to belt
& helmet.
Commence
operations.
Transit mode, (as packed) *, flat battery or
faulty unit.
(No illumination)
Check charge.
DO NOT USE in this
state
*Note that the first time the tag set is put on charge, the unit will come out of transit mode
and display in charge mode as described above.
Duress call, (Emergency)
The PPU tag provides the operator with the ability
to call for urgent assistance.
By lifting the soft red flap and depressing the
DURESS button, the CAS-GPS enabled fleet will be
advised of your urgent need for
help.
Lamp indicators
Status indicator
Duress button
DOCU0096 - CAS-GPS Personnel Protection Unit Operation Manual-A2.docm rev A2
Page 4 of 4
Alerting

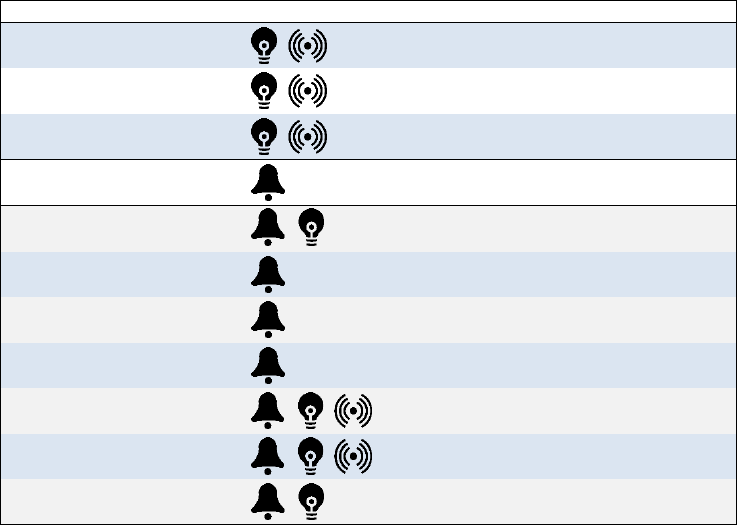

The PPU Tag and the Remote Alarm unit will both advise the operator of a number of
conditions with visual, audible and vibratory indications in the following ways:
Event
Indication
Detail
CAS-GPS alert
One pulse, repeated
CAS-GPS Electromagnetic
Zone 2 alert
Three pulses, repeated
CAS-GPS Electromagnetic
Zone 1 alert
Continuous
Entry into safe zone
Three pulses (short gap)
Vehicle pairing clear
(PPU ONLY)
Two pulses, repeated
PPU set not paired
One pulse, repeated
Low Battery
Two pulses, repeated
Self-test fail
One pulse, repeated
Self-test pass
Three pulses (long gap)
Man Down alarm
Two pulses, repeated
Communications Jammed
Five pulses, repeated
Instructions
1. Test the PPU before use with PPU Test Station (PROD1006/PROD1082).
2. Geofences, Alarm Logic and Information exchange between the PPU and
the CAS-Web occur whilst charging within the PPU Gang Docking Station.
3. To unclip the Remote Alarm from your helmet, depress the remote alarm
spring levers located on either side of the alarm.
4. Re-fit Remote Alarm to the PPU Tag & place tag set on charge as per the
charging instructions above, (confirm charge cycle commences).
5. Do not use damaged or malfunctioning PPU equipment.
Disposal
The PPU Tag and Remote Alarm units both contain Li-Ion batteries and must be
disposed of in accordance with local regulations and statutes.
GE Mining
Industrea Mining Technology
PO Box 5107
Chittaway Bay, New South Wales
Australia, 2261
Tel: +61 2 4336 1800
Fax: +61 2 4336 1888
www.gemining.com
