InfinID Technologies VT200 V-Tag User Manual V TAG Manual
InfinID Technologies, Inc. V-Tag V TAG Manual
User Manual
InfinID Technologies, Inc.
V-TAG RFID Tag and USB Gateway
v1.0 February 3, 2011
v1.0 2 V-TAG Manual
Table of Contents
1.0 System Overview ...................................................................................3
2.0 Getting Started .......................................................................................4
3.0 Viewing Sensor Readings ......................................................................5
Appendix A FCC Compliance Statement ....................................................9
v1.0 3 V-TAG Manual
1.0 System Overview
The V-TAG is a RFID tag with a set of sensors for temperature, light level, acceleration
and battery level. In contrast to other systems where each tag is polled by a central
gateway, the V-TAG tag relays messages from other V-TAG tags which aids with tag
read range and communications reliability. See Figure 1.
Figure 1 V-TAG System Overview
v1.0 4 V-TAG Manual
2.0 Getting Started
To start using your V-TAG RFID tags, insert batteries into each tag. The LED light on
the tag should blink once every 20 seconds indicating normal operation.
To start using your V-TAG USB Gateway, attach the gateway to a USB port on a PC
running Windows XP, Vista, Windows 7 or Windows 8. Select “OK” when the operating
system asks to use the Internet to locate drivers.
Install the InfinID Technologies, Inc. AssetWorx! asset tracking software on your PC by
running setup.exe and following the prompts.
v1.0 5 V-TAG Manual
3.0 Viewing Sensor Readings

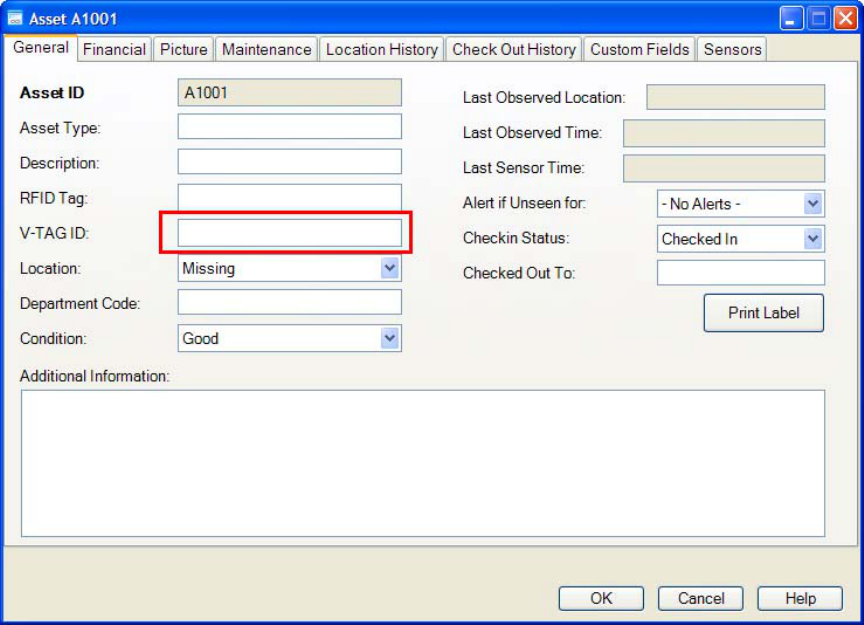

To associate a V-TAG tag with an asset, simply enter the V-TAG ID printed on the tag
label into the VTAG ID field for the asset as shown:
v1.0 6 V-TAG Manual
To view sensor readings for the asset, choose the sensors tab for the asset:
v1.0 7 V-TAG Manual

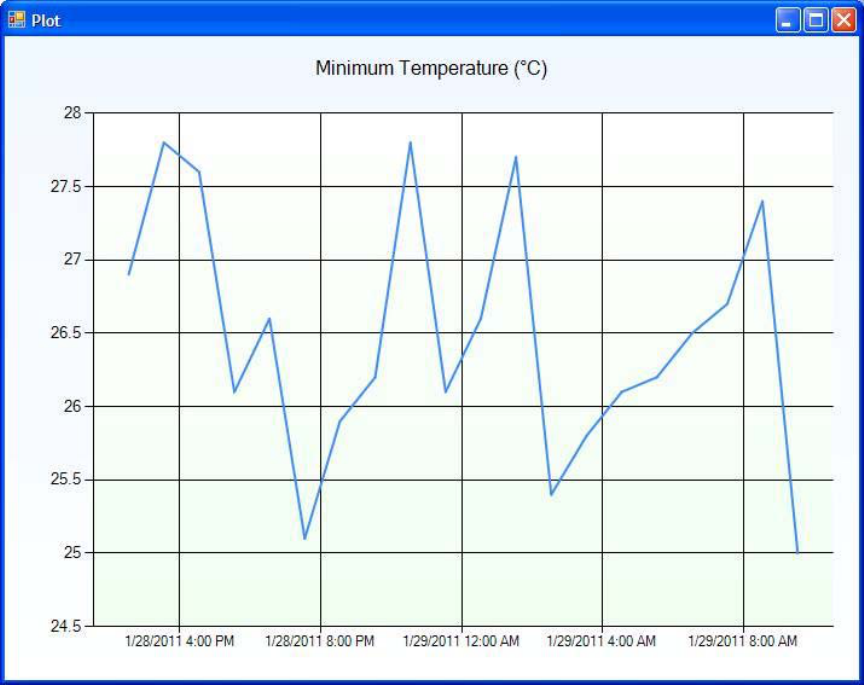

To view historical sensor readings for the asset, click on the “Plot” button for the asset:
v1.0 8 V-TAG Manual

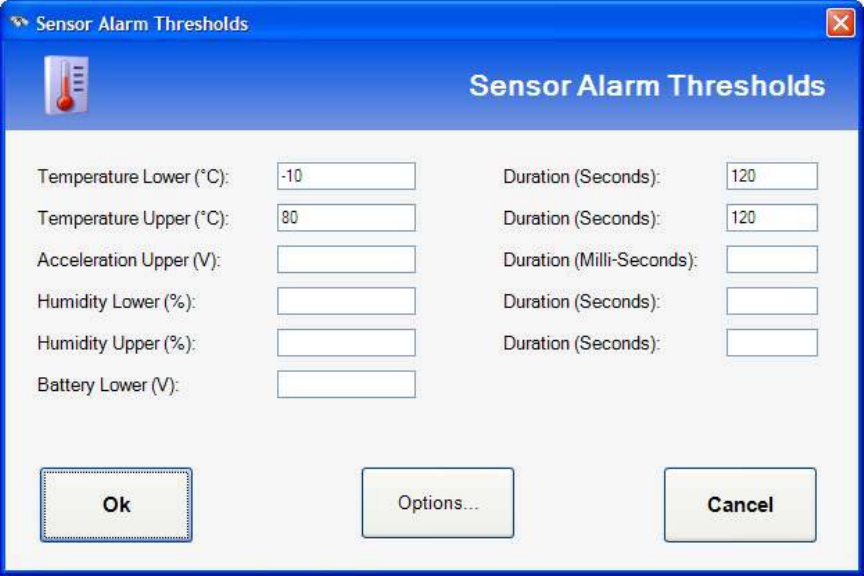

To set thresholds for the asset, click on the thresholds button for the asset:
v1.0 9 V-TAG Manual
Appendix A FCC Compliance Statement
FCC NOTICE
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a class B digital device
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
* Consult the dealer or an experienced radio/TV technician for help.
In order to maintain compliance with FCC regulations, shielded cables must be used with this
equipment. Operation with non-approved equipment or unshielded cables is likely to result in
interference to radio and TV reception. The user is cautioned that changes and modifications
made to the equipment without the approval of the manufacturer could void the user’s authority
to operate the equipment.
To satisfy RF exposure requirements, this device and its antennas must operate with a separation
distance of at least 20 cm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter.
