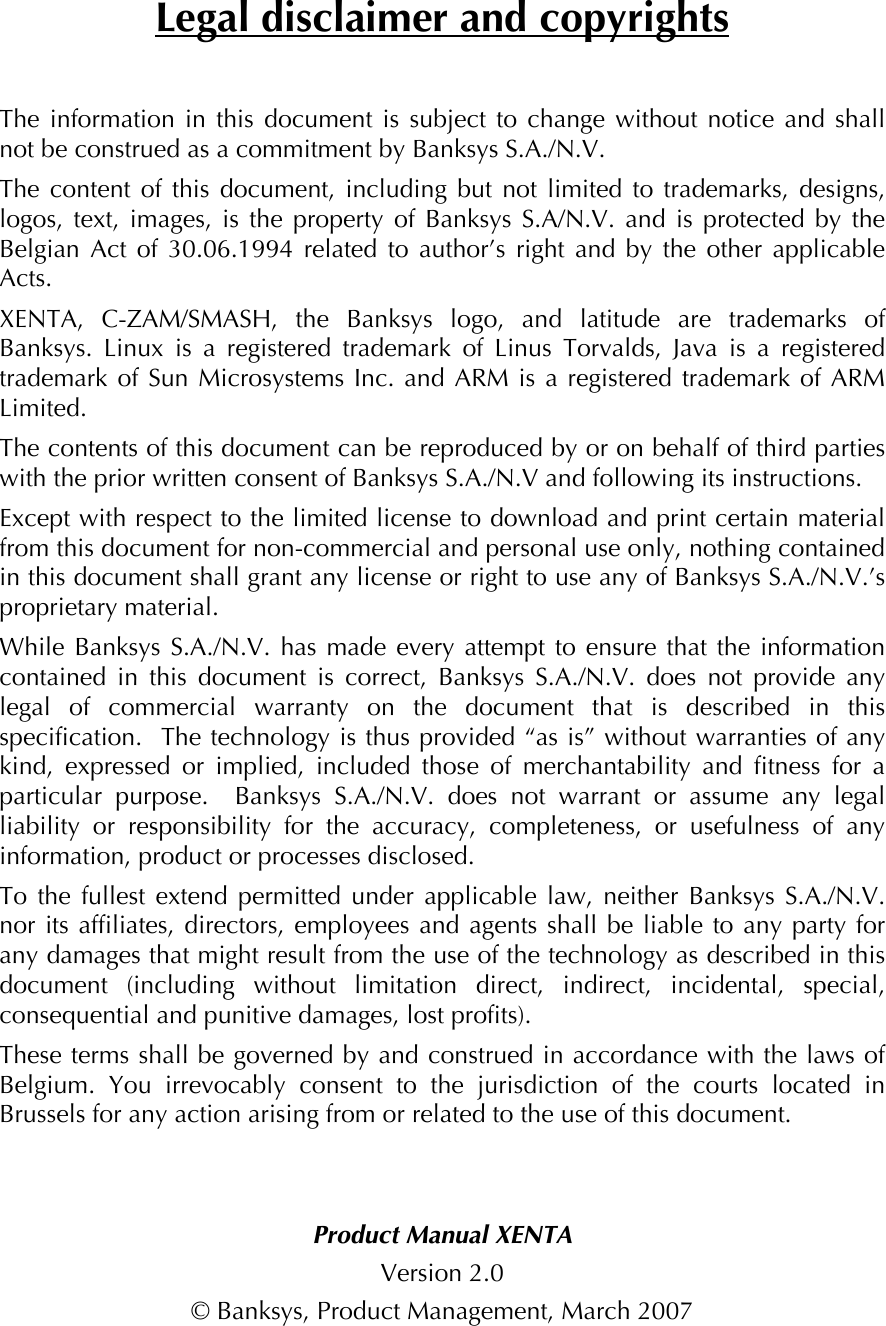

Legal disclaimer and copyrights The information in this document is subject to change without notice and shall not be construed as a commitment by Banksys S.A./N.V. The content of this document, including but not limited to trademarks, designs, logos, text, images, is the property of Banksys S.A/N.V. and is protected by the Belgian Act of 30.06.1994 related to author’s right and by the other applicable Acts.   XENTA, C-ZAM/SMASH, the Banksys logo, and latitude are trademarks of Banksys. Linux is a registered trademark of Linus Torvalds, Java is a registered trademark of Sun Microsystems Inc. and ARM is a registered trademark of ARM Limited. The contents of this document can be reproduced by or on behalf of third parties with the prior written consent of Banksys S.A./N.V and following its instructions. Except with respect to the limited license to download and print certain material from this document for non-commercial and personal use only, nothing contained in this document shall grant any license or right to use any of Banksys S.A./N.V.’s proprietary material. While Banksys S.A./N.V. has made every attempt to ensure that the information contained in this document is correct, Banksys S.A./N.V. does not provide any legal of commercial warranty on the document that is described in this specification.  The technology is thus provided “as is” without warranties of any kind, expressed or implied, included those of merchantability and fitness for a particular purpose.  Banksys S.A./N.V. does not warrant or assume any legal liability or responsibility for the accuracy, completeness, or usefulness of any information, product or processes disclosed. To the fullest extend permitted under applicable law, neither Banksys S.A./N.V. nor its affiliates, directors, employees and agents shall be liable to any party for any damages that might result from the use of the technology as described in this document (including without limitation direct, indirect, incidental, special, consequential and punitive damages, lost profits). These terms shall be governed by and construed in accordance with the laws of Belgium. You irrevocably consent to the jurisdiction of the courts located in Brussels for any action arising from or related to the use of this document.   Product Manual XENTA Version 2.0 © Banksys, Product Management, March 2007
XENTAPRODUCT MANUAL   5  Table of contents Introduction .........................................................................9 List of acronyms .................................................................11 General description............................................................15 Technical specifications .....................................................17 Dimensions and weight ...................................................17 Keypad ............................................................................17 Display............................................................................19 Card interfaces.................................................................20 PIN privacy shield ...........................................................22 Wired communication.....................................................22 Interfaces.........................................................................25 Chip security modules .....................................................26 Banksys’ “System-on-Chip”..............................................27 Power supply...................................................................28 Housing colour................................................................28 Selecting a location for the XENTA ..................................29 Approvals ........................................................................31 Good to know .................................................................32 Security ..............................................................................35 The “System-on-Chip” .....................................................35 Terminal design...............................................................35 Security software .............................................................35 Standards.........................................................................36 Accessories.........................................................................37 Interface boards...............................................................37 Printer..............................................................................43 Merchant unit..................................................................45 Fixation plate...................................................................46 Swivel..............................................................................47
XENTA PRODUCT MANUAL  6    Product identification.........................................................49 XENTA terminal...............................................................49 Printer..............................................................................51 Merchant unit..................................................................52 Terminal package box .....................................................53 Merchant unit package box .............................................54 Product package.................................................................57 XENTA terminal...............................................................57 Merchant unit..................................................................58 Swivel..............................................................................59 Bulk packages..................................................................59 Development environment.................................................63
XENTAPRODUCT MANUAL   7  Table of figures Figure 1 – Terminal dimensions .........................................................................17 Figure 2 – Keypad..............................................................................................18 Figure 3 – Display..............................................................................................20 Figure 4 – Card interfaces ..................................................................................21 Figure 5 – Display pictograms............................................................................21 Figure 6 – PIN privacy shield .............................................................................22 Figure 7 – Ethernet interface...............................................................................23 Figure 8 – Ethernet configuration........................................................................23 Figure 9 – PSTN interface...................................................................................24 Figure 10 – PSTN configuration..........................................................................25 Figure 11 – RS-232 and merchant unit interface.................................................26 Figure 12 – Chip Security Modules.....................................................................27 Figure 13 – Banksys’ “System-on-Chip”..............................................................28 Figure 14 – Power adapter .................................................................................28 Figure 15 – XENTA housing colour ....................................................................29 Figure 16 – Proximity of electronic equipment ...................................................30 Figure 17 – Attaching stickers ............................................................................31 Figure 18 – Reset button ....................................................................................32 Figure 19 – XENTA interior compartment secured..............................................33 Figure 20 – ISDN interface board.......................................................................37 Figure 21 – ISDN configuration..........................................................................38 Figure 22 – GSM/GPRS interface board..............................................................38 Figure 23 – GSM configuration ..........................................................................39

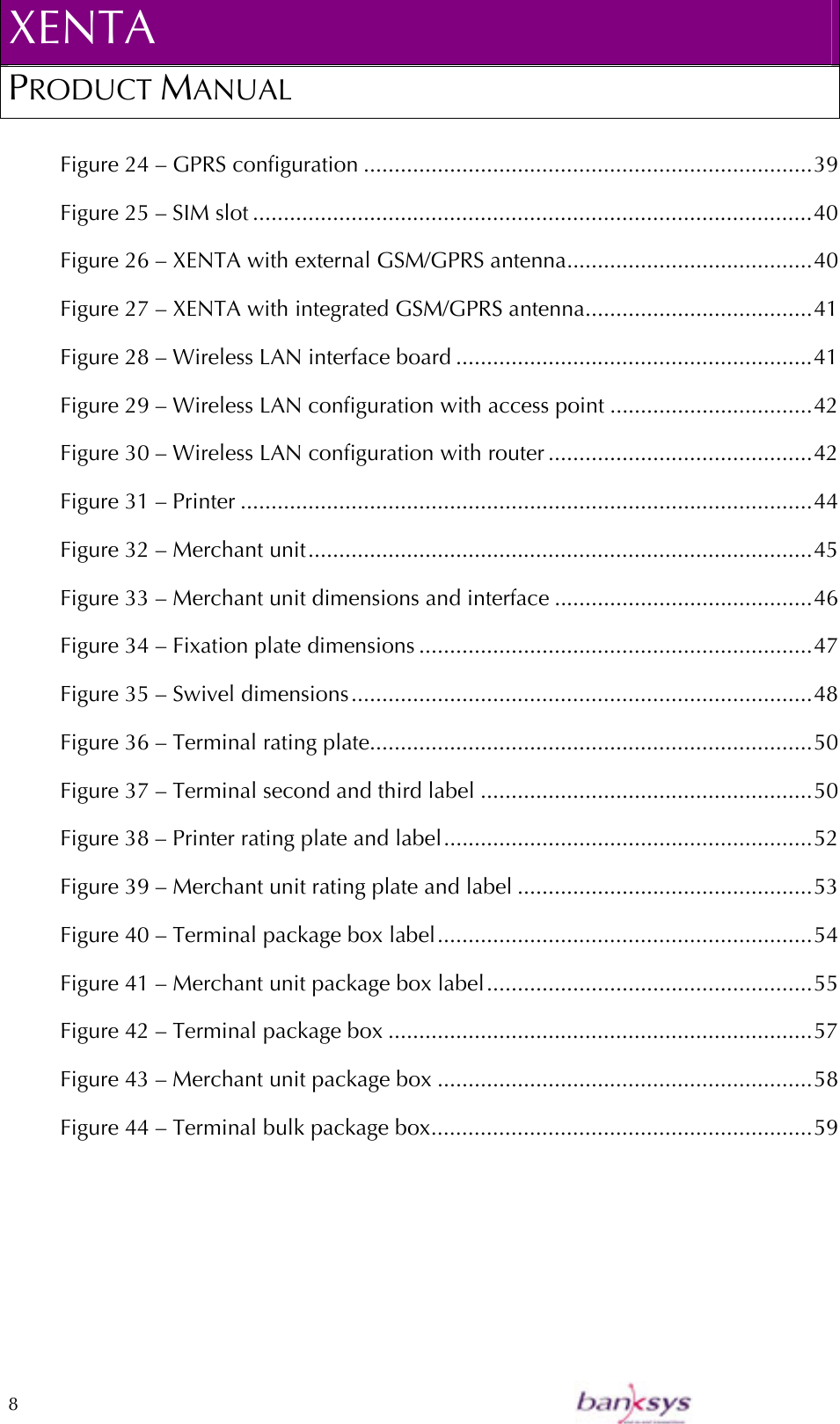

XENTA PRODUCT MANUAL  8    Figure 24 – GPRS configuration .........................................................................39 Figure 25 – SIM slot ...........................................................................................40 Figure 26 – XENTA with external GSM/GPRS antenna........................................40 Figure 27 – XENTA with integrated GSM/GPRS antenna.....................................41 Figure 28 – Wireless LAN interface board ..........................................................41 Figure 29 – Wireless LAN configuration with access point .................................42 Figure 30 – Wireless LAN configuration with router ...........................................42 Figure 31 – Printer .............................................................................................44 Figure 32 – Merchant unit..................................................................................45 Figure 33 – Merchant unit dimensions and interface ..........................................46 Figure 34 – Fixation plate dimensions ................................................................47 Figure 35 – Swivel dimensions...........................................................................48 Figure 36 – Terminal rating plate........................................................................50 Figure 37 – Terminal second and third label ......................................................50 Figure 38 – Printer rating plate and label............................................................52 Figure 39 – Merchant unit rating plate and label ................................................53 Figure 40 – Terminal package box label.............................................................54 Figure 41 – Merchant unit package box label.....................................................55 Figure 42 – Terminal package box .....................................................................57 Figure 43 – Merchant unit package box .............................................................58 Figure 44 – Terminal bulk package box..............................................................59

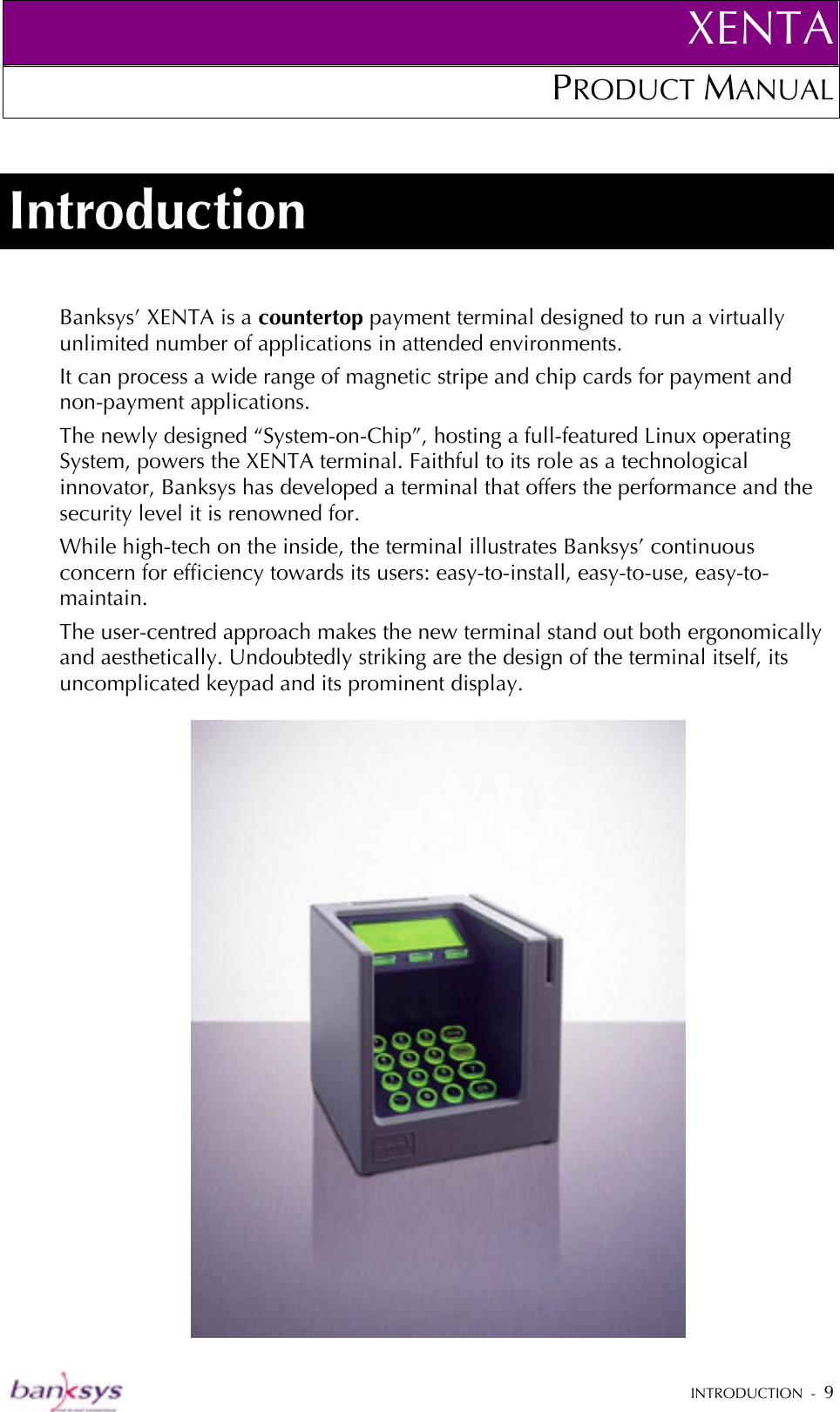

XENTAPRODUCT MANUAL   INTRODUCTION  -  9  Introduction Banksys’ XENTA is a countertop payment terminal designed to run a virtually unlimited number of applications in attended environments. It can process a wide range of magnetic stripe and chip cards for payment and non-payment applications. The newly designed “System-on-Chip”, hosting a full-featured Linux operating System, powers the XENTA terminal. Faithful to its role as a technological innovator, Banksys has developed a terminal that offers the performance and the security level it is renowned for. While high-tech on the inside, the terminal illustrates Banksys’ continuous concern for efficiency towards its users: easy-to-install, easy-to-use, easy-to-maintain.  The user-centred approach makes the new terminal stand out both ergonomically and aesthetically. Undoubtedly striking are the design of the terminal itself, its uncomplicated keypad and its prominent display.
XENTA PRODUCT MANUAL                        - Page intentionally left blank -

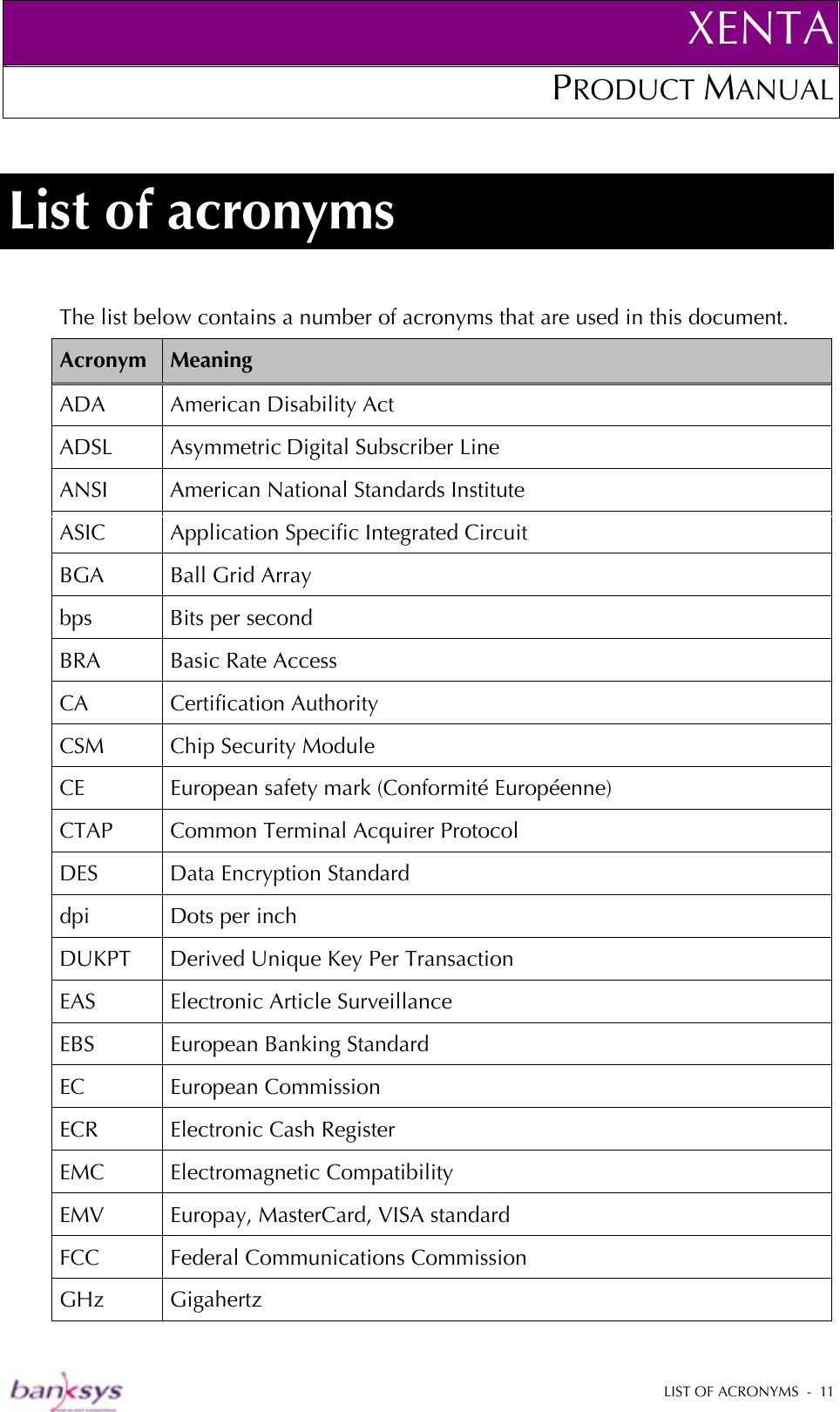

XENTAPRODUCT MANUAL   LIST OF ACRONYMS  -  11  List of acronyms The list below contains a number of acronyms that are used in this document. Acronym  Meaning ADA American Disability Act ADSL Asymmetric Digital Subscriber Line ANSI  American National Standards Institute ASIC  Application Specific Integrated Circuit BGA  Ball Grid Array bps  Bits per second BRA Basic Rate Access CA Certification Authority  CSM  Chip Security Module CE  European safety mark (Conformité Européenne) CTAP  Common Terminal Acquirer Protocol DES  Data Encryption Standard dpi  Dots per inch DUKPT Derived Unique Key Per Transaction EAS Electronic Article Surveillance EBS  European Banking Standard EC European Commission ECR Electronic Cash Register EMC Electromagnetic Compatibility EMV  Europay, MasterCard, VISA standard FCC  Federal Communications Commission GHz Gigahertz

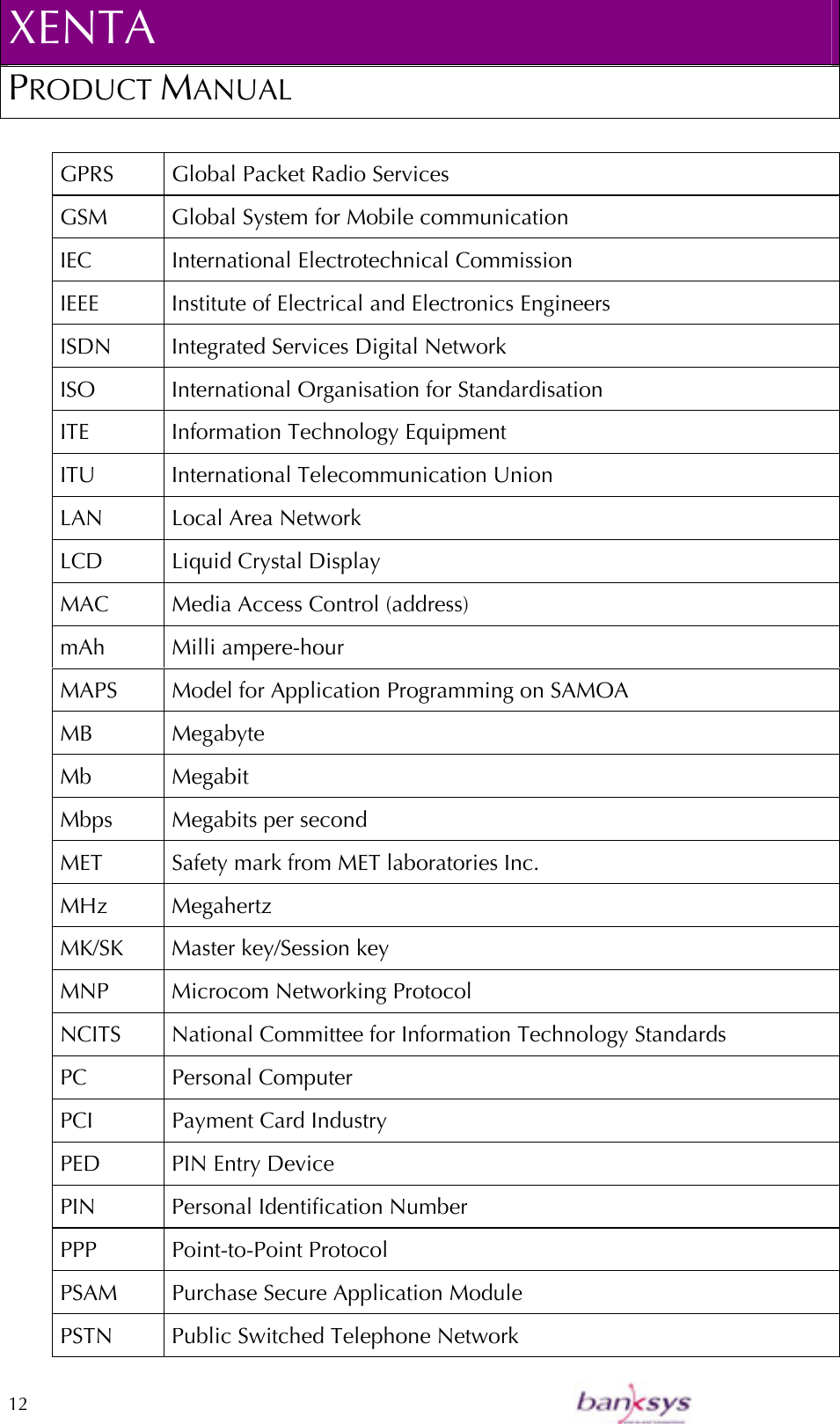

XENTA PRODUCT MANUAL  12    GPRS  Global Packet Radio Services GSM  Global System for Mobile communication IEC  International Electrotechnical Commission IEEE Institute of Electrical and Electronics Engineers ISDN  Integrated Services Digital Network ISO  International Organisation for Standardisation ITE  Information Technology Equipment ITU  International Telecommunication Union LAN Local Area Network LCD Liquid Crystal Display MAC  Media Access Control (address) mAh Milli ampere-hour MAPS   Model for Application Programming on SAMOA MB Megabyte Mb Megabit Mbps  Megabits per second  MET  Safety mark from MET laboratories Inc. MHz Megahertz MK/SK  Master key/Session key MNP Microcom Networking Protocol NCITS  National Committee for Information Technology Standards PC Personal Computer PCI   Payment Card Industry  PED  PIN Entry Device PIN Personal Identification Number PPP Point-to-Point Protocol PSAM  Purchase Secure Application Module PSTN  Public Switched Telephone Network
XENTAPRODUCT MANUAL   LIST OF ACRONYMS  -  13  RAM  Random Access Memory ROM Read Only Memory RoHS  Restriction on the use of Hazardous Substances RSA  Rivest, Shamir, Adleman encryption  RTL  Remote Terminal Load SAM Secured Application Module SBCE C-ZAM/SMASH backward-compatibility environment SIM Subscriber Identity Module SMS  Short Message Service SSL  Secure Socket Layer TCP/IP  Transmission Control Protocol – Internet Protocol TDMI  Thumb Instruction, Debugger, Multiplier, ICE (ARM CPU features) TQM Terminal Quality Management USB  Universal Serial Bus UTP  Unshielded Twisted Pair VAC  Volts of alternating current VDC  Volts of direct current WEEE  Waste Electrical and Electronic Equipment WEP  Wired Equivalent Privacy WPA  Wireless Protected Access WiFi Wireless Fidelity WLAN  Wireless Local Area Network ZKA  Zentraler Kredit Ausschuss meaning Central Credit Committee
XENTA PRODUCT MANUAL                        - Page intentionally left blank -

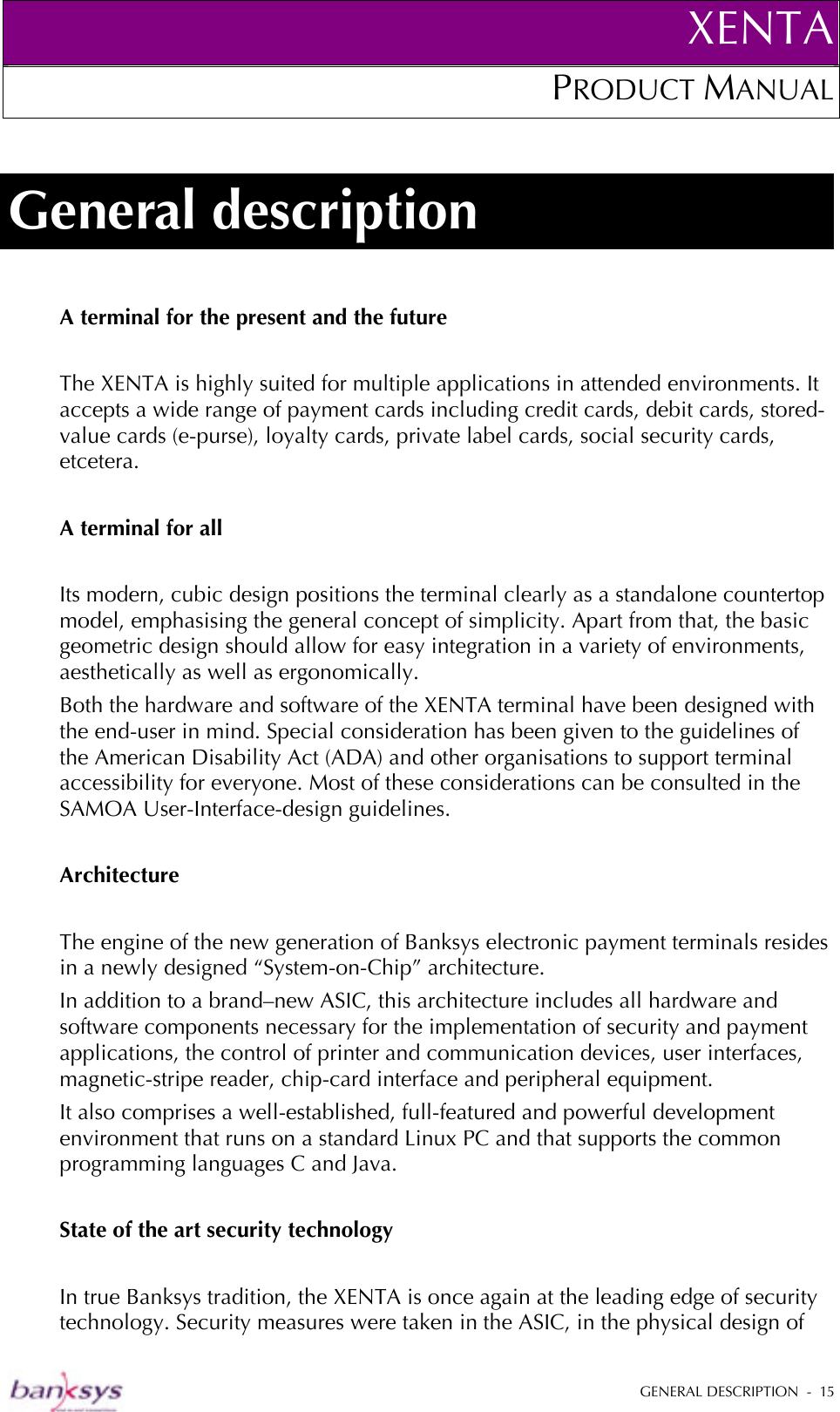

XENTAPRODUCT MANUAL   GENERAL DESCRIPTION  -  15  General description A terminal for the present and the future  The XENTA is highly suited for multiple applications in attended environments. It accepts a wide range of payment cards including credit cards, debit cards, stored-value cards (e-purse), loyalty cards, private label cards, social security cards, etcetera.  A terminal for all  Its modern, cubic design positions the terminal clearly as a standalone countertop model, emphasising the general concept of simplicity. Apart from that, the basic geometric design should allow for easy integration in a variety of environments, aesthetically as well as ergonomically.  Both the hardware and software of the XENTA terminal have been designed with the end-user in mind. Special consideration has been given to the guidelines of the American Disability Act (ADA) and other organisations to support terminal accessibility for everyone. Most of these considerations can be consulted in the SAMOA User-Interface-design guidelines.  Architecture  The engine of the new generation of Banksys electronic payment terminals resides in a newly designed “System-on-Chip” architecture.  In addition to a brand–new ASIC, this architecture includes all hardware and software components necessary for the implementation of security and payment applications, the control of printer and communication devices, user interfaces, magnetic-stripe reader, chip-card interface and peripheral equipment.  It also comprises a well-established, full-featured and powerful development environment that runs on a standard Linux PC and that supports the common programming languages C and Java.  State of the art security technology  In true Banksys tradition, the XENTA is once again at the leading edge of security technology. Security measures were taken in the ASIC, in the physical design of

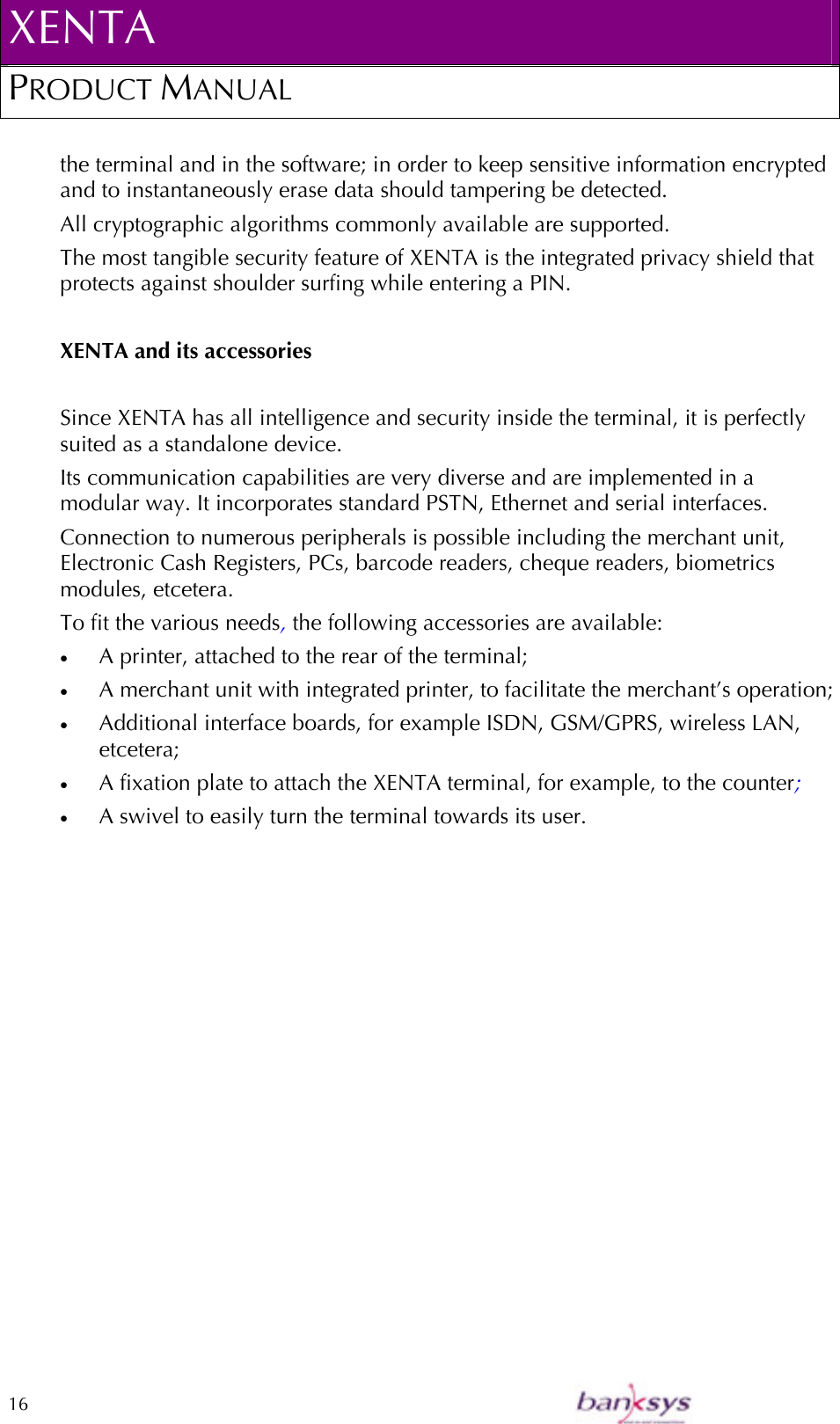

XENTA PRODUCT MANUAL  16    the terminal and in the software; in order to keep sensitive information encrypted and to instantaneously erase data should tampering be detected.  All cryptographic algorithms commonly available are supported. The most tangible security feature of XENTA is the integrated privacy shield that protects against shoulder surfing while entering a PIN.  XENTA and its accessories  Since XENTA has all intelligence and security inside the terminal, it is perfectly suited as a standalone device.  Its communication capabilities are very diverse and are implemented in a modular way. It incorporates standard PSTN, Ethernet and serial interfaces. Connection to numerous peripherals is possible including the merchant unit, Electronic Cash Registers, PCs, barcode readers, cheque readers, biometrics modules, etcetera. To fit the various needs, the following accessories are available: •  A printer, attached to the rear of the terminal; •  A merchant unit with integrated printer, to facilitate the merchant’s operation; •  Additional interface boards, for example ISDN, GSM/GPRS, wireless LAN, etcetera; •  A fixation plate to attach the XENTA terminal, for example, to the counter; •  A swivel to easily turn the terminal towards its user.

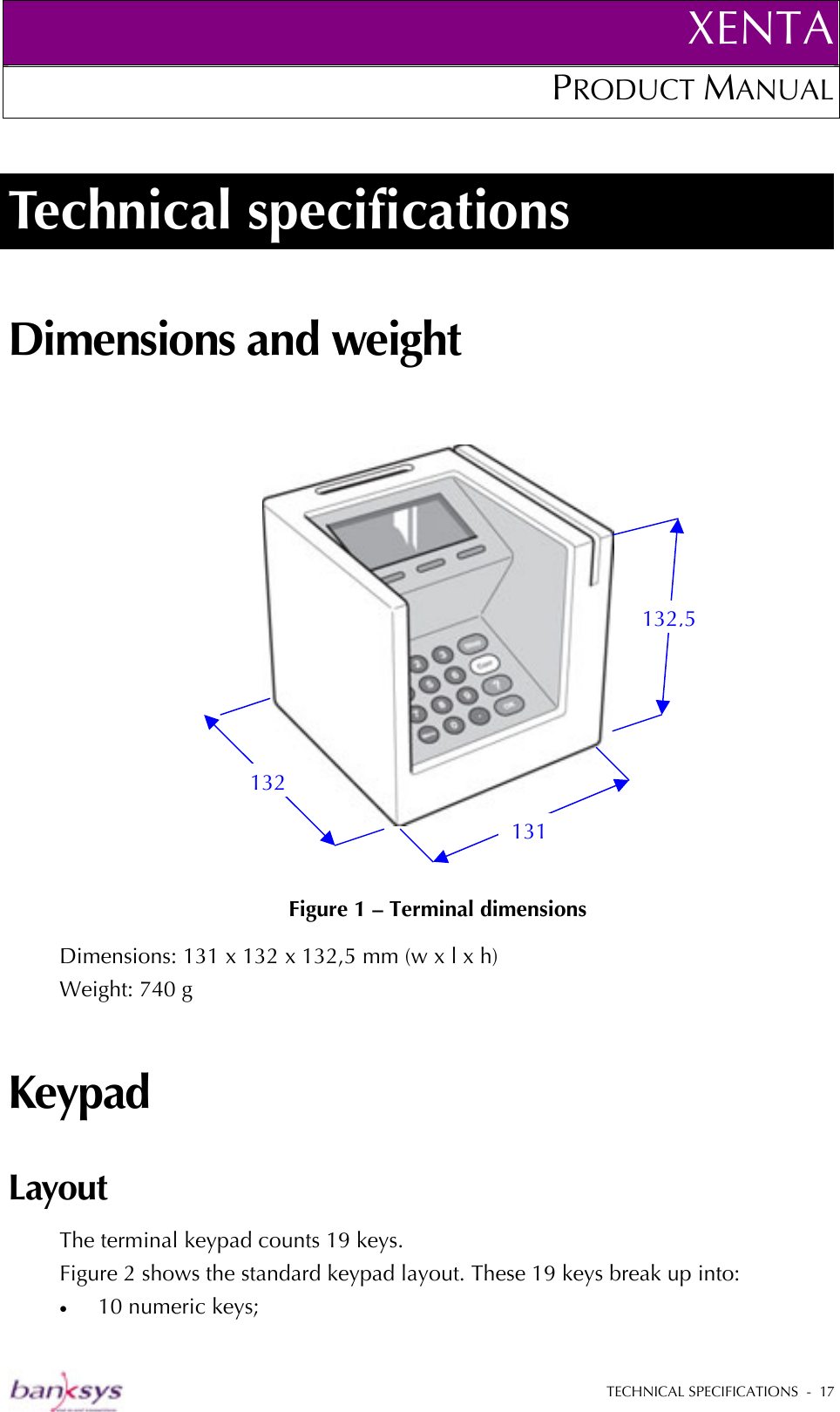

XENTAPRODUCT MANUAL   TECHNICAL SPECIFICATIONS  -  17  Technical specifications Dimensions and weight      Figure 1 – Terminal dimensions Dimensions: 131 x 132 x 132,5 mm (w x l x h) Weight: 740 g Keypad Layout The terminal keypad counts 19 keys.  Figure 2 shows the standard keypad layout. These 19 keys break up into: •  10 numeric keys; 132 131 132,5

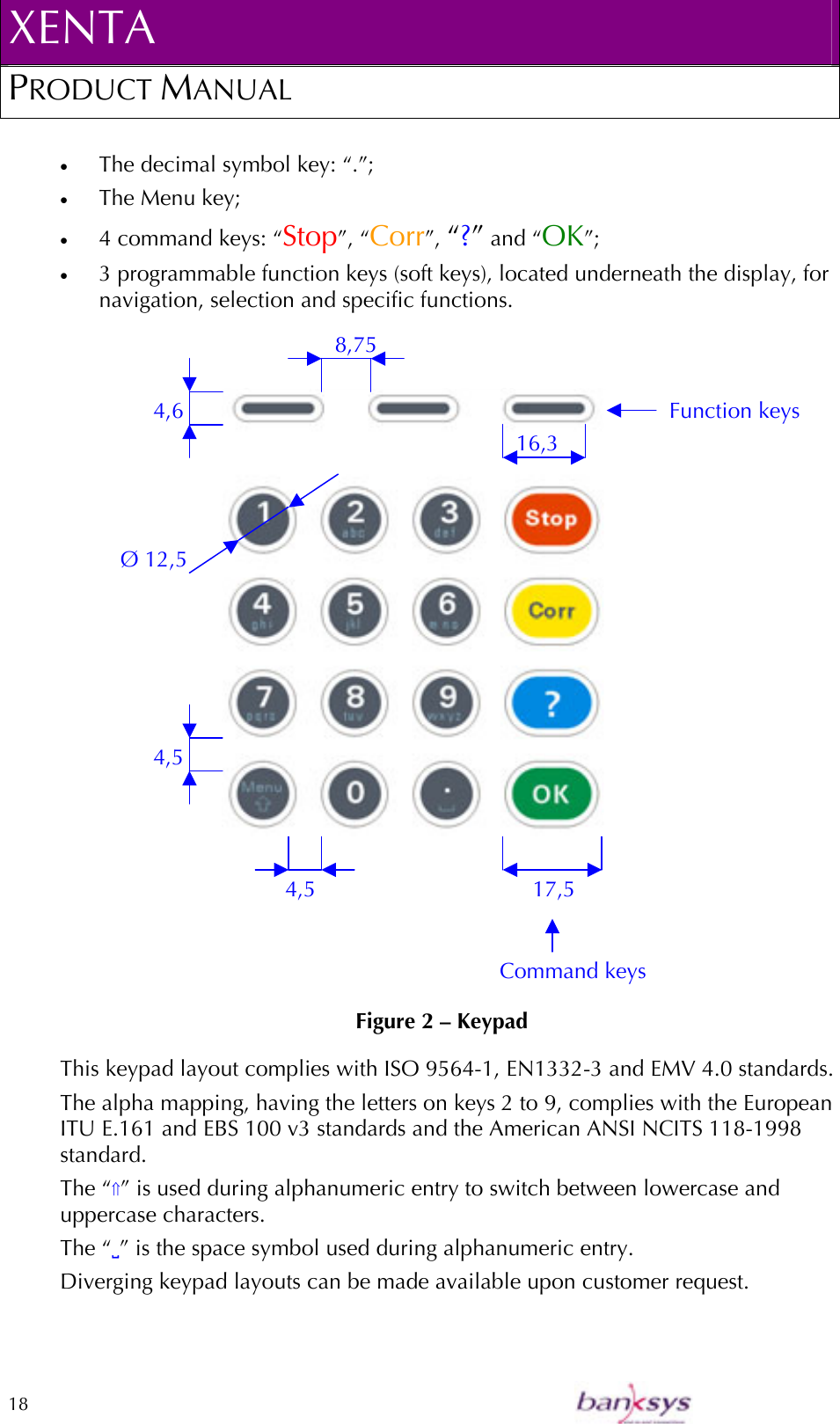

XENTA PRODUCT MANUAL  18    •  The decimal symbol key: “.”; •  The Menu key; •  4 command keys: “Stop”, “Corr”, “?” and “OK”; •  3 programmable function keys (soft keys), located underneath the display, for navigation, selection and specific functions.   Figure 2 – Keypad This keypad layout complies with ISO 9564-1, EN1332-3 and EMV 4.0 standards.  The alpha mapping, having the letters on keys 2 to 9, complies with the European ITU E.161 and EBS 100 v3 standards and the American ANSI NCITS 118-1998 standard. The “⇑” is used during alphanumeric entry to switch between lowercase and uppercase characters. The “9” is the space symbol used during alphanumeric entry. Diverging keypad layouts can be made available upon customer request. Function keys Command keys Ø 12,5 4,5 4,5  17,5 4,6 8,75 16,3
XENTAPRODUCT MANUAL   TECHNICAL SPECIFICATIONS  -  19  Ergonomics Aiming at utmost accessibility, Banksys has enhanced the keypad design with the following features: •  Main keypad clearly bounded by the PIN privacy shield, preventing function keys to be touched accidentally; •  Tactile identifier (embossed dot) on key 5; •  Embossed symbols on the command keys: “X” on the “Stop” key, “<” on the “Corr” key and “O” on the “OK” key. The symbols are according to the EBS 100 v3 standard; •  Key shape differentiating the command keys from the numeric keys; •  Concave key shape; •  Usage of uppercase and lowercase characters to increase readability; •  Key distance, tactile feeling and key main character size according to the ADA regulations; •  Green key backlights to illuminate the main key character, improving the contrast. The backlight intensity is controlled by software; •  Keypad with key caps made of polycarbonate material preventing wear and tear of the key imprint;  Display Features XENTA has a monochrome graphical LCD display with: •  A bright green backlight; display backlight intensity and contrast are controlled by software; •  A resolution of 128 x 64 pixels (w x h) and a view area of 72 x 36 mm (w x h); •  A text display area with a height of 6 lines; technically, the use of 8 lines is possible, but is not advisable for legibility reasons; •  A character bitmap size of 6 x 9 pixels (w x h). Ergonomics From an ergonomic point of view, the following two features are important: •  Display size and resolution offer a very good readability;

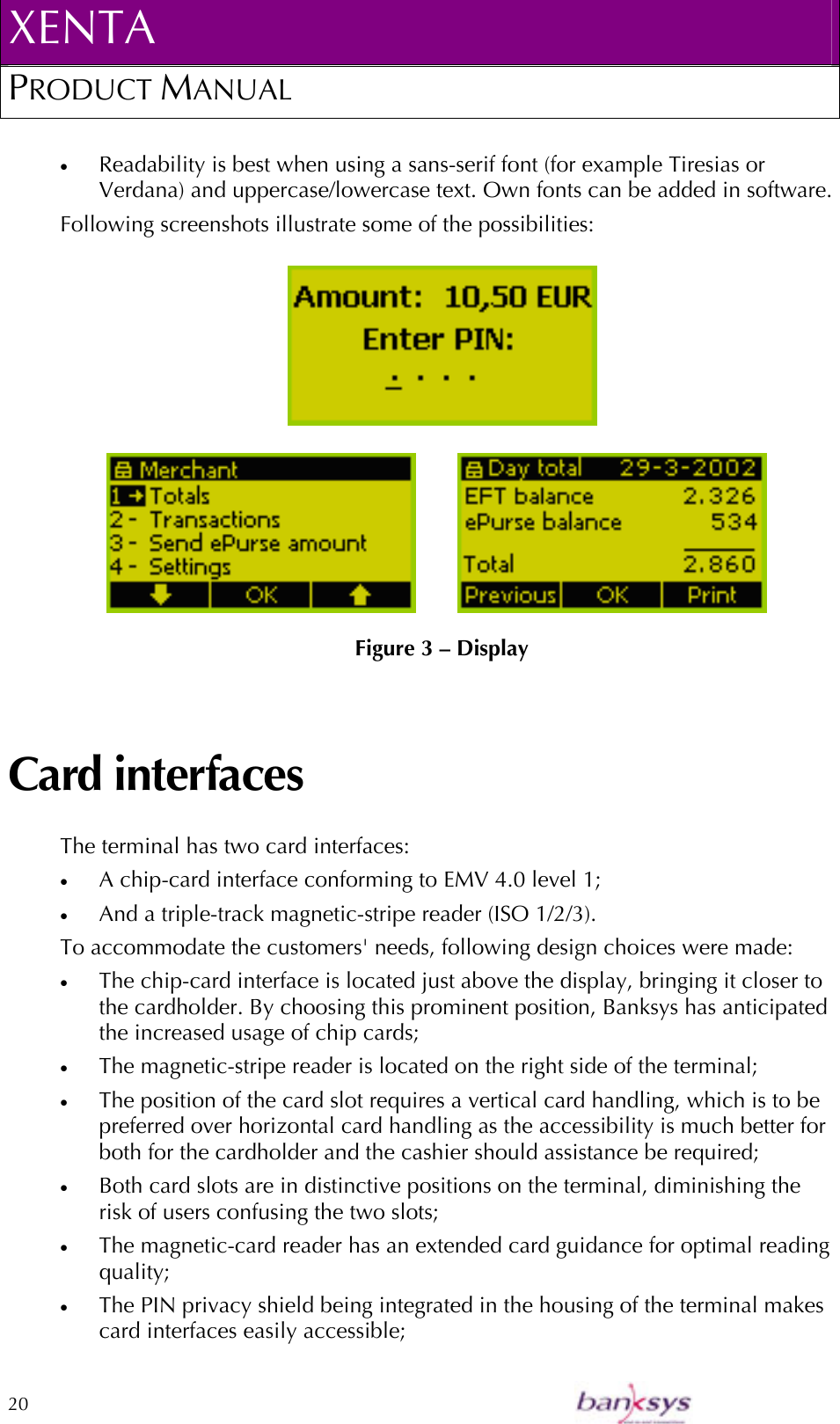

XENTA PRODUCT MANUAL  20    •  Readability is best when using a sans-serif font (for example Tiresias or Verdana) and uppercase/lowercase text. Own fonts can be added in software. Following screenshots illustrate some of the possibilities:   Figure 3 – Display Card interfaces The terminal has two card interfaces: •  A chip-card interface conforming to EMV 4.0 level 1; •  And a triple-track magnetic-stripe reader (ISO 1/2/3). To accommodate the customers' needs, following design choices were made: •  The chip-card interface is located just above the display, bringing it closer to the cardholder. By choosing this prominent position, Banksys has anticipated the increased usage of chip cards; •  The magnetic-stripe reader is located on the right side of the terminal;  •  The position of the card slot requires a vertical card handling, which is to be preferred over horizontal card handling as the accessibility is much better for both for the cardholder and the cashier should assistance be required; •  Both card slots are in distinctive positions on the terminal, diminishing the risk of users confusing the two slots; •  The magnetic-card reader has an extended card guidance for optimal reading quality; •  The PIN privacy shield being integrated in the housing of the terminal makes card interfaces easily accessible;

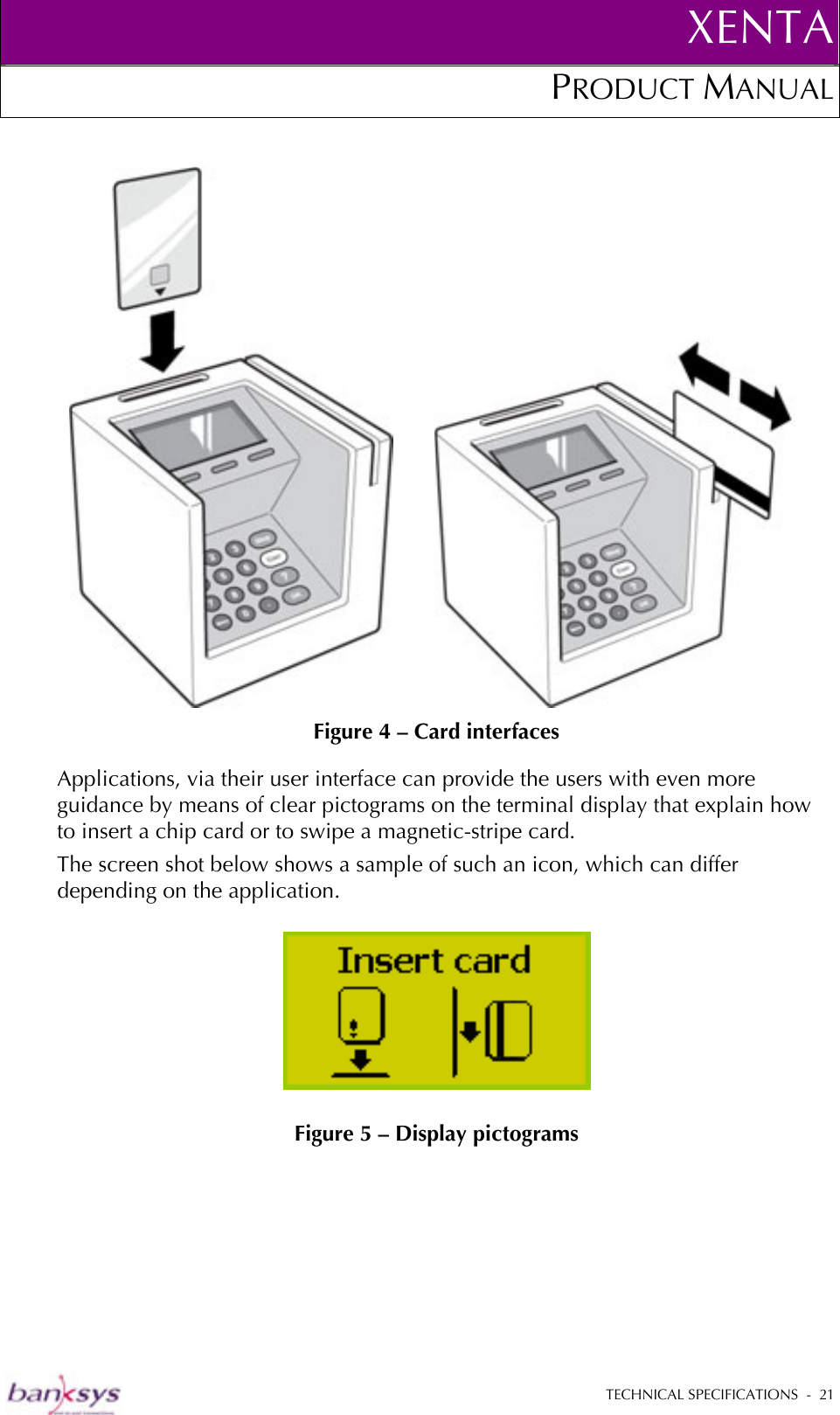

XENTAPRODUCT MANUAL   TECHNICAL SPECIFICATIONS  -  21               Figure 4 – Card interfaces Applications, via their user interface can provide the users with even more guidance by means of clear pictograms on the terminal display that explain how to insert a chip card or to swipe a magnetic-stripe card.  The screen shot below shows a sample of such an icon, which can differ depending on the application.   Figure 5 – Display pictograms

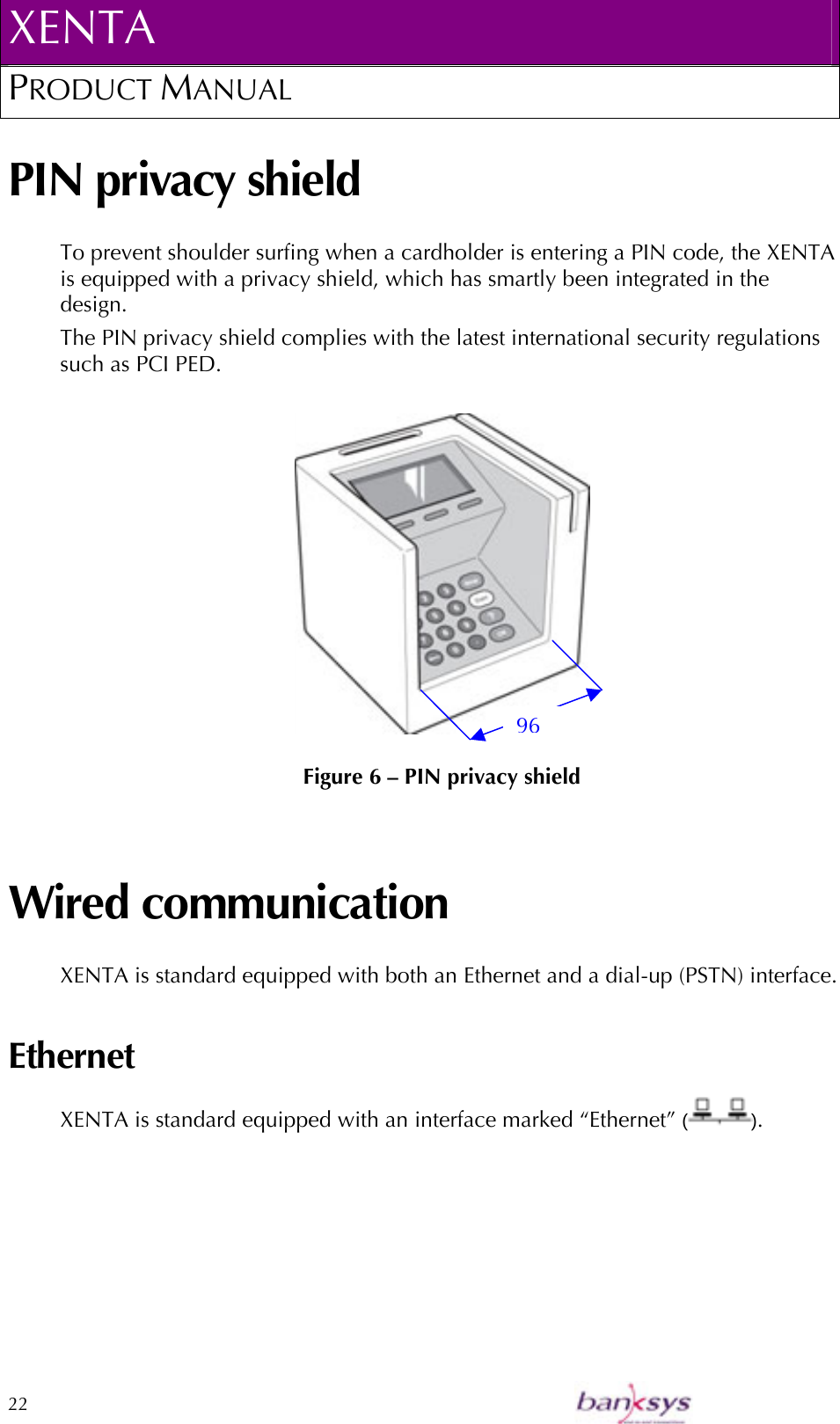

XENTA PRODUCT MANUAL  22    PIN privacy shield To prevent shoulder surfing when a cardholder is entering a PIN code, the XENTA is equipped with a privacy shield, which has smartly been integrated in the design.  The PIN privacy shield complies with the latest international security regulations such as PCI PED.   Figure 6 – PIN privacy shield Wired communication XENTA is standard equipped with both an Ethernet and a dial-up (PSTN) interface. Ethernet XENTA is standard equipped with an interface marked “Ethernet” ( ). 96

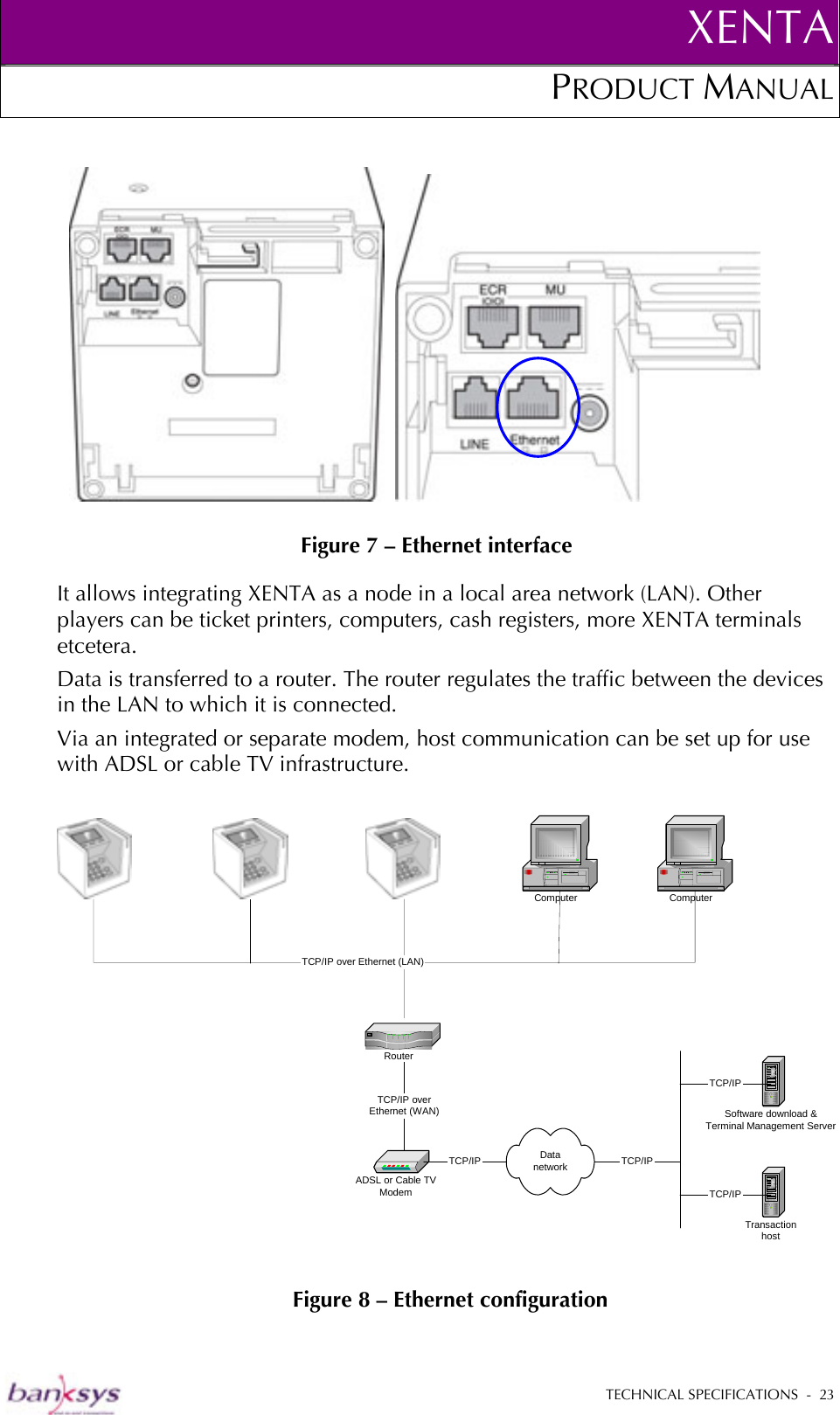

XENTAPRODUCT MANUAL   TECHNICAL SPECIFICATIONS  -  23           Figure 7 – Ethernet interface It allows integrating XENTA as a node in a local area network (LAN). Other players can be ticket printers, computers, cash registers, more XENTA terminals etcetera.  Data is transferred to a router. The router regulates the traffic between the devices in the LAN to which it is connected.  Via an integrated or separate modem, host communication can be set up for use with ADSL or cable TV infrastructure.   Figure 8 – Ethernet configuration ADSL or Cable TVModemComputerDatanetworkSoftware download &Terminal Management ServerTransactionhostTCP/IPTCP/IPTCP/IP ComputerTCP/IP   RouterTCP/IP over Ethernet (LAN)TCP/IP overEthernet (WAN)

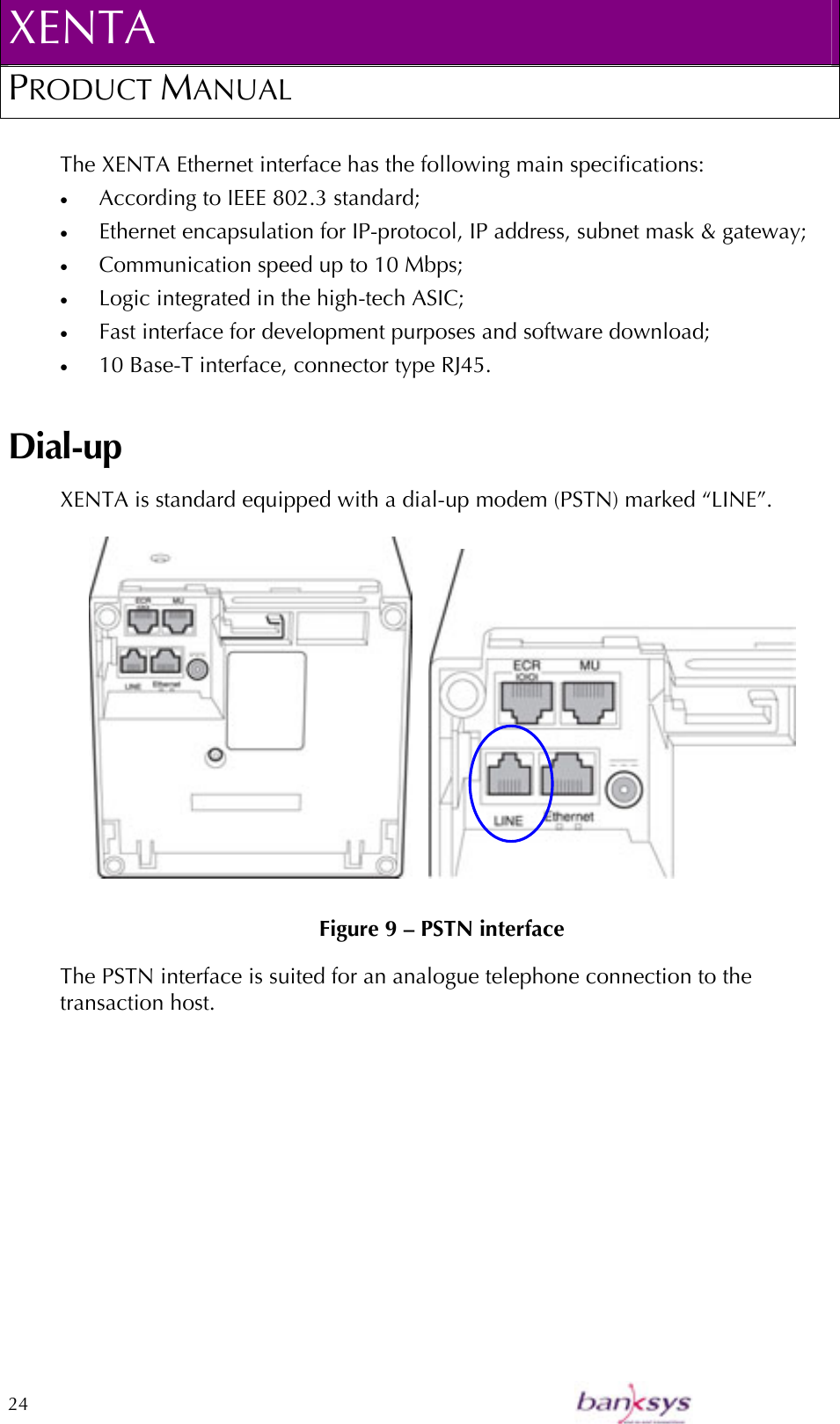

XENTA PRODUCT MANUAL  24    The XENTA Ethernet interface has the following main specifications: •  According to IEEE 802.3 standard; •  Ethernet encapsulation for IP-protocol, IP address, subnet mask & gateway; •  Communication speed up to 10 Mbps; •  Logic integrated in the high-tech ASIC; •  Fast interface for development purposes and software download; •  10 Base-T interface, connector type RJ45. Dial-up XENTA is standard equipped with a dial-up modem (PSTN) marked “LINE”.       Figure 9 – PSTN interface The PSTN interface is suited for an analogue telephone connection to the transaction host.

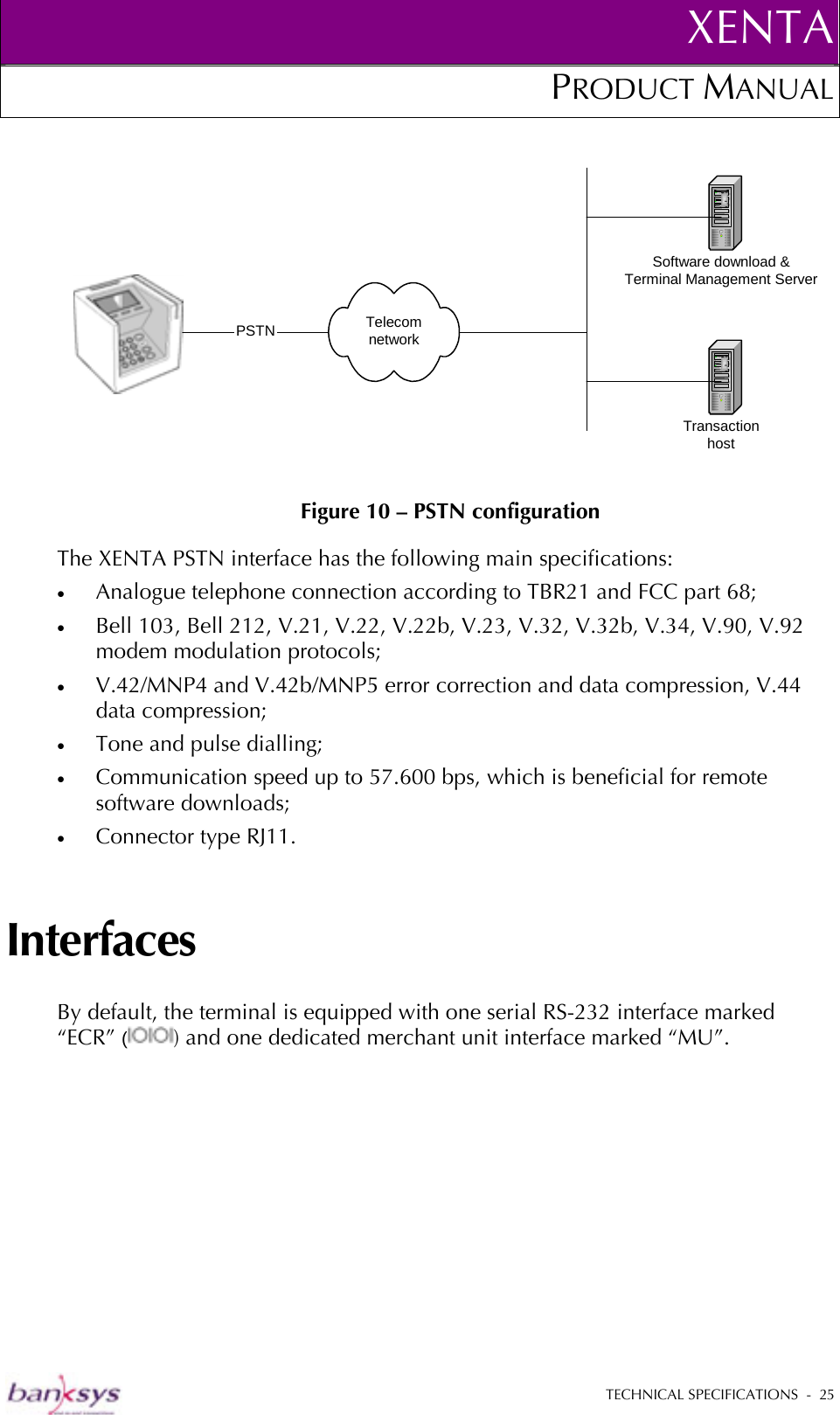

XENTAPRODUCT MANUAL   TECHNICAL SPECIFICATIONS  -  25   Figure 10 – PSTN configuration The XENTA PSTN interface has the following main specifications: •  Analogue telephone connection according to TBR21 and FCC part 68; •  Bell 103, Bell 212, V.21, V.22, V.22b, V.23, V.32, V.32b, V.34, V.90, V.92 modem modulation protocols; •  V.42/MNP4 and V.42b/MNP5 error correction and data compression, V.44 data compression; •  Tone and pulse dialling; •  Communication speed up to 57.600 bps, which is beneficial for remote software downloads; •  Connector type RJ11. Interfaces By default, the terminal is equipped with one serial RS-232 interface marked “ECR” () and one dedicated merchant unit interface marked “MU”. TelecomnetworkSoftware download &Terminal Management ServerTransactionhost PSTN

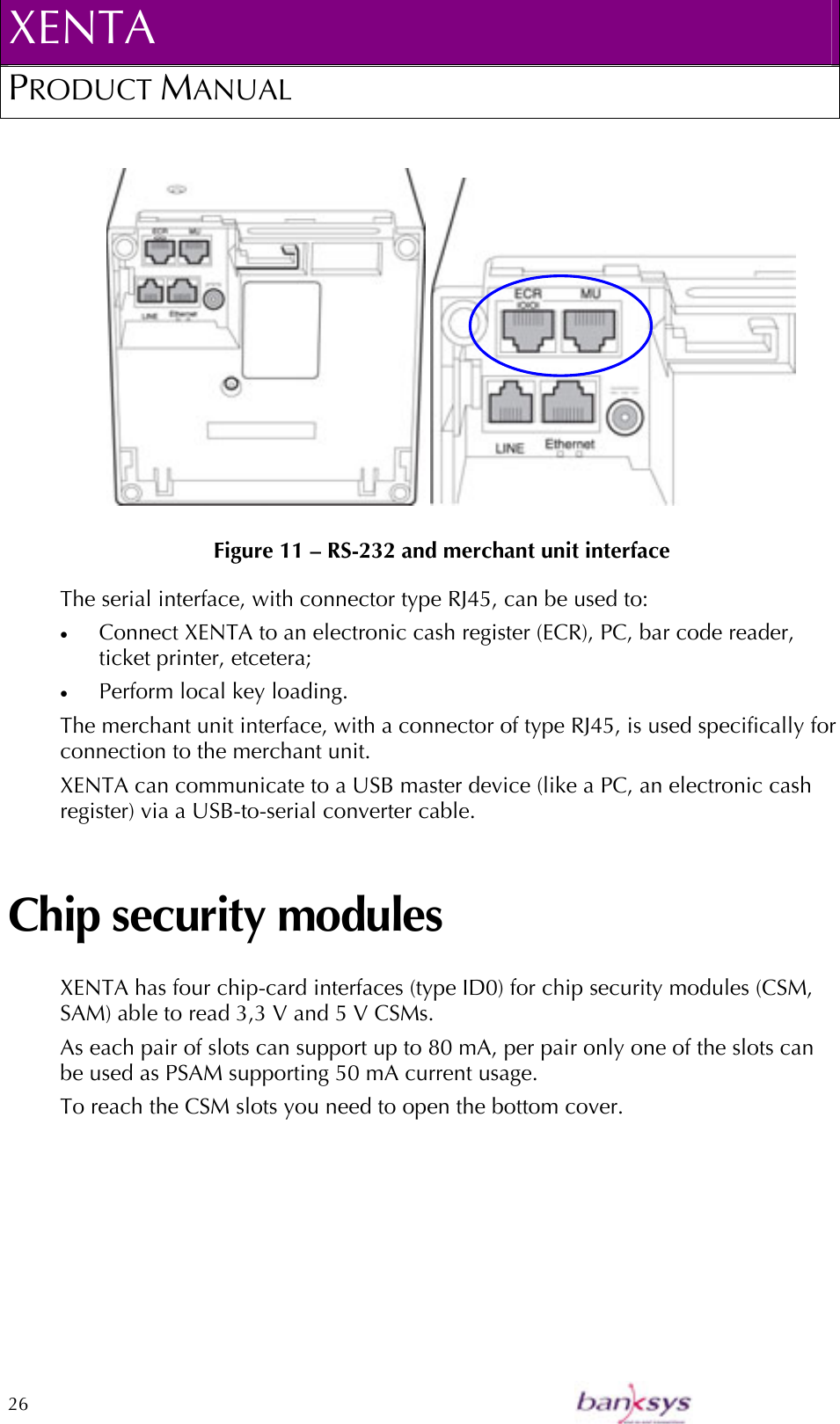

XENTA PRODUCT MANUAL  26             Figure 11 – RS-232 and merchant unit interface The serial interface, with connector type RJ45, can be used to: •  Connect XENTA to an electronic cash register (ECR), PC, bar code reader, ticket printer, etcetera; •  Perform local key loading. The merchant unit interface, with a connector of type RJ45, is used specifically for connection to the merchant unit. XENTA can communicate to a USB master device (like a PC, an electronic cash register) via a USB-to-serial converter cable. Chip security modules XENTA has four chip-card interfaces (type ID0) for chip security modules (CSM, SAM) able to read 3,3 V and 5 V CSMs.  As each pair of slots can support up to 80 mA, per pair only one of the slots can be used as PSAM supporting 50 mA current usage. To reach the CSM slots you need to open the bottom cover.

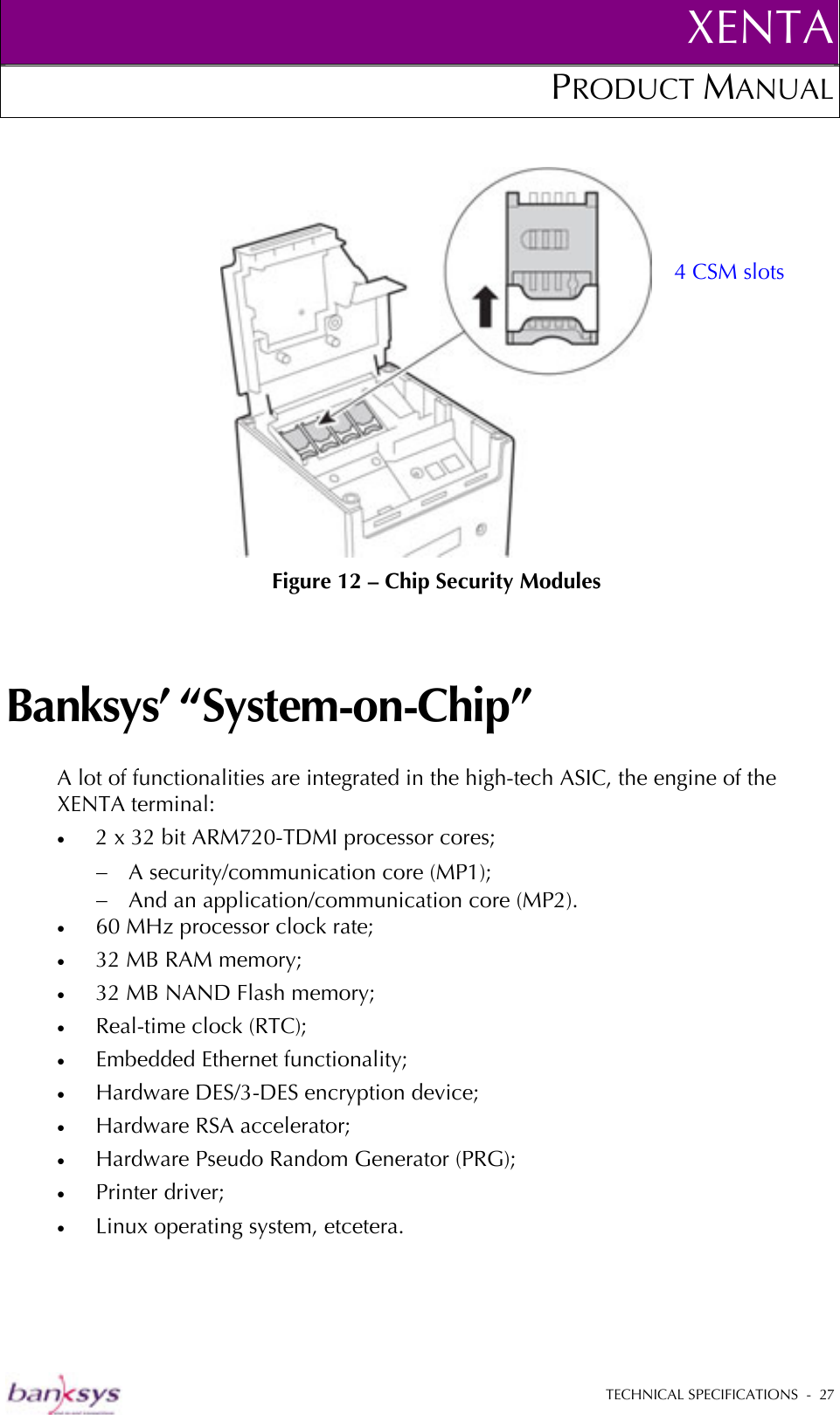

XENTAPRODUCT MANUAL   TECHNICAL SPECIFICATIONS  -  27    Figure 12 – Chip Security Modules Banksys’ “System-on-Chip” A lot of functionalities are integrated in the high-tech ASIC, the engine of the XENTA terminal: •  2 x 32 bit ARM720-TDMI processor cores; −  A security/communication core (MP1); −  And an application/communication core (MP2). •  60 MHz processor clock rate; •  32 MB RAM memory; •  32 MB NAND Flash memory; •  Real-time clock (RTC); •  Embedded Ethernet functionality; •  Hardware DES/3-DES encryption device; •  Hardware RSA accelerator; •  Hardware Pseudo Random Generator (PRG); •  Printer driver; •  Linux operating system, etcetera. 4 CSM slots

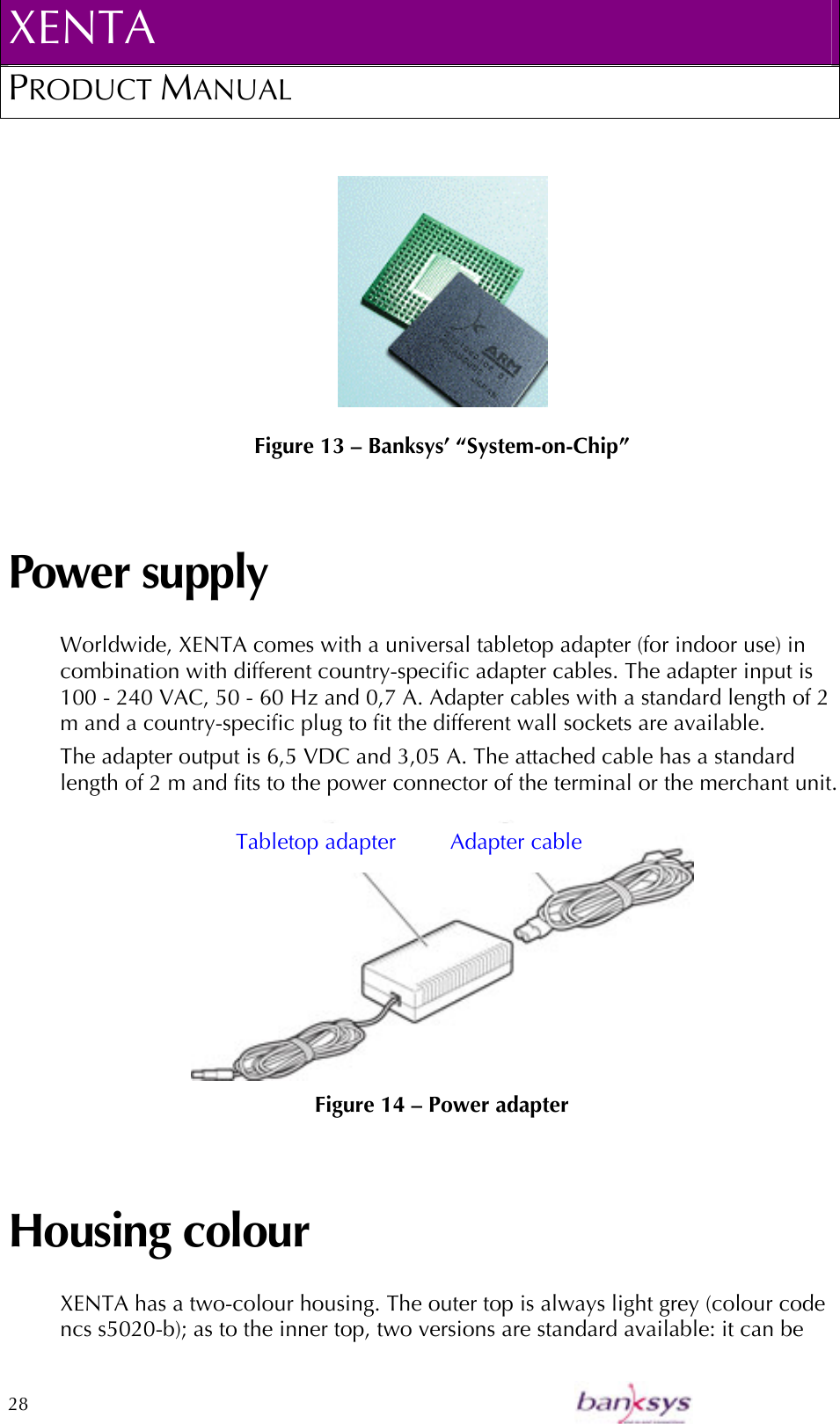

XENTA PRODUCT MANUAL  28      Figure 13 – Banksys’ “System-on-Chip” Power supply Worldwide, XENTA comes with a universal tabletop adapter (for indoor use) in combination with different country-specific adapter cables. The adapter input is 100 - 240 VAC, 50 - 60 Hz and 0,7 A. Adapter cables with a standard length of 2 m and a country-specific plug to fit the different wall sockets are available. The adapter output is 6,5 VDC and 3,05 A. The attached cable has a standard length of 2 m and fits to the power connector of the terminal or the merchant unit.   Figure 14 – Power adapter Housing colour XENTA has a two-colour housing. The outer top is always light grey (colour code ncs s5020-b); as to the inner top, two versions are standard available: it can be Tabletop adapter  Adapter cable

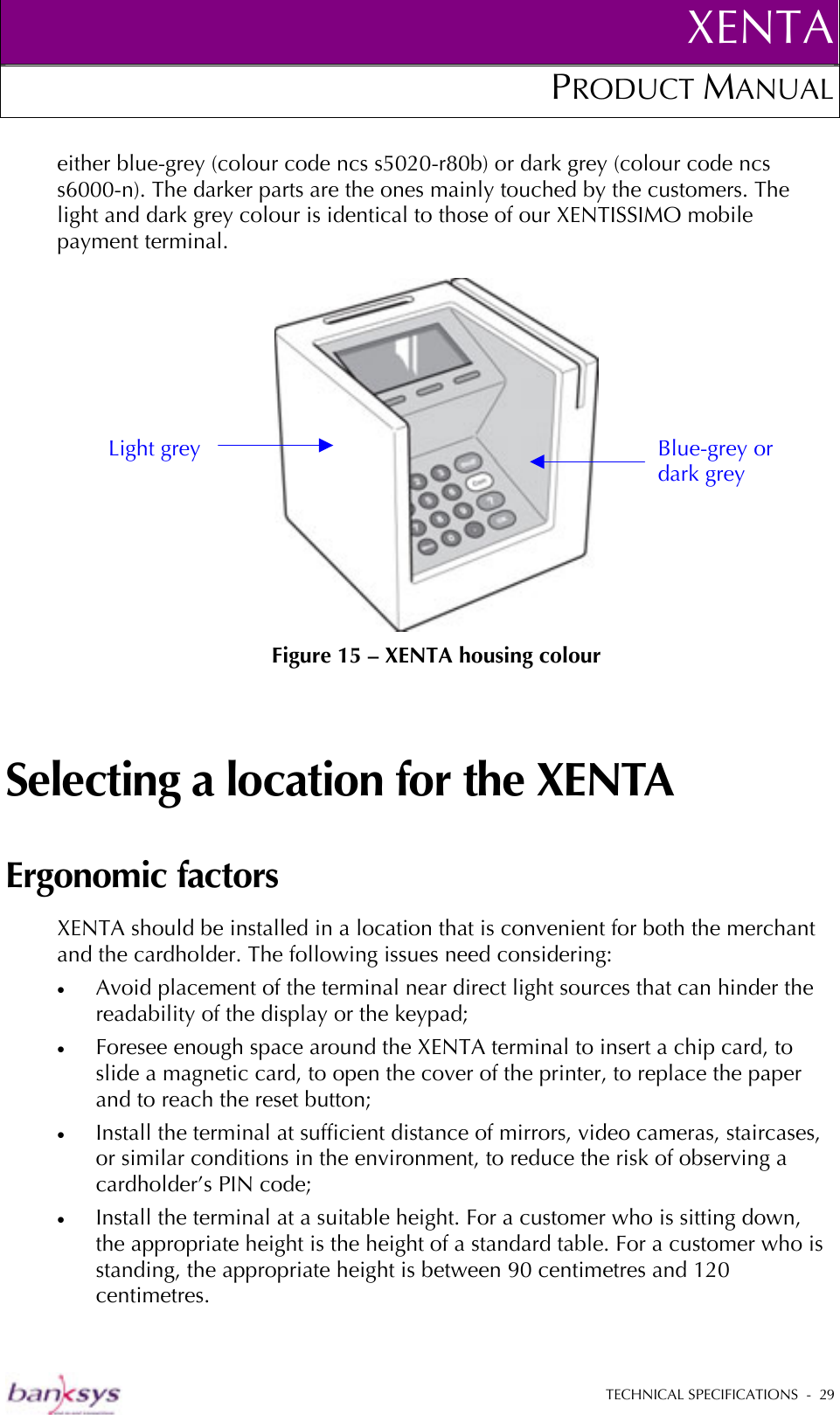

XENTAPRODUCT MANUAL   TECHNICAL SPECIFICATIONS  -  29  either blue-grey (colour code ncs s5020-r80b) or dark grey (colour code ncs s6000-n). The darker parts are the ones mainly touched by the customers. The light and dark grey colour is identical to those of our XENTISSIMO mobile payment terminal.   Figure 15 – XENTA housing colour Selecting a location for the XENTA Ergonomic factors XENTA should be installed in a location that is convenient for both the merchant and the cardholder. The following issues need considering: •  Avoid placement of the terminal near direct light sources that can hinder the readability of the display or the keypad; •  Foresee enough space around the XENTA terminal to insert a chip card, to slide a magnetic card, to open the cover of the printer, to replace the paper and to reach the reset button; •  Install the terminal at sufficient distance of mirrors, video cameras, staircases, or similar conditions in the environment, to reduce the risk of observing a cardholder’s PIN code; •  Install the terminal at a suitable height. For a customer who is sitting down, the appropriate height is the height of a standard table. For a customer who is standing, the appropriate height is between 90 centimetres and 120 centimetres. Light grey  Blue-grey or dark grey

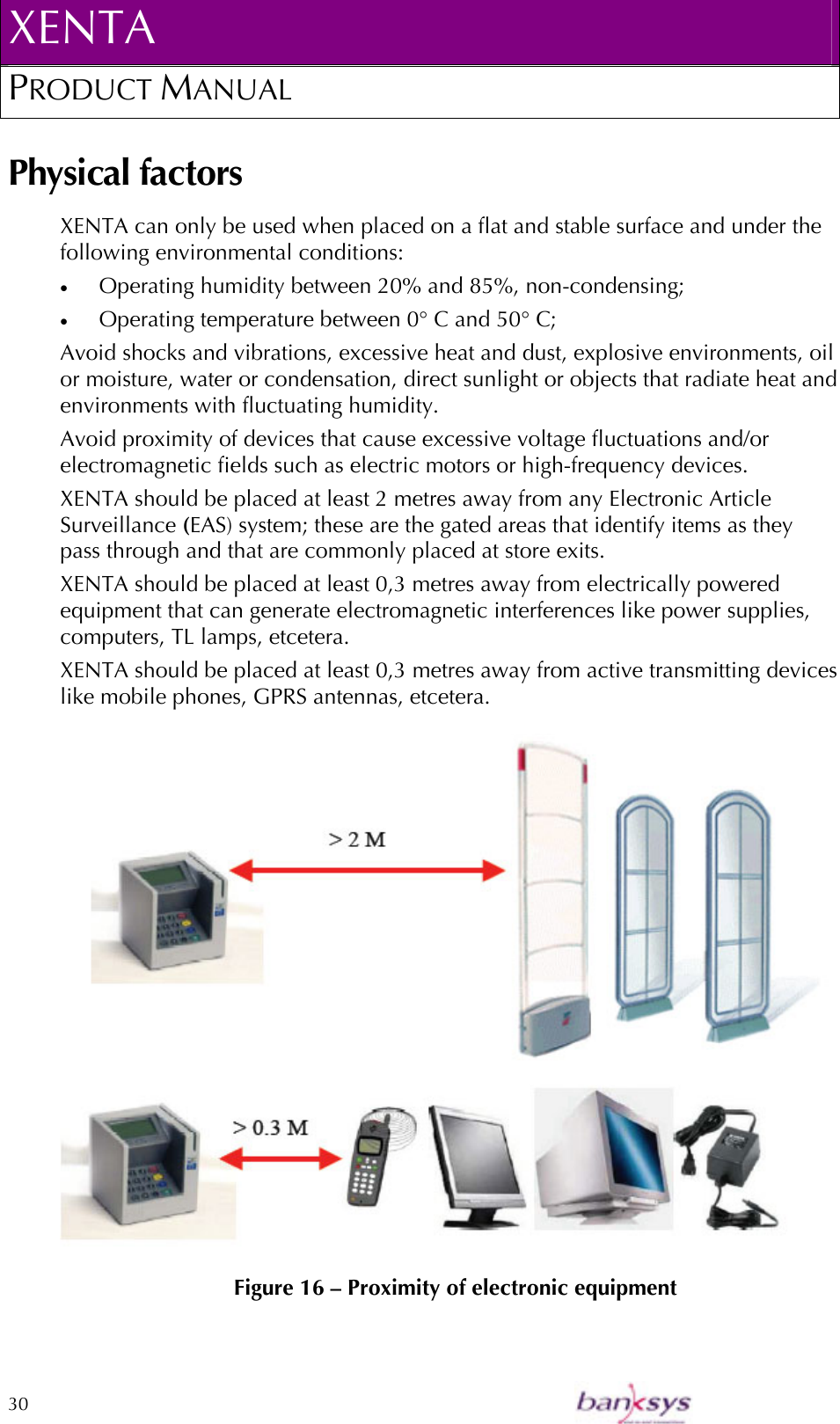

XENTA PRODUCT MANUAL  30    Physical factors XENTA can only be used when placed on a flat and stable surface and under the following environmental conditions: •  Operating humidity between 20% and 85%, non-condensing; •  Operating temperature between 0° C and 50° C; Avoid shocks and vibrations, excessive heat and dust, explosive environments, oil or moisture, water or condensation, direct sunlight or objects that radiate heat and environments with fluctuating humidity. Avoid proximity of devices that cause excessive voltage fluctuations and/or electromagnetic fields such as electric motors or high-frequency devices.  XENTA should be placed at least 2 metres away from any Electronic Article Surveillance (EAS) system; these are the gated areas that identify items as they pass through and that are commonly placed at store exits. XENTA should be placed at least 0,3 metres away from electrically powered equipment that can generate electromagnetic interferences like power supplies, computers, TL lamps, etcetera. XENTA should be placed at least 0,3 metres away from active transmitting devices like mobile phones, GPRS antennas, etcetera.    Figure 16 – Proximity of electronic equipment

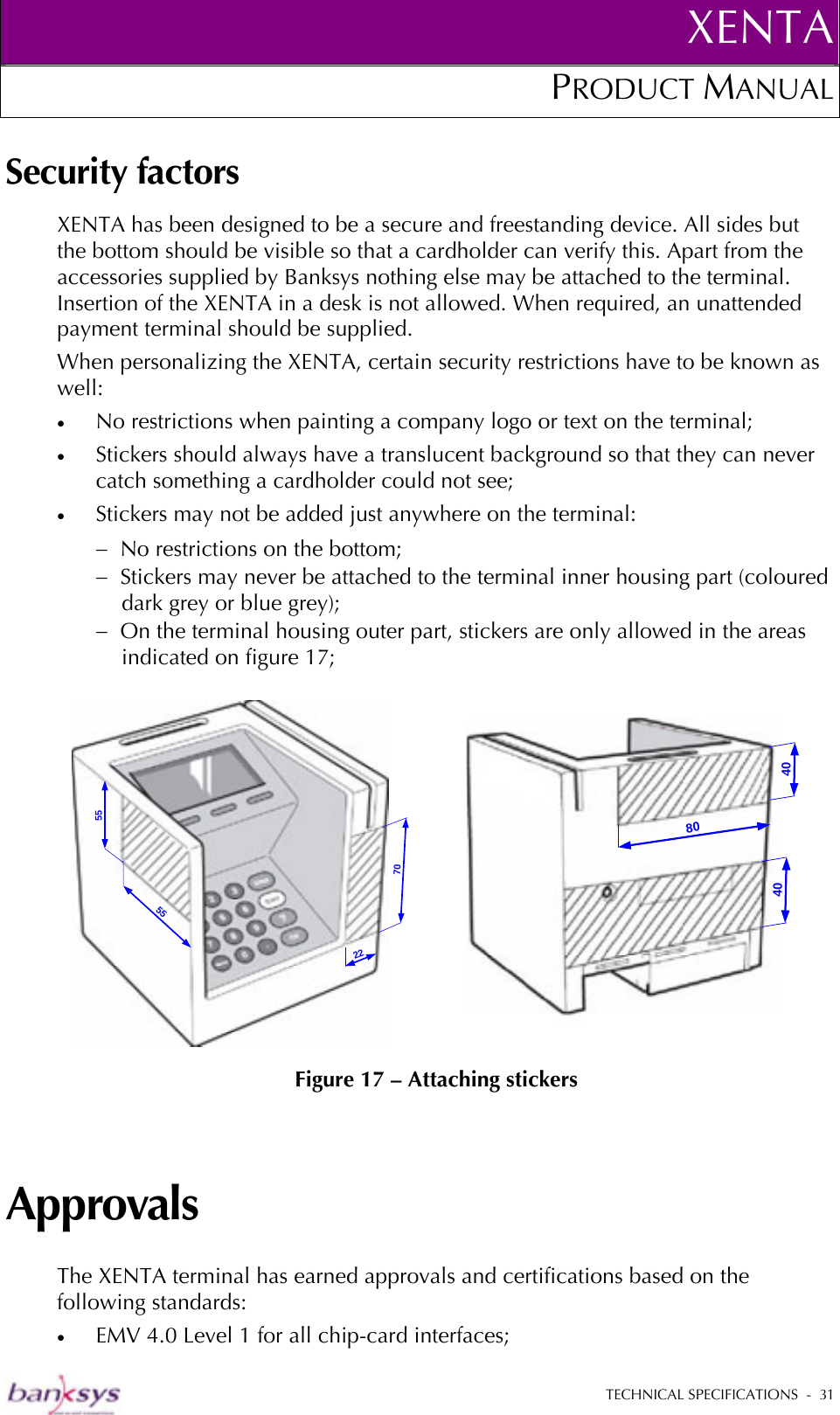

XENTAPRODUCT MANUAL   TECHNICAL SPECIFICATIONS  -  31  Security factors XENTA has been designed to be a secure and freestanding device. All sides but the bottom should be visible so that a cardholder can verify this. Apart from the accessories supplied by Banksys nothing else may be attached to the terminal. Insertion of the XENTA in a desk is not allowed. When required, an unattended payment terminal should be supplied. When personalizing the XENTA, certain security restrictions have to be known as well: •  No restrictions when painting a company logo or text on the terminal; •  Stickers should always have a translucent background so that they can never catch something a cardholder could not see; •  Stickers may not be added just anywhere on the terminal: −  No restrictions on the bottom; −  Stickers may never be attached to the terminal inner housing part (coloured dark grey or blue grey); −  On the terminal housing outer part, stickers are only allowed in the areas indicated on figure 17;      Figure 17 – Attaching stickers Approvals The XENTA terminal has earned approvals and certifications based on the following standards: •  EMV 4.0 Level 1 for all chip-card interfaces; 55557022404080
XENTA PRODUCT MANUAL  32    •  EMV 4.0 Level 2 approved Kernel for payment application development; •  PCI PED offline and online; •  TQM; •  CE mark, according to ITE equipment; •  MET mark, according to IEC 950 standard; •  EMC specification: EN 55022/CISPR 22, EN 50082-1, EN 61000-3-2 and 3, FCC Part 15 and other country-specific certifications;  •  And telecommunication specification, as defined by TBR21, FCC Part 68/IC and national network operators. The above list is not exhaustive, local and regional certifications are not mentioned in this manual.  Good to know XENTA is equipped with a reset button (rear side). To reset the terminal, push this button with a tool for at least 5 seconds and wait for the terminal to reboot.   Figure 18 – Reset button The XENTA interior compartment can optionally be secured by means of a screw in the bottom cover. Reset button

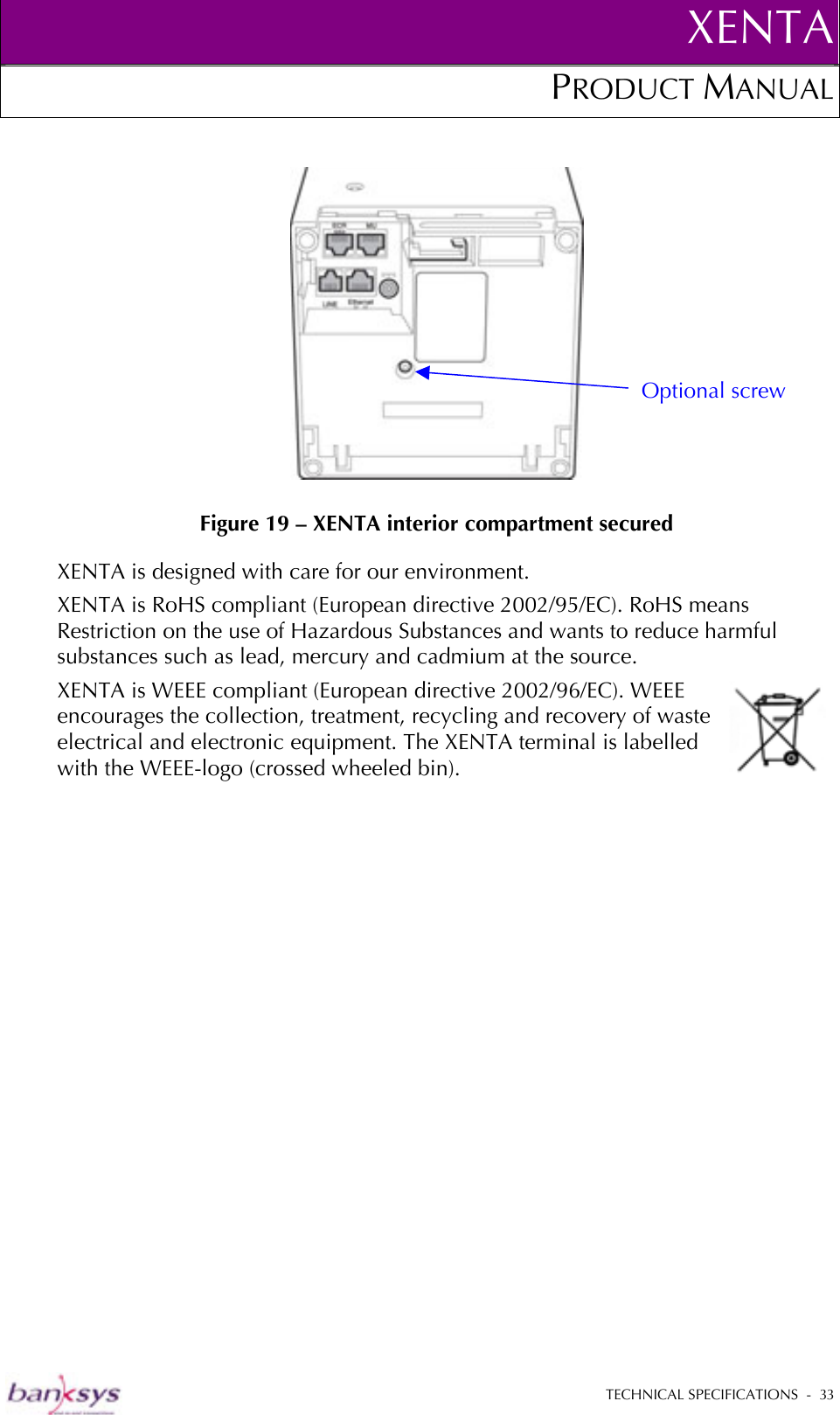

XENTAPRODUCT MANUAL   TECHNICAL SPECIFICATIONS  -  33    Figure 19 – XENTA interior compartment secured XENTA is designed with care for our environment. XENTA is RoHS compliant (European directive 2002/95/EC). RoHS means Restriction on the use of Hazardous Substances and wants to reduce harmful substances such as lead, mercury and cadmium at the source.  XENTA is WEEE compliant (European directive 2002/96/EC). WEEE encourages the collection, treatment, recycling and recovery of waste electrical and electronic equipment. The XENTA terminal is labelled with the WEEE-logo (crossed wheeled bin). Optional screw
XENTA PRODUCT MANUAL                           - Page intentionally left blank -

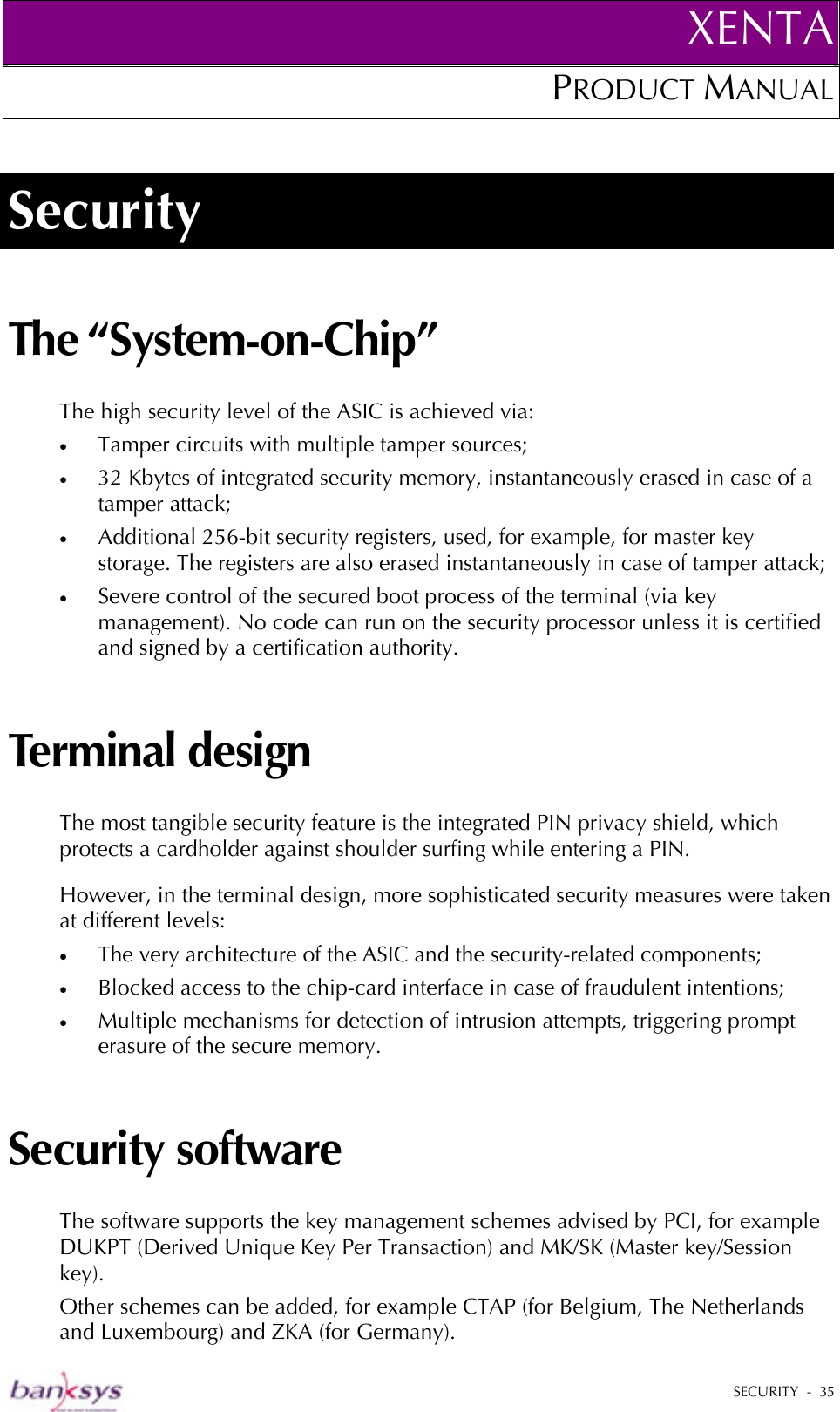

XENTAPRODUCT MANUAL   SECURITY  -  35  Security The “System-on-Chip” The high security level of the ASIC is achieved via: •  Tamper circuits with multiple tamper sources; •  32 Kbytes of integrated security memory, instantaneously erased in case of a tamper attack; •  Additional 256-bit security registers, used, for example, for master key storage. The registers are also erased instantaneously in case of tamper attack; •  Severe control of the secured boot process of the terminal (via key management). No code can run on the security processor unless it is certified and signed by a certification authority. Terminal design The most tangible security feature is the integrated PIN privacy shield, which protects a cardholder against shoulder surfing while entering a PIN.  However, in the terminal design, more sophisticated security measures were taken at different levels: •  The very architecture of the ASIC and the security-related components; •  Blocked access to the chip-card interface in case of fraudulent intentions; •  Multiple mechanisms for detection of intrusion attempts, triggering prompt erasure of the secure memory.  Security software The software supports the key management schemes advised by PCI, for example DUKPT (Derived Unique Key Per Transaction) and MK/SK (Master key/Session key). Other schemes can be added, for example CTAP (for Belgium, The Netherlands and Luxembourg) and ZKA (for Germany).

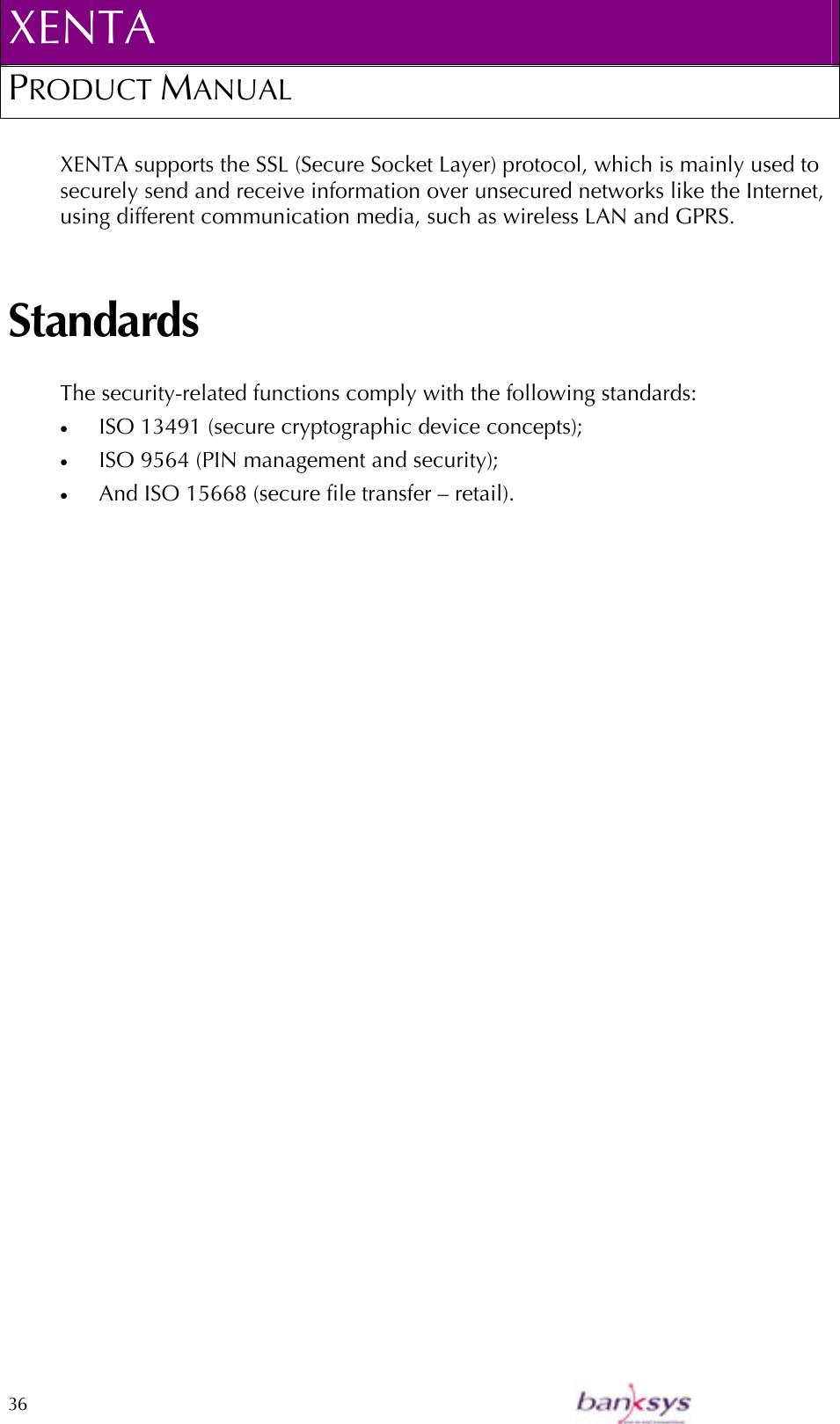

XENTA PRODUCT MANUAL  36    XENTA supports the SSL (Secure Socket Layer) protocol, which is mainly used to securely send and receive information over unsecured networks like the Internet, using different communication media, such as wireless LAN and GPRS.   Standards The security-related functions comply with the following standards: •  ISO 13491 (secure cryptographic device concepts); •  ISO 9564 (PIN management and security); •  And ISO 15668 (secure file transfer – retail).
XENTAPRODUCT MANUAL   ACCESSORIES  -  37  Accessories Interface boards Several interface boards are available for additional means of communication with the transaction host. An interface board can be added at any time by technical staff. Just open the bottom cover and insert the chosen interface board into the terminal. For a detailed description, please refer to the XENTA Service Manual.  ISDN              Figure 20 – ISDN interface board XENTA can be equipped with an ISDN interface.  ISDN is a circuit-switched telephone network system, which allows digital transmission of data over ordinary telephone copper wires. The quality is better and the speed is higher than with analogue systems.

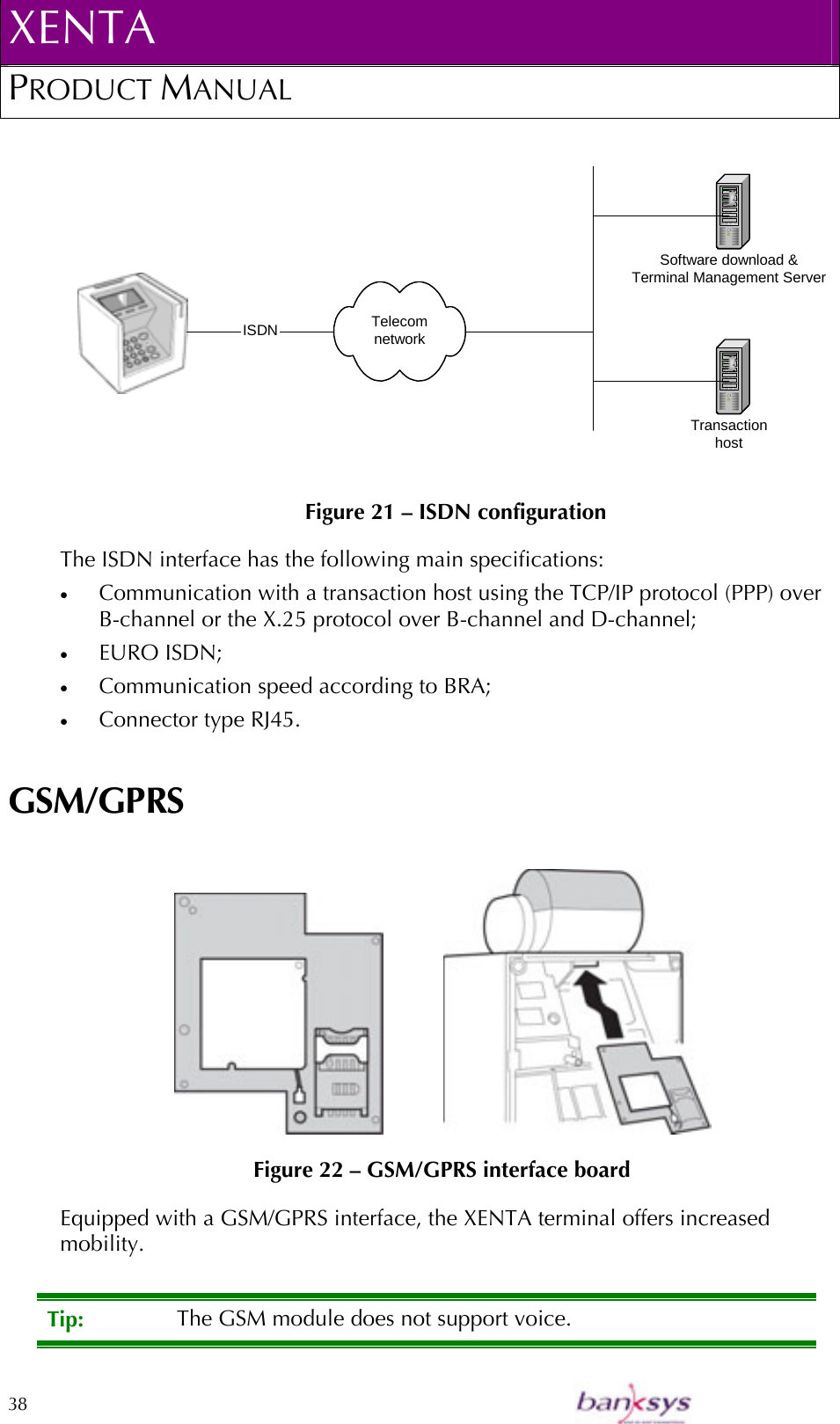

XENTA PRODUCT MANUAL  38     Figure 21 – ISDN configuration The ISDN interface has the following main specifications: •  Communication with a transaction host using the TCP/IP protocol (PPP) over B-channel or the X.25 protocol over B-channel and D-channel; •  EURO ISDN; •  Communication speed according to BRA; •  Connector type RJ45. GSM/GPRS              Figure 22 – GSM/GPRS interface board Equipped with a GSM/GPRS interface, the XENTA terminal offers increased mobility.  Tip:  The GSM module does not support voice. TelecomnetworkSoftware download &Terminal Management ServerTransactionhost ISDN

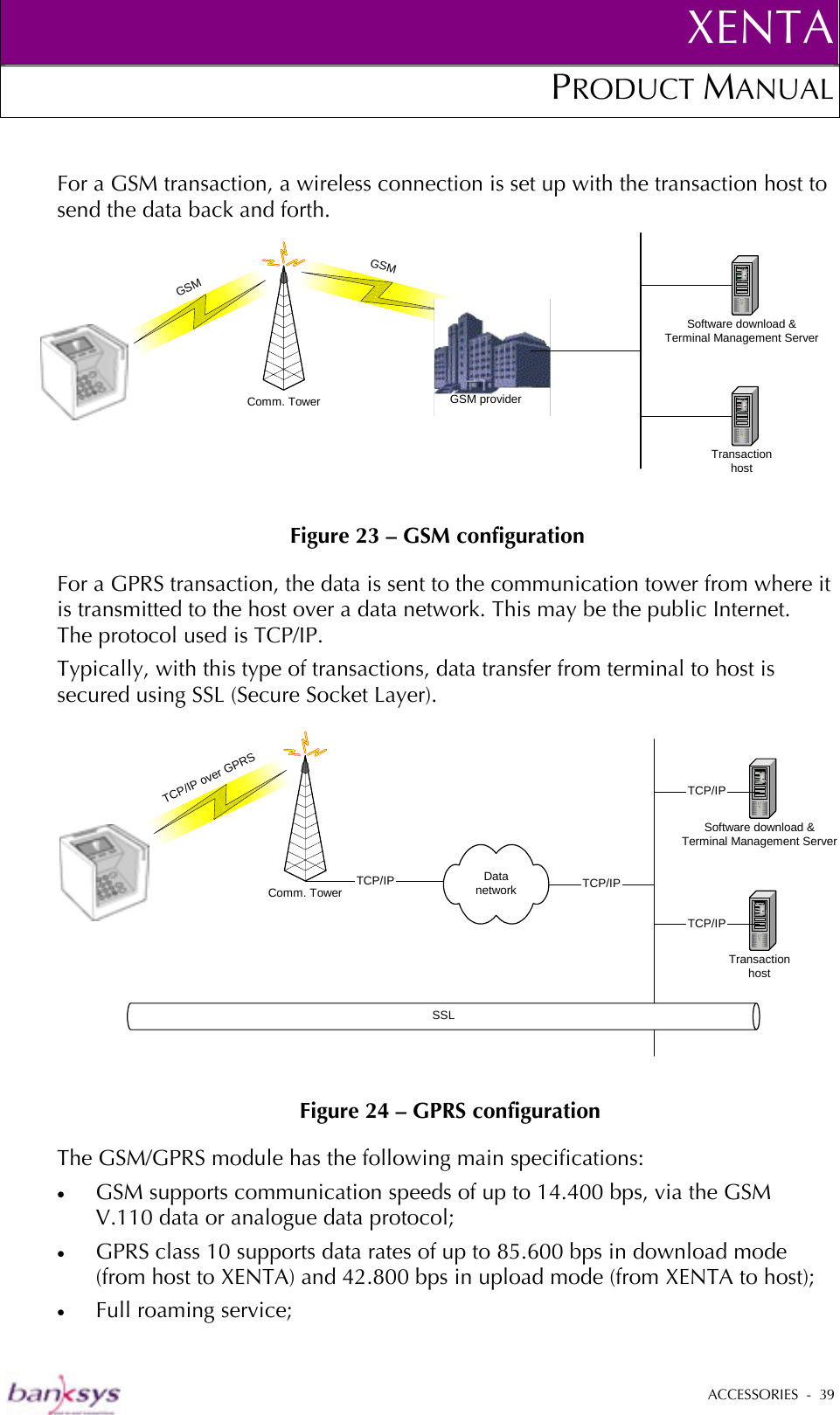

XENTAPRODUCT MANUAL   ACCESSORIES  -  39   For a GSM transaction, a wireless connection is set up with the transaction host to send the data back and forth.  Figure 23 – GSM configuration For a GPRS transaction, the data is sent to the communication tower from where it is transmitted to the host over a data network. This may be the public Internet. The protocol used is TCP/IP.  Typically, with this type of transactions, data transfer from terminal to host is secured using SSL (Secure Socket Layer).   Figure 24 – GPRS configuration The GSM/GPRS module has the following main specifications: •  GSM supports communication speeds of up to 14.400 bps, via the GSM V.110 data or analogue data protocol;  •  GPRS class 10 supports data rates of up to 85.600 bps in download mode (from host to XENTA) and 42.800 bps in upload mode (from XENTA to host); •  Full roaming service; GSMGSMComm. TowerSoftware download &Terminal Management ServerTransactionhostGSM provider TCP/IP over GPRSComm. TowerDatanetworkTCP/IPSoftware download &Terminal Management ServerTransactionhostTCP/IPTCP/IPTCP/IPSSL

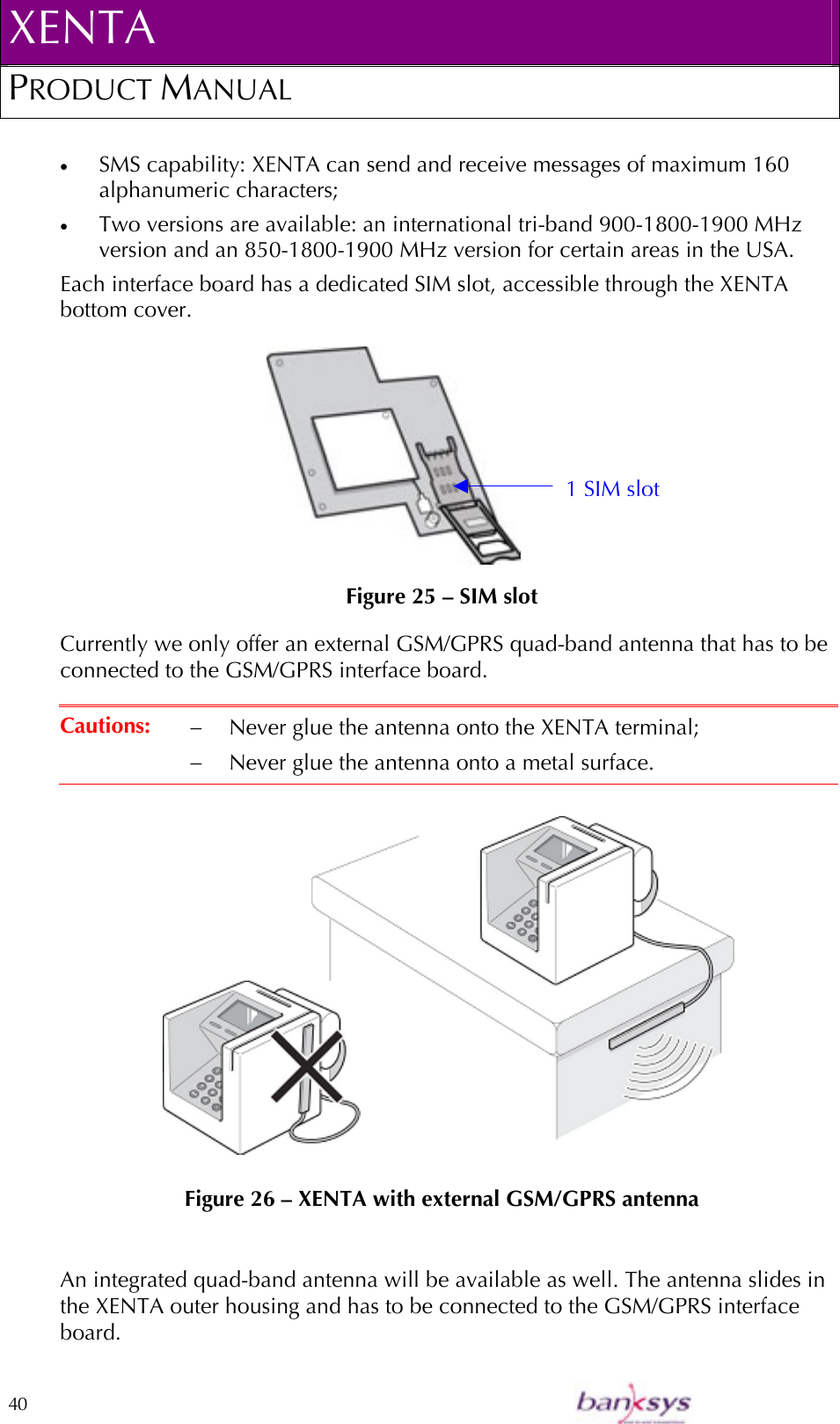

XENTA PRODUCT MANUAL  40    •  SMS capability: XENTA can send and receive messages of maximum 160 alphanumeric characters; •  Two versions are available: an international tri-band 900-1800-1900 MHz version and an 850-1800-1900 MHz version for certain areas in the USA. Each interface board has a dedicated SIM slot, accessible through the XENTA bottom cover.                                       Figure 25 – SIM slot Currently we only offer an external GSM/GPRS quad-band antenna that has to be connected to the GSM/GPRS interface board.   Cautions:  −  Never glue the antenna onto the XENTA terminal; −  Never glue the antenna onto a metal surface.   Figure 26 – XENTA with external GSM/GPRS antenna  An integrated quad-band antenna will be available as well. The antenna slides in the XENTA outer housing and has to be connected to the GSM/GPRS interface board. 1 SIM slot

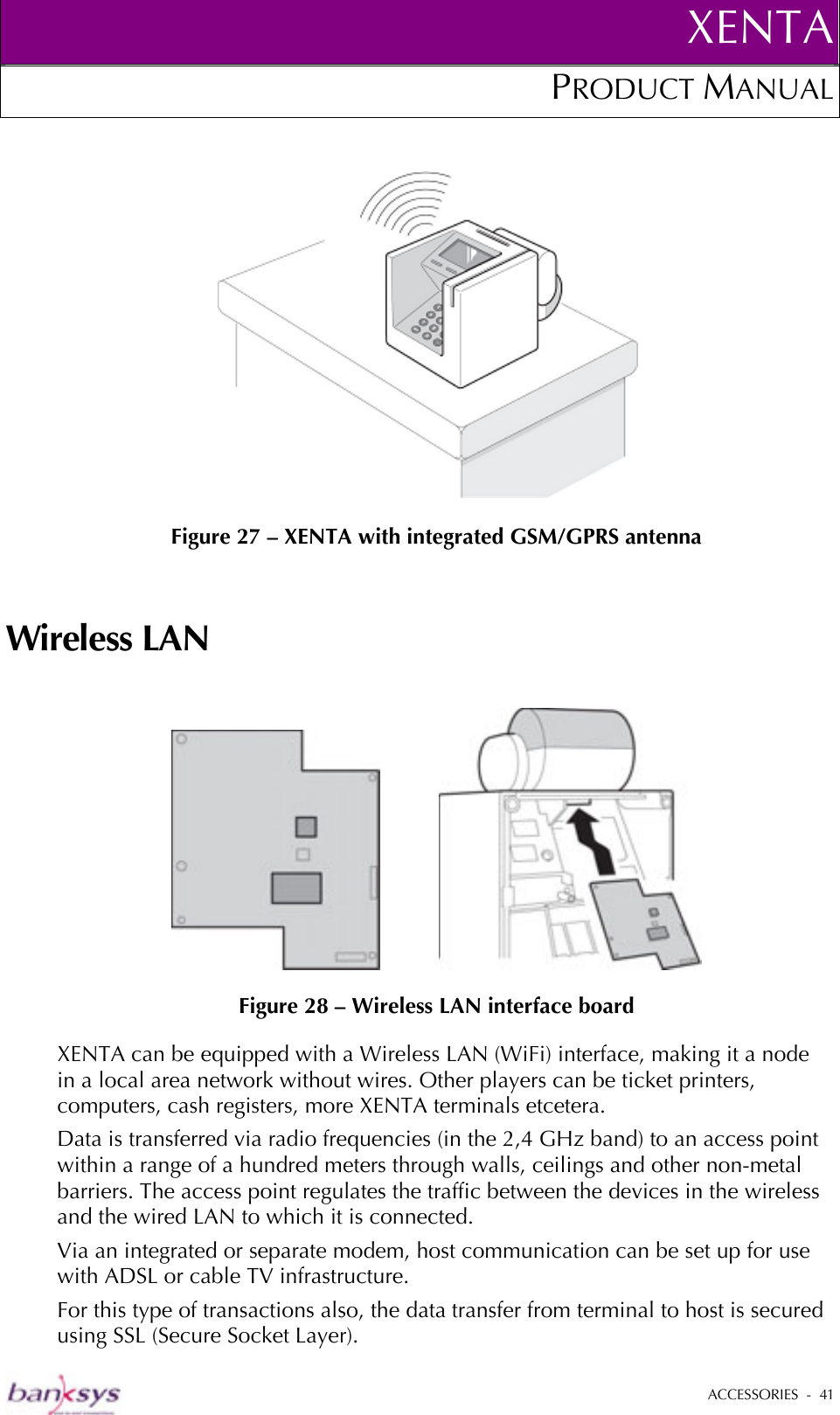

XENTAPRODUCT MANUAL   ACCESSORIES  -  41    Figure 27 – XENTA with integrated GSM/GPRS antenna Wireless LAN              Figure 28 – Wireless LAN interface board XENTA can be equipped with a Wireless LAN (WiFi) interface, making it a node in a local area network without wires. Other players can be ticket printers, computers, cash registers, more XENTA terminals etcetera.  Data is transferred via radio frequencies (in the 2,4 GHz band) to an access point within a range of a hundred meters through walls, ceilings and other non-metal barriers. The access point regulates the traffic between the devices in the wireless and the wired LAN to which it is connected.  Via an integrated or separate modem, host communication can be set up for use with ADSL or cable TV infrastructure.  For this type of transactions also, the data transfer from terminal to host is secured using SSL (Secure Socket Layer).

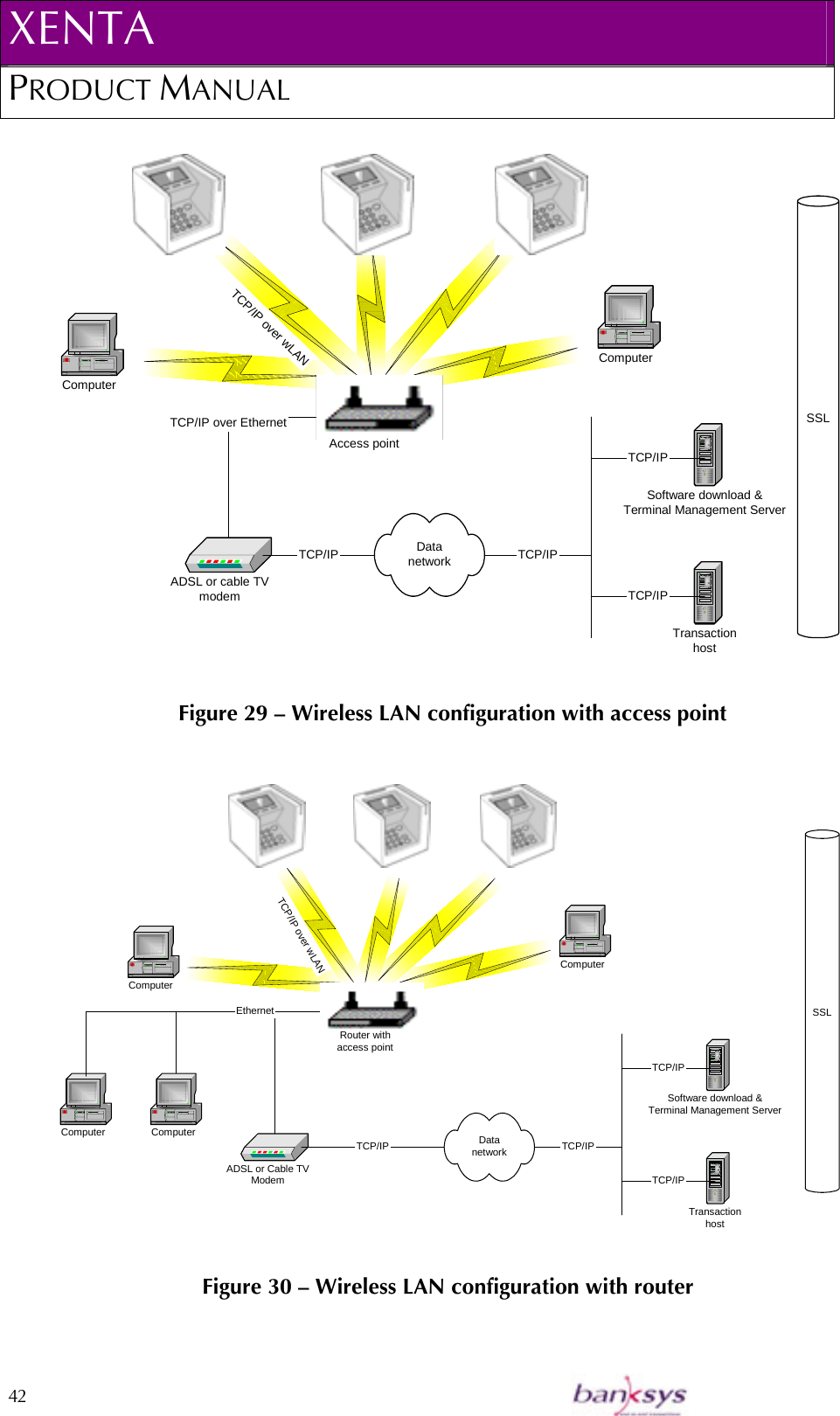

XENTA PRODUCT MANUAL  42     Figure 29 – Wireless LAN configuration with access point   Figure 30 – Wireless LAN configuration with router TCP/IP over wLANComputerComputerTCP/IP over EthernetDatanetworkSoftware download &Terminal Management ServerTransactionhostTCP/IPTCP/IPTCP/IPADSL or cable TVmodemTCP/IPSSLAccess point    TCP/IP over wLANComputerComputerADSL or Cable TVModemEthernetComputerComputer DatanetworkSoftware download &Terminal Management ServerTransactionhostTCP/IPTCP/IPTCP/IPSSLRouter withaccess pointTCP/IP

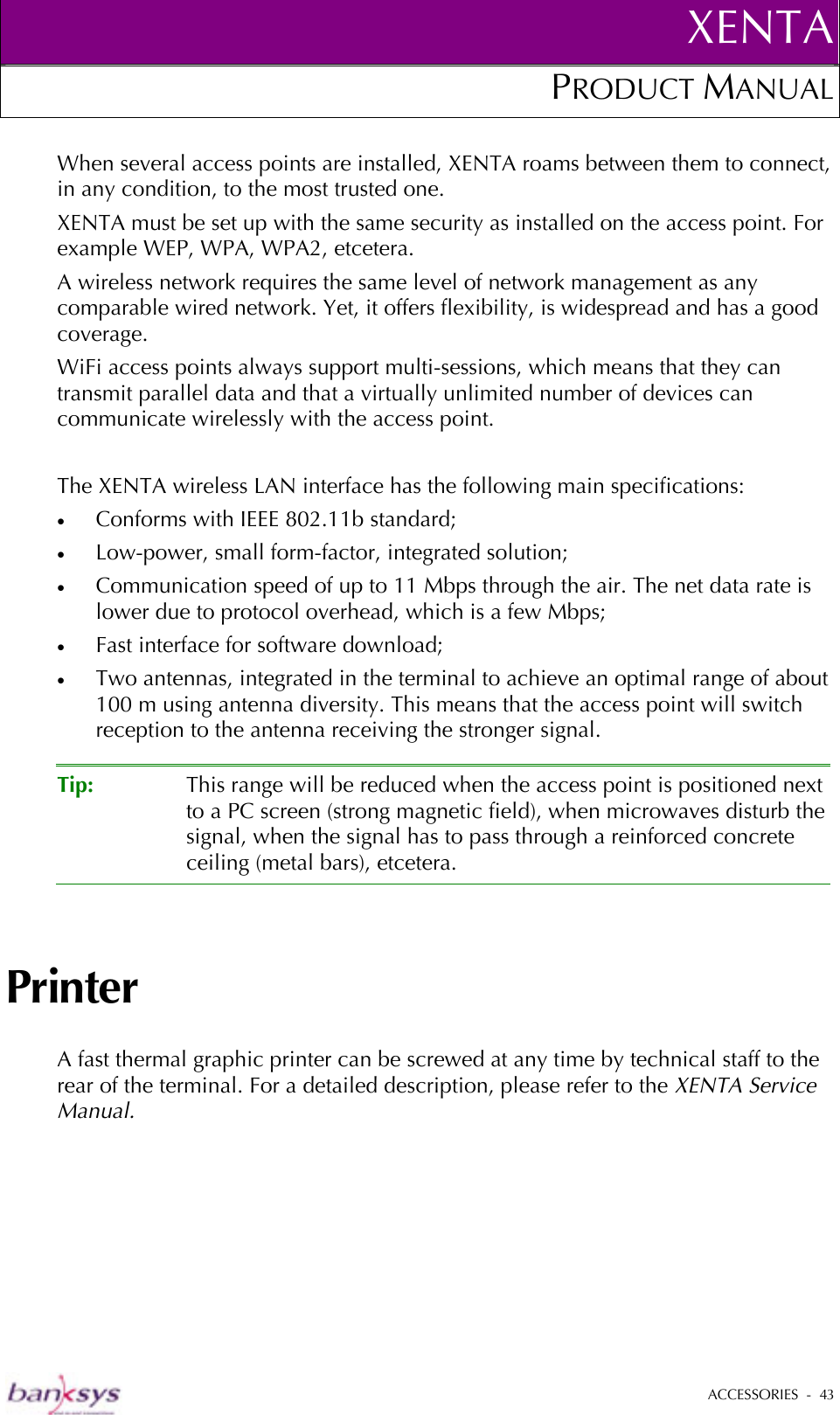

XENTAPRODUCT MANUAL   ACCESSORIES  -  43  When several access points are installed, XENTA roams between them to connect, in any condition, to the most trusted one. XENTA must be set up with the same security as installed on the access point. For example WEP, WPA, WPA2, etcetera.  A wireless network requires the same level of network management as any comparable wired network. Yet, it offers flexibility, is widespread and has a good coverage.  WiFi access points always support multi-sessions, which means that they can transmit parallel data and that a virtually unlimited number of devices can communicate wirelessly with the access point.   The XENTA wireless LAN interface has the following main specifications: •  Conforms with IEEE 802.11b standard; •  Low-power, small form-factor, integrated solution; •  Communication speed of up to 11 Mbps through the air. The net data rate is lower due to protocol overhead, which is a few Mbps; •  Fast interface for software download; •  Two antennas, integrated in the terminal to achieve an optimal range of about 100 m using antenna diversity. This means that the access point will switch reception to the antenna receiving the stronger signal.  Tip:  This range will be reduced when the access point is positioned next to a PC screen (strong magnetic field), when microwaves disturb the signal, when the signal has to pass through a reinforced concrete ceiling (metal bars), etcetera.  Printer A fast thermal graphic printer can be screwed at any time by technical staff to the rear of the terminal. For a detailed description, please refer to the XENTA Service Manual.

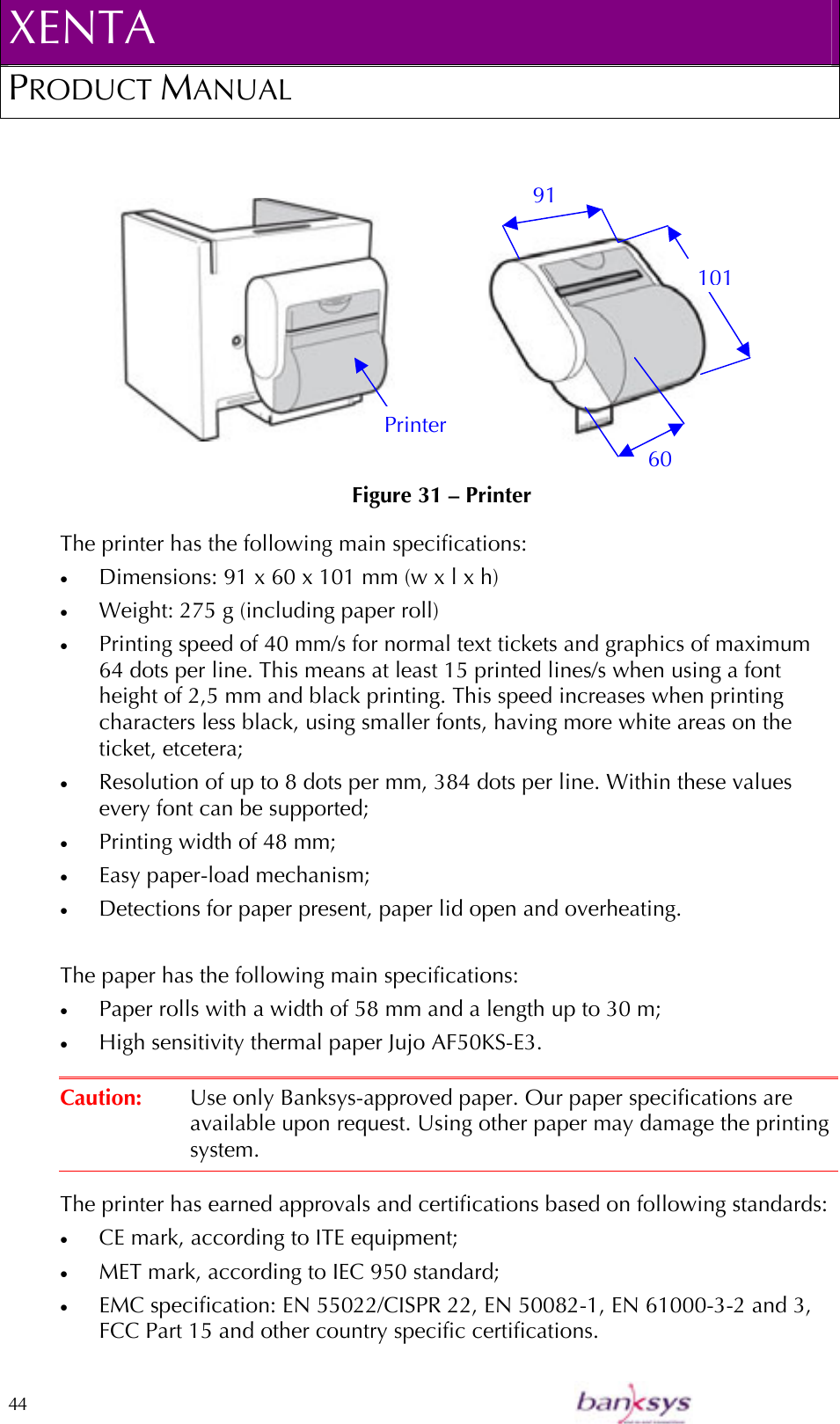

XENTA PRODUCT MANUAL  44                                 Figure 31 – Printer The printer has the following main specifications: •  Dimensions: 91 x 60 x 101 mm (w x l x h) •  Weight: 275 g (including paper roll) •  Printing speed of 40 mm/s for normal text tickets and graphics of maximum 64 dots per line. This means at least 15 printed lines/s when using a font height of 2,5 mm and black printing. This speed increases when printing characters less black, using smaller fonts, having more white areas on the ticket, etcetera; •  Resolution of up to 8 dots per mm, 384 dots per line. Within these values every font can be supported; •  Printing width of 48 mm;  •  Easy paper-load mechanism; •  Detections for paper present, paper lid open and overheating.  The paper has the following main specifications: •  Paper rolls with a width of 58 mm and a length up to 30 m; •  High sensitivity thermal paper Jujo AF50KS-E3.  Caution:  Use only Banksys-approved paper. Our paper specifications are available upon request. Using other paper may damage the printing system.  The printer has earned approvals and certifications based on following standards: •  CE mark, according to ITE equipment; •  MET mark, according to IEC 950 standard;  •  EMC specification: EN 55022/CISPR 22, EN 50082-1, EN 61000-3-2 and 3, FCC Part 15 and other country specific certifications. 60 101 Printer 91

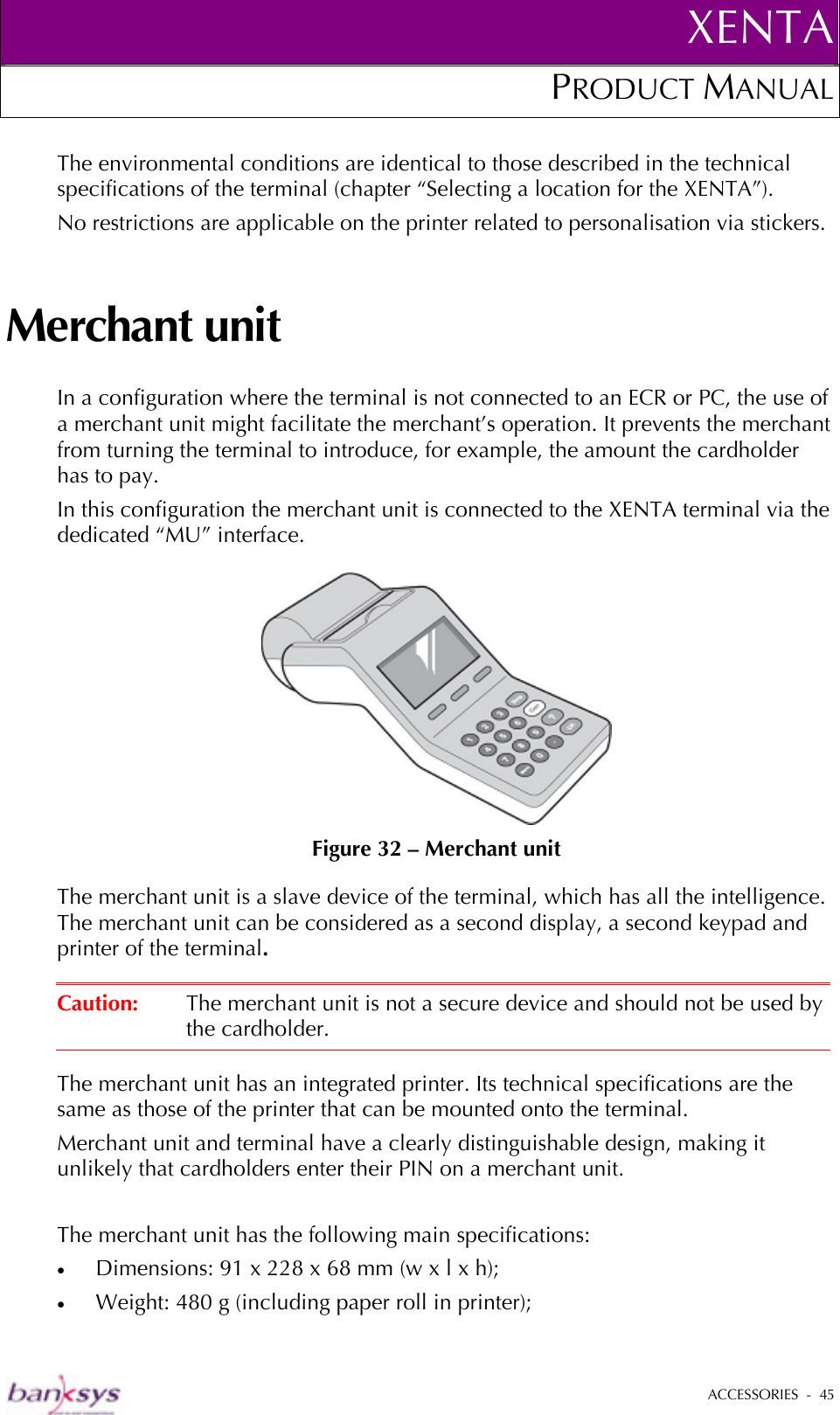

XENTAPRODUCT MANUAL   ACCESSORIES  -  45  The environmental conditions are identical to those described in the technical specifications of the terminal (chapter “Selecting a location for the XENTA”). No restrictions are applicable on the printer related to personalisation via stickers.  Merchant unit In a configuration where the terminal is not connected to an ECR or PC, the use of a merchant unit might facilitate the merchant’s operation. It prevents the merchant from turning the terminal to introduce, for example, the amount the cardholder has to pay.  In this configuration the merchant unit is connected to the XENTA terminal via the dedicated “MU” interface.   Figure 32 – Merchant unit The merchant unit is a slave device of the terminal, which has all the intelligence. The merchant unit can be considered as a second display, a second keypad and printer of the terminal.   Caution:  The merchant unit is not a secure device and should not be used by the cardholder.  The merchant unit has an integrated printer. Its technical specifications are the same as those of the printer that can be mounted onto the terminal. Merchant unit and terminal have a clearly distinguishable design, making it unlikely that cardholders enter their PIN on a merchant unit.  The merchant unit has the following main specifications: •  Dimensions: 91 x 228 x 68 mm (w x l x h); •  Weight: 480 g (including paper roll in printer);

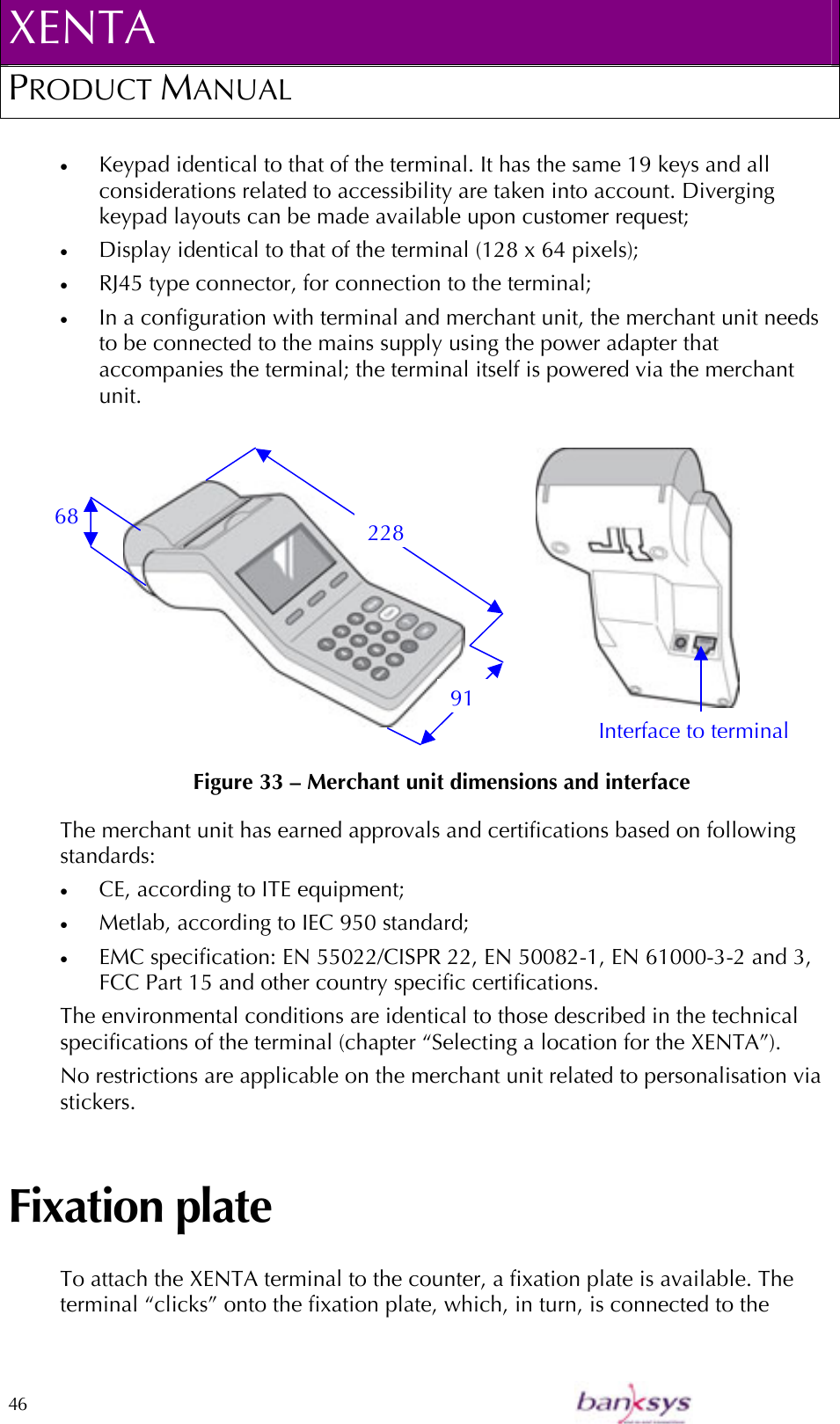

XENTA PRODUCT MANUAL  46    •  Keypad identical to that of the terminal. It has the same 19 keys and all considerations related to accessibility are taken into account. Diverging keypad layouts can be made available upon customer request; •  Display identical to that of the terminal (128 x 64 pixels); •  RJ45 type connector, for connection to the terminal; •  In a configuration with terminal and merchant unit, the merchant unit needs to be connected to the mains supply using the power adapter that accompanies the terminal; the terminal itself is powered via the merchant unit.                    Figure 33 – Merchant unit dimensions and interface The merchant unit has earned approvals and certifications based on following standards: •  CE, according to ITE equipment; •  Metlab, according to IEC 950 standard; •  EMC specification: EN 55022/CISPR 22, EN 50082-1, EN 61000-3-2 and 3, FCC Part 15 and other country specific certifications. The environmental conditions are identical to those described in the technical specifications of the terminal (chapter “Selecting a location for the XENTA”). No restrictions are applicable on the merchant unit related to personalisation via stickers. Fixation plate To attach the XENTA terminal to the counter, a fixation plate is available. The terminal “clicks” onto the fixation plate, which, in turn, is connected to the 68 91 228 Interface to terminal

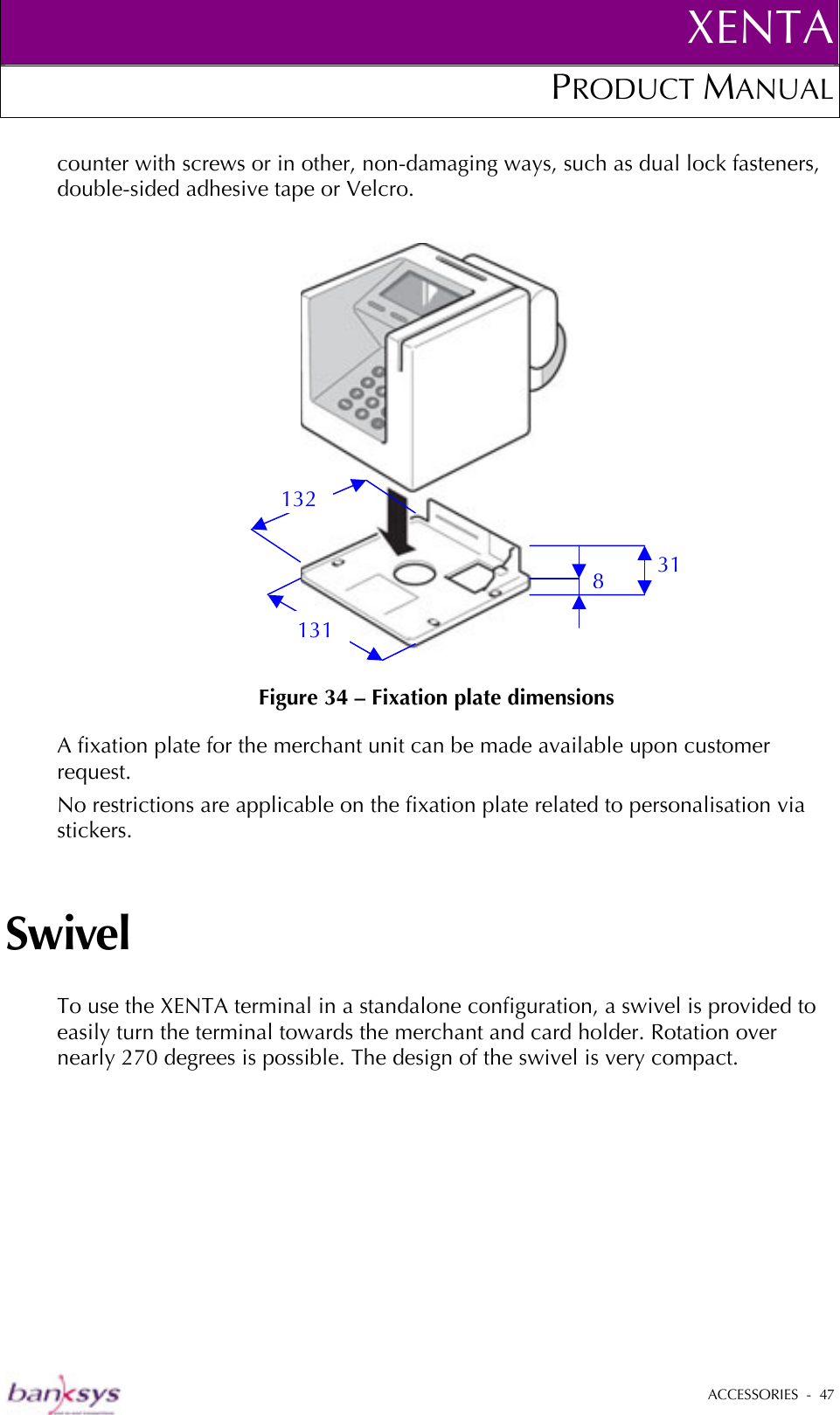

XENTAPRODUCT MANUAL   ACCESSORIES  -  47  counter with screws or in other, non-damaging ways, such as dual lock fasteners, double-sided adhesive tape or Velcro.   Figure 34 – Fixation plate dimensions A fixation plate for the merchant unit can be made available upon customer request. No restrictions are applicable on the fixation plate related to personalisation via stickers. Swivel To use the XENTA terminal in a standalone configuration, a swivel is provided to easily turn the terminal towards the merchant and card holder. Rotation over nearly 270 degrees is possible. The design of the swivel is very compact. 8 31 131 132

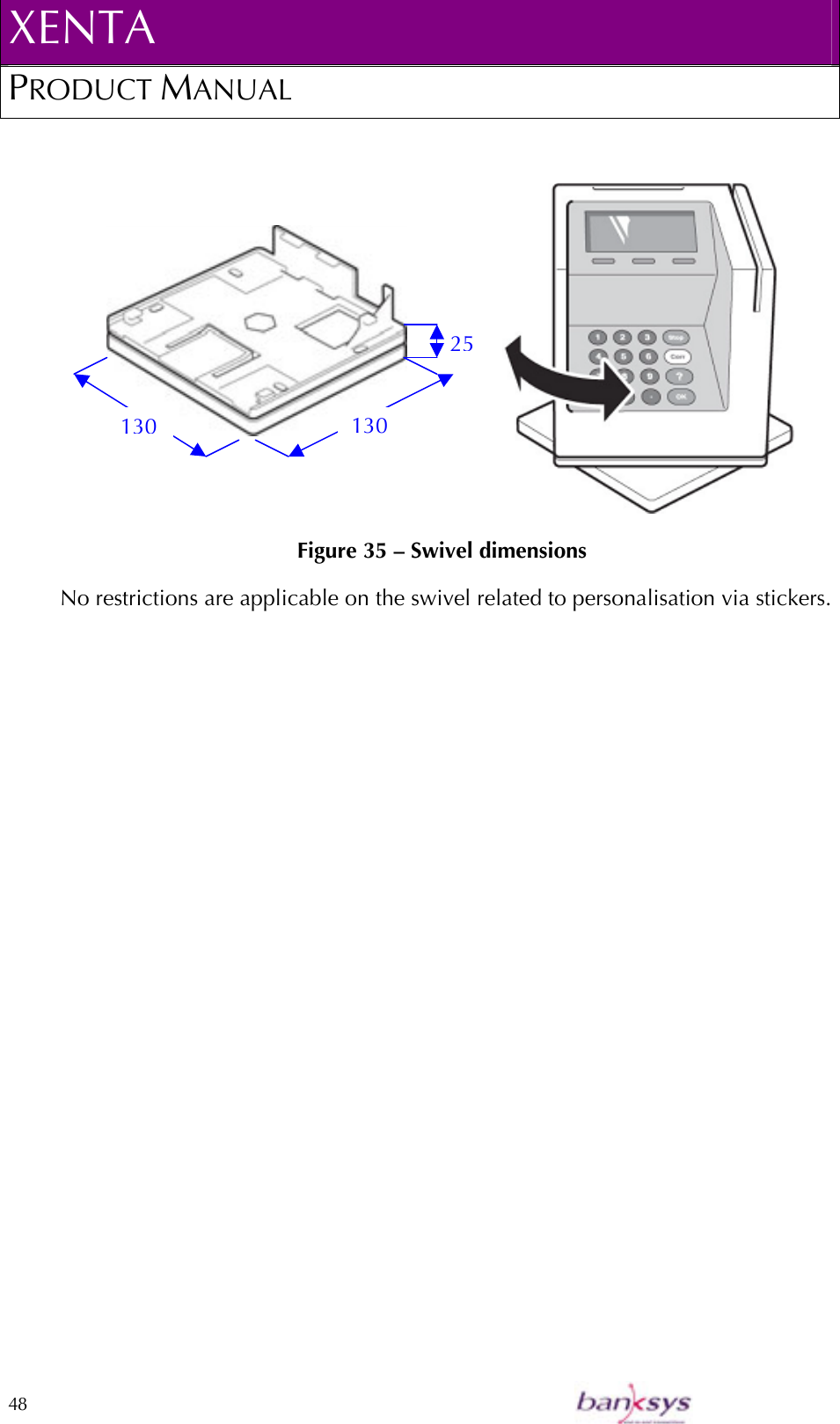

XENTA PRODUCT MANUAL  48    25                Figure 35 – Swivel dimensions No restrictions are applicable on the swivel related to personalisation via stickers.130 130

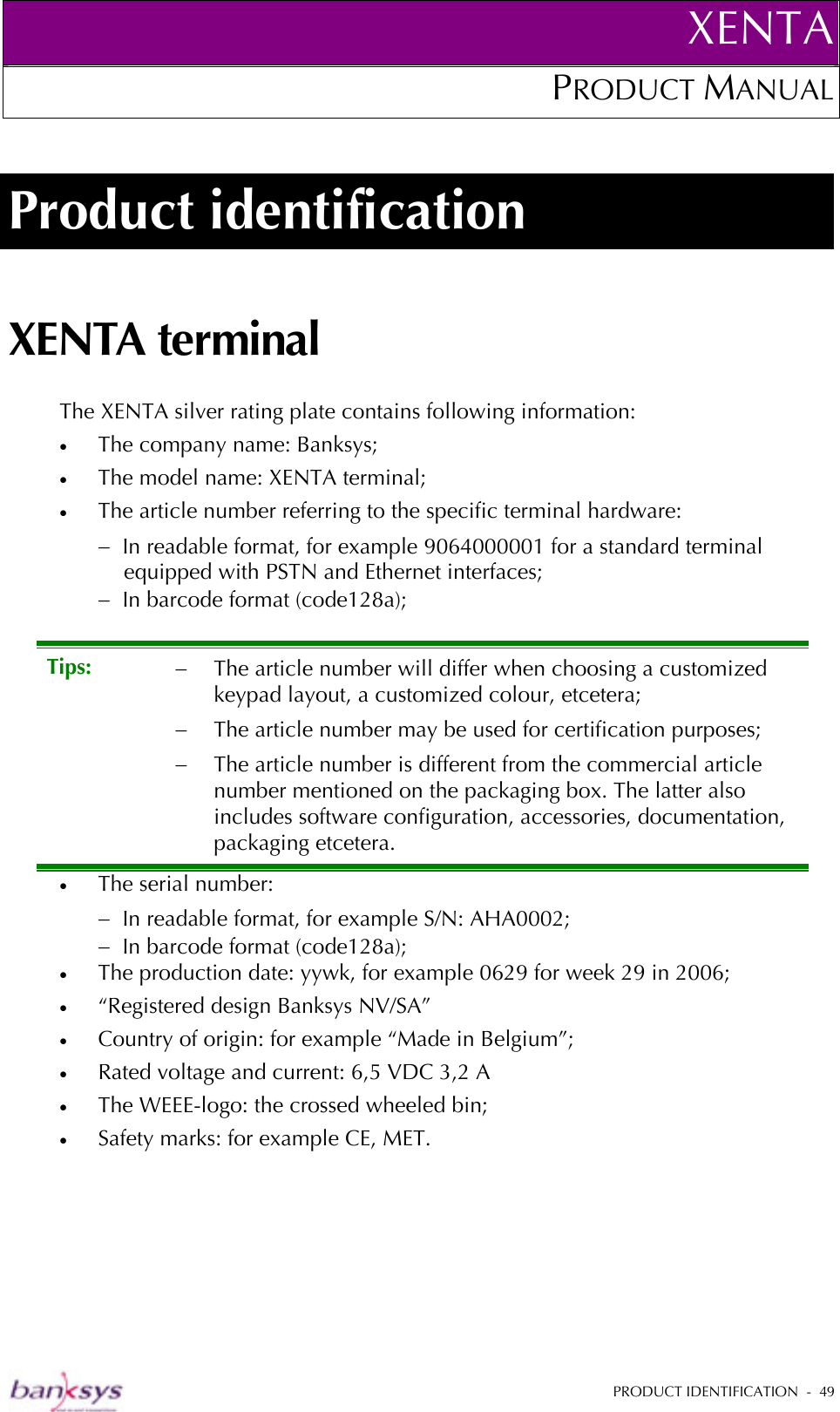

XENTAPRODUCT MANUAL   PRODUCT IDENTIFICATION  -  49  Product identification XENTA terminal The XENTA silver rating plate contains following information: •  The company name: Banksys; •  The model name: XENTA terminal; •  The article number referring to the specific terminal hardware: −  In readable format, for example 9064000001 for a standard terminal equipped with PSTN and Ethernet interfaces; −  In barcode format (code128a); •  The serial number: −  In readable format, for example S/N: AHA0002; −  In barcode format (code128a); •  The production date: yywk, for example 0629 for week 29 in 2006; •  “Registered design Banksys NV/SA” •  Country of origin: for example “Made in Belgium”; •  Rated voltage and current: 6,5 VDC 3,2 A •  The WEEE-logo: the crossed wheeled bin; •  Safety marks: for example CE, MET. Tips:  −  The article number will differ when choosing a customized keypad layout, a customized colour, etcetera; −  The article number may be used for certification purposes; −  The article number is different from the commercial article number mentioned on the packaging box. The latter also includes software configuration, accessories, documentation, packaging etcetera.

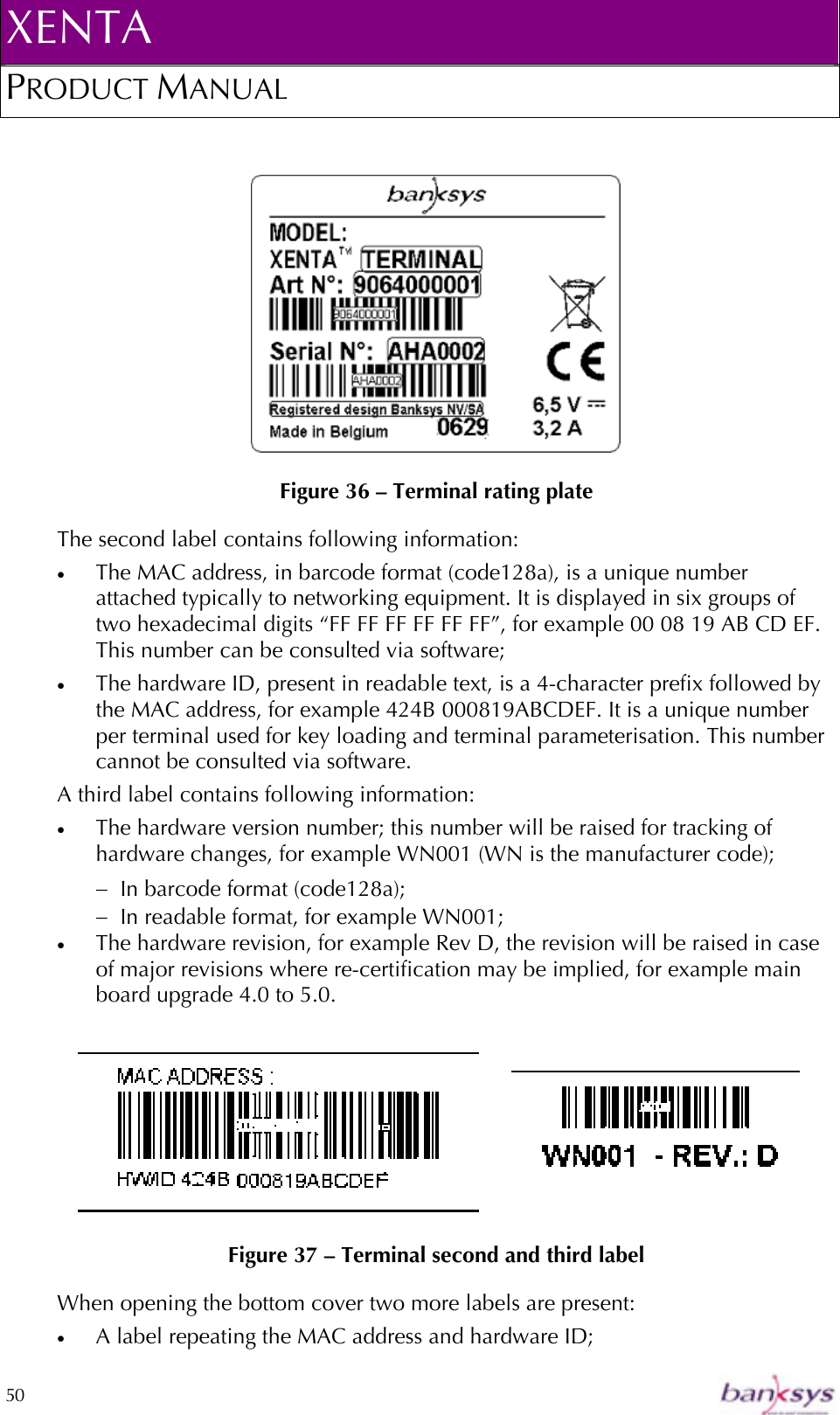

XENTA PRODUCT MANUAL  50      Figure 36 – Terminal rating plate The second label contains following information: •  The MAC address, in barcode format (code128a), is a unique number attached typically to networking equipment. It is displayed in six groups of two hexadecimal digits “FF FF FF FF FF FF”, for example 00 08 19 AB CD EF. This number can be consulted via software;  •  The hardware ID, present in readable text, is a 4-character prefix followed by the MAC address, for example 424B 000819ABCDEF. It is a unique number per terminal used for key loading and terminal parameterisation. This number cannot be consulted via software. A third label contains following information: •  The hardware version number; this number will be raised for tracking of hardware changes, for example WN001 (WN is the manufacturer code); −  In barcode format (code128a); −  In readable format, for example WN001; •  The hardware revision, for example Rev D, the revision will be raised in case of major revisions where re-certification may be implied, for example main board upgrade 4.0 to 5.0.      Figure 37 – Terminal second and third label When opening the bottom cover two more labels are present: •  A label repeating the MAC address and hardware ID;

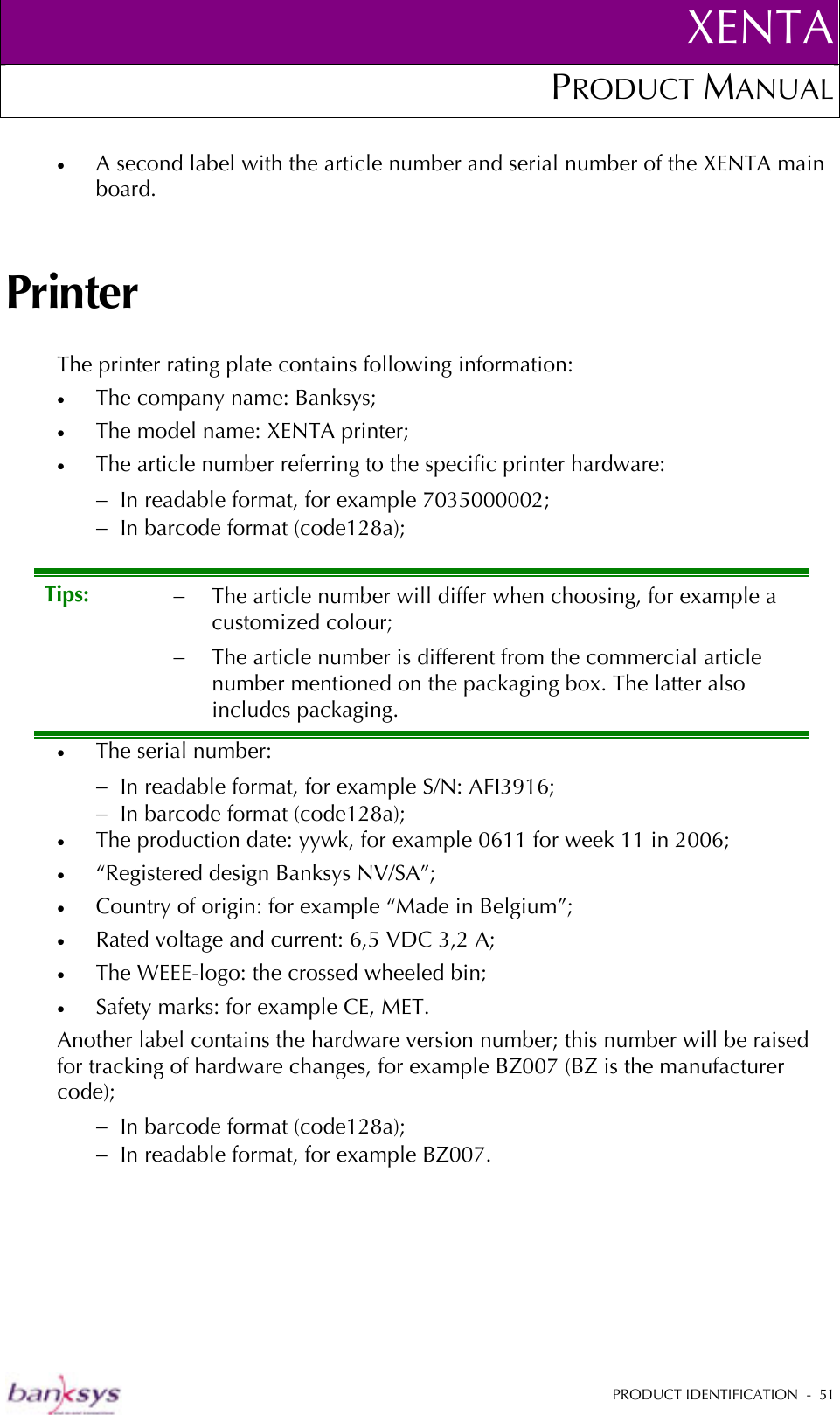

XENTAPRODUCT MANUAL   PRODUCT IDENTIFICATION  -  51  •  A second label with the article number and serial number of the XENTA main board. Printer The printer rating plate contains following information: •  The company name: Banksys; •  The model name: XENTA printer; •  The article number referring to the specific printer hardware: −  In readable format, for example 7035000002; −  In barcode format (code128a); •  The serial number: −  In readable format, for example S/N: AFI3916; −  In barcode format (code128a); •  The production date: yywk, for example 0611 for week 11 in 2006; •  “Registered design Banksys NV/SA”;  •  Country of origin: for example “Made in Belgium”; •  Rated voltage and current: 6,5 VDC 3,2 A; •  The WEEE-logo: the crossed wheeled bin; •  Safety marks: for example CE, MET. Another label contains the hardware version number; this number will be raised for tracking of hardware changes, for example BZ007 (BZ is the manufacturer code); −  In barcode format (code128a); −  In readable format, for example BZ007. Tips:  −  The article number will differ when choosing, for example a customized colour; −  The article number is different from the commercial article number mentioned on the packaging box. The latter also includes packaging.

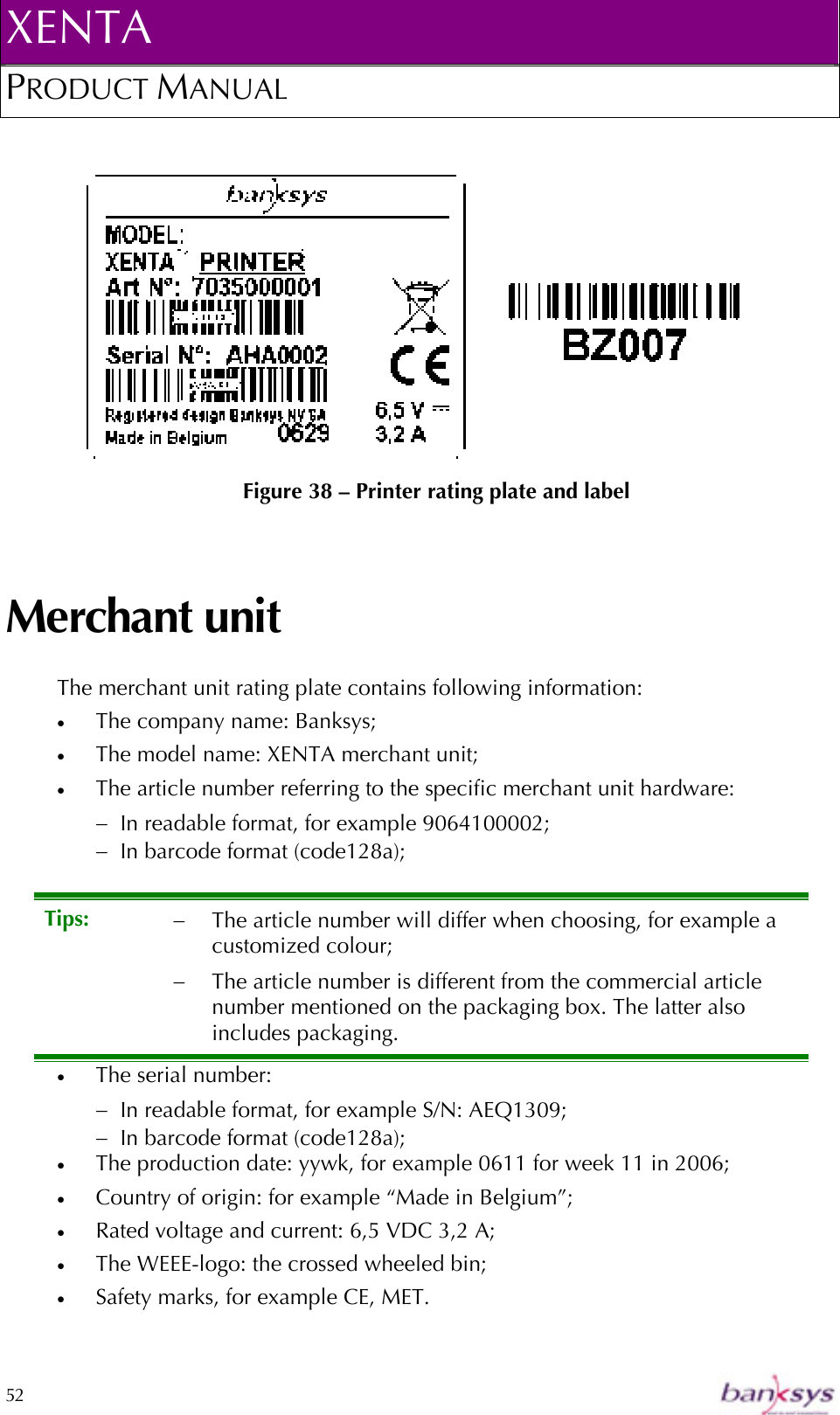

XENTA PRODUCT MANUAL  52        Figure 38 – Printer rating plate and label Merchant unit The merchant unit rating plate contains following information: •  The company name: Banksys; •  The model name: XENTA merchant unit; •  The article number referring to the specific merchant unit hardware: −  In readable format, for example 9064100002; −  In barcode format (code128a); •  The serial number: −  In readable format, for example S/N: AEQ1309; −  In barcode format (code128a); •  The production date: yywk, for example 0611 for week 11 in 2006; •  Country of origin: for example “Made in Belgium”; •  Rated voltage and current: 6,5 VDC 3,2 A; •  The WEEE-logo: the crossed wheeled bin; •  Safety marks, for example CE, MET. Tips:  −  The article number will differ when choosing, for example a customized colour; −  The article number is different from the commercial article number mentioned on the packaging box. The latter also includes packaging.
XENTAPRODUCT MANUAL   PRODUCT IDENTIFICATION  -  53  Another label contains the hardware version number; this number will be raised for tracking of hardware changes, for example BZ007 (BZ is the manufacturer code); −  In barcode format (code128a); −  In readable format, for example BZ007.      Figure 39 – Merchant unit rating plate and label Terminal package box The terminal package box label contains following information: •  The commercial name: for example XENTA BE for a XENTA only for customer “BE”; •  The commercial article number referring to the complete configuration. This is usually a customer-specific number;  −  In barcode format (code128a); −  In readable format, for example Art Nr: 61001*1 or 9364000002 type; •  The terminal production date: Wk: yywk, for example 0644 for week 44 in 2006; •  The software loaded by Banksys on the terminal, for example SW: xx.xx.xx. SW: none means that the terminal contains the generic platform; •  The terminal serial number:  −  In readable format, for example S/N: AAA0089; −  In barcode format (code128a); •  The terminal MAC address;  −  In barcode format (code128a); −  In readable format, for example 000819FEDCBA;

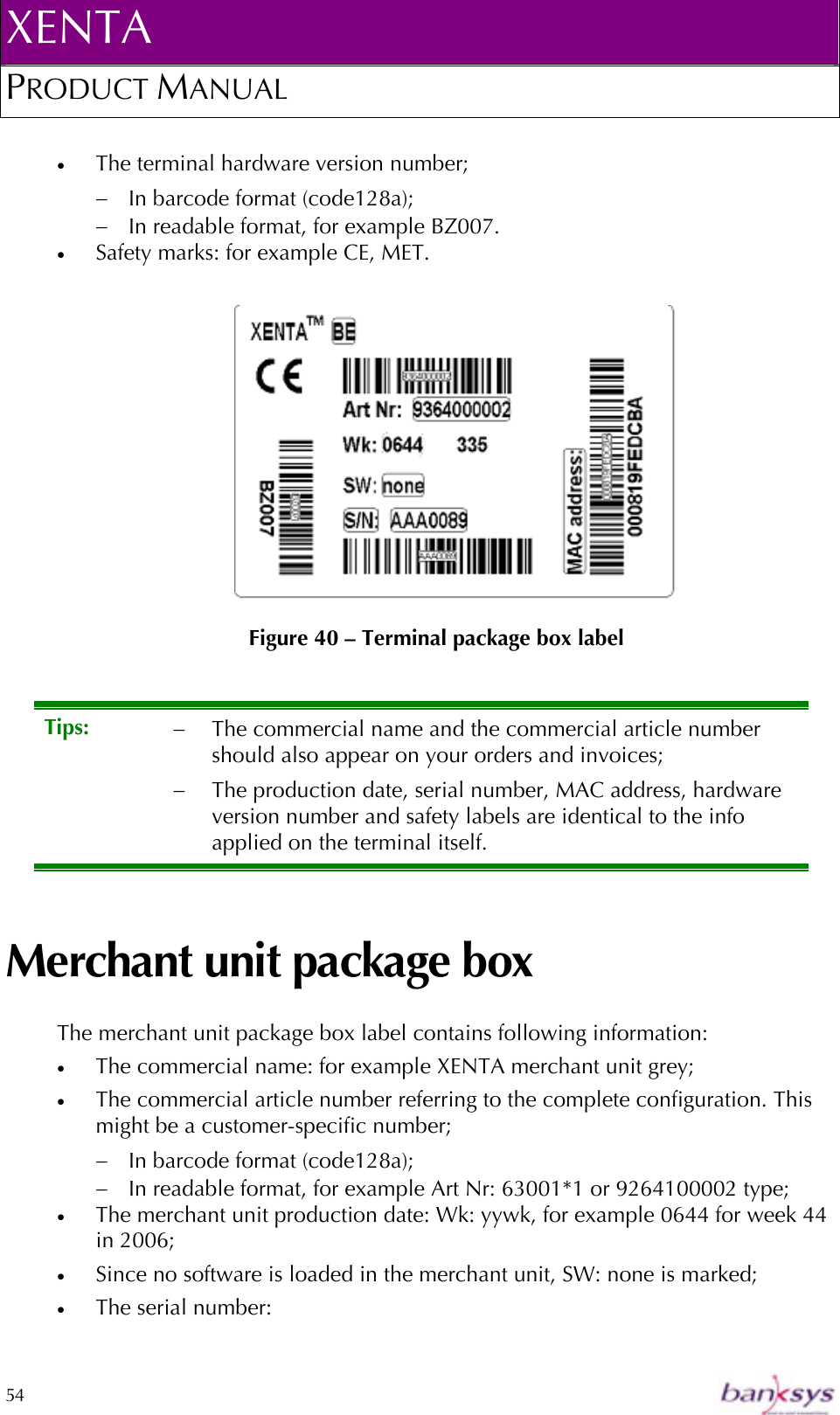

XENTA PRODUCT MANUAL  54    •  The terminal hardware version number; −  In barcode format (code128a); −  In readable format, for example BZ007. •  Safety marks: for example CE, MET.   Figure 40 – Terminal package box label Merchant unit package box The merchant unit package box label contains following information: •  The commercial name: for example XENTA merchant unit grey; •  The commercial article number referring to the complete configuration. This might be a customer-specific number;  −  In barcode format (code128a); −  In readable format, for example Art Nr: 63001*1 or 9264100002 type; •  The merchant unit production date: Wk: yywk, for example 0644 for week 44 in 2006; •  Since no software is loaded in the merchant unit, SW: none is marked; •  The serial number:  Tips:  −  The commercial name and the commercial article number should also appear on your orders and invoices; −  The production date, serial number, MAC address, hardware version number and safety labels are identical to the info applied on the terminal itself.

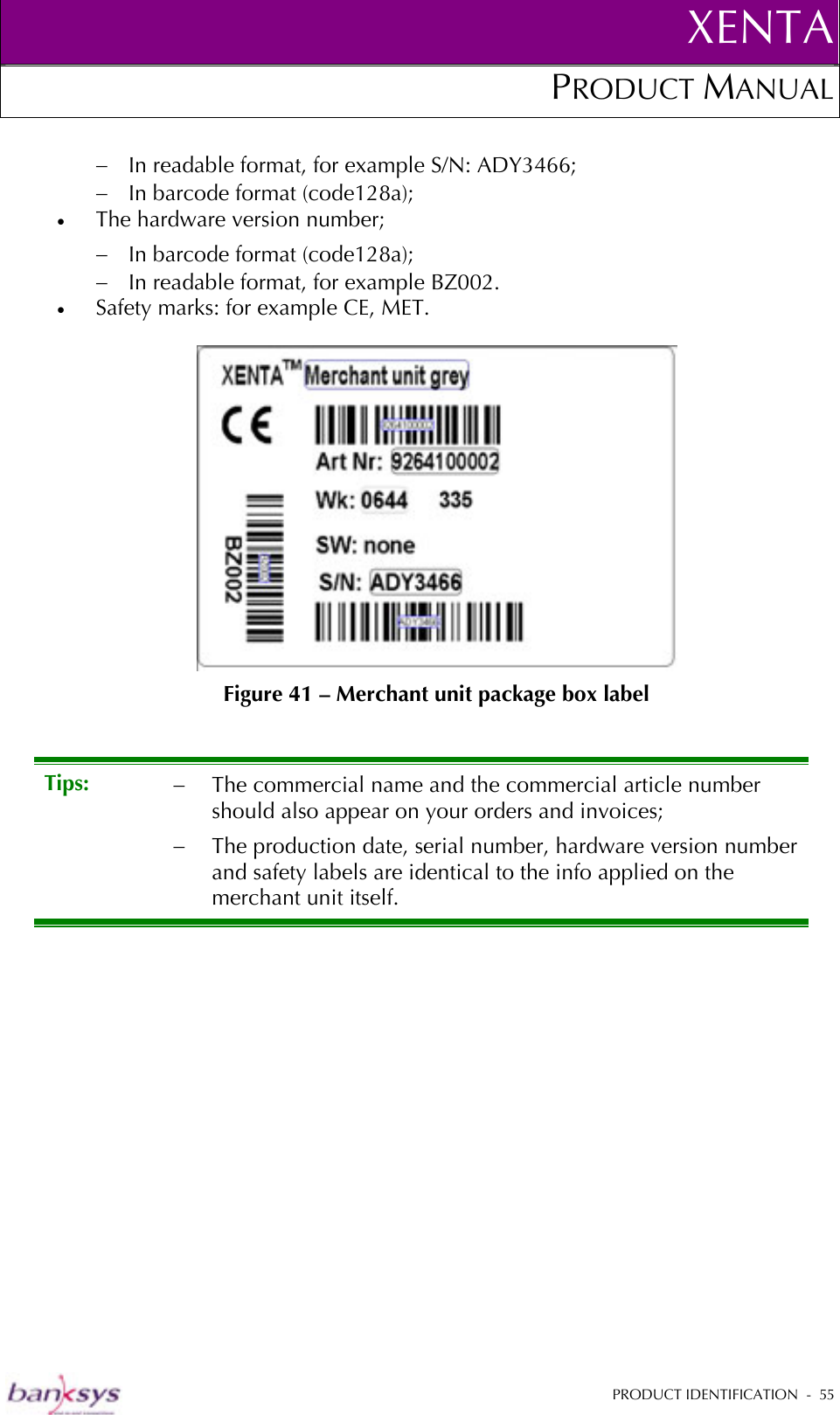

XENTAPRODUCT MANUAL   PRODUCT IDENTIFICATION  -  55  −  In readable format, for example S/N: ADY3466; −  In barcode format (code128a); •  The hardware version number; −  In barcode format (code128a); −  In readable format, for example BZ002. •  Safety marks: for example CE, MET.   Figure 41 – Merchant unit package box label Tips:  −  The commercial name and the commercial article number should also appear on your orders and invoices; −  The production date, serial number, hardware version number and safety labels are identical to the info applied on the merchant unit itself.
XENTA PRODUCT MANUAL                          - Page intentionally left blank -

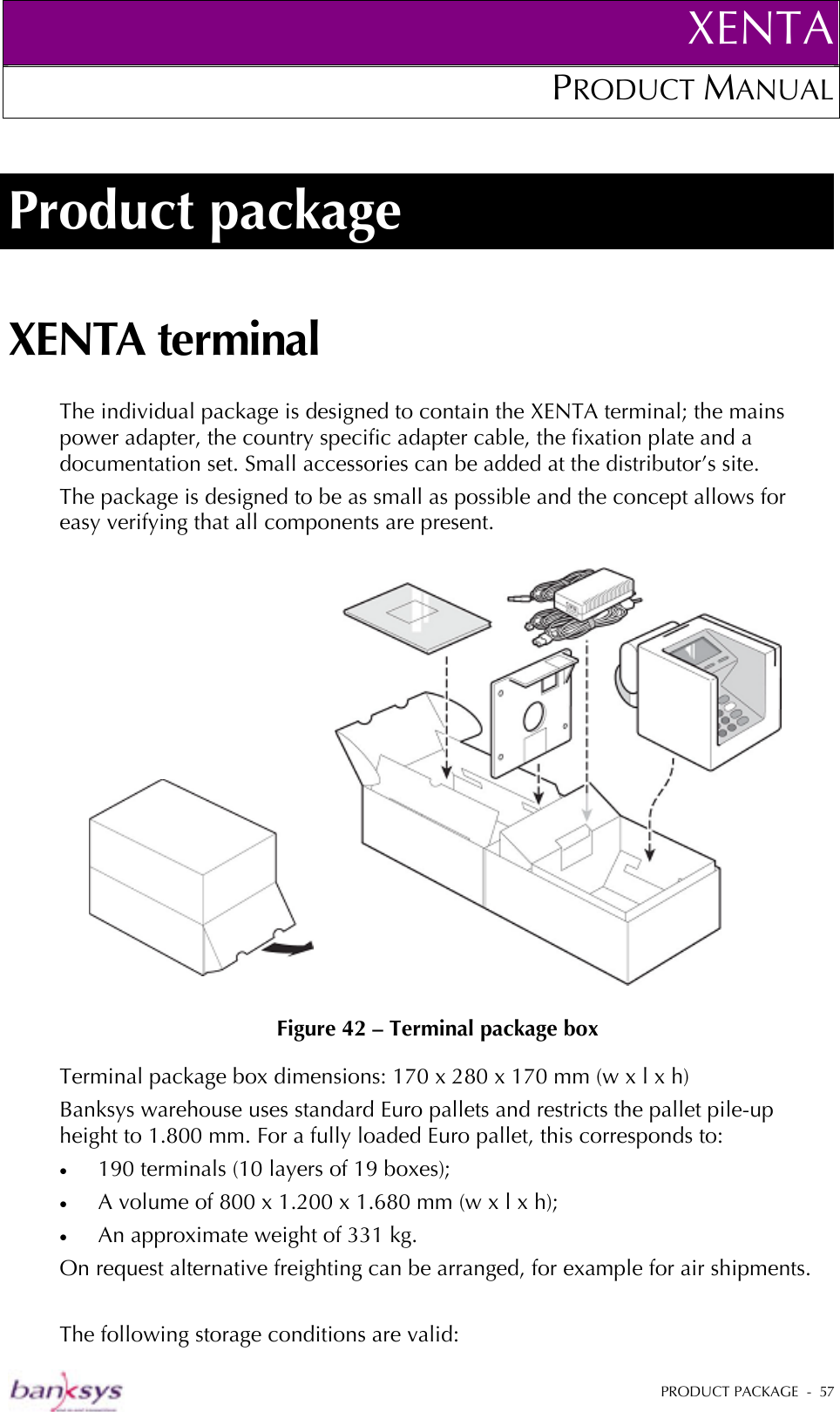

XENTAPRODUCT MANUAL   PRODUCT PACKAGE  -  57  Product package XENTA terminal The individual package is designed to contain the XENTA terminal; the mains power adapter, the country specific adapter cable, the fixation plate and a documentation set. Small accessories can be added at the distributor’s site.  The package is designed to be as small as possible and the concept allows for easy verifying that all components are present.     Figure 42 – Terminal package box Terminal package box dimensions: 170 x 280 x 170 mm (w x l x h) Banksys warehouse uses standard Euro pallets and restricts the pallet pile-up height to 1.800 mm. For a fully loaded Euro pallet, this corresponds to: •  190 terminals (10 layers of 19 boxes);  •  A volume of 800 x 1.200 x 1.680 mm (w x l x h); •  An approximate weight of 331 kg. On request alternative freighting can be arranged, for example for air shipments.   The following storage conditions are valid:

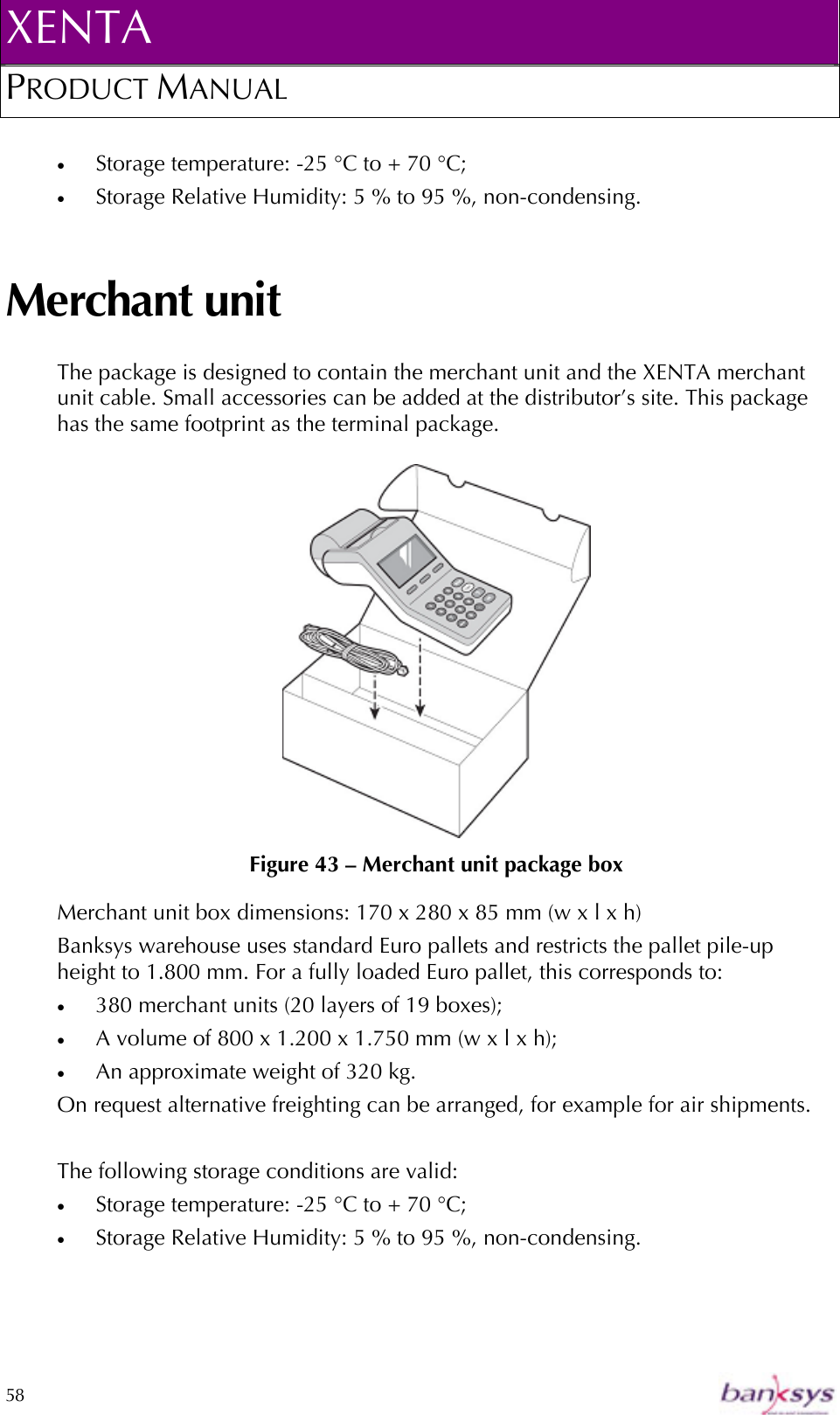

XENTA PRODUCT MANUAL  58    •  Storage temperature: -25 °C to + 70 °C; •  Storage Relative Humidity: 5 % to 95 %, non-condensing. Merchant unit The package is designed to contain the merchant unit and the XENTA merchant unit cable. Small accessories can be added at the distributor’s site. This package has the same footprint as the terminal package.     Figure 43 – Merchant unit package box Merchant unit box dimensions: 170 x 280 x 85 mm (w x l x h) Banksys warehouse uses standard Euro pallets and restricts the pallet pile-up height to 1.800 mm. For a fully loaded Euro pallet, this corresponds to: •  380 merchant units (20 layers of 19 boxes);  •  A volume of 800 x 1.200 x 1.750 mm (w x l x h); •  An approximate weight of 320 kg. On request alternative freighting can be arranged, for example for air shipments.   The following storage conditions are valid: •  Storage temperature: -25 °C to + 70 °C; •  Storage Relative Humidity: 5 % to 95 %, non-condensing.

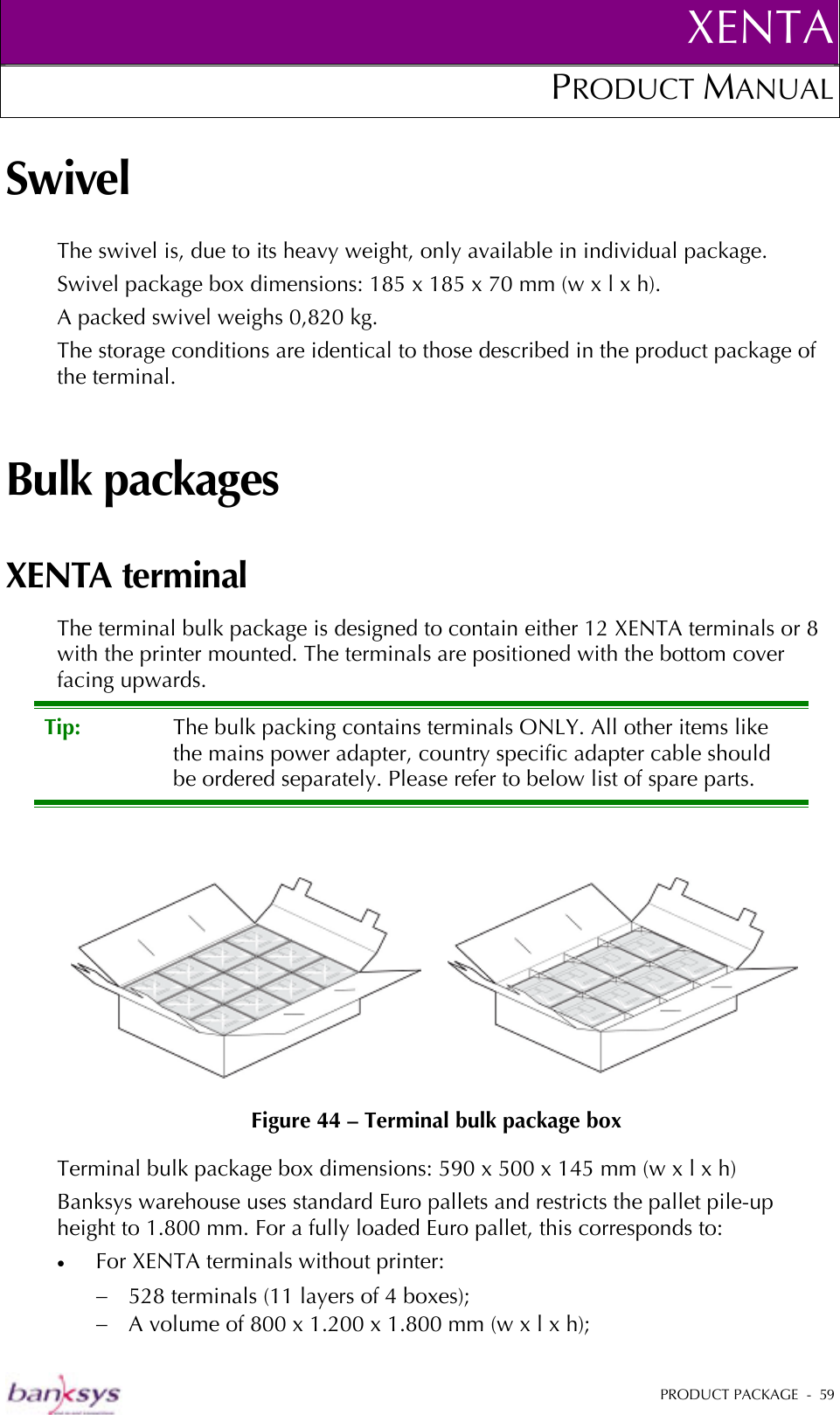

XENTAPRODUCT MANUAL   PRODUCT PACKAGE  -  59  Swivel The swivel is, due to its heavy weight, only available in individual package. Swivel package box dimensions: 185 x 185 x 70 mm (w x l x h). A packed swivel weighs 0,820 kg.  The storage conditions are identical to those described in the product package of the terminal. Bulk packages XENTA terminal The terminal bulk package is designed to contain either 12 XENTA terminals or 8 with the printer mounted. The terminals are positioned with the bottom cover facing upwards.  Tip:  The bulk packing contains terminals ONLY. All other items like the mains power adapter, country specific adapter cable should be ordered separately. Please refer to below list of spare parts.     Figure 44 – Terminal bulk package box Terminal bulk package box dimensions: 590 x 500 x 145 mm (w x l x h) Banksys warehouse uses standard Euro pallets and restricts the pallet pile-up height to 1.800 mm. For a fully loaded Euro pallet, this corresponds to: •  For XENTA terminals without printer: −  528 terminals (11 layers of 4 boxes);  −  A volume of 800 x 1.200 x 1.800 mm (w x l x h);

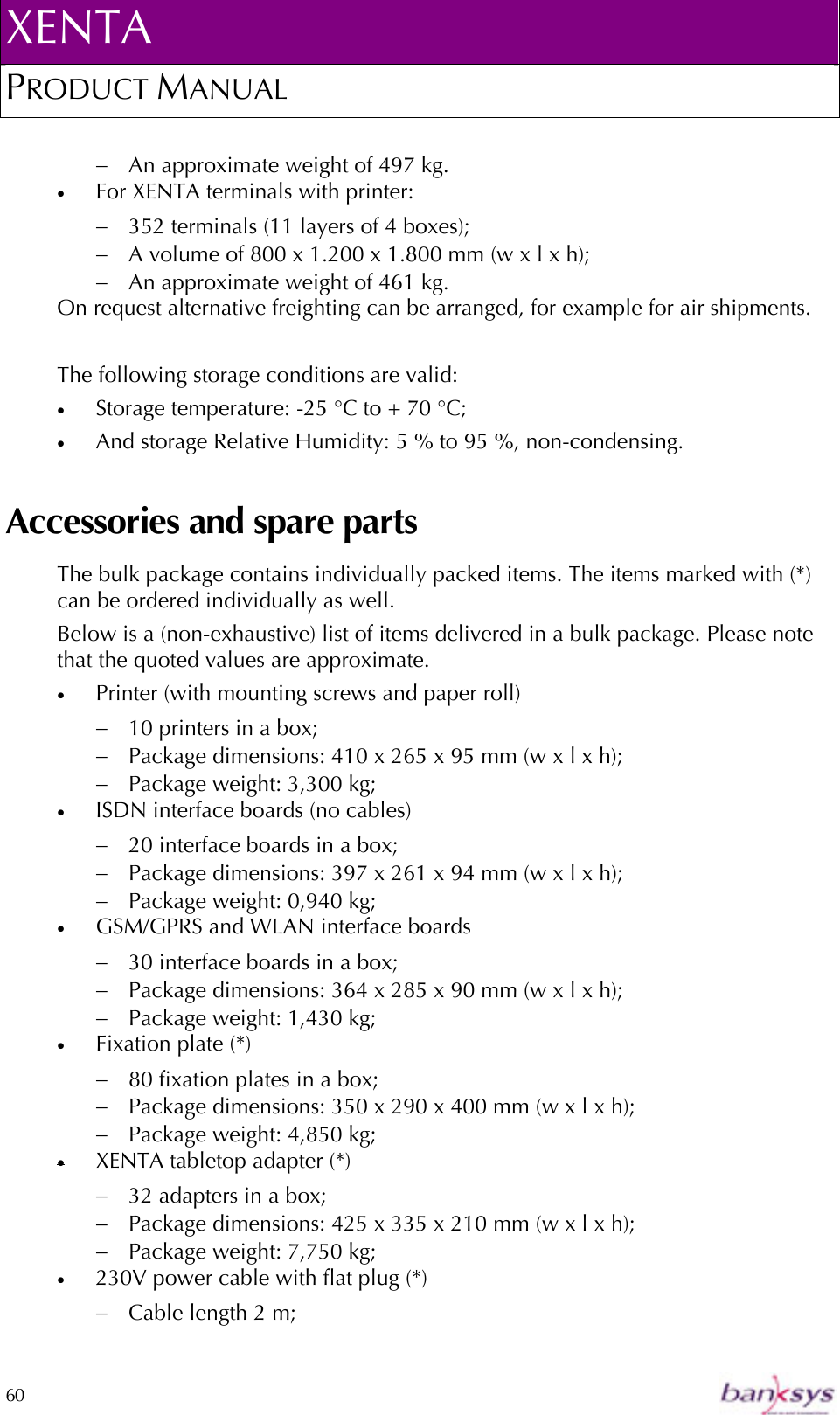

XENTA PRODUCT MANUAL  60    −  An approximate weight of 497 kg. •  For XENTA terminals with printer: −  352 terminals (11 layers of 4 boxes);  −  A volume of 800 x 1.200 x 1.800 mm (w x l x h); −  An approximate weight of 461 kg. On request alternative freighting can be arranged, for example for air shipments.   The following storage conditions are valid: •  Storage temperature: -25 °C to + 70 °C; •  And storage Relative Humidity: 5 % to 95 %, non-condensing.  Accessories and spare parts The bulk package contains individually packed items. The items marked with (*) can be ordered individually as well. Below is a (non-exhaustive) list of items delivered in a bulk package. Please note that the quoted values are approximate. •  Printer (with mounting screws and paper roll) −  10 printers in a box; −  Package dimensions: 410 x 265 x 95 mm (w x l x h);  −  Package weight: 3,300 kg; •  ISDN interface boards (no cables) −  20 interface boards in a box;  −  Package dimensions: 397 x 261 x 94 mm (w x l x h); −  Package weight: 0,940 kg; •  GSM/GPRS and WLAN interface boards −  30 interface boards in a box;  −  Package dimensions: 364 x 285 x 90 mm (w x l x h); −  Package weight: 1,430 kg; •  Fixation plate (*) −  80 fixation plates in a box;   −  Package dimensions: 350 x 290 x 400 mm (w x l x h); −  Package weight: 4,850 kg; •  XENTA tabletop adapter (*) −  32 adapters in a box; −  Package dimensions: 425 x 335 x 210 mm (w x l x h); −  Package weight: 7,750 kg; •  230V power cable with flat plug (*) −  Cable length 2 m;
XENTAPRODUCT MANUAL   PRODUCT PACKAGE  -  61  −  200 cables in a box; −  Package dimensions: 550 x 270 x 290 mm (w x l x h); −  Package weight: 21 kg; •  230V power cable with round plug (*) −  Cable length 2 m; −  150 cables in a box; −  Package dimensions: 540 x 350 x 200 mm (w x l x h); −  Package weight: 17,400 kg; •  110V power cable (*) −  Cable length 2 m; −  150 cables in a box; −  Package dimensions: 260 x 520 x 260 mm (w x l x h); −  Package weight: 17,5 kg; •  240V AU power cable (*) −  Cable length 2 m; −  200 cables in a box; −  Package dimensions: 300 x 550 x 300 mm (w x l x h); −  Package weight: 30 kg; •  XENTA merchant unit cable (*) −  Cable length 2 m; −  500 merchant unit cables in a box; −  Package dimensions: 400 x 400 x 400 mm (w x l x h); −  Package weight: 16 kg; •  XENTA package box (cardboard) − 500 cardboards on a pallet; −  Pallet and boxes occupy a volume of 800 x 1.200 x 1.600 mm (w x l x h); −  Pallet and boxes weigh 202 kg; •  XENTA Banksys paper  − 9 paper rolls in a box; −  Package dimensions: 160 x 175 x 60 mm (w x l x h);  −  Package weight: 0,96 kg; •  TORX 10 screw for XENTA printer −  2 screws in a small plastic bag; •  XENTA printer connector cover (*) −  1.500 printer connector covers in a plastic bag; −  Package weight: 2,500 kg; •  XENTA printer roller (*) −  300 rubber printer rollers in a box; −  Package dimensions: 330 x 480 x 190 mm (w x l x h);  −  Package weight: 6 kg;

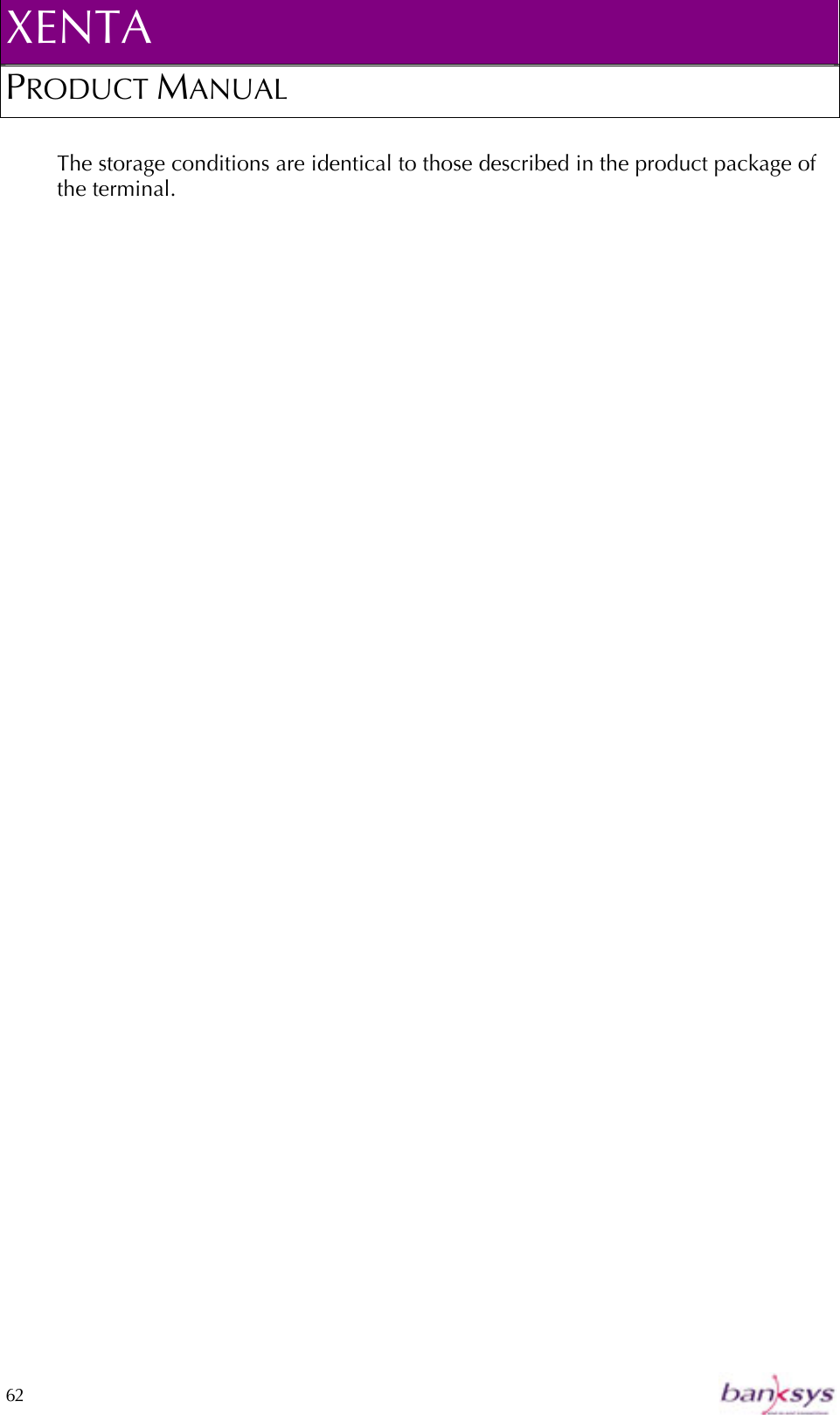

XENTA PRODUCT MANUAL  62    The storage conditions are identical to those described in the product package of the terminal.

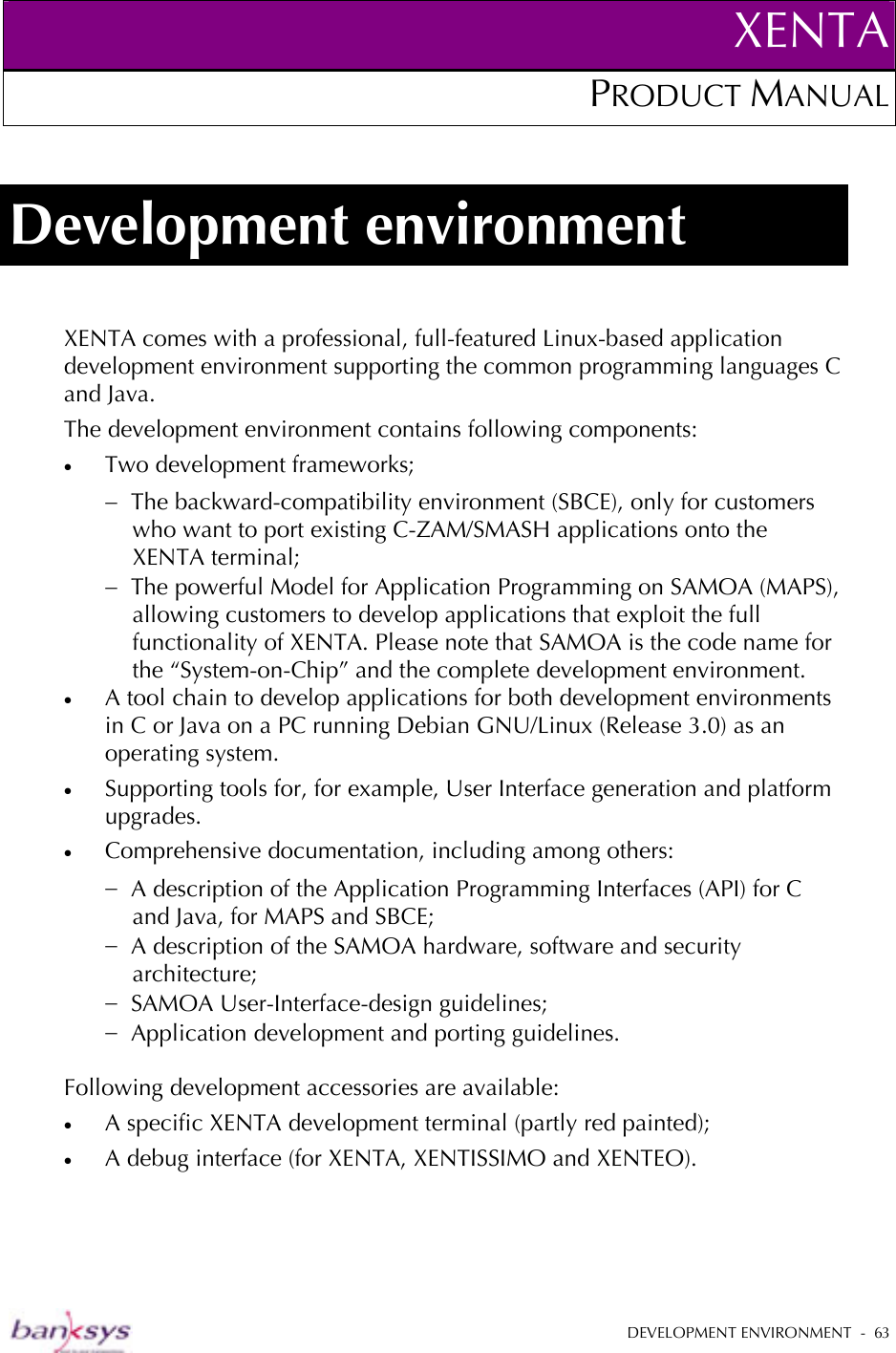

XENTAPRODUCT MANUAL   DEVELOPMENT ENVIRONMENT  -  63  Development environment XENTA comes with a professional, full-featured Linux-based application development environment supporting the common programming languages C and Java.  The development environment contains following components: •  Two development frameworks; −  The backward-compatibility environment (SBCE), only for customers who want to port existing C-ZAM/SMASH applications onto the XENTA terminal; −  The powerful Model for Application Programming on SAMOA (MAPS), allowing customers to develop applications that exploit the full functionality of XENTA. Please note that SAMOA is the code name for the “System-on-Chip” and the complete development environment. •  A tool chain to develop applications for both development environments in C or Java on a PC running Debian GNU/Linux (Release 3.0) as an operating system. •  Supporting tools for, for example, User Interface generation and platform upgrades. •  Comprehensive documentation, including among others: −  A description of the Application Programming Interfaces (API) for C and Java, for MAPS and SBCE; −  A description of the SAMOA hardware, software and security architecture; −  SAMOA User-Interface-design guidelines; −  Application development and porting guidelines.  Following development accessories are available: •  A specific XENTA development terminal (partly red painted); •  A debug interface (for XENTA, XENTISSIMO and XENTEO).
