Elite 780 RF Installation Guide
3. The Card Reader:
Terminal is equipped with a bi-directional Magnetic
Stripe Reader located immediately above the display.
The Magnetic Stripe on the card should face down and
to the rear of the terminal. The card should be swiped at
uniform speed and pressure, ensuring that the card
remains in contact with the bottom of the track
throughout the entire swipe action.
4. Smart Card Reader:
The terminal is equipped with Smart Card Reader slot at
the front of the terminal for future use.
5. Cleaning procedure:
1. Clean the outside of the terminal with a soft cloth
moistened with a mild detergent solution.
2. Never spray cleaning solution directly onto the
terminal as drops may enter the unit.
3. Do not use Isopropyl Alcohol based cleaning
products.
6. Technical specifications:
6.1 Terminal Features:
• Magnetic card reader, ISO1 and ISO2 tracks
decoding.
• 18 key, backlit tactile feedback keyboard with audible
tone and color coding.
• Battery backed-up calendar and clock.
• RS232 communications channel.
• Multi-application operating system allowing each
application to be downloaded independently of all
others.
• Logical and physical security.
6.2 Network:
The terminal is equipped with an RF modem for
exchanging data over one of the following networks:
1. MOBITEX.
2. CDPD
3. ARDIS (DataTac) – future option.
6.3 Power supply:
The power adapter is mainly used for charging the
internal NiCd battery.
Power input voltage : 120V AC.
Power input frequency : 60 Hz.
Power output : 12V DC, 500mA.

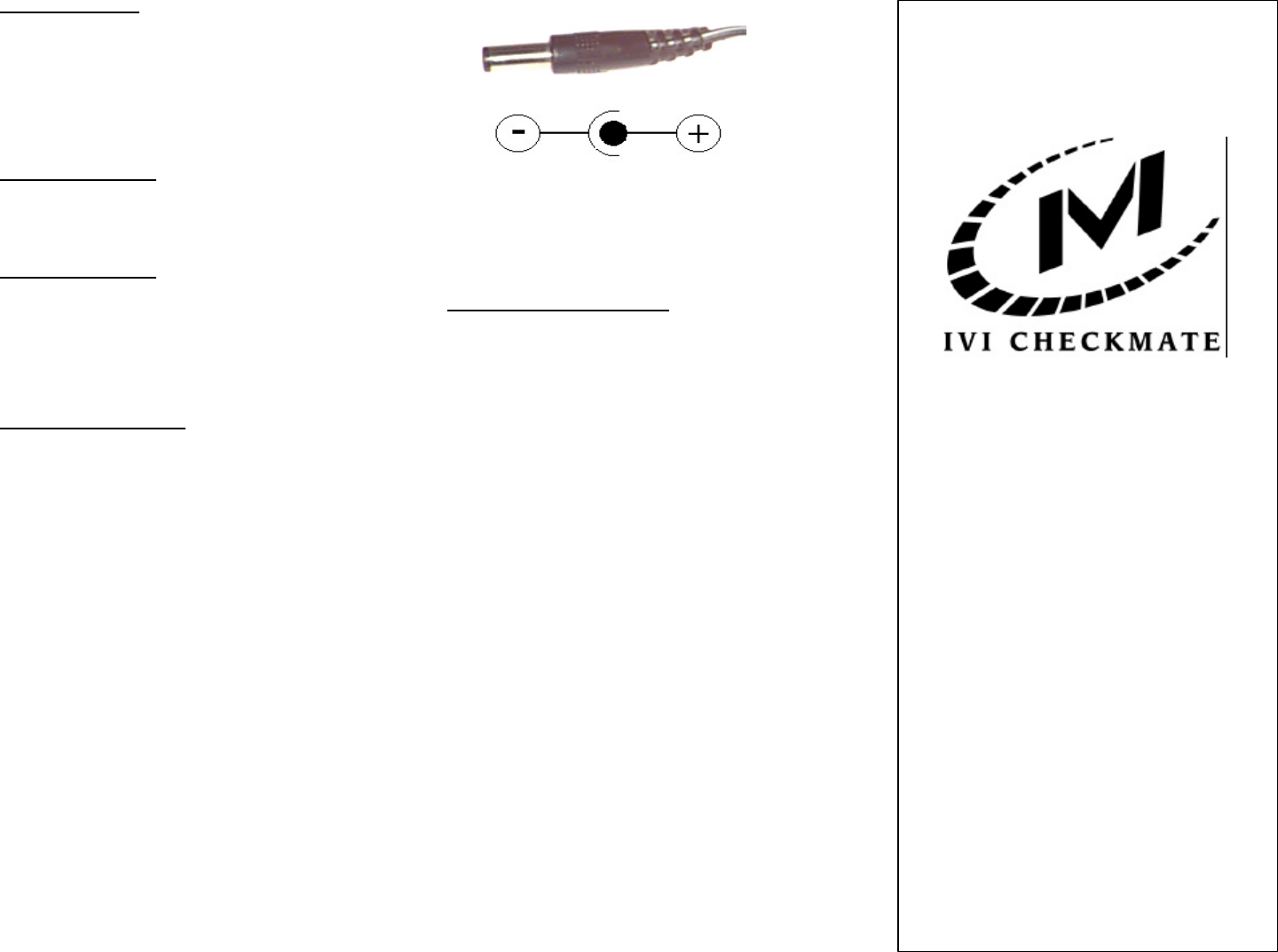

Figure 4: DC Plug
6.4 Operating environment
Operating temperature : 5 to 40°C
Humidity : 5% to 90% RH, with no condensation.
7. If you experience trouble :
Call one of the customer service centers listed below:
In Canada: In the USA:
RBA Inc. IVI Checkmate Inc.
3190 Orlando Drive TotalCARE
Mississauga, Ontario 1335 North Meadow
L4V 1R5 Parkway, Suite 116
1-800-387-3938 Atlanta Ga 30076
or (905) 672-1048 1-800 - 435-3014
US Federal Communications Commission (FCC)
Warnings:
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
this equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful
interference in which case the user will be required to
correct the interference at his own expense.
Canadian Department of Communications (DOC)
Warnings:
This digital apparatus does not exceed the Class A limits
for radio noise emissions from the digital apparatus as set
out in the radio interference regulations of the Canadian
Department of Communications.
™
Elite 780 RF
Installation guide
0130-07056-0200
1. Terminal description:
1.1 Introduction:
The Elite 780RF is a fully self-contained RF EFTPOS
terminal with an integrated printer and the functionality
to process all smart card, debit and credit purchases. The
terminal communicates with the bank using the RF data
network. This network is similar to that used for mobile
phones except that it is for data only. The terminal
features a secure, multi-application operating system,
which allows a number of different applications to run
on the terminal independently, without jeopardizing
software security.

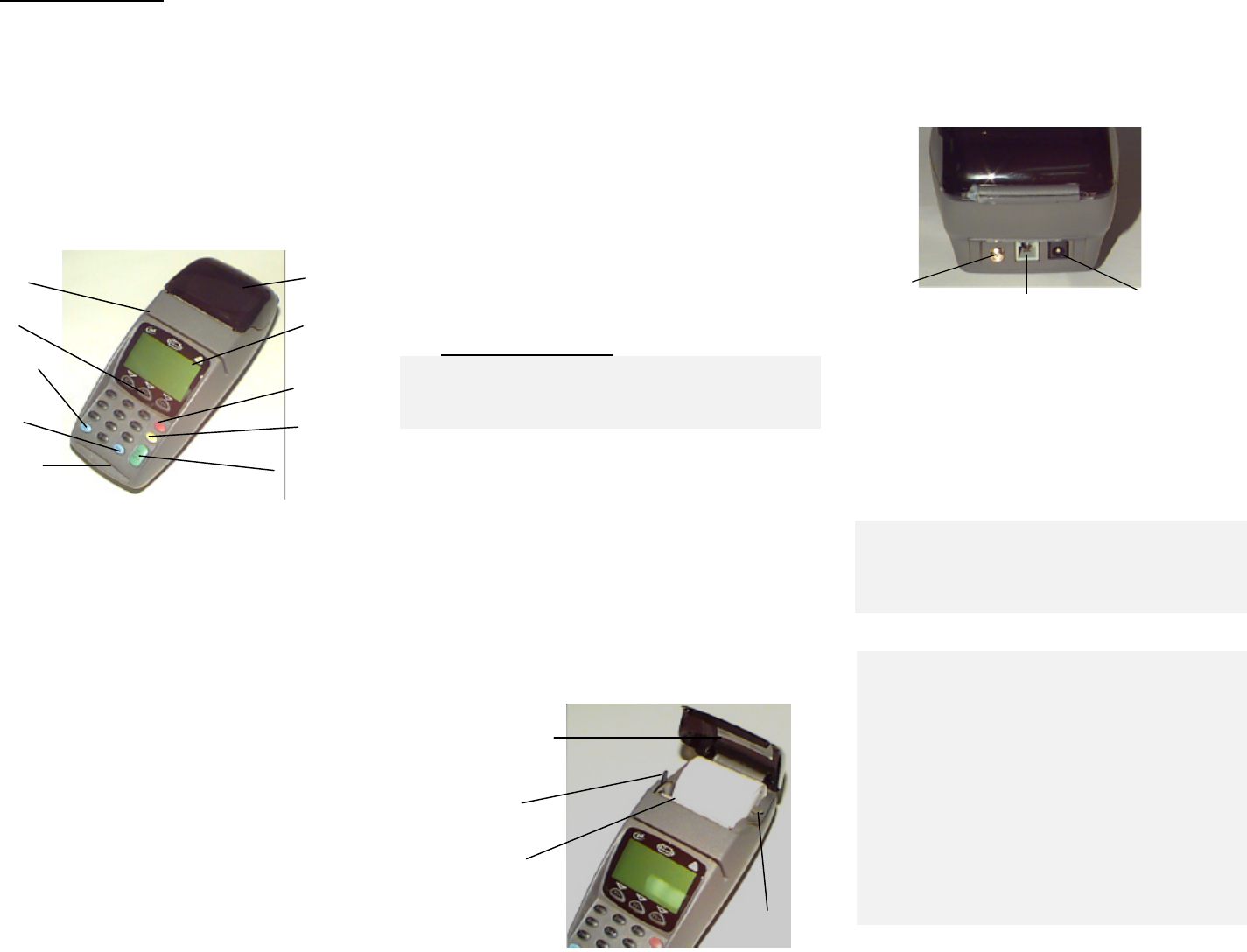

Paper Feed
Key
Functions keys
Magnetic Stripe
Card Reader Printer
Compartment
CAN key
CORR key
ENTER key
ADMIN key
LCD Display
Smart
Card Reader
1.2 The Terminal:
The Elite 780RF terminal has the following peripherals:
1.2.1 Display:
Standard 4 line x 16 character LCD graphic display, with
back lighting.
1.2.2 Keypad:
• 18 keys, with back lighting, with the following
special function keys:
• F1, F2, and F3 keys: Programmable keys which
permit access to terminal level functions and the
system menu.
• Paper Feed key: Performs a 20mm paper feed.
• ENTER key: is used to confirm the data entered or
displayed.
• CAN key: is used to cancel the current function and
return the terminal to the idle state.
• CORR key: is used to correct any invalid data entry.
• ADMIN key: is used to access the terminal
administration function menu.
1.2.3 Magnetic Stripe Card Reader:
This is a bi-directional reader capable of simultaneously
reading Tracks 1&2, and is located just above the display.
1.2.4 Modem:
The Modem facilitates data exchange over an RF network.
1.2.5 Printer:
The built-in printer is a high-speed thermal printer (4 lines
per second) and is graphics compatible.
1.2.6 Smart Card Reader:
Complies with standard ISO 7816, Sync & Async.
1.3 Package contents are as follows:
1. The Elite 780RF terminal.
2. RF antenna.
3. Wall mount power adapter for charging the NiCd
battery.
4. Thermal printer paper, one roll.
5. Installation guide.
2. Installation procedure:
A Important Note: The battery must be charged for 24
hours before using the terminal for any purpose
including key injection, program loading or customer
use. (See Paragraph 2.3)
2.1 Paper loading (If required):
1. Open the paper compartment cover.
2. Move the paper load lever forward to disengage the
friction roller.
3. Remove the empty paper roll by pressing the roll release
lever on the right hand side.
4. Position the paper roll with the end of the roll protruding
from UNDERNEATH the roll.
5. Feed the paper under the printer’s roller until it protrudes
from the top of the printer.
6. Fit the paper roll to the spindle and move the paper load
lever back to engage the friction roller.
7. Close the cover and test the operation of the printer by
pressing Paper Feed key.
Paper Load
Lever
Metal blade to
tear off paper
Roll Release
Lever
Printer
Compartment
cover
2.2 Connecting the RF antenna:
1. Place the RF antenna connector over the coaxial
screw mount located on the back panel. Make sure
the wire within the connector fits into the small hole
in the coaxial mount.
2. Tighten the connector by turning the antenna
attachment clockwise.
RS232 Port DC Power Jack
Coaxial RF antenna
screw mount
2.3 Battery charging procedure:
2.3.1 At Installation:
1. After unpacking it is important to provide an initial
charge. This conditioning cycle is required for the
battery pack to reach full capacity quickly.
2. Connect the terminal to AC power using the
supplied power pack designed for this terminal. You
will know the terminal is receiving AC power when
the display stays on continuously. The terminal
must be charged continuously for 24 hours.
A Make sure that you use the correct AC power adapter
supplied with the terminal. Many adapters can appear
similar and will plug into the terminal but will not
work properly causing erratic behavior, poor charging
or even damage to the unit.
2.3.2 Normal use:
A 1. After a full charge the Terminal in normal usage is
expected to provide 50 or more transactions before
a recharge is required. Slow printing usually
indicates the battery is low.
2. This terminal has a “reserve” capability in the event
that more transactions are occasionally needed. As
long as the print time is acceptable the Terminal
will provide additional transactions beyond normal.
The effect will be continued slowdown of the
printer as well as a longer recharge cycle.
3. In normal use the charge time is 12 hours. After
extended use the terminal will require additional
charge time, not exceeding 24 hours.
4. If the terminal has been inactive a number of weeks
it may require another 24 hour initial charge.
