1. Introduction
Thank you for choosing a payment terminal Ingenico.
We recommend you to read carefully this installation guide: It gives you the necessary
information about safety precautions, unpacking, installation, and maintenance of your
terminal.
WARRANTY / SECURITY
To benefit from the guarantee-related product, and to respect the security, we ask you to
use only accessories delivered in box with the product, entrusting maintenance operations
only to an authorized person.
ISMP3 is battery powered, use only Ingenico parts for replacement.
ISMP3 can be powered by different sources please respect these recommendations:
ISMP3 can be USB powered by using the power supply provided by Ingenico in the
packaging.
Failure to comply with these instructions will void the manufacturer’s responsibility.
This symbol indicates an important Warning.
This symbol indicates a piece of advice.
User Guide 5/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved
2. Unpacking
ADVICE
Carefully preserve the packaging of ISMP3. It must be re-used whenever the terminal is
shipped.
Products of ISMP3 range are named: IMP5xx
According to the model, the following items are included in the ISMP3 box (including
optional accessories):
The user guide can be an option.
WARNING
The power supply unit provided with your equipment is specially designed for this
Ingenico terminals. Do not use any other power supply. The use of a power supply with
apparently similar voltage/current characteristics may damage your terminal.
AVERTISSEMENT
Dans le cas vous choisiriez d’utiliser un bloc alimentation, assurez-vous de n’utiliser que le bloc
d'alimentation qui a été conçu spécialement pour votre terminal. N'utilisez pas d'autre bloc
d'alimentation. L'emploi d'un bloc d'alimentation présentant des caractéristiques apparemment
similaires de tension/intensité peut endommager votre terminal.
WARNHINWEIS
Nur das Netzteil, das speziell für Ihr Gerät ausgelegt wurde, benutzen. Benutzen Sie kein anderes
Netzteil. Die Benutzung eines Netzgeräts mit scheinbar ähnlicher Spannung/Stromstärke kann zur
Beschädigung Ihres Terminals führen.
ADVICE
Your terminal is delivered with a protective see through film. We advise that you leave this
protective film to ensure optimum protection of your terminal.
Film presence does not alter in anyway the use of the terminal.
attery pack
PSU for battery charging
ISMP3
terminal
µUSB câble
User Guide 6/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved
3. Recommendations
3.1. Safety
Lithium back-up battery
The ISMP3 is fitted with a lithium battery which is not accessible to the user. Only a qualified
technician may be authorized to open the unit and change this component.
Main battery
ISMP3 is fitted with battery specially designed for this terminal.
Only use the appropriate chargers and batteries listed in the Ingenico’s catalogue.
Do not short-circuit the battery.
Do not attempt to open the battery container.
Used batteries must be disposed of at the appropriate sites.
Electrical power supply network
Provide an electrical outlet:
Located near the equipment and easily accessible;
Which meets the standards and regulations in the country of use;
The terminal ISMP3 can be connected to a power distribution system of the IT
type for Norway.
Warning
Risk of explosion if battery is replaced by an incorrect type, do not disassemble, use
specified charger only, do not short-circuit, do not dispose of in fire, do not throw in
water, dispose of used batteries according to the instructions.
Sécurité
Batterie de sauvegarde au lithium
ISMP3 est équipé d'une batterie au lithium inaccessible à l'utilisateur. Seul un technicien qualifié est
autorisé à ouvrir le bloc et à changer ce composant.
Batterie principale
ISMP3 est équipé d'une batterie spécifiquement conçue pour ce terminal. Ce composant n’est pas
accessible par l’utilisateur.
N'utilisez que les chargeurs et batteries prévus figurant dans le catalogue Ingenico.
Ne court-circuitez pas la batterie.
N'essayez pas d'ouvrir le terminal.
Les batteries usagées doivent être déposées aux endroits de récupération prévus.
Ne laissez pas votre terminal sans surveillance à l’intérieur d’un véhicule.
Dans le cas la batterie devait être remplacée, cette opération devrait être réalisée par un
technicien qualifié.
Utilisation du réseau électrique (accessoire)
située à proximité du matériel et facile d’accès
conforme aux normes et aux réglementations en vigueur dans le pays d’utilisation
ISMP3 peut être connecté aux réseaux de distribution électrique de type IT pour la Norvège.
AVERTISSEMENT
Il existe un risque d’explosion dans les cas suivants : remplacement incorrect de la batterie, exposition
de la batterie près d’une source de chaleur ou mise de la batterie au feu.
User Guide 7/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved
Sicherheit
Lithium-Akku
ISMP3 ist mit einer Lithium-Batterie ausgestattet, mit der der Benutzer nicht in Berührung kommen
darf. Nur ein qualifizierter Techniker ist berechtigt, das Gerät zu öffnen und diese Komponente
auswechseln.
AKKU
ISMP3 ist mit einem speziell für dieses Terminal bestimmten Akku ausgestattet. Nur ein qualifizierter
Techniker ist berechtigt, das Gerät zu öffnen und diese Komponente auswechseln.
Verwenden Sie nur die entsprechenden Aufladegeräte und Akkus, die im Ingenico Katalog
aufgeführt sind.
Den Akku nicht kurzschliessen.
Nicht versuchen, das Akku-Gehäuse zu öffnen
Leere Batterien sind umweltgerecht zu entsorgen.
ISMP3 im Fahrzeug ohne Überwachung nicht verlassen.
Als Akku verwechseln werden muss, benutzen Sie einen Tekniker Intervention.
elektrischen Netz
In der Nähe des Geräts befindet und leicht zugänglich
Welche erfüllt die Normen und Vorschriften in den jeweiligen Ländern
Das Terminal ISMP kann zu einer Energieverteilung der IT-Typ für Norwegen angeschlossen
werden
WARNHINWEIS
Es besteht Explosionsgefahr bei unsachgemmäss entsorgten oder ins Feuer geworfenen Batterien und
Akkus.
3.2. Security of your terminal
Upon receipt of your terminal you should check for signs of tampering of the equipment. It
is strongly advised that these checks are performed regularly after receipt. You should
check, for example: that the keypad is firmly in place; that there is no evidence of unusual
wires that have been connected to any ports on your terminal or associated equipment, the
chip card reader, or any other part of your terminal. Such checks would provide warning of
any unauthorised modifications to your terminal, and other suspicious behaviour of
individuals that have access to your terminal. Your terminal detects any “tampered state”.
In this state the terminal will repeatedly flash the message” Alert Irruption!” and further
use of the terminal will not be possible. If you observe the “Alert Irruption!” message, you
should contact the terminal helpdesk immediately.
You are strongly advised to ensure that privileged access to your terminal is only granted to
staff that have been independently verified as being trustworthy.
CAUTION
NEVER ask the customer to divulge their PIN Code. Customers should be advised to ensure
that they are not being overlooked when entering their PIN Code.
User Guide 8/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved
3.3. EC standard compliance marking
EC standard compliance marking certifies that the product stipulated below:
ISMP3.
complies with the basic requirements of European Directive 1999/5/CE, known as the
«R&TTE Directive» concerning Radio Frequency equipment and telecommunications
terminals with respect to:
Health and safety protection of the user and all other persons
EMC protection
conforms to the following harmonized standards :
IEC/EN 60950-1 : Electrical safety of data processing equipment including electrical
office equipment. Issue DEC 2001
EN 301 489 : Electromagnetic compatibility and Radio Spectrum Matters (ERM)
Electro-Magnetic Compatibility (EMC)
EN 55022 : Data processing equipment Radio electric disturbance characteristics -
Limits and measurement methods. Issue 1998 / A1-2000/A2-2003
EN 55024: Data processing equipment Immunity characteristics - Limits and
measurement methods. Issue 1998 + A1- 2001 + A2- 2003
EN 300 328 : (Bluetooth 2,4GHz) Electromagnetic compatibility and Radio Spectrum
Matters (ERM)
EN 302 291 : (Contactless 13,56MHz) Electromagnetic compatibility and Radio
Spectrum Matters (ERM) – Short Range devices
EN 50364, EN 62369-1, EN 62311 : Limitation of Human exposure to electromagnetic
fields
3.4. FCC & IC Compliance.
FCC & IC has a specific naming.
The references uses for FCC & IC certifications are:
IC Number : 2586D-IMP550BTCL
FCC ID: XKB-IMP550BTCL
3.4.1. Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
User Guide 9/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
15.19 (a) (3)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference and
2) This device must accept any interference received, including interference that may cause
undesired operation of the device.
3.4.2. Industry Canada (IC) Statement.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions:
1) this device may not cause interference, and
2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
1) l'appareil ne doit pas produire de brouillage, et
2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
3.4.3. FCC/IC RF Exposure (SAR) Statement.
The iSMP3, incorporating the iPhone 6, has been tested and meets applicable limits for
radio frequency (RF) exposure. Specific Absorption Rate (SAR) refers to the rate at which
the body absorbs RF energy. The SAR limit is 1.6 watts per kilogram averaged over 1 gram of
tissue. During testing, the iPhone 6 radios, incorporated within the iSMP3, are set to their
highest transmission levels and placed in positions that simulate use against the head, with
no separation, and near the body, with 5mm separation. When using the incorporated
iPhone 6 functionality, to reduce exposure to RF energy, use a hands-free option, such as
the built-in speakerphone, the supplied headphones or other similar accessories. Carry the
iSMP3 at least 5mm away from your body to ensure exposure levels remain at or below the
as-tested levels. Cases with metal parts may change the RF performance of the device,
including its compliance with RF exposure guidelines, in a manner that has not been tested
or certified.
L’iSMP3 qui intègre un IPhone 6, a été testé et conforme aux limites d’exposition aux
radiofréquences (RF). Le DAS (Débit d’Absorption Spécifique) fait référence au taux
d’absorption des tissus humains aux ondes électromagnétiques. La limite du DAS est de
1,6W/kg en moyenne pour 1 gr de tissu. Pendant le test, les différents émetteurs radio de
l’IPhone 6, couplés à l’ISMP3, sont positionnés à leur plus haut niveau de transmission et placés
de telle manière qu’ils simulent une utilisation contre la tête sans séparation et proche du
corps avec 5mm de paration. Lors de l’utilisation d’un iPhone 6 dans un iSMP3, pour réduire
l’exposition aux ondes électromagnétiques, il est conseillé d’utiliser le mode main libre avec le
mode haut-parleur ou bien en utilisant les écouteurs ou accessoires similaires. Garder l’iSMP3 à
5mm de votre corps permet de garantir un niveau d’exposition inférieur ou égale aux niveaux
User Guide 10/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved
testés. Des cas d’utilisation de l’iSMP3 sur pièces métalliques peuvent modifier les
performances radio de l’appareil pouvant remettre en cause son DAS. Ces cas précis ne sont
pas testés et certifiés.
The iSMP3 complies with the FCC safety requirements for RF exposure in accordance with
FCC rule part §2.1093 and KDB447498 D01 for portable use conditions.
L’iSMP3, dans un mode portable de fonctionnement, est conforme aux exigences de sécurité
FCC concernant l’exposition aux ondes électromagnétiques suivant les règles FCC part §2.1093
et KDB447498 D01
The iSMP3 complies with the IC safety requirements for RF exposure in accordance with
RSS-102 Issue 5 for portable use conditions.
L’iSMP3, dans un environnement portable, est conforme aux exigences de sécurité IC
concernant l’exposition aux ondes électromagnétiques suivant les règles RSS-102 Issue 5
The iSMP3, incorporating the iPhone 6, must not be co-located or operated in conjunction
with any other antenna or transmitter.
L’iSMP3 qui intègre un iPhone 6, ne doit pas être couplé et opéré avec d’autres antennes ou
émetteurs radio.
CAUTION
The user is cautioned that any changes or modification not approved by INGENICO could
void user’s authority to operate the equipment.
User Guide 11/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved
3.5. Marking
Below, you will find the different symbols used on the product and its power supply.
The CE marking is the manufacturer's declaration that the product meets
the requirements of the applicable EC directives. The CE mark is a
mandatory conformity marking for certain products sold within the
European Economic Area (EEA).
This TÜV symbol shows consumers at a glance that a product has
been examined by neutral experts and that there are no safety
concerns
The UL mark appears on end products and complete components suitable
for factory and field installation. All of the products carrying these marks are
covered by our Follow-Up Services program to determine that products
continue to be manufactured in compliance with UL’s safety requirements.
The RCM mark will be the only mark to indicate compliance with the
Australian Communications and Media Authority’s (ACMA) regulatory
arrangements for telecommunications, radio, EMC and electromagnetic
energy (EME).
The C-Tick is an identification trademark registered to the Australian
Communications Media Authority (ACMA). The C-Tick mark signifies that
the labelled electronic device is compliant with applicable electromagnetic
compatibility (EMC) requirements
Waste of Electrical and Electronic Equipment (WEEE) symbol indicates that
when the end-user wishes to discard this product, it must be sent to
separate collection facilities for recovery and recycling. By separating this
product from other household-type waste, the volume of waste sent to
incinerators or land-fills will be reduced and natural resources will thus be
conserved.
This logo indicates that the product operates with an alternative voltage.
This symbol is followed by the ratings (voltage and current for instance)
This logo indicates that the product operates with a continuous voltage. This
symbol is followed by the ratings (voltage and current for instance)
Mark indicating a power supply meets the level V requirements.
Double insulated or class 2 electrical appliances are products that have been
designed in a way so as not to require a safety connection to electrical earth
(These products must NOT have a safety connection to Earth).
Indoor use symbol.
User Guide 12/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved
3.6. Main Characteristics
The main technical characteristics of the terminal Ingenico ISMP3 are:
Mass
(Poids, Gewicht)
2
40
g
without Iphone 6
365 g with Iphone 6
Dimensions
(dimensions, Maße)
165 x75x26,9 mm
Battery
(Batterie, Akku)
1150 mAh Li-ion
Electrical mains network
(Réseau de distribution
électrique, Elektrische
Stromnetz)
100-240VAC / 50-60 Hz - Class II equipment
Operating conditions
Ambient temperature
(Température ambiante,
Raumtemperatur)
from
0
°C to +40°C
(battery charging)
from -10°C to +45°C (non charging)
Max relative humidity
(Humidité relative maxi,
Max. Relative Luftfeuchte)
85% at +40°C
Connections on terminal
(Connexions sur le terminal,
Terminalanschluss)
Micro USB AB serial link
Power supply unit
Weight
(Poids, Gewicht) 100g
Power
(Puissance, Leistung)
1 A (traveller power supply provided by
Ingenico)
1 A on the docking station (Ingenico accessory)
Storage conditions
Storage temperature
(Température de stockage,
Lagertemperaturen)
-20°C,+55°C
Max relative humidity
(Humidité relative maxi,
Max. relative Luftfeuchte)
85% at +55°C
User Guide 13/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved
4. Installation and connection
4.1. Functional description

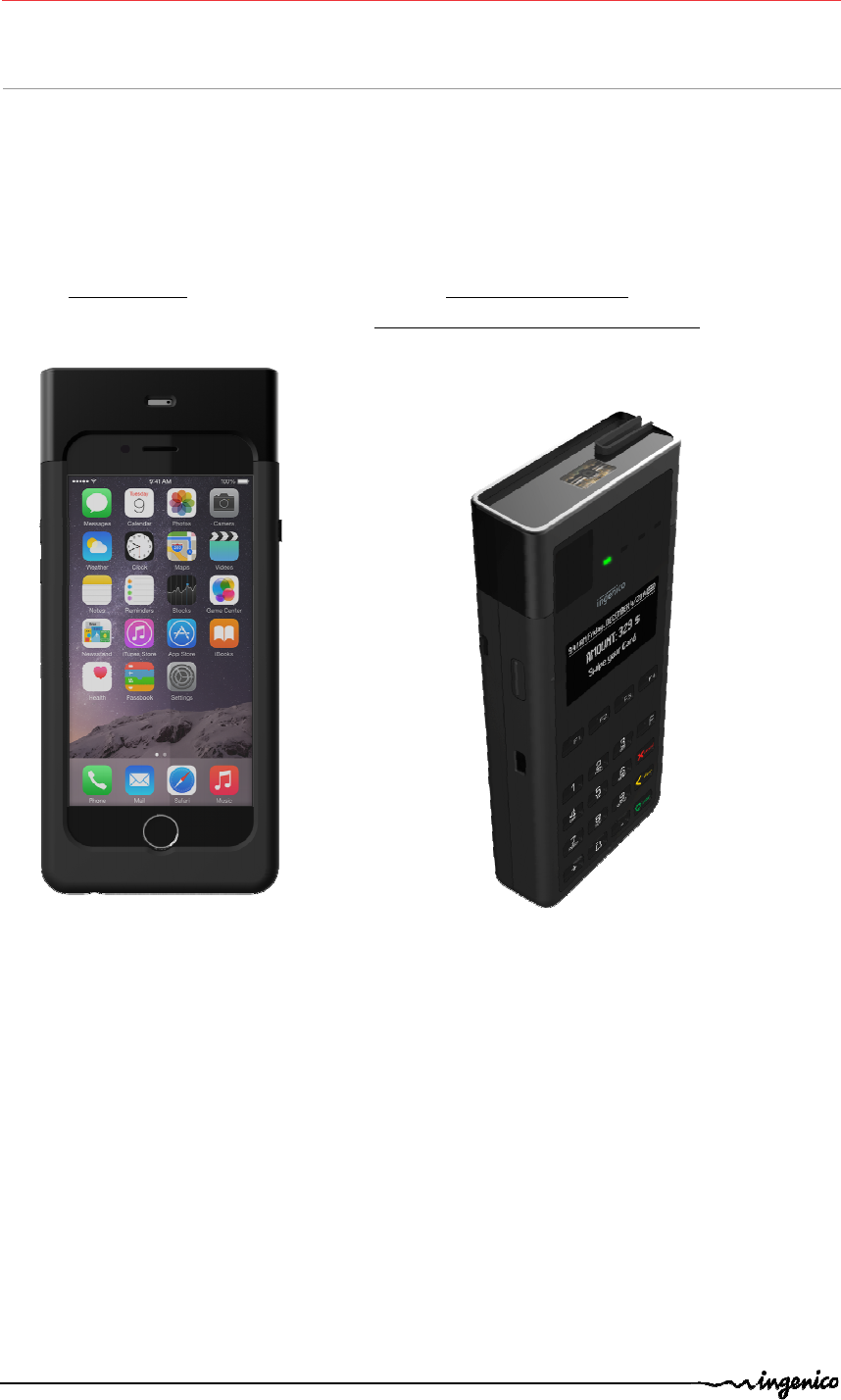

The ISMP3 is a secure EMV Chip & PIN mobile payment holster to be used with an iPhone 6.
The ISMP3 allows mobile merchants to convert their iPhone into a powerful & secure POS
solution. It is composed of 2 functional sides:
Rear
Side
ISMP3
Module
(Smartphone Mobility Payment)
User Guide 14/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved

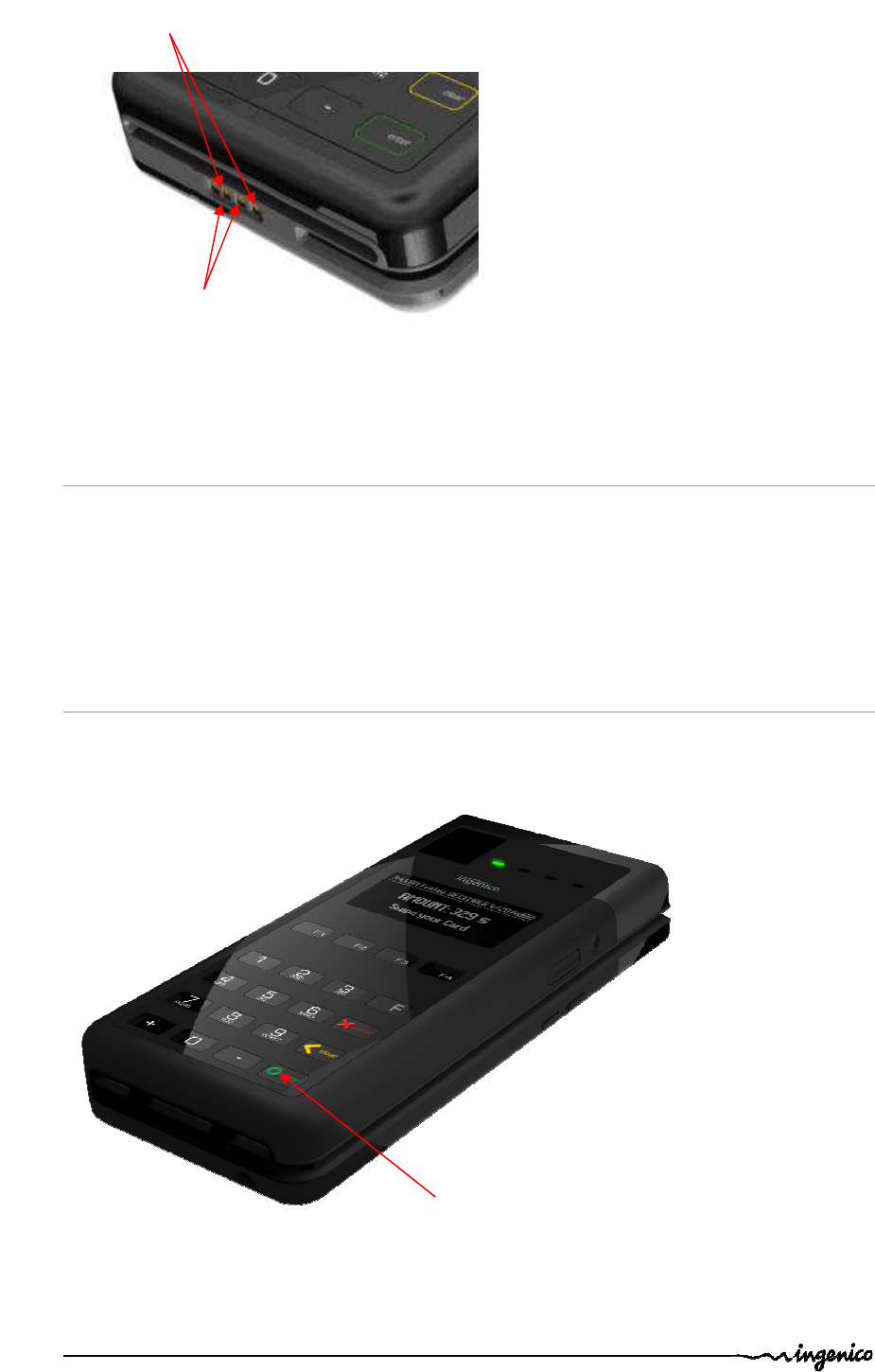

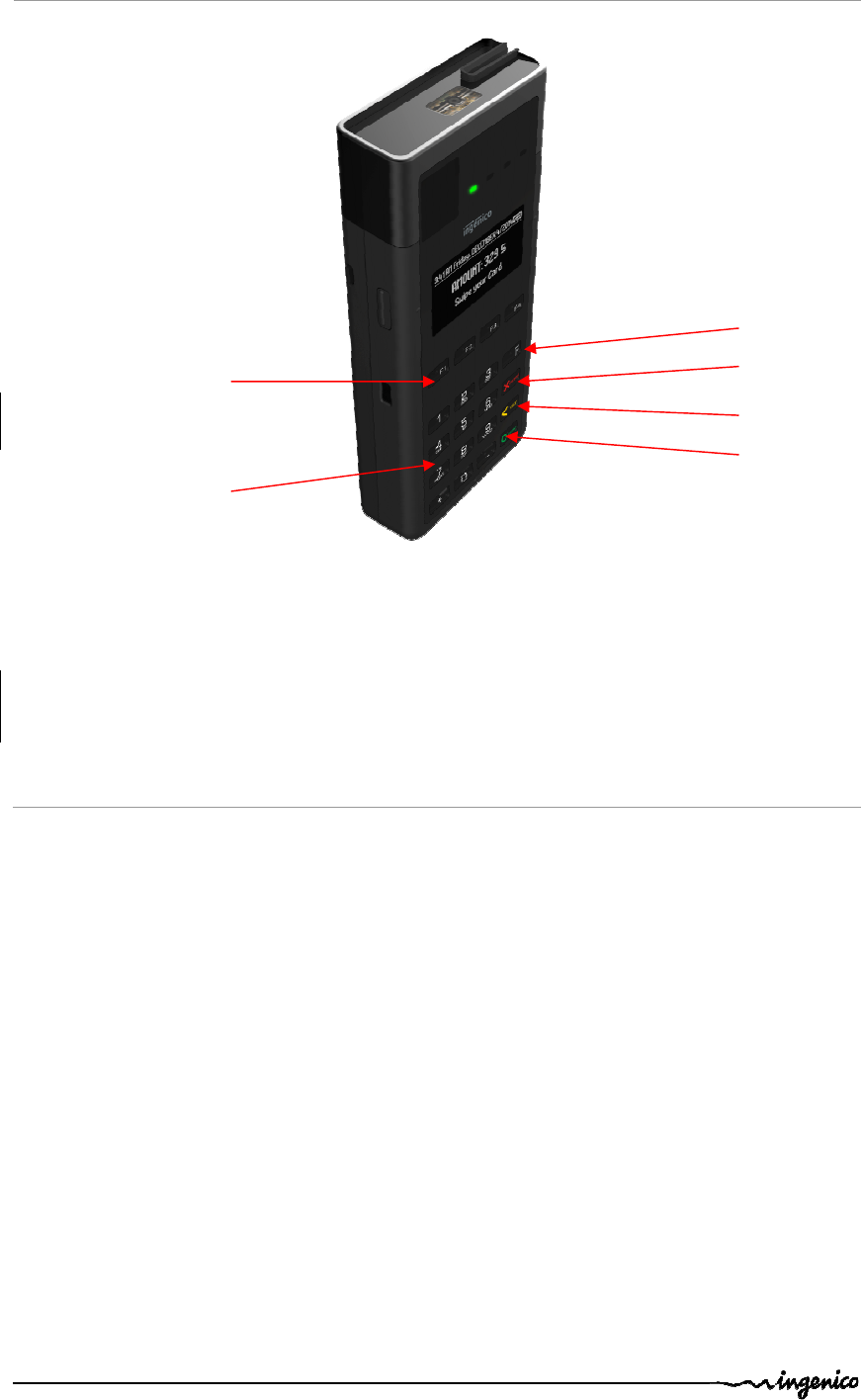

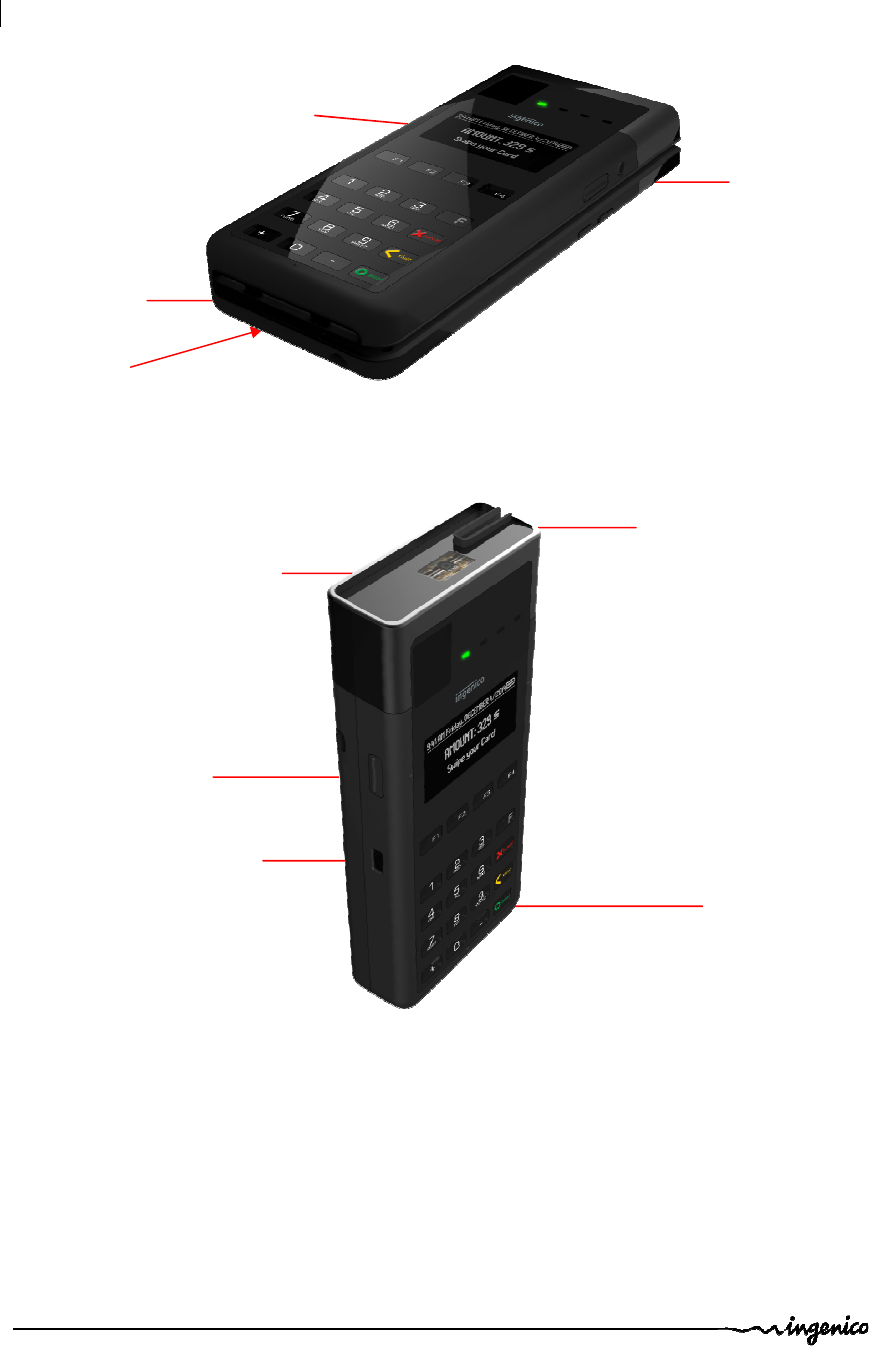

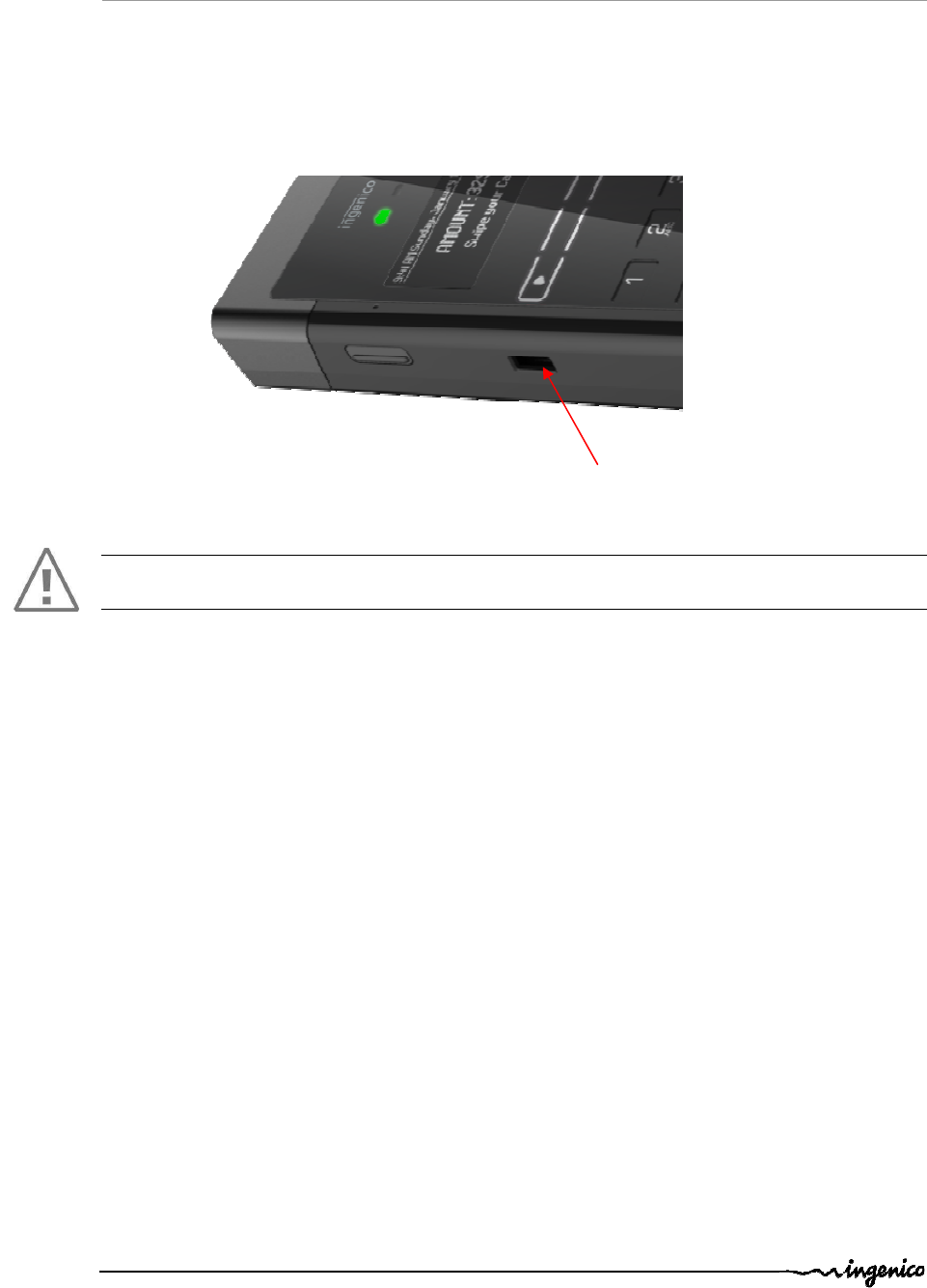

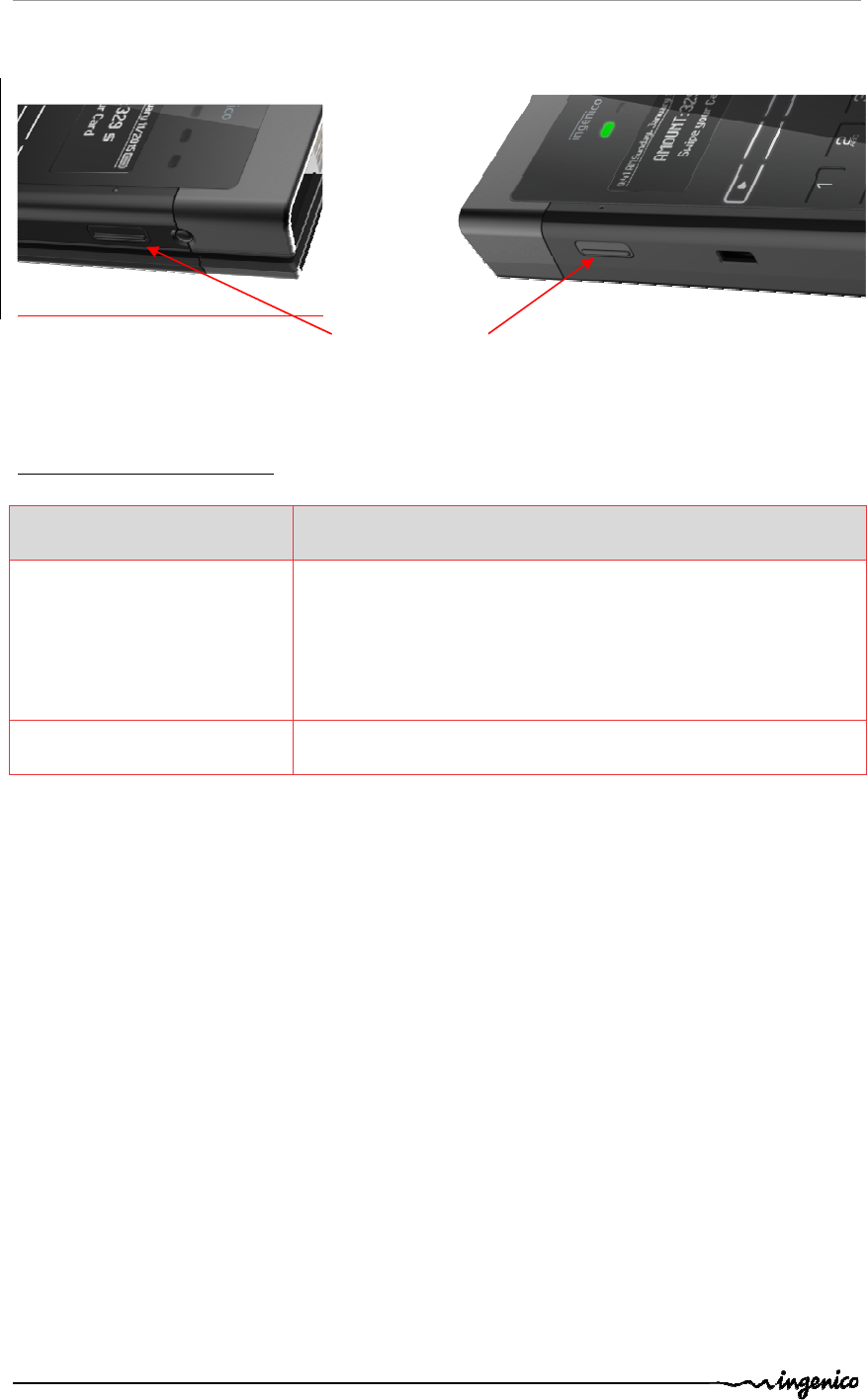

Bar code scanner activation
buttons
2D bar code reader
ISMP3 power ON key
Magnetic stripe reader
Graphic display
Navigation keys in the menus
Charge & USB link pads
Smart card reader
Micro USB connector
User Guide 15/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved

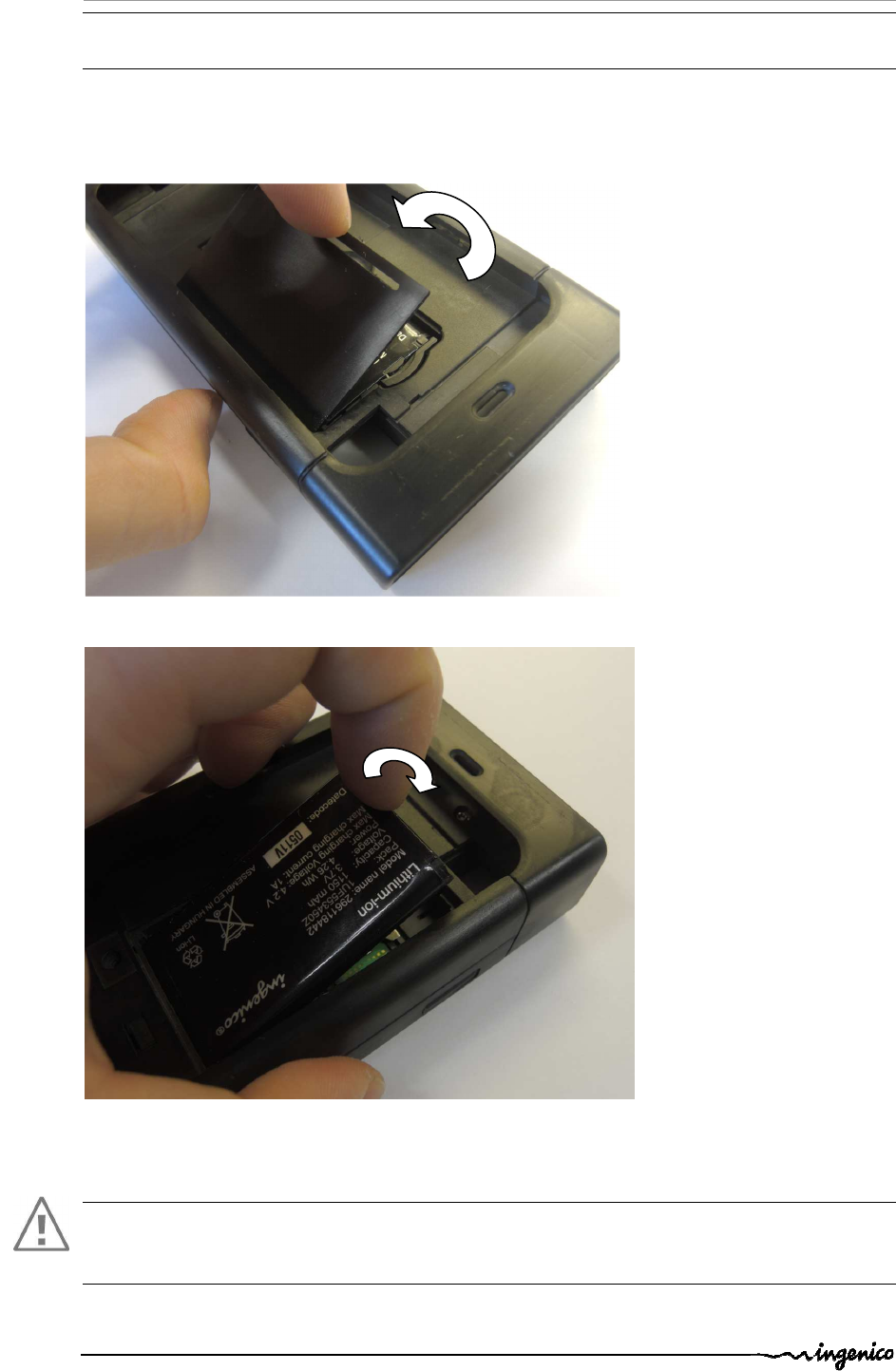

4.2. Battery insertion
CAUTION :
Before starting, switch off the terminal and disconnect USB cable if fitted
Pull up battery door
Insert contact side first
Warning
There is a risk of explosion if the battery is incorrectly replaced or is placed in a fire. Please
dispose of used batteries following instructions in section 6.4.
User Guide 16/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved
4.3. iPhone 6 insertion
CAUTION :
Before starting, switch off the terminal and the iPhone and disconnect USB cable
Pull out ISMP3 from the Multicradle

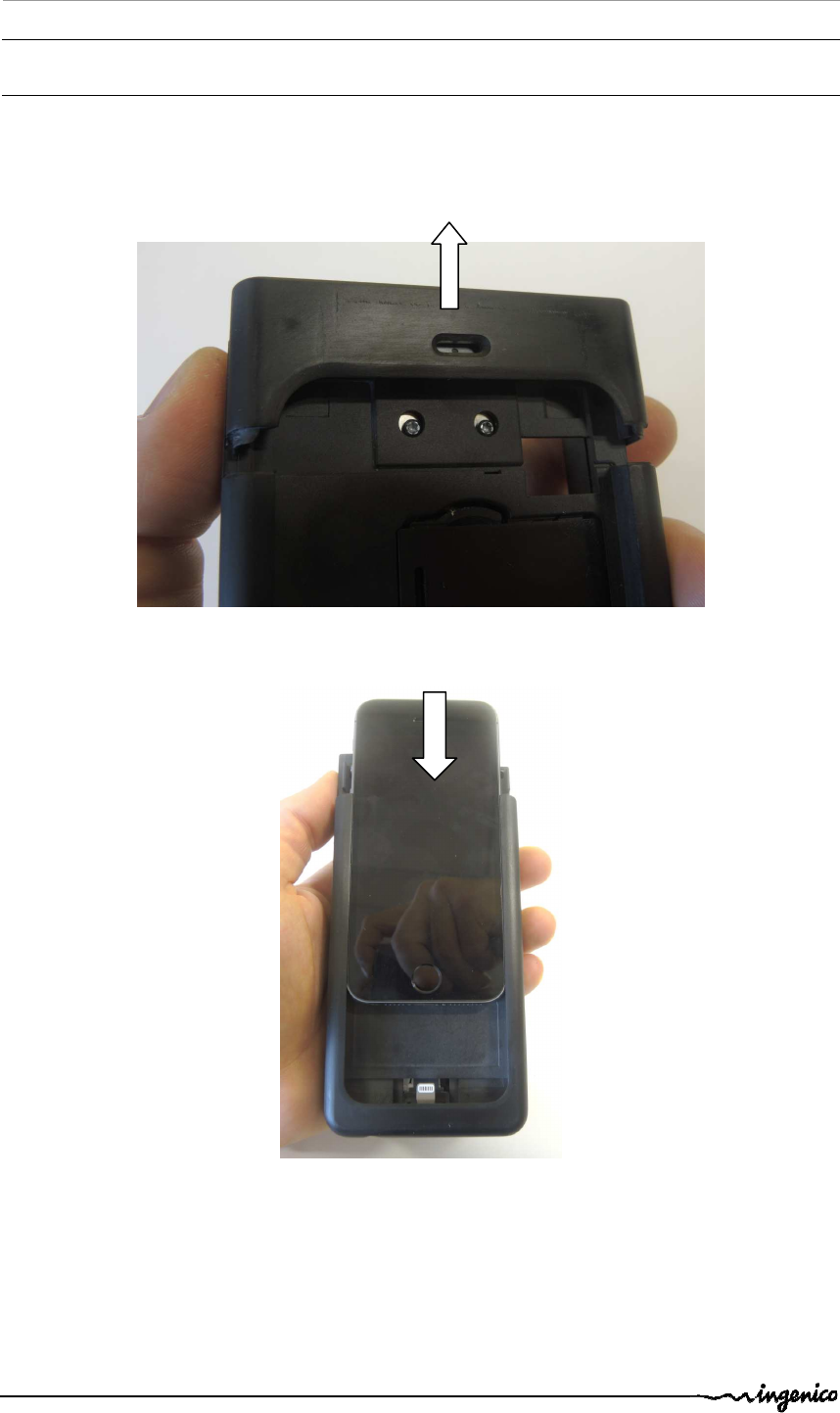

Take in hand ISMP3 with iPhone in front of you
Remove the cover
Insert carefully iPhone bottom side first.
User Guide 17/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved

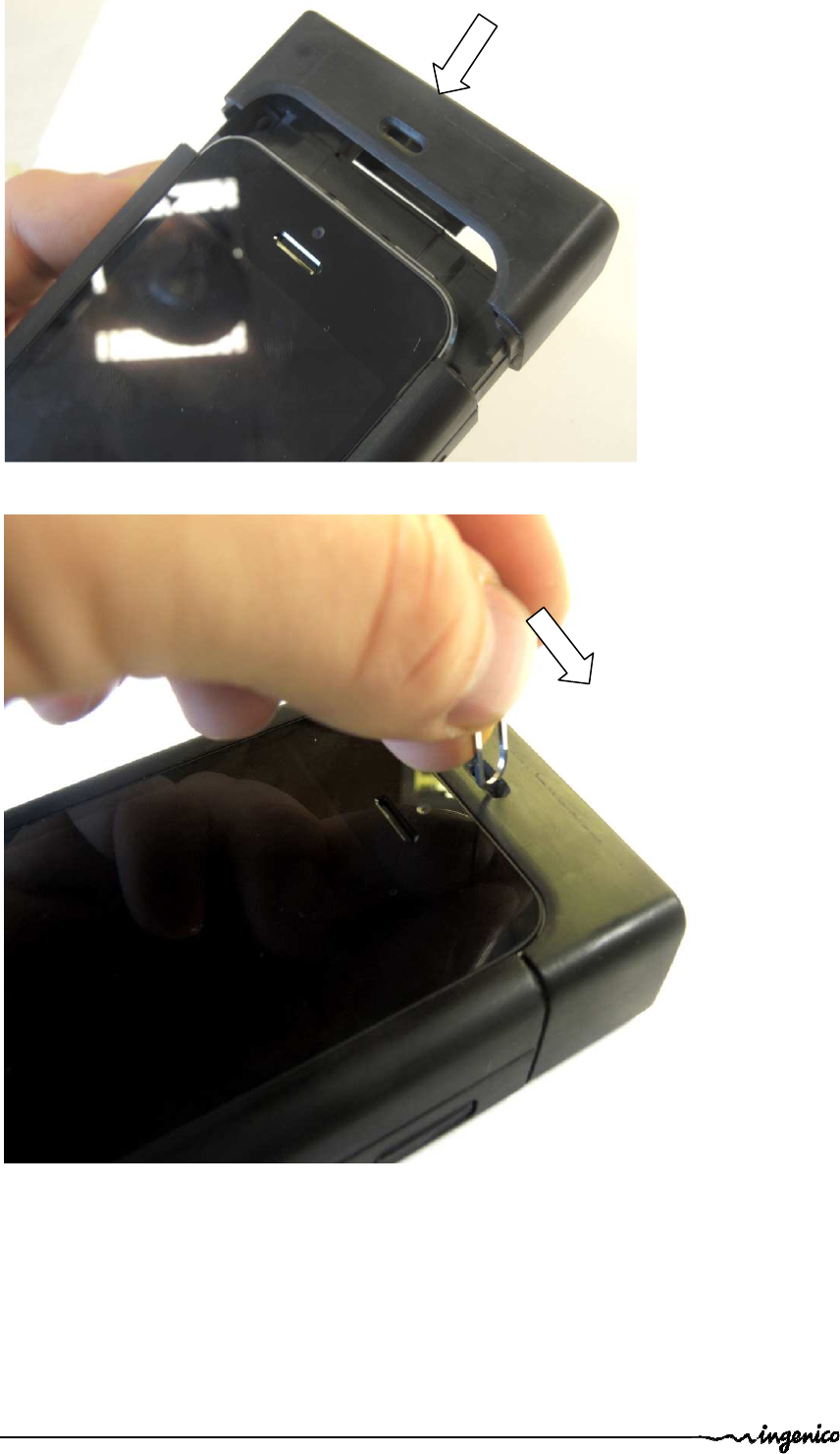

Close the product with the cover as shown on the following drawing
Lock the cover as shown on the following drawing
User Guide 18/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved
4.4. Charging ISMP3
Before using ISMP3 for the first time, you need to charge it for about 4 hours.
After that, you can charge the ISMP3 3 hours to recharge the battery to full
capacity.
Charge the ISMP3 using the USB cable and the power supply (provided by Ingenico)
Charge the iSMP3 using the power cable or the docking station (multicradle
provided separately as an accessory).
CAUTION
Operating the ISMP3 for the first time without the AC adapter, and without fully charging
the backup battery may result in loss of data stored in RAM memory. When the main
battery is removed, the backup battery retains date and time for at least 10 minutes.

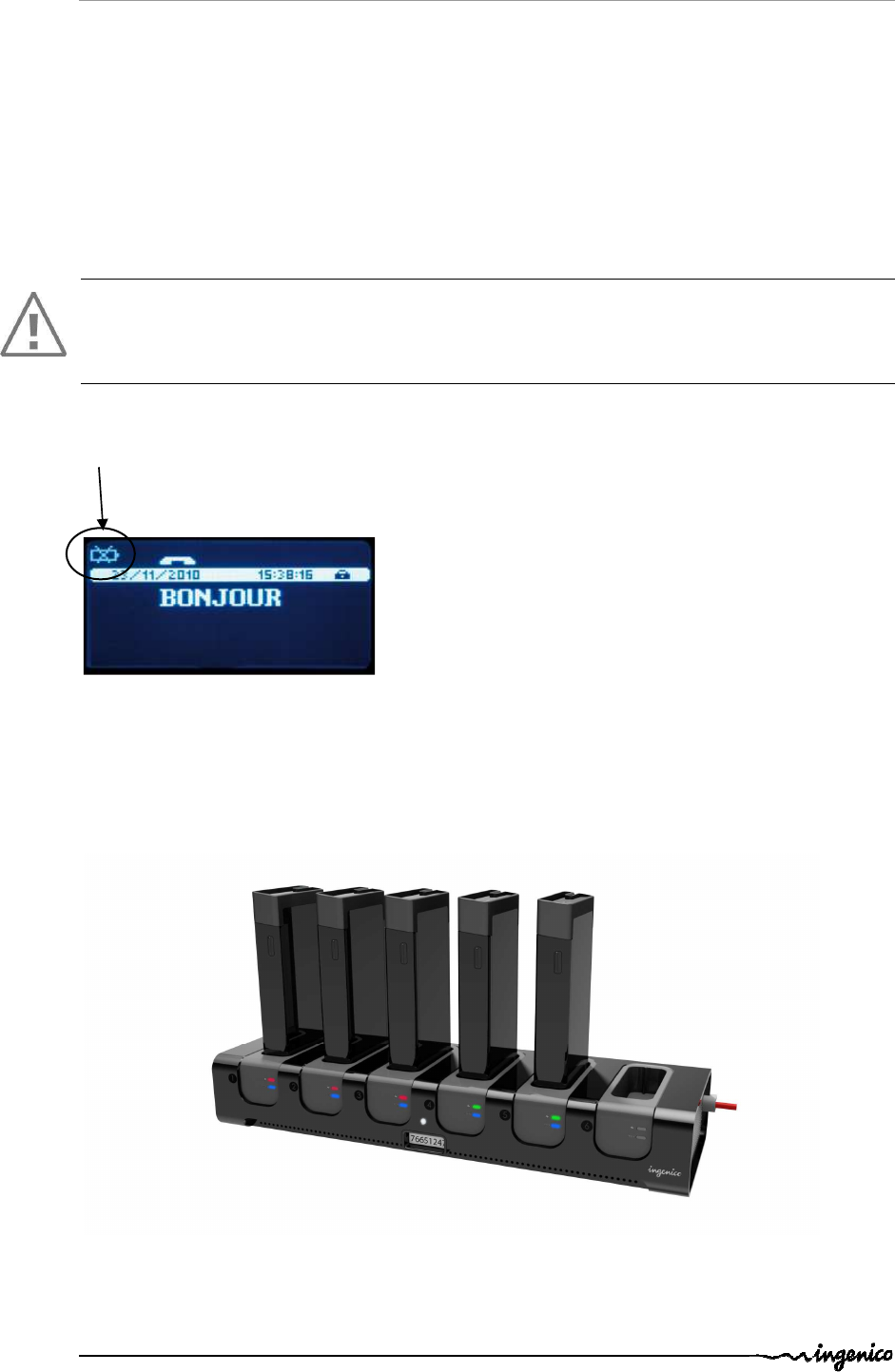

A battery indicator is provided on the ISMP3 screen, indicating the charge of the module.

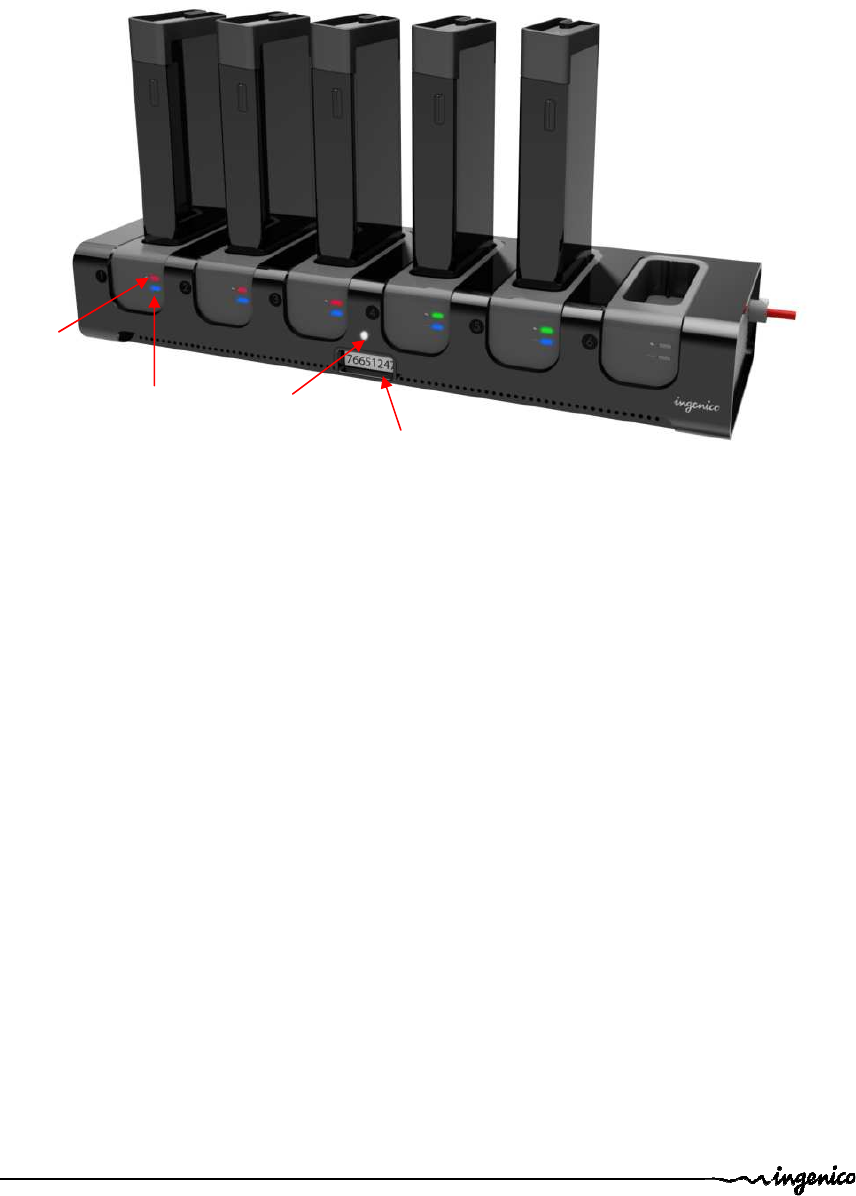

A multiple charging dock is available as a separate accessory. It connects on the charging
pads, and features guiding in the Multicradle itself to ensure connection.
The ISMP3 can also be charged using the charger provided in the package. The charger has
to be plugged on the micro-USB connector.
User Guide 19/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved
4.5. Terminal in its environment
Install the terminal on a flat surface, with an easy access to an electrical outlet if needed.
Place the terminal away from any heat source and protected from dust, vibrations and
electromagnetic radiations (away from video terminals, PC, anti-shoplifting barriers, ...).
Positioning of the ISMP3 must be in such a way to make cardholder PIN (Personal
Identification Number) spying infeasible.
4.6. Power on / off
To power on ISMP3 connect the battery and press the green key.
Product
power on key
Charging pads (used with multicradle dock only)
USB link pa
ds
User Guide 20/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved
In case you wish to manually power off the terminal, press “-“ key + yellow key
simultaneously for a few seconds. This action is only possible when the terminal is not in
charging mode.
4.7. Connection
4.7.1. USB cable connection
A micro USB connector is located on left side of the terminal.
Present the device in front of the connector and plug it
CAUTION
Use only Ingenico cable or accessory not to void warranty.
4.7.2. Cable disconnection
Present the device in front of the connector and unplug it
USB Connector
User Guide 21/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved
4.7.3. Multicradle
Present devices over the Multicradle , magnetic reader facing Multicradle guidance
slot and plug it carefully.
Charge indicator led:
- Red = in charge
- Green = iSMP & IPhone charged
Data exchanges indicator led.
Multicradle status indicator led:
- Green = ready
- Orange = Ethernet connectivity error
- Red = an error occur
User Guide 22/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved
4.8. Payment Integration with Bluetooth
To make it easier for you to use the ISMP3 from your mobile device, Ingenico provides the
"PCL add-on". PCL stands for Payment Communication Layer.
The PCL add-on is a complete set of tools, libraries, documentation and samples that will
help you to:
pair ISMP3 with smartphone;
trigger the payment function;
remotely manage ISMP3;
use ISMP3 in your payment application.
For more details about all these features and how to get started with the pairing process,
please refer to the add-on documentation specific to the payment application used by your
device or contact your product reseller.
5. Daily use
5.1.
Getting started with ISMP3
Install the iPhone the ISMP3 as described in section 4.
Switch ISMP3 payment module by pressing the lateral key.
Follow the ISMP3 initialization procedure. This procedure differs from a customer to
another. Please refer to your payment service provider.
Business payment application running on the iPhone will be customer specific.
Please refer to your business application provider.
User Guide 23/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved
5.2. ISMP3 keypad functions
NAVIGATION keys in the menus
NUMERIC keys
FUNCTION keys F
CANCEL key (red)
CLEAR key (yellow)
VALIDATION key (green)
5.3. Adjusting the contrast
The screen of your payment module is 128 x 64 pixels, illuminated with white light.
If you wish to increase or to decrease the contrast of the characters displayed on screen,
press simultaneously on the ‘-‘ key and F2 key in order to decrease the contrast, or the ‘-‘
key and F3 key in order to increase.
Keep pressing the keys as long as necessary.
User Guide 24/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved
5.4. Barcode reader
Barcode is activated with the 2 side keys as shown below.
List of bar codes supported:
Reader type
CMOS Imaging reader
Reads 1D and 2D codes
1D
1D: Codabar, Code 3 of 9, Code 11, Code 32 Pha
r
m
aceutical
(PARAF), Code 93, Code 128, EAN with Add-On and EAN with
Extended Coupon Code, EAN-13, Interleaved 2 or 5, Matrix 2
of 5, Plessey, GS1DataBar, Straight 2 of 5 IATA, Straight 2 of 5
Industrial, Telepen, Trioptic Code, UCC/EAN-128, UPC and
UPC-A
2D
2D: MicroPDF, Codeblock, Aztec, QRCode, Max
i
Code,
DataMatrix, PDF417
Barcode keys
User Guide 25/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved
5.5. Card insertion

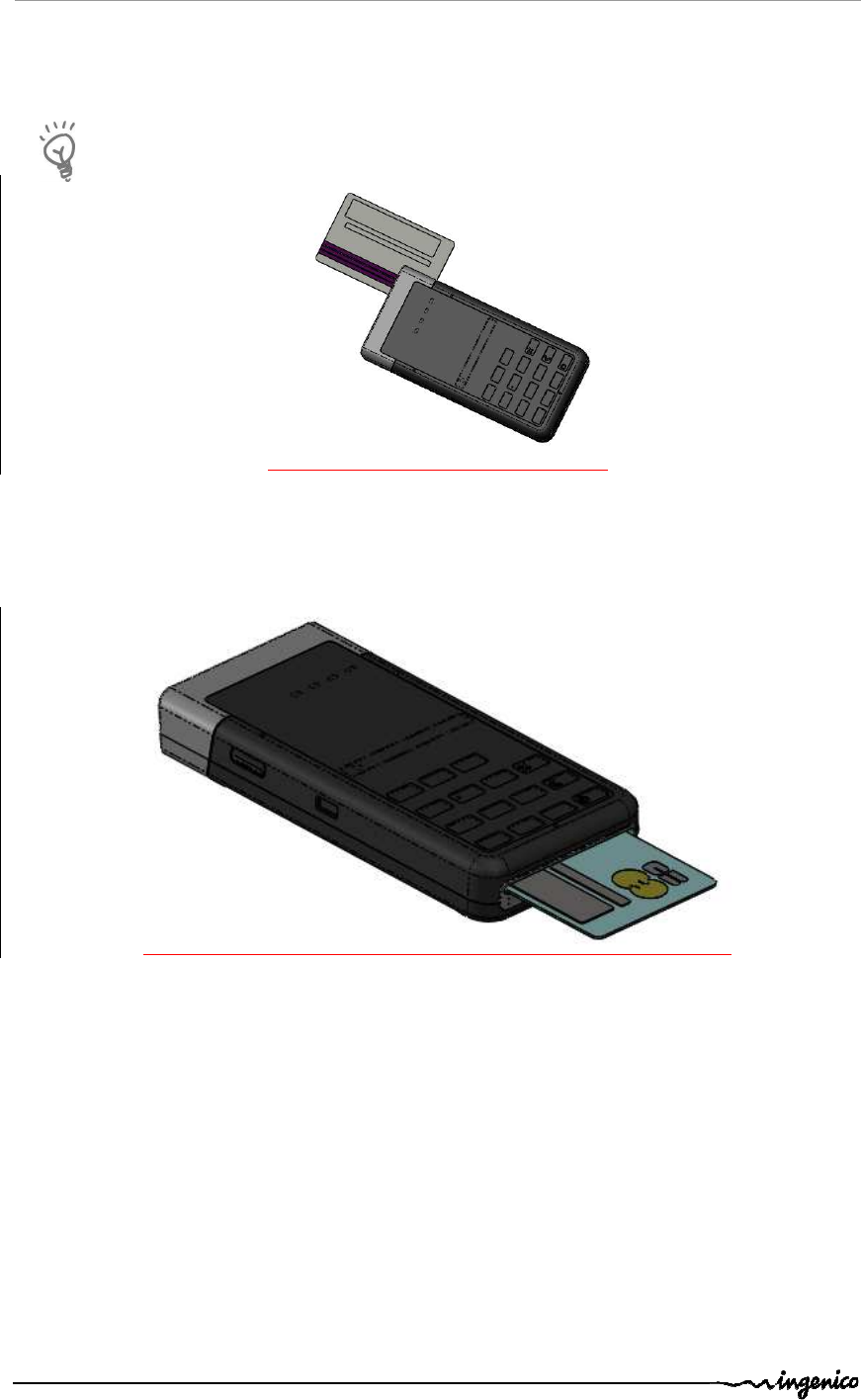

5.5.1. Swiping a card
Insert the card manually in the driver, magstripe-facing right.
Swipe the card with constant speed, not too slow not too fast, to maximize the
reading and avoid annoying repetitions.

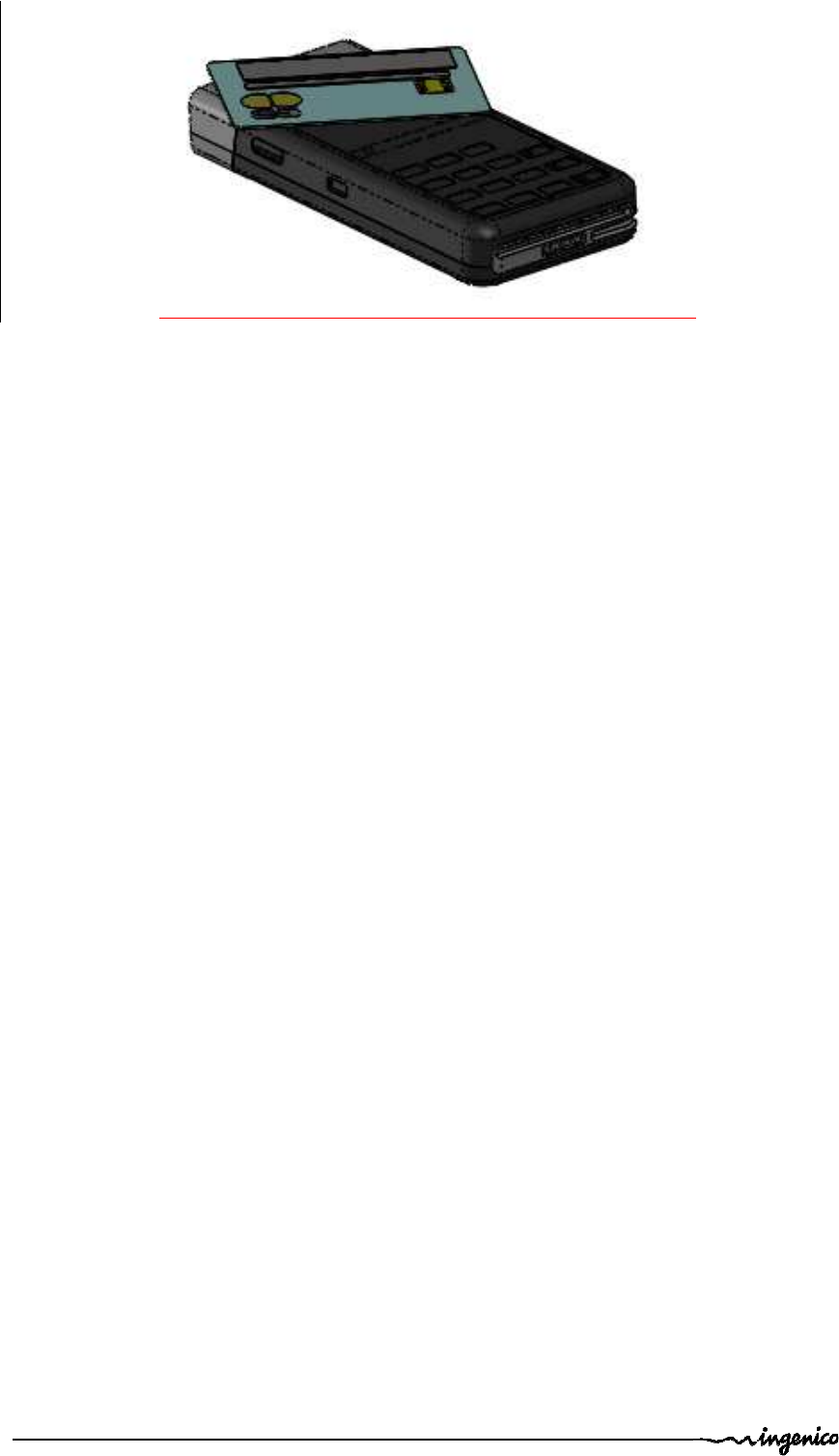

5.5.2. Inserting a chip card
Chip Cards should be inserted into your terminal as illustrated with the chip facing
up and into the card reader
5.5.3. Reading Contactless (Optional)
Bring the card firmly up to the active zone above the display (at about 1cm). Keep
the card close to the display during the transaction
User Guide 26/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved
Your contactless terminal has a row of four status lights that are visible on display.
When a contactless transaction is started the first (left hand) status light will be lit
steadily; this indicates that the contactless display is in use but a card is not being
read.
When a contactless card is presented to the contactless active zone during a
transaction the second, third and fourth status lights will be lit in turn. The card
read is successful when all four status lights are lit and the confirmation tone is
heard.
User Guide 27/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved
6. Maintenance
ATTENTION
Before making any operations of maintenance in the terminal, make sure that
power supply is disconnected.
6.1. Cleaning of the terminal
First of all, unplug all the wires from the terminal.
Good rules for proper cleaning of the terminal are:
Use a soft cloth that is very slightly soaked with soapy water to clean the outside of
the terminal.
Do not clean the electrical connections.
Do not use in any case, solvents, detergents or abrasive products:
Those materials might damage the plastic or electrical contacts.
Avoid exposing the terminal to the direct rays of the sun.
Do not put anything into the slot of the smart card reader
Entretien du terminal
ATTENTION
Assurez-vous que tous les bles sont bien débranchés du terminal avant toute intervention de
maintenance sur le terminal.
Avant tout, débranchez tous les câbles du terminal.
Pour bien nettoyer le terminal :
Utilisez les kits de nettoyage ingenico : http://www.ingenico.cleaningcards.com/
Ne nettoyez pas les connexions électriques.
N'utilisez jamais de solvants, de détergents, d’alcool ou de produits abrasifs :
Ces produits peuvent endommager le plastique ou les contacts électriques.
Evitez d'exposer le terminal aux rayons directs du soleil.
N'insérez rien dans la fente du lecteur de carte.
Wartung von Endgeräten
ACHTUNG
Stellen Sie vor jeglicher Wartungsarbeit an dem Terminal sicher, dass die Stromversorgung
unterbrochen ist.
Als erstes alle Kabel vom Terminal trennen.
Regeln für eine ordnungsgemässe Reinigung des Terminals:
Für die Außenseite des Terminals, Ingenico Cleaning kits benutzen.
Keine elektrischen Anschlüsse reinigen.
Auf keinen Fall Lösungsmittel, Waschmittel oder Scheuermittel verwenden:
diese Mittel können den Kunststoff oder elektrische Kontakte beschädigen.
Das Terminal keiner direkten Sonneneinstrahlung aussetzen.
Nichts in den Schlitz des Chipkartenlesers einführen.
User Guide 28/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved
6.2. Transport and storage
Use the original packaging for any unit or stored.
Disconnect all cables from the terminal during the transport.
Disconnect battery from the terminal during the storage.
6.3. Troubleshooting
The terminal does not turn on:
Battery level is too low
Check the USB connection
Check for electrical power network
The terminal fails to establish iPhone connection
Check that the iPhone is correctly inserted
Check the configuration of the iPhone
Get support from technical
Cards are not read
Check that the magnetic card is passed correctly (with magnetic band
directed to the interior of the terminal)
Swipe again the card with the magnetic stripe movement constant and rapid
Verify that the magnetic strip is not damaged, grooved or cracked
Make sure you have inserted correctly the smart card into the smart card reader
and removed the card only after the transaction
User Guide 29/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved
6.4. End of life
The product belongs to the family of electrical and electronic equipment. Therefore, it is
subjected to the WEEE directive which requires the collection and the recycling at the end
of life product.
The Ingenico products present the symbol for the marking of electrical and electronic
equipment as required by the WEEE Directive.
The crossed-out wheeled bin printed on the product gives the information about
the requirement not to dispose of WEEE as unsorted municipal waste and to
collect such WEEE separately.
To assure that the product is collected and recycled with respect to the environment, you
must contact your supplier (in defect, contact the Ingenico local office or the commercial
head office in charge of your country on www.ingenico.com, « contact us » page).
The abandonment or uncontrolled disposal of waste can cause harm to environment and to
human health. So, by recycling your product in a responsible manner, you contribute to the
preservation of natural resources and to the protection of human health.
Fin de vie
Ce produit est marqué conformément aux Directives Européennes 2002/96/CE concernant les Déchets
d'Equipements Electriques et Electroniques (DEEE) et 2006/66/CE concernant les piles et accumulateurs.
Ces dispositions légales obligent les producteurs et les fabricants à être responsables de la reprise, du
traitement et du recyclage en fin de vie des équipements et des batteries.
Ce symbole signifie que les DEEE et les batteries usagées ne doivent pas être jetés, mais
collectés séparément et recyclés.
Ingenico garantit que des systèmes efficaces de collecte et de recyclage sont mis en place
pour les DEEE et les batteries usagées conformément à la réglementation locale de votre pays. Veuillez
contacter votre distributeur pour plus de renseignements concernant la solution mise en place pour
vous débarrasser de votre ancien produit et des batteries usagées.
Les déchets d'emballage doivent également être collectés séparément afin d'assurer leur élimination et
leur recyclage.
Veuillez noter que le recyclage approprié des équipements électriques et électroniques et des batteries
usagées permet d’assurer la protection de l'environnement et de la santé humaine.
Produktentsorgung
Dieses Produkt gehört zur Familie der elektrischen und elektronischen Einrichtungen. Es unterliegt
deshalb den Bestimmungen der WEEE die verlangt, dass das Altgerät gesammelt und entsorgt wird.
Die Ingenico Produkte enthalten alle das Symbol für die Kennzeichnung von elektrischen oder
elektronischen Einrichtungen, wie es die WEEE Richtlinie verlangt.
Die durchgestrichene Mülltonne auf dem Produkt gibt an, dass das Produkt nach der WEEE
Richtlinie nicht in den Hausmüll geworfen werden darf, sondern getrennt entsorgt werden
muss.
User Guide 30/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved
Um sicherzustellen, dass das Produkt eingesammelt und umweltgerecht entsorgt wird, müssen Sie Ihren
Lieferanten kontaktieren (in Ermangelung dessen kontaktieren Sie die lokale Ingenico Niederlassung
oder die für ihr Land zuständige Hauptgeschäftsstelle über www.ingenico.com, „Kontakt-Seite).
Das Wegwerfen oder die unkontrollierte Entsorgung kann zu Umweltschäden und Gefahren für die
menschliche Gesundheit führen. Wenn Sie Ihr Produkt verantwortungsbewusst entsorgen, tragen Sie
zum Erhalt der natürlichen Ressourcen und zum Schutz der menschlichen Gesundheit bei.
User Guide 31/31
Copyright © 2011 Ingenico
900021302 R11 000 01
All rights reserved
Ingenico SA
28-32, boulevard de Grenelle
75015 Paris - France
Tél.: + 33 1 58 01 80 00 - Fax: + 33 1 58 01 91 35
www.ingenico.com
Ingenico
192 avenue Charles de Gaulle
92200 Neuilly sur Seine - France
Tél.: + 33 1 46 25 82 00 - Fax: + 33 1 47 72 56 95
www.ingenico.com
Your contact
*2
96
190684
*
“This Document is Copyright © 2011 by INGENICO Group. INGENICO retains full copyright ownership,
rights and protection in all material contained in this document. The recipient can receive this
document on the condition that he will keep the document confidential and will not use its contents
in any form or by any means, except as agreed beforehand, without the prior written permission of
INGENICO. Moreover, nobody is authorized to place this document at the disposal of any third party
without the prior written permission of INGENICO. If such permission is granted, it will be subject to
the condition that the recipient ensures that any other recipient of this document, or information
contained therein, is held responsible to INGENICO for the confidentiality of that information.
Care has been taken to ensure that the content of this document is as accurate as
possible. INGENICO however declines any responsibility for inaccurate, incomplete or outdated
information. The contents of this document may change from time to time without prior notice, and
do not create, specify, modify or replace any new or prior contractual obligations agreed upon in
writing between INGENICO and the user.
INGENICO is not responsible for any use of this device, which would be non consistent with the
present document.
All trademarks used in this document remain the property of their rightful owners.”
iPhone is trademarks of Apple Inc., registered in the U.S. and other countries.

Navigation menu
