U s e r
G u i d e
Product name: IPP3x0-01Txxxxx • 2/17
Copyright © 2010 Ingenico
900001663 R11 000 01
All rights reserved
Contents
1.
Introduction _________________________________________________ 3
2.
Unpacking __________________________________________________ 4
3.
Recommendations __________________________________________ 4
3.1.
Security_____________________________________________________________4
3.2.
Security of your terminal _____________________________________________4
3.3.
EC standard compliance marking ___________________________________5
3.4.
Main Characteristics ________________________________________________6
4.
Installation and connection __________________________________ 7
4.1.
Positioning the terminal ______________________________________________7
4.2.
Connections ________________________________________________________7
4.2.1.
Cable or adaptor connection ________________________________________________ 7
4.2.2.
Cable or adaptor disconnection______________________________________________ 8
4.2.3.
Installation of the Magic Box (optional) ________________________________________ 9
4.3.
Installing SAM (Secure access module) and MicroSD Card___________ 10
4.4.
Installing contact less module______________________________________ 11
5.
Daily use ___________________________________________________ 13
5.1.
Keypad functions _________________________________________________ 13
5.2.
Adjusting the contrast _____________________________________________ 13
5.3.
Card insertion_____________________________________________________ 14
5.3.1.
Swiping a card______________________________________________________________ 14
5.3.2.
Inserting a chip card ________________________________________________________ 14
5.3.3.
Reading Contactless (Optional)______________________________________________ 14
6.
Maintenance_______________________________________________ 15
Cleaning of the terminal ______________________________________________ 15
6.1.
Transport and storage _____________________________________________ 15
6.2.
Troubleshooting ___________________________________________________ 15
6.3.
End of life_________________________________________________________ 16
Product name: IPP3x0-01Txxxxx • 3/17
Copyright © 2010 Ingenico
900001663 R11 000 01
All rights reserved
1. Introduction
Thank you for choosing a payment terminal Ingenico.
We recommend you to read carefully this installation guide: It gives you the
necessary information about safety precautions, unpacking, installation, and
maintenance of your terminal.
WARRANTY / SECURITY
To benefit from the guarantee-related product, and to respect the security, we
ask you to use only accessories delivered in box with the product, entrusting
maintenance operations only to an authorized person.
The IPP3X0-01TXXXXX can be powered by different sources please respect
these recommendations:
IPP3X0-01TXXXXX can be USB powered; it must be connected to a full
compatible USB link.
IPP3X0-01TXXXXX can be Power Over Ethernet (POE) powered; it must be
connected to a full compatible POE link.
When IPP3X0-01TXXXXX is driven by RS232, it must be power by the specific
alimentation furnished by Ingenico.
Failure to comply with these instructions will void the manufacturer’s
responsibility.
This symbol indicates an important Warning.
This symbol indicates a piece of advice.
Product name: IPP3x0-01Txxxxx • 4/17
Copyright © 2010 Ingenico
900001663 R11 000 01
All rights reserved
2. Unpacking
ADVICE
Carefully preserve the packaging of the IPP3X0-01TXXXXX. It must be re-used
whenever the terminal is shipped.
According to the model, the following items are included in the IPP3X0-
01TXXXXX box (including optional accessories):
• The IPP3X0-01TXXXXX terminal
• This installation guide
• The IPP3X0 cradle (optional)
• The connection cable or adaptor (optional)
• The application user guide (optional)
3. Recommendations
3.1. Security
Power on/Power down
To power on or power down the IPP3X0-01TXXXXX connect or disconnect the
cable connected to the host (for USB or Power Over Ethernet)
If the serial link is used with additional power supply:
The disconnecting device of the equipment is the separable plug of the power
supply cord.
Therefore the socket outlet shall be installed near the equipment and shall be
easily accessible by the operator.
Lithium battery
The IPP3X0-01TXXXXX is fitted with a lithium battery which is not accessible to the
user. Only a qualified technician may be authorized to open the unit and
change this component.
SAM, MMC and contacless lid
The lid located under the terminal (see chapter “Installation SAM”) must be in
place during normal operation of the terminal.
3.2. Security of your terminal
Upon receipt of your terminal you should check for signs of tampering of the
equipment. It is strongly advised that these checks are performed regularly
after receipt. You should check, for example: that the keypad is firmly in place;
that there is no evidence of unusual wires that have been connected to any
ports on your terminal or associated equipment, the chip card reader, or any
other part of your terminal. Such checks would provide warning of any
unauthorised modifications to your terminal, and other suspicious behaviour of
individuals that have access to your terminal. Your terminal detects any
“tampered state”. In this state the terminal will repeatedly flash the message”
Alert Irruption!” and further use of the terminal will not be possible. If you
observe the “Alert Irruption!” message, you should contact the terminal
helpdesk immediately.
You are strongly advised to ensure that privileged access to your terminal is only
granted to staff that have been independently verified as being trustworthy.
Product name: IPP3x0-01Txxxxx • 5/17
Copyright © 2010 Ingenico
900001663 R11 000 01
All rights reserved
CAUTION
NEVER ask the customer to divulge their PIN Code. Customers should be
advised to ensure that they are not being overlooked when entering their PIN
Code.
3.3. EC standard compliance marking
EC standard compliance marking certifies that the product stipulated below:
IPP3X0-01TXXXXX
• conforms to the following harmonized standards :
– IEC/EN 60950-1: Electrical safety of data processing equipment including
electrical office equipment. Issue dec. 2001
EN 55022: Data processing equipment – Radiofrequency disturbance
characteristics - Limits and measurement methods. EN 55022 2006 + A1
(2007)
– EN 55024: Data processing equipment – Immunity characteristics - Limits
and measurement methods. Issue 1998 + A1- 2001 + A2 - 2003
3.4. FCC Statement
FCC standard compliance marking certifies that the product stipulated below:
IPP3X0-01TXXXXX
• conforms to the following harmonized standards :
– part 15 subpart B of the FCC rules
This class (B) digital apparatus complies with Canadian ICES-003.
Information to users:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment
.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception which can be determined by turning the equipment off and on, the
user is encouraged to try to correct interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Product name: IPP3x0-01Txxxxx • 6/17
Copyright © 2010 Ingenico
900001663 R11 000 01
All rights reserved
3.5. Main Characteristics
The main technical characteristics of the terminal Ingenico IPP3X0-01TXXXXX
are:
Mass 260 g without cable
Dimensions 169,5 x 83x 42 mm (l x w x h)
Operating conditions
Ambient temperature from +5°C to +40°C
Max relative humidity 85% at +40°C
Link USB, Power Over Ethernet or RS232
and power supply
Storage conditions
Storage temperature -20°C,+55°C
Max relative humidity 85% at +55°C
Product name: IPP3x0-01Txxxxx • 7/17
Copyright © 2010 Ingenico
900001663 R11 000 01
All rights reserved
4. Installation and connection
4.1. Positioning the terminal
Install the terminal on a flat surface, with an easy access to an electrical outlet if
needed. Place the terminal away from any heat source and protected from dust,
vibrations and electromagnetic radiations (away from video terminals, PC, anti-
shoplifting barriers, ...).
4.2. Connections
A connection area is located on the rear of the terminal.
In this place it’s possible to plug one of the different specific cables, or an
adaptor to replace directly an other product on the field.
In this last case, the specific adaptor must be chosen in the Ingenico range.
4.2.1. Cable or adaptor connection
• Present the device in front of the connector and plug it
Product name: IPP3x0-01Txxxxx • 8/17
Copyright © 2010 Ingenico
900001663 R11 000 01
All rights reserved
CAUTION
Use only Ingenico cable or accessory not to void warranty.
4.2.2. Cable or adaptor disconnection
• On specific cable, an handle helps the disconnection
Cables and accessory are able to be fixed with
two M2.5x8 screws (not included in the
package)
Product name: IPP3x0-01Txxxxx • 9/17
Copyright © 2010 Ingenico
900001663 R11 000 01
All rights reserved

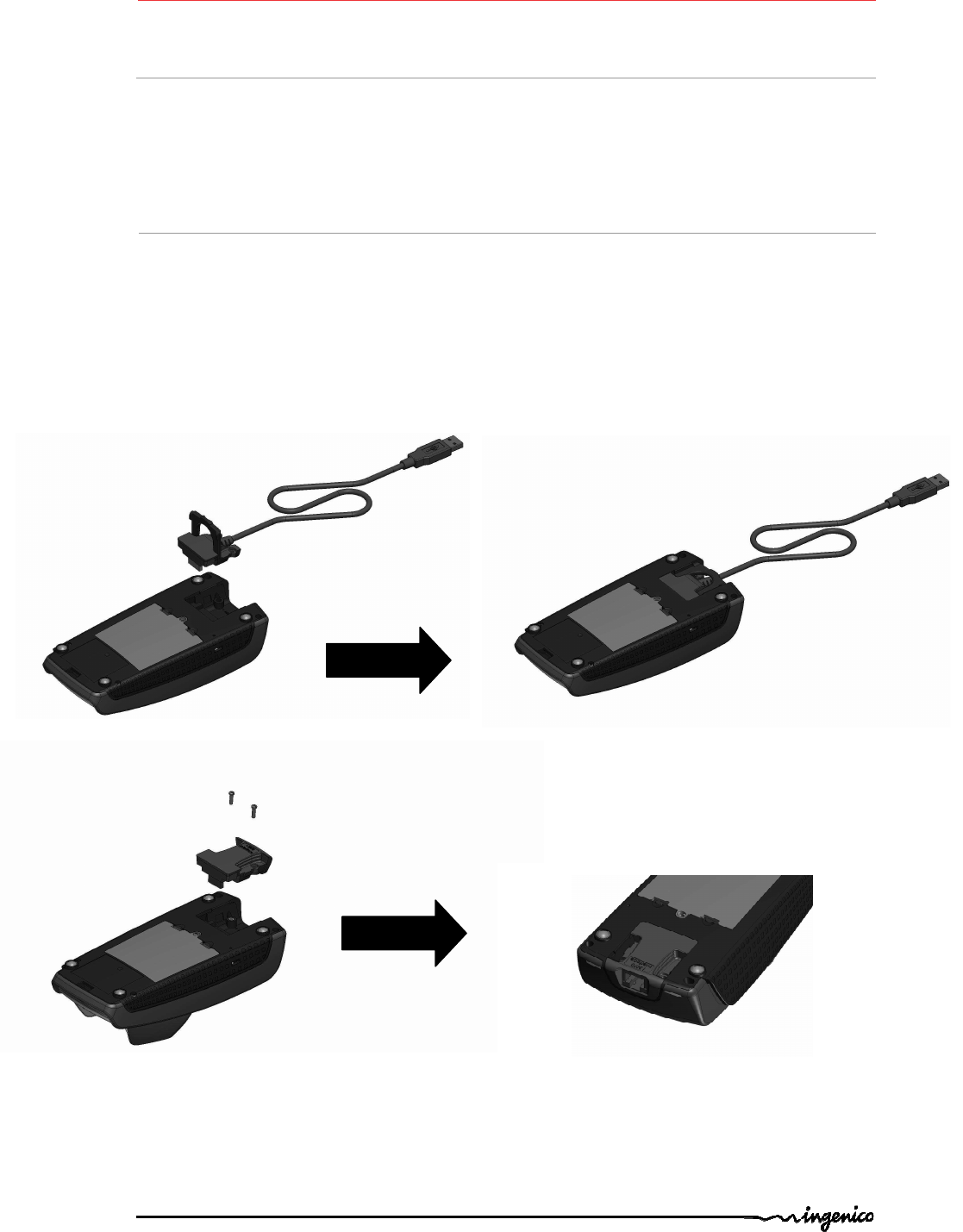

4.2.3. Installation of the Magic Box (optional)
ADVICE
It is strongly recommended to attach the “Magic cable” to terminal’s work area
in order to reduce stress on the terminal and connection.

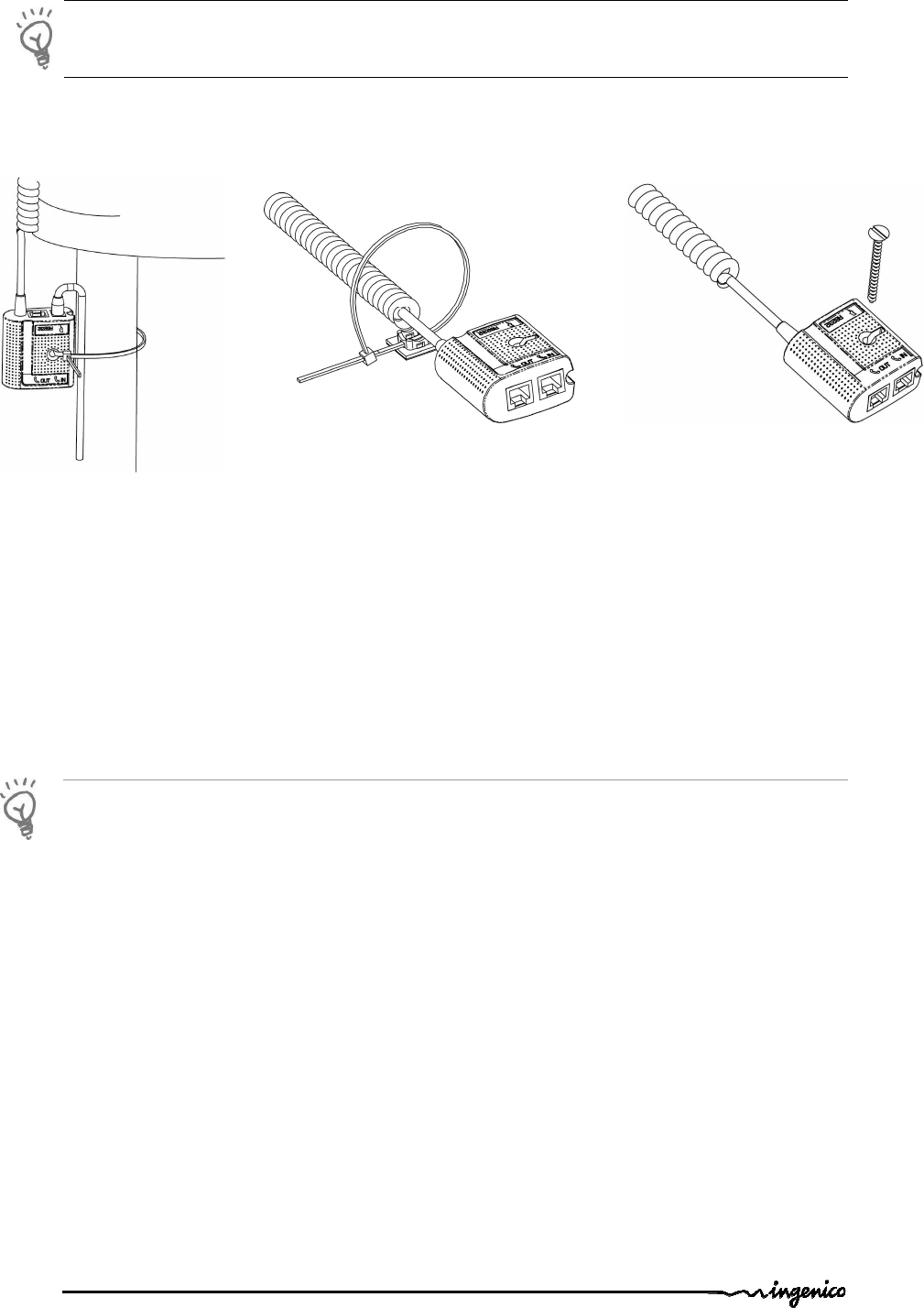

Examples of securing the “Magic Cable” are as illustrated:
1
Using the supplied cable tie to attach to a table leg (or similar)
2
Using the supplied cable tie and self-adhesive support
3
Using a counter-sunk screw (not supplied) to an appropriate surface
• The “Magic Cable” should be readily accessible for support and terminal
helpdesk diagnosis purposes.
Note: The connection Magic Box can also be attached using a VELCRO™ or
other system.
1 3 2
Product name: IPP3x0-01Txxxxx • 10/17
Copyright © 2010 Ingenico
900001663 R11 000 01
All rights reserved
4.3. Installing SAM (Secure access module) and MicroSD
Card
CAUTION :
Before starting, switch off the terminal by disconnecting the power supply or the
link to the host

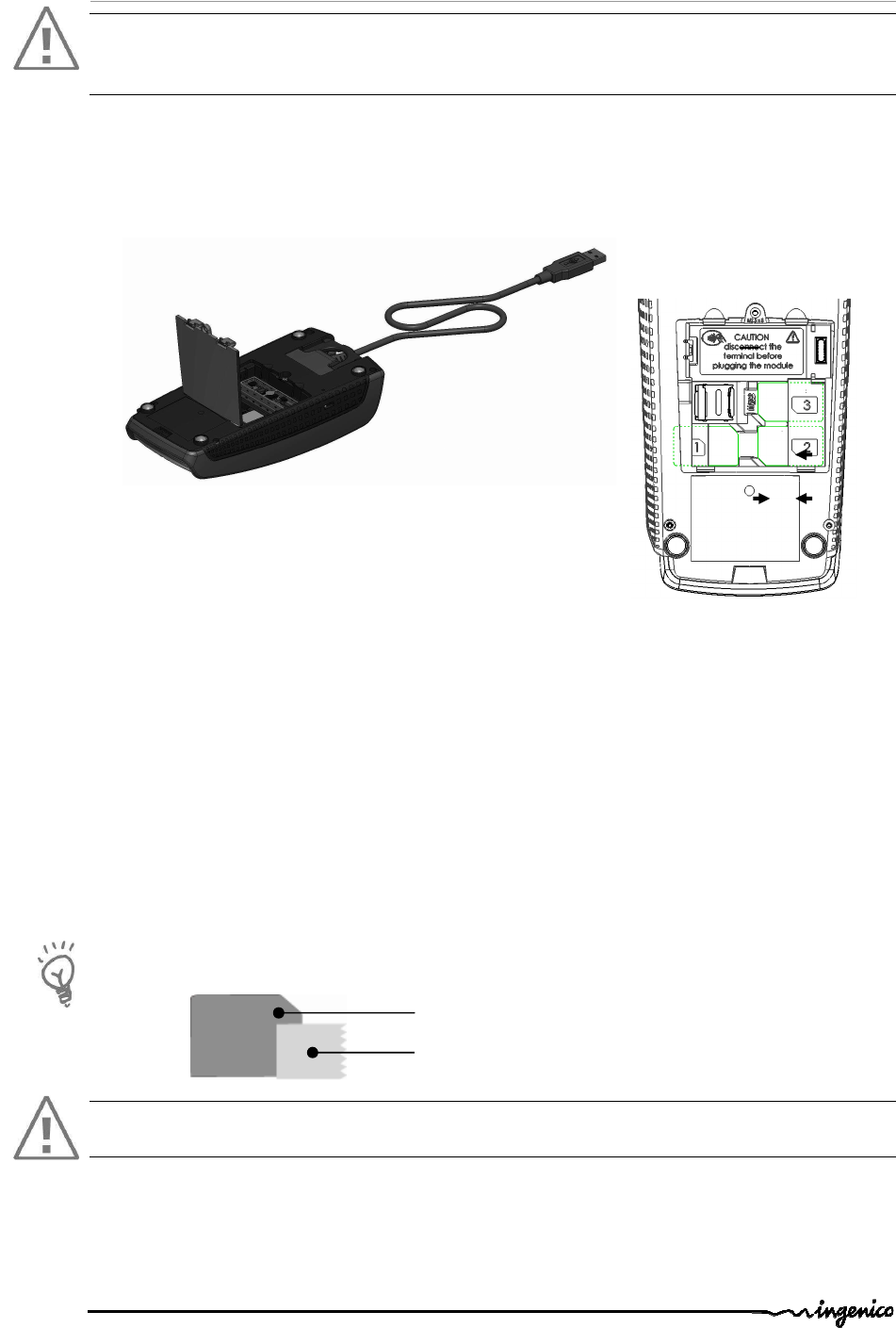

In order to access the SAM card you must first remove the SAM compartment
cover located at the back of your terminal.
• Press the two clips of the cover and open the cover.

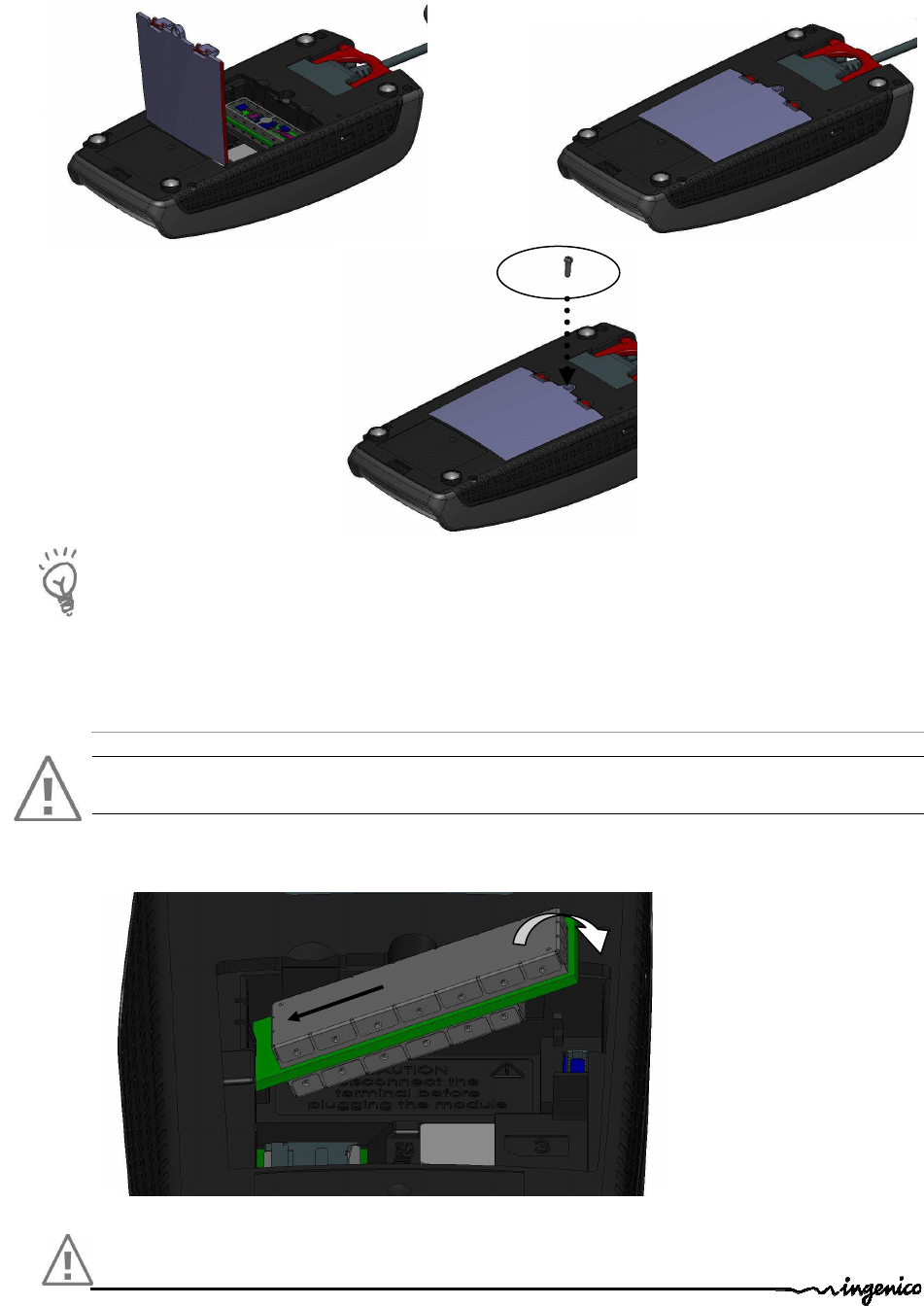

• Insert completely the MicroSD Card into the slot marked (MicroSD) as
indicated on the figure.
Take care to ensure that the MicroSD Card is inserted in the correct
manner.
• Insert the SAM Card into the slot marked (1),(2) or (3). Take care to
ensure that the SAM Card is inserted in the correct manner. The cut
corner must be positioned as indicated on the figure.
• To remove SAM card, we suggest you to use a piece of adhesive
previously pasted on both sides of the SAM as shown here below
CAUTION:
Do not use any tools when installing or removing the SAM Card.
SAM
Cut corner
Adhesive
Product name: IPP3x0-01Txxxxx • 11/17
Copyright © 2010 Ingenico
900001663 R11 000 01
All rights reserved
Replace the cover as illustrated by the procedure below:
SAM door is able to be fixed with one M2.5x8 screw (not included in the
package)
4.4. Installing contact less module
CAUTION:
Before starting, switch off the terminal by disconnecting the power supply.
• Open the cover as indicated at chapter 4.3
Product name: IPP3x0-01Txxxxx • 12/17
Copyright © 2010 Ingenico
900001663 R11 000 01
All rights reserved
Do not force at the insertion.
Product name: IPP3x0-01Txxxxx • 13/17
Copyright © 2010 Ingenico
900001663 R11 000 01
All rights reserved
5. Daily use

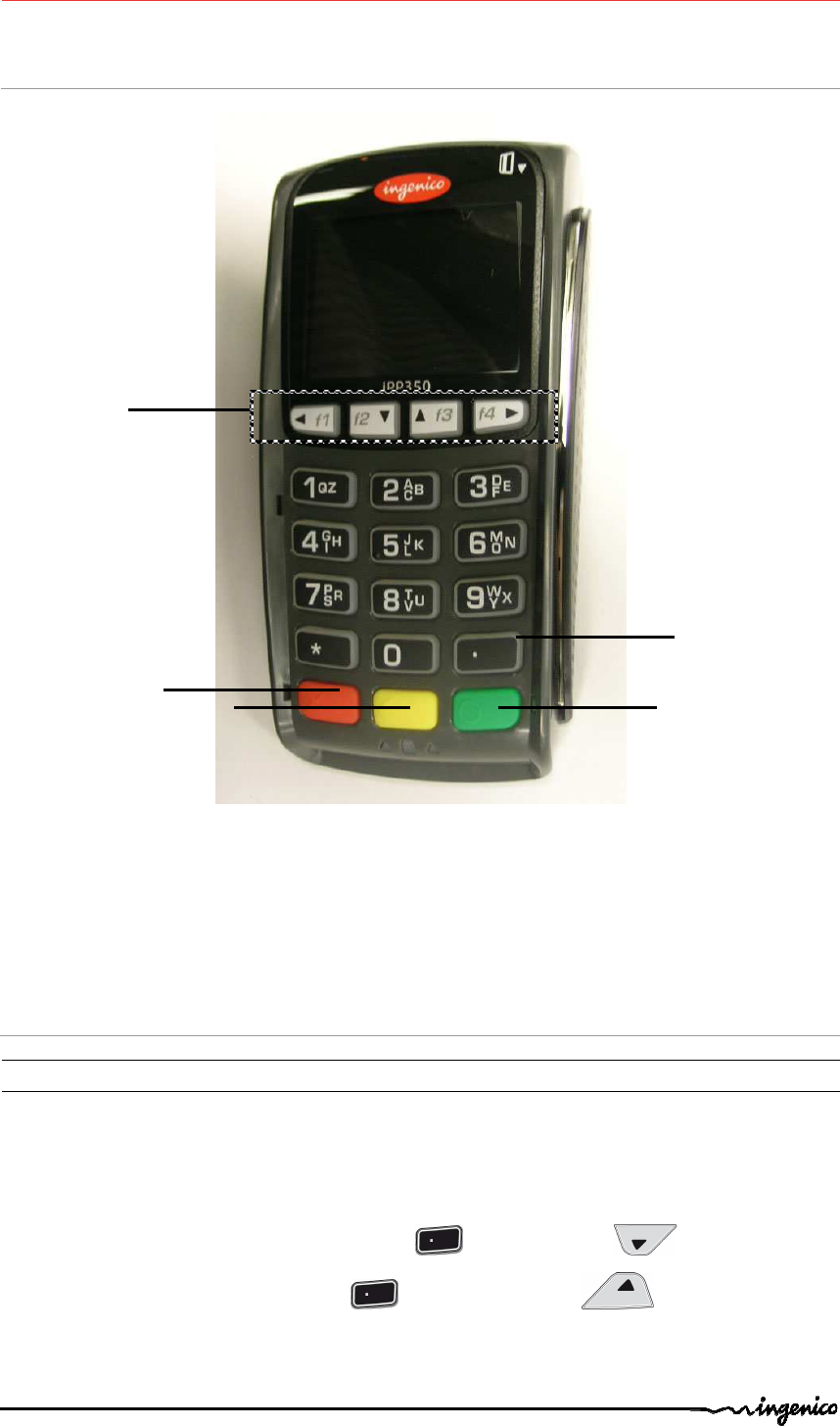

5.1. Keypad functions
1
NAVIGATION keys in the menus – Interactive keys for use between the screen
2
CANCEL key (red)
3
CLEAR key (yellow)
4
VALIDATION key (green)
5
Dot Key
5.2. Adjusting the contrast
No contrast management for the Color display
The screen of your chart is 128 x 64 pixels, illuminated with white light.
If you wish to increase or to decrease the contrast of the characters displayed
on screen, press simultaneously on the (dot key) and key in order to
decrease the contrast, or the (dot key) and key in order to
increase.
1
4
2 3
5
Product name: IPP3x0-01Txxxxx • 14/17
Copyright © 2010 Ingenico
900001663 R11 000 01
All rights reserved
Keep pressing the keys as long as necessary.
5.3. Card insertion
5.3.1. Swiping a card

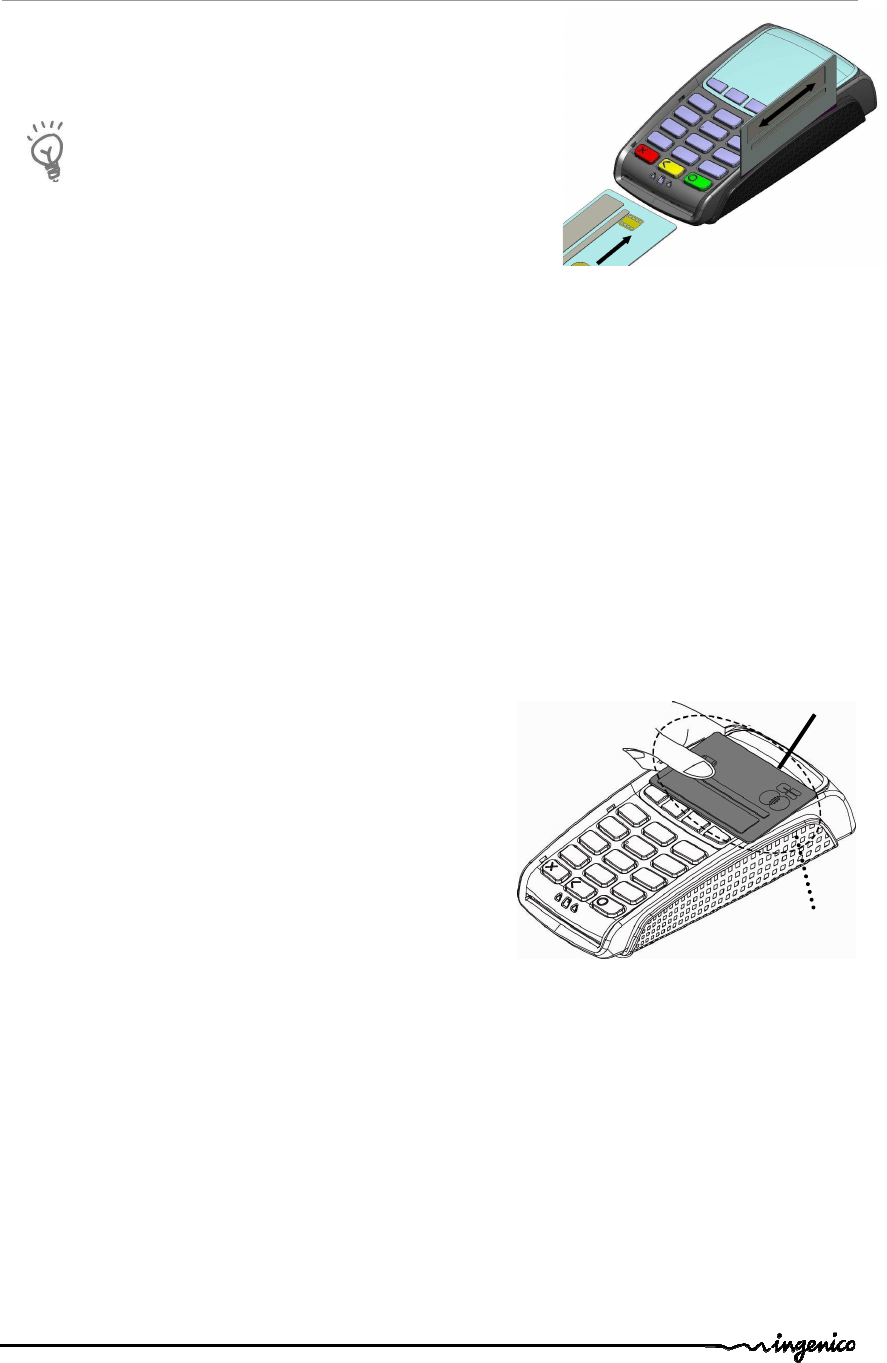

• Insert the card manually in the driver, magstripe-facing right.
Swipe the card with constant speed, not too slow
not too fast, to maximize the reading and
avoid annoying repetitions.
5.3.2. Inserting a chip card
• Chip Cards should be inserted into your terminal as illustrated with the
chip facing up and into the card reader
5.3.3. Reading Contactless (Optional)
• Bring the card firmly up to the active zone above the display (at about
1cm). Keep the card close to the display during the transaction
Your contactless terminal has a row of four status lights that are visible on
display.
• When a contactless transaction is started the first (left hand) status light
will be lit steadily; this indicates that the contactless display is in use but a
card is not being read.
• When a contactless card is presented to the contactless active zone
during a transaction the second, third and fourth status lights will be lit in
turn. The card read is successful when all four status lights are lit and the
confirmation tone is heard.
Green
lights
Contactles
s
Active
Product name: IPP3x0-01Txxxxx • 15/17
Copyright © 2010 Ingenico
900001663 R11 000 01
All rights reserved
6. Maintenance
ATTENTION
Before making any operations of maintenance in the terminal, make sure that
power supply is disconnected.
Cleaning of the terminal
First of all, unplug all the wires from the terminal.
Good rules for proper cleaning of the terminal are:
• Use a soft cloth that is very slightly soaked with soapy water to clean the
outside of the terminal.
• Do not clean the electrical connections.
• Do not use in any case, solvents, detergents or abrasive products:
Those materials might damage the plastic or electrical contacts.
• Avoid exposing the terminal to the direct rays of the sun.
• Do not put anything into the slot of the smart card reader
6.1. Transport and storage
• Use the original packaging for any unit or stored.
•
Disconnect all cables from the terminal during the transport.
6.2. Troubleshooting
The terminal does not turn on or does not connect to the telephone line
• Check the power supply and telephone line cables
• Check for electrical power network
The terminal fails to establish a telephone connection
• Check that the tone of the phone line is free
• Check the configuration of the phone line and number to call
• Get support from technical
Cards are not read
• Check that the magnetic card is passed correctly (with magnetic band
directed to the interior of the terminal)
• Swipe again the card with the magnetic stripe movement constant and
rapid
• Verify that the magnetic strip is not damaged, grooved or cracked
• Make sure you have inserted correctly the smart card into the smart card
reader and removed the card only after the transaction
The ticket is not printed
• Check the presence and proper positioning of the paper roll.
Possibly adjust the paper roll following instructions present in this manual
• Check the type of paper used (thermal paper must be used)
Product name: IPP3x0-01Txxxxx • 16/17
Copyright © 2010 Ingenico
900001663 R11 000 01
All rights reserved
6.3. End of life
The product belongs to the family of electrical and electronic equipment.
Therefore, it is subjected to the WEEE directive which requires the collection and
the recycling at the end of life product.
The Ingenico products present the symbol for the marking of electrical and
electronic equipment as required by the WEEE Directive.
The crossed-out wheeled bin printed on the product gives the
information about the requirement not to dispose of WEEE as unsorted
municipal waste and to collect such WEEE separately.
To assure that the product is collected and recycled with respect to the
environment, you must contact your supplier (in defect, contact the Ingenico
local office or the commercial head office in charge of your country on
www.ingenico.com, « contact us » page).
The abandonment or uncontrolled disposal of waste can cause harm to
environment and to human health. So, by recycling your product in a
responsible manner, you contribute to the preservation of natural resources and
to the protection of human health.
Product name: IPP3x0-01Txxxxx • 17/17
Copyright © 2010 Ingenico
900001663 R11 000 01
All rights reserved
Ingenico
192 avenue Charles de Gaulle
92200 Neuilly sur Seine - France
Tél.: + 33 1 46 25 82 00 - Fax: + 33 1 47 72 56 95
www.ingenico.com
Ingenico
192 avenue Charles de Gaulle
92200 Neuilly sur Seine - France
Tél.: + 33 1 46 25 82 00 - Fax: + 33 1 47 72
56 95
www.ingenico.com
Your contact
296108011
AB
“This Document is Copyright © 2010 by INGENICO Group. INGENICO retains full
copyright ownership, rights and protection in all material contained in this document.
The recipient can receive this document on the condition that he will keep the
document confidential and will not use its contents in any form or by any means,
except as agreed beforehand, without the prior written permission of INGENICO.
Moreover, nobody is authorized to place this document at the disposal of any third
party without the prior written permission of INGENICO. If such permission is granted, it
will be subject to the condition that the recipient ensures that any other recipient of this
document, or information contained therein, is held responsible to INGENICO for the
confidentiality of that information.
Care has been taken to ensure that the content of this document is as accurate as
possible. INGENICO however declines any responsibility for inaccurate, incomplete or
outdated information. The contents of this document may change from time to time
without prior notice, and do not create, specify, modify or replace any new or prior
contractual obligations agreed upon in writing between INGENICO and the user.
INGENICO is not responsible for any use of this device, which would be non consistent
with the present document.
