iST150 INSTALLATION GUIDE

Safety instruction

Power supply network: To switch off the iST150, disconnect first the link to the host and

then the power adapter (if there is one) from the power supply network

For Pluggable Equipment Type A, the protection in the installation is assumed to be 20A.

Only power adapter supplied by Ingenico must be used.

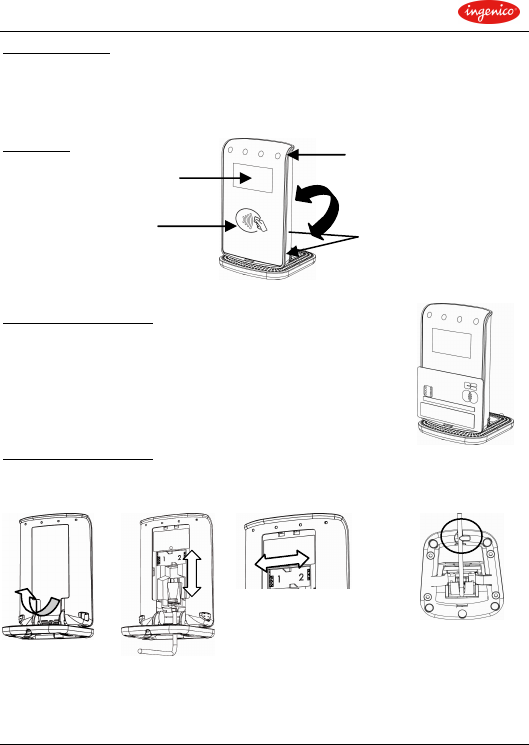

Installation

Push the two buttons on each side at the same time and adjust the angle.

Reading card Contactless

Keep the card firmly up to the active area. Keep the card

motionless to the target during the transaction.

Installing SAM and cable

Before starting, switch off the terminal by (see safety instruction).

In order to access the SAM card you must first remove the cover located at the back:

Press the clip

of the cover

and lift the

cover

Hang on the

connector

Insert the SAM into the

slot market (1), (2).

Take care to ensure

that the SAM Card is

inserted in the correct

manner. The cut corner

must be positioned as

indicated on the

picture.

To position the cable

put it in the slot then

proceed in reverse

order.

Your contactless terminal has a row of four status lights

that are visible from the front and back side.

Graphic display

Contactless

active area

Contactless lights

on both side

Angle position

buttons

iST150 INSTALLATION GUIDE

Physical characteristics: Weight (without cable) About 150g

Dimensions 83x 27 x124 mm (lxWxH)

Removable cable

Operating conditions: Temperature +5°C to +40°C

Maximum relative humidity 85% RH at +40°C

Storage conditions: Temperature -20°C to +55°C

Maximum relative humidity 85% RH at +55°C

Maximum consumption: 400mA at +5V, 300mA at +8V to +12V

Power Supply Voltage is a SELV circuits (Safety Extra Low Voltage, according to safety

standard IEC 60950-1). The power supply has to be in compliance with §2.5 (Limited

power source) of the standard IEC 60950-1

iST150 INSTALLATION GUIDE

FCC Statement

FCC standard compliance marking certifies that the product stipulated below:

iST150-00TXXXXX conforms to the following harmonized standards :

– part 15 subpart B of the FCC rules

This class (B) digital apparatus complies with Canadian ICES-003.

FCC: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help

CAUTION: The user is cautioned that any changes or modifications not

approved by

INGENICO could void user’s authority to operate the equipment

RSS-Gen Clause 7.1.2 statement

"Under Industry Canada regulations, this radio transmitter may only operate using an

antenna of a type and maximum (or lesser) gain approved for the transmitter by

Industry Canada. To reduce potential radio interference to other users, the antenna type

and its gain should be so chosen that the equivalent isotropically radiated power

(e.i.r.p.) is not more than that necessary for successful communication."

"Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut

fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé

iST150 INSTALLATION GUIDE

pour

l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage

radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et

son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse

pas l'intensité nécessaire à l'établissement d'une communication satisfaisante."

RSS-Gen Clause 7.1.3 statement

"This device complies with Industry Canada licence-exempt RSS standard(s). Operation

is subject to the following two conditions: (1) this device may not cause interference,

and (2) this device must accept any interference, including interference that may cause

undesired operation of the device."

"Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils

radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)

l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter

tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en

compromettre le fonctionnement."

End-of-life

The product belongs to the family of electrical and electronic equipment.

Therefore, it is subjected to the WEEE directive which requires the collection

and the recycling at the end of life product. The Ingenico products present the

symbol for the marking of electrical and electronic equipment as required by

the WEEE Directive. The crossed-out wheeled bin printed on the product gives

the information about the requirement not to dispose of WEEE as unsorted municipal

waste and to collect such WEEE separately. To assure that the product is collected and

recycled with respect to the environment, you must contact your supplier (in defect,

contact the Ingenico local office or the commercial head office in charge of your country

on www.ingenico.com, « contact us » page). The abandonment or uncontrolled disposal

of waste can cause harm to environment and to human health. So, by recycling your

product in a responsible manner, you contribute to the preservation of natural resources

and to the protection of human health.
