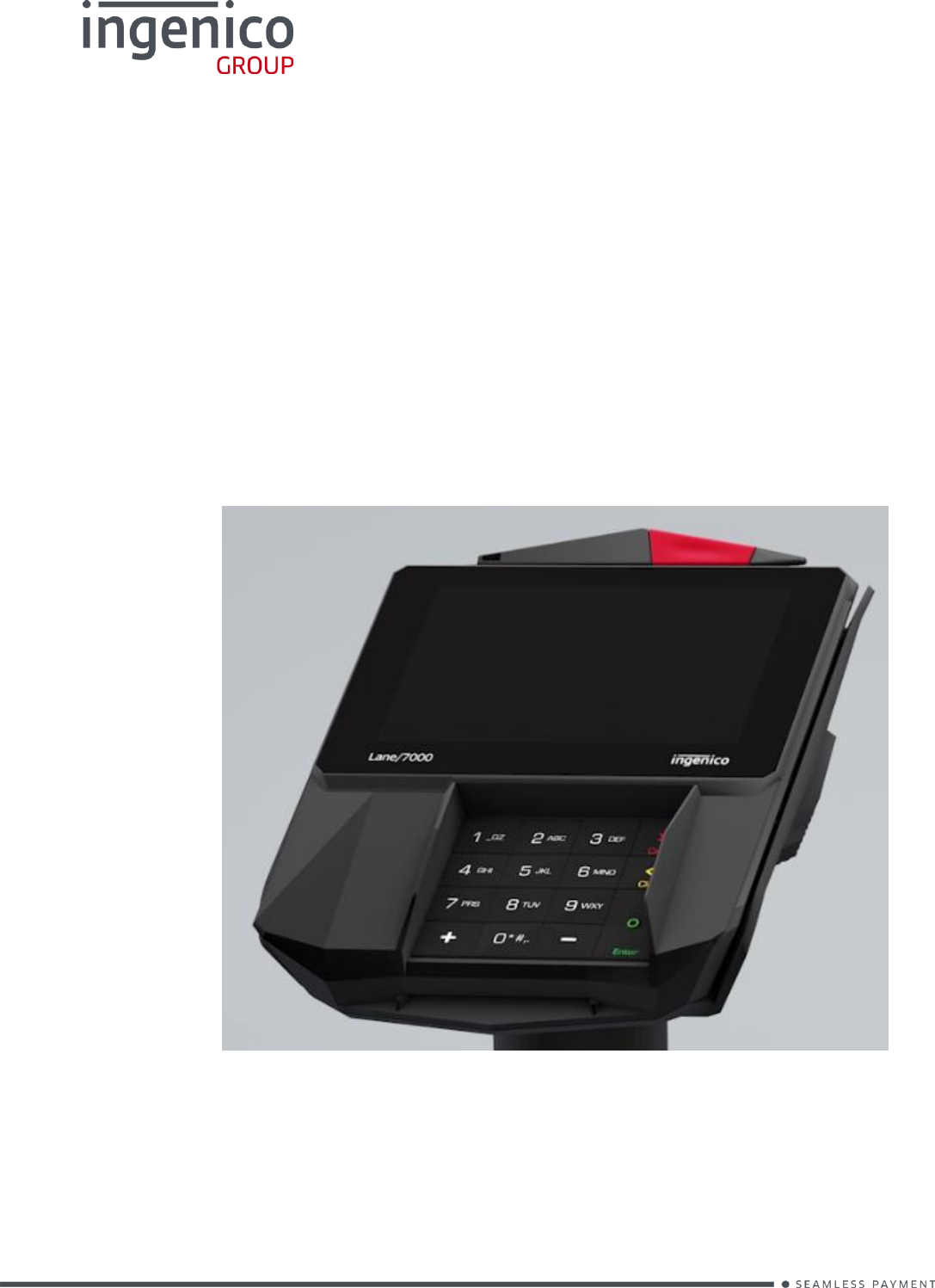

Lane/7000

User Guide

90002783 R11 000 01

2/28 Lane/7000 / 90002783 R11 000 01

Contents

1_ Introduction ...................................................................................... 4

2_ Unpacking ........................................................................................ 5

3_ Recommendations ........................................................................... 6

3_1 Safety ............................................................................................................. 6

3_2 Security of your terminal (tampering attempt detection) ................................. 7

3_3 Main Characteristics ...................................................................................... 9

3_3_1 Terminal.......................................................................................................................... 9

3_3_2 Power characteristics ................................................................................................... 10

3_3_3 Lane/7000 Power values in different modes ................................................................ 11

3_4 Functional description .................................................................................. 12

3_5 Installation & Connections............................................................................ 13

3_5_1 Positioning the terminal ................................................................................................ 13

3_5_2 Inserting SAM (Secure access module) and Micro SD ................................................ 13

3_5_3 Connecting the terminal to the host ............................................................................. 15

3_5_4 Setting the Lane/7000 on the standpole adaptor ......................................................... 16

4_ Daily use ......................................................................................... 18

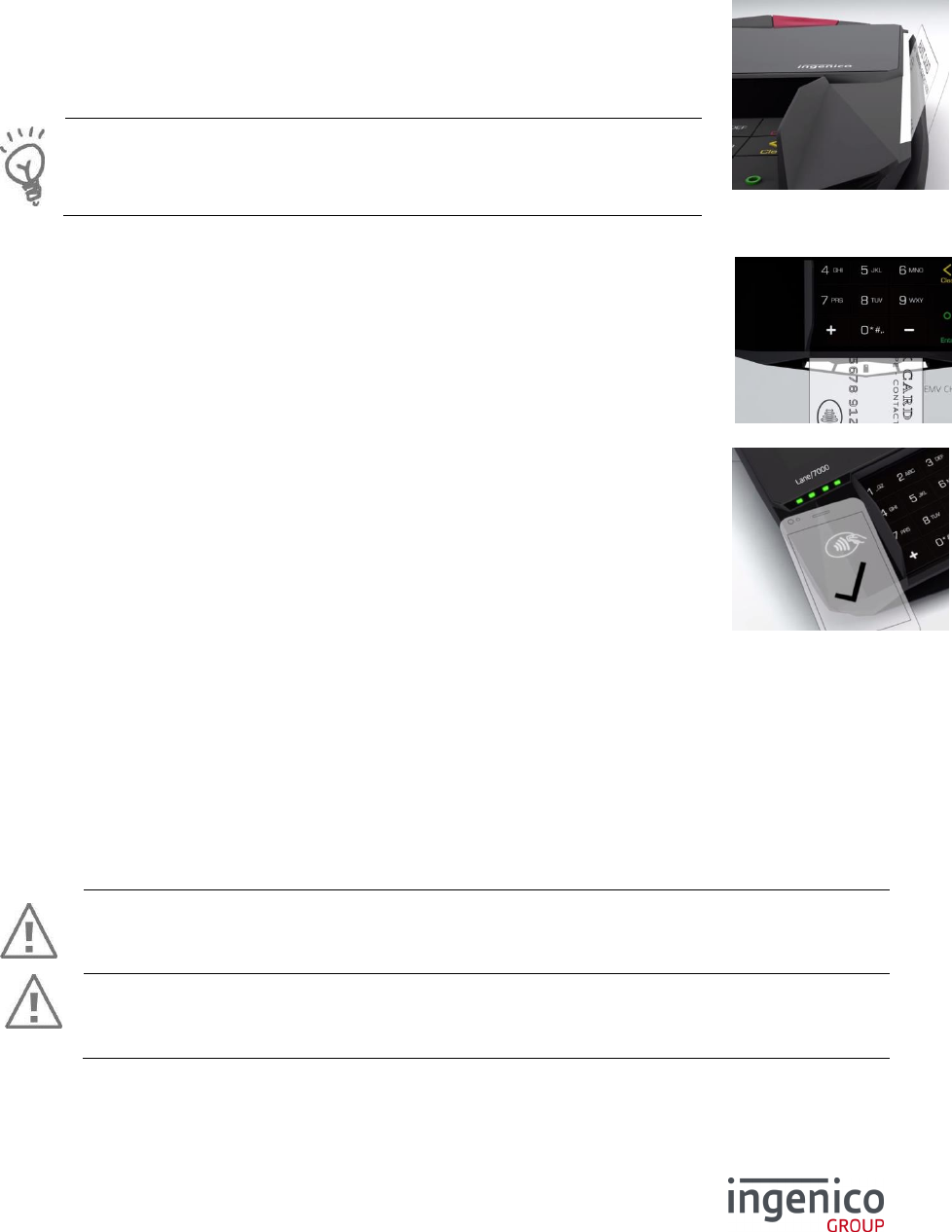

4_1 Card reading ................................................................................................ 18

4_1_1 Swiping a card .............................................................................................................. 18

4_1_2 Inserting a smart card ................................................................................................... 18

4_1_3 Reading a contactless card .......................................................................................... 18

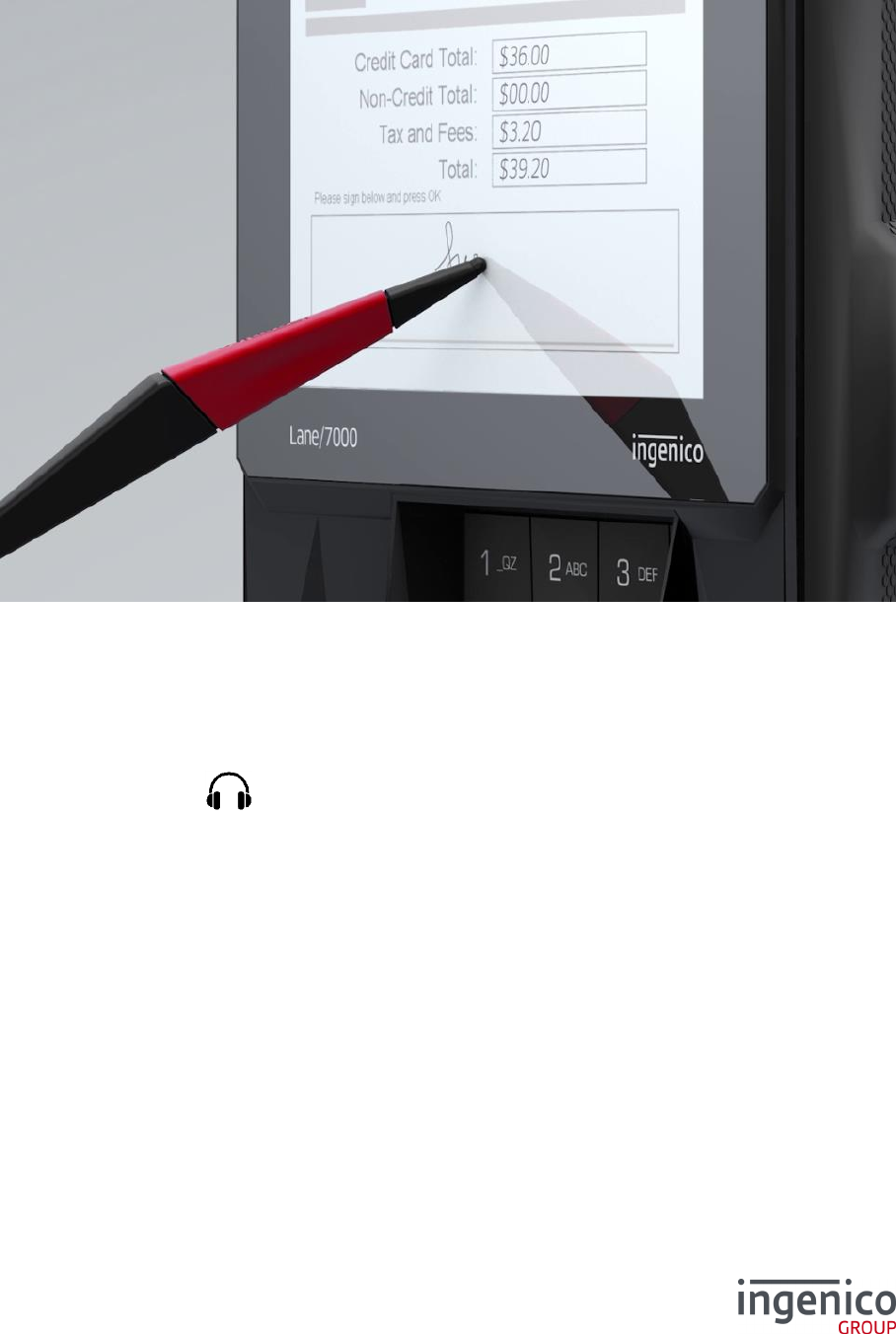

4_2 Signature capture ......................................................................................... 19

4_3 Audio ............................................................................................................ 19

5_ Maintenance ................................................................................... 20

5_1 Cleaning ....................................................................................................... 20

5_1_1 Cleaning of the terminal ............................................................................................... 20

5_1_2 Entretien du terminal .................................................................................................... 20

5_1_3 Wartung von Endgeräten ............................................................................................. 20

5_2 Transport and storage .................................................................................. 21

5_3 Troubleshooting ........................................................................................... 21

3/28 Lane/7000 / 90002783 R11 000 01

6_ Cables ............................................................................................. 22

7_ Norms & Marking ........................................................................... 24

7_1 Federal Communications Commission (FCC) Statement ............................ 24

7_2 Industry Canada (IC) Statement. ................................................................. 24

7_3 Environment (WEEE, Batteries and Packaging) .......................................... 25

7_4 Marking ........................................................................................................ 25

4/28 Lane/7000 / 90002783 R11 000 01

1_Introduction

Thank you for choosing an Ingenico payment terminal.

We recommend you to read carefully this user guide: it gives you the necessary information about

safety precautions, unpacking, installation and maintenance of your terminal.

WARRANTY / SECURITY

To benefit from the guarantee-related product, and to respect the security, we ask you to

use only the power supply delivered in box with the product, entrusting maintenance

operations only to an authorized person.

Failure to comply with these instructions will void the manufacturer’s responsibility.

This symbol indicates an important Warning.

This symbol indicates a piece of advice.

5/28 Lane/7000 / 90002783 R11 000 01

2_Unpacking

According to the model, the following items are included in the packaging box (including optional

accessories):

 The terminal

The box may also include the following items depending on your working configuration:

 An installation guide

 Cable (specific to connectivity requirements)

 Power supply unit and power cord

 A stylus

 Modules

 Screws to fix the main cable and the module

CAUTION

The power supply unit provided with your equipment is specially designed for it. Do not use

any other power supply.

ADVICE

Keep the packaging. It must be re-used whenever the terminal is shipped.

6/28 Lane/7000 / 90002783 R11 000 01

3_Recommendations

3_1 Safety

Power on/Power down – Emergency stop

To power on or power down the terminal, connect or disconnect the power supply from the electric

outlet.

Power supply unit

CAUTION

Only use the power supply AC/DC provided with Lane/7000 or the power provided by a cash

Authorized power supply units:

Desktop Power Supply units have to be connected to the mains with one of these cables:

- Power cord 189609046 (EU)

- Power cord 188413214 (US)

CAUTION

Lithium battery cell

The terminal is fitted with a lithium battery cell which is not accessible to the user. Only a

qualified technician is authorized to open the unit and change this component.

Risk of explosion if the battery is replaced by an incorrect type. Dispose of used battery

according to the instructions.

Electrical power supply network

The electrical outlet must meet the following criteria:

 Must be installed near the equipment and easily accessible;

 Must meet standards and regulations in the country of use.

Explosion areas

Certain regulations restrict the use of radio equipment in chemical plants, fuel depots and any site

where blasting is carried out. You are urged to comply with these regulations. The terminal shall be

protected by a specially fitted and certified cover enabling use in proximity to a fuel pump.

Connection of headset on audio jack

Power Supply Unit Supplier

Type

Supplier reference

Electrical

characteristics

Ingenico

part number

PHIHONG TECHNOLOGY

Co. Ltd

Desktop

PSM24W-080L6IN-R

8VDC 3A

Level VI

296198809

PHIHONG TECHNOLOGY

Co. Ltd

Wallplug

PSC16E-080L6IN-R

PSC16A-080L6IN-R

8VDC 2A

Level VI

296199611

296196003

7/28 Lane/7000 / 90002783 R11 000 01

CAUTION

An excessive acoustic pressure of headset can involve deafness!

3_2 Security of your terminal (tampering attempt detection)

Your device fulfils current applicable PCI PTS security requirements.

Upon receipt of your terminal you should check for signs of tampering of the equipment. It is strongly

advised that these checks are performed regularly after receipt. You should check, for example: that

the keypad is firmly in place; that there is no evidence of unusual wires that have been connected to

any ports on your terminal or associated equipment, the chip card reader or any other part of your

terminal. Such checks would provide warning of any unauthorised modifications to your terminal, and

other suspicious behaviour of individuals that have access to your terminal.

Your terminal detects any “tampered state”. In this state the terminal will repeatedly flash the

message” Alert Irruption!” and further use of the terminal will not be possible. If you observe the “Alert

Irruption!” message, you should contact the terminal helpdesk immediately.

You are strongly advised to ensure that privileged access to your terminal is only granted to staff that

have been independently verified as being trustworthy.

The terminal must never be put in or left at a location where it could be stolen or replaced by another

device.

WARNING

If the warranty label is torn or removed, the warranty will be void.

CAUTION

Positioning of the Lane/7000 on check stand must be in such a way to make cardholder PIN

(Personal Identification Number) spying infeasible.

Installing device on an adjustable stand must be in such a way that consumers can swivel

the terminal sideways and/or tilt it forwards/backwards to a position that makes visual

observation of the PIN-entry process difficult.

Positioning of in-store security cameras such that the PIN-entry keypad is not visible.

NEVER ask the customer to divulge their PIN Code. Customers should be advised to

ensure that they are not being overlooked when entering their PIN Code.

Warranty label

(on the bottom side of

the terminal)

8/28 Lane/7000 / 90002783 R11 000 01

CAUTION

This equipment may not be modified, altered or changed in any way without signed written

permission from Ingenico

9/28 Lane/7000 / 90002783 R11 000 01

3_3 Main Characteristics

3_3_1 Terminal

Weight

(Poids, Gewicht)

583g (20.56 oz)

Size

(dimensions, Maße)

181 (L) x 152 (W) x 35.2 (H) mm

Display

5” backlit LCD, WVGA (800 x 480 pixels)

Touchscreen

Capacitive

Operating conditions

Ambient temperature

from 0°C to +45°C

Max relative humidity

85% RH non-condensing at +40°C

Max altitude

2000 m

Storage conditions

Storage temperature

-20°C, +55°C

Max relative humidity

85% at +55°C

10/28 Lane/7000 / 90002783 R11 000 01

3_3_2 Power characteristics

Power supply units

The Lane/7000 can be powered by several ways:

 An external power supply unit

 By POE (Power over Ethernet)

 By USB (5VDC or 12VDC)

The characteristics for each type of power supply are detailed hereafter.

Power supply unit

296198809

296199611

296196003

Model Name

PSM24W-080L6IN-R

PSC16E-080L6IN-R

PSC16A-080L6IN-R

Weight

243 g (8.57 oz)

160g (5.6 oz)

Size (l x w x h)

120 x 50 x 31 mm

74 x 35 x 46.2 mm

Class

Level VI

Input voltage

AC 100-240V 50-60Hz

Output voltage

DC 8V 3A

DC 8V 2A

WARNING

The power supply unit provided with your equipment is specially designed for this Ingenico terminal.

Do not use any other power supply. The use of a power supply with apparently similar voltage/current

characteristics may damage your terminal.

AVERTISSEMENT

Dans le cas où vous choisiriez d’utiliser un bloc alimentation, assurez-vous de n’utiliser que le bloc

d'alimentation qui a été conçu spécialement pour votre terminal. N'utilisez pas d'autre bloc

d'alimentation. L'emploi d'un bloc d'alimentation présentant des caractéristiques apparemment

similaires de tension/intensité peut endommager votre terminal.

WARNHINWEIS

Nur das Netzteil, das speziell für Ihr Gerät ausgelegt wurde, benutzen. Benutzen Sie kein anderes

Netzteil. Die Benutzung eines Netzgeräts mit scheinbar ähnlicher Spannung/Stromstärke kann zur

Beschädigung Ihres Terminals führen.

11/28 Lane/7000 / 90002783 R11 000 01

3_3_3 Lane/7000 Power values in different modes

Lane/7000 works at voltages between 8VDC and 12VDC.

Mode

Lane/7000 Power (W)

Idle mode - backlight OFF

Idle mode - backlight ON

3.7

Typical – smartcard and contactless in test - Backlight ON

Maximum (+2 Loads of 2.5W each)

POE (Power over Ethernet)

The power sourcing equipment must be compliant with IEEE802.3af standard, class 0 which means

12.95W max.

12/28 Lane/7000 / 90002783 R11 000 01

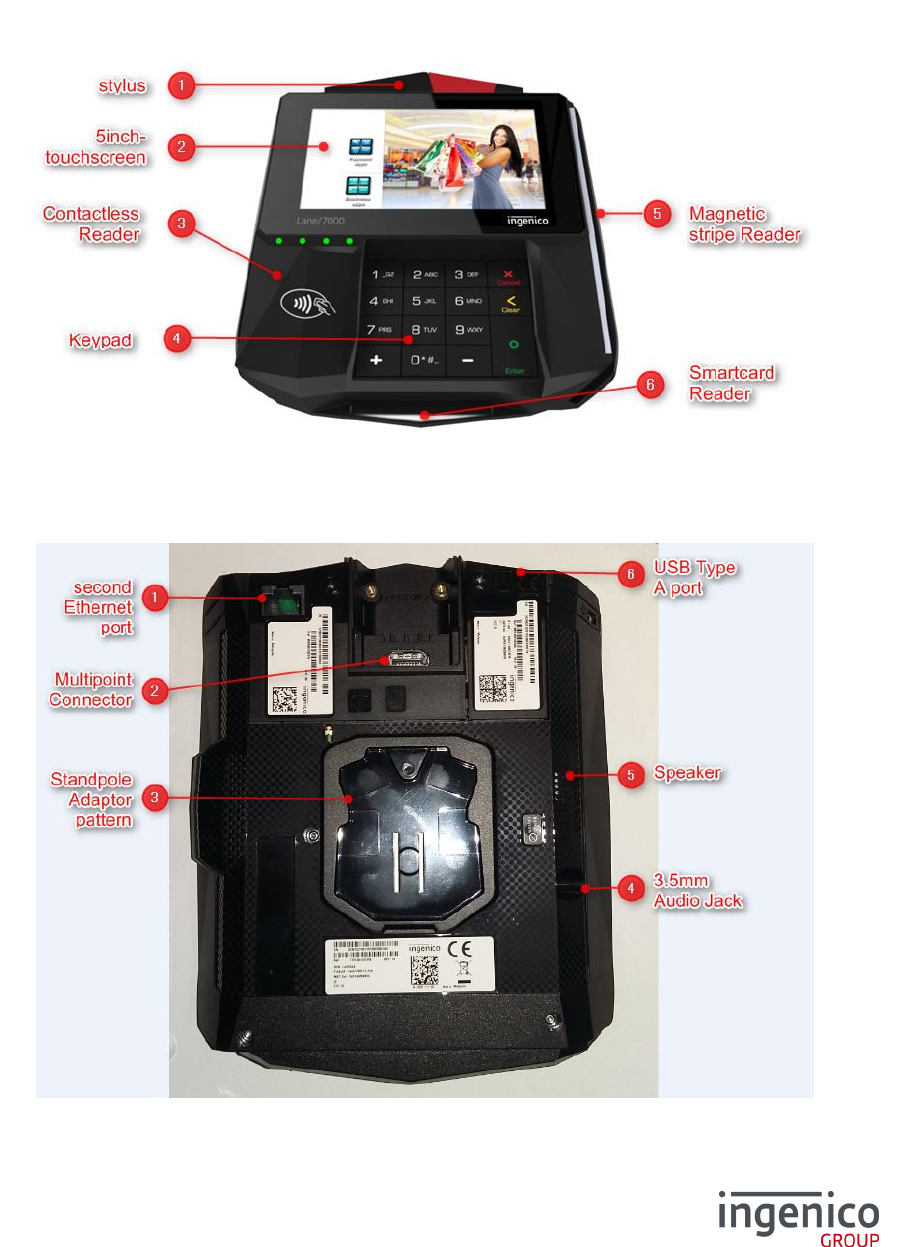

3_4 Functional description

13/28 Lane/7000 / 90002783 R11 000 01

3_5 Installation & Connections

3_5_1 Positioning the terminal

Place the terminal with an easy access to an electrical outlet. Place the terminal away from any heat

source and protected from dust, vibrations and electromagnetic radiations (away from video terminals,

PC, anti-shoplifting barriers ...). The terminal is exclusively made for indoor use.

The Lane/7000 device may be mounted on a flat surface, wall, or customer stand.

CAUTION

Do not place the Lane/7000 device on a PC monitor, adjacent to an electronically active

security tag deactivation system, or near other sources of magnetic fields.

The Lane/7000 device must be at least 30 centimeters (12 inches) away from an electronically active

type of security tag deactivation pad.

There are two types of security tag deactivation systems:

 An electronically active system sends out a powerful and potentially disruptive signal to deactivate

the security tag. If the Lane/7000 device is placed too close to the system’s pad, or placed above

the pad, the product may not work properly.

 A passive system is a permanent magnet type that does not send out a signal. This type should

not affect the Lane/7000 device.

3_5_2 Inserting SAM (Secure access module) and Micro SD

CAUTION

Before starting, switch off the terminal by disconnecting the power supply.

Perform the following operations:

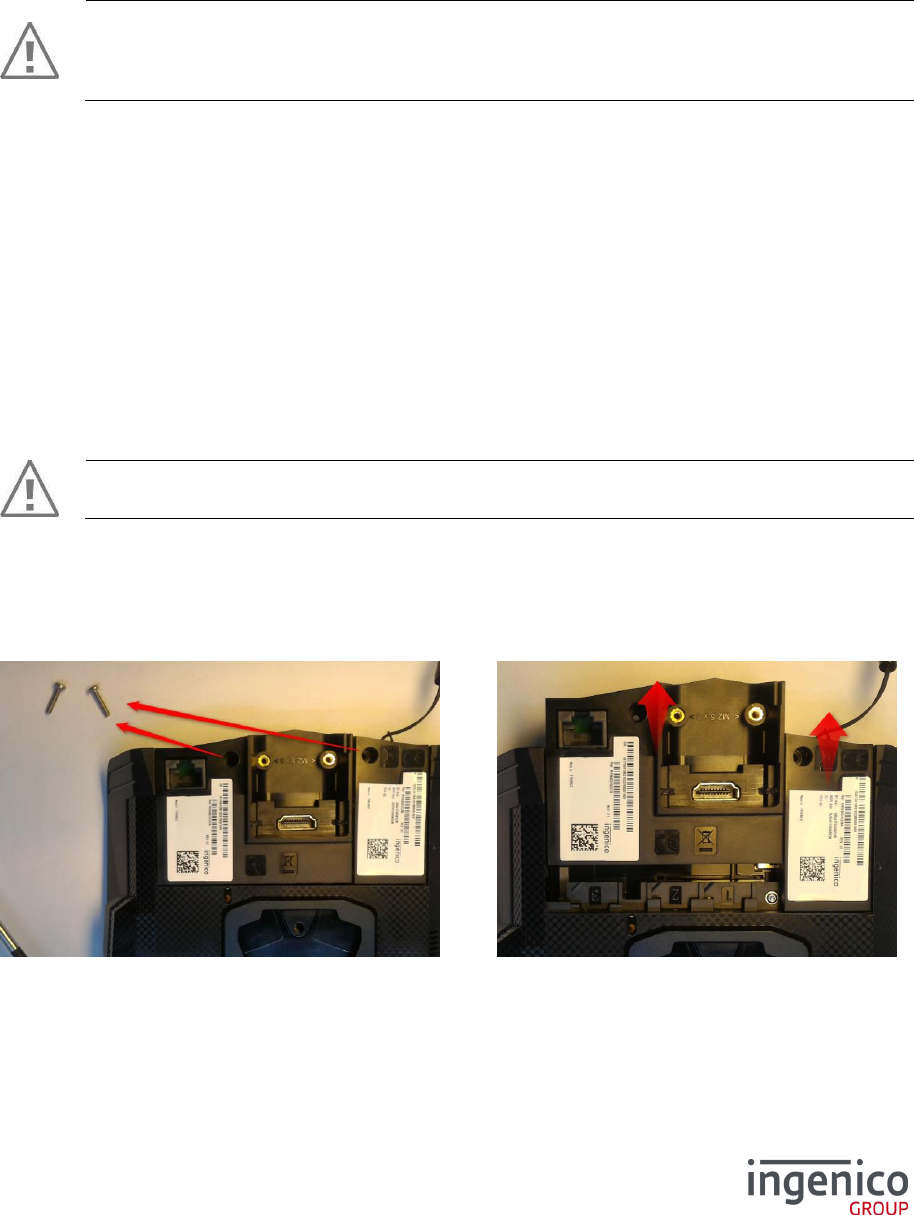

 Unscrew the modules and remove them both

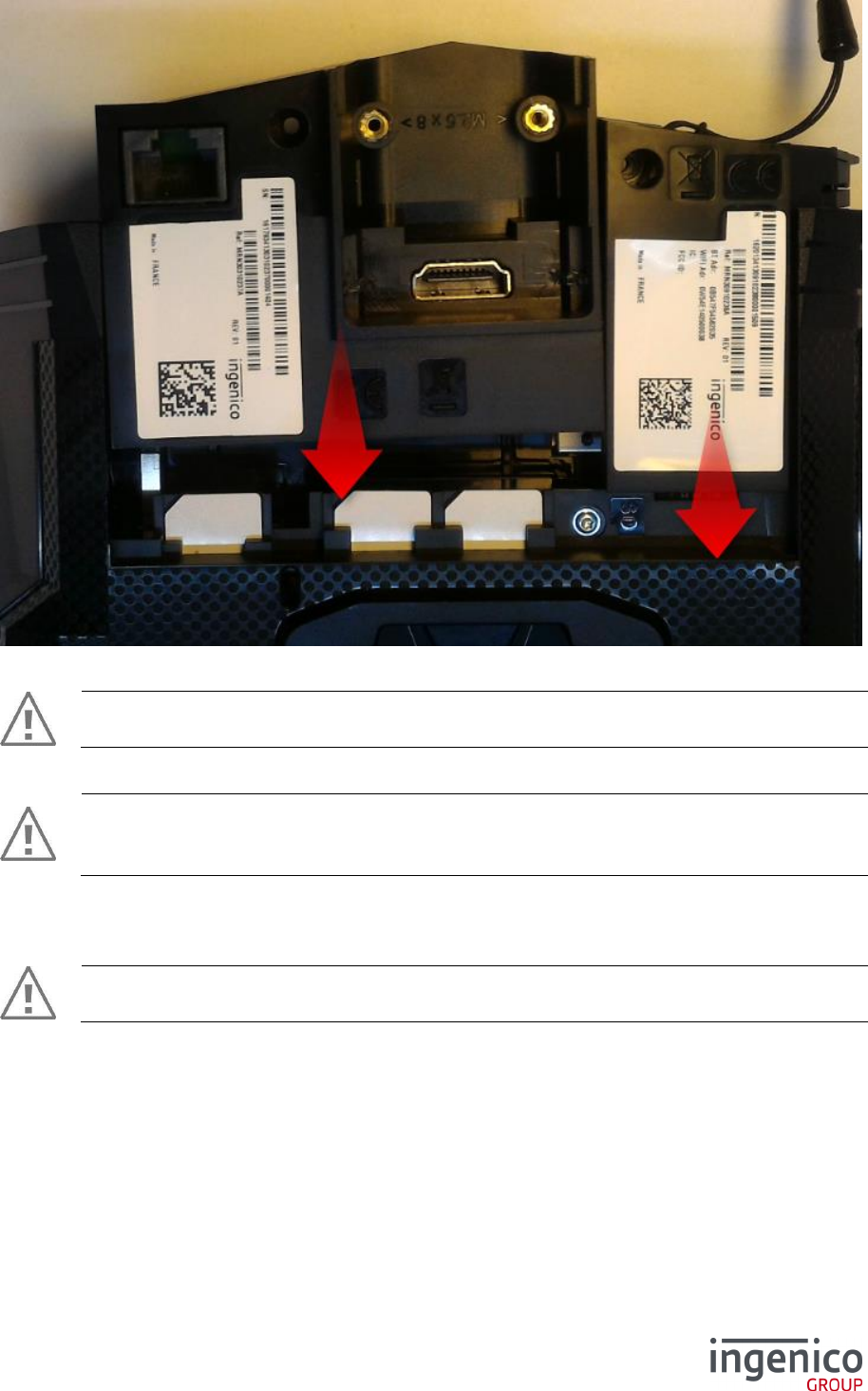

 Access to SAM and Micro SD is now possible.

14/28 Lane/7000 / 90002783 R11 000 01

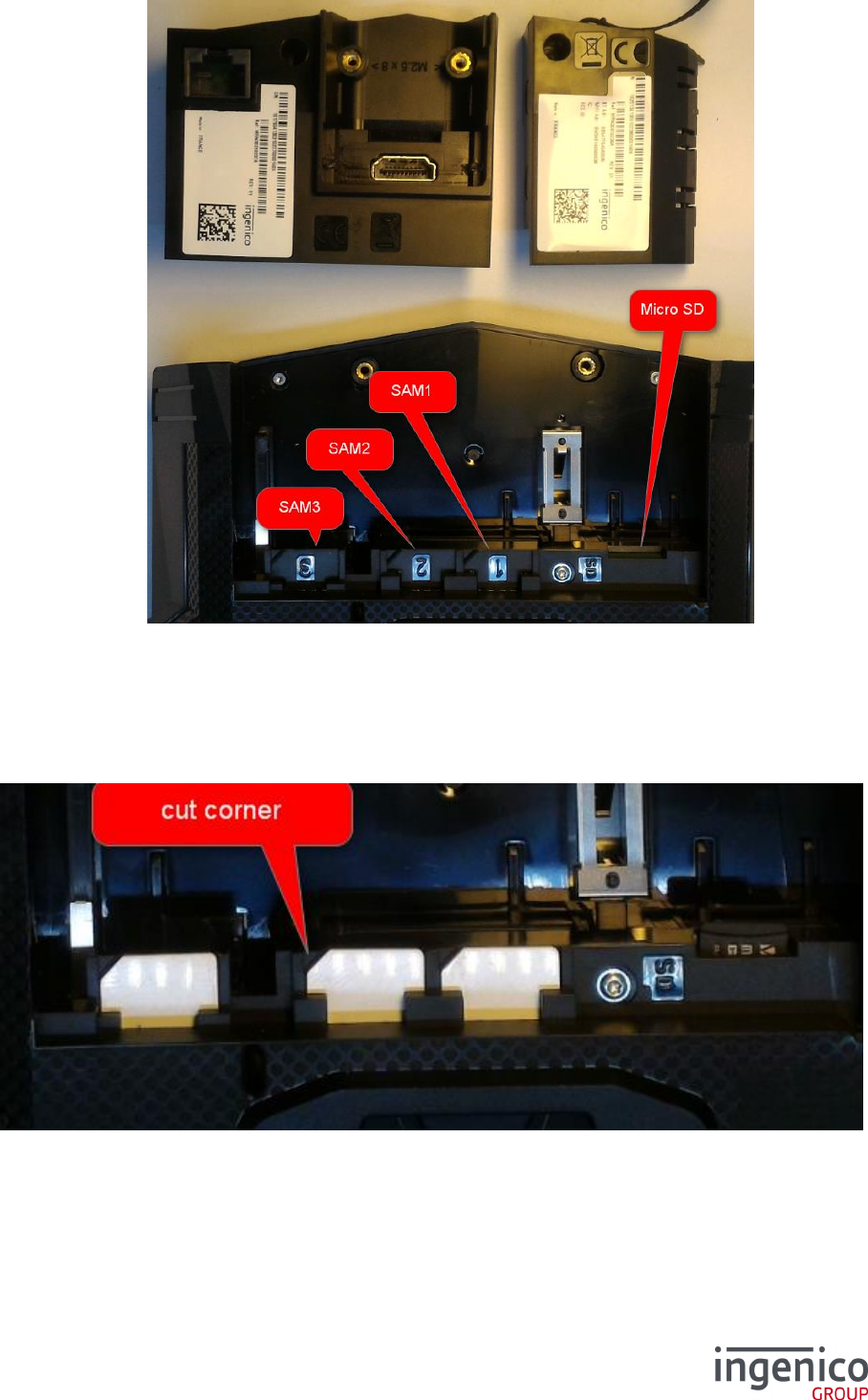

 Insert the SAM Card into the slot marked (1), (2) or (3). Take care to ensure that the SAM

Card is inserted in the correct manner. The cut corner must be positioned as indicated on the

figure below.

 Slide back the module and screw them tight

15/28 Lane/7000 / 90002783 R11 000 01

CAUTION

Do not use any tools when installing or removing the SAM Card or Micro SD.

WARNING

During this operation, it is necessary to be in an ESD protected environment. As this is not

very easy, it is recommended to make this operation using ESD shoes for example

3_5_3 Connecting the terminal to the host

CAUTION

Connecting must be made when power supply unit is not plugged in the cable.

16/28 Lane/7000 / 90002783 R11 000 01

 Flip the terminal. There is one port on the back for power and communications.

 Connect the cable on the terminal.

 Connect the other end to the power supply unit and a Host (PC / cash register…).

 Plug the power supply into the mains.

WARNING

The main port at the back must not be used to connect an HDMI video cable.

Only connect cables provided by Ingenico.

Note: 2 screws can be added (M2.5 x 8) to hold more firmly the cable.

3_5_4 Setting the Lane/7000 on the stand pole adaptor

Install the terminal on a flat surface is not possible on the Lane/7000 as is. It is designed to be fitted on

a stand pole adaptor.

A specific pattern by Ingenico has been developed to fit the lane/7000.

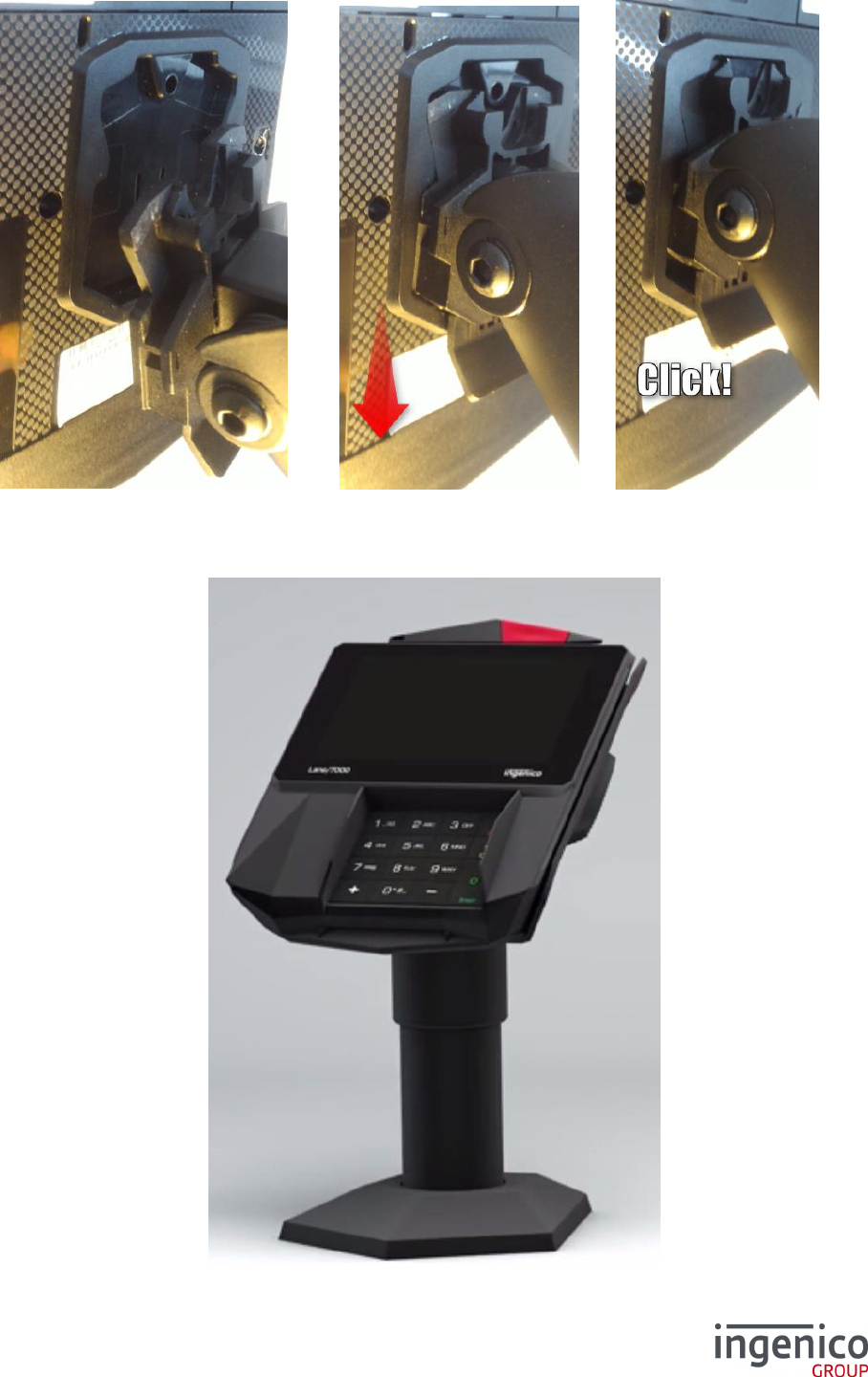

To fit the Lane/7000 to the stand pole adaptor, it only requires sliding down the Lane/7000 until a click

sound:

17/28 Lane/7000 / 90002783 R11 000 01

The Lane/7000 is now ready to use:

18/28 Lane/7000 / 90002783 R11 000 01

4_Daily use

4_1 Card reading

4_1_1 Swiping a card

 Insert the card manually in the reader, magnetic stripe facing the main

body of the terminal, and slide the card from the rear to the front in a

continuous motion for best results.

Swipe the card with constant speed, neither too slowly nor too fast,

to maximize the reading efficiency and avoid annoying repetitions.

4_1_2 Inserting a smart card

 Chip cards should be inserted into your terminal as illustrated with the chip

facing up and into the card reader.

4_1_3 Reading a contactless card

 Bring the card to the active zone above the contactless logo (at about

1cm).

 Keep the card close to the contactless logo during the transaction.

Your contactless terminal provides four contactless status lights located above the

contactless logo.

 When a contactless transaction is started the first (left hand) status light will be lit steadily; this

indicates that the contactless is in use but a card is not being read.

 When a contactless card is presented to the contactless active zone during a transaction the

second, third and fourth status lights will be lit in turn. The card read is successful when all

four status lights are lit and a confirmation tone can be heard.

CAUTION

Do not stick any label onto the contactless active zone. It can decrease seriously

contactless efficiency.

CAUTION

Avoid metallic parts around the contactless area.

19/28 Lane/7000 / 90002783 R11 000 01

4_2 Signature capture

 The signature capture is done with a stylus and a capacitive touchscreen

4_3 Audio

A speaker is available there is also an Audio jack. When a headset is plugged in, there is no more

sound from the speaker

 The audio jack is located next to the card reader.

 This option is not designed to play music, but to facilitate the use by blind people.

 The jack is 3.5mm, 32 ohms impedance.

20/28 Lane/7000 / 90002783 R11 000 01

5_Maintenance

5_1 Cleaning

5_1_1 Cleaning of the terminal

CAUTION

Before making any operations of maintenance in the terminal, make sure that the power

supply is disconnected.

First of all, unplug all the wires from the terminal.

Good rules for proper cleaning of the terminal are:

 Use Ingenico Cleaning kit: http://www.ingenico.cleaningcards.com/

 Do not clean the electrical connections.

 Do not use in any case, solvents, detergents or abrasive products:

o Those materials might damage the plastic or electrical contacts.

 Avoid exposing the terminal to the direct rays of the sun.

 Do not put anything into the slot of the smart card reader

5_1_2 Entretien du terminal

ATTENTION

Assurez-vous que tous les câbles sont bien débranchés du terminal avant toute intervention

de maintenance sur le terminal

Avant tout, débranchez tous les câbles du terminal.

Pour bien nettoyer le terminal :

 Utilisez les kits de nettoyage Ingenico : http://www.ingenico.cleaningcards.com/

 Ne nettoyez pas les connexions électriques.

 N'utilisez jamais de solvants, de détergents, d’alcool ou de produits abrasifs :

o Ces produits peuvent endommager le plastique ou les contacts électriques.

 Evitez d'exposer le terminal aux rayons directs du soleil.

 N'insérez rien dans la fente du lecteur de carte.

5_1_3 Wartung von Endgeräten

ACHTUNG

Stellen Sie vor jeglicher Wartungsarbeit an dem Terminal sicher, dass die Stromversorgung

unterbrochen ist

Als erstes alle Kabel vom Terminal trennen.

Regeln für eine ordnungsgemässe Reinigung des Terminals:

 Für die Außenseite des Terminals, Ingenico Cleaning kits benutzen:

http://www.ingenico.cleaningcards.com/

21/28 Lane/7000 / 90002783 R11 000 01

 Keine elektrischen Anschlüsse reinigen.

 Auf keinen Fall Lösungsmittel, Waschmittel oder Scheuermittel verwenden:

o diese Mittel können den Kunststoff oder elektrische Kontakte beschädigen.

 Das Terminal keiner direkten Sonneneinstrahlung aussetzen.

 Nichts in den Schlitz des Chipkartenlesers einführen.

CAUTION

Before making any operations of maintenance in the terminal, make sure that the power

supply is disconnected.

5_2 Transport and storage

 Use the original packaging for storage or returning the unit.

 Disconnect all cables from the terminal during the transport.

5_3 Troubleshooting

Device is not working

 Make sure that the Lane/7000 connector is fully inserted into the back of the device.

 Restart the device.

 If you have another working Lane/7000 device, swap the devices to determine if the problem

is with the device, cable, POS, or power supply.

 If the Lane/7000 device is directly connected to a host, reset the host by turning it off and back

on again.

Magnetic Card Reader Does Not Work Properly

 When sliding the card through the reader, make sure that the magnetic stripe on the card is

facing the Lane/7000 display screen (see Swiping a Magnetic Stripe Card).

 Swipe the card at a faster or middle steady speed.

 Inspect the magnetic stripe on the card to make sure it is not scratched or badly worn.

 Security tag deactivation system could disturb the magnetic card reader

 To determine if the problem is with the card:

a. If your host device has a magnetic stripe reader, try swiping the card there.

b. If you have another working Lane/7000 device, try swiping the card there.

Smart Card Reader Does Not Work Properly

 Make sure you have inserted correctly the smart card into the smart card reader and removed

the card only after the transaction

MicroSD Card Reader Does Not Work Properly

 Make sure you have inserted correctly the microSD card into the card reader.

 Check that the card capacity is not higher than 32GB.

Touchscreen / Signature Capture Does Not Work Properly

 Make sure you use the correct power supply.

 Replace the stylus

WARNING

Changes or modifications to this device not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

22/28 Lane/7000 / 90002783 R11 000 01

6_Cables

The terminal can be connected to the host by several ways, with optional cables:

 High speed USB device

 Ethernet

 RS232

Most of the cables used with iSC and iPP ranges are compatible with the Lane/7000.

We advise to check with your reseller their compatibility if you plan to replace an iSC480 / ISC250 /

ISC Touch 250 by a Lane/7000.

Following are some examples of accessories that can be used to connect the Lane/7000. This list is

not exhaustive. Please contact your reseller for more information.

 RS232 cable (optional)

 USB cable (optional)

References: 296111170AC (length 2m)

 USB powered 12V cable (optional)

USB connector

Connector

for terminal

Power supply unit

RS232 connector

Connector

for terminal

Power supply unit

Connector

for terminal

23/28 Lane/7000 / 90002783 R11 000 01

 Ethernet cable (optional)

Ethernet connector

Connector

for terminal

Power supply unit

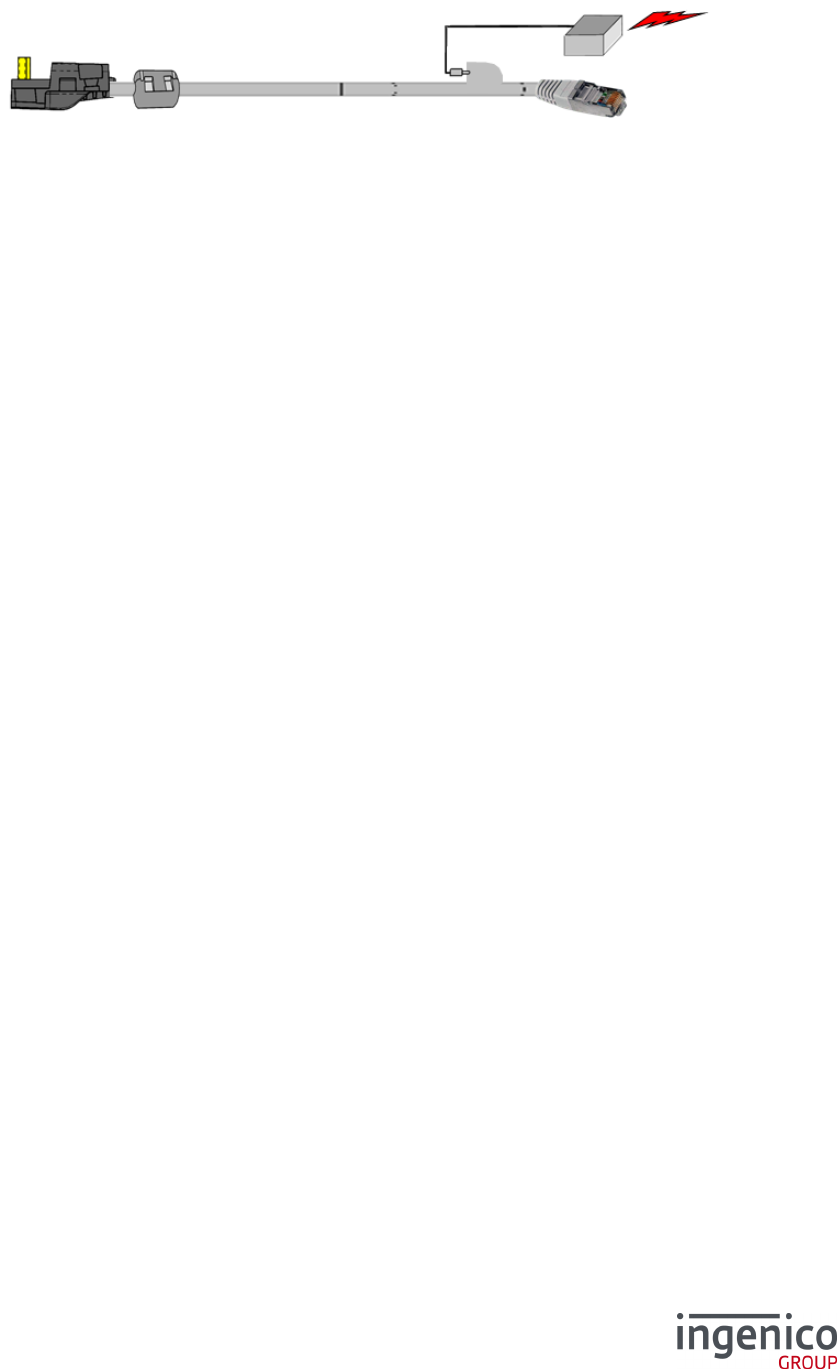

24/28 Lane/7000 / 90002783 R11 000 01

7_Norms & Marking

7_1 Federal Communications Commission (FCC) Statement

15.21

You are cautioned that changes or modifications not expressly approved by the part responsible for

compliance could void the user’s authority to operate the equipment.

15.105(b)

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio/TV technician for help.

15.19 (a) (3)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1) This device may not cause harmful interference and

2) This device must accept any interference received, including interference that may cause undesired

operation of the device.

7_2 Industry Canada (IC) Statement.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to

the following two conditions:

1) this device may not cause interference, and

2) this device must accept any interference, including interference that may cause undesired

operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio

exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:

1) l'appareil ne doit pas produire de brouillage, et

2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le

brouillage est susceptible d'en compromettre le fonctionnement.

25/28 Lane/7000 / 90002783 R11 000 01

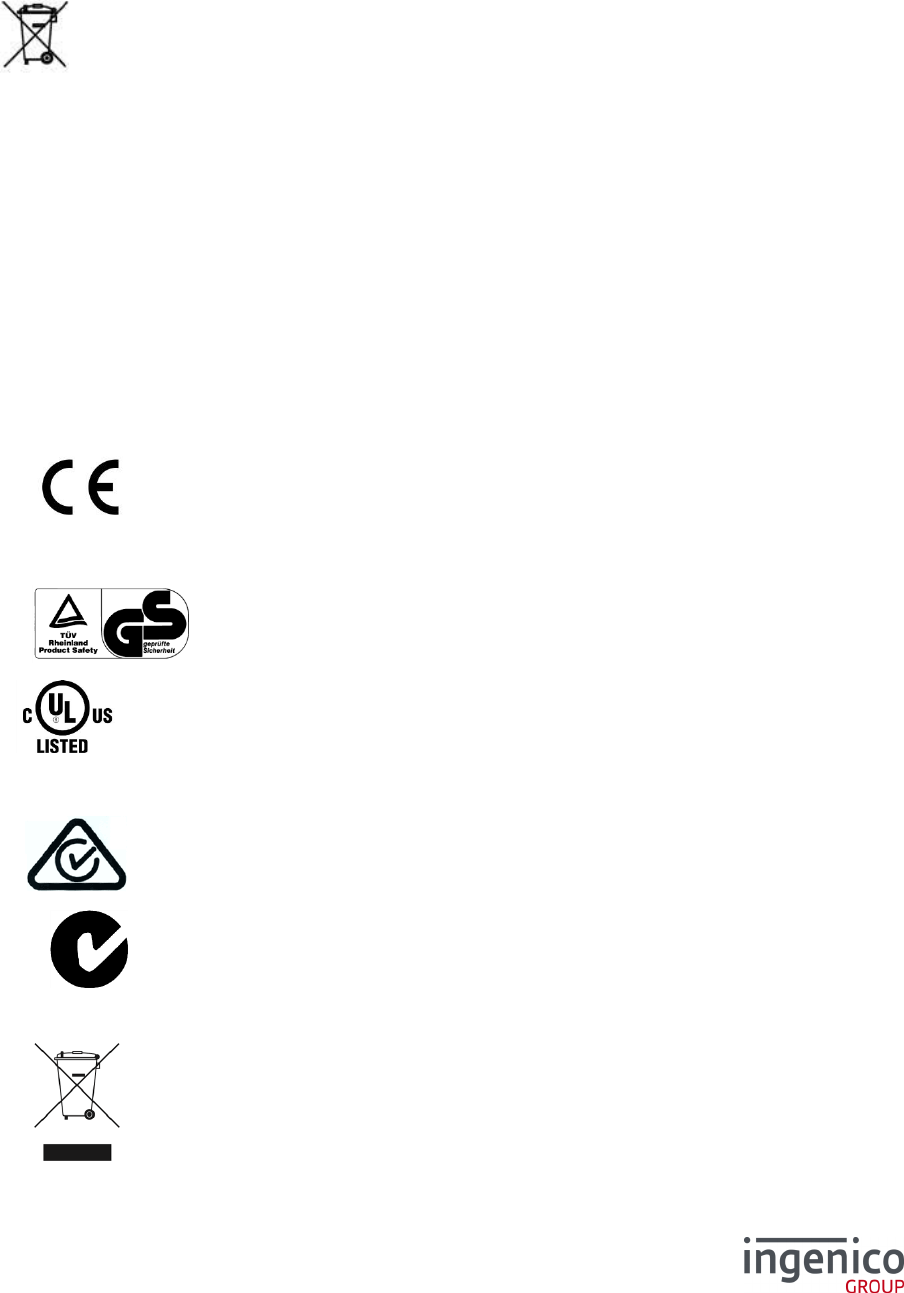

7_3 Environment (WEEE, Batteries and Packaging)

This product is labeled in accordance with European Directives 2002/96/EC concerning Waste

Electrical and Electronic Equipment (WEEE) and 2006/66/EC concerning Batteries and Accumulators.

Those provisions are requiring producers and manufacturers to become liable for take-back, treatment

and recycling upon end of life of equipment and batteries.

The associated symbol means that WEEE and waste batteries must not be thrown away but

collected separately and recycled.

Ingenico ensures that efficient collection and recycling schemes are set-up for WEEE and batteries

according to the local regulation of your country. Please contact your resellers for more detailed

information about the compliance solution in place for disposing of your old product and used

batteries.

Packaging waste must also be collected separately to assure a proper disposal and recycling.

Please note that proper recycling of the electrical and electronic equipment and waste batteries will

ensure safety of human health and environment.

7_4 Marking

Below, you will find the different symbols used on the product and its power supply.

The CE marking is the manufacturer's declaration that the product meets the

requirements of the applicable EC directives. The CE mark is a mandatory

conformity marking for certain products sold within the European Economic

Area (EEA).

This TÜV symbol shows consumers at a glance that a product has been

examined by neutral experts and that there are no safety concerns

The UL mark appears on end products and complete components suitable for

factory and field installation. All of the products carrying these marks are covered

by our Follow-Up Services program to determine that products continue to be

manufactured in compliance with UL’s safety requirements.

The RCM mark will be the only mark to indicate compliance with the Australian

Communications and Media Authority’s (ACMA) regulatory arrangements for

telecommunications, radio, EMC and electromagnetic energy (EME).

The C-Tick is an identification trademark registered to the Australian

Communications Media Authority (ACMA). The C-Tick mark signifies that the

labelled electronic device is compliant with applicable electromagnetic

compatibility (EMC) requirements

Waste of Electrical and Electronic Equipment (WEEE) symbol indicates that when

the end-user wishes to discard this product, it must be sent to separate collection

facilities for recovery and recycling. By separating this product from other

household-type waste, the volume of waste sent to incinerators or land-fills will

26/28 Lane/7000 / 90002783 R11 000 01

be reduced and natural resources will thus be conserved.

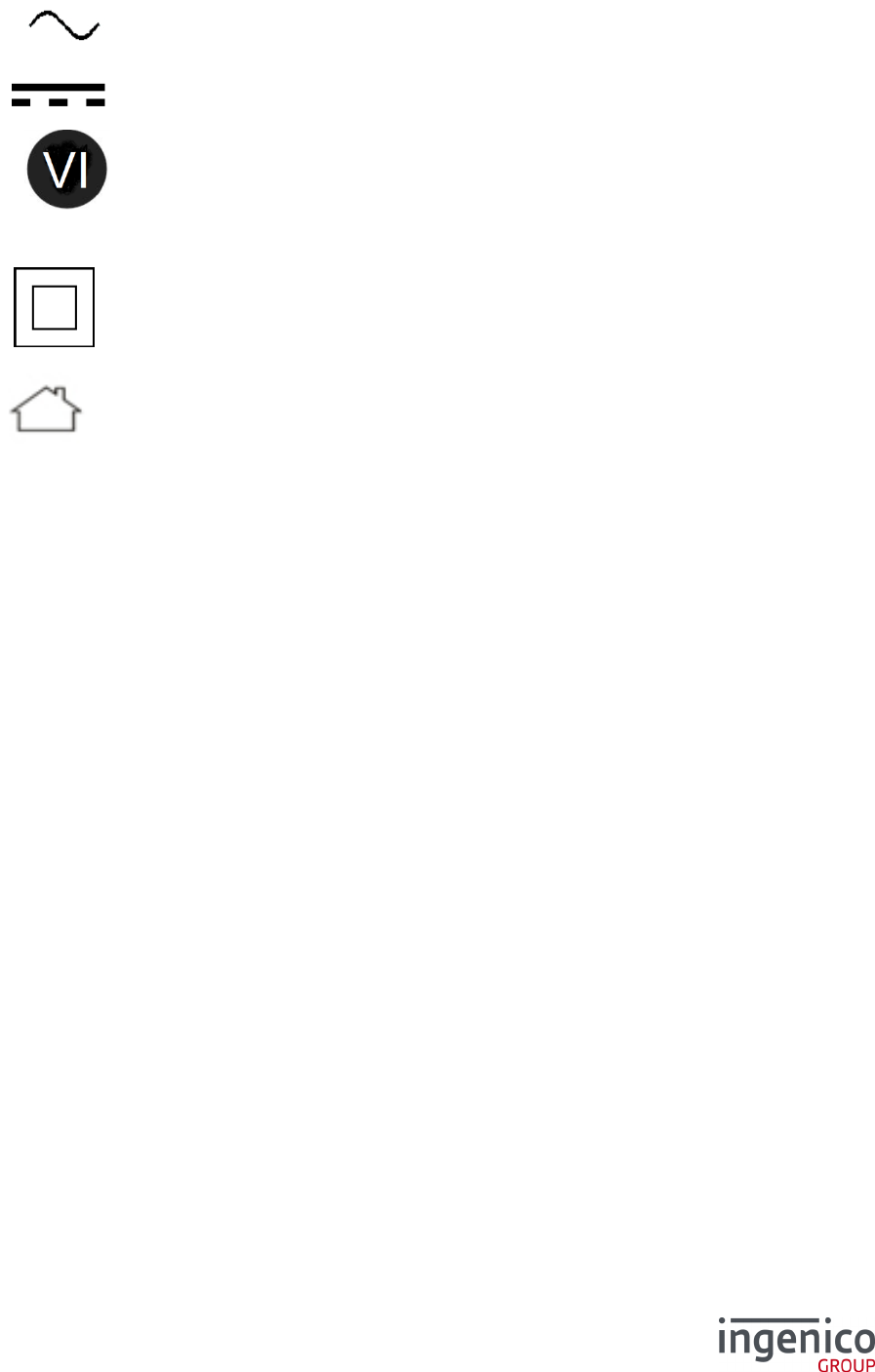

This logo indicates that the product operates with an alternative voltage. This

symbol is followed by the ratings (voltage and current for instance)

This logo indicates that the product operates with a continuous voltage. This

symbol is followed by the ratings (voltage and current for instance)

Mark indicating a power supply meets the level VI requirements.

Double insulated or class 2 electrical appliances are products that have been

designed in a way so as not to require a safety connection to electrical earth (These

products must NOT have a safety connection to Earth).

Indoor use symbol.

27/28 Lane/7000 / 90002783 R11 000 01

Notes

28/28 Lane/7000 / 90002783 R11 000 01

ownership, rights and protection in all material contained in this document. The recipient can receive

this document on the condition that he will keep the document confidential and will not use its contents

in any form or by any means, except as agreed beforehand, without the prior written permission of

INGENICO. Moreover, nobody is authorized to place this document at the disposal of any third party

without the prior written permission of INGENICO. If such permission is granted, it will be subject to

the condition that the recipient ensures that any other recipient of this document, or information

contained therein, is held responsible to INGENICO for the confidentiality of that information.

Care has been taken to ensure that the content of this document is as accurate as possible.

INGENICO however declines any responsibility for inaccurate, incomplete or outdated information.

The contents of this document may change from time to time without prior notice, and do not create,

specify, modify or replace any new or prior contractual obligations agreed upon in writing between

INGENICO and the user.

INGENICO is not responsible for any use of this device, which would be non-consistent with the

present document.

All trademarks used in this document remain the property of their rightful owners.”

Ingenico

28-32 Boulevard de Grenelle

75015 Paris

Tél. 33(0)1 58 01 80 00 - Fax 33 (0)1 58 01 91 35

www.ingenico.com

Your contact

* 296214046 *

Ingenico L7000CL Lane/7000 Signature capture payment terminal User Manual User Guide

INGENICO Lane/7000 Signature capture payment terminal User Guide

user manual

Navigation menu

Namespaces

Views

Navigation
