User Manual
1
POS Tablet
Model: Moby/M70
2
Directions
Meanings of icons:
Forbidding: forbid improper operations to avoid damaging
the tablet PC.
Caution: cautions for operators to avoid potential damages.
Please note and remember.
Importance: important information, common notes,
definitions, general knowledge and references, etc.
Other trademarks and trade name may be used in this manual to refer
to either the entities claiming the marks and names or their products.
The manufacture disclaims any proprietary interest in trademarks and
trade names other than its own.
Information in this manual is subject to change without notice.
Reproduction in any manner whatsoever without the written
permission from the manufacture is strictly forbidden.
Product images in this manual are for your reference only.
3
Contents
Directions ......................................................................... 2
Safety Precautions .......................................................... 5
1 Know Your Tablet PC .................................................. 7
2 Connect the Power Adapter ........................................ 8
3 Turn on the Tablet PC ................................................. 9
4 Get to Know Your System ......................................... 11
4-1 Add screen shortcuts ............................................. 13
4-2 Delete screen shortcuts/widgets ........................... 13
4-3 On-screen Keyboard .............................................. 13
5 System Settings ......................................................... 15
5-1 Wireless & networks ............................................... 16
5-2 Device ...................................................................... 18
5-3 Personal .................................................................. 21
4
5-4 System ..................................................................... 22
6 Chrome ........................................................................ 22
7 Fun ............................................................................... 23
7-1 Camera .................................................................... 23
7-2 Music ....................................................................... 24
8 Appendix ..................................................................... 26
8-1 Troubleshooting ...................................................... 26
8-2 Specifications .......................................................... 28
9 FCC Mark ..................................................................... 29
5
Safety Precautions
1. DO NOT press the LCD Screen. DO NOT place the Tablet PC with
small items, they may scratch LCD Screen.
2. DO NOT expose the Tablet PC to dirty or dusty environment. Keep
the environment clean and dry.
3. DO NOT place the Tablet PC on uneven or unstable work surface.
4. DO NOT place or drop objects on the top of the Tablet PC. DO NOT
shove any foreign objects into the Tablet PC. DO NOT cover the LCD
Screen strongly.
5. DO NOT expose the Tablet PC to strong magnetic or electrical
fields; DO NOT place the floppy disk near or on the Tablet PC, that
may loss the data of the floppy disk.
6. DO NOT leave the Tablet PC facing the sun as it can damage the
LCD Screen, especially in the car.
7. SAFE TEMP: This Tablet PC should only be used in environments
with ambient temperatures between 5℃ (41℉) and 35℃ (95℉).
8. DO NOT expose the Tablet PC to or use near liquids, rain, or
moisture.
Caution: Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
9. DO NOT throw the Tablet PC in municipal waste. Check local
regulations for disposal of electronic products.
10. The Tablet PC and the Adapter may occur some heat during
operating or charging. DO NOT leave the Tablet PC on your lap or
any part of the body in order to prevent discomfort or injury from heat
exposure.
6
11. INPUT RATING: Refer to the rating label on the Tablet PC and be
sure that the Power Adapter complies with the rating. Only use
attachments or accessories specified by the manufacturer.
12. Checking the connections between the main unit and attachments
before turning on the Tablet PC.
13. DO NOT use the Tablet PC during eating food avoid dirtying the
Tablet PC.
14. DO NOT insert anything into the Tablet PC that may result in short
circuit or damage the circuit.
15. Power off the Tablet PC, if you want install or remove some
external devices which are not support hot-plug.
16. Disconnect the Tablet PC from the electrical outlet and remove
any installed batteries before cleaning. And Keep it away from
children.
17. DO NOT disassemble the Tablet PC, only a certified service
technician should perform repairs on your computer. Otherwise,
problem may result and the manufacturer should not hold
responsibility for the damage.
18. The Tablet PC has some little metal flake to disperse heat. DO
NOT place the Tablet PC on soft objects (e.g.: bed, sofa, your lap), or
else the Tablet PC may become hot and halt the system operation.
19. The socket-outlet shall be installed near the equipment and shall be
easily accessible.
20. To prevent possible hearing damage, do not listen at high
volume levels for long periods.
21. If an equipment is provided with a replaceable battery, and
if replacement by an incorrect type could result in an explosion (for
example, with some lithium batteries).
7
1 Know Your Tablet PC
Front Panel
8

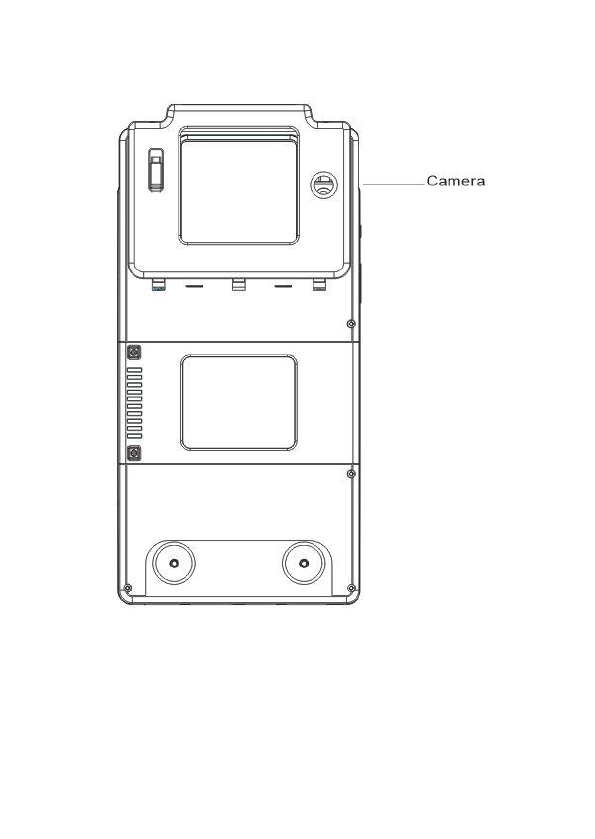

Back Panel
2 Connect the Power Adapter
The tablet PC comes with a universal AC-DC adapter and the
allowable input voltage of adapter is from 100V to 240V.
9
The connection between Tablet and AC adapter is illustrated in below
picture:
Your tablet PC and the accessories may differ from the pictures
shown above.
The socket-outlet shall be installed near the equipment and
shall be easily accessible.
Use only the AC adapters, power cords and batteries that are
approved for use with this device. Use of another type of
battery or AC adapter may cause fire or explosion.
3 Turn on the Tablet PC
Press and hold the power button for seconds to turn on the device:
10
Press the power button once to access standby mode and press
again to wake it up;
Press and hold the power button, and then tap Power off to power off
the tablet.
If the system halts, press and hold the Power button for about 8
seconds to turn off the device forcedly.
11
4 Get to Know Your System
Press the Power button for seconds to turn on the tablet PC and then
it display locked screen as shown below, you need to swipe up the
screen to unlock.
Press the Power button for seconds to turn on the tablet PC and then
it display locked screen as shown below, you need to swipe up the
screen to unlock.
If it’s your first time to use the tablet, the system will enter the guide
menu. Please finish the initial setting following the instructions.
Home page
Status Bar: Slide down to open quick
settings menu and notification.
12
: tap to enter Home screen.
: tap to return to the previous page.
: tap to open recent APPs list menu.
: tap to enter APPs Menu.
Touch for web
Information
searchand so on
Shortcuts: touch to open; touch & hold to move.
13
4-1 Add screen shortcuts
On the home page, touch and hold the blank area to popup menu to
change wallpaper;
Touch to access APPS menu as shown in the right picture; touch
and hold an APPS icon to add it to the home screen.
4-2 Delete screen shortcuts/widgets
On the home screen, touch and hold the shortcut or widget to be
deleted until the “× Remove” appears. Drag the shortcuts to the remove
icon to delete.
4-3 On-screen Keyboard
14
Just touch a text field to open the on-screen keyboard and touch
on the tool bar to close it.
Toggle letters & numbers
Space
Caps lock
button
Backspace
Go
Expression
15

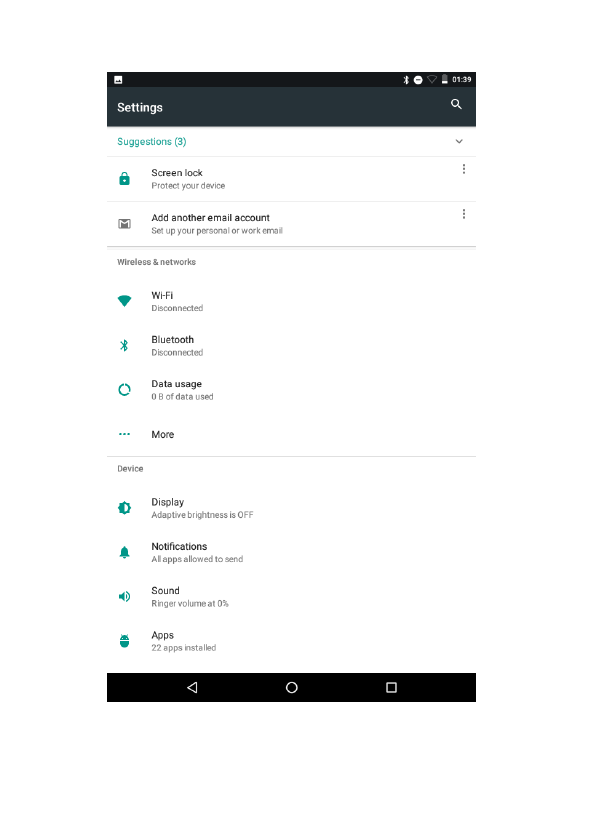

5 System Settings
16
5-1 Wireless & networks
5-1-1 Wi-Fi
Touch the Wi-Fi swtich behind of the Wi-Fi item to turn on the Wi-Fi
function and then the system will auto-scan the available networks to
display as shown below picture.
Select one network and input password if necessary to connect.
Touch to perform advanced Wi-Fi settings.
17
5-1-2 Bluetooth
The Bluetooth function enables you to exchange files between the
tablet and other Bluetooth devices.
Before this step, please activate the Bluetooth function of
other device (mobile phone, Bluetooth earphone etc.)
and make sure the device is in range.
Touch the Bluetooth swtich behind of the Bluetooth item to turn on the
Bluetooth function and then the system will auto-scan the visible
Bluetooth device nearby and display after finding as shown below:
Touch the desired Bluetooth device to start pairing. Then according to
the indications on both side, users can complete the connection
18
successfully in seconds. After pairing, you can share files between
the unit and the Bluetooth device. Touch to perform advanced
Bluetooth settings.
5-1-3 Data usage
Touch to see the data usage information.
5-1-4 More
The system supplies users more networks settings, such as Airplane
mode, Tethering & portable hotspot, and VPN.
5-2 Device

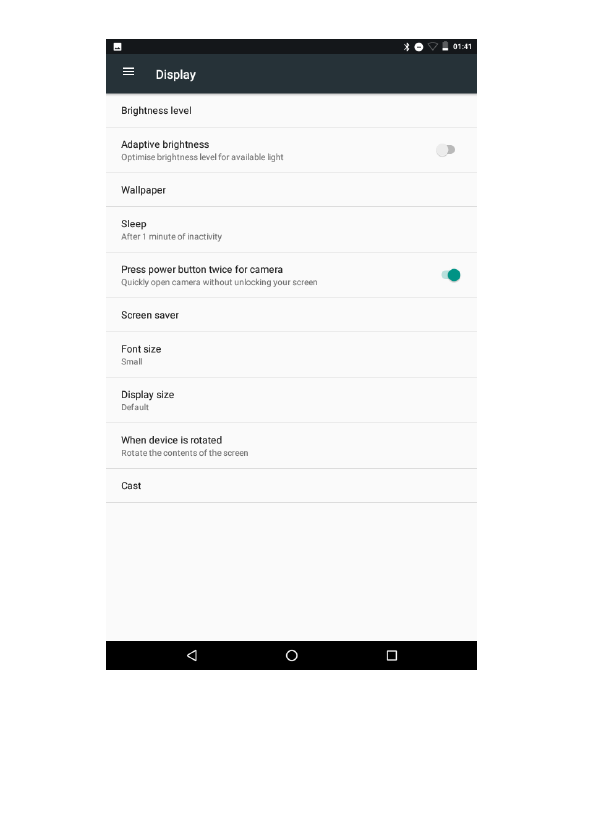

5-2-1 Display
Touch to open display settings, including HDMI settings, Brightness
level, Adaptive brightness, Theme, Wallpaper, Sleep, Daydream, Font
size, When device is roated, Cast and Double tap control.
19
5-2-2 Sound
Touch to open sound to do the sound general settings
20
5-2-3 Apps
Touch to check the current Apps information.
5-2-4 Storage
Touch to check the internal shared storage
5-2-5 Battery
21
Touch to check the battery information.
5-2-6 Memory
Touch to see the average memory used.
5-2-7 Users
Touch to set the owner’s information, or add a new user.
5-3 Personal
5-3-1 Location
To open or close location services.
5-3-2 Security
Security information of system settings.
5-3-3 Accounts
To add email accounts or Google™ account.
5-3-4 Google
To do Google services, including Ads, Location, Nearby, Search &
Now, Security, and Set up nearby device.
5-3-5 Language & input
To choose the system language and open/close the Spell checker.
You can also set the keyboard & input methods, speech and
mouse/trackpad.
5-3-6 Backup & reset
Reset the system to the factory states.
22
5-4 System
5-4-1 Date & time
Option is about the current system date & time setting. You can set
the date and time, and their format of the tablet.
5-4-2 Accessibility
Look at what other accessibility in the system or add some.
5-4-3 Printing
Search connected printer to print some file.
5-4-4 Scheduled power on & off
In this unit, you can set the time to auto power on & off.
5-4-5 About tablet
The detailed information about the unit, including System updates,
Status, Legal information, Model number, Android version, Android
security patch level, Kernel version, and Build number.
6 Chrome

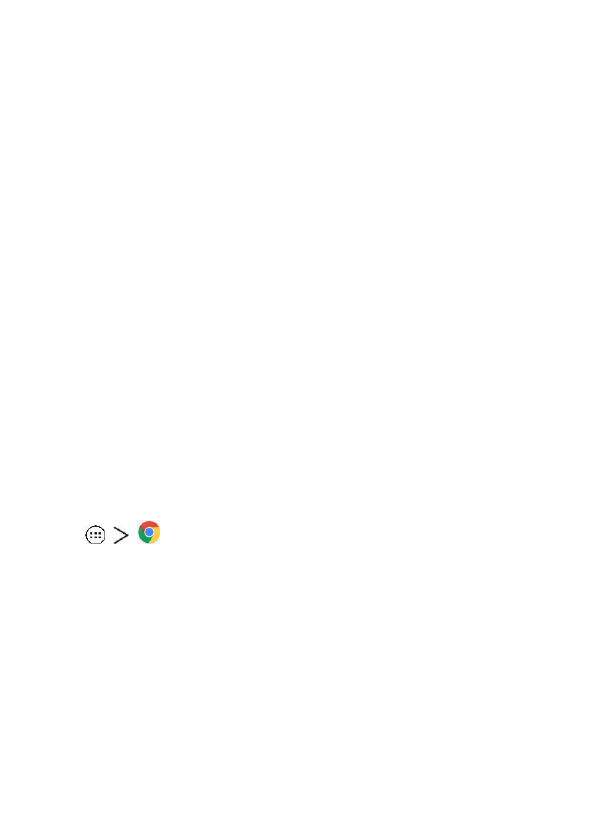

Open:
After the network connection completed, touch the chrome icon to
access the network browsing.
23
Designing wed may slow the speed to browse the web.
7 Fun
7-1 Camera
Open:
Take Pictures: 1. Aim the object.
2. Press to take a picture.
More
Bookmark this page
Add a new tab
Tabs
Back,
Forward,
Refresh
24
Notice: 1. Select video mode if you want to record videos.
2. All photos or videos taken are both stored in the photos and gallery.
7-2 Music
Open:
Exposure,
Color effect,
Scene mode
Settings
Gallery
HDR capture
Normal mode
Face beauty mode
Panorama mode
25
Choose any song you like to start playback. During music playback,
touch to pause and touch to resume playback; touch / to
play the previous/next track.
Playback
schedule
Playback
Playing
modes
Playlist
26
8 Appendix
8-1 Troubleshooting
Q1：How to do with the tablet PC when the halted system occurs?
A：Press and hold the power button for about 8 seconds to reboot it
forcedly.
Q2：How to check the tablet PC if the tablet PC cannot be turned on?
A：
1. If the power is low, connect to the electric outlets.
2. Make sure the indicator of the adapter turns on and the adapter
works well.
3. Remove the external device.
Q3：If the water come into the tablet PC
A：
1. DO NOT turn on the tablet PC.
2. Disconnect the outlet cable in order to turn off the tablet PC,
instead of pressing the power button to turn off it. Disconnect all
external devices, and then send to the service center for advice.
3. DO NOT place the tablet PC into the dirty carrying case to again.
Q4：How to recover the factory status?
A：
27
Touch Settings --- Backup & reset --- Factory data reset --- RESET
TABLET --- ERASE EVERYTHING to recover the system to the
default status on APPS Menu.
Q5：How to prolong the usage time of the Battery?
A
1. Adjust the brightness of the LCD Screen to proper level on
Settings --- Display --- Brightness level menu.
2. Turn down the volume.
3. Set the time amount to proper level on Settings --- Display ---
Sleep menu.
Q6: The image isn’t clear.
A: Check that the lens is clear or not, if not, clean with the soft cloth.
Q7：How to do with the problem like “some problems happen in pairing
the Bluetooth”?
A: Be sure whether the time is too long to input the password.
(Overtime)
Q8: Why is Bluetooth disabled?
A：Check if the “Airplane mode” is enabled, if so, the Bluetooth
function can’t be activated.
28
8-2 Specifications
Processor
MTK8167B
RAM(#)
2 GB (1GB optional)
Storage capacity(#)
16 GB (8GB optional)
Screen size
6.95''
Resolution
600x1024
Interfaces
Micro USB, 3.5 mm standard
headphone jack
Descriptions
Front: 2.0M pixel;
Back: 5.0M pixel
Communications
WIFI (802.11a/b/g/n/ac (MT6630)),
Bluetooth(BT4.2)
Operating temperature
5-35℃
Operating humidity
35%-85%
Storage temperature
-20-55℃
Storage humidity
20%-93%
Adapter
AC 100~240V; 5V/2A DC adapter
with 1.5m cable and US plug
Output power (max)
≤10W
Battery
4160mAh/3.7V Li-polymer
Weight
About 491.0g
Dimension
120 x 236.8 x 18.5mm
29
9 FCC Mark
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced technician for help.
This device complies with part 15 of the FCC Rules. Operation is
30
subject to the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including
interference that my cause undesired operation.
MODIFICATION: Any changes or modifications not expressly
approved by the grantee of this device could void the user’s authority
to operate the device.
FCC Regulatory Compliance
Body worn operation
The SAR limit adopted by the USA is 1.6 W/kg averaged over
one gram of tissue. The highest SAR value reported to the FCC
for this device type complies with this limit.
The highest SAR value reported to the FCC for this device type
when using at the body is 1.34W/kg.
