Ingenico RP170C Mobile Payment Terminal User Manual
Roam Data Inc. Mobile Payment Terminal Users Manual
Ingenico >
Users Manual
RP170c NFC Mobile
Card Reader
Powering secure mobile-
to-mobile transactions
• Accept magstripe transactions and NFC/
contactless payments, including Apple Pay,
MasterCard contactless, and Visa payWave in a
single device
• Certifications include EMV Level 1
Contactless, Visa Ready & mPOS MasterCard
approved
• Support for 100+ iOS and Android™ mobile
devices
• White labeling options enabling custombranding
of device
security magstripe contactless audio jack
The RP170c enables the acceptance of both card-based transactions and NFC/contactless payments, allowing
merchants to offer their customers a fast, simple and secure way to pay – anywhere, anytime.
Innovative
• NFC/contactless reader and dual track magstripe reader (MSR) in one unit
• Accept new and existing forms of NFC/contactless payment like Apple Pay, MasterCard contactless
and Visa payWave• Integrated extended life rechargeable battery
• Audible buzzer and color LEDs to signal completed contactless transactions
Flexible
• Compatible with virtually any iOS or Android device and connects via a 3.5mm standard audio jack
• Secure APIs compatible with hundreds of iOS and Android™ mobile devices
• White labeling options enabling custom-branding of device
• Universal SDK across RP- and G-series mobile card readers with automatic device identification
Secure
• EMV L1 Contactless certified, and compliant with the latest Visa Ready and MasterCard guidelines
• End-to-end encryption of cardholder data upon swipe or NFC/contactless tap
• Developed by the world’s first and most experienced provider of secure mobile card readers
Feature
Description
Card Readers
Magnetic card reader: Standard (ISO 7810, 7813,
Track 1 & 2)
Contactless reader: Standard (ISO 1443 A&B) with 4
LEDs
Display
1x LED for device & battery status, 4x LEDs for
contactless
Buzzer
Yes
Connectivity
Audio jack: for communication with mobile device
Battery
Li-ion - 260 mAh
Battery Life
Minimum 200 magstripe or 50 contactless
transactions, over 1 week
Dimensions
66 x 49 x 16mm / 2.60 x 1.93 x .63in (l x w x h)
Certifications
EMV L1 contactless
PayPass
Paywave
Power Supply
via μUSB AB cable
• TR-39 & PCI PIN 2.0 certified facility for in-factory DATA key injection

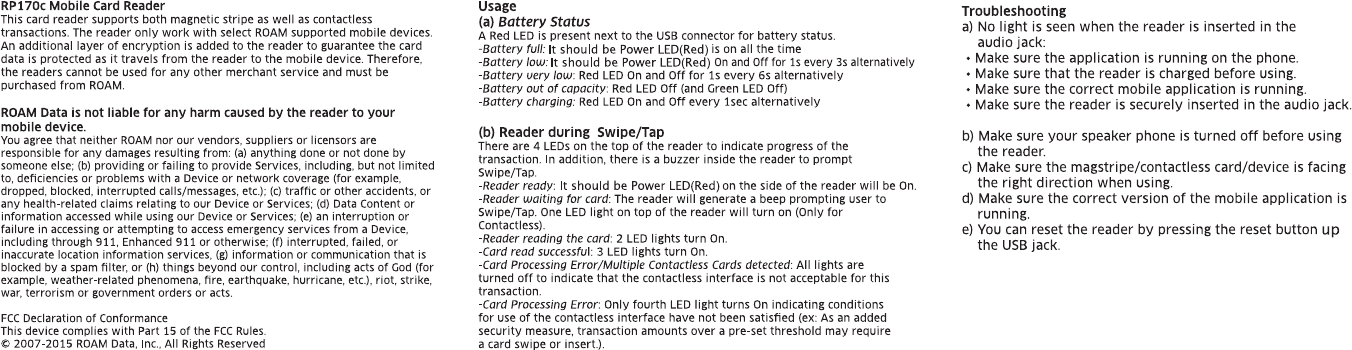

Instruction Manual
When folded
≤85mm(width) X 75mm(height)
When opened
254 mm (width) X 75 mm (height)
