Cylinder Removal and Re-Keying Kit

Part Kit Reorder

Number Description Qty. Qty.

F605-367 CYLINDER DRIVER BAR FOR KPL 10 100

B520-628 WASHER FOR KPD TAILPIECE 15 150

B520-607 SPACER FOR KPD TAILPIECE 15 150

B520-608 RETAINER FOR KPD TAILPIECE 25 250

F605-349 SCREW FOR ATTACHING OUTSIDE KPD 15 150

ESCUTCHEON TO BASEPLATE

B520-606 CYLINDER DRIVER BAR FOR KPD 10 100

Schlage Keypad Deadbolts come standard with a 5-pin solid

brass C-keyway cylinder. The re-keying steps are the same as

for the Schlage B-300 series deadbolt. Cylinder removal and

replacement instructions are illustrated on the back page.

A supplemental kit has been designed with replacement

parts for the Keypad Locks and Deadbolts.

Supplemental Re-Keying Kit

Part Number 38-030 Keypad Re-Keying Kit

15Rekey Cylinder as Usual

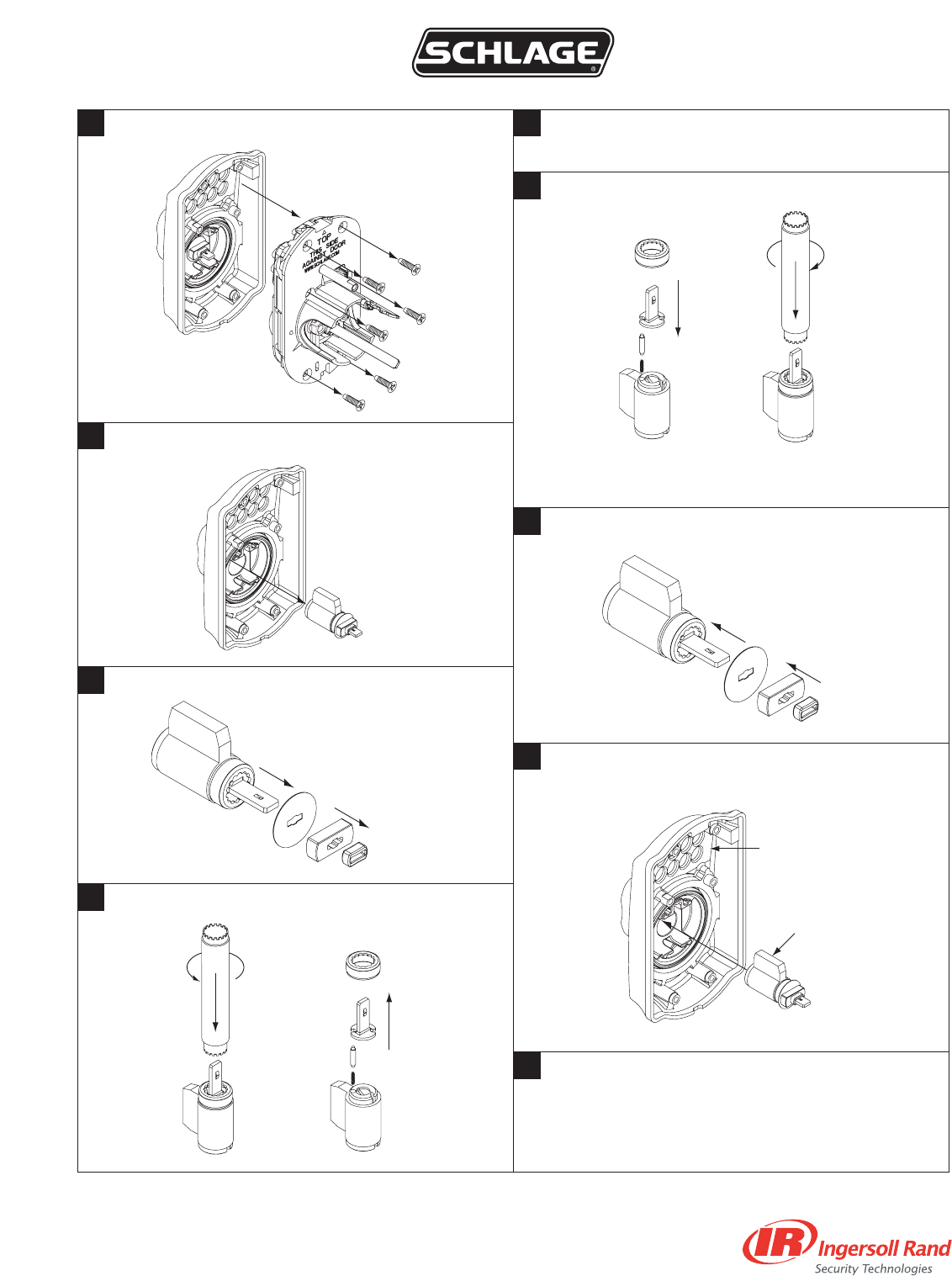

BE365 Cylinder Removal Instructions

NOTE: Tailpiece is available in the Schlage Supplemental

Electronics Lock Rekeying Kit

9Use BE365 Installation Sheet to Install Lock.

Reinstall Cylinder as Shown

NOTE: Make sure top of cylinder is pointing toward keypad.

Top of Cylinder

Keypad

Remove Backplate from Outside Keypad Assembly

Remove Cylinder from Thumbturn

3Remove Retainer, Block and Disc from Cylinder

7Install Disc, Block and Retainer

6Install Spring, Pin, Tailpiece, and Cylinder Cap

4Remove Cylinder Cap, Tailpiece, Pin, and Spring
