Inkel >
Users Manual
[IK-CSRBC05] Bluetooth Module for Audio
OEM / Integrators Installation Manual

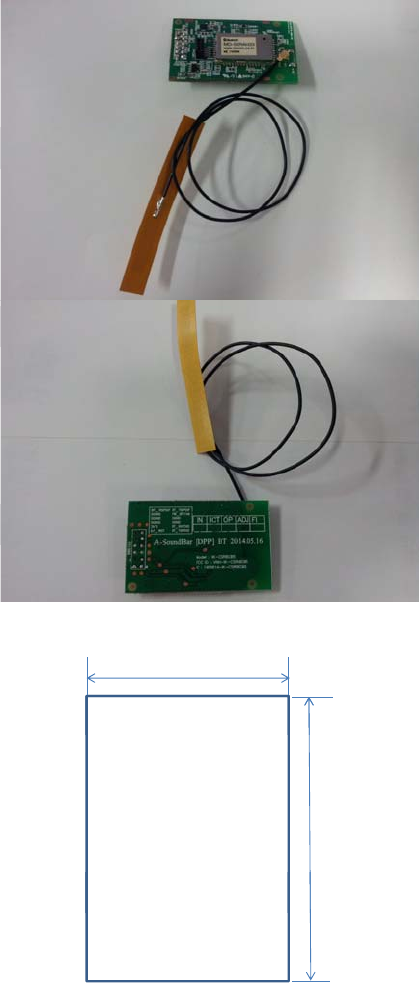

Device Overview
Dimensions 28mm
44mm
DMAIN B'D
BLUETOOTH B'D

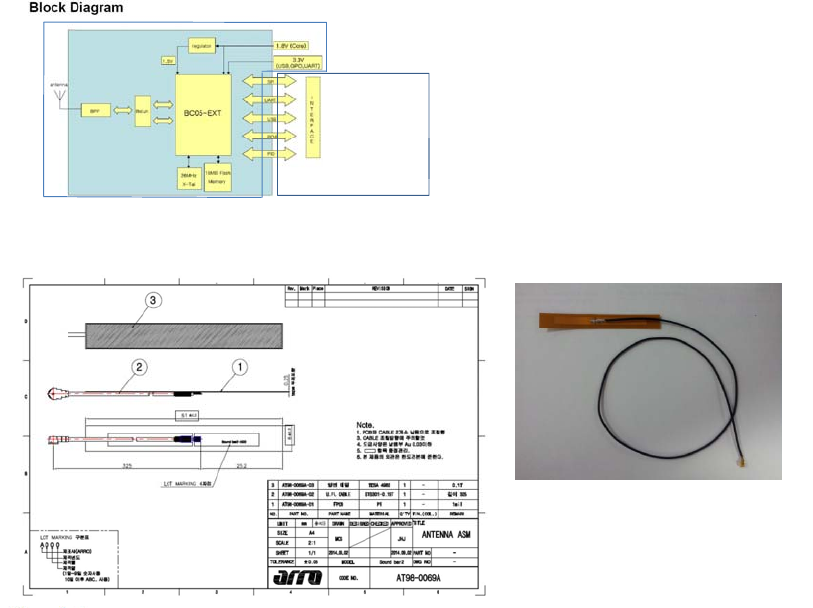

Antenna
DMAIN
BD
IK‐CSRBC05
VNH‐IK‐CSRBC05VNH‐IK‐CSRBC05

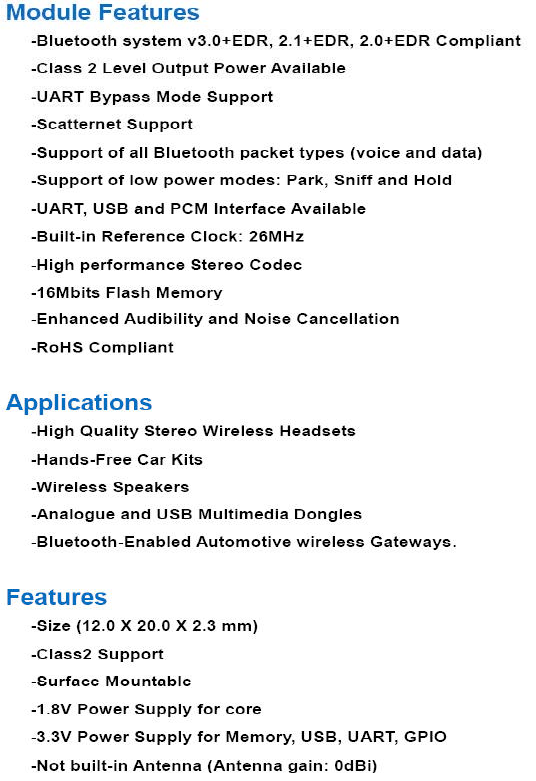

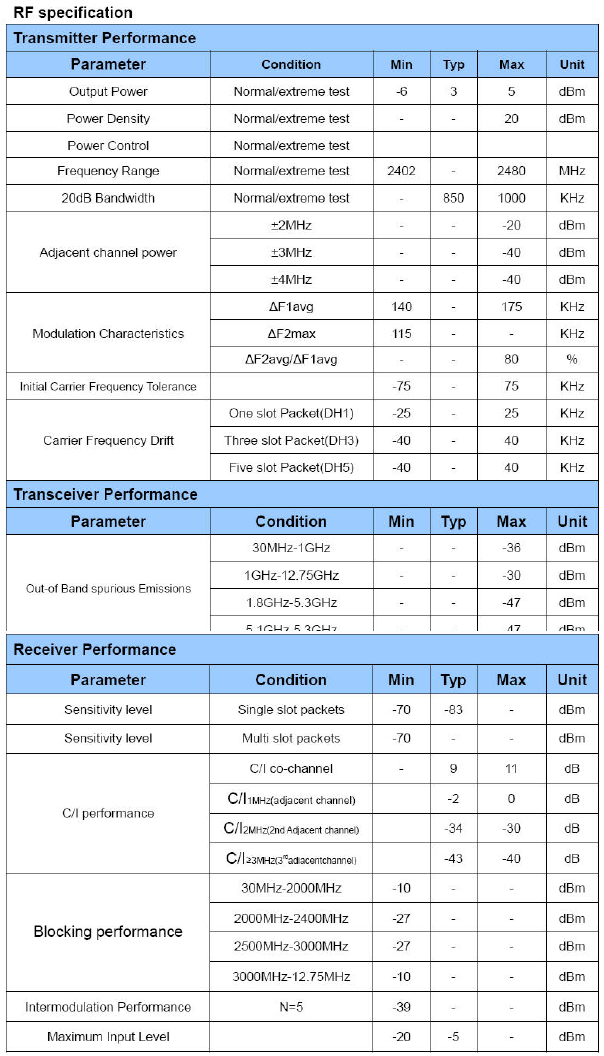

This device is intended only for OEM integrators under the following conditions:
The antenna must be installed such that 20 cm is maintained between the antenna
and users, and The transmitter module may not be co-located with any other transmitter or
antenna. As long as 2 conditions above are met, further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end-product for any
additional compliance requirements required with this module installed
IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain
laptop configurations or co-location with another transmitter), then the FCC authorization is
no longer considered valid and the FCC ID cannot be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.

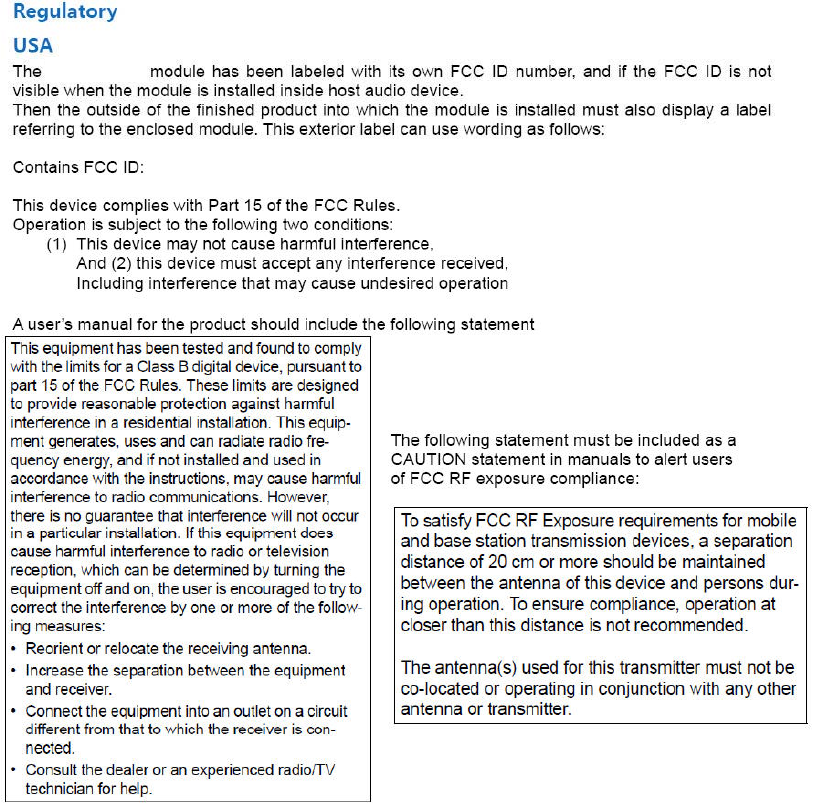

End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20 cm may be maintained between the antenna and users. The final end
product must be labeled in a visible area with the following:
“Contains FCC ID:VNH-IK-CSRBC05”,

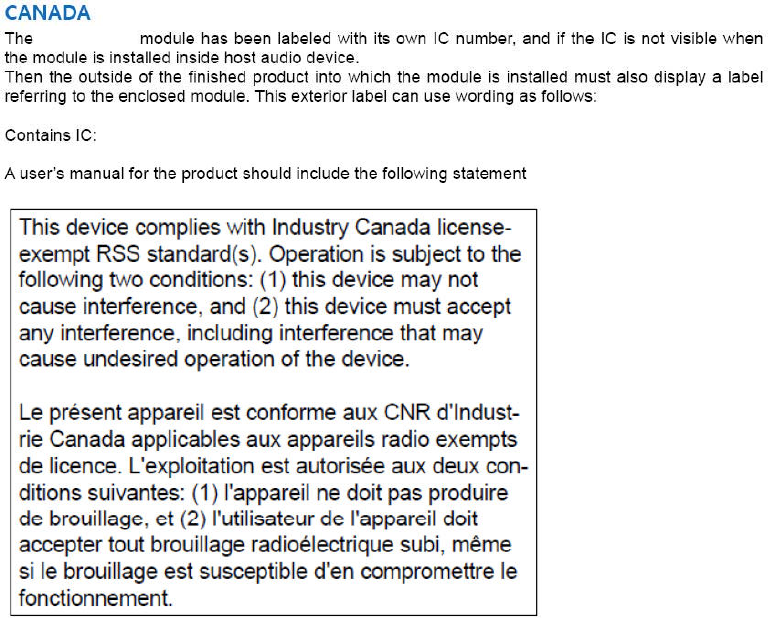

“contains IC: 10581A-IKCSRBC05”. The grantee's FCC ID can be used only when all
FCC/ IC compliance requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding
how to install or remove this RF module in the user’s manual of the end product which
integrates this module.
The Grantee must instruct the OEM/Integrator to include statements as required per Parts
15.19 and 15.21.
An attestation that the Grantee will provide guidance to the host manufacturer for compliance
to Part 15, subpart B requirements.
The modular transmitter must comply with any specific rules or operating requirements that
ordinarily apply to a complete transmitter and the manufacturer must provide adequate
instructions along with the module to explain any such requirement.
10581A‐IKCSRBC05
IK‐CSRBC05
