Inkel IK8ARS Bluetooth module User Manual IK 8ARS Manual

Inkel Corporation Bluetooth module IK 8ARS Manual

User Manual

Operating Instructions
Copyright2015byINKEL
BluetoothModuleforAudio
IK‐8ARS
Operating Instructions

ThisspecificationcoversBluetoothmodule(class‐2)whichcomplieswithBluetooth
specificationversion3.0+EDRandintegratesRF&Basebandcontrollerinsmall
package.ThismodulehasdeployedCSR'sCSR8645chipset.


Operating Instructions
1Copyright2015byINKEL
Features
- Bluetooth3.0+EDR
- Stereocodecwith2microphoneinputs
- FastChargingsupportupto200mAwithnoexternalcomponents
- MultipointsupportforA2DPconnectionto2A2DPsourceformusicplayback
- aptX,SBC,MP3,AACandFaststreamdecoder
- Built‐inReferenceClock:26MHz
- RoHSCompliant
Applications
- Stereoheadsets
- Wiredstereoheadsetandheadphones
- Portablestereospeakers
- AudioProducts

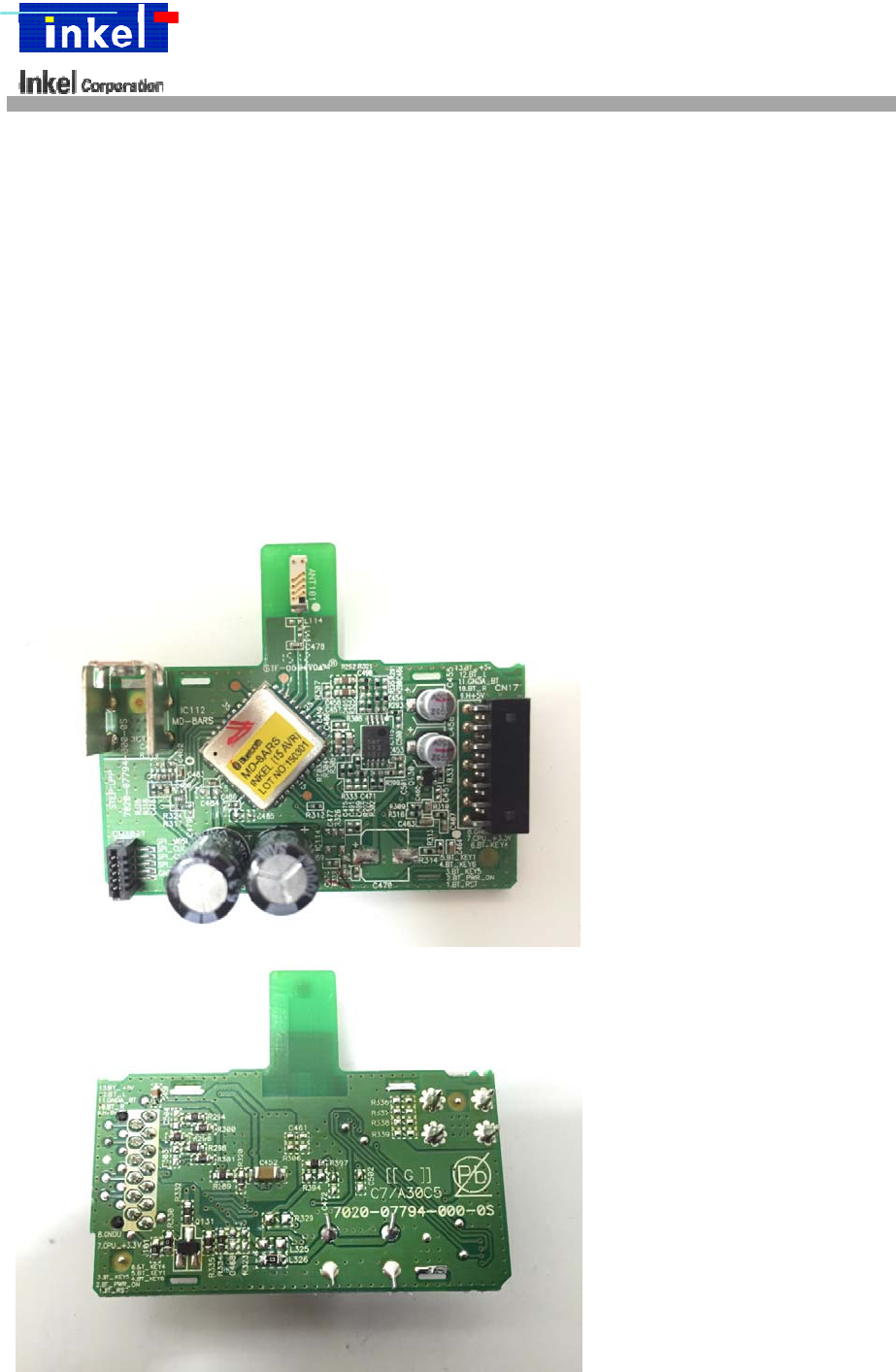

DeviceOverview


Operating Instructions
2Copyright2015byINKEL
Dimensions


Operating Instructions
3Copyright2015byINKEL

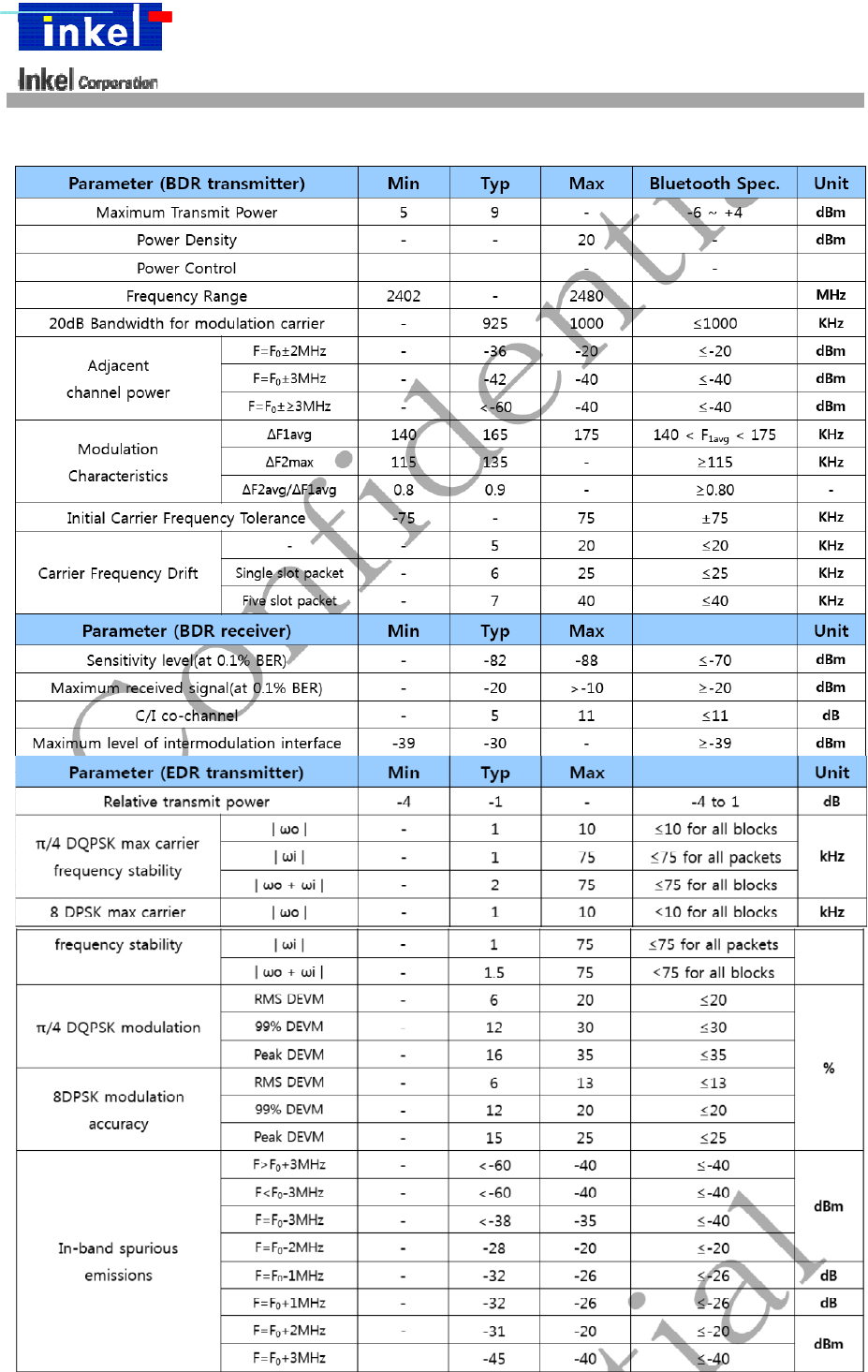

RFspecification


Operating Instructions
4Copyright2015byINKEL

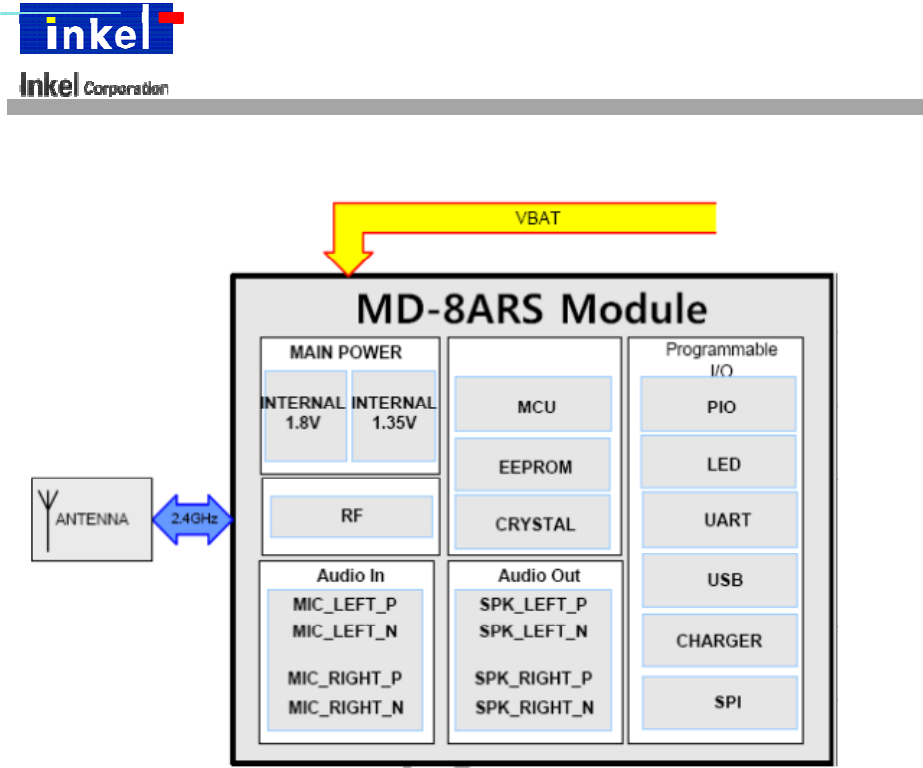

BlockDiagram



Operating Instructions
5Copyright2015byINKEL
PINDescription


Operating Instructions
6Copyright2015byINKEL

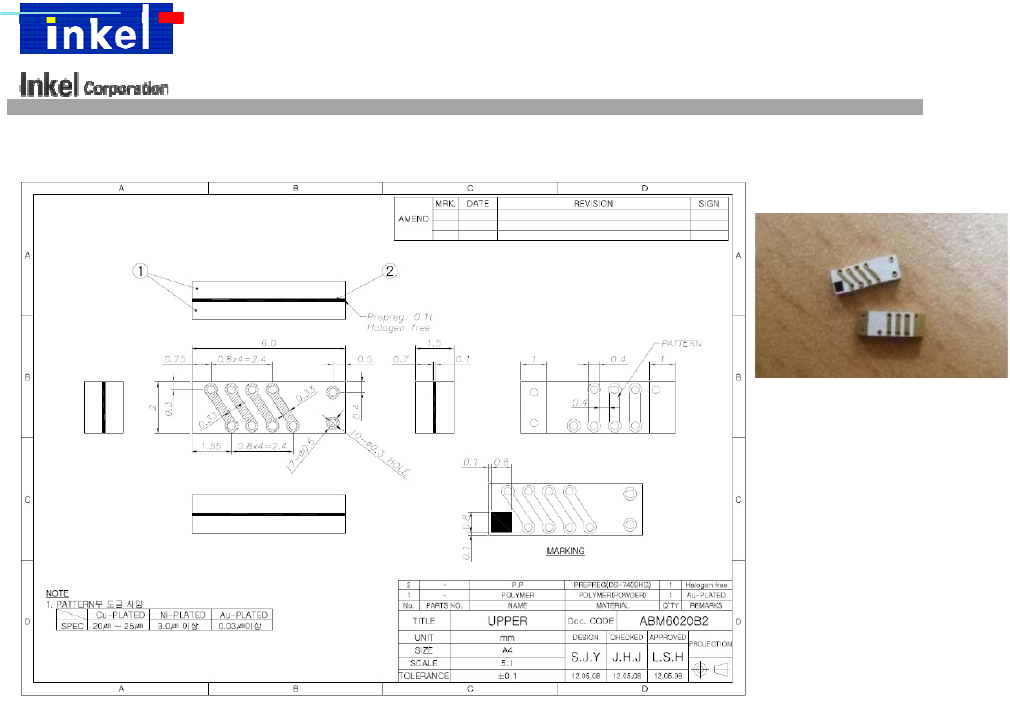

Antenna/ChipAntenna
FrequencyRange:2400~2483.5MHzPeakGain:3.40dBi


Operating Instructions
7Copyright2015byINKEL
Regulatory
USA
TheIK‐8ARSmodulehasbeenlabeledwithitsownFCCIDnumber,andiftheFCCIDisnot
visiblewhenthemoduleisinstalledinsidehostaudiodevice.
Thentheoutsideofthefinishedproductintowhichthemoduleisinstalledmustalsodisplaya
labelreferringtotheenclosedmodule.Thisexteriorlabelcanusewordingasfollows:
ContainsFCCID:VNH‐IK8ARS
ThisdevicecomplieswithPart15ofthe
FCCRules.Operationissubjecttothe
followingtwoconditions:
(1) Thisdevicemaynotcauseharmfulinterference,
And(2)thisdevicemustacceptanyinterference
received,Includinginterferencethatmaycause
undesiredoperation

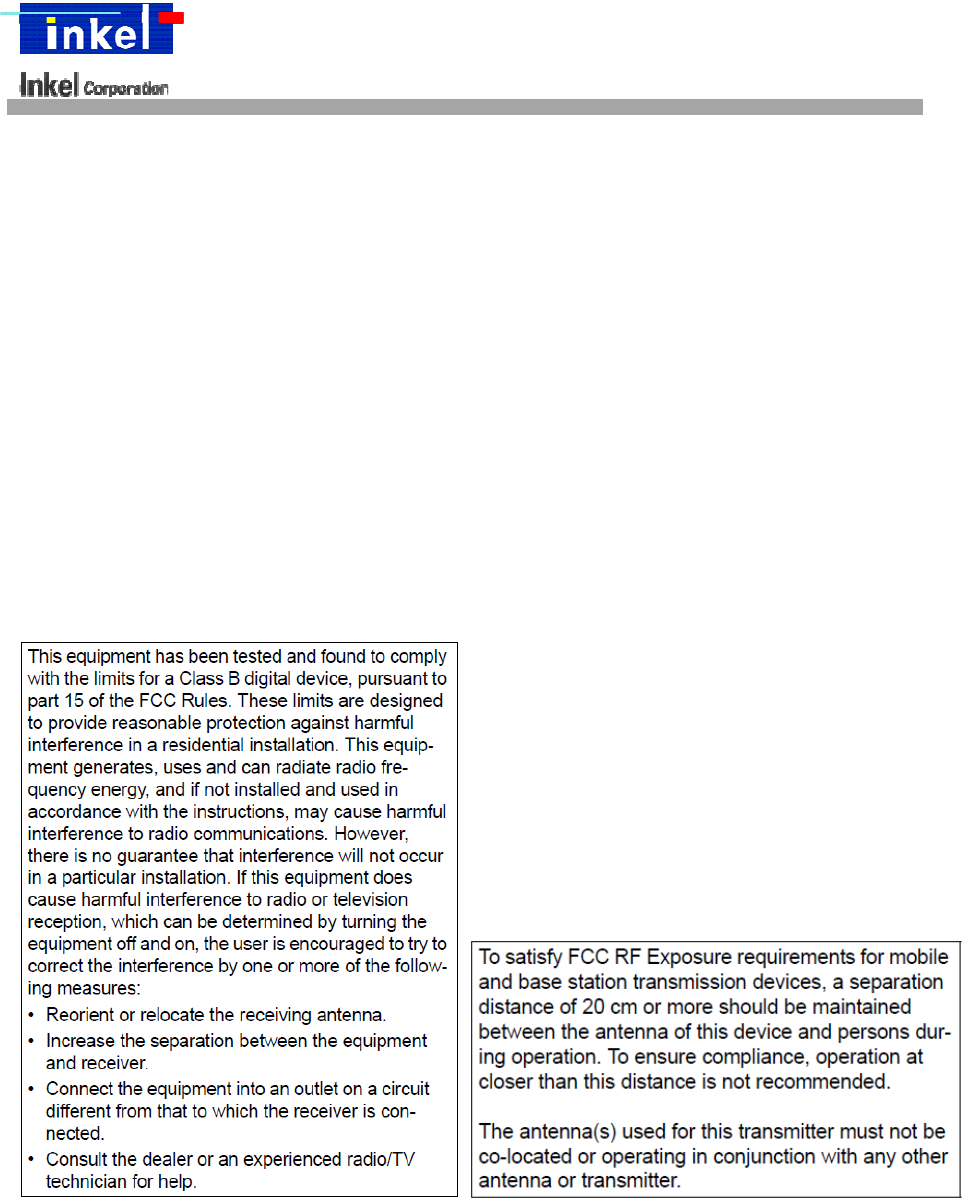

Auser’smanualfortheproductshouldincludethefollowingstatement
The following statement must be
included as a CAUTION statement in
manuals to alert users of FCC RF
exposurecompliance:



Operating Instructions
8Copyright2015byINKEL
CANADA
TheIK‐8ARSmodulehasbeenlabeledwithitsownICnumber,andiftheICisnotvisiblewhenthe
moduleisinstalledinsidehostaudiodevice.
Thentheoutsideofthefinishedproductintowhichthemoduleisinstalledmustalsodisplayalabel
referringtotheenclosedmodule.Thisexteriorlabelcanusewordingasfollows:
ContainsIC:10581A‐IK8ARS
Auser’smanualfortheproductshouldincludethefollowingstatement
KOREA



Operating Instructions
9Copyright2015byINKEL

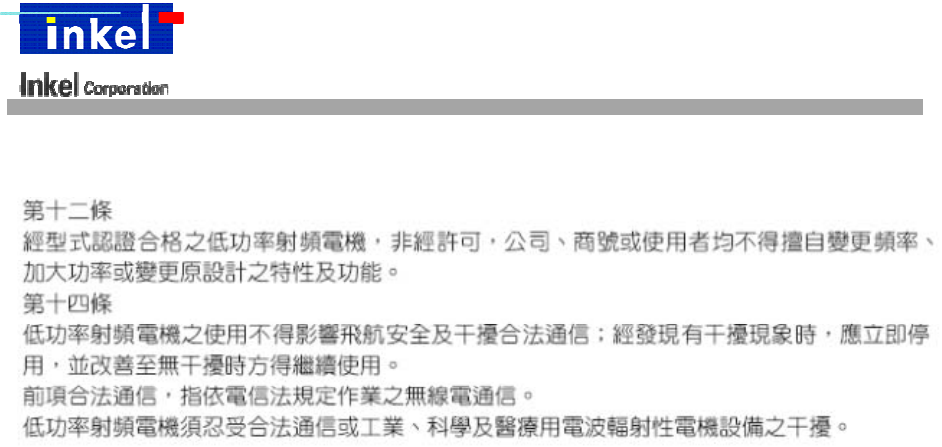

TAIWAN



Operating Instructions
10Copyright2015byINKEL
Office:
InkelCorporation
93,Cheongjung‐ro,Bupyeong‐Gu,Incheon,403‐853,RepublicofKorea
Tel:82‐032‐650‐6000
Factories:
InkelVietnamCo.,Ltd.
Block26,QuangMinhIndustrialZone,QuangMinhTown,MeLinhDistrict,HanoiCity,100000,
Vietnam.
Tel:84‐4‐3525‐1704
DongguanInkelElectronicsCo.,Ltd.
ShangqiaoIndustrialRoadNo.36,DongchengDistrict,DongguanCity,GuangdongProvince,523111,
People’sRepublicofChina.
Tel:86‐769‐8898‐4000
