Inkel JR20CU RF Repeater Coverage Unit User Manual Manual

INKEL Corporation RF Repeater Coverage Unit Manual

UserManual.wiki >

Inkel >

JR20CU User Manual HTML Version

Manual

VzW MPE25K

Installation Manual

2008. 04

Draft Ver 0.5

Modified Manual LIST

Manual issue DATE Modified List Remark

Ver 0.2 2007. 08. 02 First Draft

Ver 0.3 2007. 09. 11

Added Information

▶ Changed DIP S/W control method

▶ Appendix C. System Block

▶ Appendix D. Troubleshooting for the MPE25K

Ver 0.4 2007. 10. 12. Modified Image

▶ Bias-T CU Port DC Block+50Ω Term

▶ Added material name of each image

Ver 0.5 2008. 04. 21 ▶ Changed Installation Bracket

▶ Updated System Block

▶Safety Precautions:

Î Use the power plug at the adaptor to turn the power on and off.

Î Please make sure that a ground wire is installed to connect the Antenna Unit to an appropriate

earth ground.

Î Refer servicing to a qualified technician who is familiar with NEC (National Electrical Code) and

a related regulation for installation to reduce the risk of electrical damage when the unit does not

appear to operate normally or exhibits a marked change in performance.

Radio Regulation Conformance

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with instructions, may

cause harmful and, if not installed and used in accordance with instructions, may cause harmful

interference to radio communications. However, there is no guarantee that the interference will not

occur in a particular installation.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference. And (2) this device must accept any

interference received, including interference that may cause understand operation.

FCC RF Radiation Exposure Statement

The antenna(s) used for this transmitter must be installed to provide a

separation distance of at least 20 cm from all persons and must not be co-located or

operating in conjunction with any other antenna or transmitter.

WARNING

Any changes or modifications not expressly approved by the manufacturer could void

the user’s authority to operate the equipment.

1. Installation Flow Chart...................................................................................................... 7

2. Component Verification and Explanation.............................................................................8

2.1 DONOR UNIT(DU)....................................................................................................9

2.2 COVERAGE UNIT(CU)............................................................................................. 10

3. Preparing for DU and CU Installation........................ 오류! 책갈피가 정의되어 있지 않습니다.

4. BAND SETTING ...........................................................오류! 책갈피가 정의되어 있지 않습니다.

5. DONOR UNIT(DU) SET Installation ................................................................................... 15

5.1 BRACKET-DU Image.............................................................................................. 15

5.1.1. DU 에 BRACKET – DU Connection Image ........................................................ 15

5.1.2. BRACKET-DU Connection to Installation Place(WALL or POLE) Image................. 15

5.2 BRACKET Connection to DU................................................................................... 16

5.3 BRACKET Connection depending on Installation Place................................................ 17

5.3.1. BRACKET/MTG POLE MOUNTING................................................................... 17

5.3.2. BRACKET/MTG LUMBER WALL Mounting......................................................... 17

5.3.3. BRACKET/MTG CONCRETE WALL Mounting .................................................... 18

5.4 Connection DU(same as 5.1) with BRACKET(same as 5.2).......................................... 18

5.5 Installation Completion. .......................................................................................... 20

6. CU Wall & Ceil Mount Installation..................................................................................... 21

6.1. MTG Bracket Image............................................................................................... 21

6.2 GYPSUM BOARD WALL MOUNTING.......................................................................... 22

6.3 CONCRETE WALL MOUNTING ................................................................................. 22

6.4 LUMBER WALL MOUNTING ..................................................................................... 23

6.5 Install Bracket Connection with CU........................................................................... 24

6.6 CU SET Installation Completion................................................................................ 24

7. Power Connection and Optimization SETTING ................오류! 책갈피가 정의되어 있지 않습니다.

8. Status Check ................................................................................................................ 30

8.1 DU FAULT LED...................................................................................................... 30

8.2 CU FAULT LED...................................................................................................... 30

Appendix A. Product Introduction........................................................................................ 32

A.1 Overview .............................................................................................................. 32

A.2 Supported Frequency Range................................................................................... 34

Appendix B. System Specifications...................................................................................... 35

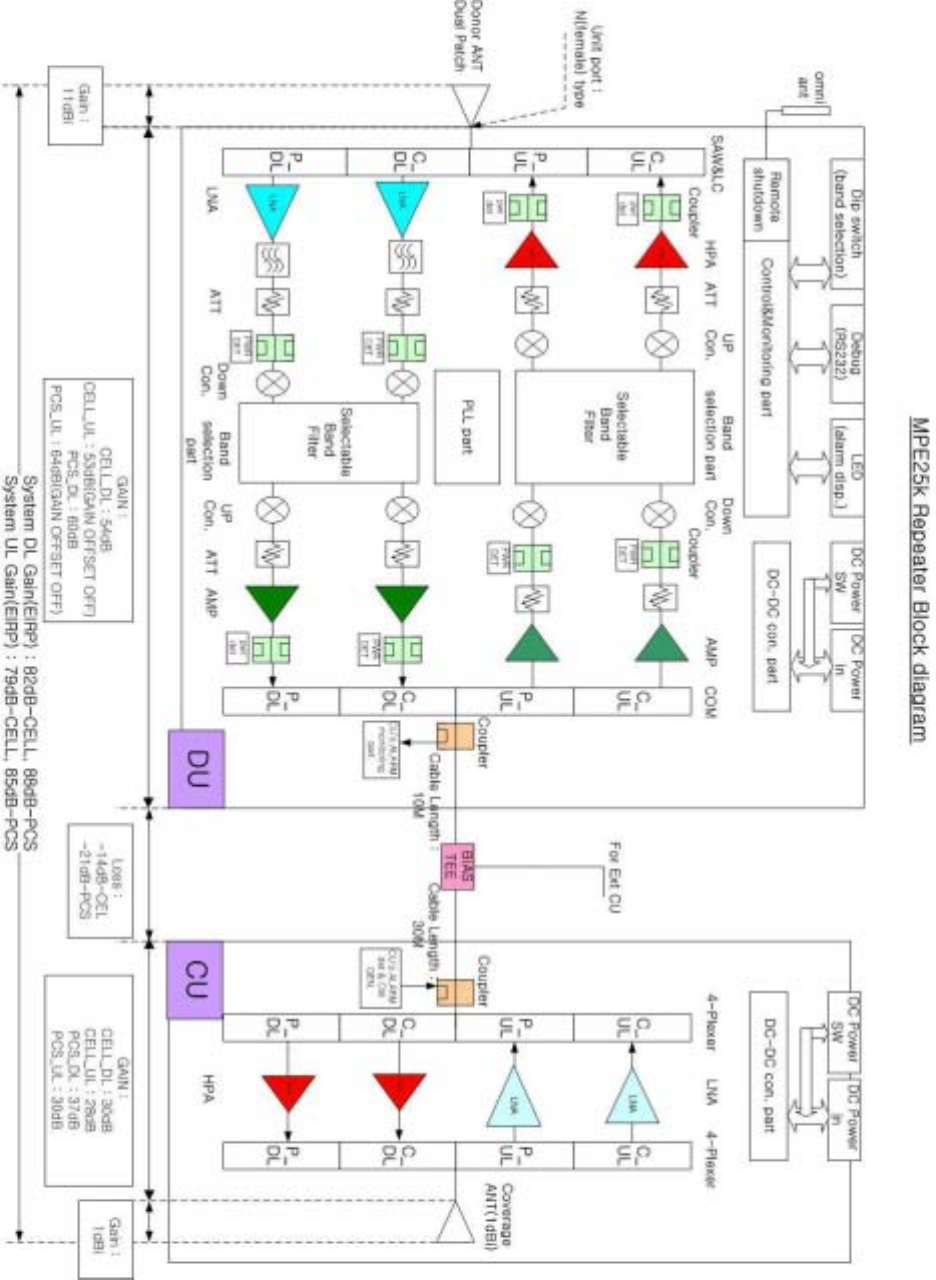

Appendix C. System Block.................................................................................................. 36

Appendix D. Troubleshooting for MPE25K............................................................................. 37

Fig. 1 Installation Flow Chart....................................................................................................................................7

Fig. 2 List of all the Componants in the System ................................... 오류! 책갈피가 정의되어 있지 않습니다.

Fig. 3 Additional CU Componants......................................................... 오류! 책갈피가 정의되어 있지 않습니다.

Fig. 4 DONOR UNIT(DU) Image .......................................................... 오류! 책갈피가 정의되어 있지 않습니다.

Fig. 5 CU Image....................................................................................... 오류! 책갈피가 정의되어 있지 않습니다.

Fig. 6 DIP S/W Basic Setting ................................................................. 오류! 책갈피가 정의되어 있지 않습니다.

Fig. 7 MTG Bracket Image.......................................................................................................................................15

Fig. 8 MTG BRACKET Mounting (Pole, Lumber Wall, Concrete Wall) Connection Image.............................15

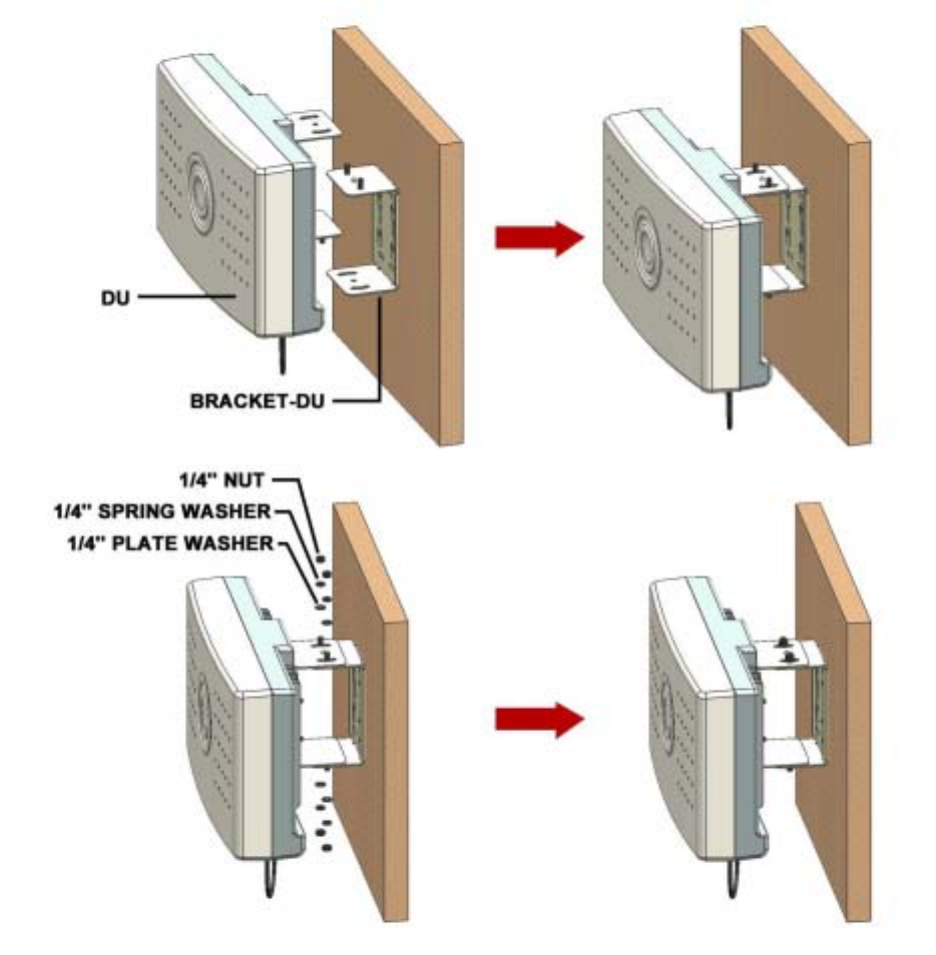

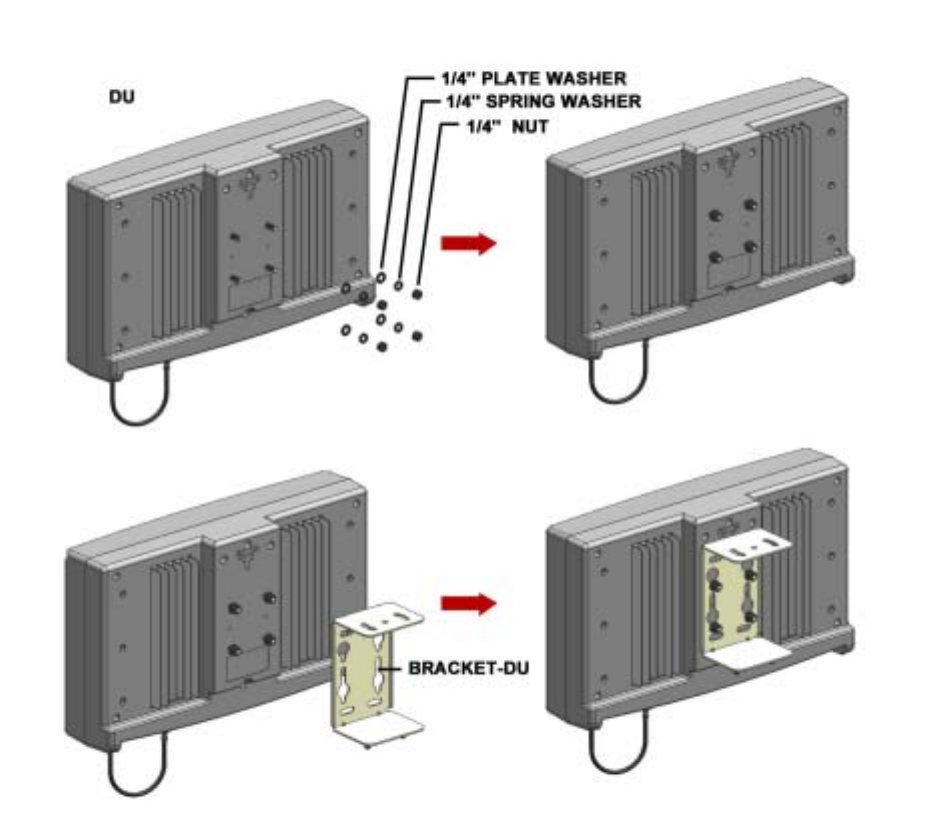

Fig. 9 DU Bracket Connection Diagram .................................................................................................................16

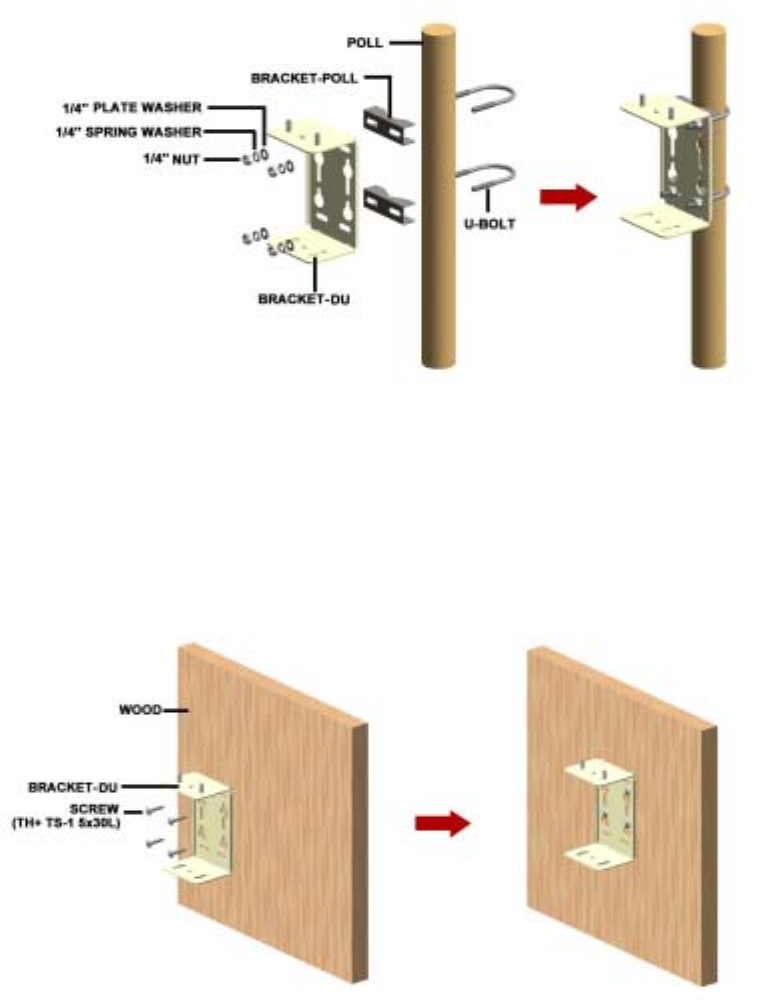

Fig. 10 POLE MOUNTING MTG BRACKET-DU Connection Sequence...........................................................17

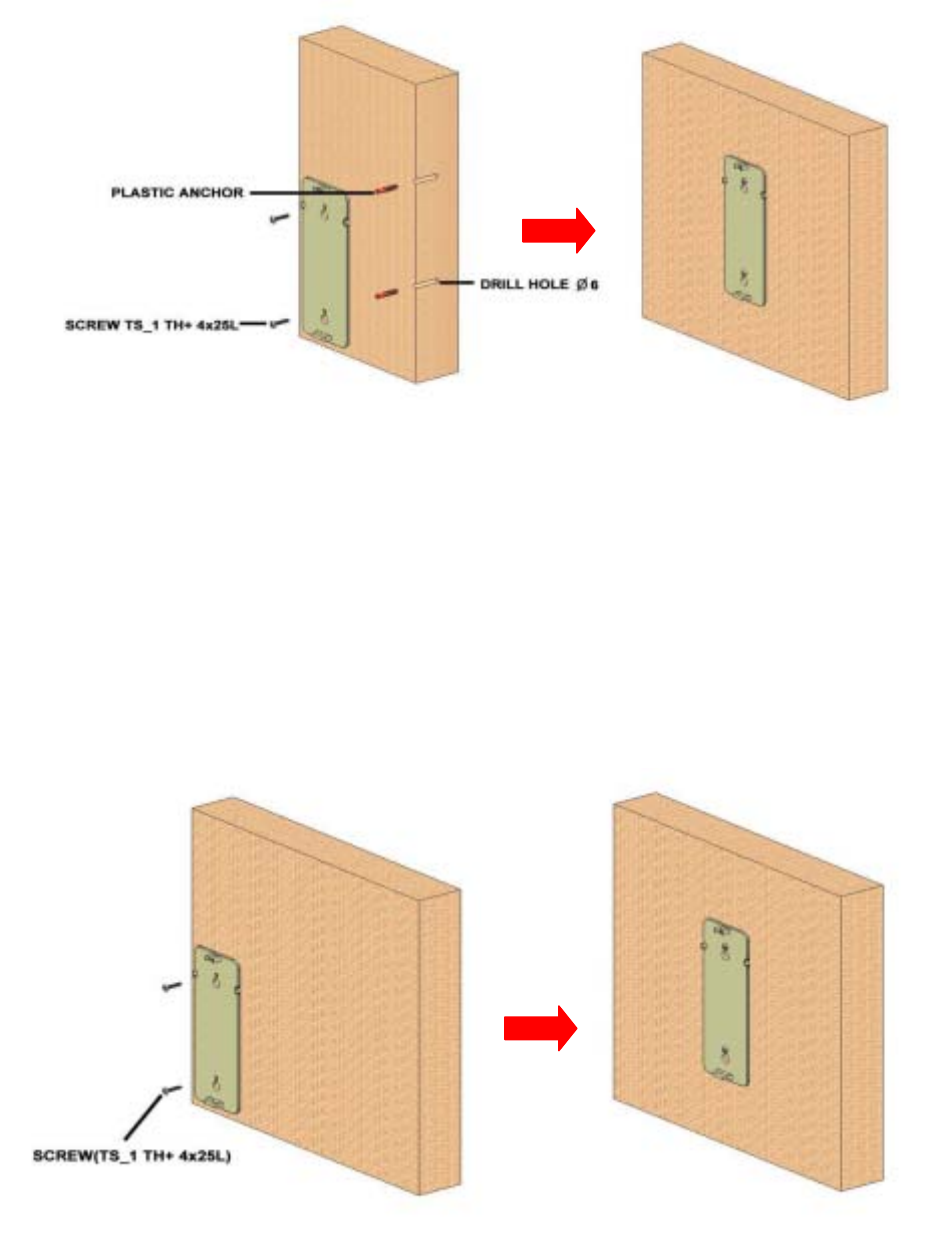

Fig. 11 LUMBER WALL MOUNTING MTG BRACKET-DU Connection Sequence........................................17

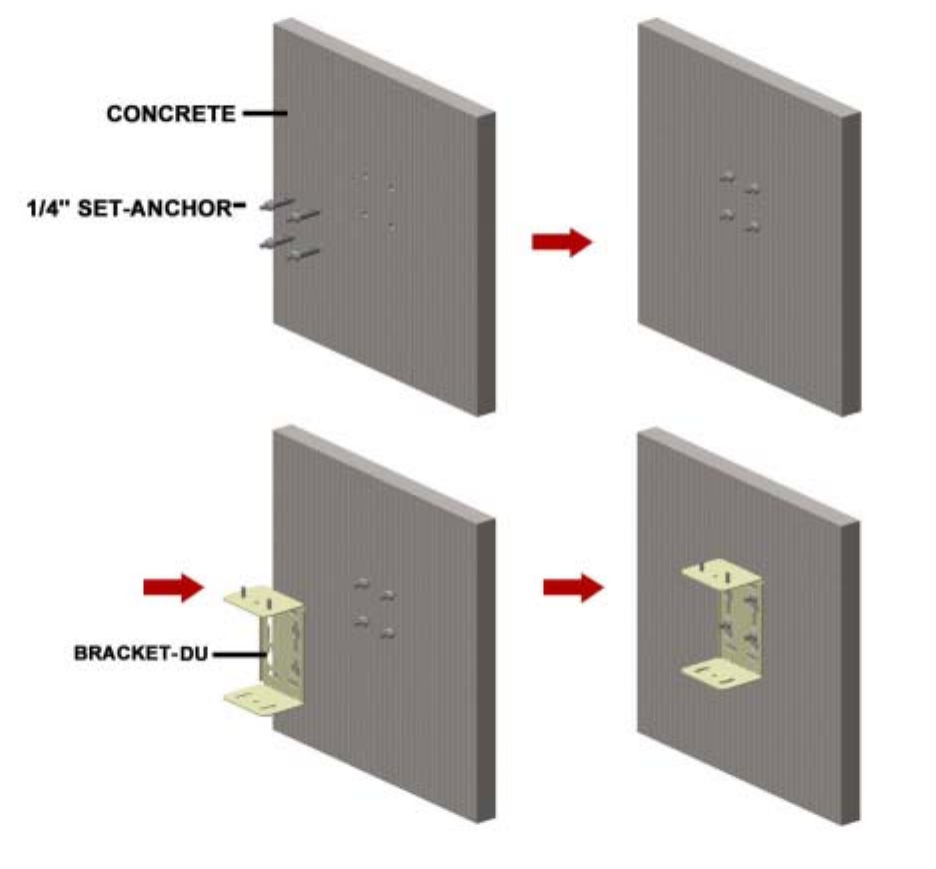

Fig. 12 CONCRETE WALL MOUNTING MTG BRACKET-DU Connection Sequence...................................18

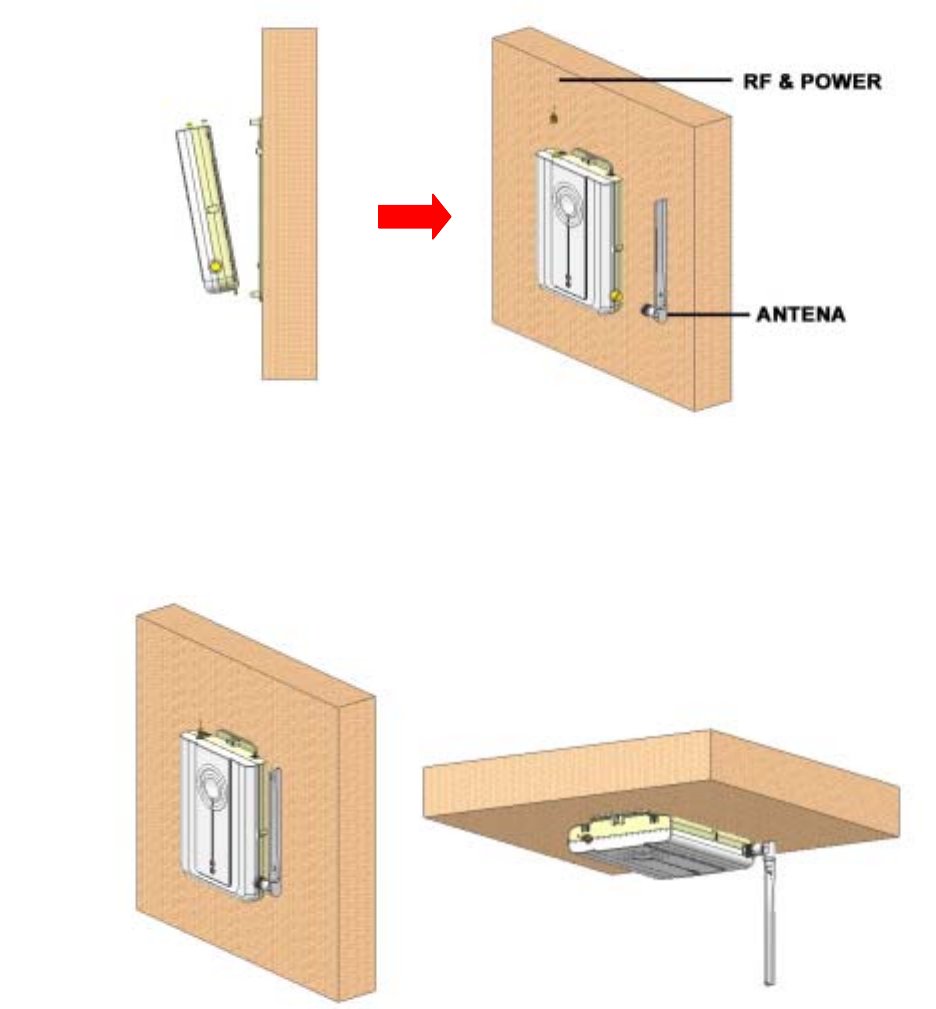

Fig. 13 DU Unit Wall Mounting...............................................................................................................................19

Fig. 14 DU Unit POLE Mounting Installation Completion Diagram...................................................................20

Fig. 15 DU Unit LUMBER WALL Mounting Installation Completion Diagram................................................20

Fig. 16 DU Unit CONCRETE WALL Mounting Installation Completion Diagram...........................................20

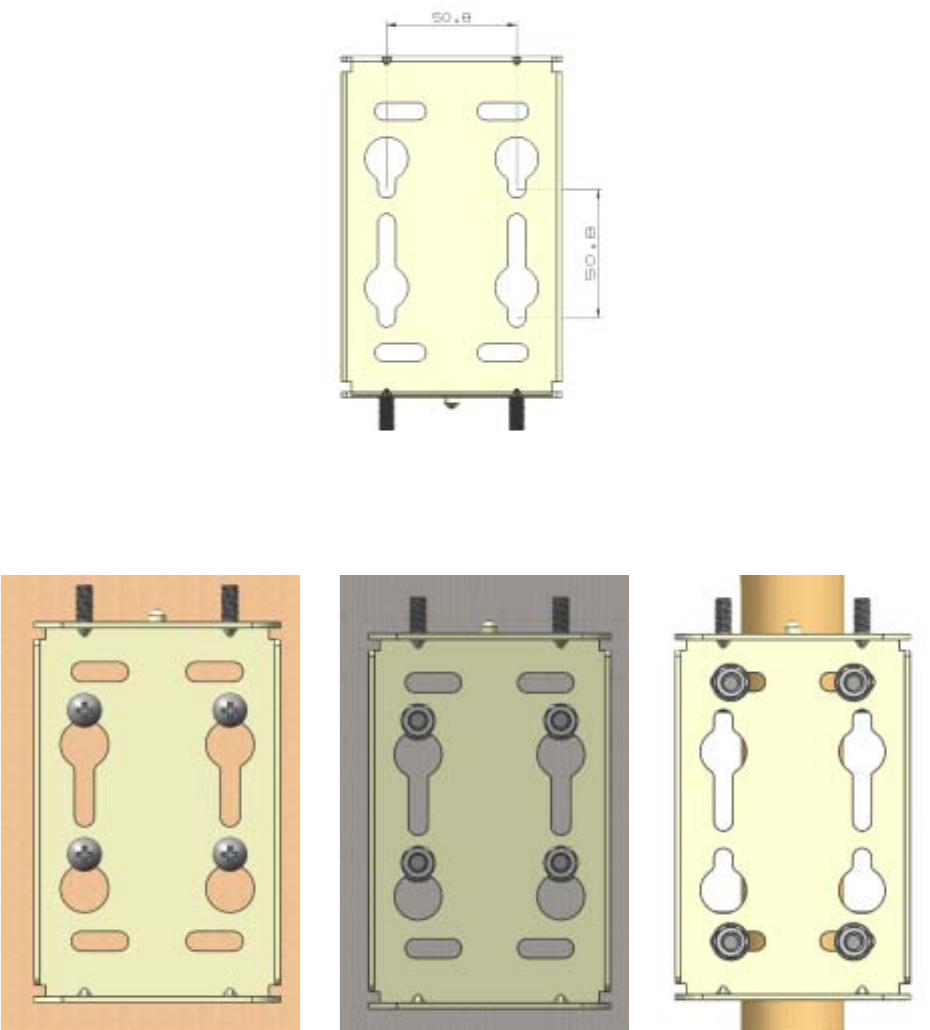

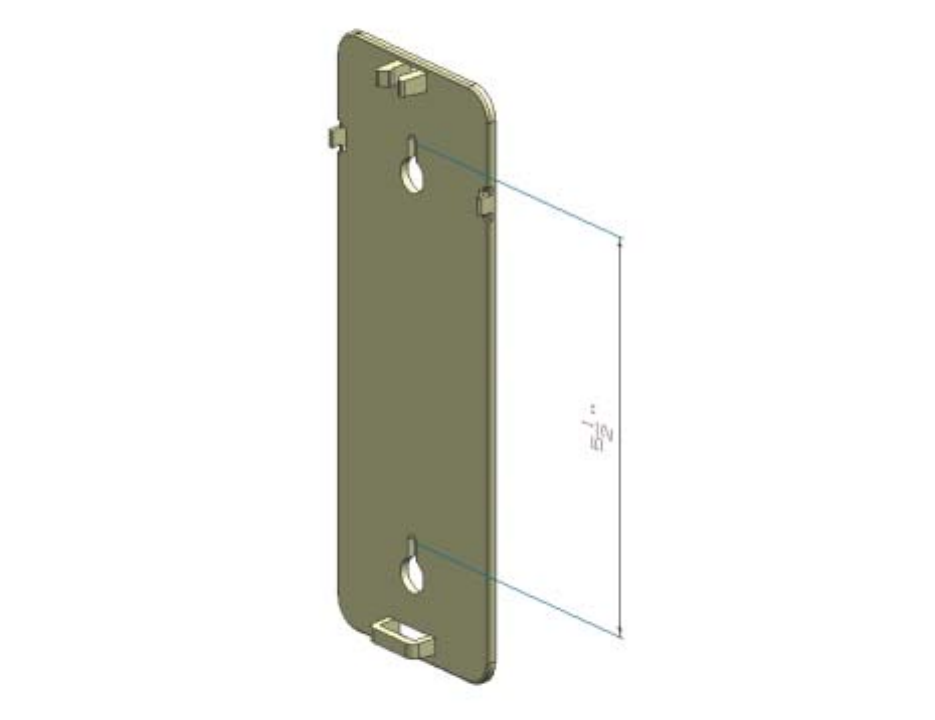

Fig. 17 CU MTG Bracket Image & Hole distance..................................................................................................21

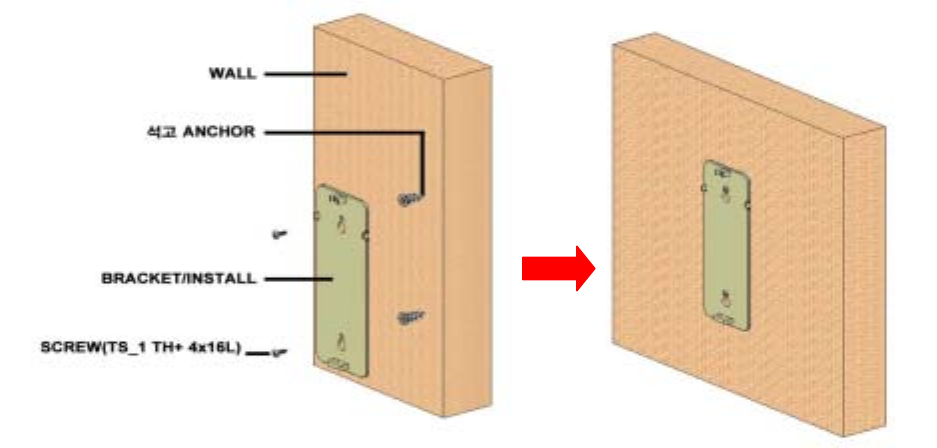

Fig. 18 CU Bracket Gypsum Wall Mounting..........................................................................................................22

Fig. 19 CU Bracket Concrete Wall Mounting.........................................................................................................23

Fig. 20 CU Bracket Lumber Wall Mounting ..........................................................................................................23

Fig. 21 CU MTG Bracket – CU SET Connection Image .......................................................................................24

Fig. 22 CU Installation Sequence.............................................................................................................................24

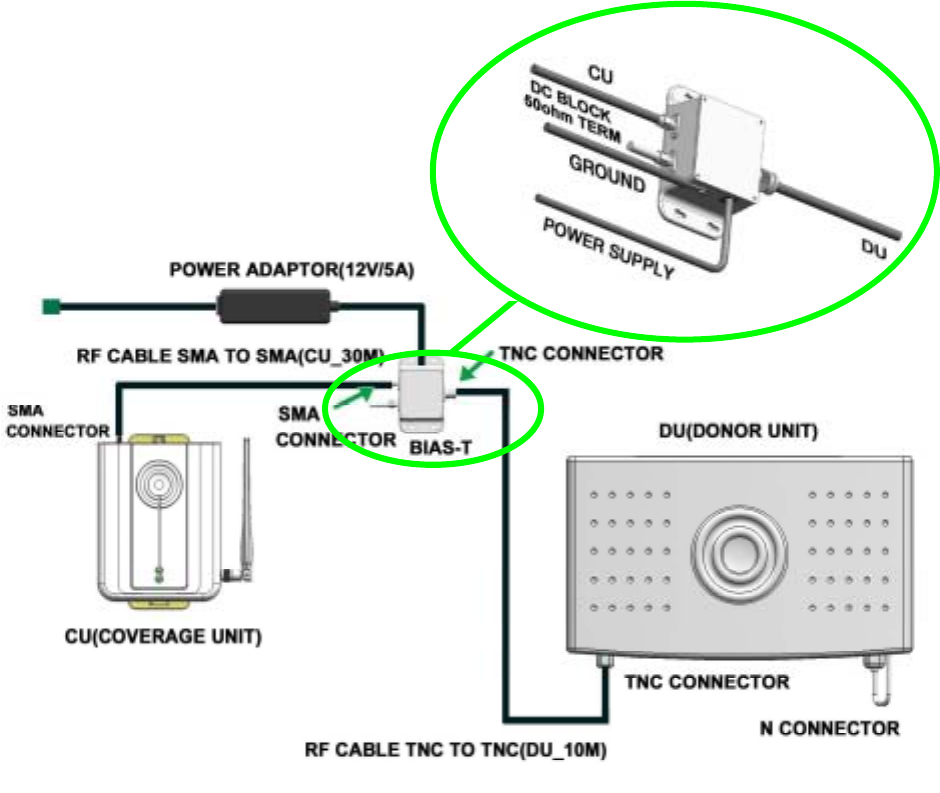

Fig. 23 Power PORT Connection Digram...............................................................................................................25

Fig. 24 POWER INJECTOR Installation Diagram...............................................................................................26

Fig. 25 DU ANT Tilt Diagram..................................................................................................................................28

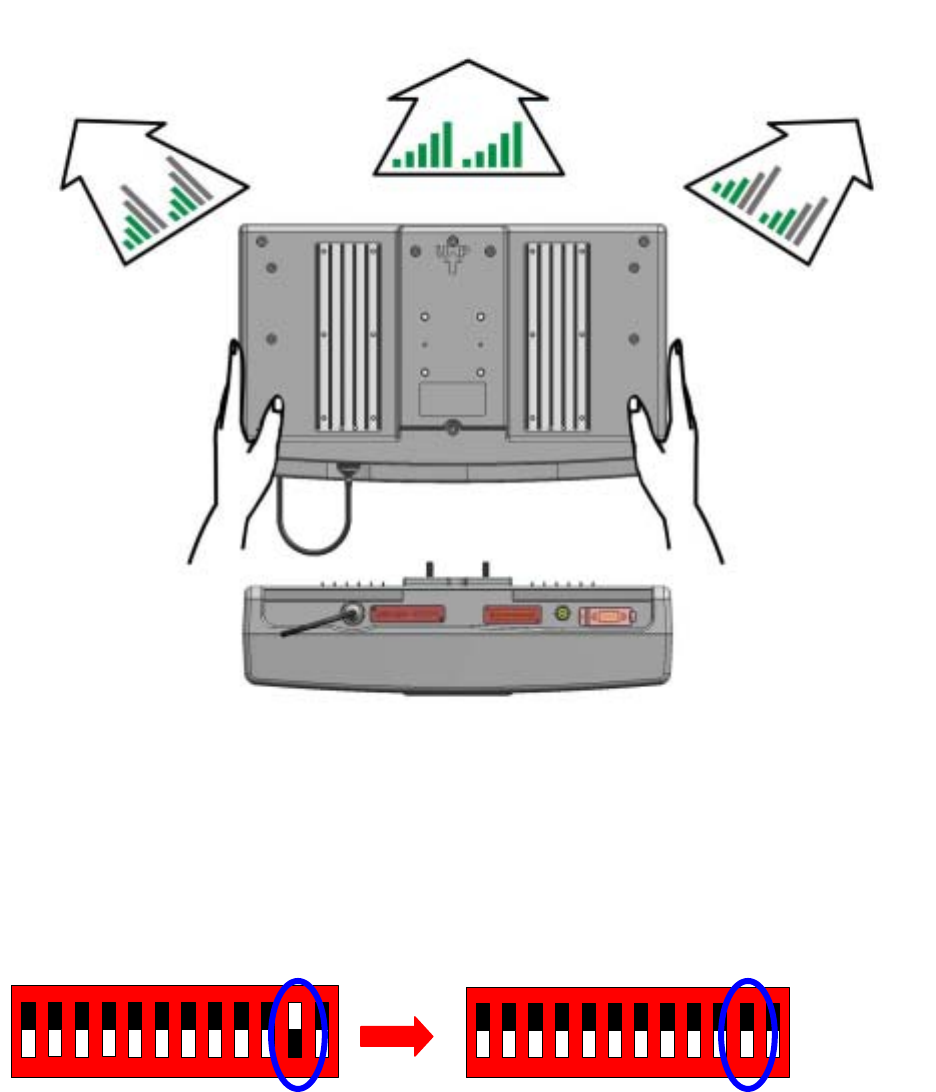

Fig. 26 Verifying reception Status Diagram...........................................................................................................29

Fig. 27 DIP S/W Diagram.........................................................................................................................................29

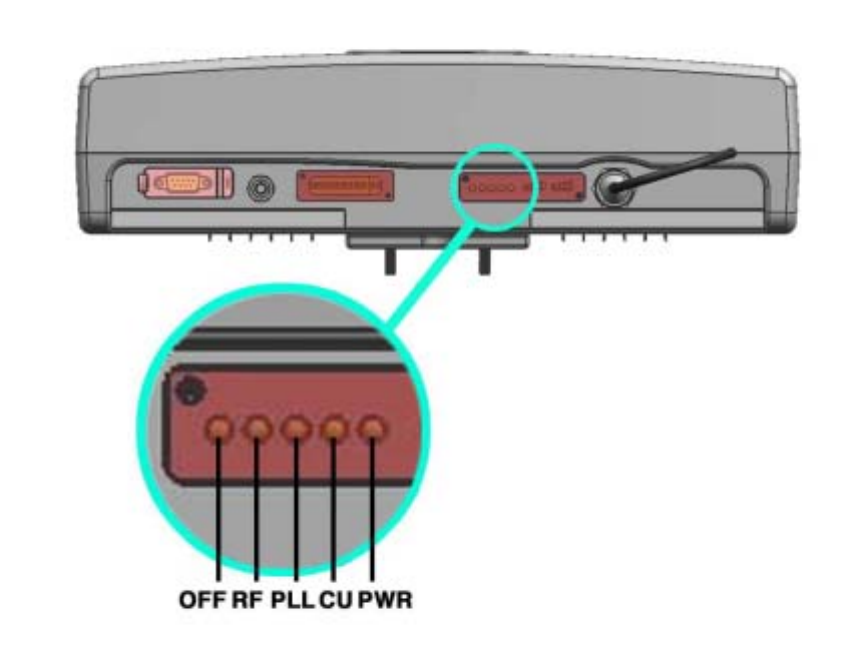

Fig. 28 DU LED Diagram.........................................................................................................................................30

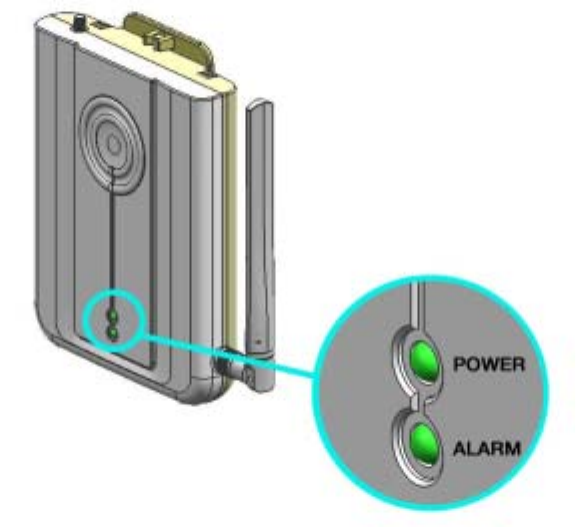

Fig. 29 CU LED Diagram.........................................................................................................................................31

Fig. 30 System Installation Diagram .......................................................................................................................32

Fig. 31 Basic Connection Diagram...........................................................................................................................33

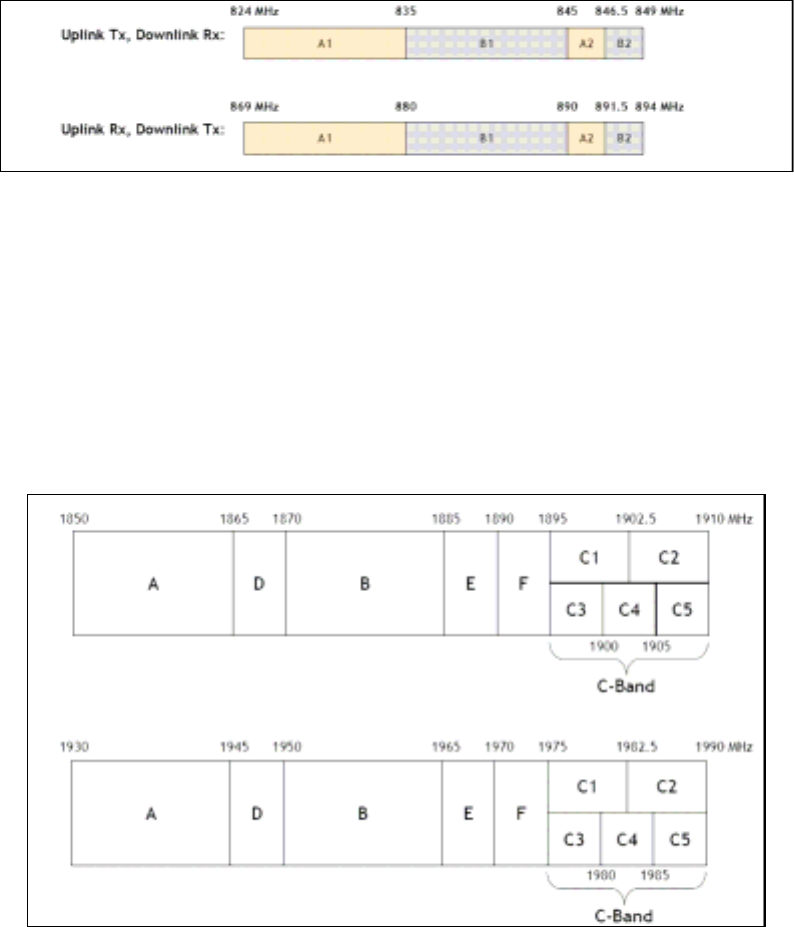

Table 1 Band Setting.................................................................................................................................................14

Table 2 Cellular Frequency ......................................................................................................................................34

Table 3 PCS Frequency.............................................................................................................................................34

Table 4 RF Specifications..........................................................................................................................................35

Table 5 Physical Specifications.................................................................................................................................35

Table 6 Antenna Specifications ................................................................................................................................35

1. Installation Flow Chart

This document will provide details on how to successfully install the Juni JR-20 Repeater

system. The flow chart below provides a step by step guide for installing the JR-20 Repeater

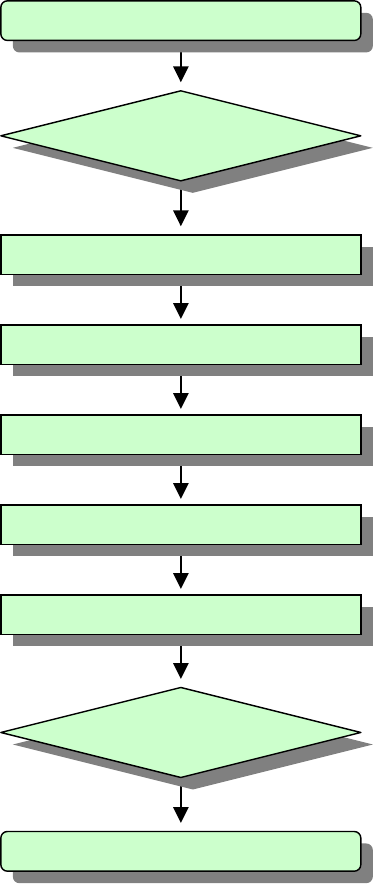

Fig. 1 Installation Flow Chart

1. Start

3. Locating

4. Band Setting

5. DU

6. CU

7. Power / Optimization

9. End

8. Status Check

2. Package Check

2. Component Verification and Explanation

The first step when installing the repeater is to check that all components are present and that the

parts do not have any visible faults. The figure below illustrates the items included in the Juni JR-

20 Repeater Kit.

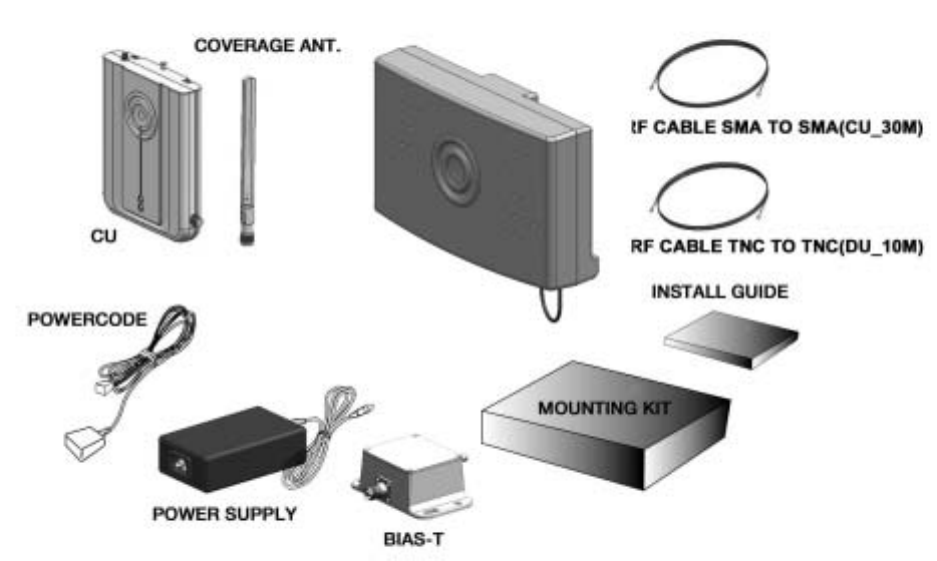

Fig. 2 List of all the Components in the System

Fig. 3 Additional Coverage Unit Components

2.1 DONOR UNIT(DU)

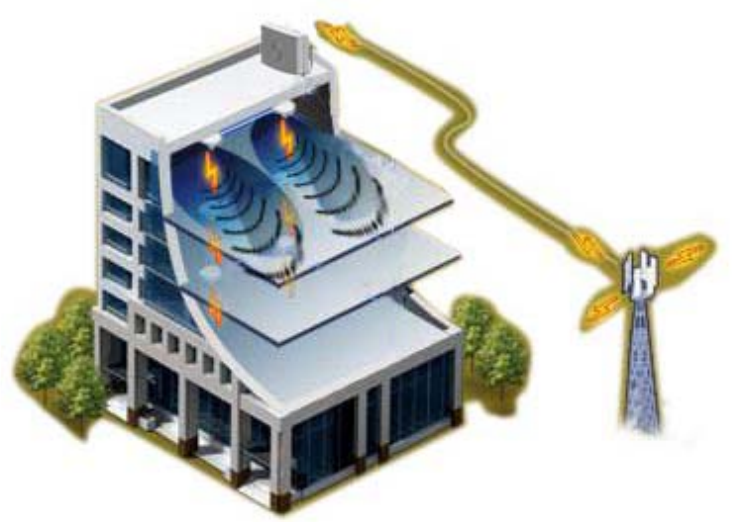

The role of the Donor Unit is to communicate with the BTS. It is located outside the building

where service is to be improved. The Donor Unit can be mounted onto a wall or a pole,

depending on the specific installation needs.

Fig. 4 DONOR UNIT(DU)

2.2 COVERAGE UNIT(CU)

The role of the Coverage Unit is to communicate with the mobiles within the building which

needs improved coverage. It is intended for wall mounting.

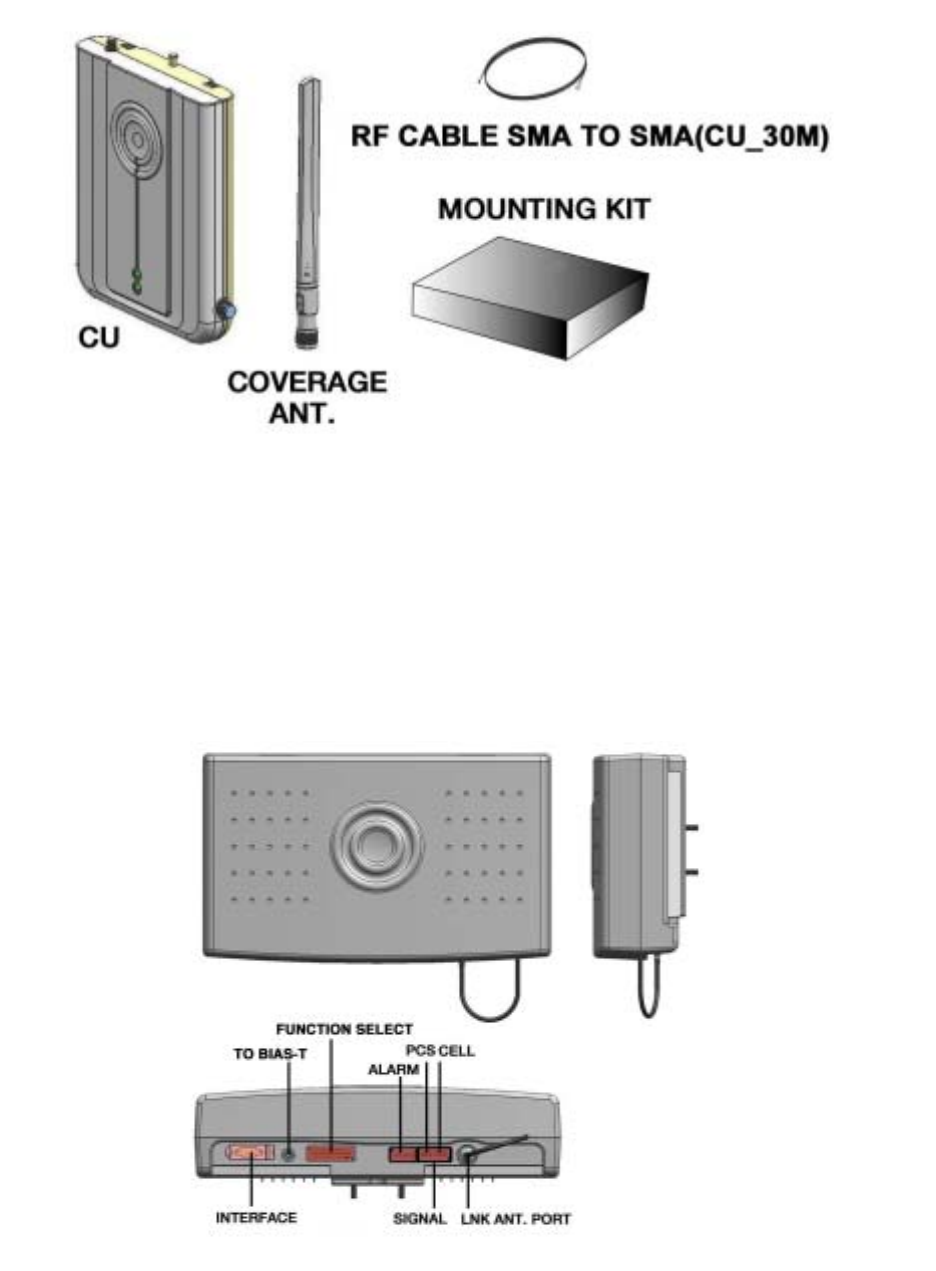

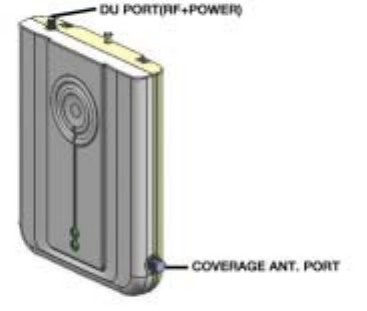

Fig. 5 Coverage Unit (CU)

3. Preparing for Donor Unit and Coverage Unit Installation

Determining the proper installation location for the Donor and Coverage Units is very important,

since their position will determine the overall performance of the repeater.

The authorized installer should determine where it will be mounted in accordance with the

instructions received by Juni for best reception by the BTS.

When determining the position of the Donor Unit, the following points should be considered.

Î Where is the target Donor BTS?

Î Will the Donor Unit be mounted on a wall or a pole? (99% will be wall mounted)

Î Try to avoid areas where may possibly hinder the communication between the Donor Unit

and the BTS such as large walls.

Î The Donor Unit should not be located any more than 10 feet away from the wall penetration

or window which will allow access to the inside of the building.

When determining the position of the Coverage Unit, the following points should be considered.

Î Try to position the Coverage Unit at the center of the desired indoor coverage area.

Î Try to position the Coverage Unit so that it is clearly visible throughout the desired indoor

coverage area.

Î Make sure that the distance from the Coverage Unit to the power source is less than 20 feet.

4. BAND SETTING

Once the planning of the location and positioning of the Donor and Coverage Units is finalized,

the authorized installer should proceed with installing the Donor and Coverage Units. But first,

the installer should set the appropriate frequency band(s) for the repeater. The figure and table

below show the DIP Switch and the functions for each section. Usually both the PCS and

Cellular bands have to be set up.

After DIP S/W setting, turn power ON/OFF or DIP S/W 12# PIN ON/OFF.

Î DIP Switch Functions

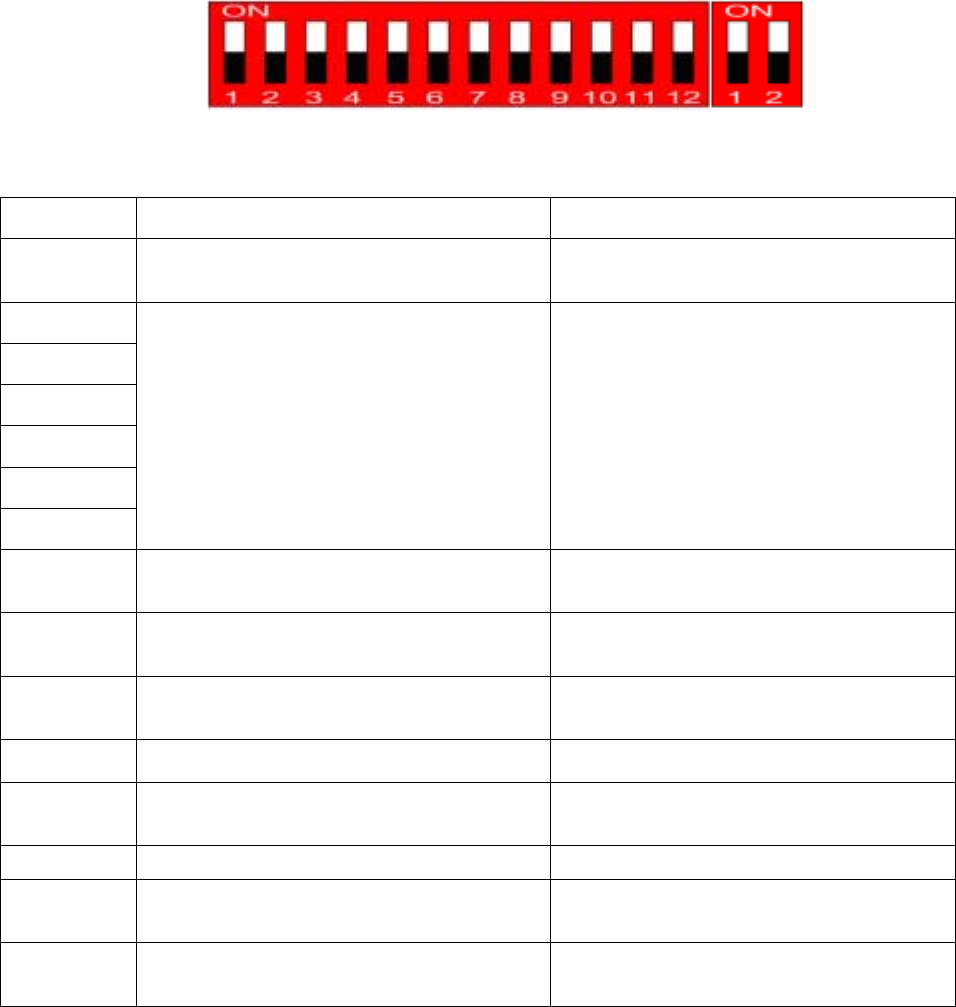

Fig. 6 DIP Switch General Settings

PIN NO. FUNC TION STATUS

1 Cellular Band Selection ON : Cellular B Band

OFF : Cellular A Band

PCS Band Selection See the next tables below

8 PCS EVDO OFFSET ON : PCS Gain OFFSET 3dB(increase) ON

OFF : PCS Gain OFFSET 3dB(reduction) OFF

9 Cellular EVDO OFFSET

ON : Cellular Gain OFFSET 3dB(increase )ON

OFF : Cellular Gain OFFSET 3dB(reduction) OFF

10 Band Selection Mode ON : Software Band Selection Mode

OFF : Hardware Band Selection Mode

11 Uplink RF OFF ON : Reverse RF Power OFF

OFF : Reverse RF Power ON

12 Hardware Reset ON : Reset

OFF : Normal Operation

PIN NO. FUNC TION STATUS

1 PCS PATH HARDWARE ON/OFF ON : PCS UL/DL PATH HARDWARE ON

OFF : PCS UL/DL PATH HARDWARE OFF

2 CELLULAR PATH HARDWARE ON/OFF ON : CELLULAR UL/DL PATH HARDWARE ON

OFF : CELLULAR UL/DL PATH HARDWARE OFF

BW UP LINK DOWN LINK DIP SWITCH REMARK

1850 ~ 1855 1930 ~ 1935

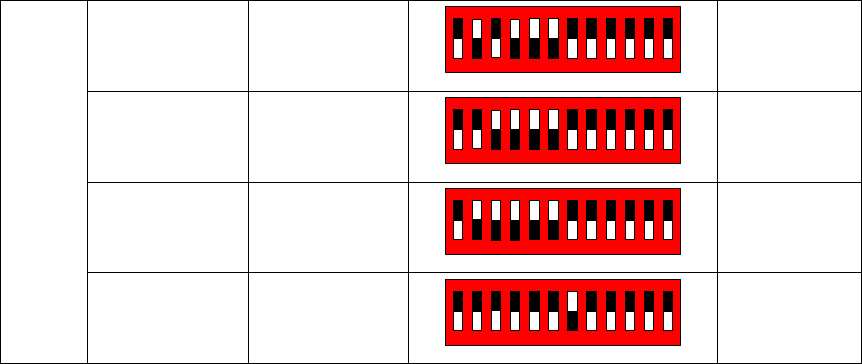

123456789101112

White color

is switch.

1855 ~ 1860 1935 ~ 1940

123456789101112

1860 ~ 1865 1940 ~ 1945

123456789101112

1865 ~ 1870 1945 ~ 1950

123456789101112

1870 ~ 1875 1950 ~ 1955

123456789101112

1875 ~ 1880 1955 ~ 1960

123456789101112

1880 ~ 1885 1960 ~ 1965

123456789101112

1885 ~ 1890 1965 ~ 1970

123456789101112

1890 ~ 1895 1970 ~1975

123456789101112

1895 ~ 1900 1975 ~ 1980

123456789101112

1900 ~ 1905 1980 ~ 1985

123456789101112

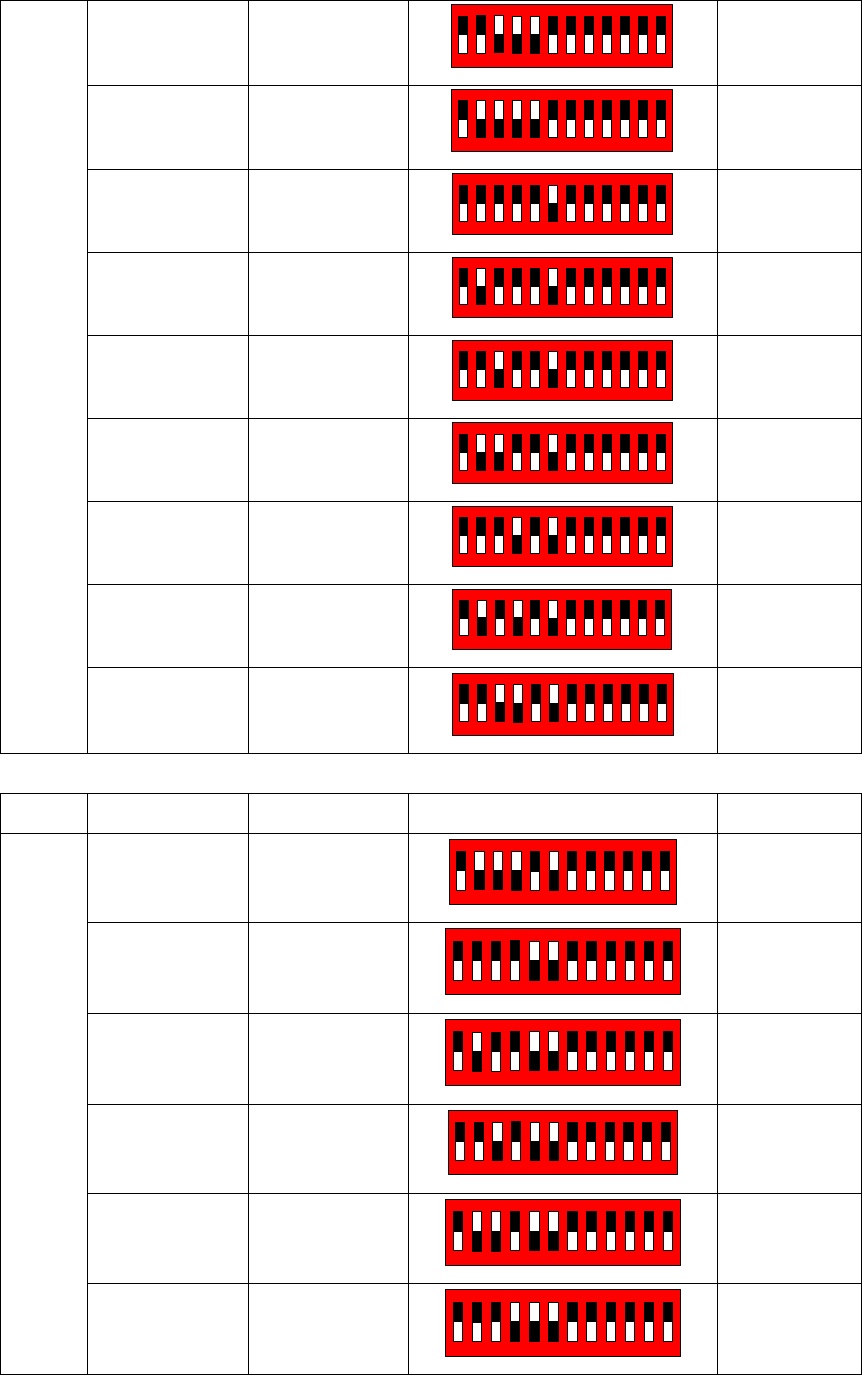

5MHz

1905 ~ 1910 1985 ~ 1990

123456789101112

BW UP LINK DOWN LINK DIP SWITCH REMARK

1850 ~ 1860 1930 ~ 1940

123456789101112

10MHz

1855 ~ 1865 1935 ~ 1945

123456789101112

1860 ~ 1870 1940 ~ 1950

123456789101112

1865 ~ 1875 1945 ~ 1955

123456789101112

1870 ~ 1880 1950 ~ 1960

1 2 3 4 5 6 7 8 9 10 11 12

1875 ~ 1885 1955 ~ 1965

1 2 3 4 5 6 7 8 9 10 11 12

1880 ~ 1890 1960 ~ 1970

1 2 3 4 5 6 7 8 9 10 11 12

1885 ~ 1895 1965 ~ 1975

1 2 3 4 5 6 7 8 9 10 11 12

1890 ~ 1900 1970 ~ 1980

1 2 3 4 5 6 7 8 9 10 11 12

1895 ~ 1905 1975 ~ 1985

1 2 3 4 5 6 7 8 9 10 11 12

1900 ~ 1910 1980 ~ 1990

12345678 9101112

BW UP LINK DOWN LINK DIP SWITCH REMARK

1850 ~ 1865 1930 ~ 1945

12 34 56 78 9101112

1855 ~ 1870 1935 ~ 1950

12345678 9101112

1860 ~ 1875 1940 ~ 1955

12345678 9101112

1865 ~ 1880 1945 ~ 1960

12 34 56 78 9101112

1870 ~ 1885 1950 ~ 1965

12345678 9101112

15MHz

1875 ~ 1890 1955 ~ 1970

12345678 9101112

1880 ~ 1895 1960 ~ 1975

12345678 9101112

1885 ~ 1900 1965 ~ 1980

12345678 9101112

1890 ~ 1905 1970 ~ 1985

12345678 9101112

1895 ~ 1910 1975 ~ 1990

12345678 9101112

Table 1 Band Setting

5. DONOR UNIT(DU) SET Installation

5.1 BRACKET-DU Image

5.1.1. DU 에 BRACKET – DU Connection Image

1) The length unit is [mm].

Fig. 7 MTG Bracket Image

5.1.2. BRACKET-DU Connection Image to Installation(WALL or POLE)

( Pole Mounting ) ( Lumber Wall Mounting) ( Concrete Wall Mounting )

Fig. 8 MTG BRACKET Mounting (Pole, Lumber Wall, Concrete Wall) Connection Image

5.2 BRACKET Connection to DU

1) 1) APPLY NUT, SPRING WASHER, PLATE WASHER.

(Do not Connect Completely)

[NUT, SPRING WASHER, PLATE WASHER each 4ea]

2) Apply BRACKET/MTG to DU. APPLY NUT COMPLETELY USING PROVIDED TOOL.

[BRACKER/MTG 1ea]

Fig. 9 DU Bracket Connection Diagram

5.3 BRACKET Connection depending on Installation Place

5.3.1. BRACKET/MTG POLE MOUNTING

1) Secure DU to the pole using U-BOLT.

2) Insert U-BOLT to between BRACKET-POLE and BRACKET-DU

3) Apply the pole to the BRACKET-DU: use the nuts and u-bolts provided to fixate the

bracket into the Pole.

[BRACKET-DU 1ea, BRACKET-POLE 2ea, U-Bolt 2ea, NUT, SPRING WASHER, PLATE

WASHER each 4ea]

Fig. 10 POLE MOUNTING MTG BRACKET-DU Connection Sequence

5.3.2. BRACKET/MTG LUMBER WALL Mounting

1) Secure BRACKET-DU to the wooden wall. Using cross driver connect SCREW to wooden

wall through BRACKET-DU.

[BRACKET-DU 1ea, SCREW 4ea]

Fig. 11 LUMBER WALL MOUNTING MTG BRACKET-DU Connection Sequence

5.3.3. BRACKET/MTG CONCRETE WALL Mounting

1) Drill on the wall as the BRACKET-ANT distance. (forφ 10mm Hole depth to be 30 to 40

mm.)

2) INSERT SET-ANCHOR TO DRILLED HOLE.

3) Secure BRACKET-DU to the Wall and fix the nut.

[BRACKER-DU 1ea, SET-ANCHOR 4ea]

Fig. 12 CONCRETE WALL MOUNTING MTG BRACKET-DU Connection Sequence

5.4 DU Connection (same as 5.1) with BRACKET(same as 5.2)

1) APPLY DU to the BRACKET.

2) Apply the NUT to the upside of BRACKET like below sequence. – Do not apply the NUT

completely.

3) Set the receiving direction of the ANTENNA and apply the NUT completely using the

provided tool.

[NUT, SPRING WASHER, PLATE WASHER each 4ea]

Fig. 13 DU Unit Wall Mounting

5.5 Installation Completion.

Fig. 14 DU Unit POLE Mounting Installation Completion Diagram

Fig. 15 DU Unit LUMBER WALL Mounting Installation Completion Diagram

Fig. 16 DU Unit CONCRETE WALL Mounting Installation Completion Diagram

6. CU Wall & Ceil Mount Installation

6.1. MTG Bracket Image

Fig. 17 CU MTG Bracket Image & Hole Distance

6.2 GYPSUM BOARD WALL MOUNTING

1) Secure DRYWALL anchor to the GYPSUM BOARD WALL using cross driver by keeping

BRACKET Hole distance 5.5inch(140mm).

2) Secure DRYWALL anchor screw(TS_1 TH+ 4x16L) to BRACKET/install.

Fig. 18 CU Bracket Gypsum Wall Mounting

6.3 CONCRETE WALL MOUNTING

1) Secure PLASTIC ANCHOR TO WALL.

: INSERT PLASTIC ANCHOR after drill φ6mm Hole in the wall by 30~40mm depth by

keeping BRACKET Hole distance 5.5inch(140mm).

Fig. 19 CU Bracket Concrete Wall Mounting

6.4 LUMBER WALL MOUNTING

1) Secure BRACKET-INSTALL to the wooden wall. Using cross driver, connect completely

SCREW(TS_1 TH+ 4x25L) to wooden wall through BRACKET-INSTALL by keeping

BRACKET Hole distance 5.5inch(140mm).

Fig. 20 CU Bracket Lumber Wall Mounting

6.5 Install Bracket Connection with CU

1) APPLY CU to BRACKET-CU MTG.

2) After connecting RF+POWER CABLE, connect ANT to right TNC connector.

Fig. 21 CU MTG Bracket – CU SET Connection Image

6.6 CU SET Installation Completion

(WALL MOUNT) (CEIL MOUNT)

Fig. 22 CU Installation Sequence

7. Power Connection and Optimization SETTING

1) Once the RF Cable is connected between the Donor Unit and Bias T and the second RF

Cable is connected between the Bias T and the Coverage Unit, the Power Adaptor should be

connected to the Bias T. If the Power Adaptor is connected to Bias T before the RF cable is

connected to either the Donor or Coverage Unit, possible damage could occur to the

equipment. Therefore the installer should be sure to connect the Power Adaptor to the Bias T

after the RF cables are connected to the Donor and Coverage Units.

Fig. 23 Power PORT Connection

1-1) BIAS-T Installation Guide

. The figure below shows a detailed connection of the Power Adaptor and the Bias T. The

Ground cable at the Bias T must be connected before AC power is supplied to the Power

Adaptor.

Fig. 24 POWER INJECTOR Installation Diagram

2). Once power connection has been successfully made (this can be verified by checking the

Alarm LED on the Donor Unit and LED indications on the Coverage Unit, the Donor Unit azimuth

should be positioned so that maximum signal level is being received from the BTS. This can be

monitored via the LEDs which indicate the signal strength reading (RSSI).

(The recommended LED RSSI reading is 3 bars)

Outdoor DU on a Roof (Pole mount) Outdoor DU (Wall mount)

Once the Donor Unit is mounted onto the pole, it is

capable of being rotated 20° in either

direction. The Donor Unit can also be

mounted anywhere around the pole.

Can be rotated 20° in either direction

Fig. 25 DU ANT Tilt Diagram

3) The type of mounting method used will determine how much flexibility the Donor Unit has

to adjust the azimuth.

The diagram below shows how the installer can maneuver the Donor Unit to obtain the highest

signal strength while monitoring the LED indications.

Fig. 26 Verifying Reception Status Diagram

4) Once the positioning and direction of the Donor Unit has been finalized, use the DIP Switch

to activate the UL path.

1234567891011

Fig. 27 DIP Switch (Uplink Path Activation)

8. Status Check

8.1 DU FAULT LED

A red LED will turn on if the Repeater is not functioning properly. Each of the LEDs pertains

to the status of a specific section of the system as shown below.

Fig. 28 DU LED

▶ MANUAL OFF – If the installer decides to turn off the system, this LED will indicate red.

▶ RF – If the output power level exceeds the preset limit or if oscillation is present, the

Repeater will automatically shut down and the RF LED will indicate RED.

▶ PLL – Malfunction of the frequency setting circuitry will cause this LED to indicate RED.

▶ CU – Malfunction of the Coverage Unit will cause this LED to indicate RED.

▶ POWER – If the input RF level is not within the range set by the installer, or if the system

identifies a problem during operation, this LED will indicate RED.

8.2 CU FAULT LED

A red LED will indicate that the equipment is not functioning properly. Each of the LEDs

DU(DONOR UNIT)

represents a specific section of the system as shown below.

Fig. 29 CU LED

▶ POWER – Will indicate GREEN if power is being supplied to the Unit

▶ ALARM – If the RF input level is not within the range set by the installer, or if the system

identifies a problem during operation, this LED will indicate RED.

CU(COVERAGE UNIT)

Appendix A. Product Introduction

A.1 Overview

The Juni JR-20 MPE25K Repeater system is an RF repeater which provides coverage for

indoor locations within a BTS coverage area. The repeater is intended to serve indoor

locations where there is very little or no RF coverage. The system supports both US Cellular

and US PCS bands. Verizon Wireless-authorized installation personnel are able select to

frequency bands of operation via the internal band selection function. The Juni JR-20

MPE25K Repeater is intended to suit indoor environments of up to 25,000 sq.ft. The system

configuration includes a Donor Unit which is typically located outside the building and a

Coverage Unit which is positioned at the approximate center of the indoor space requiring

better coverage. The role of the Donor Unit is to provide the link between the repeater system

and the BTS. The Coverage Unit is intended to communicate with Mobiles located indoors.

An optional second Coverage Unit may be added to the system to enhance indoor coverage.

Fig. 30 System Installation

The diagram below shows the basic system configuration. Once the two supplied RF Cables

are connected from the Bias-T to the Donor Unit and Coverage Unit respectively and the

Power Adaptor is connected to the Bias T with AC Power turned on, the Donor Units and

Coverage Unit(s) will function properly.

Fig. 31 System Diagram

A.2 Supported Frequency Range

▶ Operator : Verizon Wireless

▶ Frequency Band in Use : CELLULAR or PCS

Î CELLULAR Frequency Range

Î Cellular Band: (B1 and B2) or (A1 and A2) depending on Verizon Wireless’ Cellular Band

license for the area where the repeater is to be installed.

Table 2 Cellular Frequency

Î PCS Frequency Range (1850-1990 MHz): 1 tunable, non-contiguous PCS band of 5, 10

or 15 MHz selected depending on Verizon Wireless’ PCS band license for the area where the

repeater is to be installed.

Table 3 PCS Frequency

Appendix B. System Specifications

Frequency Bands PCS Uplink : 1850 – 1910MHz Downlink : 1930 – 1990MHz

CELL Uplink : 824 – 849MHz Downlink : 869-894 MHz

Sub-Bands Cell : A+A’, B+B’ PCS : 5 , 10 , 15 MHz

Formats Supported IS-95 / CDMA / 1X EVDO

Typical Coverage Area 2,5000 sq. ft(230 ㎡)

System Gain(Eirp) CEL Up link : 79dB , CEL Down link : 82dB

PCS Up link : 85dB , PCS Down link : 88dB

Downlink Operating Range ~ -40dBm (Receive isotropic power)

Output Level(MAX Eirp) CEL UPLINK : +20dBm, CEL DOWNLINK : +12dBm

PCS UPLINK : +20dBm, PCS DOWNLINK : +18dBm

Third Order Intercept(Eirp)

- typical

CEL DL : 36dBm , CEL UL : 43dBm

PCS DL :38dBm , PCS UL : 38dBm

Power Consumption < 60W

부가 기능 AGC FUCNTION, BRING DOWN, OVERDRIVE, OVERPOWER

Table 4 RF Specifications

DONOR UNIT COVERAGE UNIT

OPERATING TEMPERATURE -20 ℃ ~ 50 ℃ 0 ℃ ~ 40 ℃

SIZE 389(W) X 236(H) X 107(D) 144(W) X 190(H) X 38(D)

WEIGHT 2.7Kg 0.5Kg

RF CONNECTORS LINK : N TYPE

CU : TNC TYPE

DU ANT : SMA

COVERAGE ANT : TNC TYPE

POWER SUPPLY < 60W

Table 5 Physical Specifications

CELL PCS

DU ANT CU ANT DU ANT CU ANT

GAIN(dBi) 10 0 10 0

Elevation Beamwidth-typical(dg) 65° >90° 50° >90°

Azimuth Beamwidth-typical(dg) 40° NA 30° NA

Front-to-Back Ratio(dB) > 15dB NA > 15dB NA

Polarization Vertical

Table 6 Antenna Specifications

Appendix C. System Block

Appendix D. Troubleshooting for MPE25K

Alarm LED Color Possible Reason Action Required Action

MANUAL

OFF

Green

-> Red

When service Provider

force the System OFF

Check Alarm

-> Call Juni Technical Support

RF Green

-> Red

Shutdown by

Excessive RF Output

Power or System

Oscillation

- Excessive Output Power:

Automatically Recovered. Call Juni

Technical Support if repeated

- Oscillation: Wrong Donor Unit

direction or Donora Unit and

Coverage Unit installed too close to

one another

Call Juni Technical Support if not

improved

PLL Green

-> Red Repeater Failure

Check Alarm

-> Power ON/OFF

Call Juni Technical Support if not

improved

CU Green

-> Red

COVERAGE UNIT- Out

of Service

Check Alarm

-> Check the Input AC/DC Power

Adaptor

-> Call Juni Technical Support if

not improved

Power Green

-> Red

Input Power – Out of

Range

Operating Current –

Out of Range

Check Alarm

-> Check the Input AC/DC Power

Adaptor

-> Call Juni Technical Support if

not improved

Contact

Juni

Technical

Support

1. Coverage Unit

Alarm LED Color Possible Reason Action Required Action

CU Green

-> Red

COVERAGE UNIT- Out

of Service

Check Alarm

-> Check input AC/DC Power

-> Call Juni Technical Support

Call Juni

Technical

Support

Inkel JR20CU RF Repeater Coverage Unit User Manual Manual

INKEL Corporation RF Repeater Coverage Unit Manual

Manual

Navigation menu

Namespaces

Views

Navigation
