Puzzle-B3
User's Manual
Regulatory model: 2213
manual-en-250-0823-E-AN240-v100
Avision Inc.
2
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
FOR MOBILE DEVICE USAGE (>20cm/low power)
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
![](/img.php?id=3129661&img=bg3.png)
This device is intended only for OEM integrators under the following
conditions:
1) The antenna must be installed such that 20 cm is maintained between the
antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or
antenna.
As long as 2 conditions above are met, further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end-product for any
additional compliance requirements required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for example
certain laptop configurations or co-location with another transmitter), then the FCC
authorization is no longer considered valid and the FCC ID can not be used on the
final product. In these circumstances, the OEM integrator will be responsible for
re-evaluating the end product (including the transmitter) and obtaining a separate
FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may
be installed such that 20 cm may be maintained between the antenna and users.
The final end product must be labeled in a visible area with the following: “Contains
FCC ID: YAI2213”. The grantee's FCC ID can be used only when all FCC compliance
requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the user’s manual of the end
product which integrates this module.
The end user manual shall include all required regulatory information/warning as
show in this manual.
![](/img.php?id=3129661&img=bg4.png)
4
1 Starting from Your Mobile
Device
Making Preparation
To connect the Puzzle-B3 to a wireless LAN, prepare the followings:
An environment in which a wireless LAN is available
When connecting the Puzzle-B3 to a wireless LAN, you may need information for a
wireless access point such as an SSID (network name) and a security key
(password). For details, contact your Network Administrator or refer to the manual
for the wireless access point.
Attention!
Do not place obstacles that block radio waves (e.g. walls or metal plates) or
devices that cause radio wave interference (e.g. cordless phones) within 100 mm
of the scanner, or near your wireless access point.
MB Application
Download the MB Application on your mobile device from an application store
such as Google Play.
MB
![](/img.php?id=3129661&img=bg5.png)
Connecting to A Wireless Network

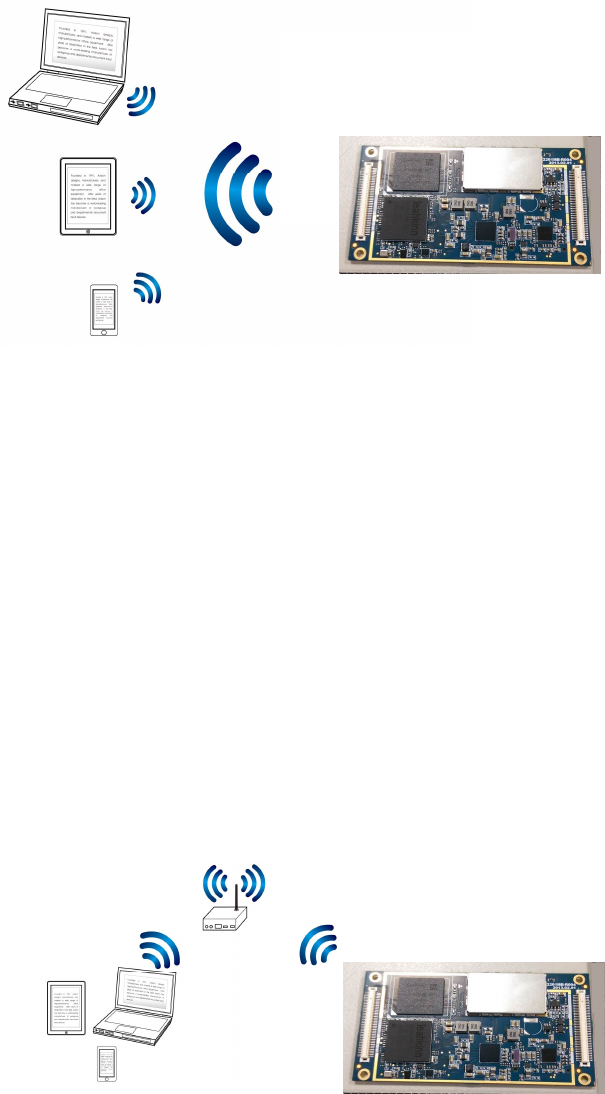

Connecting to a Wi-Fi network in an AP (Access Point) Mode
In AP (Access Point) mode, your mobile devices and the Puzzle-B3 are connected
wirelessly without an additional AP (Access Point) since the Puzzle-B3 itself works
as an AP.
On your mobile devices, make sure indicates the last six digits of the Mac
Address) has been selected as your network name (SSID).
Connecting the Scanner to a Wi-Fi Network in a Client Mode
In a Client mode, your mobile devices and Puzzle-B3 indicates are connected
wirelessly through an additional AP (Access Point). This mode is also the default
wireless mode.
Connecting Your Puzzle-B3 to an Access Point:
AP (Access Point)
AP (Access Point)
![](/img.php?id=3129661&img=bg6.png)
6
Important:
Note the wired and wireless mode can not work at the same time. To connect the
Puzzle-B3 in a wireless network, please first disconnect the Ethernet cable
connecting to your scanner.
![](/img.php?id=3129661&img=bg7.png)
