SN10-12 SIGFOX Module
User Guide and Product Specification
Model Name SN10-12
Project code
Description SIGFOX module
Version 1.0
Issue Date 2017/09/12
Approved by Reviewed by Issued by
Harrison Chen Taka Wei Iestyn Chen
SN10-12
REV 1.0 9/12/2017
InnoComm Mobile Technology Confidential
2
/
14
Revision History
Revision Released Date Comments/Remark Author
0.1 2017/03/14 Initial release Iestyn Chen
0.2 2017/03/17 Update with RX performance spec. Iestyn Chen
0.3 2017/03/24 Add module layout guide and appendix section Iestyn Chen
0.4 2017/03/29 Update RX value, reflow profile, and section 5.3
typo
Iestyn Chen
0.5 2017/06/05 Update reference circuit Iestyn Chen
0.6 2017/07/11 Update RCZ4 related information and add
module photo
Iestyn Chen
0.7 2017/08/04 Add standby current information, update block
diagram, reference circuit and pin description
Iestyn Chen
0.8 2017/08/08 Add pin assignment, type approval and packing
specification information, update reference
circuit and pin name
Iestyn Chen
0.9 2017/08/18 Update pin type and description Iestyn Chen
1.0 2017/09/12 Update FCC statement, and ME drawing Iestyn Chen
® 2017 InnoComm Mobile Technology Corp.
GENERAL NOTICE
THE USE OF THE PRODUCT INCLUDING THE SOFTWARE AND DOCUMENTATION (THE "PRODUCT") IS SUBJECT TO THE
RELEASE NOTE PROVIDED TOGETHER WITH THE PRODUCT. IN ANY EVENT THE PROVISIONS OF THE RELEASE NOTE
SHALL PREVAIL. THIS DOCUMENT CONTAINS INFORMATION ABOUT INNOCOMM PRODUCTS. THE SPECIFICATIONS IN
THIS DOCUMENT ARE SUBJECT TO CHANGE AT INNOCOMM'S DISCRETION. INNOCOMM MOBILE TECHNOLOGY
GRANTS A NON-EXCLUSIVE RIGHT TO USE THE PRODUCT. THE RECIPIENT SHALL NOT TRANSFER, COPY, MODIFY,
TRANSLATE, REVERSE ENGINEER, CREATE DERIVATIVE WORKS; DISASSEMBLE OR DECOMPILE THE PRODUCT OR
OTHERWISE USE THE PRODUCT EXCEPT AS SPECIFICALLY AUTHORIZED. THE RECIPIENT UNDERTAKES FOR AN
UNLIMITED PERIOD OF TIME TO OBSERVE CONFIDENTIALLITY REGARDING ANY INFORMATION AND DATA PROVIDED
TO THEM IN THE CONTEXT OF THE DELIVERY OF THE PRODUCT. THIS GENERAL NOTE
SHALL BE GOVERNED AND CONSTRUED ACCORDING TO TAIWAN LAW.
Copyright
Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its contents and
communication thereof to others without express authorization are prohibited. Offenders will be held liable for
payment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved.
Copyright © 2017, InnoComm Mobile Technology Corp.
Trademark Notice
InnoComm® is the trademarks of InnoComm Mobile Technology Corp.
Other trademarks and registered trademarks mentioned herein are the property of their respective owners.
SN10-12
REV 1.0 9/12/2017
InnoComm Mobile Technology Confidential
3
/
14
TABLE OF CONTENT
1. INTRODUCTION .......................................................................................................... 4
2. PIN MAP AND SIGNAL DESCRIPTION ......................................................................... 5
3. ELECTRICAL CHARACTERISTICS ............................................................................... 6
4. RF CHARACTERISTICS ................................................................................................. 7
5. SMT SOLDER REFLOW RECOMMENDATION ............................................................. 8
6. SW INFORMATION AND USER GUIDE ......................................................................... 9
7. PACKING SPECIFICATION .......................................................................................... 12
FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT .............. 13
RADIATION EXPOSURE STATEMENT: .......................................................................... 14
SN10-12
REV 1.0 9/12/2017
InnoComm Mobile Technology Confidential
4
/
14
1. Introduction
The SN10-12 is a SIGFOX verified and FCC, ACMA approved transceiver module which complies
with SIGFOX network specifications. It is based on NXP OL2385 chip which is a Sub-GHz wireless
SoC transceiver.
1.1. Key Features
•
High performance low power RISC micro-controller
•
Memory
•
32kB EROM
•
7kB RAM
•
Ultra Narrow Band Radio
•
Frequency Band
RCZ2: 902.1375-904.6625MHz
RCZ4: 920.1375MHz-922.6625MHz
•
Output Power
22 dBm
•
Excellent Receiving Sensitivity: -125dBm @600bps 2GFSK
•
Excellent Image Rejection: 60 dB
•
Excellent Blocking Performance: 58 dB
•
SIGFOX™ certified module
•
FCC compliant (FCC ID: YAISN10-12T)
•
ACMA compliant
•
Brazil Anatel compliant
•
RoHS compliant
SN10-12
REV 1.0 9/12/2017
InnoComm Mobile Technology Confidential
5
/
14
2. PIN Map and Signal Description
Pin # Pin Name
Type Description
1 GND GND Ground
2 VDD Power Power Supply input
3 GND GND Ground
4 GND GND Ground
5 GND GND Ground
6 GND GND Ground
7 GND GND Ground
8 GND GND Ground
9 SPI_SDI Digital I SPI_MOSI
10 SPI_CS Digital I/O SPI_CS
11 GND GND Ground
12 GND GND Ground
13 SPI_SCLK Digital I/O SPI_SCLK
14 SPI_SDO Digital O SPI_MISO
15 Reserved Digital I/O N.C.
16 Reserved Digital I/O N.C.
17 Reserved Digital I/O N.C.
18 RST_N Digital I/O RESET, active Low, with internal pull–up
19 Reserved Digital I/O N.C.
20 Reserved Digital I/O N.C.
21 GND GND Ground
22 SPI_AK Digital I/O SPI_AK
23 Reserved Digital I/O N.C.
24 Reserved Digital I/O N.C.
25 Reserved Digital I/O N.C.
26 Reserved Digital I/O N.C.
27 GND GND Ground
28 Reserved Digital I/O N.C.
29 Reserved Digital I/O N.C.
30 GND GND Ground
31 ANT RF RF Antenna Interface
Impedance=50 Ω
32 GND GND Ground
SN10-12
REV 1.0 9/12/2017
InnoComm Mobile Technology Confidential
6
/
14
3. ELECTRICAL CHARACTERISTICS
3.1 Absolute Maximum Rating
PARAMETER CONDITIONS MIN
TYP
MAX UNIT
Storage temperature range –55
150 °C
Supply voltage VDD -0.3
3.6 V
Maximum RX input level
without damage
10 dBm
3.2 Recommended Operating Range
PARAMETER CONDITIONS MIN
TYP
MAX UNIT
Operating temperature range
–
40
25
85 °C
Operating supply voltage 3.3
3.6 V
3.3 Power Consumption
PARAMETER CONDITIONS MIN
TYP
MAX UNIT
TX supply current at
maximum output power @22dBm, 3.3V 260 mA
RX
17.5 mA
Standby 3.3V
4.4 uA
3.4 Characterization information
PARAMETER CONDITIONS MIN
TYP
MAX UNIT
Voltage at I/O pins -0.3
VDD + 0.3
V
SN10-12
REV 1.0 9/12/2017
InnoComm Mobile Technology Confidential
7
/
14
4. RF Characteristics
PARAMETER Model Frequency Band UNIT
Note
Center Frequency SN10-12 RCZ2: 902.1375-904.6625MHz
RCZ4: 920.1375MHz-922.6625MHz
MHz RCZ2
RCZ4
PARAMETER CONDITIONS
MIN TYP MAX UNIT
Note
Antenna port impedance
50 Ω
TX Characteristics
Following characteristics are valid for conditions as follows (unless otherwise specified)
Tamb = -40 °C to 85 °C, VDD = 3.3 V to 3.6 V, TCXO = 27.6 MHz
PARAMETER CONDITIONS MIN TYP MAX UNIT Note
Maximum output
power, CW mode
SN10-12 22 dBm
RX Characteristics
Following characteristics are valid for conditions as follows (unless otherwise specified)
2GFSK modulation, h = 2.67, BT = 1.0, NRZ, data-rate = 0.6 kChips/s, Channel spacing = 10 kHz,
Channel filter bandwidth = 10 kHz, Frame Error Rate (FER) = 20%, payload length = 228 byte,
TCXO = 27.6 MHz
Tamb = 25 °C, VDD = 3.3 V to 3.6 V, fC = 905 MHz
PARAMETER CONDITIONS MIN TYP MAX UNIT Note
Sensitivity -40 °C to 85 °C -125 dBm PER at
10% on
1000
frames
sent.
Co-channel rejection 2GFSK jammer
2 5 dB
Adjacent channel
rejection
Channel filter
BW = 10 kHz,
Channel: 10
kHz, 20 kHz,
150 kHz
50 55 dB
55 60 dB
60 65 dB
SN10-12
REV 1.0 9/12/2017
InnoComm Mobile Technology Confidential
8
/
14

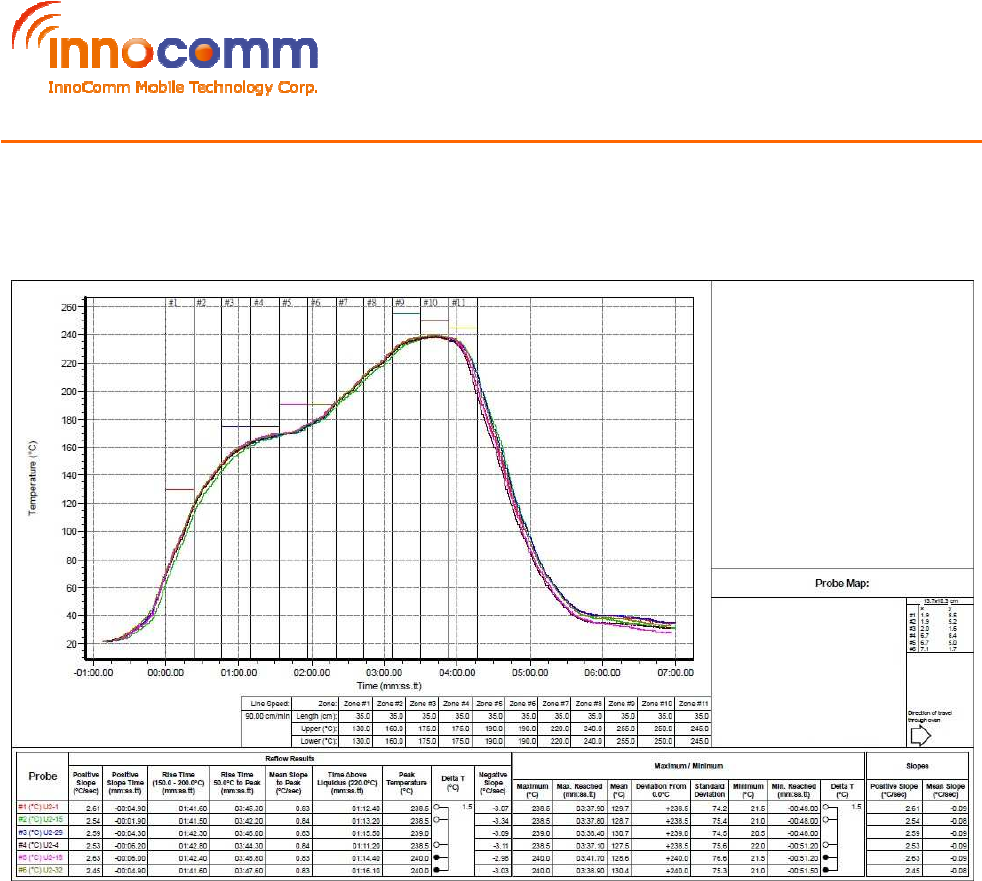

5. SMT Solder Reflow Recommendation
Note: Allowable reflow soldering times: 2 times base on recommended reflow
profile.
SN10-12
REV 1.0 9/12/2017
InnoComm Mobile Technology Confidential
9
/
14
6. SW information and User Guide
SW information
The SIGFOX software driver supports MCUs. These MCUs are a subset
of the MCUs supported by the Kinetis Software Development Kit (KSDK) layer.
This SW driver is built on the Analog Middleware Layer (AML), which creates an
API abstraction layer for the desired Software Development Kit (SDK).
The current implementation includes abstractions for KSDK 2.0 and S32 SDK. This allows support to
be added for additional layers, such as the KSDK, without having to change the SIGFOX Software Driver
itself.
The detail Commend and SPI please read the web link as below.
SigFox Software driver user guide
http://cache.nxp.com/assets/documents/data/en/user-
guides/OL2385SWUG.pdf?fsrch=1&sr=9&pageNum=1:
Hardware Setting
1) SN10-1x EVB
2) FRDM_KL25Z host board
3) Sigfox Network Emulator Kit (SNEK)
4) USB cable
SN10-12
REV 1.0 9/12/2017
InnoComm Mobile Technology Confidential
10
/
14
Setting up the command line interface
Figure 1
1) Stack the SN10-1x EVB on top of the KL25Z host boards to connect the SPI interface,
2) Connect the host board Open SDA to the PC with an USB cable,
3) KL25Z will pop up as a mass storage device. Open the folder and copy spi_sigfox_demo.srec to the
folder. (ask innocomm for spi_sigfox_demo.srec),
4) Start a terminal emulator (e.g. tera term) from the PC,
5) Configure the terminal settings to 115200 baud, 8 data bit, 1 stop bit, no parity and no flow control,
6) Press the reset button on the host board. The host board will show the list of SIGFOX commands on
the terminal emulator,
7) Enter the command code and follow the prompt to send the SIGFOX commands.
Description of the command codes, the data frames and the ACK frames, and the SPI protocol are
available
SigFox Software driver user guide ,
http://cache.nxp.com/assets/documents/data/en/user-
guides/OL2385SWUG.pdf?fsrch=1&sr=9&pageNum=1
.
SN10-12
REV 1.0 9/12/2017
InnoComm Mobile Technology Confidential
11
/
14
The command list screen shot
Send payload screen shot
SN10-12
REV 1.0 9/12/2017
InnoComm Mobile Technology Confidential
12
/
14

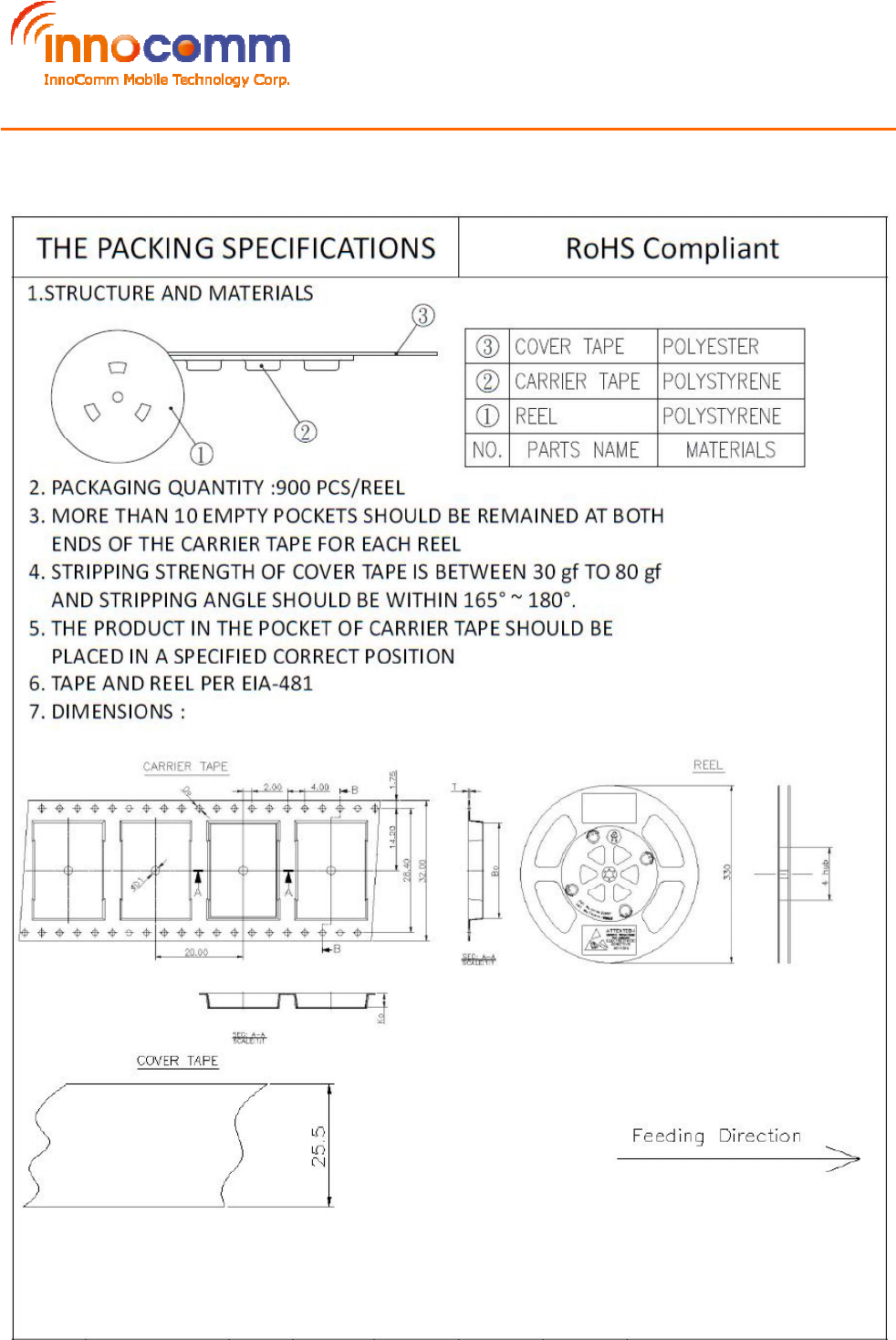

7. Packing Specification
SN10-12
REV 1.0 9/12/2017
InnoComm Mobile Technology Confidential
13
/
14
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
SN10-12
REV 1.0 9/12/2017
InnoComm Mobile Technology Confidential
14
/
14
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and
users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
3) Module approval valid only when the module is installed in the tested host or compatible
series of host which have similar RF exposure characteristic with equal or larger antenna
separation distance.
As long as 3 conditions above are met, further transmitter test will not be required. However,
the OEM integrator is still responsible for testing their end-product for any additional
compliance requirements required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain
laptop configurations or co-location with another transmitter), then the FCC authorization is
no longer considered valid and the FCC ID can not be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
End Product
Labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20 cm may be maintained between the antenna and users. The final end
product must be labeled in a visible area with the following:
“Contains FCC ID:YAISN10-12T”. The grantee's FCC ID can be used only when all FCC
compliance requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding
how to install or remove this RF module in the user’s manual of the end product which
integrates this module.
The end user manual shall include all required regulatory information/warning as show in
this manual.
