InnoSenT ISYS-5020 K.Band Transceiver User Manual
InnoSenT GmbH K.Band Transceiver Users Manual
InnoSenT >
Users Manual
Page 1 USER MANUEL iSYS-5020 Version 1.5
CONFIDENTIAL AND PROPRIETARY
The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be
disclosed by the recipient to third parties without prior consent of InnoSenT in writing.
Experience and Reliability in Radar Technology
www.InnoSenT.de
User Manuel iSYS-5020
Version 1.5 - 08.05.18
3D-MIMO-RADAR
• Area Surveillance
Movement
Velocity
Direction
Presence
Distance
Angle
PRODUCT FAMILY
APPLICATIONS
FEATURES
»MIMO-Radar working in the 24GHz - ISM - Band
»Simultaneous capture of speed, distance and angular deviation of
a target
»Detection of targets up to 150m in distance
»Unambiguous velocity: 35.3 km/h
»FOV ±75° with an angular resolution of <12° in azimuth
»Target list on SPI and Ethernet
»UART command interface
»Compact design 101 x 79 x 12.4mm
and manufactured
in Germany
designed
DESCRIPTION
Detection and separation of moving and stationary
targets according to their speed, range and azimuth
angle allows the possibility to detect a target in a
2-dimensional environment.
High speed modulation concept for best signal to
noise performance.
Simultaneous capture of speed, distance and
angular deviation of a target.
Complete signal processing included.
Communication interface on UART. Target list output
on SPI or Ethernet.
ADDITIONAL INFORMATION
InnoSenT Standard Product. Changes will not be
notified as long as there is no influence on form, fit
and within this User Manuel specified function of
the product.
CERTIFICATES
InnoSenT GmbH has established and applies a quality
system for: development, production and sales of
radar sensors for industrial and automotive sensors.
RoHS-INFO
This product is compliant to the restriction of
hazardous substances (RoHS - European Union
directive 2011/65/EU).
Page 2 USER MANUEL iSYS-5020 Version 1.5
CONFIDENTIAL AND PROPRIETARY
The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be
disclosed by the recipient to third parties without prior consent of InnoSenT in writing.
Experience and Reliability in Radar Technology
www.InnoSenT.de
PARAMETER CONDITIONS SYMBOL MIN TYP MAX UNITS
Radar
transmit frequencies fiSYS-5020 24.050 24.250 GHz
output power according to ETSI 300 440 Pout_ETSI 20 dBm
field strength at 3 meters along the
antenna azimuth according to FCC 15.249 Pout_FCC 250 mV/m
Sensor
typical detection range person dr1120 m
car 150 m
distance error derror ±1.5 m
distance resolution dres 1.26 m
velocity range vr-34.3 +34.3 km/h
velocity error verror ±0.55 km/h
velocity resolution vres 0.55 km/h
antenna pattern (10dB width) compare with plot on page 3 azimuth 150 °
elevation 26 °
angle detection ±75 °
angle error within ±55° FOV ±1 °
angle resolution 8 12 °
update time 100 ms
Power supply
supply voltage VCC 6.1 6.25 6.4 V
ripple Vripple 5 mV
supply current ICC 1000 mA
Environment
operating temperature with Ethernet and SPI interface1TOP -40 +70 °C
storage temperature TSTG -40 +85 °C
1 Extended temperature -40°C - +85°C with SPI only on request
Mechanical Outlines
outline dimensions compare to schematic on page 5
height
length
width
16.5
100.75
78.5
mm
PARAMETERS
The iSYS-5020 consist of a 24GHz Radar Front End (RFE) with a DSP-Board for measure of distance, radial velocity
and angle of arrival of targets. The ouput of the sensor is a target list.
Page 3 USER MANUEL iSYS-5020 Version 1.5
CONFIDENTIAL AND PROPRIETARY
The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be
disclosed by the recipient to third parties without prior consent of InnoSenT in writing.
Experience and Reliability in Radar Technology
www.InnoSenT.de

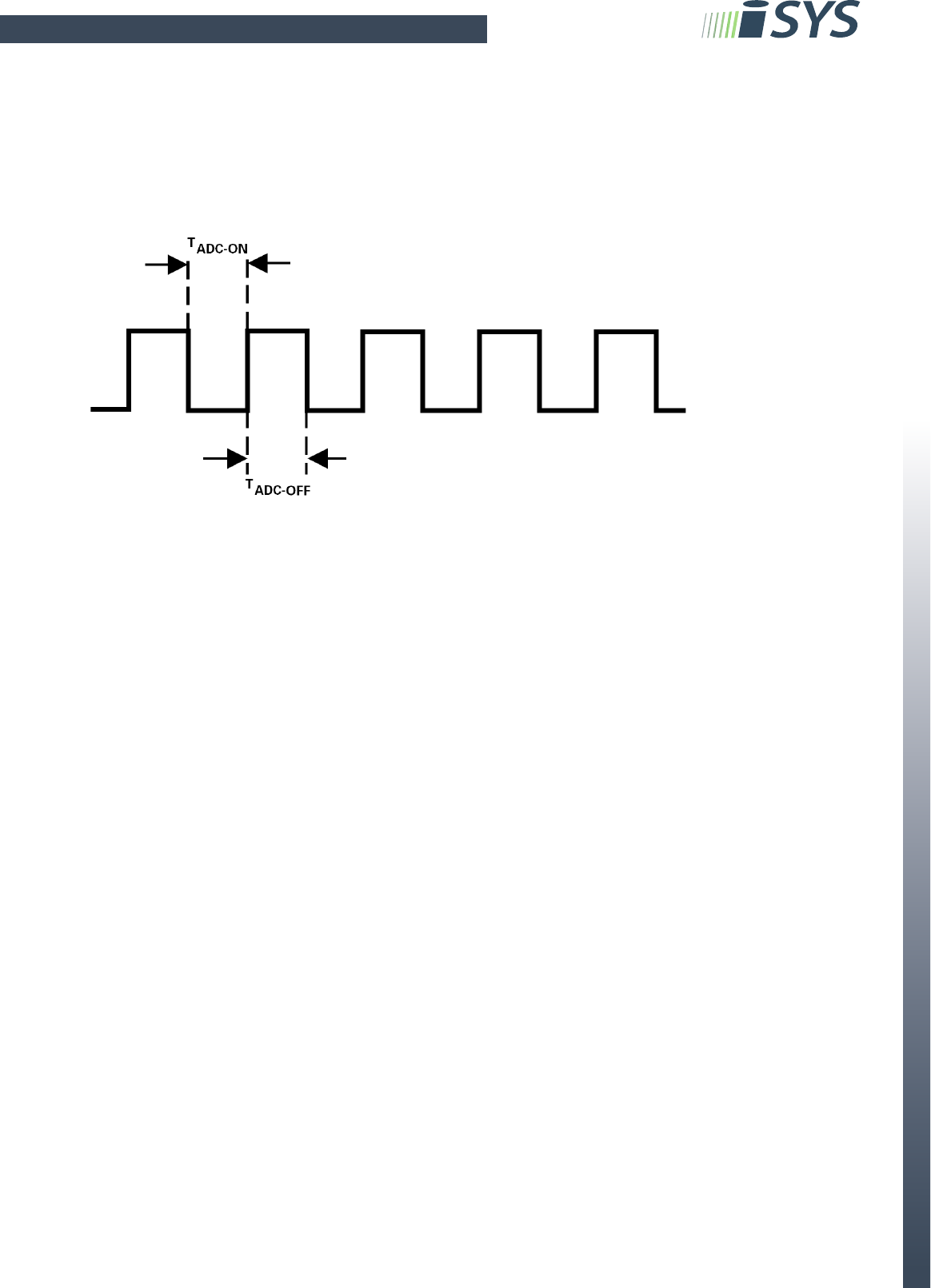

TRANSIENT CURRENT
The Analog Front End (AFE) operates in a duty cycle mode to save energy and to avoid a strong heating of the iSYS-
5020 RADAR-Sensor.
TADC-ON = 43.15ms IADC-ON = typ. 820mA (@6.25V)
TADC-OFF = 56.85ms IADC-OFF = typ. 640mA (@6.25V)
Isupply = typ. 720mA (@6.25V)
Page 4 USER MANUEL iSYS-5020 Version 1.5
CONFIDENTIAL AND PROPRIETARY
The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be
disclosed by the recipient to third parties without prior consent of InnoSenT in writing.
Experience and Reliability in Radar Technology
www.InnoSenT.de

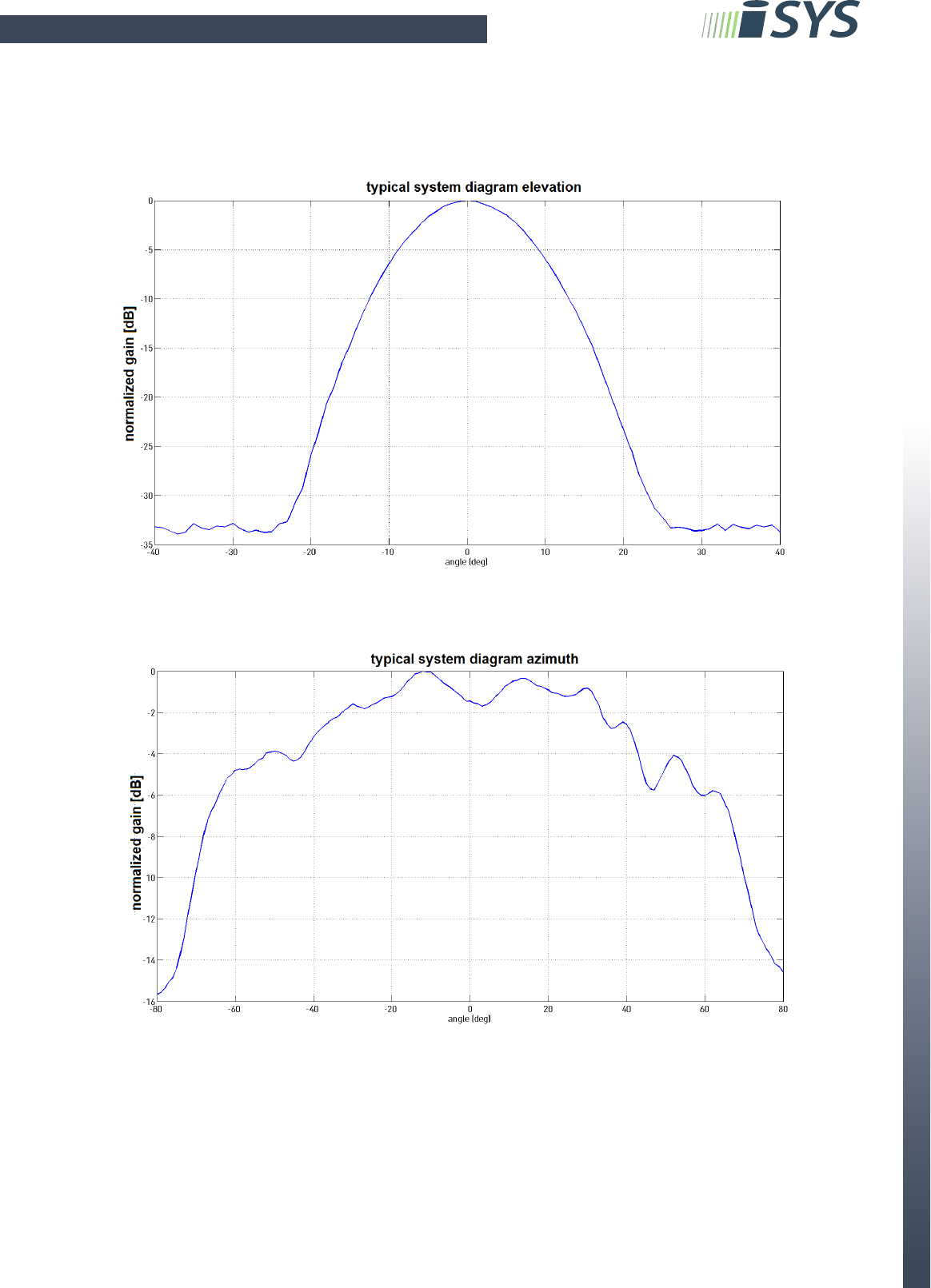

ANTENNA PATTERN
Page 5 USER MANUEL iSYS-5020 Version 1.5
CONFIDENTIAL AND PROPRIETARY
The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be
disclosed by the recipient to third parties without prior consent of InnoSenT in writing.
Experience and Reliability in Radar Technology
www.InnoSenT.de

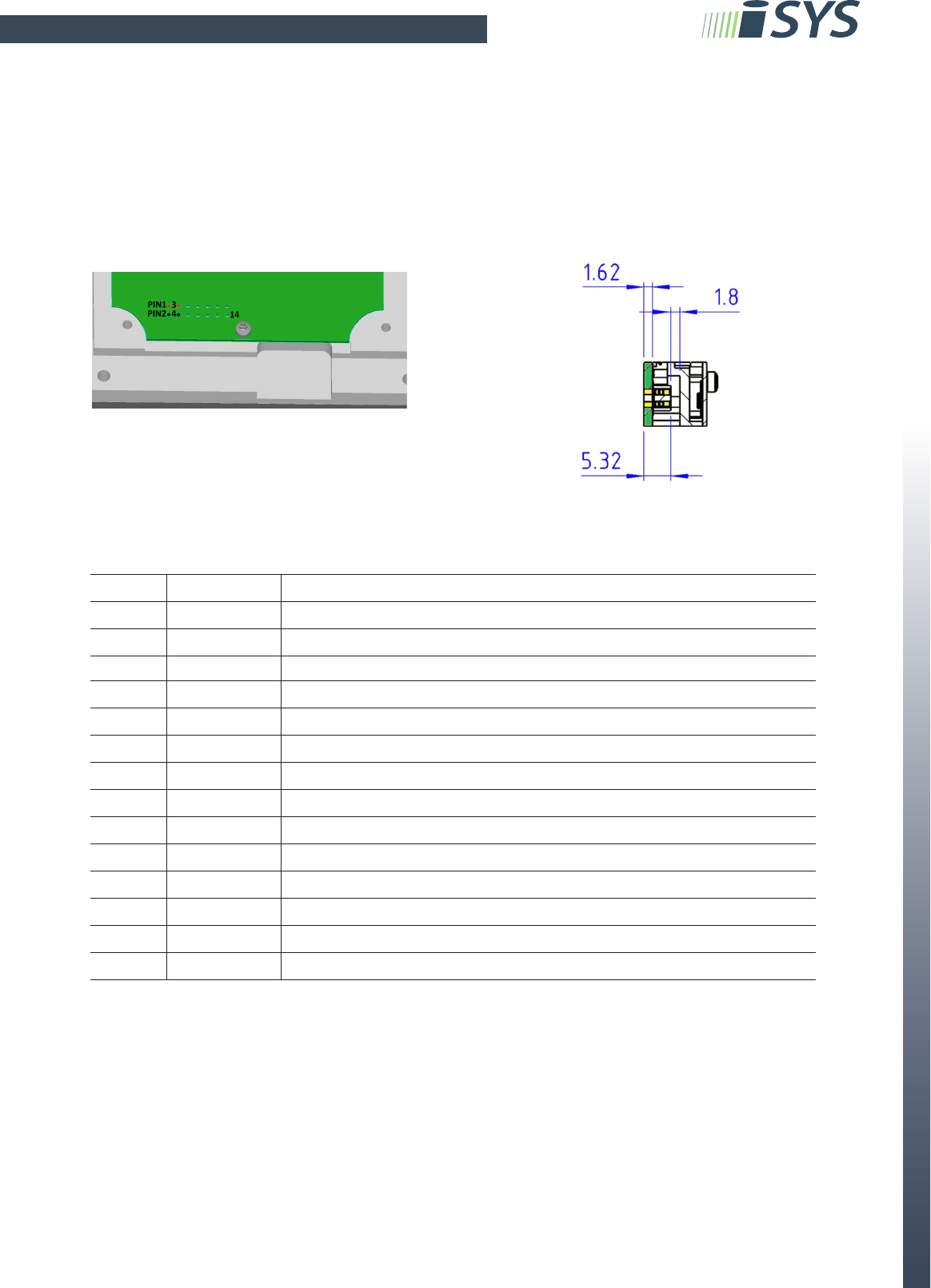

INTERFACE
The iSYS-5020 provides a 14 Pin 2.54 mm pitch female header. This connector (W+P 3492-14-3- 00-00) is a dual
entry type and is mounted on the inner side of the DSP-board. InnoSenT uses a gold-plated connector. The length
of the mating connector should be 5.32mm ± 0.5mm (e.g. W+P3132-12-14-00-0-ST).
PIN # DESCRIPTION COMMENT
1 6.25V_IN •Power Supply, 1000mA max.
2 GND •
3 6.25V_IN •
4 GND •
5 SPI_CLK SPI -> default interface for target list output, CLK 5 MHz max.
6 ETH_EXT.TPIA_P Ethernet -> secondary interface for target list output, 100 Mbit/s
7 SPI_CS SPI -> default interface for target list output
8 ETH_EXT.TPIA_N Ethernet -> secondary interface for target list output
9 SPI_MOSI SPI -> default interface for target list output
10 ETH_EXT.TPIB_P Ethernet -> secondary interface for target list output,
11 SPI_MISO SPI -> default interface for target list output
12 ETH_EXT.TPIB_N Ethernet -> secondary interface for target list output, 100 Mbit/s
13 UART_RX UART -> command interface for configuration (3.3 V)
14 UART_TX
Page 6 USER MANUEL iSYS-5020 Version 1.5
CONFIDENTIAL AND PROPRIETARY
The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be
disclosed by the recipient to third parties without prior consent of InnoSenT in writing.
Experience and Reliability in Radar Technology
www.InnoSenT.de
101.8 ±0.3
R1.5 (4x)
76.75 ±0.3
23.25
1.1
antenna centroid
rotational pivot
12.4 ±0.3
11.5 ±0.2
14.5 ±0.3
70 ±0.2
95 ±0.2
3.3 (4x)
9.5 ±5
1 ±1
Label content:
DataMatrixCode
Model: iSYS-5020
FCC: UXS-ISYS-5020
Canada 310
InnoSenT
SN: 8-digit

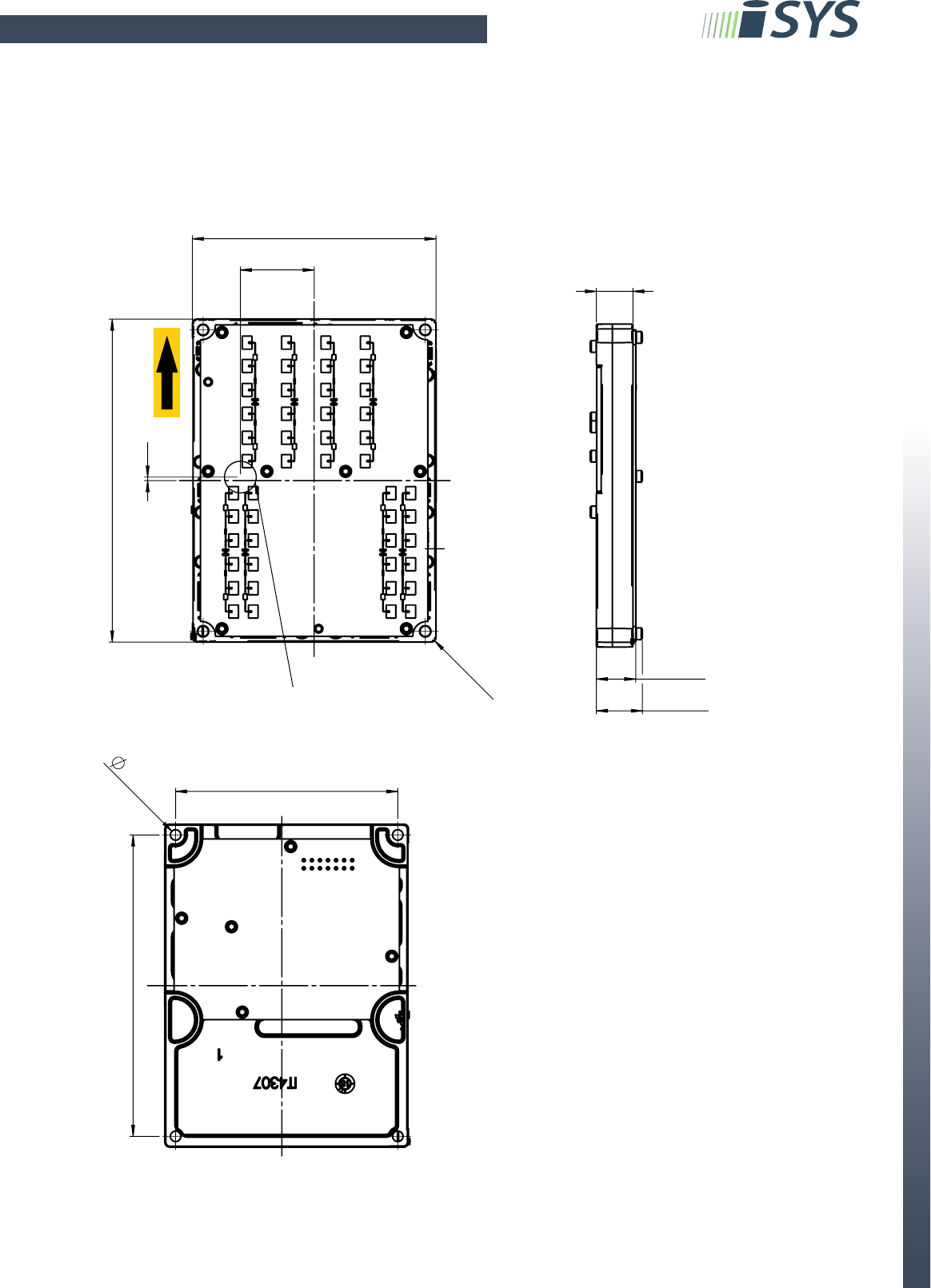

MECHANICAL DRAWING
top view side view
bottom view
101.8 ±0.3
R1.5 (4x)
76.75 ±0.3
23.25
1.1
antenna centroid
rotational pivot
12.4 ±0.3
11.5 ±0.2
14.5 ±0.3
70 ±0.2
95 ±0.2
3.3 (4x)
9.5 ±5
1 ±1
Label content:
DataMatrixCode
Model: iSYS-5020
FCC: UXS-ISYS-5020
Canada 310
InnoSenT
SN: 8-digit
101.8 ±0.3
R1.5 (4x)
76.75 ±0.3
23.25
1.1
antenna centroid
rotational pivot
12.4 ±0.3
11.5 ±0.2
14.5 ±0.3
70 ±0.2
95 ±0.2
3.3 (4x)
9.5 ±5
1 ±1
Label content:
DataMatrixCode
Model: iSYS-5020
FCC: UXS-ISYS-5020
Canada 310
InnoSenT
SN: 8-digit
CAUTION
THIS SIDE UP
The module must be installed with this side up
Page 7 USER MANUEL iSYS-5020 Version 1.5
CONFIDENTIAL AND PROPRIETARY
The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be
disclosed by the recipient to third parties without prior consent of InnoSenT in writing.
Experience and Reliability in Radar Technology
www.InnoSenT.de

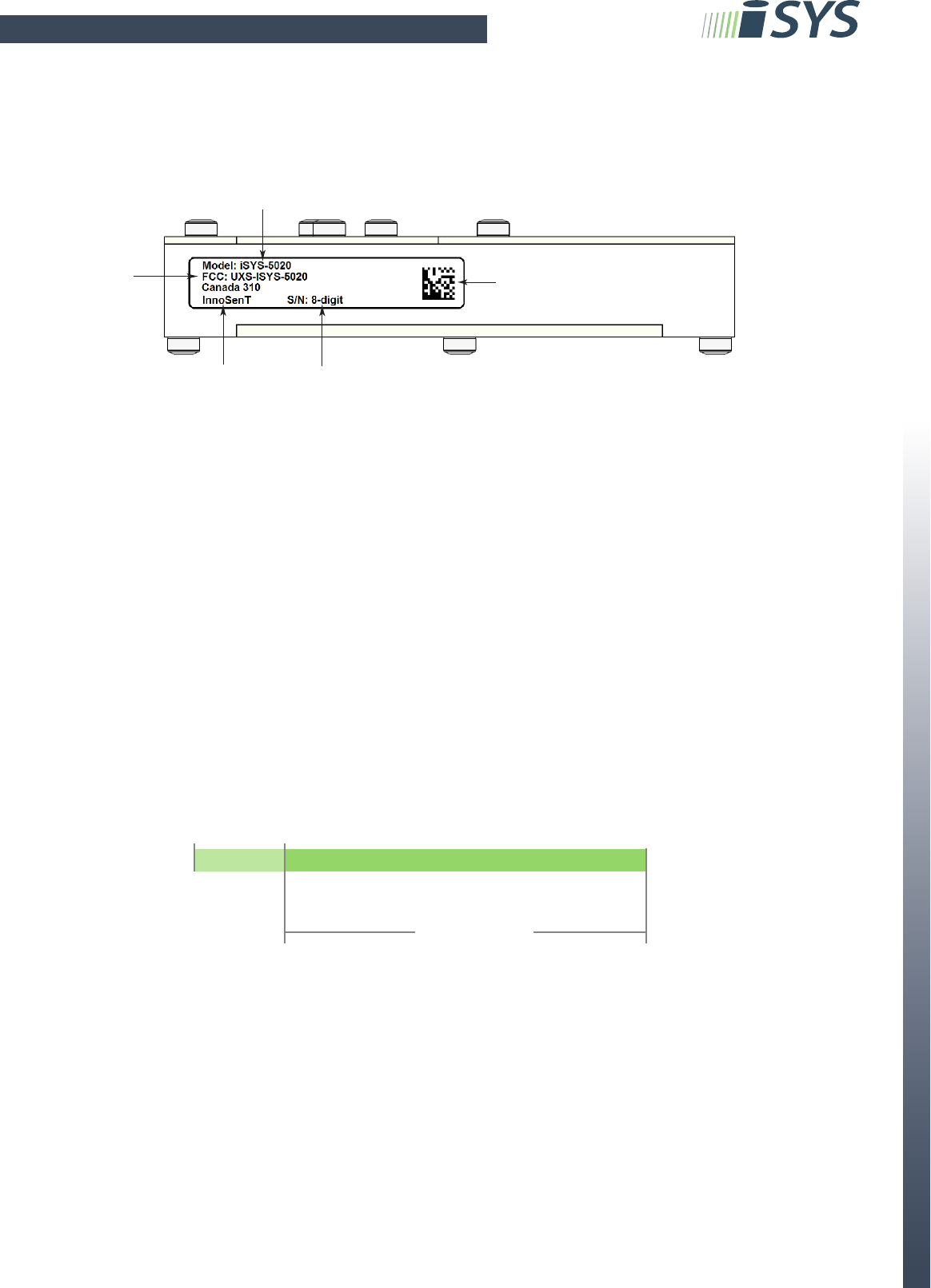

Type
company name Serial No.
FCCID data matrix code
LABELING
Annex A
The information that will be given below is only a rough overview; for details please contact the local approval
agencies. An overview over the frequency bands in Europe can also be found in the REC 70-03 (Annex 6) which is
available under www.ero.dk
Frequency Bands in Europe
Generally the iSYS-5020 standard version can be used for all countries in Europe except UK.
24.000 24.050 24.250
Europe-frequency
Page 8 USER MANUEL iSYS-5020 Version 1.5
CONFIDENTIAL AND PROPRIETARY
The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be
disclosed by the recipient to third parties without prior consent of InnoSenT in writing.
Experience and Reliability in Radar Technology
www.InnoSenT.de
Frequency Bands in US FCC 15.249
FCC approval
This device complies with Part 15 of the FCC Rules and with RSS-310 of Industry Canada. Operation is subject to
the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Warning: Changes or modifications made to this equipment not expressly approved by InnoSenT GmbH may void
the FCC authorization to operate this equipment.
Manufacturers of mobile or fixed devices incorporating iSYS-5020 modules are authorized to use the FCC Grants
for their own final products according to the conditions referenced in these documents. In this case, the FCC la-
bel of the module shall be visible from the outside, or the host device shall bear a second label stating „Contains
FCC ID: UXS-ISYS-5020“.
Le présent appareil est conforme aux CNR d‘Industrie Canada applicables aux appareils radio exempts de licence.
L‘exploitation est autorisée aux deux conditions suivantes:
(1) l‘appareil ne doit pas produire de brouillage, et
(2) l‘utilisateur de l‘appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est suscep-
tible d’en compromettre le fonctionnement.
NOTICE:
Changes or modifications made to this equipment not expressly approved by (manufacturer name) may void the
FCC authorization to operate this equipment.
24.000 24.250
US-frequency
ESD-INFORMATION
This InnoSenT sensor is sensitive to damage from ESD. Normal precautions as usually applied to
CMOS devices are sufficient when handling the device. Touching the signal output pins has to be
avoided at any time before soldering or plugging the device into a motherboard.
Page 9 USER MANUEL iSYS-5020 Version 1.5
CONFIDENTIAL AND PROPRIETARY
The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be
disclosed by the recipient to third parties without prior consent of InnoSenT in writing.
Experience and Reliability in Radar Technology
www.InnoSenT.de
APPROVAL
This User Manuel contains the technical specifications of the described product. Changes of the specification
must be in written form. All previous versions of this User Manuel are no longer valid.
VERSION DATE COMMENT
1. 0 21.12.2017 initial release
1. 1 10.01.2018 adding in mechanical drawing
1. 2 20.04.2018 changing in mechanic; adding labeling; adding Annex A; adding Frequency Bands in
Europe; adding Frequency Bands in US FCC 15.249
1. 3 24.04.2018
changing in mechanic; adding labeling; adding in command interface; adding in output
power; adding in detection range; changing in distance error; changing in angle error;
adding transient current
1. 4 07.05.2018 changing in install information
1. 5 08.05.2018 changing in operating temperature
InnoSenT GmbH
Am Rödertor 30
97499 Donnersdorf
GERMANY
Tel.:
E-Mail:
URL:
+49 (0)9528 - 9518 - 0
info@innosent.de
www.innosent.de
