Page 1 USER MANUAL iSYS-5010 Version 1.2
CONFIDENTIAL AND PROPRIETARY
The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be
disclosed by the recipient to third parties without prior consent of InnoSenT in writing.
Experience and Reliability in Radar Technology
www.InnoSenT.de
User Manual iSYS-5010
Version 1.2 - 18.10.2016

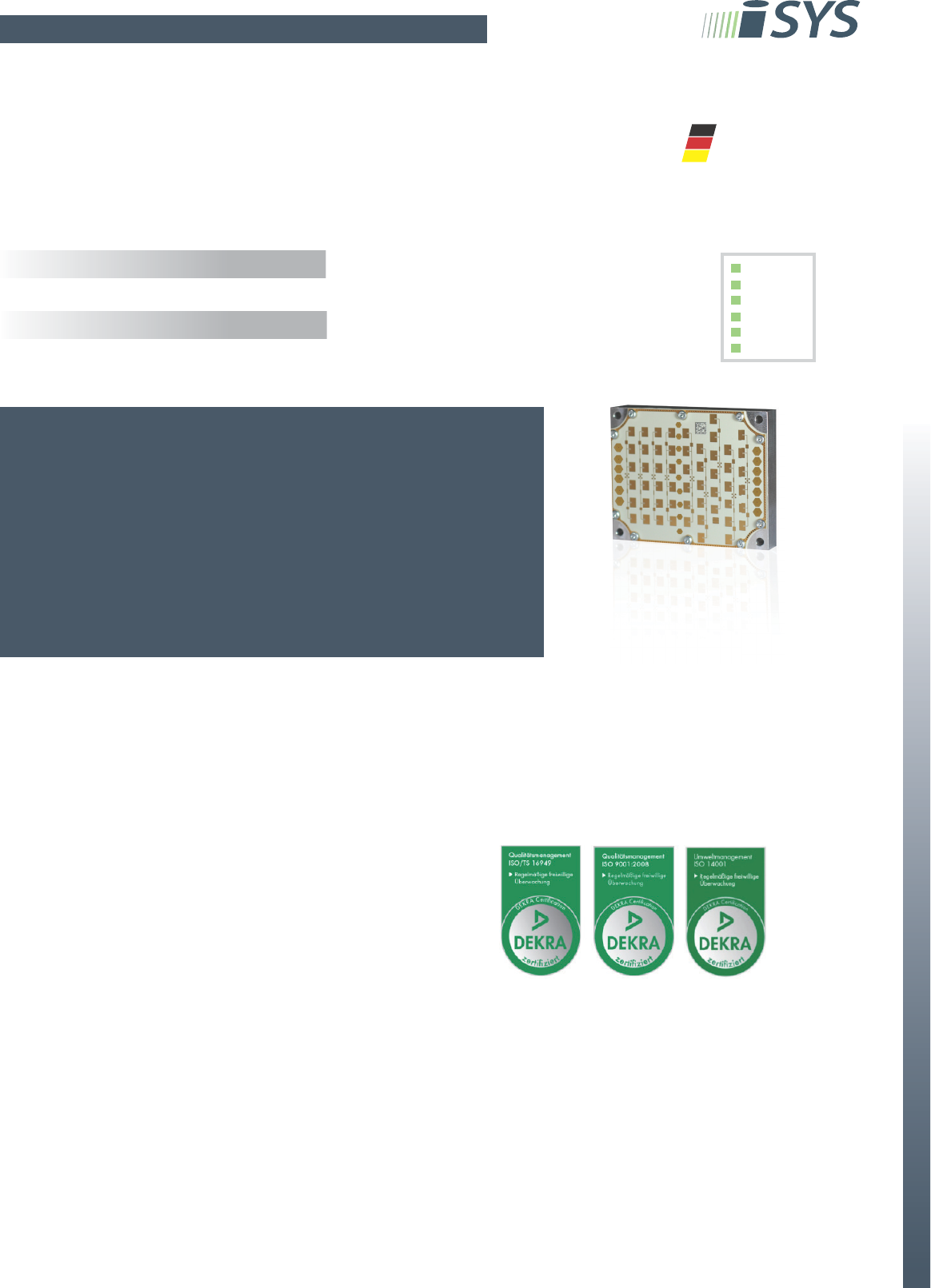

3D-MIMO-RADAR
• Area Surveilance
Movement
Velocity
Direction
Presence
Distance
Angle
PRODUCT FAMILY
APPLICATIONS
FEATURESP
»MIMO-Radar working in the 24GHz - ISM - Band
»Simultaneous capturing of speed, distance and angular deviation
of an object
»Detection of objects up to 54m distance
»Detectable radial speed: up to 34.9 km/h
»FOV ±75° with an angular resolution of 16° in azimuth
»Object list on SPI
»UART command interface
»Compact design 71 x 57 x 16.6mm
and manufactured
in Germany
designed
DESCRIPTION
Detection and separation of moving and stationary
objects according to their Speed , Range and
Azimuth angle therefore the possibility to detect an
object in a 2-dimensional environment.
High speed modulation concept for best signal to
noise performance.
Simultaneous capturing of speed, distance and
angular deviation of an object
Complete signal processing included. Target list
output on SPI, UART
ADDITIONAL INFORMATION
InnoSenT Standard Product. Changes will not be
notifi ed as long as there is no infl uence on form, fi t
and within this datasheet specifi ed function of the
product.
CERTIFICATES
InnoSenT GmbH has established and applies a quality
system for: development, production and sales of
radar sensors for industrial and automotive sensors.
RoHS-INFO
This product is compliant to the restriction of
hazardous substances (RoHS - European Union
directive 2011/65/EU).
Page 2 USER MANUAL iSYS-5010 Version 1.2
CONFIDENTIAL AND PROPRIETARY
The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be
disclosed by the recipient to third parties without prior consent of InnoSenT in writing.
Experience and Reliability in Radar Technology
www.InnoSenT.de
PARAMETER CONDITIONS SYMBOL MIN TYP MAX UNITS
Radar
transmit frequencies fiSYS-5010 24.050 24.250 GHz
output power according to ETSI 300 440 Pout_ETSI 20 dBm
according to FCC 15.249 Pout_FCC 12.7 dBm
Sensor
detection range depending on RCS dr1 54 m
distance error derror ±1 m
distance resolution dres 0.9 m
velocity range vr-34.9 +34.9 km/h
velocity error verror ±0.55 km/h
velocity resolution vres 0.55 km/h
antenna pattern (10dB width) compare with plot on page 4 azimuth 166 °
elevation 36 °
angle detection ±75 °
angle error within ±55° FOV ±1 °
angle resolution 16 °
Power supply
supply voltage VCC 6.1 6.25 6.4 V
ripple Vripple 10 mV
supply current details compare to page 3 ICC 650 1000 mA
Environment
operating temperature TOP -40 +85 °C
storage temperature TSTG -40 +85 °C
Mechanical Outlines
outline dimensions compare to schematic on page 6
height
length
width
16.6
71.0
57.0
mm
PARAMETERS
The iSYS-5010 consist of a 24GHz Radarfrontend (RFE) with DSP-Board for measuring of distance, radial velocity
and angle of arrival of objects. The sensor offers an SPI, UART interface. The ouput of the sensor is a object list-
Page 3 USER MANUAL iSYS-5010 Version 1.2
CONFIDENTIAL AND PROPRIETARY
The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be
disclosed by the recipient to third parties without prior consent of InnoSenT in writing.
Experience and Reliability in Radar Technology
www.InnoSenT.de

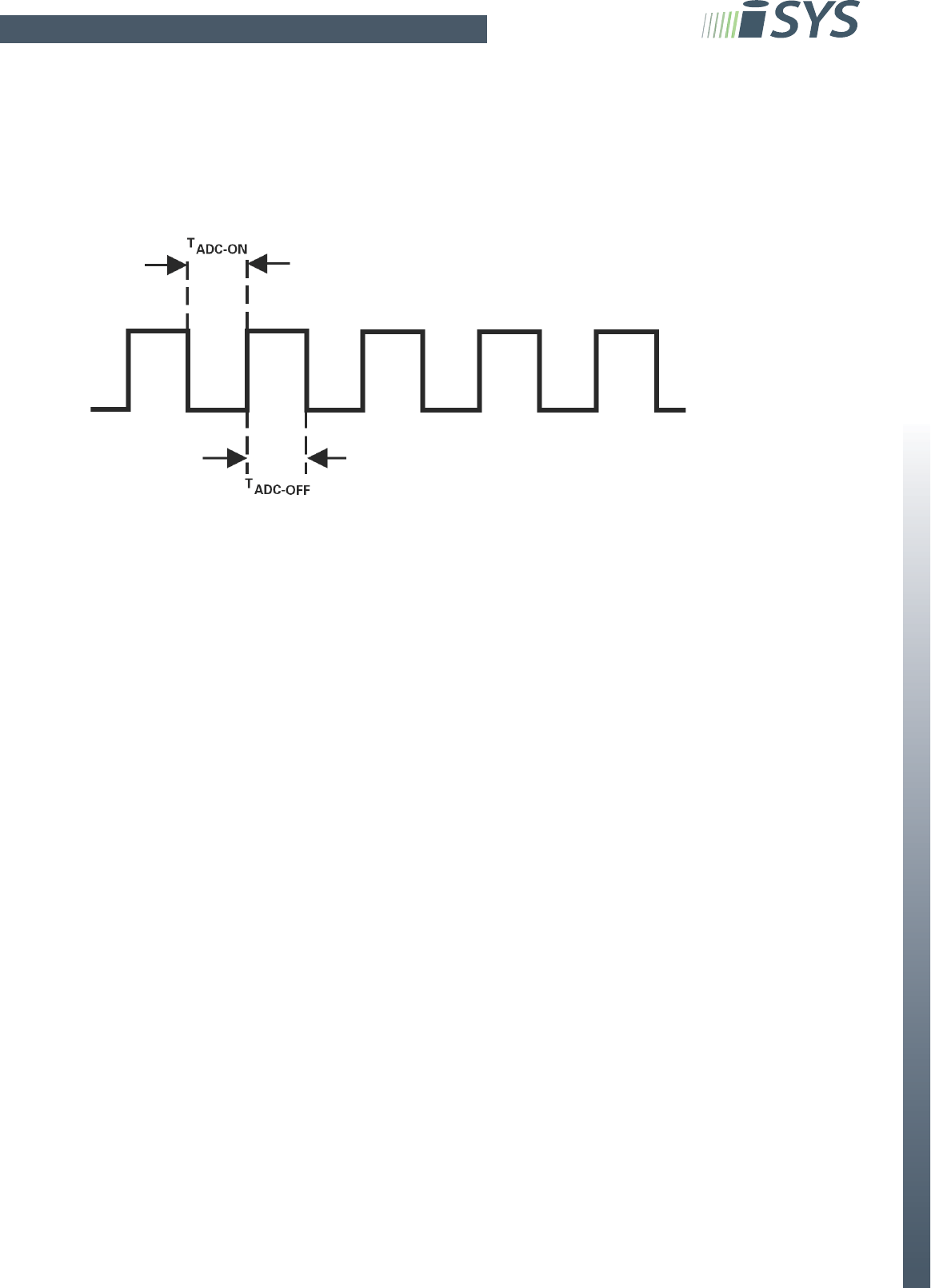

TRANSIENT CURRENT
The analog-frontend operates in a duty cycle mode to save energy and to avoid a strong heating of the iSYS-5010
RADAR-Sensor.
TADC-ON = 40.50ms IADC-ON = typ. 685mA (@6.25V)
TADC-OFF = 59.50ms IADC-OFF = typ. 527mA (@6.25V)
Isupply = typ. 591mA (@6.25V)
Page 4 USER MANUAL iSYS-5010 Version 1.2
CONFIDENTIAL AND PROPRIETARY
The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be
disclosed by the recipient to third parties without prior consent of InnoSenT in writing.
Experience and Reliability in Radar Technology
www.InnoSenT.de

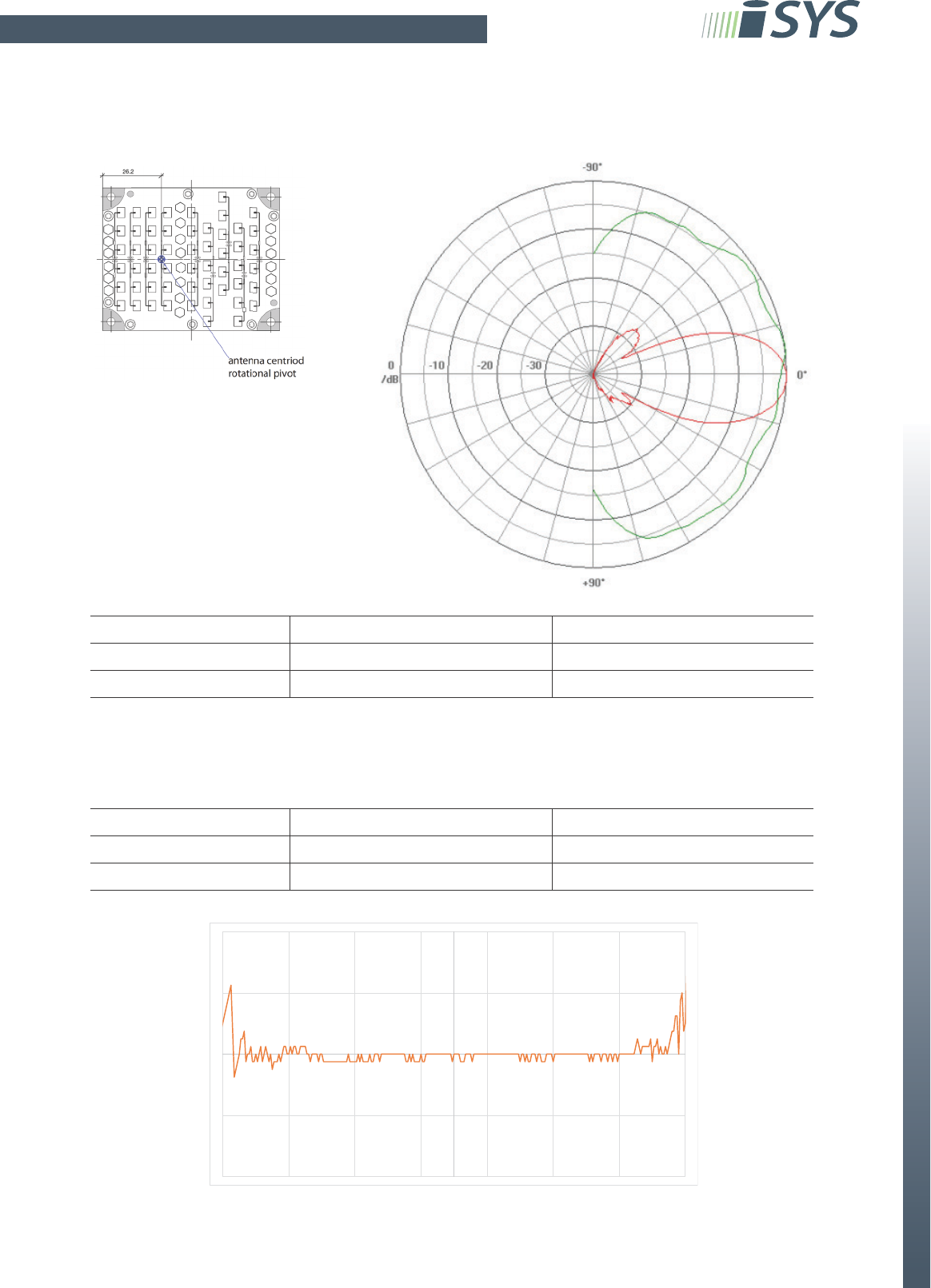

ANTENNA PATTERN
Red graph ELEVATION ANGLE Green graph AZIMUTH ANGLE
3 dB – Width [°] 20 97
10 dB – Width [°] 36 166
ANGLE MEASUREMENT (measurement without radom)
Measurement range Resolution Error
± 55 ° 16 ° ± 1.0 °
± 75 ° 16 ° not specifi ed
-8
-4
0
4
8
-70 -50 -30 -10 10 30 50 70
Page 5 USER MANUAL iSYS-5010 Version 1.2
CONFIDENTIAL AND PROPRIETARY
The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be
disclosed by the recipient to third parties without prior consent of InnoSenT in writing.
Experience and Reliability in Radar Technology
www.InnoSenT.de
INTERFACE

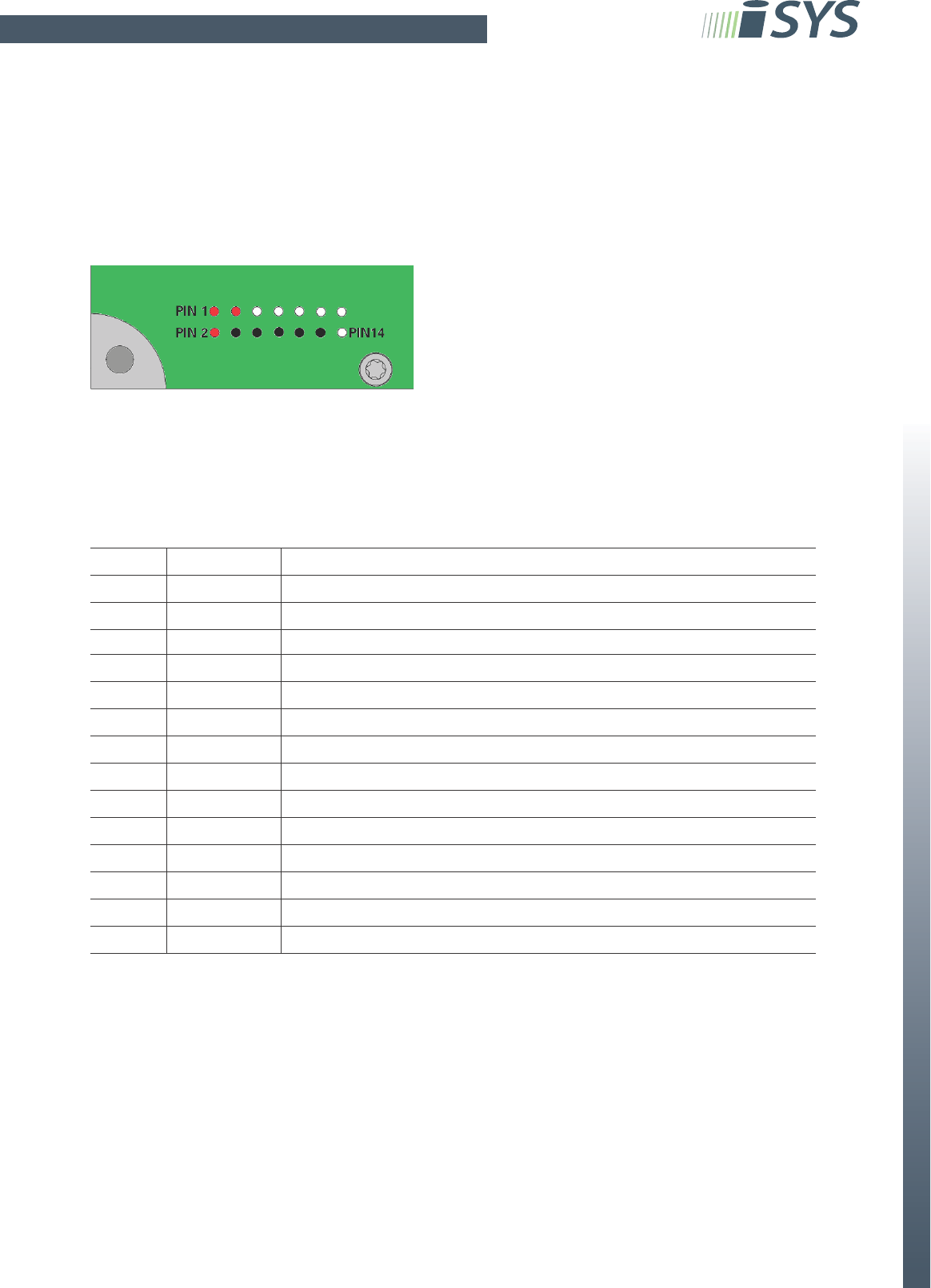

The iSYS-5010 provides a 14 Pin 2.54 mm pitch female header. This connector is a dual entry type and is mounted
on the inner side of the DSP PCB. InnoSenT uses a gold-plated connector. The length of the mating connector
should be 5.5mm ± 0.5mm (e.g. W+P 3132-12-14-00-0-ST).
PIN # DESCRIPTION COMMENT
1 6V25_IN Power Supply, 900mA max.
2 6V25_IN
3 6V25_IN
4 GND
5 SPI_CLK SPI -> interface for object list output, CLK 5 MHz max.
6 GND
7 SPI_CS SPI -> interface for object list output
8 GND
9 SPI_MOSI SPI -> interface for object list output
10 GND
11 SPI_MISO SPI -> interface for object list output
12 GND
13 UART_RX UART -> command interface for confi guration
14 UART_TX
Page 6 USER MANUAL iSYS-5010 Version 1.2
CONFIDENTIAL AND PROPRIETARY
The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be
disclosed by the recipient to third parties without prior consent of InnoSenT in writing.
Experience and Reliability in Radar Technology
www.InnoSenT.de

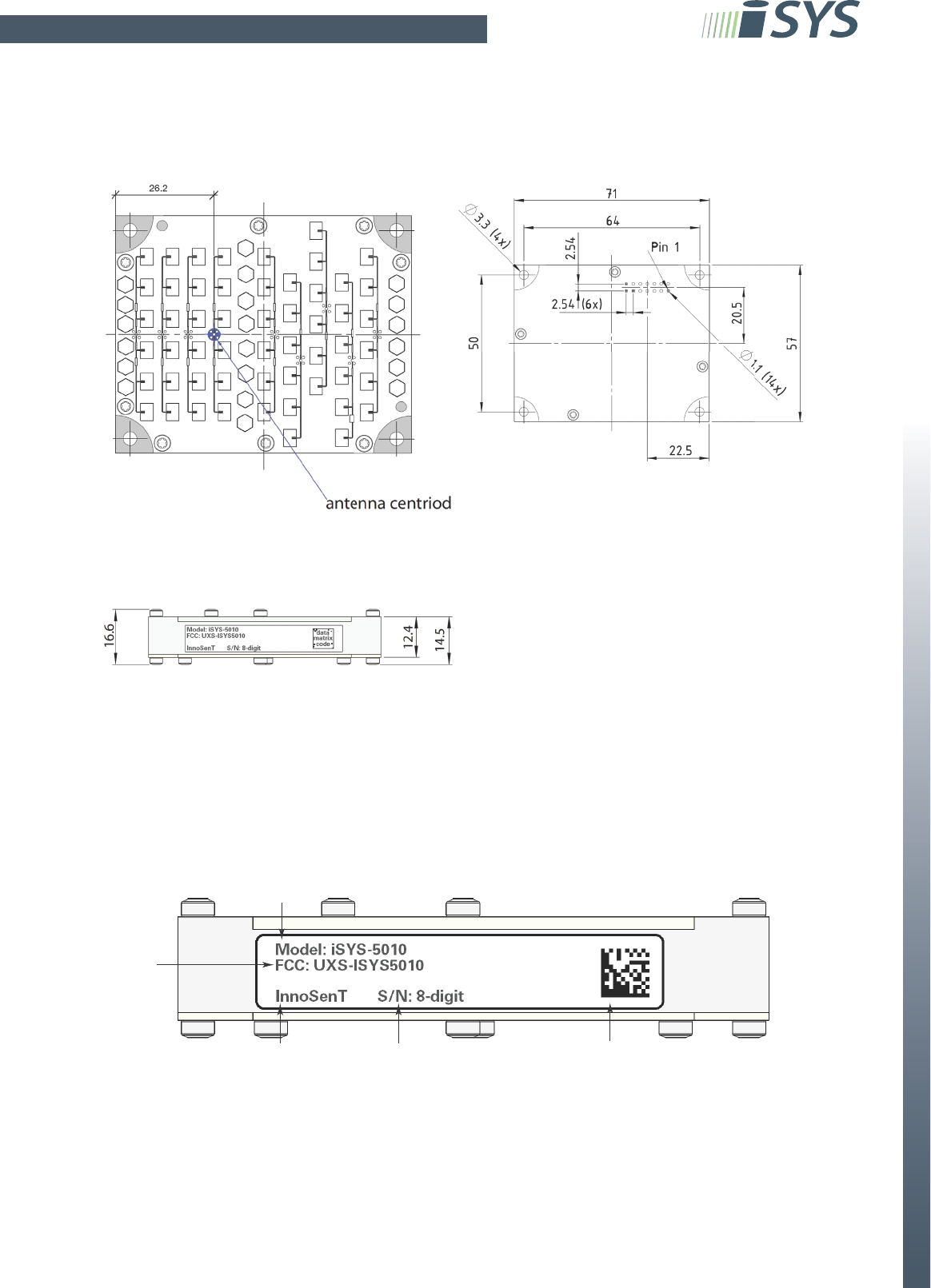

MECHANICAL SCHEMATIC
top view
side view
bottom view
Type
company name Serial No.
FCCID
data matrix code
LABELING
Page 7 USER MANUAL iSYS-5010 Version 1.2
CONFIDENTIAL AND PROPRIETARY
The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be
disclosed by the recipient to third parties without prior consent of InnoSenT in writing.
Experience and Reliability in Radar Technology
www.InnoSenT.de
Annex A
The information that will be given below is only a rough overview; for details please contact the local approval
agencies. An overview over the frequency bands in Europe can also be found in the REC 70-03 (Annex 6) which is
available under www.ero.de
Frequency Bands in Europe
Frequency Bands in US FCC 15.249
Generally the iSYS-5010 standard version can be used for all countries in Europe.
FCC approval
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Warning: Changes or modifi cations made to this equipment not expressly approved by InnoSenT GmbH may void
the FCC authorization to operate this equipment.
Manufacturers of mobile or fi xed devices incorporating iSYS-5010 modules are authorized to use the FCC Grants
for their own fi nal products according to the conditions referenced in these documents. In this case, the FCC la-
bel of the module shall be visible from the outside, or the host device shall bear a second label stating „Contains
FCC ID: UXS-ISYS5010“.
24.000 24.050 24.250
Europe-frequency
24.000 24.250
US-frequency
Page 8 USER MANUAL iSYS-5010 Version 1.2
CONFIDENTIAL AND PROPRIETARY
The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be
disclosed by the recipient to third parties without prior consent of InnoSenT in writing.
Experience and Reliability in Radar Technology
www.InnoSenT.de
APPROVAL
This Data Sheet contains the technical specifications of the described product. Changes of the specification must
be in written form. All previous versions of this Data Sheet are no longer valid.
VERSION DATE COMMENT
1. 0 30.08.2016 initial release
1. 1 28.09.2016 definition of mating connector; supply voltage set to typ. 6.25V; Transient and ESD
information added
1. 2 18.10.2016 adding labeling, adding frequency band US and Europe; changing in powersupply; cha-
ning the length of the mating connector
InnoSenT GmbH
Am Rödertor 30
97499 Donnersdorf
GERMANY
Tel.:
E-Mail:
URL:
+49 (0)9528 - 9518 - 0
info@innosent.de
www.innosent.de
ESD-INFORMATION
This InnoSenT sensor is sensitive to damage from ESD. Normal precautions as usually applied to
CMOS devices are sufficient when handling the device. Touching the signal output pins has to be
avoided at any time before soldering or plugging the device into a motherboard.
