Innostream INNO55 GSM 900/1800/1900 Mobile Phone User Manual INNO 55manual FTA UK

Innostream Inc. GSM 900/1800/1900 Mobile Phone INNO 55manual FTA UK

UserManual.wiki >

INNO55 User Manual

User manual

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 1 of 85 Color Mobile Phone Tri-band GSM/DCS/PCS INNO 55 User’s Guide

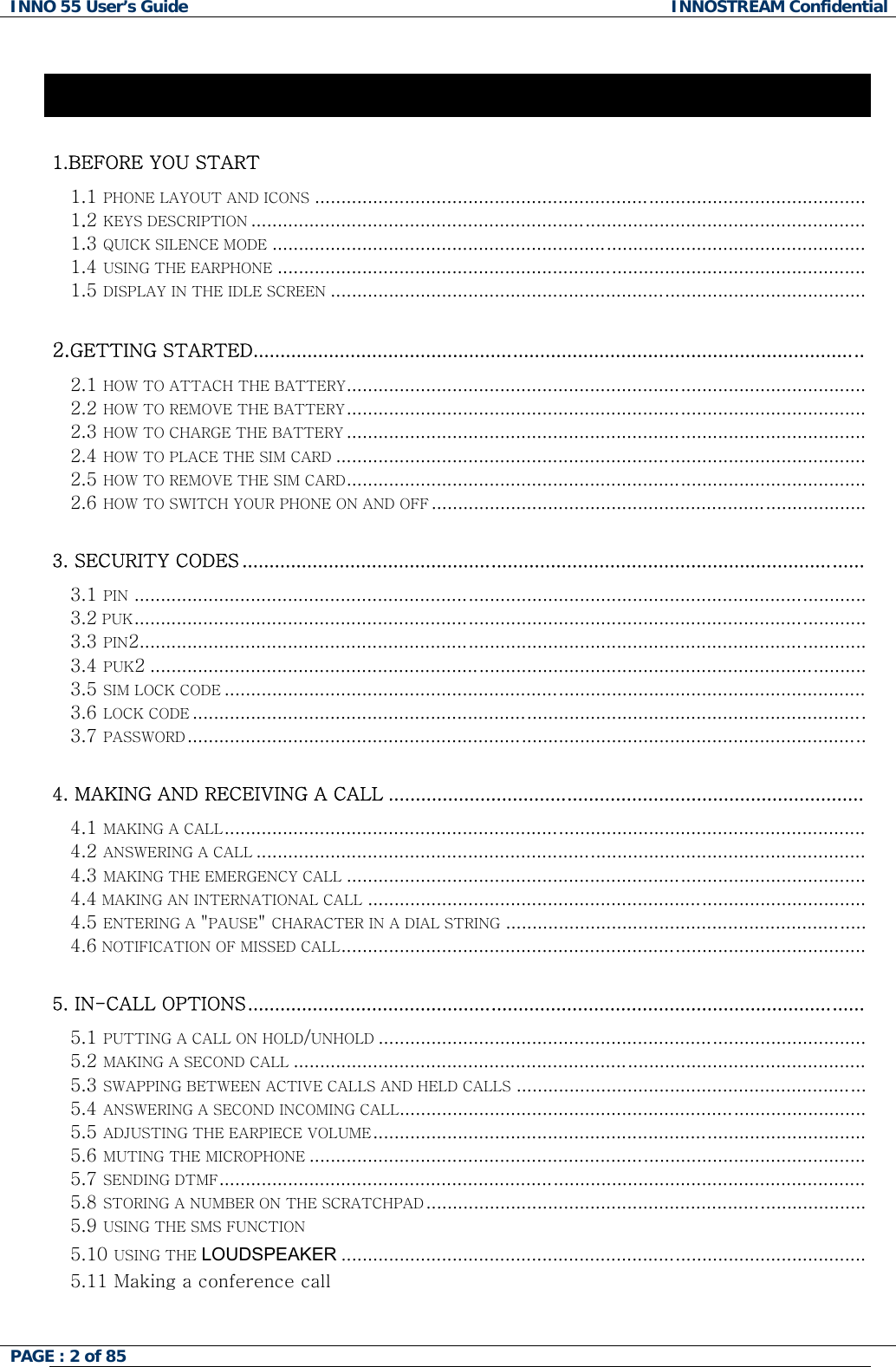

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 2 of 85 Contents 1.BEFORE YOU START 1.1 PHONE LAYOUT AND ICONS........................................................................................................ 1.2 KEYS DESCRIPTION.................................................................................................................... 1.3 QUICK SILENCE MODE................................................................................................................ 1.4 USING THE EARPHONE............................................................................................................... 1.5 DISPLAY IN THE IDLE SCREEN..................................................................................................... 2.GETTING STARTED................................................................................................................. 2.1 HOW TO ATTACH THE BATTERY.................................................................................................. 2.2 HOW TO REMOVE THE BATTERY.................................................................................................. 2.3 HOW TO CHARGE THE BATTERY.................................................................................................. 2.4 HOW TO PLACE THE SIM CARD.................................................................................................... 2.5 HOW TO REMOVE THE SIM CARD.................................................................................................. 2.6 HOW TO SWITCH YOUR PHONE ON AND OFF.................................................................................. 3. SECURITY CODES ................................................................................................................... 3.1 PIN .......................................................................................................................................... 3.2 PUK.......................................................................................................................................... 3.3 PIN2......................................................................................................................................... 3.4 PUK2 ....................................................................................................................................... 3.5 SIM LOCK CODE......................................................................................................................... 3.6 LOCK CODE............................................................................................................................... 3.7 PASSWORD................................................................................................................................ 4. MAKING AND RECEIVING A CALL ........................................................................................ 4.1 MAKING A CALL......................................................................................................................... 4.2 ANSWERING A CALL................................................................................................................... 4.3 MAKING THE EMERGENCY CALL.................................................................................................. 4.4 MAKING AN INTERNATIONAL CALL.............................................................................................. 4.5 ENTERING A "PAUSE" CHARACTER IN A DIAL STRING.................................................................... 4.6 NOTIFICATION OF MISSED CALL................................................................................................... 5. IN-CALL OPTIONS.................................................................................................................. 5.1 PUTTING A CALL ON HOLD/UNHOLD............................................................................................ 5.2 MAKING A SECOND CALL............................................................................................................ 5.3 SWAPPING BETWEEN ACTIVE CALLS AND HELD CALLS.................................................................. 5.4 ANSWERING A SECOND INCOMING CALL........................................................................................ 5.5 ADJUSTING THE EARPIECE VOLUME............................................................................................. 5.6 MUTING THE MICROPHONE......................................................................................................... 5.7 SENDING DTMF.......................................................................................................................... 5.8 STORING A NUMBER ON THE SCRATCHPAD................................................................................... 5.9 USING THE SMS FUNCTION 5.10 USING THE LOUDSPEAKER ................................................................................................... 5.11 Making a conference call

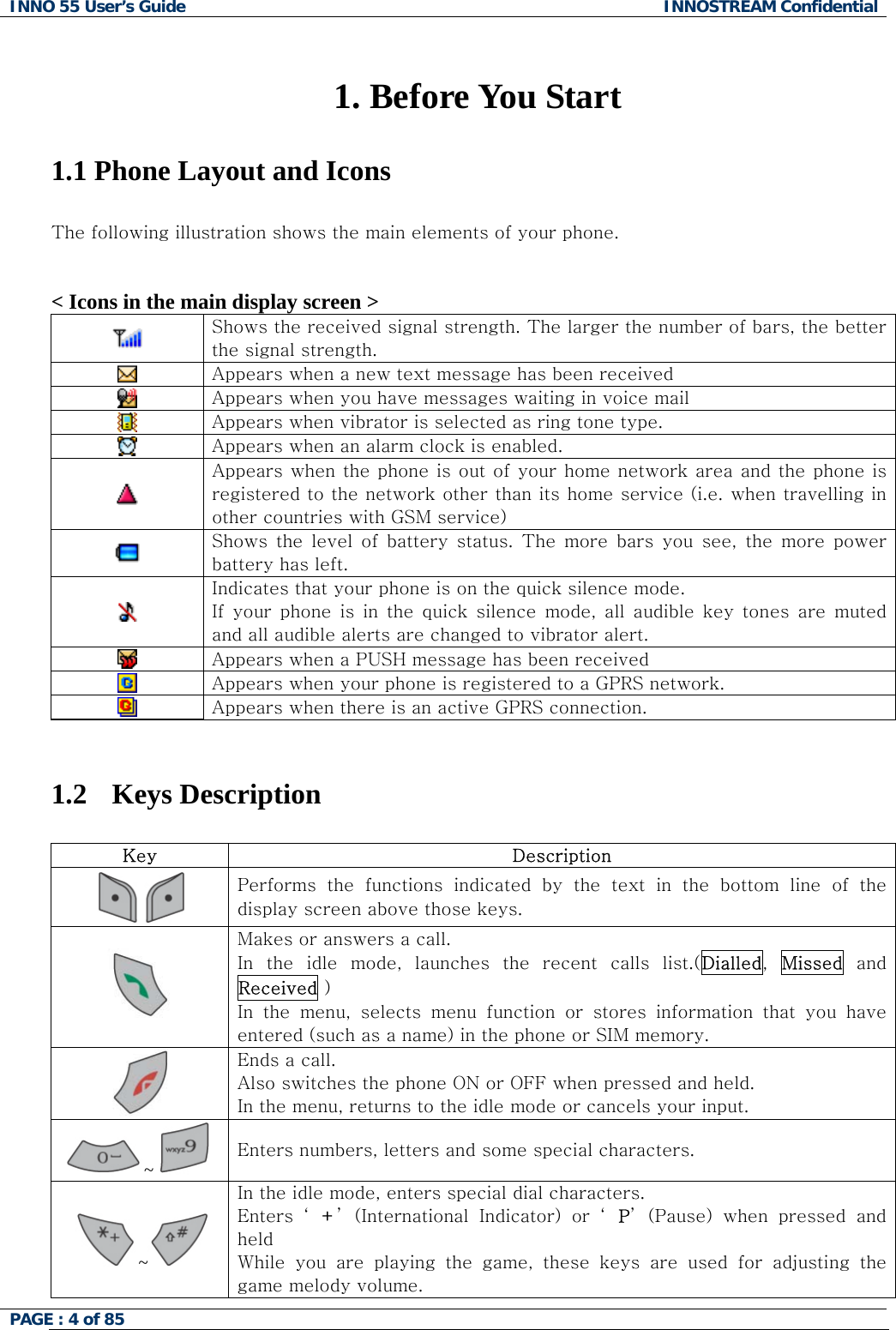

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 4 of 85 1. Before You Start 1.1 Phone Layout and Icons The following illustration shows the main elements of your phone. < Icons in the main display screen > Shows the received signal strength. The larger the number of bars, the better the signal strength. Appears when a new text message has been received Appears when you have messages waiting in voice mail Appears when vibrator is selected as ring tone type. Appears when an alarm clock is enabled. Appears when the phone is out of your home network area and the phone is registered to the network other than its home service (i.e. when travelling in other countries with GSM service) Shows the level of battery status. The more bars you see, the more power battery has left. Indicates that your phone is on the quick silence mode. If your phone is in the quick silence mode, all audible key tones are muted and all audible alerts are changed to vibrator alert. Appears when a PUSH message has been received Appears when your phone is registered to a GPRS network. Appears when there is an active GPRS connection. 1.2 Keys Description Key Description Performs the functions indicated by the text in the bottom line of the display screen above those keys. Makes or answers a call. In the idle mode, launches the recent calls list.(Dialled, Missed and Received ) In the menu, selects menu function or stores information that you have entered (such as a name) in the phone or SIM memory. Ends a call. Also switches the phone ON or OFF when pressed and held. In the menu, returns to the idle mode or cancels your input. ~ Enters numbers, letters and some special characters. ~ In the idle mode, enters special dial characters. Enters ‘ +’ (International Indicator) or ‘ P’ (Pause) when pressed and held While you are playing the game, these keys are used for adjusting the game melody volume.

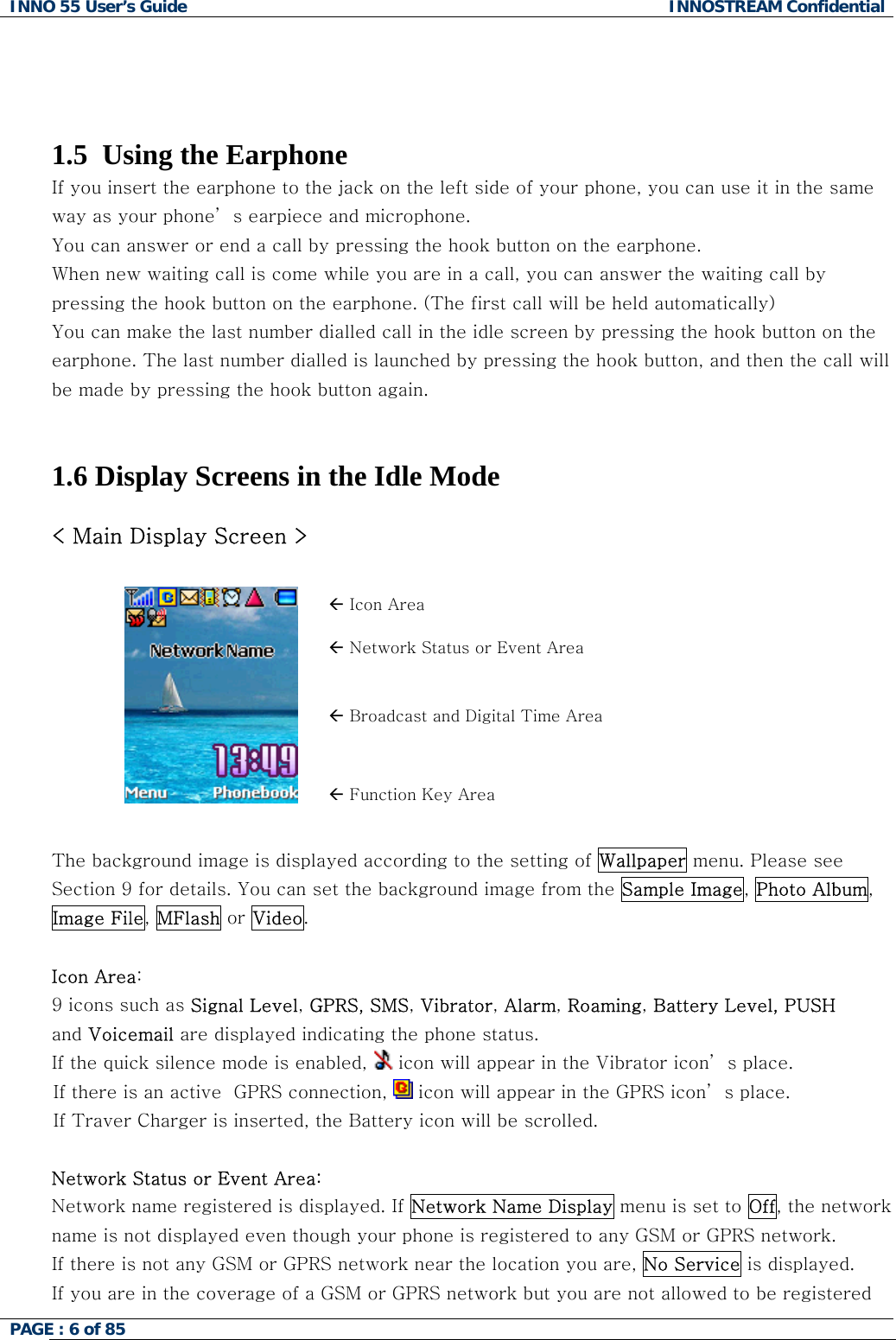

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 6 of 85 1.5 Using the Earphone If you insert the earphone to the jack on the left side of your phone, you can use it in the same way as your phone’ s earpiece and microphone. You can answer or end a call by pressing the hook button on the earphone. When new waiting call is come while you are in a call, you can answer the waiting call by pressing the hook button on the earphone. (The first call will be held automatically) You can make the last number dialled call in the idle screen by pressing the hook button on the earphone. The last number dialled is launched by pressing the hook button, and then the call will be made by pressing the hook button again. 1.6 Display Screens in the Idle Mode < Main Display Screen > Å Icon Area Å Network Status or Event Area Å Broadcast and Digital Time Area Å Function Key Area The background image is displayed according to the setting of Wallpaper menu. Please see Section 9 for details. You can set the background image from the Sample Image, Photo Album, Image File, MFlash or Video. Icon Area: 9 icons such as Signal Level, GPRS, SMS, Vibrator, Alarm, Roaming, Battery Level, PUSH and Voicemail are displayed indicating the phone status. If the quick silence mode is enabled, icon will appear in the Vibrator icon’ s place. If there is an active GPRS connection, icon will appear in the GPRS icon’ s place. If Traver Charger is inserted, the Battery icon will be scrolled. Network Status or Event Area: Network name registered is displayed. If Network Name Display menu is set to Off, the network name is not displayed even though your phone is registered to any GSM or GPRS network. If there is not any GSM or GPRS network near the location you are, No Service is displayed. If you are in the coverage of a GSM or GPRS network but you are not allowed to be registered

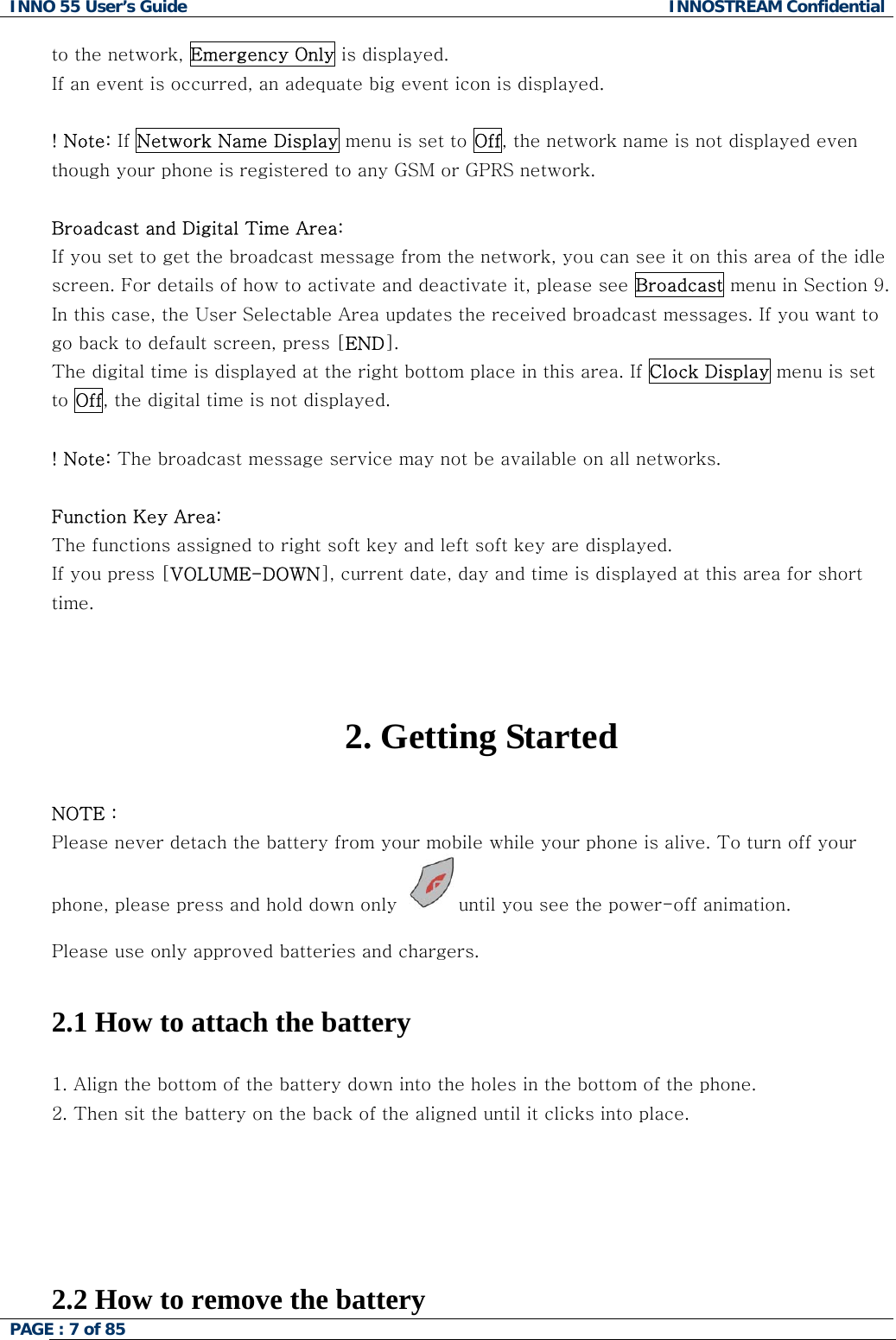

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 7 of 85 to the network, Emergency Only is displayed. If an event is occurred, an adequate big event icon is displayed. ! Note: If Network Name Display menu is set to Off, the network name is not displayed even though your phone is registered to any GSM or GPRS network. Broadcast and Digital Time Area: If you set to get the broadcast message from the network, you can see it on this area of the idle screen. For details of how to activate and deactivate it, please see Broadcast menu in Section 9. In this case, the User Selectable Area updates the received broadcast messages. If you want to go back to default screen, press [END]. The digital time is displayed at the right bottom place in this area. If Clock Display menu is set to Off, the digital time is not displayed. ! Note: The broadcast message service may not be available on all networks. Function Key Area: The functions assigned to right soft key and left soft key are displayed. If you press [VOLUME-DOWN], current date, day and time is displayed at this area for short time. 2. Getting Started NOTE : Please never detach the battery from your mobile while your phone is alive. To turn off your phone, please press and hold down only until you see the power-off animation. Please use only approved batteries and chargers. 2.1 How to attach the battery 1. Align the bottom of the battery down into the holes in the bottom of the phone. 2. Then sit the battery on the back of the aligned until it clicks into place. 2.2 How to remove the battery

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 8 of 85 Turn off your phone first. 1. Press up the battery release latch 2. Slightly lift the upper place of battery out of back of phone. 2.3 How to charge the battery The first charging must be for at least 4 hours in order to achieve optimum performance when you buy this phone. Normally your phone completes to charge the battery in one and half hour. You can make calls whilst charging your phone. Your phone turns off by itself if the battery is not able to supply enough power. The display may not visible for a few seconds in case that full discharged battery is used. !Note : Do not charge your phone without the battery in place. Do not detach the battery while being charged. < Charging with the Travel Adaptor> 1. Plug your Travel Adaptor into the external socket at the bottom of your phone. The percentage of charging will be indicated on the Sub-LCD screen. After complete charging, the percentage of charging disappears. !Note : Even after complete charging, the phone automatically checks the battery status during the Travel Adaptor is inserted. Once it detects that the battery level is below full status, it will automatically recharge the battery. < Charging with the Battery Charger> 1. Plug your Travel Adaptor into the charger socket at the bottom of the Battery Charger. 2. Sit your battery into the holder of the Battery Charger properly sliding down. The LED indicator of the Battery Charger indicate the charging status as follow. - Green Colour : It indicates idle state or full-charged state. - Red Colour : It indicates the battery is being charged. 2.4 How to place the SIM card Ensure your phone is switched off and the charger is detached first before you start the following steps. 1. Remove the battery. 2. Sit your SIM card into the holder. Beware the direction of the SIM card. 3. Slide the SIM card into the holder.

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 9 of 85 2.5 How to remove the SIM card Ensure your phone is switched off and the charger is detached first before you start the following steps. 1. Remove the battery. 2. Slide the SIM card by pushing up the back of the card and remove it from the holder. ! Note: About the SIM card The SIM card is a computer chip containing information about your subscription, security, phonebook etc. When you register as a subscriber with GSM or GPRS network operator, you are provided with the SIM card. Always handle the SIM card with care and insert with the gold contacts face down. 2.6 How to switch your phone On and Off Make sure that the battery is attached. 1. Open the folder 2. a) To switch your phone on, press and hold down [END] until you hear the power-on melody. Some SIM card may be protected with PIN. If Enter PIN is prompted, enter your PIN and then press [Ok soft key]. For more details, please see Security Codes in section 3. ! Note: If your PIN is entered invalidly three times in succession, your SIM card is blocked . In order to unblock it, see Security Codes in section 3. If Enter Lock Code is prompted, enter your Lock Code and then press [Ok soft key]. The Lock Code is factory set to 0 0 0 0. For more details, please see Security Codes in section 3. After the phone is turned on, the phone searches for a network. b) To switch your phone off, press and hold down [END] until you see the power-off animation. 3. Security Codes The security codes are used to protect your phone and SIM card from other person’ s use and control access to security and other options within the menus.

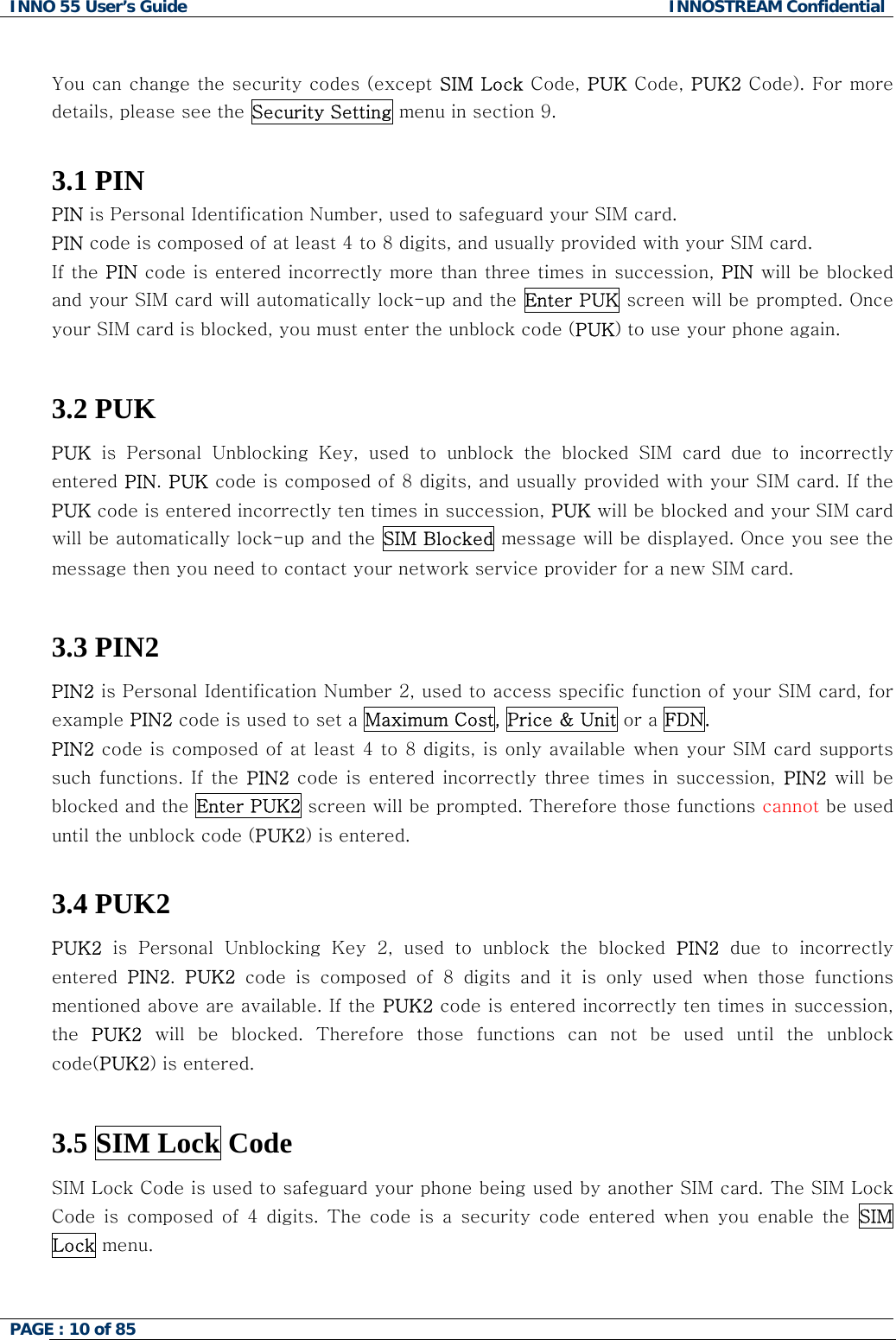

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 10 of 85 You can change the security codes (except SIM Lock Code, PUK Code, PUK2 Code). For more details, please see the Security Setting menu in section 9. 3.1 PIN PIN is Personal Identification Number, used to safeguard your SIM card. PIN code is composed of at least 4 to 8 digits, and usually provided with your SIM card. If the PIN code is entered incorrectly more than three times in succession, PIN will be blocked and your SIM card will automatically lock-up and the Enter PUK screen will be prompted. Once your SIM card is blocked, you must enter the unblock code (PUK) to use your phone again. 3.2 PUK PUK is Personal Unblocking Key, used to unblock the blocked SIM card due to incorrectly entered PIN. PUK code is composed of 8 digits, and usually provided with your SIM card. If the PUK code is entered incorrectly ten times in succession, PUK will be blocked and your SIM card will be automatically lock-up and the SIM Blocked message will be displayed. Once you see the message then you need to contact your network service provider for a new SIM card. 3.3 PIN2 PIN2 is Personal Identification Number 2, used to access specific function of your SIM card, for example PIN2 code is used to set a Maximum Cost, Price & Unit or a FDN. PIN2 code is composed of at least 4 to 8 digits, is only available when your SIM card supports such functions. If the PIN2 code is entered incorrectly three times in succession, PIN2 will be blocked and the Enter PUK2 screen will be prompted. Therefore those functions cannot be used until the unblock code (PUK2) is entered. 3.4 PUK2 PUK2 is Personal Unblocking Key 2, used to unblock the blocked PIN2 due to incorrectly entered PIN2. PUK2 code is composed of 8 digits and it is only used when those functions mentioned above are available. If the PUK2 code is entered incorrectly ten times in succession, the PUK2 will be blocked. Therefore those functions can not be used until the unblock code(PUK2) is entered. 3.5 SIM Lock Code SIM Lock Code is used to safeguard your phone being used by another SIM card. The SIM Lock Code is composed of 4 digits. The code is a security code entered when you enable the SIM Lock menu.

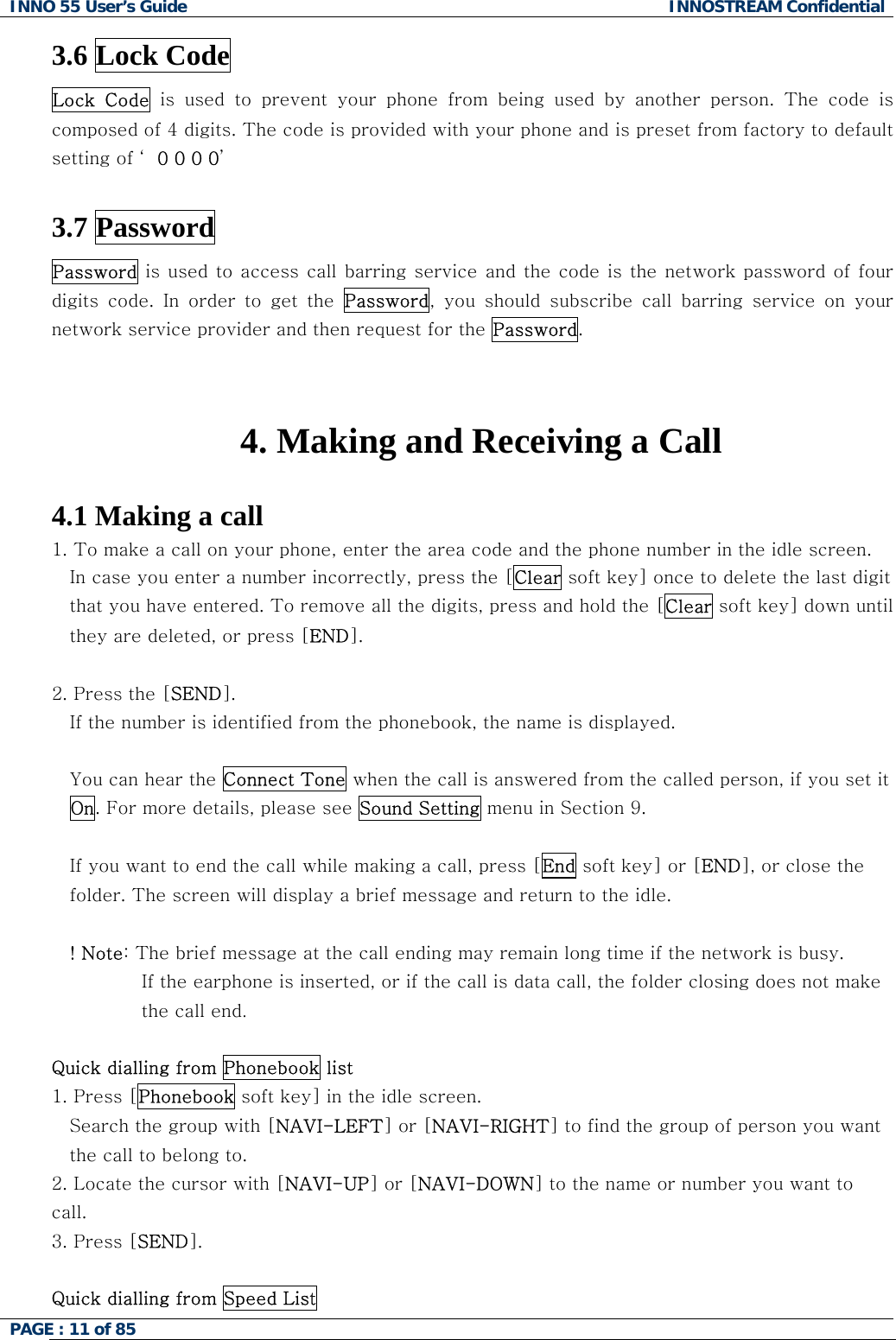

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 11 of 85 3.6 Lock Code Lock Code is used to prevent your phone from being used by another person. The code is composed of 4 digits. The code is provided with your phone and is preset from factory to default setting of ‘ 0 0 0 0’ 3.7 Password Password is used to access call barring service and the code is the network password of four digits code. In order to get the Password, you should subscribe call barring service on your network service provider and then request for the Password. 4. Making and Receiving a Call 4.1 Making a call 1. To make a call on your phone, enter the area code and the phone number in the idle screen. In case you enter a number incorrectly, press the [Clear soft key] once to delete the last digit that you have entered. To remove all the digits, press and hold the [Clear soft key] down until they are deleted, or press [END]. 2. Press the [SEND]. If the number is identified from the phonebook, the name is displayed. You can hear the Connect Tone when the call is answered from the called person, if you set it On. For more details, please see Sound Setting menu in Section 9. If you want to end the call while making a call, press [End soft key] or [END], or close the folder. The screen will display a brief message and return to the idle. ! Note: The brief message at the call ending may remain long time if the network is busy. If the earphone is inserted, or if the call is data call, the folder closing does not make the call end. Quick dialling from Phonebook list 1. Press [Phonebook soft key] in the idle screen. Search the group with [NAVI-LEFT] or [NAVI-RIGHT] to find the group of person you want the call to belong to. 2. Locate the cursor with [NAVI-UP] or [NAVI-DOWN] to the name or number you want to call. 3. Press [SEND]. Quick dialling from Speed List

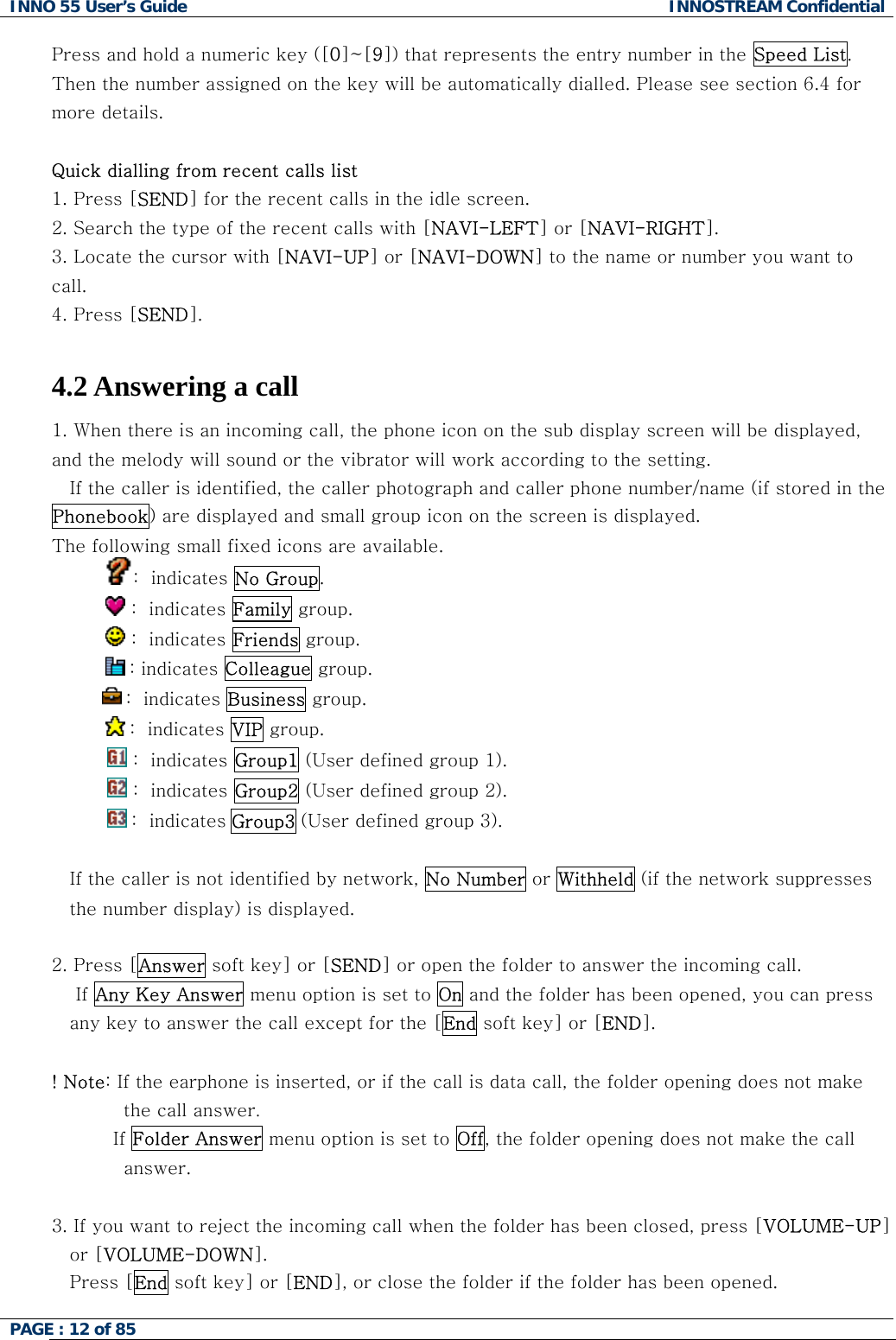

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 12 of 85 Press and hold a numeric key ([0]~[9]) that represents the entry number in the Speed List. Then the number assigned on the key will be automatically dialled. Please see section 6.4 for more details. Quick dialling from recent calls list 1. Press [SEND] for the recent calls in the idle screen. 2. Search the type of the recent calls with [NAVI-LEFT] or [NAVI-RIGHT]. 3. Locate the cursor with [NAVI-UP] or [NAVI-DOWN] to the name or number you want to call. 4. Press [SEND]. 4.2 Answering a call 1. When there is an incoming call, the phone icon on the sub display screen will be displayed, and the melody will sound or the vibrator will work according to the setting. If the caller is identified, the caller photograph and caller phone number/name (if stored in the Phonebook) are displayed and small group icon on the screen is displayed. The following small fixed icons are available. : indicates No Group. : indicates Family group. : indicates Friends group. : indicates Colleague group. : indicates Business group. : indicates VIP group. : indicates Group1 (User defined group 1). : indicates Group2 (User defined group 2). : indicates Group3 (User defined group 3). If the caller is not identified by network, No Number or Withheld (if the network suppresses the number display) is displayed. 2. Press [Answer soft key] or [SEND] or open the folder to answer the incoming call. If Any Key Answer menu option is set to On and the folder has been opened, you can press any key to answer the call except for the [End soft key] or [END]. ! Note: If the earphone is inserted, or if the call is data call, the folder opening does not make the call answer. If Folder Answer menu option is set to Off, the folder opening does not make the call answer. 3. If you want to reject the incoming call when the folder has been closed, press [VOLUME-UP] or [VOLUME-DOWN]. Press [End soft key] or [END], or close the folder if the folder has been opened.

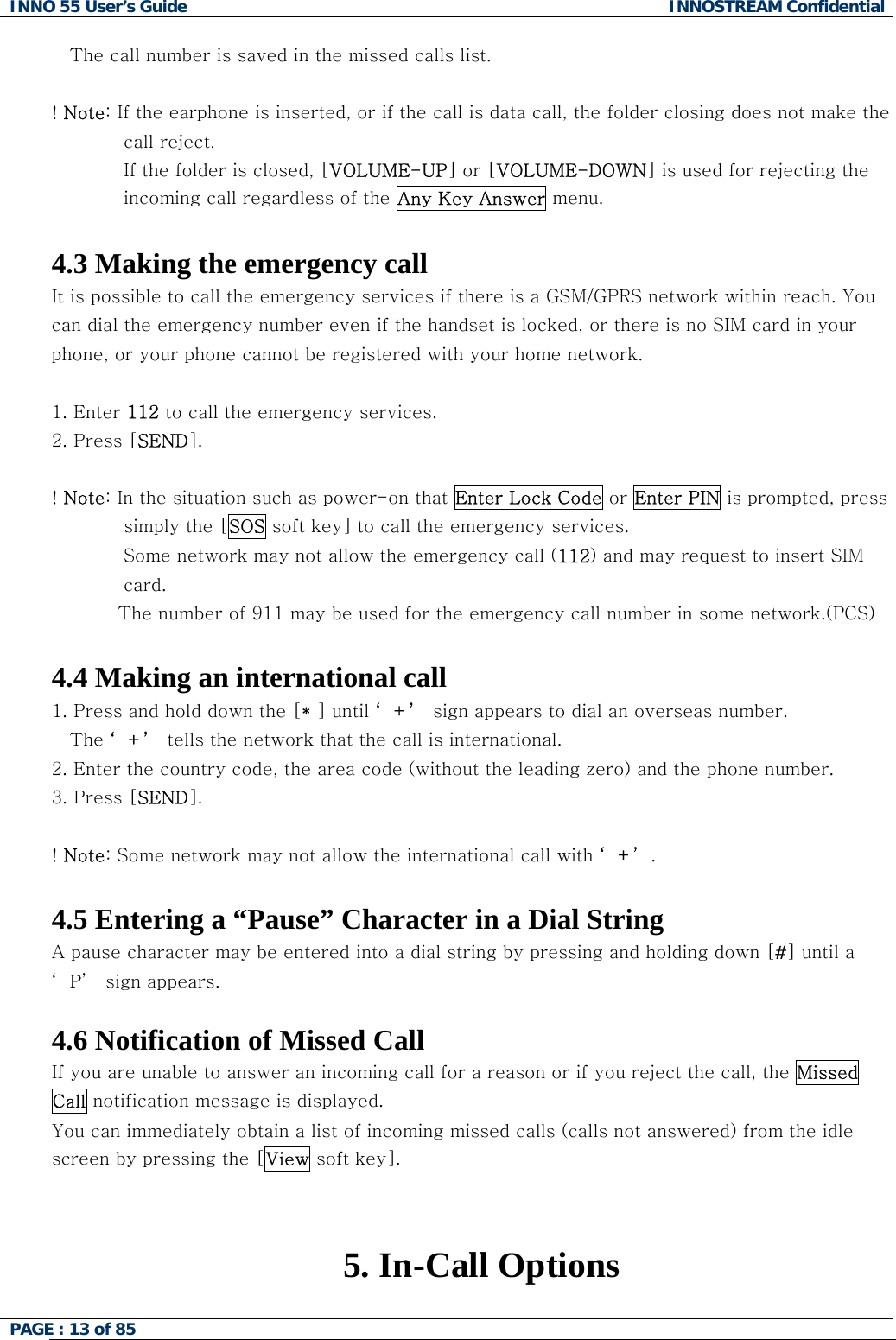

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 13 of 85 The call number is saved in the missed calls list. ! Note: If the earphone is inserted, or if the call is data call, the folder closing does not make the call reject. If the folder is closed, [VOLUME-UP] or [VOLUME-DOWN] is used for rejecting the incoming call regardless of the Any Key Answer menu. 4.3 Making the emergency call It is possible to call the emergency services if there is a GSM/GPRS network within reach. You can dial the emergency number even if the handset is locked, or there is no SIM card in your phone, or your phone cannot be registered with your home network. 1. Enter 112 to call the emergency services. 2. Press [SEND]. ! Note: In the situation such as power-on that Enter Lock Code or Enter PIN is prompted, press simply the [SOS soft key] to call the emergency services. Some network may not allow the emergency call (112) and may request to insert SIM card. The number of 911 may be used for the emergency call number in some network.(PCS) 4.4 Making an international call 1. Press and hold down the [* ] until ‘+’ sign appears to dial an overseas number. The ‘+’ tells the network that the call is international. 2. Enter the country code, the area code (without the leading zero) and the phone number. 3. Press [SEND]. ! Note: Some network may not allow the international call with ‘+’. 4.5 Entering a “Pause” Character in a Dial String A pause character may be entered into a dial string by pressing and holding down [#] until a ‘P’ sign appears. 4.6 Notification of Missed Call If you are unable to answer an incoming call for a reason or if you reject the call, the Missed Call notification message is displayed. You can immediately obtain a list of incoming missed calls (calls not answered) from the idle screen by pressing the [View soft key]. 5. In-Call Options

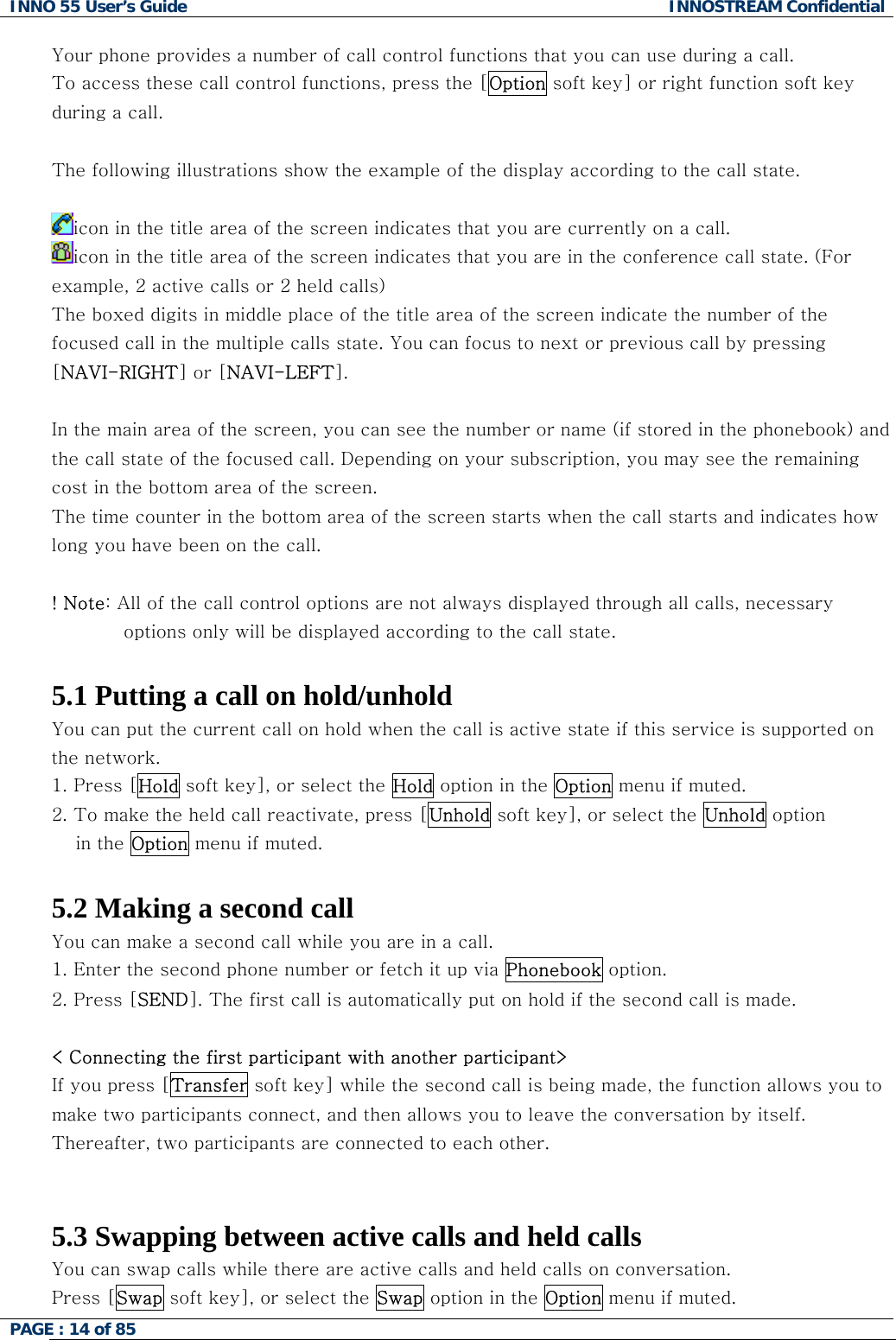

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 14 of 85 Your phone provides a number of call control functions that you can use during a call. To access these call control functions, press the [Option soft key] or right function soft key during a call. The following illustrations show the example of the display according to the call state. icon in the title area of the screen indicates that you are currently on a call. icon in the title area of the screen indicates that you are in the conference call state. (For example, 2 active calls or 2 held calls) The boxed digits in middle place of the title area of the screen indicate the number of the focused call in the multiple calls state. You can focus to next or previous call by pressing [NAVI-RIGHT] or [NAVI-LEFT]. In the main area of the screen, you can see the number or name (if stored in the phonebook) and the call state of the focused call. Depending on your subscription, you may see the remaining cost in the bottom area of the screen. The time counter in the bottom area of the screen starts when the call starts and indicates how long you have been on the call. ! Note: All of the call control options are not always displayed through all calls, necessary options only will be displayed according to the call state. 5.1 Putting a call on hold/unhold You can put the current call on hold when the call is active state if this service is supported on the network. 1. Press [Hold soft key], or select the Hold option in the Option menu if muted. 2. To make the held call reactivate, press [Unhold soft key], or select the Unhold option in the Option menu if muted. 5.2 Making a second call You can make a second call while you are in a call. 1. Enter the second phone number or fetch it up via Phonebook option. 2. Press [SEND]. The first call is automatically put on hold if the second call is made. < Connecting the first participant with another participant> If you press [Transfer soft key] while the second call is being made, the function allows you to make two participants connect, and then allows you to leave the conversation by itself. Thereafter, two participants are connected to each other. 5.3 Swapping between active calls and held calls You can swap calls while there are active calls and held calls on conversation. Press [Swap soft key], or select the Swap option in the Option menu if muted.

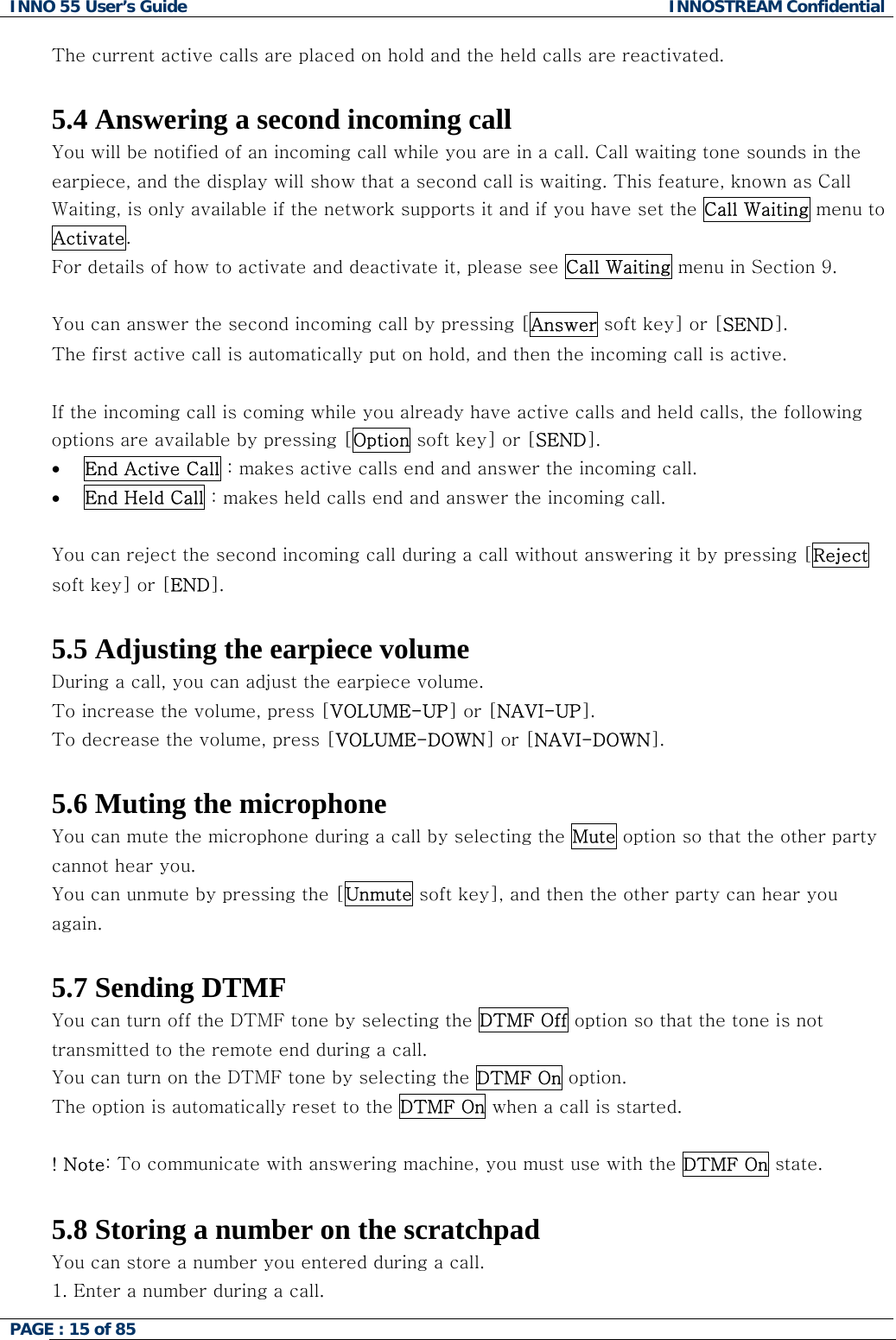

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 15 of 85 The current active calls are placed on hold and the held calls are reactivated. 5.4 Answering a second incoming call You will be notified of an incoming call while you are in a call. Call waiting tone sounds in the earpiece, and the display will show that a second call is waiting. This feature, known as Call Waiting, is only available if the network supports it and if you have set the Call Waiting menu to Activate. For details of how to activate and deactivate it, please see Call Waiting menu in Section 9. You can answer the second incoming call by pressing [Answer soft key] or [SEND]. The first active call is automatically put on hold, and then the incoming call is active. If the incoming call is coming while you already have active calls and held calls, the following options are available by pressing [Option soft key] or [SEND]. • End Active Call : makes active calls end and answer the incoming call. • End Held Call : makes held calls end and answer the incoming call. You can reject the second incoming call during a call without answering it by pressing [Reject soft key] or [END]. 5.5 Adjusting the earpiece volume During a call, you can adjust the earpiece volume. To increase the volume, press [VOLUME-UP] or [NAVI-UP]. To decrease the volume, press [VOLUME-DOWN] or [NAVI-DOWN]. 5.6 Muting the microphone You can mute the microphone during a call by selecting the Mute option so that the other party cannot hear you. You can unmute by pressing the [Unmute soft key], and then the other party can hear you again. 5.7 Sending DTMF You can turn off the DTMF tone by selecting the DTMF Off option so that the tone is not transmitted to the remote end during a call. You can turn on the DTMF tone by selecting the DTMF On option. The option is automatically reset to the DTMF On when a call is started. ! Note: To communicate with answering machine, you must use with the DTMF On state. 5.8 Storing a number on the scratchpad You can store a number you entered during a call. 1. Enter a number during a call.

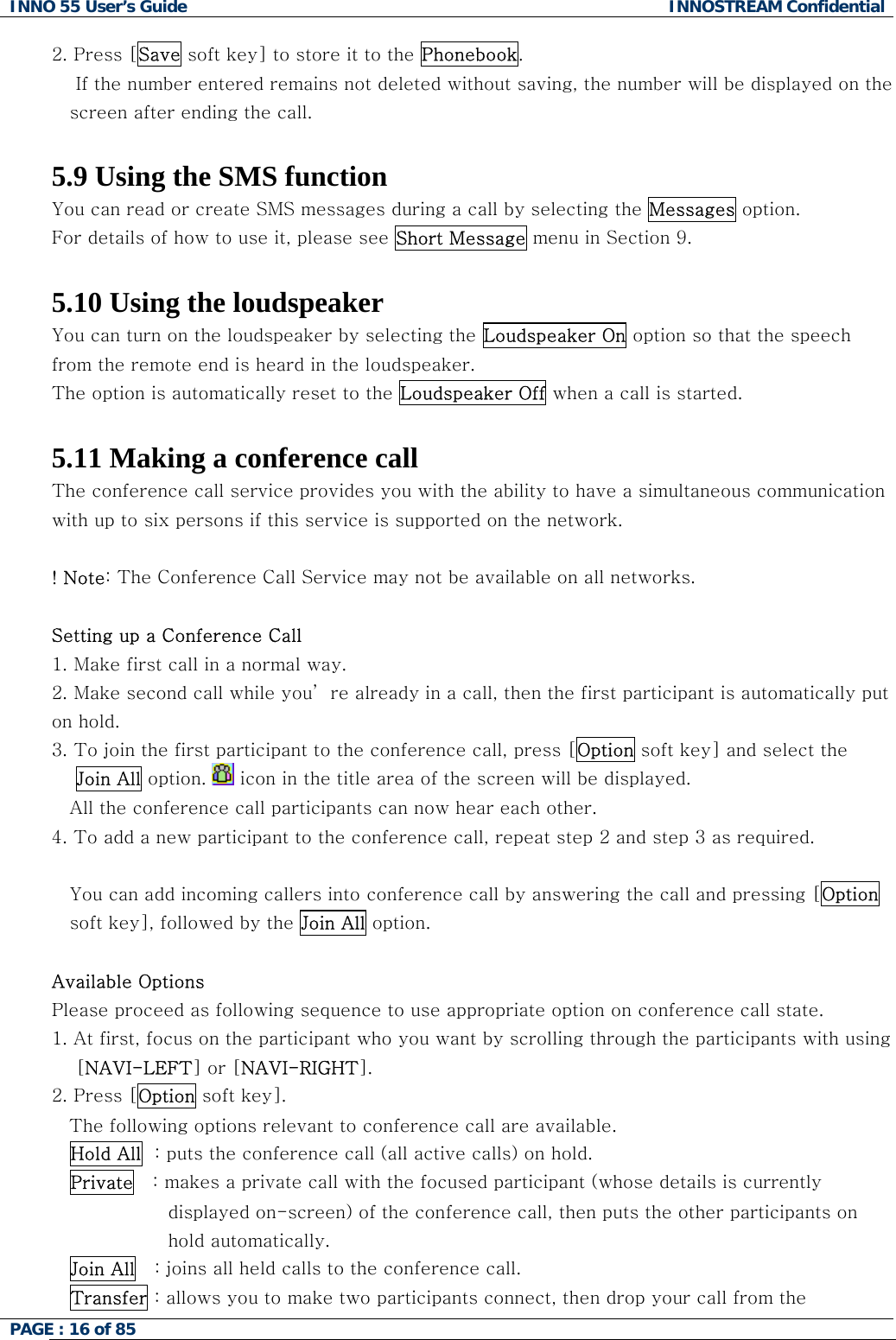

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 16 of 85 2. Press [Save soft key] to store it to the Phonebook. If the number entered remains not deleted without saving, the number will be displayed on the screen after ending the call. 5.9 Using the SMS function You can read or create SMS messages during a call by selecting the Messages option. For details of how to use it, please see Short Message menu in Section 9. 5.10 Using the loudspeaker You can turn on the loudspeaker by selecting the Loudspeaker On option so that the speech from the remote end is heard in the loudspeaker. The option is automatically reset to the Loudspeaker Off when a call is started. 5.11 Making a conference call The conference call service provides you with the ability to have a simultaneous communication with up to six persons if this service is supported on the network. ! Note: The Conference Call Service may not be available on all networks. Setting up a Conference Call 1. Make first call in a normal way. 2. Make second call while you’ re already in a call, then the first participant is automatically put on hold. 3. To join the first participant to the conference call, press [Option soft key] and select the Join All option. icon in the title area of the screen will be displayed. All the conference call participants can now hear each other. 4. To add a new participant to the conference call, repeat step 2 and step 3 as required. You can add incoming callers into conference call by answering the call and pressing [Option soft key], followed by the Join All option. Available Options Please proceed as following sequence to use appropriate option on conference call state. 1. At first, focus on the participant who you want by scrolling through the participants with using [NAVI-LEFT] or [NAVI-RIGHT]. 2. Press [Option soft key]. The following options relevant to conference call are available. Hold All : puts the conference call (all active calls) on hold. Private : makes a private call with the focused participant (whose details is currently displayed on-screen) of the conference call, then puts the other participants on hold automatically. Join All : joins all held calls to the conference call. Transfer : allows you to make two participants connect, then drop your call from the

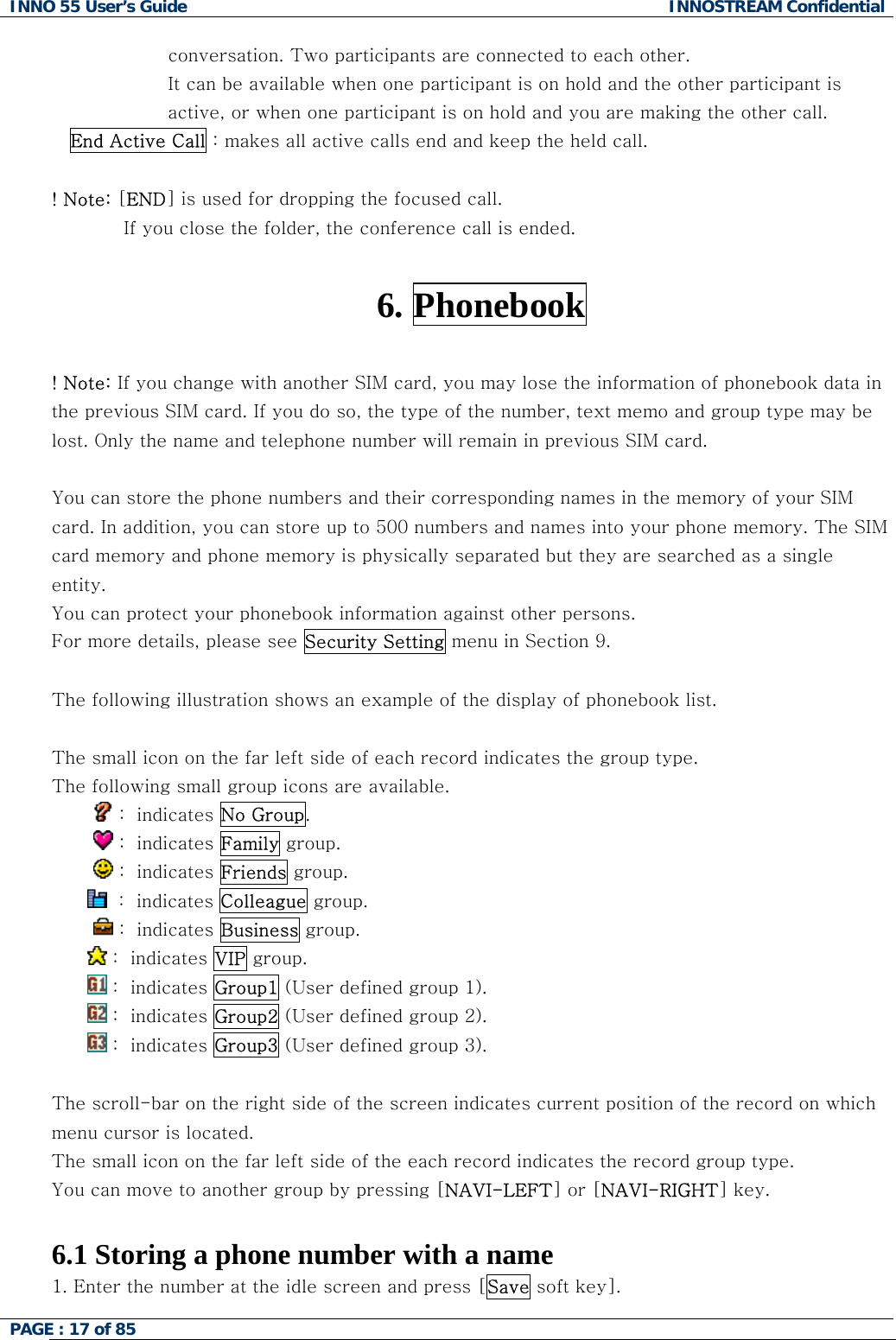

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 17 of 85 conversation. Two participants are connected to each other. It can be available when one participant is on hold and the other participant is active, or when one participant is on hold and you are making the other call. End Active Call : makes all active calls end and keep the held call. ! Note: [END] is used for dropping the focused call. If you close the folder, the conference call is ended. 6. Phonebook ! Note: If you change with another SIM card, you may lose the information of phonebook data in the previous SIM card. If you do so, the type of the number, text memo and group type may be lost. Only the name and telephone number will remain in previous SIM card. You can store the phone numbers and their corresponding names in the memory of your SIM card. In addition, you can store up to 500 numbers and names into your phone memory. The SIM card memory and phone memory is physically separated but they are searched as a single entity. You can protect your phonebook information against other persons. For more details, please see Security Setting menu in Section 9. The following illustration shows an example of the display of phonebook list. The small icon on the far left side of each record indicates the group type. The following small group icons are available. : indicates No Group. : indicates Family group. : indicates Friends group. : indicates Colleague group. : indicates Business group. : indicates VIP group. : indicates Group1 (User defined group 1). : indicates Group2 (User defined group 2). : indicates Group3 (User defined group 3). The scroll-bar on the right side of the screen indicates current position of the record on which menu cursor is located. The small icon on the far left side of the each record indicates the record group type. You can move to another group by pressing [NAVI-LEFT] or [NAVI-RIGHT] key. 6.1 Storing a phone number with a name 1. Enter the number at the idle screen and press [Save soft key].

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 18 of 85 2. Enter the name of the person or service. If you want to know more about input mode please see section 7. Press [Ok soft key] when the name input is completed. With pressing [NAVI-UP] or [NAVI-DOWN], you can move the editing cursor to the item that you wish to edit or add. Press the [Edit soft key], and you can edit or add the item. For each name, you can set the group of the name with adequate group icon explained before. You can save up to three(3) telephone numbers, one E-mail address and one photograph for each name. You can link a photograph of Photo Album menu with each name. The photograph should be taken by your phone camera with size option of 96x64. For each number, you can set the type of the number with following icons. : Mobile : Home : Office : Fax : Pager After editing, press [Save soft key] to save the record. The record will be saved into SIM memory or Phone Memory according to the setting of Place To Save in the Settings option. 6.2 Quick searching for a number in the phonebook 1. Press the [Phonebook soft key] in the idle screen. The names stored in the phonebook will be listed in alphabetical order. 2. Press the first letter of the name that you want to search for. To choose a letter on a keypad, the key is pressed the appropriate number of times, rapidly in succession, once for the first letter, twice for the second letter etc. ! Note: If you found the name, you can dial the number by pressing [SEND]. 6.3 Storing a number of the recent calls to the phonebook 1. Press [SEND] in the idle screen. Recent Dialled calls list will be displayed. With pressing [NAVI-LEFT] or [NAVI-RIGHT], you can move the screen cursor to another call record type screen. With pressing [NAVI-UP] or [NAVI-DOWN], you can move the list cursor to the recent number. 2. Press [View soft key] on the name that you wish to store. 3. Press [Paste soft key] and then press [Save soft key]. 6.4 Speed List

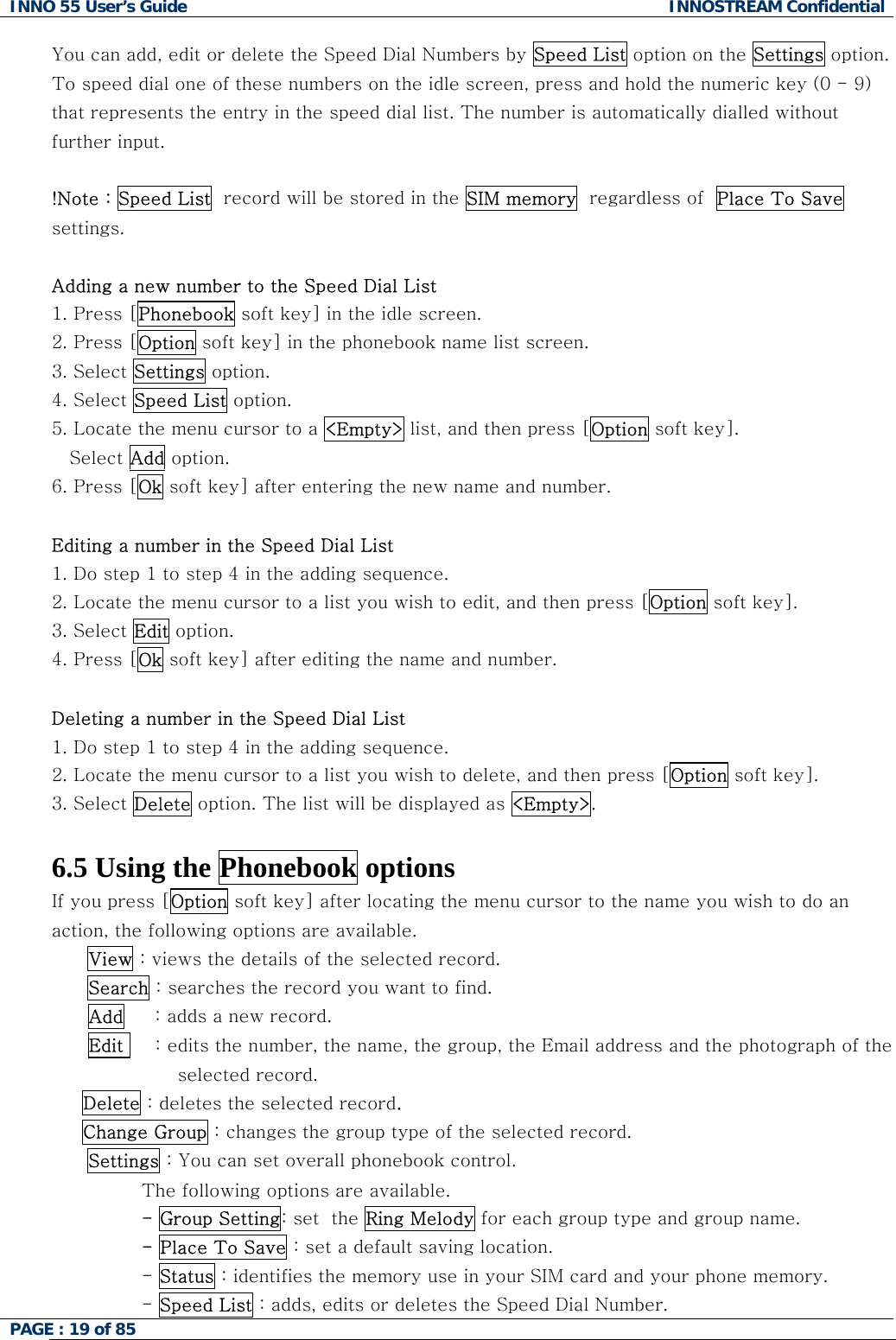

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 19 of 85 You can add, edit or delete the Speed Dial Numbers by Speed List option on the Settings option. To speed dial one of these numbers on the idle screen, press and hold the numeric key (0 - 9) that represents the entry in the speed dial list. The number is automatically dialled without further input. !Note : Speed List record will be stored in the SIM memory regardless of Place To Save settings. Adding a new number to the Speed Dial List 1. Press [Phonebook soft key] in the idle screen. 2. Press [Option soft key] in the phonebook name list screen. 3. Select Settings option. 4. Select Speed List option. 5. Locate the menu cursor to a <Empty> list, and then press [Option soft key]. Select Add option. 6. Press [Ok soft key] after entering the new name and number. Editing a number in the Speed Dial List 1. Do step 1 to step 4 in the adding sequence. 2. Locate the menu cursor to a list you wish to edit, and then press [Option soft key]. 3. Select Edit option. 4. Press [Ok soft key] after editing the name and number. Deleting a number in the Speed Dial List 1. Do step 1 to step 4 in the adding sequence. 2. Locate the menu cursor to a list you wish to delete, and then press [Option soft key]. 3. Select Delete option. The list will be displayed as <Empty>. 6.5 Using the Phonebook options If you press [Option soft key] after locating the menu cursor to the name you wish to do an action, the following options are available. View : views the details of the selected record. Search : searches the record you want to find. Add : adds a new record. Edit : edits the number, the name, the group, the Email address and the photograph of the selected record. Delete : deletes the selected record. Change Group : changes the group type of the selected record. Settings : You can set overall phonebook control. The following options are available. - Group Setting: set the Ring Melody for each group type and group name. - Place To Save : set a default saving location. - Status : identifies the memory use in your SIM card and your phone memory. - Speed List : adds, edits or deletes the Speed Dial Number.

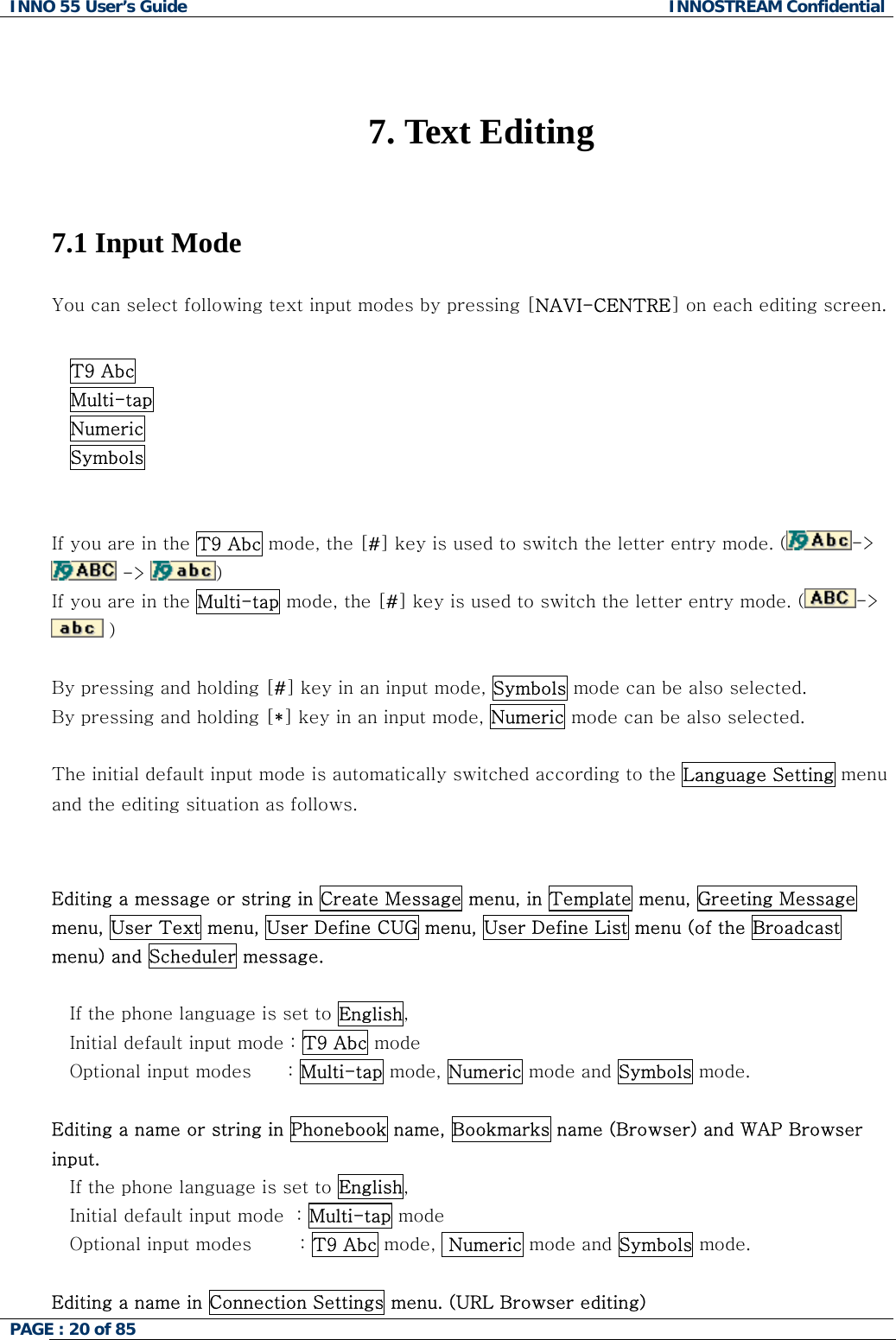

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 20 of 85 7. Text Editing 7.1 Input Mode You can select following text input modes by pressing [NAVI-CENTRE] on each editing screen. T9 Abc Multi-tap Numeric Symbols If you are in the T9 Abc mode, the [#] key is used to switch the letter entry mode. ( -> -> ) If you are in the Multi-tap mode, the [#] key is used to switch the letter entry mode. ( -> ) By pressing and holding [#] key in an input mode, Symbols mode can be also selected. By pressing and holding [*] key in an input mode, Numeric mode can be also selected. The initial default input mode is automatically switched according to the Language Setting menu and the editing situation as follows. Editing a message or string in Create Message menu, in Template menu, Greeting Message menu, User Text menu, User Define CUG menu, User Define List menu (of the Broadcast menu) and Scheduler message. If the phone language is set to English, Initial default input mode : T9 Abc mode Optional input modes : Multi-tap mode, Numeric mode and Symbols mode. Editing a name or string in Phonebook name, Bookmarks name (Browser) and WAP Browser input. If the phone language is set to English, Initial default input mode : Multi-tap mode Optional input modes : T9 Abc mode, Numeric mode and Symbols mode. Editing a name in Connection Settings menu. (URL Browser editing)

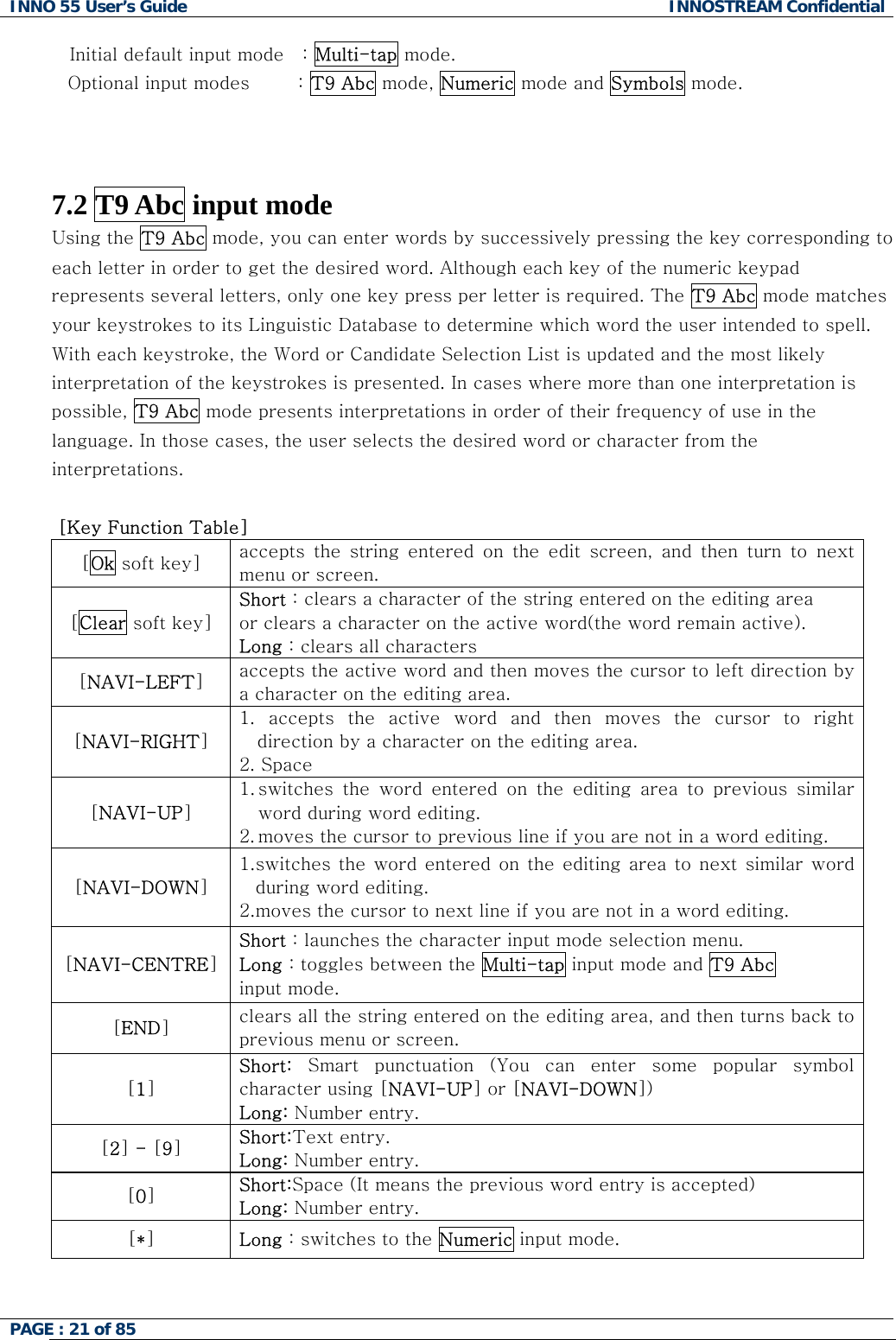

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 21 of 85 Initial default input mode : Multi-tap mode. Optional input modes : T9 Abc mode, Numeric mode and Symbols mode. 7.2 T9 Abc input mode Using the T9 Abc mode, you can enter words by successively pressing the key corresponding to each letter in order to get the desired word. Although each key of the numeric keypad represents several letters, only one key press per letter is required. The T9 Abc mode matches your keystrokes to its Linguistic Database to determine which word the user intended to spell. With each keystroke, the Word or Candidate Selection List is updated and the most likely interpretation of the keystrokes is presented. In cases where more than one interpretation is possible, T9 Abc mode presents interpretations in order of their frequency of use in the language. In those cases, the user selects the desired word or character from the interpretations. [Key Function Table] [Ok soft key] accepts the string entered on the edit screen, and then turn to next menu or screen. [Clear soft key] Short : clears a character of the string entered on the editing area or clears a character on the active word(the word remain active). Long : clears all characters [NAVI-LEFT] accepts the active word and then moves the cursor to left direction by a character on the editing area. [NAVI-RIGHT] 1. accepts the active word and then moves the cursor to right direction by a character on the editing area. 2. Space [NAVI-UP] 1. switches the word entered on the editing area to previous similar word during word editing. 2. moves the cursor to previous line if you are not in a word editing. [NAVI-DOWN] 1. switches the word entered on the editing area to next similar word during word editing. 2. moves the cursor to next line if you are not in a word editing. [NAVI-CENTRE] Short : launches the character input mode selection menu. Long : toggles between the Multi-tap input mode and T9 Abc input mode. [END] clears all the string entered on the editing area, and then turns back to previous menu or screen. [1] Short: Smart punctuation (You can enter some popular symbol character using [NAVI-UP] or [NAVI-DOWN]) Long: Number entry. [2] - [9] Short:Text entry. Long: Number entry. [0] Short:Space (It means the previous word entry is accepted) Long: Number entry. [*] Long : switches to the Numeric input mode.

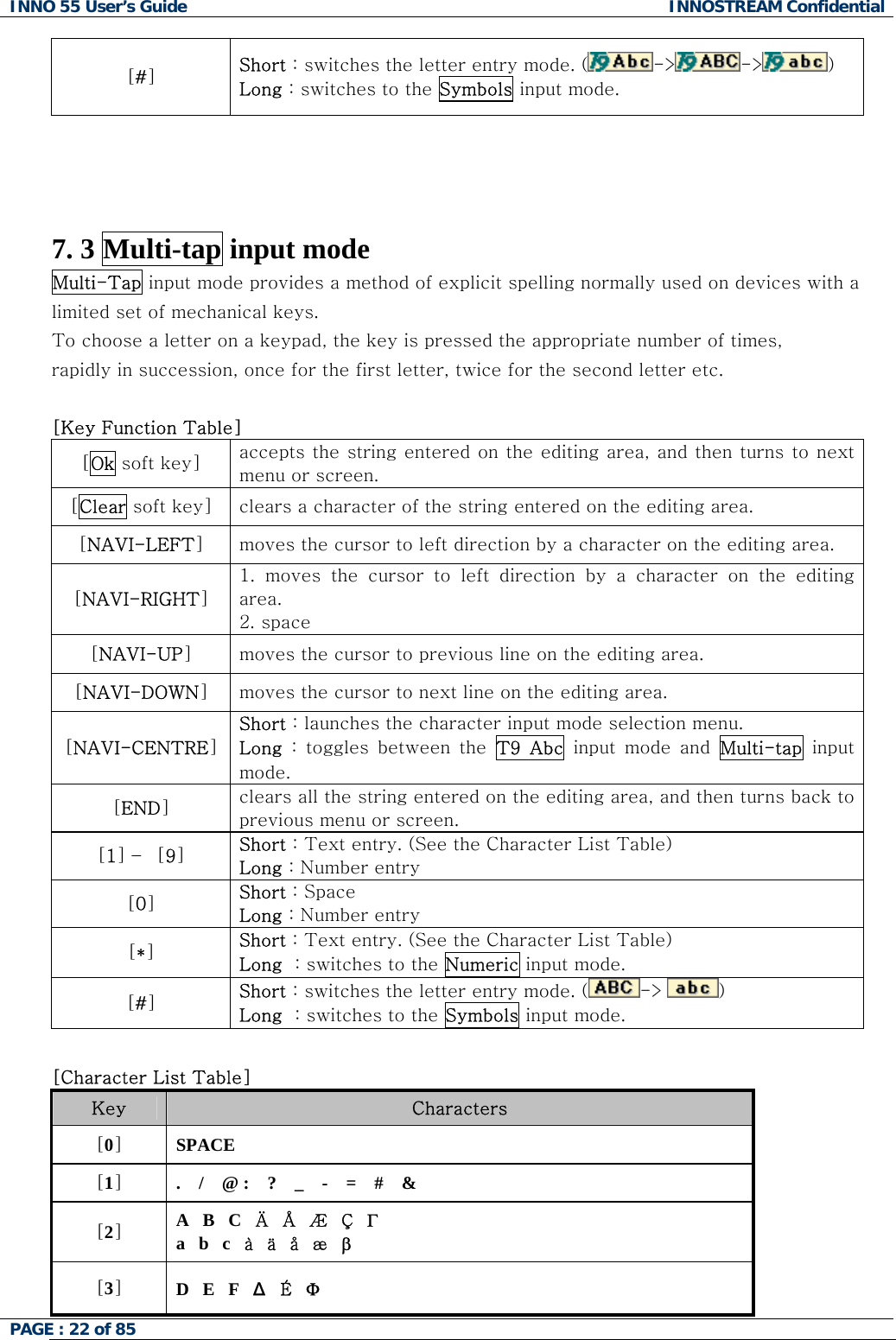

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 22 of 85 [#] Short : switches the letter entry mode. ( -> -> ) Long : switches to the Symbols input mode. 7. 3 Multi-tap input mode Multi-Tap input mode provides a method of explicit spelling normally used on devices with a limited set of mechanical keys. To choose a letter on a keypad, the key is pressed the appropriate number of times, rapidly in succession, once for the first letter, twice for the second letter etc. [Key Function Table] [Ok soft key] accepts the string entered on the editing area, and then turns to next menu or screen. [Clear soft key] clears a character of the string entered on the editing area. [NAVI-LEFT] moves the cursor to left direction by a character on the editing area. [NAVI-RIGHT] 1. moves the cursor to left direction by a character on the editing area. 2. space [NAVI-UP] moves the cursor to previous line on the editing area. [NAVI-DOWN] moves the cursor to next line on the editing area. [NAVI-CENTRE] Short : launches the character input mode selection menu. Long : toggles between the T9 Abc input mode and Multi-tap input mode. [END] clears all the string entered on the editing area, and then turns back to previous menu or screen. [1] – [9] Short : Text entry. (See the Character List Table) Long : Number entry [0] Short : Space Long : Number entry [*] Short : Text entry. (See the Character List Table) Long : switches to the Numeric input mode. [#] Short : switches the letter entry mode. ( -> ) Long : switches to the Symbols input mode. [Character List Table] Key Characters [0] SPACE [1] . / @ : ? _ - = # & [2] A B C Ä Å Æ Ç Γ a b c à ä å æ β [3] D E F Δ É Φ

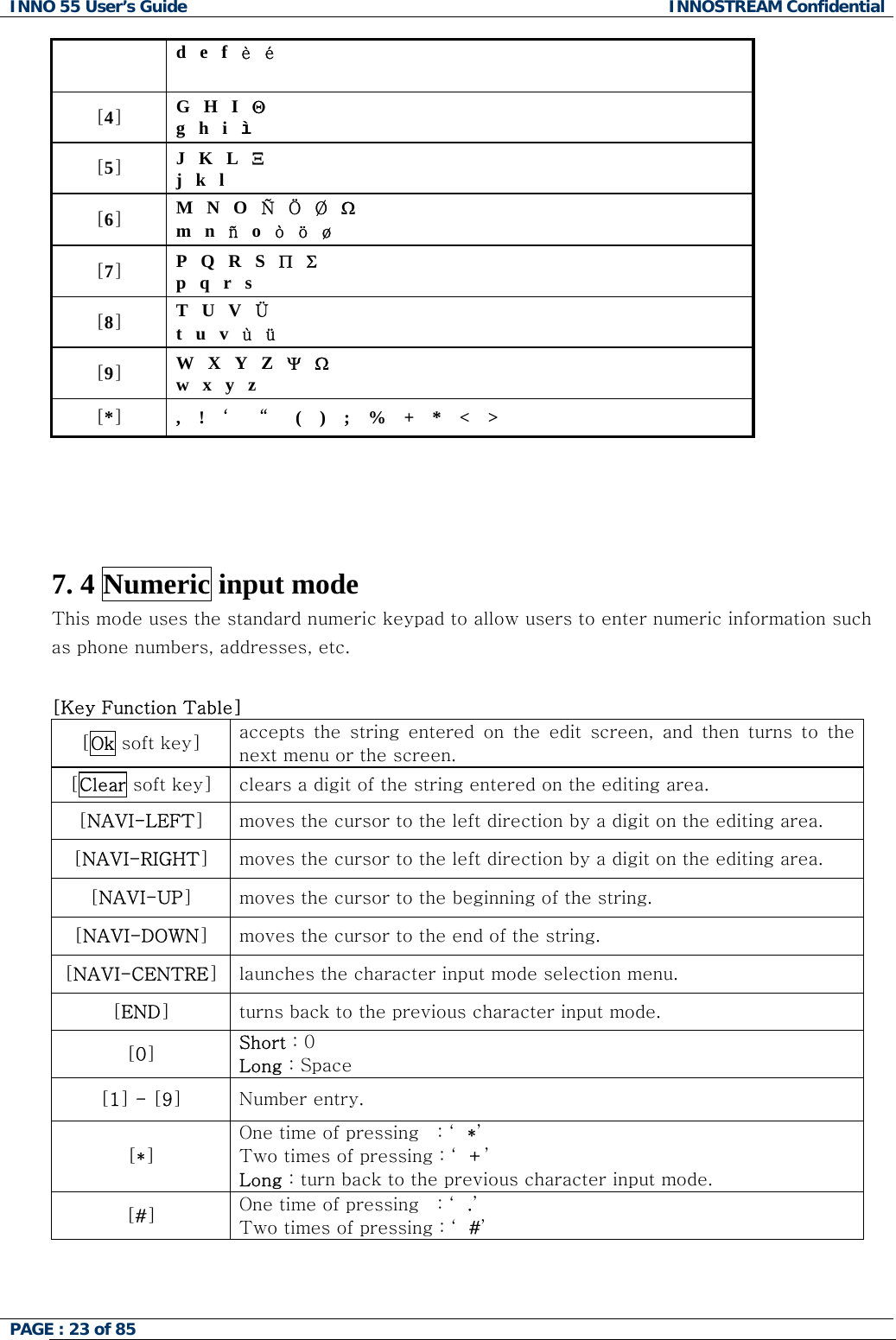

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 23 of 85 d e f è é [4] G H I Θ g h i ì [5] J K L Ξ j k l [6] M N O Ñ Ö Ø Ω m n ñ o ò ö ø [7] P Q R S Π Σ p q r s [8] T U V Ü t u v ù ü [9] W X Y Z Ψ Ω w x y z [*] , ! ‘ “ ( ) ; % + * < > 7. 4 Numeric input mode This mode uses the standard numeric keypad to allow users to enter numeric information such as phone numbers, addresses, etc. [Key Function Table] [Ok soft key] accepts the string entered on the edit screen, and then turns to the next menu or the screen. [Clear soft key] clears a digit of the string entered on the editing area. [NAVI-LEFT] moves the cursor to the left direction by a digit on the editing area. [NAVI-RIGHT] moves the cursor to the left direction by a digit on the editing area. [NAVI-UP] moves the cursor to the beginning of the string. [NAVI-DOWN] moves the cursor to the end of the string. [NAVI-CENTRE] launches the character input mode selection menu. [END] turns back to the previous character input mode. [0] Short : 0 Long : Space [1] - [9] Number entry. [*] One time of pressing : ‘ *’ Two times of pressing : ‘ +’ Long : turn back to the previous character input mode. [#] One time of pressing : ‘ .’ Two times of pressing : ‘ #’

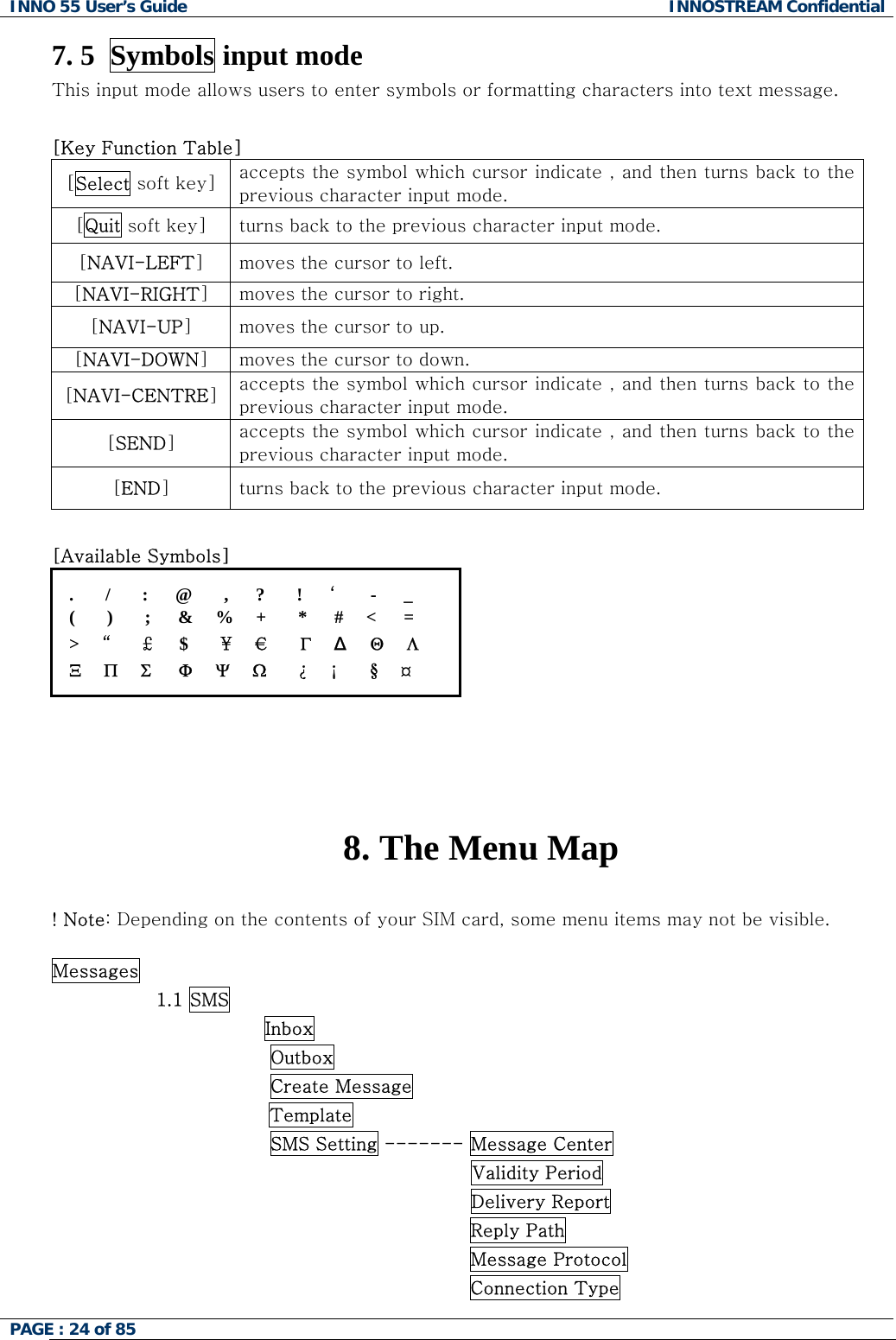

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 24 of 85 7. 5 Symbols input mode This input mode allows users to enter symbols or formatting characters into text message. [Key Function Table] [Select soft key] accepts the symbol which cursor indicate , and then turns back to the previous character input mode. [Quit soft key] turns back to the previous character input mode. [NAVI-LEFT] moves the cursor to left. [NAVI-RIGHT] moves the cursor to right. [NAVI-UP] moves the cursor to up. [NAVI-DOWN] moves the cursor to down. [NAVI-CENTRE] accepts the symbol which cursor indicate , and then turns back to the previous character input mode. [SEND] accepts the symbol which cursor indicate , and then turns back to the previous character input mode. [END] turns back to the previous character input mode. [Available Symbols] . / : @ , ? ! ‘ - _ ( ) ; & % + * # < = > “ £ $ ¥ € Γ Δ Θ Λ Ξ Π Σ Φ Ψ Ω ¿ ¡ § ¤ 8. The Menu Map ! Note: Depending on the contents of your SIM card, some menu items may not be visible. Messages 1.1 SMS Inbox Outbox Create Message Template SMS Setting ------- Message Center Validity Period Delivery Report Reply Path Message Protocol Connection Type

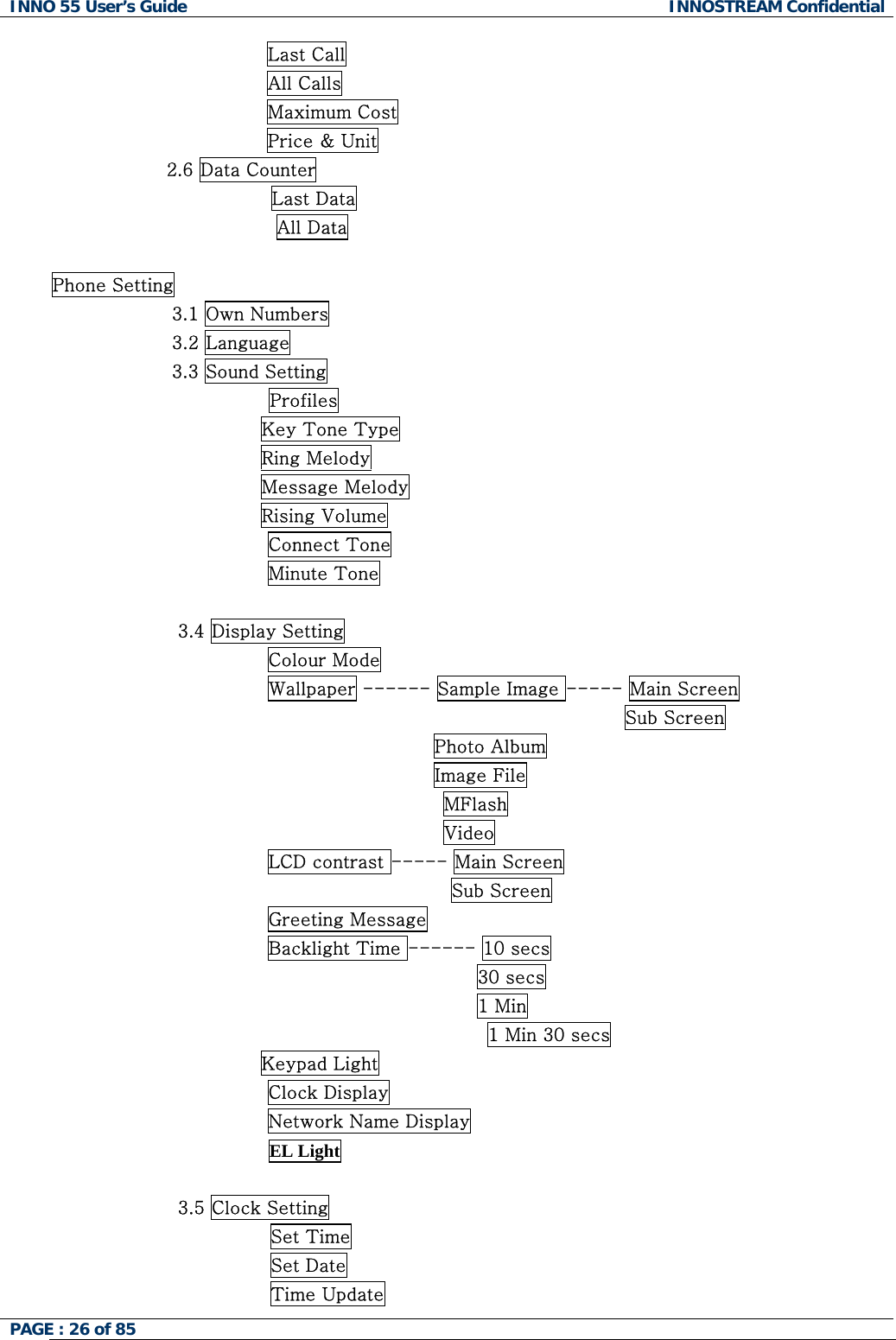

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 26 of 85 Last Call All Calls Maximum Cost Price & Unit 2.6 Data Counter Last Data All Data Phone Setting 3.1 Own Numbers 3.2 Language 3.3 Sound Setting Profiles Key Tone Type Ring Melody Message Melody Rising Volume Connect Tone Minute Tone 3.4 Display Setting Colour Mode Wallpaper ------ Sample Image ----- Main Screen Sub Screen Photo Album Image File MFlash Video LCD contrast ----- Main Screen Sub Screen Greeting Message Backlight Time ------ 10 secs 30 secs 1 Min 1 Min 30 secs Keypad Light Clock Display Network Name Display EL Light 3.5 Clock Setting Set Time Set Date Time Update

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 28 of 85 4.7 File Manager 4.8 File Memory Status Organiser 5.1 Calendar 5.2 View Today Report 5.3 Alarm Morning Alarm – Set Time Alarm Status Alarm Tone Repeat Setting Power Up Snooze General Alarms 5.4 Memo Network Service 6.1 Call Divert Always When Not Answered When Busy When Not Found Cancel All 6.2 Call Barring In Calls In Calls If Abroad Out Calls Foreign Out Calls Foreign exc. to Home Cancel All 6.3 Call Waiting Activate Cancel Status 6.4 Caller Identity Show Caller Name Restrict. Caller ID Restrict. Your ID Present. Caller ID Present. Your ID 6.5 Closed User Group CUG Select User Define CUG 6.6 Network Selection

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 30 of 85 Your phone provide easy-to-understand graphical animation icon menu. You can easily understand the meaning of each graphical animation icon by the text on the top display line. To move the cursor, use [Navigation Keys]. Choice Menu You can see max 7 menu items on the menu selection area. The text in the title area indicates the name of parent menu item. The menu cursor is moved by [NAVI-UP] and [NAVI-DOWN]. Choice Menu with Value You can see max 7 menu items on the menu selection area and see the value window on each menu below. The text in the title area indicates the name of parent menu item. If the menu cursor moves to the item, the setting value of the menu item is displayed on the value window. If the menu item does not have any setting value, the value window is not displayed. The menu cursor is moved by [NAVI-UP] and [NAVI-DOWN]. 9.1 Messages 9.1.1 SMS The message can be sent by Fax, E-mail, ERMES, and X400 format, provided that these services are supported on the network. To send text messages with your phone, you need to set the Message Service Center Number (obtained from your home network operator) on the Message Center menu. If a message has arrived, your phone displays New Message in idle screen and sets icon to inform you of the arrival. The arrived message is saved in SIM memory as the first place. If SIM memory is full, it is saved in phone memory. Your phone has maximum 100 spaces for the SMS records in the phone memory. If the SIM memory and the Phone memory are both full, SMS Full is indicated, icon blinks and you cannot receive any more new message. In the case, you need to delete old and unnecessary messages by using Delete, Delete All option in Inbox or Outbox menu. You can create the message limit to 1064 alphanumeric characters (462 characters in case of Chinese character) at one message in Create Message menu. The long message is saved into maximum 7 records. Also, long received message is saved in same way. ! Note : The SMS service may not be available on all networks. Some network allows to be sent only within its own network. <Inbox> With this menu, you can view the new text messages or the read messages.

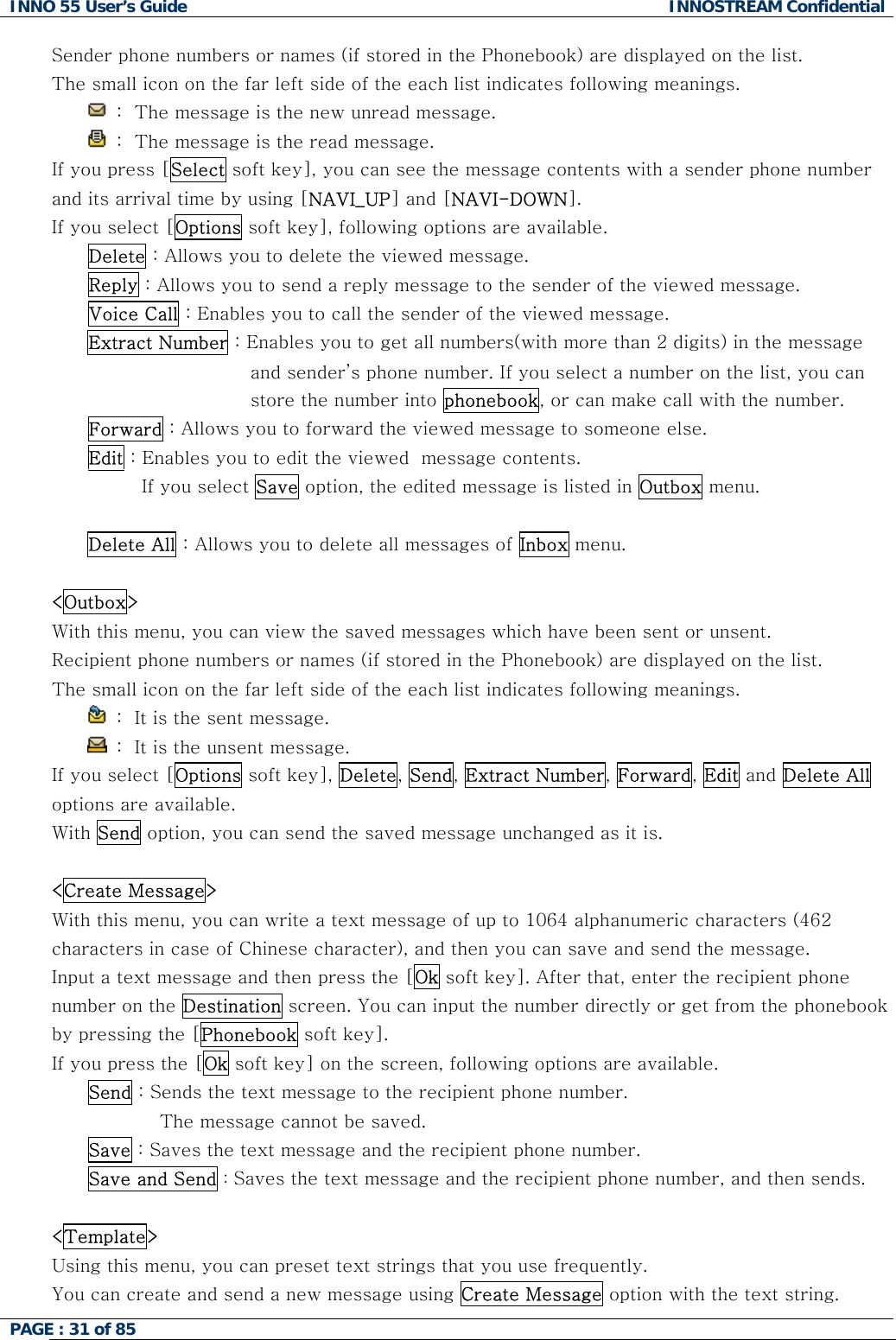

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 31 of 85 Sender phone numbers or names (if stored in the Phonebook) are displayed on the list. The small icon on the far left side of the each list indicates following meanings. : The message is the new unread message. : The message is the read message. If you press [Select soft key], you can see the message contents with a sender phone number and its arrival time by using [NAVI_UP] and [NAVI-DOWN]. If you select [Options soft key], following options are available. Delete : Allows you to delete the viewed message. Reply : Allows you to send a reply message to the sender of the viewed message. Voice Call : Enables you to call the sender of the viewed message. Extract Number : Enables you to get all numbers(with more than 2 digits) in the message and sender’s phone number. If you select a number on the list, you can store the number into phonebook, or can make call with the number. Forward : Allows you to forward the viewed message to someone else. Edit : Enables you to edit the viewed message contents. If you select Save option, the edited message is listed in Outbox menu. Delete All : Allows you to delete all messages of Inbox menu. <Outbox> With this menu, you can view the saved messages which have been sent or unsent. Recipient phone numbers or names (if stored in the Phonebook) are displayed on the list. The small icon on the far left side of the each list indicates following meanings. : It is the sent message. : It is the unsent message. If you select [Options soft key], Delete, Send, Extract Number, Forward, Edit and Delete All options are available. With Send option, you can send the saved message unchanged as it is. <Create Message> With this menu, you can write a text message of up to 1064 alphanumeric characters (462 characters in case of Chinese character), and then you can save and send the message. Input a text message and then press the [Ok soft key]. After that, enter the recipient phone number on the Destination screen. You can input the number directly or get from the phonebook by pressing the [Phonebook soft key]. If you press the [Ok soft key] on the screen, following options are available. Send : Sends the text message to the recipient phone number. The message cannot be saved. Save : Saves the text message and the recipient phone number. Save and Send : Saves the text message and the recipient phone number, and then sends. <Template> Using this menu, you can preset text strings that you use frequently. You can create and send a new message using Create Message option with the text string.

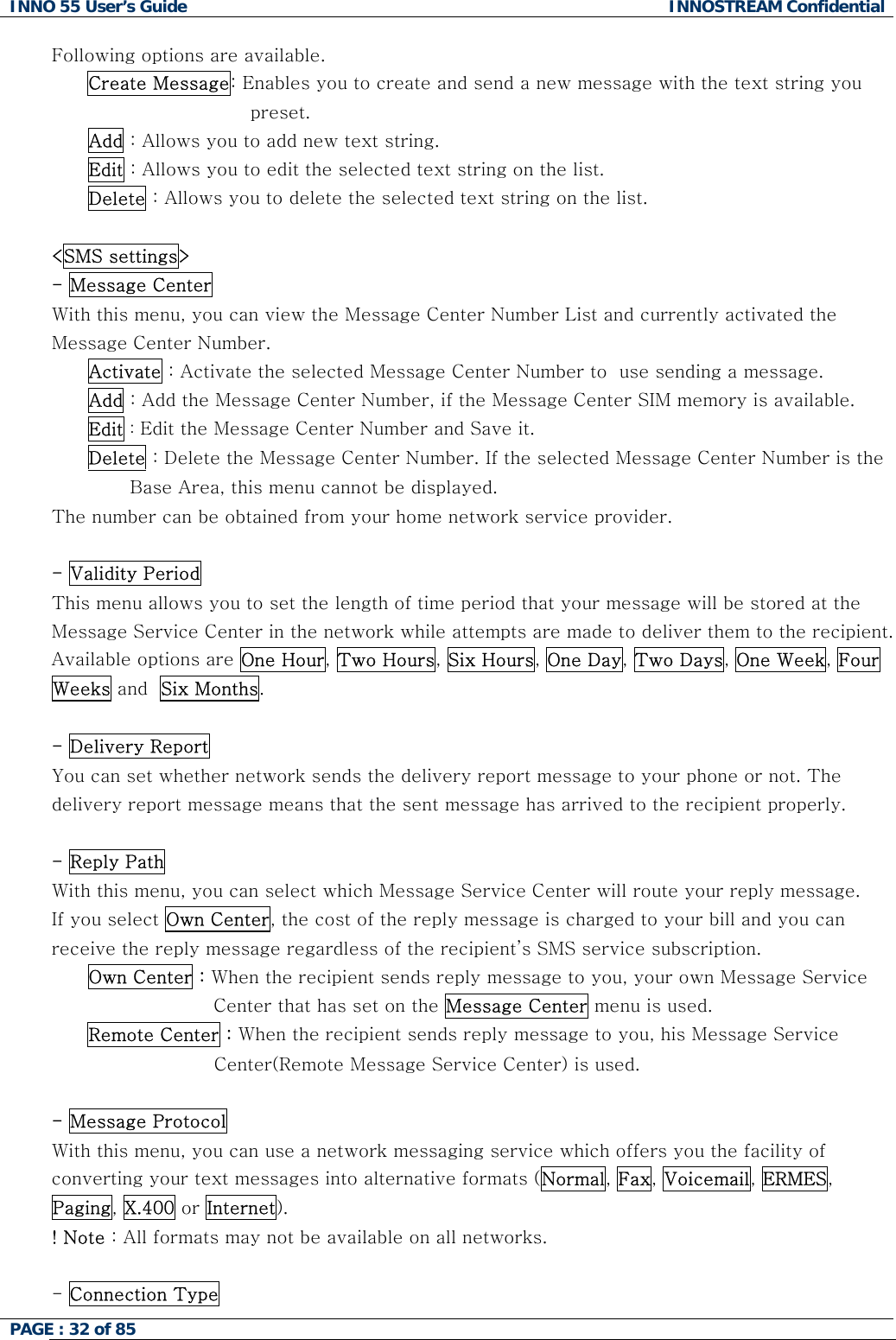

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 32 of 85 Following options are available. Create Message: Enables you to create and send a new message with the text string you preset. Add : Allows you to add new text string. Edit : Allows you to edit the selected text string on the list. Delete : Allows you to delete the selected text string on the list. <SMS settings> - Message Center With this menu, you can view the Message Center Number List and currently activated the Message Center Number. Activate : Activate the selected Message Center Number to use sending a message. Add : Add the Message Center Number, if the Message Center SIM memory is available. Edit : Edit the Message Center Number and Save it. Delete : Delete the Message Center Number. If the selected Message Center Number is the Base Area, this menu cannot be displayed. The number can be obtained from your home network service provider. - Validity Period This menu allows you to set the length of time period that your message will be stored at the Message Service Center in the network while attempts are made to deliver them to the recipient. Available options are One Hour, Two Hours, Six Hours, One Day, Two Days, One Week, Four Weeks and Six Months. - Delivery Report You can set whether network sends the delivery report message to your phone or not. The delivery report message means that the sent message has arrived to the recipient properly. - Reply Path With this menu, you can select which Message Service Center will route your reply message. If you select Own Center, the cost of the reply message is charged to your bill and you can receive the reply message regardless of the recipient’s SMS service subscription. Own Center : When the recipient sends reply message to you, your own Message Service Center that has set on the Message Center menu is used. Remote Center : When the recipient sends reply message to you, his Message Service Center(Remote Message Service Center) is used. - Message Protocol With this menu, you can use a network messaging service which offers you the facility of converting your text messages into alternative formats (Normal, Fax, Voicemail, ERMES, Paging, X.400 or Internet). ! Note : All formats may not be available on all networks. - Connection Type

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 34 of 85 soft key area. You can stop playing. : During multiple page message stopped, this icon is displayed on center of soft key area. You can play the message. : Sound file is attached but Sound is not playing because of User Setting. Delete : Allows you to delete the viewed or list selected message. Edit : Enables you to edit the viewed or list selected message contents. Forward : Allows the message to be forwarded to someone else. Details : Enables you to see the message contents details. <Outbox> With this menu, you can view a list of any messages waiting to be sent or failed to send. Recipient phone numbers or names (if stored in the Phonebook) are displayed on the list. If you press [Option soft key], the options are available the same as Inbox. <Create Message> The user is presented with a screen showing the first page in a blank MMS message. The screen displays the page with following information above the message. − The presence of any sounds or attachments on the current page. − The size of the whole MMS message in bytes or kilobytes. − The current page number/total number of pages. If you press [Option soft key], following options are available. Add Recipient : Proceeds to the subject/address stage of the message creation. You can insert multiple recipients each of To, Cc, Bcc fields from Phonebook or edit the address. In multiple recipients, character‘ ;’ must be input between each recipient. Insert : Adds a photo, picture, sound, text, subject and attachment to the current page. In one page, you can insert one image(photo or picture), one sound, one text and one attachment. If you try to change each object, select this menu and change it another item. An icon at the top of the screen will indicate the presence of a subject , sound , attachment . ! Note : RTX file which is made in Melody Composer and MFR file which is made in Voice Memo are not recognized as sound file. Delete : Deletes an object from the current page. The user will be prompted for which object to delete. It will list all objects contained on the current page. Preview : Previews the current MMS message. Object Properties : Displays a list of objects on the current page and allows each object to get a property. After selecting an object, the user will be presented with the following property options for the given object. Displayed After : The time at which the object is played relative to the start of the current page. Displayed For : The length of time for which the object is displayed. Maximum implies the object is played until the end of the current page.

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 39 of 85 < Connect Voicemail> With this menu, you can listen to the voicemails you have received. <Number Setup> With this menu, voice mailbox numbers can be stored. - Home Mailbox The voicemail number is to dial when you are on the home network to listen to the voicemail. - Roam Mailbox The voicemail number is to dial when you are on the other network to listen to the voicemail. 9.1.5 Broadcast This network service allows you to receive the broadcasted text messages on various topics such as weather, traffic, local district code, local hospitals, taxis or pharmacy in the area where you are. You can even receive the message to be in a particular language. (For example, when you are abroad) by using Language List option. For more information about topics, please contact your service provider. ! Note : This service may not be available on all networks. <Read All Messages> With this menu, you can read all the broadcasted text messages received. In title area of the screen, the name of the message subject item is displayed. The contents of the message subject are updated whenever new contents are received. If the message subject is not sent from the area you are, No Message is displayed. You can read the message through by pressing [NAVI-DOWN]. To move to next message subject item, press [Next soft key]. <Receive Setting> This menu allows you to enable or disable the reception of the broadcasted text messages. All : Enables to receive all broadcasted text messages regardless of the setting of Subject List and Language List. Active List : Enables to receive all broadcasted text messages depending on the setting of Subject List and Language List. Disable : Disables to receive the broadcasted text messages. <Display On Idle> This menu allows you to enable or disable to view new broadcasted text messages in the idle screen. On : New broadcasted text messages are displayed in the idle screen. Off : New broadcasted text messages are not displayed in the idle screen. <Subject List> This menu allows you to select the subject items of the broadcasted text message.

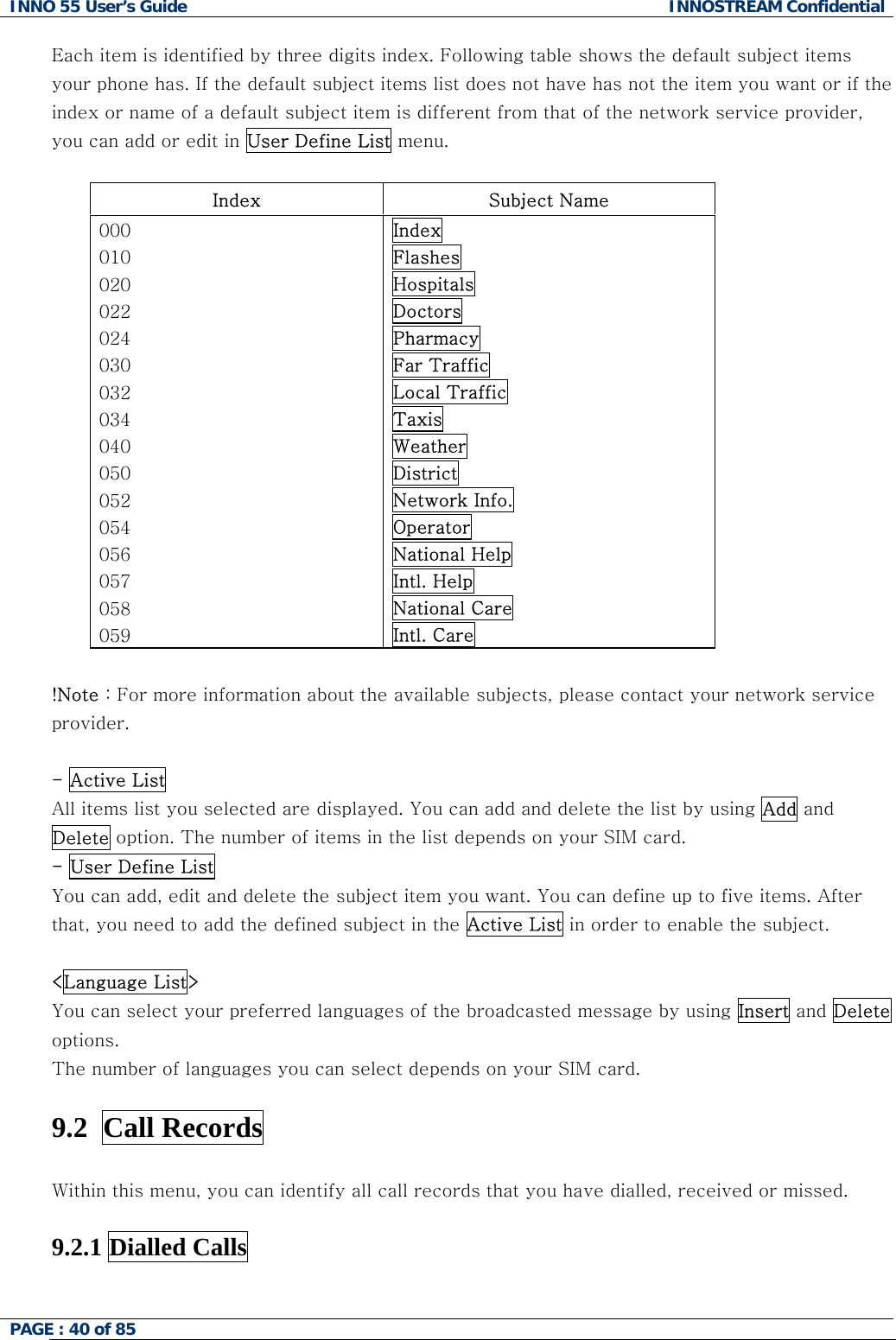

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 40 of 85 Each item is identified by three digits index. Following table shows the default subject items your phone has. If the default subject items list does not have has not the item you want or if the index or name of a default subject item is different from that of the network service provider, you can add or edit in User Define List menu. Index Subject Name 000 010 020 022 024 030 032 034 040 050 052 054 056 057 058 059 Index Flashes Hospitals Doctors Pharmacy Far Traffic Local Traffic Taxis Weather District Network Info. Operator National Help Intl. Help National Care Intl. Care !Note : For more information about the available subjects, please contact your network service provider. - Active List All items list you selected are displayed. You can add and delete the list by using Add and Delete option. The number of items in the list depends on your SIM card. - User Define List You can add, edit and delete the subject item you want. You can define up to five items. After that, you need to add the defined subject in the Active List in order to enable the subject. <Language List> You can select your preferred languages of the broadcasted message by using Insert and Delete options. The number of languages you can select depends on your SIM card. 9.2 Call Records Within this menu, you can identify all call records that you have dialled, received or missed. 9.2.1 Dialled Calls

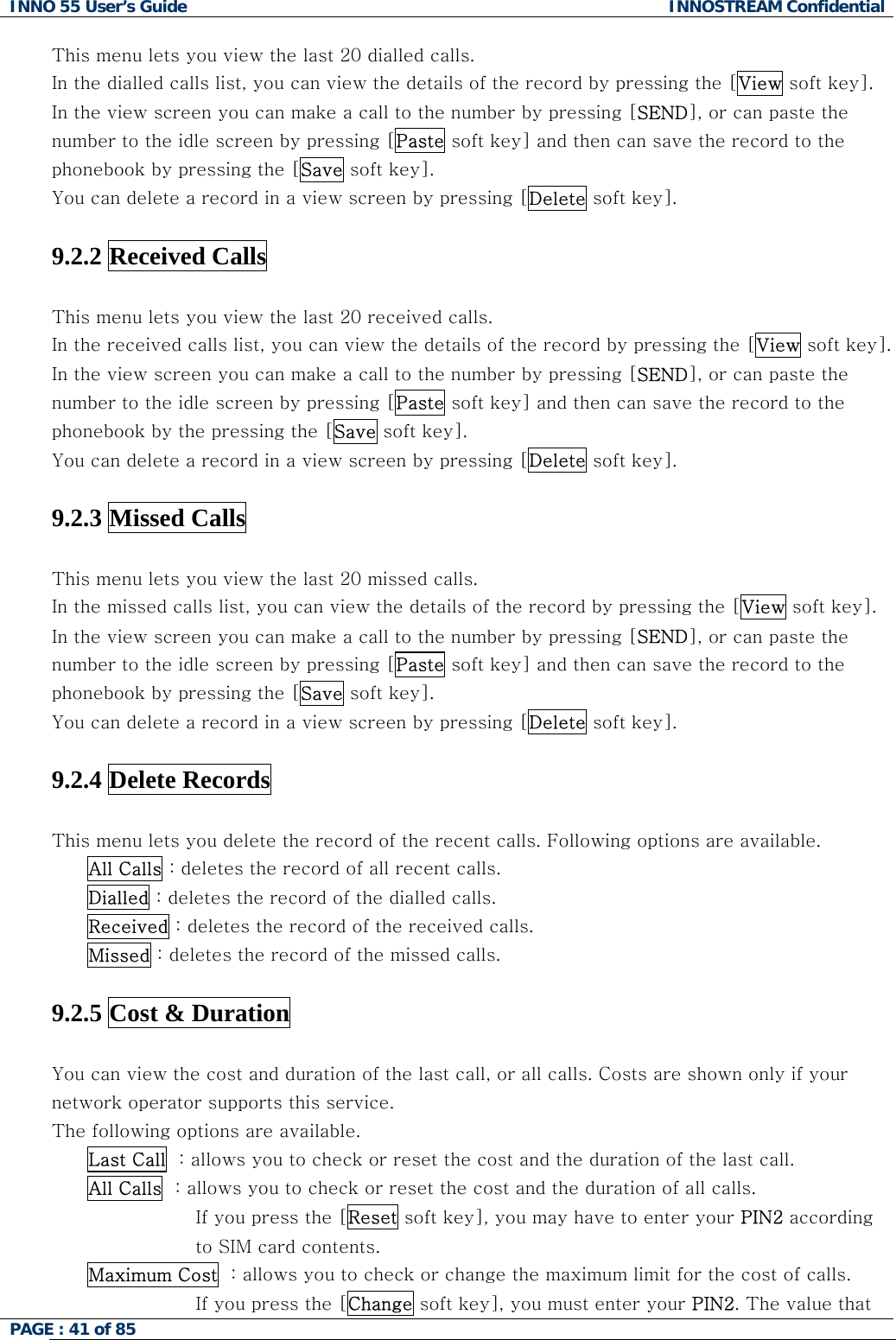

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 41 of 85 This menu lets you view the last 20 dialled calls. In the dialled calls list, you can view the details of the record by pressing the [View soft key]. In the view screen you can make a call to the number by pressing [SEND], or can paste the number to the idle screen by pressing [Paste soft key] and then can save the record to the phonebook by pressing the [Save soft key]. You can delete a record in a view screen by pressing [Delete soft key]. 9.2.2 Received Calls This menu lets you view the last 20 received calls. In the received calls list, you can view the details of the record by pressing the [View soft key]. In the view screen you can make a call to the number by pressing [SEND], or can paste the number to the idle screen by pressing [Paste soft key] and then can save the record to the phonebook by the pressing the [Save soft key]. You can delete a record in a view screen by pressing [Delete soft key]. 9.2.3 Missed Calls This menu lets you view the last 20 missed calls. In the missed calls list, you can view the details of the record by pressing the [View soft key]. In the view screen you can make a call to the number by pressing [SEND], or can paste the number to the idle screen by pressing [Paste soft key] and then can save the record to the phonebook by pressing the [Save soft key]. You can delete a record in a view screen by pressing [Delete soft key]. 9.2.4 Delete Records This menu lets you delete the record of the recent calls. Following options are available. All Calls : deletes the record of all recent calls. Dialled : deletes the record of the dialled calls. Received : deletes the record of the received calls. Missed : deletes the record of the missed calls. 9.2.5 Cost & Duration You can view the cost and duration of the last call, or all calls. Costs are shown only if your network operator supports this service. The following options are available. Last Call : allows you to check or reset the cost and the duration of the last call. All Calls : allows you to check or reset the cost and the duration of all calls. If you press the [Reset soft key], you may have to enter your PIN2 according to SIM card contents. Maximum Cost : allows you to check or change the maximum limit for the cost of calls. If you press the [Change soft key], you must enter your PIN2. The value that

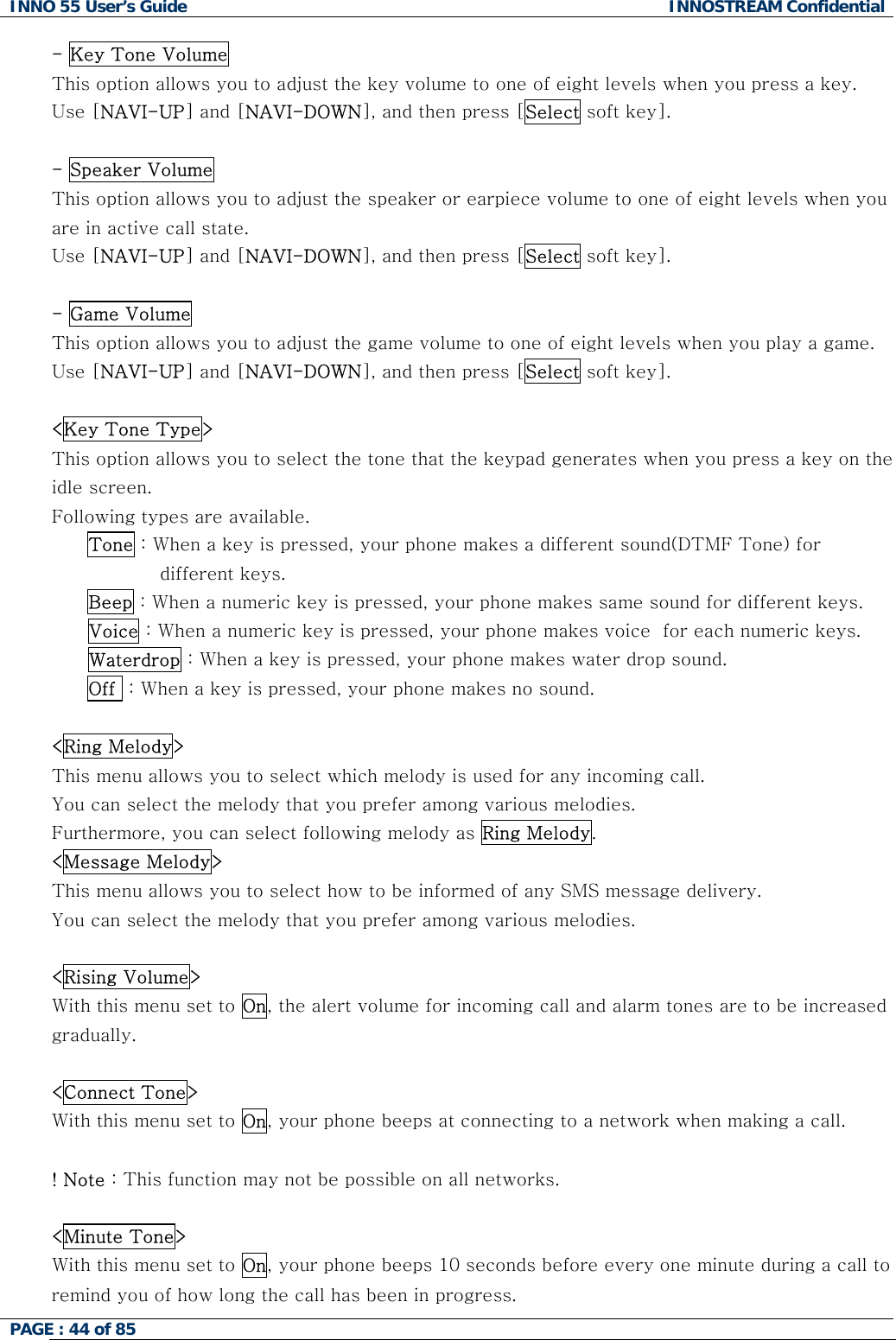

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 44 of 85 - Key Tone Volume This option allows you to adjust the key volume to one of eight levels when you press a key. Use [NAVI-UP] and [NAVI-DOWN], and then press [Select soft key]. - Speaker Volume This option allows you to adjust the speaker or earpiece volume to one of eight levels when you are in active call state. Use [NAVI-UP] and [NAVI-DOWN], and then press [Select soft key]. - Game Volume This option allows you to adjust the game volume to one of eight levels when you play a game. Use [NAVI-UP] and [NAVI-DOWN], and then press [Select soft key]. <Key Tone Type> This option allows you to select the tone that the keypad generates when you press a key on the idle screen. Following types are available. Tone : When a key is pressed, your phone makes a different sound(DTMF Tone) for different keys. Beep : When a numeric key is pressed, your phone makes same sound for different keys. Voice : When a numeric key is pressed, your phone makes voice for each numeric keys. Waterdrop : When a key is pressed, your phone makes water drop sound. Off : When a key is pressed, your phone makes no sound. <Ring Melody> This menu allows you to select which melody is used for any incoming call. You can select the melody that you prefer among various melodies. Furthermore, you can select following melody as Ring Melody. <Message Melody> This menu allows you to select how to be informed of any SMS message delivery. You can select the melody that you prefer among various melodies. <Rising Volume> With this menu set to On, the alert volume for incoming call and alarm tones are to be increased gradually. <Connect Tone> With this menu set to On, your phone beeps at connecting to a network when making a call. ! Note : This function may not be possible on all networks. <Minute Tone> With this menu set to On, your phone beeps 10 seconds before every one minute during a call to remind you of how long the call has been in progress.

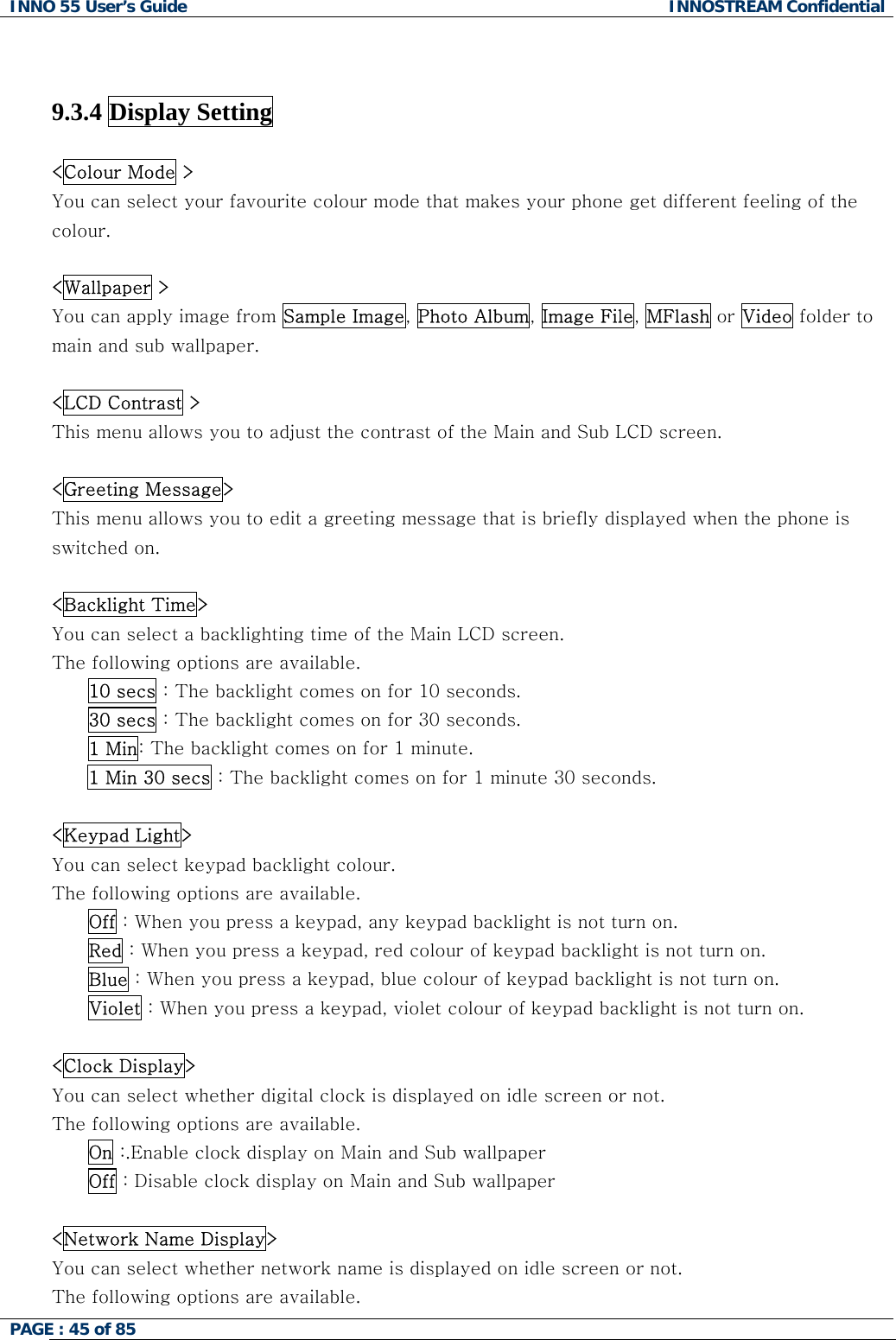

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 45 of 85 9.3.4 Display Setting <Colour Mode > You can select your favourite colour mode that makes your phone get different feeling of the colour. <Wallpaper > You can apply image from Sample Image, Photo Album, Image File, MFlash or Video folder to main and sub wallpaper. <LCD Contrast > This menu allows you to adjust the contrast of the Main and Sub LCD screen. <Greeting Message> This menu allows you to edit a greeting message that is briefly displayed when the phone is switched on. <Backlight Time> You can select a backlighting time of the Main LCD screen. The following options are available. 10 secs : The backlight comes on for 10 seconds. 30 secs : The backlight comes on for 30 seconds. 1 Min: The backlight comes on for 1 minute. 1 Min 30 secs : The backlight comes on for 1 minute 30 seconds. <Keypad Light> You can select keypad backlight colour. The following options are available. Off : When you press a keypad, any keypad backlight is not turn on. Red : When you press a keypad, red colour of keypad backlight is not turn on. Blue : When you press a keypad, blue colour of keypad backlight is not turn on. Violet : When you press a keypad, violet colour of keypad backlight is not turn on. <Clock Display> You can select whether digital clock is displayed on idle screen or not. The following options are available. On :.Enable clock display on Main and Sub wallpaper Off : Disable clock display on Main and Sub wallpaper <Network Name Display> You can select whether network name is displayed on idle screen or not. The following options are available.

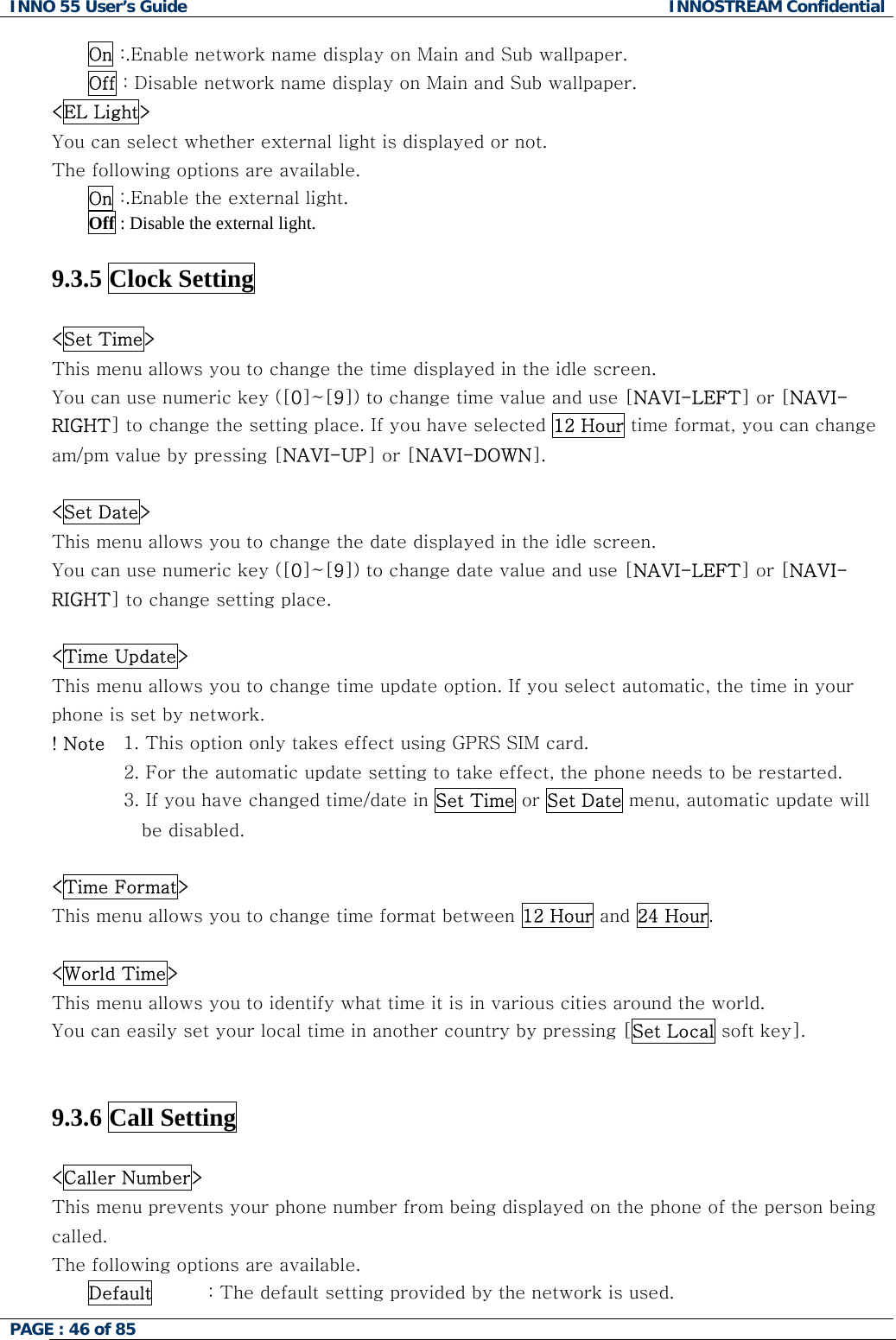

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 46 of 85 On :.Enable network name display on Main and Sub wallpaper. Off : Disable network name display on Main and Sub wallpaper. <EL Light> You can select whether external light is displayed or not. The following options are available. On :.Enable the external light. Off : Disable the external light. 9.3.5 Clock Setting <Set Time> This menu allows you to change the time displayed in the idle screen. You can use numeric key ([0]~[9]) to change time value and use [NAVI-LEFT] or [NAVI-RIGHT] to change the setting place. If you have selected 12 Hour time format, you can change am/pm value by pressing [NAVI-UP] or [NAVI-DOWN]. <Set Date> This menu allows you to change the date displayed in the idle screen. You can use numeric key ([0]~[9]) to change date value and use [NAVI-LEFT] or [NAVI-RIGHT] to change setting place. <Time Update> This menu allows you to change time update option. If you select automatic, the time in your phone is set by network. ! Note 1. This option only takes effect using GPRS SIM card. 2. For the automatic update setting to take effect, the phone needs to be restarted. 3. If you have changed time/date in Set Time or Set Date menu, automatic update will be disabled. <Time Format> This menu allows you to change time format between 12 Hour and 24 Hour. <World Time> This menu allows you to identify what time it is in various cities around the world. You can easily set your local time in another country by pressing [Set Local soft key]. 9.3.6 Call Setting <Caller Number> This menu prevents your phone number from being displayed on the phone of the person being called. The following options are available. Default : The default setting provided by the network is used.

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 48 of 85 The feature enables you to protect the use of your phone. Various codes and passwords are used to protect your phone. They are described in the section 3. ! Note : The Lock Code is factory set to 0 0 0 0. <PIN Access> With this menu set to Enable, your phone asks to enter the PIN each time the phone is switched on. If Disable, doesn't ask to enter the PIN. <SIM Lock> With this menu set to Enable, your phone asks to enter the SIM Lock Code when a different SIM card is inserted. If Disable, your phone doesn't ask to enter the SIM Lock Code. <Phone Lock> With this menu set to On, your phone will be locked. The display asks you to enter the Lock Code each time the phone is switched on. <Album Lock> With this menu set to On, your Album will be locked. The display asks you to enter the Lock Code each time you enter the Album. <Phonebook Lock> With this menu set to On, your phonebook will be locked. The display asks you to enter the Lock Code each time you enter the phonebook. <Change Codes> You can change all security codes in this menu. - Lock Code You can change your current Lock Code to new one in this menu. - PIN Code You can change your current PIN to a new one in this menu. - PIN2 Code You can change your current PIN2 to a new one in this menu. - Password You can change your network password in this menu. You need a password to activate network call barring. The network password is supplied by your network service provider and is not the same as the PIN for your SIM card. <FDN> To change the setting of this menu, you must first enter the PIN2. With this menu set to Enable, FDN mode is enabled and you can only make a call with the

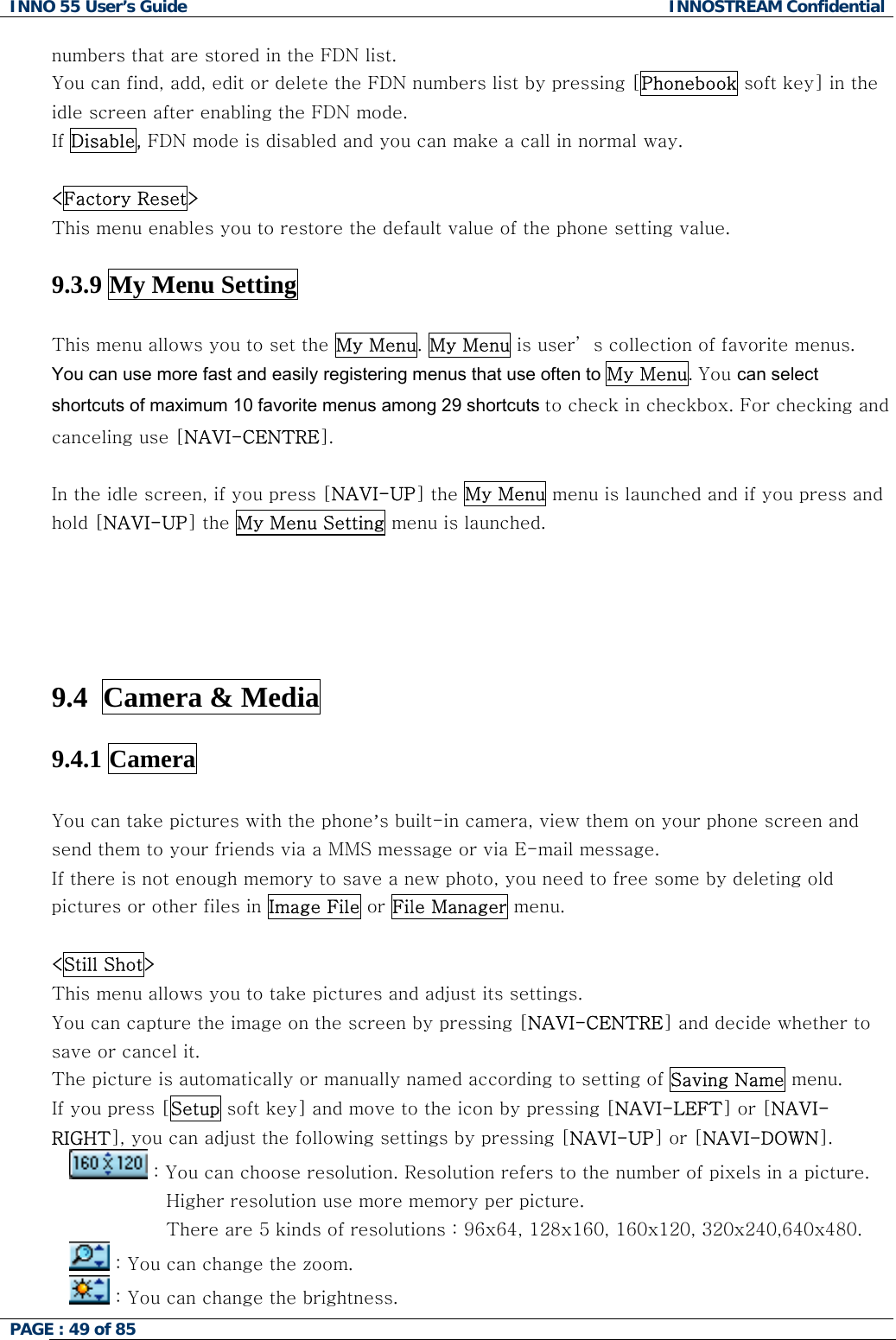

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 49 of 85 numbers that are stored in the FDN list. You can find, add, edit or delete the FDN numbers list by pressing [Phonebook soft key] in the idle screen after enabling the FDN mode. If Disable, FDN mode is disabled and you can make a call in normal way. <Factory Reset> This menu enables you to restore the default value of the phone setting value. 9.3.9 My Menu Setting This menu allows you to set the My Menu. My Menu is user’ s collection of favorite menus. You can use more fast and easily registering menus that use often to My Menu. You can select shortcuts of maximum 10 favorite menus among 29 shortcuts to check in checkbox. For checking and canceling use [NAVI-CENTRE]. In the idle screen, if you press [NAVI-UP] the My Menu menu is launched and if you press and hold [NAVI-UP] the My Menu Setting menu is launched. 9.4 Camera & Media 9.4.1 Camera You can take pictures with the phone’s built-in camera, view them on your phone screen and send them to your friends via a MMS message or via E-mail message. If there is not enough memory to save a new photo, you need to free some by deleting old pictures or other files in Image File or File Manager menu. <Still Shot> This menu allows you to take pictures and adjust its settings. You can capture the image on the screen by pressing [NAVI-CENTRE] and decide whether to save or cancel it. The picture is automatically or manually named according to setting of Saving Name menu. If you press [Setup soft key] and move to the icon by pressing [NAVI-LEFT] or [NAVI-RIGHT], you can adjust the following settings by pressing [NAVI-UP] or [NAVI-DOWN]. : You can choose resolution. Resolution refers to the number of pixels in a picture. Higher resolution use more memory per picture. There are 5 kinds of resolutions : 96x64, 128x160, 160x120, 320x240,640x480. : You can change the zoom. : You can change the brightness.

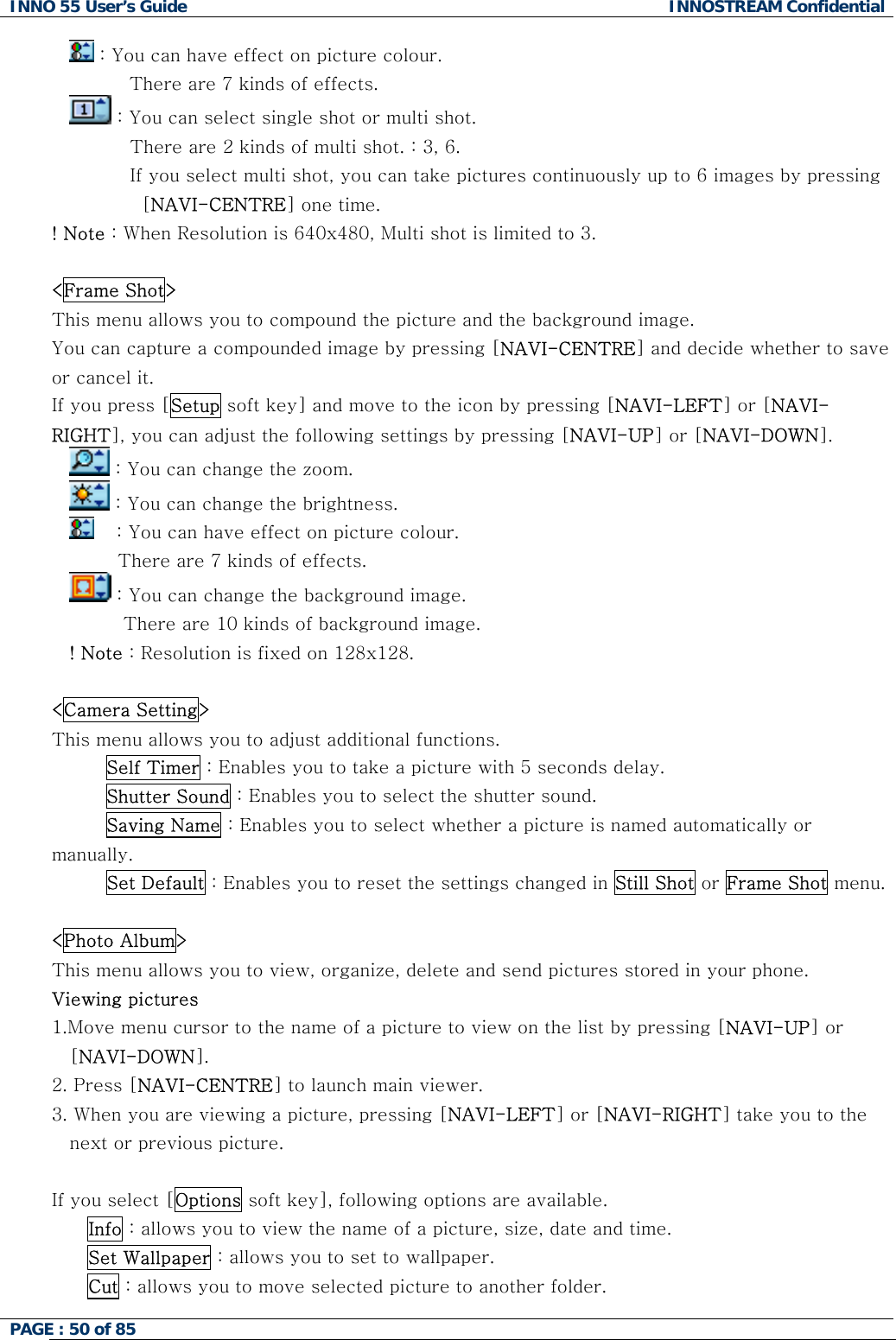

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 50 of 85 : You can have effect on picture colour. There are 7 kinds of effects. : You can select single shot or multi shot. There are 2 kinds of multi shot. : 3, 6. If you select multi shot, you can take pictures continuously up to 6 images by pressing [NAVI-CENTRE] one time. ! Note : When Resolution is 640x480, Multi shot is limited to 3. <Frame Shot> This menu allows you to compound the picture and the background image. You can capture a compounded image by pressing [NAVI-CENTRE] and decide whether to save or cancel it. If you press [Setup soft key] and move to the icon by pressing [NAVI-LEFT] or [NAVI-RIGHT], you can adjust the following settings by pressing [NAVI-UP] or [NAVI-DOWN]. : You can change the zoom. : You can change the brightness. : You can have effect on picture colour. There are 7 kinds of effects. : You can change the background image. There are 10 kinds of background image. ! Note : Resolution is fixed on 128x128. <Camera Setting> This menu allows you to adjust additional functions. Self Timer : Enables you to take a picture with 5 seconds delay. Shutter Sound : Enables you to select the shutter sound. Saving Name : Enables you to select whether a picture is named automatically or manually. Set Default : Enables you to reset the settings changed in Still Shot or Frame Shot menu. <Photo Album> This menu allows you to view, organize, delete and send pictures stored in your phone. Viewing pictures 1.Move menu cursor to the name of a picture to view on the list by pressing [NAVI-UP] or [NAVI-DOWN]. 2. Press [NAVI-CENTRE] to launch main viewer. 3. When you are viewing a picture, pressing [NAVI-LEFT] or [NAVI-RIGHT] take you to the next or previous picture. If you select [Options soft key], following options are available. Info : allows you to view the name of a picture, size, date and time. Set Wallpaper : allows you to set to wallpaper. Cut : allows you to move selected picture to another folder.

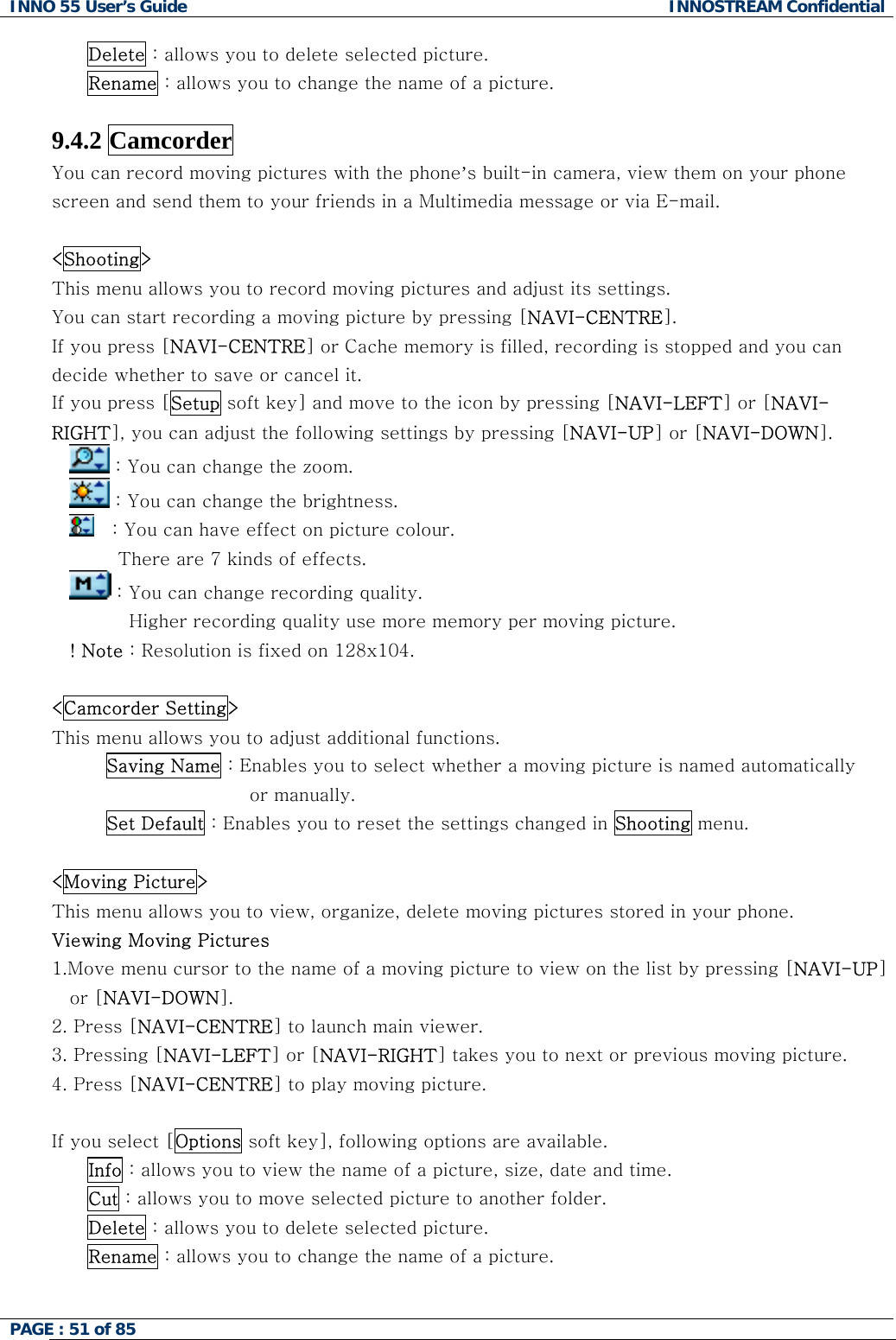

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 51 of 85 Delete : allows you to delete selected picture. Rename : allows you to change the name of a picture. 9.4.2 Camcorder You can record moving pictures with the phone’s built-in camera, view them on your phone screen and send them to your friends in a Multimedia message or via E-mail. <Shooting> This menu allows you to record moving pictures and adjust its settings. You can start recording a moving picture by pressing [NAVI-CENTRE]. If you press [NAVI-CENTRE] or Cache memory is filled, recording is stopped and you can decide whether to save or cancel it. If you press [Setup soft key] and move to the icon by pressing [NAVI-LEFT] or [NAVI-RIGHT], you can adjust the following settings by pressing [NAVI-UP] or [NAVI-DOWN]. : You can change the zoom. : You can change the brightness. : You can have effect on picture colour. There are 7 kinds of effects. : You can change recording quality. Higher recording quality use more memory per moving picture. ! Note : Resolution is fixed on 128x104. <Camcorder Setting> This menu allows you to adjust additional functions. Saving Name : Enables you to select whether a moving picture is named automatically or manually. Set Default : Enables you to reset the settings changed in Shooting menu. <Moving Picture> This menu allows you to view, organize, delete moving pictures stored in your phone. Viewing Moving Pictures 1.Move menu cursor to the name of a moving picture to view on the list by pressing [NAVI-UP] or [NAVI-DOWN]. 2. Press [NAVI-CENTRE] to launch main viewer. 3. Pressing [NAVI-LEFT] or [NAVI-RIGHT] takes you to next or previous moving picture. 4. Press [NAVI-CENTRE] to play moving picture. If you select [Options soft key], following options are available. Info : allows you to view the name of a picture, size, date and time. Cut : allows you to move selected picture to another folder. Delete : allows you to delete selected picture. Rename : allows you to change the name of a picture.

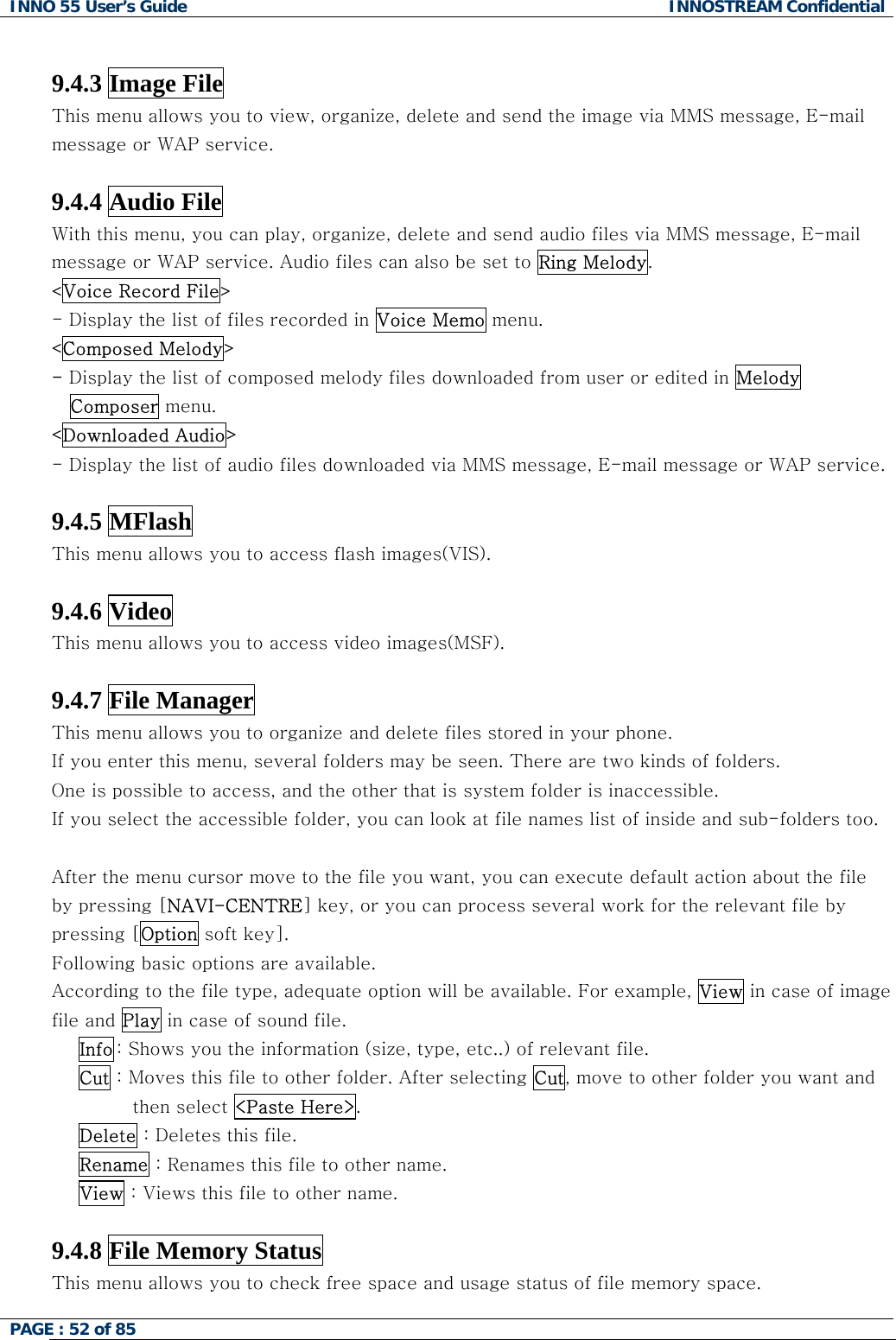

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 52 of 85 9.4.3 Image File This menu allows you to view, organize, delete and send the image via MMS message, E-mail message or WAP service. 9.4.4 Audio File With this menu, you can play, organize, delete and send audio files via MMS message, E-mail message or WAP service. Audio files can also be set to Ring Melody. <Voice Record File> - Display the list of files recorded in Voice Memo menu. <Composed Melody> - Display the list of composed melody files downloaded from user or edited in Melody Composer menu. <Downloaded Audio> - Display the list of audio files downloaded via MMS message, E-mail message or WAP service. 9.4.5 MFlash This menu allows you to access flash images(VIS). 9.4.6 Video This menu allows you to access video images(MSF). 9.4.7 File Manager This menu allows you to organize and delete files stored in your phone. If you enter this menu, several folders may be seen. There are two kinds of folders. One is possible to access, and the other that is system folder is inaccessible. If you select the accessible folder, you can look at file names list of inside and sub-folders too. After the menu cursor move to the file you want, you can execute default action about the file by pressing [NAVI-CENTRE] key, or you can process several work for the relevant file by pressing [Option soft key]. Following basic options are available. According to the file type, adequate option will be available. For example, View in case of image file and Play in case of sound file. Info : Shows you the information (size, type, etc..) of relevant file. Cut : Moves this file to other folder. After selecting Cut, move to other folder you want and then select <Paste Here>. Delete : Deletes this file. Rename : Renames this file to other name. View : Views this file to other name. 9.4.8 File Memory Status This menu allows you to check free space and usage status of file memory space.

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 53 of 85 9.5 Organiser 9.5.1 Calendar With this menu, you can use calendar function and scheduler function. If you enter this menu, the date cursor is on today’ s date. Further, the lunar date corresponding to today is also displayed on top-right side. If the date on the cursor has schedule list, then adequate icons of the schedule are displayed on bottom-right side. You can use key on the calendar as follows. [NAVI-LEFT] or [NAVI-RIGHT] : One(1) day decrement or increment. [NAVI-UP] or [NAVI-DOWN] : Seven(7) days decrement or increment. [*] or [#] : One(1) month decrement or increment. The scheduler function helps you keep track of reminder, calls, meetings, birthdays, travels or wedding that you need to know. Your phone sounds adequate melody alarm when the set date/time for the schedule is reached. You can add up to 100 schedule list. Six(6) schedule types are available for the schedule. : It indicates Reminder schedule. : It indicates Meeting schedule. : It indicates Birthday schedule. : It indicates Call schedule. : It indicates Travel schedule. : It indicates Wedding schedule. Following scheduler options are available. View Today : enables you to view the schedule list of the date. View Week : enables you to view the schedule list of the week. View Month : enables you to view the calendar and schedule. Go to date : enables you to go to specific date. Manage Schedule : enables you to add and delete schedule. View Biorhythm : enables you to view your biorhythm of the date. Setting : enables you to set calendar option. 9.5.2 View Today Report This menu enables you to review current time, date, and information about today schedule. 9.5.3 Alarm <Morning Alarm> This menu enables you to set the morning alarm

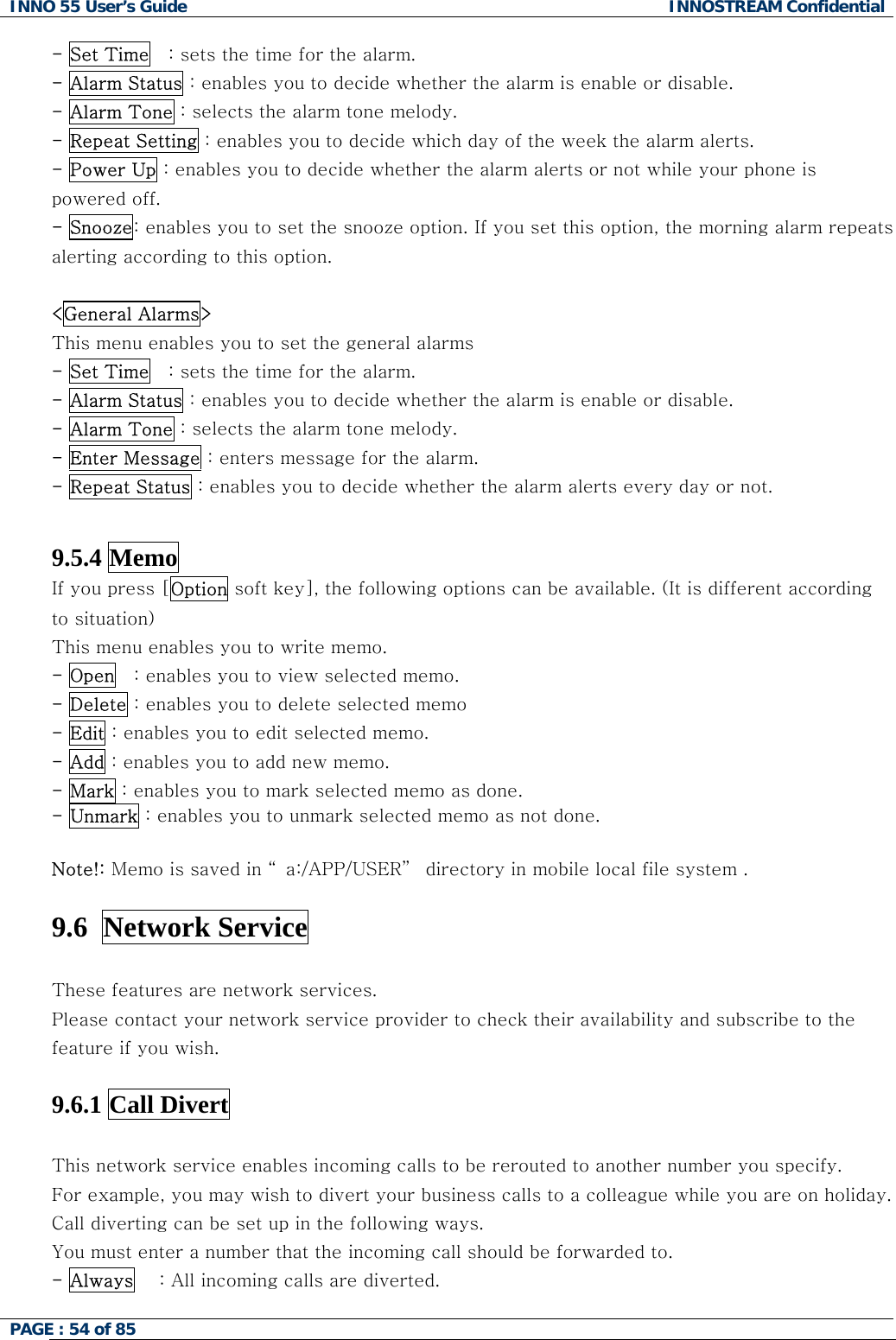

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 54 of 85 - Set Time : sets the time for the alarm. - Alarm Status : enables you to decide whether the alarm is enable or disable. - Alarm Tone : selects the alarm tone melody. - Repeat Setting : enables you to decide which day of the week the alarm alerts. - Power Up : enables you to decide whether the alarm alerts or not while your phone is powered off. - Snooze: enables you to set the snooze option. If you set this option, the morning alarm repeats alerting according to this option. <General Alarms> This menu enables you to set the general alarms - Set Time : sets the time for the alarm. - Alarm Status : enables you to decide whether the alarm is enable or disable. - Alarm Tone : selects the alarm tone melody. - Enter Message : enters message for the alarm. - Repeat Status : enables you to decide whether the alarm alerts every day or not. 9.5.4 Memo If you press [Option soft key], the following options can be available. (It is different according to situation) This menu enables you to write memo. - Open : enables you to view selected memo. - Delete : enables you to delete selected memo - Edit : enables you to edit selected memo. - Add : enables you to add new memo. - Mark : enables you to mark selected memo as done. - Unmark : enables you to unmark selected memo as not done. Note!: Memo is saved in “ a:/APP/USER” directory in mobile local file system . 9.6 Network Service These features are network services. Please contact your network service provider to check their availability and subscribe to the feature if you wish. 9.6.1 Call Divert This network service enables incoming calls to be rerouted to another number you specify. For example, you may wish to divert your business calls to a colleague while you are on holiday. Call diverting can be set up in the following ways. You must enter a number that the incoming call should be forwarded to. - Always : All incoming calls are diverted.

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 55 of 85 - When Not Answered: Incoming call is diverted if you do not answer the call. You can change the unanswered delay time. ! Note: A network may impose a constant time for the unanswered delay time. - When Busy : Incoming call is diverted if you are already in another call. - When Not Found : Incoming call is diverted if you are not in an area connectable. - Cancel All : All call divert settings are deactivated. Calls can be normal. Additionally, you can specify individual diverting options for each of the following services. Speech Data Sync Fax Following options for each service are available: Activate: activates the call diverting service selected. Cancel : cancels the call diverting service selected Status : displays the current status of the call diverting service selected. ! Note: After the action of the call diverting service selected is sent to the network, the network acknowledgement is displayed. 9.6.2 Call Barring This network service allows you to restrict your calls. You can request your network service provider to bar the following types of call. To use Activate and Cancel options, you must enter your network Password. Please contact service provider for the Password. - In Calls : All incoming calls are barred. - In Calls If Abroad : All Incoming calls are barred when abroad. - Out Calls : All outgoing calls cannot be made. - Foreign Out Calls : Any outgoing international calls cannot be made. - Foreign exc.to Home : When abroad, outgoing call can be made only to numbers within the current country and to your home country that is the country where your home network provider is located. - Cancel All: All call barring settings are deactivated. Calls can be made and received normally. Additionally, you can specify individual barring options for each of the following services: Speech Data Sync Fax Following options for each service are available. Activate: activates the call barring service selected. Cancel : cancels the call barring service selected. Status : displays the current status of the call barring service selected.

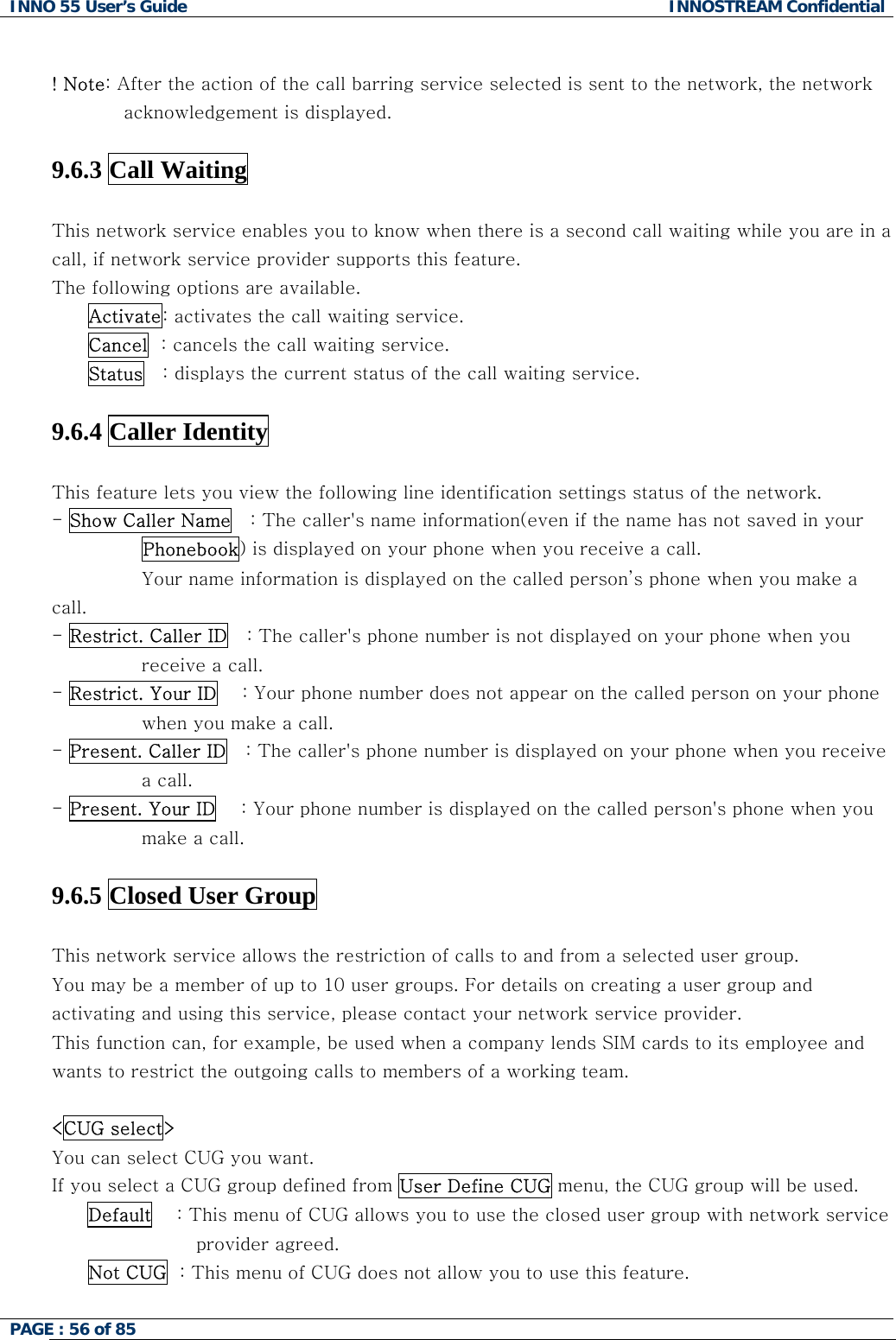

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 56 of 85 ! Note: After the action of the call barring service selected is sent to the network, the network acknowledgement is displayed. 9.6.3 Call Waiting This network service enables you to know when there is a second call waiting while you are in a call, if network service provider supports this feature. The following options are available. Activate: activates the call waiting service. Cancel : cancels the call waiting service. Status : displays the current status of the call waiting service. 9.6.4 Caller Identity This feature lets you view the following line identification settings status of the network. - Show Caller Name : The caller's name information(even if the name has not saved in your Phonebook) is displayed on your phone when you receive a call. Your name information is displayed on the called person’s phone when you make a call. - Restrict. Caller ID : The caller's phone number is not displayed on your phone when you receive a call. - Restrict. Your ID : Your phone number does not appear on the called person on your phone when you make a call. - Present. Caller ID : The caller's phone number is displayed on your phone when you receive a call. - Present. Your ID : Your phone number is displayed on the called person's phone when you make a call. 9.6.5 Closed User Group This network service allows the restriction of calls to and from a selected user group. You may be a member of up to 10 user groups. For details on creating a user group and activating and using this service, please contact your network service provider. This function can, for example, be used when a company lends SIM cards to its employee and wants to restrict the outgoing calls to members of a working team. <CUG select> You can select CUG you want. If you select a CUG group defined from User Define CUG menu, the CUG group will be used. Default : This menu of CUG allows you to use the closed user group with network service provider agreed. Not CUG : This menu of CUG does not allow you to use this feature.

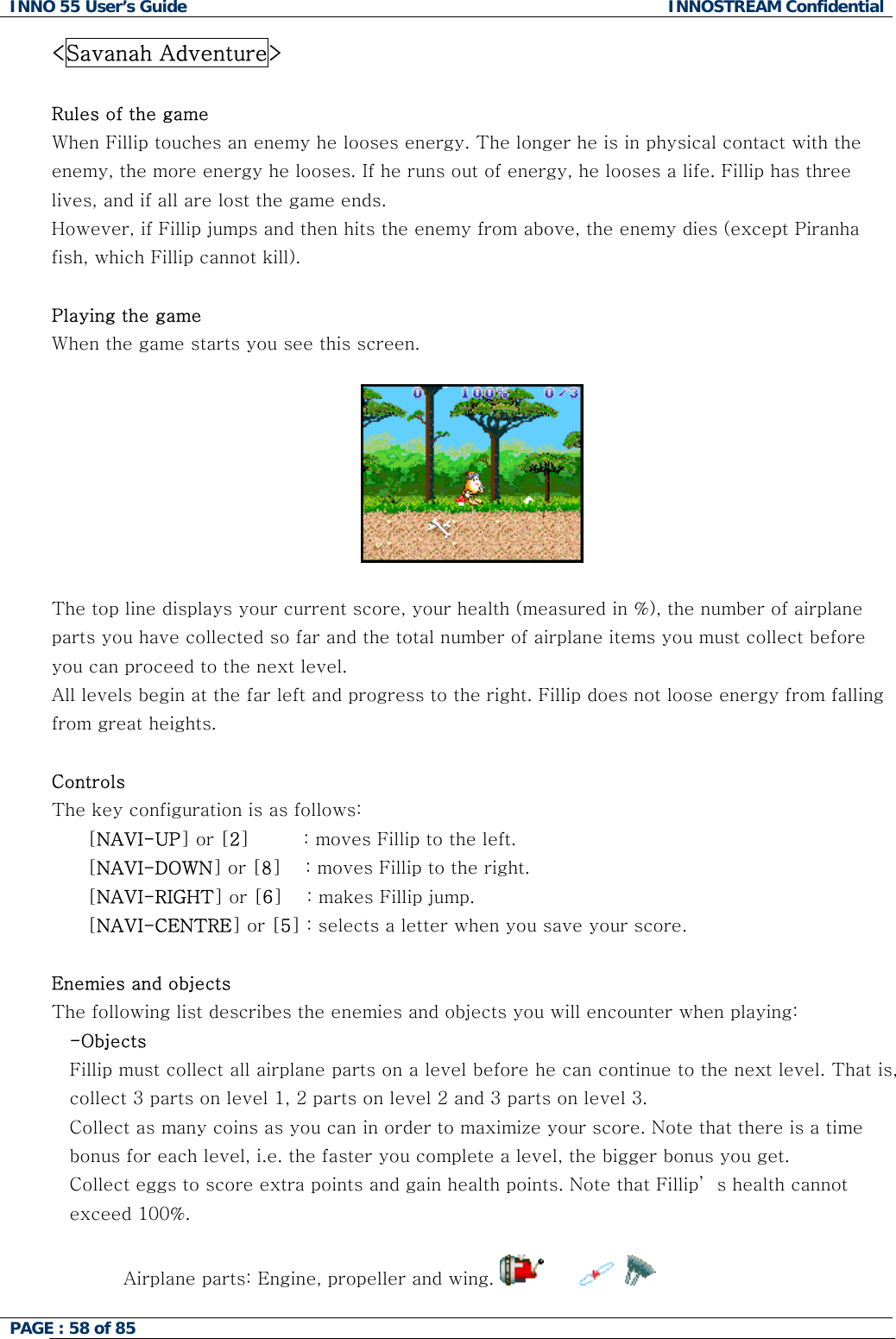

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 58 of 85 <Savanah Adventure> Rules of the game When Fillip touches an enemy he looses energy. The longer he is in physical contact with the enemy, the more energy he looses. If he runs out of energy, he looses a life. Fillip has three lives, and if all are lost the game ends. However, if Fillip jumps and then hits the enemy from above, the enemy dies (except Piranha fish, which Fillip cannot kill). Playing the game When the game starts you see this screen. The top line displays your current score, your health (measured in %), the number of airplane parts you have collected so far and the total number of airplane items you must collect before you can proceed to the next level. All levels begin at the far left and progress to the right. Fillip does not loose energy from falling from great heights. Controls The key configuration is as follows: [NAVI-UP] or [2] : moves Fillip to the left. [NAVI-DOWN] or [8] : moves Fillip to the right. [NAVI-RIGHT] or [6] : makes Fillip jump. [NAVI-CENTRE] or [5] : selects a letter when you save your score. Enemies and objects The following list describes the enemies and objects you will encounter when playing: -Objects Fillip must collect all airplane parts on a level before he can continue to the next level. That is, collect 3 parts on level 1, 2 parts on level 2 and 3 parts on level 3. Collect as many coins as you can in order to maximize your score. Note that there is a time bonus for each level, i.e. the faster you complete a level, the bigger bonus you get. Collect eggs to score extra points and gain health points. Note that Fillip’ s health cannot exceed 100%. Airplane parts: Engine, propeller and wing.

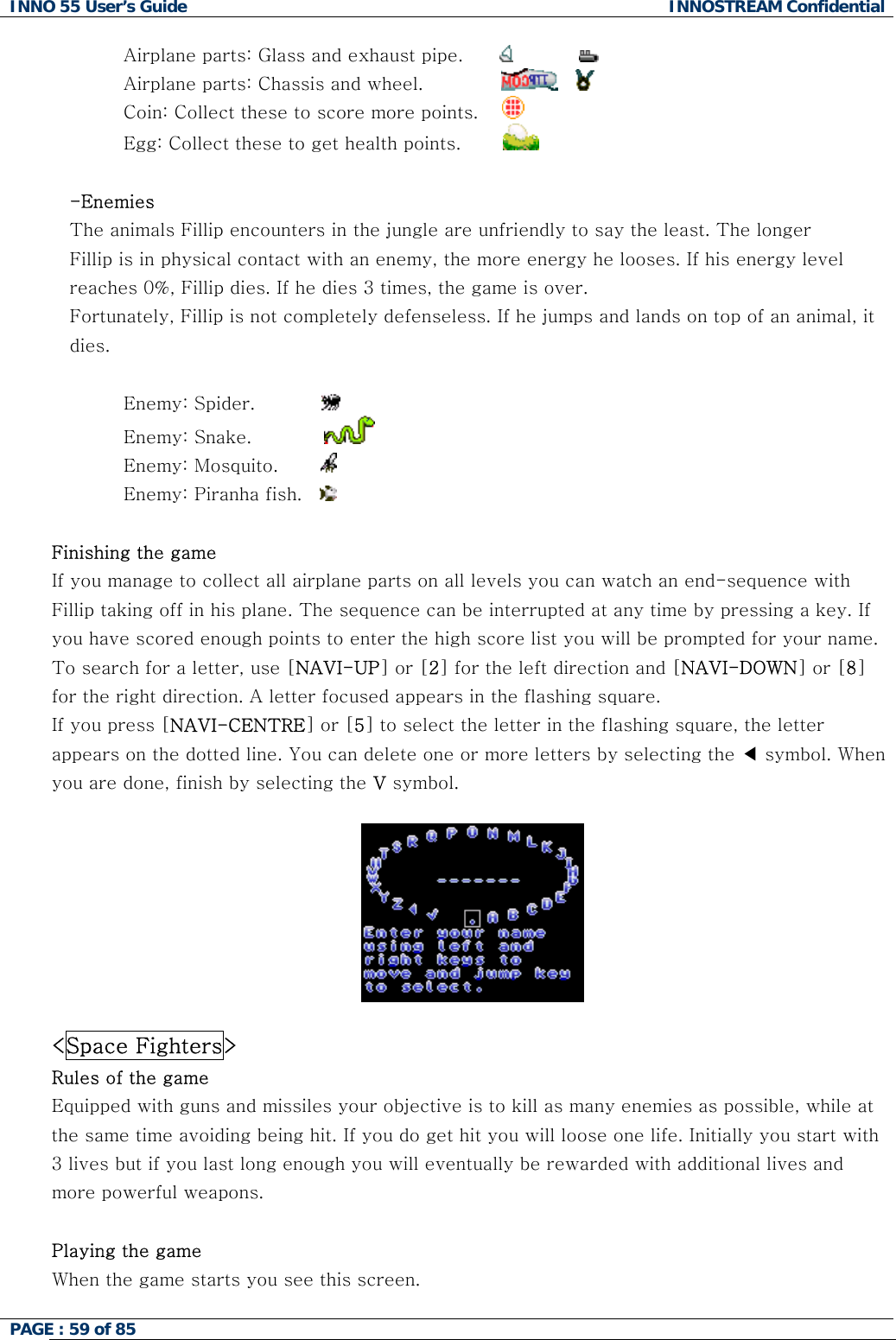

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 59 of 85 Airplane parts: Glass and exhaust pipe. Airplane parts: Chassis and wheel. Coin: Collect these to score more points. Egg: Collect these to get health points. -Enemies The animals Fillip encounters in the jungle are unfriendly to say the least. The longer Fillip is in physical contact with an enemy, the more energy he looses. If his energy level reaches 0%, Fillip dies. If he dies 3 times, the game is over. Fortunately, Fillip is not completely defenseless. If he jumps and lands on top of an animal, it dies. Enemy: Spider. Enemy: Snake. Enemy: Mosquito. Enemy: Piranha fish. Finishing the game If you manage to collect all airplane parts on all levels you can watch an end-sequence with Fillip taking off in his plane. The sequence can be interrupted at any time by pressing a key. If you have scored enough points to enter the high score list you will be prompted for your name. To search for a letter, use [NAVI-UP] or [2] for the left direction and [NAVI-DOWN] or [8] for the right direction. A letter focused appears in the flashing square. If you press [NAVI-CENTRE] or [5] to select the letter in the flashing square, the letter appears on the dotted line. You can delete one or more letters by selecting the ◀ symbol. When you are done, finish by selecting the V symbol. <Space Fighters> Rules of the game Equipped with guns and missiles your objective is to kill as many enemies as possible, while at the same time avoiding being hit. If you do get hit you will loose one life. Initially you start with 3 lives but if you last long enough you will eventually be rewarded with additional lives and more powerful weapons. Playing the game When the game starts you see this screen.

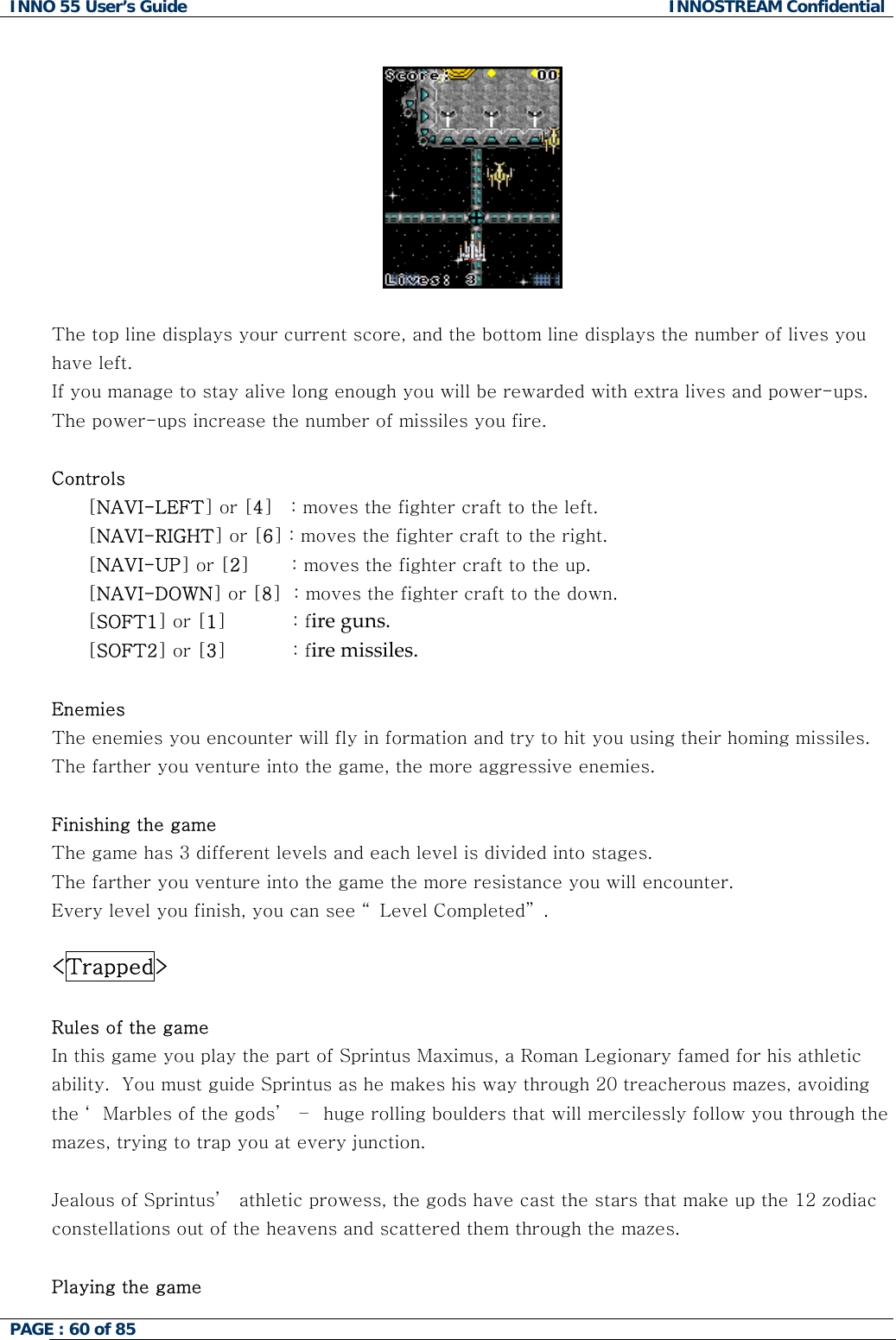

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 60 of 85 The top line displays your current score, and the bottom line displays the number of lives you have left. If you manage to stay alive long enough you will be rewarded with extra lives and power-ups. The power-ups increase the number of missiles you fire. Controls [NAVI-LEFT] or [4] : moves the fighter craft to the left. [NAVI-RIGHT] or [6] : moves the fighter craft to the right. [NAVI-UP] or [2] : moves the fighter craft to the up. [NAVI-DOWN] or [8] : moves the fighter craft to the down. [SOFT1] or [1] : fire guns. [SOFT2] or [3] : fire missiles. Enemies The enemies you encounter will fly in formation and try to hit you using their homing missiles. The farther you venture into the game, the more aggressive enemies. Finishing the game The game has 3 different levels and each level is divided into stages. The farther you venture into the game the more resistance you will encounter. Every level you finish, you can see “ Level Completed” . <Trapped> Rules of the game In this game you play the part of Sprintus Maximus, a Roman Legionary famed for his athletic ability. You must guide Sprintus as he makes his way through 20 treacherous mazes, avoiding the ‘ Marbles of the gods’ – huge rolling boulders that will mercilessly follow you through the mazes, trying to trap you at every junction. Jealous of Sprintus’ athletic prowess, the gods have cast the stars that make up the 12 zodiac constellations out of the heavens and scattered them through the mazes. Playing the game

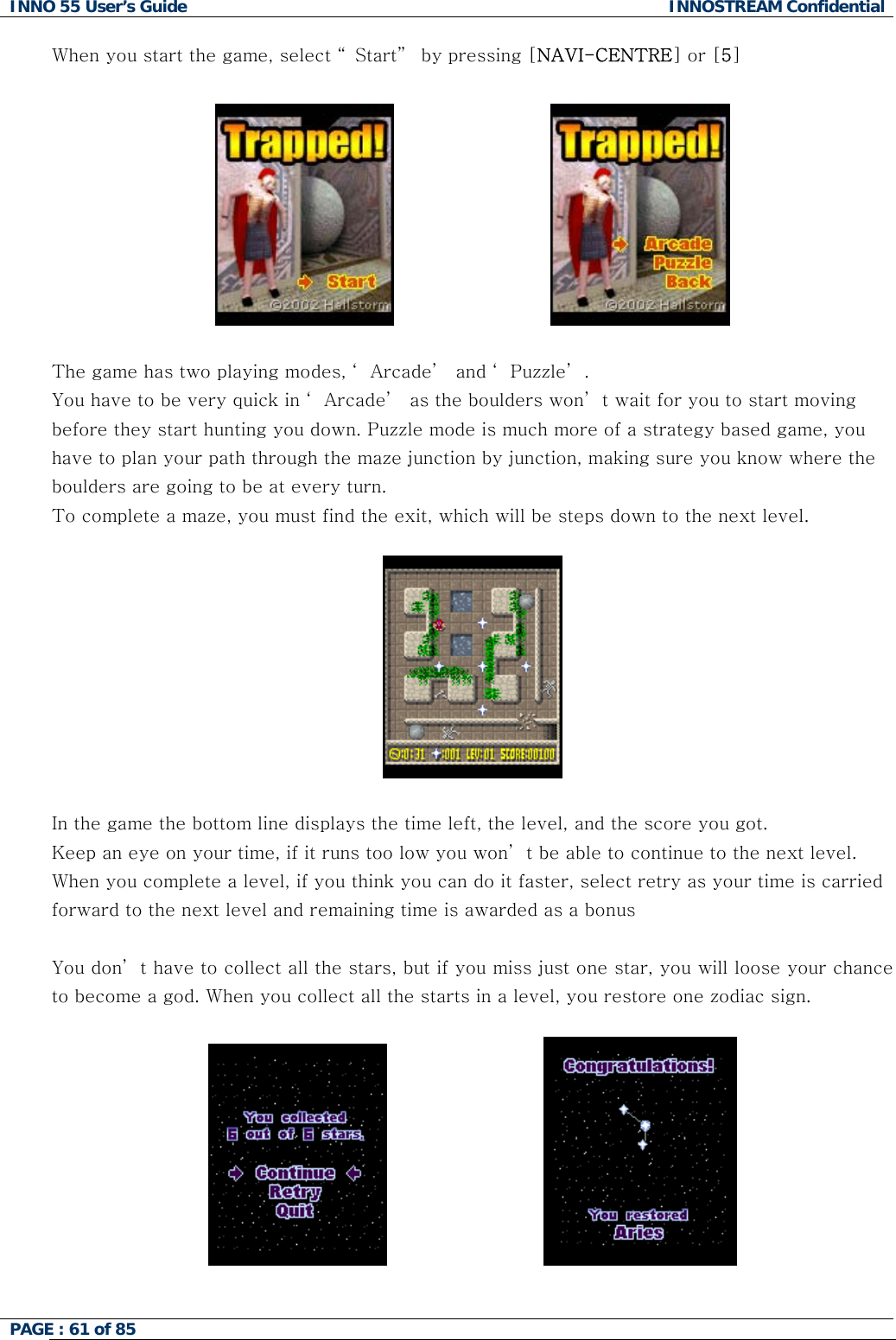

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 61 of 85 When you start the game, select “ Start” by pressing [NAVI-CENTRE] or [5] The game has two playing modes, ‘ Arcade’ and ‘ Puzzle’ . You have to be very quick in ‘ Arcade’ as the boulders won’ t wait for you to start moving before they start hunting you down. Puzzle mode is much more of a strategy based game, you have to plan your path through the maze junction by junction, making sure you know where the boulders are going to be at every turn. To complete a maze, you must find the exit, which will be steps down to the next level. In the game the bottom line displays the time left, the level, and the score you got. Keep an eye on your time, if it runs too low you won’ t be able to continue to the next level. When you complete a level, if you think you can do it faster, select retry as your time is carried forward to the next level and remaining time is awarded as a bonus You don’ t have to collect all the stars, but if you miss just one star, you will loose your chance to become a god. When you collect all the starts in a level, you restore one zodiac sign.

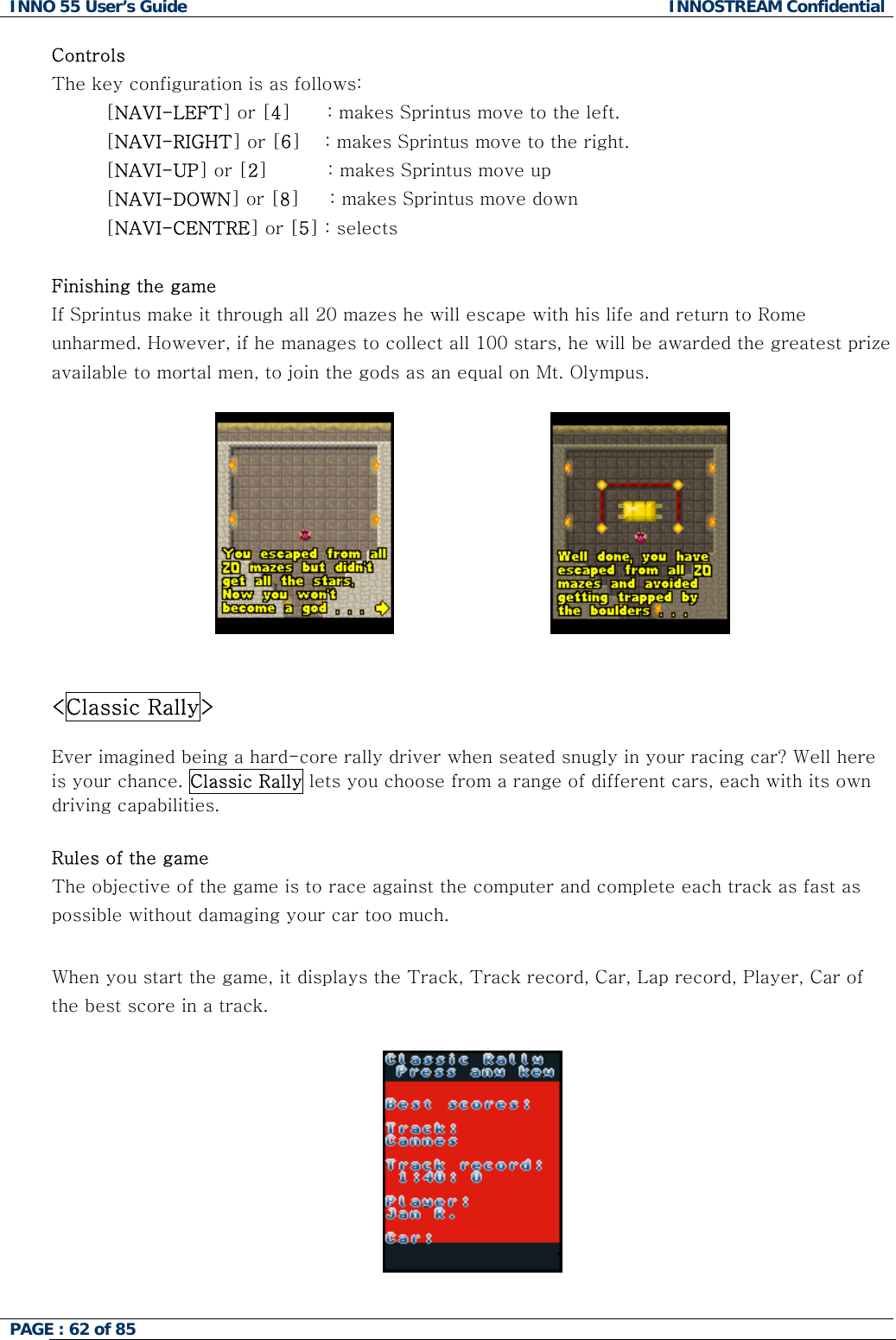

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 62 of 85 Controls The key configuration is as follows: [NAVI-LEFT] or [4] : makes Sprintus move to the left. [NAVI-RIGHT] or [6] : makes Sprintus move to the right. [NAVI-UP] or [2] : makes Sprintus move up [NAVI-DOWN] or [8] : makes Sprintus move down [NAVI-CENTRE] or [5] : selects Finishing the game If Sprintus make it through all 20 mazes he will escape with his life and return to Rome unharmed. However, if he manages to collect all 100 stars, he will be awarded the greatest prize available to mortal men, to join the gods as an equal on Mt. Olympus. <Classic Rally> Ever imagined being a hard-core rally driver when seated snugly in your racing car? Well here is your chance. Classic Rally lets you choose from a range of different cars, each with its own driving capabilities. Rules of the game The objective of the game is to race against the computer and complete each track as fast as possible without damaging your car too much. When you start the game, it displays the Track, Track record, Car, Lap record, Player, Car of the best score in a track.

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 63 of 85 You can select a car from 3 different categories: Classic, Truck and Sports. The 3 categories represent different characteristics with respect to speed, acceleration, handling etc. Browse between the cars by using [NAVI-LEFT] or [4] for the left direction and [NAVI-RIGHT] or [6] for the right direction. Select a car by pressing [NAVI-CENTRE] or [5]. You can select a track from 3 different geographical locations: Cannes, Nevada and St. Petersburg. Browse between the tracks by using [NAVI- LEFT] or [4] for the left direction and [NAVI- RIGHT] or [6] for the right direction. Select a track by pressing [NAVI-CENTRE] or [5]. Playing the game When the game starts you see something like this screen. The top line displays the time elapsed measured in minutes, seconds and 1/100th seconds. The bottom line displays the current lap and the total number of laps to complete before the race ends. The bottom line also shows the damage level of your car. Each time you bump into something (e.g. a wall) your car takes damage. An exception to this rule is tires; bumping into a tire will not inflict damage on your car. If the damage level reaches 100, your car will explode

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 64 of 85 and be positioned at the last checkpoint you passed. Controls The key configuration is as follows: [NAVI-LEFT] or [4] : makes the car move to the left. [NAVI-RIGHT] or [6] : makes the car move to the right. [NAVI-UP] or [2] : makes the car accelerate [NAVI-DOWN] or [8] : makes the car move backward [NAVI-CENTRE] or [5] : selects a car, a track or a letter. Checkpoints In order to successfully complete a lap you must pass all checkpoints on the track. If you somehow miss a checkpoint you will be notified hereof. You will have to go back to the checkpoint you missed and pass it before you can complete the lap. Finishing the game If you manage to complete the track and beat the track time you will be allowed to enter your name for the high score list: Move the cursor left and right by using [NAVI-LEFT] or [4] for the left direction and [NAVI-RIGHT] or [6] for the right direction, respectively. Select a letter by pressing [NAVI-CENTRE] or [5]. To delete a letter, move the cursor to DEL and then press [NAVI-CENTRE] or [5]. When you have finished entering your name, move the cursor to END and then press [NAVI-CENTRE] or [5].

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 65 of 85 9.7.2 Biorhythm When you enter this menu, Set Birthday will be prompted if you have not input before. Three sine waves about your birthday are displayed on the biorhythm screen. The blue colour of wave indicates your physical rhythm this month. The red colour of wave indicates your emotional rhythm this month. The green colour of wave indicates your intellectual rhythm this month. The vertical line indicates today. If you enter the birthday of other person by pressing [Birthday soft key], you can see his biorhythm. 9.7.3 Timer <Stopwatch> The stopwatch can check nine(9) lap time and save one record.(One record is composed of nine(9) lap times) When the stopwatch is not running, you can start or restart and reset the stopwatch. In running state, you have two choices (stop and save lap time). If you press [Lap Time soft key], the total time does not stop but present lap time stop and new lap time immediately starts. Also you can save present record or load previous record. Whether the stopwatch is running or not, you can directly check lap time by pressing numeric key ([0]~[9]). In screen first big number is total time, and small two lines show you lap time with lap time order. [Key Function Table] [Start soft key] starts or restarts the stopwatch [Stop soft key] stops the stopwatch [Reset soft key] resets and delete present record [Lap Time soft key] saves the lap time or reset the stopwatch (when pressed and held) [NAVI-LEFT] checks saved lap times backward (previous lap time) [NAVI-RIGHT] checks saved lap times forward (next lap time) [NAVI-UP] saves present record in not running state [NAVI-DOWN] loads saved record in not running state [0]~[9] directs check saved lap time directly [END] ends the stopwatch and then turns back to the previous menu ! Note: The stopwatch is not turned off when you answer an incoming call or the phone is sounding an alarm. But if you don’t save record and press [END], record will be lost. <Countdown> You can check countdown timer by using this menu. Enter : enables you to enter countdown main screen. You can set time and start the timer.

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 66 of 85 Countdown Tone : enables you to select countdown expiry tone. Auto Repeat : enables you to decide whether the countdown timer restarts automatically or not. ! Note: The countdown is not turned off when you answer an incoming call or the phone is sounding an alarm. 9.7.4 Calculator Your phone has built-in engineering calculator, which can perform basic arithmetic operation and scientific function. Some of its features include: - Normal and scientific output (addition, subtraction, division and multiplication) - Support for all standard mathematical functions (sin, cos, tan, asin, acos, atan, sinh, cosh, tanh, exp, log, log10 and sqrt) - More than 15 built-in variables for memories labelled A to Q. The following icon illustrates key functions. Press the [Answer soft key] to display the result of an arithmetic operation. Press the [Clear soft key] once to erase a figure to the left of the cursor. Use the [*] key to enter the decimal part of a number or special symbols such as ., (, ), ^, e, !, <, > and =. Use the [#] key to see helpful information for calculation. Use the [NAVI-CENTRE] to enter Option menu for function and memory. 9.7.5 Voice Memo This function allows you to record voice memo and set it as the ring tone. After recording, you can play recorded voice memo and save to “ *.mfr” file. You can launch Option menu by pressing [NAVI-CENTRE]. After the recoded voice memo is saved to a file, you can set as ring tone by selecting Set As… option. 9.7.6 Melody Composer This function allows you to compose your own melodies to be used as the ring tone. Four octaves are available. A maximum of 200 notes can be entered. You can adjust the length of a note and add a rest, as required. You can compose melodies.

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 67 of 85 1. When you access the menu, the musical paper is displayed. 2. Compose your melody using the following keys. [1] C (Do), the first note in the musical scale [2] D (Re) [3] E (Mi) [4] F (Fa) [5] G (Sol) [6] A (La) [7] B (Si) [8] C (Do), 3 octave [9] moves a note up or down one octave [0] Rest [*] decreases the length of a note or a rest [#] increases the length of a note or a rest [NAVI-UP] moves a note a tone up (For example, the note A changes to A#, B, C, C#, and so on in the scale each time you press the [NAVI-UP] key) [NAVI-DOWN] moves a note a tone down (For example, the note C# changes to C, B, A#, A, and so on in the scale each time you press the [NAVI-DOWN] key) [NAVI-LEFT] moves the note cursor to the next note [NAVI-RIGHT] moves the note cursor to the previous note [Clear soft key] clears the note in the note cursor [Option soft key], [SEND] or [NAVI-CENTRE] launches Option menu [END] turns back to previous menu or screen If you press [Option soft key], [SEND] or [NAVI-CENTRE], the following options are Available. The options are visible depending on situation. Play : Listens to your melody New : Create new melody Save : Saves your melody to file Set As : Set the melody to ring melody Melody Files : Launch the melody file manager Clear All : Clears all musical paper

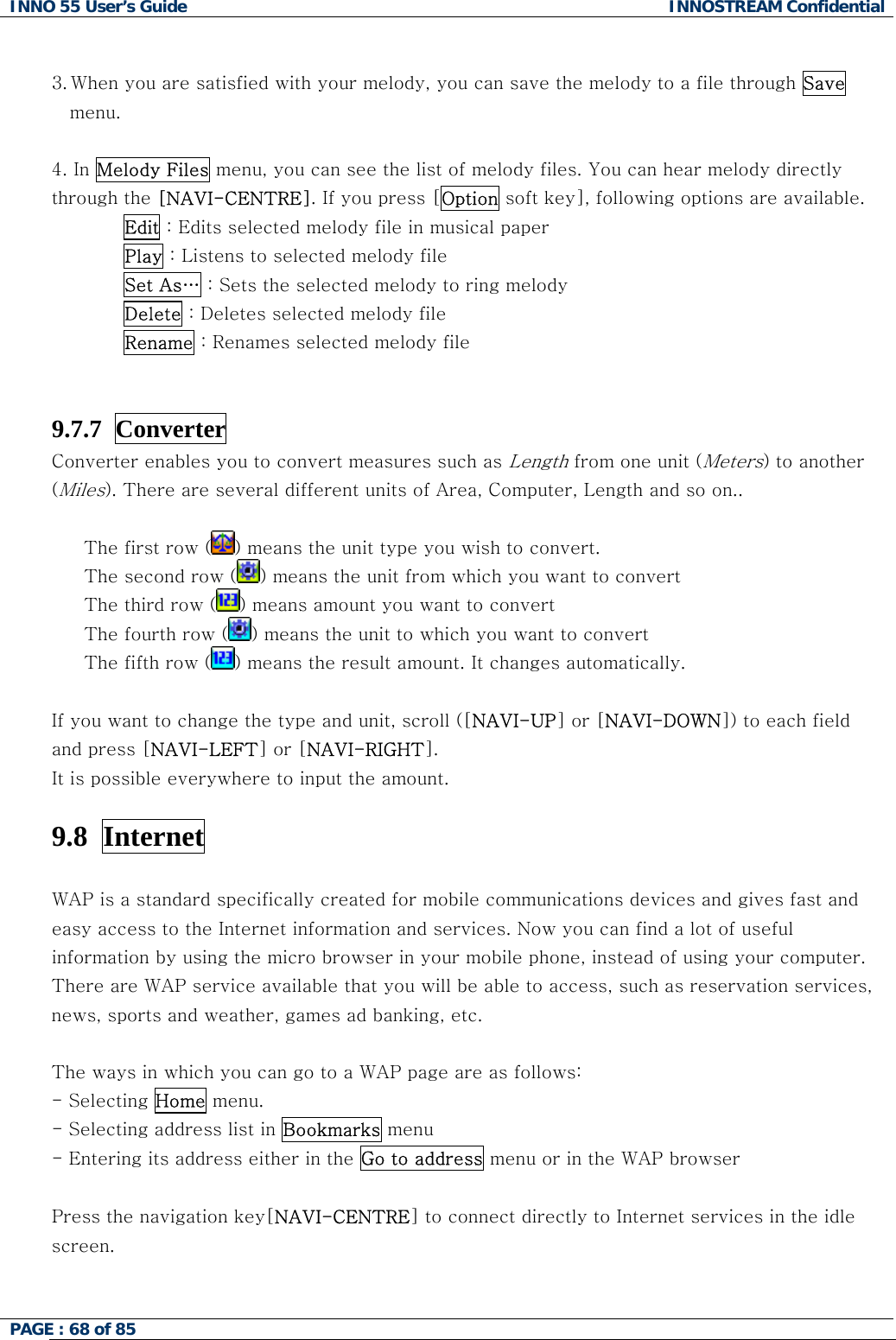

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 68 of 85 3. When you are satisfied with your melody, you can save the melody to a file through Save menu. 4. In Melody Files menu, you can see the list of melody files. You can hear melody directly through the [NAVI-CENTRE]. If you press [Option soft key], following options are available. Edit : Edits selected melody file in musical paper Play : Listens to selected melody file Set As… : Sets the selected melody to ring melody Delete : Deletes selected melody file Rename : Renames selected melody file 9.7.7 Converter Converter enables you to convert measures such as Length from one unit (Meters) to another (Miles). There are several different units of Area, Computer, Length and so on.. The first row ( ) means the unit type you wish to convert. The second row ( ) means the unit from which you want to convert The third row ( ) means amount you want to convert The fourth row ( ) means the unit to which you want to convert The fifth row ( ) means the result amount. It changes automatically. If you want to change the type and unit, scroll ([NAVI-UP] or [NAVI-DOWN]) to each field and press [NAVI-LEFT] or [NAVI-RIGHT]. It is possible everywhere to input the amount. 9.8 Internet WAP is a standard specifically created for mobile communications devices and gives fast and easy access to the Internet information and services. Now you can find a lot of useful information by using the micro browser in your mobile phone, instead of using your computer. There are WAP service available that you will be able to access, such as reservation services, news, sports and weather, games ad banking, etc. The ways in which you can go to a WAP page are as follows: - Selecting Home menu. - Selecting address list in Bookmarks menu - Entering its address either in the Go to address menu or in the WAP browser Press the navigation key[NAVI-CENTRE] to connect directly to Internet services in the idle screen.

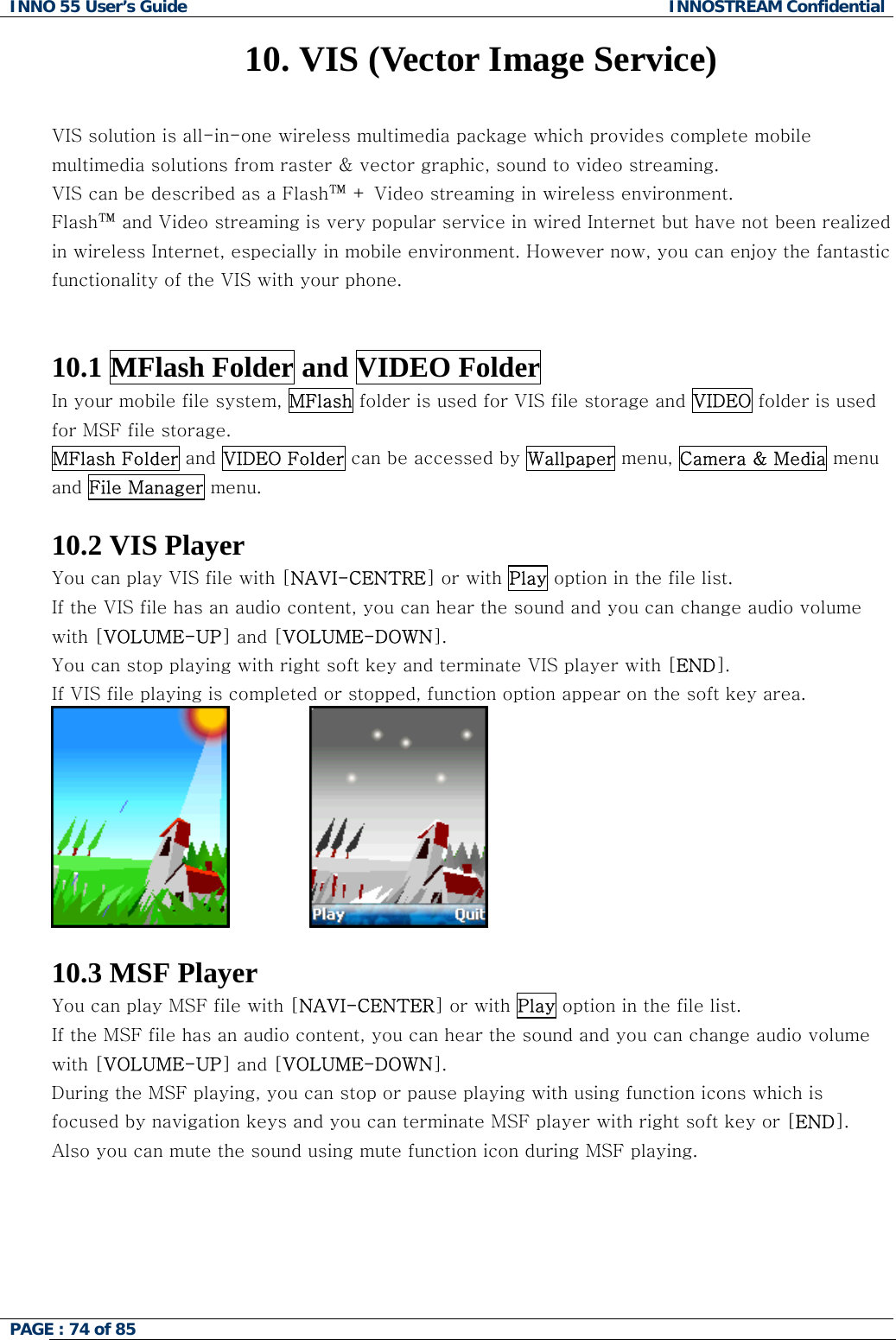

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 74 of 85 10. VIS (Vector Image Service) VIS solution is all-in-one wireless multimedia package which provides complete mobile multimedia solutions from raster & vector graphic, sound to video streaming. VIS can be described as a Flash™ + Video streaming in wireless environment. Flash™ and Video streaming is very popular service in wired Internet but have not been realized in wireless Internet, especially in mobile environment. However now, you can enjoy the fantastic functionality of the VIS with your phone. 10.1 MFlash Folder and VIDEO Folder In your mobile file system, MFlash folder is used for VIS file storage and VIDEO folder is used for MSF file storage. MFlash Folder and VIDEO Folder can be accessed by Wallpaper menu, Camera & Media menu and File Manager menu. 10.2 VIS Player You can play VIS file with [NAVI-CENTRE] or with Play option in the file list. If the VIS file has an audio content, you can hear the sound and you can change audio volume with [VOLUME-UP] and [VOLUME-DOWN]. You can stop playing with right soft key and terminate VIS player with [END]. If VIS file playing is completed or stopped, function option appear on the soft key area. 10.3 MSF Player You can play MSF file with [NAVI-CENTER] or with Play option in the file list. If the MSF file has an audio content, you can hear the sound and you can change audio volume with [VOLUME-UP] and [VOLUME-DOWN]. During the MSF playing, you can stop or pause playing with using function icons which is focused by navigation keys and you can terminate MSF player with right soft key or [END]. Also you can mute the sound using mute function icon during MSF playing.

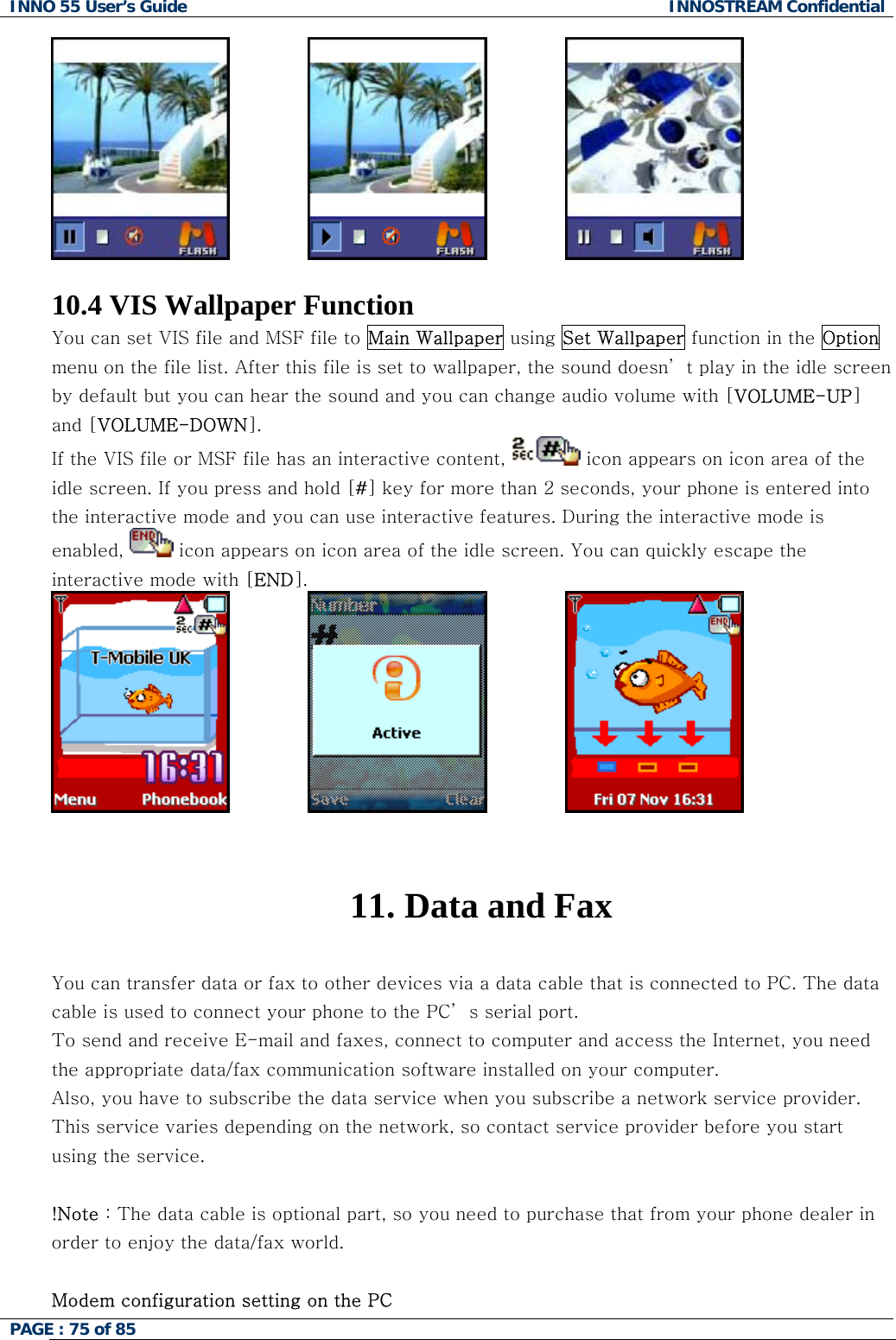

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 75 of 85 10.4 VIS Wallpaper Function You can set VIS file and MSF file to Main Wallpaper using Set Wallpaper function in the Option menu on the file list. After this file is set to wallpaper, the sound doesn’ t play in the idle screen by default but you can hear the sound and you can change audio volume with [VOLUME-UP] and [VOLUME-DOWN]. If the VIS file or MSF file has an interactive content, icon appears on icon area of the idle screen. If you press and hold [#] key for more than 2 seconds, your phone is entered into the interactive mode and you can use interactive features. During the interactive mode is enabled, icon appears on icon area of the idle screen. You can quickly escape the interactive mode with [END]. 11. Data and Fax You can transfer data or fax to other devices via a data cable that is connected to PC. The data cable is used to connect your phone to the PC’ s serial port. To send and receive E-mail and faxes, connect to computer and access the Internet, you need the appropriate data/fax communication software installed on your computer. Also, you have to subscribe the data service when you subscribe a network service provider. This service varies depending on the network, so contact service provider before you start using the service. !Note : The data cable is optional part, so you need to purchase that from your phone dealer in order to enjoy the data/fax world. Modem configuration setting on the PC

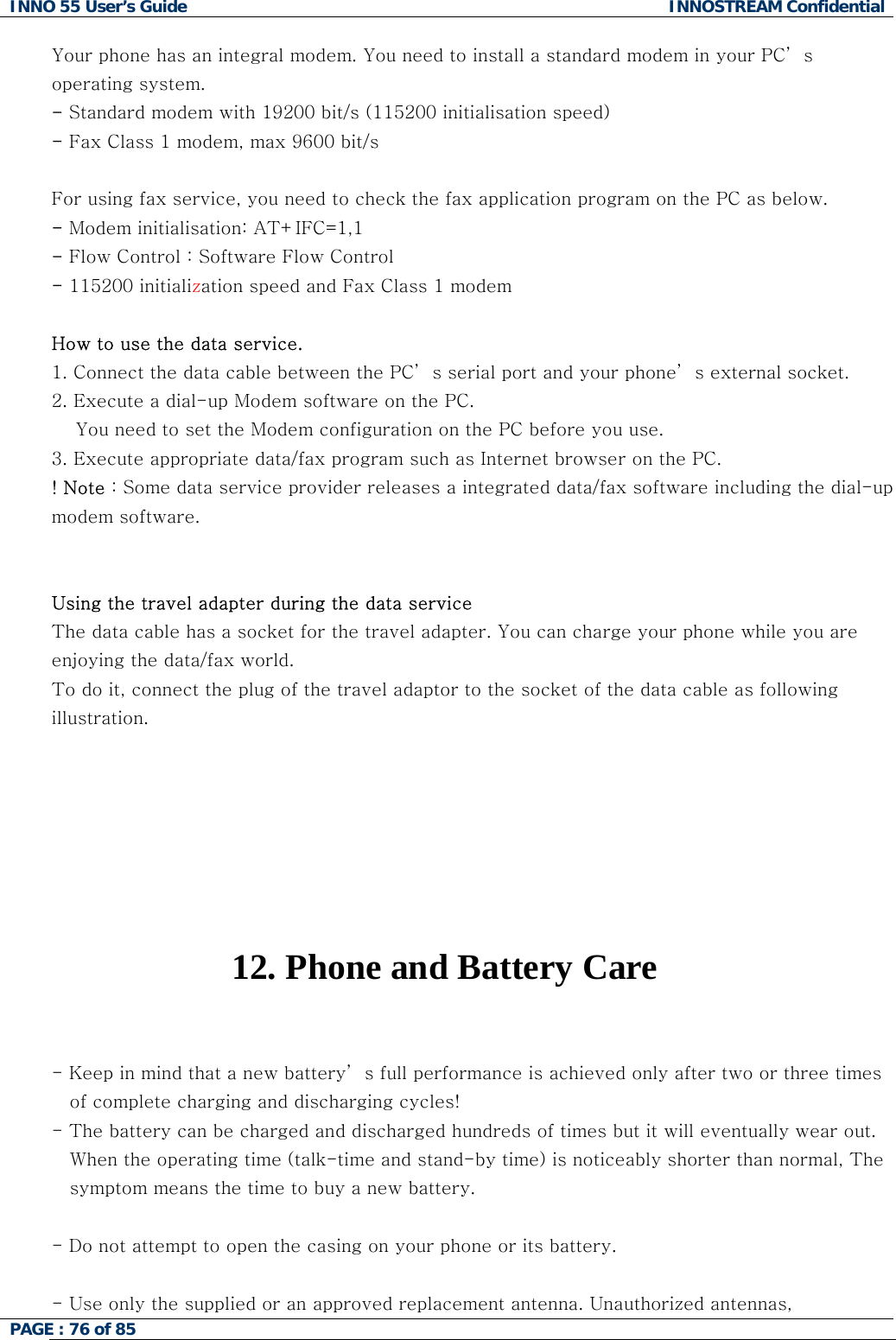

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 76 of 85 Your phone has an integral modem. You need to install a standard modem in your PC’ s operating system. - Standard modem with 19200 bit/s (115200 initialisation speed) - Fax Class 1 modem, max 9600 bit/s For using fax service, you need to check the fax application program on the PC as below. - Modem initialisation: AT+IFC=1,1 - Flow Control : Software Flow Control - 115200 initialization speed and Fax Class 1 modem How to use the data service. 1. Connect the data cable between the PC’ s serial port and your phone’ s external socket. 2. Execute a dial-up Modem software on the PC. You need to set the Modem configuration on the PC before you use. 3. Execute appropriate data/fax program such as Internet browser on the PC. ! Note : Some data service provider releases a integrated data/fax software including the dial-up modem software. Using the travel adapter during the data service The data cable has a socket for the travel adapter. You can charge your phone while you are enjoying the data/fax world. To do it, connect the plug of the travel adaptor to the socket of the data cable as following illustration. 12. Phone and Battery Care - Keep in mind that a new battery’ s full performance is achieved only after two or three times of complete charging and discharging cycles! - The battery can be charged and discharged hundreds of times but it will eventually wear out. When the operating time (talk-time and stand-by time) is noticeably shorter than normal, The symptom means the time to buy a new battery. - Do not attempt to open the casing on your phone or its battery. - Use only the supplied or an approved replacement antenna. Unauthorized antennas,

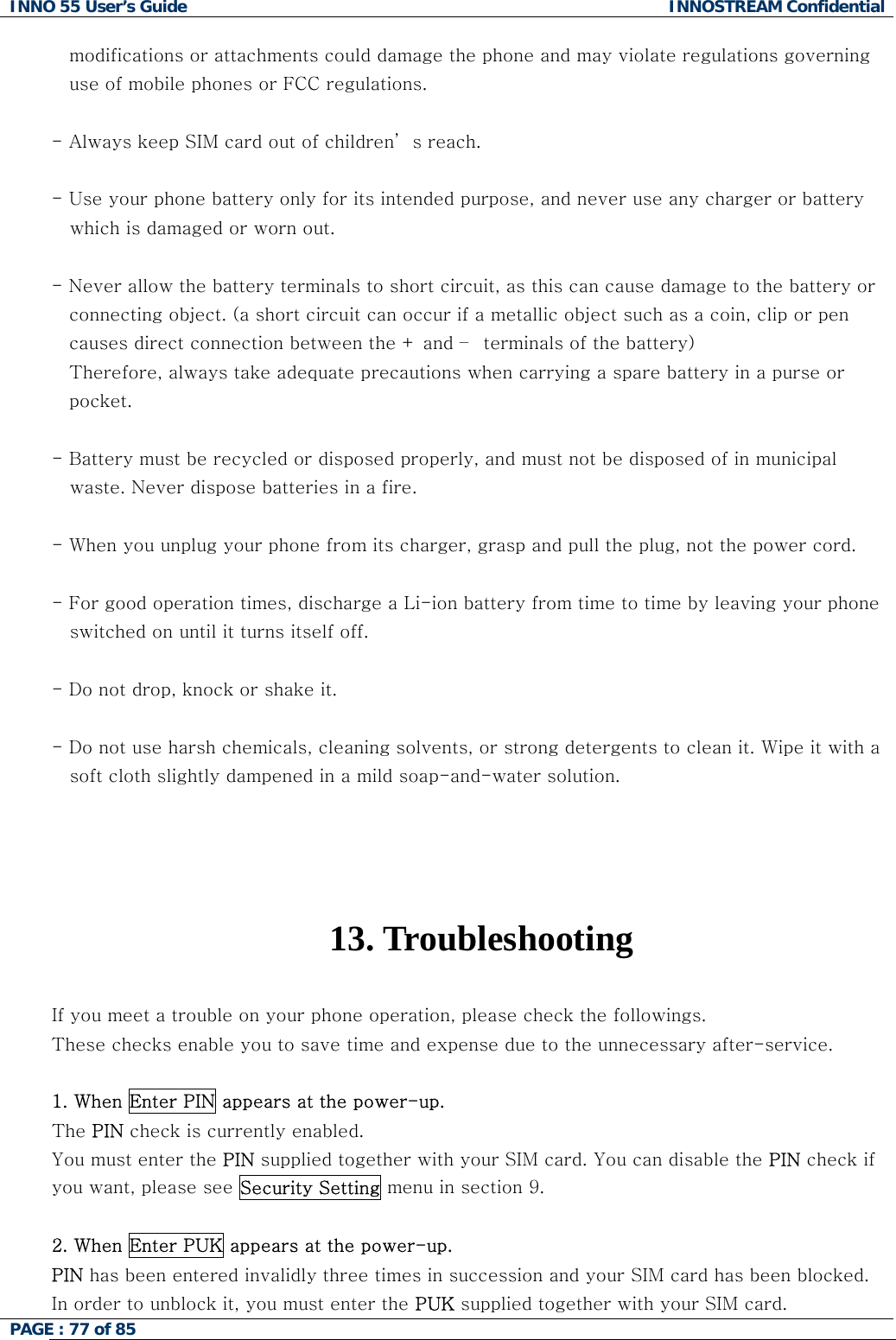

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 77 of 85 modifications or attachments could damage the phone and may violate regulations governing use of mobile phones or FCC regulations. - Always keep SIM card out of children’ s reach. - Use your phone battery only for its intended purpose, and never use any charger or battery which is damaged or worn out. - Never allow the battery terminals to short circuit, as this can cause damage to the battery or connecting object. (a short circuit can occur if a metallic object such as a coin, clip or pen causes direct connection between the + and – terminals of the battery) Therefore, always take adequate precautions when carrying a spare battery in a purse or pocket. - Battery must be recycled or disposed properly, and must not be disposed of in municipal waste. Never dispose batteries in a fire. - When you unplug your phone from its charger, grasp and pull the plug, not the power cord. - For good operation times, discharge a Li-ion battery from time to time by leaving your phone switched on until it turns itself off. - Do not drop, knock or shake it. - Do not use harsh chemicals, cleaning solvents, or strong detergents to clean it. Wipe it with a soft cloth slightly dampened in a mild soap-and-water solution. 13. Troubleshooting If you meet a trouble on your phone operation, please check the followings. These checks enable you to save time and expense due to the unnecessary after-service. 1. When Enter PIN appears at the power-up. The PIN check is currently enabled. You must enter the PIN supplied together with your SIM card. You can disable the PIN check if you want, please see Security Setting menu in section 9. 2. When Enter PUK appears at the power-up. PIN has been entered invalidly three times in succession and your SIM card has been blocked. In order to unblock it, you must enter the PUK supplied together with your SIM card.

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 80 of 85 14. Glossary Cell Broadcast This network service allows you to receive the broadcasted text messages on various topics such as weather, traffic, local district code, local hospitals, taxis or pharmacy in the area where you are. CUG (Closed User Group) This network service allows the restriction of calls to and from a selected user group. DTMF (Dial Tone Multi Frequency) Codes sent as tone signals. Used for telephone banking, for accessing an answering machine, etc. GPRS (General Packet Radio Service) New packet service that allows information to be sent and received across a mobile network. The GPRS promises data rates from 56 up to 114 Kbps and continuous packet connection to the Internet for mobile phone and computer users. It is based on existing GSM such as circuit-switched cellular phone connections and complements that. GPRS (General Packet Radio Service) New packet service that allows information to be sent and received across a mobile network. The GPRS promises data rates from 56 up to 114 Kbps and continuous packet connection to the Internet for mobile phone and computer users. It is based on existing GSM such as circuit-switched cellular phone connections and complements that. International Indicator ‘+’ sign automatically adds the correct international code in front of a telephone number when dialling out of a country. Network Service Operator To be able to use your phone, you need a subscription to a network. You get this subscription from a network operator, together with a SIM card that you need to use with your phone. PIN (Personal Identification Number) The code is to establish authorization for access to certain functions or information in your SIM card. The PIN code comes with your subscription. It may be a four to eight digit number and can be changed as required. PIN2 (Personal Identification Number 2) The code is an authorization code to access certain special field in your SIM card. The PIN2 code does not come with your subscription in some country.

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 81 of 85 PUK (Personal Unblocking Key Code) Used to unlock a blocked SIM card. This comes with your subscription Roaming Use of your phone when you are outside your subscription network area. SIM (Subscriber Identity Module) It contains subscriber details, security information and memory for a personal directory of numbers. SMS (Short Message Service) Messages to be sent and received via the network service operator’ s message centre to your mobile phone. To use this service, it must be supported from your network. WAP (Wireless Application Protocol) A standard specifically created for mobile communications devices and gives fast and easy access to Internet information and services. 15. Safety Information For the efficient and safe operation of your phone, observe these guidelines. Everyday Use of your phone For normal operating position, hold your phone as you would any other telephone, with the antenna pointed up and over your shoulder. Do not touch the antenna unnecessarily when your phone is in use, as this will affect call quality and may cause the phone to operate at a higher power level than otherwise needed. As with any other radio transmitting equipment, you are advised that for the satisfactory operation of your phone and for your own safety, you should use your phone only in the normal operating position. Using your phone in a vehicle Safety comes first, and is the ultimate responsibility of the driver. Please: i) Give full attention to driving – driving safely is your first responsibility. ii) Use Hands-free Kit, if available. iii) If you have those kits make sure it is done pre-programmed numbers where possible, and keeping calls brief and to a minimum. iv) If you don’ t have a Hands-free Kit, pull off the road and park your vehicle before making or answering a call in driving conditions so require. Non-ionizing radiation (exposure to Radio Frequency Signals) Your phone is a low power radio transmitter and receiver. When it is on, it receives and also

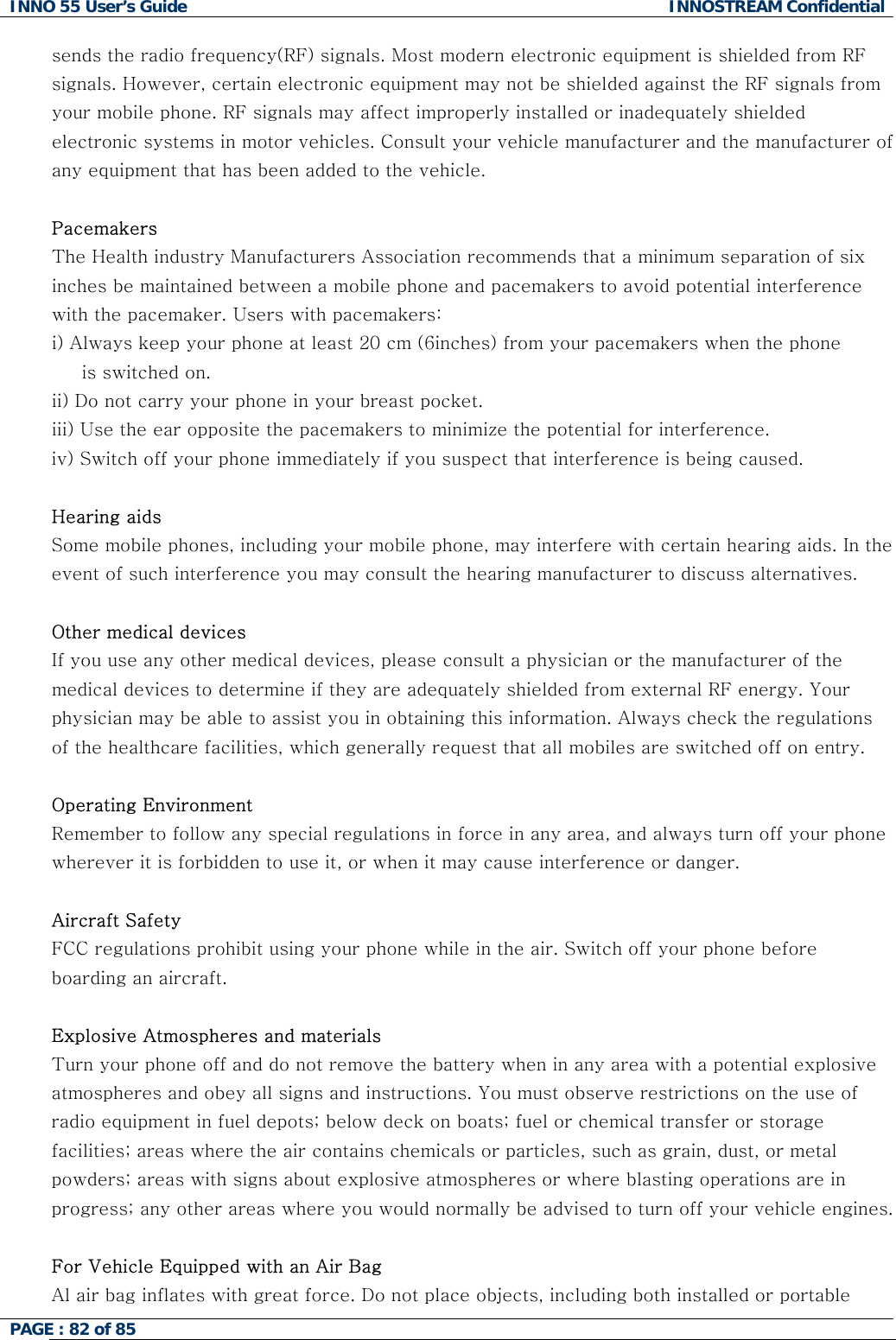

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 82 of 85 sends the radio frequency(RF) signals. Most modern electronic equipment is shielded from RF signals. However, certain electronic equipment may not be shielded against the RF signals from your mobile phone. RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Consult your vehicle manufacturer and the manufacturer of any equipment that has been added to the vehicle. Pacemakers The Health industry Manufacturers Association recommends that a minimum separation of six inches be maintained between a mobile phone and pacemakers to avoid potential interference with the pacemaker. Users with pacemakers: i) Always keep your phone at least 20 cm (6inches) from your pacemakers when the phone is switched on. ii) Do not carry your phone in your breast pocket. iii) Use the ear opposite the pacemakers to minimize the potential for interference. iv) Switch off your phone immediately if you suspect that interference is being caused. Hearing aids Some mobile phones, including your mobile phone, may interfere with certain hearing aids. In the event of such interference you may consult the hearing manufacturer to discuss alternatives. Other medical devices If you use any other medical devices, please consult a physician or the manufacturer of the medical devices to determine if they are adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information. Always check the regulations of the healthcare facilities, which generally request that all mobiles are switched off on entry. Operating Environment Remember to follow any special regulations in force in any area, and always turn off your phone wherever it is forbidden to use it, or when it may cause interference or danger. Aircraft Safety FCC regulations prohibit using your phone while in the air. Switch off your phone before boarding an aircraft. Explosive Atmospheres and materials Turn your phone off and do not remove the battery when in any area with a potential explosive atmospheres and obey all signs and instructions. You must observe restrictions on the use of radio equipment in fuel depots; below deck on boats; fuel or chemical transfer or storage facilities; areas where the air contains chemicals or particles, such as grain, dust, or metal powders; areas with signs about explosive atmospheres or where blasting operations are in progress; any other areas where you would normally be advised to turn off your vehicle engines. For Vehicle Equipped with an Air Bag Al air bag inflates with great force. Do not place objects, including both installed or portable

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 83 of 85 wireless equipment, in the area over the air bag or in the air bag development area. If in-vehicle wireless equipment is improperly installed and the air bag inflates, serious injury could result. Battery charging Do not charge the phone without the battery in place. Please use only approved batteries and chargers. Specific Absorption Rate Data This Model Phone Meets the Government’ s Requirements for Exposure to Radio Waves. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency(RF) energy set by the Federal Communications Commission(FCC) of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, of SAR. The SAR limit set by the FCC is 1.6W/kg.* Tests for SAR are conducted using standard operating positions specified by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although SAR is determined at the highest certified power level, the actual SAR level of th phone while operating can be well below the maximum value. Because the phone is designed to operate at multiple power levels to use only the power required to reach the network, in general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations(e.g., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model phone when tested for use at the ear is 1.410W/kg and when worn on the body, as described in the user’ s manual, is 0.570W/kg. (Body-worn measurements differ among phone models, depending upon available accessories and FCC requirements.) While there may be differences between SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF emission guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID RJAINNO55. Additional information on Specific Absorption Rates(SAR) can be found on the Cellular

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 84 of 85 Telecommunications Industry Association(CTIA) website at http://www.wow-com.com. In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 W/kg averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. FCC RF Exposure Information WARNING! Read this information before operating the phone. In August 1996, the Federal Communications (FCC) of the United States, with its action in Report and Order FCC 96-326, adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. CAUTION Use only the supplied and approved antenna. Use of unauthorized antennas or modifications could impair call quality, damage the phone, void your warranty and/or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with skin, a minor burn may result. Contact your local dealer for a replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 15 mm between the user’ s body and back of the phone. To comply with FCC RF exposure requirements, a minimum separation distance of 15 mm must be maintained between the user’ s body and the back of the phone. Third-party belt-clips, holsters, and similar accessories containing metallic components shall not be used. Body-worn accessories that cannot maintain 15 mm separation distance between the user’ s body and the back of the phone, and have not been tested for typical body-worn operations may not comply with FCC RF exposure limits and shall be avoided. 16. Index

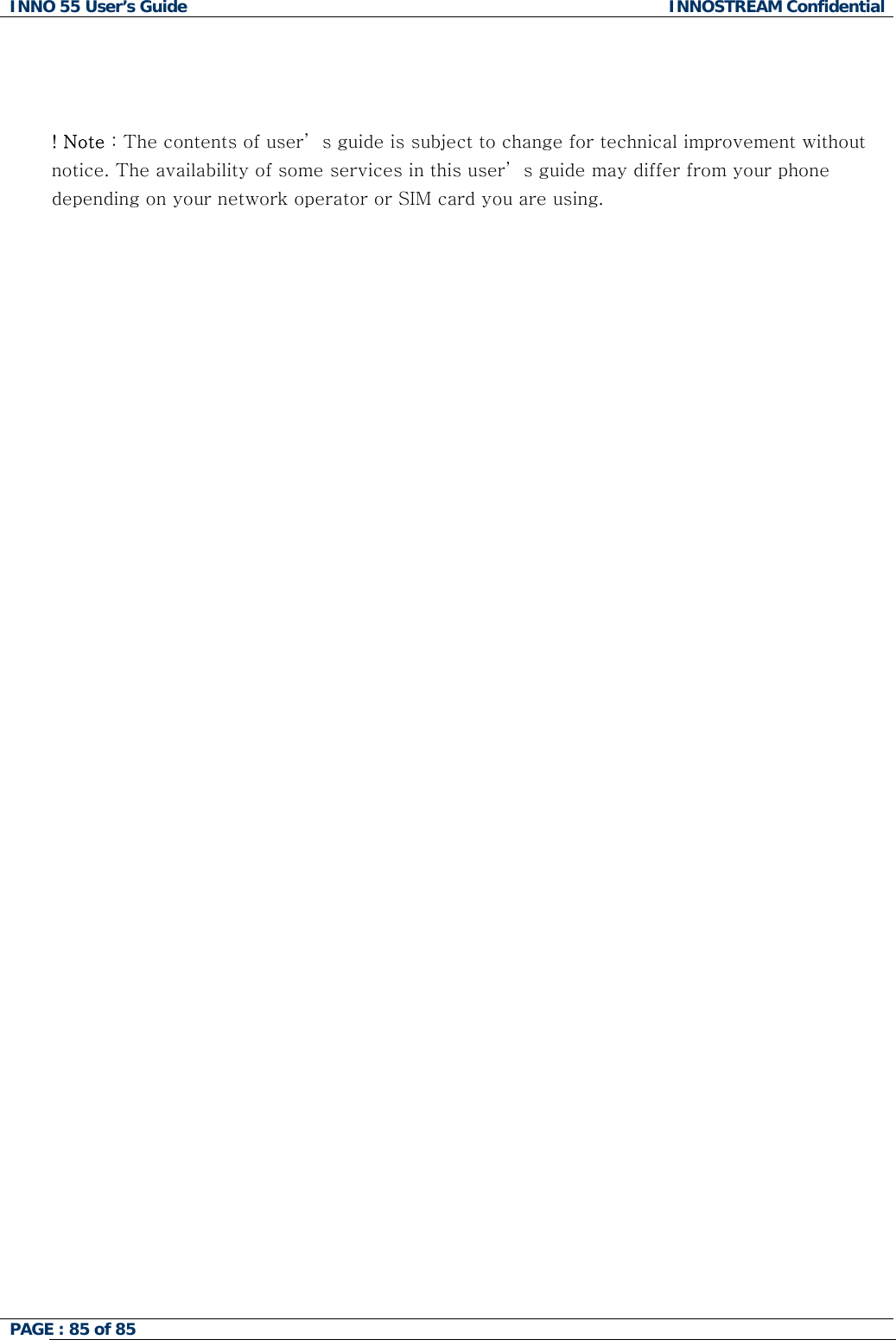

INNO 55 User’s Guide INNOSTREAM Confidential PAGE : 85 of 85 ! Note : The contents of user’ s guide is subject to change for technical improvement without notice. The availability of some services in this user’ s guide may differ from your phone depending on your network operator or SIM card you are using.
