Innovative Concepts and Design UHF-01 Wireless Receiver User Manual 1

INNOVATIVE CONCEPTS AND DESIGN LLC Wireless Receiver 1

15_UHF-01 UserMan.pdf

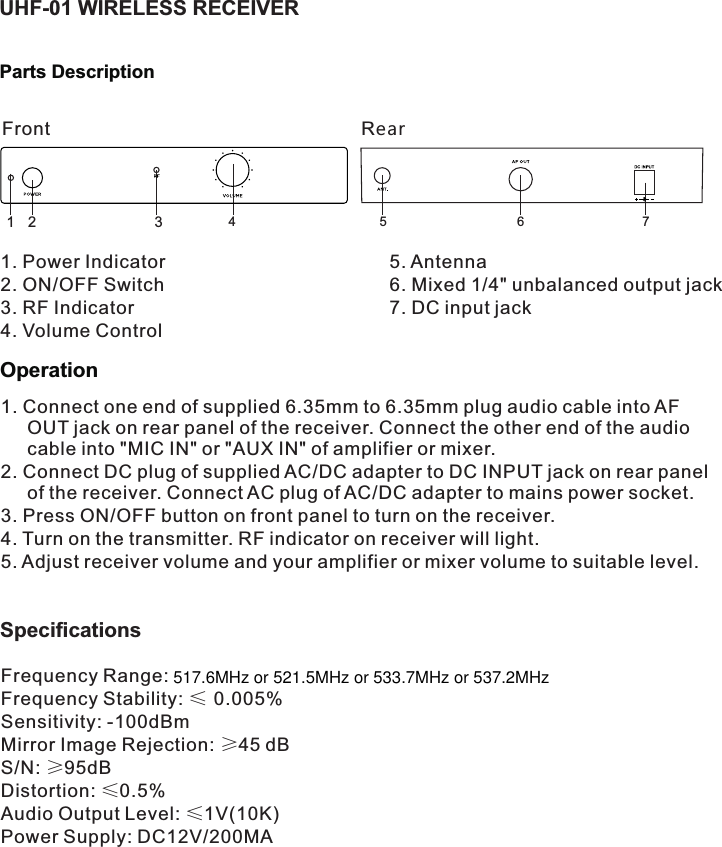

1. Connect one end of supplied 6.35mm to 6.35mm plug audio cable into AF OUT jack on rear panel of the receiver. Connect the other end of the audio cable into "MIC IN" or "AUX IN" of amplifier or mixer.2. Connect DC plug of supplied AC/DC adapter to DC INPUT jack on rear panel of the receiver. Connect AC plug of AC/DC adapter to mains power socket.3. Press ON/OFF button on front panel to turn on the receiver.4. Turn on the transmitter. RF indicator on receiver will light. 5. Adjust receiver volume and your amplifier or mixer volume to suitable level.5. Antenna6. Mixed 1/4" unbalanced output jack7. DC input jackFrequency RangeFrequency Stability: ≤ 0.005%Sensitivity: -100dBmMirror Image Rejection: ≥45 dBS/N: ≥95dBDistortion: ≤0.5%Audio Output Level: ≤1V(10K)Power Supply: DC12V/200MA142356 7Front RearSpecifications OperationUHF-01 WIRELESS RECEIVERParts Description1. Power Indicator2. ON/OFF SwitchRF Indicator3. 4. Volume Control: 517.6MHz or 521.5MHz or 533.7MHz or 537.2MHz

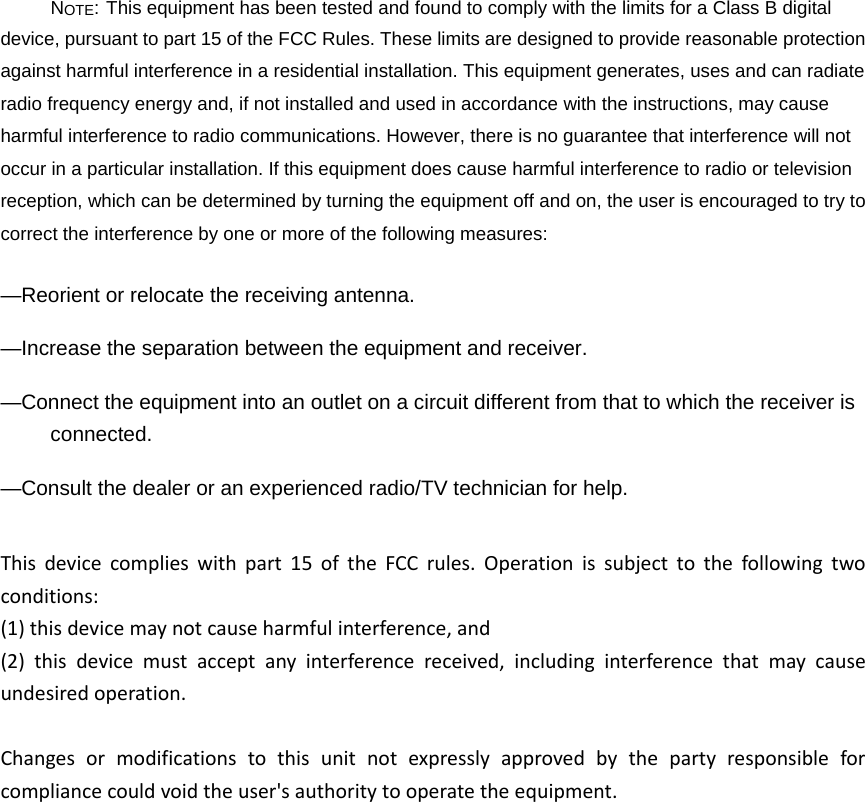

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser'sauthoritytooperatetheequipment.
