Innovative Concepts and Design VHF-04BP Body-worn Wireless Microphone User Manual

INNOVATIVE CONCEPTS AND DESIGN LLC Body-worn Wireless Microphone

User Manual

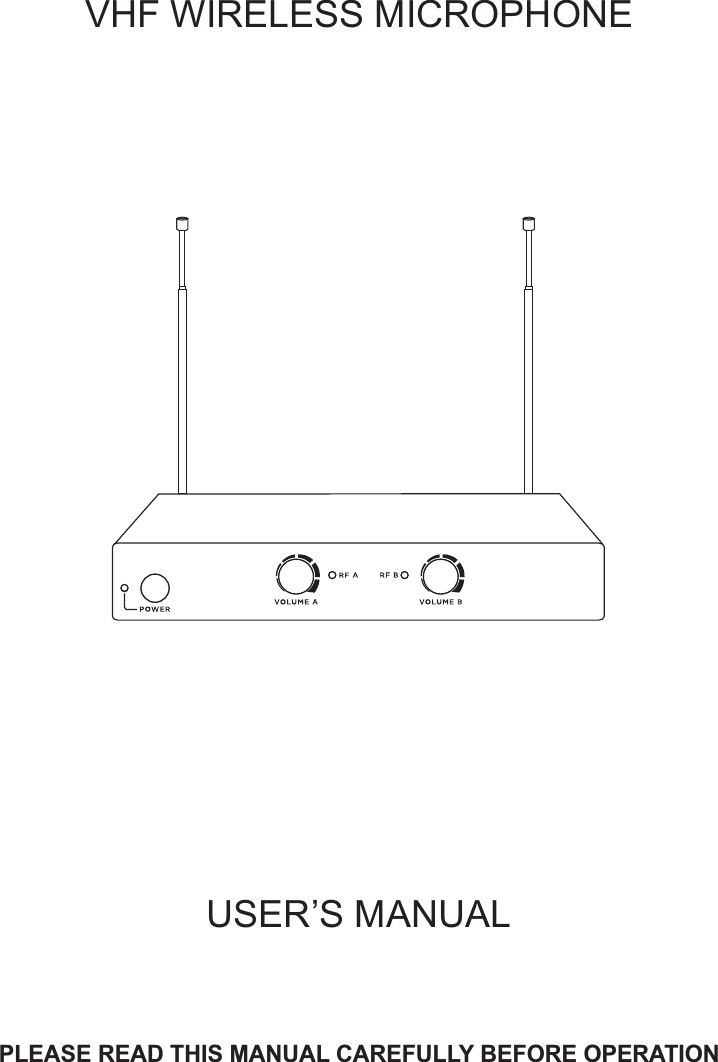

USER’S MANUALPLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATIONVHF WIRELESS MICROPHONE

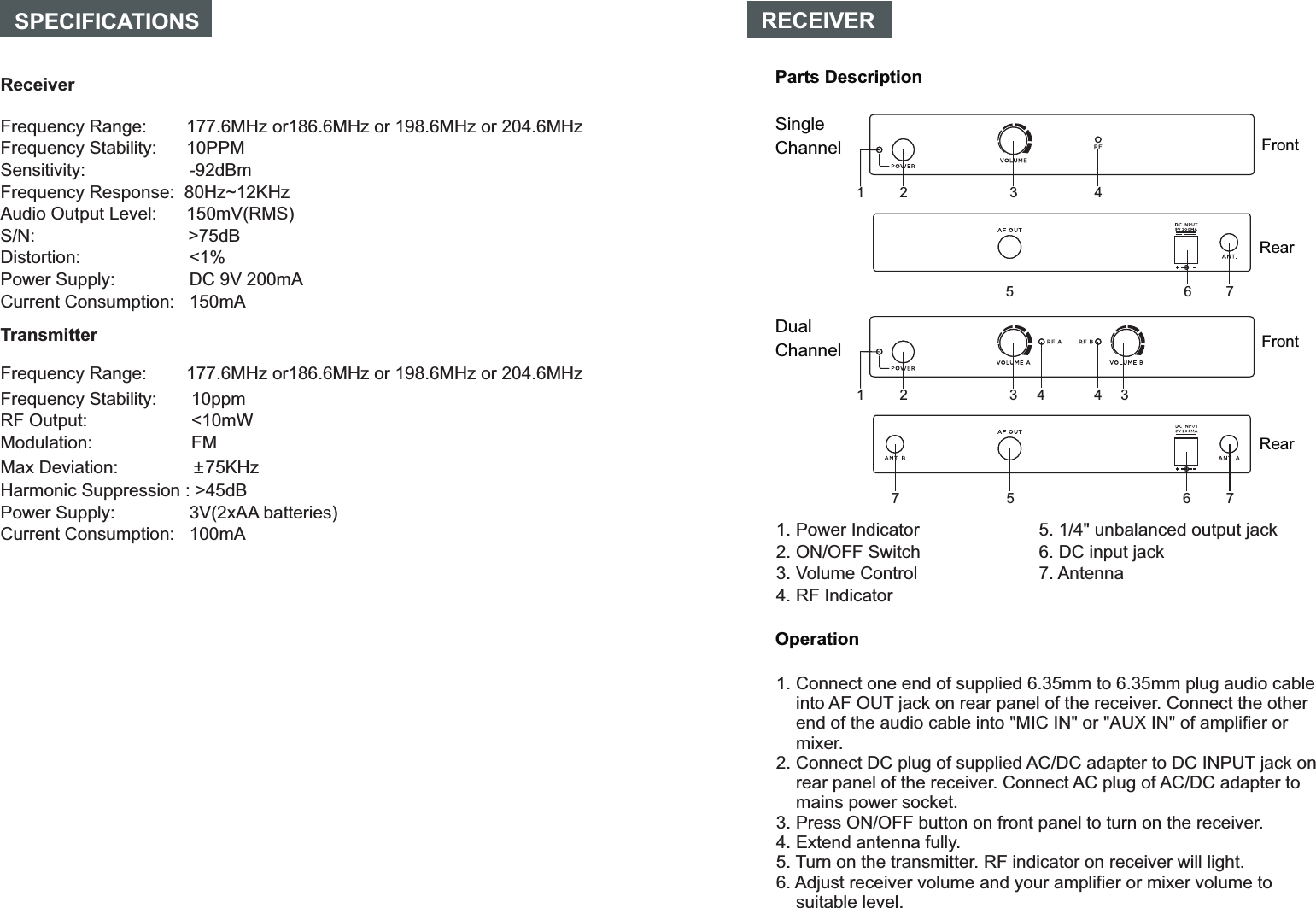

1. Power Indicator2. ON/OFF Switch3. Volume Control4. RF Indicator1. Connect one end of supplied 6.35mm to 6.35mm plug audio cable into AF OUT jack on rear panel of the receiver. Connect the other end of the audio cable into "MIC IN" or "AUX IN" of amplifier or mixer.2. Connect DC plug of supplied AC/DC adapter to DC INPUT jack on rear panel of the receiver. Connect AC plug of AC/DC adapter to mains power socket. 3. Press ON/OFF button on front panel to turn on the receiver.4. Extend antenna fully. 5. Turn on the transmitter. RF indicator on receiver will light. 6. Adjust receiver volume and your amplifier or mixer volume to suitable level.RECEIVERParts DescriptionSingle Channel FrontRearDualChannel FrontRearOperation14235671423 345 67SPECIFICATIONS ReceiverFrequency Range: 177.6MHz or186.6MHz or 198.6MHz or 204.6MHzFrequency Stability: 10PPMSensitivity: -92dBmFrequency Response: 80Hz~12KHzAudio Output Level: 150mV(RMS)S/N: >75dBDistortion: <1%Power Supply: DC 9V 200mACurrent Consumption: 150mATransmitterFrequency Stability: 10ppmRF Output: <10mWModulation: FMMax Deviation: ±75KHzHarmonic Suppression : >45dBPower Supply: 3V(2xAA batteries)Current Consumption: 100mA 5. 1/4" unbalanced output jack6. DC input jack7. Antenna7Frequency Range: 177.6MHz or186.6MHz or 198.6MHz or 204.6MHz

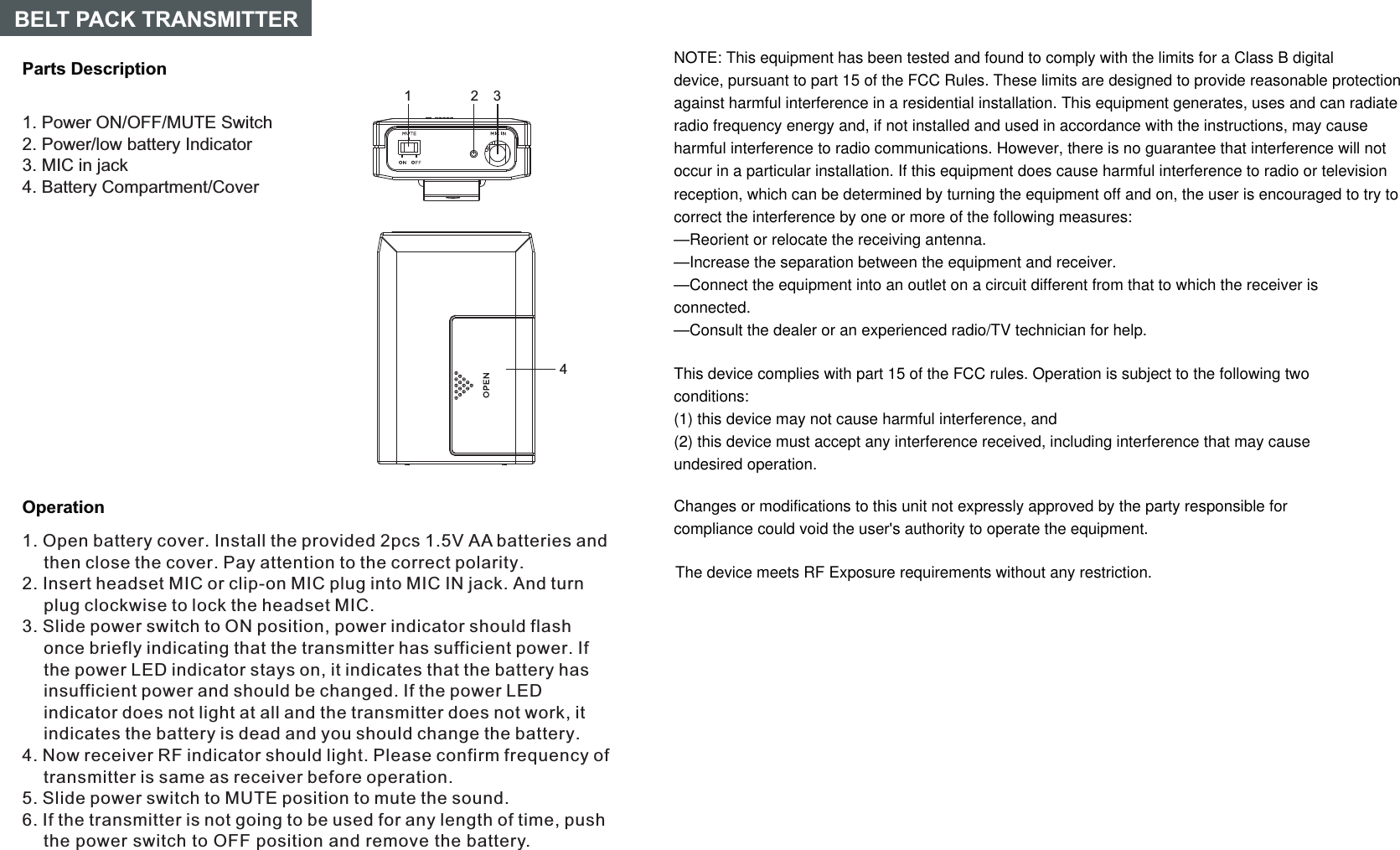

14OperationParts DescriptionBELT PACK TRANSMITTER231. Open battery cover. Install the provided 2pcs 1.5V AA batteries and then close the cover. Pay attention to the correct polarity.2. Insert headset MIC or clip-on MIC plug into MIC IN jack. And turn plug clockwise to lock the headset MIC.3. Slide power switch to ON position, power indicator should flash once briefly indicating that the transmitter has sufficient power. If the power LED indicator stays on, it indicates that the battery has insufficient power and should be changed. If the power LED indicator does not light at all and the transmitter does not work, it indicates the battery is dead and you should change the battery.5. Slide power switch to MUTE position to mute the sound.6. If the transmitter is not going to be used for any length of time, push the power switch to OFF position and remove the battery.4. Now receiver RF indicator should light. Please confirm frequency of transmitter is same as receiver before operation.1. Power ON/OFF/MUTE Switch2. Power/low battery Indicator3. MIC in jack4. Battery Compartment/CoverNOTE: This equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, may causeharmful interference to radio communications. However, there is no guarantee that interference will notoccur in a particular installation. If this equipment does cause harmful interference to radio or televisionreception, which can be determined by turning the equipment off and on, the user is encouraged to try tocorrect the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.—Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC rules. Operation is subject to the following twoconditions:(1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may causeundesired operation.Changes or modifications to this unit not expressly approved by the party responsible forcompliance could void the user's authority to operate the equipment.The device meets RF Exposure requirements without any restriction.
