Innowireless XCALSOLO Wireless System Measuring Instrument User Manual

XCAL-Mobile 4G

(For Android OS)

User Guide

Doc Rev: 2

Product Version: 4.3.xx

2013. 04

This documentation shall not be changed, distributed to the public, and opened to the third person without written permission.

Accuver is not responsible for any direct or indirect damages arisen or related to use of this manual. All information included

herein may be changed without prior notice.

Accuver Co., Ltd.,

Address: #1-301, Complex 2, Pangyo7 Techno Valley #633, Sampyung-Dong, Bundang-Gu, Seongnam-Si, Kyungki-Do

Web site: www.Accuver.com

Phone #: +82-31-788-1700

Fax #: +82-31-705-1246

I

Contents

Contents ........................................................................ I

Overview ...................................................................... 5

Special Features ........................................................ 6

Specification ............................................................. 6

Getting Started ............................................................. 7

Connecting PC and smart phone ................................... 8

Installing file explorer application (ES File Explorer) ........ 9

Transferring XCAL-Mobile 4G program file .................... 10

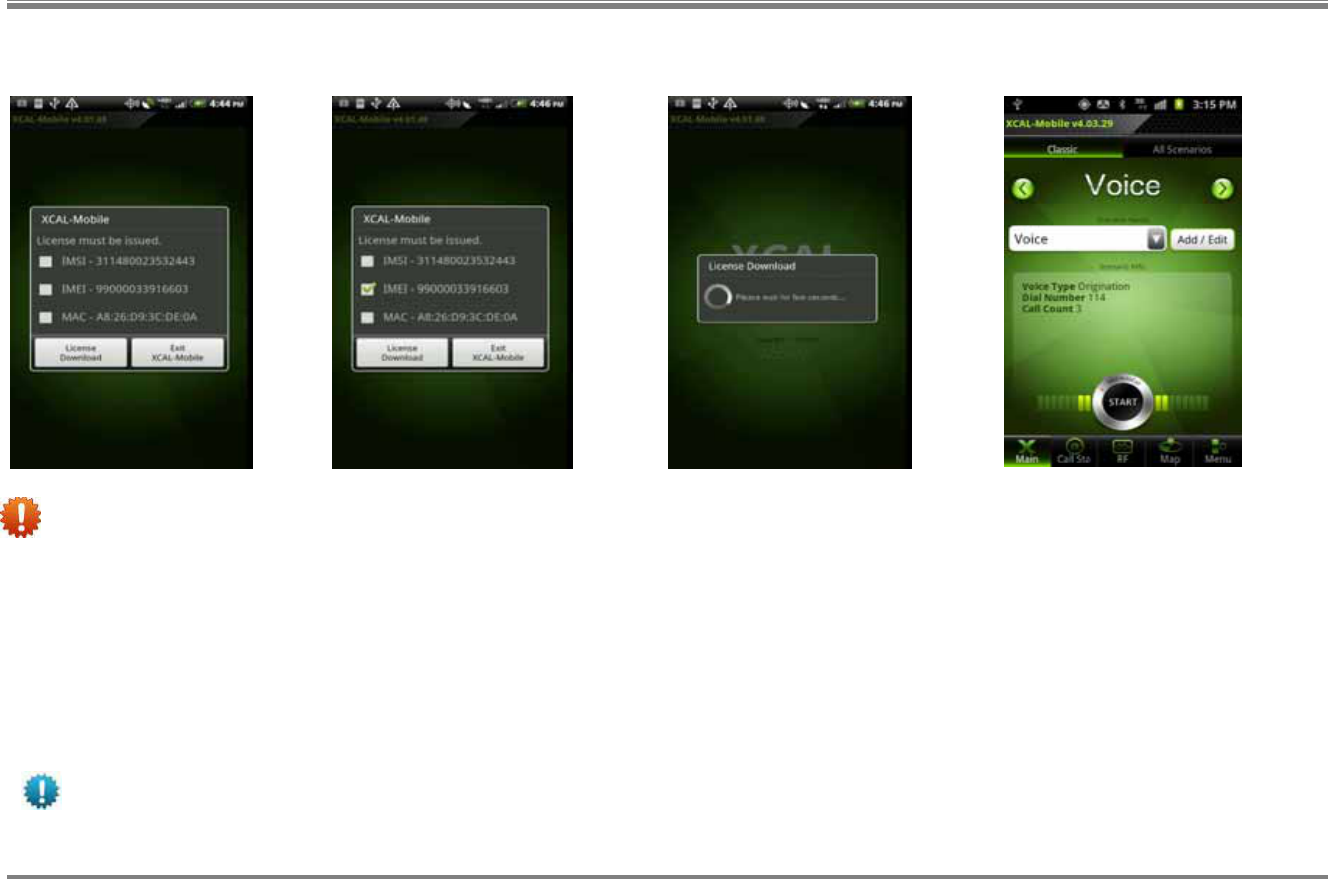

Starting XCAL-Mobile 4G ............................................. 12

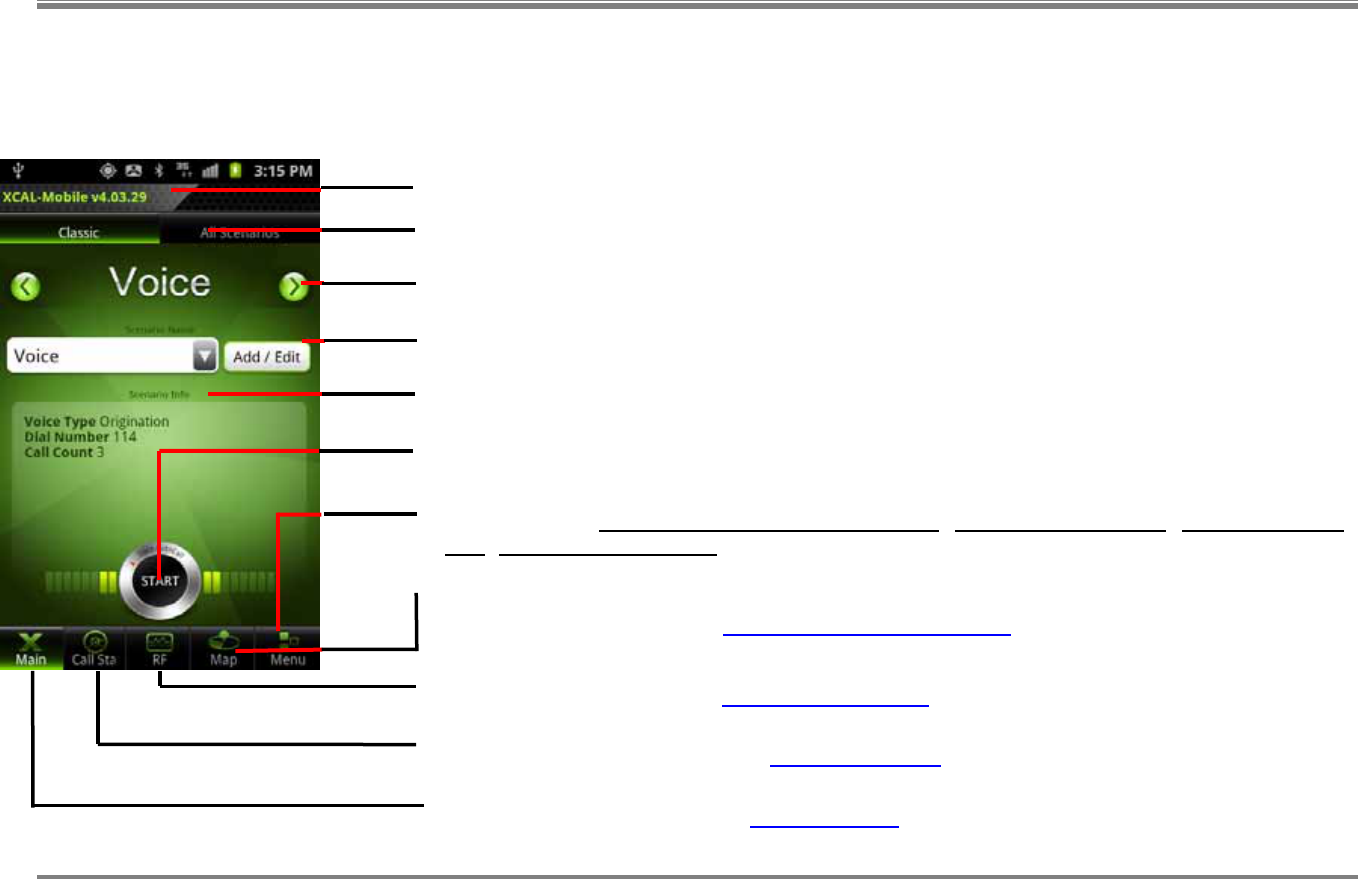

Graphic User Interface .............................................. 14

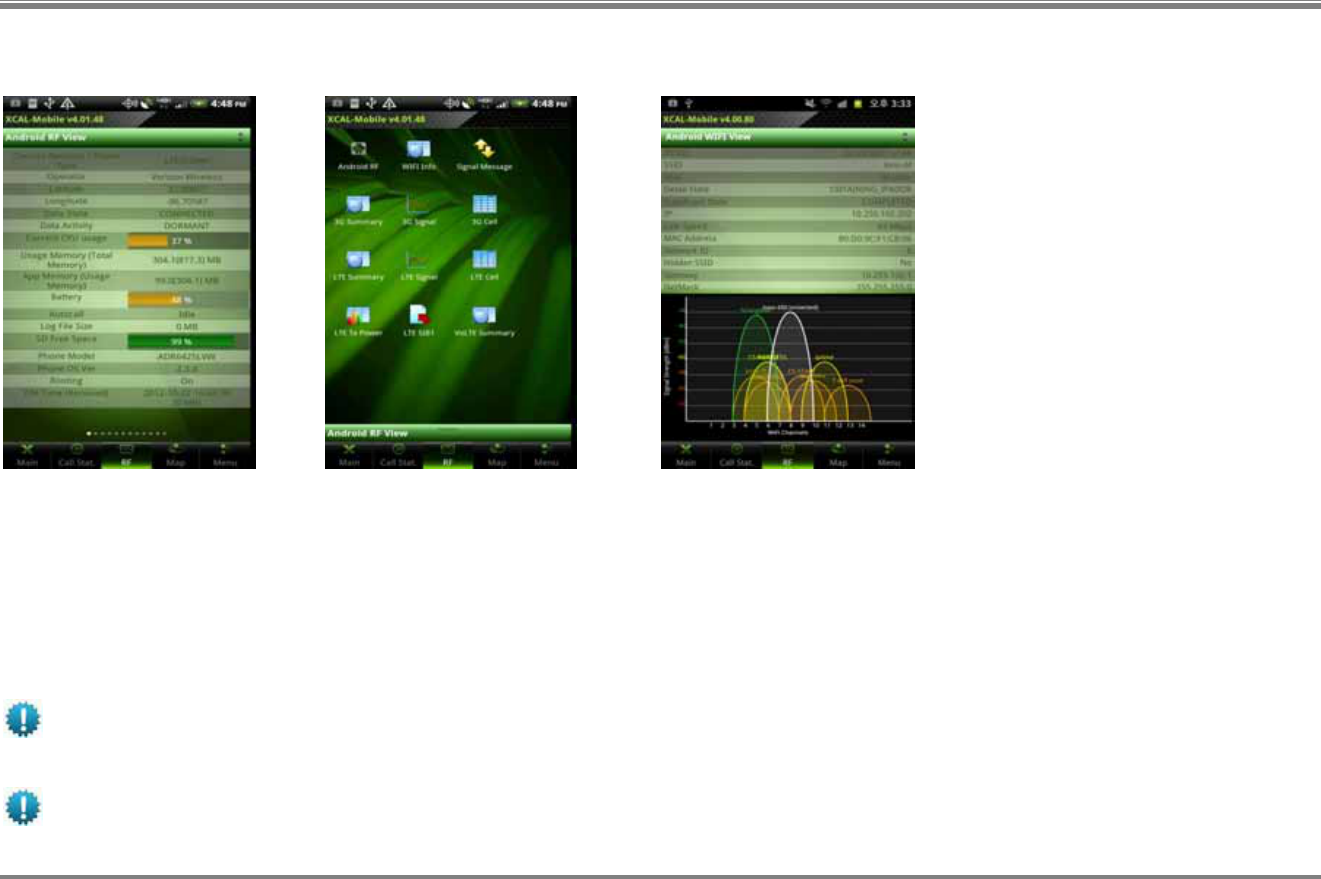

RF Information ........................................................... 15

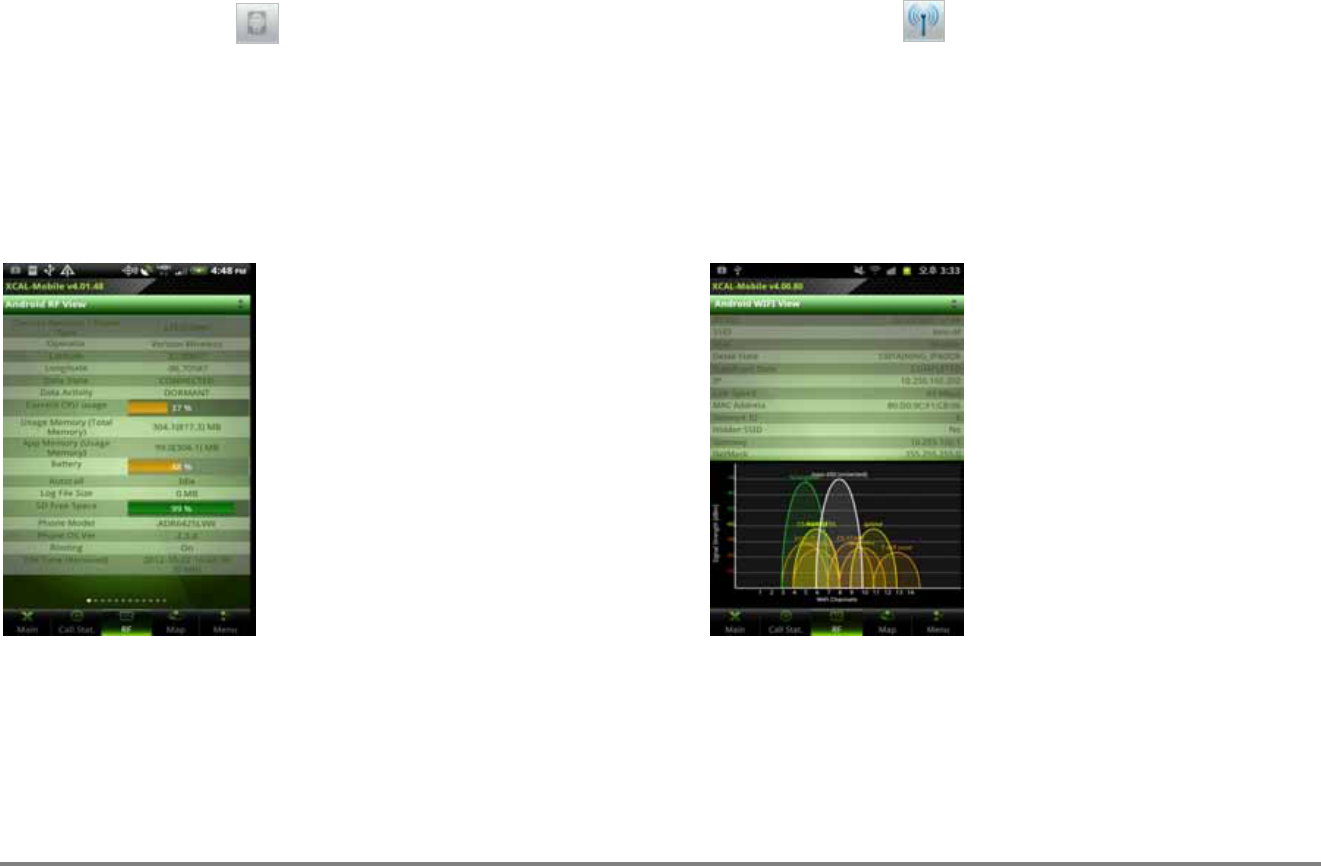

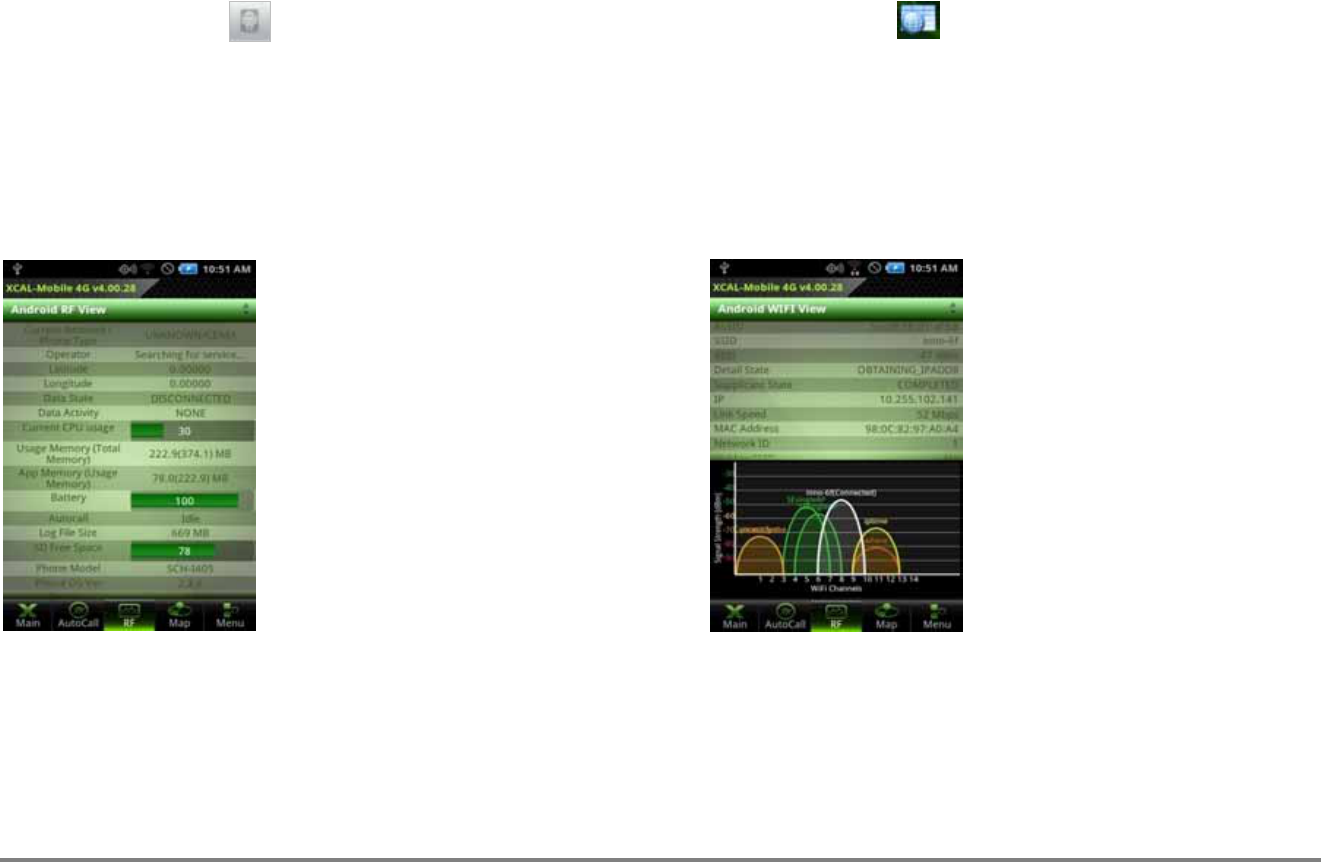

Android RF .............................................................. 17

WiFi Info ................................................................. 17

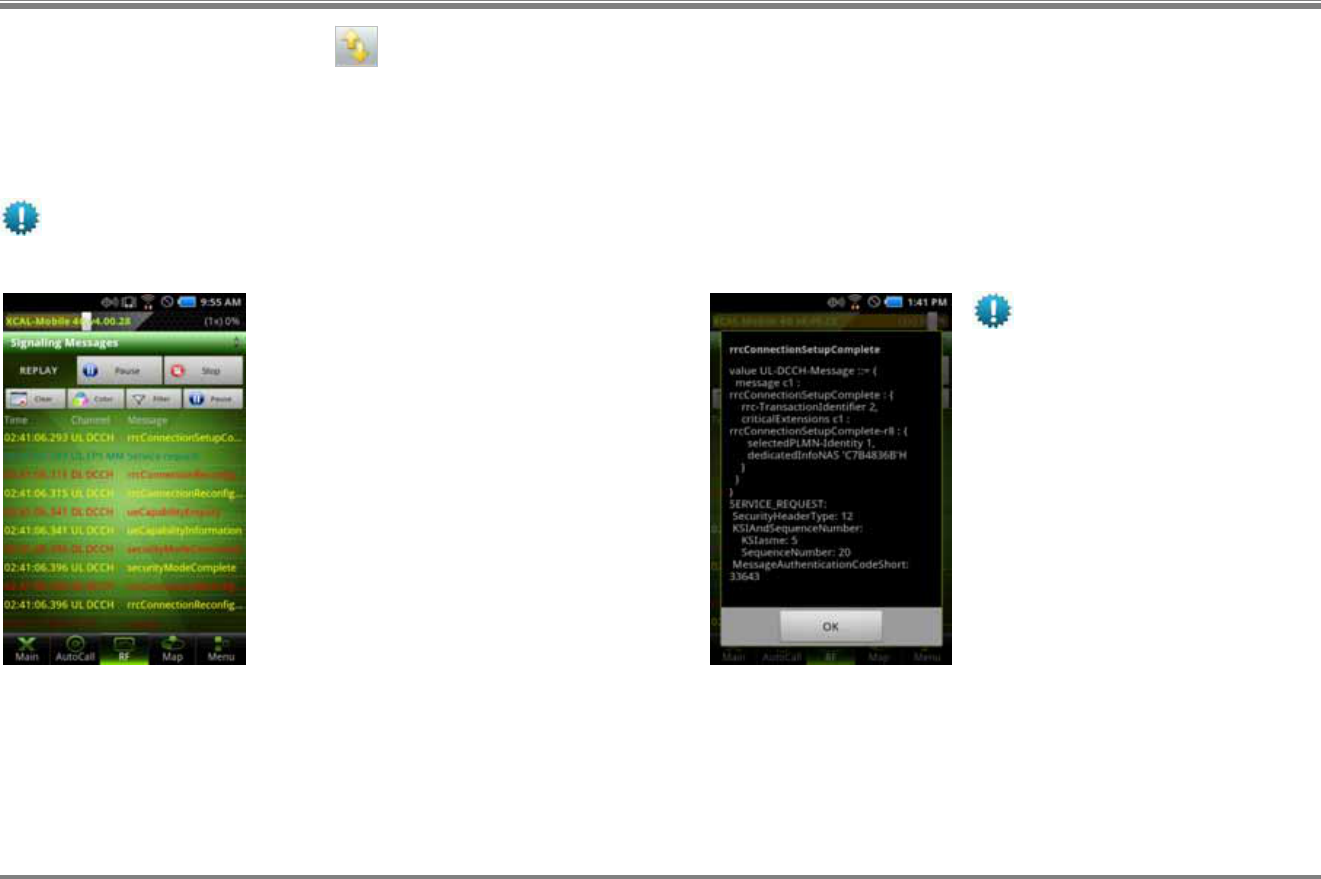

Signal Messages ....................................................... 18

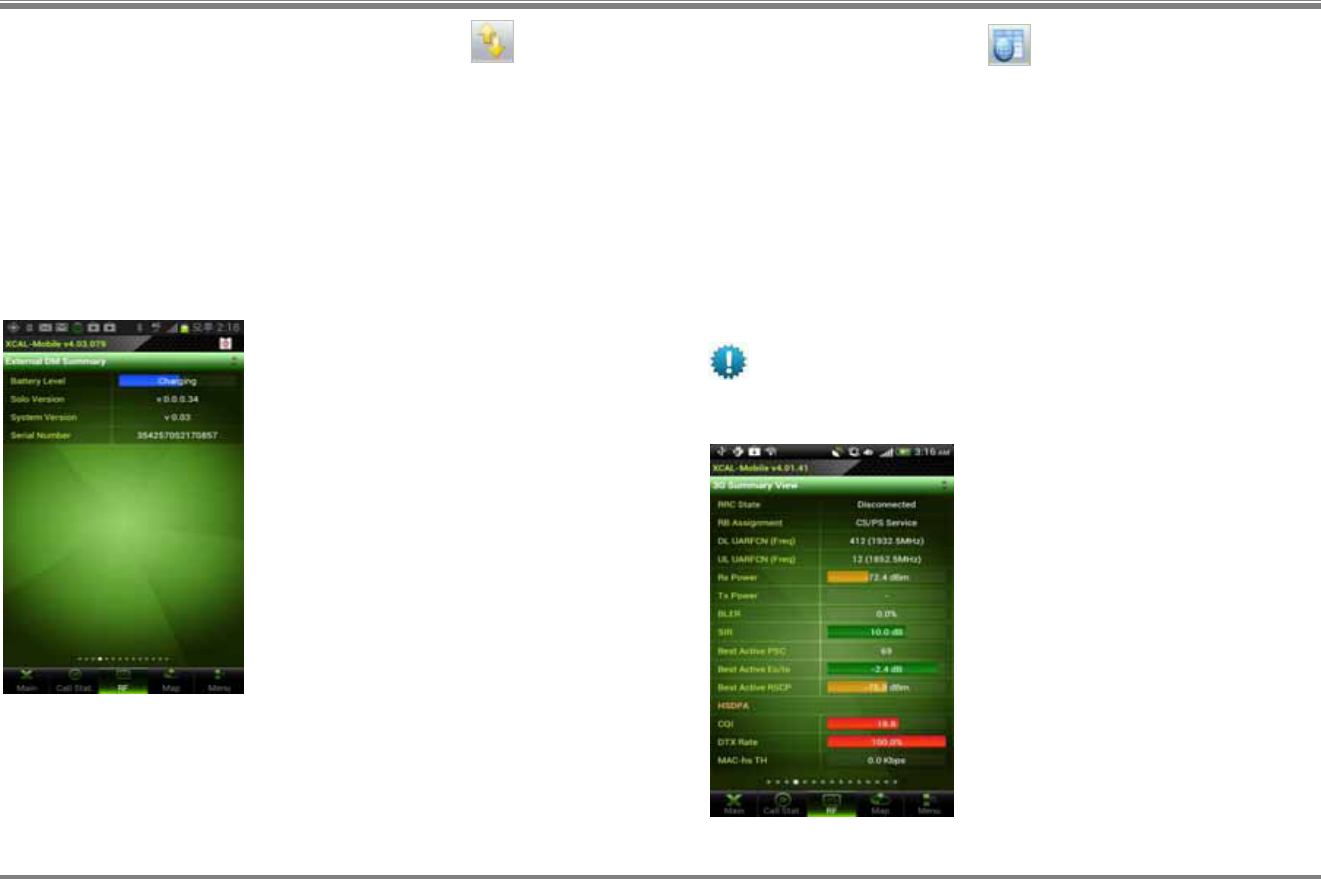

External DM Summary .............................................. 19

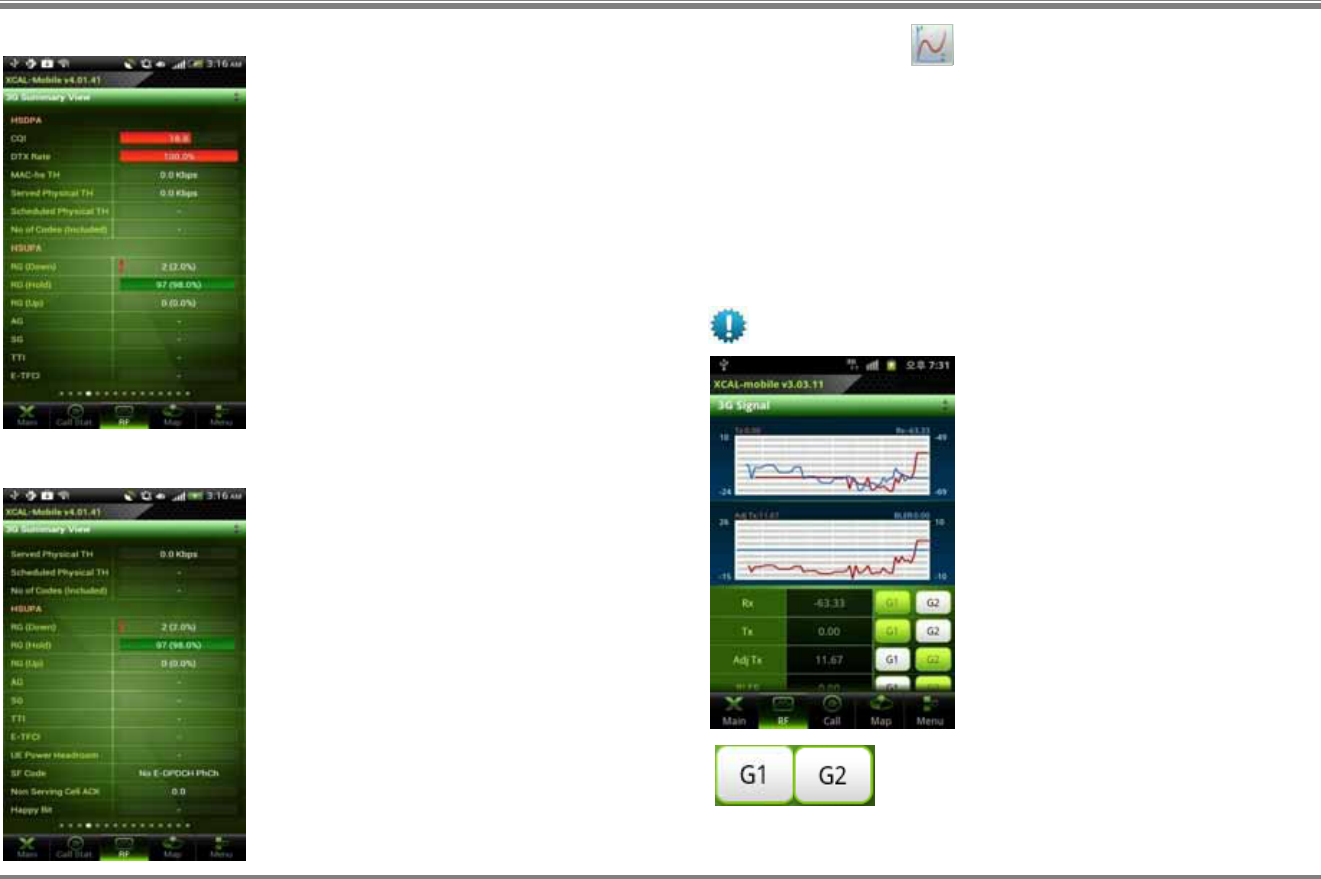

3G Summary ........................................................... 19

3G Signal ................................................................ 20

3G Cell ................................................................... 21

LTE Summary .......................................................... 21

LTE Signal ............................................................... 22

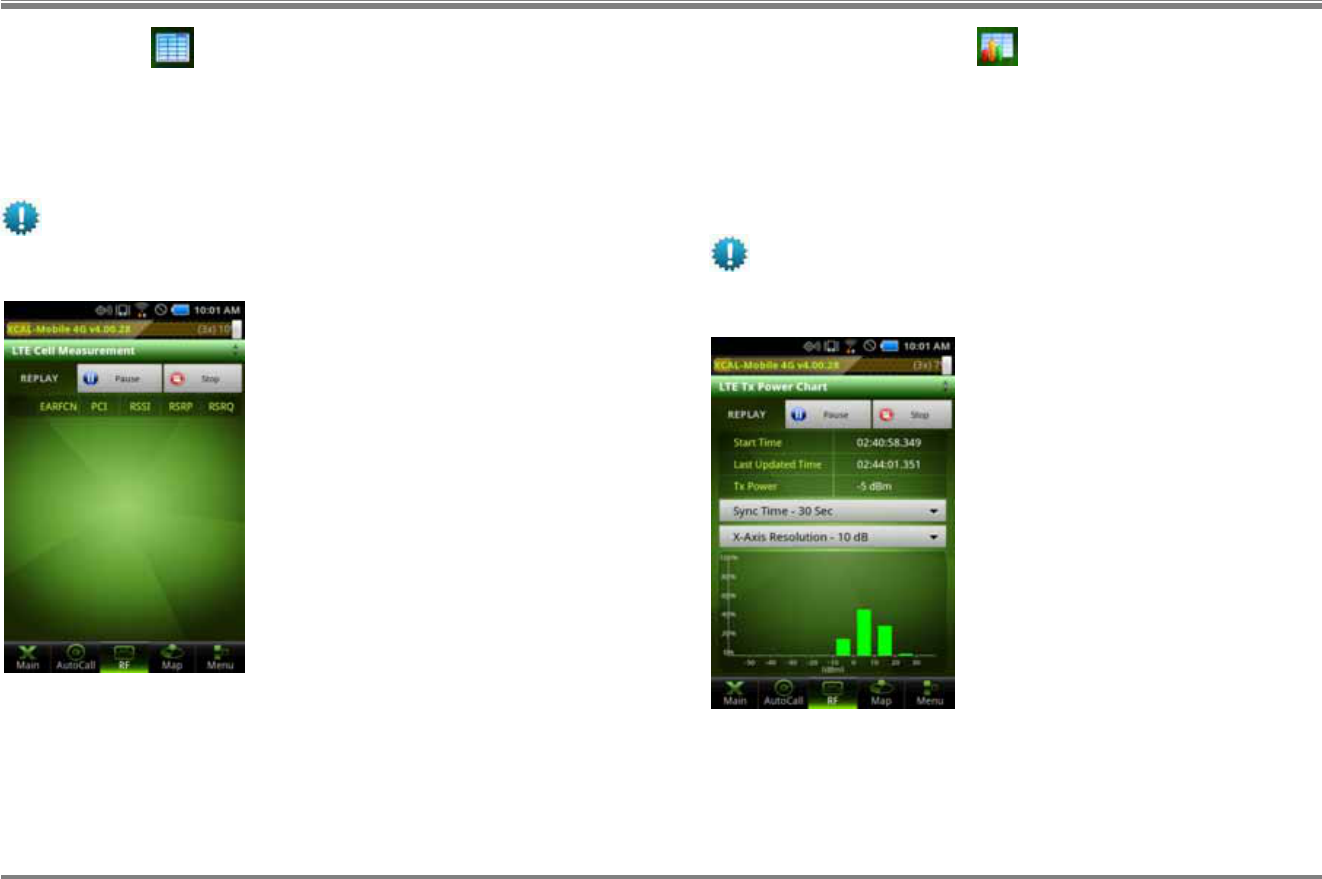

LTE Cell .................................................................. 22

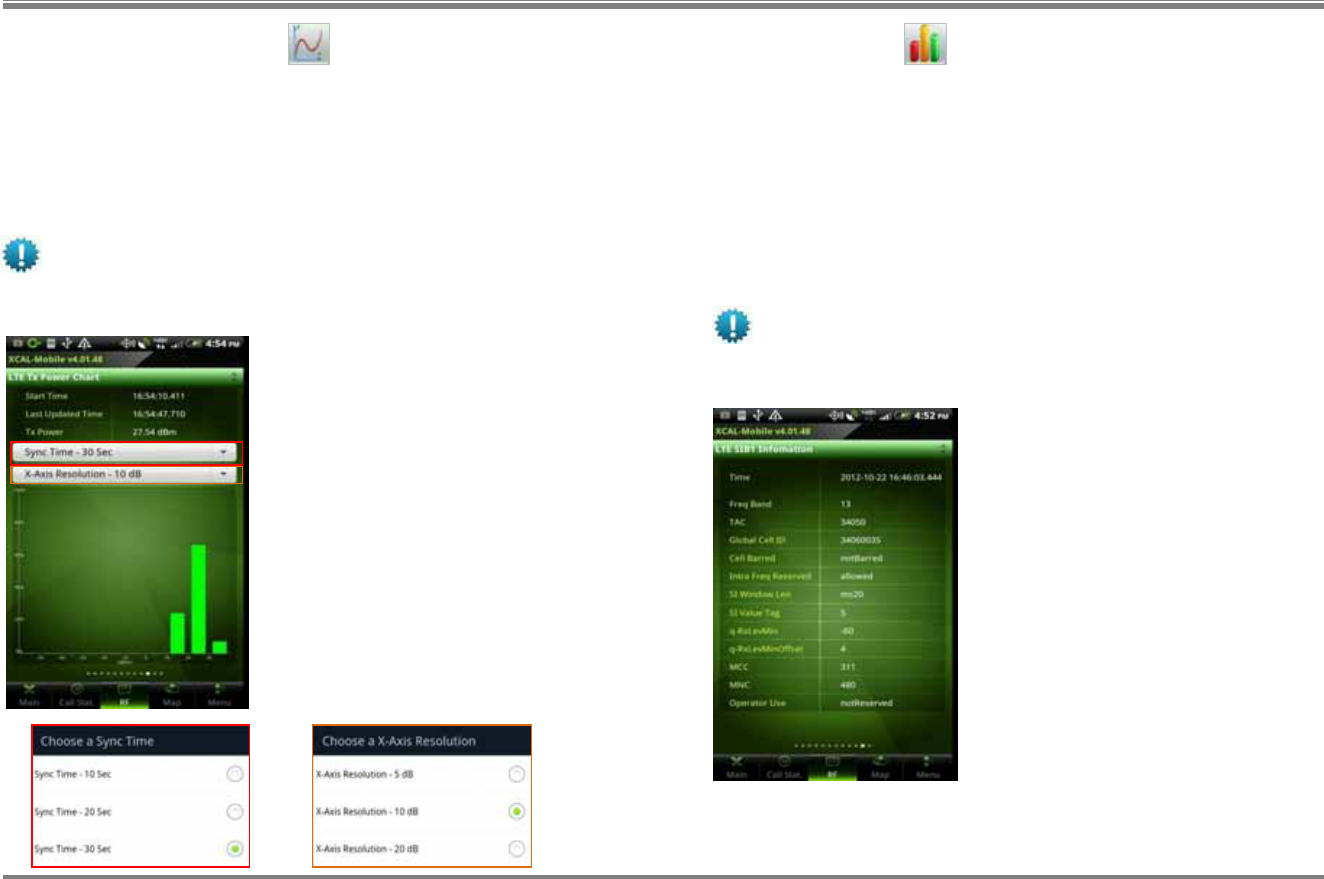

LTE Tx Power ........................................................... 23

LTE SIB1 ................................................................. 23

RTP Info.................................................................. 24

CDMA Summary ....................................................... 24

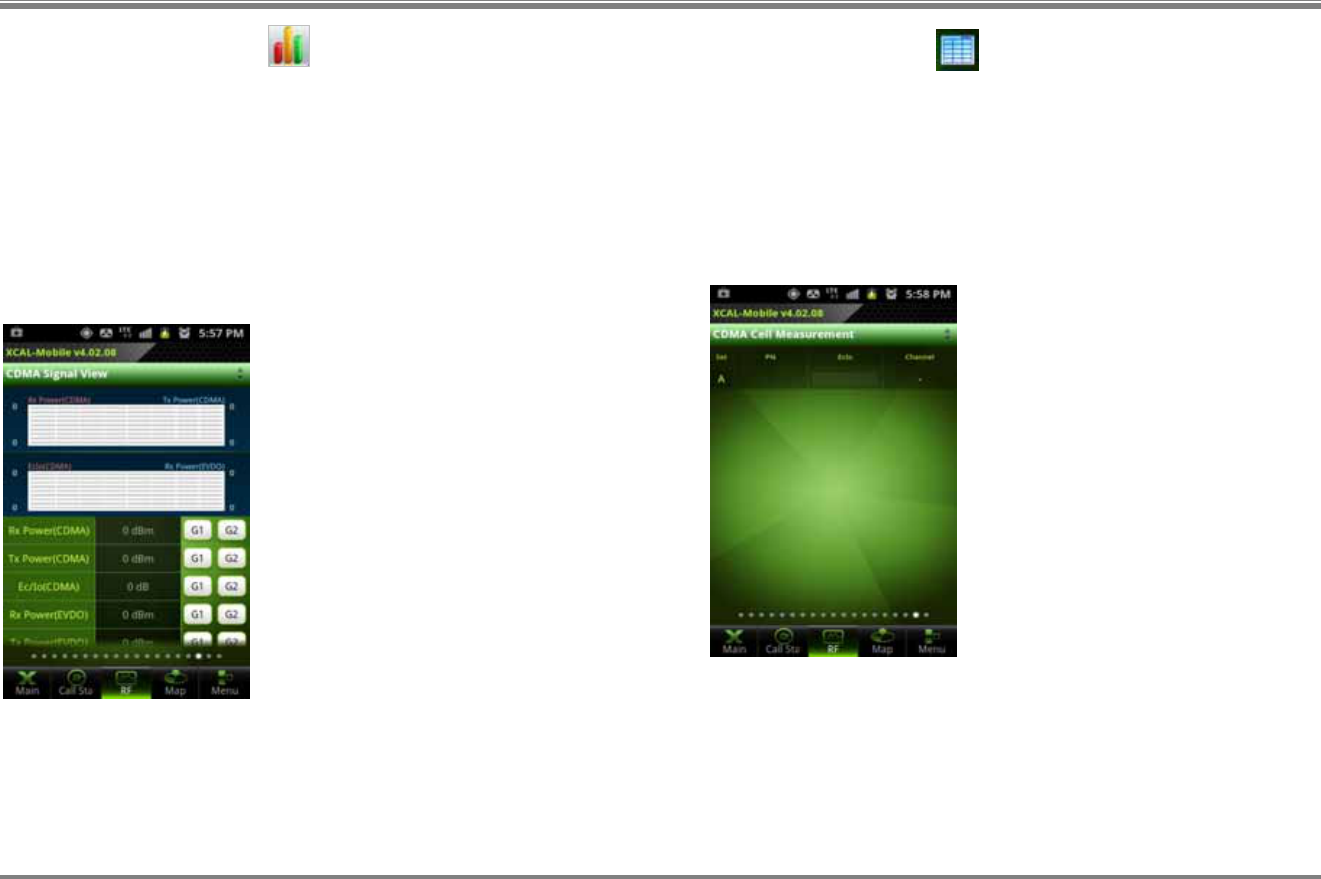

CDMA Signal ............................................................ 25

CDMA Cell ............................................................... 25

EVDO Cell ............................................................... 26

RF Information of Samsung chip ................................. 27

Android RF .............................................................. 29

WiFi Info ................................................................. 29

Signal Messages ...................................................... 30

4G Summary ........................................................... 31

4G Signal ................................................................ 31

4G Cell ................................................................... 32

4G Tx Power ........................................................... 32

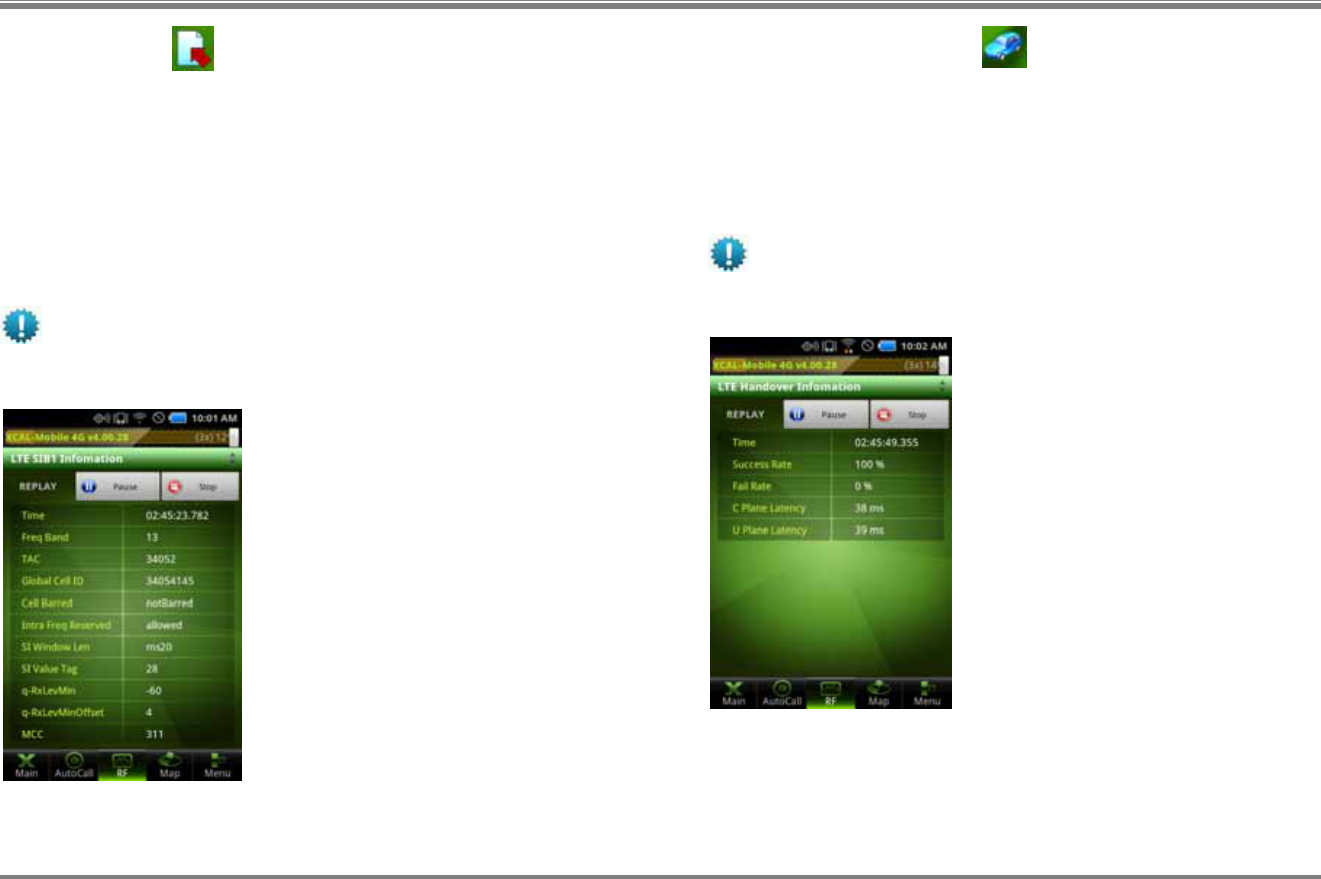

4G SIB1 ................................................................. 33

4G Handover ........................................................... 33

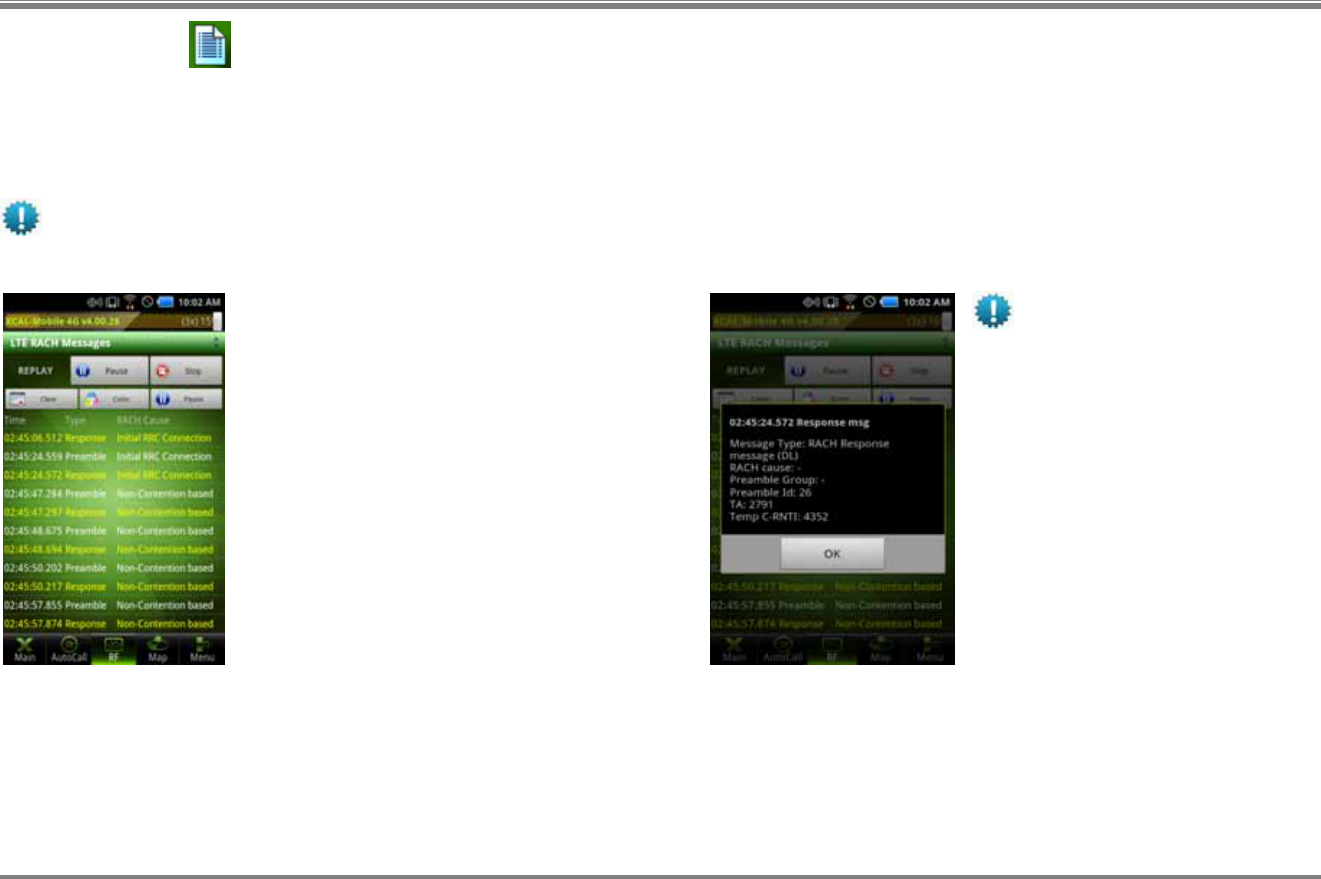

4G RACH ................................................................ 34

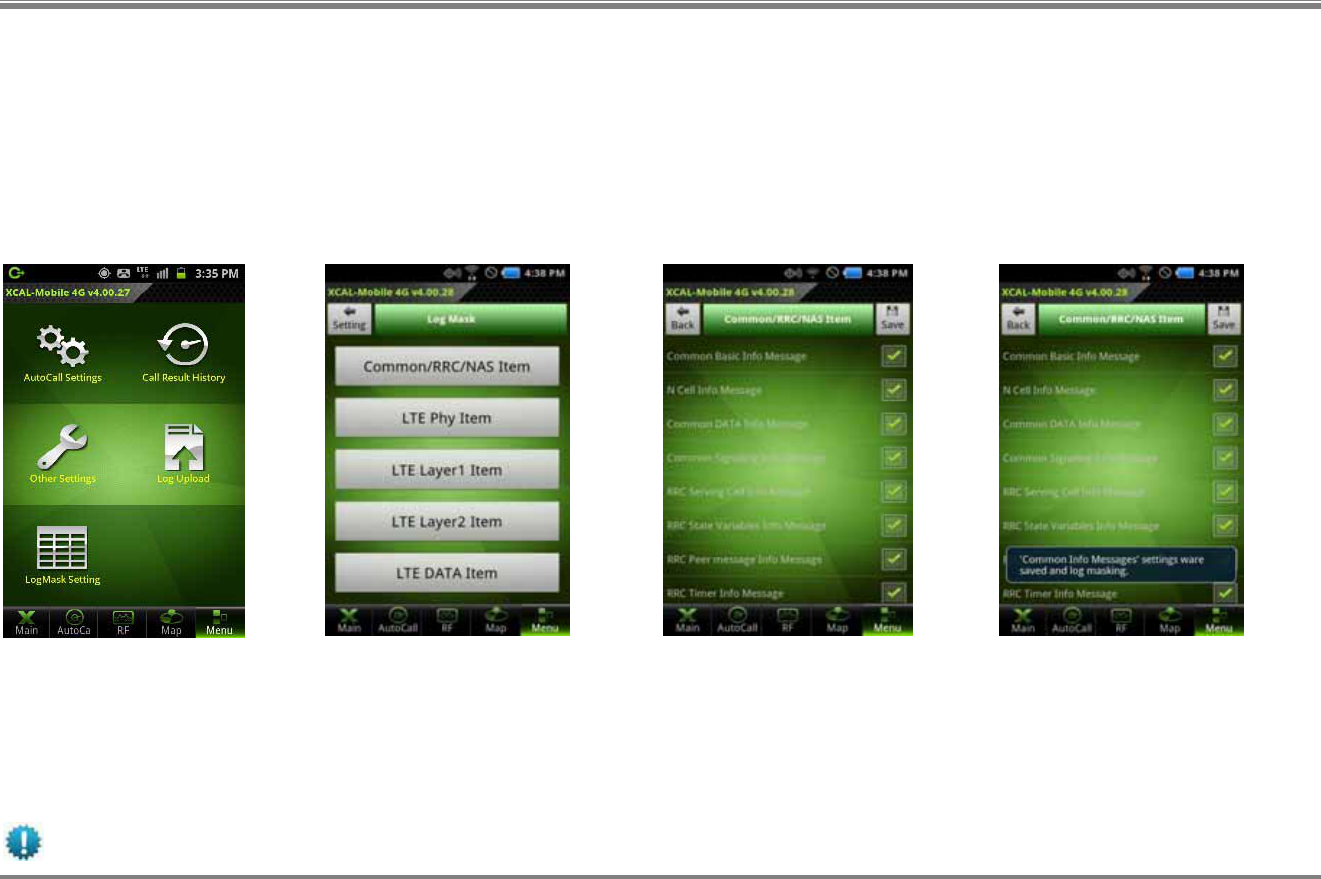

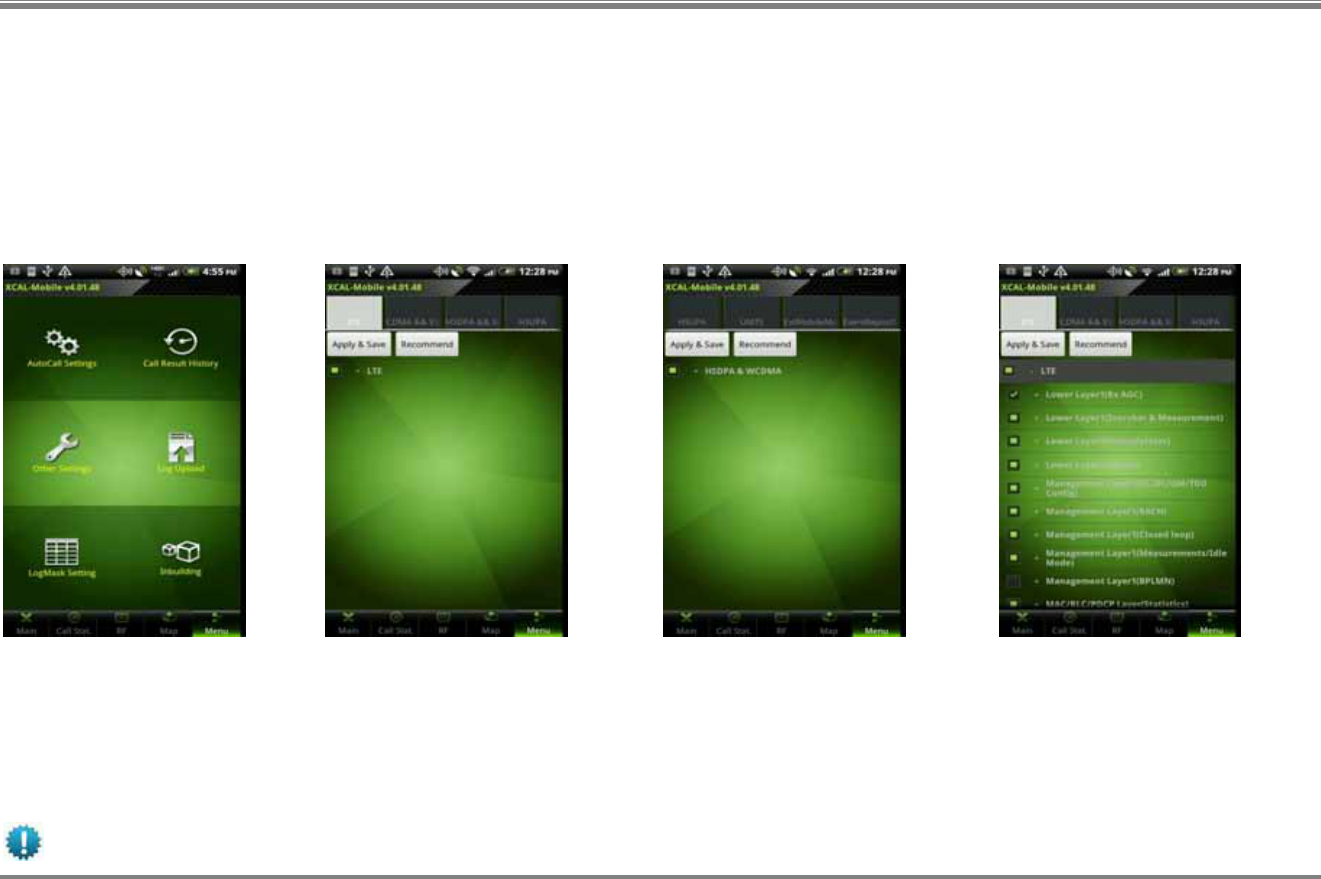

Configuring LogMask .................................................. 35

Configuring LogMask Setting ..................................... 36

Configuring LogMask Setting of Samsung Chip ............. 37

Performing AutoCall Test ............................................ 38

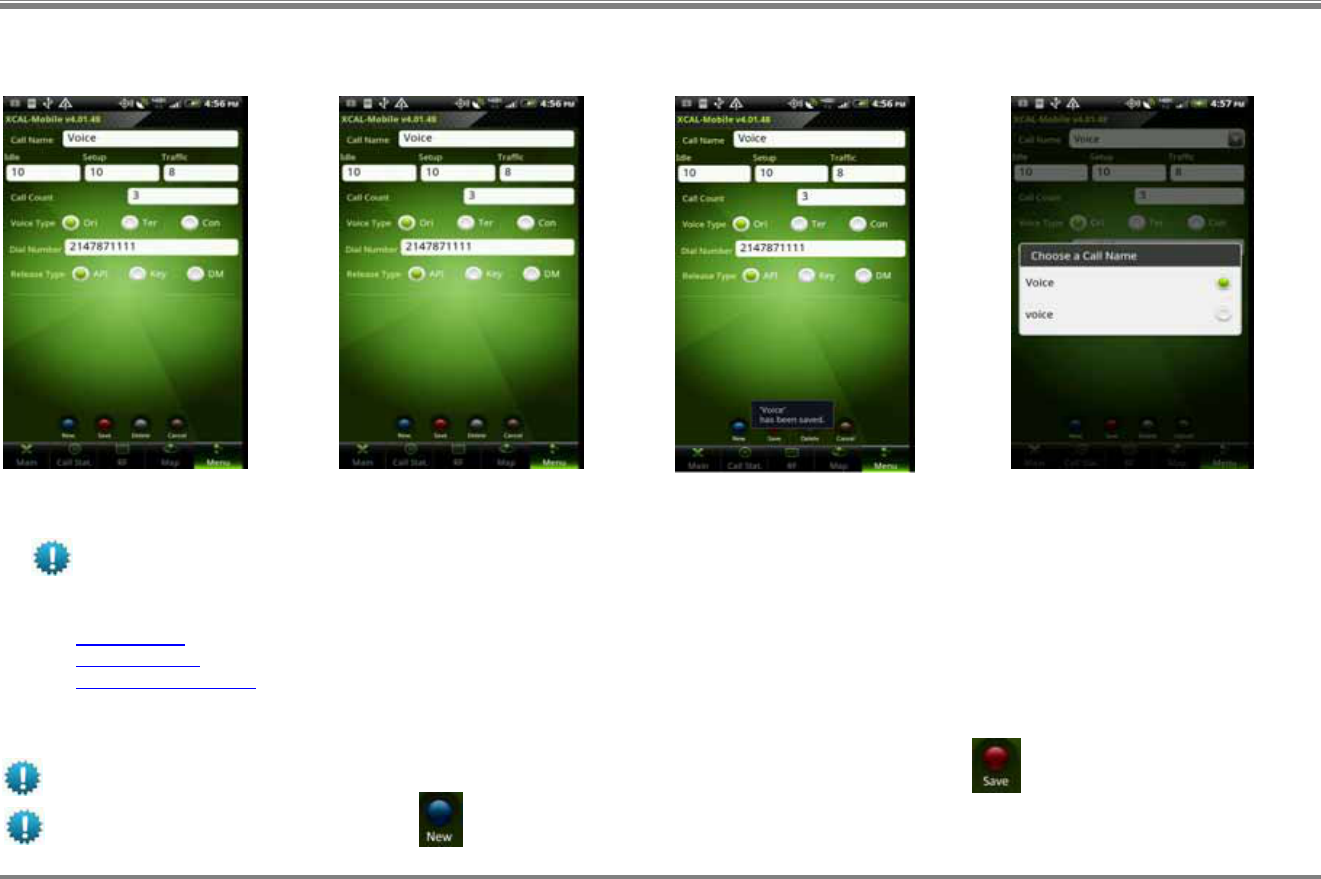

Creating AutoCall Scenario ........................................ 39

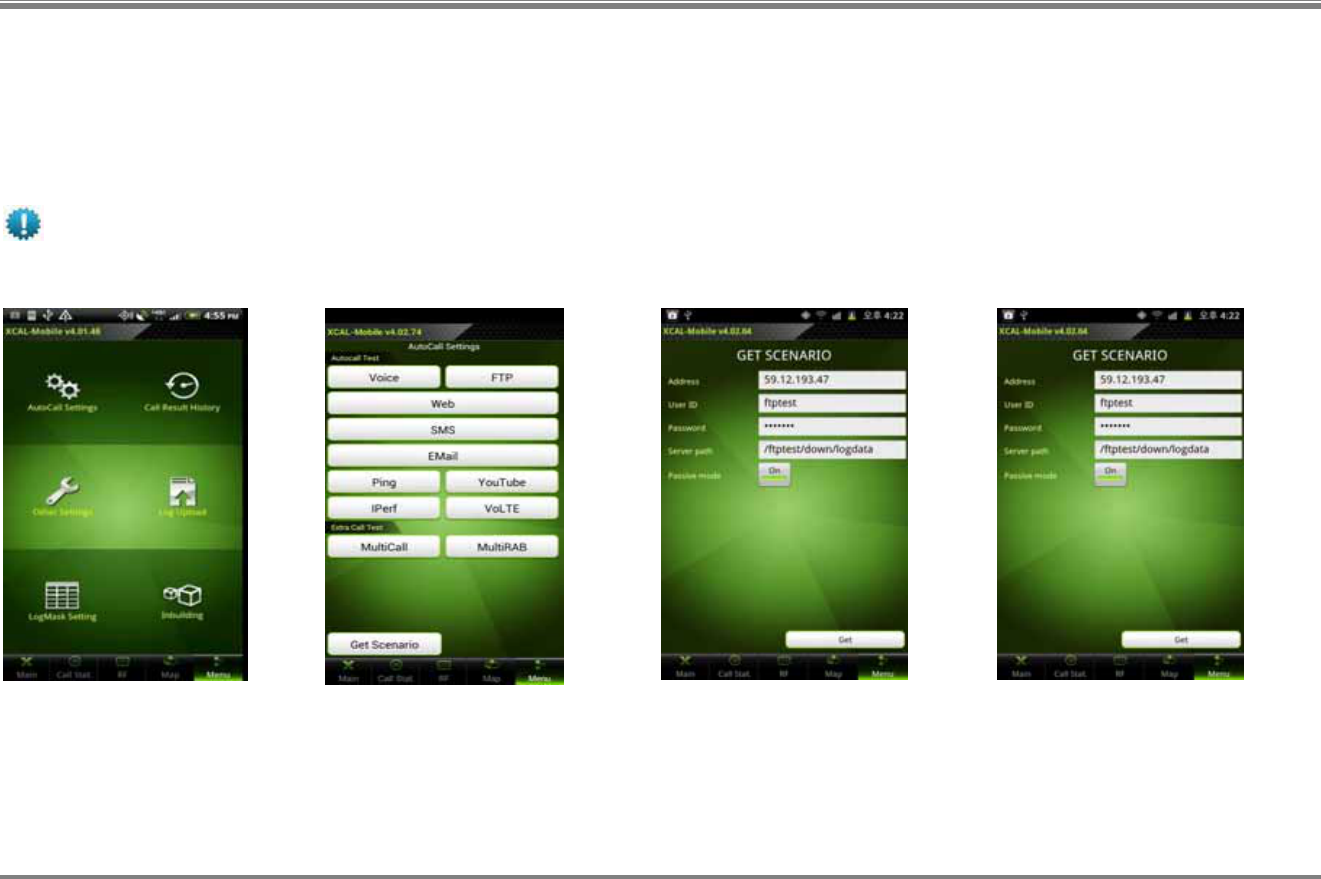

Importing AutoCall Scenario ................................. 41

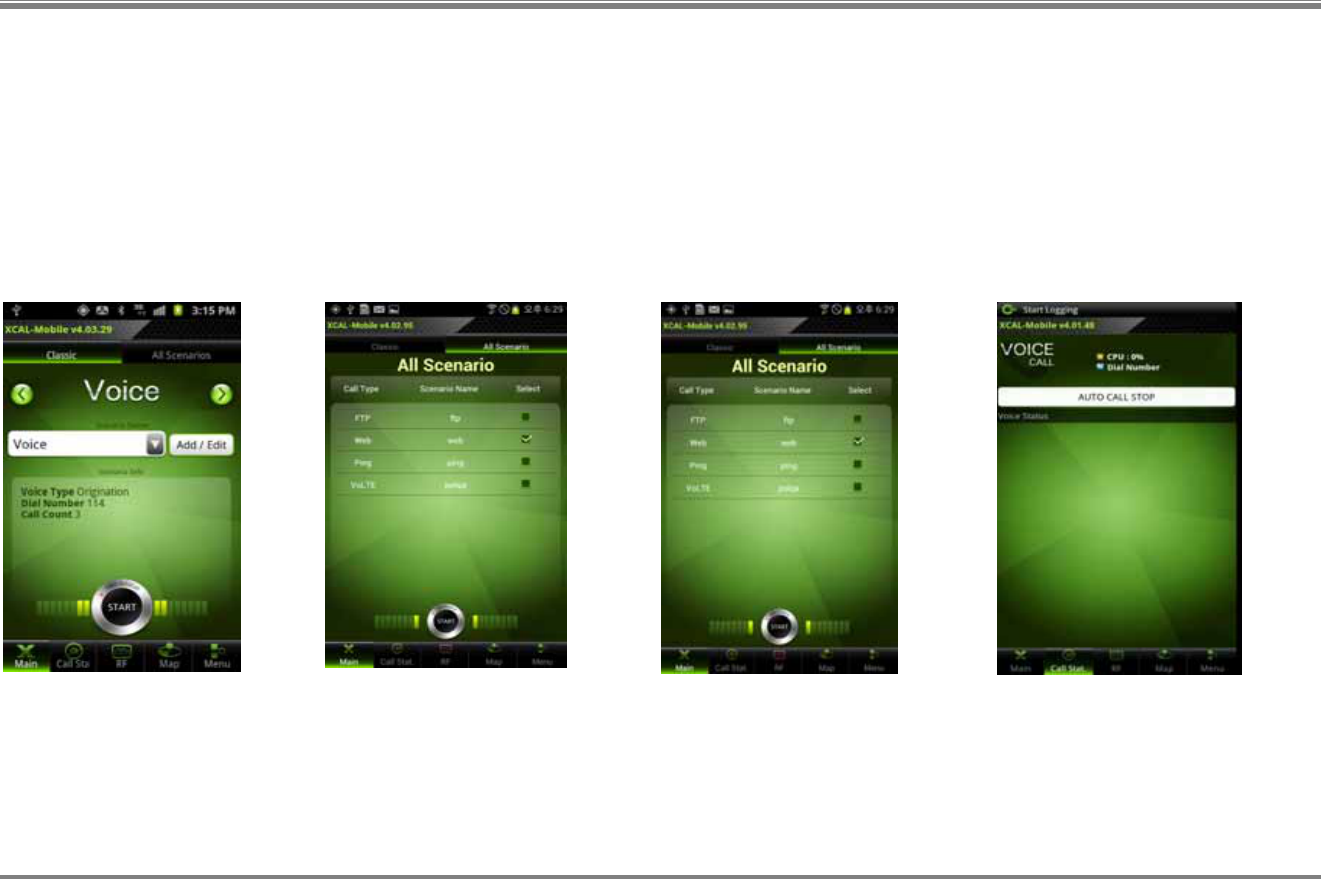

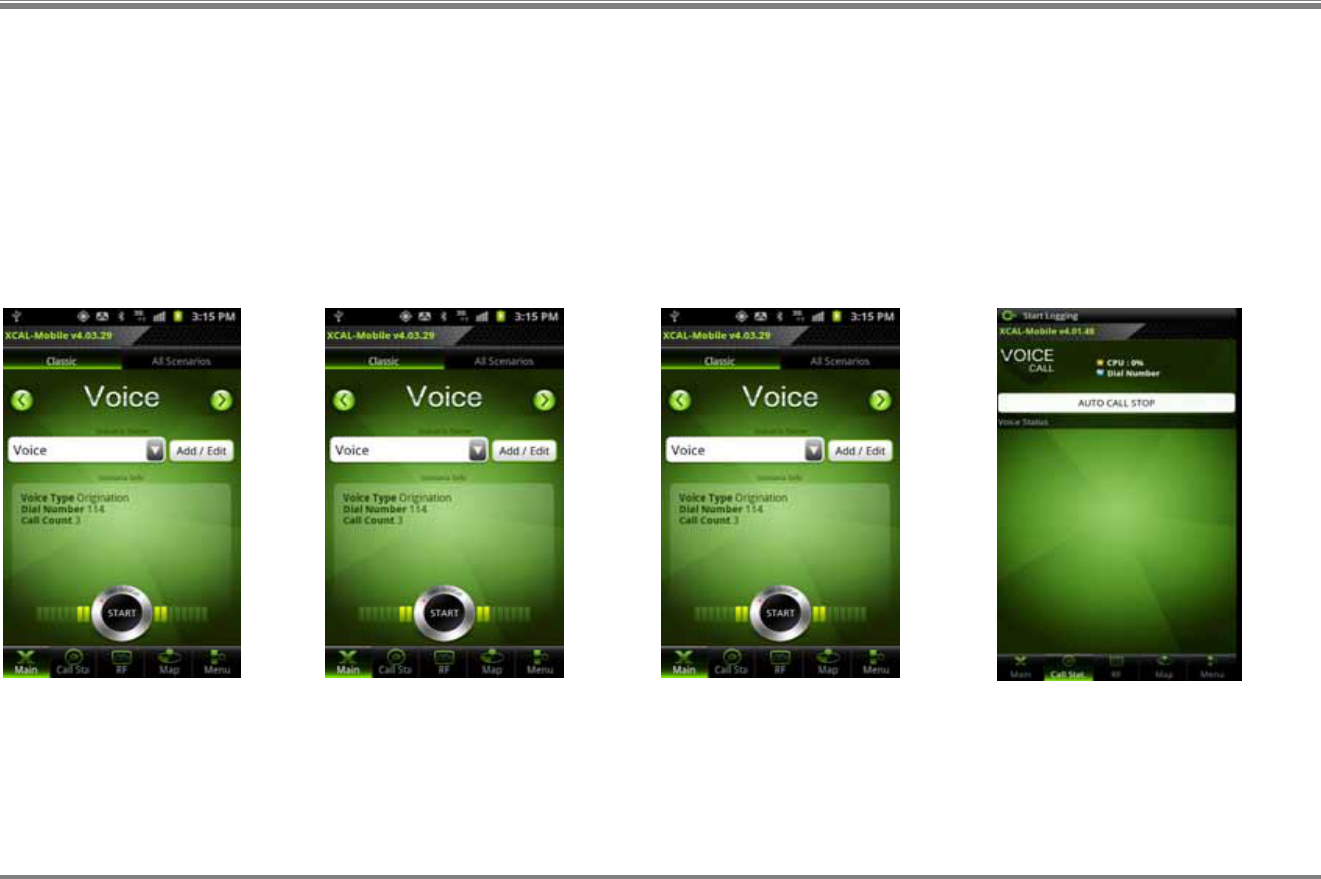

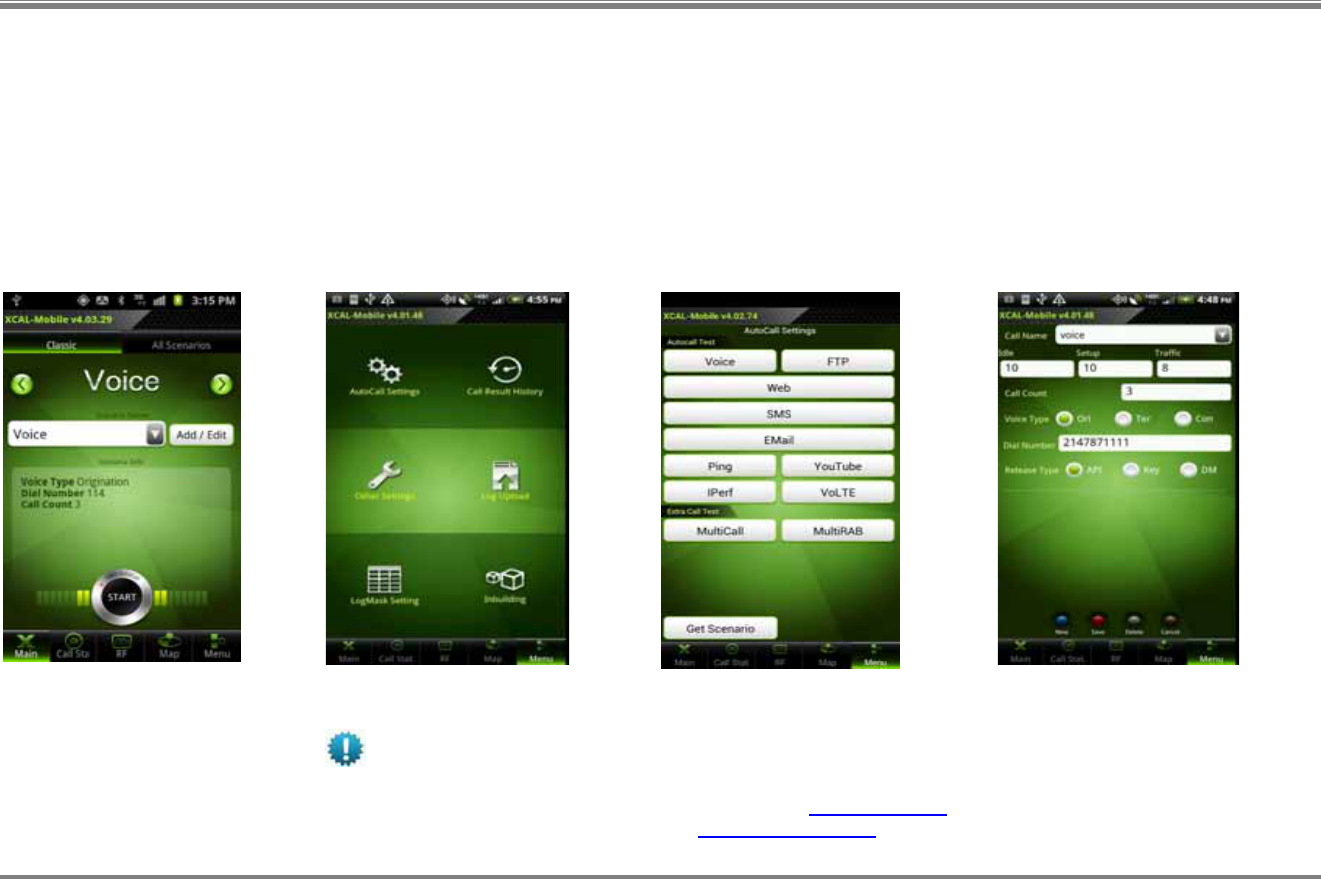

Starting AutoCall Test (In Classic tab) ......................... 42

Starting AutoCall Test (In All Scenario tab) .................. 44

Terminating AutoCall Test .......................................... 46

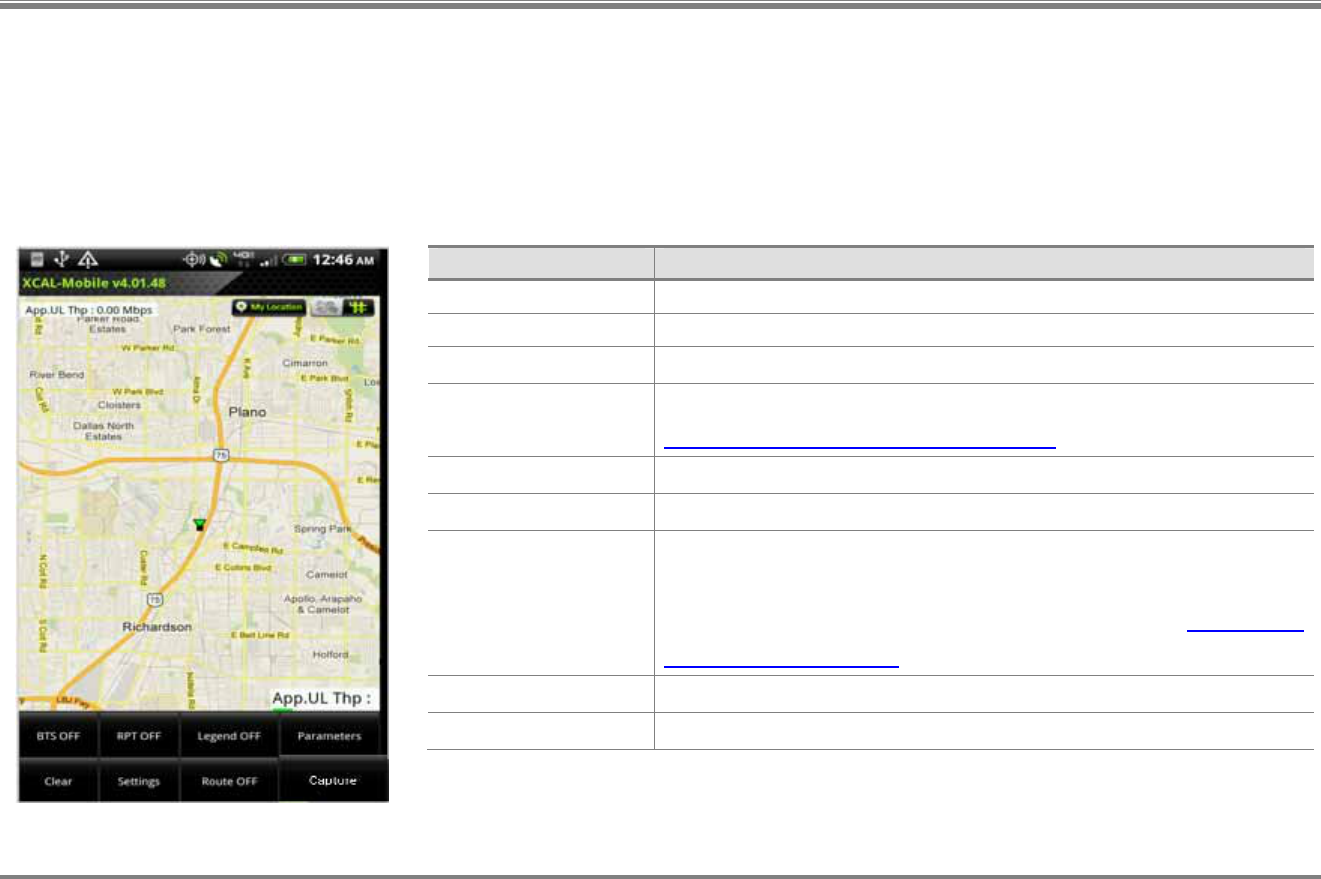

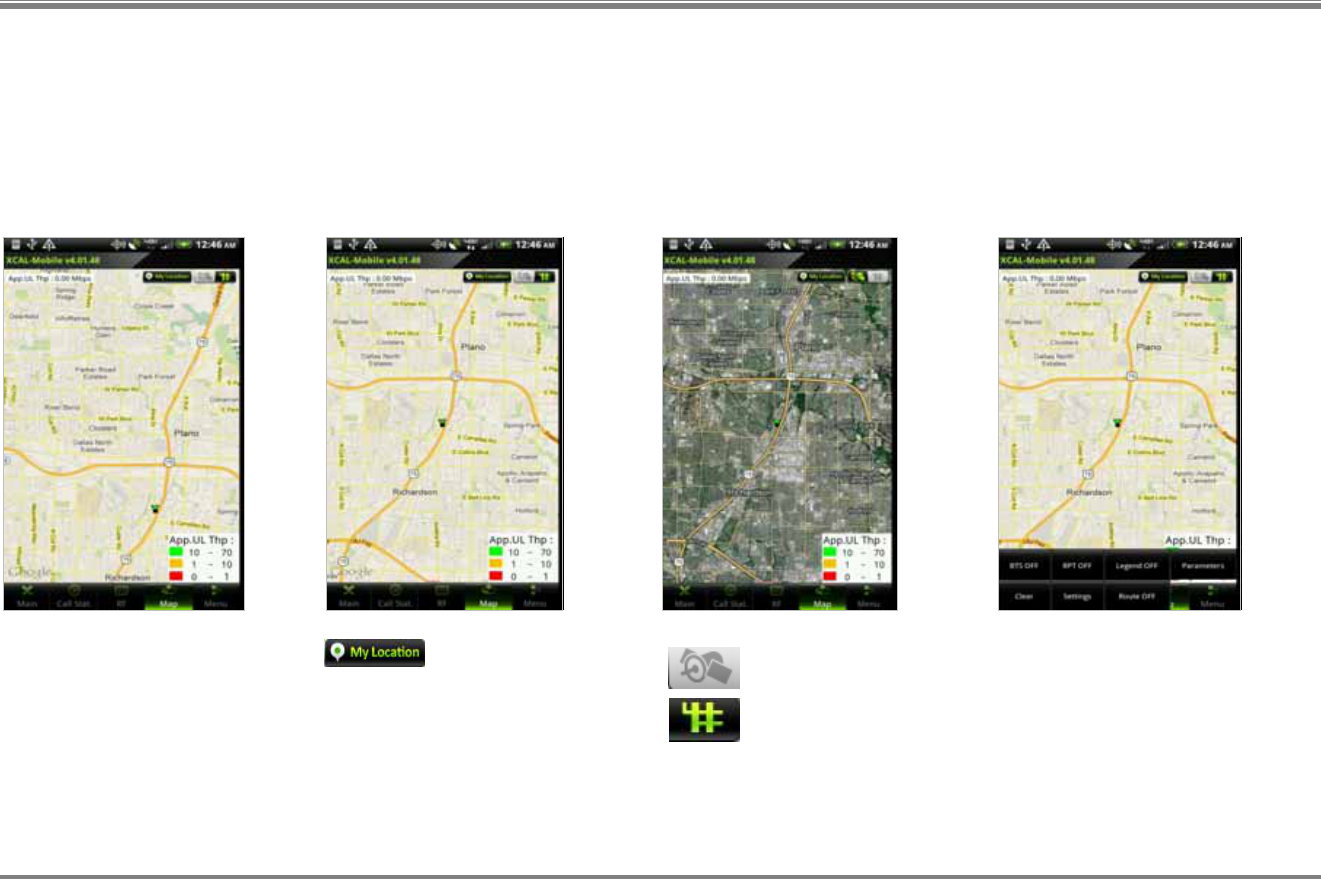

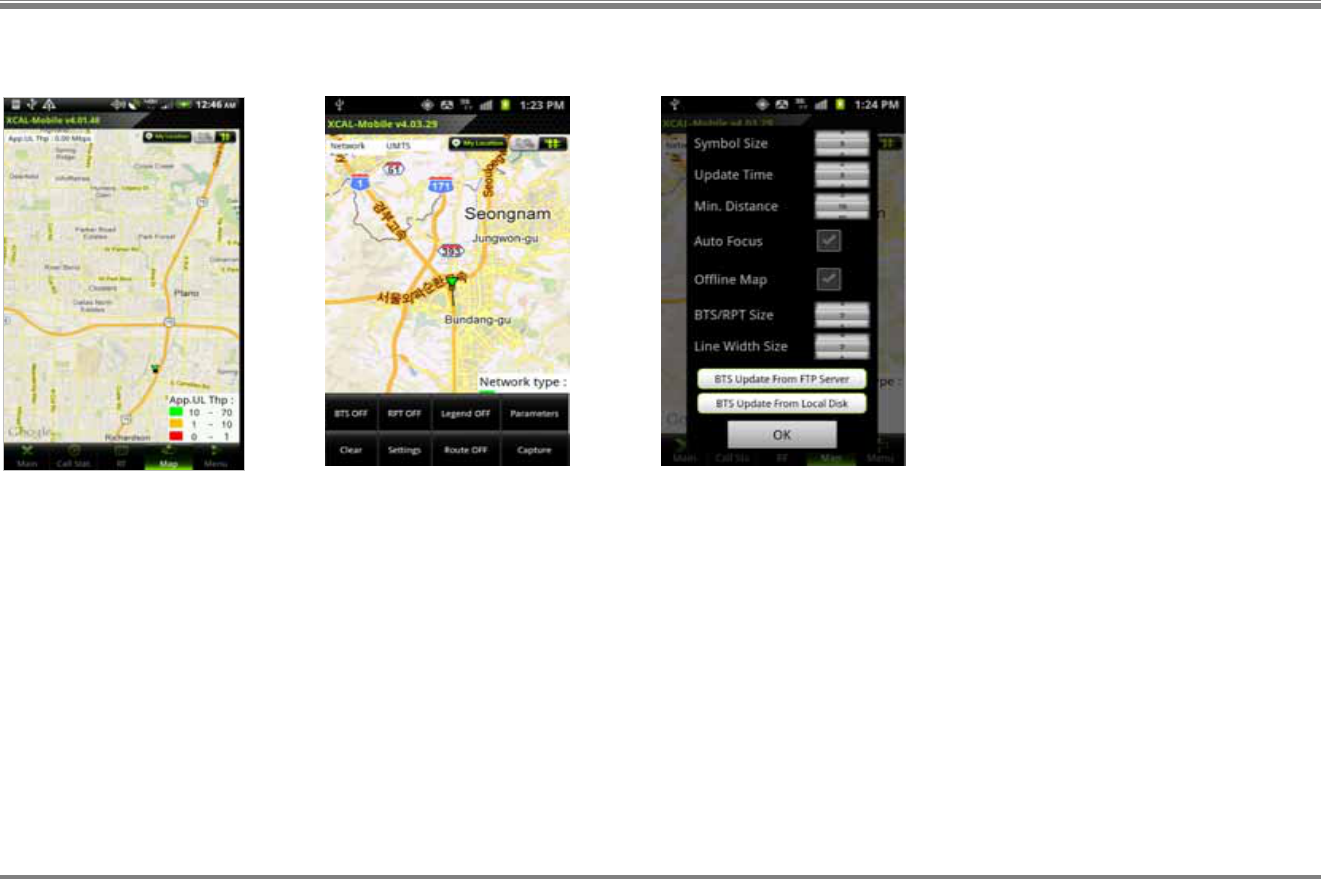

Monitoring in Google Map ........................................... 47

Displaying Data in Google Map ................................... 48

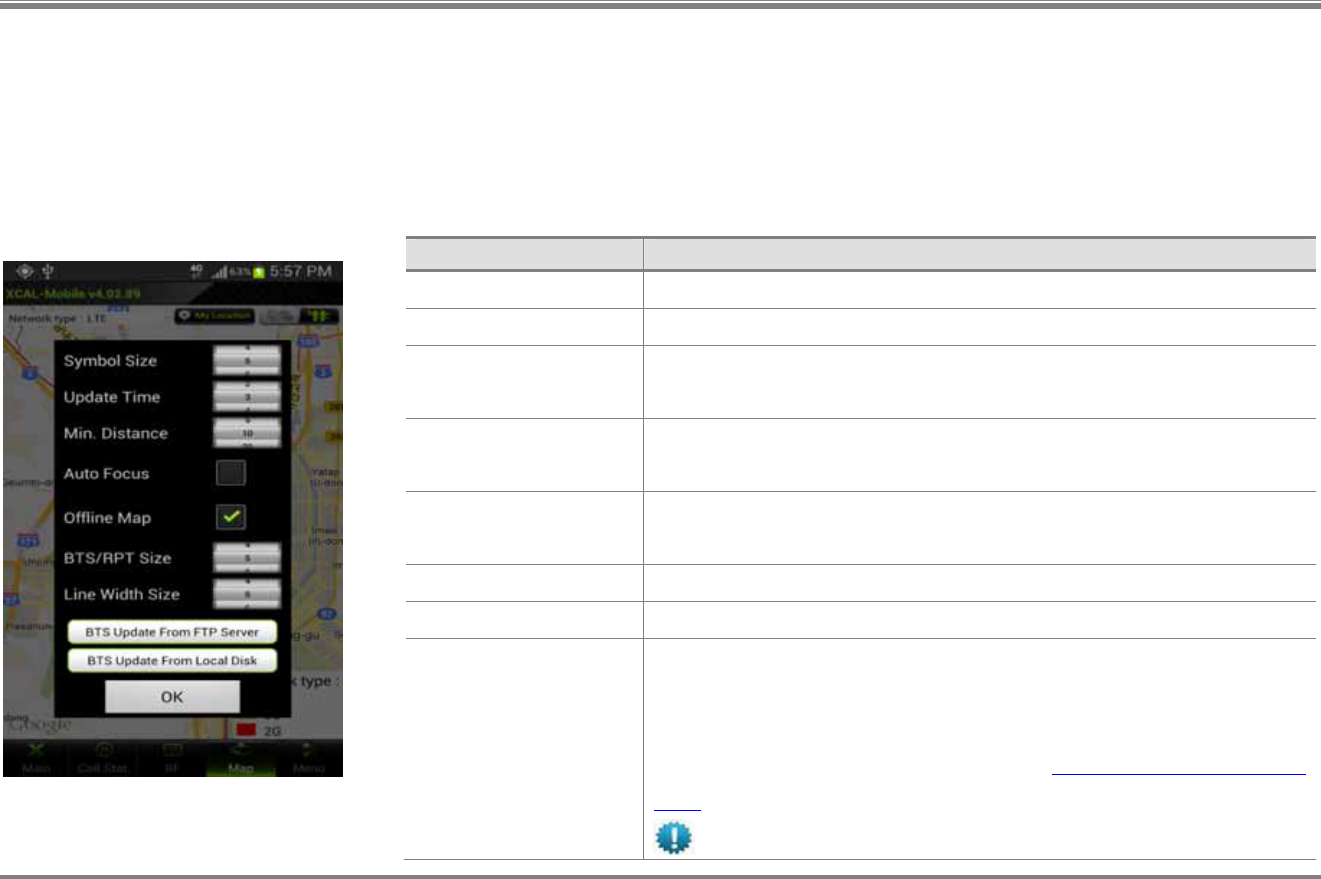

Configuring Map Options ........................................... 49

Configuring Map Options – Parameters ................... 50

Configuring Map Options – Settings ....................... 51

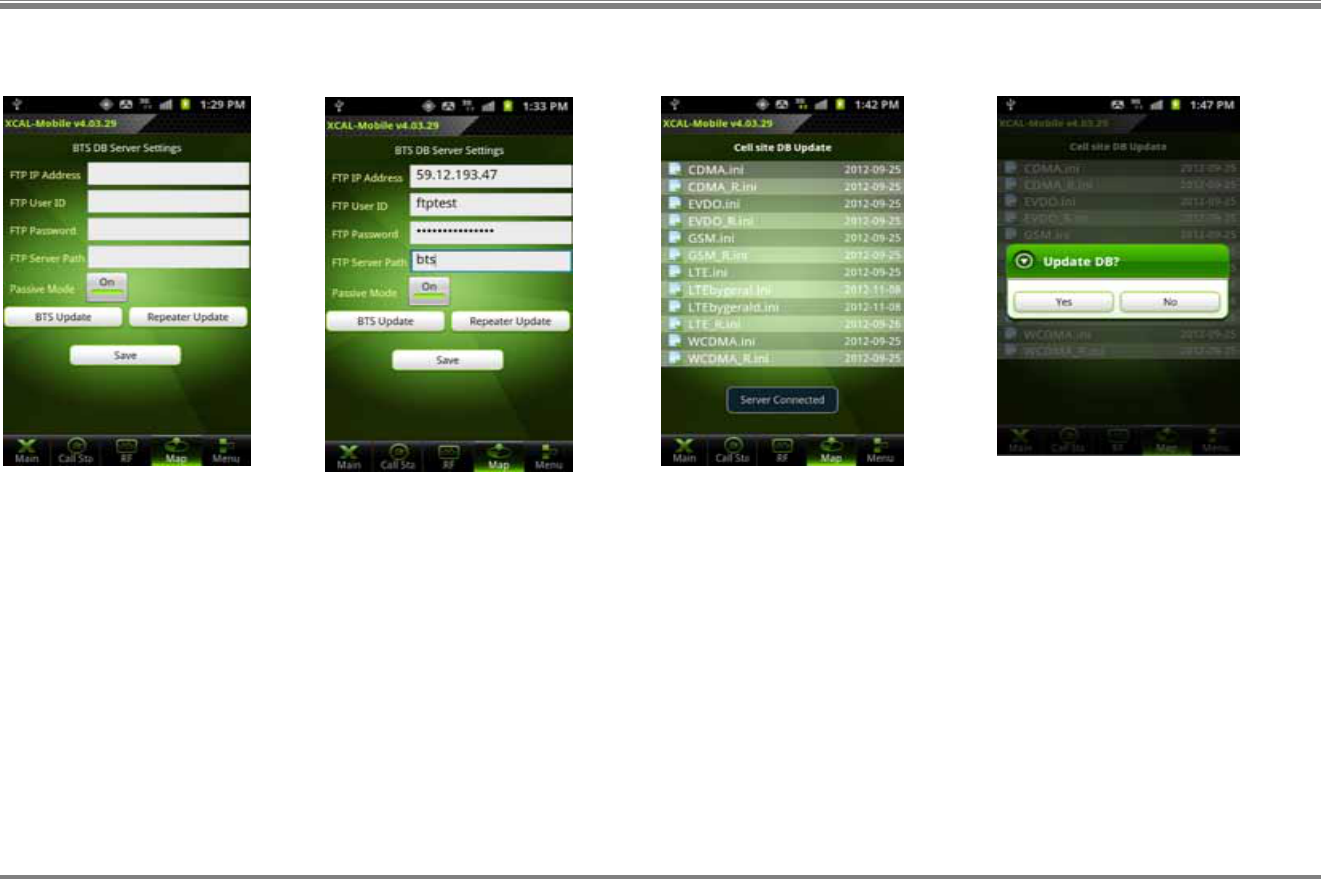

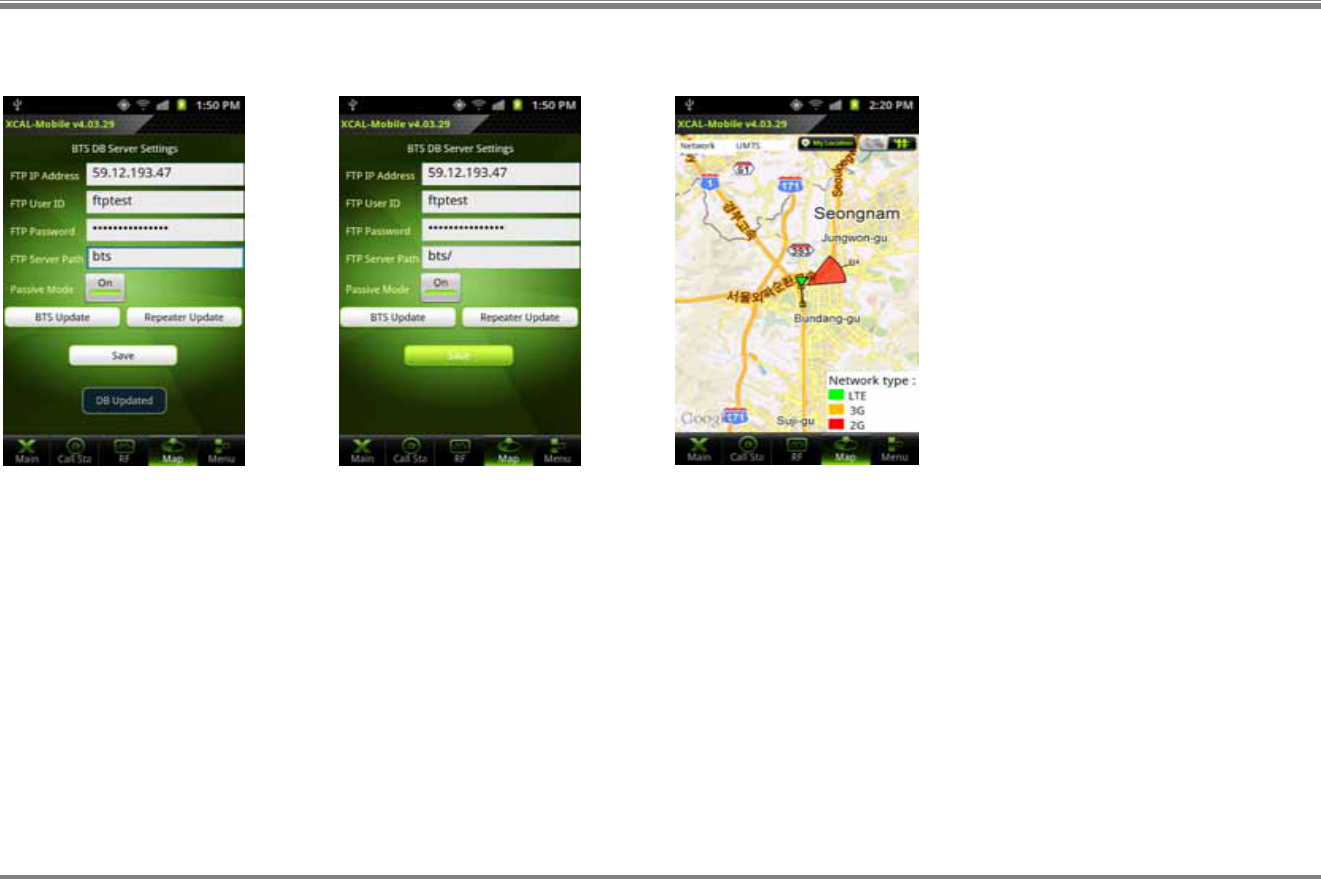

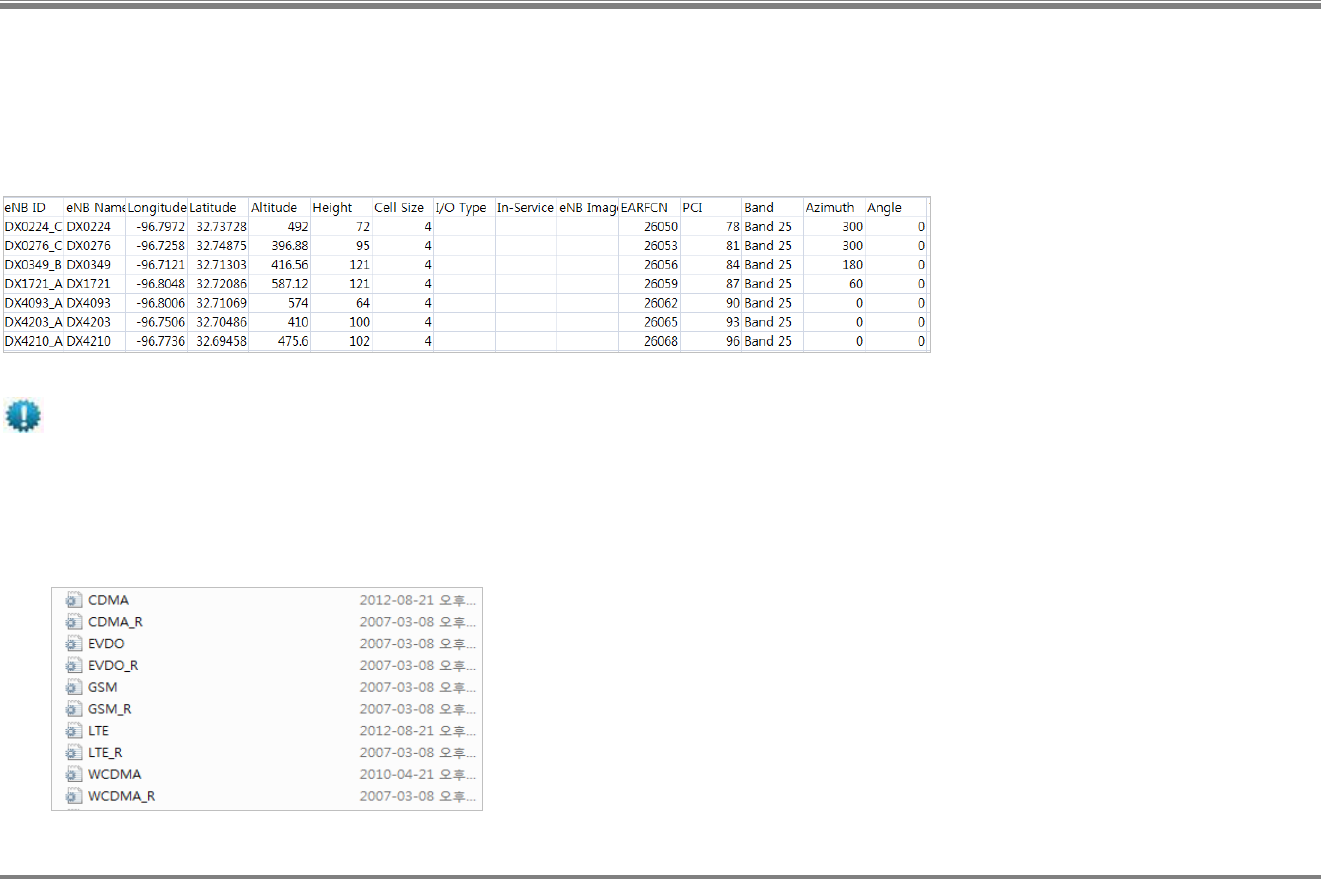

Importing BTS/Repeater Data ............................... 52

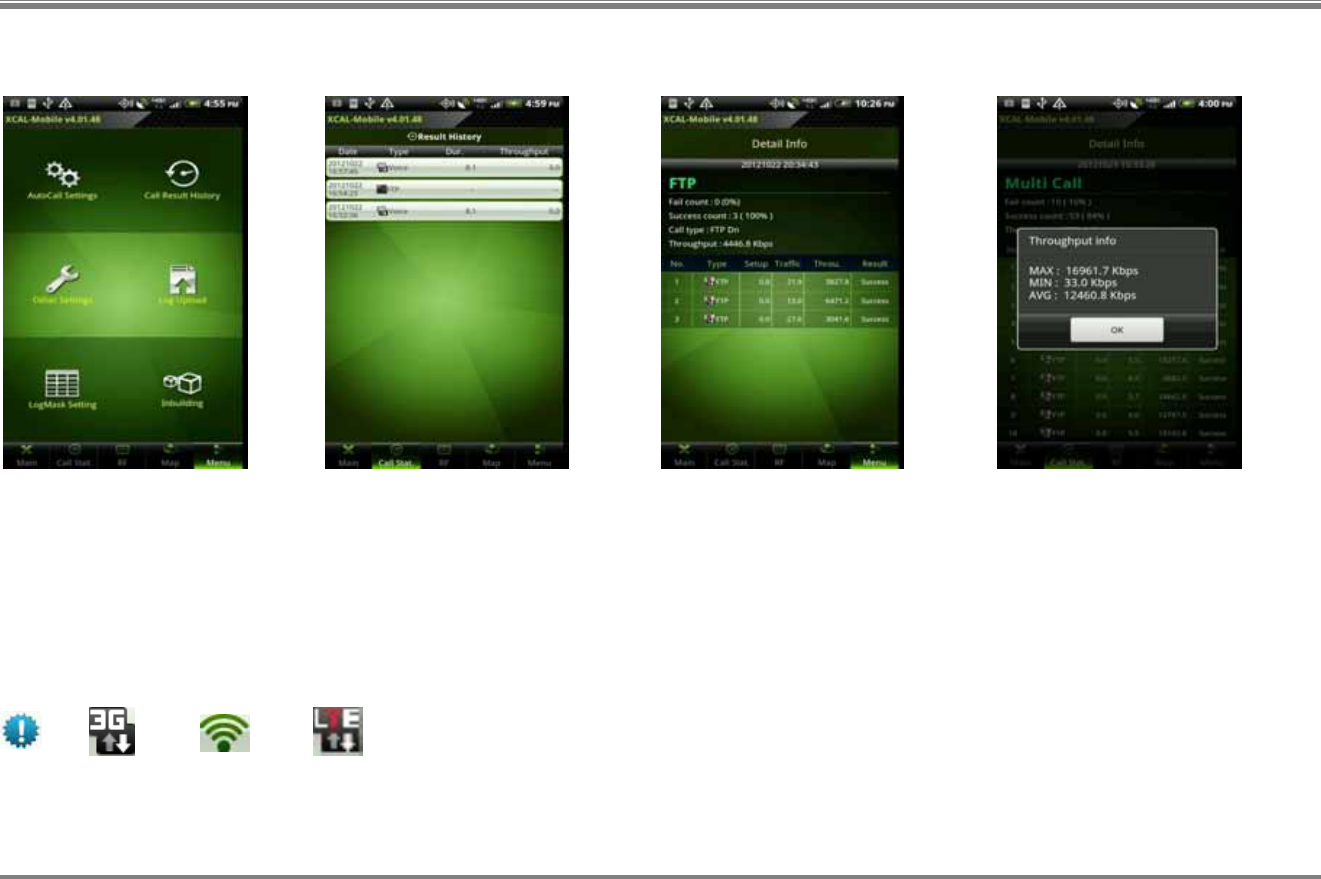

Call Result History ....................................................... 57

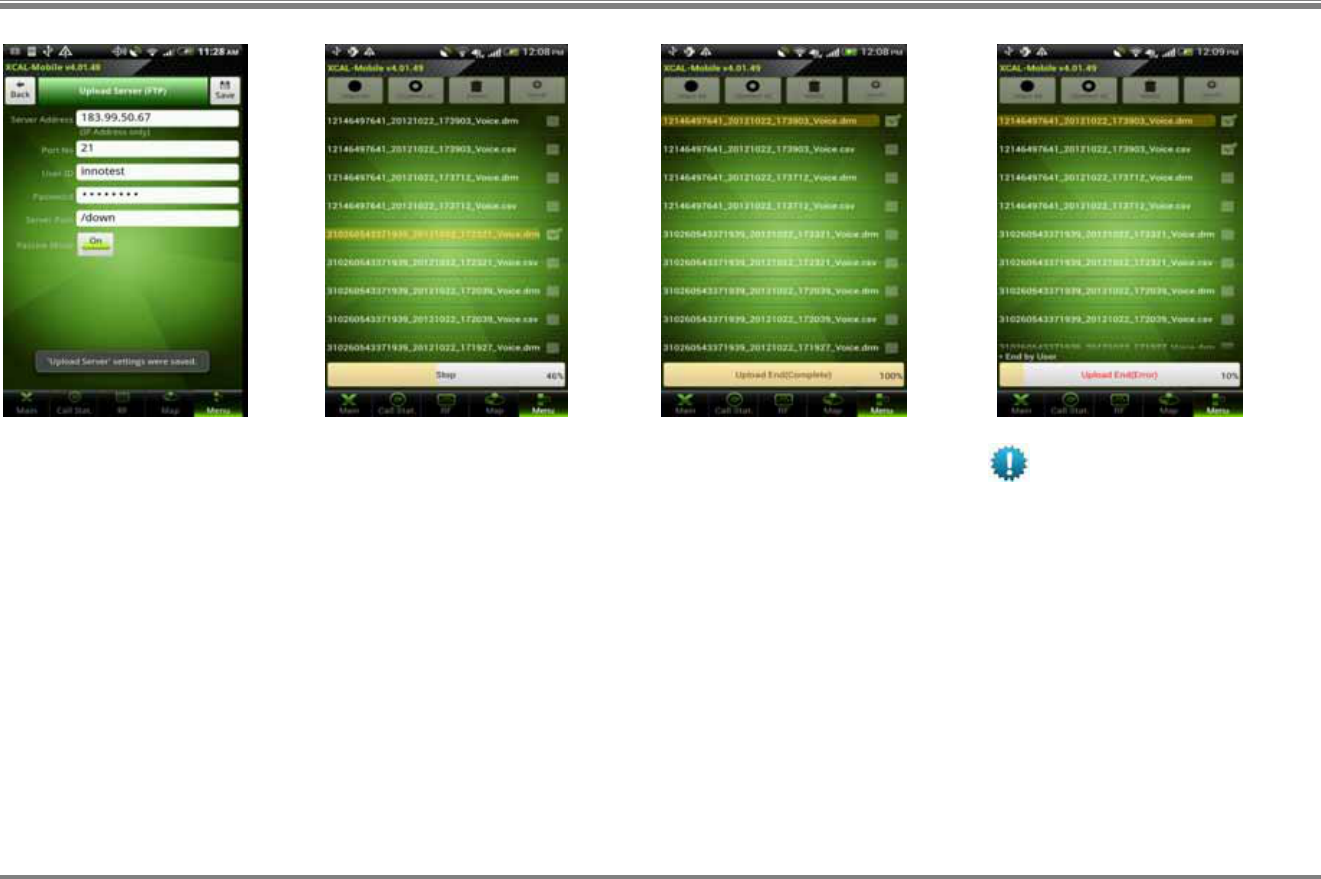

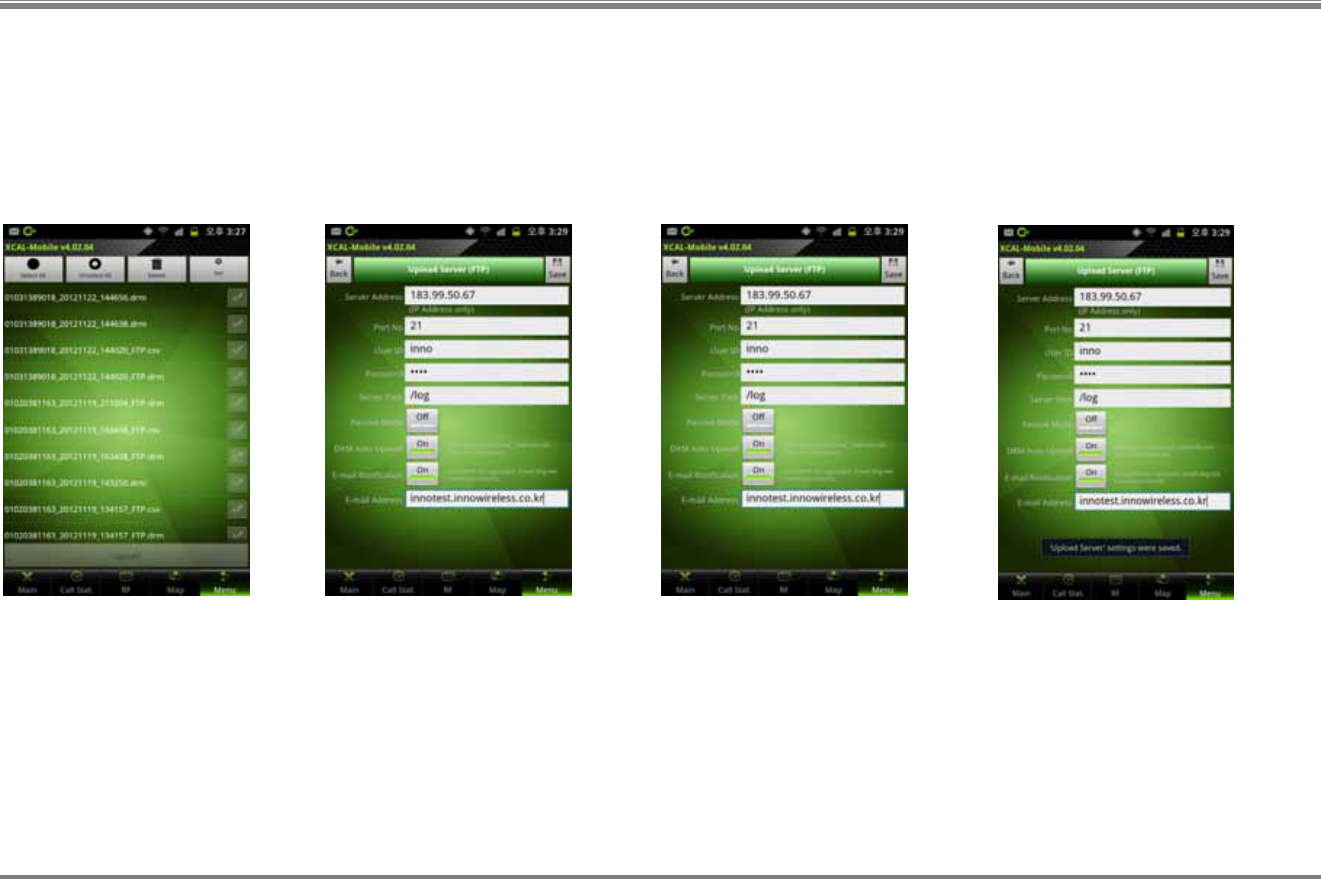

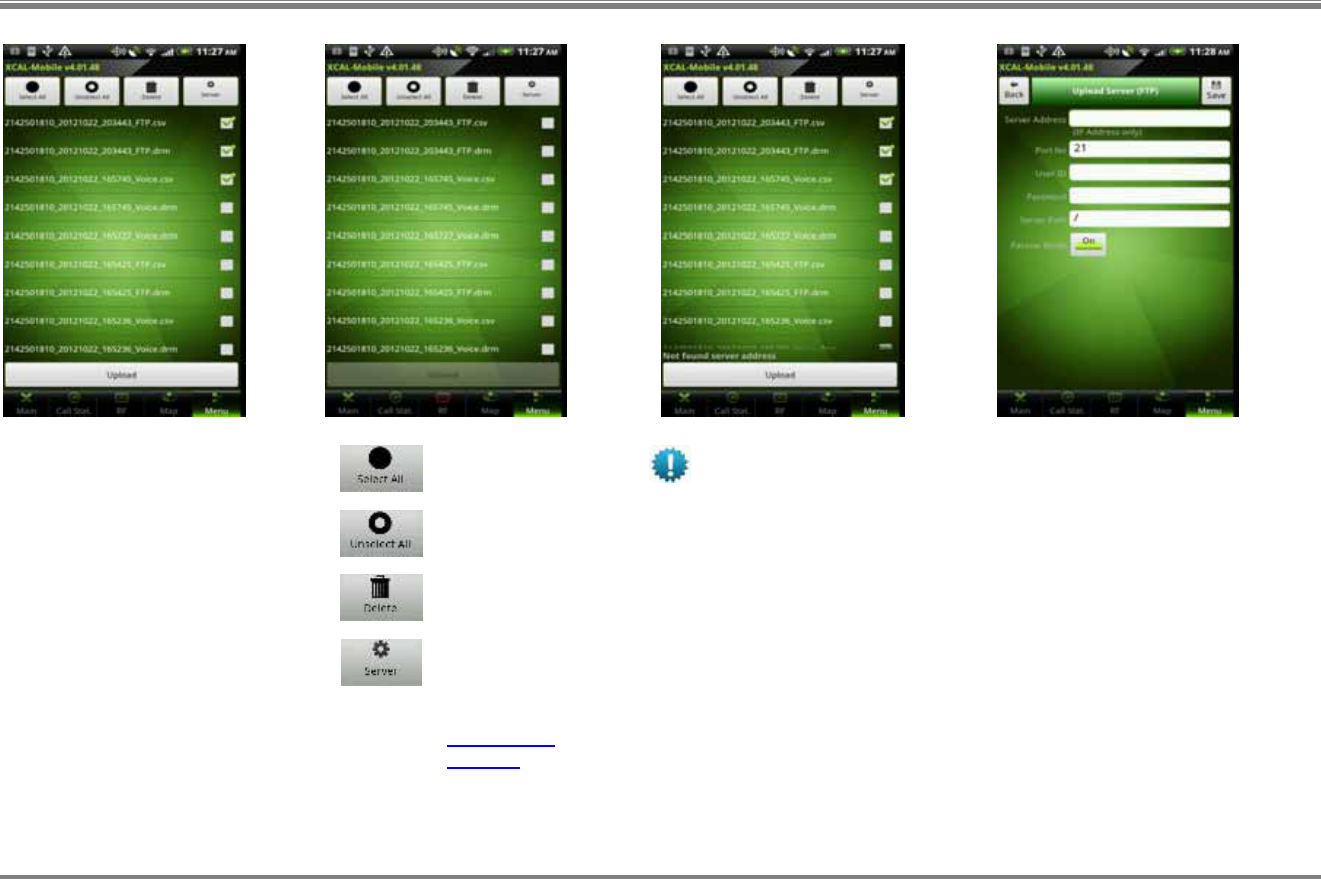

Uploading Log File ....................................................... 59

Uploading Setting ..................................................... 63

Additional Function ..................................................... 64

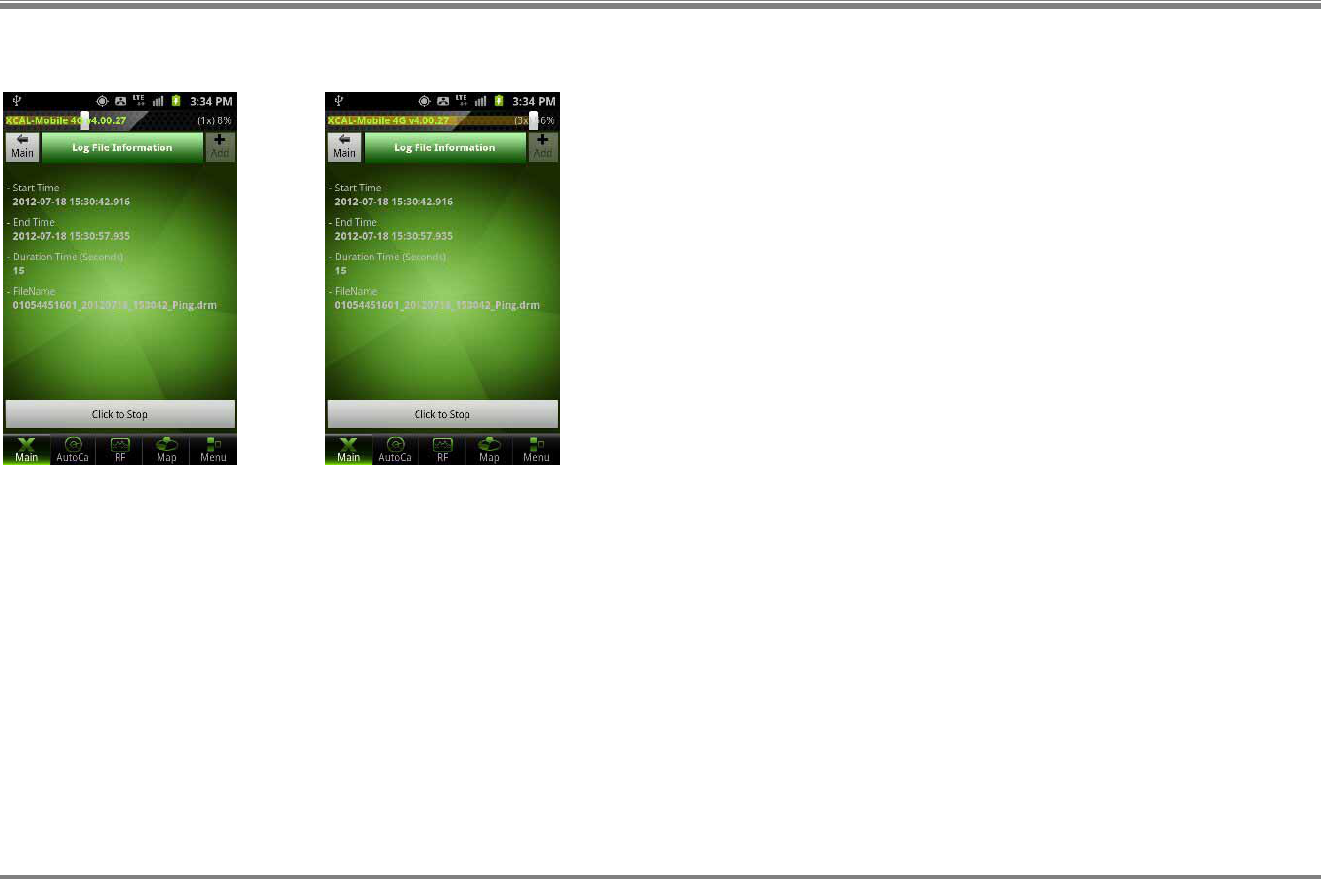

Manual Logging ........................................................ 65

Replay .................................................................... 67

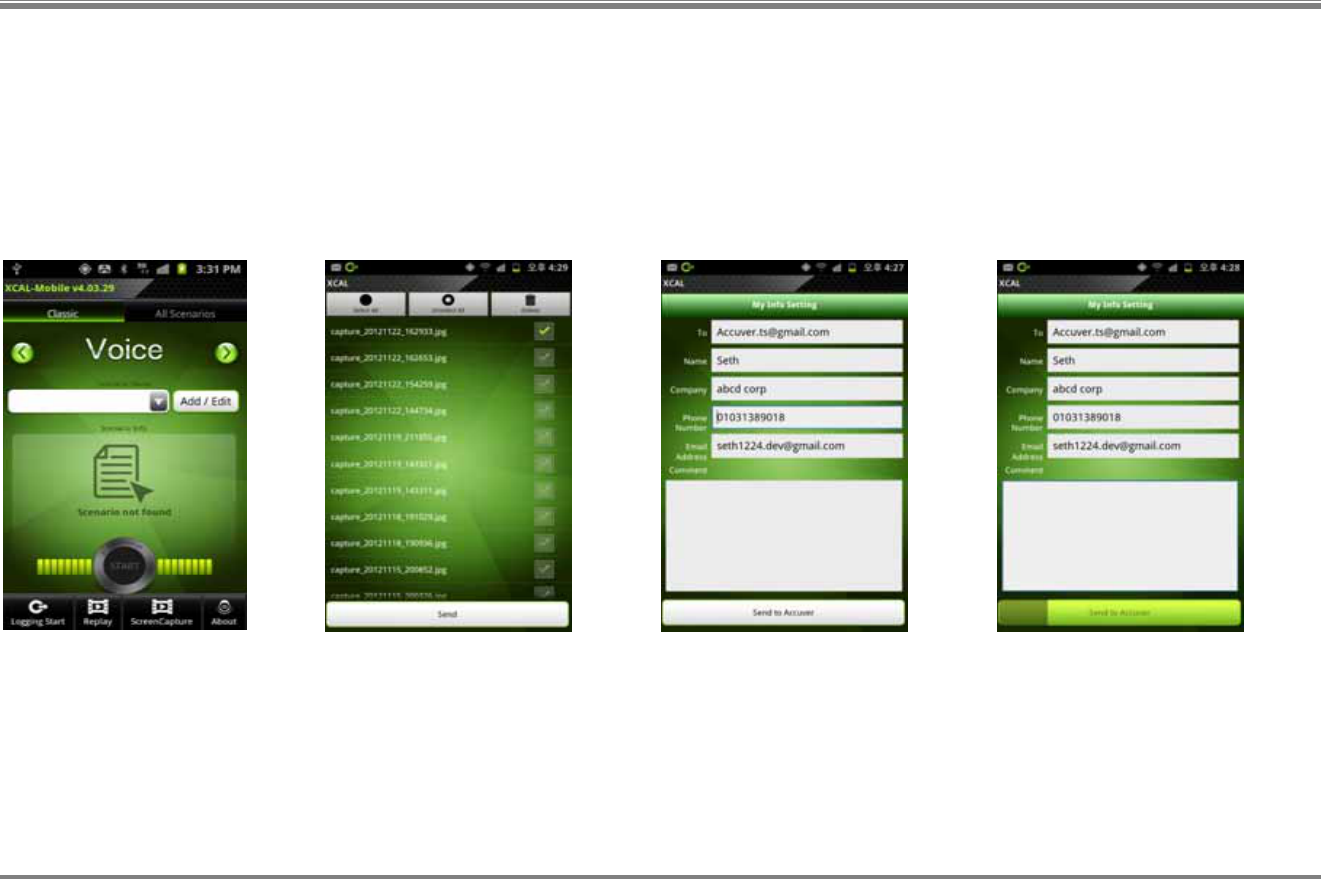

Screen Capture ........................................................ 69

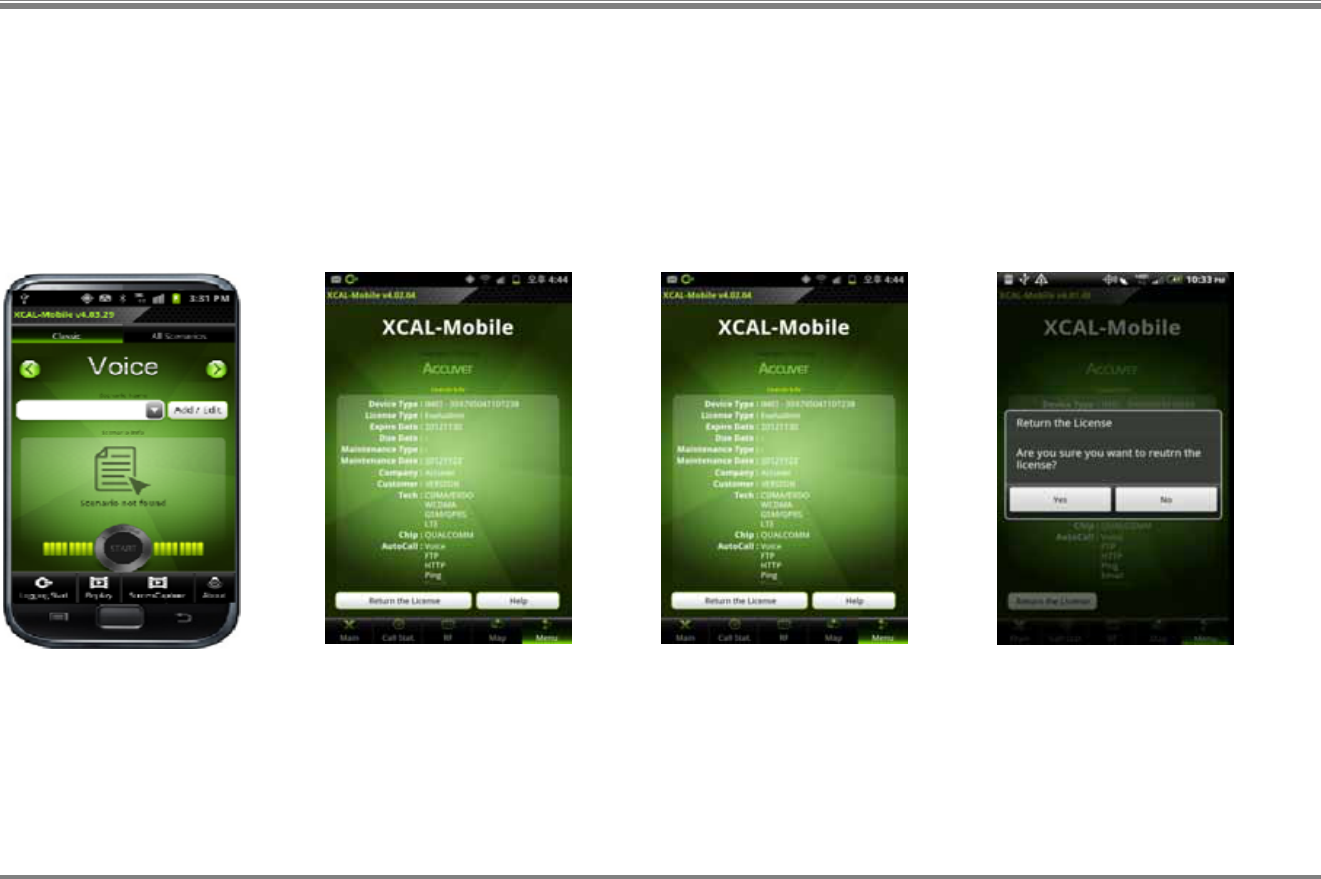

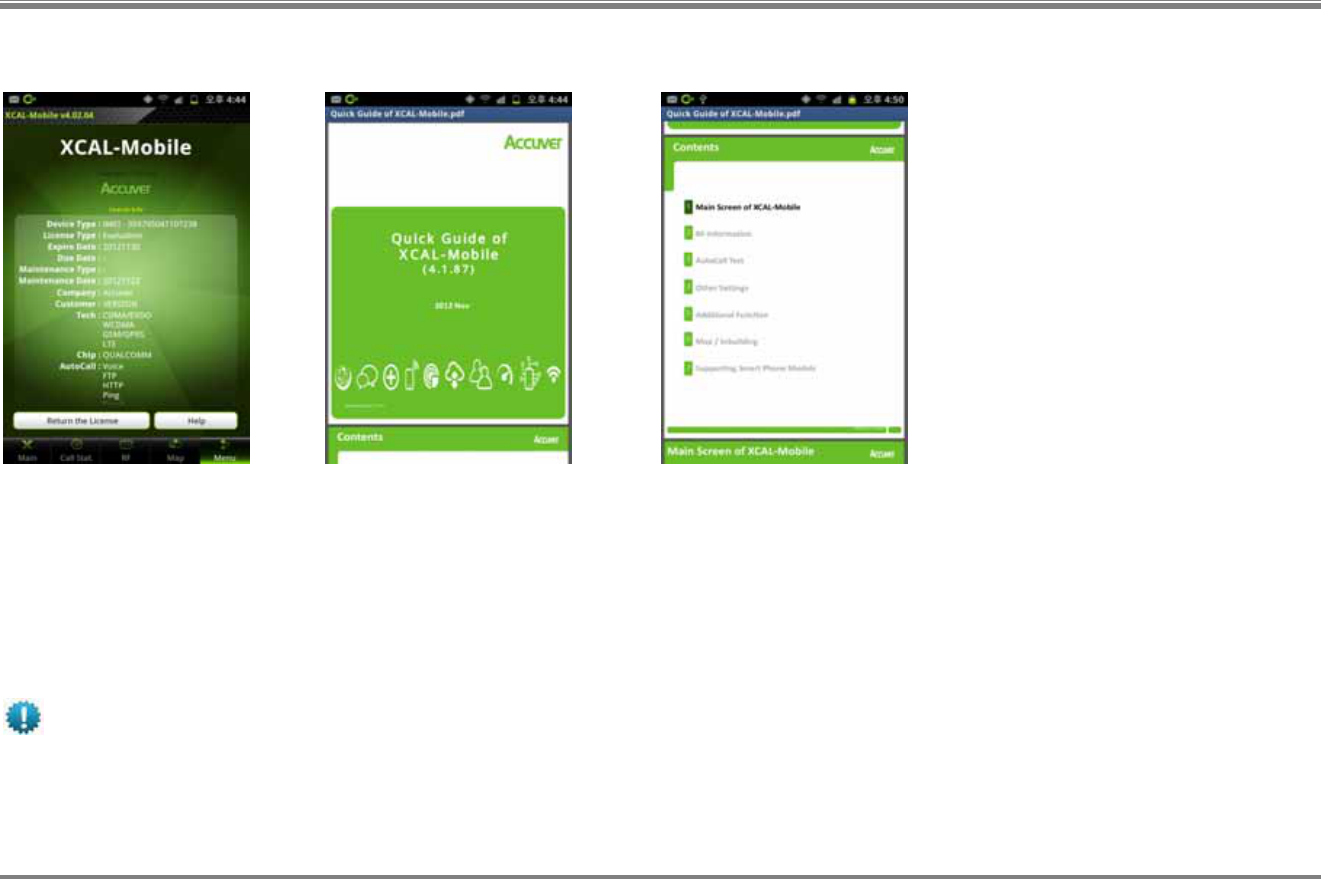

About ..................................................................... 70

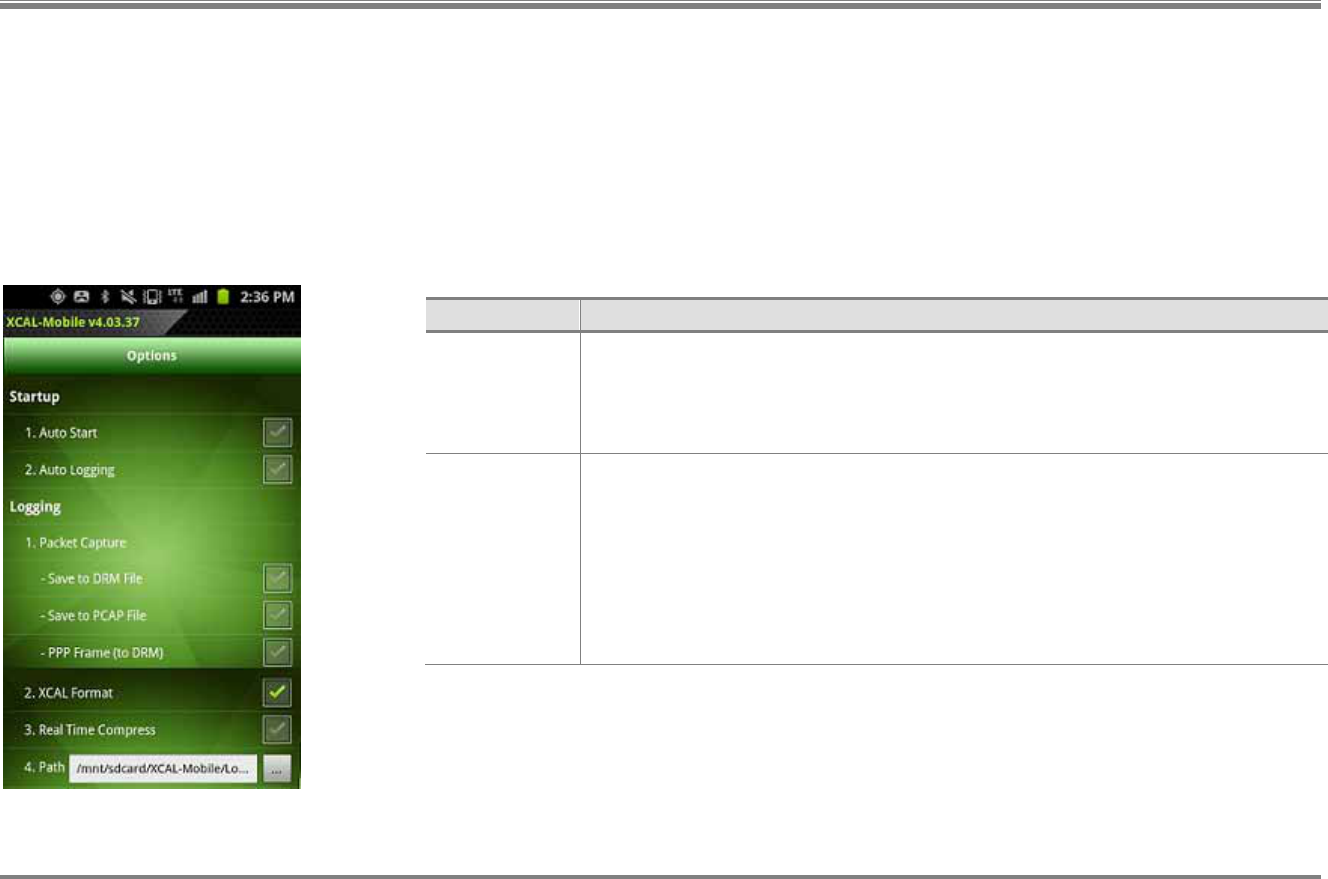

Other Settings ......................................................... 72

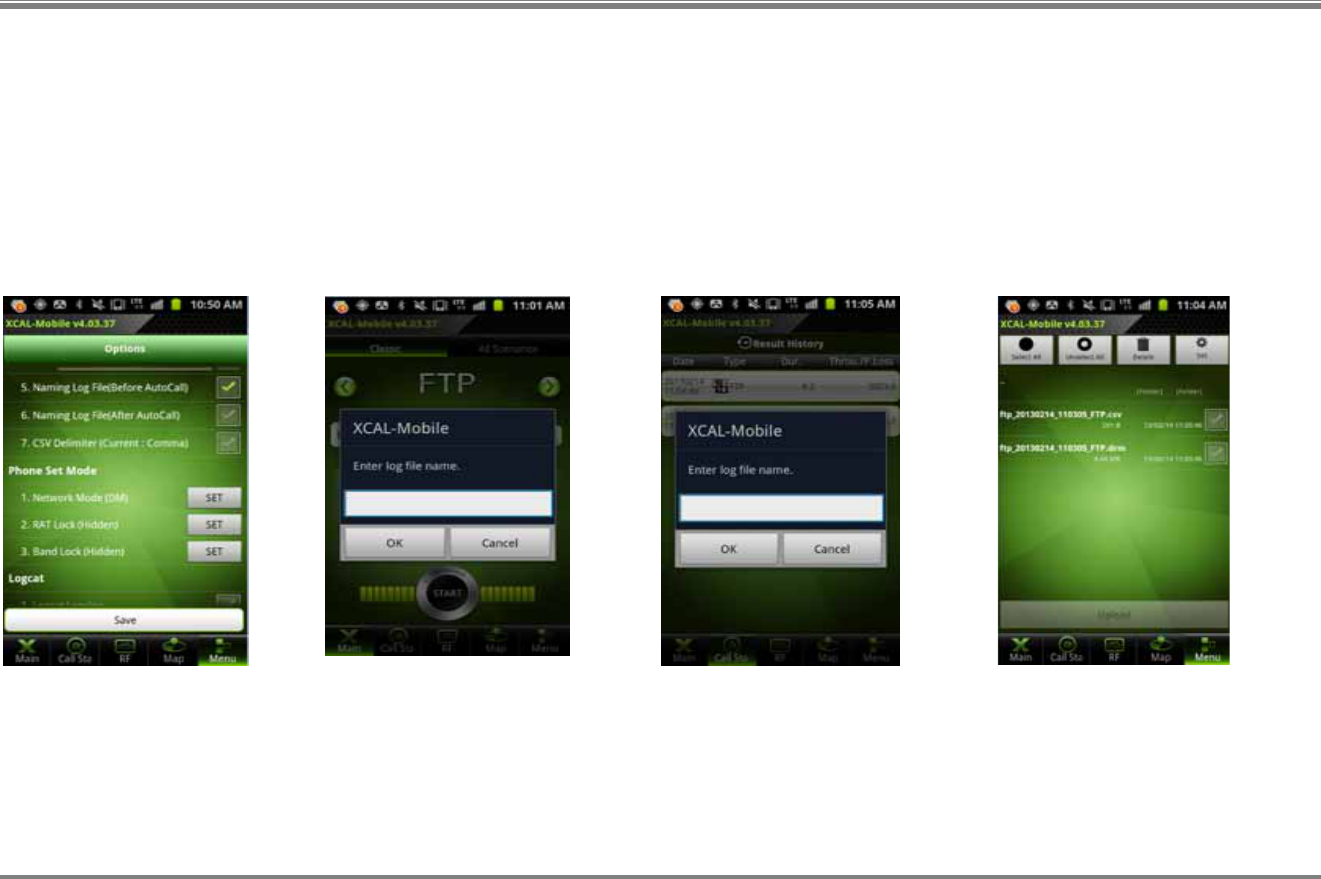

Other Settings - Naming Log File .......................... 74

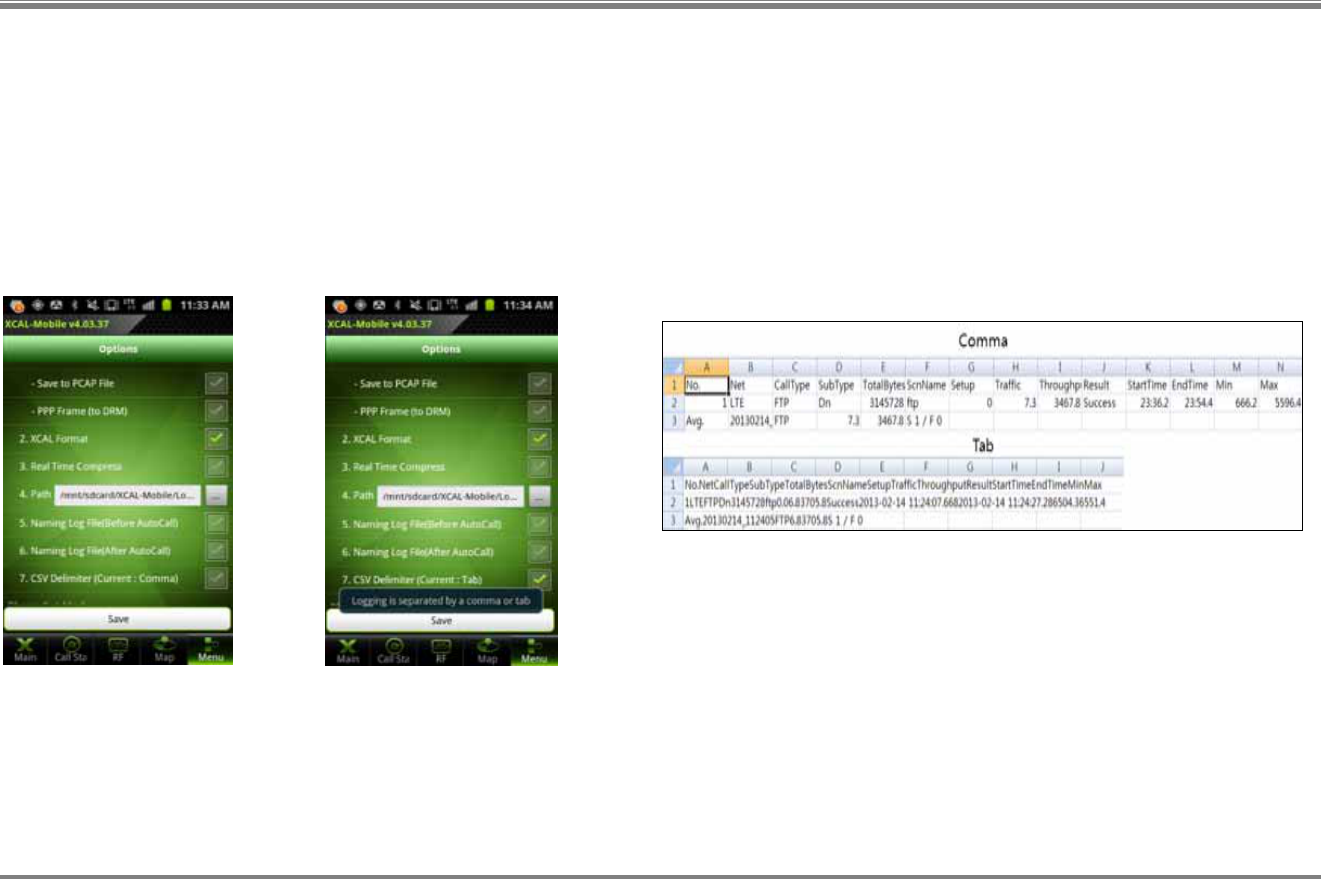

Other Settings - CSV Delimiter ............................. 75

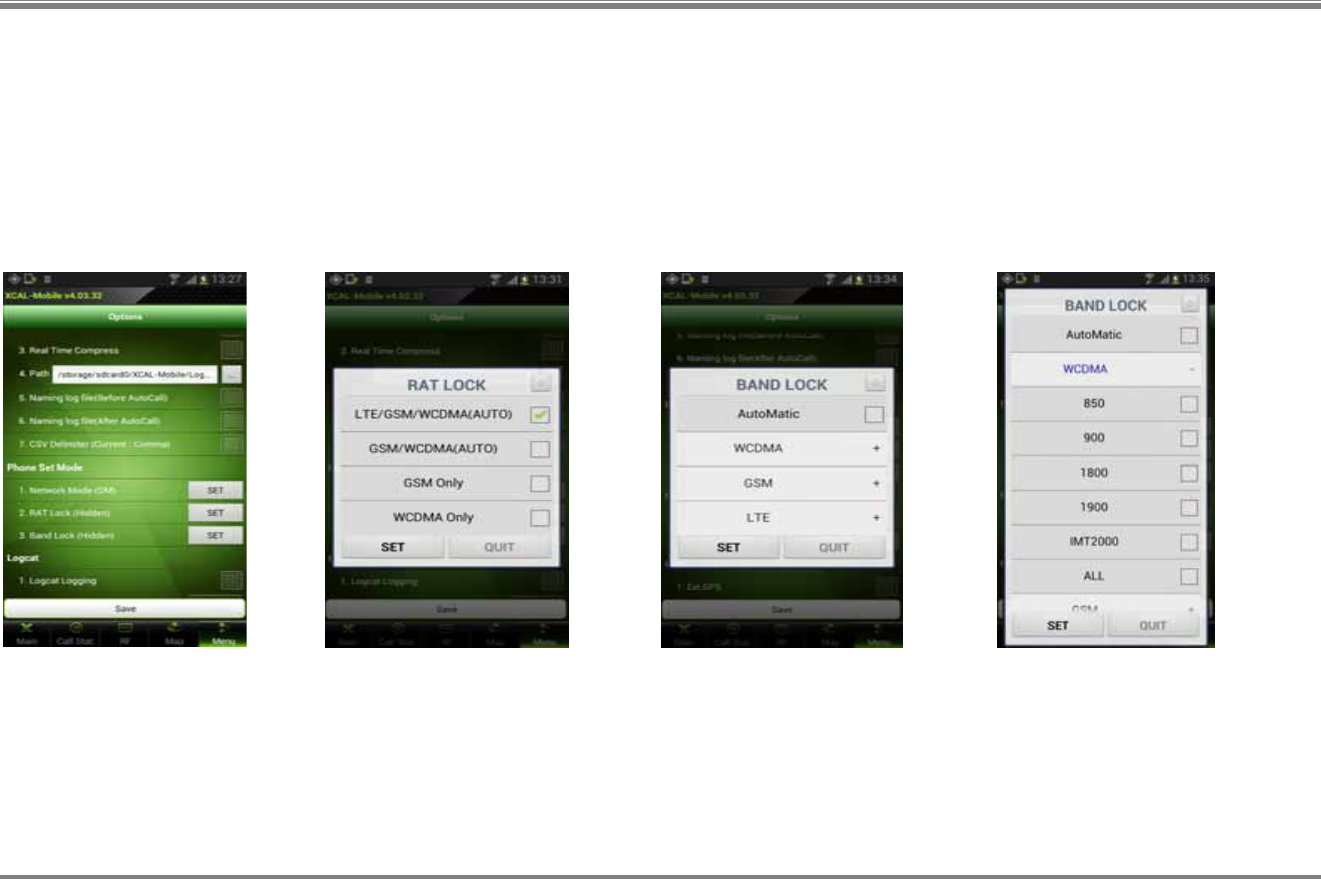

Other Settings - RAT & Band Lock (Galaxy S3 GT-

I9305) .............................................................. 76

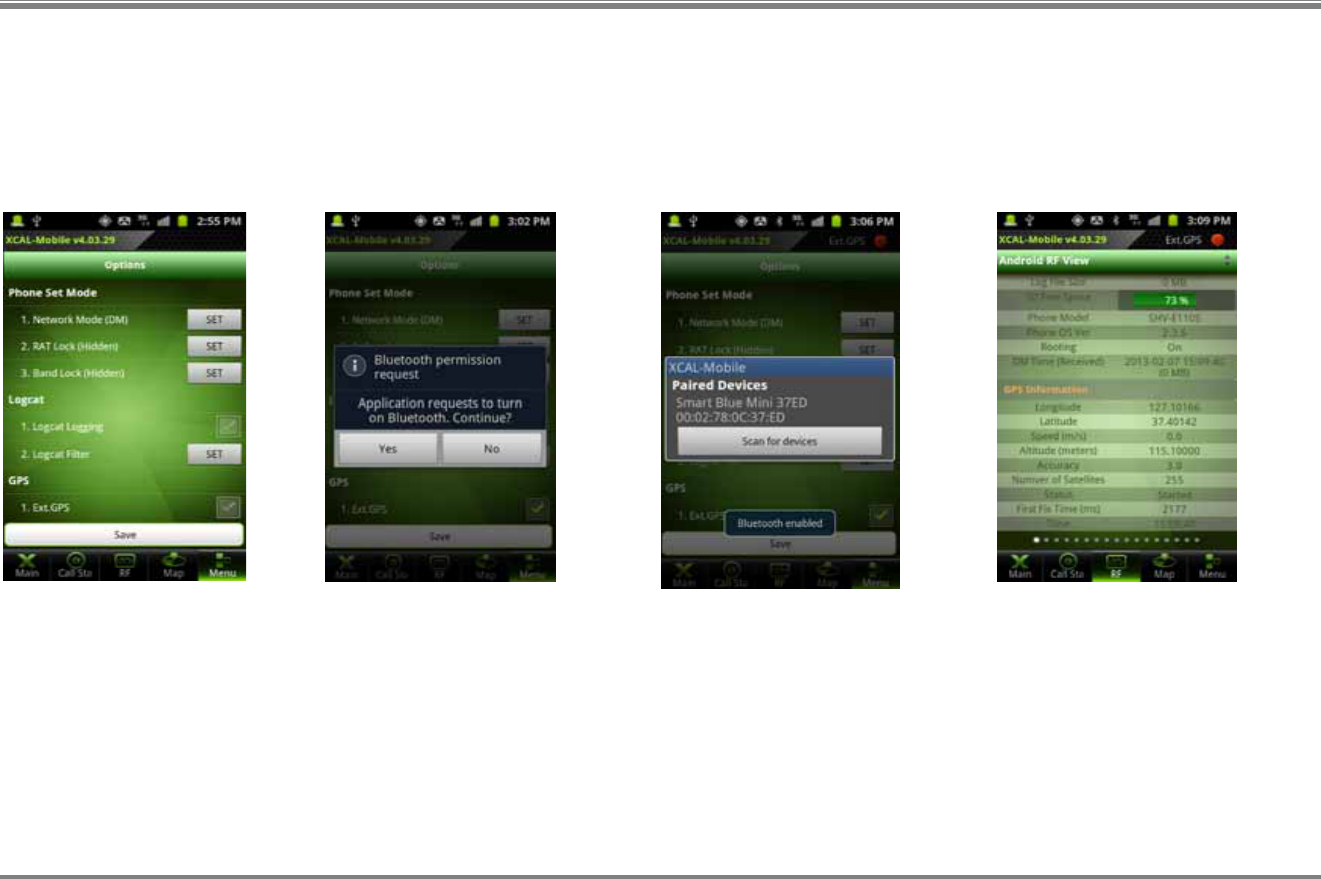

Other Settings - External GPS .............................. 77

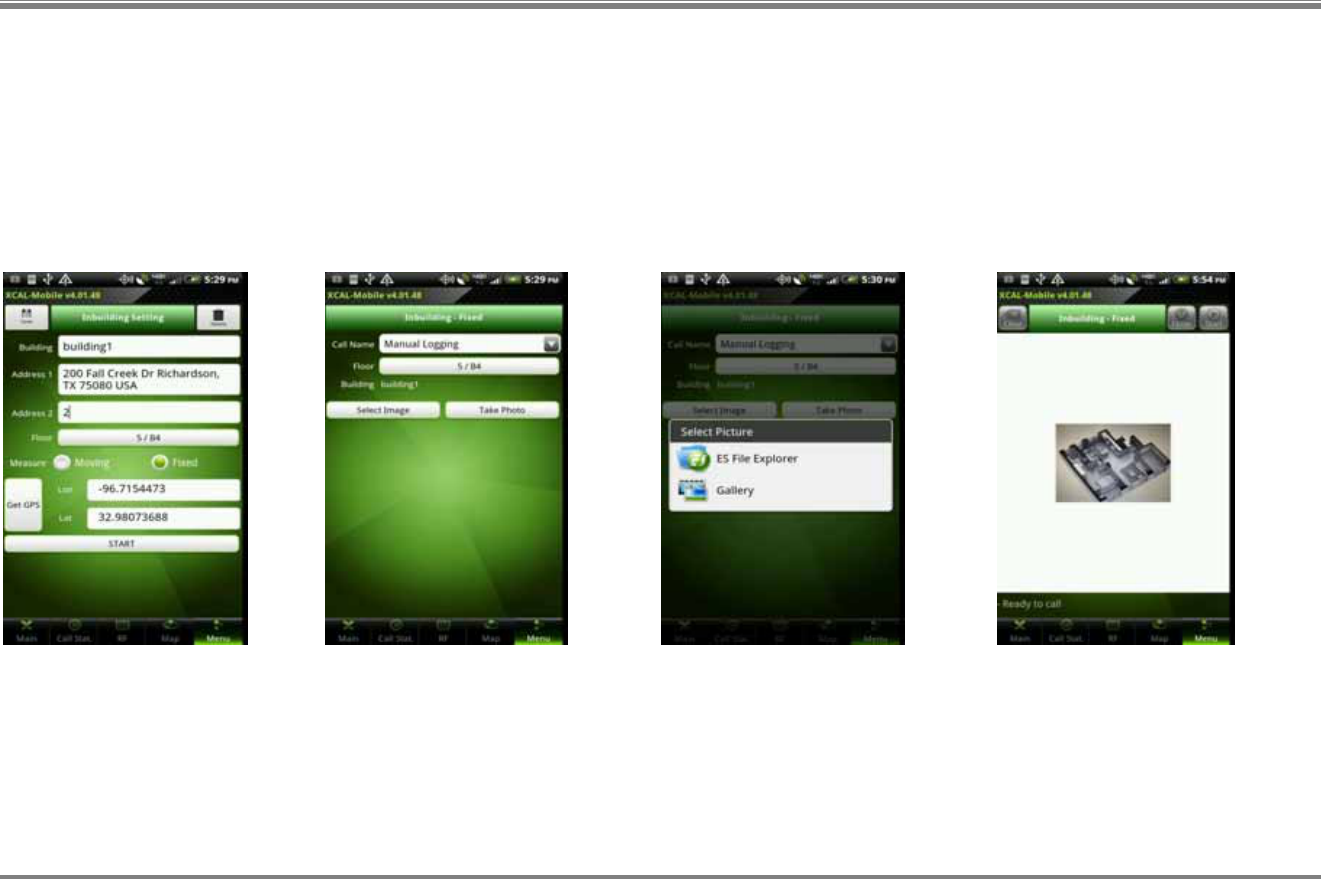

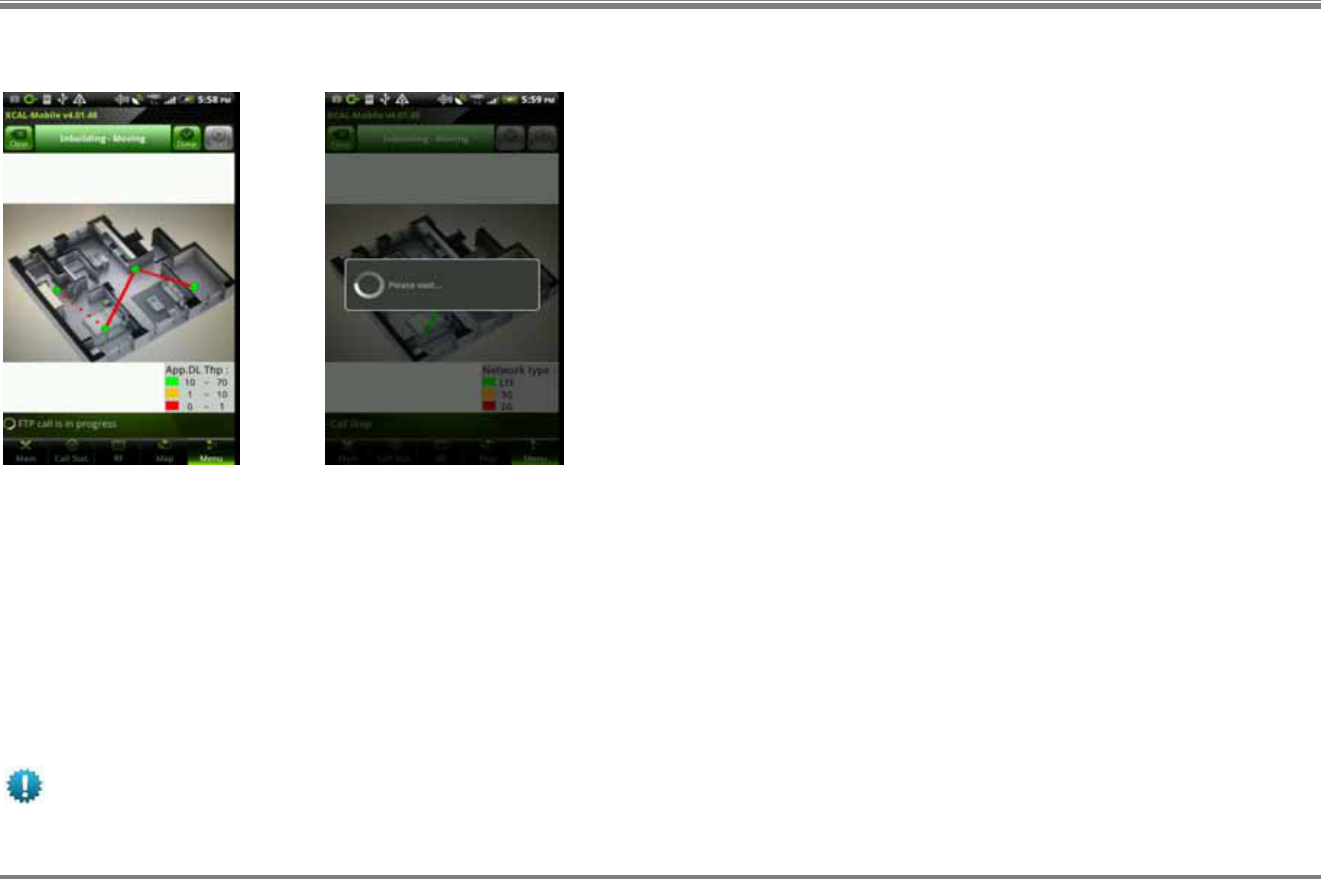

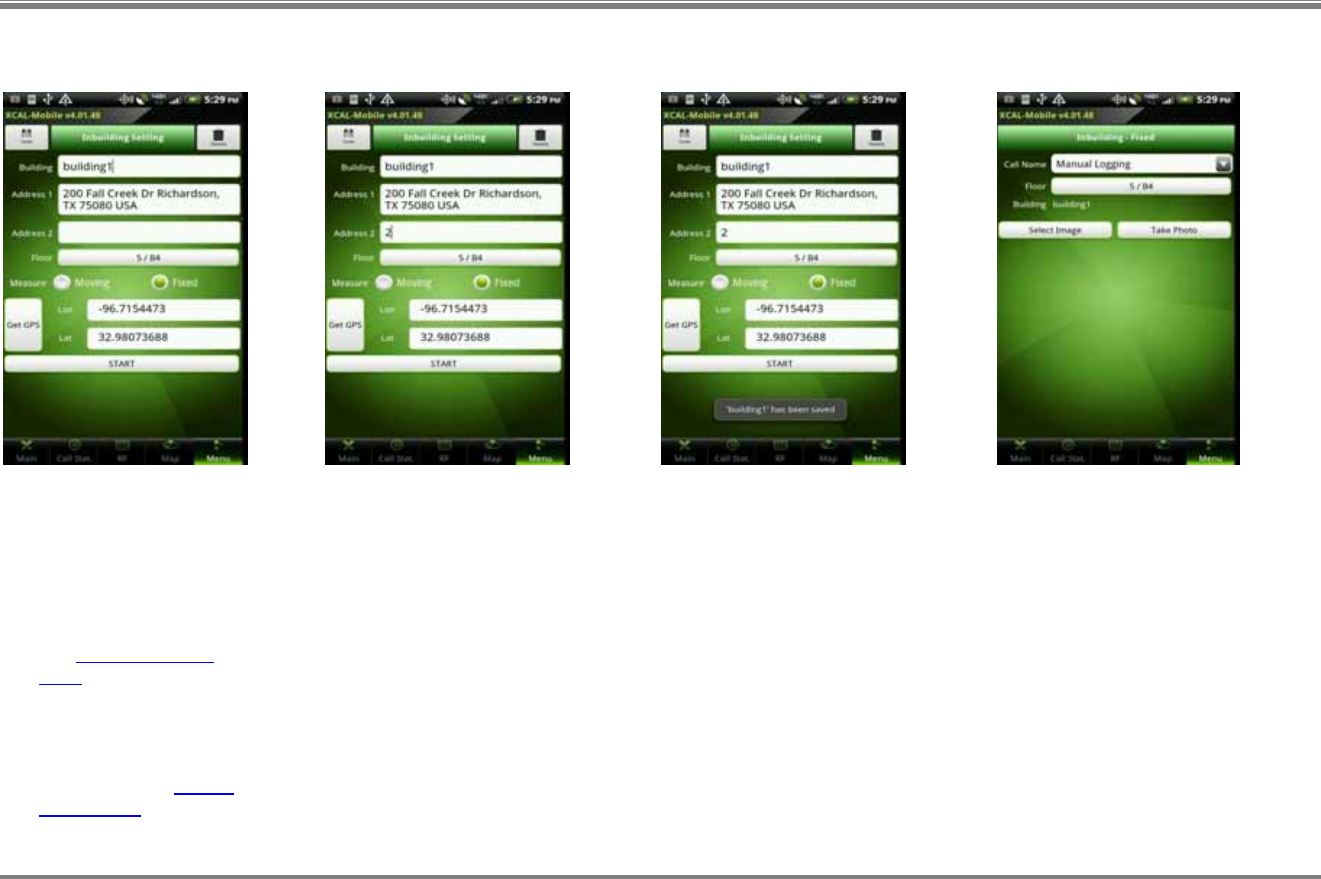

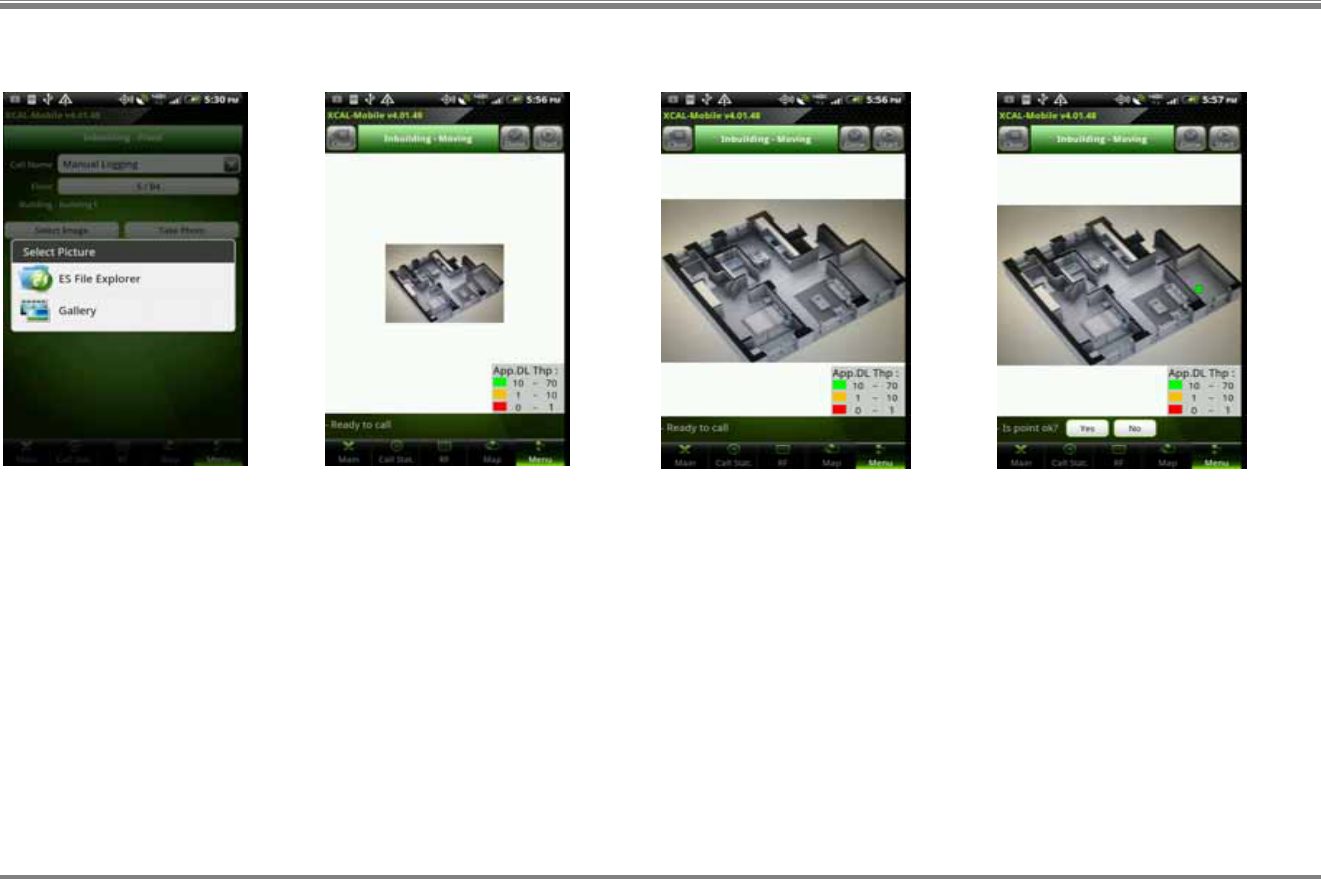

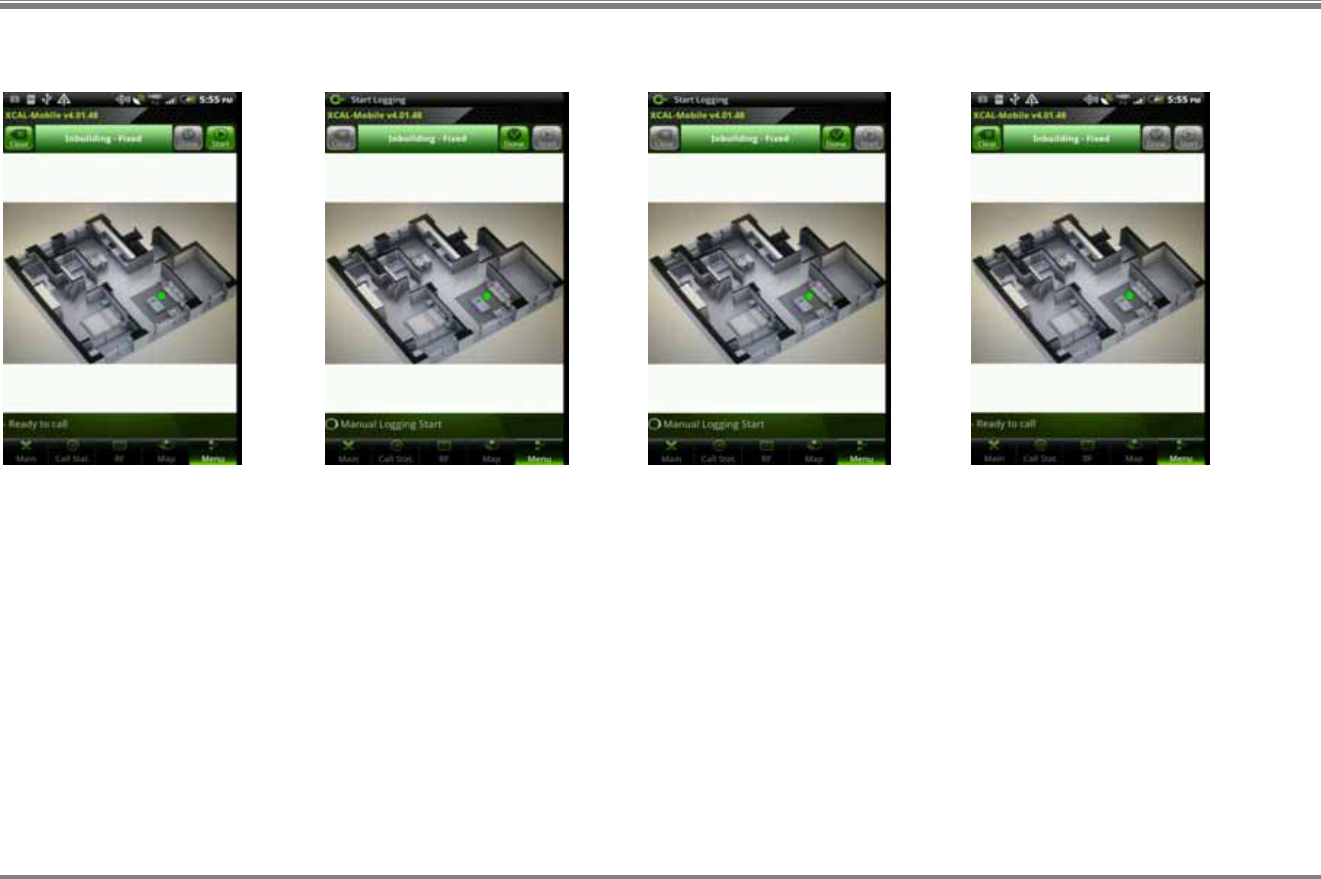

Inbuilding Test ........................................................... 78

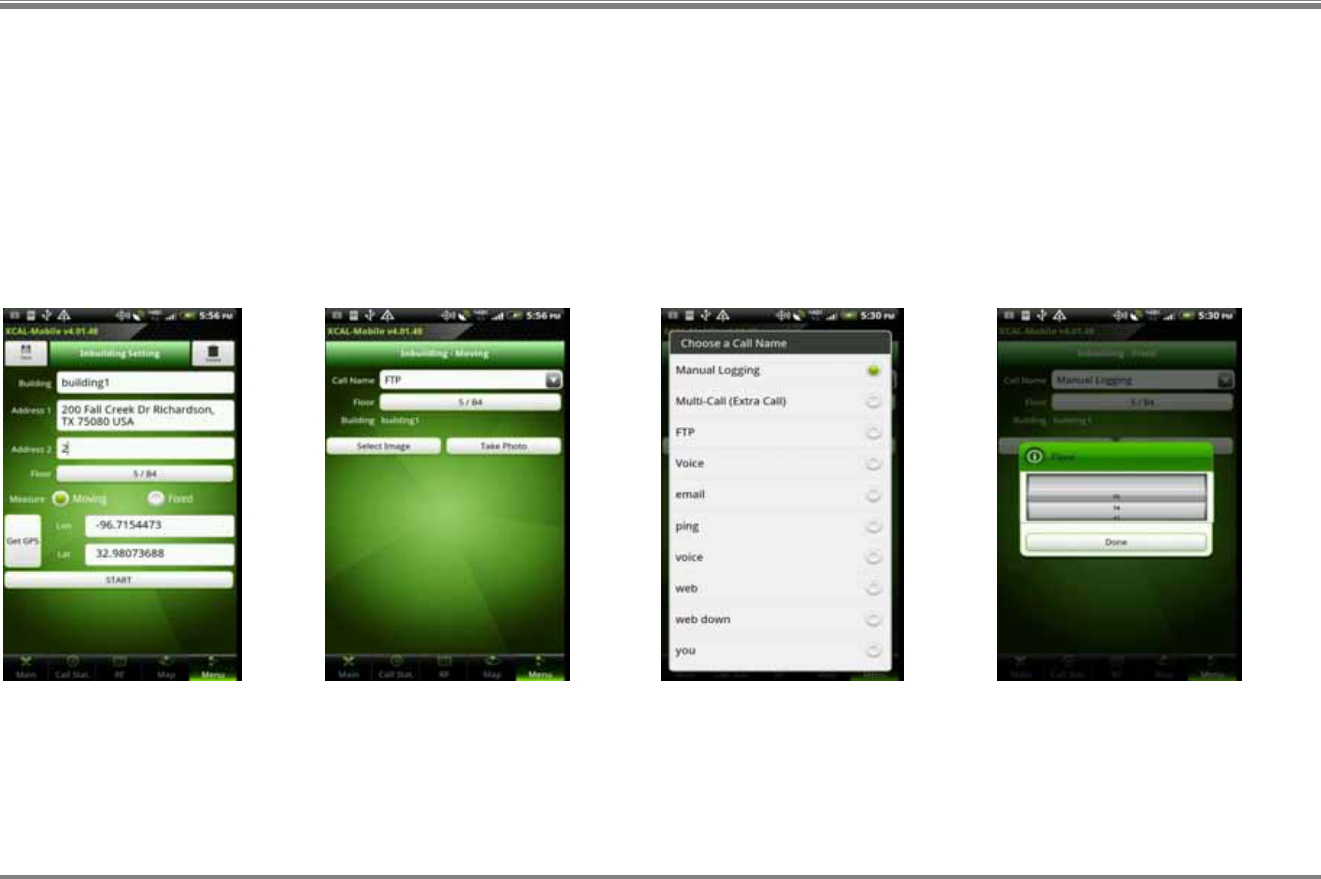

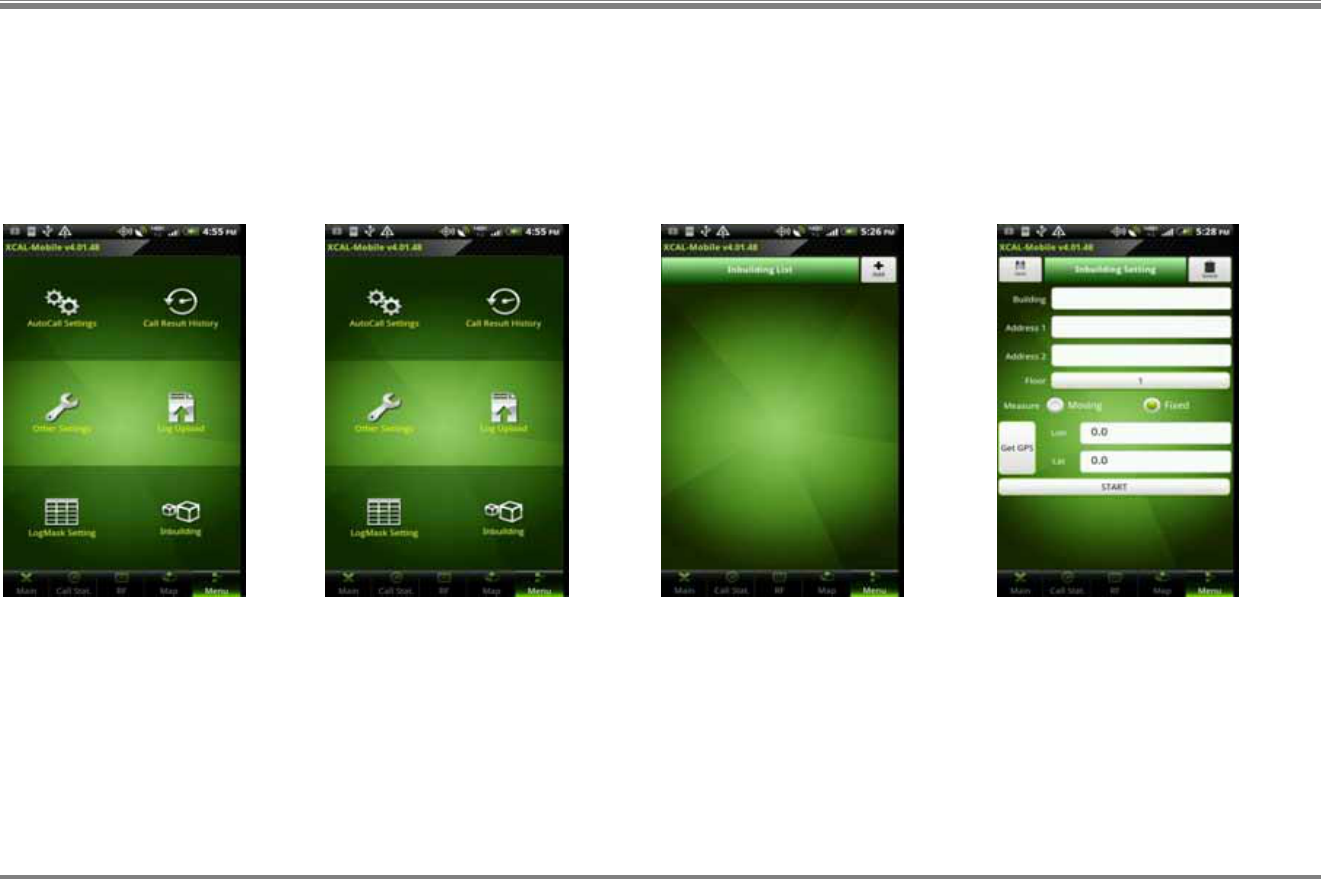

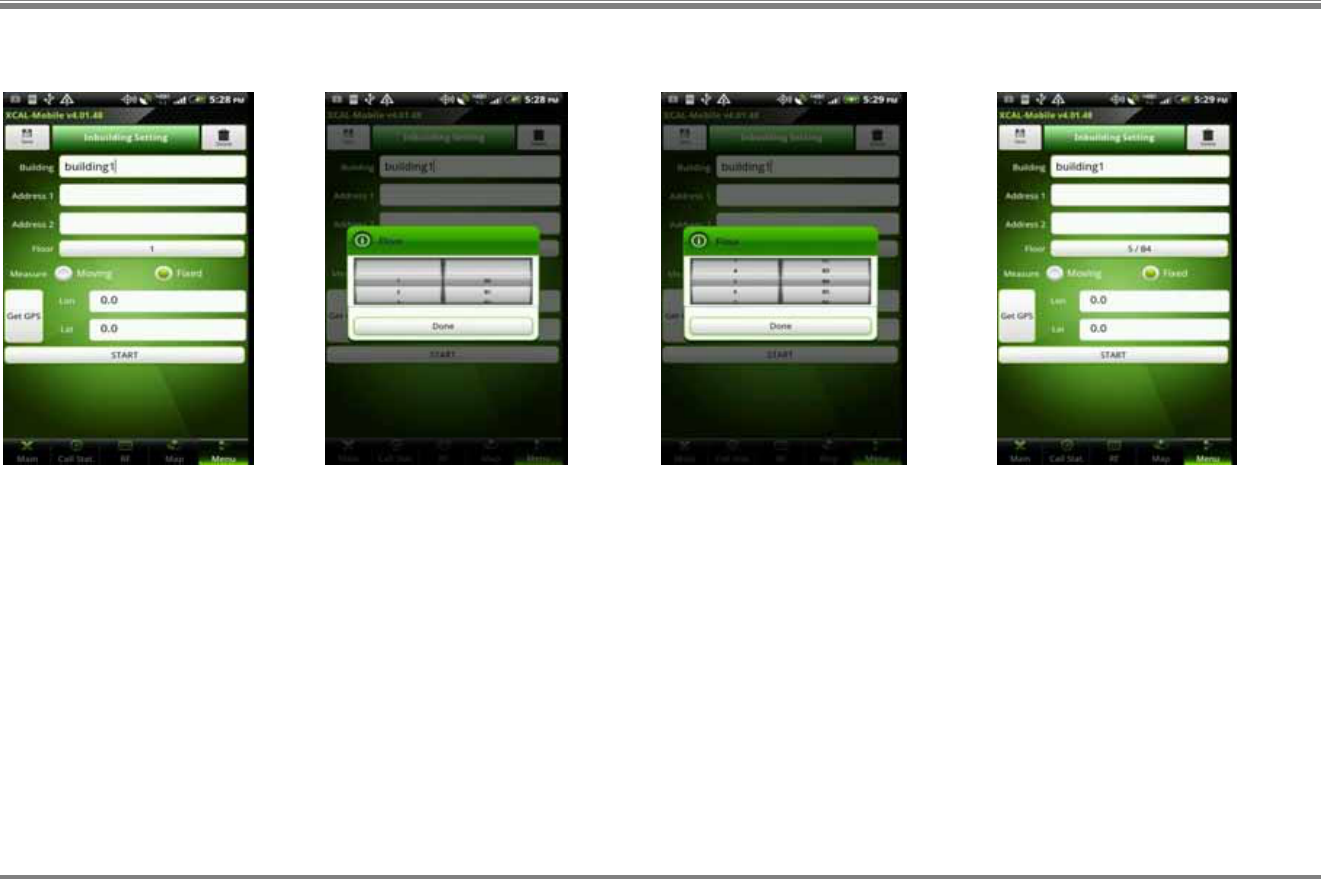

Configuring Inbuilding test ........................................ 79

Starting Inbuilding Test ............................................. 82

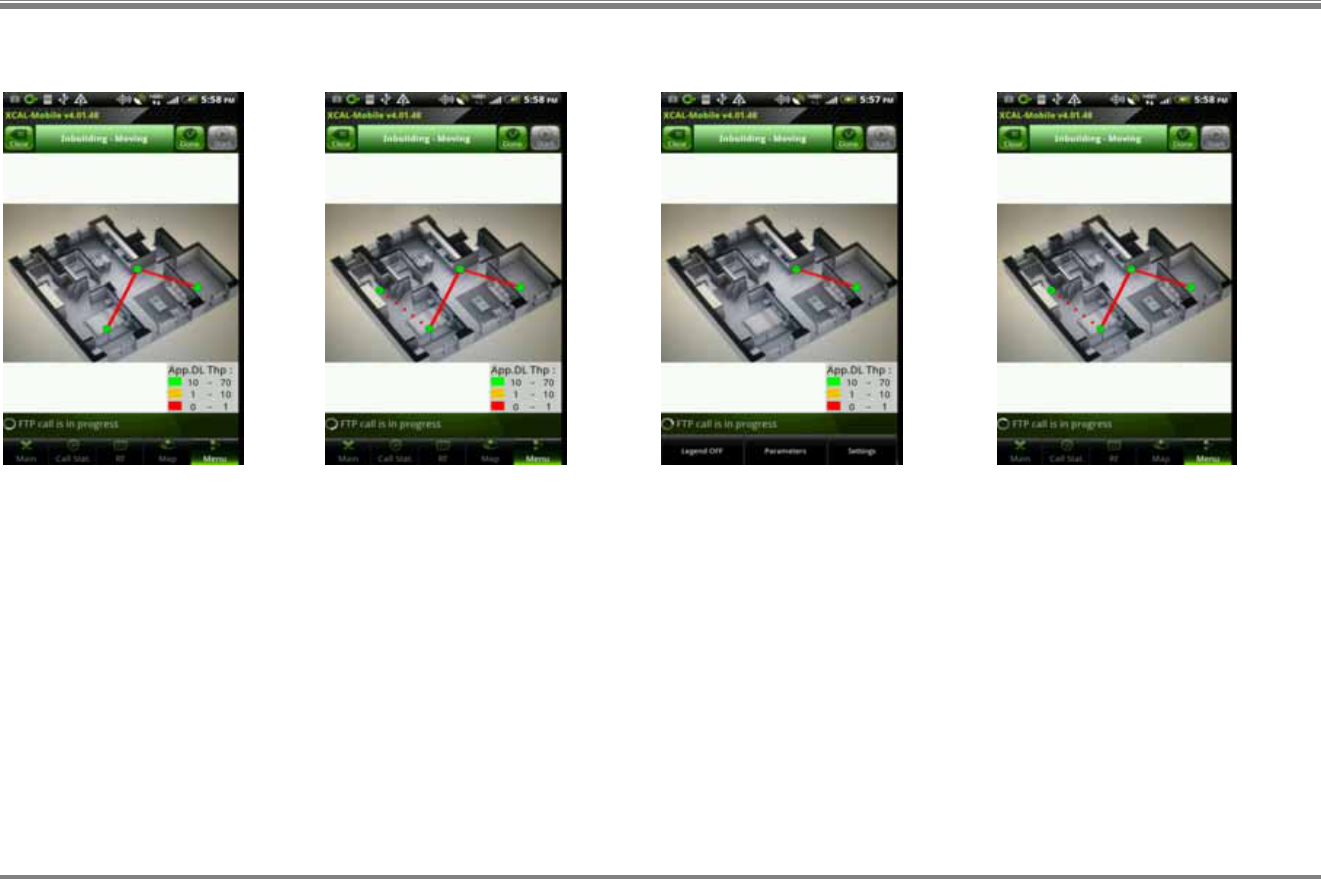

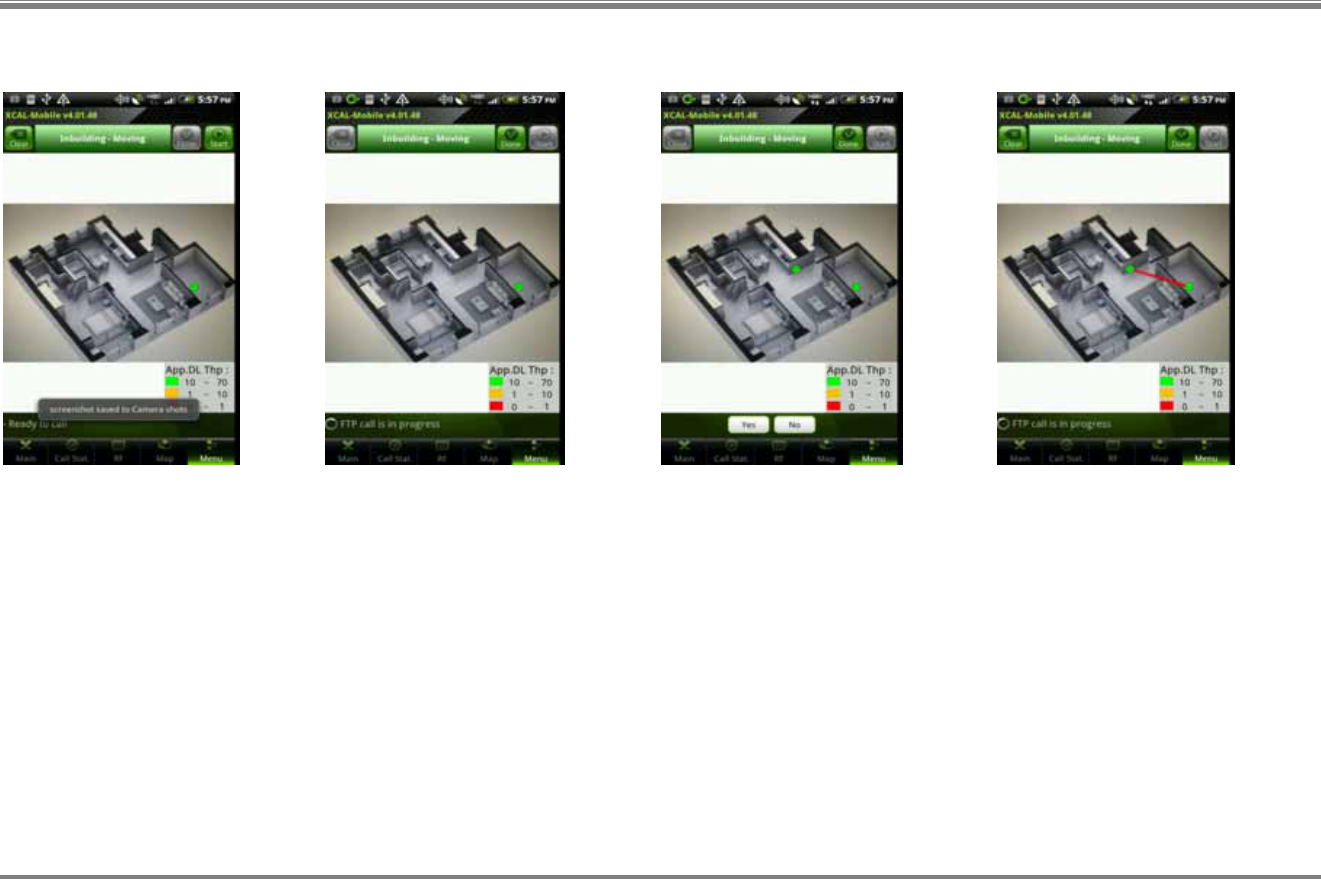

Moving Point Test ............................................... 83

Fixed Point Test .................................................. 89

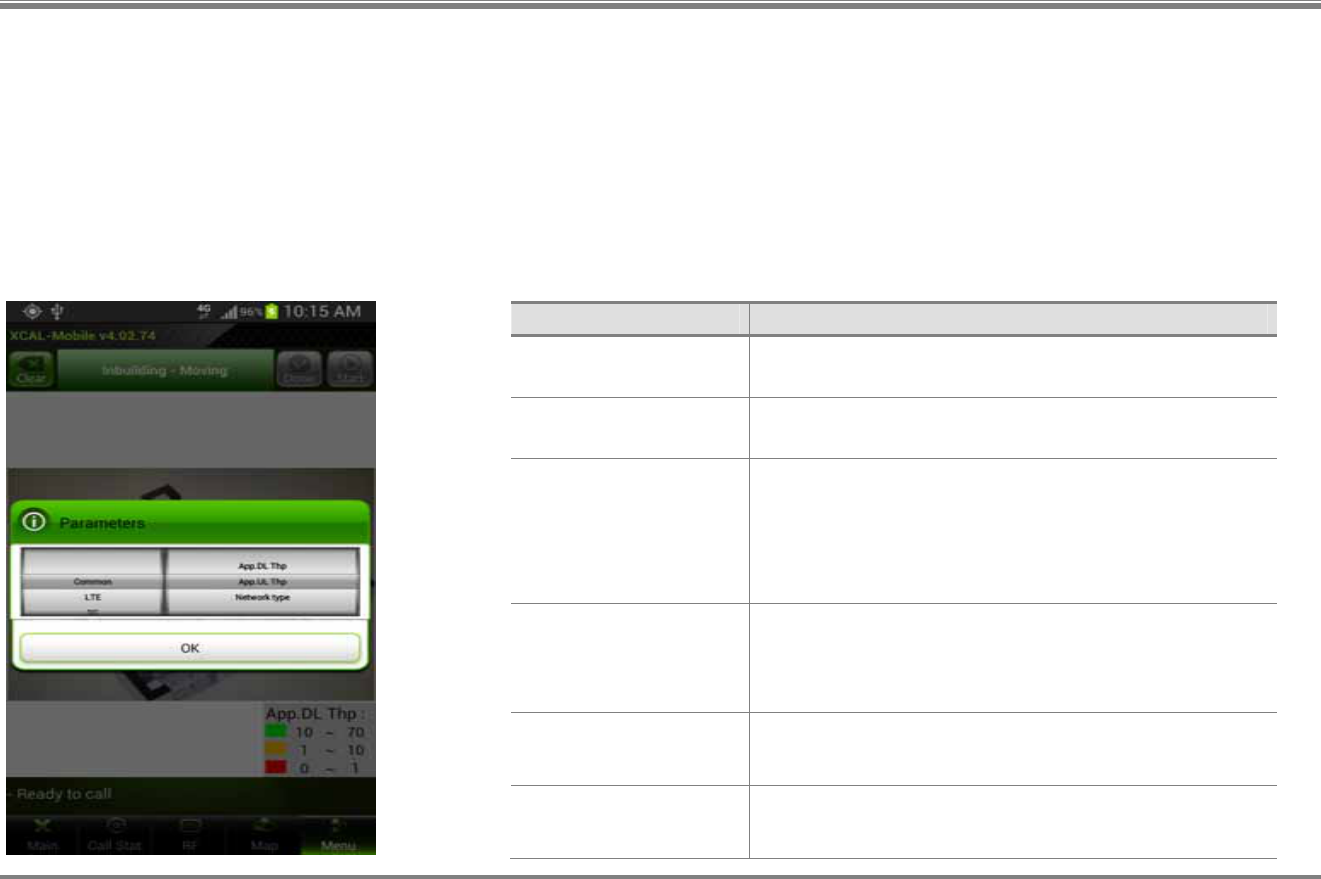

Configuring Inbuilding Options ................................... 91

Configuring Inbuilding Options – Parameters .......... 92

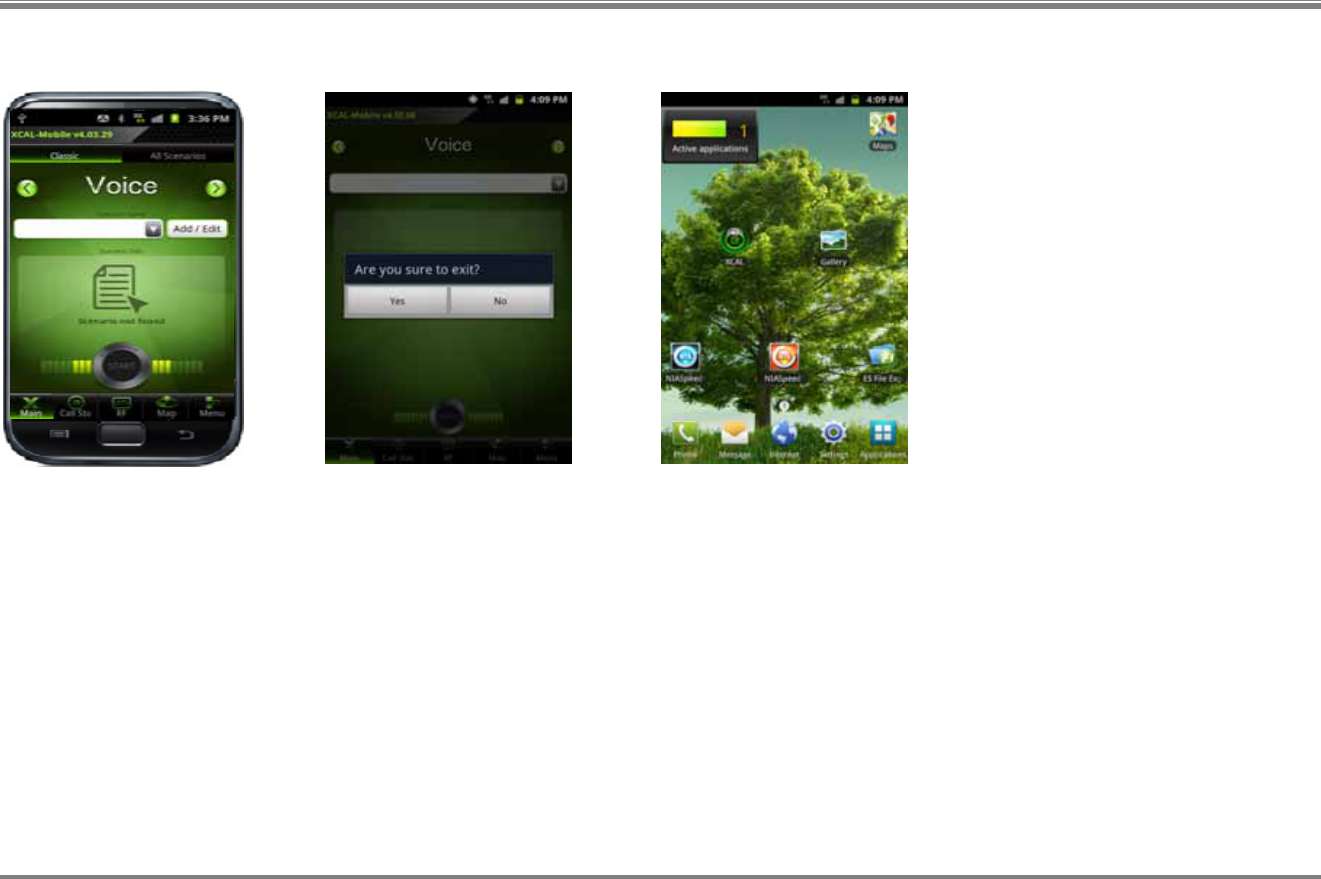

Terminating XCAL-Mobile 4G ...................................... 93

Troubleshooting ......................................................... 95

Related Products ........................................................ 97

Appendix: Configuring AutoCall Scenario .................... 98

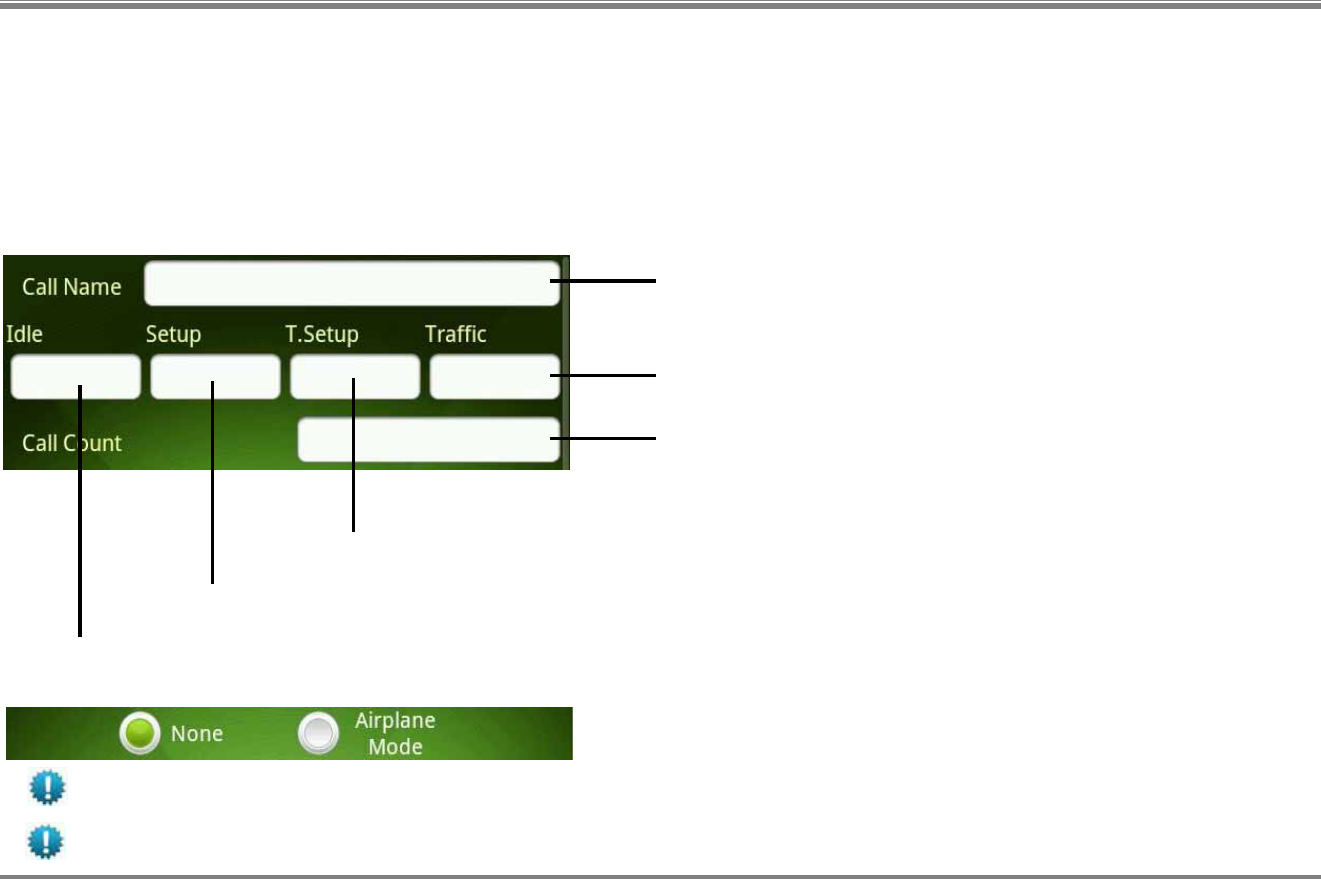

Time Configuration (Voice, Web, SMS, WiFi, E-Mail, Ping,

YouTube) ................................................................ 99

Time Configuration (FTP) ........................................ 100

Configuration for Each Call Type ............................... 101

Voice .............................................................. 101

FTP ................................................................ 101

Web ................................................................ 102

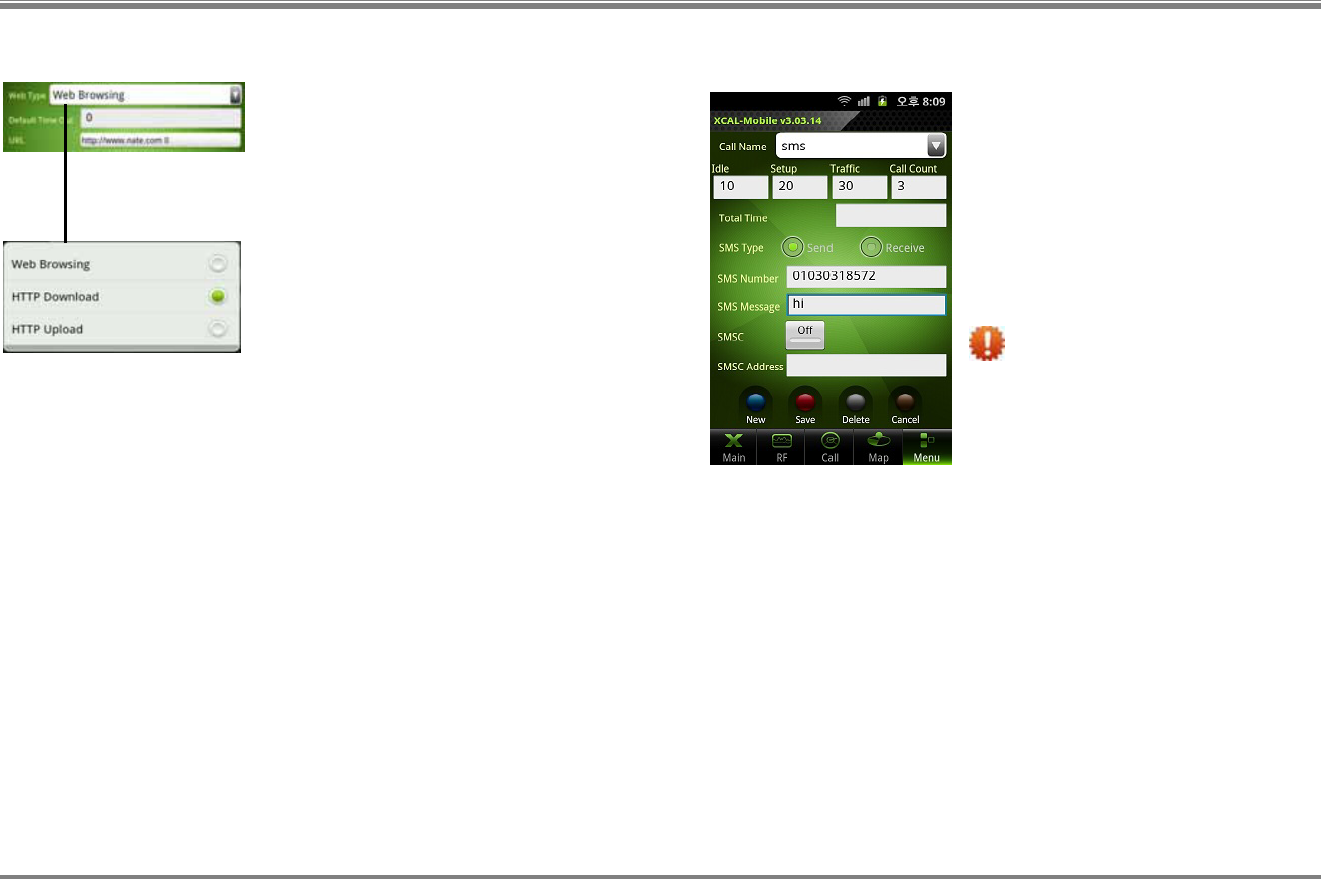

SMS ................................................................ 102

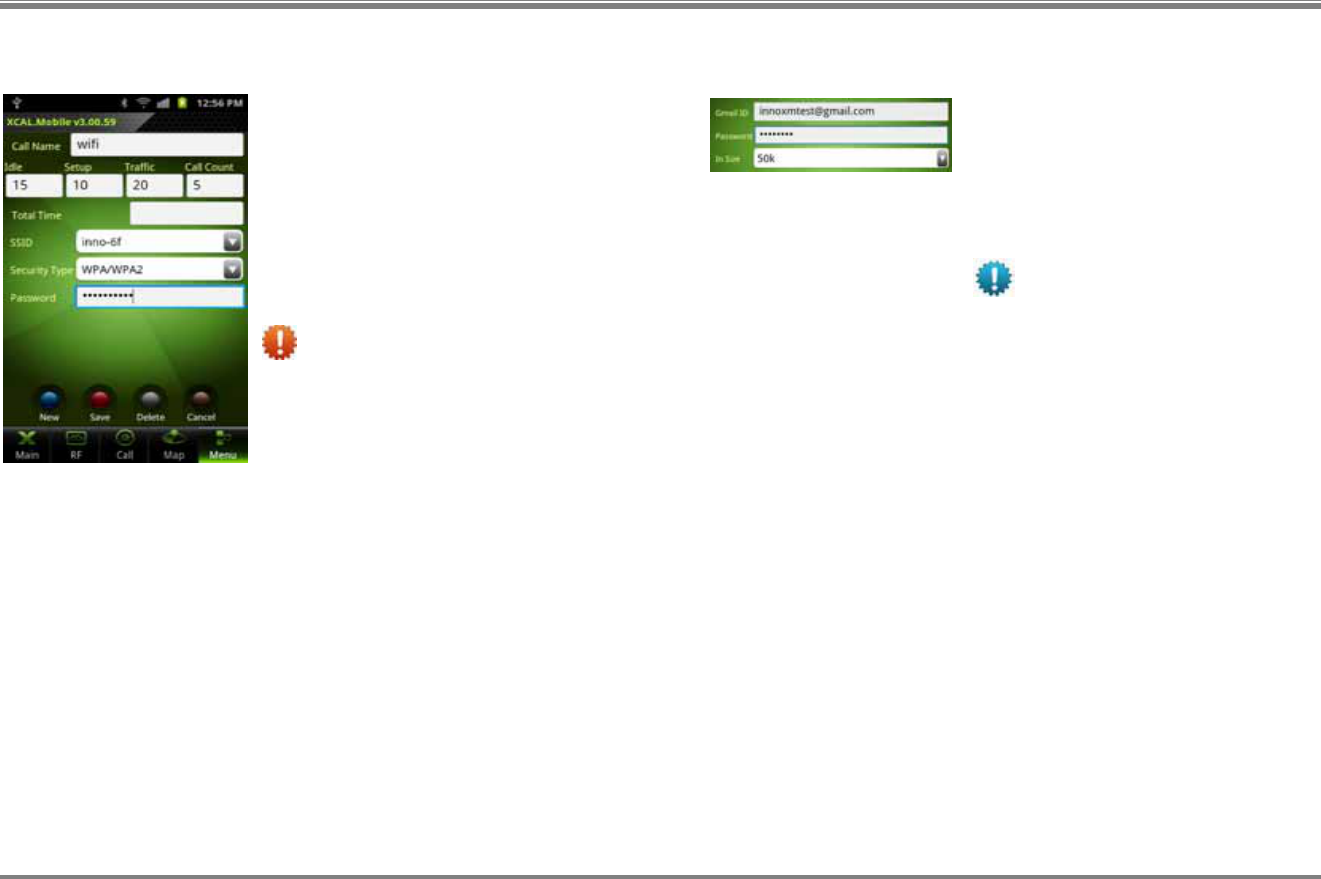

WiFi ................................................................ 103

E-Mail ............................................................. 103

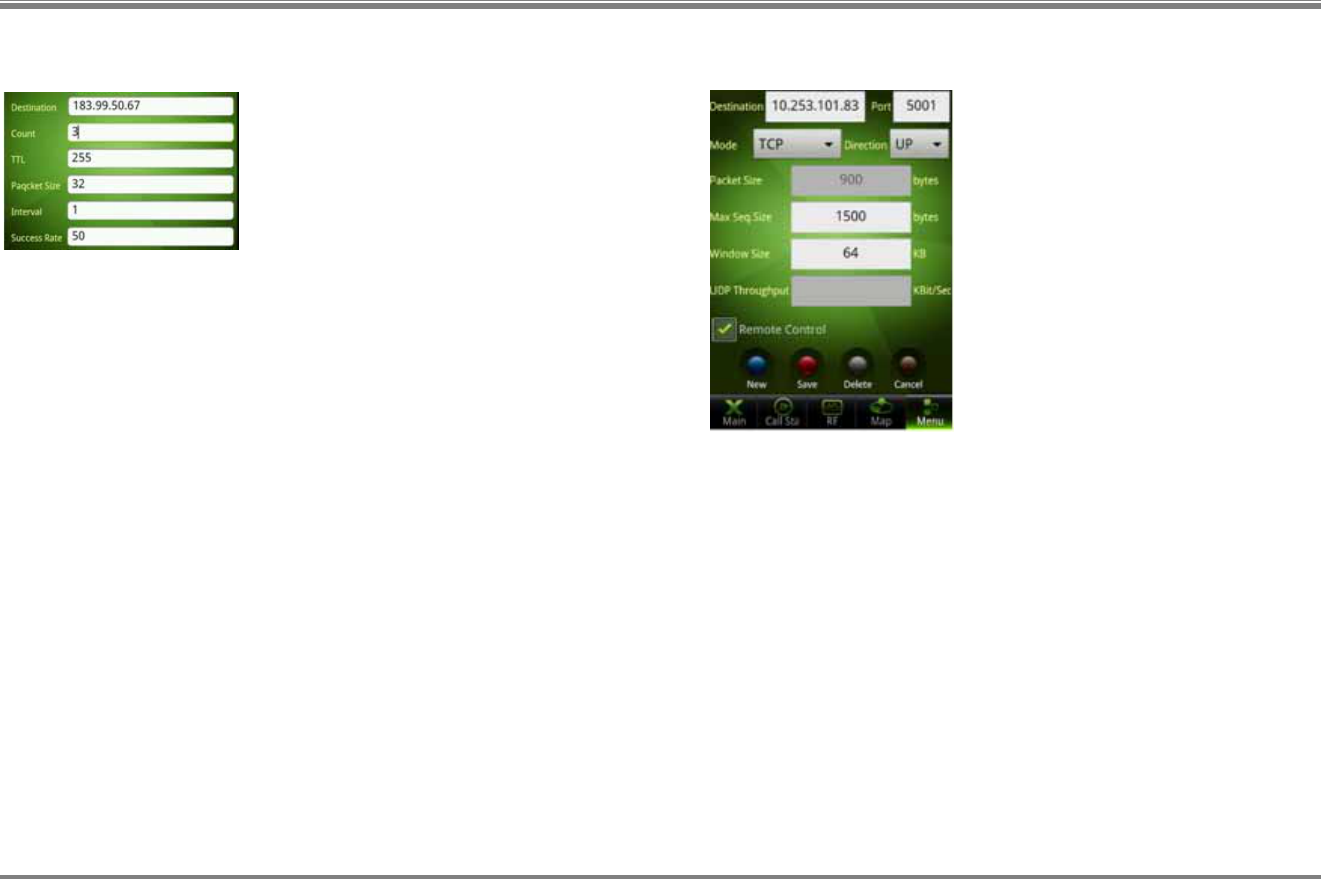

Ping ................................................................ 104

Iperf ............................................................... 104

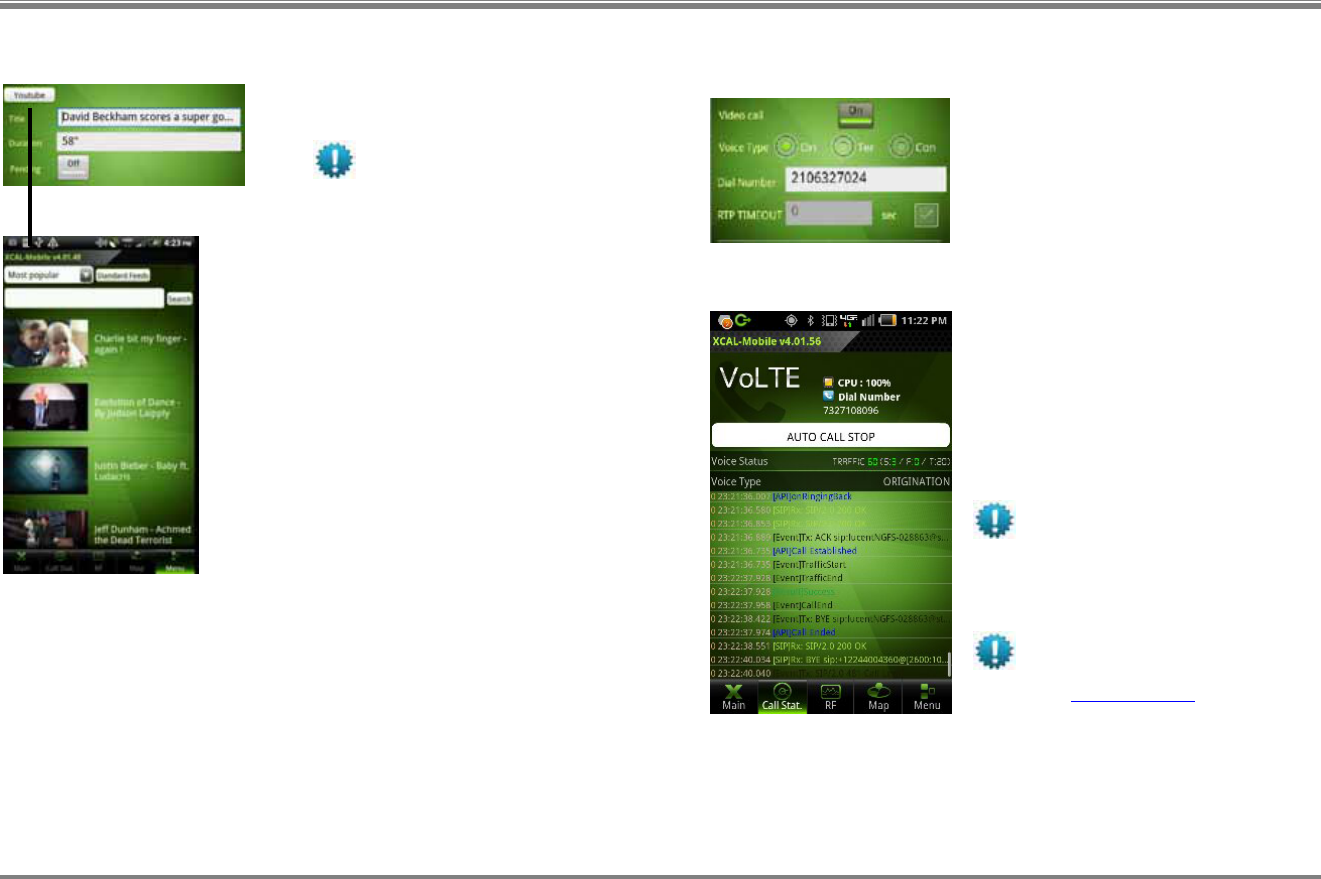

Youtube ........................................................... 105

VoLTE .............................................................. 105

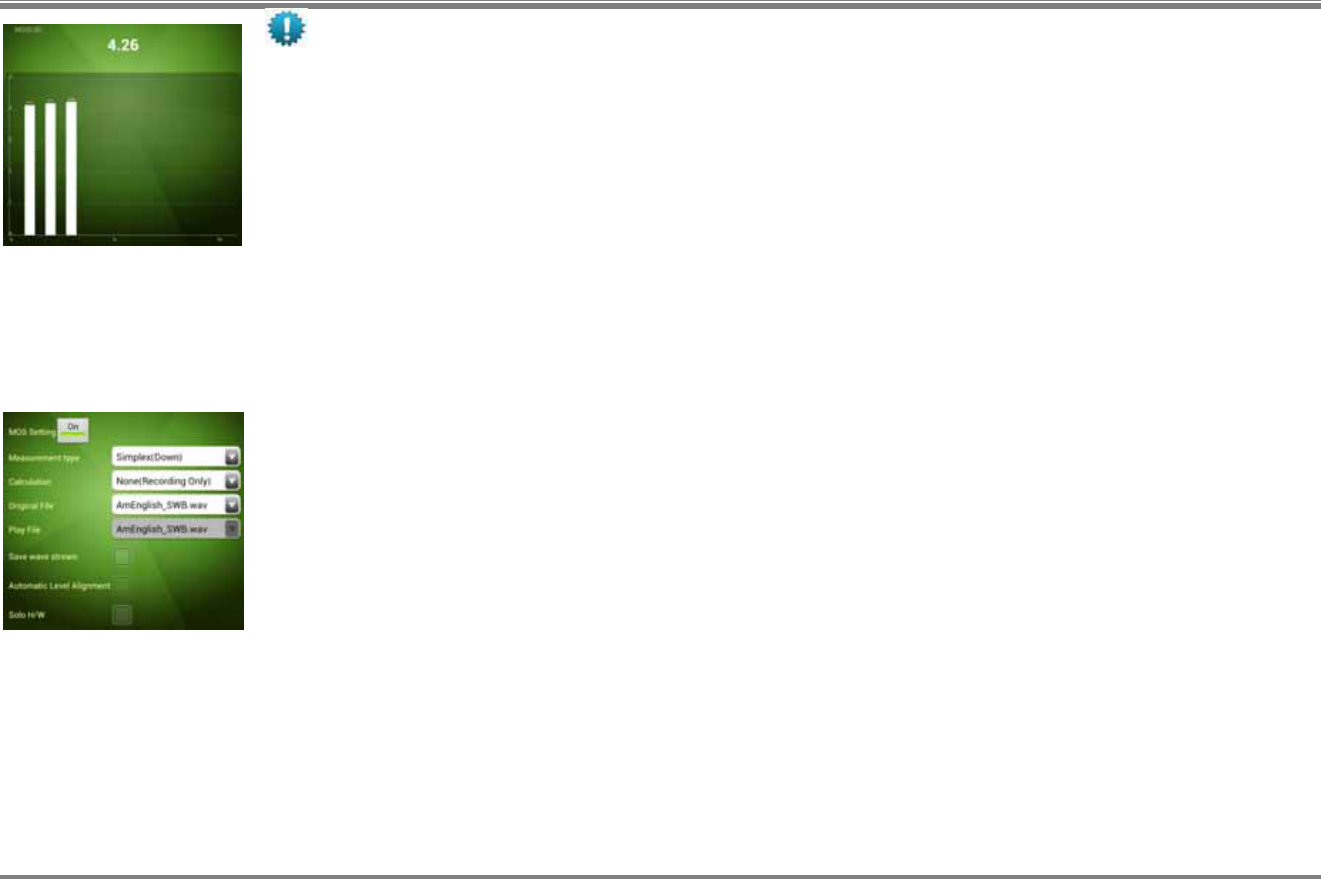

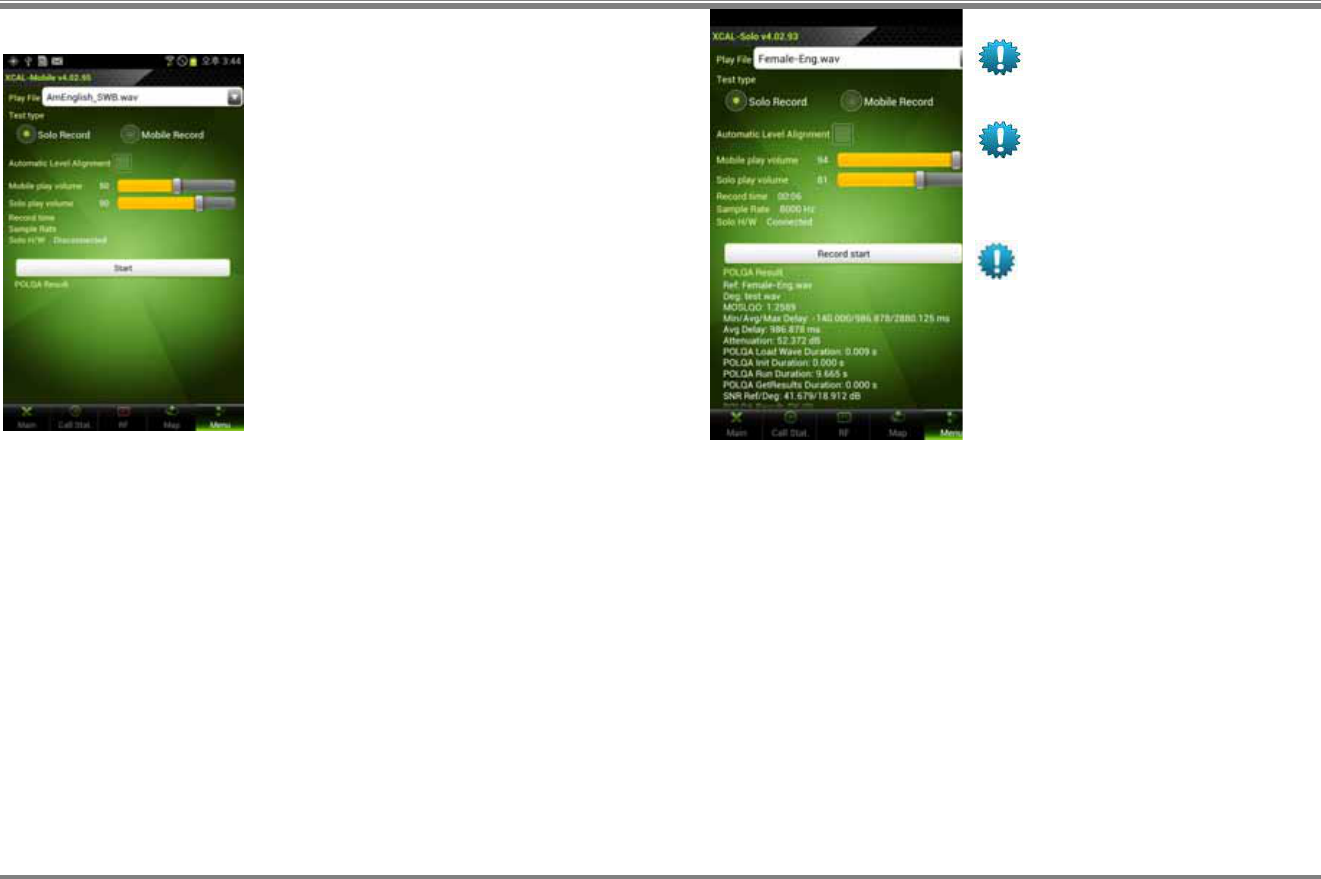

MOS Setting ..................................................... 106

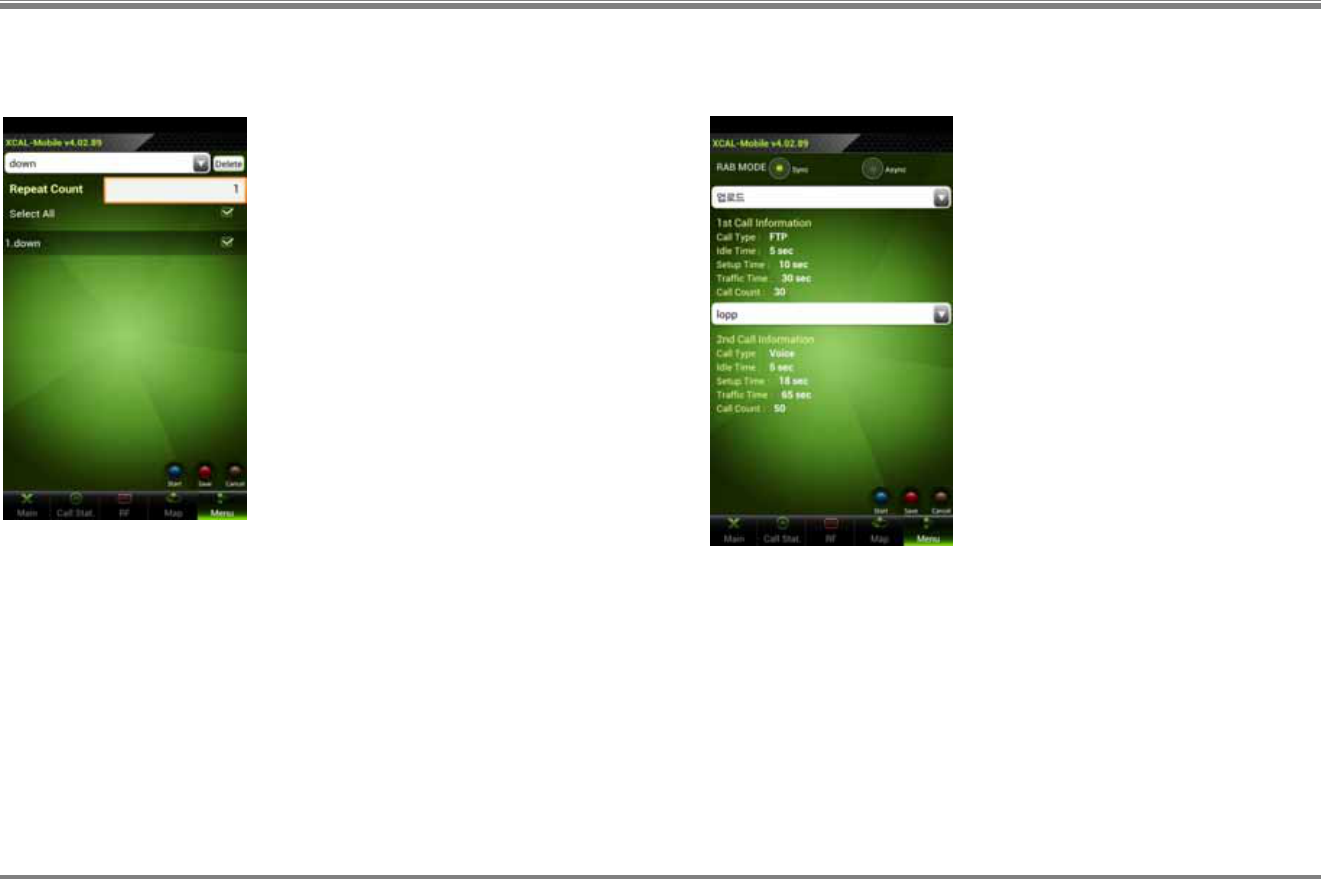

Multi Call ......................................................... 109

Multi RAB ........................................................ 109

Appendix: Call Events ................................................ 110

Voice .................................................................... 111

FTP ...................................................................... 111

Web ..................................................................... 112

SMS ..................................................................... 112

WiFi ..................................................................... 112

E-Mail ................................................................... 113

Ping ..................................................................... 113

YouTube ............................................................... 113

VoLTE ................................................................... 113

Appendix: Parameter Description .............................. 114

LTE ...................................................................... 114

3G – UMTS/HSDPA/HSUPA ...................................... 116

2G – GSM/GPRS/EDGE ........................................... 117

2G – CDMA/EVDO .................................................. 118

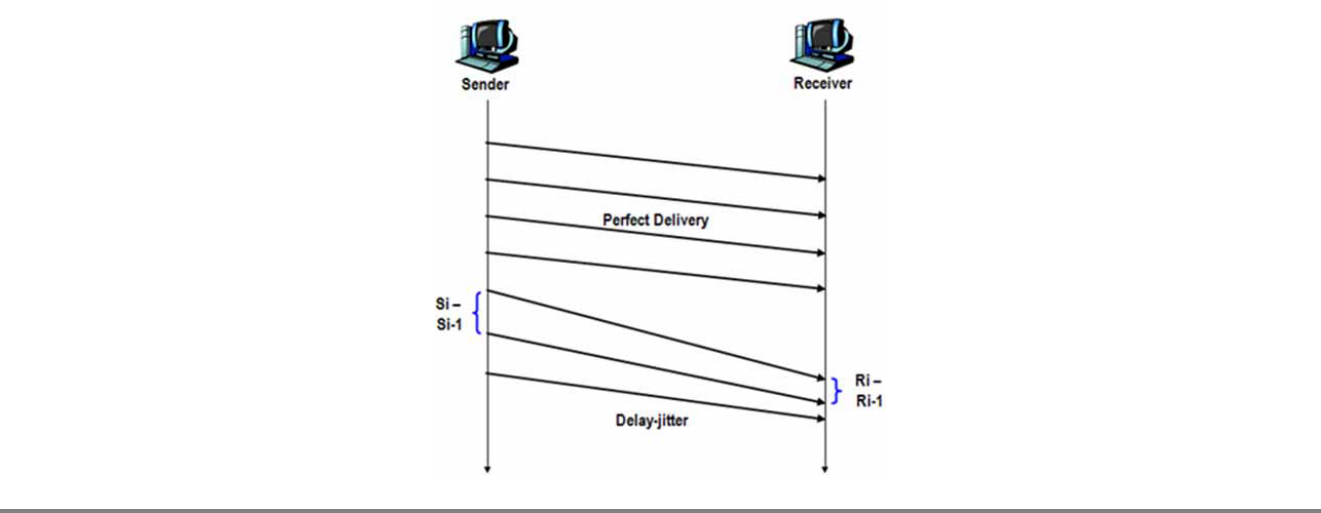

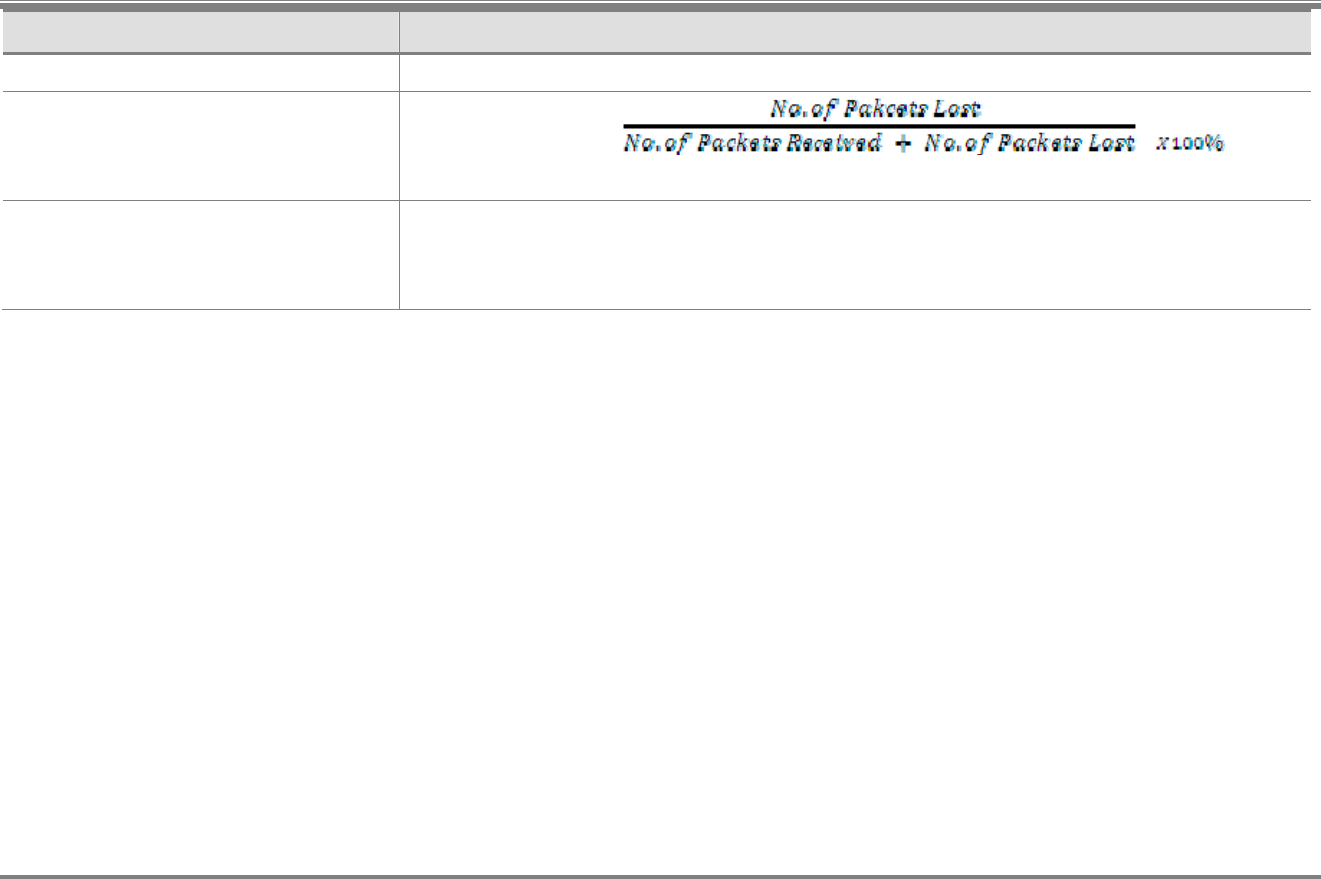

Appendix: RTP Analysis in VoLTE ............................... 120

5

O

verview

XCAL-Mobile 4G is a handheld based stand-alone application running on smart phones that enables QoS and QoE testing across

all WCDMA, GSM, and LTE technologies. XCAL-Mobile 4G application on smart phone in Android OS supports extensive

application testing and delivers real-time network measurement and visualization.

XCAL-Mobile 4G is provided for both indoor and outdoor measurement while it is also available for field drive test when it is

installed inside of a moving vehicle. It supports remote control function by connecting with other server solution series of

Accuver. All features can be controlled by using normal handset keys.

6

Special Features

• Generates and terminates voice and data calls

automatically.

• Creates and edits measurement scenarios in portable

smart phone.

• Performs voice and data call measurement

simultaneously.

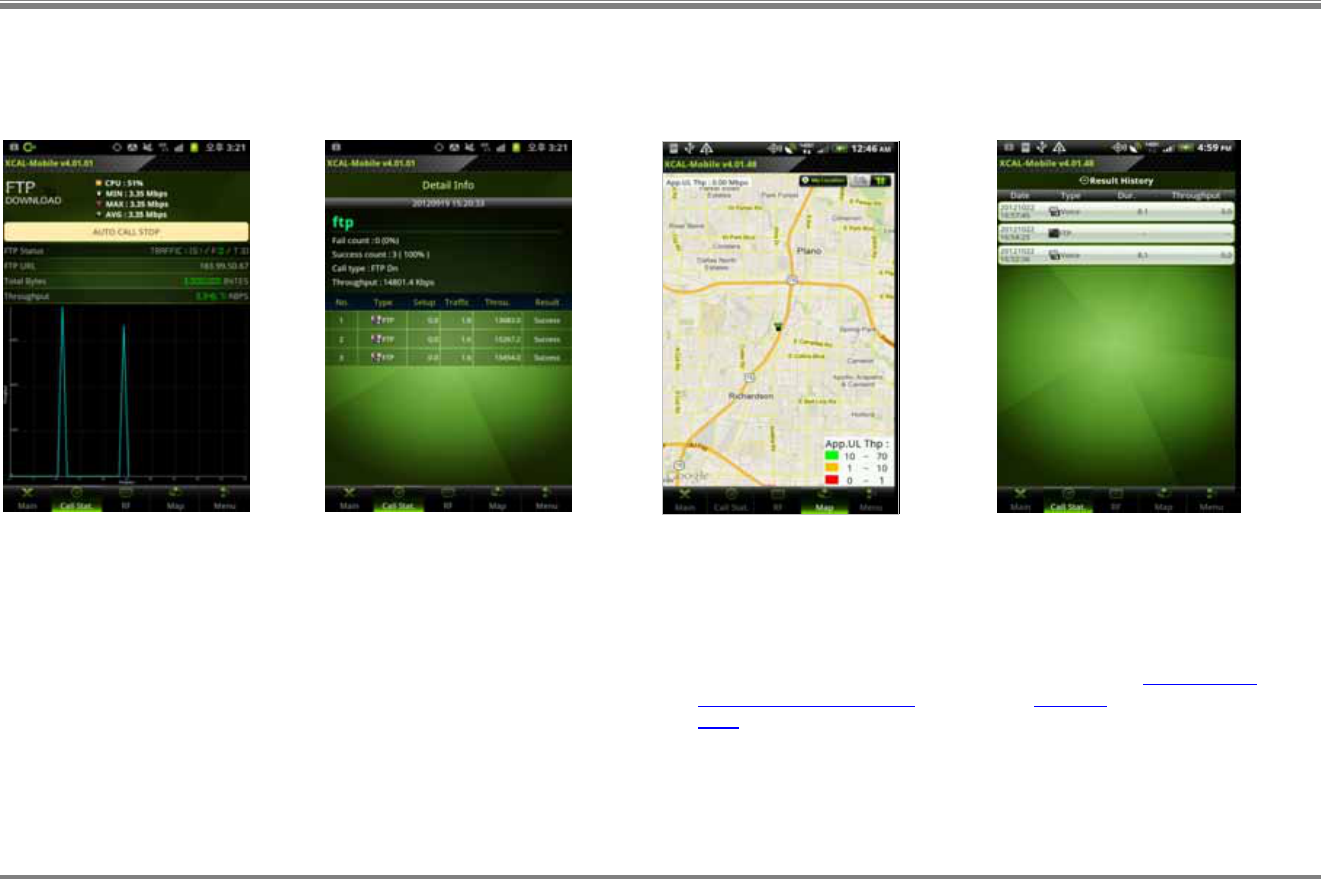

• Monitors statistics in real-time in message, graph,

table, and map.

• Provides multiple types of call events and parameters

for technologies.

• Shows monitoring data in mobile window as the

logging file is provided in *.drm and *.csv format.

• Supports both indoor and outdoor measurement.

• Supports Replay mode.

• Exports logging file to server both manually and

automatically.

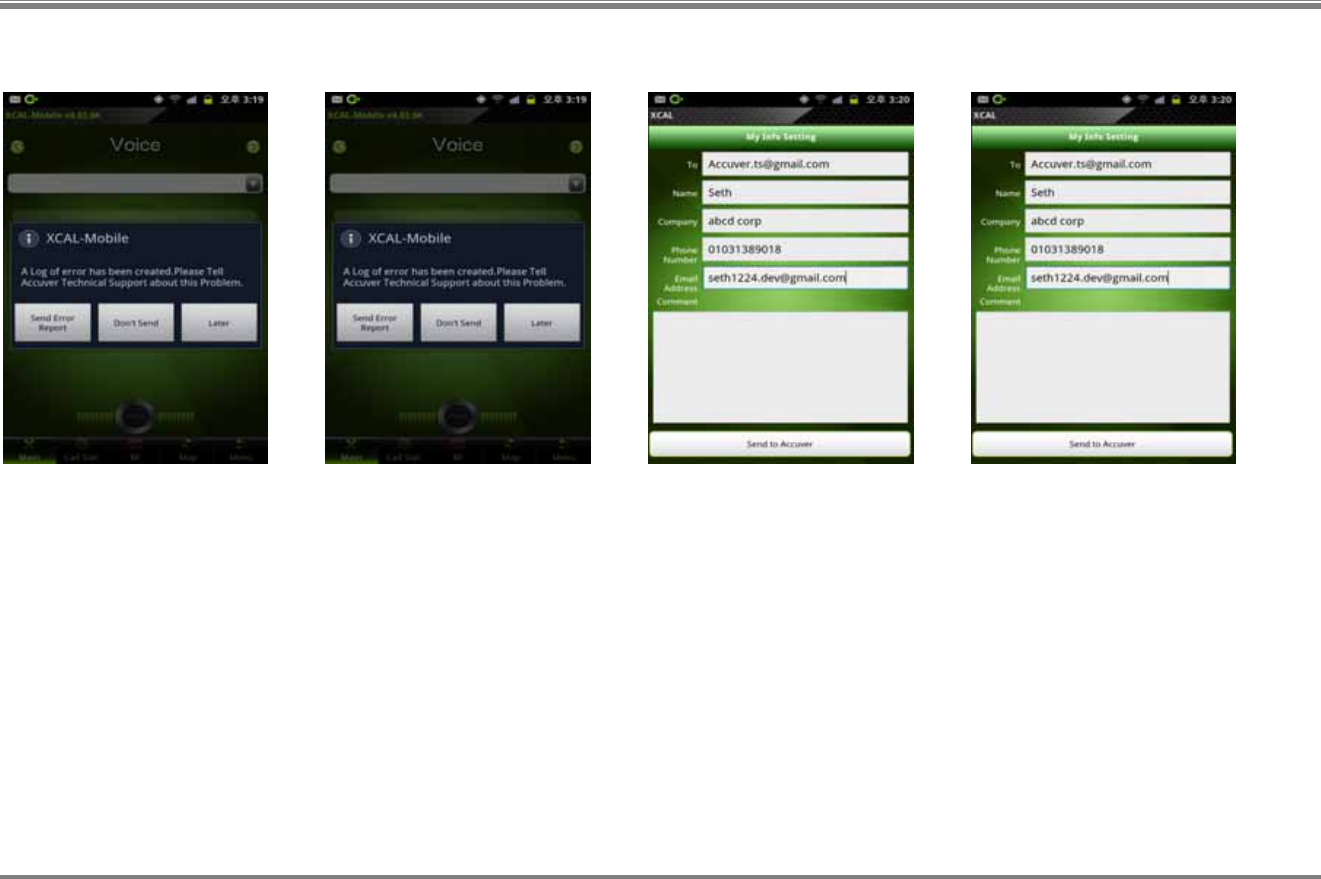

• Reports errors of the program via e-mail

automatically.

Specification

• Technology: CDMA/EVDO, WCDMA, LTE

Supportive technology varies depending on

Smart Phone model. For detail, see Appendix:

Support Technology for Smart Phone Model.

• Terminal: Android smart phone OS up to Jelly Bean

(v4.1)

• Recommended RAM memory: 812 MB

• Call Type: Voice, FTP, Web, E-Mail, Iperf, Ping,

YouTube, VoLTE, Multi Call, Multi RAB

• RF Parameter: Android RF Info, WiFi Info, 3G

Summary, 3G Signal, 3G Cell, LTE Summary, LTE

Signal, LTE Cell, LTE Tx Power, LTE SIB1

7

G

etting Started

This chapter describes how to install XCAL-Mobile 4G application in smart phone:

• How to Connect a PC to an Android-OS smart phone.

• How to install a file explorer application in Android-OS.

• How to copy XCAL-Mobile 4G program (*.apk) to Android-OS smart phone.

XCAL-Mobile 4G User Guide Chapter 2. Getting Started

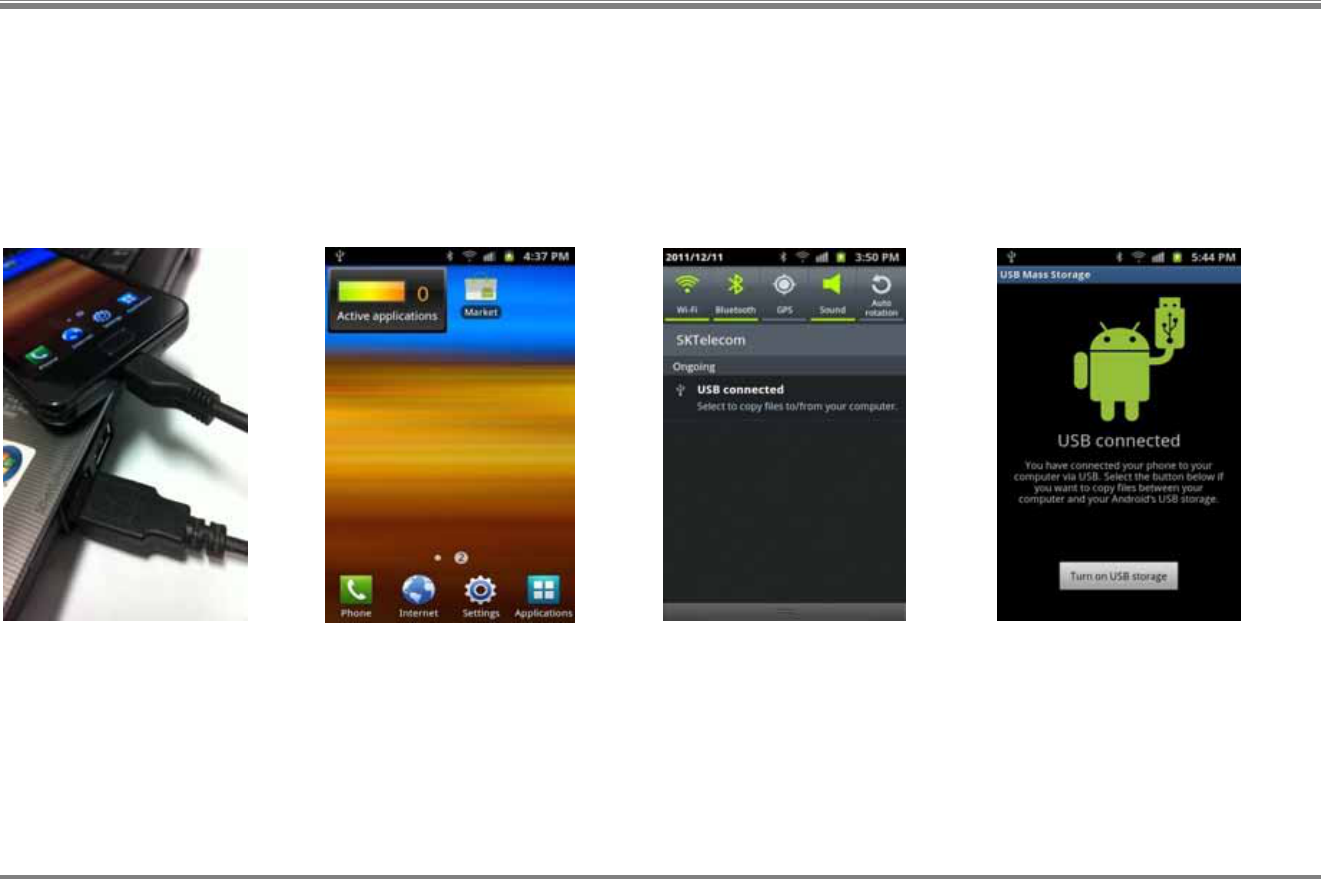

Connecting PC and smart phone

In order to install XCAL-Mobile 4G application on your smart phone, you first need to connect your smart phone and PC by

phone cable.

1. Connect PC and an Android-

OS smart phone by phone

cable.

2. Swipe down from the

top of smart phone

screen to open

notification center.

3. Tap USB connected. 4. Tap Turn on USB

storage button.

5. PC and Android-OS

smart phone is

connected successfully.

XCAL-Mobile 4G User Guide Chapter 2. Getting Started

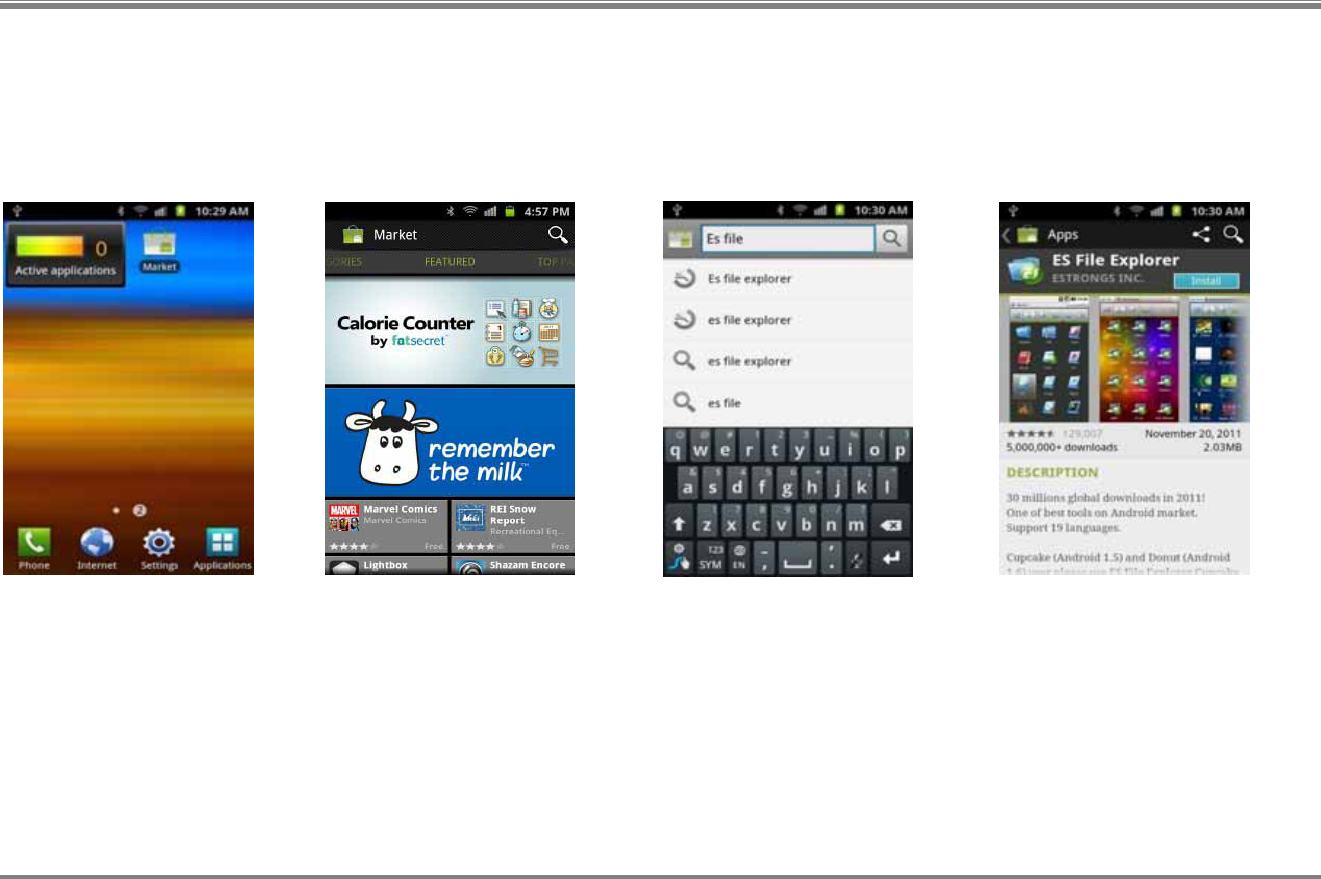

Installing file explorer application (ES File Explorer)

ES File Explorer application helps you to navigate through your smart phone.

1. Tap Market icon on

your smart phone to

open Android Market.

2. Android Market main

screen appears.

Tap Search icon.

3. Search for ES File

Explorer. 4. Download and install

the ES File Explorer

application on your

smart phone.

5. ES File Explorer

application is

successfully installed.

XCAL-Mobile 4G User Guide Chapter 2. Getting Started

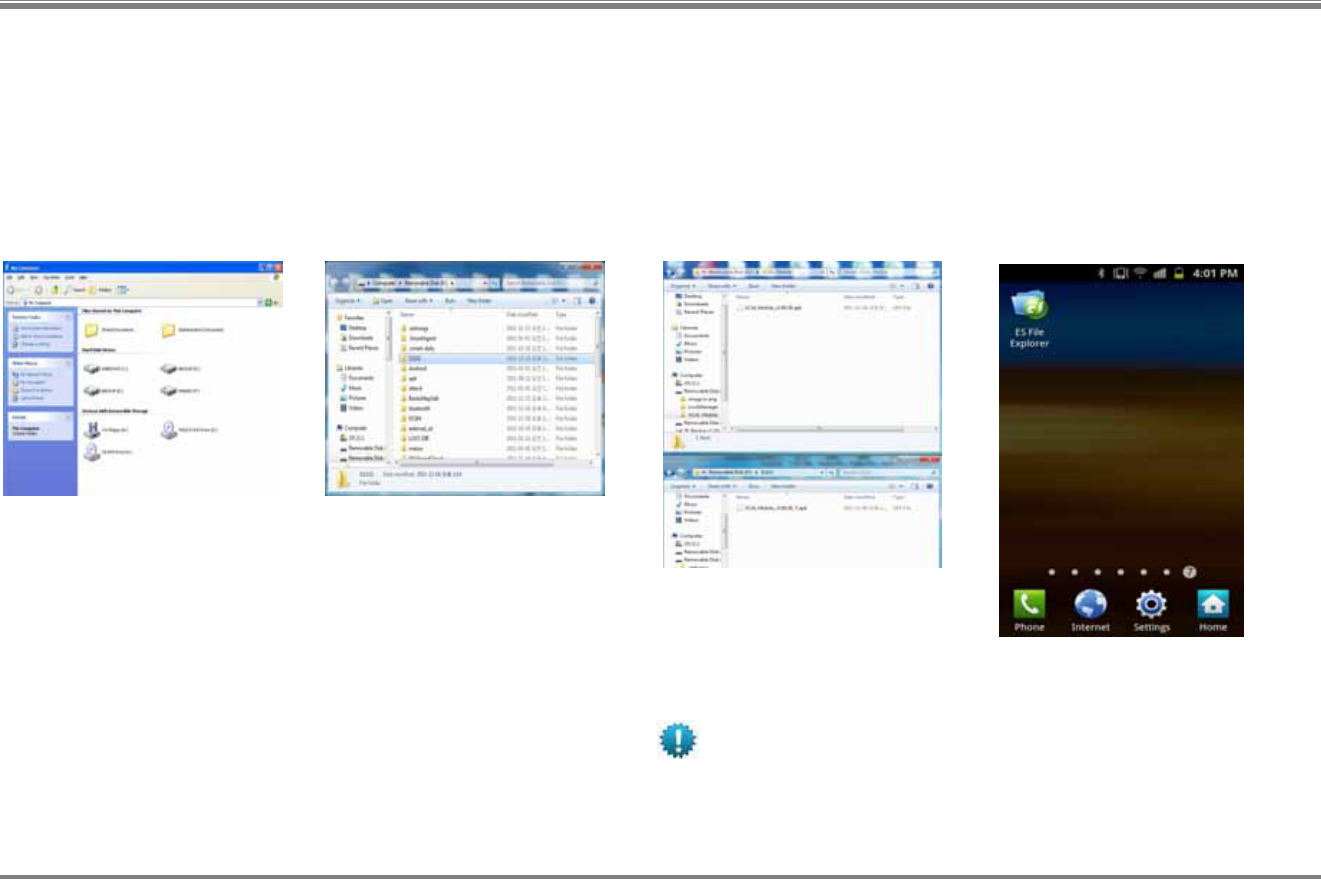

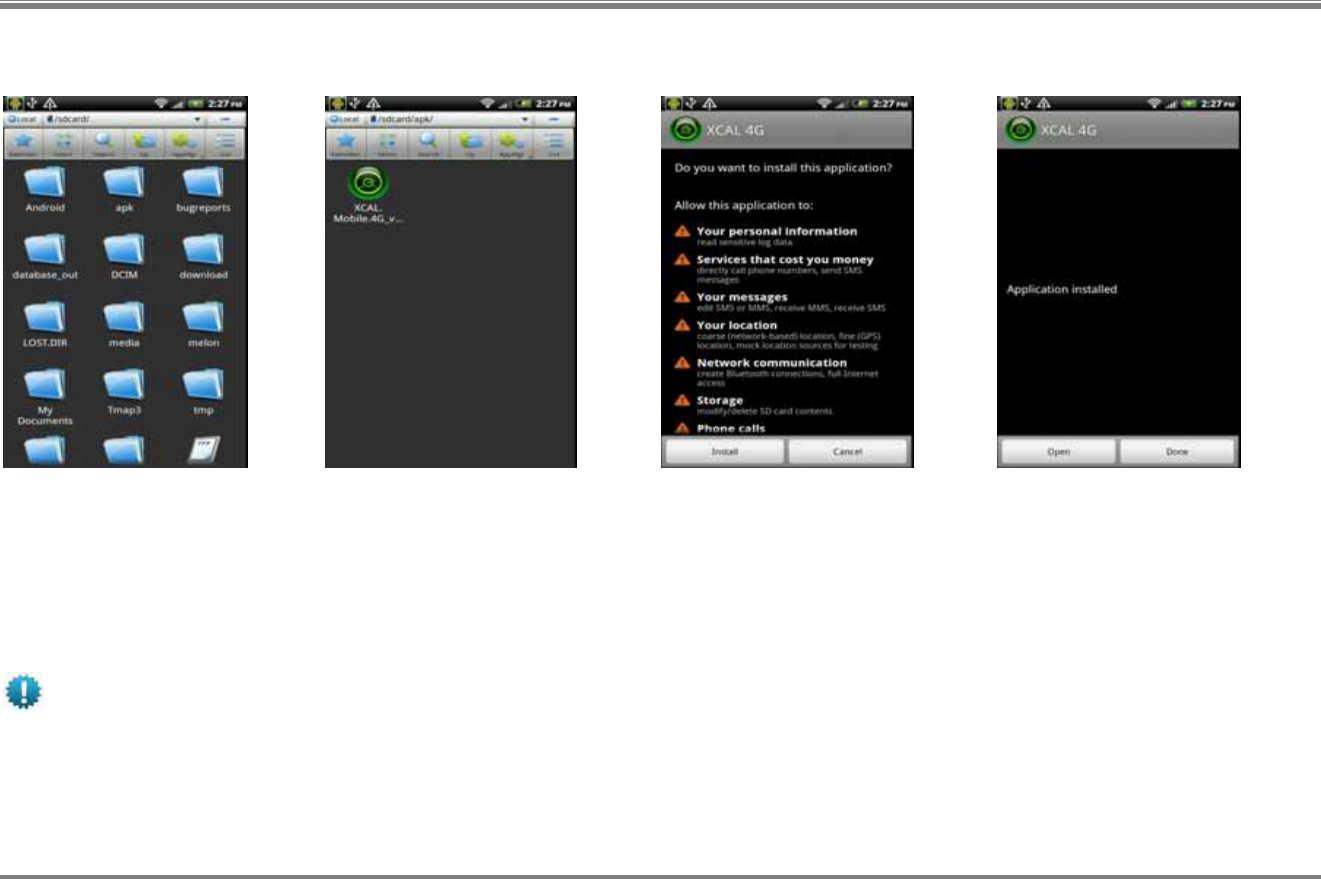

Transferring XCAL-Mobile 4G program file

You need to copy and paste XCAL-Mobile 4G application file in *.apk format onto your smart phone.

1. In PC, open driver of smart

phone. 2. Create a new folder. 3. Copy and paste XCAL-Mobile

4G program file (*.apk) into

the new folder.

XCAL-Mobile 4G program file

(*.apk) is provided upon

purchase.

4. In smart phone, tap ES

File Explorer icon to

execute.

XCAL-Mobile 4G User Guide Chapter 2. Getting Started

5. Tap the new folder

which was created via

PC.

6. Tap XCAL-Mobile 4G

program file (*.apk) to

execute.

7. Tap Install button. 8. XCAL-Mobile 4G

application is

successfully

downloaded and

installed.

Make sure that there is enough hard disc capacity in the smart phone. XCAL-Mobile 4G program file (*.apk) is approx. 10

MB.

12

S

tarting XCAL-Mobile 4G

By now, you have completed all necessary steps before starting and are ready to use XCAL-Mobile 4G application on your smart

phone.

Before you start XCAL-Mobile 4G, make sure

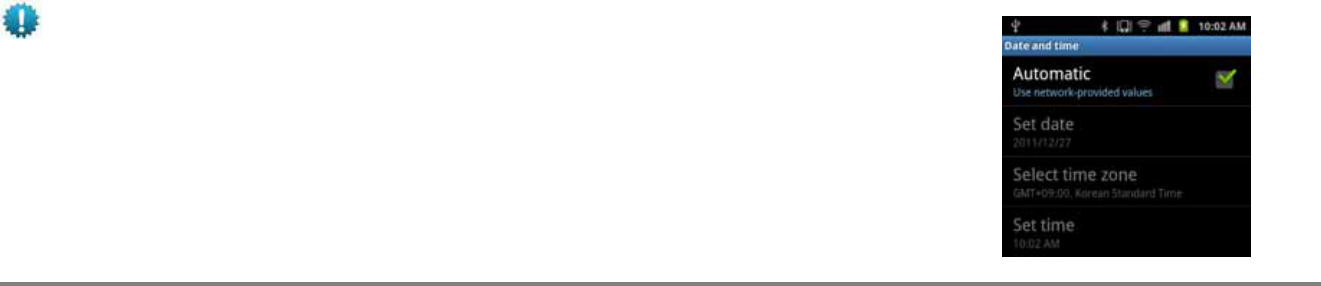

- Settings – Date and time - Auto (Use network-provided values) is checked.

- Internet access is available (WiFi, 3G or 4G).

XCAL-Mobile 4G User Guide Chapter 3. Starting XCAL-Mobile 4G

Prior to using XCAL-

Mobile 4G, you should

get a valid SW

License Key. You may

request Accuver sales

representative for

valid Key by sending

your IMSI, IMEI or

MAC address

information of device.

1. Tap Check Box of valid

Key and License

Download button.

2. License Download

Screen appears. 3. Main screen of XCAL-

Mobile 4G appears.

MAC address will not be shown when internet access (WiFi or 3G or 4G) is unavailable.

XCAL-Mobile 4G User Guide Chapter 3. Starting XCAL-Mobile 4G

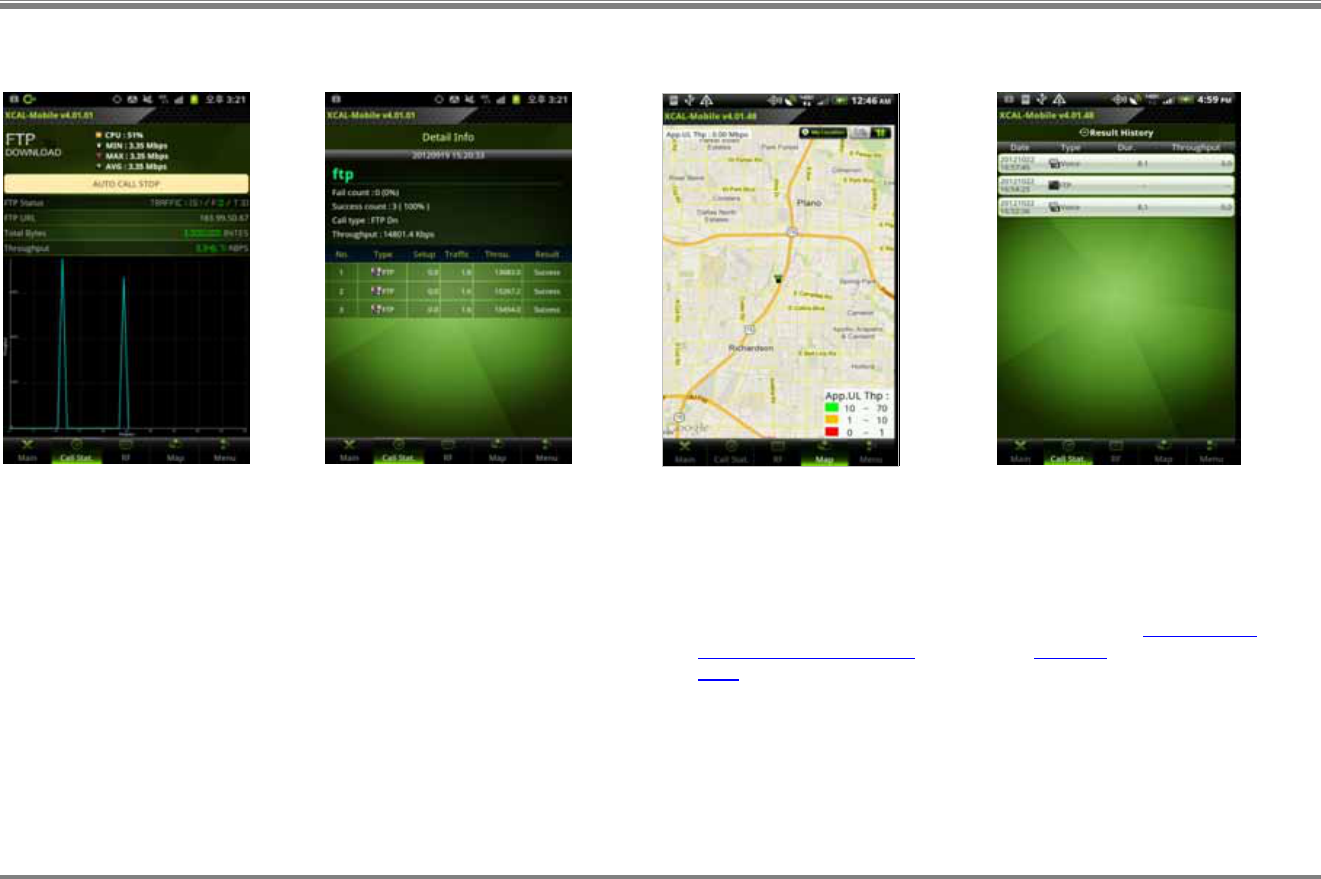

Shows test result in real-time while measurement.

For detail of call result, see Call Result History

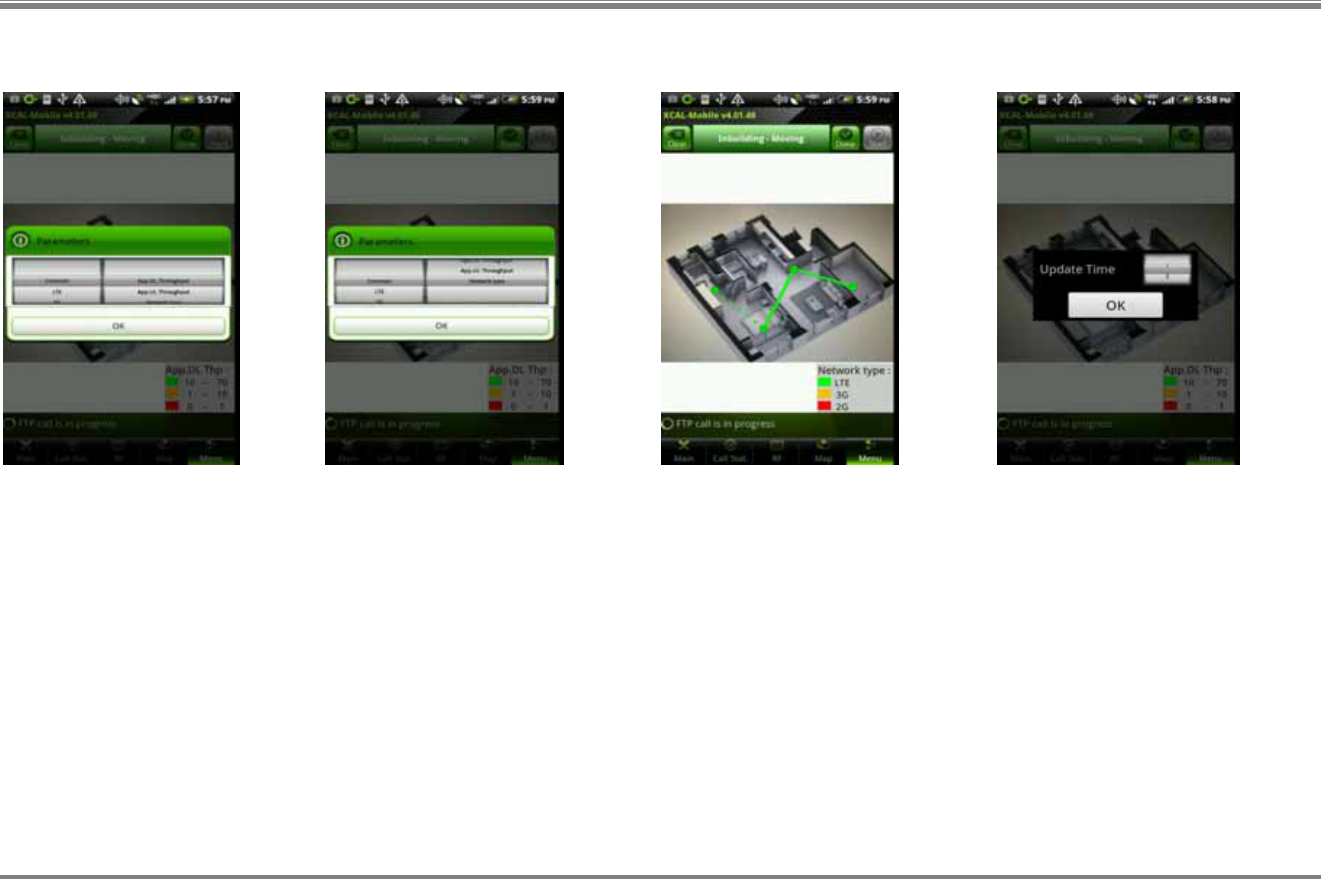

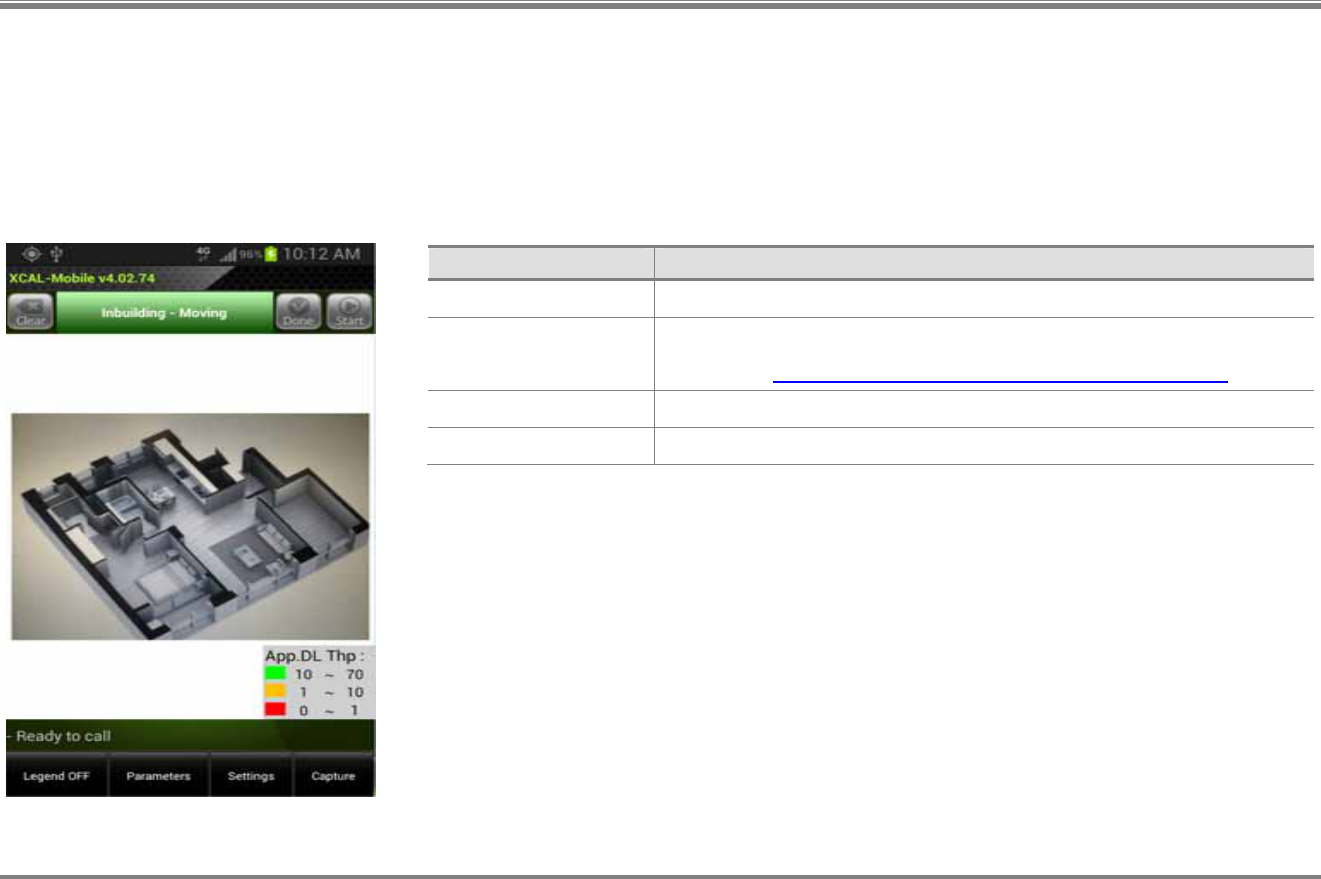

Shows data and serving lines in Google map.

For detail of call result, see Monitoring in Google Map.

Shows RF information of smart phone in real-time.

For detail of RF information, see RF Information

Select call type and start AutoCall based on call scenario.

For detail of AutoCall test, see AutoCall Test.

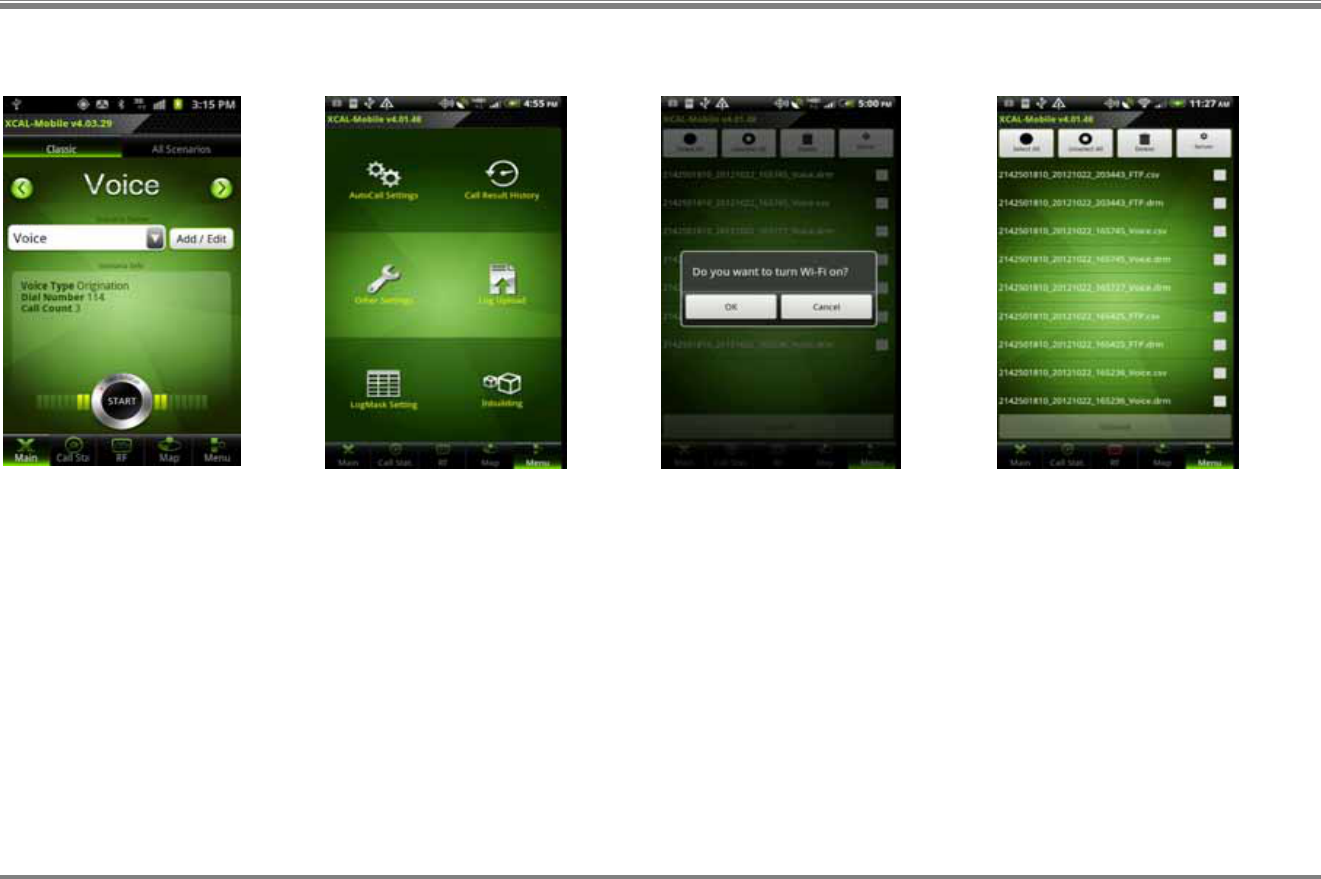

Graphic User Interface

XCAL-Mobile 4G’s intuitive and user-friendly user interface helps your measurement projects..

Starts AutoCall.

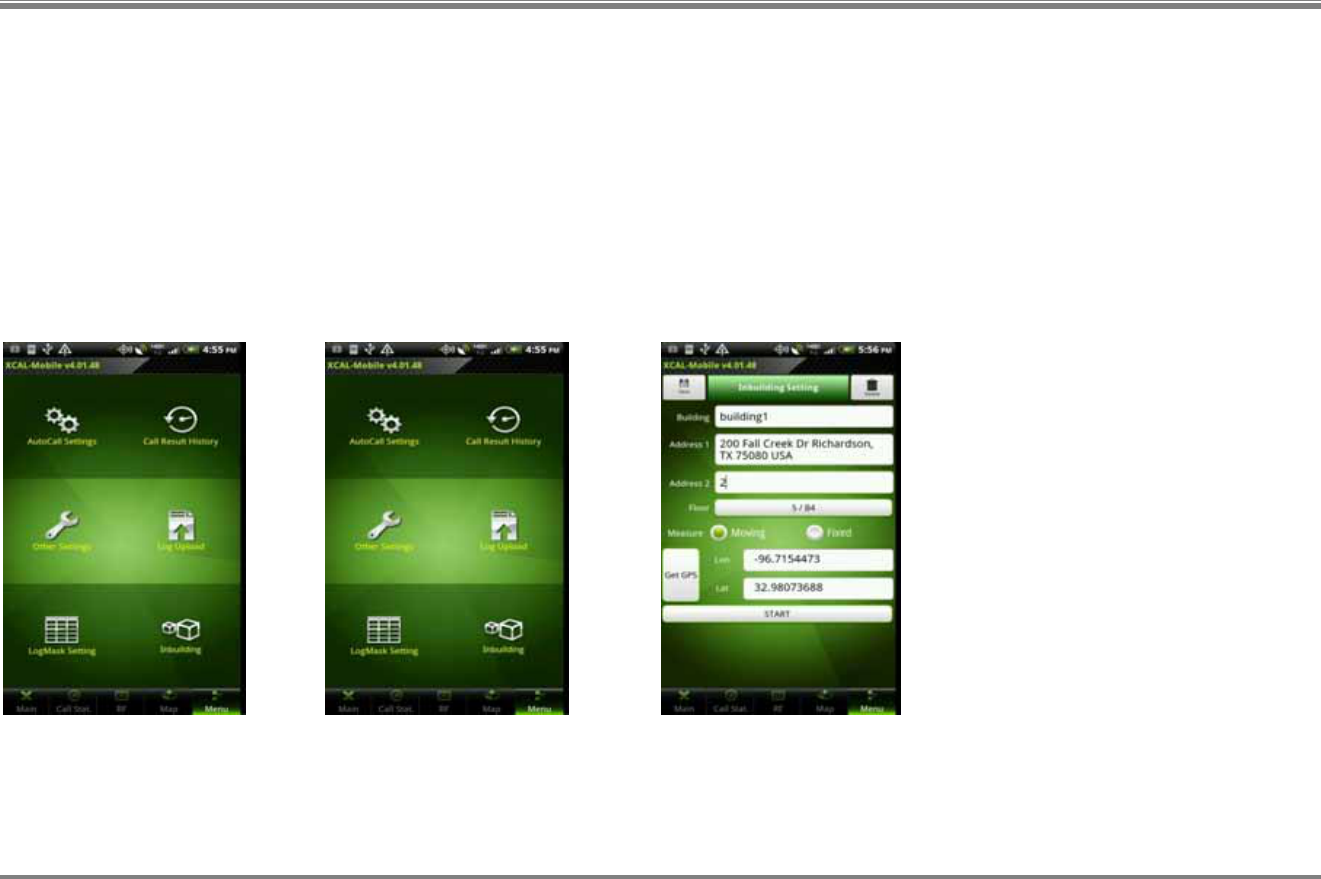

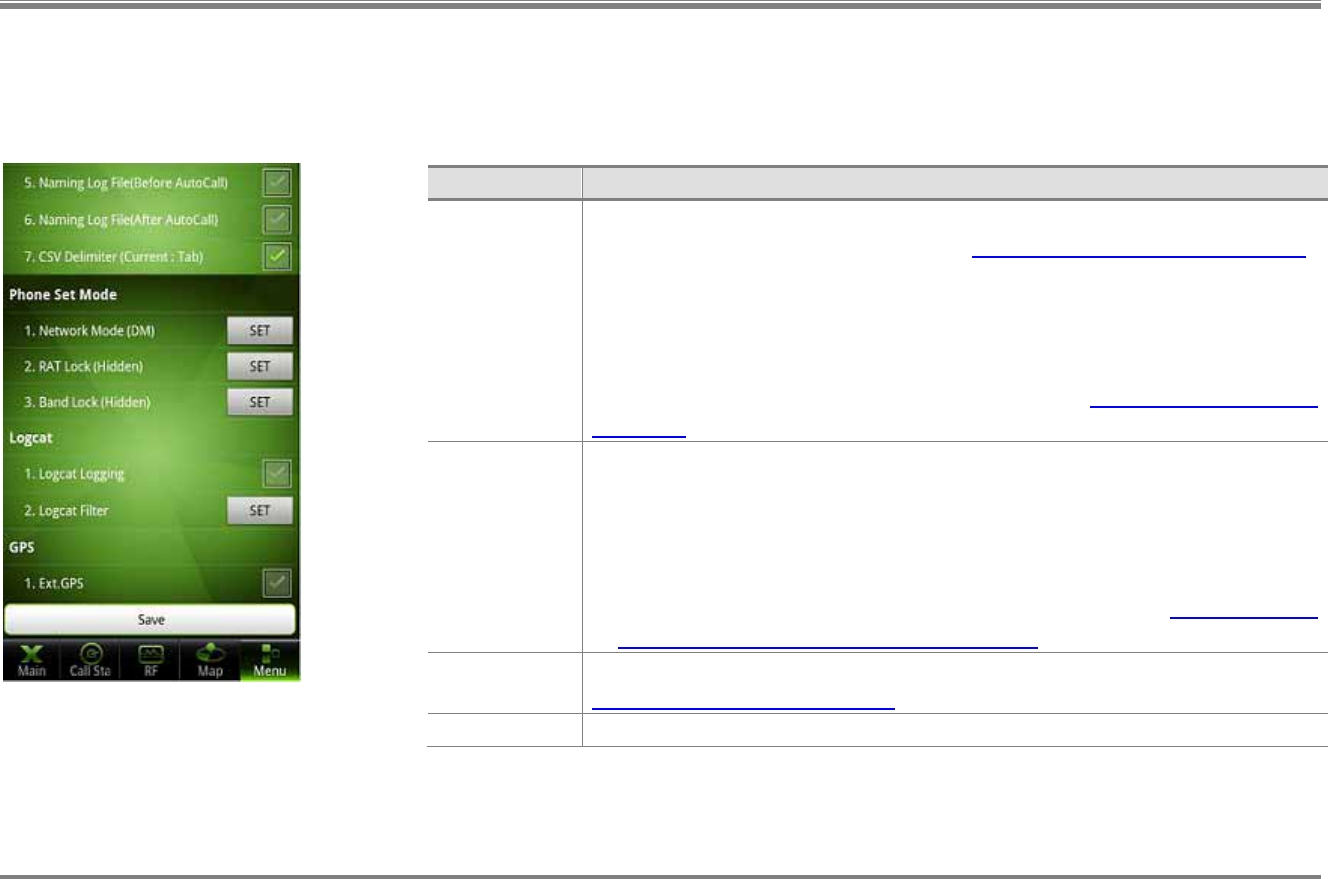

AutoCall Setting, Call History, Other Setting, Log Upload, Logmask Setting

For detail, see Configuring AutoCall Scenario, Call Result History, Uploading Log

File

,

Additional Function

XCAL-Mobile 4G version

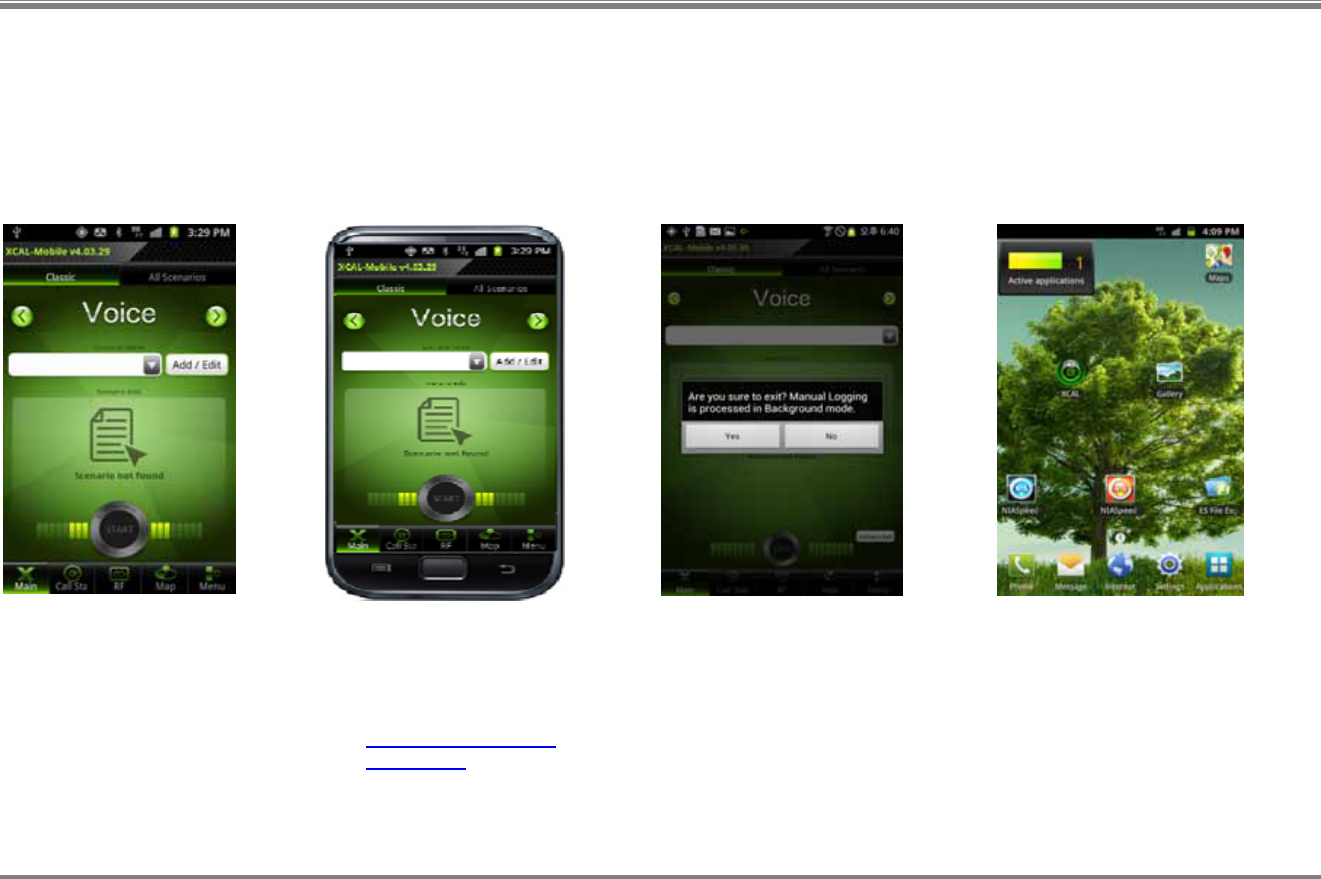

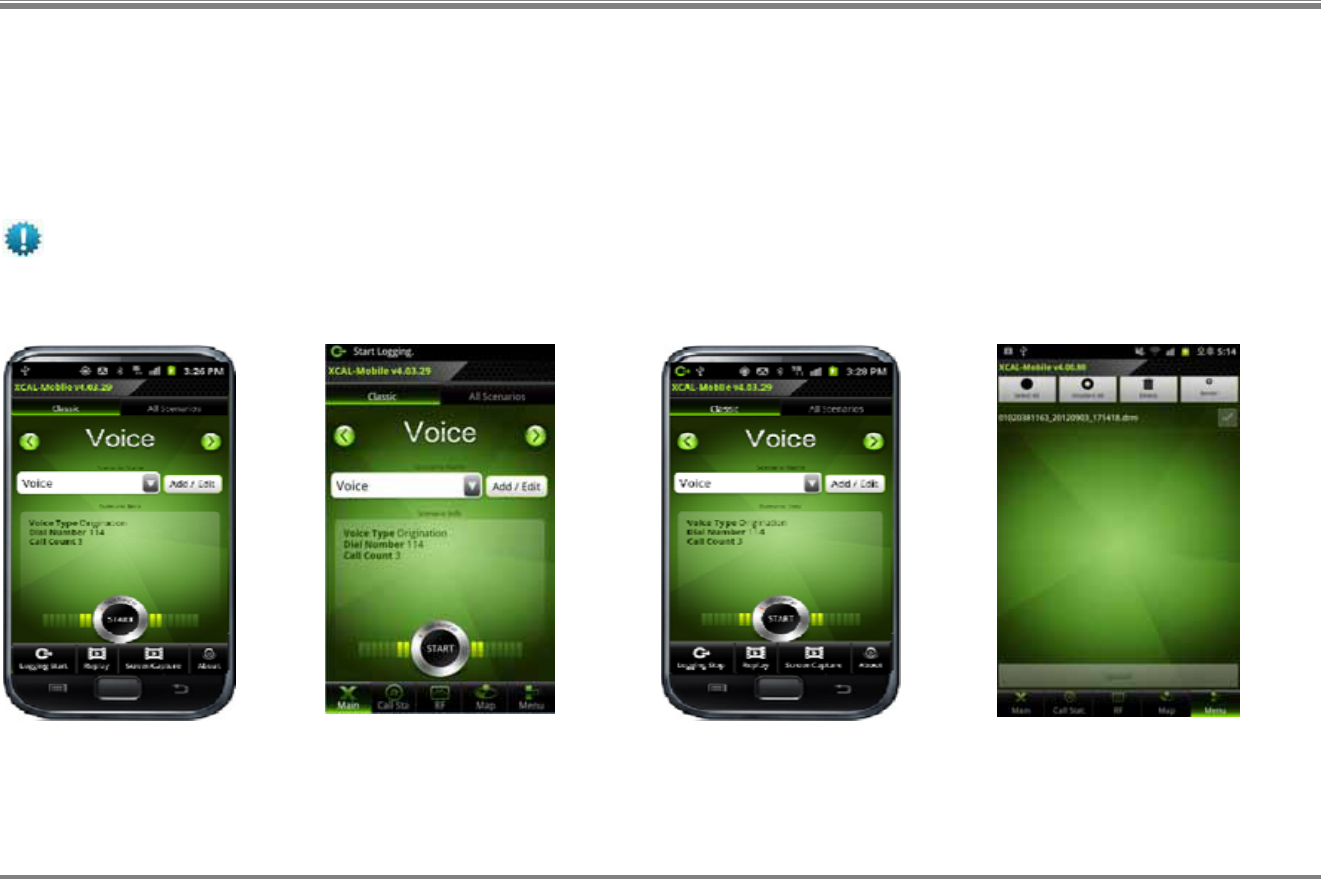

Swipes left and right to select call type.

Taps combo box to select Auto Call scenario.

Shows Scenario details.

Taps Classic or All Scenario tab.

15

R

F Information

XCAL-Mobile 4G displays real-time RF information of smart phone.

XCAL-Mobile 4G shows following RF parameters.

• Android RF

• WiFi Info

• Signal Messages

• 3G Summary

• 3G Signal

• 3G Cell

• LTE Summary

• LTE Signal

• LTE Cell

• LTE Tx Power

• LTE SIB1

• RTP Summary

• CDMA Summary

• CDMA Signal

• CDMA Cell

• EVDO Cell

RF parameters in blue color are available depending on device type.

For details of parameter description of each technology, see Appendix: Parameter Description.

XCAL-Mobile 4G User Guide Chapter 4. RF Information

1. In main screen of XCAL-

Mobile 4G, tap RF button. 2. To select RF parameter,

swipe down the green

bar at the top of the

screen. You can see

various RF information

view types. Select a

view type icon. For

details, see next pages.

3. The selected view

type screen appears.

Swipe left and right to monitor other RF Information screens.

Swipe up and down to monitor more data in a RF Information screen.

17

Android RF

Android RF screen shows basic RF information provided by

Android OS.

• Current Network/Phone Type

• Operator

• Latitude

• Longitude

• Data State

• Current CPU usage

• Usage/APP Memory

• Battery

• Autocall

• Log File Size

• SD Free Space

• Phone Model

• Phone OS Ver

• Rooting

• DM Time(Received)

WiFi Info

WiFi screen shows information on connected AP and RSSI

graphs for all APs.

• BSSID

• SSID

• RSSI

• Detail State

• Supplicant State

• IP

• Link Speed

• MAC Address

• Network ID

• Hidden SSID

• Gateway

• NetMask

• DNS1

• DNS2

•Server IP

XCAL-Mobile 4G User Guide Chapter 4. RF Information

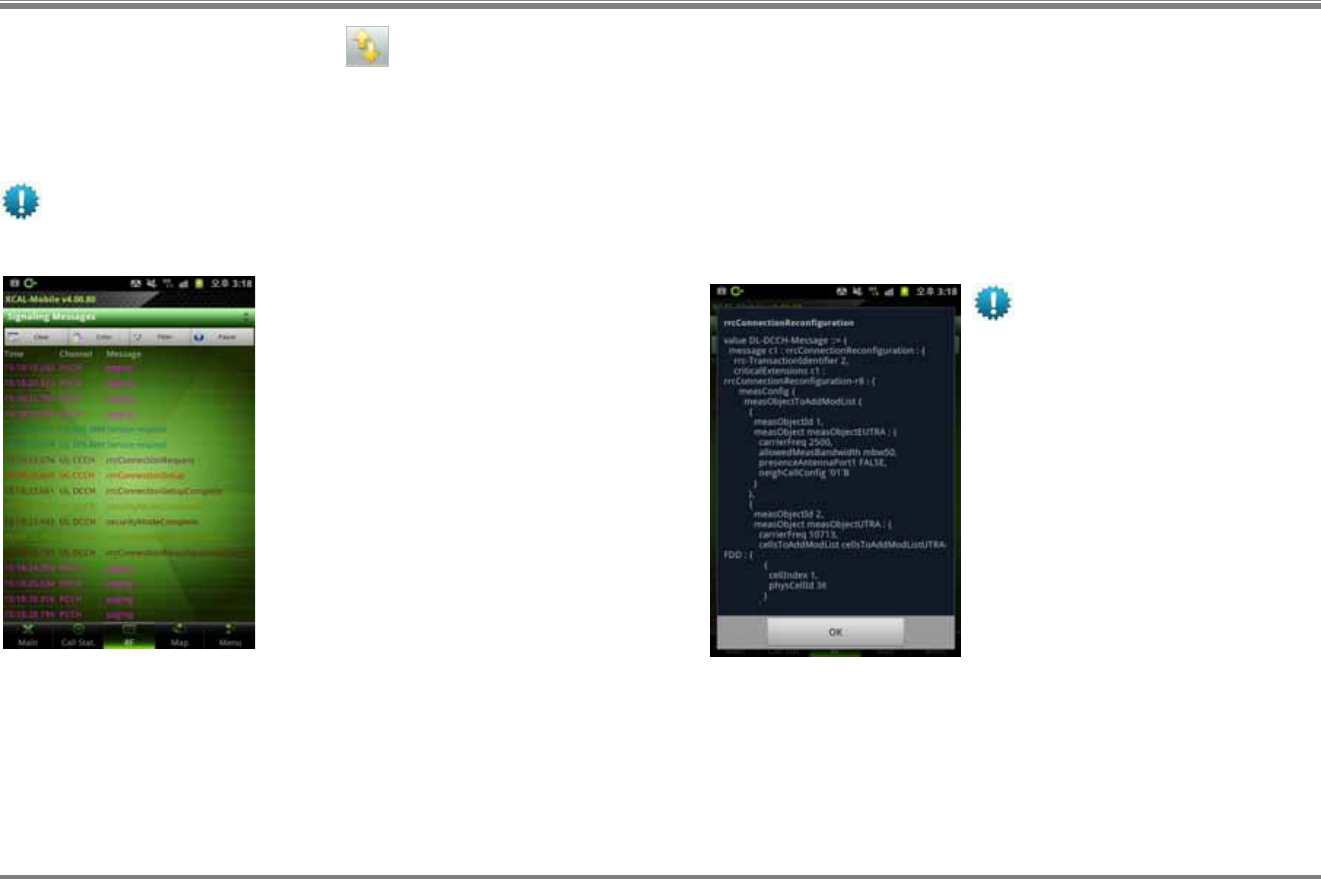

Signal Messages

Signal Messages screen shows RRC messages of

corresponding technology.

Signal Messages is available depending on device type.

• LTE RRC messages

Tap a message from Signal

Message list, and corresponding

code is shown.

XCAL-Mobile 4G User Guide Chapter 4. RF Information

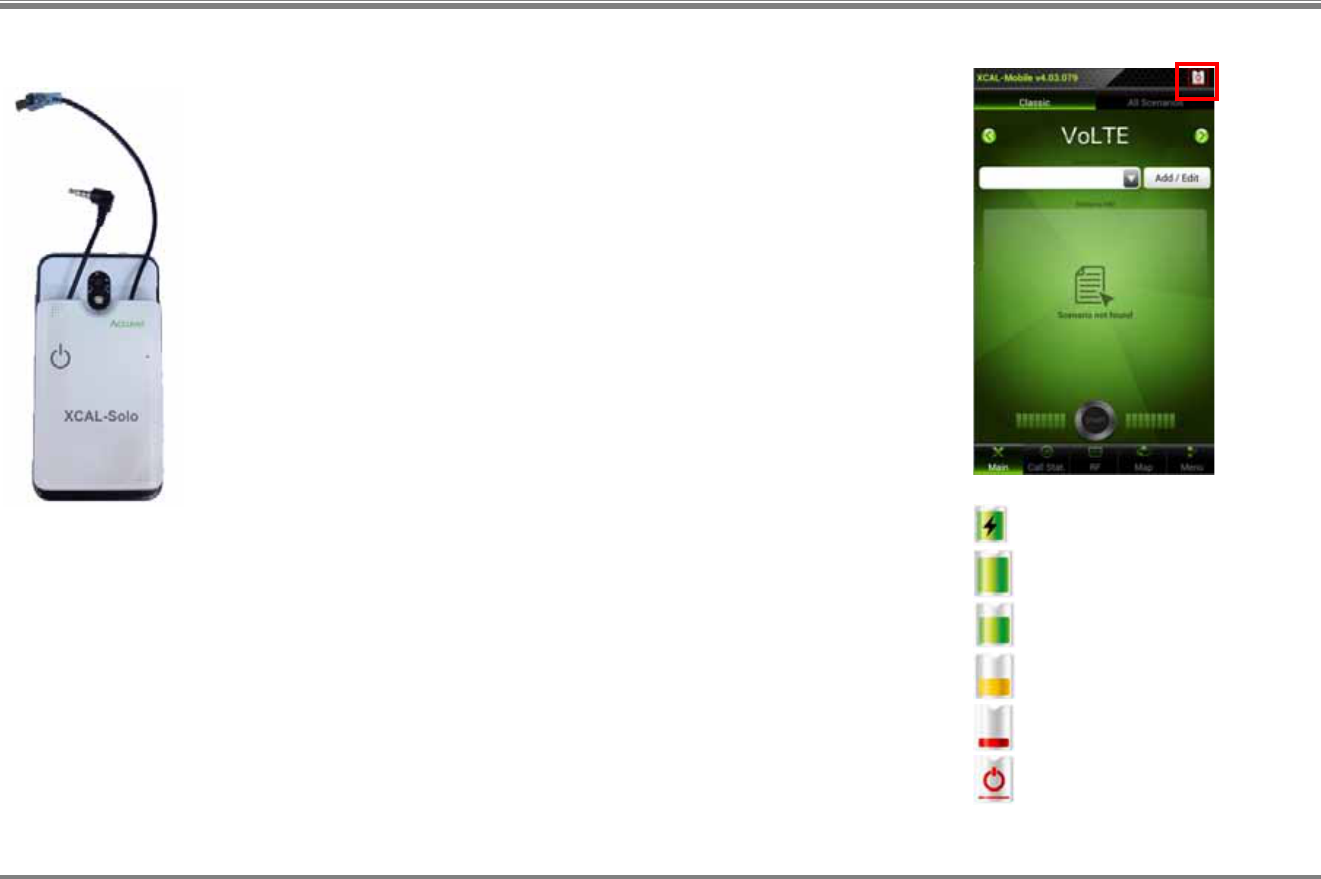

External DM Summary

External DM Summary screen shows information of XCAL-

Solo HW. External DM Summary screen shows information

when XCAL-Solo HW is connected to smart phone.

• Battery Level: Shows battery

status of XCAL-Solo HW.

• Solo Version: Shows XCAL-Solo

SW version.

• System Version: Shows XCAL-

Solo FW version.

• Serial Number: Shows XCAL-Solo

HW serial number.

3G Summary

3G Summary screen shows Rx, Tx, Adj Tx, BLER, CQI, DTX

Count, MAC-hs Layer, Physical, FTP Throughput, No. of

Codes, RG Down, RG Hold, RG Up, AG, SG, TTI, E-TFCI, UE

Power Headroom, SF Codes, Non Serving Cell ACK and

Happy bit information.

3G Summary is available depending on device type.

• RRC State

• RB Assignment

• DL UARFCN (Freq)

• UL UARFCN (Freq)

• Rx Power

• Tx Power

• BLER

• SIR

• Best Active PSC

• Best Active Ec/Io

• Best Active RSCP

XCAL-Mobile 4G User Guide Chapter 4. RF Information

HSDPA

• CQI

• DTX Rate

• MAC-hs TH

• Served Physical TH

• Scheduled Physical TH

• No. of Codes (Included)

HSUPA

• RG (Down)

• RG (Hold)

• RG (Up)

• AG

• SG

• TTI

• E-TFCI

• UE Power Headroom

• SF Code

• Non Serving Cell ACK

• Happy Bit

3G Signal

3G Signal screen shows Rx, Tx, Adj Tx, BLER, CQI, DTX

Count, MAC-hs Layer, Physical, No. of Codes, RG Down/

Hold/ Up, SG, TTI, E-TFCI, UE Power Headroom, Non

Serving Cell ACK and Happy bit information

Signal Messages is available depending on device type.

• Rx Power

• Tx Power

• Adj Tx

• BLER

• CQI

• DTX Count

• MAC-hs Layer

• Physical(served,Scheduled)

• No. of Codes

• RG Down/Hold/Up

• SG

• TTI

• E-TFCI

• UE Power Headroom

• Non Serving Cell ACK

• Happy bit

• Tap G1, G2 buttons to show each

parameter in the upper and

lower graph respectively.

Maximum of 2 parameters can

be shown in each graph.

XCAL-Mobile 4G User Guide Chapter 4. RF Information

3G Cell

3G Cell screen shows Set, PSC, EcIo, RSCP and Cell Graph.

Colors of Set and Graph line are the same.

3G Cell is available depending on device type.

• Set

• PSC

• EcIo

• RSCP

• Tap RSCP, EcIo button to show

RSCP and Ec/Io of Cell

Measurement. Default is set to

RSCP. Tap EcIo button to initiate

graph.

LTE Summary

LTE Summary screen shows MCC, MNC, Wideband PMI,

Traffic State, FTP Throughput, RSRP, RSRQ, RSSI, Tx Power,

SINR, CQI, Rank Index, EARFCN (DL/UL), DL/UL

Bandwidth, Band Indicator, Tracking Area Code, Cell ID,

Allowed Access, EMM State and EMM Substate.

LTE Summary is available depending on device type.

• MCC/MNC, PCI, Wiseband PMI

• Traffic State

• RSRP

• RSRQ

• RSSI

• Tx Power

• SINR

• CQI

• Rank Index

• EARFCN (DL/UL)

• Bandwidth (DL/UL)

• Band Indicator

• Tracking Area Code

• Cell ID

• Allowed Access

• EMM State

• EMM Substate

• DL/UL Transmission Mode

• Path Loss

•Num of Tx/Rx Antenna

XCAL-Mobile 4G User Guide Chapter 4. RF Information

LTE Signal

LTE Signal screen shows RSRP, RSRQ, RSSI, Tx Power,

SINR, CQI, and Rank Index.

LTE Signal is available depending on device type.

• RSRP

• RSRQ

• RSSI

• Tx Power

• SINR

• CQI

• Rank Index

LTE Cell

LTE Cell screen shows Set, EARFCN, PCI, RSRP, RSRQ, and

Cell Graph. Colors of Set and Graph line are the same.

LTE Cell is available depending on device type.

• Set

• EARFCN

• PCI

• RSRP

• RSRQ

• Tap RSRP, RSRQ button to show

RSRP and RSRQ of Cell

Measurement. Default is set to

RSRP. Tap RSRQ button to

initiate graph.

XCAL-Mobile 4G User Guide Chapter 4. RF Information

LTE Tx Power

4G Tx Power screen shows Start Time, Last Updated Time,

Tx Power, Sync Time, and X-Axis Resolution

LTE Tx Power is available depending on device type

• Start Time

• Last Updated Time

• Tx Power

• Sync Time

• X-Axis Resolution

LTE SIB1

LTE SIB1 screen shows Time, Freq Band, TAC, Global Cell

ID, Cell Barred, Intra Freq Reserved, SI Window Len, SI

Value Tag, Q-RxLevMin, Q-RxLevMinOffset, MCC, MNC, and

Operator Use information.,

LTE SIB1 is available depending on device type.

• Time

• Freq Band

• TAC

• Global Cell ID

• Cell Barred

• Intra Freq Reserved

• SI Window Len

• SI Value Tag

• Q-RxLevMin

• Q-RxLevMinOffset

• MCC

• MNC

• Operator Use

XCAL-Mobile 4G User Guide Chapter 4. RF Information

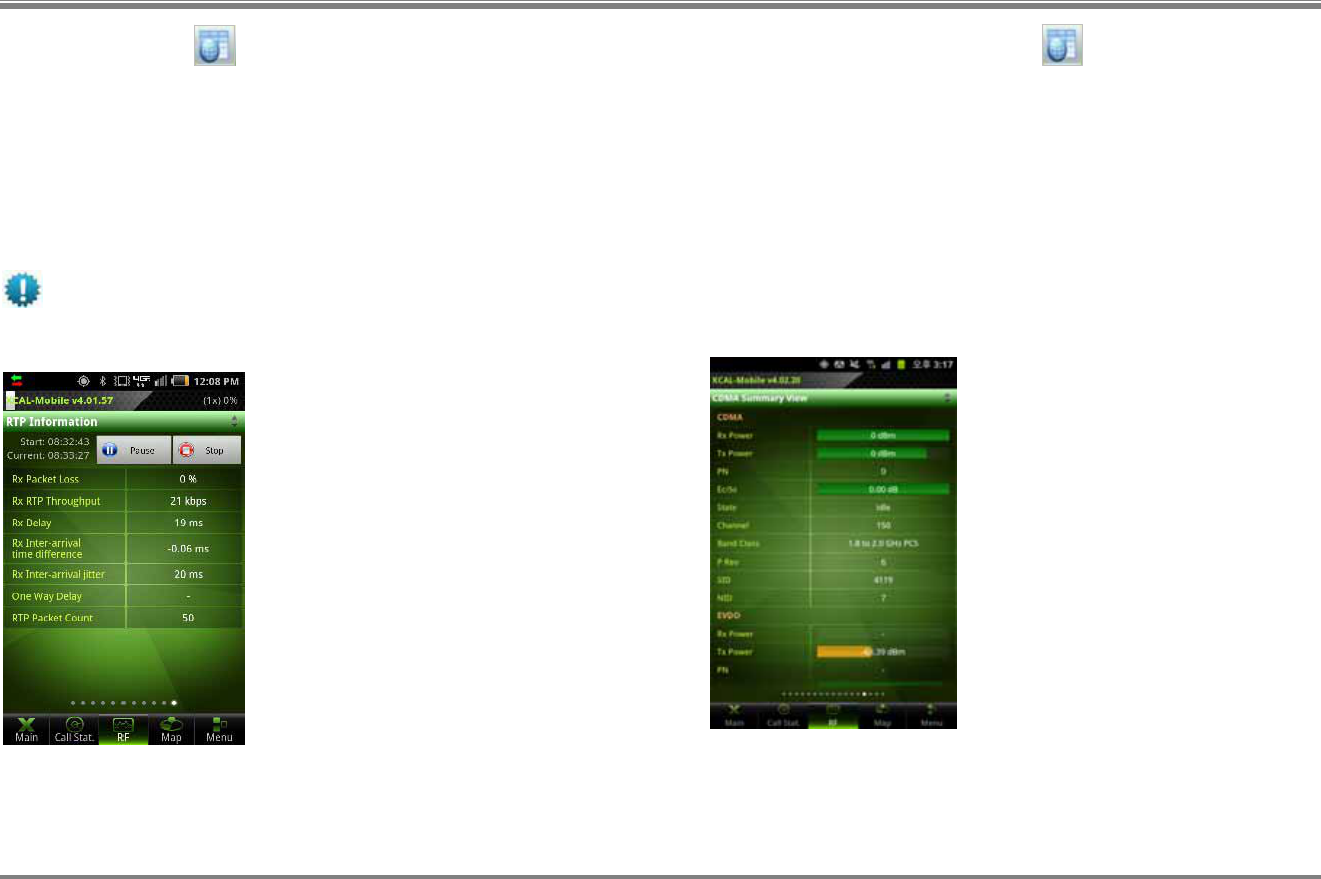

RTP Info

VoLTE Summary screen shows Rx Packet Loss, Rx RTP

Throughput, Rx Delay, Rx Delta Delay, Rx Jitter, One Way

Delay, RTP Packet Count, and Round Trip Time.

RTP Info is available on VoLTE call running.

• Rx Packet Loss

• Rx RTP Throughput

• Rx Delay

• Rx Delta Delay

• Rx Jitter

• One Way Delay

• RTP Packet Count

• Round Trip Time

CDMA Summary

CDMA Summary screen shows Rx Power, Tx Power, PN,

Ec/Io, State, Channel, Band Class, P Rev, SID, NID, SINR,

DRC Rate, DSC Value, DSC Cover, Air Link State, Session

State, and UATI.

• Rx Power

• Tx Power

• PN

• Ec/Io

• State

• Channel

• Band Class

• P Rev

• SID

• NID

• SINR

• DRC Rate

• DSC Value

• DSC Cover

• Air Link State

• Session State

• UATI

XCAL-Mobile 4G User Guide Chapter 4. RF Information

CDMA Signal

CDMA Signal screen shows Rx Power, Tx Power, Ec/Io, and

SINR or CDMA/EVDO.

• Rx Power

• Tx Power

• Ec/Io

• SINR

CDMA Cell

CDMA Cell screen shows PN, Ec/Io, and Channel

information of CDMA.

• PN

• Ec/Io

• Channel

XCAL-Mobile 4G User Guide Chapter 4. RF Information

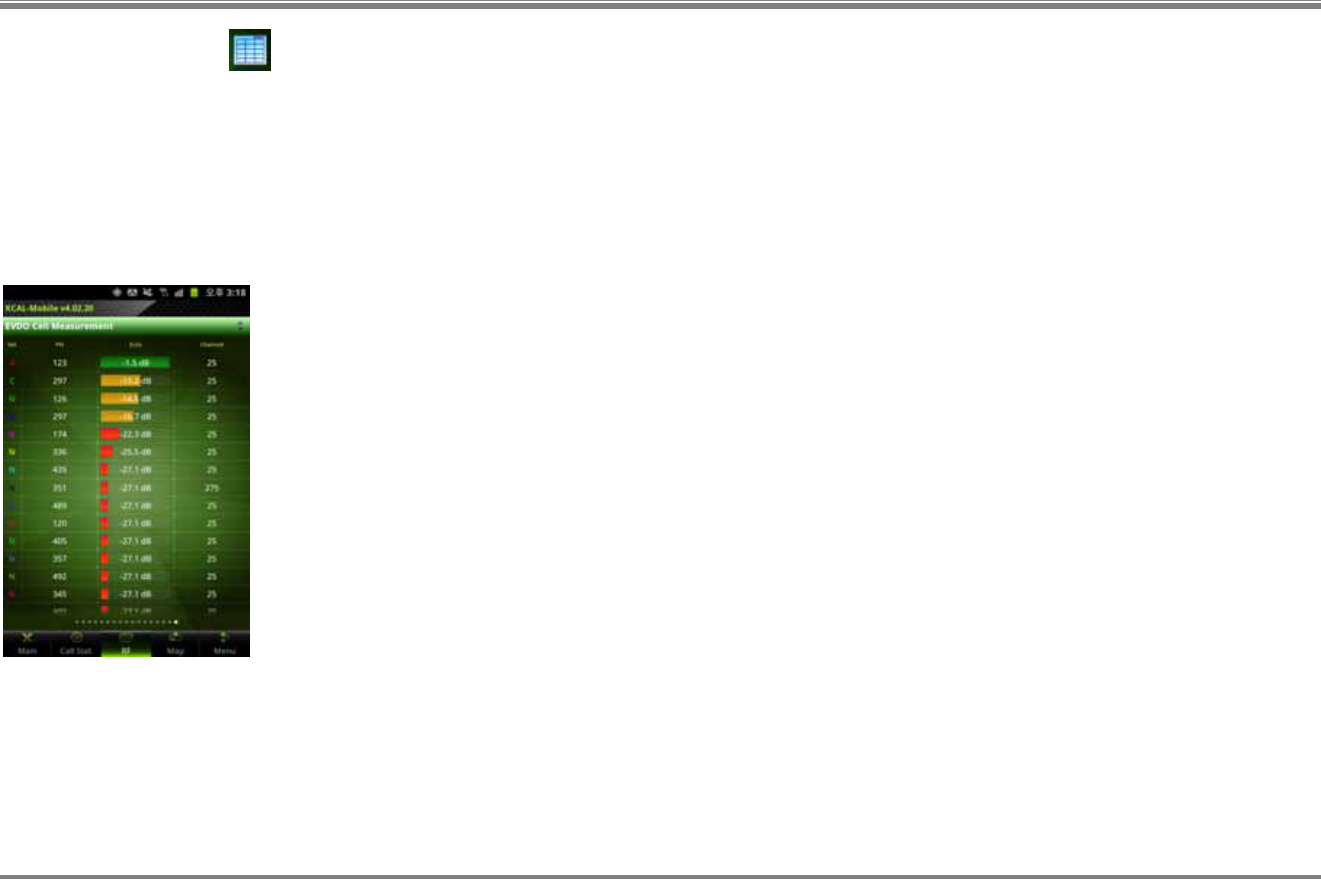

EVDO Cell

EVDO Cell screen shows PN, Ec/Io, and Channel

information of EVDO.

• PN

• Ec/Io

• Channel

27

R

F Information of Samsung chip

XCAL-Mobile 4G displays real-time RF information of smart phone with Samsung Chip.

XCAL-Mobile 4G shows following RF parameters.

• Android RF

• WiFi Info

• Signal Messages

• 4G Summary

• 4G Signal

• 4G Cell

• 4G Tx Power

• 4G SIB1

• 4G Handover

• 4G RACH

RF parameters in blue color are available depending on device type.

XCAL-Mobile 4G User Guide Chapter 5. RF Information of Samsung Chip

1. In main screen of XCAL-

Mobile 4G, tap RF button. 2. To select RF parameter,

swipe down the green

bar at the top of

screen. You can see

various RF information

view types. Select a

view type. For details,

see next pages.

3. The selected view

type screen appears.

29

Android RF

Android RF screen shows basic RF information provided by

Android OS.

• Current Network/Phone Type

• Operator

• Latitude

• Longitude

• Data State

• Current CPU usage

• Usage/APP Memory

• Battery

• Autocall

• Log File Size

• SD Free Space

• Phone Model

• Phone OS Ver

• Rooting

WiFi Info

WiFi screen shows information on connected AP and RSSI

graphs for all APs.

• BSSID

• SSID

• RSSI

• Detail State

• Supplicant State

• IP

• Link Speed

• MAC Address

• Network ID

• Hidden SSID

• Gateway

• NetMask

• DNS1

• DNS2

•Server IP

XCAL-Mobile 4G User Guide Chapter 5. RF Information of Samsung Chip

Signal Messages

Signal Messages screen shows RRC messages of corresponding technology.

Signal Messages is available depending on device type.

• LTE RRC messages

Tap a message from Signal

Message list, and corresponding

code is shown.

XCAL-Mobile 4G User Guide Chapter 5. RF Information of Samsung Chip

4G Summary

4G Summary screen shows RAT, APN, Modem Status,

MIMO Type, DL/UL Frequency, Tx Power, PRACH Tx Power,

PCI, RSRP, RSRQ, RSSI, DL BLER, DL/UL Throughput, RRC

State, EMM State, EMM Func State, DL/UL RB Num, MCS,

GPS Performance, and Battery Info.

LTE Summary is available depending on device type.

• RAT/ APN

• Modem Status

• MIMO Type

• DL/UL Frequency

• Tx Power

• PRACH Tx Power

• PCI

• RSRP(Ant0,1)

• RSRQ(Ant0,1)

• RSSI(Ant0,1)

• DL BLER

• DL/UL Throughput

• RRC State

• EMM State

• EMM Func State

• DL/UL RB Num, MCS

• GPS Performance

• Battery Info

4G Signal

4G Signal screen shows RSRP, RSRQ, RSSI, Tx Power,

PRACH Tx Power, and DL/UL Throughput

LTE Signal is available depending on device type.

• RSRP.Ant.0

• RSRQ.Ant.0

• RSSI.Ant.0

• RSRP.Ant.1

• RSRQ.Ant.1

• RSSI.Ant.1

• Tx Power

• PRACH Tx Power

• DL/UL Throughput

• Tap G1, G2 buttons to show each

parameter in the upper and

lower graph respectively.

Maximum of 2 parameters can

be shown in each graph.

XCAL-Mobile 4G User Guide Chapter 5. RF Information of Samsung Chip

4G Cell

4G Cell screen shows EARFCN, PCI, RSSI, RSRP, and RSRQ.

LTE Cell is available depending on device type.

• EARFCN

• PCI

• RSSI

• RSRP

• RSRQ

4G Tx Power

4G Tx Power screen shows Start Time, Last Updated Time,

Tx Power, Sync Time, and X-Axis Resolution

LTE Cell is available depending on device type.

• Start Time

• Last Updated Time

• Tx Power

• Sync Time

• X-Axis Resolution

XCAL-Mobile 4G User Guide Chapter 5. RF Information of Samsung Chip

4G SIB1

4G SIB1 screen shows Time, Freq Band, TAC, Global Cell

ID, Cell Barred, Intra Freq Reserved, SI Window Len, SI

Value Tag, Q-RxLevMin, Q-RxLevMinOffset, MCC, MNC, and

Operator Use information.,

LTE Cell is available depending on device type.

• Time

• Freq Band

• TAC

• Global Cell ID

• Cell Barred

• Intra Freq Reserved

• SI Window Len

• SI Value Tag

• Q-RxLevMin

• Q-RxLevMinOffset

• MCC

• MNC

• Operator Use

4G Handover

4G Handover screen shows Time, Success Rate, Fail Rate,

C Plane Latency, and U Plane Latency.

LTE Cell is available depending on device type.

• Time

• Success Rate

• Fail Rate

• C Plane Latency

• U Plane Latency

XCAL-Mobile 4G User Guide Chapter 5. RF Information of Samsung Chip

4G RACH

4G RACH screen shows RACH messages of corresponding technology.

4G RACH is available depending on device type.

• 4G RACH Messages

Tap a message from Signal

Message list, and corresponding

code is shown.

35

Configuring LogMask

Before you begin measurement project, you are able to define log codes to collect and monitor. By selecting necessary log codes

for each technology, you may save time for creating logging file and performance capacity.

Log codes list varies depending on chipset type.

XCAL-Mobile 4G User Guide Chapter 6. Configuring LogMask

Configuring LogMask Setting

In LogMask Setting screen, select technology tab at the top of the screen and select the chekboxes of log codes to collect and

monitor.

1. Tap Menu - Log Mask

Setting button.

2. LogMask Option

Setting screen

appears. Tap a

technology tab to

configure log codes at

the top of the screen.

3. Tap + button to expand

log code list for the

technology.

4. Select the checkboxes

of log codes to

measure and tap Apply

& Save button.

Or, Tap Recommend button

to select recommended log

codes.

LogMask Setting: LTE, CDMA&EVDO, HSDPA&WCDMA, HSUPA, GSM/GPRS, UMTS

XCAL-Mobile 4G User Guide Chapter 6. Configuring LogMask

Configuring LogMask Setting of Samsung Chip

In LogMask Setting screen, select techbology tab at top of the screen and select the chekboxes of log codes to be collected and

monitored.

1. Tap Menu - LogMask

Setting button.

2. LogMask Option

Setting screen

appears. Tap

Common/RRC/NAS

Item button.

3. LTE LogMask Setting

Screen appears.

4. Select the checkboxes

of code codes to

measure, and tap Save

button.

5. The configured LogMask

setting is saved

successfully.

LogMask Setting: Common/RRC/NAS, LTE Phy, LTE Layer1, LTE Layer2, LTE DATA

38

Performing AutoCall Test

XCAL-Mobile 4G generates and terminates voice and data calls automatically.

• Configures and edits AutoCall scenario.

• Starts AutoCall test.

• Terminates AutoCall test.

XCAL-Mobile 4G User Guide Chapter 7. Performing AutoCall Test

Creating AutoCall Scenario

Before you start AutoCall test, you need to pre-configure AutoCall scenario (script). AutoCall scenario can be configured and

edited in smart phone.

XCAL-Mobile 4G supports call types of Voice, FTP, Web, SMS, WiFi, E-Mail, Ping, and YouTube.

1. In main screen of

XCAL-Mobile 4G, tap

Menu tab.

2. Tap Autocall Settings.

Or, tap Scenario Edit

button at the lower left

corner of Main screen to

move to AutoCall Scenario

creation screen directly.

3. Tap a call type.

Get Scenario: Downloads

created AutoCall Scenario

from FTP server to XCAL-

Mobile. See Downloading

AutoCall Scenario.

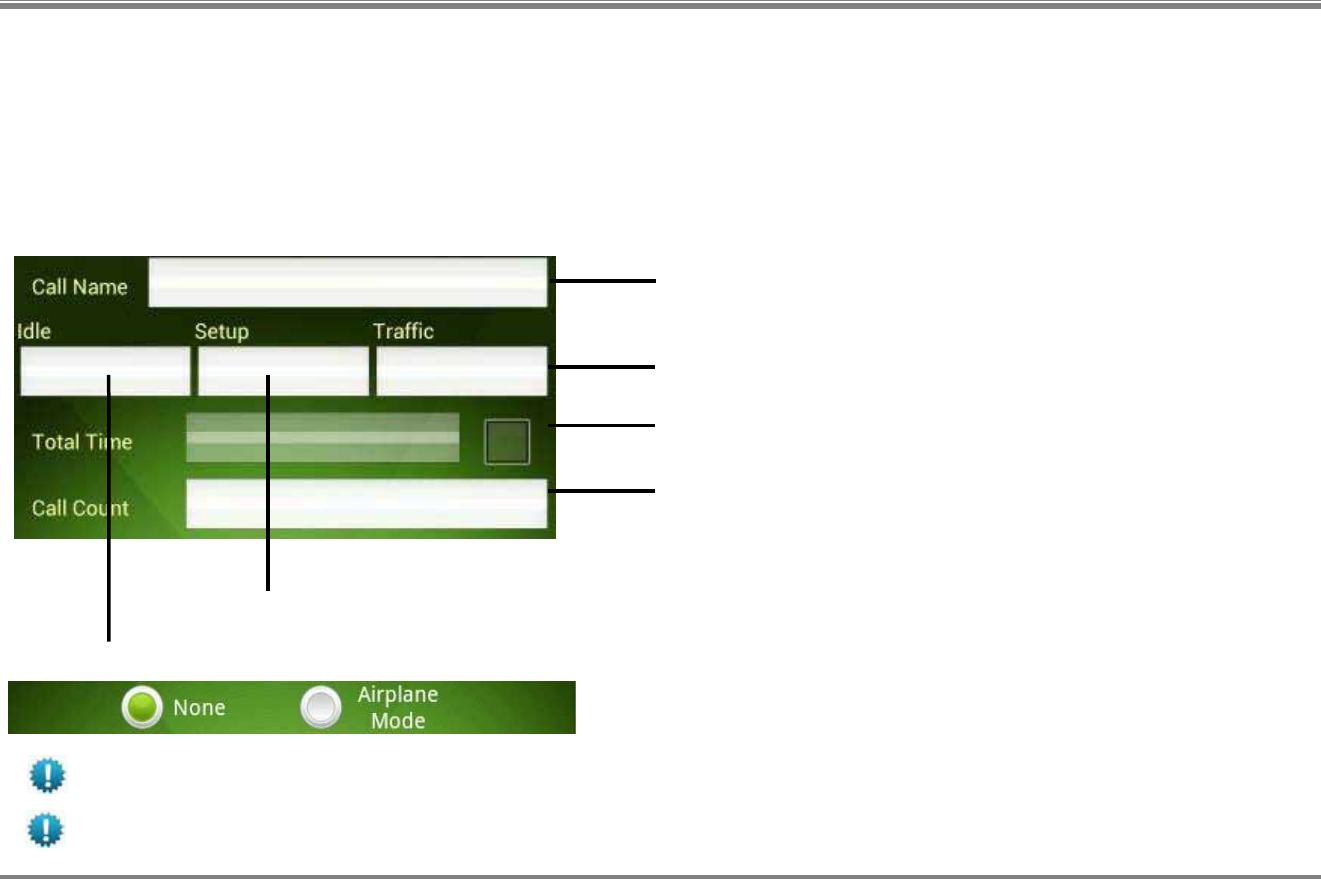

4. Enter a call name in

Call Name entry field.

XCAL-Mobile 4G User Guide Chapter 7. Performing AutoCall Test

4. Configure AutoCall

scenario.

For detail of how to

configure AutoCall

scenario for each

call type, see

Appendix:

Configuring

AutoCall Scenario

5. Tap Save button. 6. A new AutoCall

scenario is created

successfully.

7. Tap Call Name combo

box, and you may find

the created scenario in

the list.

To edit existing scenario, open a scenario configuration screen, edit setting, and tap Save button.

To create more scenarios, tap New button.

XCAL-Mobile 4G User Guide Chapter 7. Performing AutoCall Test

Importing AutoCall Scenario

Created AutoCall scenario can be downloaded from ftp server to XCAL-Mobile.

Name of AutoCall Scenario file in FTP should be AutoCallScenarioAlias.ini or AutoCallScenarioSet.ini.

1. Tap Menu – AutoCall

Settings button. 2. Tap Get Scenario

button in AutoCall

Settings screen.

3. G

ET SCENARIO screen

appears. Configure ftp

server information to

download AutoCall

scenario.

4. Tap Get button.

XCAL-Mobile 4G User Guide Chapter 7. Performing AutoCall Test

Starting AutoCall Test (In Classic tab)

You may start AutoCall test by tapping Start button in Main tab, and AutoCall test is started based on configured AutoCall

scenario.

1. Tap Main tab. 2. Swipe left and right on

Call Type section to

select a call type to

test.

And tap Scenario

Name combo box to

select a call scenario.

3. Tap Start button to

start AutoCall. 4. AutoCall test starts.

XCAL-Mobile 4G User Guide Chapter 7. Performing AutoCall Test

5. Main screen moves to

Call Stat. tab, and

shows test status in

table and graph.

6. Tap the graph at the

bottom of the screen,

and shows status data

in table.

Tap the table to show

data in graph vice

versa.

7. During measurement,

tap Map button to

display measurement

data and serving line

graphically in Google

map in real-time. For

details, see

Monitoring in Google

Map.

8. When automated call

test is automatically

terminated based on

pre-configured call

script, Result History

screen appears. For

details, see Call Result

History.

XCAL-Mobile 4G User Guide Chapter 7. Performing AutoCall Test

Starting AutoCall Test (In All Scenario tab)

You may start AutoCall test by tapping Start button in Main tab, and AutoCall test is started based on configured AutoCall

scenario.

1. Tap Main tab. 2. Tap All Scenario tab.

3. Select a pre-configured

AutoCall scenario, and

tap START button to

start AutoCall.

4. AutoCall test starts.

XCAL-Mobile 4G User Guide Chapter 7. Performing AutoCall Test

5. Main screen moves to

Call Stat. tab, and

shows test status in

table and graph.

6. Tap the graph at the

bottom of the screen,

and shows status data

in table.

Tap the table to show

data in graph vice

versa.

7. During measurement,

tap Map button to

display measurement

data and serving line

graphically in Google

map in real-time. For

details, see

Monitoring in Google

Map.

8. When automated call

test is automatically

terminated based on

pre-configured call

script, Result History

screen appears. For

details, see Call Result

History.

XCAL-Mobile 4G User Guide Chapter 7. Performing AutoCall Test

Terminating AutoCall Test

XCAL-Mobile 4G normally terminates an AutoCall test automatically when it runs through the whole course of the AutoCall

scenario (script). However, it can be also be terminated by tapping AUTOCALL STOP button during AutoCall measurement.

When it is terminated, Result History screen appears. Tap one of AutoCall tests, its details are shown.

For detail, see Call Result History.

1. AutoCall test is

terminated

automatically.

2. Or, you can terminate

AutoCall test while

measurement.(Auto

Call Stop Button)

47

M

onitoring in Google Map

Measurement data and serving lines are visualized in map in real-time during measurement. Internal GPS of smart phone is

used for location information, and if you import BTS/Repeater data, map displays their information. Google map supports two

map types; image map and satellite map.

The speed at which Google Map displays greatly depends on the internet access speed of the handset itself. 3G coverage

area shows faster update than that of 2G coverage area.

• Displays data in Google map.

• Configures map options.

• Configuring Map Options - Parameters

• Configuring Map Options - Settings.

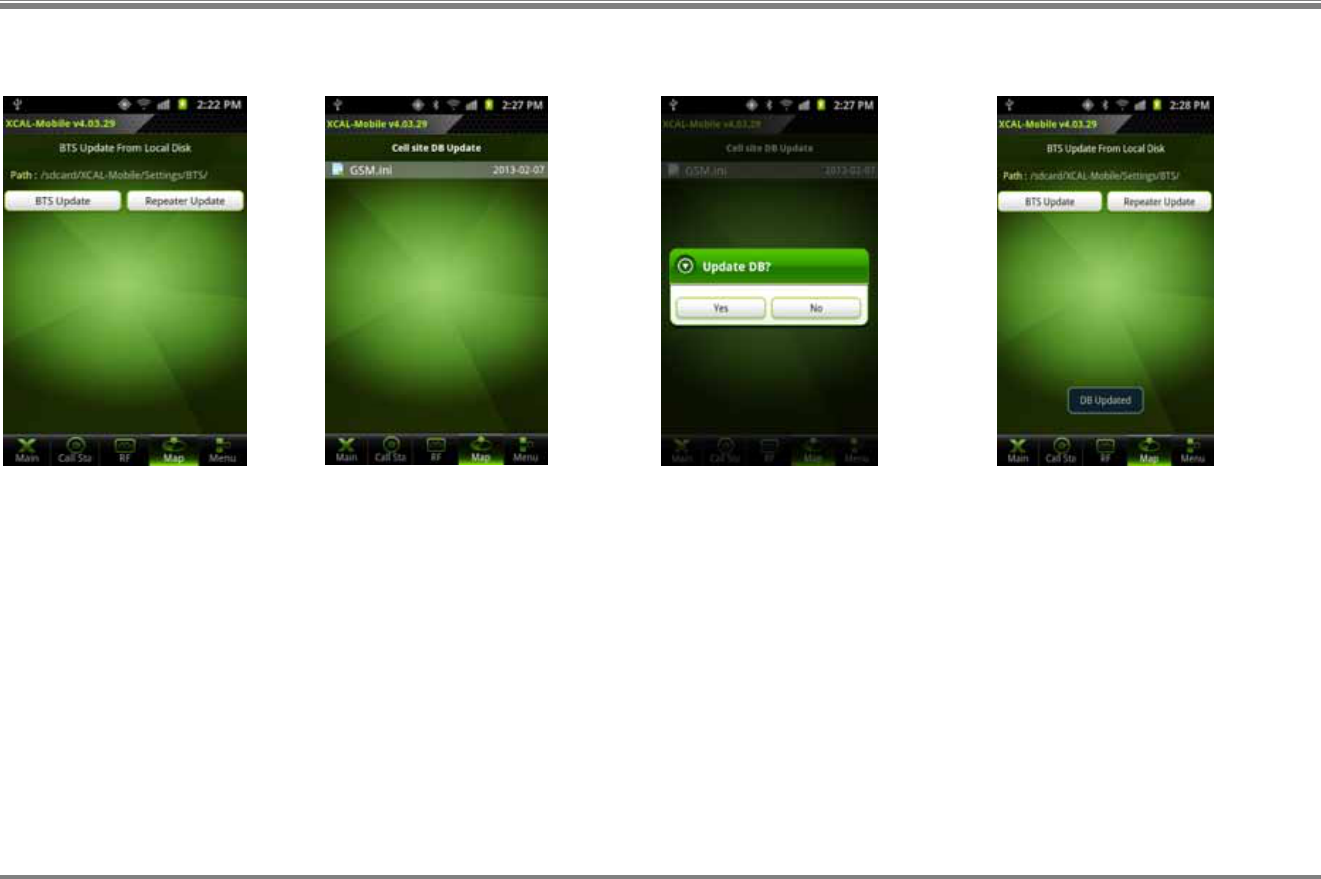

• Imports BTS/Repeater Data

XCAL-Mobile 4G User Guide Chapter 8. Monitoring in Google Map

Displaying Data in Google Map

XCAL-Mobile enables you to see measurement data and serving lines in Google map.

1. In main screen of

XCAL-Mobile, tap Map

tab.

: Marks current location in

green color in Google map.

: Shows satellite

: Shows image

map.

2. Tap Menu button on

smart phone hardware

to open Setting window.

XCAL-Mobile 4G User Guide Chapter 8. Monitoring in Google Map

Configuring Map Options

XCAL-Mobile enables you to change map setting in Google map. To open Map Options, tap Menu button on smart phone

hardware.

Items Description

BTS On/Off Shows/Hides BTS in map.

RPT On/Off Shows/Hides Repeater in map.

Legend On/Off Shows/Hides legend in map.

Parameter Selects parameters of technologies to display in map. For details, see

Configuring Map Options – Parameters.

Clear Clears data in map.

Call Event On/Off Shows/Hides call events in map.

Settings Configures symbol size, update time interval, minimum distance for

data update, user location, BTS/RPT size, serving line width, and

importing BTS data from FTP/local disk. For details, see Configuring

Map Options – Settings.

Route On/Off Shows/Hides Route in map.

Capture Captures current screen.

XCAL-Mobile 4G User Guide Chapter 8. Monitoring in Google Map

Configuring Map Options – Parameters

Parameters button in Map Options menu selects parameters of technologies to display in map.

Tap Parameters button, and Parameters pop-up screen appears. Select technology and corresponding parameter you want to

display on the map.

Items Description

Common App. DL Throughput /APP. UL Throughput

Network Type

LTE RSSI / RSRP

RSRQ /SINR

3G Rx Power / Tx Power

SIR

Best Active Set Ec/Io

Best Active Set RSCP

2G Rx power

Rx Qual(Full) / Rx Qual(Sub)

TA, RLT

CDMA Rx Power / Tx Power

Ec/Io

EVDO Rx Power / Tx Power

Ec/Io, SINR

XCAL-Mobile 4G User Guide Chapter 8. Monitoring in Google Map

Configuring Map Options – Settings

Settings button in Map Options menu configures symbol size, update time interval, minimum distance for data update, user

location, BTS/RPT size, serving line width, and importing BTS data from FTP server or local disk.

Items Description

Symbol Size Configures symbol size that is currently displayed in the map.

Update Time Configures time to update to the map. (unit: sec)

Min. Distance Configures minimum distance to move to update to the map. (unit:

meter)

Auto Focus Places user location at the center of map when the current location is

out of the map.

Offline Map Loads and displays mobile local disc map when data connection (3G,

WiFi, LTE, etc.) is unavailable.

BTS/RPT Size Configures BTS/Repeater size.

Line Width Size Configures serving line width.

BTS Update From

FTP Server / Local

Disk

Imports BTS data from FTP server or Local Disk. Tap BTS Update

From FTP Server / Local disk button, and configure FTP server /

Local Disk information where BTS data file is saved. BTS data file

should be in *.ini format. For details, see Importing BTS/Repeater

Data.

Some FTP server requires Passive Mode on.

XCAL-Mobile 4G User Guide Chapter 8. Monitoring in Google Map

Importing BTS/Repeater Data

Existing BTS/Repeater data file in FTP server or smart phone local disc can be imported to XCAL-Mobile.

[File Name Format]

• BTS File: name of technology.ini

• Repeater File: name of technology_R.ini

XCAL-Mobile 4G User Guide Chapter 8. Monitoring in Google Map

1. In main screen of

XCAL-Mobile, tap Map

tab.

2. Tap Menu button on

smart phone hardware

to open Setting

window.

BTS Update From FTP

Server: Imports existing

BTS/RPT data file from

designated FTP server.

BTS Update From Local

Disk: Imports existing

BTS/RPT data file from

smart phone local disc.

XCAL-Mobile 4G User Guide Chapter 8. Monitoring in Google Map

[BTS Update from FTP

Server]

a. Tap BTS Update from

FTP Server button.

BTS DB Server

Settings screen

appears.

b. Configure FTP

information, and tap

BTS Update or

Repeater Update

button.

c. XCAL-Mobile

application connects to

the configured FTP

server and Server

Connected pop-up

message appears.

d. Tap to select *.ini file

to import from DB file

list.

e. Tap Yes button.

XCAL-Mobile 4G User Guide Chapter 8. Monitoring in Google Map

f. Make sure DB Updated

pop-up message is

displayed.

g. Tap Save button to load

imported BTS/RPT data

file to map.

h. Imported BTS/RPT

data is displayed in

map.

XCAL-Mobile 4G User Guide Chapter 8. Monitoring in Google Map

[BTS Update from Local

Disk]

a. Tap BTS Update from

Local Disk button.

BTS Update From

Local Disk screen

appears.

b. Tap BTS/Repeater

Update button.

c. Cell site DB Update

screen appears.

d. Tap to select *.ini file

to import from DB file

list.

e. Tab Yes button. f. The selected BTS/RPT

file is imported to XCAL-

Mobile with the pop-up

message of DB

Updated

57

C

all Result History

XCAL-Mobile 4G provides a list of AutoCall test you have completed and its details.

The list of AutoCall test result (Result History) is shown from;

• Result History list after terminating AutoCall test

• Call Result History in Menu tab

XCAL-Mobile 4G User Guide Chapter 9. Call Result History

1. In main screen of

XCAL-Mobile 4G, tap

Menu tab.

2. Tap Call Result

History.

3. Result History list

appears. 4. Tap one of AutoCall

tests, and XCAL-Mobile

4G shows its details.

5. Only FTP, Throughput

Info appears when

tapping test result in

Detail Info.

3G , WiFi , LTE icons in Result History list shows each call test has been performed in 3G or WiFi or LTE

environment.

59

U

ploading Log File

XCAL-Mobile 4G enables you to upload test logging file to a designated FTP server.

When AutoCall test is completed, log files are generated in *.drm and *.csv format as a pair. Logging files in *.csv format

help to see results of measurement data on smart phone itself. Logging files are saved in XCAL-Mobile 4G/Logging folder.

XCAL-Mobile 4G User Guide Chapter 10. Uploading Log File

1. In main screen of XCAL-

Mobile 4G.

2. Tap Menu tab. And Tap

Log Upload button. 3. Do you want to turn

Wi-Fi on? Pop-up

screen is shown.

Log Upload function is

only available when

WiFi is on.

4. A list of logging files is

shown.

XCAL-Mobile 4G User Guide Chapter 10. Uploading Log File

5. User can upload

checked logging files to

a designated FTP

Server.

: Select all

logging files.

: Unselect all

selected files.

: Delete

selected files.

: Configure

FTP Server.

For details,

see

Uploading

Setting.

When tapping Upload

button without

configuring Upload

setting at the top-right

of the screen, Not

Found Server address

is popped up at the

bottom of the screen.

6. FTP server configuration

screen appears.

XCAL-Mobile 4G User Guide Chapter 10. Uploading Log File

7. Configure FTP server to

upload logging files.

8. Tap Save button.

9. Tap Back button

10. Tap Upload button.

Progress bar is shown. 11. When uploading process

is finished, Upload End

(Complete) 100%

message is shown. Tap

the screen to return the

previous screen.

If you stop while

uploading, End by

User message is shown

and uploading process

is stopped.

XCAL-Mobile 4G User Guide Chapter 10. Uploading Log File

Uploading Setting

XCAL-Mobile enables you to configure uploading options in Upload Server screen.

1. Tap Set button in Log

Upload screen. 2. Upload Server (FTP)

screen appears.

3. Configure FTP options;

FTP server address, Port

number, user ID/PW,

Server Path.

DRM Auto Upload: Uploads

log file in *.drm format onto

FTP server automatically

when AutoCall test is

terminated.

E-Mail Notification:

Automatically sends message

to the configured e-mail

address when uploading is

completed.

4. Tap Save button at the

upper right side of

Upload Server (FTP)

screen to complete

configuration.

Completion pop-up

message appears at the

bottom of the screen.

64

A

dditional Function

XCAL-Mobile 4G provides you with further functions.

• Manual Logging

• Replay

• Screen Capture

• About (License Return, Help)

• Other Settings (Naming Log File, CSV Delimiter, RAT & Band Lock, External GPS)

XCAL-Mobile 4G User Guide Chapter 11. Additional Function

Manual Logging

Basically, XCAL-Mobile 4G automatically generates and saves logging file after AutoCall test. It also allows you to manually

generate and save logging file, which includes monitoring signal and packets coming from smart phone, without AutoCall test.

If AutoCall test is started during manual logging, XCAL-Mobile 4G stops generating manual logging file, and starts

generating AutoCall logging file. XCAL-Mobile gives first priority on AutoCall logging file.

1. Tap Menu button on

smart phone hardware

to pop Replay function.

Tap Logging start

button.

2. When Manual Logging

function is on, manual

logging running icon is

displayed at the upper

left corner of screen.

3. Tap Menu button on

smart phone hardware.

Tap Logging Stop

button to stop manual

logging.

4. Manual Logging drm

file will be generated

on Log Upload Screen.

XCAL-Mobile 4G User Guide Chapter 11. Additional Function

Manual Logging function runs in background mode. You can use other smart phone features while running Manual Logging

function of XCAL-Mobile 4G in background mode.

1. When Manual Logging

function is on, manual

logging running icon is

displayed at the upper

left corner of screen.

2. Tap Back button on

smart phone hardware

to terminate XCAL-

Mobile 4G application.

For detail, see

Terminating XCAL-

Mobile 4G.

3. A confirmation pop-up

screen appears. Tap

Yes button.

4. XCAL-Mobile 4G

application is

terminated, and

Manual Logging

function runs in

background mode.

XCAL-Mobile 4G User Guide Chapter 11. Additional Function

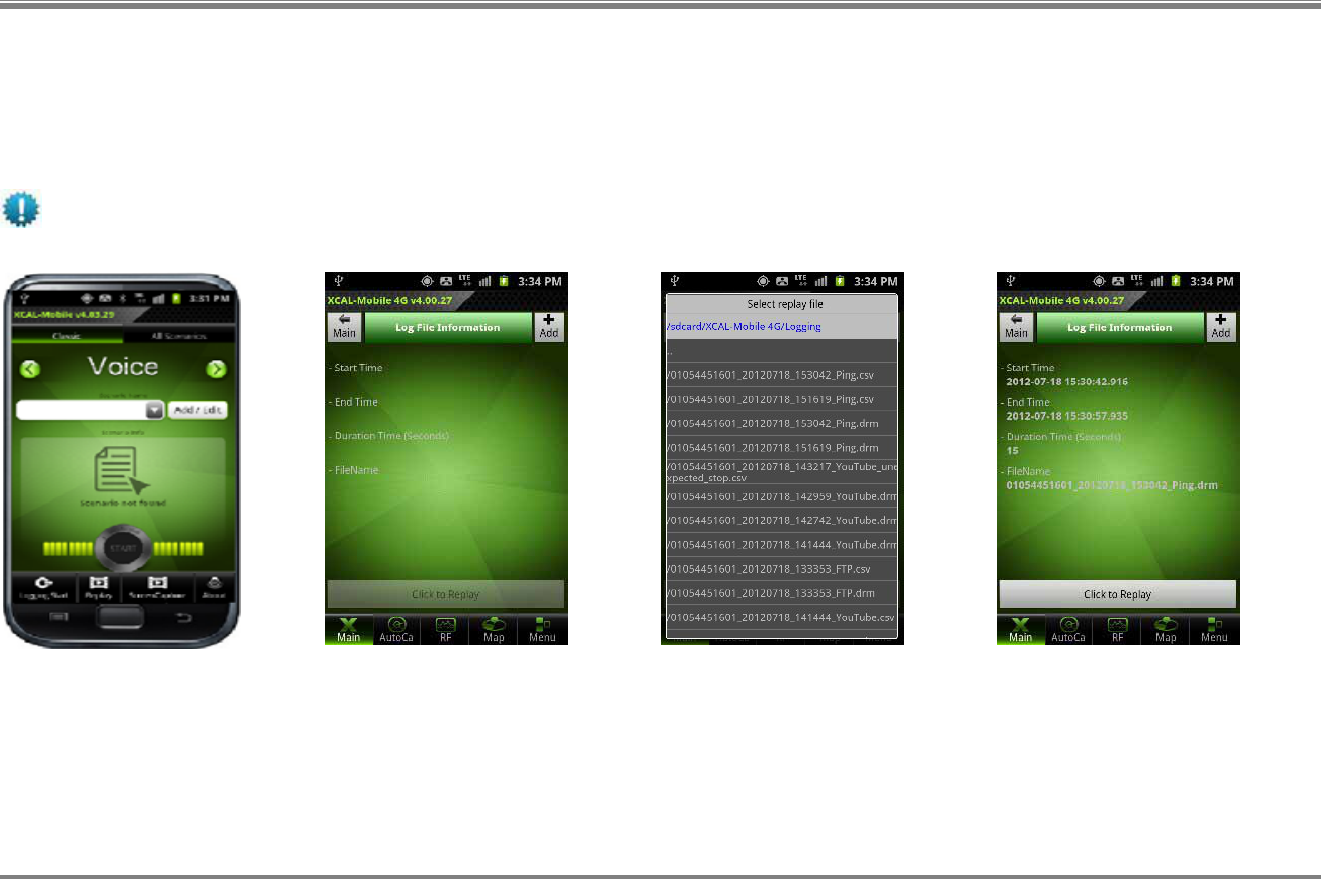

Replay

Replay function replays existing logging file. RF information of smart phone will be displayed.

Logging files in *drm format are available for Replay function.

1. Tap Menu button on

smart phone hardware

to pop Replay function.

Tap Replay button.

2. Tap Add button. 3. A list of logging files is

shown. Tap one of

logging file to replay.

4. Information of selected

logging file is displayed.

Tap Click to Replay

button.

XCAL-Mobile 4G User Guide Chapter 11. Additional Function

5. Replay status is shown

in percentage at the

top of Replay screen.

Replay is completed

showing replay status

of 100% at the top of

Replay screen.

6. User can set the Replay

speed using top of

Screen. (1x, 2x, 3x)

XCAL-Mobile 4G User Guide Chapter 11. Additional Function

Screen Capture

For the easier troubleshooting purpose, Screen Capture function captures the current screen and report message to Accuver

along with the captured screen image.

1. Tap Menu button on

smart phone

hardware, and tap

Screen Capture

button.

2. Captured image files

are listed. Select

captured image you

want to report error.

Tap Send button.

3. My Info Setting

screen appears.

Configure your

information, and tap

Send to Accuver

button.

4. Error is reported via

e-mail successfully.

XCAL-Mobile 4G User Guide Chapter 11. Additional Function

About

About screen checks registration status, returns the currently used XCAL-Mobile 4G License, and opens Quick Guide.

About screen shows license type, expiration date, supportable technology, chipset, supportable AutoCall types, and functions.

1. Tap Menu button on

smart phone hardware

to pop About function.

Tap About button.

2. About screen shows

Device Type, License

Type, License date

information, chipset,

supportable AutoCall

type, and technologies.

3. To return the currently

registered and using

license, tap Return

the License button at

the bottom of the

screen.

4. Tap Return the License

button, and confirmation

screen pops up. Tap Yes

button to return License.

XCAL-Mobile 4G User Guide Chapter 11. Additional Function

5. To open help file, tap

Help button in About

screen.

6. Quick Guide of XCAL-

Mobile is opening.

7. Swipe up and down the

screen to read Quick

Guide.

8. To close Quick Guide,

tap Back button on

smart phone hardware.

Quick Guide is not opened during AutoCall test.

XCAL-Mobile 4G User Guide Chapter 11. Additional Function

Other Settings

Options screen enables you to configure extra options for program starting up operation, logging file, and etc.

To open Options screen, tap Menu – Other Settings button. Configure options, and tap Save button to save setting.

(Continue)

Items Description

Startup Configures options related to the program start-up.

Auto Start: Executes XCAL-Mobile program when powering on the smart

phone device.

Auto Logging: Starts Manual Logging when executing XCAL-Mobile application.

Logging Configures options related to logging file.

Packet Capture: Includes Packet Capture data to existing logging file.

Save to DRM File: Includes packet capture data to *.drm file.

Save to PCAP File: Includes packet capture data to *.pcap file.

XCAL Format: Includes Timestamp data to existing log codes.

Real Time Compress: Compresses logging file (*.drm -> *.drz)

Path: Designates logging file save path.

XCAL-Mobile 4G User Guide Chapter 11. Additional Function

(Continue)

Items Description

Logging Naming Log File (Before AutoCall): Enables you to configure name of log

file before/after AutoCall. For details, see Other Settings – Naming Log File.

Naming Log File (Before AutoCall): Configures log file name before

starting AutoCall.

Naming Log File (After AutoCall): Configures log file name when

AutoCall test is completed.

CSV Delimiter (Current: Tab): For details, see Other Settings - CSV

Delimiter.

Phone Set

Mode

Configures network mode of smart phone device.

Network Mode (DM): Tap Set button to configure technology, band, and

UARFCN/ARFCN of WCDMA/GSM. Network type varies depending on License

key type.

RAT/Band Lock (Hidden): For Galaxy S3 (Model Name: GT-I9305) only.

Configures data network and band for test. For details, see Other Settings

– RAT & Band Lock (Galaxy S3 GT-I9305).

GPS Ext.GPS: Connects external GPS for location information. For details, see

Other Settings – External GPS.

Save Saves setting.

XCAL-Mobile 4G User Guide Chapter 11. Additional Function

Other Settings - Naming Log File

XCAL-Mobile application is designed to save log file automatically when AutoCall or Manual Logging test is completed. With

Naming Log File option, you may configure name of log file in *.drm format. You can configure before or after AutoCall or

Manual Logging test.

1. Tap Menu – Other

Settings.

2. Tap the checkbox for

Naming Log File

(Before/After

AutoCall).

Naming Log File (Before

AutoCall): Configures

name of log file (*. drm)

before starting AutoCall or

Manual Logging test.

Naming Log File (After

AutoCall): Configures

name of log file (*.drm)

after completing AutoCall

or Manual Logging test.

3. Log file is saved with the

user pre-configured log

file name.

XCAL-Mobile 4G User Guide Chapter 11. Additional Function

Other Settings - CSV Delimiter

XCAL-Mobile application is designed to create paired log files in *drm and *csv format when AutoCall or Manual Logging test is

completed. With CSV Delimiter option, you may configure delimiter in *.csv file between comma and tab. Default is set to

comma.

1. Tap Menu – Other

Settings.

2. Default is set to

Comma.

2. Default is set to

Comma. Tap the

checkbox for CSV

Delimiter to change

delimiter to Tab.

Examples of *.csv files with delimiter of Comma and Tab.

XCAL-Mobile 4G User Guide Chapter 11. Additional Function

Other Settings - RAT & Band Lock (Galaxy S3 GT-I9305)

For Galaxy S3 (Model Name: GT-I9305) only which is currently used in EMEA and APAC.

RAT & Band Lock function enables you to configure data network and band for test.

1. Tap Menu – Other

Settings.

2. Tap to select SET

button for RAT Lock

(hidden) or Band

Lock (Hidden).

3. SET button for RAT

Lock shows RAT Lock

screen.

3-1. Tap to select the

checkboxes of

technologies, and tap

SET button.

4. SET button for Band

Lock (Hidden) shows

Band Lock screen.

Tap Conversion icon

at the right side of

Band Lock to converse

to RAT Lock screen,

and vice versa.

4-1. Tap + button to unfold

technology bane.

4.2 Tap to select

checkboxes of bands,

and tap SET button.

XCAL-Mobile 4G User Guide Chapter 11. Additional Function

Other Settings - External GPS

In order to minimize errors during measurement test, external GPS can be connected through Bluetooth function and used for

XCAL-Mobile.

1. Tap Menu – Other

Settings.

2. Tap the checkbox for

Ext.GPS.

3. When Bluetooth

function is not

activated, Bluetooth

permission request

pop-up screen appears.

Tap Yes button.

4. Make sure Bluetooth

enabled pop-up

message appears.

5. Tap Scan for Device

button to list up paired

Bluetooth.

6. Green dot at the right

top corner of the screen

means external GPS is

connected properly.

Red dot means external

GPS is not connected.

7. Column of GPS

Information in RF

Information screen

displays External GPS.

78

I

nbuilding Test

XCAL-Mobile enables you to perform measurement inside of a building.

• Configures Inbuilding test.

• Starts Inbuilding test.

- Moving Point: Performs call test while moving inside of a building.

- Fixed Point: Performs call test at a certain measurement point inside of a building.

XCAL-Mobile 4G User Guide Chapter 12. Inbuilding Test

Configuring Inbuilding test

Before starting Inbuilding test, configure Inbuilding test.

1. In main screen of

XCAL-Mobile, tap Menu

tab.

2. Tap Inbuilding. 3. Inbuilding List

screen appears.

Tap Add button.

4. Inbuilding Setting

screen appears.

Enter a building name

in Building entry

field.

XCAL-Mobile 4G User Guide Chapter 12. Inbuilding Test

5. Tap Floor button, and

swipe up and down to

select floors.

6. Tap Upper/Under

button.

The left section

designates ground

floors and above

ground floors. The right

section numbers

starting with B

designates basement

floors.

7. Swipe up and down to

select floors and Tap

Done button.

8. Tap Get GPS button.

XCAL-Mobile 4G User Guide Chapter 12. Inbuilding Test

8. Select a measurement

type between Moving

and Fixed.

Moving: Performs

call test while

moving inside of a

building. For detail,

see Moving Point

Test.

Fixed: Performs call

test at a certain

measurement point

inside of a building.

For detail, see Fixed

Point Test.

9. Tap Get GPS button to

configure current GPS

information (or enter

longitude and latitude

data in Lon and Lat

entry field). Address1

will automatically be

filled up with address of

current location as it is

suggested by Google

Map Search.

10. Enter an Address in

Address 2 entry field.

11. Tap Save button to

save Inbuilding

configuration, and tap

START button.

12. Inbuilding – Fixed/Moving

Screen appears.

XCAL-Mobile 4G User Guide Chapter 12. Inbuilding Test

Starting Inbuilding Test

Indoor measurements can be accommodated in with AutoCall feature.

After completing configuration of Inbuilding test, you may start Inbuilding test. Following procedure instructs how to start

Inbuilding test.

1. In main screen of

XCAL-Mobile, tap Menu

tab.

2. Tap Inbuilding. 3. Tap START button to

start Inbuilding test.

XCAL-Mobile 4G User Guide Chapter 12. Inbuilding Test

Moving Point Test

By selecting Moving type for Inbuilding, XCAL-Mobile will perform measurements while moving among points inside of a

building.

The following procedure describes the process to follow after tapping the START button to start Inbuilding test.

1. Tap START button to

start Inbuilding test. 2. Inbuilding – Moving

screen appears. 3. Tap the combo box for

Call Name to select

call scenario.

4. Select floor.

XCAL-Mobile 4G User Guide Chapter 12. Inbuilding Test

5. Select building image file.

Select Image:

Selects existing image

file inside of smart

phone.

Take Photo: Takes photo.

6. Selected image file is

shown.

7. Pinch open and out to

zoom in and out of the

image.

8. Tap a starting point on

the image (floor map) to

perform AutoCall test,

and tap Yes to confirm

this point is starting

point.

XCAL-Mobile 4G User Guide Chapter 12. Inbuilding Test

9. XCAL-Mobile is ready

to start Inbuilding

test (with AutoCall),

and Start button is

activated.

Tap Start button,

AutoCall test will

begin. Move to the

second point.

10. Inbuilding test is started,

and its status is

displayed at the lower

left side of screen.

Call measurement

screen is shown for a

few seconds and will

return to Inbuilding

image screen.

11. When you are arriving

at the second point, tap

the second point on

image. Tap Yes button

to confirm.

12. Configured parameters

are shown on the

image.

XCAL-Mobile 4G User Guide Chapter 12. Inbuilding Test

13. Tap the third point. 14. Then, start to move to

the third point.

Continue the same

processes for following

points.

15. Tap Menu button on

smart phone hardware

to activate settings.

16. Tap Legend Off

button to hide legend

in the image.

XCAL-Mobile 4G User Guide Chapter 12. Inbuilding Test

17. Tap Parameters

button to open

parameters setting

screen.

Parameters are

categorized by

Common, LTE, 3G,

2G, CDMA, and EVDO.

18. Configure parameter. 19. Selected parameter is

shown in image. 20. Tap Settings button

to configure Update

Time to apply

parameter values.

XCAL-Mobile 4G User Guide Chapter 12. Inbuilding Test

21. Tap Done button to

terminate test. 22. When AutoCall is

finished based on

scenario, call test is

automatically

terminated.

23. Inbuilding test is

completed, and Clear

button is activated.

To remove points, tap

Clear button.

When Inbuilding test starts, Done button is activated. Selecting Done button will terminate/stop AutoCall test and

Inbuilding test which is running.

XCAL-Mobile 4G User Guide Chapter 12. Inbuilding Test

Fixed Point Test

By selecting Fixed XCAL-Mobile will perform measurements at a measurement point location inside of a building.

The following procedure describes the process beginning with the START button to start the Inbuilding measurements:

1. Tap START button to

start Inbuilding test,

and Inbuilding –

Fixed screen appears.

2. Tap the combo box for

Call Name to select

call scenario.

3. Select building image

file.

Select Image: Selects

existing image file

inside of smart phone.

Take Photo: Takes

photo.

4. Selected image file is

shown.

Select a certain point

on image to measure,

and tap Yes button to

confirm the selected

point is at the correct

location.

XCAL-Mobile 4G User Guide Chapter 12. Inbuilding Test

5. XCAL-Mobile is ready

to start Inbuilding

test, and Start button

is activated.

Tap Start button.

6. Inbuilding test for

Fixed type is started. 7. When AutoCall is

finished based on

scenario, call test is

terminated

automatically.

Or, to stop call test

manually, tap DONE

button.

8. Inbuilding test at a

fixed point is

terminated, and Clear

button is activated. To

perform more tests at

fixed points, tap Clear

button, and repeat

steps 4 - 8.

XCAL-Mobile 4G User Guide Chapter 12. Inbuilding Test

Configuring Inbuilding Options

XCAL-Mobile enables you to change Inbuilding map setting in Inbuilding screen. To open Inbuilding Options, tap Menu button on

smart phone hardware.

Items Description

Legend On/Off Shows/Hides legend in map.

Parameter Selects parameters of technologies to display in Inbuilding. For

details, see Configuring Inbuilding Options – Parameters.

Settings Configures data update time in Inbuilding screen.

Capture Screen Capture

XCAL-Mobile 4G User Guide Chapter 12. Inbuilding Test

Configuring Inbuilding Options – Parameters

Parameters button in Inbuilding Options menu selects parameters of technologies to display in Inbuilding.

Tap Parameters button, and Parameters pop-up screen appears. Select technology and corresponding parameter you want to

display on the Inbuilding.

Items Description

Common App. DL Throughput /APP. UL Throughput

Network Type

LTE RSSI / RSRP

RSRQ /SINR

3G Rx Power / Tx Power

SIR

Best Active Set Ec/Io

Best Active Set RSCP

2G Rx power

Rx Qual(Full) / Rx Qual(Sub)

TA, RLT

CDMA Rx Power / Tx Power

Ec/Io

EVDO Rx Power / Tx Power

Ec/Io, SINR

93

T

erminating XCAL-Mobile 4G

When you have completed all necessary measurement test with XCAL-Mobile 4G or you want to terminate the application while

measurement, you can terminate the application.

During AutoCall test, XCAL-Mobile 4G applciation cannot be terminated. Stop AutoCall test first by tapping AUTOCALL

STOP button in AutoCall test screen, and terminate the application. For details of how to terminate AutoCall test, see

Terminating AutoCall Test.

Press Home button on smart phone hardware, and XCAL-Mobile 4G application runs in background mode.

XCAL-Mobile 4G User Guide Chapter 13. Terminating XCAL-Mobile 4G

1. When you want to

terminate XCAL-Mobile

4G application, tap

Back button on smart

phone hardware.

2. Exit configuration pop-

up screen appears. Tap

Yes button.

3. XCAL-Mobile 4G

application is

terminated.

95

T

roubleshooting

While using XCAL-Mobile, the program pops up a troubleshooting alarm screen when the program is terminated compulsively or

by anonymous errors and lauched again. You may report error to Accuver Technical Support team directly.

Error report is sent to Technical Support team via an e-mail automatically.

XCAL-Mobile 4G User Guide Chapter 14. Troubleshooting

1. When you execute

XCAL-Mobile after the

program has been

terminated

compulsively or by

anonymous errors, an

alarm screen pops

up.

2. Tap Send Error

Report button to

report error to

Accuver Technical

Support team.

Don’t Send: Ignores

the alarm screen, and

do not show the

alarm screen again.

Later: Shows the

alarm screen next

time you execute

XCAL-Mobile.

3. My Info Setting

screen appears.

Configure user

information.

4. Tap Send to Accuver

button to report the

error via an e-mail

automatically.

97

R

elated Products

XCAL-Mobile is compatible with Accuver’s other server-based solution series below.

is an autonomous total measurement and monitoring solution with web-based centralized management.

Simply by installing XCAL-Auto in any vehicles, XCAL-Auto automatically collects data over the air and its central server controls

remote-units and status information.

is a web-based total integrated platform that post-processes log files and provides engineers with a high

level KPI and call failure view of the network via web client access. It also supports automatic reporting, automatic diagnostics

of call failures, data export, download of log files, and etc.

98

A

ppendix:

Configuring AutoCall Scenario

XCAL-Mobile 4G supports the following AutoCall types; Voice, FTP, Web, SMS, WiFi, E-Mail, Ping, and YouTube.

XCAL-Mobile 4G User Guide Appendix: Configuring AutoCall Scenario

Time Configuration (Voice, Web, SMS, WiFi, E-Mail, Ping, YouTube)

Following displays items commonly configured for voice call tests.

Maximum time period to sustain connection calls

Maximum time to setup radio link connection

Time period to wait to start a new call after ending a call

None: Idle – T.Setup(Log in) - Traffic

Airplane Mode: Idle (Airplane ON) – Setup (Airplane Off) – T.Setup(Log in) – Traffic

Enter a call name in the entry field.

T

ime interval between calls. Enter higher value

than Idle Time + Setu

p

T

ime +

T

raffic

T

ime

Number of call attempts to repeat

XCAL-Mobile 4G User Guide Appendix: Configuring AutoCall Scenario

Time period to log in FTP Server

Time Configuration (FTP)

Followings displays items commonly configured for data call tests.

None: Idle – T.Setup (Log in) - Traffic

Airplane Mode: Idle (Airplane ON) – Setup (Airplane Off) – T.Setup (Log in) – Traffic

Enter a call name in the entry field.

Maximum time to setup network connection for a call. (Time Period to connect to data service)

Number of call attempts to repeat.

Time to complete task.

Time period to wait to start a new call after ending a call. (Time Period to change Flight Mode)

XCAL-Mobile 4G User Guide Appendix: Configuring AutoCall Scenario

Configuration for Each Call Type

Followings are configuration options for each call type.

Voice

• Voice Type:

1)Ori : Call Send Test

2)Ter : Call Receive Test

3)Con : Continuous Call Test

(Traffic Time unlimited)

• Dial Number: Phone Number

When tapping HW Menu button

and tapping Speaker On button, you

can use speakerphone function while

processing Voice AutoCall test.

For details of MOS Setting in

Voice, see MOS Setting

configuration.

FTP

• FTP:

1) Down: Download data

2) Up: Upload data

• Passive Mode: FTP Server Option

• FTP IP Address: Targeting URL

• FTP User ID: FTP Server Setting

• FTP Password: FTP Server Setting

• FTP Server Path: FTP Folder Full

Name Setting(Down/Up)

• FTP File Name: Name of the

original file to be downloaded from

server (For Download test)

Kilo(k) & Mega(m) Unit Support:

ex) 100k, 230k, 2m, 10m, … (For

Upload test)

• Pending: If select Pending ON

1)Interval: Set max time limitation

that allows pending conditions

2)Threshold: Set data throughput

limitation that allows pending

conditions

• File duplicate:

1) Overwrite :

2) Delete :

XCAL-Mobile 4G User Guide Appendix: Configuring AutoCall Scenario

Web

• Web Type:

1)Browsing : Web Browsing Test

2)HTTP Download : Web

Downloading Test

3)HTTP Upload : Web Uploading

Test

• Default Time out: Web Test End

Event Delay Option(Default : 2

second)

• URL: Input scenario name and

URL address in entry field

SMS

• SMS Type: Send/Receive

• SMS Number: Phone Number

• SMS Message: Input SMS Text

• SMSC On/Off: network element

in the mobile telephone network

which delivers SMS messages

• SMSC Address: short message

service center address

Not Currently Supported

XCAL-Mobile 4G User Guide Appendix: Configuring AutoCall Scenario

WiFi

WiFi test connects and disconnects to

a certain WiFi AP.

• SSID: Target SSID select

• Security Type: Select Security

Type of Target SSID

• Password: Input Password of

Target SSID

Not Currently Supported

E-Mail

• Gmail ID: Input the Google

Gmail Account

• Password: Input Gmail Password

• In Size: Select a text size

(50k, 100k, 300k, 500k, 1m)

Available only with E-Mail

sending.

XCAL-Mobile 4G User Guide Appendix: Configuring AutoCall Scenario

Ping

• Destination: Input IP address or

URL of ping test destination

• Count: Input ICMP request count

• TTL: Input Time To Live (1 –

255)

• Packet size: Input size of data

bytes to be transmitted

• Interval: Input ICMP request

interval (second unit)

• Success Rate:

Test Success

Setting Value > Fail Rate

Test Fail

Setting Value < Fail Rate

Fail Rate=[(Ping Count –

Proceeded Count) + Fail of

Proceeded count] / Ping Count

Iperf

Iperf test computes capacity of

packet network performance.

Destination: Inputs IP address or URL

of ping test destination

Port: Configures Port number.

Mode: Selects between TCP and UDP.

Direction: Selects between Up and

Down.

- Up: Transfers packet from smart

phone (client) to server.

- Down: Transfers packet from

server (client) to smart phone.

Packet Size (bytes): Activated when

UDP is selected for Mode.

Max Seq.Size (bytes):Activated when

TCP is selected for Mode.

Window Size (KB): Buffer Size

(1~1024000)

UDP Throughput (Kbit/sec): Activated

when UDP is selected for Mode.

(1~1024000)

Remote Control: PC connects with

Daemon Tool

XCAL-Mobile 4G User Guide Appendix: Configuring AutoCall Scenario

Youtube

• Youtube setting: Select Youtube

Content in Youtube website.

When you select a Youtube

contents, setting options

including Title, Duration,

are configured

automatically.

• Title: Youtube Content Title

• Duration: Youtube Content

duration Info

• Pending:

1) Interval : Set max time

limitation that allows

pending conditions

2) Threshold : Set data

throughput limitation that

allows pending conditions

VoLTE

• Voice Type:

1)Ori : Call Send Test

2)Ter : Call Receive Test

3)Con : Continuous Call Test in

Origination (Traffic Time unlimited)

• Dial Number : Phone Number

• RTP TIMEOUT: Drop is pegged

when none of RTP packets are

received during the RTP

TIMEOUT(second) set by user

• Video Call

1)On: Video VoLTE Call

2)Off: Voice VoLTE Call

When tapping HW Menu button

and tapping Speaker On button, you

can use speakerphone function while

processing VoLTE AutoCall test.

For details of MOS Setting in

Voice, see MOS Setting

configuration.

XCAL-Mobile 4G User Guide Appendix: Configuring AutoCall Scenario

While processing MOS call test,

MOS values in progress can be

monitored in the screen by tapping

MOS screen.

MOS Setting

MOS Setting is in Voice and VoLTE.

Tap MOS Setting On/Off button to

activate/inactivate MOS configuration

items.

• Measurement Type:

- When XCAL-Solo HW is

connected,

Simplex (Down): Recording only

Simply (Up): Play only

TimeSync Half-Duplex: Play and

record.

- When XCAL-Solo HW is NOT

connected,

Simplex (Down): Recording only

• Calculation:

None (Recording Only):

Recording

POLQA MOS (P.863): POLQA

MOS value calculation after

recording (Appearing only when

there is POLQA license.)

• Original File: Original sound

source (Reference file).

• Play File: Sound source to be

played.

• Save Wave Stream: Saves sound

• source in *.wav format after

recording (For MOS value

calculation).

• Automatic Level Alignment:

Adjusts volume level of recording

file automatically (OPTICOM

option).

• Solo H/W: Selects when XCAL-

Solo HW is connected to Smart

Phone.

XCAL-Mobile 4G User Guide Appendix: Configuring AutoCall Scenario

[XCAL-Solo]

XCAL-Solo HW is connected to smart

phone for POLQA test and sound

source play while processing MOS

test. It charges smart phone battery.

[HW Specification]

Operating Power

Operating Voltage: 4.2v (Internal

Battery), 5.0v (External USB)

Current Consumption: 300mA @4.2V

(Stand-by)

Bluetooth: BT 2.1 EDR

Wi-Fi: 802.11 b/g/n

Phone Interface: USB2.0 (micro USB

connector) x 1

Audio In/Out (3.5mm stereo jack) x

1

Battery: Internal battery(1850mAh)

Memory Slot: Micro SD card slot x 1

Size: 95 x 65 x 10 mm

Weight: 85g

[Status Icons]

When XCAL-Solo HW is connected to

smart phone, status icon appears at

the upper right corner of XCAL-Mobile

application screen.

: Charging

: Fully charged

: Charged less than 75%

: Charged less than 50%

: Charged less than 25%

: XCAL-Solo HW is not

connected.

XCAL-Mobile 4G User Guide Appendix: Configuring AutoCall Scenario

[POLQA TEST]

POLQA TEST button appears when

selecting Solo HW button is selected.

POLQA test verifies condition and

status of ear jack to be used for MOS

test in Voice and VoLTE.

• Play File: Sound source to be

played

• Test Type:

Solo Record: XCAL-Solo records

and transfers sound source.

Mobile Record: Smart Phone

records.

• Automatic Level Alignment:

Adjusts volume level of recording

file automatically (OPTICOM

option).

• Mobile Play Volume: Adjusts

Smart Phone HW volume.

• Solo Play Volume: Adjusts XCAL-

Solo HW volume.

• Record Time: Shows recording

time.

• Sample Rate: Shows recording

sample rate.

• Solo HW: Shows connection

status of XCAL-Solo HW.

• Start/Stop button: Starts/Stops

POLQA test.

POLQA test is shown in the

same screen.

POLQA test is available only

when XCAL-Solo HW is

connected to Smart Phone.

Once POLQA Test is done,

*.wav file is created and saved

in XCAL-Mobile – MOS Data

folder while creating and saving

existing logging files (*.drm and

*.csv).

XCAL-Mobile 4G User Guide Appendix: Configuring AutoCall Scenario

Multi Call

Multi Call enables you to perform test

based on multiple call scenarios

sequentially.

a. Tap scenario combo box to select

scenarios sequentially, and the

selected call scenarios are listed.

b. Tap to select checkboxes of call

scenario you want to include and

process multi call.

c. Configure Repeat Count of call

test.

d. Tap Save button.

e. Tap Start button to start

automated Multi Call test.

Multi RAB

Multi RAB performs concurrent voice

and data call test.

Sync: Processes next call when one

session (voice + data call) is

terminated.

Async: Processes voice and data call

individually.

Tap to select call scenario combo box

to include call scenario in Multi RAB

test.

XCAL-Mobile 4G User Guide Appendix: Configuring AutoCall Scenario

A

ppendix:

Call Events

XCAL-Mobile 4G provides test result with call events by call types depending on AutoCall types.

111

Voice

Events Description

Setup Fail Setup fail occurs when radio link setup failure

happens.

Drop Call drop during progress of traffic

Idle * CDMA : Fail to receive general page

message

* WCDMA : Fail to receive rrc Connection

Request message

FTP

Events Description

Traffic Fail Traffic fail is declared if connection to

application layer fails after finishing PPP layer

connection.

*This event is available for data service such

as FTP, TFTP and HTTP

Pending If throughput is sustained under predefined

threshold for designated time threshold, then

pending is declared and the call will be

dropped

*This event is available for FTP

Time Out If download or upload from/to application

cannot be finished during predefined traffic

time interval, Time Out is declared.

*This parameter is available for FTP

XCAL-Mobile 4G User Guide Appendix: Call Events

Web

Events Description

Traffic Fail Traffic fail is declared if connection to

application layer fails after finishing PPP layer

connection.

Page Connect

Fail

Page Connect Fail is declared when a wrong

web site address is configured.

Pending If throughput is sustained under predefined

threshold for designated time threshold, then

pending is declared and the call will be

dropped.

Time Out If download or upload from/to application

cannot be finished during predefined traffic

time interval, Time Out is declared.

Error Number of calls with various errors such as

No ATDT, modem Error and port error. These

errors are related to test phone.

SMS

Events Description

Idle * CDMA : Fail to receive general page

message

* WCDMA : Fail to receive rrc Connection

Request message

WiFi

Events Description

Setup Fail Setup Fail is declared when wrong password

is configured.

Fail Fail is declared when wrong security type is

configured.

Traffic fail

XCAL-Mobile 4G User Guide Appendix: Call Events

E-Mail

Events Description

Authentication

Fail

Authentication Fail is declared when wrong E-

Mail ID or Password is entered.

Time Out If download or upload from/to application

cannot be finished during predefined traffic

time interval, then Time Out is declared.

Ping

Events Description

Fail Fail is declared when wrong IP and URL are

configured.

Error Number of calls with various errors such as

No ATDT, modem Error and port error. These

errors are related to test phone.

YouTube

Events Description

Time Out If download or upload from/to application

cannot be finished during predefined traffic

time interval, Time Out is declared.

Pending If throughput is sustained under predefined

threshold for designated time threshold, then

pending is declared and the call will be

dropped.

VoLTE

Events Description

Setup Fail Setup Fail is declared when API message:

CallEstablished is not received until Setup

Time is completed.

Drop Drop is declared when API Call Ended is

received between Traffic Start and Traffic

Time ends

114

A

ppendix: Parameter Description

Detailed descriptions of parameters for each technology are listed.

LTE

Parameter Description

RSSI Received Signal Strength indication measured

Tx power Transmitted power of the device

PCI(Serving) Physical Cell Identity of the serving cell

RSRP(Serving) Reference Signal Received Power for the

Parameter Description

serving cell(dBm)

RSRQ(Serving) Reference Signal Received Quality for the

serving cell(dB)

SINR(Ant0/Ant1) Signal to Interference and Noise ratio for the

XCAL-Mobile 4G User Guide Appendix: Parameter Description

Parameter Description

serving cell(dB)

CQI(CW0/CW1) Channel Quality Indicator of CW0 and CW1

Rank Index Rank Indicator

RB Num(DL/UL) Resource Block number assigned in DL and UL

MCS(DL/UL)

Modulation Index and Percentages of

Modulation schemes

assigned(QPSK/16QAM/64QAM)

PDSCH BLER Block Error Rate for PDSCH channel (%)

PUSCH BLER Block Error Rate for PUSCH channel (%)

PDSCH Throughput Throughput measured in PDSCH

channel(Kbps)

PUSCH Throughput Throughput measured in PUSCH

channel(Kbps)

Path Loss Downlink path loss computed in the device

Wideband PMI Wideband Precoding Matrix Indicator

MCC Mobile Country Code

Parameter Description

MNC Mobile Network Code

EARFCN(DL/UL) Channel number and Frequency(MHz) the

device is selecting

Bandwidth(DL/UL)

Bandwidth assigned(MHz)

Band Indicator Band Indicator in LTE

Tracking Area Code

Tracking Area Code which the current eNB

belongs to

Cell ID(Serving) E-UTRAN Cell Identifier for the serving cell

Allowed Access Allowed Access on the cell based on network

select mode Indicated by NAS

EMM State Current EPS Mobility Management State

EMM Substate Current EPS Mobility Management Substate

Transmission Mode

(DL/UL) Transmission mode in DL and UL

Num of

Antenna(Tx/Rx) Number of antenna being used currently

XCAL-Mobile 4G User Guide Appendix: Parameter Description

3G – UMTS/HSDPA/HSUPA

Parameter Description

RRC State Connection status of Radio Resource Control

UARFCN(DL/UL) UTRA Absolute RF Channel Number

Rx Power Received signal strength of test phone.

Tx Power Transmit power of test phone.

BLER Block Error Rate

SIR Signal to Interference Ratio in dB unit.

Best Active PSC Best Active PSC(Primary scrambling code)

Best Active Ec/Io Best Active Ec/Io(dB unit)

Best Active RSCP Best Active RSCP(Received signal code power)

CQI Channel Quality Indicator

DTX Rate Rate of Discontinuous Transmission

MAC-hs Th. Throughput(kbps) measured in MAC-hs Layer

Served Physical Th.

Throughput(kbps) measured in Physical Layer

*It is throughput which users receive in real

time

Scheduled Physical

Th.

Throughput(kbps) measured in Physical Layer

*It is the throughput of system scheduled to

users

No. of Number of multi-codes measured in a certain

Parameter Description

Codes(Included) amount of time

RG(Down/Hold/Up)

Down, Hold, Up for Related Grant

Combined serving RGCH determining the

serving grant for the transport block sent in

this subframe

AG Absolute grant value; range – 0..31

SG serving grant index based on AGCH and

RGCH; range – 0..37

TTI

time transmission interval

0 – 2 ms TTI

1 – 10 ms TTI

E-TFCI Range 0 ~ 127

UE Power

Headroom

UE Power Headroom(UPH)

Ratio of the maximum UE transmission power

and the corresponding DPCCH code power

SF Code Spreading factor and number of codes

Non Serving Cell

ACK

Rate of ACK in Non Serving Cell

ACK_NS(%) = #of ACK_NS / (# of ACK+# of

NAK+# of ACK_NS)

XCAL-Mobile 4G User Guide Appendix: Parameter Description

Parameter Description

Happy Bit Indicates the value of the happy bit (0 =

unhappy, 1 = happy)

2G – GSM/GPRS/EDGE

Parameter Description

BSIC(NCC/BCC) Base station identity code, BSIC = NCC +

BCC

Cell ID Cell Identity Number of Serving Cell

BCCH ARFCN

Channel information of GSM neighbor cell

having the strongest signal strength among

neighboring cells

TCH ARFCN Traffic Channel – Absolute Radio Frequency

Channel Number

Rx Power Received signal strength(Full, Sub, Serving)

of test phone.

Tx Power Transmit power of test phone.

Timing Advance Timing Advance Value being used during a

call.

Parameter Description

Rx

Quality(Full/Sub)

Rx Quality Full: Service signal Quality

measured over a full set of TCH and SACCH

frames

Rx Quality Sub: Service signal Quality

measured over a sub set of 4 SACCH and SID

frames

Rx Level(Full/Sub)

Strength of the signal in the GSM technology.

Range: -55 to -110

RLT Counter Current value of the radio link timeout

counter

DS Counter Current value of the downlink signaling

counter

AMR Rate Frame type information of downlink and

XCAL-Mobile 4G User Guide Appendix: Parameter Description

Parameter Description

DL/UL(Mode) uplink voice frames for AMR vocoder

MAIO Mobile allocation index offset (valid if

HOPPING_FLAG is true)

Timeslot number Timeslot number

HSN Hopping sequence number (valid if

HOPPING_FLAG is true)

Hoping CH List Channel list for hopping

Coding Scheme

(DL/UL)

DL: GPRS encoding scheme used

UL: Modulation and coding scheme

Parameter Description

TS Count(DL/UL) DL/UL 0, 1, 2, 3, or 4 timeslots

Derived C Normalized received signal level at the MS

GMSK BEP

(Mean/CV)

MEAN_BEP for GMSK (value range 0~31)

CV_BEP for GMSK (value range 0~7)

8PSK

BEP(Mean/CV)

MEAN_BEP for 8PSK (value range 0~31)

CV_BEP for 8PSK (value range 0~7)

MAC C MAC C-value

C1 C1 value for the cell

C2 C2 value for the cell

2G – CDMA/EVDO

Parameter Description

Rx Power Received power of test phone on a scale of 20

dBm to -120 dBm

Tx Power Transmitted power of test phone on a scale of

40 dBm to -100 dBm

PN PN offset of the sector on which the fingers

are placed

Parameter Description

Ec/Io Signal strength of PNs in decibels,

representing the energy per chip over noise

State Call processing main state

Channel

Set of channels transmitted between the base

station and the mobile stations within a given

CDMA frequency assignment

XCAL-Mobile 4G User Guide Appendix: Parameter Description

Parameter Description

Band Class A set of frequency channels and a numbering

scheme for these channels

P Rev Highest available protocol revision for the

base station

SID System Identification number.

NID Network Identification number

SINR Signal to Interference and Noise ratio for the

serving cell(dB)

DRC Rate Graphical representation of forward data rate

Parameter Description

allocation request from mobile station

DSC Value Graphical representation of 1xEV DSC Value

transmitted by the AT

Air Link State ALMP State information

Session State Summary of session layer states

Color Code Color code corresponding to the sector

UATI Unicast Access Terminal Identifier info

120

A

ppendix:

RTP Analysis in VoLTE

Audio and Video stream are sent through RTP protocol.

XCAL-Mobile 4G User Guide Appendix: RTP Analysis in VoLTE

The following items will be calculated by decoding RTP packets and calculating the methods mentioned. They will calculate every

packet received and display every second in XCAL-Mobile.

RTP Related KPI Description

Rx Delay Time difference of RTP timestamps from previous RTP packet and current RTP packet

Rx Delay = R(i) – R(i-1)

Inter Arrival time Difference It is the time difference in relative transit time expressed as

D(i, j) = {R(i) – R(i-1)} – {S(j) – S(i-1)}

Here, S(j) is the RTP timestamp from packet j sent and R(i) is the RTP timestamp from

packet i received

Inter-Arrival Jitter It is calculated over packets that arrived consecutively as follows.

If J(i) represents the Inter-Arrival Jitter for packet, i and D (i – 1, i) represents Inter-

Arrival Time Difference between consecutive packets, i – 1 and i, then Inter-Arrival

Jitter is calculated as,

Jitter value for the first packet is considered zero.

It is calculated at every packet and averaged over one second.

Loss Packet The number of packets lost. RTP Sequence Number helps detect packet losses.

XCAL-Mobile 4G User Guide Appendix: RTP Analysis in VoLTE

RTP Related KPI Description

Packet Loss Rate

It is calculated as,

It is calculated at every second

RTP Throughput Over DL, the throughput is measured as,

It is calculated at every second.

XCAL-Mobile 4G User Guide Appendix: RTP Analysis in VoLTE

FCC Statement:

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following

measures:

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and receiver.

● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

● Consult the dealer or an experienced radio/TV technician for help.

XCAL-Mobile 4G User Guide Appendix: RTP Analysis in VoLTE

FCC Caution:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to

operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must accept any interference received, including interference that may

cause undesired operation.

For product available in the USA market, only channel 1~11 can be operated and these channel assignments deal with only the 2.4

GHz range.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should

be installed and operated with minimum distance 20cm between the radiator & your body. This device and its antenna(s) must

not be co-located or operation in conjunction with any other antenna or transmitter.

125

Innowireless XCALSOLO Wireless System Measuring Instrument User Manual

Innowireless Co., Ltd. Wireless System Measuring Instrument

User Manual

Navigation menu

Namespaces

Views

Navigation
