GigaPACK Contents
Overview Contents
GigaCHAMPION
GigaHUB

GigaPACK

Remote Display /

Terminal Link

USER’S MANUAL

Publication Number: PD008310103.001 AB

MAN-GIGAPACK

This user’s manual describes a product that, due to its nature, cannot describe a particular applica-

tion. The content of this user’s manual is furnished for informational use only, is subject to change

without notice, and should not be constructed as a commitment by Inova Computers GmbH.

Inova Computers GmbH assumes no responsibility or liability for any errors or inaccuracies that

may appear in this user’s manual.

Except as otherwise agreed, no part of this publication may be reproduced, stored in a retrieval

system, or transmitted, in any form or by any means, electronic, mechanical, recording, or other-

wise, without the prior written consent of Inova Computers GmbH.

Products or brand names are trademarks or registered trademarks of their respective companies or

organisations.

Inova Computers GmbH Inova Computers Inc,

Innovapark 20 270 Communication Way, Bldg. #6

D-87600 Kaufbeuren Hyannis, MA 02601

Germany USA

Tel.: +49 (0) 8341 62 65 Tel.: +1-508-771-4415

Fax: +49 (0) 8341 62 69 Fax: +1-508-771-4346

email: info@inova-computers.de email: info@inova-computers.com

Inova Computers AG (Schweiz) Inova Computers SARL (France)

Industriestraße 8 Aéropolé Bâtiment Aéronef

CH-8618 Oetwil am See Rue de Copenhague BP 9001

Switzerland 95728 Roissy Ch. de Gaulle Cedex

France

Tel.: +41 (0) 1/887 69 89

Fax: +41 (0) 1/887 69 39 Tel.: +33 (0) 1 74 37 27 15

email: info@inova-computers.ch Fax: +33 (0) 1 74 37 27 16

http://www.inova-computers.com

GigaPACK

Preface

GigaPACK

Preface

GigaPACK Contents

Unpacking and Special Handling Instruc-

tions ............................................... 3

Revision History ............................... 4

Two Year Limited Warranty ................ 5

1.0 Inova GigaPACK ...................... 1-2

1.1 Getting Started ...................... 1-2

1.10 Preparing Your Computer ........................................................................ 1-2

1.11 Installing the GigaCHAMPION ................................................................. 1-3

1.2 Software Installation................ 1-6

1.20 Microsoft Windows®XP or Windows®2000.............................................. 1-6

1.21 Windows®XP or Windows®2000 Driver ................................................... 1-6

2.0 GigaCHAMPION ...................... 2-2

2.00 Features ................................................................................................... 2-2

2.1 Specifications ......................... 2-3

2.2 Interfaces ............................... 2-4

Figure 2.2 Key Interfaces ............................................................................................................ 2-4

Table 2.2 Inova GigaCHAMPION Interfaces ............................................................................... 2-4

2.3 Face-Plate .............................. 2-5

Figure 2.3 Face-Plate Interface and Connector Pinout ................................................................. 2-5

2.30 Connector Pinout..................................................................................... 2-6

Table 2.30 Connector Pinout and Pin Description ....................................................................... 2-6

Preface

GigaPACK

3.0 PCI-MMEDIA - GigaHUB ........... 3-2

3.00 Features ................................................................................................... 3-2

3.1 Specifications ......................... 3-3

3.2 Typical Configuration Overview .. 3-4

3.20 Professional OEM Integration ................................................................... 3-4

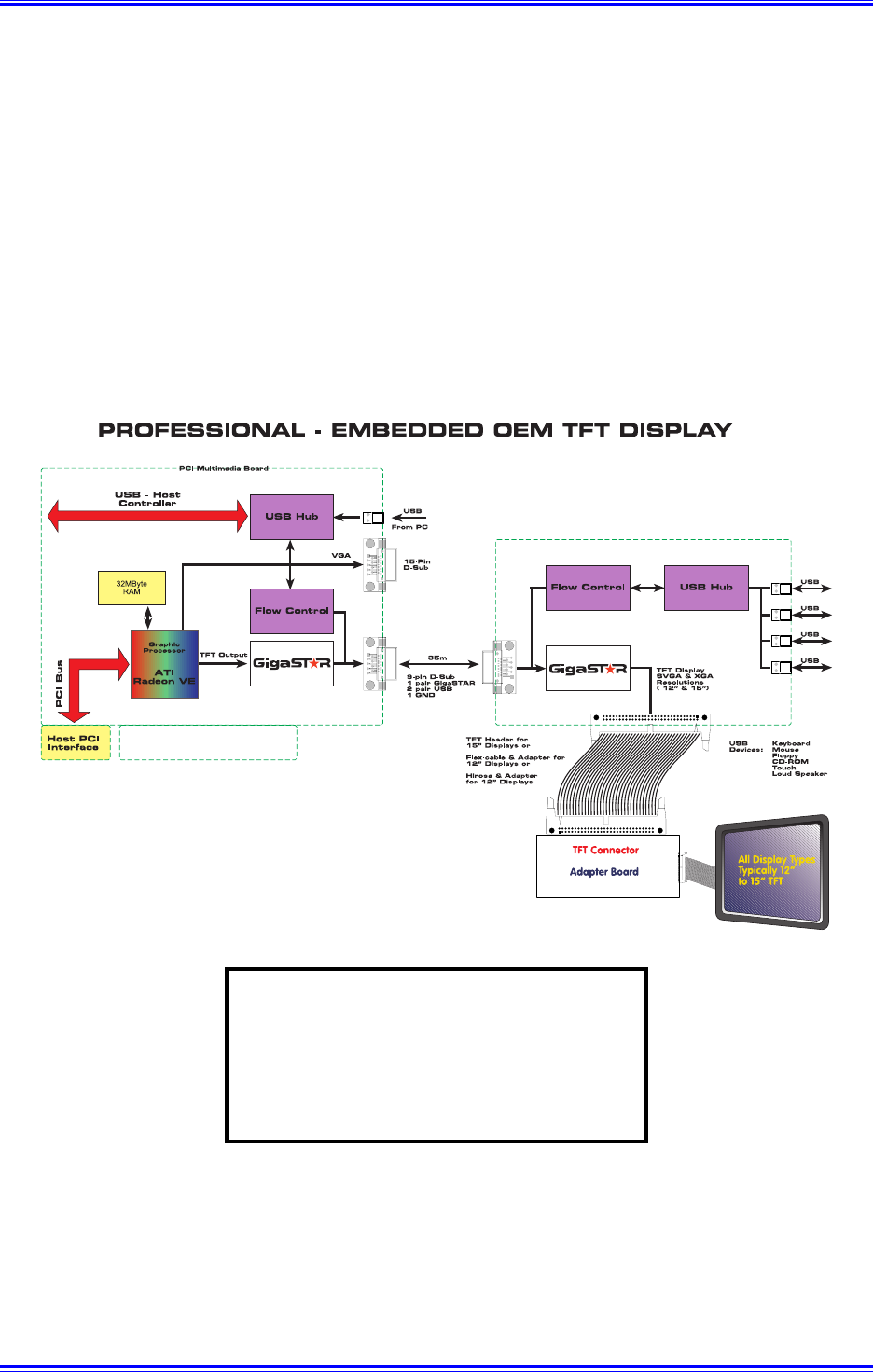

Figure 3.20 Professional GigaHUB Implementation ..................................................................... 3-4

3.21 Commercial Desktop Version.................................................................... 3-5

Figure 3.21 Commercial GigaHUB Implementation ..................................................................... 3-5

3.3 Interfaces ............................... 3-6

3.30 Professional GigaHUB ............................................................................... 3-6

Figure 3.30 Key Interfaces .......................................................................................................... 3-6

Table 3.30 Inova GigaHUB - ‘Professional’ Interfaces.................................................................. 3-7

3.31 Commercial ‘Desktop’ GigaHUB............................................................... 3-8

Figure 3.31 Key Interfaces .......................................................................................................... 3-8

Table 3.31 Inova GigaHUB - Commercial ‘Desktop’ Interfaces .................................................... 3-9

3.32 Physical Interfaces .................................................................................. 3-10

3.320 GigaSTAR and Combined USB.......................................................... 3-10

Figure 3.320 Integrated 9-pin D-Sub GigaSTAR & USB Interface ............................................... 3-10

Table 3.320 Integrated 9-pin D-Sub GigaSTAR & USB Interface ................................................ 3-10

3.321 USB Interface ................................................................................... 3-11

Figure 3.321 USB-A Interface ................................................................................................... 3-11

Table 3.321 USB-A Interface Description .................................................................................. 3-11

3.322 DVI-D Interface ................................................................................ 3-12

Figure 3.322 DVI-D Interface ................................................................................................... 3-12

Table 3.322 DVI-D Interface Description .................................................................................. 3-12

GigaPACK

Preface

GigaPACK

Unpacking and Special Handling

Instructions

This product has been designed for a long and fault-free life; nonetheless, its life expectancy can

be severely reduced by improper treatment during unpacking and installation.

Observe standard antistatic precautions when changing piggybacks, ROM devices, jumper set-

tings etc. If the product contains batteries for RTC or memory backup, ensure that the board is not

placed on conductive surfaces as these can cause short circuits, damage the batteries or disrupt

the conductive tracks on the board.

Do not exceed the specified operational temperature ranges of the board version ordered. If

batteries are present, their temperature restrictions must be taken into account.

Keep all the original packaging material for future storage or warranty shipments. If it is necessary

to store or ship the board, repack it as it was originally packed.

Before returning this product for repair, please ask for an RMA (Returned Material Authorization)

number and supply the following information:

LCompany name, contact person, shipping address and invoice address

LProduct name and serial number

LFailure or fault description

LClearly write the RMA number on the outside of the transportation carton.

Preface

GigaPACK

Revision History

Manual MAN-GIGAPACK

Publication Number PD008310103.XXX

Issue Author

Date of Issue

PD008310103.001 AB 23/10/02

Revision History

Preliminary; First Release; All pages Revised

Brief Description of Changes

GigaPACK

Preface

GigaPACK

Two Year Limited Warranty

Inova Computers (‘Inova’) grant the original purchaser of Inova products the following hardware

warranty. No other warranties that may be granted or implied by anyone on behalf of Inova are

valid unless the consumer has the expressed written consent of Inova.

Inova warrants their own products (excluding software) to be free from defects in workmanship

and materials for a period of 24 consecutive months from the date of purchase. This warranty is

not transferable nor extendible to cover any other consumers or long term storage of the product.

This warranty does not cover products which have been modified, altered, or repaired by any

other party than Inova or their authorized agents. Furthermore, any product which has been, or

is suspected of being damaged as a result of negligence, misuse, incorrect handling, servicing or

maintenance; or has been damaged as a result of excessive current/voltage or temperature; or has

had its serial number(s), any other markings, or parts thereof altered, defaced, or removed will

also be excluded from this warranty.

A customer who has not excluded his eligibility for this warranty may, in the event of any claim,

return the product at the earliest possible convenience, together with a copy of the original proof

of purchase, a full description of the application it is used on, and a description of the defect; to

the original place of purchase.

Pack the product in such a way as to ensure safe transportation (we recommend the original

packing materials), whereby Inova undertakes to repair or replace any part, assembly or sub-

assembly at our discretion; or, to refund the original cost of purchase, if appropriate.

In the event of repair, refund, or replacement of any part, the ownership of the removed or

replaced parts reverts to Inova, and the remaining part of the original guarantee, or any new

guarantee to cover the repaired or replaced items, will be transferred to cover the new or repaired

items. Any extensions to the original guarantee are considered gestures of goodwill, and will be

defined in the “Repair Report” returned from Inova with the repaired or replaced item.

Other than the repair, replacement, or refund specified above, Inova will not accept any liability

for any further claims which result directly or indirectly from any warranty claim. We specifically

exclude any claim for damage to any system or process in which the product was employed, or

any loss incurred as a result of the product not functioning at any given time. The extent of

Inova’s liability to the customer shall not be greater than the original purchase price of the item

for which any claim exists.

Inova makes no warranty or representation, either expressed or implied, with respect to its prod-

ucts, reliability, fitness, quality, marketability or ability to fulfil any particular application or pur-

pose. As a result, the products are sold “as is,” and the responsibility to ensure their suitability for

any given task remains the purchaser’s. In no event will Inova be liable for direct, indirect, or

consequential damages resulting from the use of our hardware or software products, or docu-

mentation; even if we were advised of the possibility of such claims prior to the purchase of, or

during any period since the purchase of the product. Please remember that no Inova employee,

dealer, or agent are authorized to make any modification or addition to the above terms, either

verbally or in any other form written or electronically transmitted, without consent.

GigaPACK

Getting Started

GigaPACK

GETTING STARTED

Overview Contents

1.0 Inova GigaPACK ...................... 1-2

1.1 Getting Started ...................... 1-2

1.10 Preparing Your Computer ........................................................................ 1-2

1.11 Installing the GigaCHAMPION ................................................................. 1-3

1.2 Software Installation................ 1-6

1.20 Microsoft Windows®XP or Windows®2000.............................................. 1-6

1.21 Windows®XP or Windows®2000 Driver ................................................... 1-6

Getting Started

GigaPACK

1.0 Inova GigaPACK

The Inova GigaPACK comprises two completely separate hardware components that are dealt

with in this user’s manual:-

1.) GigaCHAMPION® - the ATI Radeon™ VE-based PCI graphic board with internal USB routing

and GigaST)R transmission technology and

2.) GigaHUB® itself - a small desktop receiver unit with GigaST)R receiver, built-in USB hub for up

to 4 devices and one DVI-D interface for flat-panel monitor connection.

Note:

A variation on the theme is with the

professional solution comprising the

GigaCHAMPION and an embedded

version of the GigaHUB which is

mounted behind an OEM TFT panel.

1.1 Getting Started

1.10 Preparing Your Computer

Turn off the power to your system and discharge your body’s static electric charge by touching a

grounded surface - for example, the metal surface of the power supply - before performing any

hardware procedure.

The manufacturer assumes no liability for any damage, caused directly or indirectly, by improper

installation of any components by unauthorized service personnel. If you do not feel comfortable

performing the installation, consult a qualified computer technician.

Damage to system components, the accelerator card, and injury to yourself may result if power is

applied during installation.

Note:

Before installing your PCI

GigaCHAMPION we recommend that

you first de-install the driver for your

current video card and reconfigure

your operating system to use the

standard display driver (VGA) supplied

with your operating system. For more

information about changing to the

VGA driver, refer to your operating

system documentation.

GigaPACK

Getting Started

GigaPACK

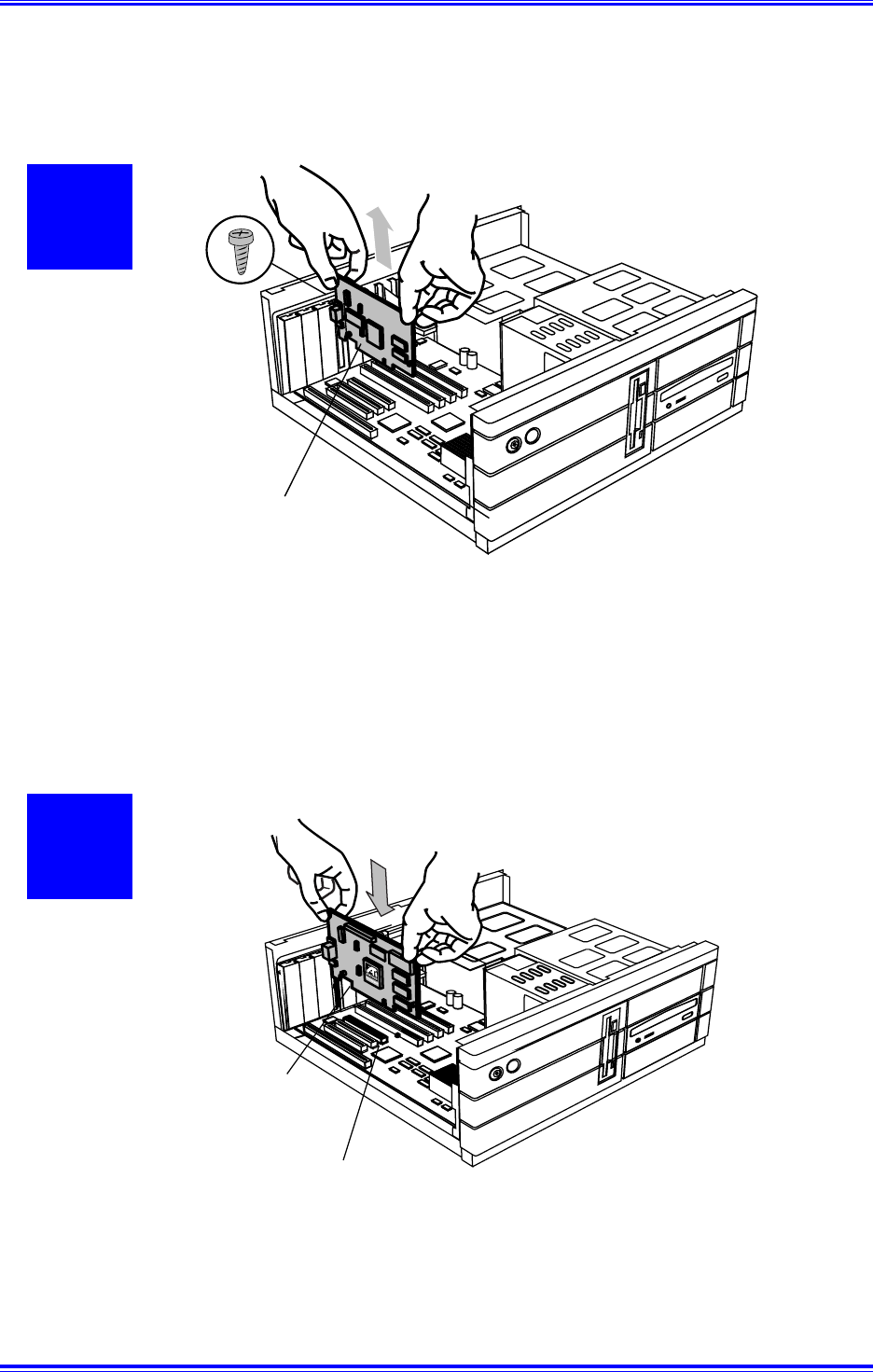

1.11 Installing the GigaCHAMPION

Now that the computer has ben prepared, you are ready to install the PCI GigaCHAMPION graph-

ics accelerator board. Follow these hardware instructions carefully to ensure installation is correct.

Remove the power from your computer and ensure that the power cord is no longer connected.

Disconnect the display connector for the existing graphics board (if installed)

POWER SUPPLY

Remove the cover - if necessary, consult your computer’s manual for help. Remember to discharge

your body’s static electricity by touching, for example, the metal chassis of the computer.

DISPLAY CABLE

VIDEO OUTPUT

CONNECTOR

Getting Started

GigaPACK

Remove any existing graphics board from your computer (if the GigaCHAMPION is designed to

replace it!) or disable the on-board graphics capability on the motherboard. You may have to refer

the documentation that came with your computer to perform this step. If removing an existing

PCI card remember to save the locking screw.

IONVA GigaCHAMPION™

PCI SLOT

VIDEO CARD

Locate the PCI graphics slot and if necessary, remove the metal dust cover. Grasp the

GigaCHAMPION by the top edge and position it over the PCI slot ensuring that the contacts are

aligned and then press it in until it is fully seated.

SCREW

EXISTING GRAPHICS CARD

GigaPACK

Getting Started

GigaPACK

Use the included 1.5m length of USB A-B cable to connect the PCs external USB to the

GigaCHAMPION face-plate. Ensure that the bank of switches on SW1 are correctly set - Switch 2

‘ON’ is the default setting and configures the remotely connected display as the boot monitor.

SCREW

INOVA GigaCHAMPION™

VIDEO CARD

DISPLAY CABLE 9-PIN D-DUB

TO GigaHUB

15-PIN D-DUB

TO LOCAL VGA

Now replace the PCI board fixing screw and the computer cover.

The Inova GigaCHAMPION has a local analog VGA connector and one high-speed serial GigaST)R

interface (9-pin D-Sub). Connect a local VGA monitor (if required) to the video output and the

20+m length of twisted-pair cable that links the GigaHUB to the GigaCHAMPION to the remaining

D-Sub connector. Finally, you are ready to attach the power cord and proceed with the software

installation of the supplied Inova driver.

Getting Started

GigaPACK

ATI is a registered trademark of ATI Technologies Inc. Canada, the United States and/or other

countries. RADEON is a trademark of ATI Technologies Inc. Canada, the United States and/or

other countries. Windows is a registered trademark of Microsoft Corporation in the United States

and/or other countries. All other trademarks and/or registered trademarks are the properties of

their respective owners.

1.2 Software Installation

1.20 Microsoft Windows®XP or Windows®2000

New hardware will be detected after you restart your computer. To complete the setup you must

click ‘Yes’ when prompted to restart the computer.

1.21 Windows®XP or Windows®2000 Driver

With Windows®XP or Windows®2000 running on your computer, you need to install the Inova

driver to take advantage of the higher performance, resolutions and the special graphic features

afforded by the GigaCHAMPION.

Windows will recognise that a new piece of hardware has been found and will automatically

launch the New Hardware Wizard.

1.) Acknowledge this by clicking ‘Next’ when prompted to do so.

2.) Choose ‘Search for a suitable driver for my device (recommended)’ and click ‘Next’

3.) Under ‘Optional Search Locations’ make sure that only ‘CD-ROM Drives’ is checked

4.) Insert the Inova installation CD that shipped with the product and click ‘Next’

5.) Windows will tell you that it found a driver for this device - click ‘Next’ to install it

6.) A screen may appear that says ‘Digital Signature Not Found’ and ask if you want to continue

7.) Click ‘Yes’

8.) The files will be copied

9.) Once prompted, click ‘Finish’

GigaCHAMPION

Product Overview

GigaCHAMPION

Product Overview

GigaCHAMPION

2.0 GigaCHAMPION ...................... 2-2

2.00 Features ................................................................................................... 2-2

2.1 Specifications ......................... 2-3

2.2 Interfaces ............................... 2-4

Figure 2.2 Key Interfaces ............................................................................................................ 2-4

Table 2.2 Inova GigaCHAMPION Interfaces ............................................................................... 2-4

2.3 Face-Plate .............................. 2-5

Figure 2.3 Face-Plate Interface and Connector Pinout ................................................................. 2-5

2.30 Connector Pinout..................................................................................... 2-6

Table 2.30 Connector Pinout and Pin Description ....................................................................... 2-6

Product Overview

GigaCHAMPION

2.0 GigaCHAMPION

The Inova GigaCHAMPION is an advanced 32-bit PCI remote terminal controller based around

the highly integrated ATI Radeon VE graphic engine. Addressing the needs of the next generation

commercial or domestic applications, the GigaCHAMPION with its integrated MPEG-2 hardware

decoder, USB hub, and a rich feature set is able to control remote (digital) terminals with resolu-

tions up to 1024 x 768 pixels some 35m from the host CPU. The local analog VGA supports

resolutions up to 2048 x 1536 pixels. Equipped with the GigaST)R technology from Inova Semi-

conductors, the GigaCHAMPION is the only scalable single channel dedicated controller on the

market able to address remote terminals without loss of signal over great distance.

2.00 Features

By utilising the ATI Radeon VE complete with its fast 32MByte, RAM clocked at 150MHz, the Inova

GigaCHAMPION provides both commercial and consumer users with the most comprehensive

PCI graphic controller ever produced. The GigaCHAMPION is one of the fastest PCI multimedia

controllers available for today’s 2D, 3D, and multimedia graphics applications in full 32-bit colour

and its 3D architecture includes unprecedented innovations that enable advanced new features in

upcoming applications without performance compromise.

The Radeon graphics engine integrates industry-leading video features including advanced de-

interlacing algorithms for exceptional video quality and integrated MPEG-2 decoding capability.

In addition, it features comprehensive support for all new Windows 2000 display-oriented features

together with support for MS Direct Draw, Direct3D and OpenGL.

A unique feature of the GigaCHAMPION is its ability to drive a standard (local) VGA monitor and

a GigaST)R connected remote terminal up to 35m from the main CPU without picture quality

compromise. Also, an innovative USB hub development allows up to four peripherals including

loudspeakers, touch elements, and pointing devices to be connected directly to the remote flat

panel and not the host controller. This development leaves the workplace uncluttered and sets the

ambient noise level to almost zero.

GigaCHAMPION

Product Overview

GigaCHAMPION

2.1 Specifications

32-bit/33MHz universal PCI interface with full Plug&Play compatibility

ATI Radeon with 32MByte, 150MHz RAM

Resolution Colour Depth Refresh

1920 x 1200 32-bit 72Hz

1920 x 1200 16-bit 80Hz

2048 x 1536 16-bit 60Hz

INGT165 Transmitter for video signal transmission

USB 1.1 used for up to 4 PC peripheral and pointing devices

15-pin D-Sub for VGA

9-pin D-Sub GigaST)R

USB-B (input)

Windows®2000, Windows®XP (USB)

Windows®98, Windows®ME

+3.3V (2W), +5V (2W) (typically)

100g (typically)

0°C to +60°C

-40°C to +85°C

5% to 95% (non-condensing) @ 40°C

Two-year limited warranty

PCI 2.2, CE

For details on cabling requirements etc. please contact an Inova sales office directly. For other

displays (e.g. digital) or VGA resolutions other than those shown, please contact Inova Sales.

Interface

Video Contr.

Screen Options

(analog VGA)

GigaST)R

USB Hub

User

Interfaces

Software

Support

Power Req.

Mass

Oper. Temp.

Storage Temp.

Humidity

Warranty

Conformance

Product Overview

GigaCHAMPION

2.2 Interfaces

Figure 2.3 shows the physical location of the key interfaces which are explained in Table 2.2.

Figure 2.2 Key Interfaces

J33

SW1

Table 2.2 Inova GigaCHAMPION Interfaces

Description

Local analog VGA video connector

Integrated GigaST(R and USB interfaces

External USB-B connection (for USB routing)

USB-B for internal USB (Motherboard) connection

SW1 1, 3 & 4 N/C External USB-B connection (for USB routing)

On Boot display is the remotely connected digital device

Off Boot display is the analog VGA monitor

SW1 2

Interface

J33

GigaCHAMPION

Product Overview

GigaCHAMPION

2.3 Face-Plate

Figure 2.3 shows the interfaces appearing on the steel face-plate.

Figure 2.3 Face-Plate Interface and Connector Pinout

Product Overview

GigaCHAMPION

2.30 Connector Pinout

Figure 2.3 shows the physical face-plate connectors on the Inova GigaCHAMPION graphic accel-

erator. Table 2.30 gives the pinout and description of these connectors.

Table 2.30 Connector Pinout and Pin Description

Pin No. Signal

1 Analog RED

2 Analog GREEN

3 Analog BLUE

4 N/C

5, 6, 7, 8 CRT Ground

9 +5V (DDC Data)

10 CRT Ground

11 N/C

12 DDC-SDA

13 HSYNC

14 VSYNC

15 DDC-SCL

Pin No. Signal

1 GigaSTAR Tx+

2 Data 1+

3 GND

4 Data 2+

5 N/C

6 GigaSTAR Tx-

7 Data 1-

8 Data 2-

9 GND

Pin No. Signal

1 +5V

2 USB P0-

3 USB P0+

4 GND

15-pin D-Sub VGA Analog Interface9-pin D-Sub GigaST)R Interface4-pin USB-B

GigaHUB

Product Overview

GigaHUB

Product Overview

GigaHUB

3.0 PCI-MMEDIA - GigaHUB ........... 3-2

3.00 Features ................................................................................................... 3-2

3.1 Specifications ......................... 3-3

3.2 Typical Configuration Overview .. 3-4

3.20 Professional OEM Integration ................................................................... 3-4

Figure 3.20 Professional GigaHUB Implementation ..................................................................... 3-4

3.21 Commercial Desktop Version.................................................................... 3-5

Figure 3.21 Commercial GigaHUB Implementation ..................................................................... 3-5

3.3 Interfaces ............................... 3-6

3.30 Professional GigaHUB ............................................................................... 3-6

Figure 3.30 Key Interfaces .......................................................................................................... 3-6

Table 3.30 Inova GigaHUB - ‘Professional’ Interfaces .................................................................. 3-7

3.31 Commercial ‘Desktop’ GigaHUB ............................................................... 3-8
