EN1223D/EN1223D-15 EchoStream® Double-
Button Water-Resistant Pendant Transmitter
Installation and Operation Manual
1 Overview
The Inovonics double-button water-resistant pendant transmitter is our
smallest, lightest, and most versatile pendant.
Note: For UL installations, refer to the EN4216MR Installation and
Operation Manual, the EN4232MR Installation and Operation Manual, or
the EN7285 Installation Instructions.
1.1 Inovonics Wireless Contact Information
If you have any problems with this procedure, contact Inovonics Wireless
technical services:
• E-mail: support@inovonics.com
• Phone: 1.800.782.2709, option 2
1.2 Transmitter External Components

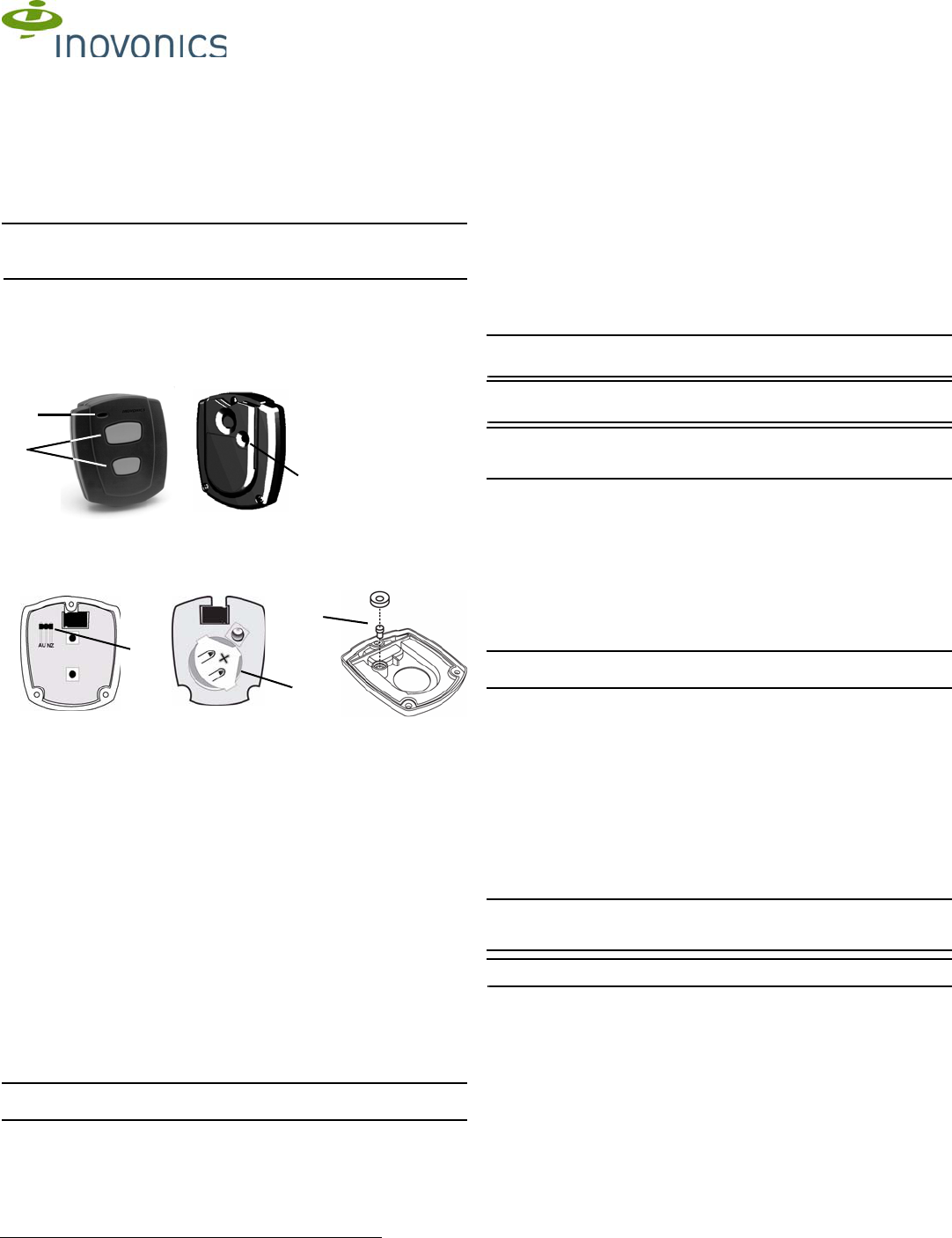

Figure 1 Transmitter external components
1.3 Transmitter Internal Components
Figure 2 Transmitter internal components
1.4 What’s In The Carton
• One EchoStream double-button water-resistant pendant transmitter
• One breakaway neck cord
• One beltclip attachment
• Three housing screws
• One frequency band selection jumper
• One CR2450 coin cell battery
2 Installation and Startup
2.1 Installation Notes
• These products are designed to be maintained by professional
security technicians
• Products are intended for indoor use
• All products should be manually tested weekly (see “Test the
Transmitter” on page 2)
2.2 Initial Setup
Battery Installation
1. Remove the rear housing cover to expose the side of the board that
holds the battery.
Caution: Carefully separate the rear housing cover, ensuring the reset
button plunger assembly does not fall out of the housing (Figure 2).
2. Slide the battery under the battery holder, ensuring that it is fully
inserted and that the positive terminal (+) faces up (Figure 2).
Select the Frequency Band
EchoStream products are able to use a range of radio frequencies, and
must be configured for your geographic area. This product ships with a
default frequency range of 902-928 MHz for use in North America. If you
are using the product in North America, skip to step 6; if you are using the
product in Australia or New Zealand, you will need to configure the
transmitter.
To configure the transmitter:
3. Turn the board over to access the side with the frequency band
selection pins (Figure 2).
4. Place the frequency band selection jumper on the appropriate
frequency band selection pins.
• Place the jumper on the left two pins, marked AU, to set the frequency
range to 915-928 MHz for Australia.
• Place the jumper on the right two pins, marked NZ, to set the
frequency range to 921-928 MHz for New Zealand.
5. Seat the board in the housing with the battery side facing the rear
housing cover.
6. Replace the front housing cover.
7. Insert the three housing screws, tightening them to 1.25 inch-pounds
torque.
Note: If you do not have a torque driver, tighten to a snug fit, being careful
not to overtighten.
Note: Tighten the housing screws evenly to help ensure a good seal and
maintain water-resistance.
Caution: Over-tightening the housing screws can result in microcracks in
the plastic, gaps in the gasket material, and/or stripping of the bushing. Any
of these conditions can compromise the water-resistance of the device.
Register the Transmitter
The transmitter must be registered and supervised. When supervised, the
transmitter will send check-in message to the receiver or gateway as
follows:
• EN1223D: every three minutes.
• EN1223D-15: every 15 minutes.
Each transmitter has a unique factory-programmed identification number.
Refer to the receiver or gateway's installation instructions for details on
registering and setting up supervision.
8. When prompted by the receiver or gateway to reset transmitter, press
the reset button (Figure 1).
Caution: The transmitter should be tested after registration to ensure
operation. See “Test the Transmitter” on page 2.
3 Operate the Transmitter
To send an alarm, press both activation buttons simultaneously for at least
one second. Alarm signals are transmitted multiple times and are indicated
by the blinking transmission LED. When the buttons are released, the
transmitter sends an alarm restoral signal as indicated by another short
series of blinking transmission LED lights.
3.1 Wear the Transmitter
The pendant transmitter can be worn in three ways:
• Around the neck with neck chain attachment (included)
• On a belt with the beltclip attachment (included)
• On the arm with optional wristband accessory (ACC623S or
ACC623L, sold separately)
Caution: The neck chain included with the pendant transmitter is designed
with a breakaway feature for user safety. Substitution of a stronger cord or
chain may result in injury to the wearer.
Note: The optional wristband accessory is not part of the UL listing.
3.2 Water Exposure
All EchoStream water-resistant pendants meet IP54 certification standards
for dust and water ingress protection, ensuring that:
• Ingress of dust particles does not interfere with the satisfactory
operation of the device
• There is no harmful effect to the device caused by:
- Vertically dripping water (when device is tilted up to 15° from normal
position)
- Spraying water (falling at angles up to 60° from vertical)
- Splashing water (from any direction)
ATransmit LED BActivation buttons CReset button
AFrequency band selection
pins BBattery CReset button plunger
assembly
C
B
A
A
B
C
4/11/14 05583F © Inovonics, 2013 - www.inovonics.com 2
End User Recommendations
IP54 certification is classified as water-resistant, but not waterproof. The
products are not designed for submersion in water. As such, we offer the
following recommendations for end users:
Note: Dust and water ingress protection is not part of the UL listing.
3.3 Battery Replacement
Replacement batteries can be purchased from Inovonics using the
following part numbers
• BAT609 for a single battery
• BAT609-25 for a 25-count bulk pack
To replace the batteries:
1. Remove the three housing screws on the back of the transmitter.
2. Remove the rear cover to expose the side of the board which holds the
battery.
Caution: Carefully separate the rear housing cover, ensuring the reset
button plunger assembly does not fall out of the housing (Figure 2).
3. Remove the depleted battery.
4. Slide the new battery under the battery holder, ensuring that it is fully
inserted and that the positive terminal (+) faces up (Figure 2).
5. Replace the rear housing cover.
6. Replace the three housing screws, tightening them to 1.25 inch-pounds
torque.
7. Once the unit has been sealed, press the reset button located on the
rear housing to complete the configuration (Figure 1).
Note: If you do not have a torque driver, tighten to a snug fit, being careful
not to strip the housing.
Note: Tighten the housing screws evenly to help ensure a good seal and
maintain water-resistance.
Caution: Over-tightening the housing screws can result in microcracks in
the plastic, gaps in the gasket material, and/or stripping of the bushing. Any
of these conditions can compromise the water-resistance of the device.
4 Test the Transmitter
The transmitter should be tested weekly and after registration to ensure
operation.
To test the transmitter:
1. Press both activation buttons simultaneously for at least one second
and ensure the transmit LED lights and the alarm is received by the
receiver or gateway.
2. Press the reset button and ensure the transmit LED lights.
5 Specifications
Dimensions: 5.6 x 4.8 x 1.8 cm (2.2 x 1.9 0.72”)
Operating temperature: 0 to 60°C (32 to 140°F); 0 to 49°C (32 to 120°F) for
UL installations
Operating environment: Water-resistant, non-submersible
Certifications: IP54 Dust and Water Resistance (IEC 60529)
Typical battery life: 1-2 years
Battery type: Renata CR2450, Panasonic CR2450
Power requirement: 3 VDC, 60 mA
UL listings: UL 1023, ULC/ORD-C1023-74
Compatible receiver: EN4216MR, EN4232MR, EN7285
Note: Specifications and data are subject to change without notice.
6 Television and Radio Interference
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
7 FCC RF Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating
instructions for satisfying RF exposure compliance. This transmitter must
not be co-located or operating in conjunction with any other antenna or
transmitter except in accordance with FCC multi-transmitter product
procedures.
8 FCC Part 15 and Industry Canada Compliance
This device complies with part 15 of the FCC Rules and Industry Canada
license-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée aux
deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage,
et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Note: Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
9 US Patent Numbers
• 7,154,866
• 7,554,932
• 7,746,804
Usage Situation OK to Use? Cautions
Shower Yes Do not spray water directly on
the device at distances of less
than 12 inches; avoid spraying
water at high pressure
Bath Yes Do not submerge the device
Rain Yes Avoid extended exposure;
wear the device under a
sleeve, shirt, or jacket
Water Exercise No Do not use the device during
these activities
