WP100 Motion Detector and Transmitter
Installation and Instructions
1. FEATURES
True Quad element pyroelectric sensor
Integral swivel bracket for wall or ceiling
installation
Sealed chamber protects the optical system
Programmable motion event counter (1, 2, 3
events)
Multi-position vertical pattern adjustment
Low current consumption
Microprocessor-controlled temperature
compensation
White light protection
Elegant styled, sturdy case
Note: A built-in tamper switch is activated when
the cover is removed.
2. Serial Number
The WP100 detector and transmitter, has its own
unique serial number permanently assigned during
manufacture.
The main control unit is required to “enroll” the
device serial No. at some point prior its usage in
the alarm system. Refer to the main control unit’s
installation instructions for further details.
WP100 S/N:
3. Test mode
When power on, the following 3 minutes are testing
mode, then you can adjust the position and direction
of the PIR. In test mode, when the WP100 detects
signals, the LED will turn on. (In normal condition,
the LED lighting is used to indicate that the WP100
is emitting RF signals to outside).
4. High Traffic Shutdown Mode
To prolong battery life, the motion detector uses a
feature called High Traffic Shutdown. When motion is
detected, the device will transmit to the receiver and
will then shut down for three minutes if motion is
detected again during the shutdown time, the unit will
not transmit the event to the receiver. The detector will
thus remain in the shutdown mode until three minutes
after the first motion detected was transmitted. The
detector will transmit detected motion every three
minutes
5. Specifications
Optical
Detection pattern: 90°wide angle lens with 18 true
quad zones in 3 detection layers.
Max. coverage is15×15m(50×50 ft).
Pet Alley:
plastic mask may be fitted internally; leaving only 9
quad zones in a single and layer; with the same view
angle and coverage area as above.
Adjustment: Multi-position vertical adjustment.
Mounting
Height: 1.6m ~ 2.6m(5.4ft ~ 8.7ft)
Installation Options: Surface or corner (without
bracket)
Surface or ceiling (with bracket)
Bracket adjustment: Vertical: 30°upward, 20°
downward. Horizontal: 360°.
Battery: 2x3V Lithium
Dimensions (H×W×D):105×61×35 mm
(4.1×2.4×1.5in)

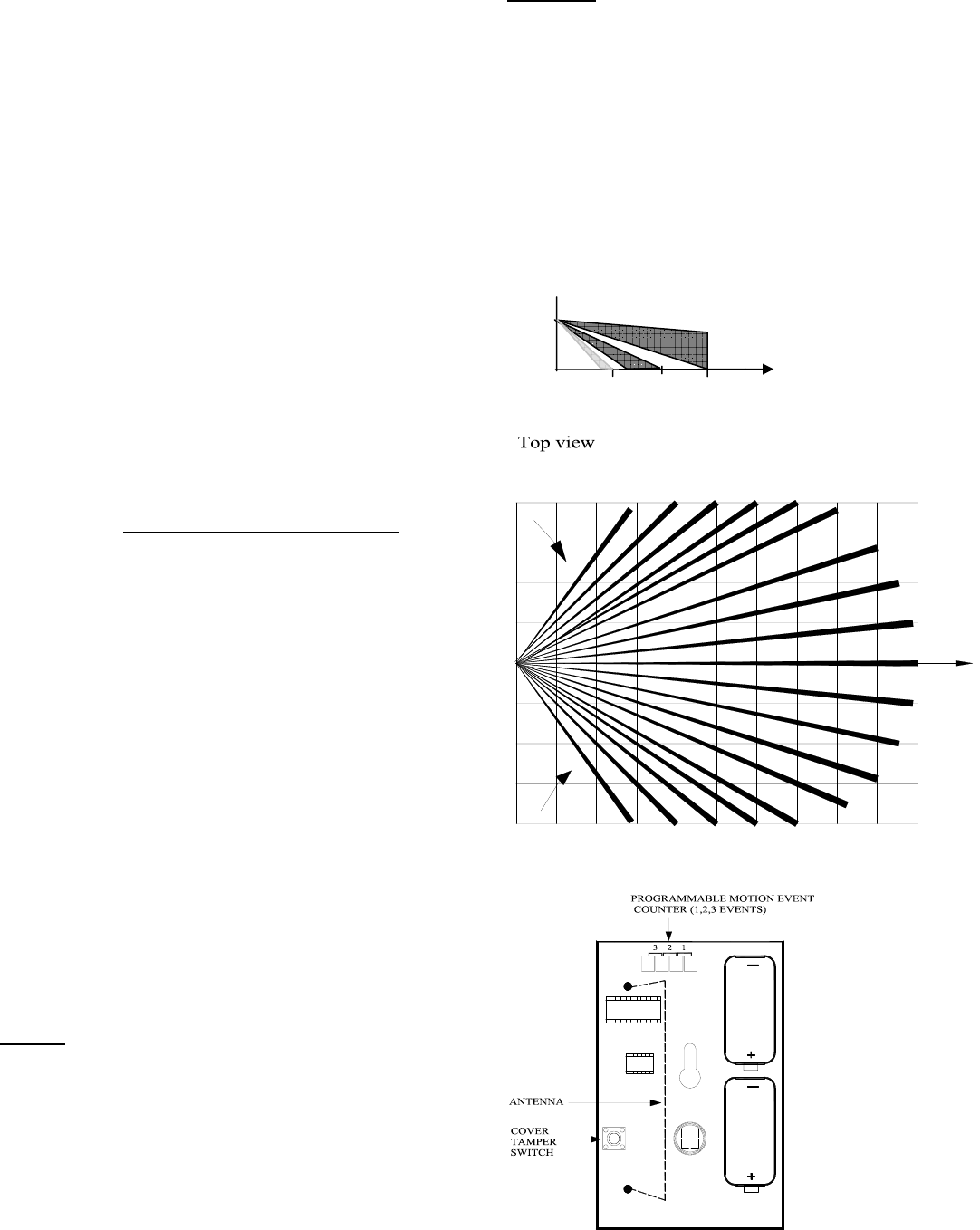

SIDE VIEW
2.3M
3 6 8 m
10 20 26.7 ft
1032465 879
3
4m
10m
1
2
0
2
1
4m
3
103246587910m
6.FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications
Any changes or modification not expressly approved by the party responsible could void the user's authority to operate the
device.
