Inseego NVWMIFI4620 Cellular and PCS CDMA/ GSM/ EDGE/ WCDMA and 700 MHz LTE Wireless Router with WLAN User Manual

Novatel Wireless Inc Cellular and PCS CDMA/ GSM/ EDGE/ WCDMA and 700 MHz LTE Wireless Router with WLAN Users Manual

Users Manual

©2011 Novatel Wireless, Inc. All rights reserved. The information contained in this document is subject to change
without notice and should not be construed as a commitment by Novatel Wireless, Inc.
Patents and Licenses
Visit www.novatelwireless.com/patents for a complete list of all Novatel Wireless patents.
Software License
Proprietary Rights Provisions:
The software drivers provided with this product are copyrighted by Novatel Wireless and/or Novatel Wireless suppliers.
Although copyrighted, the software drivers are unpublished and embody valuable trade secrets proprietary to Novatel
Wireless and/or Novatel Wireless suppliers. The disassembly, decompilation, and/or Reverse Engineering of the software
drivers for any purpose is strictly prohibited by international law. The copying of the software drivers, except for a reasonable
number of back-up copies is strictly prohibited by international law. It is forbidden by international law to provide access
to the software drivers to any person for any purpose other than processing the internal data for the intended use of the
software drivers.
U.S. Government Restricted Rights Clause:
The software drivers are classied as “Commercial Computing device Software and the U.S. Government is acquiring only
“Restricted Rights” in the software drivers and their Documentation.
U.S. Government Export Administration Act Compliance Clause:
It is forbidden by US law to export, license or otherwise transfer the software drivers or Derivative Works to any country where
such transfer is prohibited by the United States Export Administration Act, or any successor legislation, or in violation of the
laws of any other country.
Trademarks and Service Marks
Novatel Wireless is a trademark of Novatel Wireless, Inc., and the other trademarks, logos, and service marks (collectively the
Trademarks”) used in this user manual are the property of Novatel Wireless or their respective owners. Nothing contained in
this user manual should be construed as granting by implication, estoppel, or otherwise, a license or right of use of Novatel
Wireless or any other Trademark displayed in this user manual without the written permission of Novatel Wireless or its
respective owners.
• Novatel Wireless, and the Novatel Wireless logo are all trademarks of Novatel Wireless, Inc.
• MiFi® and the MiFi logo are registered trademarks of Novatel Wireless, Inc.
• Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or
other countries.
• Apple®, Mac®, and Mac OS® are trademarks of Apple, Inc., registered in the U.S. and other countries.
• Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries.
The names of actual companies and products mentioned in this user manual may be the trademarks of their respective
owners.
Novatel Wireless Revision History
Part Number Revision Description Date
90026546 R1 Initial release 07 Oct 2011
FCC ID: PKRNVWMIFI4620
PN: 90026546_R1_DRAFTE_UG MiFi4620L_NVTL_07Oct2011_1.1
Please visit www.novatelwireless.com/ for the latest information about your device.
Contents
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Features ................................................................................. 2
Package Contents ....................................................................... 2
System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Components ................................................................................ 4
Service Status Indicator (LED) States. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Service Display States. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Power Management ......................................................................... 8
Caring for Your Device ....................................................................... 9
Using the MiFi 4620L . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Accessing the Network .....................................................................11
Using the MiFi 4620L for the First Time ......................................................12
Assemble the Wall Charger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Install the 4G LTE SIM Card ..............................................................13
Remove the 4G LTE SIM Card ............................................................14
Insert and Charge the Battery ...........................................................15
Remove the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Battery Tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Power the MiFi 4620L On and O ........................................................19
Power On. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Power O ..........................................................................19
Activate Your Device ....................................................................19
Connecting to the MiFi 4620L . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Using the MiFi 4620L After Setup is Complete ...............................................21
Normal Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Setting up a Temporary Hotspot ....................................................21
Security for the MiFi 4620L . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
MiFi Settings .......................................................... 22
Conguring MiFi Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Welcome Page .............................................................................24
Login. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Menu Bar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Home ......................................................................................25
Wi-Fi .......................................................................................26
Wi-Fi Proles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Choosing a Prole ......................................................................28
Setting Up a Temporary Hotspot ....................................................28
Changing to a Dierent Prole ......................................................29
Updating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
iii
Updating a Prole Not Currently in Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Buttons ............................................................................30
LAN ........................................................................................31
TCP/IP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Connected Devices .....................................................................32
Buttons ............................................................................32
WWAN .....................................................................................33
Internet Connection ....................................................................34
WWAN Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Buttons ............................................................................34
Security ....................................................................................35
Password. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Set Administration Password ............................................................36
MAC Filter ..............................................................................37
Enable MAC Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Trusted Client List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Buttons ............................................................................40
Port Filtering ...........................................................................41
Enable Port Filtering ................................................................42
Allowed Applications ...............................................................42
Buttons ............................................................................44
Advanced ..................................................................................45
Advanced Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Access Point ........................................................................46
Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
System .............................................................................48
Buttons ............................................................................48
Cong File. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Cong File Download . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Cong File Upload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Buttons ............................................................................50
Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
System Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
System Status ......................................................................53
Buttons ............................................................................53
Port Forwarding ........................................................................54
Port Forwarding Applications .......................................................55
Buttons ............................................................................55
Power Management ....................................................................56
Automatic Shutdown ...............................................................57
Buttons ............................................................................57
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Common Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
iv
Update the Firmware on the MiFi 4620L .....................................................62
Technical Support ..........................................................................63
Technical Support ......................................................................63
Product Specications and Regulatory Information ...................... 64
Product Specications ......................................................................65
General ................................................................................65
Technology/Bands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Environmental. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Regulatory Statements .....................................................................66
Wireless Communications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Limited Warranty and Liability ..............................................................67
Safety Hazards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Proper Battery Use and Disposal ............................................................71
Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Overview
Components
Power Management
Caring for Your Device
Getting Started
1
2
Overview
Congratulations on your purchase of the Novatel Wireless MiFi 4620L Intelligent Mobile Hotspot for
4G LTE and Wi-Fi!
This device operates over high-speed 4G LTE networks in the 700/800/1900 bands and Wi-Fi,
enabling you to connect at high speeds to the Internet, your corporate Intranet, Wi-Fi enabled
devices, and to access your email virtually anywhere!
The MiFi 4620L is backwards compatible to 3G networks, ensuring reliable connectivity when you
need it most.
Features
Connect to High-Speed Wireless Data (4G LTE)
Wi-Fi Connectivity
Manage Wireless Network Activity
MiFi Settings is an easy-to-use web-based interface that allows you to manage, monitor,
and customize your Wi-Fi and 4G LTE connection.
Advanced embedded antenna design
VPN capability
Auto connectivity options
Package Contents
The Novatel Wireless MiFi4620L package includes:
4G LTE MiFi® 4620L
1500mAh Standard Lithium Ion Battery
Wall Charger
USB Cable (for software upgrades only)
Protective Pouch
Quick Start Guide
3
System Requirements
Supported operating systems
Windows® 7, Vista® (SP2) 32/64-Bit; XP Home, Professional,Tablet (SP3) 32-Bit
Mac OS® X v10.4 or higher
Internet browser software. For example: Microsoft Internet Explorer 6.0 or higher, Firefox,
Safari, Opera, Chrome
USB port: Type A
Wi-Fi (802.11b or higher)
Hard drive: 100 MB free hard disk space
Memory (RAM): 128 MB
To use Wi-Fi mode, your computer needs Wi-Fi capability and Internet browser software only.
Your device must have proper data service to function properly. (See Activate Your Device on
page 19.)
4
Components

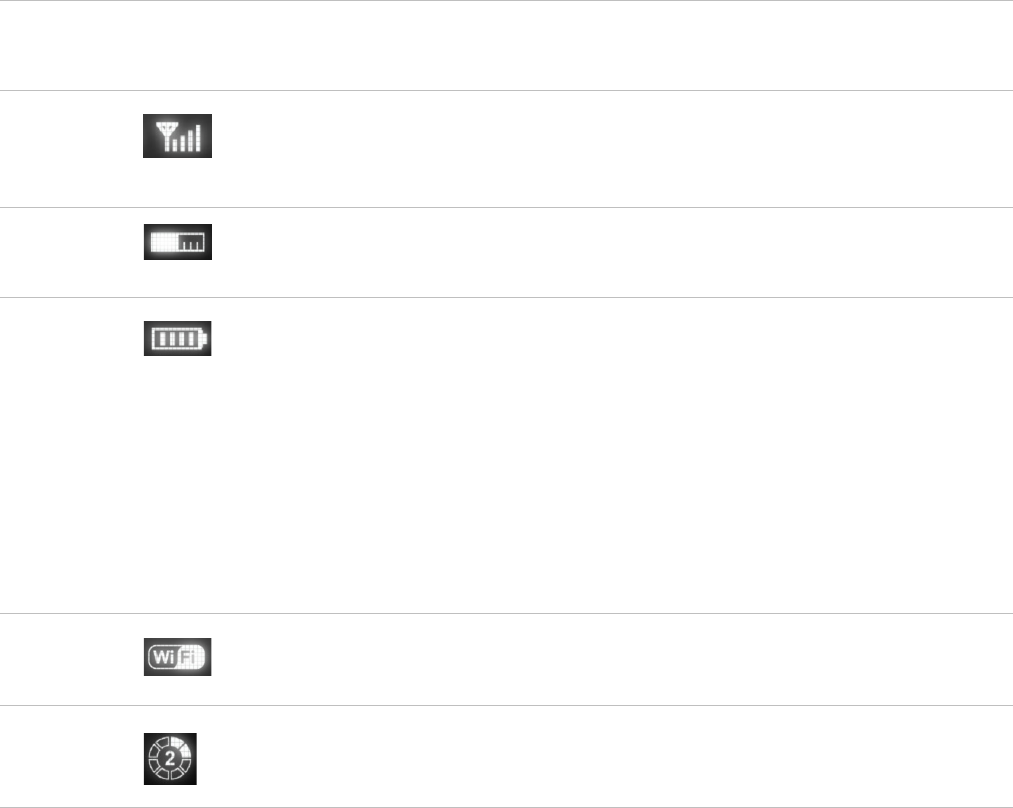

Display: Shows the device status, including network signal strength, roaming status,
battery life, and the number of users connected with Wi-Fi. (See Service Display States on
page 7.)
Power Button: Powers the device on and o.
Service Status Indicator (LED): Shows the device status, including connection and error
states. (See Service Status Indicator (LED) States on page 6.)
Micro USB Connector: The wall charger connects here.
FPO
FPO
5
SIM Card Slot: The SIM card is installed here.
Battery Compartment: The battery contacts connect here.
Master Reset Button: Insert a paperclip in the small hole to reset the device to factory
settings. (See How do I reset the MiFi 4620L device back to factory settings? on page 60.)
Battery Removal Divot: When the battery is installed, insert a ngernail here and lift to easily
remove it.
Network Name and Password Label (on the back cover; not shown): The pre-congured
network name (SSID) and your network key are printed on a label axed to the back of your
device.
FPO
6
Service Status Indicator (LED) States
LED Color Status Description
No Light O The device is powered o or otherwise is not getting power.
Amber Solid
Blinking
The device is in power down mode.
The device is powered o and also charging the battery.
Green Solid
Blinking
The device is powered on; 4G LTE service is available but not
connected or connected while dormant.
The device is powered on and connected to the 4G LTE network
and transmitting data.
Violet Solid
Blinking
The device is powered on; 3G 1X or EV-DO service is available but
not connected or connected while dormant.
The device is powered on and connected to a 3G 1X or EV-DO
network and transmitting data.
Red Blinking If this occurs during power up, no SIM card is inserted. All other
times, this indicates an error or a SIM card failure.
White Blinking The device is powered on and the rmware is being upgraded.
This LED only applies to over-the-air rmware updates.
7
Service Display States
Display Icon Status Description
No icons The display is o, and the LED
is also o.
The device is powered o or otherwise is not
getting power.
Network
signal
strength
An antenna with 0-4 bars. More bars indicate stronger signal.
XXX
status
xxxx xxxx
Battery
status
A battery outline lled with
bars; while charging, the bars
cycle from 0-4 bars. When
fully charged, the bars don’t
move.
When the battery is very
low, the battery outline
blinks on and o every two
seconds. Charge the battery
immediately.
More bars indicate more battery life.
Wi-Fi
status
A Wi-Fi logo. If the icon is present, Wi-Fi is available.
xxxx
status
xxxx xxxx
8
Power Management
Your device will work from its battery or when plugged into a power source.
Battery — Charge the battery by plugging in the wall charger. While the battery is charging
the battery icon bars blink. When the battery is fully charged, the battery icon is solid.
Wall chargerYou can use the device when the charger is plugged into a wall socket. The
MiFi battery charges while it is plugged in.
Before using the MiFi 4620L, read the battery safety information in the “Safety Hazards section of
this guide. (See Proper Battery Use and Disposal on page 71.)
9
Caring for Your Device
Like any electronic device, the device must be handled with care to ensure reliable operation.
Novatel Wireless recommends the following guidelines:
Protect the device from liquids, dust, and excessive temperatures.
Do not apply adhesive labels to the device; they might cause the device to potentially
overheat and they might alter the performance of the antenna.
Store the device in a safe place when not in use.
Accessing the Network
Using the MiFi 4620L for the First Time
Connecting to the MiFi 4620L
Using the MiFi 4620L After Setup is Complete
Using the MiFi 4620L
2
11
Accessing the Network
4G LTE
With LTE bandwidth (700 MHz) you can get the broadband-like speed you require to work eciently
outside the home or oce. You can connect to the Internet, corporate intranet, check your email
and download attachments. 4G LTE gives you the freedom to stay productive and connected
whether youre on the road or in a meeting across town.
4G Mobile Broadband with LTE*
Download: Up to 100 Mbps (theoretical)
Upload: Up to 50 Mbps (theoretical)
3G Mobile Broadband with EVDO Rev. A*
Download: Peaks to 3.1 Mbps with typical download speeds of 600 kbps–1.4 Mbps
Upload: Peaks to 1.4 Mbps with typical upload speeds of 500-800 kbps
Subject to Customer Agreement, Calling Plan, credit approval, and other service terms.
Mobile Broadband Rev.A speed claim based on our network tests with 5 MB FTP data les without compression. Your Mobile
Broadband Rev. A-enabled device will indicate coverage when you are in a Mobile Broadband Rev. A service area. When
outside the Rev. A service area, your wireless device will revert to Mobile Broadband Rev. 0 (typical download speeds will be
400–700 Kbps and upload speeds will be 60–80 Kbps). *Speeds shown are theoretical speeds. Actual throughput speed and
coverage may vary by network operator. Speed claims not applicable when roaming.
Wi-Fi 802.11b/g/n
802.11b uses the 2.4 GHz frequency with a bandwidth of 11 Mbps.
802.11g uses the 2.4 GHz frequency with a bandwidth of 54 Mbps.
802.11n uses the 2.4 GHz frequency with a bandwidth of 150 Mbps.
12
Using the MiFi 4620L for the First Time
To get started, follow these steps.
Conrm your computer meets the minimum system requirements. (See System
Requirements on page 3.)
Assemble the wall charger. (See Assemble the Wall Charger on page 13.)
Install the 4G LTE SIM card. (See Install the 4G LTE SIM Card on page 13.)
Insert and charge the battery. (See Insert and Charge the Battery on page 15.)
Turn on the device. (See Power the MiFi 4620L On and O on page 19.)
Connect the device to your computer using Wi-Fi. (See Connecting to the MiFi Device on
page 20.)
Connect to MiFi Settings. (See Connect to MiFi Settings on page 20.)
13
Assemble the Wall Charger
The wall charger comes with a removable plug. You need to connect it before using the MiFi device
for the rst time. To assemble the wall charger, follow these steps.
Remove the plug and the wall charger from the package.
Slide the plug on to the wall charger.
Install the 4G LTE SIM Card
To install your new 4G SIM card, follow these steps.
Open the cover located on the underside of the MiFi 4620L.
Remove SIM card from the outer card, being careful not to touch the gold-colored contacts.
Hold the card as shown with the gold-colored contact points facing down.
Insert the SIM card into the slot. The 4G LTE SIM card MUST remain in the SIM card slot when
in use.
Your SIM (Subscriber Identity Module) card is a small rectangular plastic card that stores your phone
number and important information about your wireless service.
CAUTION! Do not bend or scratch your SIM card. Avoid exposing your SIM card to static
electricity, water, or dirt.
FPO
14
Remove the 4G LTE SIM Card
To remove the 4G LTE SIM card, follow these steps.
Open the SIM card cover located on the underside of the MiFi 4620L. Press down on the
small black tab to the left side of the SIM card slot.
Gently remove the SIM card from the SIM card slot.
NOTE Should your 4G LTE SIM card be lost or damaged, contact your network operator.
15
Insert and Charge the Battery
IMPORTANT Before you use your device, be sure to charge the battery for at least three hours
to ensure a full initial charge.
To insert and charge the battery, follow these steps.
Press the button and then slide the cover to open the battery compartment, located on the
bottom of the device. Set the cover aside.
Align the gold-colored contacts on the battery with the gold-colored contacts on the device
and gently slide the battery into place.
FPO
FPO
16
Replace the cover by setting it on the device where the notches align, and then gently slide
the cover back toward the release button until it clicks into place.
Connect the micro USB end of the wall charger to the micro USB port on the device.
Plug the other end of the wall charger into the appropriate electrical outlet. Charge for at
least three hours.
CAUTION! Use only batteries and chargers with your device that have been approved by
Novatel Wireless. The failure to use approved batteries and chargers may increase the risk that
your device will overheat, catch fire, or explode, resulting in serious bodily injury, death, or
property damage.
You are now ready to connect your computer or other Wi-Fi device to the MiFi 4620L.
FPO
FPO
17
Remove the Battery
To remove or replace the battery, follow these steps.
Press the button and then slide the cover to open the battery compartment, located on the
bottom of the device. Set the cover aside.
Insert your ngernail into the battery removal divot and lift the battery out of the battery
compartment.
FPO
FPO
18
Battery Tips
WARNING ! Use only batteries and chargers with your device that have been approved by
Novatel Wireless. Always use Novatel Wireless original batteries and chargers. The warranty does
not cover damage caused by non-Novatel Wireless batteries and/or chargers.
It normally takes at least three hours to fully charge the battery with the wall charger.
Do not use sharp objects to access the battery well, this may damage the device and the
battery.
Do not use excessive force to remove the battery or to access the battery well.
The battery discharges more rapidly as additional devices access your MiFi device.
Battery life depends on the network, signal strength, temperature, features, and accessories
you use.
Your device also works with an approved car charger.
New batteries or batteries stored for a long time may take more time to charge.
When charging your battery, keep it near room temperature.
When storing your battery, keep it uncharged in a cool, dark, dry place.
Never expose batteries to temperatures below -10°C (14°F) or above 60°C (140°F).
Never leave the device in an unattended vehicle due to uncontrollable temperatures that
may be outside the desired temperature for this device.
Some batteries perform best after several full charge/discharge cycles.
It is normal for batteries to gradually wear down and require longer charging times. If you
notice a change in your battery life, it is probably time to purchase a new battery.
IMPORTANT Whenever you remove or insert either the battery or the SIM card, ensure your
MiFi device is not connected to any device or power source. Never use tools, knives, keys, pens or
any type of object to force the door open or to remove the battery. Using any of these types of
objects could result in puncturing the MiFi battery.
WARNING ! The failure to use approved batteries and chargers may increase the risk that your
device will overheat, catch fire, or explode, resulting in serious bodily injury, death, or property
damage. To avoid risk of explosion, never dispose of batteries in a fire.
19
Power the MiFi 4620L On and O
Power On
Press the Power Button until the LED turns on green or violet.
Power Off
Press and hold the Power Button until the display turns white and the LED turns amber.
Activate Your Device
Your SIM card should come pre-activated and ready to connect. Insert the SIM card, power up the
MiFi device, and connect.
If your SIM card did not come pre-activated or you need to re-activate your SIM card, you can:
go to your network operators retail store
contact your network operator’s customer service department
IMPORTANT The MiFi 4620L requires an activated account with a wireless carrier to function.
20
Connecting to the MiFi 4620L
Now you can connect your computer to your MiFi 4620L using Wi-Fi.
Connect to MiFi Settings
To connect to the MiFi 4620L, follow these steps.
Turn on your computer and turn on the MiFi 4620L.
The MiFi 4620Ls LED should be solid green or violet, indicating the device is in service and
ready to connect. The MiFi 4620L broadcasts its own wireless network.
On your computer, use the Wi-Fi manager (Windows) or the AirPort menu bar icon
(MacOSX) to connect wirelessly to the MiFi 4620L wireless network.
Tip! The steps to connect to a Wi-Fi network vary depending on your operating system and whether
you use the native application or third-party software. Generally, you click an icon in the Windows
notification area where you can select View Available Wireless Networks, or click the Airport
icon in the menu bar on a Mac. If you are unfamiliar with wireless networking on your computer,
consult the computer help system.
Connect to the network name found on the sticker on the back of the device. The name
includes MiFi4620L. The Wi-Fi Key (also known as the Network Key) is also found on the sticker
on the back of the device.
You can change device settings by connecting to the MiFi Settings on-device web page. (See
Conguring MiFi Settings on page 23.)
IMPORTANT Charge the battery completely before you connect your computer to your MiFi
device. (See Insert and Charge the Battery on page 15.)
21
Using the MiFi 4620L After Setup is Complete
You can use the MiFi 4620L as a wireless mobile hotspot to connect your computer and/or (up to a
total of ve) other Wi-Fi enabled devices to the mobile broadband network.
You can customize the MiFi 4620Ls settings using MiFi Settings. (See Conguring MiFi Settings on
page 23.)
Normal Use
The MiFi 4620L is powered on as soon as you press the power button and the display turns
on.
The LED on the device becomes green (4G) or violet (3G) and blinks according to the
connection speed.
Setting up a Temporary Hotspot
See Setting Up a Temporary Hotspot on page 28 for more information about setting up a
temporary hotspot.
Security for the MiFi 4620L
The MiFi 4620L comes from the factory with security enabled. A sticker on the back panel includes
the name of the wireless network (SSID) and the network password. You can change the security
settings in the MiFi Settings Wi-Fi screen. (See Wi-Fi on page 26.)
Conguring MiFi Settings
Welcome Page
Home
Wi-Fi
LAN
WWAN
Security
Advanced
MiFi Settings
3
23
Conguring MiFi Settings
You can congure the Wi-Fi settings on your device using the easy-to-use MiFi Settings web-based
User Interface (MiFi Settings). It allows you to manage, monitor, and customize your Wi-Fi and
4GLTE mobile broadband connection.
The following sections describe how to connect to MiFi Settings, as well as each screen and the
corresponding functionality.
Connect to MiFi Settings
To connect to MiFi settings, follow these steps.
Turn on your computer and turn on the MiFi4620L device.
MiFi4620Ls LED should be solid green (4G) or violet (3G), indicating the device is in service
and ready to connect. MiFi4620L broadcasts its own wireless network.
On your computer, use the Wi-Fi manager (Windows) or the AirPort menu bar icon
(MacOSX) to connect wirelessly to the MiFi4620L wireless network.
Tip! The steps to connect to a Wi-Fi network vary depending on your operating system and whether
you use the native application or third-party software. Generally, you click an icon in the Windows
notification area where you can select View Available Wireless Networks, or click the Airport
icon in the menu bar on a Mac. If you are unfamiliar with wireless networking on your computer,
consult the computer help system.
Connect to the network name found on the sticker on the device. The name includes
MiFi4620L.
Open your browser and type http://admin.mi or http://192.168.1.1 into the address bar. Then press the
Enter or Return key.
The Welcome Page opens. (See Welcome Page on page 24.)
Type the password admin in the Login eld in the upper right corner of the window.
The Welcome Page changes to the Home Page. (See Home on page 25.)
24
Welcome Page
The Welcome page is the rst page you see after connecting and prior to logging in. It contains
the status bar, the Connect/Disconnect button, the Setup Wizard button, and the Update Firmware
button. You can access more information after you log in.
FPO
Login
Type the password (the default password is admin) in the Login eld at the top right corner of the
window.
Menu Bar
The Menu Bar is the primary navigation for MiFi Settings. You can access each feature under the
appropriate menu.
FPO
25
Home
The Home page is the rst screen you see after logging in to MiFi Settings. It is similar to the
Welcome Page, but adds more options in the status bar. It is the main point of entry for everything
you do in the browser interface.
FPO
26
Wi-Fi
The Wi-Fi menu takes you to the Wi-Fi screen.
FPO
The Wi-Fi screen is the screen you use to customize the Wi-Fi proles. The Wi-Fi screen has the
following section.
Wi-Fi Profiles (See Wi-Fi Proles on page 27.)
FPO
27
Wi-Fi Proles
The Wi-Fi Proles section has the following options.
Current ProfileThe wireless (802.11) prole currently in use.
Selected ProfileThe prole settings shown on the page. (See Changing to a Dierent
Prole on page 29.)
Network Name (SSID) — The name of the MiFi4620L devices wireless network.
802.11 ModeThe wireless network technology used. 802.11g + 802.11b + 802.11n is most
compatible, allowing both 802.11b, 802.11g, and 802.11n devices to connect to the wireless
network.
WMMWi-Fi Multimedia. Enables your device to stream multimedia les.
Channel — If available, select Auto. With this setting, MiFi4620L selects the best available
channel. If the Auto setting is not available, you can experiment to see which channel
provides the best results, or use the default setting.
SecurityThe security type used to encrypt the wireless network.
WEP 64-bit (least secure, more compatible with older devices)
WEP 128-bit
WPA Personal/PSK (TKIP)
WPA2 Personal/PSK (AES)
WPA/WPA2 Personal Mixed Mode (most secure, less compatible with older devices)
IMPORTANT You should use the Secure profile with the WPA/WPA2 Personal Mixed Mode
security setting whenever possible.
Authentication This is locked to Open Access for all proles.
Network KeyThe passkey for the wireless network. The default passkey is printed on
a sticker on the device. The following security types support the corresponding passkey
lengths.
WEP 64-bit – 5 ASCII characters or 10 HEX characters.
WEP 128-bit – 13 ASCII characters or 26 HEX characters.
WPA Personal/PSK (TKIP) – ASCII string, 8 to 63 characters in length.
WPA2 Personal/PSK (AES) – ASCII string, 8 to 63 characters in length.
28
Choosing a Prole
Your device comes with the Secure prole already set. The following proles come with your device.
SecureThis is the prole you should use most of the time. You can set up this prole with
the security measures you need to use your device safely.
Temporary HotspotThis prole allows you set up a temporary hotspot to allow others
nearby (maximum of ve) to go online at the same time.
OpenThis prole is not secure and should be avoided.
Setting Up a Temporary Hotspot
You can use the device to set up a temporary hotspot to allow a maximum of ve connections to
your MiFi 4620L at one time.
The Temporary Hotspot prole is pre-set on your device. It generates a temporary network name
(SSID) and network key so you can allow others to connect to your device without having to change
your secure prole’s security settings.
FPO
]
29
Set up a Temporary Hotspot
To set up a Temporary Hotspot, follow these steps.
Connect to MiFi Settings and log in. (See Conguring MiFi Settings on page 23.)
Go to the Wi-Fi screen. (See Wi-Fi on page 26.)
On the Wi-Fi screen, select Temporary Hotspot as the selected prole.
A new (temporary) network name (SSID) and network key (Wi-Fi passkey) appears. Typically
the temporary network name has the word Temp added.
Click Generate to create a new network name and network key.
You should write down the new network name and network key.
Click Apply. Others can now use the temporary network name (SSID) and network key to
connect to your device.
(See Wi-Fi on page 26.) for more information about changing proles.
Changing to a Different Profile
To use a dierent prole, follow these steps.
Click the Selected Prole pop-up menu and choose a dierent prole.
Wait a moment for the web page to update with the Wi-Fi settings for the selected prole.
Click Apply to change to the new prole settings.
IMPORTANT Changing the profile ends all Wi-Fi connections to MiFi 4620L, including the
current connection to MiFi Settings. You must re-connect your computer to MiFi 4620L using the
new profiles Wi-Fi settings.
Be sure to write down the new network key (Wi-Fi passkey) before you finish changing the
profile.
Updating
To update the current prole, follow these steps.
Keep the same prole in the Selected Prole pop-up menu.
Make changes to the prole settings.
30
Click Apply.
If you change the Network Name (SSID), security method, or network key you will need to
re-connect with the Wi-Fi manager on your computer.
If you change other settings, your computer will re-connect automatically after
MiFi4620L restarts.
Tip! Some Wi-Fi clients become confused if the security is changed and the network name is not. If you
change security settings and do not get asked for the new network key when you try to reconnect,
delete the existing old network name from your Preferred Networks list on your wireless device.
Then you can reconnect.
IMPORTANT Changing the Network Name (SSID), security method, or network key (Wi-Fi
passkey) ends all Wi-Fi connections to MiFi 4620L, including the current connection to MiFi
Settings. You must re-connect your computer to MiFi 4620L using the new profiles Wi-Fi settings.
Be sure to write down the new network key (Wi-Fi passkey) before you finish changing the
profile.
Updating a Profile Not Currently in Use
To update a prole not currently in use, follow these steps.
Change the Selected Prole pop-up menu to a dierent prole.
Wait a moment for the web page to update with the Wi-Fi settings for the selected prole.
Change the settings.
NOTE The Temporary Hotspot profile cannot be changed directly. You must click Generate to generate a
new network name (SSID) and network key.
Click Update Profile to save the changes.
OR
Click Apply to update the prole and also make it the current prole.
Buttons
Update Profile — Click this button to add changes to a prole not currently in use. This does
not aect the existing Wi-Fi connection between your computer and the device.
Apply — Click this button to apply changes to the current prole.
Revert — Click this button to return changed prole settings to the previous settings.
Generate — Click this button (available for the Temporary Hotspot prole only) to generate
a network name (SSID) and network key for the Temporary Hotspot prole. The remaining
Temporary Hotspot settings are copied from the Secure prole.
31
LAN
The LAN menu takes you to the LAN screen.
FPO
The LAN screen gives you settings and information about MiFi4620Ls network. The LAN screen is
divided into the following sections.
TCP/IP (See TCP/IP on page 32.)
Connected Devices (See Connected Devices on page 32.)
FPO
32
TCP/IP
IP AddressThe IP address for MiFi4620L.
Subnet MaskThe subnet mask network setting for MiFi4620L. The default value
255.255.255.0 is standard for small (class “C”) networks. If you change the LAN IP Address,
ensure you use the correct Subnet Mask for the IP address range containing the LAN IP
address.
MAC AddressThe Media Access Controller (MAC) or physical address for MiFi4620L.
DHCP Address RangeThe range of IP addresses reserved for use by MiFi4620Ls DHCP
server table. If a device with a static IP address wants to connect to MiFi4620Ls network, the
static IP should be outside of the DHCP address range. Most devices do not have a static IP.
Connected Devices
IP AddressThe IP address for the connected device.
IP TypeThis can be DHCP if the IP address came from MiFi4620L, or ARP if the ARP
protocol was used.
HostnameThe network name for the connected device (if available).
MAC AddressThe MAC address for the connected device.
NOTE The MAC address on the Windows operating system is called the Physical Address.
Date/TimeThe date/time the device was detected by the network.
Buttons
Refresh — Click this button to re-load the LAN screen to show changes to the list of
connected devices, such as a device that recently joined or left the network.
Apply — Click this button to apply any changes you made to MiFi4620Ls IP address or
subnet mask.
IMPORTANT Changing MiFi 4620Ls IP address causes the device to re-start. This stops all Wi-Fi
and Internet connections. You must re-connect your computer to MiFi 4620L using the new IP
address.
Be sure to write down the new IP address before you finish changing the profile.
33
WWAN
The WWAN menu takes you to the WWAN screen.
FPO
The WWAN screen gives you information about the MiFi4620L device’s Internet connection. The
WWAN screen is divided into the following sections.
Internet Connection (See Internet Connection on page 34.)
WWAN Settings (See WWAN Settings on page 34.)
FPO
34
Internet Connection
The Internet Connection section shows device settings and status.
StatusThe status of the Internet connection, usually Connected or Disconnected.
TechnologyThe type of technology used to connect to the Internet.
ReceivedThe amount of data received from the network.
TransmittedThe amount of data sent to the network.
Connected Time — How long the device has been connected to the network.
IP AddressThe Internet Protocol (IP) address that identies this device on the network.
MaskThe mask is a standard address that covers the MiFi devices network behind the
larger Internet.
GatewayThe address of the server used to access the Internet.
DNSThe address of the Domain Name Server (DNS).
WWAN Settings
To congure the settings, follow these steps.
Select the Auto-connect check box to automatically connect to the Internet when the device
is turned on.
NOTE The APN is the Access Point Name the device uses to connect to the Internet. This is automatically
provided by your wireless carrier.
Set the WWAN Preferred Mode to the type of technology you want to use to connect to the
Internet.
Buttons
Connect — Click this button to connect to the Internet.
Disconnect — Click this button to disconnect from the Internet.
35
Security
The Security menu takes you to the following screens:
Password — Allows you to change your administrative password.
MAC Filter — Allows you to enable or disable MAC Filtering, and to create a Trusted Client
List.
Port Filtering — Allows you to enable or disable Port Filtering, and to identify the application
that are allowed to access the Internet.
FPO
Password
The Password screen enables you to set the administration password. This is the password you use
to log in to MiFi Settings. It is set to admin by default. The Password screen contains the following
section.
Set Administration Password (See Set Administration Password on page 36.)
36
FPO
Set Administration Password
The default password is admin. To set or change the administration password, follow these steps.
Type your current password in the Current Password box.
Type the new password (it must have between 4 and 64 characters) in the New Password
box.
Type it again in the Verify New Password box.
Click Apply.
Next time you log in to MiFi Settings, you need to use the new password.
Buttons
Apply — Click this button to apply any changes made to the password settings.
Revert — Click this button to return password settings to the previous settings.
IMPORTANT Record your administration password. If you forget it, you have to reset the
device before you can use MiFi Settings. (See How do I reset the MiFi 4620L device back to
factory settings? on page 60.)
37
MAC Filter
The MAC Filter screen enables you to allow specic devices to connect to MiFi4620Ls wireless
network. For example, if you put the MAC address for your Wi-Fi-enabled mobile phone and the
MAC addess for your computer in the MAC Filter Trusted Client List, then only those devices can
connect to MiFi4620L. The MAC Filter screen is divided into the following sections.
Enable MAC Filter (See Enable MAC Filter on page 38.)
Trusted Client List (See Trusted Client List on page 39.)
Add Trusted Client MAC Address (See Trusted Client List on page 39.)
FPO
Trusted devices still need the correct network name (SSID) and network key (Wi-Fi passkey).
NOTE The MAC address on the Windows operating system is called the Physical Address.
IMPORTANT Do not enable MAC filtering unless you have added your own computer’s MAC
address to the trusted client list. Otherwise you will be unable to access the device.
38
Enable MAC Filter
The Enable MAC Filter checkbox enables or disables the MAC Filter feature.
FPO
When the feature is enabled (checked), you must add the MAC address for the device to
the Trusted Client List. If a device not in the list tries to connect to the MiFi4620L wireless
network, the connection is blocked even if the device has the correct network name (SSID)
and network key (Wi-Fi passkey).
When the feature is disabled (un-checked), any device with the correct network name (SSID)
and network key (Wi-Fi passkey) can connect to the MiFi4620L wireless network.
Find the MAC Address on a Computer
The Media Access Controller (MAC) Address is also known as a hardware or physical address for a
device (usually a network adapter). It consists of six pairs of numbers and letters (for example,
00-21-9B-1C-64-34).
You can view the MAC address for any device connected to the MiFi wireless network from the Wi-Fi
screen. (See Wi-Fi on page 26.)
Tip! You can cut and paste your computer’s MAC address from the Wi-Fi Clients section of the Wi-Fi
screen.
If the computer is not connected to the MiFi wireless network, you can nd the MAC address
directly. To nd the MAC address, follow one of these steps.
On a Windows PC, the MAC address is the Physical Address. You can nd the Physical Address
by running ipconfig /all from the cmd window.
»To run ipconfig/all, select Start > All Programs (or Programs) > Accessories > Command
Prompt to open the Command Prompt window. Then type ipconfig/all and press the Return or
Enter key.
On a Mac, the MAC address is the AirPort ID.
»To find the AirPort ID, open the Apple () Menu > System Preferences > Network. In the list, click
AirPort. Click Advanced. A sheet opens. Click the AirPort tab. The AirPort ID is at the bottom of the
sheet.
IMPORTANT Windows only: Make sure you get the MAC address for the wireless network
adapter and not the Ethernet controller (NIC), if the computer has both.
39
Trusted Client List
The Trusted Client List section displays the MAC address(es) of trusted devices. Only devices in the
Trusted Client List are able to connect to the MiFi4620L wireless network.
FPO
Add Trusted Client MAC Address
To add a device to the Trusted Client List, follow these steps.
Type the Wi-Fi-enabled device’s MAC address in the Add Trusted Client MAC Address eld.
You can use either “:” or “-” as the separator (for example, 00:21:9B:1C:64:34 or 00-21-9B-1C-
64-34).
Tip! You can cut and paste your computer’s MAC address from the Wi-Fi Clients section of the Wi-Fi
screen.
Click Add Client.
Repeat steps 1 and 2 as needed.
When the list is complete, click Apply.
Remove a Device from the Trusted Client List
To remove a device from the Trusted Client List, follow these steps.
Click on the device in the Trusted Client List to select it.
Click Delete.
40
Buttons
Delete Client — Click this button to remove a device from the Trusted Client List.
Add Client — Click this button to add the MAC address typed in the Add Trusted Client MAC
Address eld to the Trusted Client List.
Apply — Click this button to save changes made to the list.
Revert — Click this button to discard changes made to the list.
41
Port Filtering
The Port Filtering screen allows you to block outgoing Internet connections. You can set a list of
Allowed Applications to only allow certain programs to connect to the Internet. The Port Filtering
screen is divided into the following sections.
Enable Port Filtering (See Enable Port Filtering on page 42.)
Allowed Applications (See Allowed Applications on page 42.)
Custom Applications (See Custom Applications on page 43.)
FPO
42
Enable Port Filtering
The Enable Port Filtering checkbox enables or disables the Port Filtering feature.
When the feature is enabled (checked), you must select a port ltering application in the
Allowed Applications list to allow that application to connect to the Internet. For example, if
you select VPN in the Allowed Applications list but do not select HTTP, you can connect to a
VPN server but you cannot connect to a web page using your Internet browser.
When the feature is disabled (un-checked), any application can connect to the Internet.
FPO
Allowed Applications
Enable each port ltering application that needs to be able to access the Internet. When port
ltering is enabled, all other applications are blocked.
FPO
43
Custom Applications
This page is not available unless the Port Filtering feature is enabled.
Click Custom Applications to open the Custom Port Filtering screen. You can dene and enable
custom Port Filtering applications. You need to know details of the trac used and generated by the
applications you wish to dene.
FPO
The Custom Applications section uses check boxes to enable port ltering for custom applications.
Similar to the Allowed Applications list, you must enable custom applications so they can connect
to the Internet. The Custom Applications screen has the following options.
Application NameType a name for the application.
Ports — Click the Ports link to show the Port Denition Panel. Click Hide when you nish
dening the current application. Click Apply when you nish dening all applications.
Port Definition PanelThis allows you to dene the ports used by this application. The
background shading and dialog title indicates the current application.
44
Port Ranges
You can dene up to ve port ranges for each application. Each port range has the following
options.
FPO
Start PortType the beginning of the range of port numbers used by outgoing trac
for this application. Use as many rows as necessary to dene the required number of port
ranges. Unused rows can be left blank.
End PortType the end of the range of port numbers. If the port is a single port instead of a
range, type the same value for both the Start Port and the End Port.
Protocol — For each port range (each row), select the protocol (TCP, UDP, or both) used by
that port range.
You can dene all of your applications before you click Apply to save your changes.
Use the Ports and Hide links as necessary to open and close the Port Denition Panel so you can
dene the ports for each application as needed.
Buttons
Apply — Click this button to save changes made to the applications and/or port ranges.
Revert — Click this button to discard changes made to the applications and/or port ranges.
45
Advanced
The Advanced Menu includes the following screens:
Advanced Settings — Allows you to congure your Access Point, Router and System settings.
Config File — Allows you to backup and restore your conguration les.
Diagnostics — Provides detailed System information and status information. You can also
restart or reset your device on this screen.
Port Forwarding — Allows you to select your Port Forwarding applications and enter the IP
addresses on the WAN.
Power Management — Allows you to select the time interval for automatic shutdown (from
never to after 60 minutes) for your device when it is idle and on battery power.
FPO
46
Advanced Settings
The Advanced Settings screen is divided into the following sections.
Access Point (See Access Point on page 46.)
Router (See Router on page 47.)
System (See on page 47.)
FPO
Access Point
The SSID broadcast enable check box enables or disables the SSID broadcast feature.
If this is enabled (checked), MiFi4620Ls wireless network appears in the Available Wireless
Networks list on your computer or portable device.
If this is disabled (un-checked), the MiFi 4620L is not listed and its network name (SSID) must
be typed manually to connect a device.
FPO
47
Router
The DHCP Server enable check box enables or disables the DHCP server feature.
If this is enabled (checked), the DHCP Server automatically allocates an IP address to each of
your wireless clients. Normally, this should be enabled.
If this is disabled (un-checked), each Wireless client should have a xed IP address, set on the
client.
FPO
The VPN Passthrough enable check box enables or disables the VPN Passthrough feature.
If this is enabled (checked), this feature allows VPN clients to connect through MiFi4620L to
remote VPN Servers. Normally, this option should be enabled.
If this is disabled (un-checked), VPN clients are not allowed to connect.
FPO
48
System
The System log enable check box enables or disables the System log feature.
If this is enabled (checked), you can view the system log on the Diagnostics screen. (See
Advanced: Diagnostics on page 51.)
If this is disabled (un-checked), you cannot view the system log on the Diagnostics screen.
The Language menu changes the MiFiSettings Web UI language.
The Date/Time Format menu changes the format of the date to reect that used in the US or Europe.
It changes the format of the time to a 12- or 24-hour clock.
FPO
Buttons
Apply — Click this button to save changes.
Revert — Click this button to return to the previous settings.
49
Cong File
The Cong File screen provides the ability to download (back up) a copy of the conguration
settings from MiFi4620L to a le on your computer, or restore (upload) a previously-saved
conguration le from your computer to MiFi4620L.
This conguration le contains all settings for the Access Point and Router functions of the MiFi
4620L. You need the administration password to change this. The Cong File screen is divided into
the following sections.
Config File Download (See Cong File Download on page 50.)
Config File Upload (See Cong File Upload on page 50.)
FPO
50
Config File Download
Click Download File to download a copy of the current conguration, and store the le on your
computer. You are prompted to save the le; you can choose to rename it.
FPO
Config File Upload
Use this feature to restore a previously-saved conguration le to MiFi4620L. This overwrites all
existing settings with the information stored in the cong le. To upload a conguation le, follow
these steps.
Click Browse (Windows) or Choose File (Mac) to browse to the cong le you previously
downloaded to your computer.
Click Upload File to begin uploading the chosen le. After upload nishes, the cong le is
immediately applied, and MiFi4620L restarts.
FPO
WARNING! Uploading a configuration file changes ALL of the existing settings to match the
configuration file. If the Wi-Fi settings change, you will lose this connection, and will need to
reconnect using the new settings.
Buttons
Download File — Click this button to download a particular le.
Upload File — Click this button to upload a particular le.
51
Diagnostics
The Diagnostics screen shows information about the MiFi4620L rmware and other system-level
information. You can also view the system log. This screen is used mostly for troubleshooting and is
not required for normal operation. The Diagnostics screen is divided into the following sections.
System Information (See System Information on page 52.)
System Status (See System Status on page <?>.
FPO
52
System Information
The System Information section contains detailed information about the MiFi4620L.
FPO
MiFi
ManufacturerThe manufacturer of the MiFi 4620L.
ModelThe model number or name of the MiFi 4620L.
IMEIThe International Mobile Equipment Identity (IMEI) number for the MiFi 4620L.
Serial Number — Each MiFi 4620L has a unique serial number.
Router FW VersionThe router rmware version.
AP FW Version — For the Access Point component, the version of the rmware currently
installed.
SIM StatusThe status of the SIM card.
Modem
MEIDThe Mobile Equipment Identier (MEID) is used by the mobile data network to
identify this particular modem.
Phone No. (MDN)The Phone Number or Mobile Directory Number (MDN) is used by the
mobile data network to identify this particular data service.
MIN (MSID)The Mobile Identication Number (MIN) or Mobile Station ID (MSID) is the
number associated with the home service provider and the wireless phone number.
Home SID — System identier for the home network.
Modem FW VersionThe modem rmware version.
PRL VersionThe version of the Preferred Roaming List (PRL), which tells the modem which
non-home carrier towers should provide roaming coverage.
53
System Status
The System Status section displays detailed information on the status of the modem and a system
log of various operations.
FPO
Modem Status — Click this button to view more information about the modem status. This
information is mostly used for troubleshooting.
System Log — Click this button to view the System Log. The System Log records various
operations, and is mostly used for troubleshooting.
Buttons
Restart — Click this button to restart the MiFi 4620L. All Internet connections, and all Wi-Fi
connections, are lost during the restart.
Reset to Factory Defaults — Click this button to reset all Access Point and Router settings to
their factory default values. All existing settings are lost.
WARNING! The “Reset to Factory Defaults” operation overwrites ALL existing settings. If the
Wi-Fi settings change, you will lose this connection, and need to reconnect using the new
settings. (See How do I reset the Access Point and Router settings back to factory settings? on
page 61.)
54
Port Forwarding
The Port Forwarding feature allows incoming trac (from the Internet) to be forwarded to a
particular computer or device on the MiFi4620Ls wireless network. Normally, incoming trac from
the Internet is blocked.
You need to use Port Forwarding to allow Internet users to access any server you are running on
your computer, such as a Web server, FTP server, or E-mail server. Also, for some online games, Port
Forwarding must be used for the game to function correctly. The Port Forwarding screen has the
following section.
Port Forwarding Applications (See Port Forwarding Applications on page 55.)
FPO
IMPORTANT Port forwarding creates a security risk. This feature should be disabled when it is
not required.
55
Port Forwarding Applications
To use any of the common server applications listed, follow these steps:
Install the application on a computer that is connected to the MiFi4620Ls wireless network
(WLAN).
Ensure the computer is connected to the MiFi4620L, and record the computer’s IP address
for the MiFiSettings Web UI.
On the Port Forwarding screen, type the computer’s IP Address in the IP Address on WLAN
eld beside the application name.
Enable the corresponding application on this screen by selecting its check box.
Save your changes by clicking Apply.
Click Home to go to the Home screen, and make a note of MiFi4620Ls IP address.
Tell the person or company that needs port forwarding to connect to the MiFi4620Ls IP address (by
default, this is http://admin.mifi or http://192.168.1.1). Connection requests are forwarded to the IP
address specied in step 3.
Buttons
Apply — Click this button to save changes made to port forwarding.
Revert — Click this button to return to the previous settings.
IMPORTANT When no longer needed, the application should be disabled on this screen
by de-selecting its check box, and saving change(s) by clicking Apply. Leaving applications
enabled unnecessarily creates a security risk.
56
Power Management
The MiFi4620L can turn itself o when not in use. When using battery power, automatic shutdown
greatly extends the battery life. To start up again, press the power button. The Power Management
screen contains the following section.
Automatic Shutdown (See Automatic Shutdown on page <?>.
FPO
57
Automatic Shutdown
When powered by the battery, the MiFi 4620L automatically shuts down after being idle for the
selected time period, provided that no Wi-Fi devices are connected to the MiFi device. Timer
settings have no eect when the MiFi 4620L is connected to the wall charger.
To select an Automatic Shutdown time between 2-60 minutes, choose the desire time interval from
the drop down menu. To prevent automatic shutdown, select Never.
FPO
Buttons
Click Apply to save changes.
Click Revert to return to previous settings.
Overview
Common Problems and Solutions
Technical Support
Troubleshooting
4
59
Overview
When properly installed, the MiFi4620L is a highly reliable product. Most problems are caused by
one of these issues:
System resources required by the device are being used by other devices.
Network coverage is unavailable due to coverage area, an account problem, or a network
problem.
The following tips can help solve many common problems encountered while using the device.
First Steps
Make sure you are using the device in the correct geographic region.
Ensure that your wireless coverage extends to your current location.
Ensure you have an active subscription plan.
Restarting your computer and your modem can resolve many issues.
IMPORTANT Before contacting support, be sure to restart both your computer and your
device.
60
Common Problems and Solutions
The following are some common problems and solutions.
My MiFi 4620L just powered off without my pressing the power button. Why?
This may occur under any of the following circumstances.
» Pressing the Master Reset button
» Restarting the device
» Switching proles
» Restoring the conguration settings
» Battery depletion
To restore battery power, follow these steps.
1. Manually press the power button to turn it back on.
2. If the battery is depleted, charge the device with the wall charger.
How do I reset the MiFi 4620L back to factory settings?
The master reset button is in a small hole located on the bottom of the device, underneath the
battery cover. This button returns the device to factory settings, including re-setting the network
name (SSID) and network key (Wi-Fi passkey) to those printed on the sticker axed to the back of
the device. To reset the device, follow these steps.
1. Place one end of an unfolded paper clip into the master reset button hole.
2. Press the paper clip on the button until the LED blinks green one full blink and then a very
brief blink (about ve seconds).
FPO
61
How do I reset the Access Point and Router settings back to factory settings?
To reset the access point and router settings, follow these steps.
Connect to MiFi Settings by connecting your computer to the MiFi wireless network and going to
http://admin.mifi or http://192.168.1.1 in your browser.
3. Connect to the Diagnostics screen. (See Advanced: Diagnostics on page 49.) The
Diagnostics screen has a Reset to Factory Defaults button. This button resets all Access Point
and Router settings to their factory default values. All existing settings are lost.
62
Update the Firmware on the MiFi 4620L
[Additional information forthcoming.]
63
Technical Support
IMPORTANT Before contacting support, be sure to re-start both your computer and the
device.
Technical Support
For additional information and technical support for Novatel Wireless devices, you can visit the
Novatel Wireless Data Technical Support page at www.novatelwireless.com/support.
Product Specications
Regulatory Statements
Wireless Communications
Limited Warranty and Liability
Safety Hazards
Proper Battery Use and Disposal
Product Specications and
Regulatory Information
5
65
Product Specications
General
Name: Novatel Wireless MiFi4620L
Model: MiFi 4620L
Approvals: FCC (North America)
Weight: 85 g / 3 oz
Dimensions: 90 mm x 60 mm x 13 mm,
3.54 in x 2.36 in x 0.51 in
Wireless Network – Dual Mode: LTE, CDMA 1X/EV-DO Rev A
Wireless Network –
Wi-Fi Mode
802.11 b/g/n
Default SSID Novatel MiFi4620L XXXX_XXXX (see the
sticker on the back of your device for
your ID)
Battery
Size
Time required for full charge
1500 mAh
2.5-3 hours (when not in use)
Chip Set: QUALCOMM® MDM9600
Interface Type: Type B USB Port for Micro USB, used by
the wall charger
Technology/Bands
Technology: LTE, CDMA Rev A, Rev 0, 1XRTT
Band Designation: LTE 700 MHz
CDMA 1x/EV-DO RA; 800/1900 MHz
Transmit Band: 824.7-848.31 MHz/1851.25-1908.75 MHz
Receive Band: 869.7-893.31 MHz/1931.25-1988.75 MHz
Environmental
Operating Temperature: -10 ° C to +45° C (14°F to 113° F)
Storage Temperature: -20° C to 60° C (-4° F to 140° F)
Drop: 1 meter (3.28 feet) drop, no damage – fully operational
Vibration Stability: 5 Hz to 500 Hz, 0.1 octave/second
66
Regulatory Statements
Federal Communications Commission Notice (FCC – United States)
Electronic devices, including computers and wireless modems, generate RF energy incidental to their
intended function and are therefore subject to FCC rules and regulations.
This equipment has been tested to, and found to be within the acceptable limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential environment.
This equipment generates radio frequency energy and is designed for use in accordance with the
manufacturers user manual. However, there is no guarantee that interference will not occur in any particular
installation. If this equipment causes harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, you are encouraged to try to correct the interference by
one or more of the following measures.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.
This device complies with Part 15 of the Federal Communications Commission (FCC) Rules. Operation is
subject to the following two conditions.
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired
operation.
WARNING: DO NOT ATTEMPT TO SERVICE THE WIRELESS COMMUNICATION DEVICE YOURSELF. SUCH ACTION
MAY VOID THE WARRANTY. THE MiFi 4620L MODEM IS FACTORY TUNED. NO CUSTOMER CALIBRATION OR
TUNING IS REQUIRED. CONTACT NOVATEL WIRELESS TECHNICAL SUPPORT FOR INFORMATION ABOUT
SERVICING YOUR WIRELESS COMMUNICATION DEVICE.
FCC CAUTION: Any changes or modication not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
MODIFICATIONS: The FCC requires that you be notied that any changes or modications made to this
device that are not expressly approved by Novatel Wireless, Inc. may void your authority to operate the
equipment.
NOTE: The Radio Frequency (RF) emitter installed in your modem must not be located or operated in
conjunction with any other antenna or transmitter, unless specically authorized by Novatel Wireless
Technologies.
67
RF Exposure Content
FCC Equipment Authorization ID: PKRNVWMIFI4620
This device is authorized for use in mobile and portable applications.
This product has been evaluated for SAR and meets the FCC Guidelines for exposure to radio waves.
For better signal reception, coverage range and data throughput, do not place the router near
any physical obstruction, including in a pocket or in close proximity of any object. For RF Safety, a
mandatory minimum of 10 mm (1 cm) should be maintained between the device and any part of
a human body when using the device. Increasing the separation between the device and the body
will result in better reception and reduced exposure to radio energy.
6
Wireless Communications
IMPORTANT Due to the transmission and reception properties of wireless communications,
data occasionally can be lost or delayed.
This can be due to the variation in radio signal strength that results from changes in the
characteristics of the radio transmission path. Although data loss is rare, the environment where you
operate the modem might adversely aect communications.
Variations in radio signal strength are referred to as fading. Fading is caused by several dierent
factors including signal reection, the ionosphere, and interference from other radio channels.
Novatel Wireless or its partners will not be held responsible for damages of any kind resulting from
the delays or errors in data transmitted or received with the MiFi4620L device, or failure of the
MiFi4620L device to transmit or receive such data.
Limited Warranty and Liability
Novatel Wireless, Inc. warrants for the 12-month period immediately following receipt of the
Product by Purchaser that the Product will be free from defects in material and workmanship under
normal use. THESE WARRANTIES ARE EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING, WITHOUT LIMITATION, ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE.
The exclusive remedy for a claim under this warranty shall be limited to the repair or replacement,
at Novatel Wireless option, of defective or non-conforming materials, parts or components. The
foregoing warranties do not extend to (I) non conformities, defects or errors in the Products due
to accident, abuse, misuse or negligent use of the Products or use in other than a normal and
customary manner, environmental conditions not conforming to Novatel Wireless specication, of
failure to follow prescribed installation, operating and maintenance procedures, (II) defects, errors or
nonconformitys in the Product due to modications, alterations, additions or changes not made in
accordance with Novatel Wireless specications or authorized by Novatel Wireless, (III) normal wear
and tear, (IV) damage caused by force of nature or act of any third person, (V) shipping damage,
(VI) service or repair of Product by the purchaser without prior written consent from Novatel
Wireless, (VII) products designated by Novatel Wireless as beta site test samples, experimental,
developmental, reproduction, sample, incomplete or out of specication Products, or (VIII) returned
products if the original identication marks have been removed or altered.
6
Safety Hazards
Do not operate the MiFi4620L device in an environment that might be susceptible to radio
interference resulting in danger, specically:
Areas where prohibited by the law
Follow any special rules and regulations and obey all signs and notices. Always turn o the host
device when instructed to do so, or when you suspect that it might cause interference or danger.
Where explosive atmospheres might be present
Do not operate your device in any area where a potentially explosive atmosphere might exist.
Sparks in such areas could cause an explosion or re resulting in bodily injury or even death. Be
aware and comply with all signs and instructions.
Users are advised not to operate the device while at a refueling point or service station. Users are
reminded to observe restrictions on the use of radio equipment in fuel depots (fuel storage and
distribution areas), chemical plants or where blasting operations are in progress.
Areas with a potentially explosive atmosphere are often but not always clearly marked. Potential
locations can include gas stations, below deck on boats, chemical transfer or storage facilities,
vehicles using liqueed petroleum gas (such as propane or butane), areas where the air contains
chemicals or particles, such as grain, dust or metal powders, and any other area where you would
normally be advised to turn o your vehicle engine.
Near medical and life support equipment
Do not operate your device in any area where medical equipment, life support equipment, or near
any equipment that might be susceptible to any form of radio interference. In such areas, the host
communications device must be turned o. The device can transmit signals that could interfere
with this equipment.
On an aircraft, either on the ground or airborne
In addition to FAA requirements, many airline regulations state that you must suspend wireless
operations before boarding an airplane. Please ensure that the modem is turned o prior to
boarding aircraft in order to comply with these regulations. The modem can transmit signals that
could interfere with various onboard systems and controls.
While operating a vehicle
The driver or operator of any vehicle should not operate a wireless data device while in control of a
vehicle. Doing so will detract from the driver or operator’s control and operation of that vehicle. In
some countries, operating such communications devices while in control of a vehicle is an oense.

Electrostatic discharge (ESD)
Electrical and electronic devices are sensitive to electrostatic discharge (ESD). Macintosh native
connection software might attempt to reinitialize the device should a substantial electrostatic
discharge reset the device. If the software is not operational after an ESD occurrence, then restart
your computer.

Proper Battery Use and Disposal
IMPORTANT In event of a battery leak:
• Do not allow the liquid to come in contact with the skin or the eyes. If contact has been
made, wash the affected area with large amounts of water and seek medical advice.
• Seek medical advice immediately if a battery has been swallowed.
• Communicate the appropriate steps to be taken if a hazard occurs. Due to the transmission
and reception properties of wireless communications, data occasionally can be lost or
delayed.
Please review the following guidelines for safe and responsible battery use.
Do not disassemble or open, crush, bend or deform, puncture, or shred.
Do not modify or remanufacture, attempt to insert a foreign object into the battery, immerse
or expose to water or other liquids, or expose to re, explosion, or other hazard.
Only use the battery for the system for which it was specied.
Only use the battery with a charging system that has been qualied with the system per
this standard. Use of an unqualied battery or charger may present a risk of re, explosion,
leakage, or other hazard.
Do not short circuit a battery or allow a metallic or conductive object to contact the battery
terminals.
Replace the battery only with another battery that has been qualied with the system per
this standard. Use of an unqualied battery may present a risk of re, explosion, leakage, or
other hazard.
Promptly dispose of used batteries in accordance with local regulations.
Battery usage by children should be supervised.
Avoid dropping the device or battery. If the device or the battery is dropped, especially on a
hard surface, and the user suspects damage, take it to a service center for inspection.
Improper battery use may result in a re, explosion, or other hazard.
Glossary
6
73
Glossary
3GThird Generation. 3G refers to the third generation of mobile telephony technology.
4G LTE — Fourth Generation. 4G LTE refers to the fourth generation of mobile telephony technology.
802.11 (b, g, n) — A set of WLAN communication standards in the 2.4, 3.6 and 5 GHz frequency bands.
bps — Bits per second. The rate of data flow.
Broadband — High-capacity high-speed transmission channel with a wider bandwidth than
conventional modem lines. Broadband channels can carry video, voice, and data simultaneously.
CDMA — Code Division Multiple Access. It is the underlying channel access method used by some
mobile phone standards.
DHCP — Dynamic Host Configuration Protocol. Software found in servers and routers that
automatically assigns temporary IP addresses to clients logging into an IP network.
DHCP Server — A server or service with a server that assigns IP addresses.
DNS — Domain Name System. A system for converting host names and domain names into IP
addresses on the Internet or on local networks that use the TCP/IP protocol.
Firmware — A computer program embedded in an electronic device. Firmware usually contains
operating code for the device.
Hotspot — A WiFi (802.11) access point or the area covered by an access point. Used for connecting
to the Internet.
HTTP — Hypertext Transfer Protocol. An application-level protocol for accessing the World Wide Web
over the Internet.
IEEE — Institute of Electrical and Electronics Engineers. An international technical/professional society
that promotes standardization in technical disciplines.
IMEI — International Mobile Equipment Identity. Used in LTE networks to identify the device. It is
usually printed on the device and can often be retrieved using a USSD code.
IP — Internet Protocol. The mechanism by which packets are routed between computers on a
network.
IP TypeThe type of service provided over a network.
IP address — Internet Protocol address. The address of a device attached to an IP network (TCP/IP
network).
ISP — Internet Service Provider. Also referred to as the service carrier, an ISP provides Internet
connection service. (See Network Operator)
Kbps — Kilobits per second. The rate of data flow.
LAN — Local Area Network. A type of network that lets a group of computers, all in close proximity
(such as inside an office building), communicate with one another. It does not use common carrier
circuits though it can have gateways or bridges to other public or private networks.
74
MAC Address — Media Access Control. A number that uniquely identifies each network hardware
device. MAC addresses are 12-digit hexadecimal numbers. This is also known as the physical or
hardware address.
Mbps — Megabits per second.
MSID — Mobile Station IDentifier. A number for a mobile phone that identifies that phone to the
network. These numbers are carrier specific.
Network Operator The vendor who provides your wireless access. Known by different names in
different regions, some examples are: wireless provider, network provider, and service provider.
Network Technology The technology on which a particular network providers system is built; such
as CDMA or EVDO.
Port — A virtual data connection used by programs to exchange data. It is the endpoint in a logical
connection. The port is specified by the port number.
Port Forwarding — A process that allows remote devices to connect to a specific computer within a
private LAN.
Port Number — A 16-bit number used by the TCP and UDP protocols to direct traffic on a TCP/IP
host. Certain port numbers are standard for common applications.
PRL — Preferred Roaming List. A list that your wireless phone or device uses to determine which
networks to connect with when you are roaming. (Network operator specific).
Protocol — A standard that enables connection, communication, and data transfer between
computing endpoints.
Proxy — A firewall mechanism that replaces the IP address of a host on the internal (protected)
network with its own IP address for all traffic passing through it.
Rev A — CDMA EV-DO Rev. A is a leading-edge wireless technology with higher data rates and higher
system capacity. It is a fully backward compatible standard and remains interoperable with deployed
EV-DO networks and devices around the world. The increased data rates on Rev. As physical layer
enable richer applications and services. For more information, visit www.cdg.org.
Router — A device that directs traffic from one network to another.
SIM — Subscriber Identification Module. Found in GSM network technology, the SIM is a card
containing identification information for the subscriber and their account. The SIM card can be moved
to different devices.
SSID — Service Set IDentifier. The name assigned to a WiFi network.
TCP/IPTransmission Control Protocol/Internet Protocol. The set of communications protocols used
for the Internet and other similar networks.
USB — Universal Serial Bus. A connection type for computing device peripherals such as a printer,
mobile modem, etc. USB connectors may be used for data transfer or charging.
USB Port TypesThe USB ports on computers and hubs have a rectangular Type A socket, and
peripheral devices have a cable with a Type A plug. Peripherals that do not have an attached cable
have a square Type B socket on the device and a separate cable with a Type A and Type B plug. Ports
and connectors are available in different sizes (for example, standard, mini, and micro).
75
VPNVirtual Private Network. A secure private network that runs over the public Internet.
Commonly used to connect to an office network from elsewhere.
WWANWireless Wide Area Network. A public network that extends beyond architectural,
geographical, or political boundaries (unlike a LAN, which is usually a private network located within a
room, building, or other limited area).
WEP Wired Equivalent Privacy. An IEEE standard security protocol for 802.11 networks. Superseded
by WPA and WPA2.
WiFi Wireless Fidelity. Any system that uses the 802.11 standard developed and released in 1997 by
the IEEE.
WiFi Client — A wireless device that connects to the Internet via WiFi.
WPA/WPA2 — WiFi Protected Access. A security protocol for wireless 802.11 networks from the WiFi
Alliance.

Navigation menu
