Inseego NVWSA1100V Wireless Communicator User Manual SA 1100 User Guide SA1100X UG001
Novatel Wireless Inc Wireless Communicator SA 1100 User Guide SA1100X UG001
Inseego >
User Manual
SA1100X-UG001
SA 1100
User Guide
Version 1.5 March 1, 2016
NOVATEL WIRELESS COPYRIGHT STATEMENT
©2016 Novatel Wireless, Inc. All rights reserved. The information contained in this document is subject
to change without notice and should not be construed as a commitment by Novatel Wireless, Inc.
NOVATEL WIRELESS TRADEMARKS AND SERVICE MARKS
Novatel Wireless is a trademark of Novatel Wireless, Inc., and the other trademarks, logos, and service
marks (collectively the “Trademarks”) used in this user manual are the property of Novatel Wireless or
their respective owners. Nothing contained in this user manual should be construed as granting by
implication, estoppel, or otherwise, a license or right of use of Novatel Wireless or any other Trademark
displayed in this user manual without the written permission of Novatel Wireless or its respective
owners.
Novatel Wireless, and the Novatel Wireless logo are all trademarks of Novatel Wireless, Inc.
MiFi® and the MiFi logo are registered trademarks of Novatel Wireless, Inc.
2
Device Overview
The SA 1100 Communicator Board delivers CDMA and 3G connectivity for alarm panel systems in
addition to offering Wi-Fi and Z-Wave capabilities for connected home services. In order to support
those technology features it incorporates the Novatel Wireless HS 3001 or HS 3002 cellular modules for
data connectivity and messaging. In addition, the SA 1100 product is integrated with a Wi-Fi module
that operates in the 2.4 GHz range along with a Z-Wave module operating in the 900 MHz range. The
SA 1100 Communications Board supports only incoming voice calls and SMS messages. The device does
not include a dial pad interface to make outbound calls.
The SA 1100 Communications Board includes a USB port to allow access to the module's AT command
interface.
This is an integrated product designed to be used in conjunction with a third party end product. An
8- pin adapter between the SA 1100 Communications Board and the third party end product provides
for
power and data transfer.
This device is intended for professional installation and not for consumer use.
Versions
The SA 1100 Communications Board is available in the following configurations:
SA1100-00-AT = WCDMA/HSPA
SA1100-20-AT = WCDMA/HSPA + Wi-Fi
SA1100-30-AT = WCDMA/HSPA + Wi-Fi + Z-Wave
SA1100-00-VZ = CDMA 1xRTT
SA1100-20-VZ = CDMA 1xRTT + Wi-Fi
SA1100-30-VZ = CDMA 1xRTT + Wi-Fi + Z-Wave

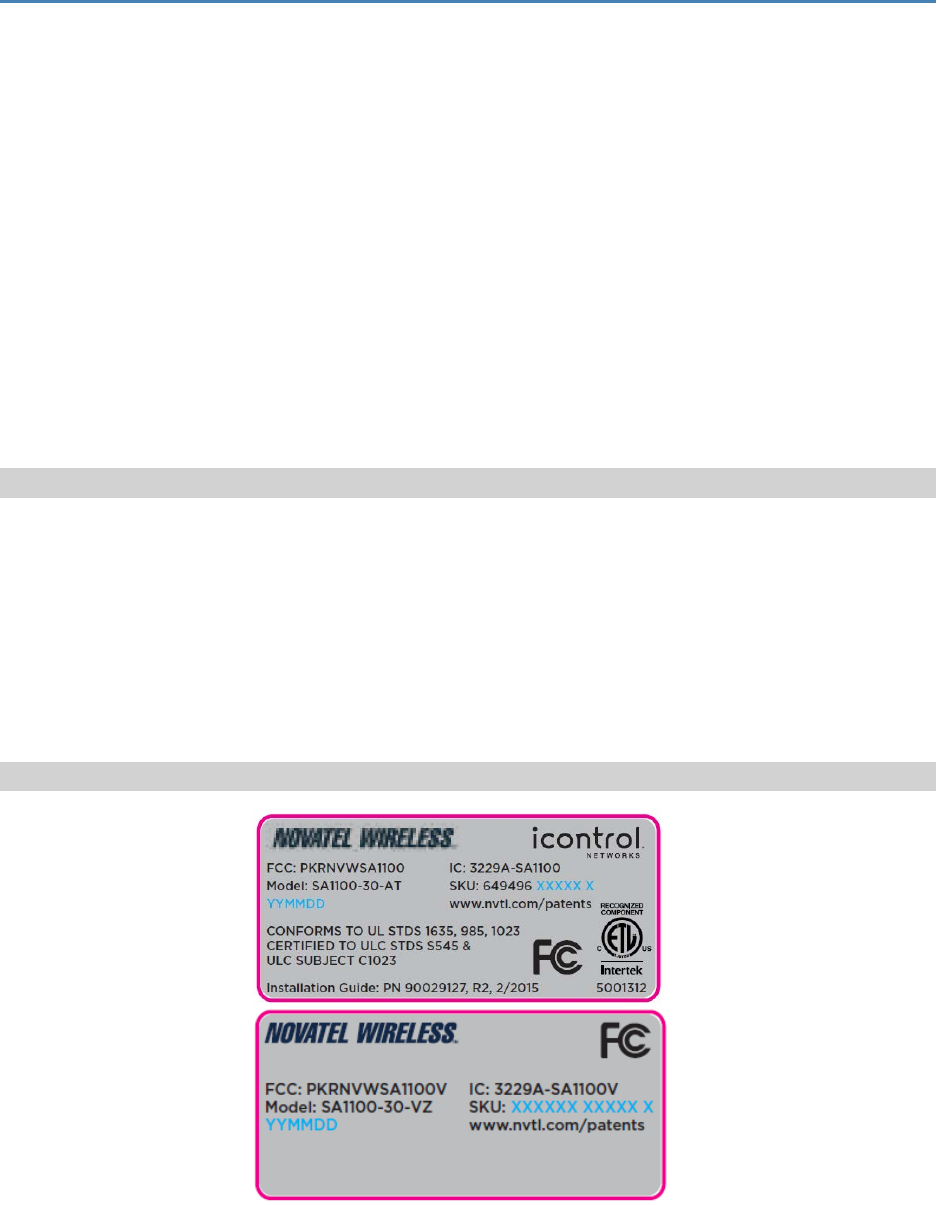

Product Label
3
Technical Specifications
Interfaces
Host Interface: Serial Interface
Data input/output interface: 100 position 0.4 mm pitch connector (Molex P/N 55909-1074)
Primary serial port: V.24 protocol, 1.8V levels, UART implementation, Hardware flow control
USB port: USB serial port and USB Debug (USB Debug is Novatel Wireless Use only)
Antenna Interface: B2B Spring contact
Command protocol: Novatel Wireless Packet API, AT Command set
Reference clock: 32 kHz output reference clock (accessible via 100-pin connector)
ADC:
2 ADC inputs
Logic:
l
UART1
l
PCM
l
Digital Audio
l
PWON
l
Power Control
Outputs
Simon XT
Mechanical: Storage and Transportation
Transportation vibration, packaged: ASTM D999
Drop, packaged: ASTM D775 method A, 10 drops
Mechanical: Operational
Operational vibration Random EC60068-2-64 / MIL-STD-202G Method 214A
50-2000 Hz, 7.56 GRMS, 3 Axis, 8 Hours per axis
4
Application Interface
USB:
3.4 to 4.4 Vdc (vbat)
VBUS:
Supply Vripple must be less than 25 mV across all frequencies
Power
Input Voltage Range: Minimum: +6.0 Vdc
Nominal: +12.0 Vdc
Maximum: +24.0 Vdc
Radio Features
Frequency Bands: CDMA 1xRTT BC0 (800MHz), BC1 (1900MHz)
HSDPA/WCDMA: B1 (2100MHz) and B8 (900 MHz) GPRS/EDGE: 900 and 1800
Air Interfaces: – CDMA 1xRTT
– UMTS/WCDMA
– R99
– HSDPA category 5/6 plus equalizer (3.6 Mbps peak rate)
– GSM/GPRS/EDGE
– GSM Release 4
– GPRS/EDGE Multislot Class 12, Release 4
– DTM Multislot Class 11
Audio Features
Phone Jack
Environmental
Compliant Operating Temperature: -20 °C to 60 °C
Operating Temperature: -30 °C to 70 °C
Storage Temperature: -40 °C to 85 °C
Humidity:
Up to 95% non-condensing
Packet Data Transfer
Protocol
Short Message Services: Text, MO/MT
5
Regulatory
Agency approvals: FCC
Industry Canada
PTCRB
GCF
Reference Documents
CNN0301AT001 – HS 3001 AT Command Reference
CNN0301IG001 – HS 3001 Transition Guide
CNN0401xAT001 - HS 3002 AT Command Reference
CNN0401xTG001 - HS 3002 Transition Guide
ENF0000SD001 - HDK Guide
CNN0401AN001 - Using Digital Audio on the HS 3002
Operating Power
SA 1100 Communications Board Input Power
The SA 1100 Communications Board receives 6-12 VDC power from an external power supply using a
ferrite bead dressed coaxial cable.
HS 3002 Chipset Typical Input Current
Typical Results @ 3.7V, 25 °C, with 1000 μF at connector input on VBAT and RF terminated into a 50 Ω
resistive load.
Band
Mode
Avg
(mA)
Peak
(mA)
Notes
B2
HSPA
WCDMA Radio Acccess
Bearer channel of RMC12
540
B5
HSPA
WCDMA Radio Acccess
Bearer channel of RMC12
525
GSM850
GPRS
2000
GSM850
EGPRS
1200
GSM1900
GPRS
1300
GSM1900
EGPRS
900
*4:1 VSWR
HS 3001 Chipset Typical Input Current
Typical Results @ 3.7 V, 20 °C, with 1000 μF at connector input on VBAT and RF terminated into a 50 Ω
resistive load. Traffic Data Rate: Full.
6
Band
Mode
Avg
(mA)
Peak
(mA)
Notes
BC0 RC3, 3.6V, Max Power
540
590
RC3 = Radio Config 3
BC0 RC3, 3.6V, TX= 0dBm 180
180
BC1 RC3, 3.6V, Max Power
600
680
BC1 RC3, 3.6V, TX= 0dBm
230
230
Both
Both
Idle Slot Cycle Index = 2, Sleep = 3
<2.0
80 Modem Registered; Peak during
network activity
Both
Sleep (Not Registered)
0.9
Both Shutdown
0.03
0.08
For minimum current draw in shut down mode, we
recommend you shut down the modem by either
sending AT$OFF (AT$OFFDLY must be >0) or by sending
a pulse on PON line (pin 35), and then setting the
ON/OFF line (pin 37) low to remove power from the
device.
8

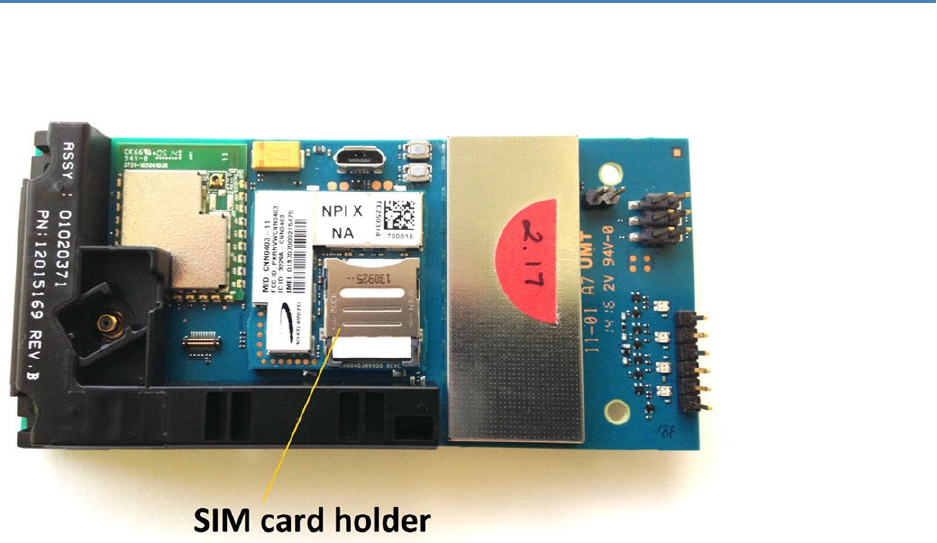

Installing the SIM Card
In the SA 1100, the SIM card slot is located on the Communications board.
Note: Only on SA1100-00-AT, SA1100-20-AT, SA1100-30-AT models.
To install the SIM card:
1.
Unlock the SIM card holder by sliding the holder in the "open" direction as marked on the SIM
card holder.
2.
Insert the SIM card into the holder, making sure the gold contact points on the SIM card are
facing down (toward the board).
3.
Slide the holder in the "lock" direction as marked on the SIM card holder to lock it into position.
9
Powering the Device
The SA 1100 requires 6-12 VDC power. The 8-pin adapter between the SA 1100 Communication Board
and the third party end device provides both power and data.

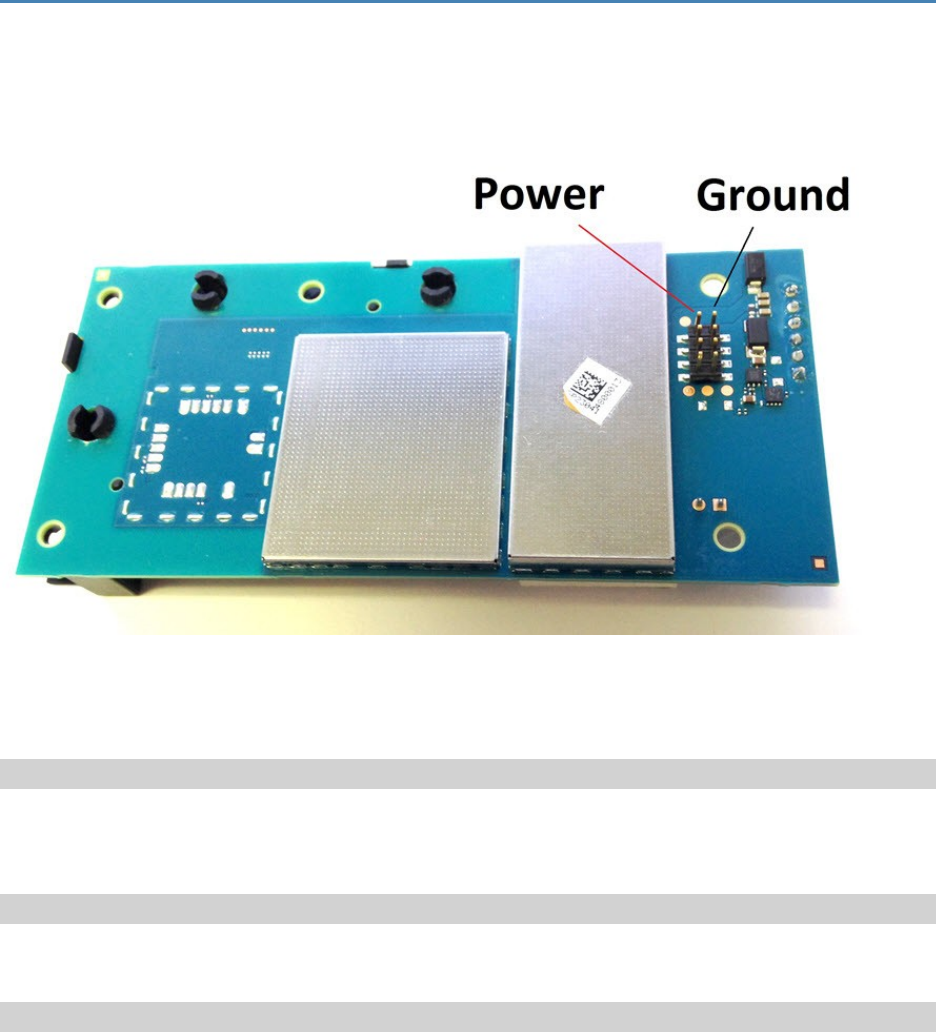

The SA 1100 power pins are shown in the image below.
To power the SA 1100:
Connect the 8-pin connector to the Security Panel Main Board connector.
Simon XT Connector
The Simon XT connector provides for data connectivity between the SA 1100 Communications Board
and the third party end product.
USB
USB is provided solely for the communication with the module.
Radio Connectivity
Radio connectivity is provided solely by a Novatel Wireless HS 3002 module, which has all APIs
integrated with the module software.
11
