Digital to Analog Converter Box
NS-DXA2
User Guide
Before using your new product, please read these instructions to prevent any damage.
NS-DXA2_13-0501_V1_ENG.fm Page 0 Monday, July 29, 2013 8:06 AM
1
Insignia NS-DXA2
Digital to Analog Converter Box
Converter Box with Analog Pass Through
Contents
Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Safety information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Front and Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Remote control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Setting up your converter box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Connecting with an AV cable (best) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

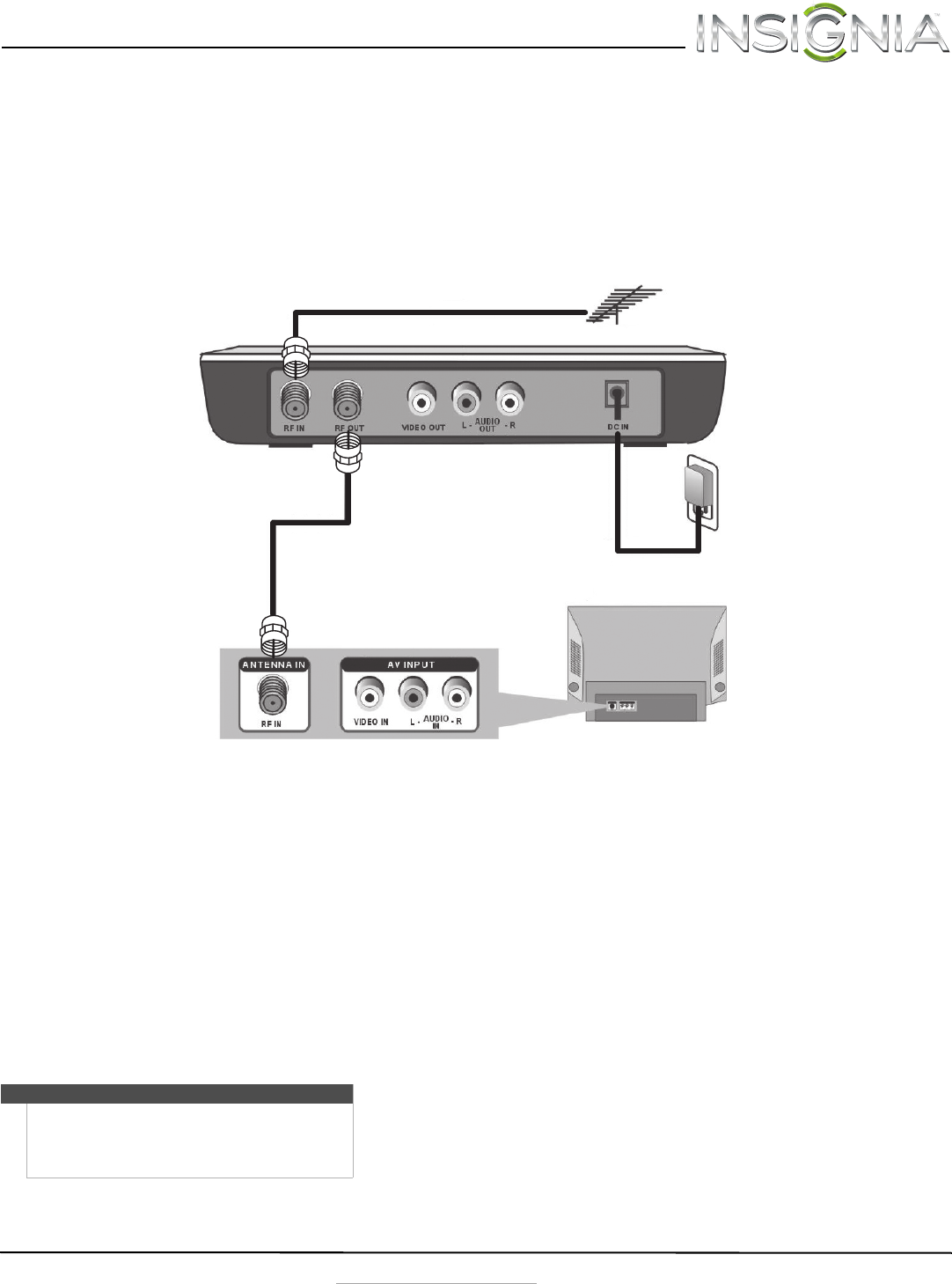

Connecting with an RF (coaxial) cable (good). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Using the analog pass-through . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

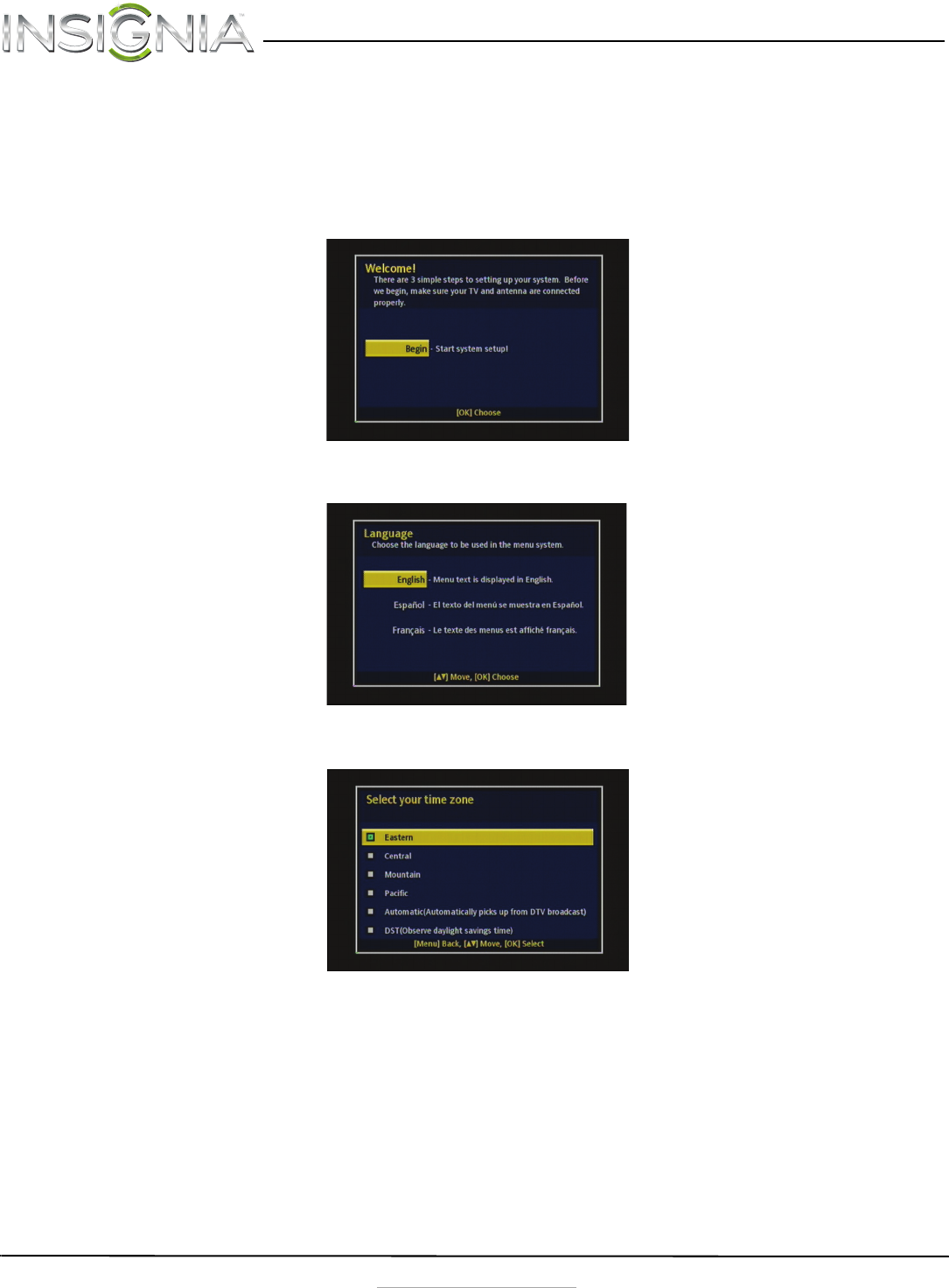

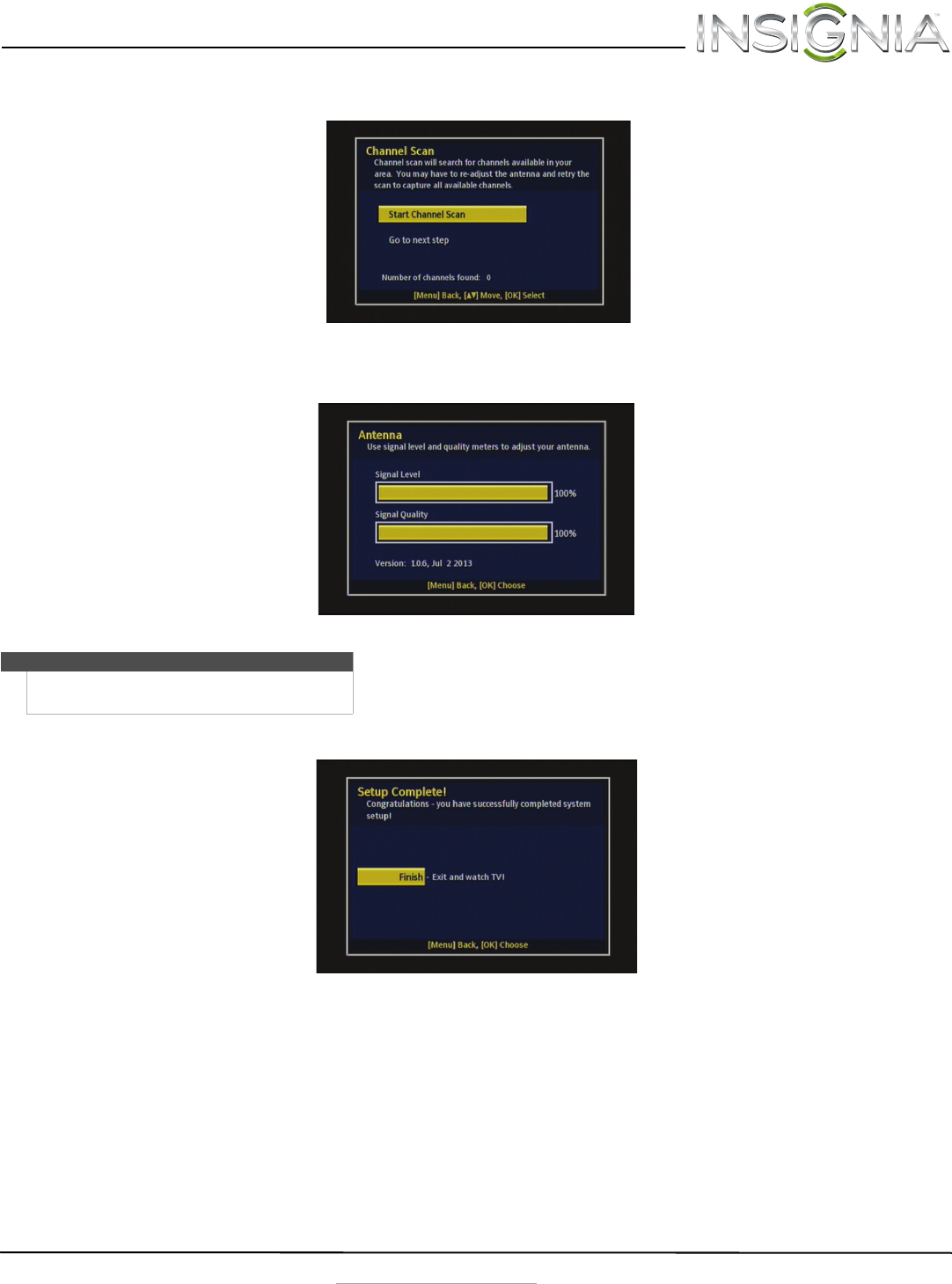

Setting initial setup options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using your converter box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Turning your converter box on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Changing channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Adjusting the volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

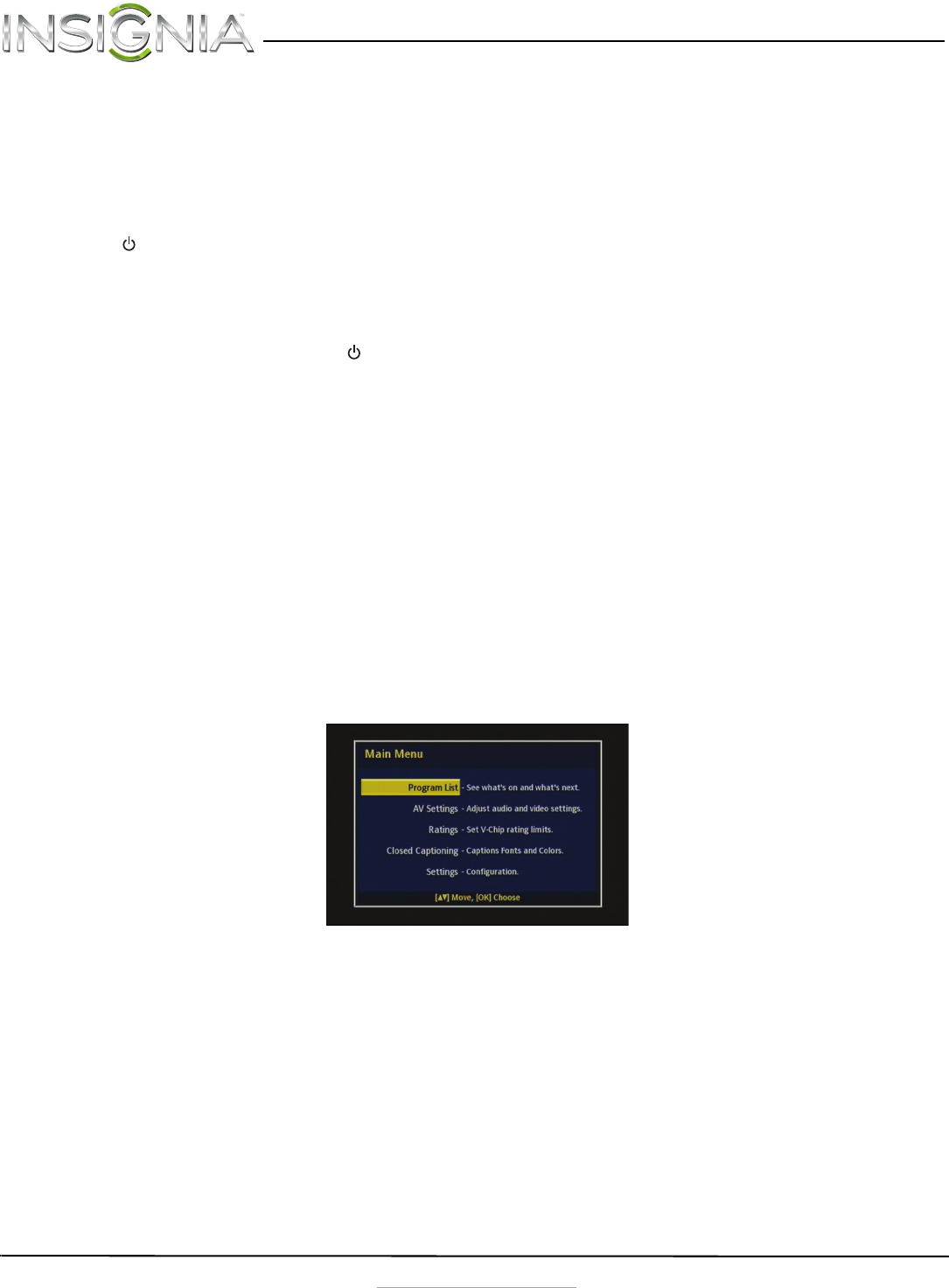

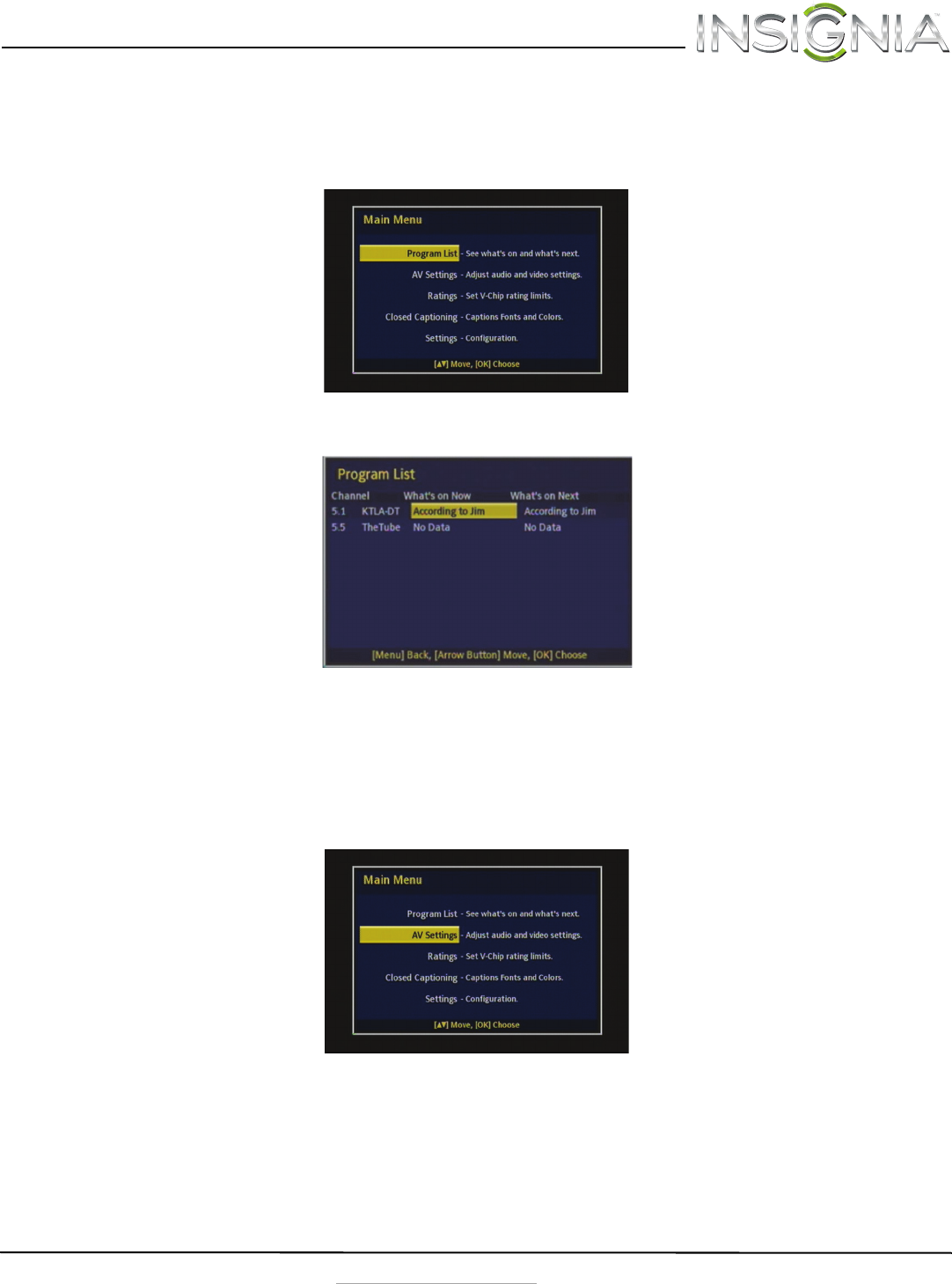

Displaying the program list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

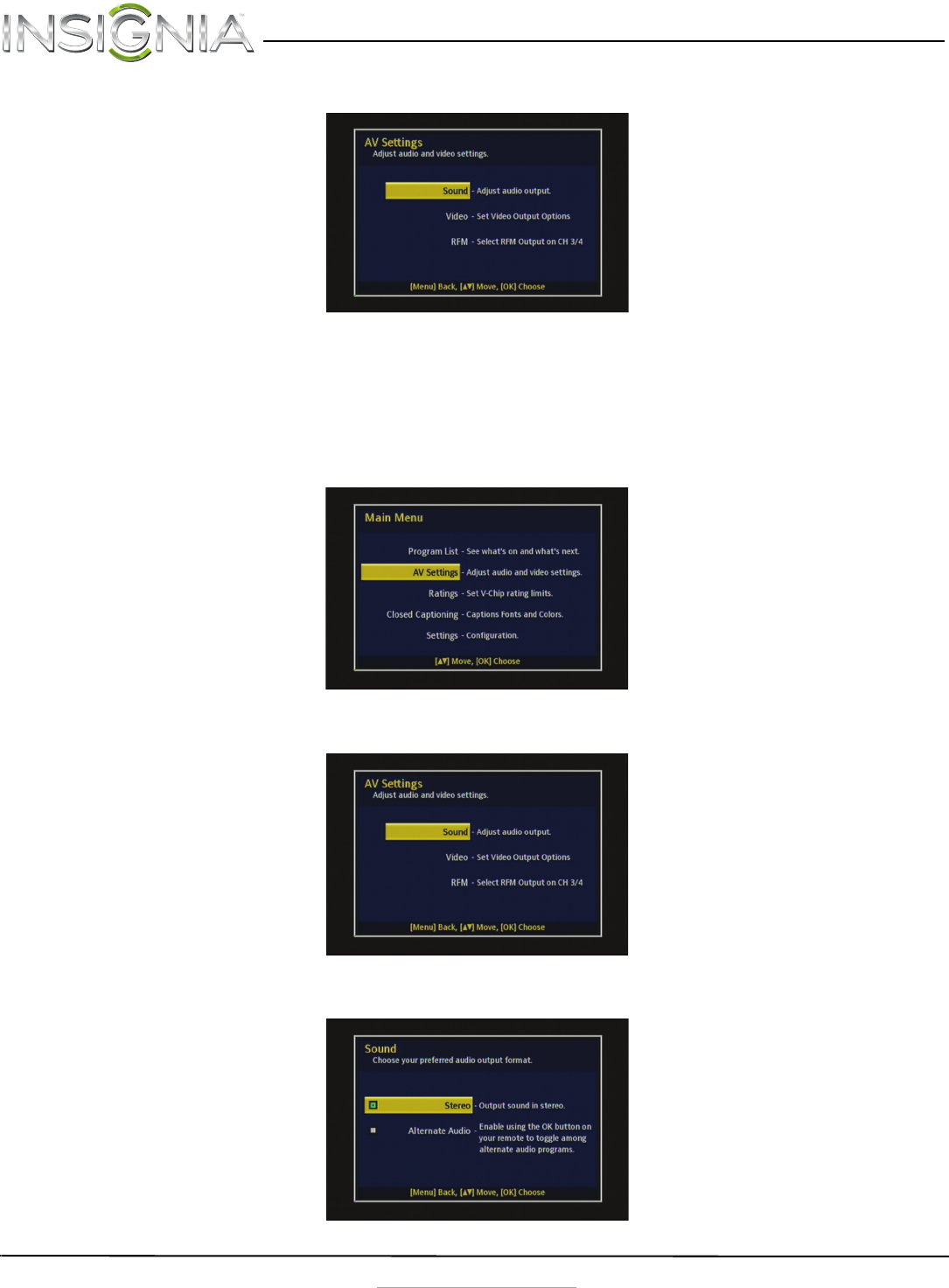

Changing the AV settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Changing the sound setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

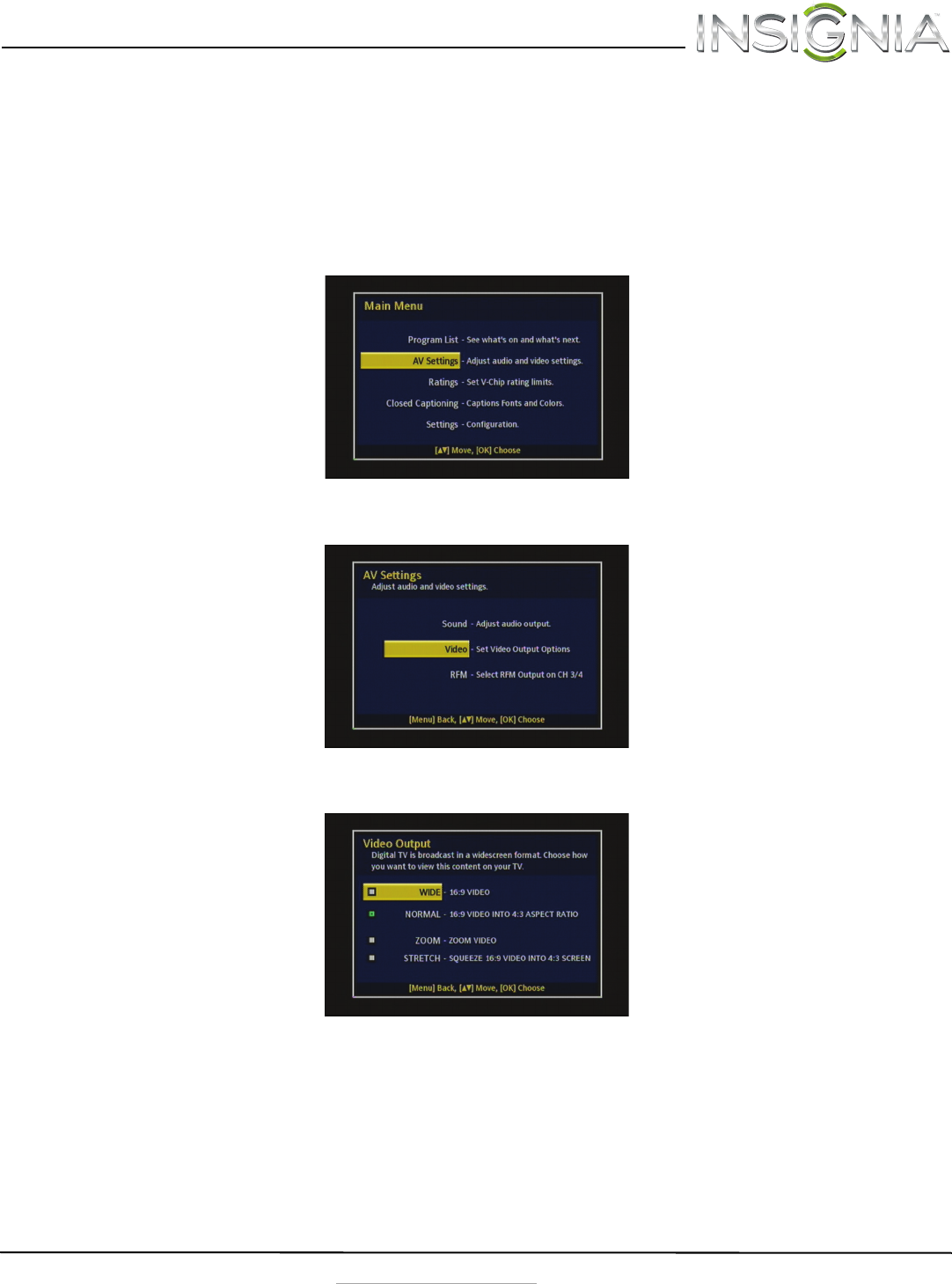

Changing the video aspect ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

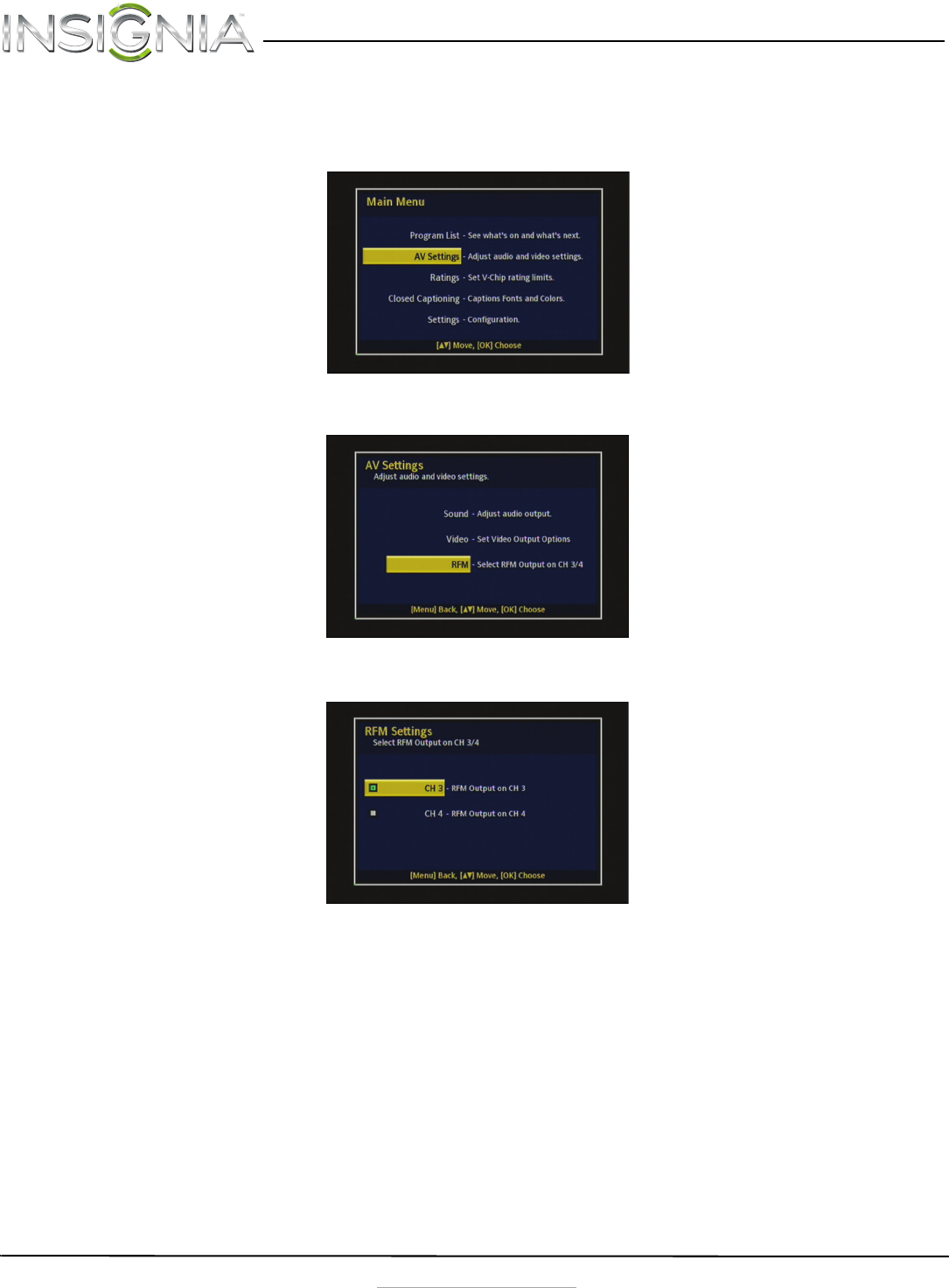

Changing the RF output channel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

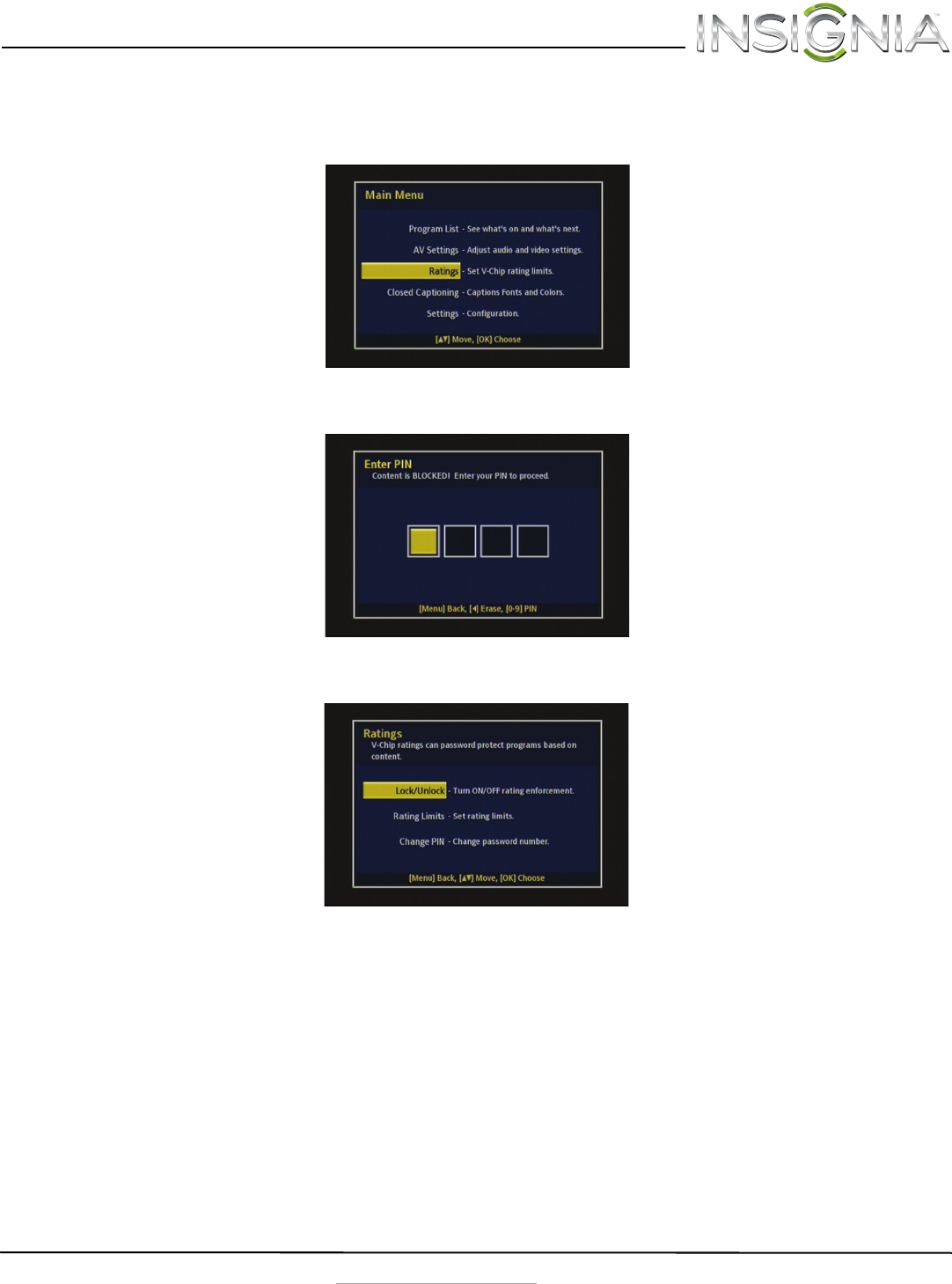

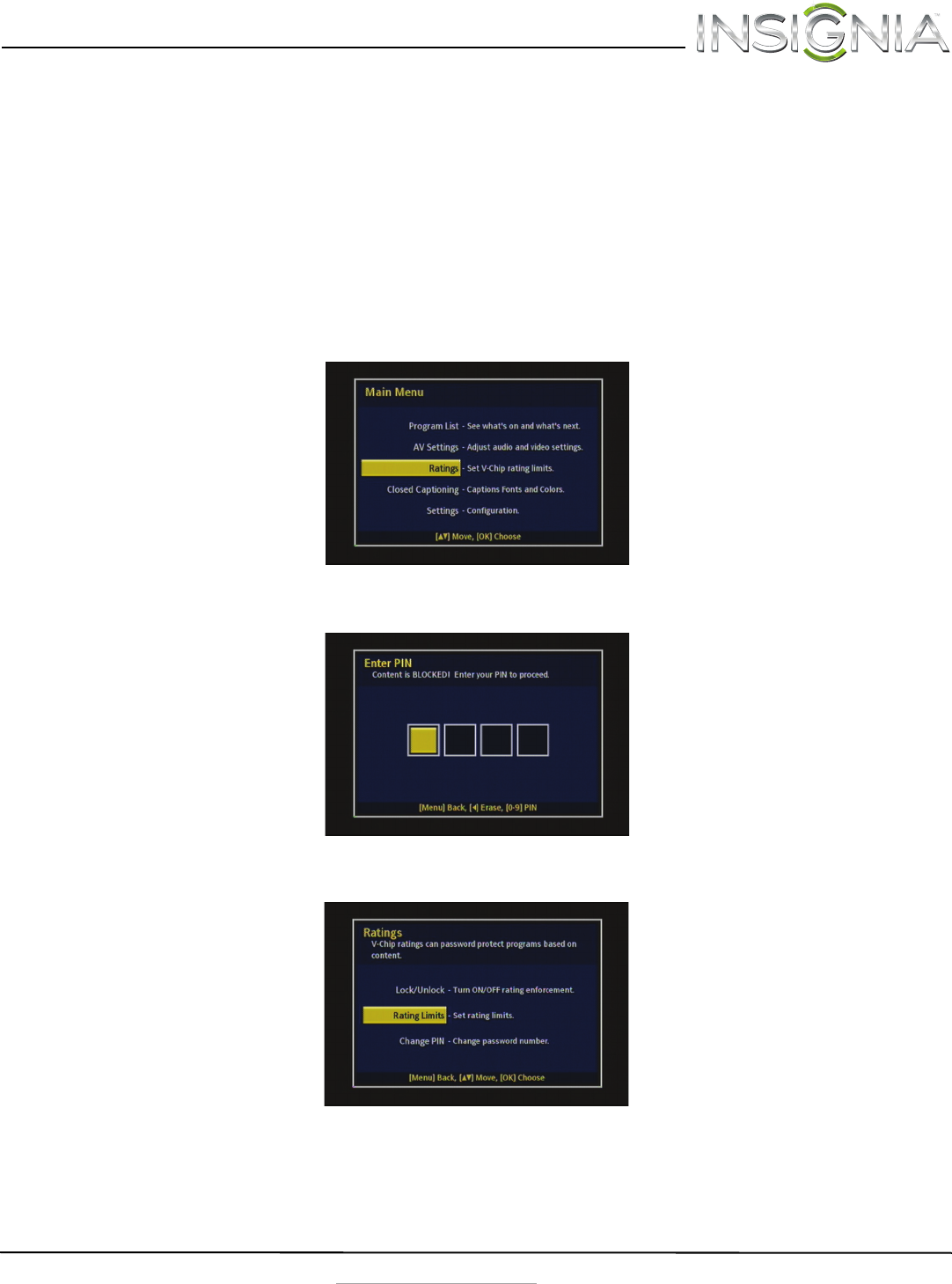

Changing the Ratings settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

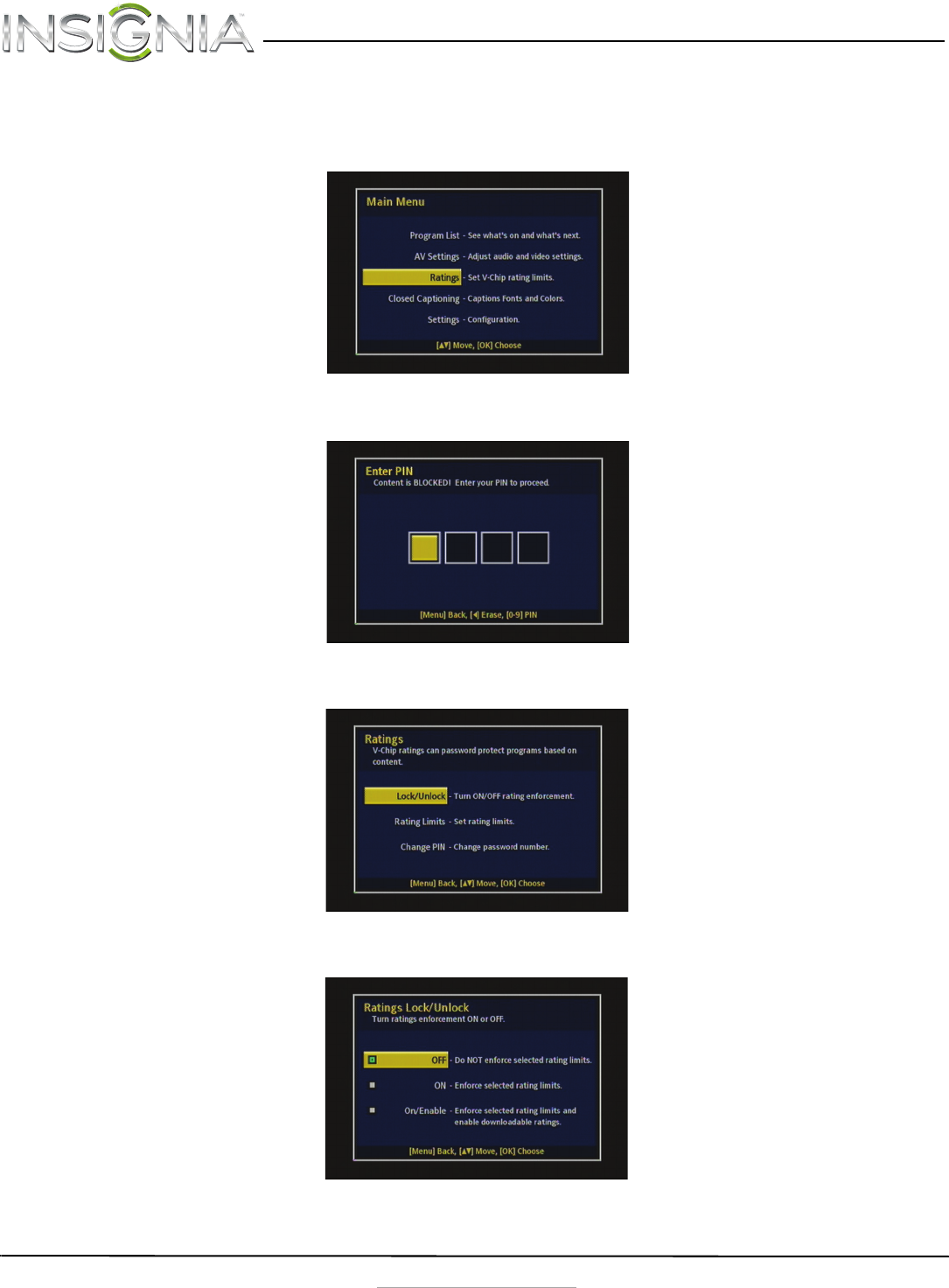

Turning Parental Control on or off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

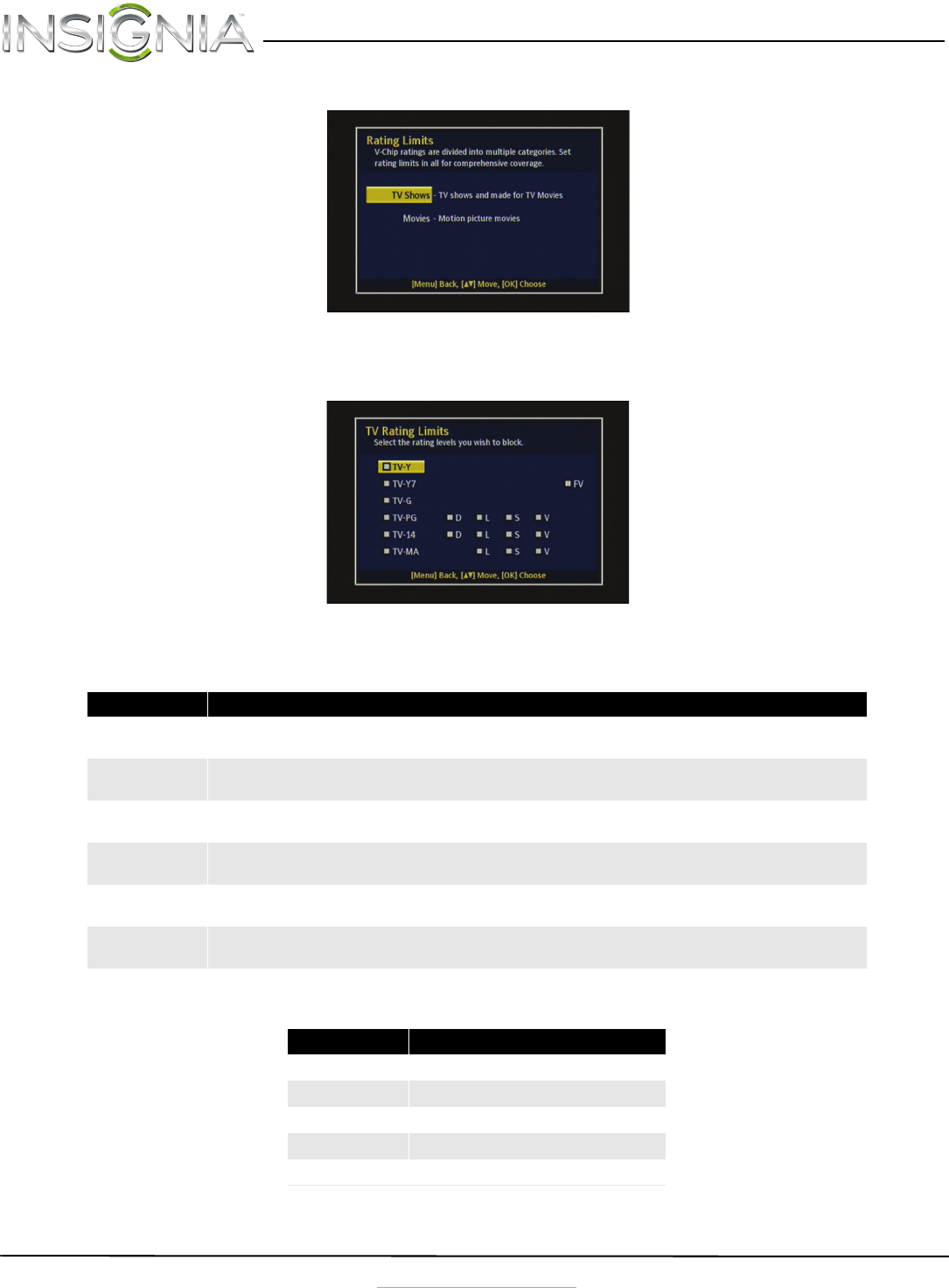

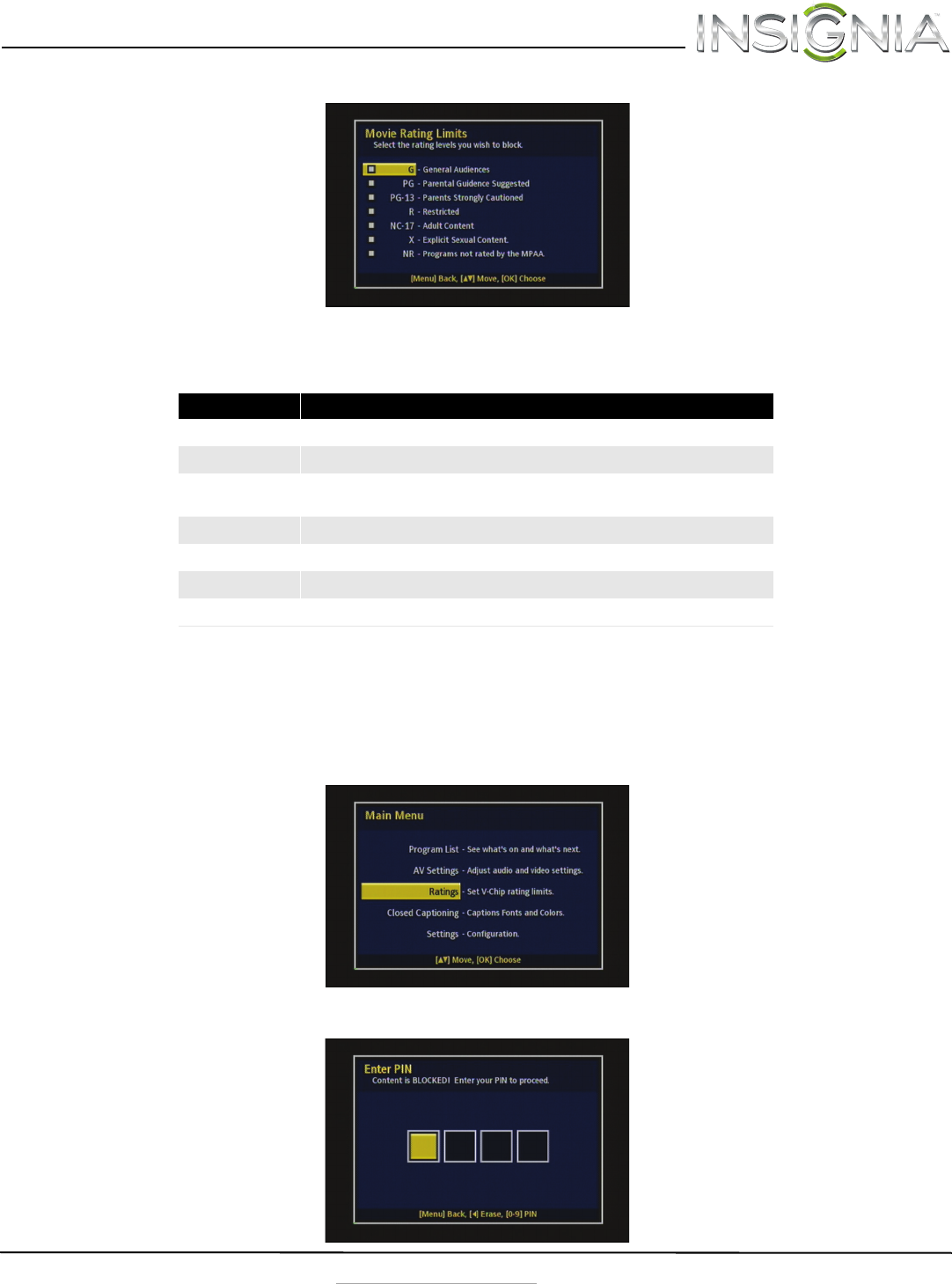

Setting the Parental Control rating limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

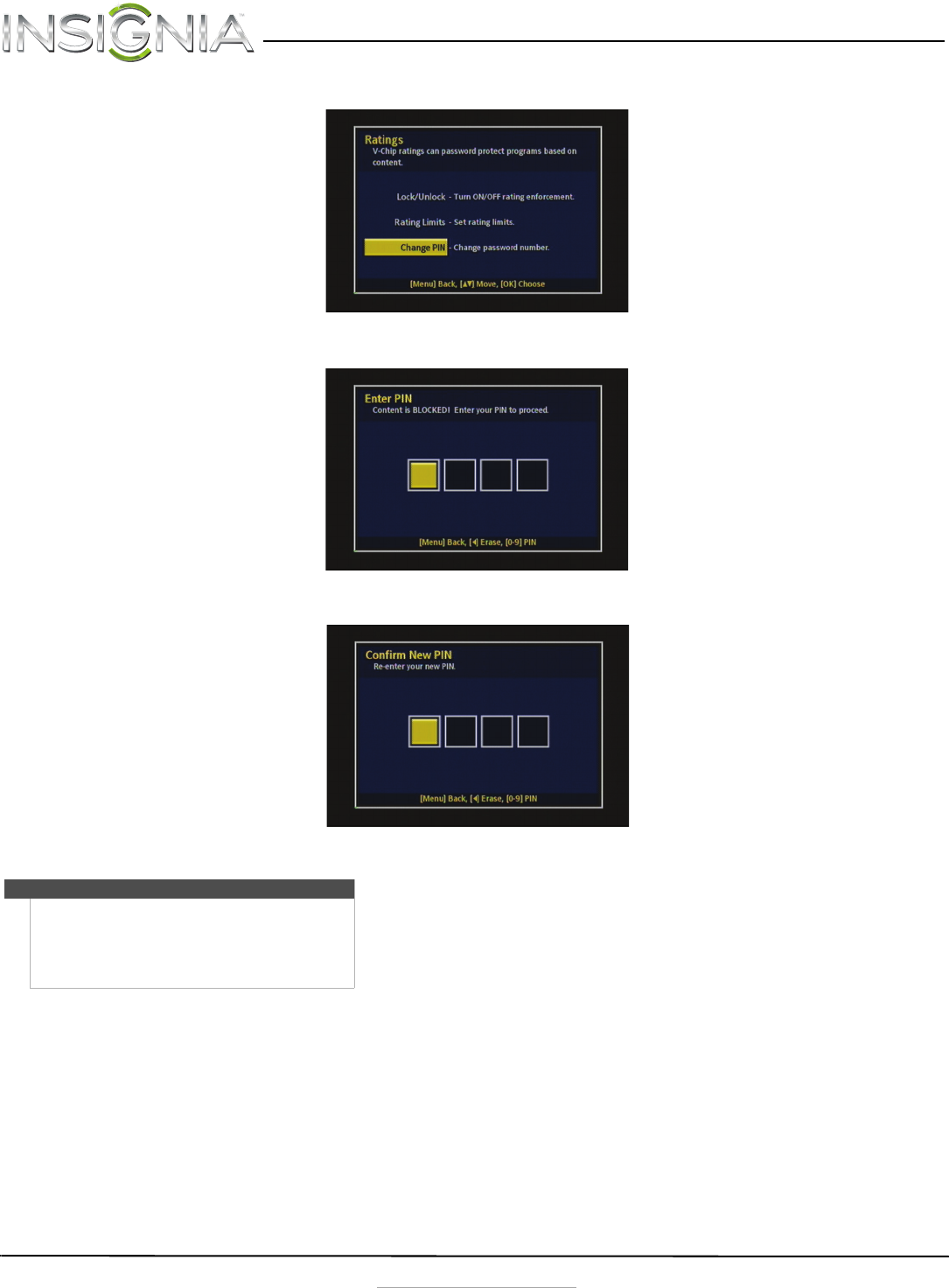

Changing your password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

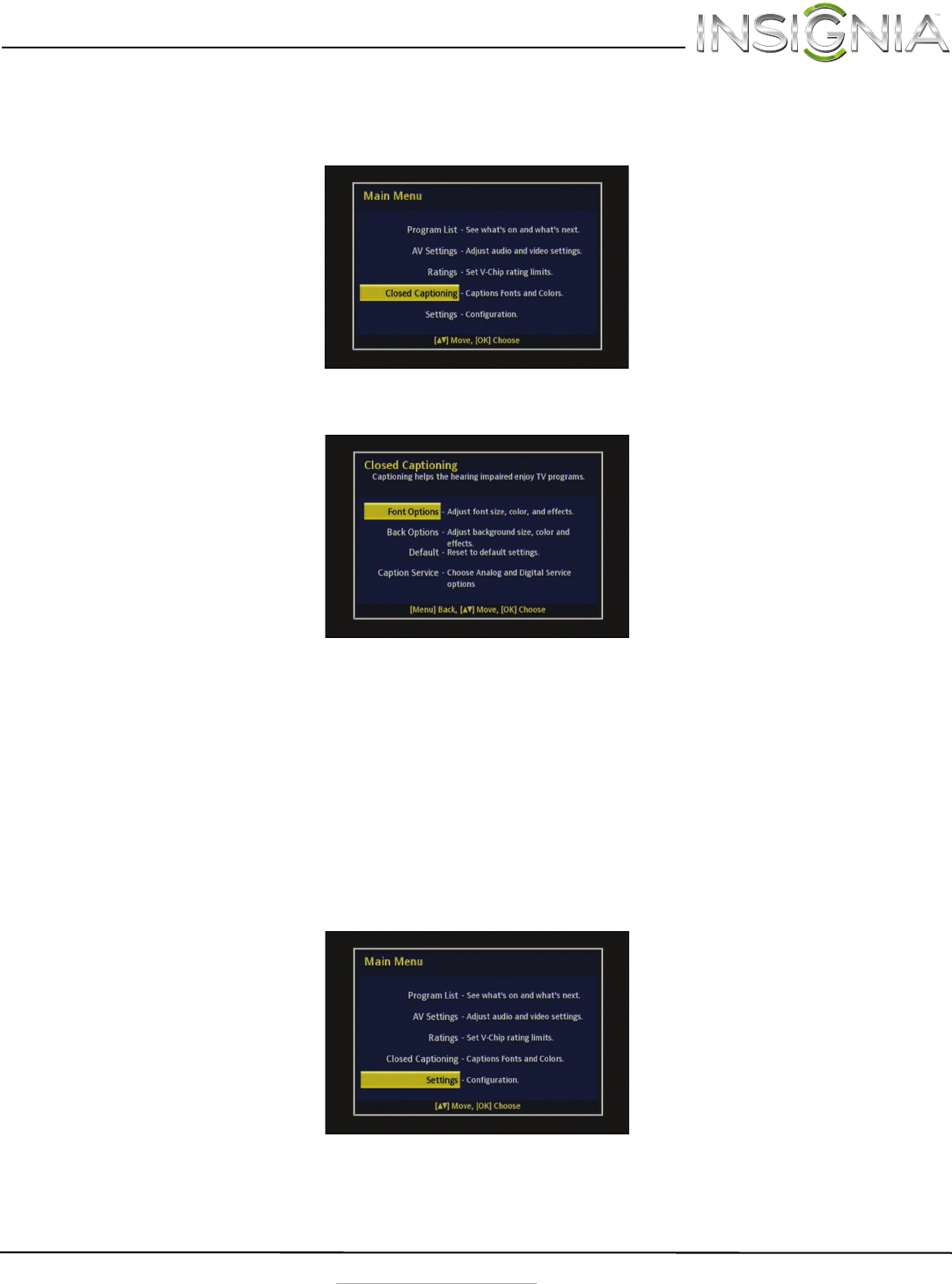

Changing the Closed Captioning settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

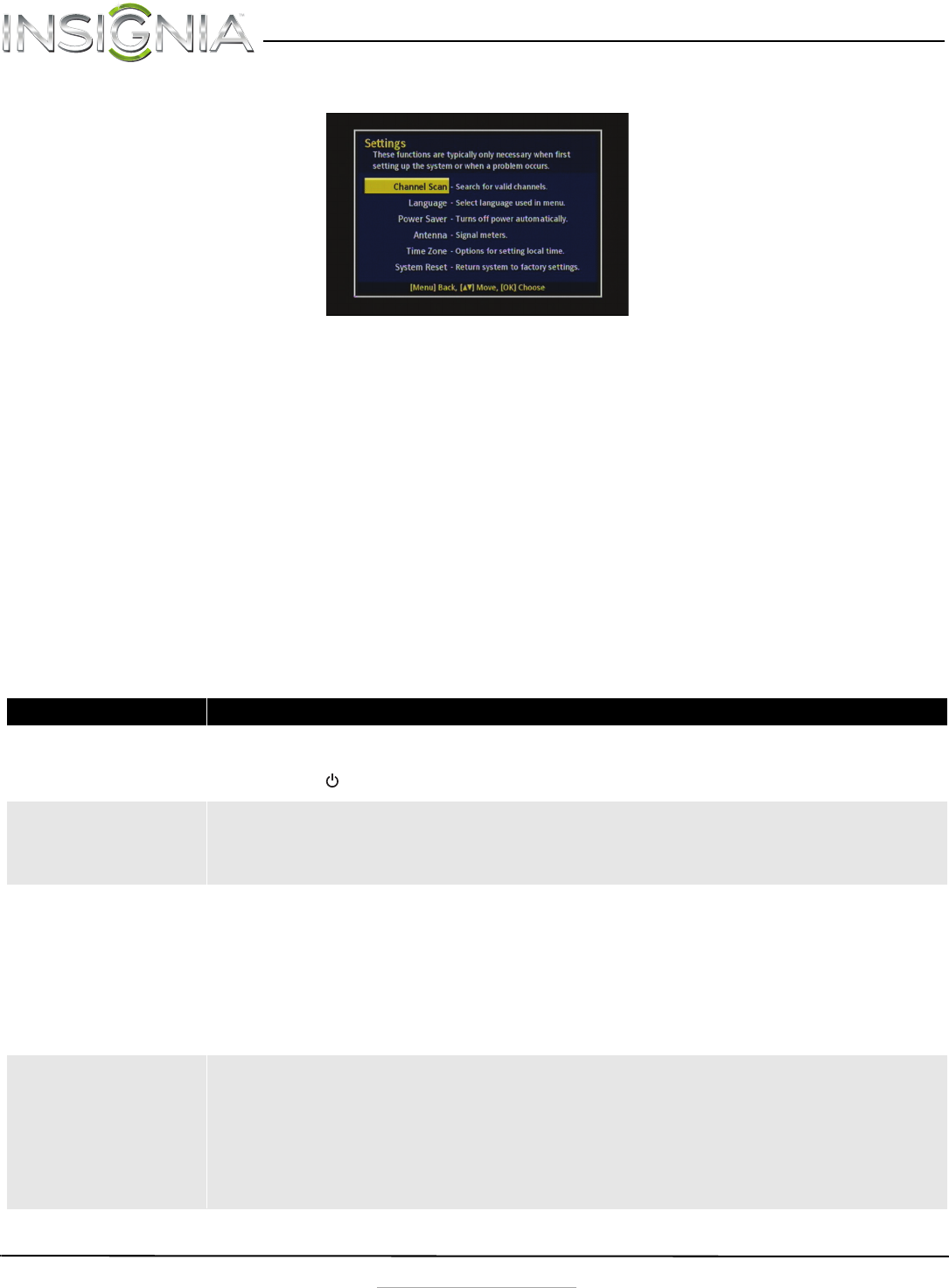

Changing the general settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Legal notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
90-day limited warranty - Insignia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Welcome
Congratulations on your purchase of a high-quality Insignia product. Your NS-DXA2 represents the state of the art
in digital to analog converter box design and is designed for reliable and trouble-free performance.
Safety information
The lightning flash with arrowhead symbol within a triangle is intended to alert you to the presence of
uninsulated dangerous voltage within your converter box’s enclosure that may be of sufficient
magnitude to constitute risk of electric shock to persons.
The exclamation point within a triangle is intended to alert you to the presence of important operating
and maintenance (servicing) instructions in the literature accompanying your converter box.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO
NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
NS-DXA2_13-0501_V1_ENG.fm Page 1 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
2www.insigniaproducts.com
WARNING: To prevent fire or electric shock hazard, do not expose your converter box to rain or moisture.
WARNING: Do not install your converter box in a confined space such a bookcase or similar unit.
WARNING: Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Slots and
openings in the cabinet are provided for ventilation and to ensure reliable operation of your converter box and to protect it
from overheating.
The openings should never be blocked by placing your converter box on a bed, sofa, rug, or other similar surface.Your
converter box should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided
or the manufacturer's instructions have been adhered to.
CAUTION: Your converter box should not be exposed to water (dripping or splashing) and no objects filled with liquids,
such as vases, should be placed on it.
POWER ADAPTER WARNING: The manufacturers of most appliances recommend that their appliance be placed on a
dedicated circuit—a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits.
Overloaded power outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire
insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the power
adapter of your converter box, and if its appearance indicates damage or deterioration, unplug it, discontinue use of your
converter box, and have the power adapter replaced with an exact replacement part by an authorized service personnel.
Protect the power adapter from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or
walked upon. Pay particular attention to plugs, wall outlets, and the point where the power adapter cord exits your
converter box.
To disconnect the main power from your converter box, unplug the power adapter from the power outlet. When installing
your converter box, make sure that the plug is easily accessible.
Important safety instructions
1Read these instructions.
2Keep these instructions.
3Heed all warnings.
4Follow all instructions.
5Do not use your converter box near water.
6Clean only with a dry cloth.
7Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produces heat.
9Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where it exits from the apparatus.
10 Only use attachments or accessories specified by the manufacturer.
11 Unplug your converter box during lightning storms or when unused for long periods of time.
12 Refer all servicing to qualified service personnel. Servicing is required when your converter box has been damaged in
any way, such as when the power cord or plug is damaged, liquid has been spilled or objects have fallen into your
converter box, your converter box has been exposed to rain or moisture, does not operate normally, or has been
dropped.
WARNING
Electric shock hazard
To reduce the risk of fire or electric shock, do not remove any cover or expose the device to rain or moisture. No
user-serviceable parts are inside. Refer servicing to qualified service technicians.
Lightning
For added protection for your device during a lightning storm, or when it is left unattended and unused for long periods of
time, unplug it from the power outlet and disconnect any antenna or cable system. This helps prevent property damage and
personal injury from lightning and power line surges.
Power lines
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power
circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should
be taken to keep from touching such power lines or circuits as contact with them might be fatal.
NS-DXA2_13-0501_V1_ENG.fm Page 2 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
3
www.insigniaproducts.com
Servicing
These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not
perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
CAUTION
Damage requiring service
Unplug this converter box from the power outlet and refer servicing to qualified service personnel under the following
conditions:
• When the power supply cord or plug is damaged or frayed.
• If liquid has been spilled or objects have fallen into your converter box.
• If your converter box has been exposed to rain or water.
• If your converter box does not operate normally by following the operating instructions. Adjust only those controls that
are covered by the operating instructions because incorrect adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to restore your TV/DVD combo to its normal operation.
• If your converter box has been dropped or damaged in any way.
• When your converter box exhibits a distinct change in performance.

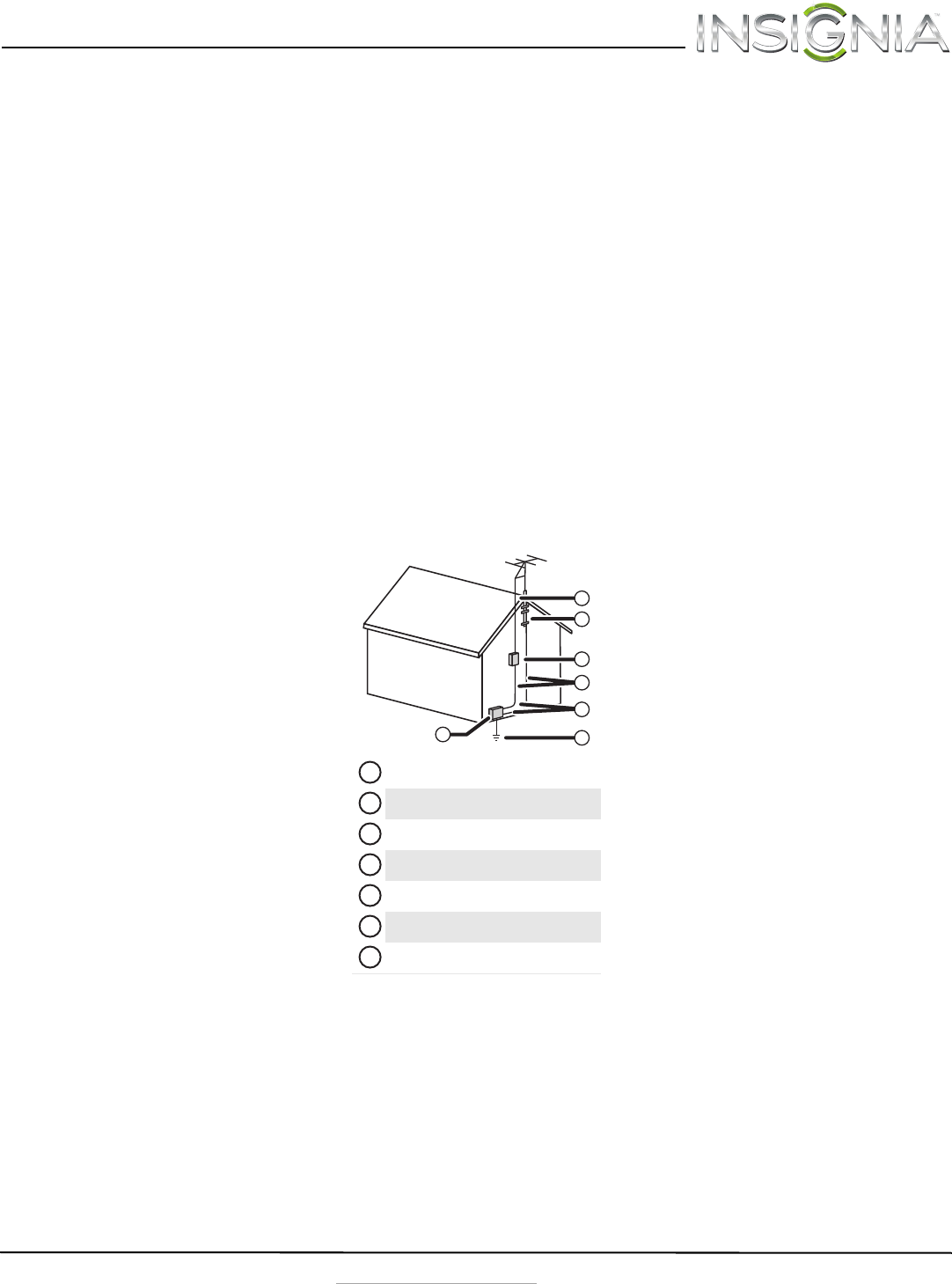

Outdoor antenna grounding
If an outside antenna or cable system is connected to your converter box, make sure that the antenna or cable system is
grounded to provide some protection against voltage surges and built-up static charges. Article 810 of the National
Electrical Code, ANSI/NFPA No. 70, provides information with respect to correct grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of the
antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
Note to CATV system installer
Article 820 of the National Electrical Code, ANSI/NFPA No. 40 provides guidance for correct grounding. Specifically, it states
that the cable ground must be connected to the grounding system of the building as close to the point of cable entry as
practical.
Antenna lead-in wire
Grounding clamp
Antenna discharge unit
Grounding conductors
Ground clamps
Power service grounding electrode system
Electric service equipment
2
1
3
4
5
6
7
1
2
3
4
5
6
7
NS-DXA2_13-0501_V1_ENG.fm Page 3 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
4www.insigniaproducts.com
Features
Package contents
•Converter box
• Remote control and batteries (2)
•RF cable
•AC adapter
•Quick Setup Guide

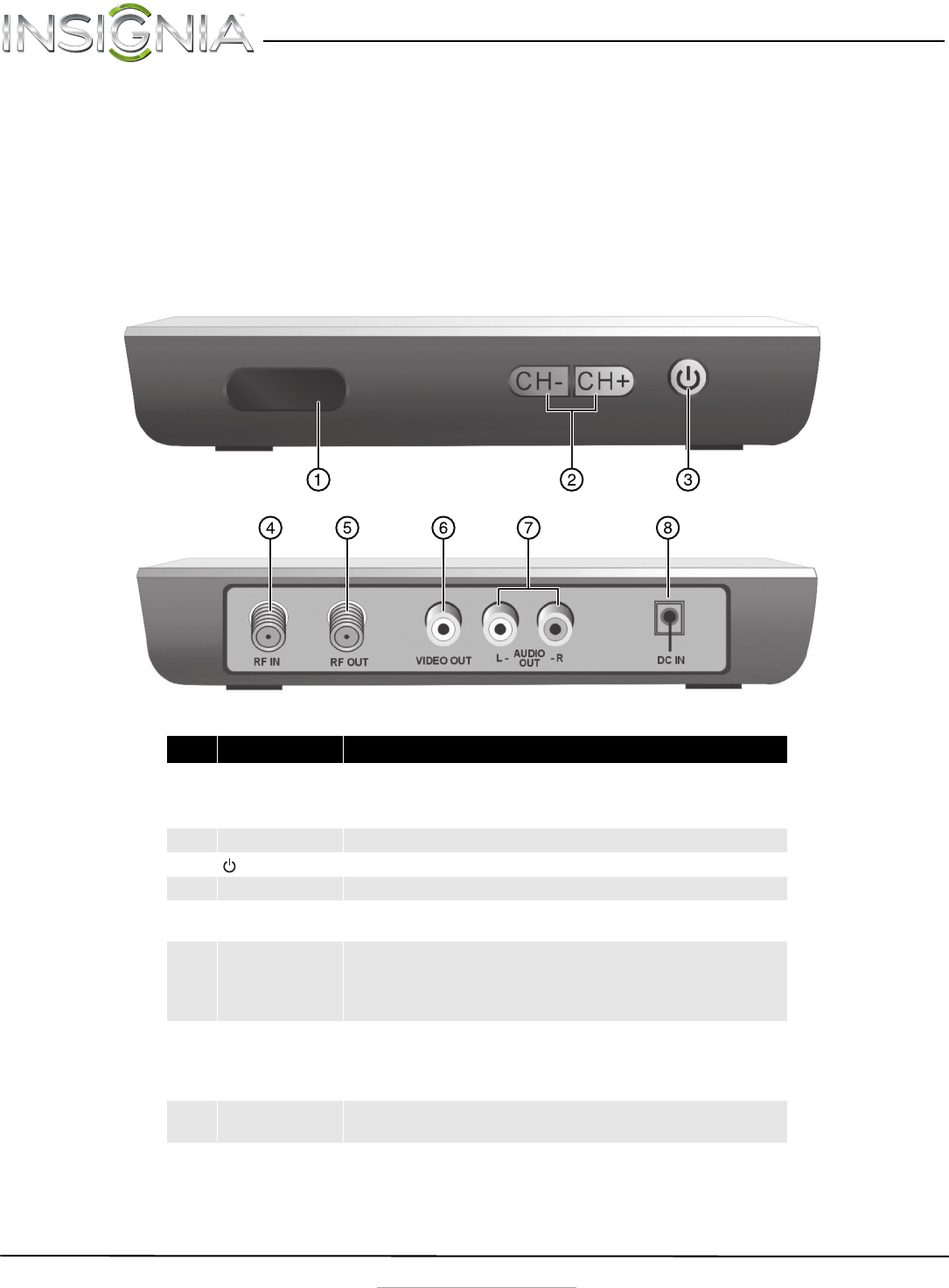

Front and Back
No. Component Description
1 Power indicator Lights when your converter box is turned on.
Red—Standby mode
Green—On mode
2 CH-/CH+ Press to scan through memorized channels.
3 (power) Press to turn your converter box on or off.
4RF IN Connect this jack to your antenna.
5RF OUT If your TV does not have A/V jacks, connect this jack to the
Antenna IN jack on your TV.
6VIDEO OUT Connect a yellow AV cable from this jack to the AV IN jack
(yellow) on your TV. This jack provides the best video.
Note: If your TV does not have AV jacks, connect your TV to
the RF OUT jack.
7AUDIO OUT L/R Connect these jacks to the corresponding AUDIO IN L/R
jacks on your TV. These jacks provide the best audio.
Note: If your TV does not have AV jacks, connect your TV to
the RF OUT jack.
8DC IN Connect the DC output from the AC power adapter to this
jack.
NS-DXA2_13-0501_V1_ENG.fm Page 4 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
5
www.insigniaproducts.com

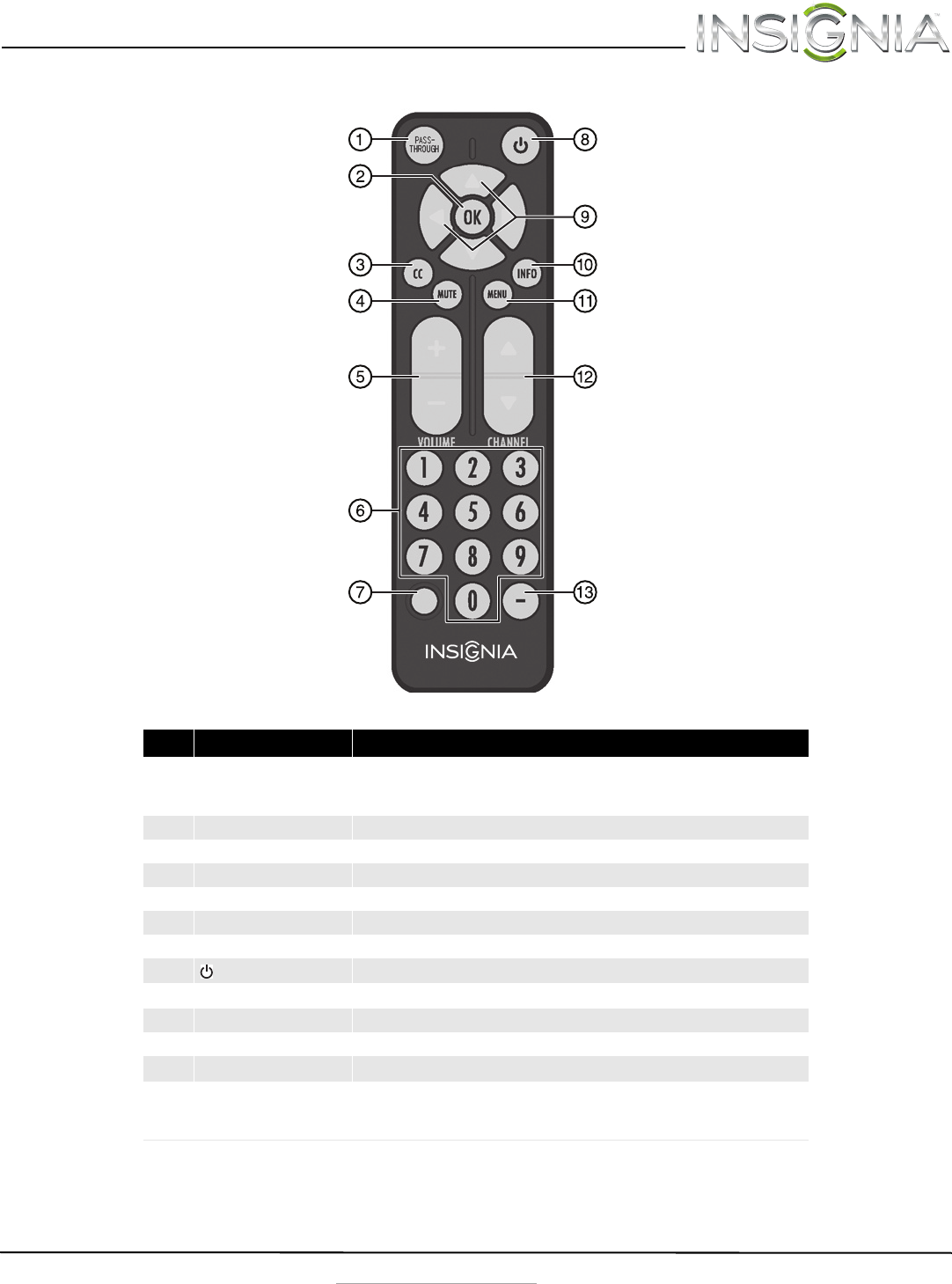

Remote control
No. Button Description
1PASS-THROUGH Press to by-pass the converter box so that your TV will fuction
as it did without the converter box (receiving analog channels
only).
2OK Press to select a highlighted menu item.
3CC Press to turn on closed captioning.
4MUTE Press to turn off the sound. Press again to restore the sound.
5VOLUME+/– Press to increase or decrease the volume.
6Numbers Press to enter a channel number or parental control password.
7N/A Not used.
8 (power) Press to turn the converter box on or off.
9S T W XPress to navigate through the on-screen menus.
10 INFO Press to display information about the current program.
11 MENU Press to open the on-screen menus.
12 CHANNEL S TPress to change channels.
13 —Press to enter a sub-channel number. For example, to enter
sub-channel 1 for the main channel 2, press 2, press this
button, then press 1.
NS-DXA2_13-0501_V1_ENG.fm Page 5 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
6www.insigniaproducts.com
Installing the remote control batteries
To install the remote control batteries:
1Remove the battery compartment cover on the back of the remote control.
2Insert two AAA batteries (included) into the battery compartment. Make sure that the + and – on the battery align with
the + and – in the battery compartment.
3Replace the battery compartment cover.
Setting up your converter box

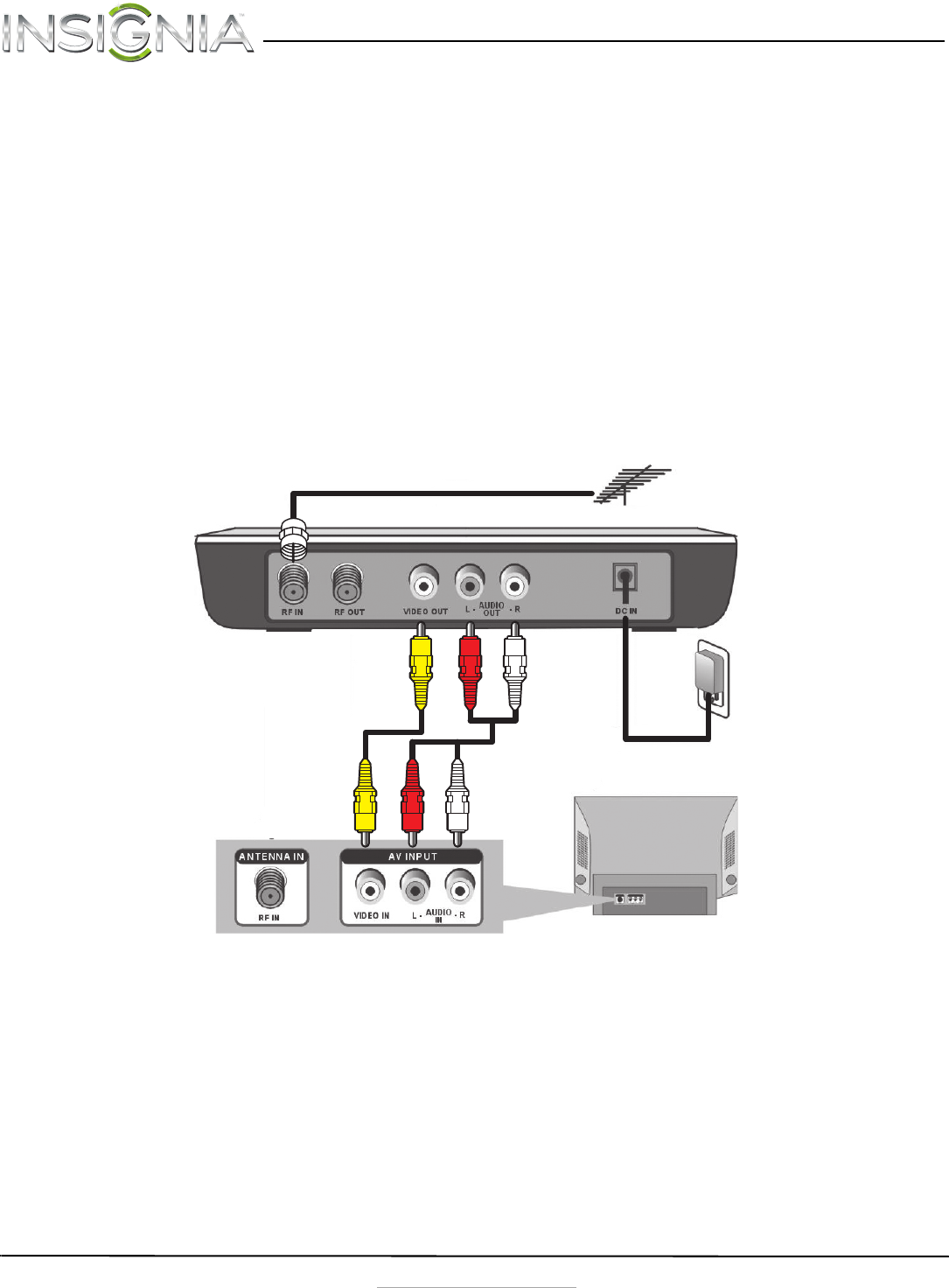

Connecting with an AV cable (best)
If your TV has Video (yellow) and Audio Left/Right (white/red) AV ports, use this procedure.
To connect your converter box with AV cables:
1Connect your existing antenna cable to the RF IN jack on the converter box. You may need to remove the antenna cable
from the back of your TV and connect it to the converter box.
2Connect one end of a yellow video cable (not included) to the VIDEO OUT jack on the converter box. Connect the other
end to the VIDEO IN jack on the TV.
3Connect one end of the red and white audio cable (not included) to the AUDIO OUT L/R jack on the converter box.
Connect the other end to the AUDIO IN L/R jack on the TV.
4Plug the AC adapter into a power outlet or surge protector, then plug the end of the cable into the DC IN jack on the
converter box.
5Turn on the converter box and TV and select the AV IN signal source on the TV.
TV
Antenna
Coaxial cable
AC
adapter
Video cable
(not included)
Audio cable
(not included)
NS-DXA2_13-0501_V1_ENG.fm Page 6 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
7
www.insigniaproducts.com
Connecting with an RF (coaxial) cable (good)
The resolution of the video signal output is 480i for both RF and AV connections, but AV gives better sound and signal
quality.
To connect your converter box with RF (coaxial) cable:
1Connect your existing antenna cable to the RF IN jack on the converter box. You may need to remove the antenna cable
from the back of your TV and connect it to the converter box.
2Connect a coaxial cable (included) to the RF OUT jack on the back of your converter box, then connect the other end of
the cable to the ANTENNA IN jack on the back of the TV. For best performance with this connection, change the Audio
Output option to Mono from Stereo (refer to your TV’s user guide).
3Plug the AC adapter into a power outlet or surge protector, then plug the end of the cable into the DC IN jack on the
converter box.
4Turn on your TV and converter box.
5Tune the TV to channel 3 and follow the Easy Install wizard on the screen when you turn it on for the first time.
If channel 3 is used as a broadcast station in your area, you need to switch the converter box's RF Output to channel 4
after the Easy Install wizard is finished. To change the RF Output, press MENU on the remote control, select AV Settings
> RFM. Press S T to switch between RF CH-3 and RF CH-4.
Using the analog pass-through
If you live in an area where some TV stations (such as low-power stations, translator stations, Class A stations, etc.) are still
broadcasting analog signals, your TV can receive these signals by using the analog pass-through feature of your converter
box.
To use the analog pass-through:
1Use the included RF cable to connect the Converter Box to your TV following the instructions above.
2Press the PASS-THROUGH button on the remote control to activate the analog pass-through function.
3Change the channels on your TV set using the TV's remote control to tune to the desired analog channel.
Note
Analog pass-through will not work if you
connect the converter box using the optional
AV cable. However, you can connect both cable
types at the same time.
TV
Antenna
Coaxial cable
(included)
AC
adapter
NS-DXA2_13-0501_V1_ENG.fm Page 7 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
8www.insigniaproducts.com
Setting initial setup options
When you turn on your converter box for the first time, the Easy Install wizard opens where you can:
• Select the menu language
• Search for and memorize channels
To set basic options:
1Turn on your converter box and TV. The WELCOME screen opens.
2Press OK. The Language screen opens.
3Press S or T to select the menu language (English, Spanish, or French), then press OK. The Time Zone screen opens.
NS-DXA2_13-0501_V1_ENG.fm Page 8 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
9
www.insigniaproducts.com
4Press S or T to select your time zone (Eastern, Central, Mountain, Pacific, Automatic, or DST [Daylight Savings
Time]), then press OK. The Channel Scan screen opens.
5Press OK to start the channel scan. Your converter box searches for available channels in your area and stores them in
memory. When the channel scan finishes, another Signal Strength screen opens.
6Press OK to proceed. The Setup Complete screen opens.
7Press OK to exit. A Program List screen opens showing available channels.
8Press OK to proceed.
9Press S or T to select Done to complete the initial setup.
Note
The channel scan process may take 15 minutes
or more.
NS-DXA2_13-0501_V1_ENG.fm Page 9 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
10 www.insigniaproducts.com
Using your converter box
Turning your converter box on or off
To turn your converter box on or off:
1Make sure that the TV is connected to your converter box and that the TV and your converter box are plugged into
power outlets.
2Press (power). The power LED lights.
•Red—Standby mode
•Green—On mode
3If this is the first time you have turned on your converter box, follow the on-screen prompts to set basic options. For
more information, see “Setting initial setup options” on page 8.
4To turn off your converter box, press (power) again.
Changing channels
To change channels:
• Press CH S or CH T to select a channel in the memorized channel list.
• Press the number buttons for the channel you want. If you want a digital sub-channel, press the number buttons for the
main channel, press –, then press the number for the sub-channel.
Adjusting the volume
To adjust the volume:
• Press VOL + or VOL – to increase or decrease the volume.
• Press MUTE to turn off the sound. Press MUTE again to restore the sound.
Using the Setup Menu
To open the Setup Menu:
1Press MENU on the remote control. The Main Menu opens.
2Press S or T to select the menu item you want to review, then press OK to access.
NS-DXA2_13-0501_V1_ENG.fm Page 10 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
11
www.insigniaproducts.com
Displaying the program list
You can open the program list to display a list of what program is currently on and what program is next.
To open the Program List:
1Press MENU on the remote control. The Main Menu opens.
2Press S or T to select Program List, then press OK. The Program List opens.
3Press S or T to select the program you want, then press OK to go to that program.
4Press MENU to exit the on-screen menu.
Changing the AV settings
To change the AV settings:
1Press MENU on the remote control. The Main Menu opens.
NS-DXA2_13-0501_V1_ENG.fm Page 11 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
12 www.insigniaproducts.com
2Press S or T to select AV Settings, then press OK. The AV Settings menu opens.
3Press S or T to select the AV setting you want, then press OK to go to that menu.
4Press MENU to exit the on-screen menu.
Changing the sound setting
To change the sound setting:
1Press MENU on the remote control. The Main Menu opens.
2Press S or T to select AV Settings, then press OK. The AV Settings menu opens.
3Press S or T to select Sound, then press OK. The Sound menu opens.
NS-DXA2_13-0501_V1_ENG.fm Page 12 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
13
www.insigniaproducts.com
4Press S or T to select the type of sound output you want, then press OK. You can select:
•Stereo–For 2-channel, stereophonic sound.
•Alternate Audio–Press OK to switch between language options while watching a TV program, if alternate languages
are available.
5Press MENU to exit the on-screen menu.
Changing the video aspect ratio
To change the video aspect ratio:
1Press MENU on the remote control. The Main Menu opens.
2Press S or T to select AV Settings, then press OK. The AV Settings menu opens.
3Press S or T to select Video, then press OK. The Video menu opens.
4Press S or T to select the aspect ratio you want, then press OK. Options include:
•Widescreen–Use this option to view content recorded in a 16:9 (wide-screen) aspect ratio.
•Full–Displays the original 4:3 aspect ratio with vertical black bars on the left and right of the image.
•Auto–Automatically adjusts the image based on the screen size and the TV program.
5Press MENU to exit the on-screen menu.
NS-DXA2_13-0501_V1_ENG.fm Page 13 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
14 www.insigniaproducts.com
Changing the RF output channel
To change the RF output:
1Press MENU on the remote control. The Main Menu opens.
2Press S or T to select AV Settings, then press OK. The AV Settings menu opens.
3Press S or T to select RFM, then press OK. The RFM output menu opens.
4Press S or T to select the RF channel you want (CH-3 or CH-4), then press OK.
5Press MENU to exit the on-screen menu.
NS-DXA2_13-0501_V1_ENG.fm Page 14 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
15
www.insigniaproducts.com
Changing the Ratings settings
To change the Ratings settings:
1Press MENU on the remote control. The Main Menu opens.
2Press S or T to select Ratings, then press OK. The Enter PIN screen opens.
3Using the number keys, enter your PIN number (the default number is 1234), then press OK. The Ratings menu opens.
4Press S or T to select the Ratings setting you want, then press OK to go to that menu.
5Press MENU to exit the on-screen menu.
NS-DXA2_13-0501_V1_ENG.fm Page 15 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
16 www.insigniaproducts.com
Turning Parental Control on or off
To turn Parental Control on or off:
1Press MENU on the remote control. The Main Menu opens.
2Press S or T to select Ratings, then press OK. The Enter PIN screen opens.
3Using the number keys, enter your PIN number (the default number is 1234), then press OK. The Ratings menu opens.
4Press S or T to select Lock/Unlock, then press OK. The Ratings Lock/Unlock menu opens.
NS-DXA2_13-0501_V1_ENG.fm Page 16 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
17
www.insigniaproducts.com
5Press S or T to select one of the following:
•On–To turn on Parental Controls.
•Off–To turn off Parental Controls.
• On/Enable–To enforce selected rating limits and enable downloadable ratings.
6Press MENU to exit the on-screen menu.
Setting the Parental Control rating limits
If you turn on the Parental Control lock, you need to set the Parental Control rating limits. The rating you select will be locked
and all of the age-based ratings within that particular group will also be locked. For example, if you lock the TV-PG rating
and all of its contents (V, S, L, and D), the more restrictive ratings (TV-14, and TV-MA) and all of their contents (V, S, L, and D)
are also locked.
To set the Parental Control rating limits:
1Press MENU on the remote control. The Main Menu opens.
2Press S or T to select Ratings, then press OK. The Enter PIN screen opens.
3Using the number keys, enter your PIN number (the default number is 1234), then press OK. The Ratings menu opens.
NS-DXA2_13-0501_V1_ENG.fm Page 17 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
18 www.insigniaproducts.com
4Press S or T to select Rating Limits, then press OK. The Rating Limits menu opens.
5Press S or T to select TV Shows or Movies, then press OK. The selected menu opens.
a. If you selected TV Shows, the TV Rating Limits menu opens.
• Press S or T to select the TV rating you want, then press OK.
The TV Ratings (FCC) based on age are as follows:
The TV Ratings (FCC) Content Category are as follows:
-OR-
Rating Criteria
TV-Y Suitable for all children. The themes and elements in this program are specifically designed for a very
young audience, including children from ages two to six.
TV-Y7 Suitable for older children. Themes and elements may include mild physical or comedic violence, or
may frighten children under the age of seven.
TV-G General audience. The program contains little or no violence, no strong language, and little or no
sexual dialogue or situations.
TV -PG Parental guidance suggested. The program may contain infrequent coarse language, limited
violence, and some suggestive sexual dialogue or situations.
TV-14 Parents strongly cautioned. May contain sophisticated themes, sexual content, strong language, and
more intense violence.
TV-MA Mature audiences only. May contain mature themes, profane language, graphic violence, and
sexually explicit material.
Rating Contains
VViolence
LOffensive language
FV Fantasy or cartoon violence
SSexual content
DDialogue or sexual innuendo
NS-DXA2_13-0501_V1_ENG.fm Page 18 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
19
www.insigniaproducts.com
b. If you selected Movies, the Movie Rating Limits menu opens.
• Press S or T to select the Movie rating you want, then press OK.
The Movie Rating System (MPAA) is as follows:
6Press MENU to exit the on-screen menu.
Changing your password
To change your password:
1Press MENU on the remote control. The Main Menu opens.
2Press S or T to select Ratings, then press OK. The Enter PIN screen opens.
Rating Criteria
GGeneral audience. No restriction.
PG Children under 13 years old should be accompanied by an adult.
PG-13 Parental guidance suggested. Children under 13 years old should be
accompanied by an adult.
RRestricted. Viewers should be 17 years old or older.
NC-17 Not classified. Viewers should be 17 years old or older.
XAdults only.
NR Not rated.
NS-DXA2_13-0501_V1_ENG.fm Page 19 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
20 www.insigniaproducts.com
3Using the number keys, enter your PIN number (the default number is 1234), then press OK. The Ratings menu opens.
4Press S or T to select Change PIN, then press OK. The Enter PIN screen opens again.
5Press the number keys to enter a new PIN. When the Confirm New PIN screen is displayed, enter the new PIN again.
6Press OK to confirm and exit.
Note
If you forget your password, you can reset it to
1234 by selecting System Reset in the Settings
menu. This will reset the device to it’s factory
default settings and a new channel scan must
be performed.
NS-DXA2_13-0501_V1_ENG.fm Page 20 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
21
www.insigniaproducts.com
Changing the Closed Captioning settings
To change the Closed Captioning settings:
1Press MENU on the remote control. The Main Menu opens.
2Press S or T to select Closed Captioning, then press OK. The Closed Captioning menu opens.
3Press S or T to select the Captions setting you want to change, then press OK to go to that menu. You can select:
•Font Options - 1—To choose the typeface, size, style, color, and effects.
•Back Options - 2—To choose the background edge, type, color, and effects.
•Default - 3—To reset the closed caption options to default.
•Caption Service - 4—To choose the digital and analog caption service.
4Press S or T to select the setting you want, then press OK.
5Press MENU to exit the on-screen menu.
Changing the general settings
To change the general settings:
1Press MENU on the remote control. The Main Menu opens.
NS-DXA2_13-0501_V1_ENG.fm Page 21 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
22 www.insigniaproducts.com
2Press S or T to select General Settings, then press OK. The Settings menu opens.
3Press S or T to select the setting you want to change, then press OK to go to that menu. You can select:
•Channel Scan—To scan for available channels.
•Language—To choose the on-screen menu language.
•Power Saver—To set the sleep timer to turn off your TV after a specified period of time. The options are 4hr, 8hr, or
Program (to turn off your TV when the current program is done), or Off. If no remote control button is press during the
specified time period, you TV will turn off automatically. To cancel the sleep timer, select Off.
• Antenna—To open the signal meter to help adjust your antenna.
•Time Zone—To set your time zone and time.
•System Reset—To reset the converter box to factory default settings. Enter your password or the default password
“1234.”
4Press S or T to select the setting you want, then press OK.
5Press MENU to exit the on-screen menu.
Troubleshooting
Insignia has detailed information about troubleshooting problems on its Web site at:
www.insignia-products.com/t-frequently_asked_questions.aspx
Problem Solution
The receiver power
indicator (red LED) doesn't
light up, and no message
is displayed.
• Make sure that the AC adapter is correctly inserted into a functioning power outlet and that the
AC adapter cord is plugged into the back of the DTV converter box DC IN jack.
• Press the (power) button on the front panel to see if the red light (power indicator) is on.
Poor picture quality. • Make sure that the antenna is pointing in the correct direction. Scan for available channels after
moving the antenna. Press MENU, then select General Settings, then Channel Scan.
• If you use a UHF/VHF amplifier to boost the signal level, check to verify that it is operating
correctly.
No audio. • Make sure that the TV's volume and the converter box’s volume are properly set and not in
“MUTE” mode.
• Make sure that the audio cables are correctly connected.
• Check with the local TV stations. Sometimes they are testing new services on their TV or radio
channels.
• Make sure that the AV setting on the converter box is set to STEREO, instead of ALTERNATE
AUDIO. Some stations don’t broadcast on the Alternate Audio channel. When in Alternate
Audio mode, press OK to switch between the available languages, for example, English or
Spanish audio selection.
No video. • If using a coaxial cable between the TV and the converter box, make sure the TV is set to
channel 3.
• If using the AV cable, make sure the TV’s input is selected to the correct Video input (AV, Video 1,
etc.).
• Make sure that the video cable between the TV and the converter box is correctly connected.
• Scan for available channels. Press MENU, then select General Settings, then Channel Scan.
• Check with the local TV stations. Sometimes they are testing new video services on their
channels.
NS-DXA2_13-0501_V1_ENG.fm Page 22 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
23
www.insigniaproducts.com
Specifications
Design and specifications are subject to change without prior notice.
Not all channels are
available after performing
an Auto Scan.
• Adjust your antenna and scan for available channels. Press MENU, then select General
Settings, then Channel Scan.
How do I find out what
digital TV reception I get in
my area?
• To determine which antenna you need for your area, visit www.antennaweb.org. Type in your
address and zip code to find an antenna that will continue giving you free local broadcast
programming.
No Closed Caption
displayed. • Make sure that the channel you are watching carries closed caption information.
• Press the CC button on the remote control to check for closed caption data output.
Cannot use the converter
box along with my cable
box.
• The converter box works only with over-the-air broadcast television signals, not cable or any
satellite service.
I forgot my four digit
parental control PIN. • Press Menu > Settings > System Reset to reset the code to 1234. Note that this will restore all
settings back to their original factory settings and a new Channel Scan must be done.
RF Input
Demodulation 8VSB
Frequency Range 54 - 860 MHz
Connector Type F-Type x 1
RF Output
Signal Type NTSC
Connector Type F-Type x 1
Video Output
Signal Type NTSC
Impedance 75 Ohms
Output Level 1Vp-p
Connector RCA x 1
Audio Output
Output Left and Right channel
Impedance 600 Ohms (min.)
Output Level 2Vrms±10%@0dBFS
Connector RCA x 2
Front Panel IR Receiver
3 Key Function Control
Status LED (power and standby)
Remote Control 27 keys
Power Consumption (Product)
Operation 120VAC, 60Hz, 8W (max.)
Standby <0.8W
AC Adapter Specification
Input 100~240VAC, 50~60Hz
Output 5VDC/2.0A/10W
Dimension (W x D x H) 6.9 x 5.3 x 1.3 in. (175 x 135 x 33 mm)
Weight 8.8 oz. (250 g)
Problem Solution
NS-DXA2_13-0501_V1_ENG.fm Page 23 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
24 www.insigniaproducts.com
Legal notices
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
Open Source Software Notice
This product includes the following:
zlib: Copyright © 1995-2005 Jean-loup Gailly and Mark Adler
THE SOFTWARE IS PROVIDED "AS IS"WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGMEENT OF THIRD PARTY RIGHTS. IN NO EVENT SHALL THE AUTHORS OR
COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT, OR OTHERWISE, ARISING
FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
Dolby License Notice and Trademark Acknowledgement
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
NS-DXA2_13-0501_V1_ENG.fm Page 24 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
25
www.insigniaproducts.com
90-day limited warranty - Insignia
Definitions:
Insignia Products (“Insignia”) warrants to you, the original purchaser of this new Insignia-branded product (“Product”), that the Product shall be free of
defects in the original manufacturer of the material or workmanship for a period of ninety (90) days from the date of your purchase of the Product
(“Warranty Period”). For this warranty to apply, your Product must be purchased in the United States or Canada from a Best Buy or Future Shop authorized
dealer of Insignia brand products only that are packaged with this warranty statement.
How long does the coverage last?
The Warranty Period lasts for ninety (90) days from the date you purchased the Product. Your purchase date is printed on the receipt you received with the
Product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized
Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no
charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not
returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as
long as you own your Insignia Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.
How to obtain warranty service?
If you purchased the Product at a Best Buy or Future Shop retail store location, please take your original receipt and the Product to any Best Buy or Future
Shop store. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original
packaging. If you purchased the Product from a Best Buy or Future Shop online web site, mail your original receipt and the Product to the address listed on
the web site. Make sure that you put the Product in its original packaging or packaging that provides the same amount of protection as the original
packaging.
To obtain warranty service, in the United States call 1-888-BESTBUY, Canada call 1-866-BESTBUY for Future Shop call 1-800-663-2275. Call agents may
diagnose and correct the issue over the phone.
Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best Buy or Future Shop branded retail stores or websites to the original purchaser of the
product in the county where the original purchase was made.
What does the warranty not cover?
This warranty does not cover:
• Customer instruction/education
• Installation
• Set up adjustments
• Cosmetic damage
• Damage due to acts of God, such as power surges
• Accident(s)
•Misuse
•Abuse
•Negligence
• Commercial purposes/use, including but not limited to use in a place of business or in communal areas of a multiple dwelling condominium or
apartment complex, or otherwise used in a place of other than a private home.
• Modification of any part of the Product, including the antenna
• Display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage or power supply
• Attempted repair by any person not authorized by Insignia to service the Product
• Products sold “as is” or “with all faults”
• Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.)
• Products where the factory applied serial number has been altered or removed
• Loss or Theft of this product or any part of the product
• Up to three (3) pixel failures (dots that are dark or incorrectly illuminated) grouped in an area smaller than one tenth (1/10) of the display size or up to
five (5) pixel failures throughout the display. (Pixel based displays may contain a limited number of pixels that may not function normally.)
• Failures or Damage caused by any contact including but not limited to liquids, gels or pastes.
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. INSIGNIA SHALL NOT BE LIABLE
FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT
NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS
WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY
IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE
WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES,
PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY
TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE
TO PROVINCE.
Contact Insignia:
For customer service please call 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico)
www.insigniaproducts.com
Distributed by Best Buy Purchasing, LLC
NS-DXA2_13-0501_V1_ENG.fm Page 25 Monday, July 29, 2013 8:06 AM
Insignia NS-DXA2 Digital to Analog Converter Box
26 www.insigniaproducts.com
7601 Penn Avenue South, Richfield, Minnesota, U.S.A. 55423-3645
© 2013 BBY Solutions, Inc.
All rights reserved. INSIGNIA is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and brand names are trademarks of their
respective owners.
NS-DXA2_13-0501_V1_ENG.fm Page 26 Monday, July 29, 2013 8:06 AM
V2 ENGLISH
13-0501
INSIGNIA is a registered trademark of BBY Solutions, Inc.
Registered in some countries.
Distributed by Best Buy Purchasing, LLC, 7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2013 BBY Solutions, Inc.
All Rights Reserved
For customer support, call 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico)
NS-DXA2_13-0501_V1_ENG.fm Page 27 Monday, July 29, 2013 8:06 AM
