Insignia NS 32D220NA16 32D220NA16_14 1315_MAN_V2_ENG User Manual To The Bacf7f36 2d07 4ac6 9715 Ba9a72f71f96

User Manual: Insignia NS-32D220NA16 to the manual

Open the PDF directly: View PDF PDF.
Page Count: 78

USER GUIDE
Before using your new product, please read these instructions to prevent any damage.
32" 720p 60Hz LED TV
NS-32D220NA16
ii
www.insigniaproducts.com
Contents
CHILD SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
CAUTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
INlink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Game mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installing the stands or wall-mount bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

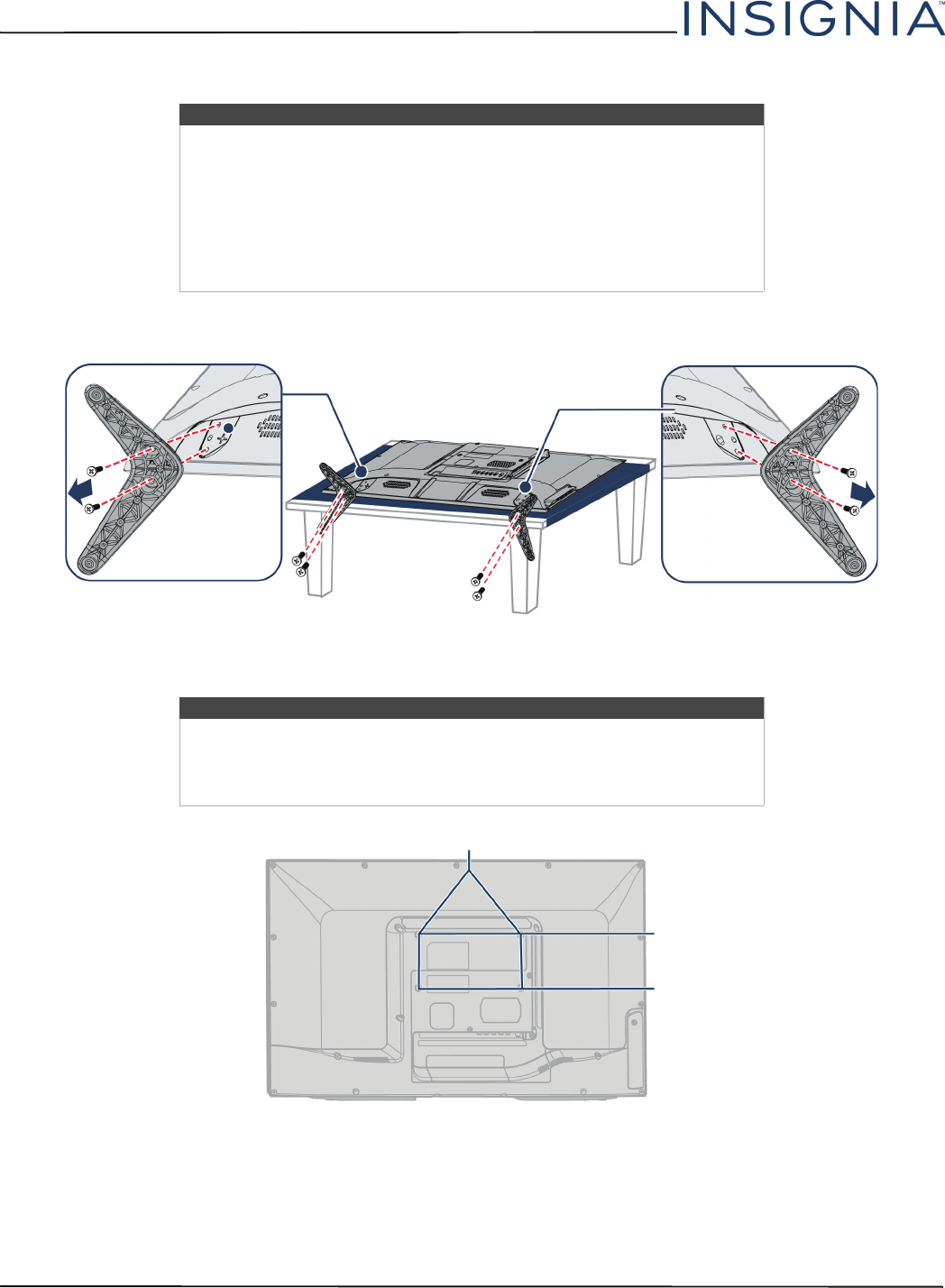

Installing the stands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installing a wall-mount bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
TV components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
TV buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
What connection should I use? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Connecting a cable or satellite box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
HDMI (best) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

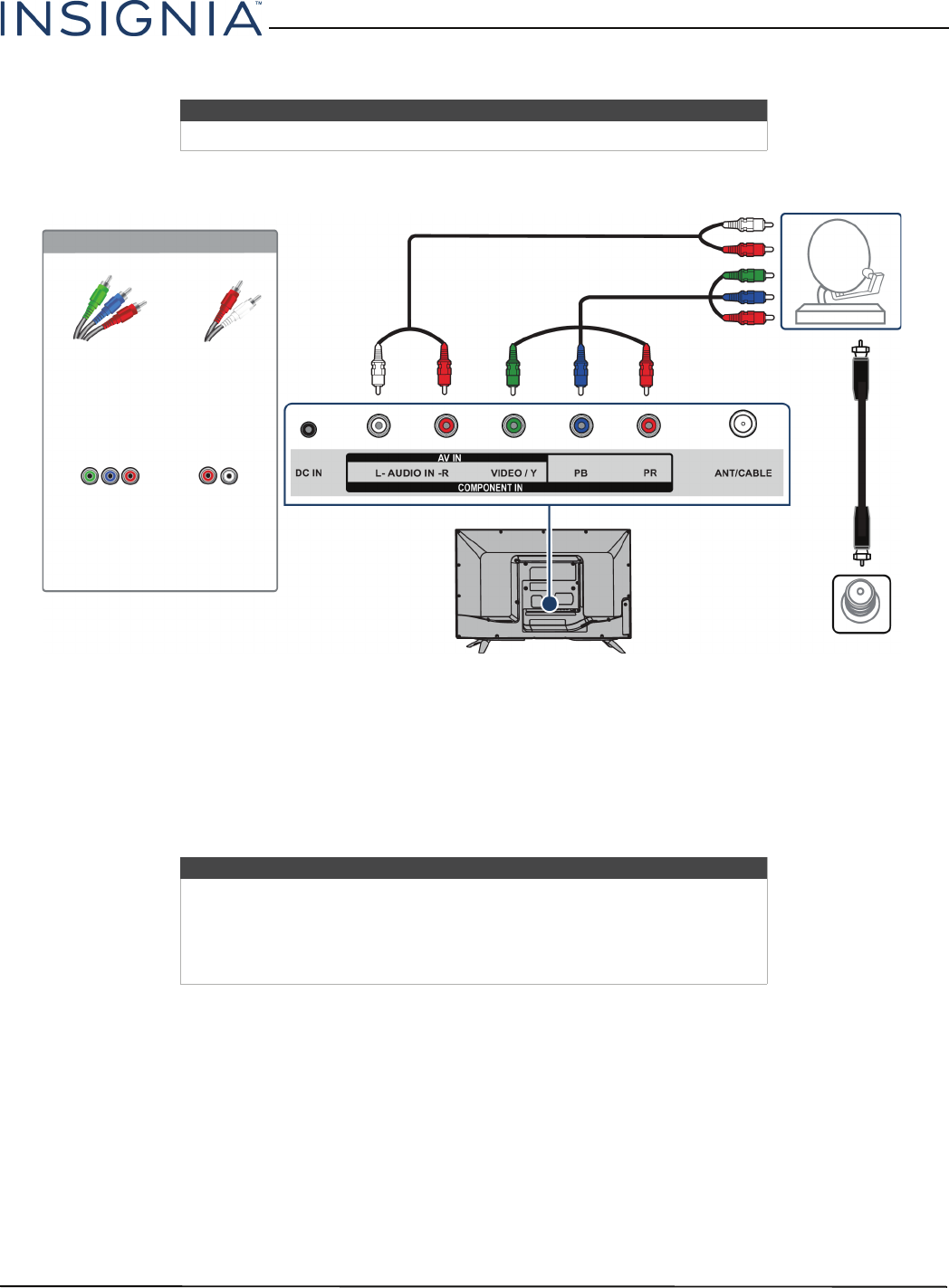

Component video (better) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
AV (composite video) (good). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Coaxial (good). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Connecting an antenna or cable TV (no box) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Connecting a DVD or Blu-ray player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
HDMI (best) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Component video (better) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
AV (composite video) (good). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Connecting a game console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
HDMI (best) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Component video (better) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
AV (composite video) (good). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Connecting a computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
iii
Contents
www.insigniaproducts.com
Connecting a USB flash drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

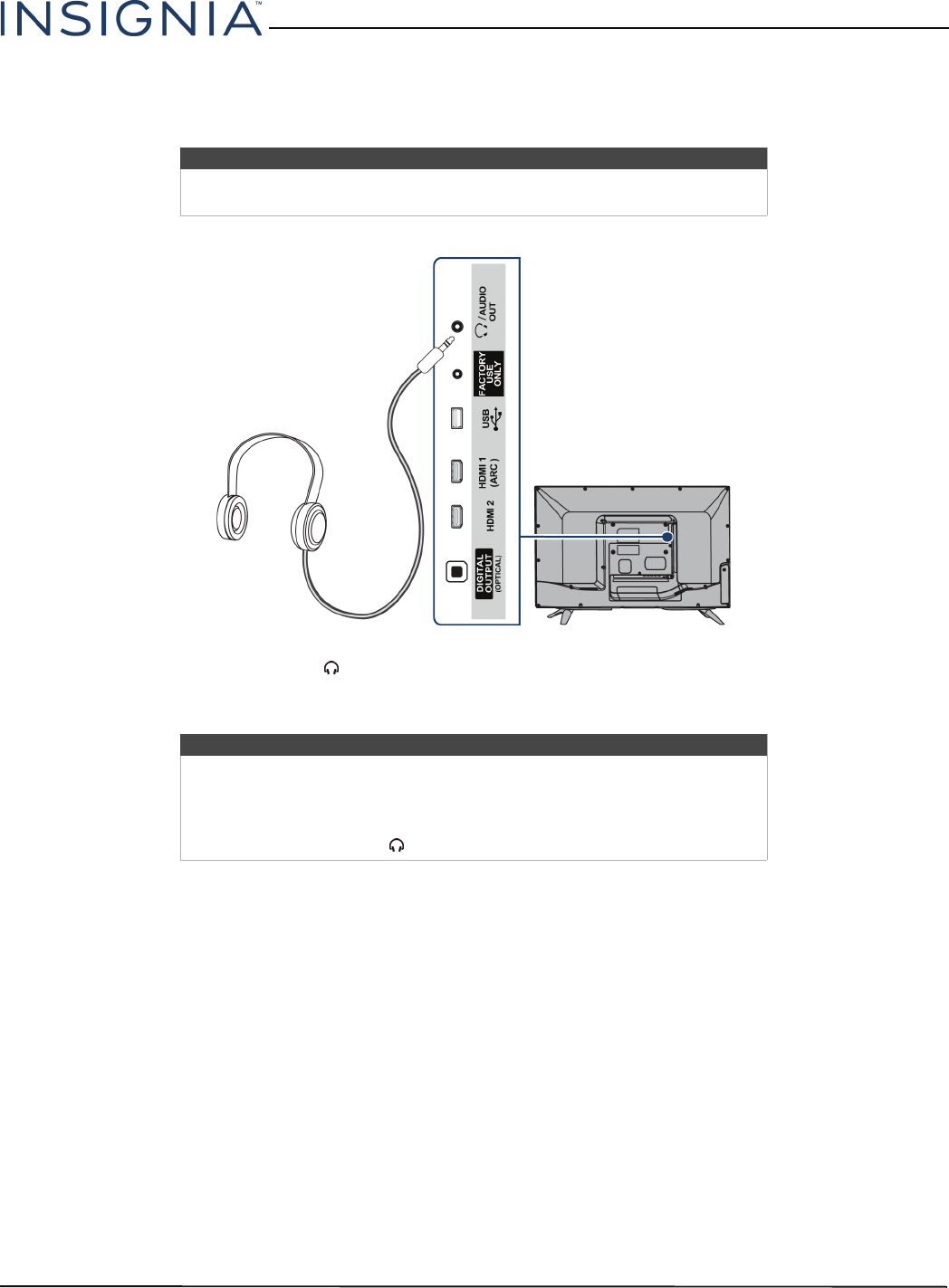

Connecting headphones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Connecting external speakers or a sound bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

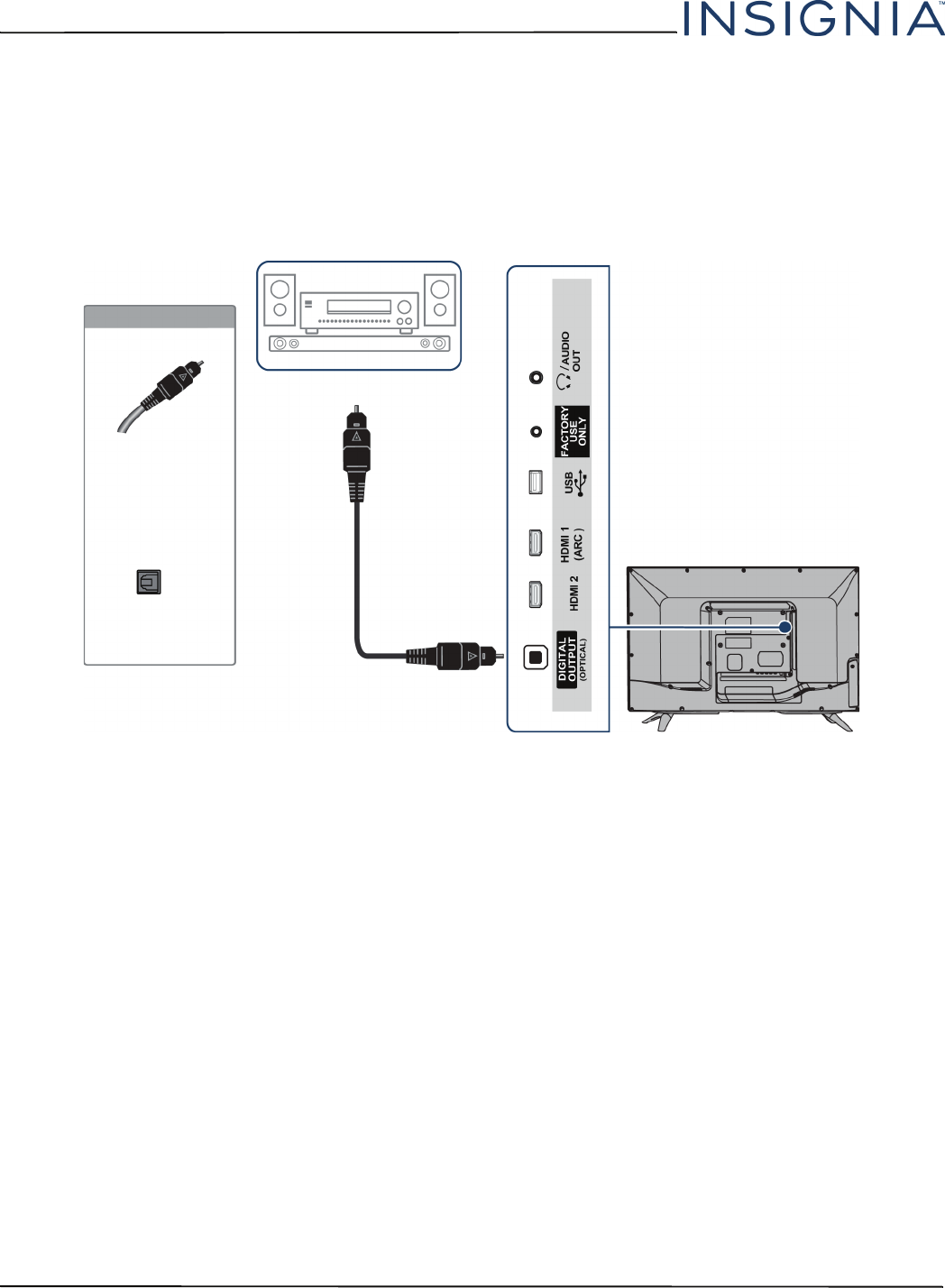

Digital audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Analog audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Connecting a home theater system with multiple devices . . . . . . . . . . . . . . . . . . . . 29
Connecting power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Using the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Installing remote control batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Aiming the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Programming universal remote controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Viewing universal remote control codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Turning on your TV for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Understanding the basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Turning your TV on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Selecting the video input source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
On-screen menu overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Navigating the menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Selecting a channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Adjusting the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Viewing channel information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Using INlink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Turning INlink on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Turning Device Auto Power Off on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Turning TV Auto Power On on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Turning Audio Receiver on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Displaying a list of INlink-compatible devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Selecting an INlink-compatible device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Using a USB flash drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Switching to USB mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

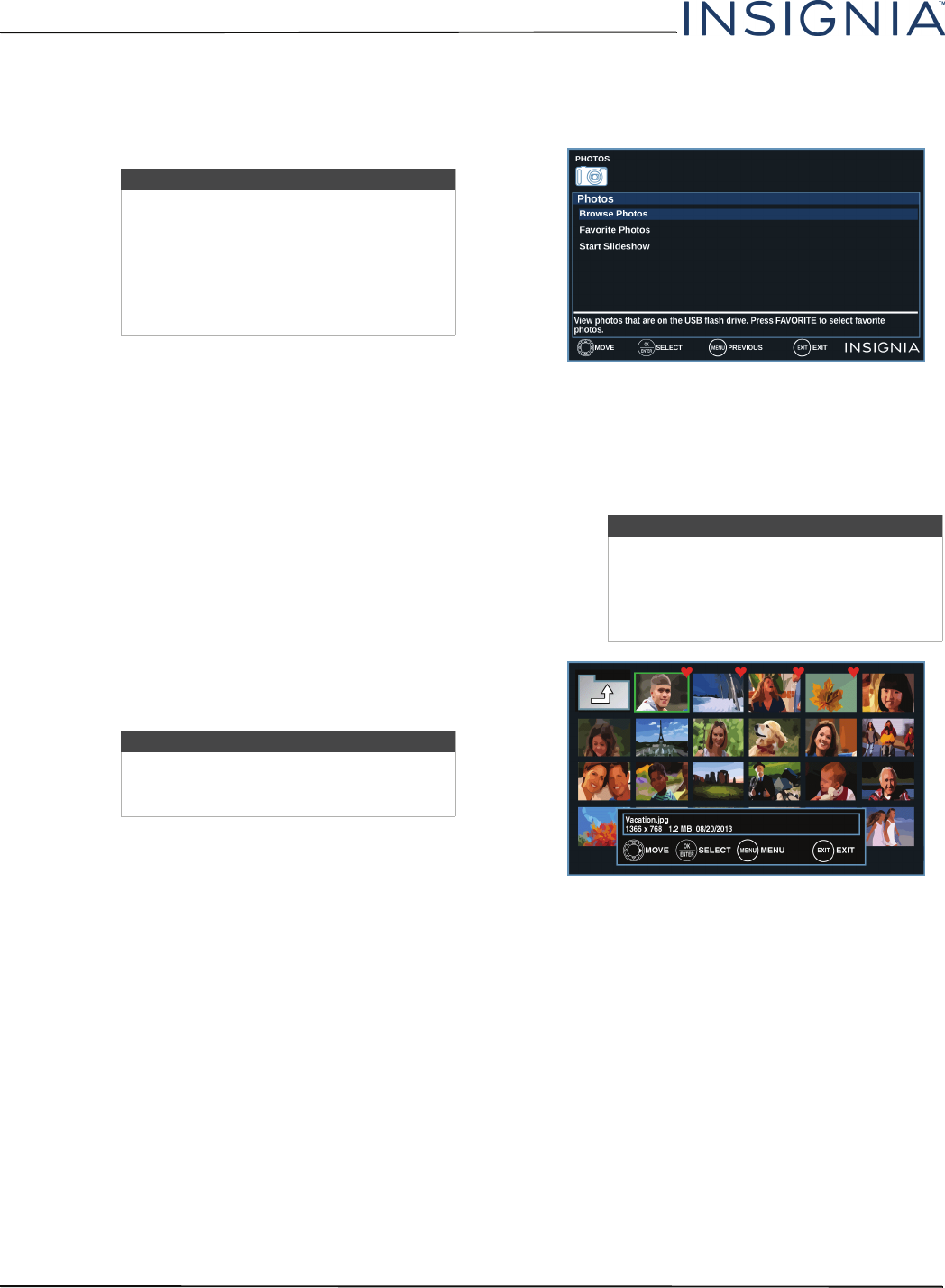

Browsing photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Viewing favorite photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Viewing photos in a slideshow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Adjusting the picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Adjusting the TV picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Automatically adjusting the aspect ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Setting the power on picture mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
iv
Contents
www.insigniaproducts.com
Adjusting the sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Adjusting sound settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Selecting the audio out mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Playing TV audio only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Changing channel settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Automatically scanning for channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Hiding channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Setting up a favorite channel list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Viewing a favorite channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Adding or changing a channel label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Checking the digital signal strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Setting parental controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Setting or changing the password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Blocking unrated TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Setting parental control levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Downloading rating information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Locking control buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Using closed captioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Turning closed captioning on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Selecting the analog closed captioning mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Selecting the digital closed captioning mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Customizing digital closed captioning settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Adjusting time settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Setting the sleep timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Adjusting menu settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Selecting the menu language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Turning the input sensor on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Labeling an input source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Maintaining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Cleaning the TV cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Cleaning the TV screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Viewing system information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Learning more . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Updating the TV firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Customizing TV settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Restoring settings to the defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Video and audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
INlink (CEC-compatible) device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
v
Contents
www.insigniaproducts.com
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Legal notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
One-year limited warranty - Insignia Televisions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
1
www.insigniaproducts.com
CHILD SAFETY
PROPER TELEVISION PLACEMENT MATTERS
THE CONSUMER ELECTRONICS INDUSTRY CARES
•
Manufacturers, retailers and the rest of the consumer electronics industry are
committed to making home entertainment safe and enjoyable.
•
As you enjoy your television, please note that all televisions - new and old - must be
supported on proper stands or installed according to the manufacturer's
recommendations. Televisions that are inappropriately situated on dressers, bookcases,
shelves, desks, speakers, chests, carts, etc., may fall over, resulting in injury.
TUNE IN TO SAFETY
•
ALWAYS follow the manufacturer’s recommendations for the safe installation of your
television.
•
ALWAYS read and follow all instructions for proper use of your television.
•
NEVER allow children to climb on or play on the television or the furniture on which the
television is placed.
•
NEVER place the television on furniture that can easily be used as steps, such as a chest
of drawers.
•
ALWAYS install the television where it cannot be pushed, pulled over or knocked down.
•
ALWAYS route cords and cables connected to the television so that they cannot be
tripped over, pulled or grabbed.
WALL OR CEILING MOUNT YOUR TELEVISION
•
ALWAYS contact your retailer about professional installation if you have any doubts
about your ability to safely mount your television.
•
ALWAYS use a mount that has been recommended by the television manufacturer and
has a safety certification by an independent laboratory (such as UL, CSA, ETL).
•
ALWAYS follow all instructions supplied by the television and mount manufacturers.
•
ALWAYS make sure that the wall or ceiling where you are mounting the television is
appropriate. Some mounts are not designed to be mounted to walls and ceilings with
steel studs or cinder block construction. If you are unsure, contact a professional
installer.
•
Televisions can be heavy. A minimum of two people is required for a wall or ceiling
mount installation.
MOVING AN OLDER TELEVISION TO A NEW PLACE IN YOUR
HOME
•
Many new television buyers move their older CRT televisions into a secondary room
after the purchase of a flat-panel television. Special care should be made in the
placement of older CRT televisions.
•
ALWAYS place your older CRT television on furniture that is sturdy and appropriate for
its size and weight.
•
NEVER place your older CRT television on a dresser where children may be tempted to
use the drawers to climb.
•
ALWAYS make sure your older CRT television does not hang over the edge of your
furniture.
2
www.insigniaproducts.com
Important Safety Instructions
1Read these instructions.
2Keep these instructions.
3Heed all warnings.
4Follow all instructions.
5Do not use this apparatus near water.
6Clean only with dry cloth.
7Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10 Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11 Only use attachments/accessories specified by the
manufacturer.
12 Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the
cart/apparatus combination to
avoid injury from tip-over.
13 Unplug this apparatus during lightning storms or
when unused for long periods of time.
14 Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord
or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
15 The wall plug is the disconnecting device. The plug
must remain readily operable.
16 Remote control batteries should not be exposed
to excessive heat such as sunshine, fire, or the like.
17 The apparatus should not be exposed to dripping
or splashing, and no objects filled with liquids,
such as vases, should be placed on the apparatus.
18 Your TV has four VESA mounting holes on the
back. If you attach a wall-mount bracket or TV
stand to the back of your TV, the bracket or stand
must be securely attached using to all four
holes. If you do not use all four mounting holes,
your TV may fall and cause property damage or
personal injury. See the documentation that came
with your wall mount or TV stand for complete
mounting instructions.
WARNING
Electric shock hazard
To reduce the risk of fire or electric shock, do not
remove any cover or expose the device to rain or
moisture. No user-serviceable parts are inside. Refer
servicing to qualified service technicians.
Lightning
For added protection for your device receiver during a
lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the
power outlet and disconnect any antenna or cable
system. This helps prevent property damage and
personal injury from lightning and power line surges.
Power lines
An outside antenna system should not be located in
the vicinity of overhead power lines or other electric
light or power circuits, or where it can fall into such
power lines or circuits. When installing an outside
antenna system, take extreme care to keep from
touching such power lines or circuits as contact with
them might be fatal.
Handling the LCD panel
• Your TV’s screen is made of glass. Do not drop your
TV or hit, jolt, or press hard against the LCD panel. If
the screen breaks, be careful of broken glass.
• If the LCD panel is broken, make absolutely sure that
you do not touch the liquid in the panel. This may
cause skin inflammation.
• If the liquid gets in your mouth, immediately gargle,
rinse, and consult with your doctor. Also, if the liquid
gets in your eyes or touches your skin, consult with
your doctor after rinsing for at least 15 minutes or
longer in clean water.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that
dangerous voltage
constituting a risk of electric
shock is present within your TV.
This label is located on the
back of your TV.
This symbol indicates that
there are important operating
and maintenance instructions
in the literature accompanying
your TV.
3
NS-32D220NA16
www.insigniaproducts.com
Replacement parts
When replacement parts are required, make sure that
the service technician uses replacement parts
specified by the manufacturer that have the same
characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock,
personal injury, or other hazards.
Safety check
After completing any service or repair to this device,
ask the service technician to perform routine safety
checks to determine that your TV is in correct
operating condition.
Power source
Operate your TV only from the type of power source
indicated on the marking label. If you are not sure of
the type of power supplied to your home, consult an
electrician or your local power company.
Servicing
These servicing instructions are for use by qualified
service personnel only. To reduce the risk of electric
shock, do not perform any servicing other than that
contained in the operating instructions unless you are
qualified to do so.
CAUTION
Damage requiring service
Unplug this TV from the power outlet and refer
servicing to qualified service personnel under the
following conditions:
• When the power supply cord or plug is damaged or
frayed.
• If liquid has been spilled or objects have fallen into
your TV.
• If your TV has been exposed to rain or water.
• If your TV does not operate normally by following
the operating instructions. Adjust only those
controls covered by the operating instructions
because incorrect adjustment of other controls may
result in damage and will often require extensive
work by a qualified technician to restore your TV to
its normal operation.
• If your TV has been dropped or damaged in any
way.
• When your TV exhibits a distinct change in
performance.
Outdoor antenna grounding
If an outside antenna or cable system is connected to
your TV, make sure that the antenna or cable system is
grounded to provide some protection against voltage
surges and built-up static charges. Article 810 of the
National Electrical Code, ANSI/NFPA No. 70, provides
information with respect to correct grounding of the
mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of
grounding conductors, location of the
antenna-discharge unit, connection to grounding
electrodes, and requirements for the grounding
electrode.
Note to CATV system installer
Article 820 of the National Electrical Code, ANSI/NFPA
No. 40 provides guidance for correct grounding.
Specifically, it states that the cable ground must be
connected to the grounding system of the building as
close to the point of cable entry as practical.
Condensation
Moisture will form on the TV if the TV is brought from
cool surroundings into a warm room or if the
temperature of the room rises suddenly. When this
happens, the TV's performance may be impaired. To
prevent this, let the TV stand in its new surroundings
for about an hour before switching it on, or make sure
that the room temperature rises gradually.
Condensation may also form during the summer if
the TV is exposed to the breeze from an air
conditioner. In such cases, change the location of the
TV.
Mobile telephone warning
To avoid interference with your TV picture and sound,
operating problems, or even damage, keep your
cordless and cellular telephones away from the TV.
End of life directives
Your TV may contain materials that are regulated for
environmental reasons. Your TV also contains
materials that can be recycled and reused. To help
protect the environment, contact your local
authorities for information about disposal or recycling
and about finding a recycler in your area before you
dispose of your TV.
Non-active pixels
The LCD panel contains almost 3 million thin film
transistors, which provide exceptionally sharp video
quality. Occasionally, a few non-active pixels may
appear on the screen as a fixed blue, green, or red
point. These non-active pixels do not adversely affect
the performance of your TV, and are not considered
defects.

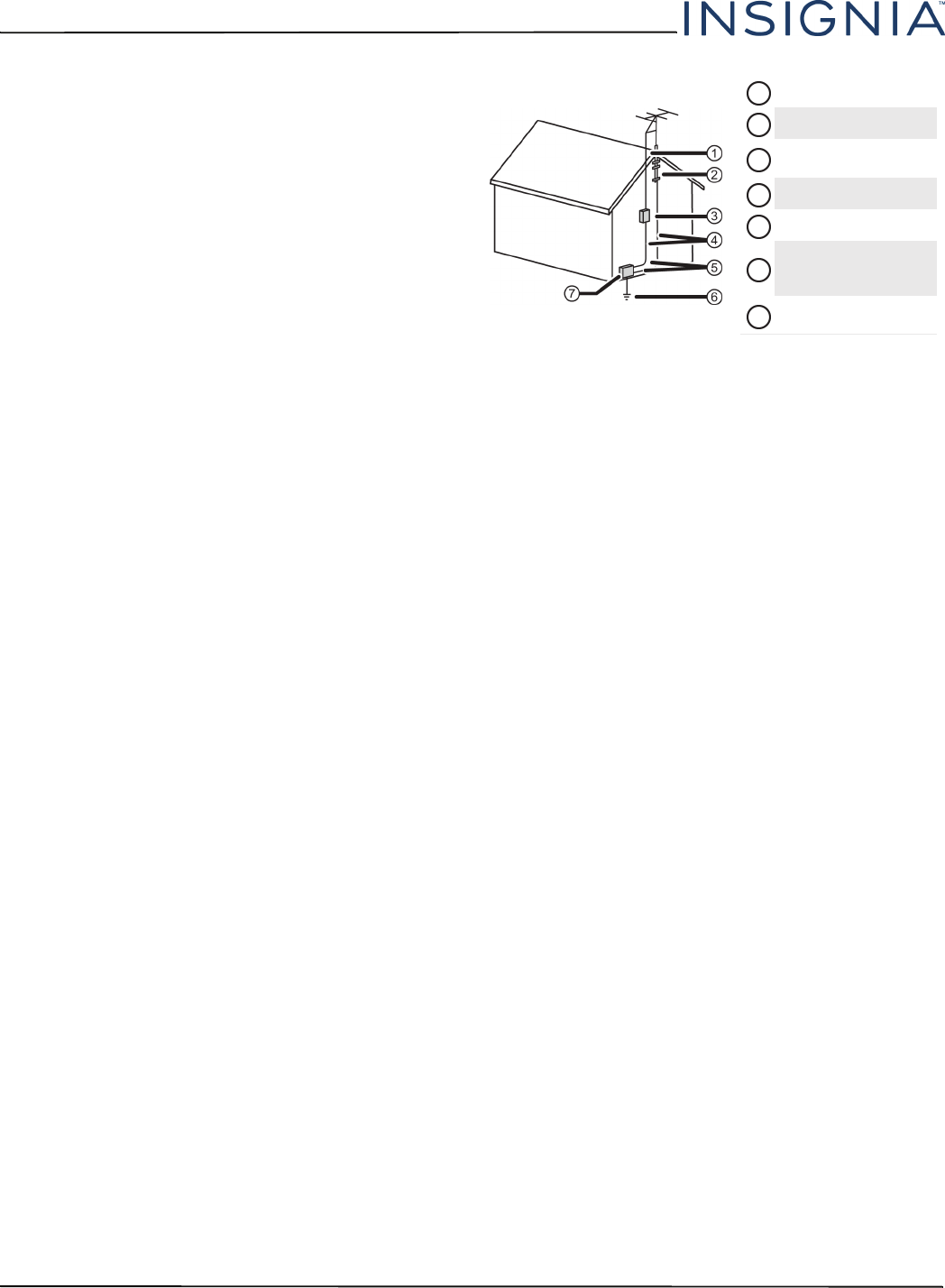

Antenna lead-in wire
Grounding clamp
Antenna discharge
unit
Grounding conductors
Ground clamps
Power service
grounding electrode
system
Electric service
equipment
1
2
3
4
5
6
7
4
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Insignia 32" 720p 60Hz LED TV
Introduction
Congratulations on your purchase of a high-quality
Insignia product. Your NS-32D220NA16 represents
the state of the art in LED TV design and is designed
for reliable and trouble-free performance.

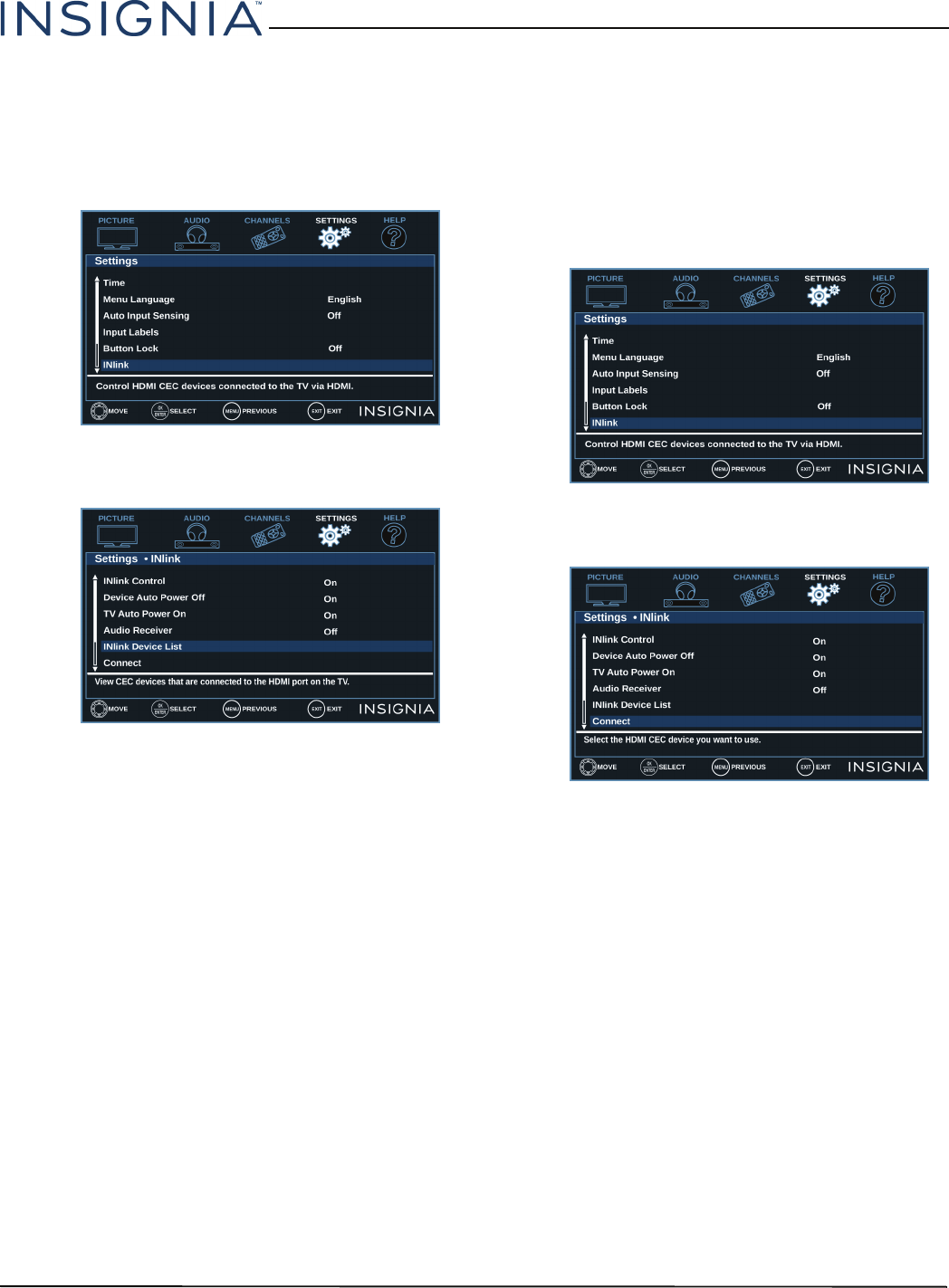

INlink
Enjoy the benefit of having HDMI CEC-compatible
products plug and play! No setup is needed! CEC
technology lets different devices discover and
communicate with each other. (See page 38 for
instructions on how to use INlink.)
Game mode
Video games generally require adjustments to the TV
picture settings to get the maximum experience. By
simply pressing the GAME button on your remote
control, your TV settings will automatically adjust for
video games. It couldn't be easier.
5
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Installing the stands or wall-mount bracket

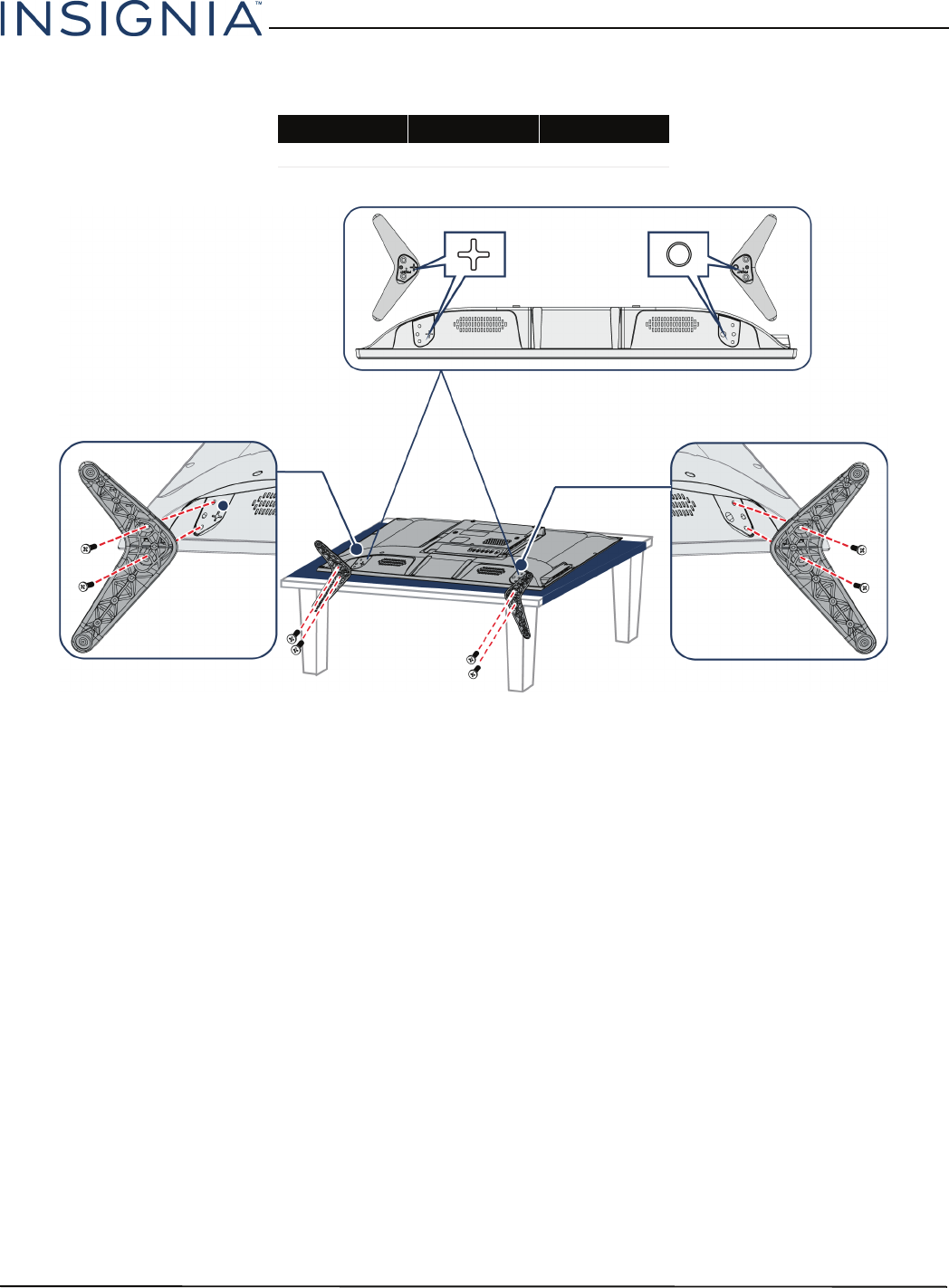

Installing the stands
1Carefully place your TV face-down on a cushioned, clean surface to protect the screen from damages and scratches.
Notes
• If you plan to wall-mount your TV, do not install the stands.
• Store the stands and stand screws in case you decide to use the stands
in the future.
6
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
2With the stand legs pointing outward, align the raised area of the left stand with the indentation on the TV, then
secure the stand to the TV with two of the provided screws. Repeat to attach the right stand.
Screw type Screw length # of screws
M4 15 mm 4
7
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Installing a wall-mount bracket

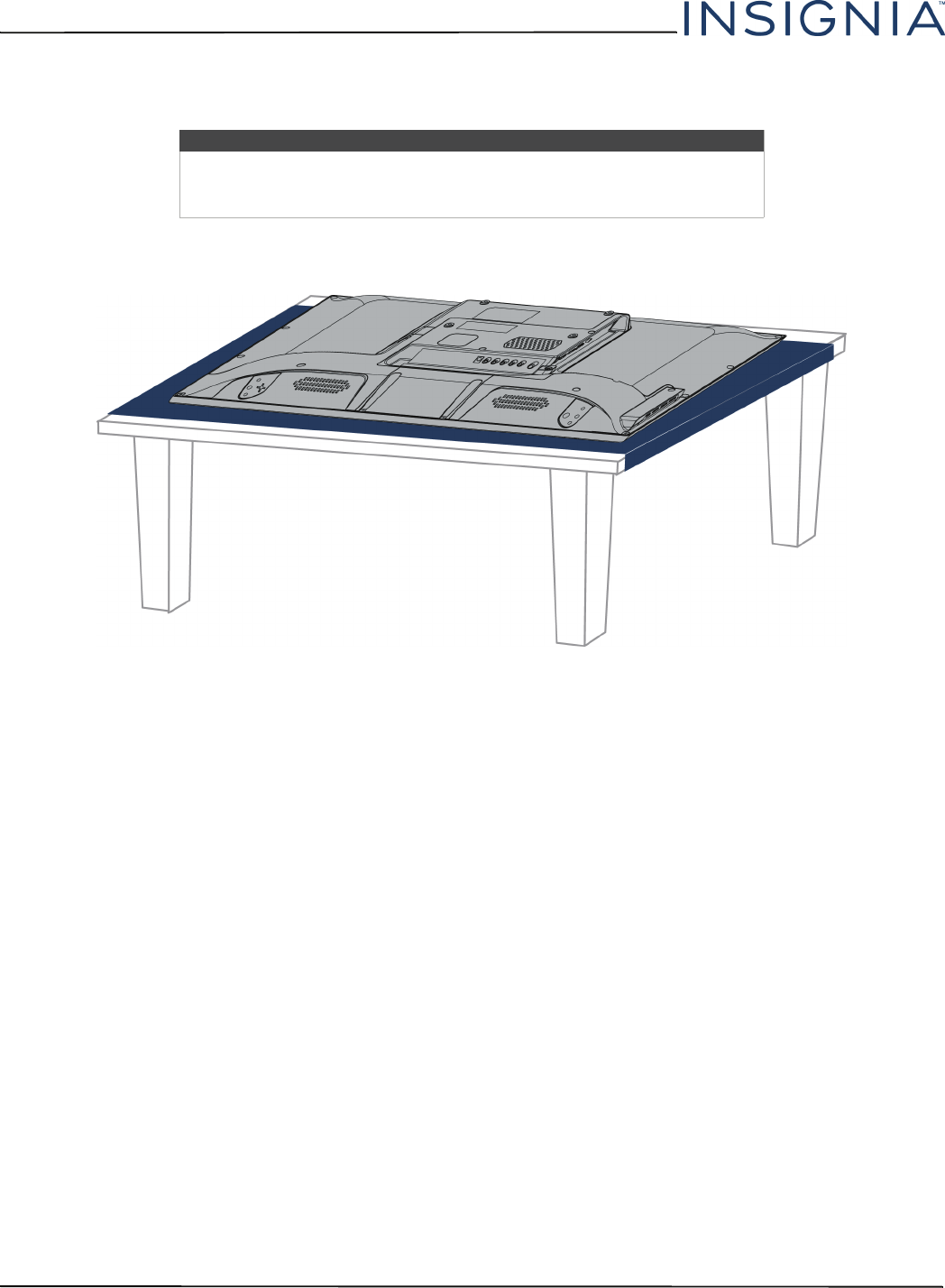

1Carefully place your TV face-down on a cushioned, clean surface to protect the screen from damages and scratches.
2If the TV stands are installed, remove the screws that secure the stands to the TV screen.
3Attach the wall-mount bracket to your TV using the mounting holes on the back of your TV. See the instructions that
came with the wall-mount bracket for information about which screws to use and how to correctly hang your TV.
Warning
• Your TV has four VESA mounting holes on the back. If you attach a
wall-mount bracket to the back of your TV, the bracket must be
securely attached, using all four holes. If you do not use all four
mounting holes, your TV may fall and cause property damage or
personal injury. See the documentation that came with your wall mount
for complete mounting instructions.
• This TV is intended to be supported by a UL Listed wall mount bracket
with suitable weight/load. (See “Miscellaneous” on page 71.)
Notes
• The length of the wall-mount screws vary depending on the wall-mount
bracket you purchased. See the instructions that came with the
wall-mount bracket for screw lengths.
• The mounting holes on the back of your TV take type M4 screws.
7.87 in. (200 mm)
3.94 in. (100 mm)
8
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
TV components
Package contents
•32" LED TV
• Remote control and batteries (2 AAA)
•TV stands (2)
• TV stand screws (M4 × 15 mm) (4)
• AC power adapter
• Quick Setup Guide
• Important Information

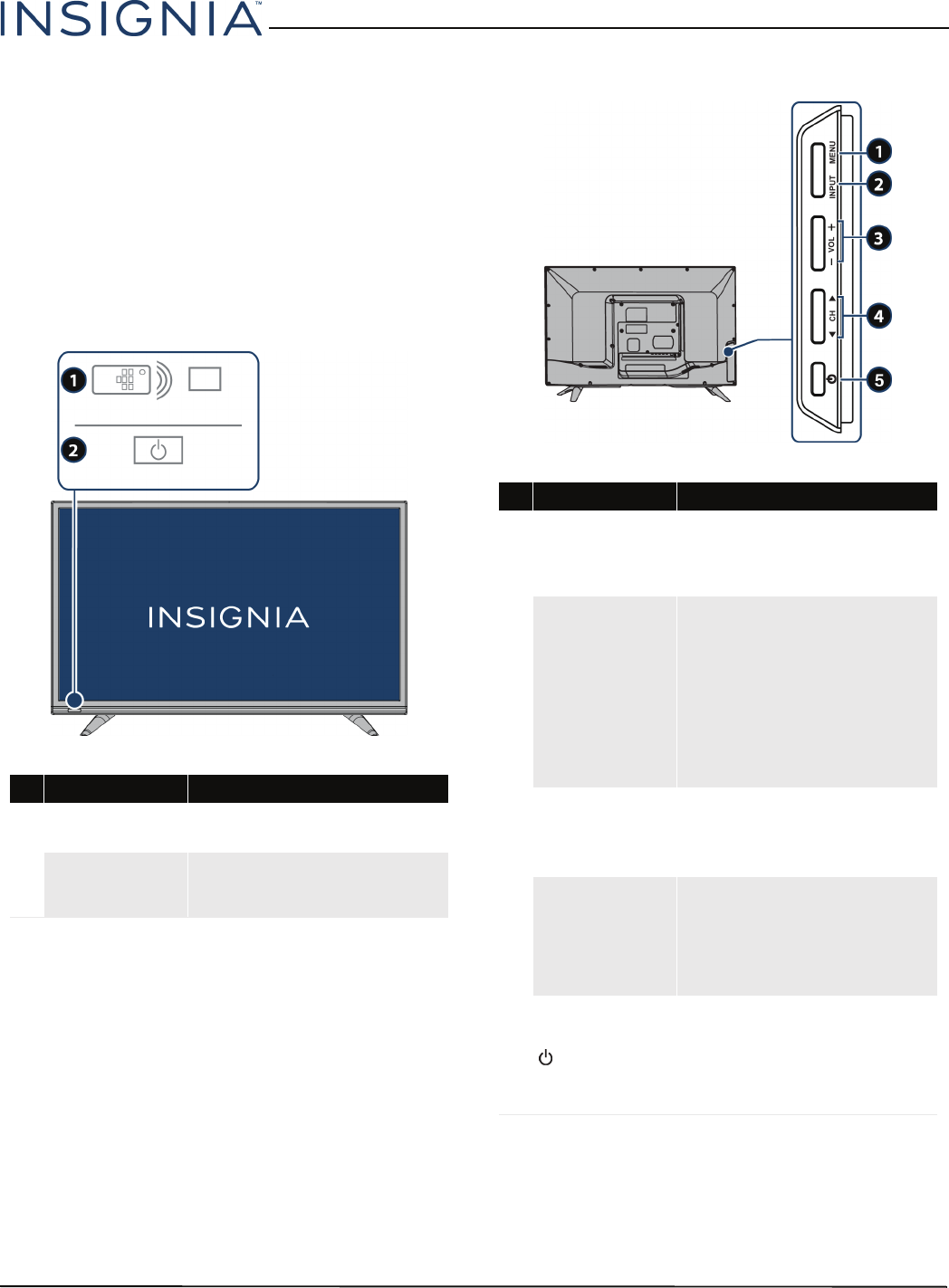

Front
TV buttons
#Item Description
1Remote control
sensor
Receives signals from the remote
control. Do not block.
2Power indicator
Turns off when your TV is on.
Lights red when your TV is off
(standby mode).
#Item Description
1MENU
Press to open the on-screen
menu. For more information, see
“Navigating the menus” on
page 37.
2INPUT
Press to open the INPUT SOURCE
list, press CHTor CHS to select
the video input source you want,
then wait a few seconds. Your TV
switches to the source you
selected. For more information,
see “Selecting the video input
source” on page 35.
In menu mode, press to confirm
selections.
3VOL–/VOL+
Press to decrease or increase the
volume.
In TV menus, moves the highlight
left or right.
4CHT/CHS
Press to go to the previous or next
channel in the channel list. For
more information, see “Selecting
a channel” on page 37.
In TV menus, moves the highlight
down or up.
5 (power)
Press to turn your TV on or off
(standby mode).
Warning: When your TV is off,
power still flows through it. To
completely disconnect power,
unplug the AC power adapter.
9
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

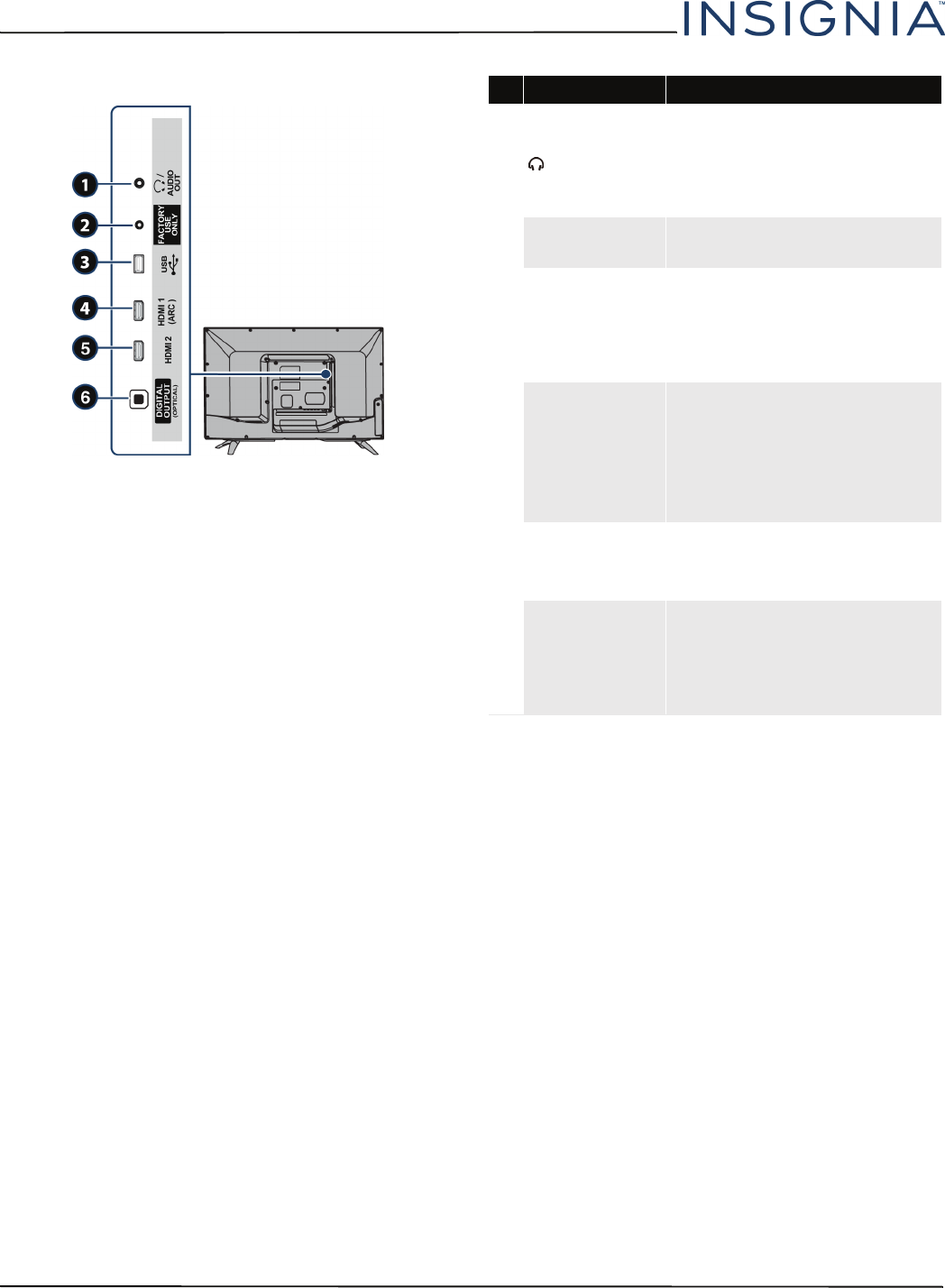

Side
#Item Description

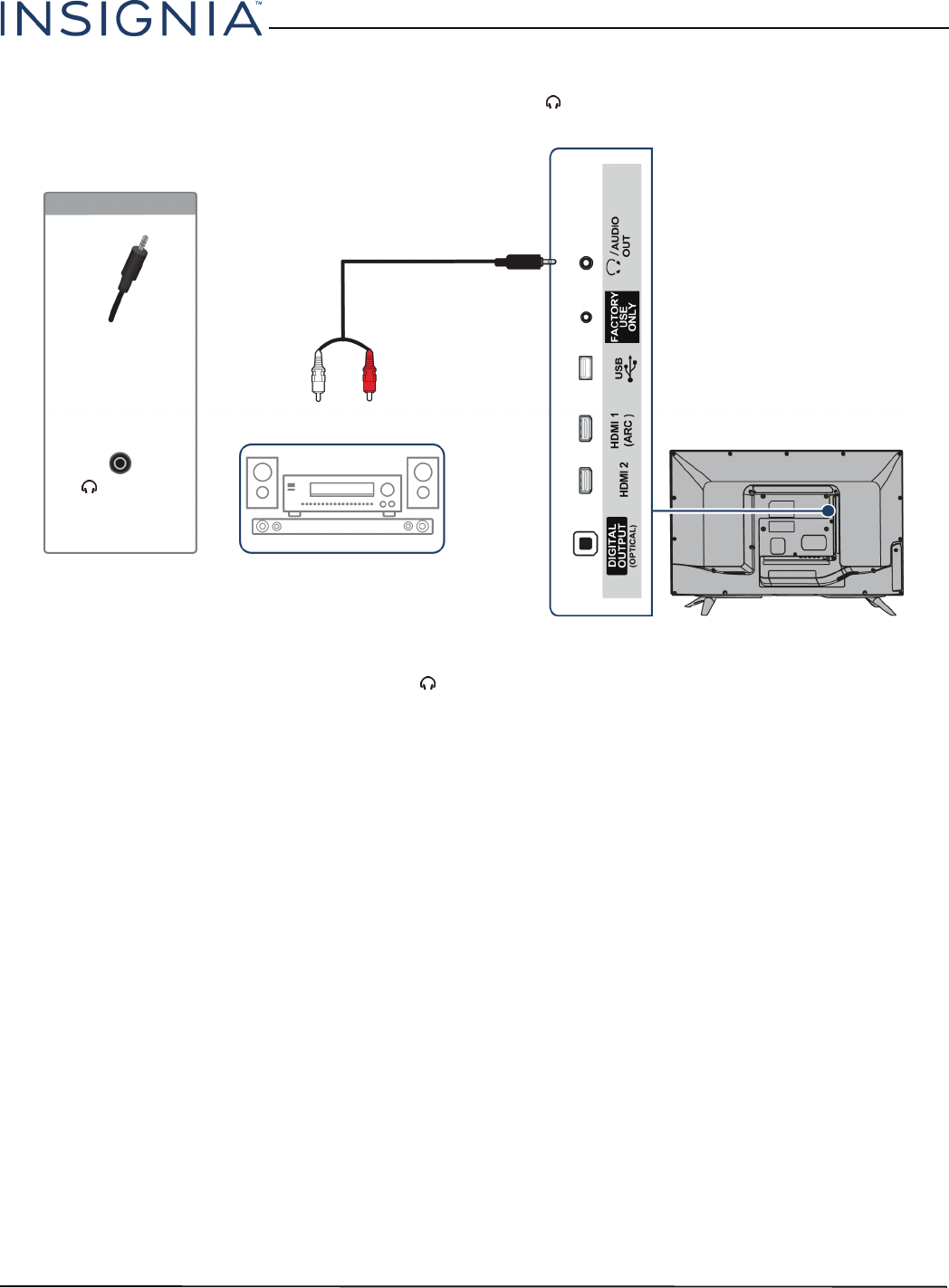

1/AUDIO OUT
Connect headphones, a sound bar,
analog speaker system, or a home
theater system to this jack to listen
to TV audio through external
speakers. For more information, see
“Analog audio” on page 28.
2FAC TORY USE
ONLY
Do not plug anything into this jack.
3USB
Connect a USB flash drive to this
jack to view compatible JPEG
picture files. For more information,
see “Connecting a USB flash drive”
on page 25 and “Using a USB flash
drive” on page 41.
4HDMI 1 (ARC)
Connect an HDMI device to this
jack. For more information, see
“HDMI (best)” on page 13, 18, 21,
or 24.
OR
Connect an ARC-enabled home
theater receiver to this jack.
5HDMI 2
Connect an HDMI device to this
jack. For more information, see
“HDMI (best)” on page 13, 18, 21,
or 24.
6DIGITAL OUTPUT
(OPTICAL)
Connect a sound bar, digital
speaker system, or home theater
system to this jack to listen to TV
audio through external speakers.
For more information, see “Digital
audio” on page 27.
10
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Back

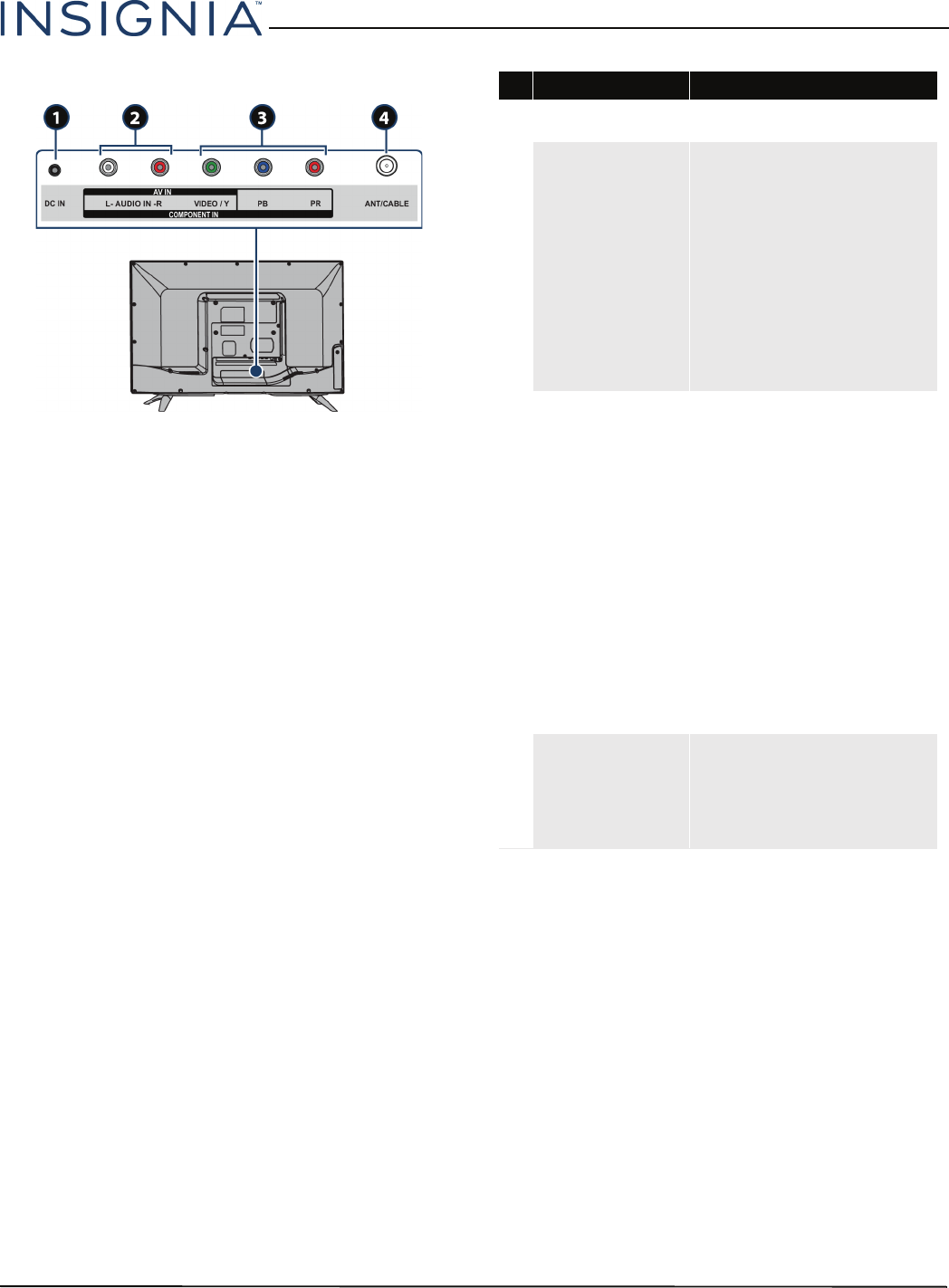

#Item Description
1DC IN Plug the AC power adapter into
this connector.
2L and R AUDIO IN
Connect the audio for a
component video device to
these jacks. For more
information, see “Component
video (better)” on page 14, 19,
or 22.
OR
Connect the audio for an AV
(composite video) device to
these jacks. For more
information, see “AV (composite
video) (good)” on page 15, 20,
or 23.
3
VIDEO / Y, PB, PR
OR
VIDEO / Y
The component video and AV
(composite video) jacks are
shared. You can connect only
one component video or AV
device at a time.
Connect the video for a
component video device to the
VIDEO / Y, Pb, and PR jacks. For
more information, see
“Component video (better)” on
page 14, 19, or 22.
OR
Connect the video for an AV
(composite video) device to the
VIDEO / Y jack. For more
information, see “AV (composite
video) (good)” on page 15, 20,
or 23.
4ANT / CABLE
Connect an antenna or cable TV
to this jack. For more
information, see “Coaxial
(good)” on page 16 or
“Connecting an antenna or
cable TV (no box)” on page 17.
11
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

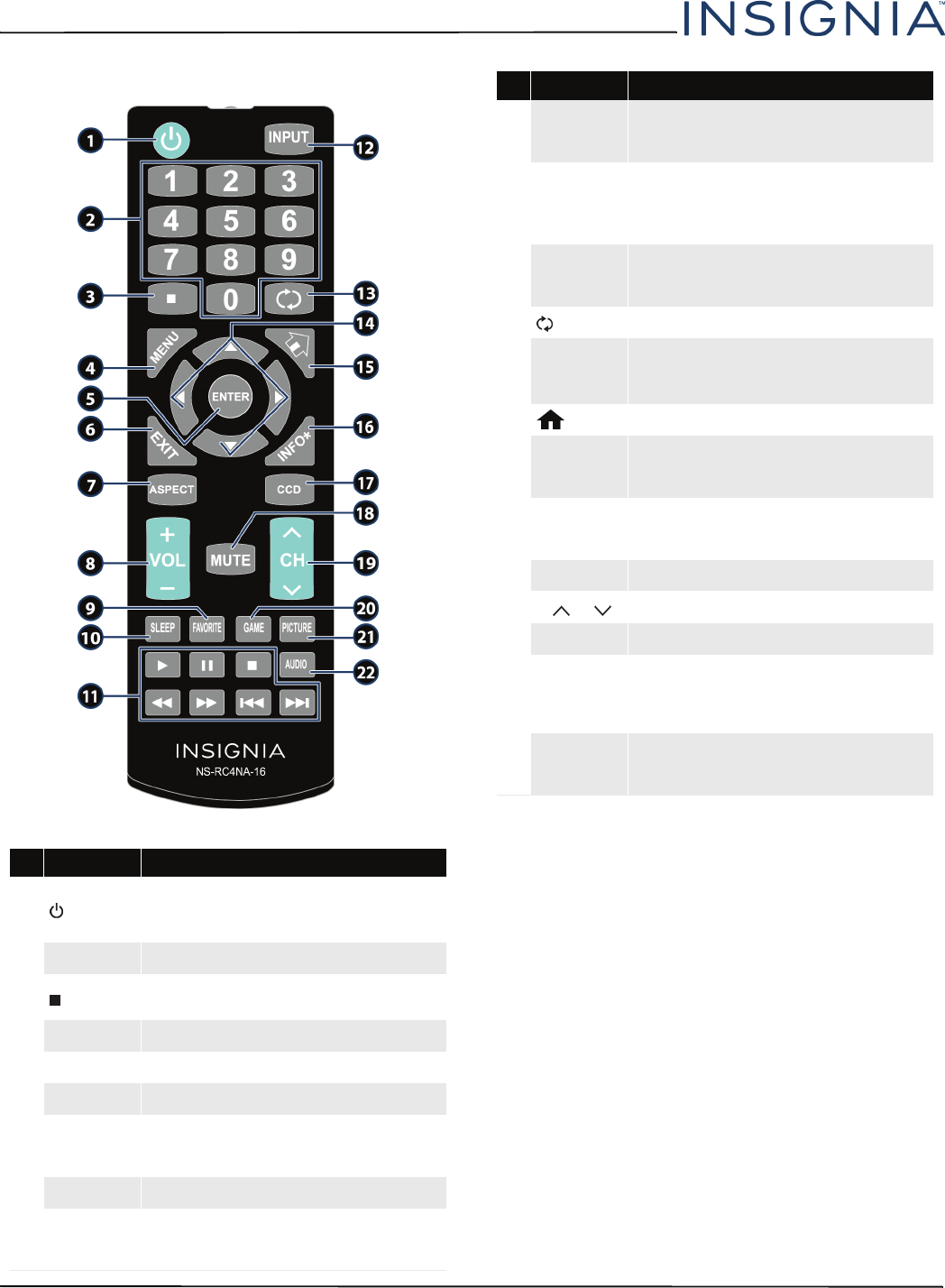

Remote control
#Button Press to...
1
(power)
Turn your TV on or off (standby mode).
Warning: When your TV is off, power still flows through it.
To disconnect power, unplug the AC power adapter.
2
Numbers Enter channel numbers and the parental control password.
3
Enter a digital sub-channel number. See “Selecting a
channel” on page 37.
4
MENU Open the on-screen menu.
5
ENTER Confirm selections or changes in on-screen TV menus.
6
EXIT Close the on-screen TV menu.
7
ASPECT
Change how the picture looks on the screen (aspect ratio).
See the Aspect Ratio option in “Adjusting the TV picture”
on page 43.
8
VOL+/– Increase or decrease the volume.
9
FAVORITE
Open the Favorite channel list. See “Setting up a favorite
channel list” on page 49 and “Viewing a favorite channel” on
page 50.
10
SLEEP
Set the sleep timer. You can select Off, 5, 10, 15, 30, 60, 90,
120, 180, or 240 minutes. See “Setting the sleep timer” on
page 58.
11
Media Controls

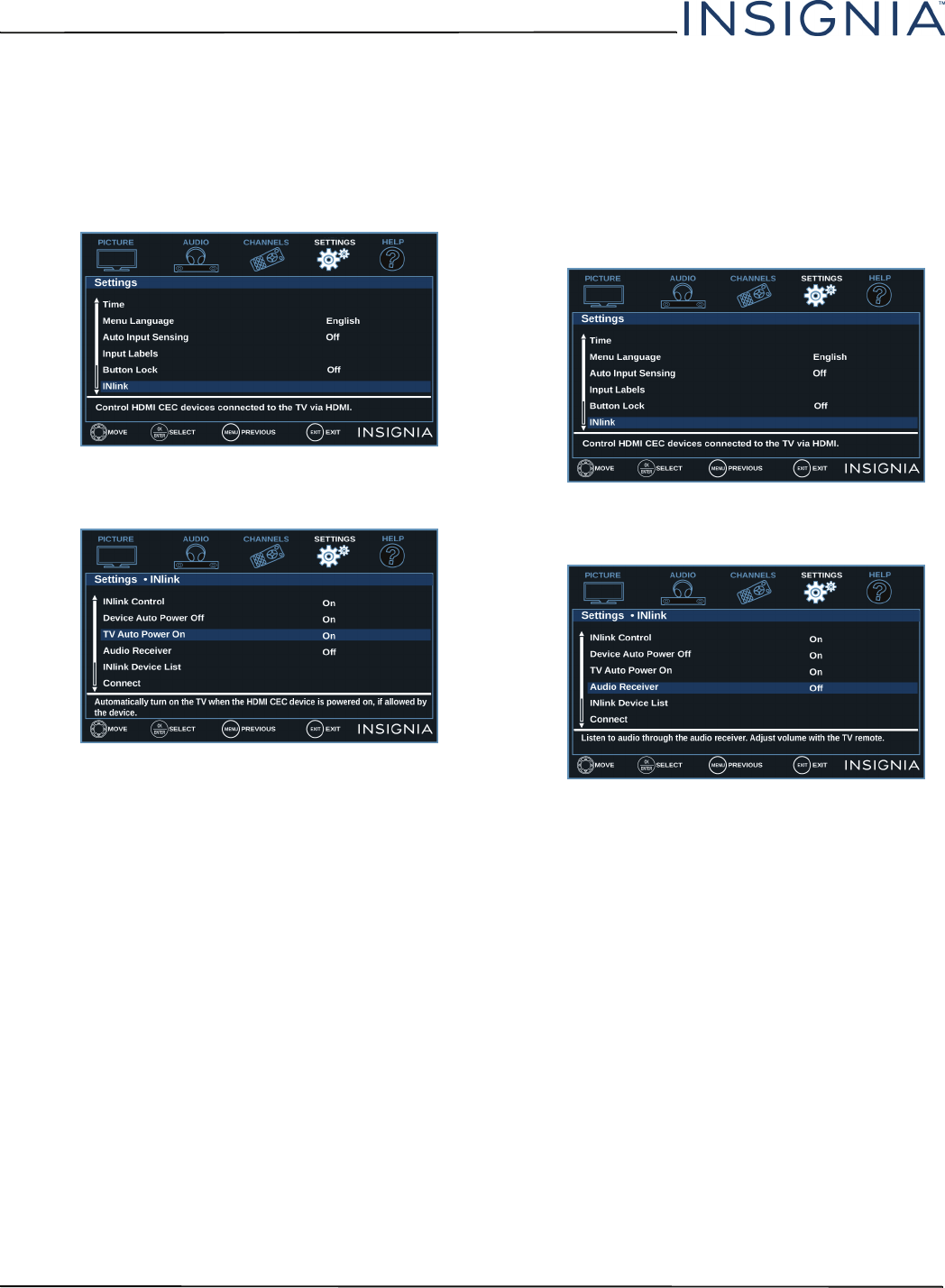

INlink—Control INlink-compatible (HDMI CEC) devices. See
“Using INlink” on page 38.

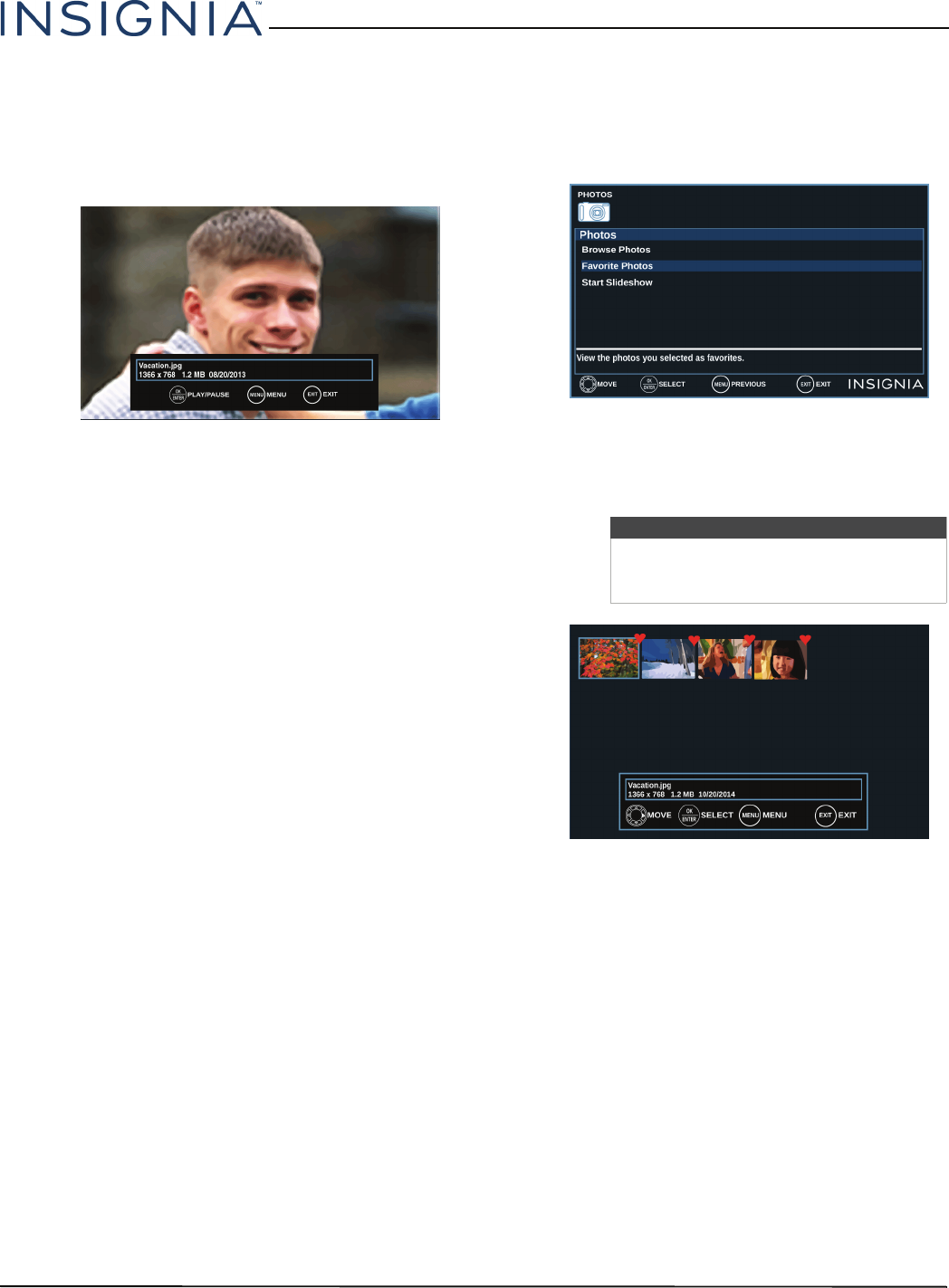

USB—Control a photo slideshow. See “Viewing photos in a
slideshow” on page 43.
12
INPUT
Open the INPUT SOURCE list. Press
S
or
T
to select the
video input source, then press ENTER. See “Selecting the
video input source” on page 35.
13
(return) Return to the previous channel.
14 S
T
W
X
TV menus—Navigate in on-screen TV menus and to adjust
settings.
USB—Control a photo slideshow.
15
(home) Open the on-screen menu.
16
INFO*
Display TV status information, such as the channel number,
channel name (if available), or signal source. See “Viewing
channel information” on page 37.
17
CCD
Turn closed captioning on or off. You can select CC Off, CC
On, or CC On when mute. See “Turning closed captioning
on or off” on page 55.
18
MUTE Mute or un-mute the sound.
19
CH /CH Change TV channels. See “Selecting a channel” on page 37.
20
GAME Change the picture mode to Game mode.
21
Select the picture mode. You can select Vivid, Standard,
Energy Savings, Movie, Game, or Custom. See the
Picture Mode option in “Adjusting the TV picture” on page
43.
22
AUDIO
Select the sound mode. You can select Standard, Theater,
Music, News, or Custom. See the Sound Mode option in
“Adjusting sound settings” on page 45.
#Button Press to...
12
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
What connection should I
use?
Your TV has several connection types for connecting
devices to your TV.
For the best video quality, you should connect a
device to the best available connection.

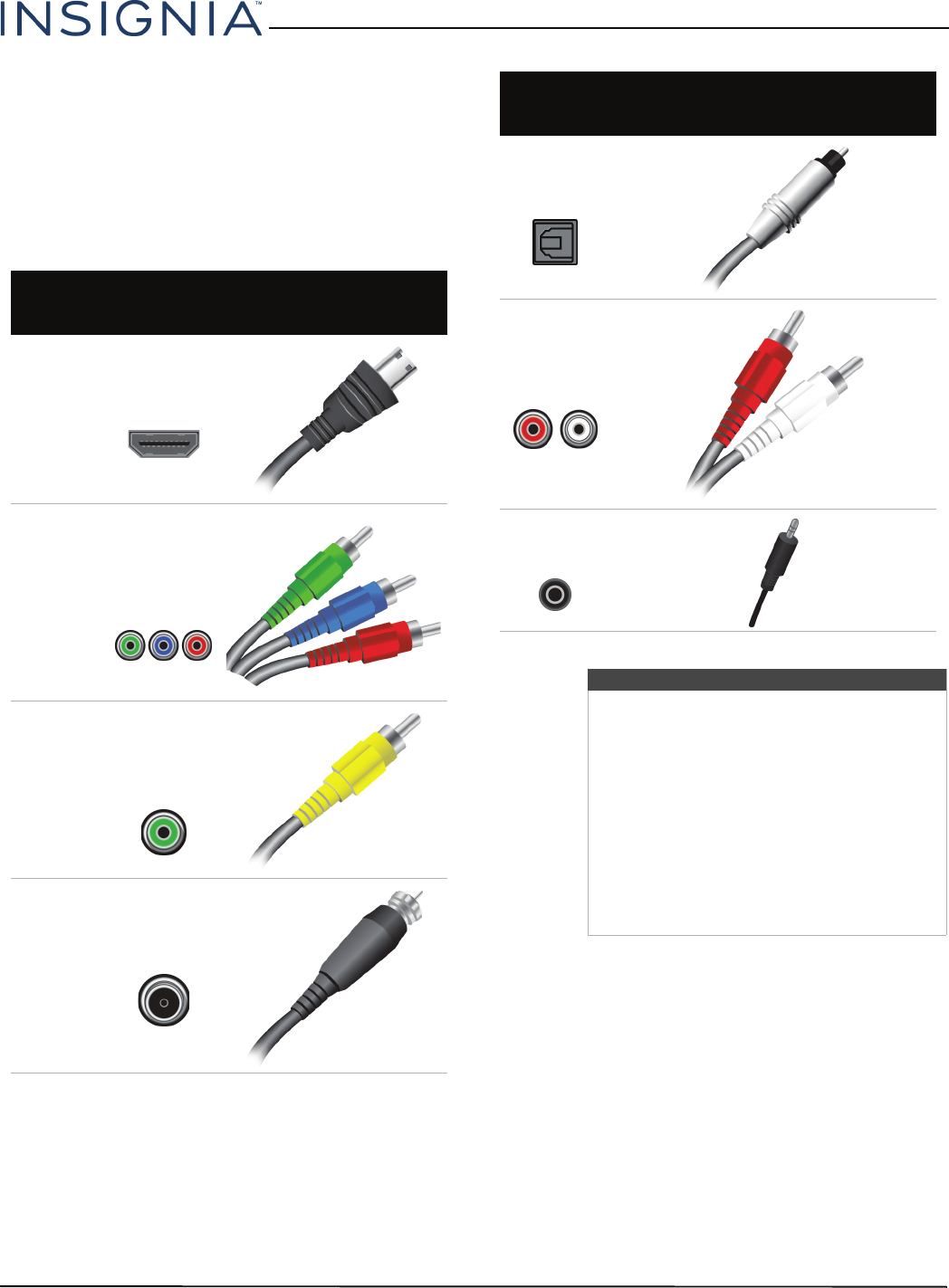

Use the following tables to identify cables:
Video
quality
Connection
type and
jack
Cable connector
Best (use this
if your devices
have HDMI)
HDMI
video/audio
Better than
composite or
coaxial
Component
video (requires
an audio
connection)
Better than
coaxial
AV (composite
video) (requires
an audio
connection)
Good
Coaxial
video/audio
Connection
type and
jacks
Cable connectors
Optical digital
audio
Analog audio
input
3.5mm analog
audio output
Cautions
• Check the jacks for position and type
before making any connections.
• Loose connections can result in image or
color problems. Make sure that all
connections are tight and secure.
• The external audio/video equipment
shown may be different from your
equipment. If you have questions, refer to
the documentation that came with your
equipment.
• Always unplug the AC power adapter
when connecting external equipment.
13
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Connecting a cable or satellite box
Many cable or satellite TV boxes have more than one connection type. To get the best video, you should use the best
connection type available. For more information, see “What connection should I use?” on page 12.
You can connect a cable or satellite box using:
•HDMI (best)
• Component video (better)
• AV (composite video) (good)
• Coaxial (good)

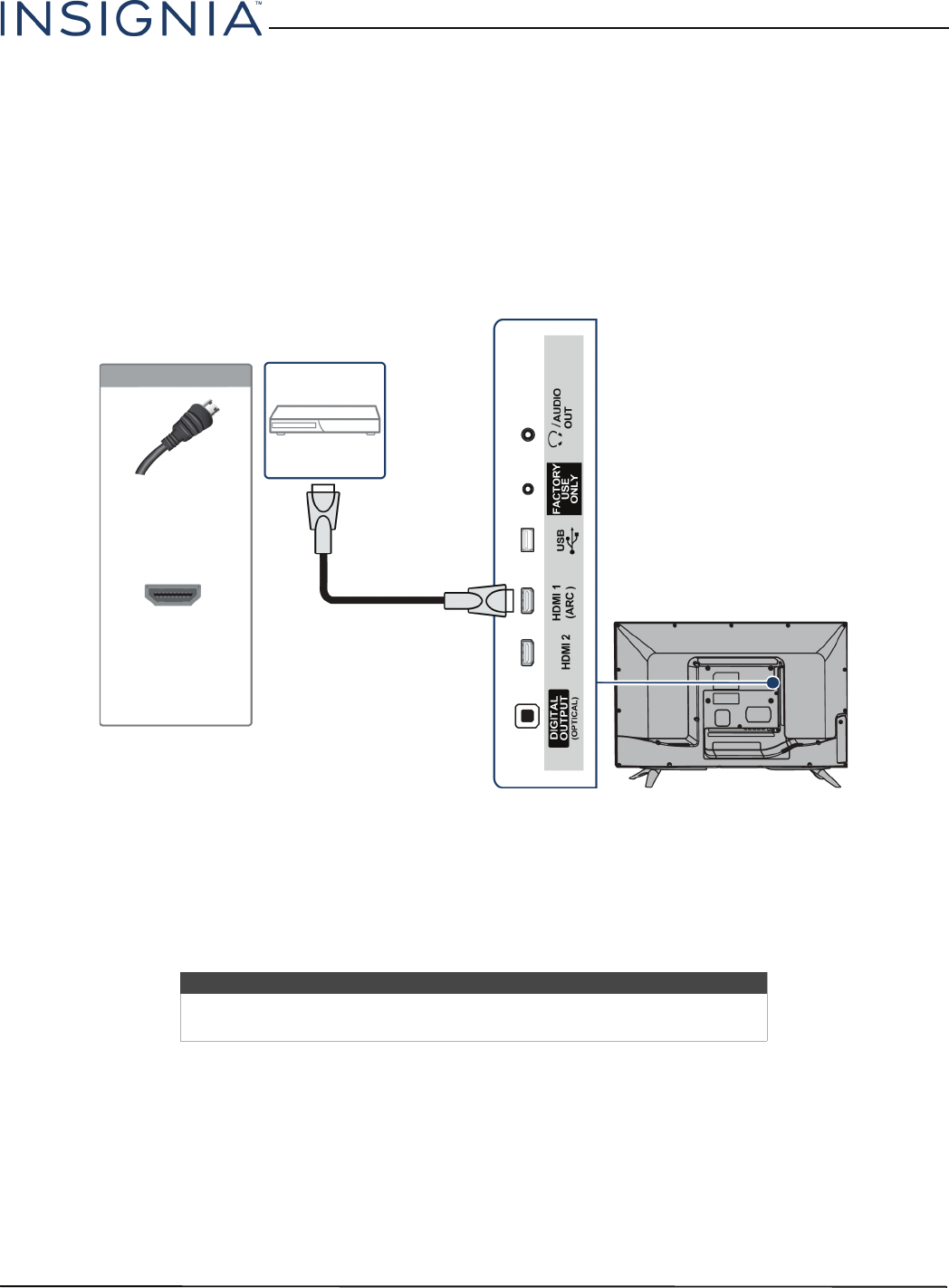

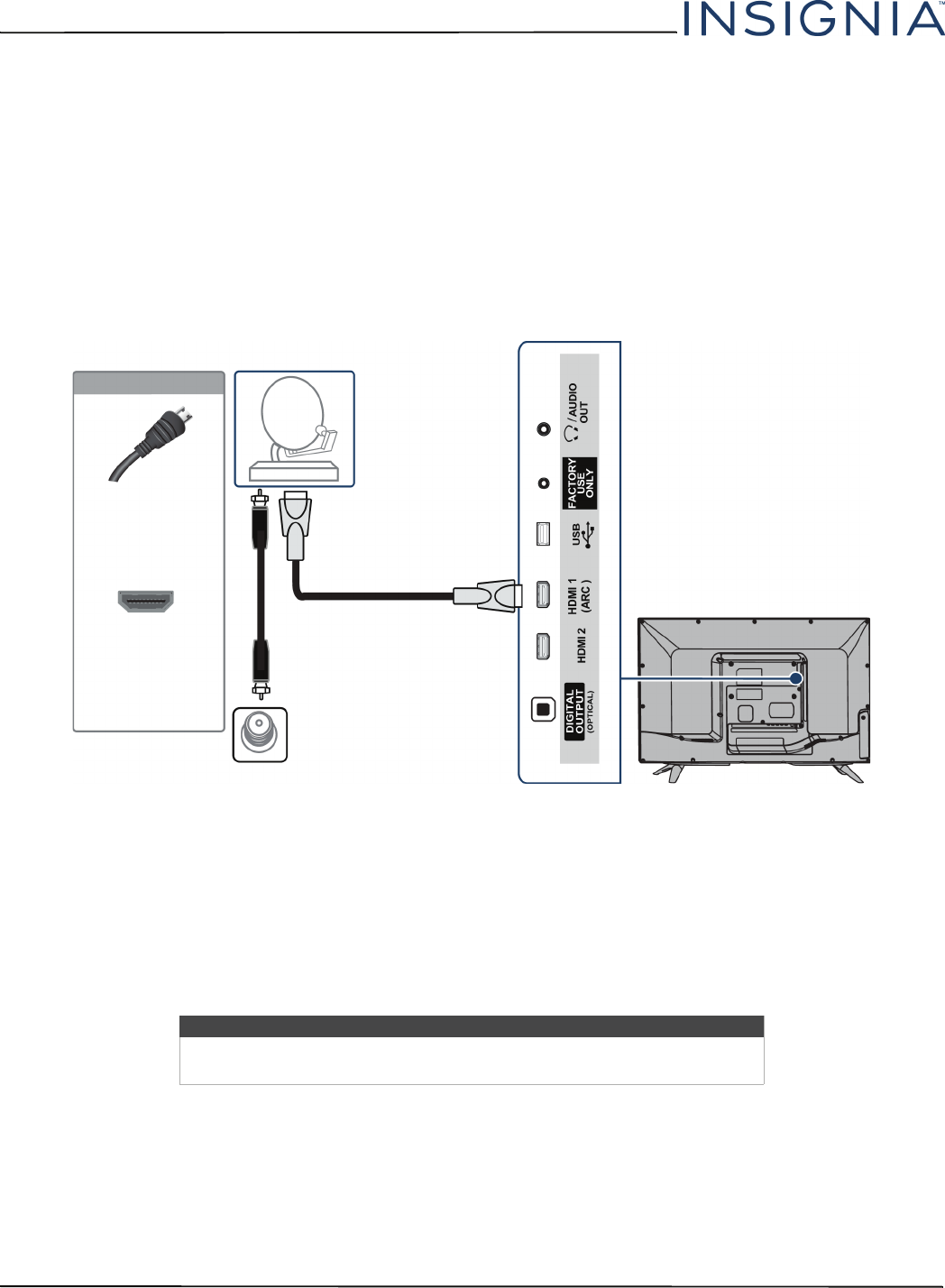

HDMI (best)
1Make sure that your TV’s AC power adapter is unplugged and all connected equipment is turned off.
2Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3Connect an HDMI cable (not provided) to one of the HDMI jacks on the side of your TV and to the HDMI OUT jack on
the cable or satellite box.
4Plug your TV’s AC power adapter into a power outlet, turn on your TV, then turn on the cable or satellite box.
5Press INPUT to open the INPUT SOURCE list.
6Press S or T to highlight HDMI1 or HDMI2, then press ENTER.
Note
An HDMI cable carries both audio and video. You do not need to use any
audio cables.
HDMI cable
Cable or
satellite box
Side of TV

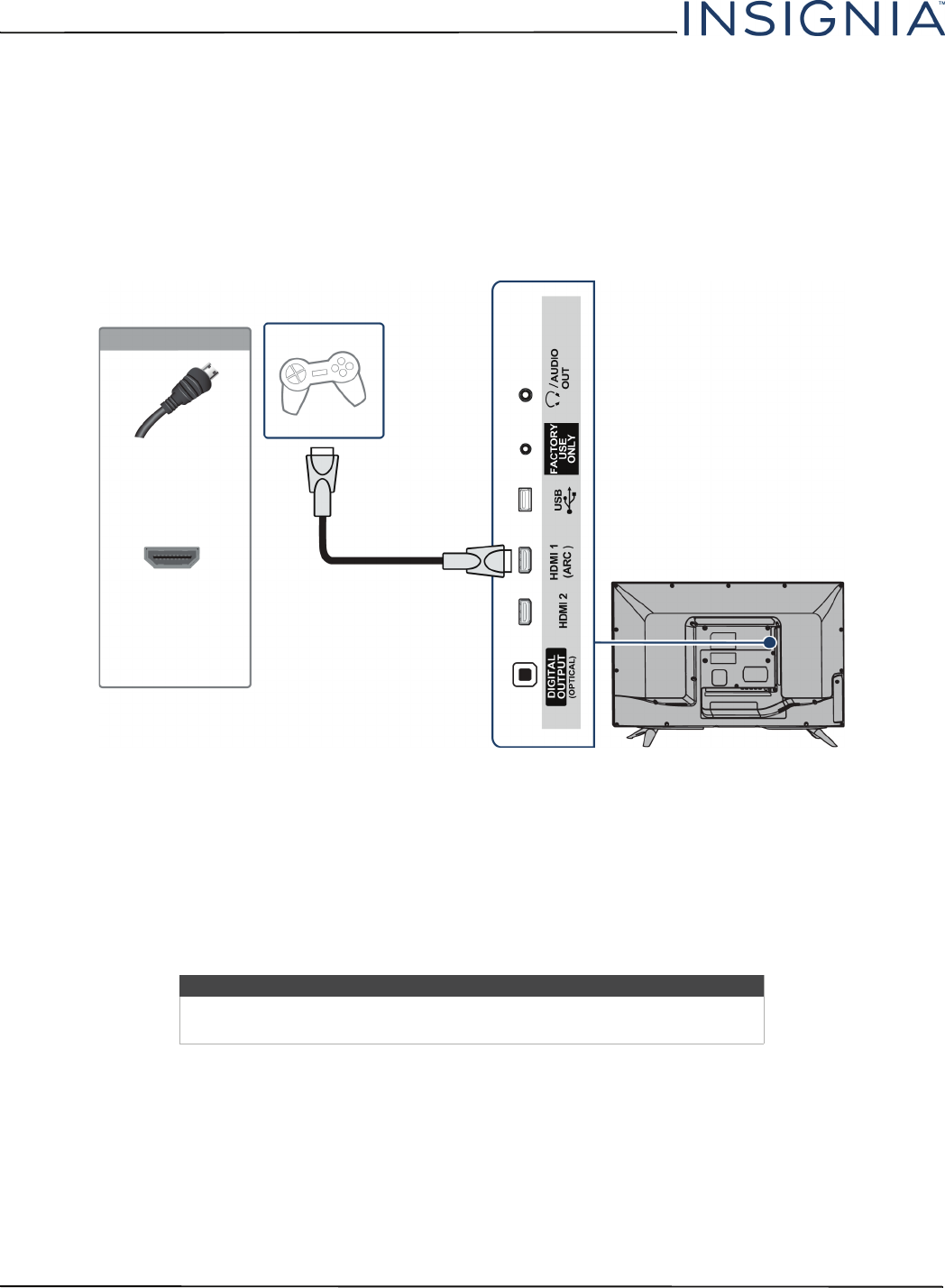

HDMI cable
connector
HDMI jack
On your TV
Cable wall
jack
14
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

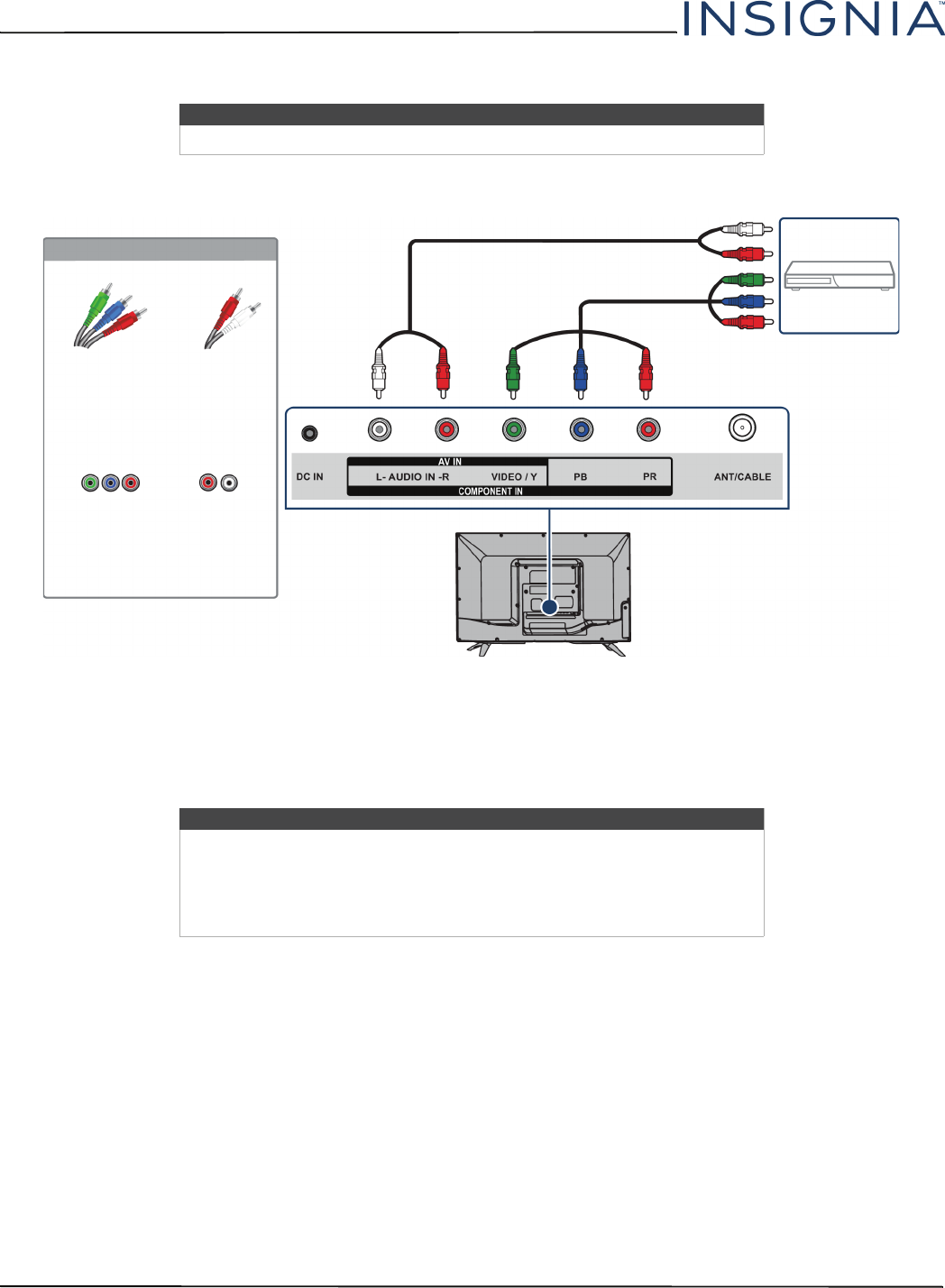

Component video (better)
1Make sure that your TV’s AC power adapter is unplugged and all connected equipment is turned off.
2Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3Connect a component video cable (not provided) to the VIDEO / Y, PB, and PR jacks on the back of your TV and the
component video out jacks on the cable or satellite box.
4Connect an audio cable (not provided) to the Land R AUDIO IN jacks on the back of your TV and to the audio out
jacks on the cable or satellite TV box.
5Plug your TV’s AC power adapter into a power outlet, turn on your TV, then turn on the cable or satellite box.
6Press INPUT to open the INPUT SOURCE list.
7Press S or T to highlight Component/AV, then press ENTER.
Note
Cables are often color-coded to match color-coded jacks.
Notes
•The VIDEO / Y, PB, and PR video jacks (used to connect a component
device) share the L and R AUDIO IN jacks with the VIDEO / Y jack (used
to connect an AV (composite video) device).
• When you connect the audio using the Land R AUDIO IN jacks, the
audio output is analog.
Audio cable
Cable or
satellite box
Component video cable
Back of TV
Component
video cable
connectors
Audio cable
connectors
Analog
audio jacks
Component
video jacks
On your TV
Cable wall
jack
15
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

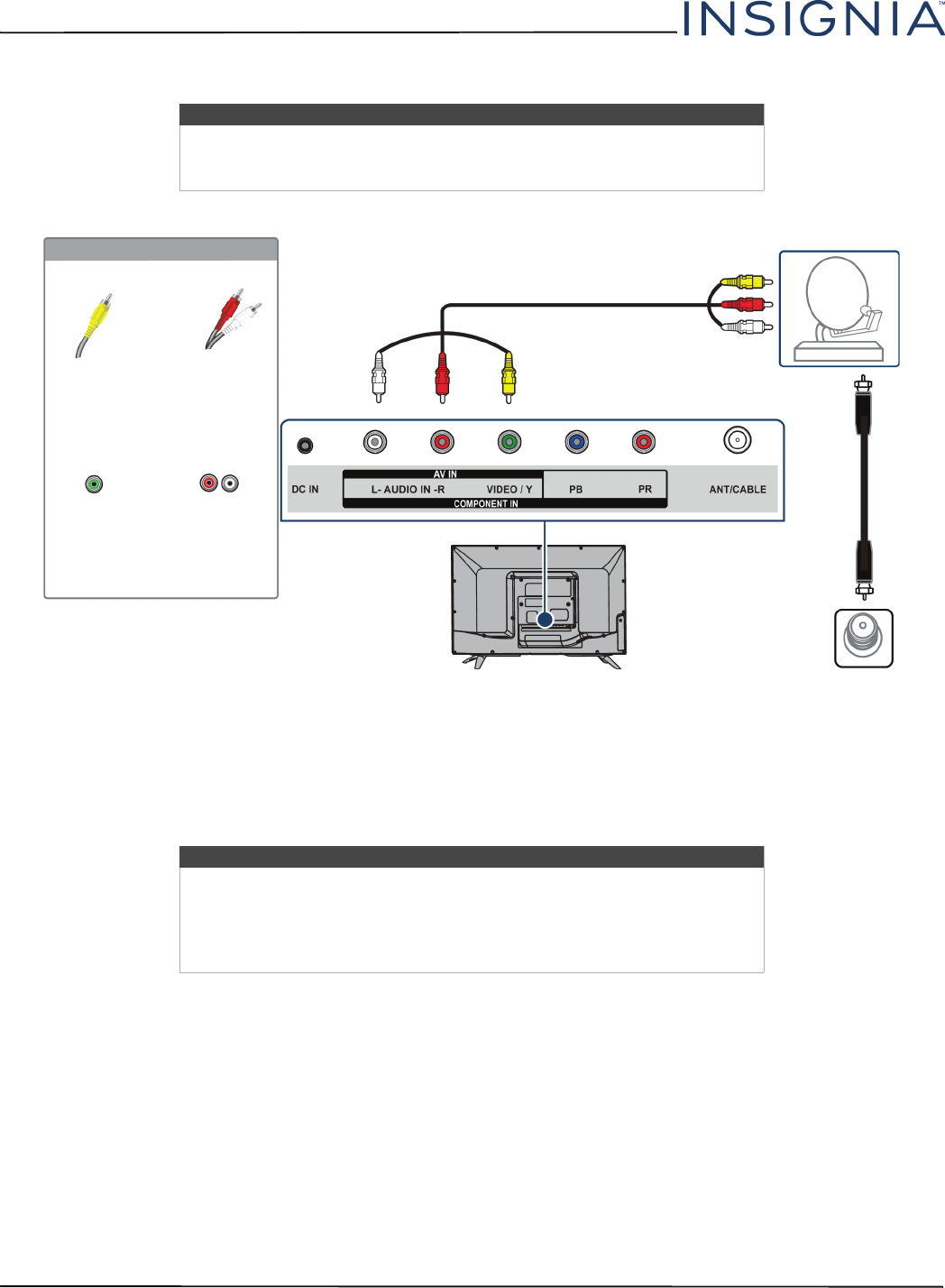

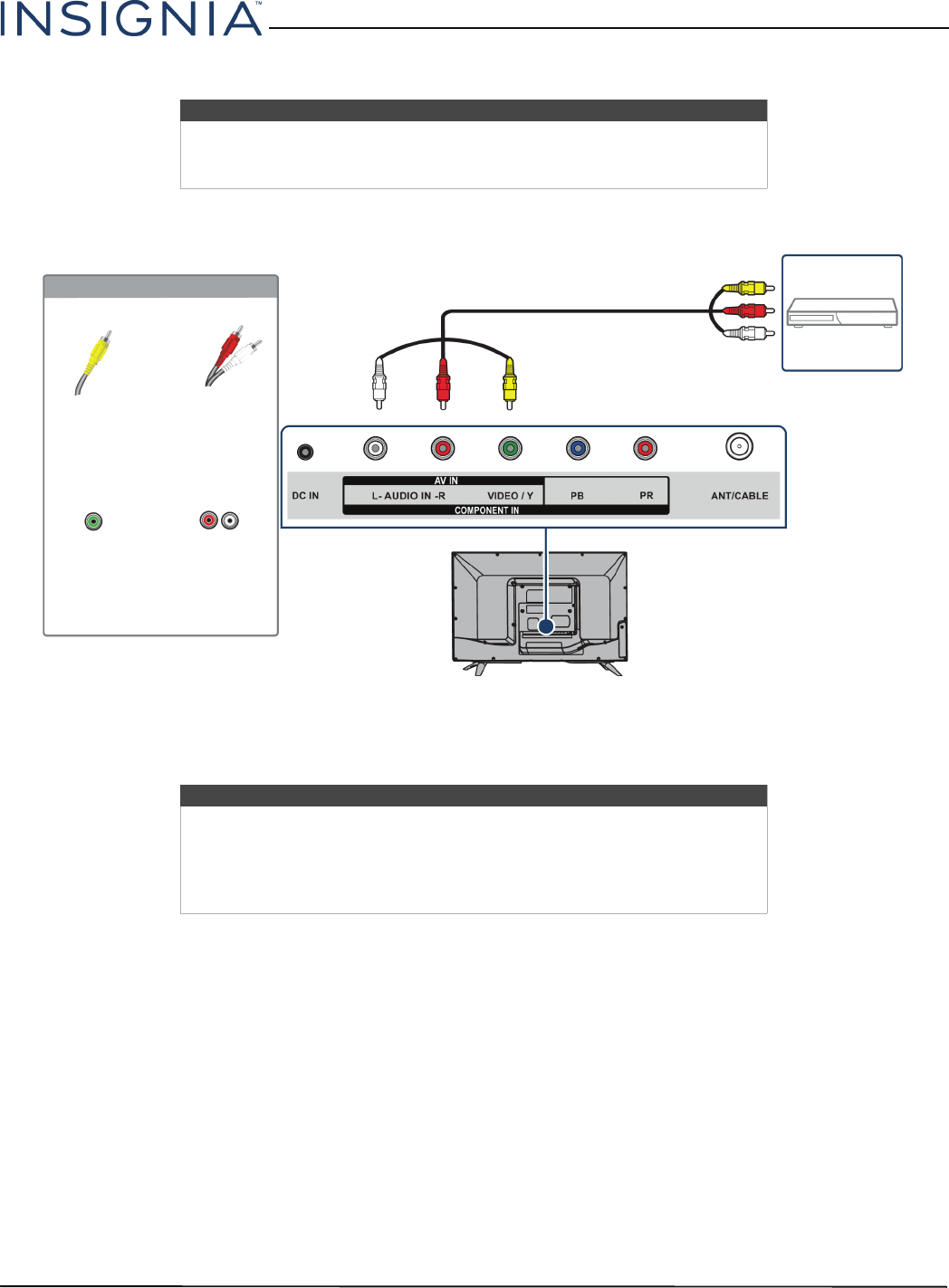

AV (composite video) (good)
1Make sure that your TV’s AC power adapter is unplugged and all connected equipment is turned off.
2Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3Connect an AV cable (not provided) to the green VIDEO / Y jack and L and R AUDIO IN jacks on the back of your TV
and to the AV (composite video) and audio out jacks on the cable or satellite box.
4Plug your TV’s AC power adapter into a power outlet, turn on your TV, then turn on the cable or satellite box.
5Press INPUT to open the INPUT SOURCE list.
6Press S or T to highlight Component/AV, then press ENTER.
Notes
• Cables are often color-coded to match color-coded jacks.
• The yellow video connector on the AV cable connects to the green
VIDEO / Y jack.
Notes
•The VIDEO / Y, PB, and PR video jacks (used to connect a component
device) share the L and R AUDIO IN jacks with the VIDEO / Y jack (used
to connect an AV (composite video) device).
• When you connect the audio using the Land R AUDIO IN jacks, the
audio output is analog.
Cable or
satellite box
AV cable
Back of TV
AV
connector
AV jack
Audio cable
connectors
Analog audio
jacks
On your TV
Cable
wall jack
16
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

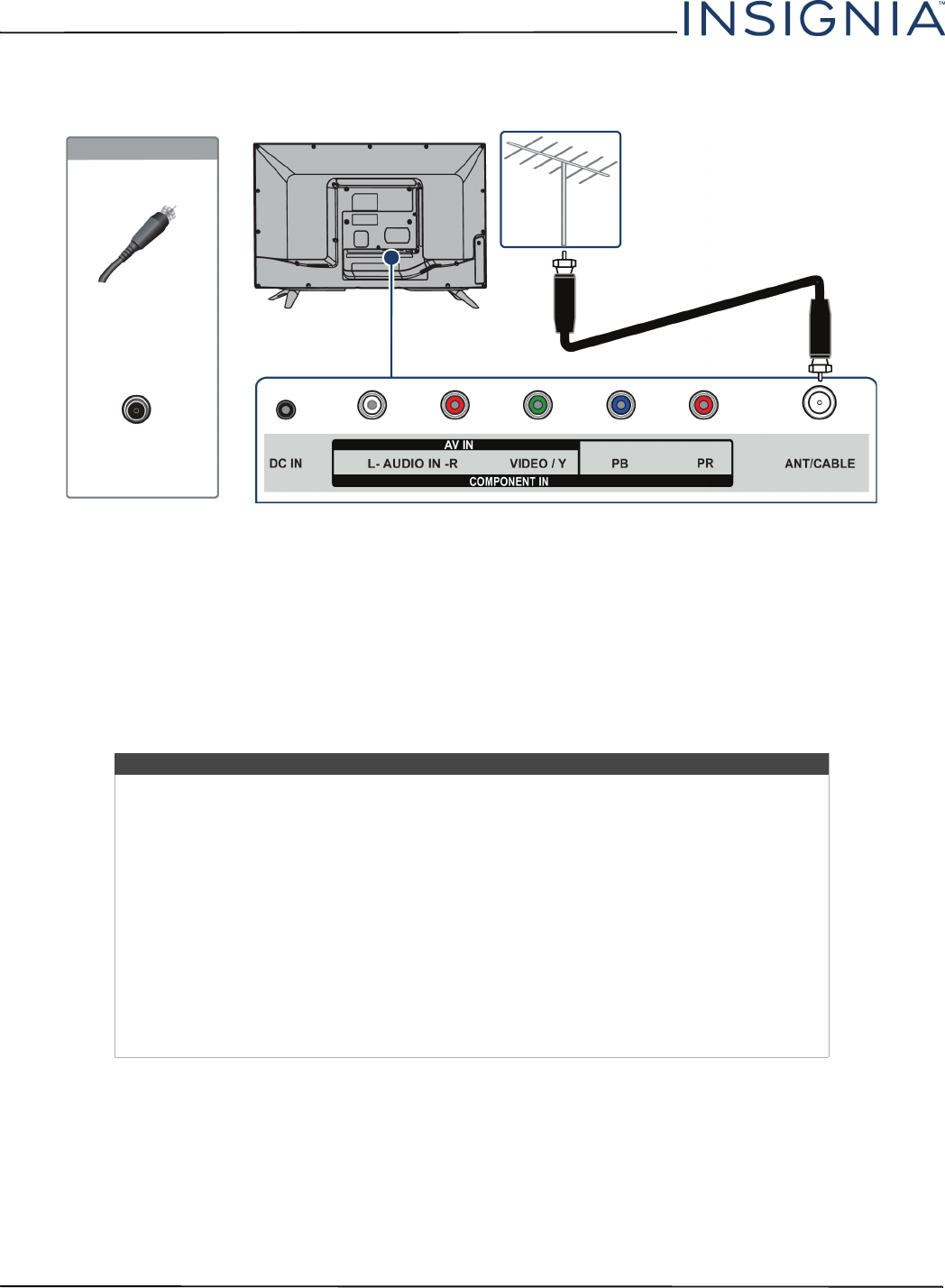

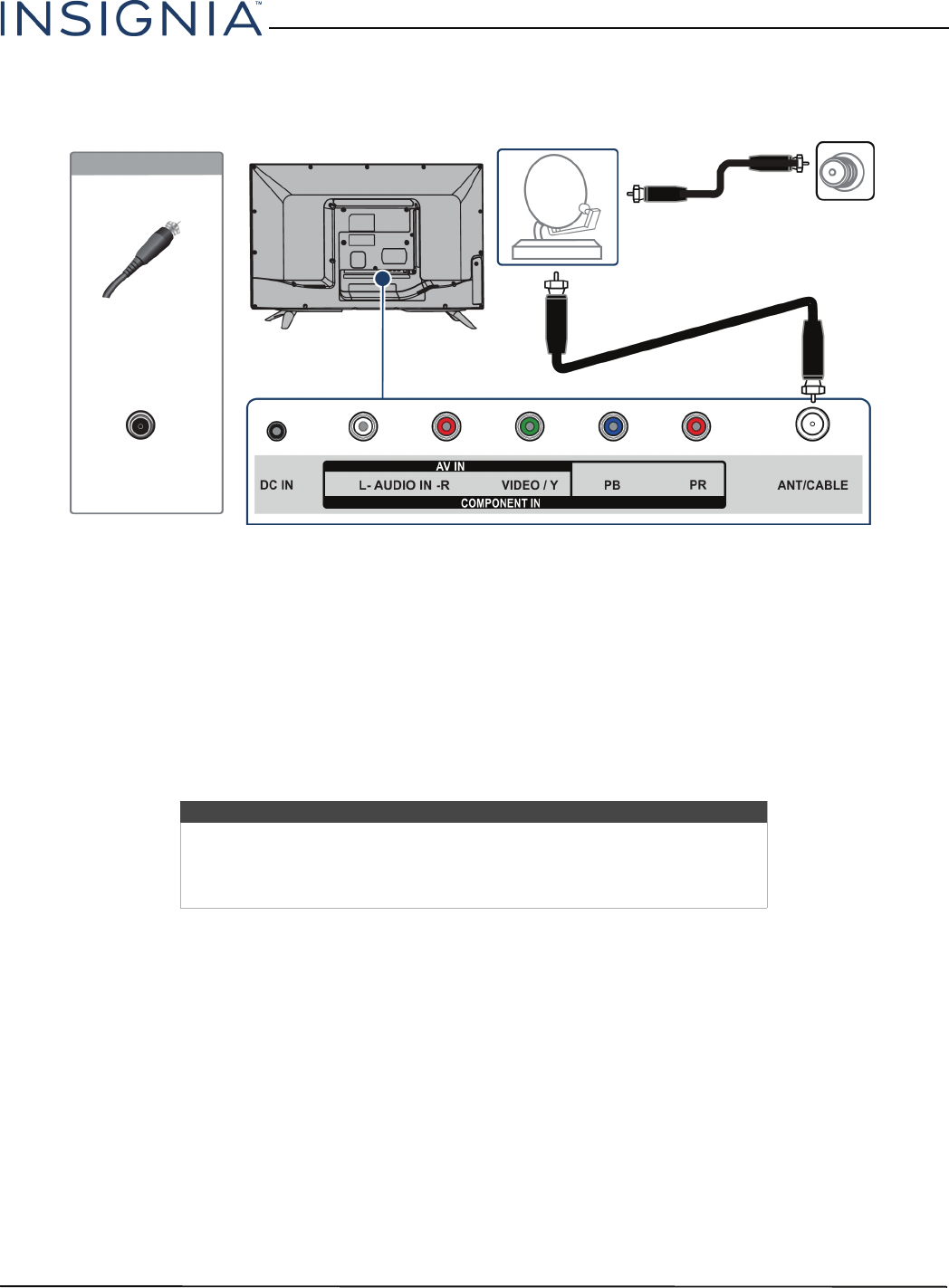

Coaxial (good)
1Make sure that your TV’s AC power adapter is unplugged and all connected equipment is turned off.
2Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3Connect a coaxial cable (not provided) to the ANT / CABLE jack on the back of your TV and to the coaxial out jack on
the cable or satellite box.
4Plug your TV’s AC power adapter into a power outlet, turn on your TV, then turn on the cable or satellite box.
5Press INPUT to open the INPUT SOURCE list.
6Press S or T to highlight TV, then press ENTER.
7If you cannot tune to channels you know exist, scan for channels. See “Automatically scanning for channels” on
page 47.
Notes
• Use a coaxial cable to eliminate interference and noise from radio
waves.
• Do not bundle the coaxial cable with the AC power adapter or other
cables.
Cable or
satellite box
Coaxial cable
Back of TV
Coaxial cable
connector
ANT / CABLE
jack
On your TV
Cable
wall jack
17
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Connecting an antenna or cable TV (no box)
1Make sure that your TV’s AC power adapter is unplugged and all connected equipment is turned off.
2Connect a coaxial cable (not provided) to the ANT / CABLE jack on the back of your TV and to the antenna or cable
TV wall jack.
3Plug your TV’s AC power adapter into a power outlet, then turn on your TV.

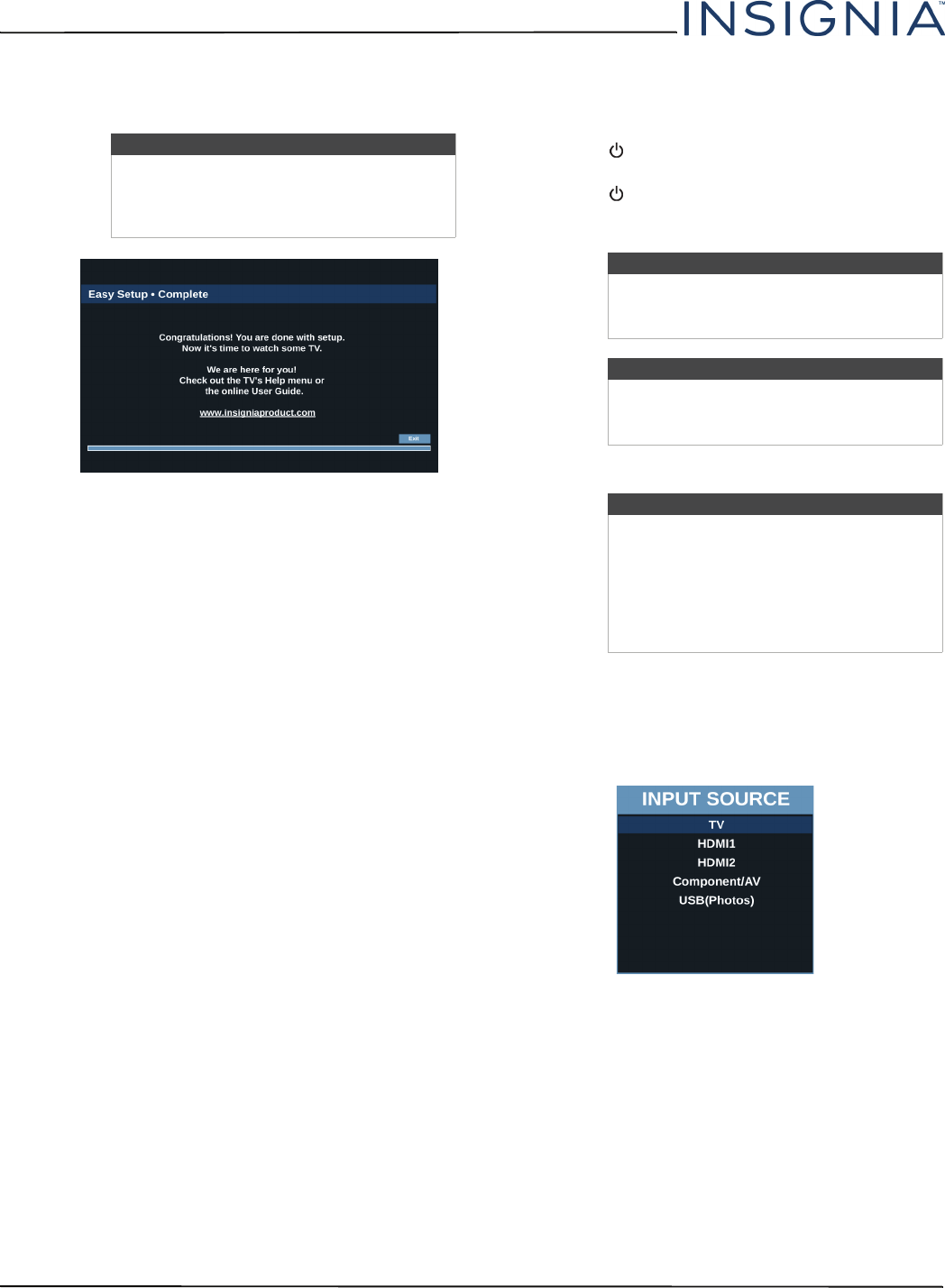

4Press INPUT to open the INPUT SOURCE list.
5Press S or T to highlight TV, then press ENTER.
6If you cannot tune to channels you know exist, scan for channels. See “Automatically scanning for channels” on
page 47.
Coaxial cable
Antenna or cable TV
(no box)
Back of TV
Coaxial cable
connector
ANT / CABLE
jack
On your TV
Notes
• Use a coaxial cable to eliminate interference and noise from radio waves.
• Do not bundle the coaxial cable with the AC power adapter or other cables.
• If the antenna is not installed correctly, contact qualified service personnel to correct the
problem.
• If the signal level for a channel is weak, the picture may be distorted. Adjust the antenna
or use a highly directional outdoor or set-top antenna with a built-in amplifier.
• If the picture quality is good on some channels and poor on others, the problem may be
caused by a poor or weak signal from the broadcaster or cable TV provider.
• If you connect to cable TV without a set-top box and experience poor picture quality, you
may need to install a set-top box to improve signal reception and picture quality. Contact
your cable TV provider about upgrading to a set-top box.
• Many high-definition (HD) channels upscale standard-definition (SD) content. The picture
displayed on your TV is still displayed as SD, thus the picture quality will not be as clear or
crisp as it would be if the content was originally recorded in HD.
18
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Connecting a DVD or Blu-ray player
Many DVD or Blu-ray players have more than one connection type. To get the best video, you should use the best
connection type available. For more information, see “What connection should I use?” on page 12.
You can connect a DVD or Blu-ray player using:
•HDMI (best)
• Component video (better)
• AV (composite video) (good)
HDMI (best)
1Make sure that your TV’s AC power adapter is unplugged and the DVD or Blu-ray player is turned off.
2Connect an HDMI cable (not provided) to one of the HDMI jacks on the side of your TV and to the HDMI OUT jack on
the DVD or Blu-ray player.
3Plug your TV’s AC power adapter into a power outlet, then turn on your TV and DVD or Blu-ray player.
4Press INPUT to open the INPUT SOURCE list.
5Press S or T to highlight HDMI1 or HDMI2, then press ENTER.
Note
An HDMI cable carries both audio and video. You do not need to use any
audio cables.
Side of TV
HDMI cable
DVD or Blu-ray
player
HDMI cable
connector
HDMI jack
On your TV
19
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Component video (better)
1Make sure that your TV’s AC power adapter is unplugged and the DVD or Blu-ray player is turned off.
2Connect a component video cable (not provided) to the VIDEO / Y, PB, and PR jacks on the back of your TV and to
the COMPONENT OUT jacks on the DVD or Blu-ray player.
3Connect an audio cable (not provided) to the L and RAUDIOIN jacks on the back of your TV and to the L and R
AUDIO OUT jacks on the DVD or Blu-ray player.
4Plug your TV’s AC power adapter into a power outlet, then turn on your TV and DVD or Blu-ray player.
5Press INPUT to open the INPUT SOURCE list.
6Press S or T to highlight Component/AV, then press ENTER.
Note
Cables are often color-coded to match color-coded jacks.
Notes
•The VIDEO / Y, PB, and PR video jacks (used to connect a component
device) share the L and R AUDIO IN jacks with the VIDEO / Y jack (used
to connect an AV (composite video) device).
• When you connect the audio using the Land R AUDIO IN jacks, the
audio output is analog.
Back of TV
Audio cable
Component video
cable
DVD or Blu-ray
player
Component
video cable
connectors
Audio cable
connectors
Component
video jacks
Analog
audio jacks
On your TV
20
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
AV (composite video) (good)
1Make sure that your TV’s AC power adapter is unplugged and the DVD or Blu-ray player is turned off.
2Connect an AV cable (not provided) to the green VIDEO / Y jack and L and R AUDIO IN jacks on the back of your TV
and to the AV OUT jacks on the DVD or Blu-ray player.
3Plug your TV’s AC power adapter into a power outlet, then turn on your TV.
4Turn on the DVD or Blu-ray player, then set it to the correct output mode. For more information, see the
documentation that came with the player.
5Press INPUT to open the INPUT SOURCE list.
6Press S or T to highlight Component/AV, then press ENTER.
Notes
• Cables are often color-coded to match color-coded jacks.
• The yellow video connector on the AV cable connects to the green
VIDEO / Y jack.
Notes
•The VIDEO / Y, PB, and PR video jacks (used to connect a component
device) share the L and R AUDIO IN jacks with the VIDEO / Y jack (used
to connect an AV (composite video) device).
• When you connect the audio using the Land R AUDIO IN jacks, the
audio output is analog.
AV cable
Back of TV
AV cable
connector
AV jack
Audio cable
connectors
Analog
audio jacks
DVD or Blu-ray
player
On your TV
21
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Connecting a game console
You can connect a game console using:
•HDMI (best)
• Component video (better)
• AV (composite video) (good)
HDMI (best)
1Make sure that your TV’s AC power adapter is unplugged and the game console is turned off.
2Connect an HDMI cable (not provided) to one of the HDMI jacks on the side of your TV and to the HDMI OUT jack on
the game console.
3Plug your TV’s AC power adapter into a power outlet, then turn on your TV.
4Turn on the game console, then set it to the correct output mode. For more information, see the documentation that
came with the console.
5Press INPUT to open the INPUT SOURCE list.
6Press S or T to highlight HDMI1 or HDMI2, then press ENTER.
Note
An HDMI cable carries both audio and video. You do not need to use any
audio cables.
HDMI cable
connector
HDMI jack
Side of TV
HDMI cable
Game console
On your TV
22
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Component video (better)
1Make sure that your TV’s AC power adapter is unplugged and the game console is turned off.
2Connect the video and audio connectors on the component video cable (not provided) to the VIDEO / Y, PB, and PR
video jacks and L and RAUDIOIN jacks on the back of your TV and to the component jack(s) on the game console.
3Plug your TV’s AC power adapter into a power outlet, then turn on your TV.
4Turn on the game console, then set it to the correct output mode. For more information, see the documentation that
came with the console.
5Press INPUT to open the INPUT SOURCE list.
6Press S or T to highlight Component/AV, then press ENTER.
Note
Cables are often color-coded to match color-coded jacks.
Note

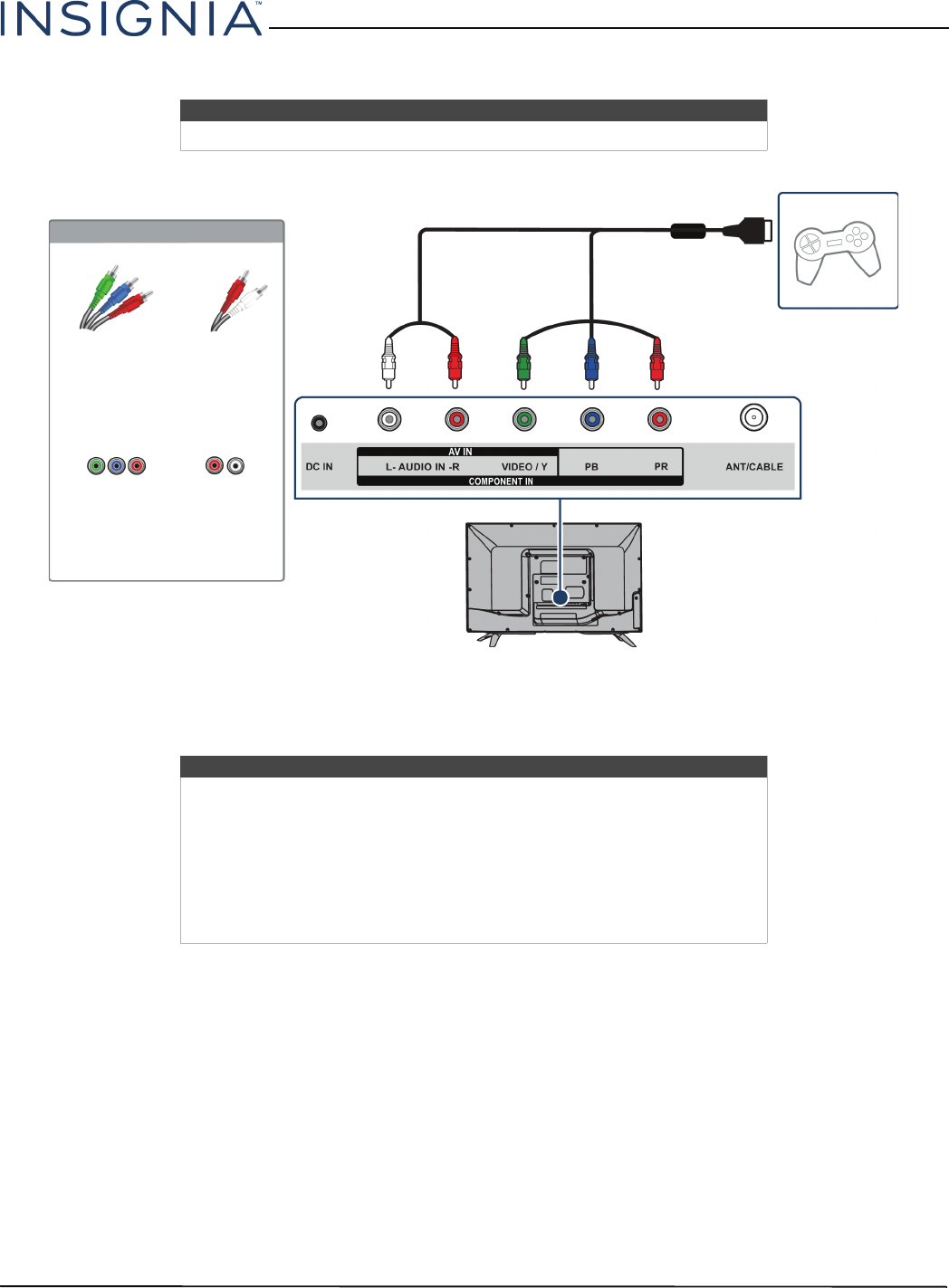

• Your game console may require a special component video cable. See
the documentation that came with your game console or check the
manufacturer’s website.
•The VIDEO / Y, PB, and PR video jacks (used to connect a component
device) share the L and R AUDIO IN jacks with the VIDEO / Y jack (used
to connect an AV (composite video) device).
• When you connect the audio using the Land R AUDIO IN jacks, the
audio output is analog.
Game console
Back of TV
Console-specific component video
and audio cable
On your TV
Component
video cable
connectors
Audio cable
connectors
Component
video jacks
Analog
audio jacks
23
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
AV (composite video) (good)
1Make sure that your TV’s AC power adapter is unplugged and the game console is turned off.
2Connect the video and audio connectors on the game console’s AV cable (not provided) to the green VIDEO / Y jack
and L and R AUDIO jacks on the back of your TV and to the composite jack(s) on the game console.
3Plug your TV’s AC power adapter into a power outlet, then turn on your TV.
4Turn on the game console, then set it to the correct output mode. For more information, see the documentation that
came with the console.
5Press INPUT to open the INPUT SOURCE list.
6Press S or T to highlight Component/AV, then press ENTER.
Notes
• Cables are often color-coded to match color-coded jacks.
• The yellow video connector on the AV cable connects to the green
VIDEO / Y jack.
Note

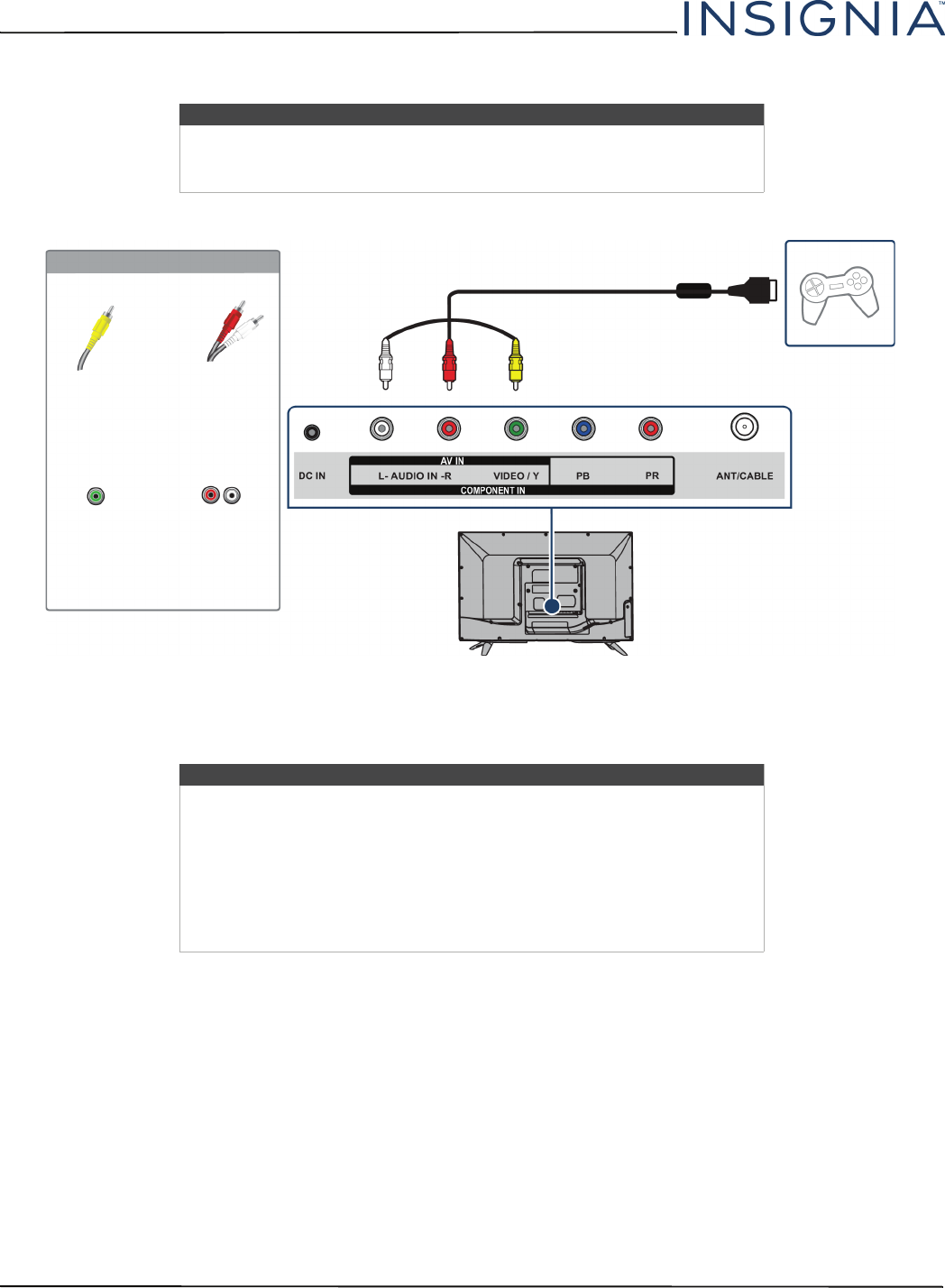

• Most game consoles come with a special AV (composite video) cable.
See the documentation that came with your game console or check the
manufacturer’s Web site.
•The VIDEO / Y, PB, and PR video jacks (used to connect a component
device) share the L and R AUDIO IN jacks with the VIDEO / Y jack (used
to connect an AV (composite video) device).
• When you connect the audio using the Land R AUDIO IN jacks, the
audio output is analog.
Game console
Console-specific AV cable
Back of TV
AV cable
connector
Audio cable
connectors
AV jack Analog
audio jacks
On your TV
24
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Connecting a computer
1Make sure that your TV’s AC power adapter is unplugged and the computer is turned off.
2Connect an HDMI cable (not provided) to one of the HDMI jacks on the side of your TV and to the HDMI OUT jack on
the computer.
3Plug your TV’s AC power adapter into a power outlet, then turn on your TV and the computer.
4Press INPUT to open the INPUT SOURCE list.
5Press S or T to highlight HDMI1 or HDMI2, then press ENTER.
6Adjust the display properties on the computer, if necessary.

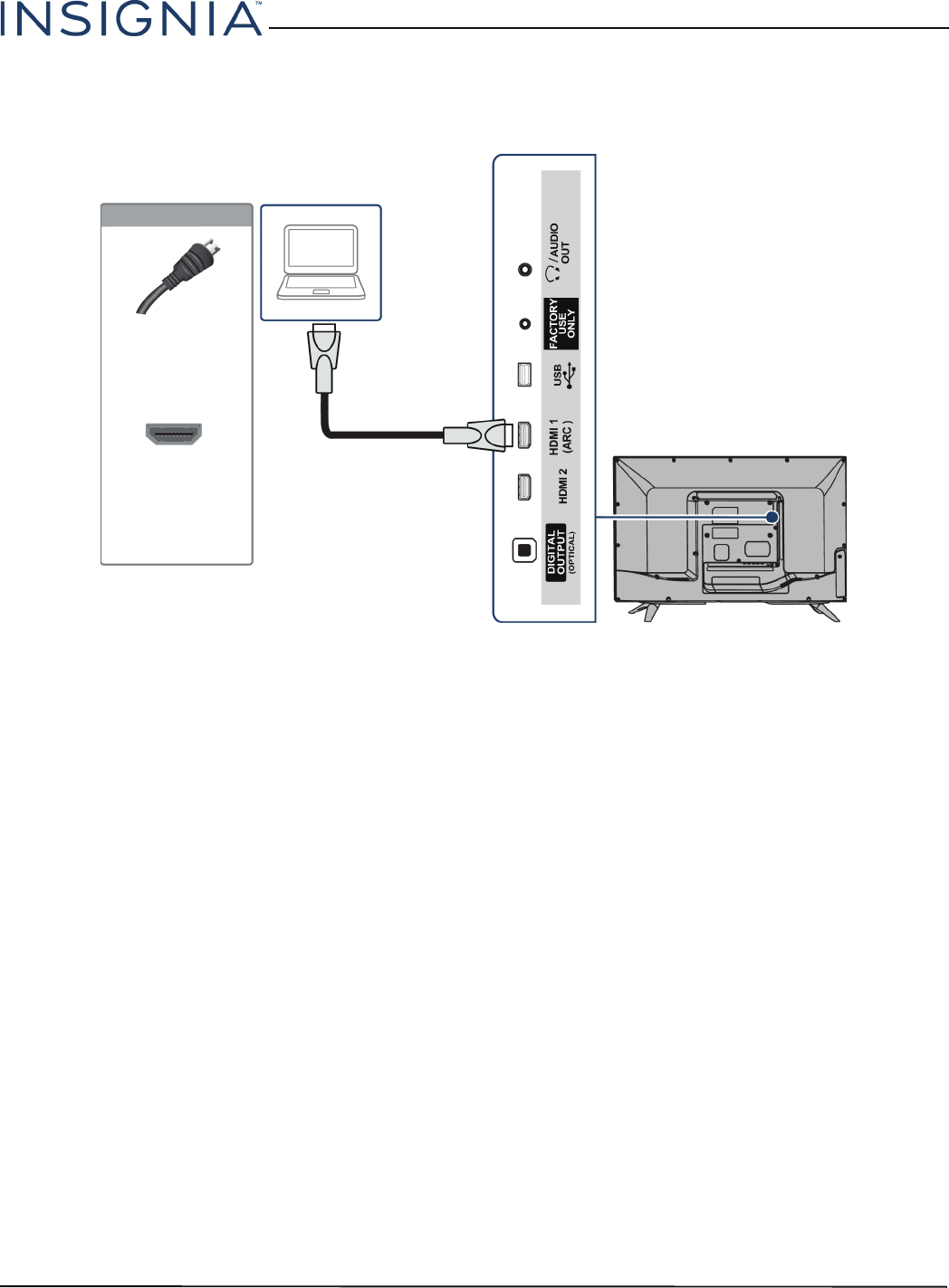

HDMI cable
Side of TV
HDMI cable
connector
HDMI jack
On your TV
25
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Connecting a USB flash drive

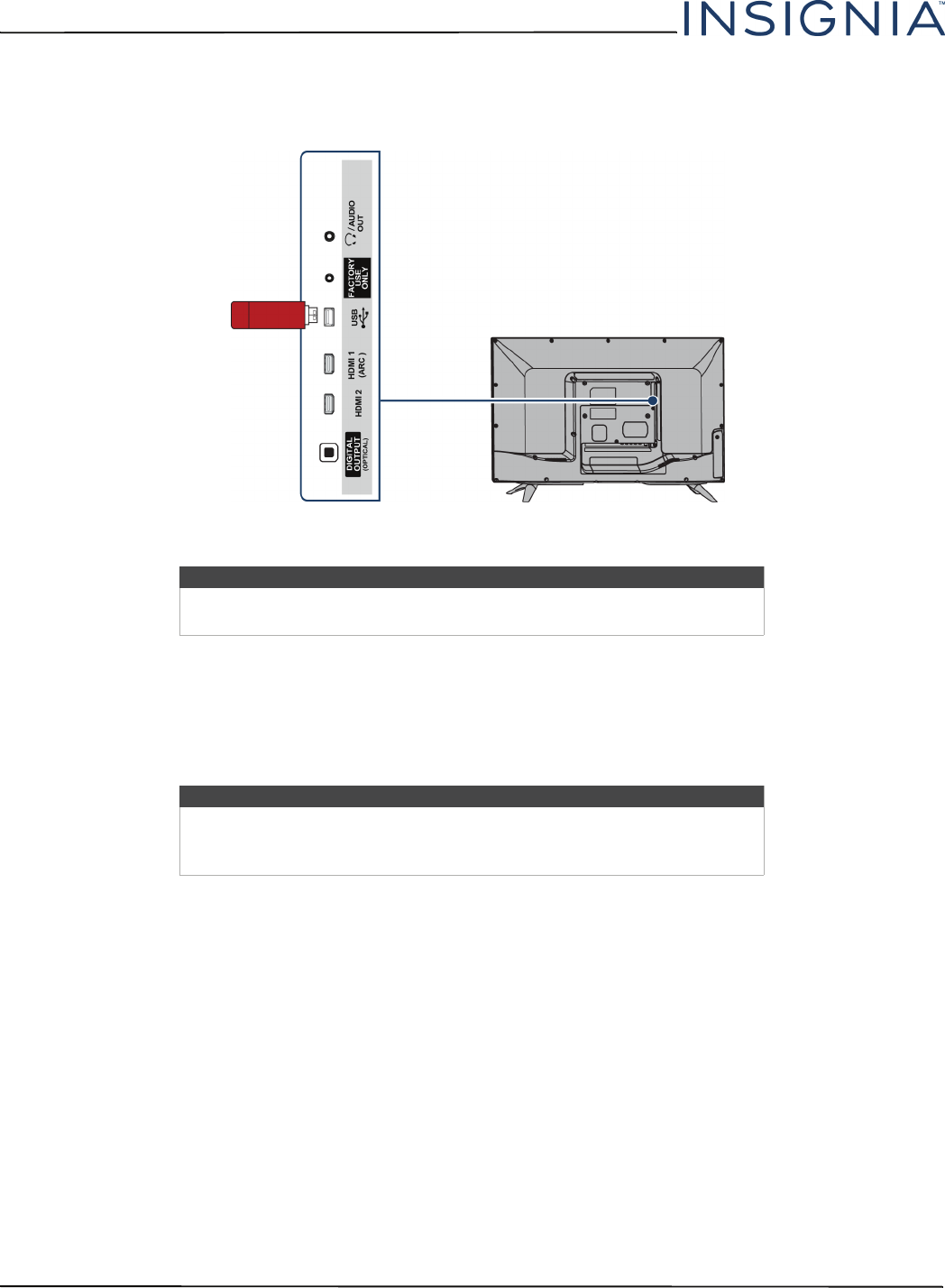

1Plug a USB flash drive into the USB port on the side of your TV.
2If your TV is turned on when you connect the USB flash drive, press S or T to select Ye s in the message that appears.
The Photos menu opens.
OR
If you switch to a different video input source after you plug in the USB flash drive and want to switch back to the
drive, press INPUT to open the INPUT SOURCE list, press S or T to select USB(Photos), then press ENTER. The Photos
menu opens.
Caution
Do not remove the USB flash drive or turn off the TV while using the USB
flash drive. You may lose data or damage the USB flash drive.
Note
The Photos viewer only supports JPEG format images (with “.jpg” file
extensions) and not all JPEG files are compatible with your TV.
For more information, see “Using a USB flash drive” on page 41.
USB flash
drive
Side of TV
26
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Connecting headphones
When you connect headphones, the TV speakers are muted.
1Connect the headphones to the /AUDIOOUT jack on the side of your TV.
2In the screen that opens, press
W
or
X

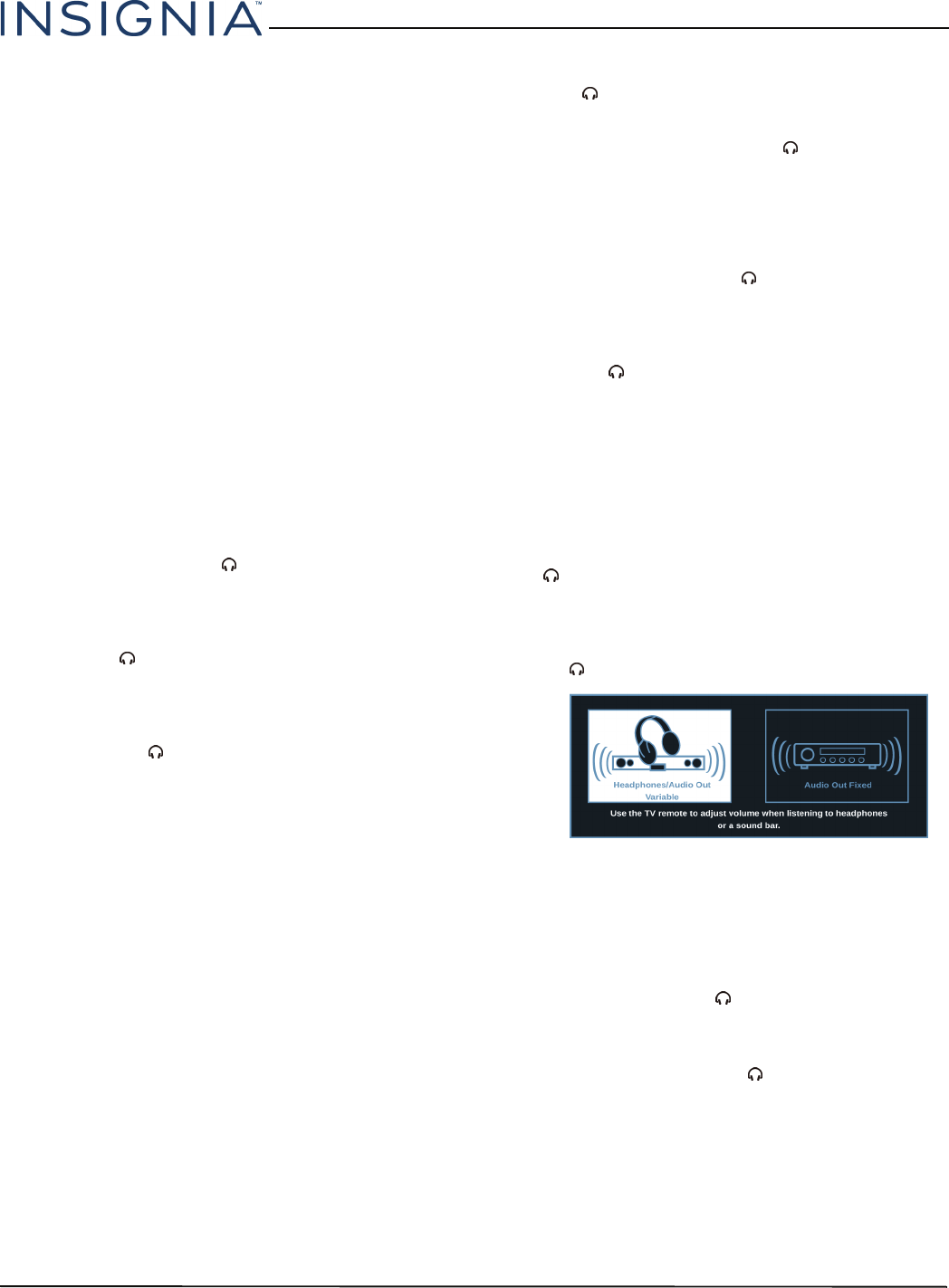

to highlight Headphones/Audio Out Variable, then press ENTER. For more
information, see “Selecting the audio out mode” on page 46.
Warning
Loud noise can damage your hearing. When using headphones, use the
lowest volume setting on your headphones that still lets you hear the sound.
Notes
• If you connect headphones when your TV is turned off, then you turn on
your TV, the TV speakers are muted and the audio plays through the
headphones.
• You can also connect a home theater system, sound bar, or external
speaker system to the /AUDIOOUT jack.
Side of TV
27
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Connecting external speakers or a sound bar
You can connect external speakers or a sound bar to the digital audio jack using:
• Digital audio
•Analog audio
Digital audio
1Make sure that your TV’s AC power adapter is unplugged and the digital speaker system or sound bar is turned off.
2Connect a digital optical audio cable (not provided) to the DIGITAL OUTPUT (OPTICAL) jack on the side of your TV
and to the optical AUDIO IN jack on the digital speaker system or sound bar.
3Plug your TV’s AC power adapter into a power outlet, then turn on your TV.
4Turn on the digital speaker system or sound bar, then set it to the correct source. For more information, see the
documentation that came with the digital speaker system or sound bar.
5On your TV’s Audio menu, highlight Digital Audio Format / Audio Delay, then press ENTER or X. Set the Audio
Format option to PCM. See the Digital Audio Format / Audio Delay option in “Adjusting sound settings” on
page 45.
Digital optical
audio cable
Digital speaker system Side of TV
Digital optical
audio cable
connector
Digital optical
audio jack
On your TV
Sound bar
28
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Analog audio
When you connect an analog speaker system or sound bar to the /AUDIOOUT jack, the TV speakers are muted.
1Make sure that your TV’s AC power adapter is unplugged and the analog speaker system or sound bar is turned off.
2Connect an audio cable (not provided) to the /AUDIOOUT jack on the side of your TV and to the AUDIO IN jacks
on the analog speaker system or sound bar.
3Plug your TV’s AC power adapter into a power outlet, then turn on your TV.
4Turn on the analog speaker system or sound bar, then set it to the correct source. For more information, see the
documentation that came with the analog speaker system or sound bar.
5On your TV, set the Headphone/Audio Out option on the Audio menu to Headphones/Audio Out Variable or
Audio Out Fixed. See the Headphone / Audio Out option in “Adjusting sound settings” on page 45.
Audio cable
Analog speaker system
Side of TV
Audio cable
connector
/AUDIO
OUT jack
On your TV
Sound bar
29
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

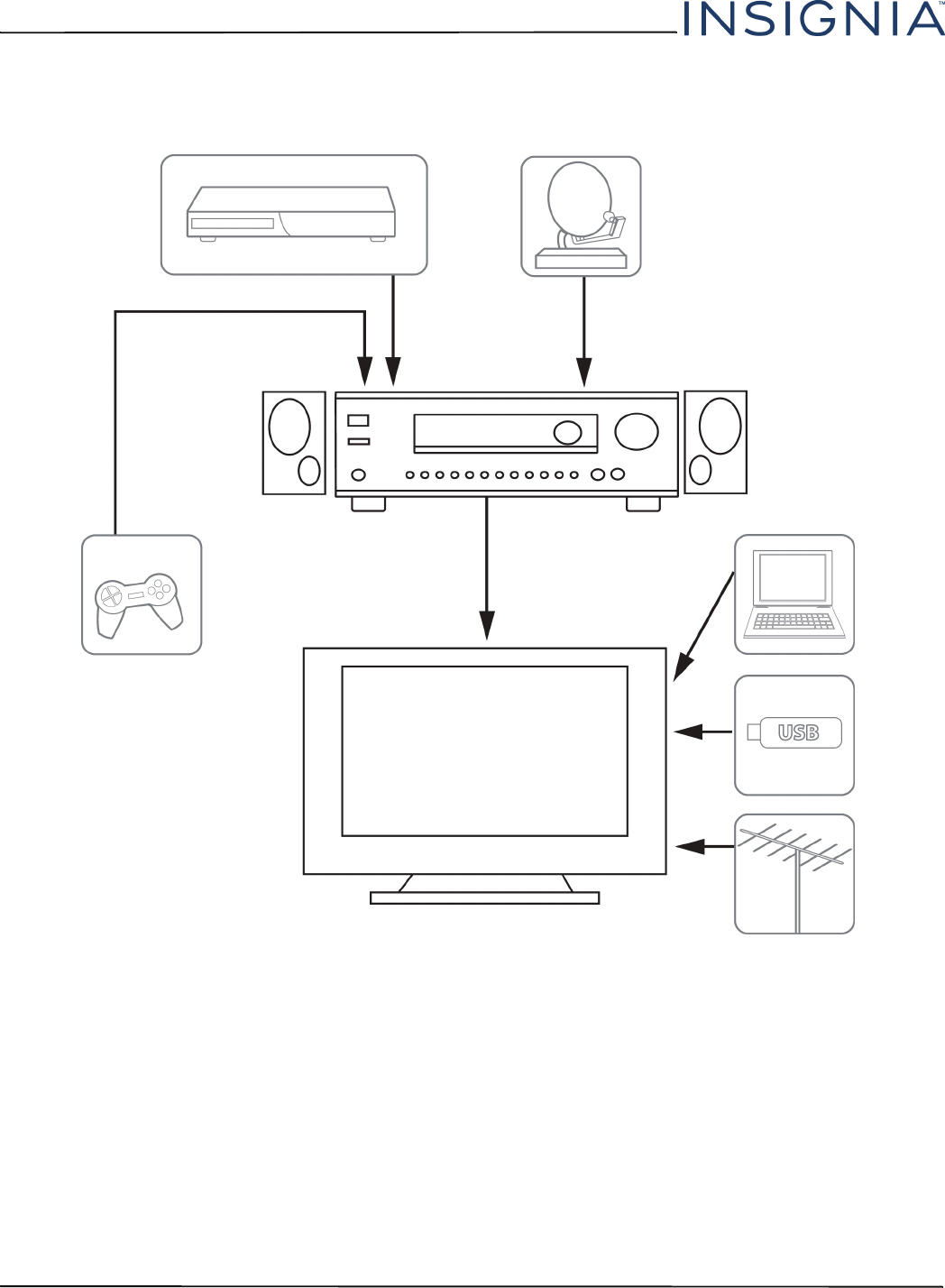

Connecting a home theater system with multiple devices
The connections you make depend on the video and audio jacks available on your devices. Refer to the documentation
that came with your devices for connection information.
Just remember to use the best connection types available for the best picture and sound. For information about
connection types, see “What connection should I use?” on page 12.
DVD or Blu-ray player Cable or satellite box
AV receiver
Game console
Antenna or cable
TV connected
directly to the
wall jack
30
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

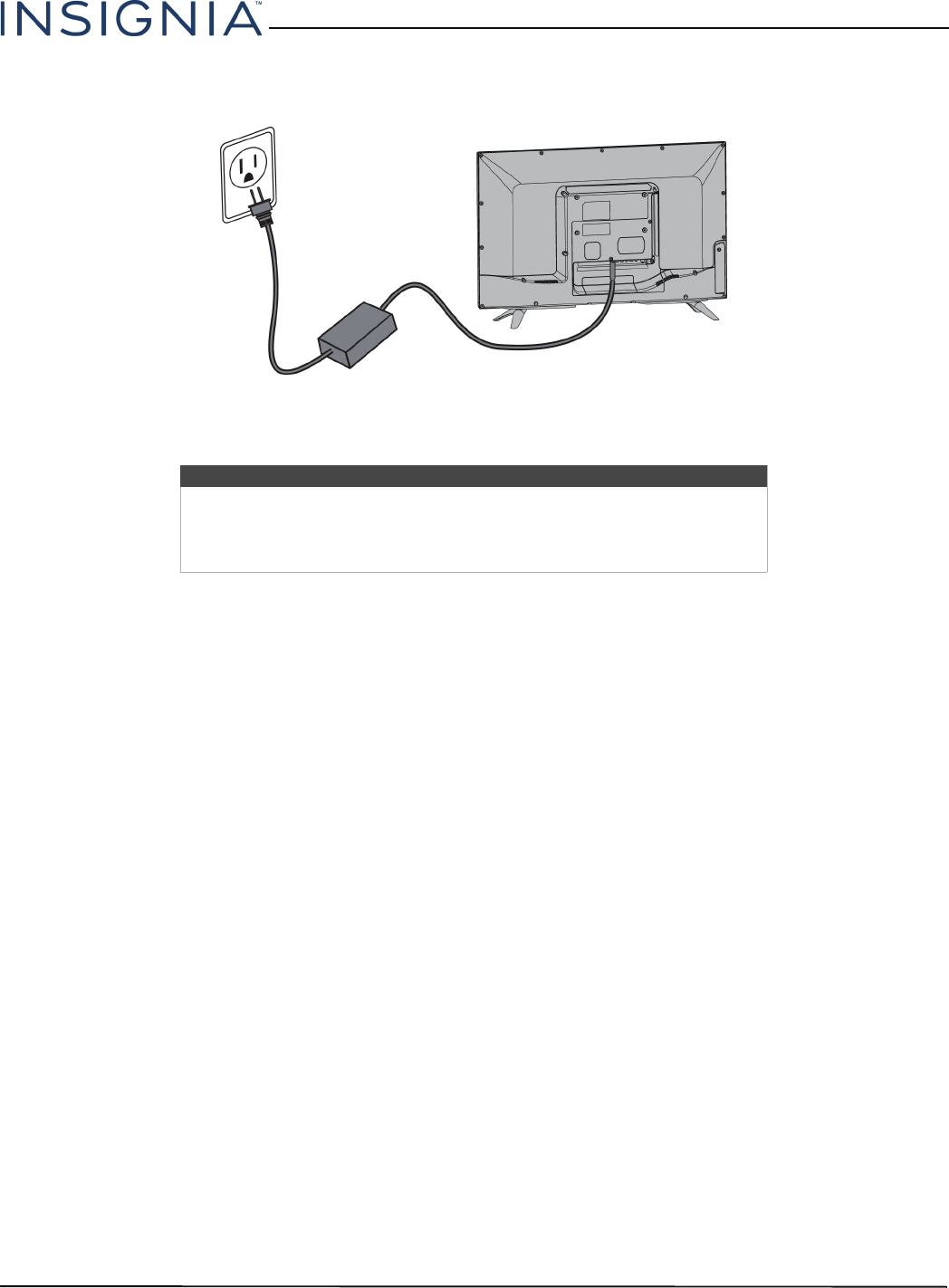

Connecting power
1Connect the AC power adapter to the DC IN connector on the back of your TV.
2Connect the other end of the adapter to a power outlet.
Caution
• Your TV should only be operated from the power source indicated on
the label.
• Always unplug the AC power adapter from the power outlet when you
will not be using your TV for an extended period of time.
31
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

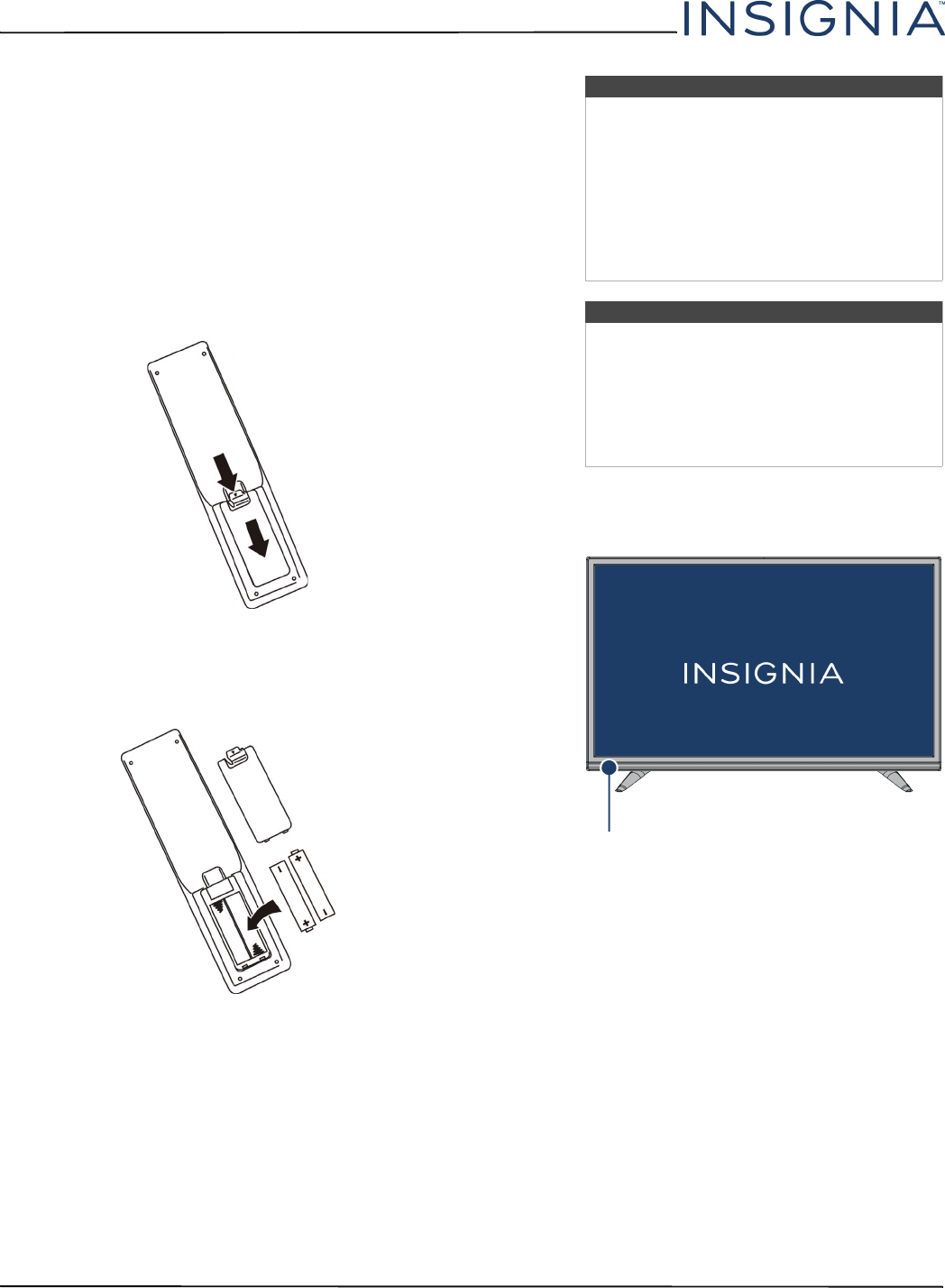

Using the remote control
This section covers:
• Installing remote control batteries
• Aiming the remote control
• Programming universal remote controls
• Viewing universal remote control codes
Installing remote control batteries
1While pressing the release latch on the back of the
remote control, lift the battery compartment
cover off the remote control.
2Insert two AAA batteries into the battery
compartment. Make sure that you match the +
and – symbols on the batteries with the + and –
symbols in the battery compartment.
3Replace the battery compartment cover.
Aiming the remote control
• Point the remote control towards the remote
control sensor on the front of your TV.
Cautions
• Batteries should not be exposed to
excessive heat, such as sunshine, heat
registers, or fire.
• Battery chemicals can cause a rash. If the
batteries leak, clean the battery
compartment with a cloth. If chemicals
touch your skin, wash immediately.
• Make sure that batteries are disposed of
correctly. Do not burn or incinerate.
Notes
• Do not mix batteries of different types.
• Do not mix old and new batteries.
• Remove batteries when the charge is
depleted.
• If the remote control is not going to be
used for an extended period of time,
remove the batteries.
Remote
control
sensor
32
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Programming universal remote controls
You can operate your Insignia TV with a new or
existing universal remote control.
1See the table in “Viewing universal remote control
codes” on page 32 for common codes. If you have
problems programming your remote or need a
different remote control code:
• Contact the universal remote control or
cable/satellite company of the remote control
you are trying to program
•Visit www.insigniaproducts.com/remotecodes
for the latest remote control code information.
• Call the Insignia Customer Care Center
1-877-467-4289.
2Follow your universal remote control’s instructions
to enter the TV code you found in Step 1.

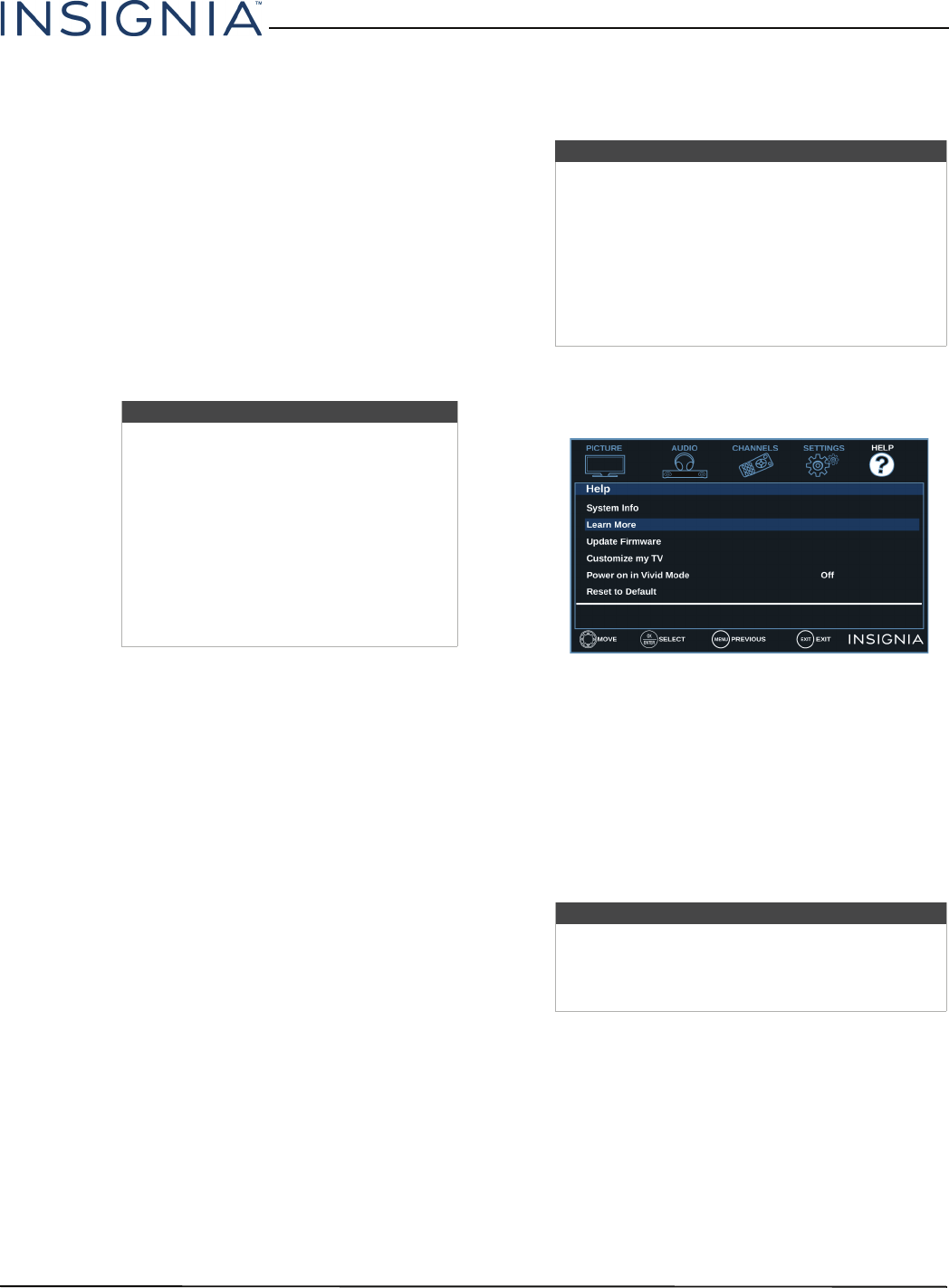

Viewing universal remote control codes
You can view a list of universal remote control codes
in the on-screen menu.
1Press MENU.
2Press W or X to highlight HELP, then press T or
ENTER.
3Press S or T to highlight Learn More, then press
ENTER.
4Press S or T to highlight Remote control codes,
then press ENTER. Your TV displays information
about the universal remote codes.
5Press ENTER or X. Your TV displays a list of remote
control codes for various brands of universal
remote controls.
6Press MENU to return to the previous menu, or
press EXIT to close the menu.
Tips
• If your universal remote control has a
code search feature, run a code search
to identify a code that matches your
TV. See your universal remote control’s
instructions for details.
• If your universal remote control has a
“Learn” feature, you can manually
program it using the Insignia TV
remote to “teach” the commands one
at a time. See your universal remote
control’s instructions for details.
Tips
• The brand name is often visible on the front
of the universal remote control, and the
model number is often visible on the back.
• If your universal remote control is not listed,
refer to your universal remote control’s
instructions and try codes for the brands
Orion, Emerson, Memorex, Sansui, Sylvania, or
Zenith. You may need to try several codes
before finding a match.
Note:
You can also find codes for other remote controls
at:
http://www.insigniaproducts.com/remotecodes
Or, check with your cable or satellite TV provider
for the remote control code.
33
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

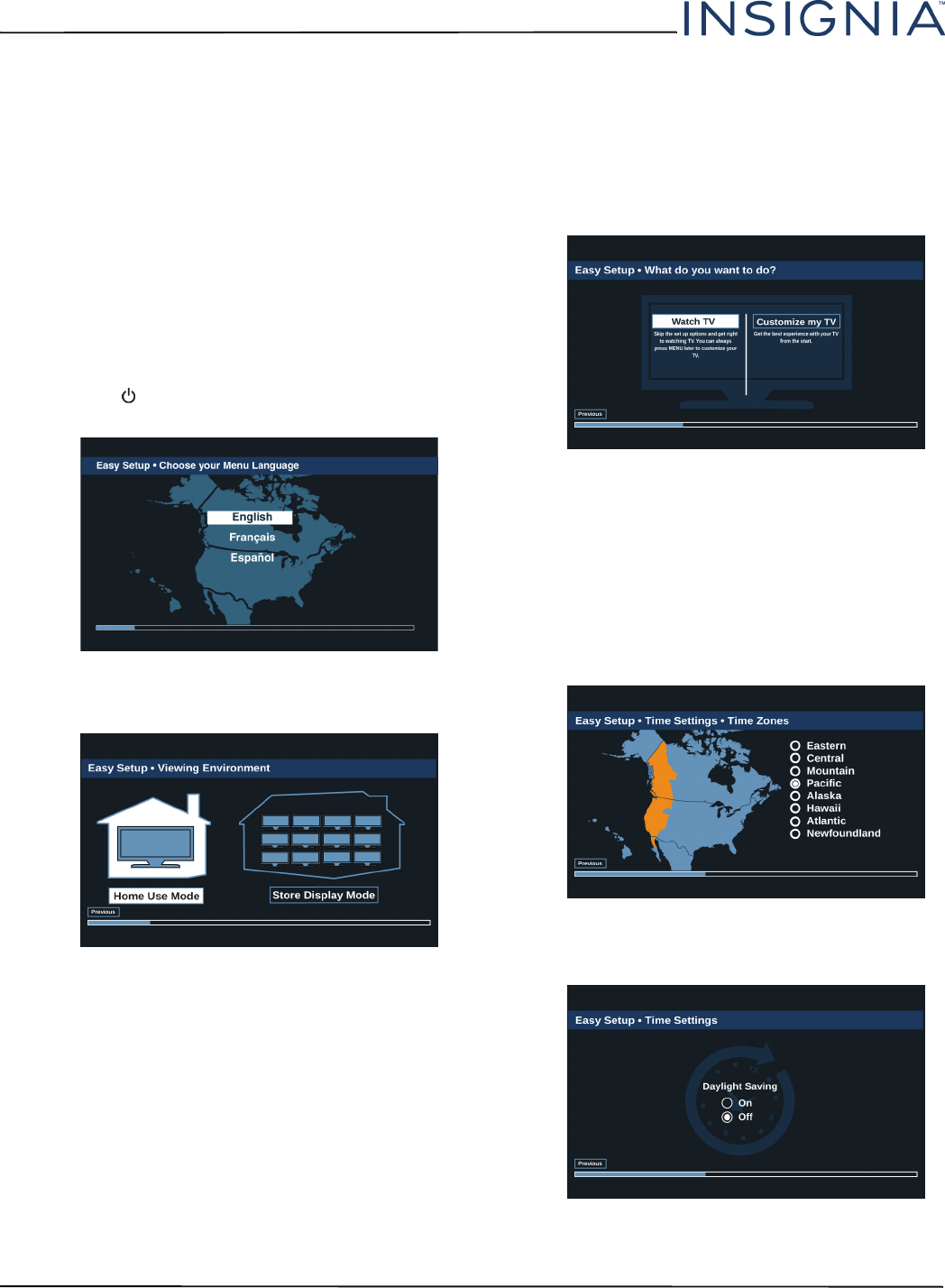

Turning on your TV for the
first time
The first time you turn on your TV, the Easy Setup
wizard opens. The wizard guides you through setting
up basic settings including the menu language, time
setting, picture mode, TV signal source, and the
channel list.
1Make sure that you have:
• Installed the remote control batteries. (See
page 31.)
• Connected an antenna, cable TV, or satellite TV.
(See page 13 through page 17.)
• Connected the AC power adapter. (See page 30.)
2Press (power) to turn on your TV. The Easy Setup
wizard opens.
3Press S or T to highlight a language, then press
ENTER.
4Press W or X to highlight Home Use Mode or
Store Display Mode, then press ENTER.
If you selected Store Display Mode, a message
asks if you are sure you want this mode. Select OK
to continue using Store Display Mode, or select
Cancel to switch to Home Use Mode, then press
ENTER. Store Display Mode is not an energy
savings mode and displays a retail banner.
5Press W or X to highlight an option, then press
ENTER. You can select:
•Watch TV to skip the customization options. You
can press MENU later to customize settings. Go
to “Finish the wizard” on page 34.
•Customize my TV to set options to maximize
your experience. Go to “Customize my TV” on
page 33.
Customize my TV
6Press S or T to highlight a time zone, then press
ENTER.
34
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

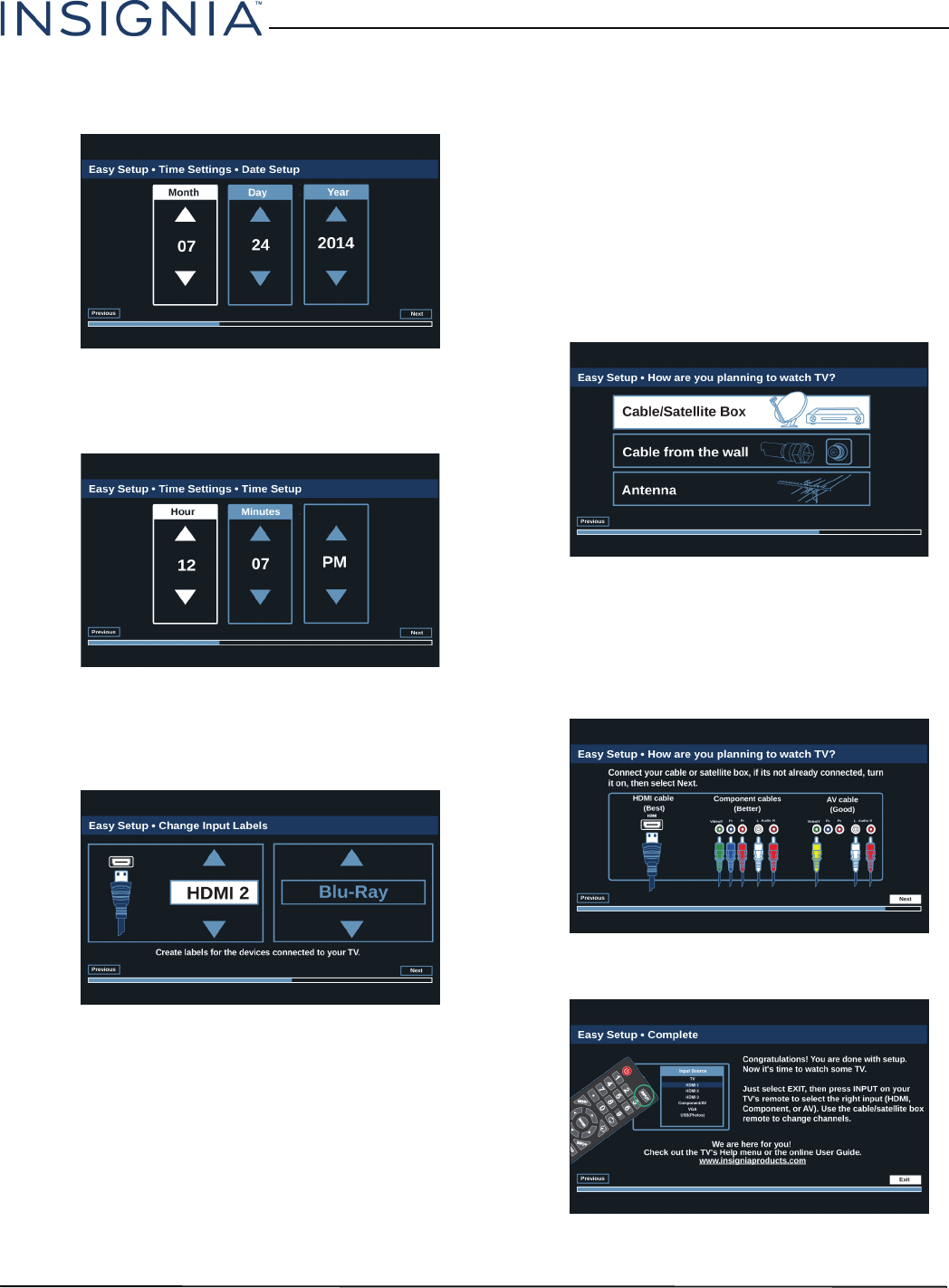

7Press S or T to select On to turn on Daylight
Saving or Off to turn off Daylight Saving, then
press ENTER.
8Press W or X to highlight Month, Day, or Year,
press S or T adjust the setting, then press ENTER
or press X to highlight Next and press X again.
9Press W or X to highlight Hour, Minutes, or the
AM/PM field, press S or T adjust the option, then
press ENTER or press X to highlight Next and
press X again.
10 Press S or T to highlight a video input source,
then press X to move to the label area.
11 Press S or T to highlight a preset label or Custom.
12 If you select a preset label, press X to select Next,
then press ENTER.
OR
If you select Custom, press ENTER, then press S
or T to enter the first character in your custom
label. Press W or X to move to the previous or next
character position. Use the arrow buttons to enter
additional characters. You can enter 12 characters
(letters or numbers). When you have finished
creating your label, press ENTER to save your
label, press X select Next, then press
ENTER again.
Finish the wizard
13 Press S or T to highlight Cable / Satellite Box,
Cable from the wall, or Antenna, then press
ENTER.
•If you select Cable / Satellite Box, the screen
that opens shows you the ways you can connect
the box.
Press ENTER.
35
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
•If you select Cable from the wall or Antenna,
your TV starts scanning for channels and
displays a progress screen.
14 Press ENTER to close the wizard. If you selected:
•Cable from the wall or Antenna, your TV tunes
to the first channel it found in the scan.
•Cable/Satellite box, press INPUT to open the
INPUT SOURCE list, press S or T to select the
video input (HDMI, Component, or AV) you
connected the box to, then press ENTER. Your
TV switches to the input you selected.
Understanding the basics
This section covers basic information for:
• Turning your TV on or off
• Selecting the video input source
• On-screen menu overview
• Navigating the menus
• Selecting a channel
•Adjusting the volume
• Viewing channel information
Turning your TV on or off
1Make sure that the power adapter is connected to
a power outlet.
2Press (power) to turn on your TV. The power
indicator turns off.
3Press (power) again to turn off your TV. Your TV
enters standby mode, and the power indicator
turns red.
Selecting the video input source
1Turn on your TV.
2If you want to use a device connected to a video
input (such as a DVD or Blu-ray player), turn on the
device.
3Press INPUT.
4Press S or T to select a video input source, then
press ENTER.
Note
You can press EXIT to stop the auto channel
search, but you will need to run the auto
channel search again to create a channel
list.
Warning
When your TV is in standby mode, it is still
receiving power. To completely disconnect
power, unplug the power adapter.
Note
If your TV does not receive an input signal
for several minutes, it automatically goes
into standby mode.
Note
Your TV automatically detects and displays
which video jacks have devices connected
to them when the devices are turned on.
You can turn this feature off to always
display all inputs. For more information,
see “Turning the input sensor on or off” on
page 59.
36
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

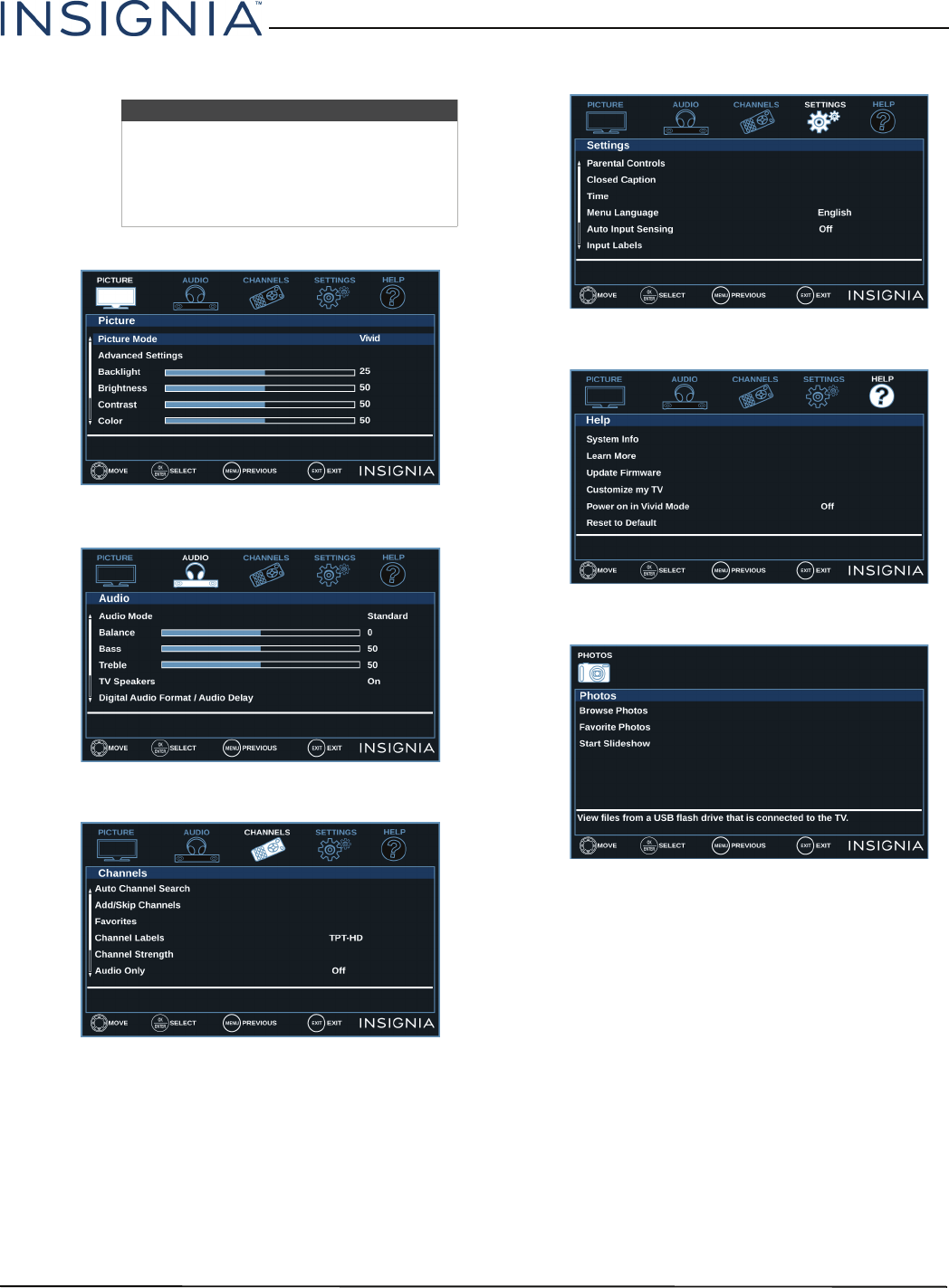

On-screen menu overview
Picture menu (TV mode)
Audio menu (TV mode)
Channels menu (TV mode)
Settings menu (TV mode)
Help menu
Photos menu (USB mode)
Notes
• Depending on the signal source
selected, you may see different
options on your screen.
• Menu items that are not selectable are
grayed out.
37
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

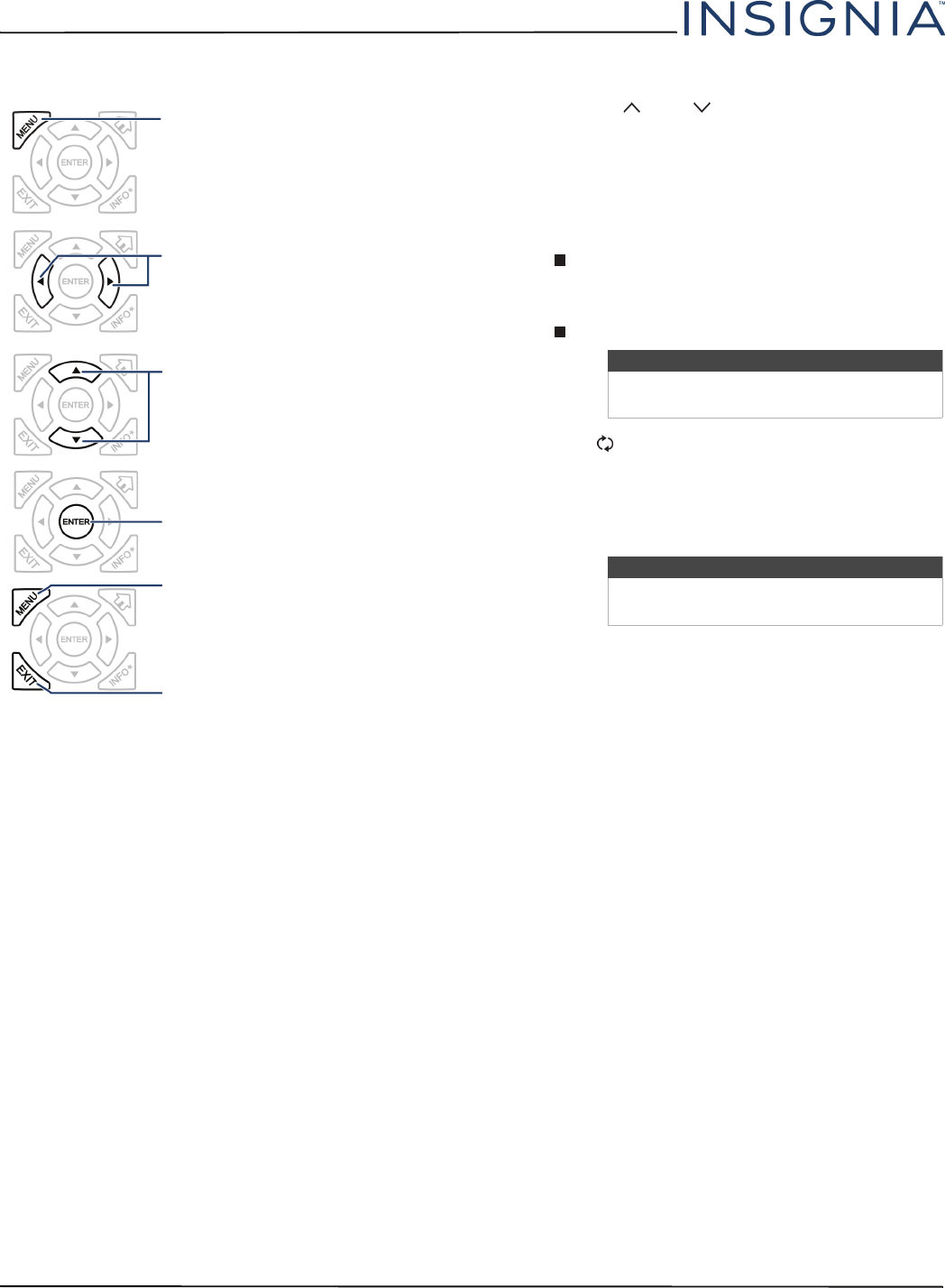

Navigating the menus Selecting a channel
• Press CH or CH to go to the next or previous
channel on the memorized channel list.
• Press the number buttons to enter the channel
number you want, then wait for the channel to
change or press ENTER to immediately change the
channel.
• To select a digital sub-channel, press the number
buttons to select the main digital channel, press
(sub-channel), then press the number button for
the sub-channel. Wait for the channel to change, or
press ENTER to immediately change the channel.
For example, to tune to channel 5.1, press 5,
(sub-channel), then 1.
• Press (return) to go to the last viewed channel.
• Press FAVORITE to open the favorite channel list,
press S or T to highlight a channel, then press
ENTER. For information about setting up a favorite
channel list, see “Setting up a favorite channel list”
on page 49.
Adjusting the volume
• Press VOL+ or VOL– to increase or decrease the
volume.
• Press MUTE to turn off the sound. Press MUTE again
to turn the sound back on.
Viewing channel information
• Press INFO* to view an information banner. The
information banner shows the current program
information such as channel number, video input
source, and resolution.
• Digital channel information—Displays the
channel number, station name, channel label,
broadcast program name, TV rating, signal type,
audio information, resolution, current time,
signal strength, day of the week, date and
current program start and end times, if provided
by the broadcaster.
• Analog channel information—Displays channel
number, channel label (if present), signal type,
audio information, day of the week, date, and
resolution, if provided by the broadcaster.
Press MENU to open the on-screen menu.
Press the right or left arrow to move the cursor on
the screen or to adjust a selected item.
Press the up or down arrow to select menu
options.
Press ENTER to confirm a selection or enter a
sub-menu.
Press MENU to return to the previous menu.
Press EXIT to close the menu.
Note
Button presses must be within three
seconds of each other.
Note
If a list has more than one page, press S T
W or X to scroll through the pages.
38
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

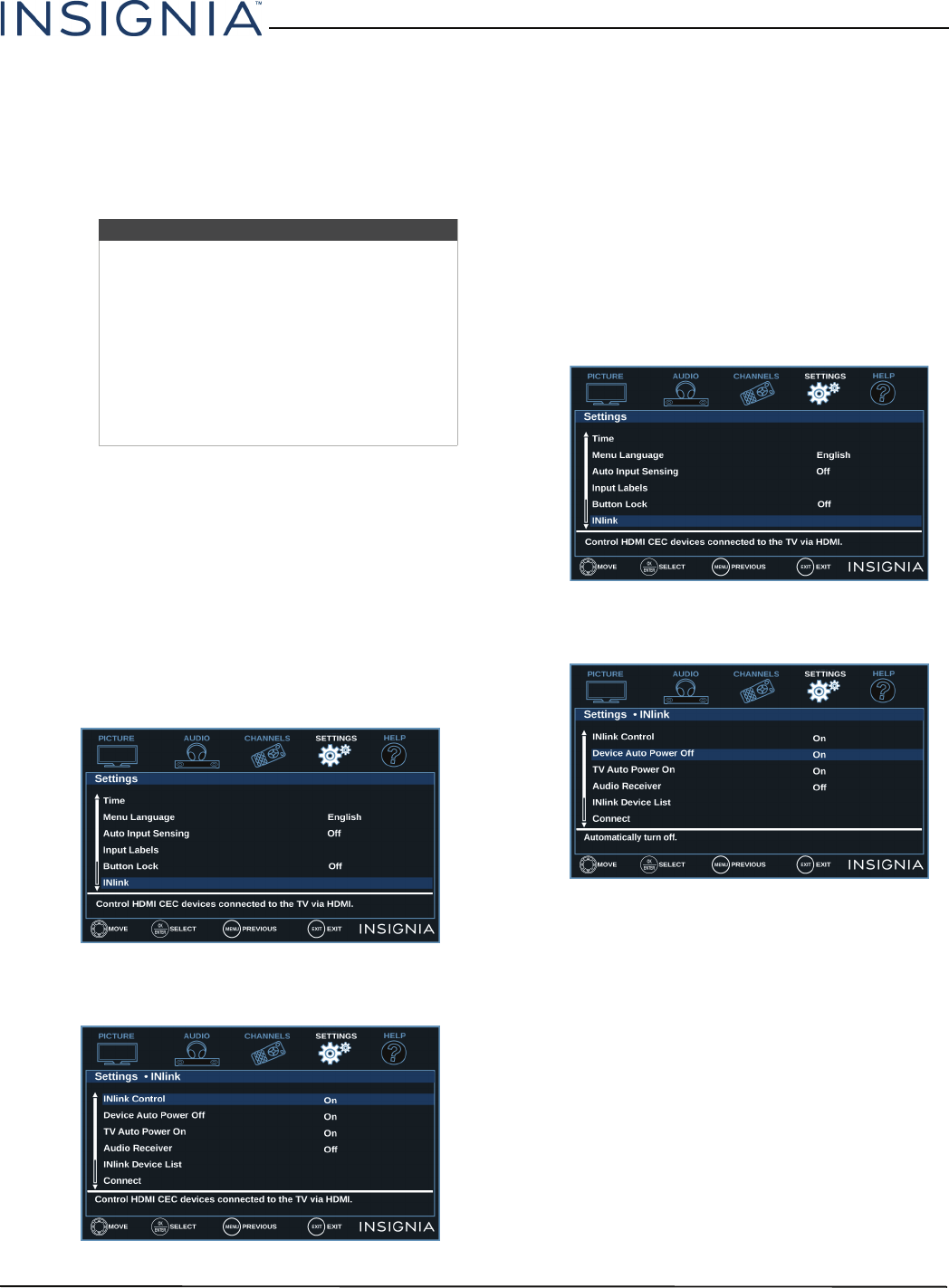

Using INlink
INlink lets you control HDMI CEC-compatible devices
connected to the HDMI jacks on your TV using the
remote control that came with your TV. To use INlink,
you must set the INlink Control setting on the INlink
menu to On.
This section covers:
• Turning INlink on or off
• Turning Device Auto Power Off on or off
• Turning TV Auto Power On on or off
• Turning Audio Receiver on or off
• Displaying a list of INlink-compatible devices
• Selecting an INlink-compatible device
Turning INlink on or off
1Press MENU.
2Press W or X to highlight SETTINGS, then press T
or ENTER.
3Press S or T to highlight INlink, then press ENTER
or X.
4Press S or T to highlight INlink Control, then
press ENTER or X.
5Press S or T to highlight On or Off, then press
ENTER.
6Press MENU to return to the previous menu, or
press EXIT to close the menu.
Turning Device Auto Power Off on or off
When INlink is set to On, Device Auto Power Off
automatically turns off HDMI CEC devices when you
turn off your TV.
1Press MENU.
2Press W or X to highlight SETTINGS, then press T
or ENTER.
3Press S or T to highlight INlink, then press ENTER
or X.
4Press S or T to highlight Device Auto Power Off,
then press ENTER or X.
5Press S or T to highlight On (turns off the
connected devices when you turn off your TV) or
Off (does not turn off the connected devices when
you turn off your TV), then press ENTER.
6Press MENU to return to the previous menu, or
press EXIT to close the menu.
Notes
• HDMI cables must be used to connect
HDMI CEC-compatible devices to your TV.
• The connected device’s HDMI CEC feature
must be turned on.
• If you connect an HDMI device that is not
HDMI CEC-compatible, none of the
INlink Control features work.
• Depending on the connected HDMI
device, some INlink Control features
may not work.
39
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Turning TV Auto Power On on or off
TV Auto Power On automatically turns on your TV
when an HDMI CEC device is turned on, if the device
has this feature.
1Press MENU.
2Press W or X to highlight SETTINGS, then press T
or ENTER.
3Press S or T to highlight INlink, then press ENTER
or X.
4Press S or T to highlight TV Auto Power On, then
press ENTER or X.
5Press S or T to highlight On (turns on your TV
when you turn on the connected device) or Off
(does not turn on your TV when you turn on the
connected device), then press ENTER.
6Press MENU to return to the previous menu, or
press EXIT to close the menu.
Turning Audio Receiver on or off
When INlink is turned on and you have connected an
HDMI CEC-compatible audio receiver to your TV,
turning on Audio Receiver lets you use your TV’s
remote control to control the volume on the audio
receiver.
1Press MENU.
2Press W or X to highlight SETTINGS, then press T
or ENTER.
3Press S or T to highlight INlink, then press ENTER
or X.
4Press S or T to highlight Audio Receiver, then
press ENTER or X.
5Press S or T to highlight On (your TV’s remote
control controls the connected audio receiver’s
volume) or Off (your TV’s remote control does not
control the connected audio receiver’s volume),
then press ENTER.
6Press MENU to return to the previous menu, or
press EXIT to close the menu.
40
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Displaying a list of INlink-compatible devices
You can display a list of HDMI CEC devices that are
connected to your TV.
1Press MENU.
2Press W or X to highlight SETTINGS, then press T
or ENTER.
3Press S or T to highlight INlink, then press ENTER
or X.
4Press S or T to highlight INlink Device List, then
press ENTER or X. A list of the HDMI
CEC-compatible devices you have connected
appears.
5Press MENU to return to the previous menu, or
press EXIT to close the menu.
Selecting an INlink-compatible device
When you have more than one INlink-compatible
device connected, you can select the device you want
to use.
You can also open an INlink-compatible device’s root
menu.
1Press MENU.
2Press W or X to highlight SETTINGS, then press T
or ENTER.
3Press S or T to highlight INlink, then press ENTER
or X.
4Press S or T to highlight Connect, then press
ENTER or X.
5Press S or T to highlight the device you want to
connect to, then press ENTER.
6Press S or T to select an option. You can select:
•Connect—Wake (turn on) the device if it is in
standby mode or returns to the device if you
have switched to a different video input mode.
•Root Menu—Open the device’s root menu, then
use your TV’s remote control to control the
device, if the device has this feature.
7Press MENU to return to the previous menu, or
press EXIT to close the menu.
41
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Using a USB flash drive
You can connect a USB flash drive to your TV to view
compatible JPEG pictures.
This section covers:
• Switching to USB mode
• Browsing photos
• Viewing favorite photos
• Viewing photos in a slideshow
Switching to USB mode
1Make sure that you have connected the USB flash
drive to the USB port on your TV.
2Press S or T to highlight Ye s in the message that
appears, then press ENTER. The Photos menu
opens.
OR
If you connected the USB flash drive, then
changed to a different video input source, press
INPUT to open the INPUT SOURCE list, press S or
T to highlight USB(Photos), then press ENTER.
The Photos menu opens.
Browsing photos
1Switch to USB mode. See “Switching to USB mode”
on page 41.
2Press S or T to highlight Browse Photos, then
press ENTER or X. The screen displays folder
names and photo files stored on the USB flash
drive in a thumbnail index with the first folder or
file highlighted. A control bar appears at the
bottom of the screen.
3To navigate the thumbnail index screen, press:
•S T W or X to browse through the files and
folders.
•ENTER to view a highlighted photo full-screen
or open a highlighted folder.
•MENU or EXIT to open the Photos menu.
•FAVORITE to add or remove a photo from the
favorite photo list. A heart appears on a photo
that has been added to the favorite photo list.
Notes
• Never remove the USB flash drive or
turn off your TV while viewing JPEG
pictures.
• The JPEG picture viewer only supports
JPEG format images (with “.jpg” file
extensions) and not all JPEG files are
compatible with your TV.
Note
To exit USB mode, press INPUT to open
the INPUT SOURCE list, then select another
input source.
Notes
• Photos are shown in the order they
appear on the USB flash drive. They
may not be listed in file name order.
• Favorite photes are marked with
hearts.
42
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
When a photo is displayed full-screen, a control
bar appears at the bottom of the photo. The file
name, picture resolution, size, and date are
displayed on the bottom of the control bar. If you
do not press a button within 10 seconds, the
control bar closes. Press INFO* to open the control
bar again.
4To navigate on the photo screen, press:
•W to go to the previous photo.
•X to go to the next photo.
•ENTER to rotate the photo clockwise.
•ASPECT one or more times to enlarge the image
by 2×, or 4× or to select Fill (to fill the screen).
You can press S T W or X to pan the photo.
•EXIT to return to the thumbnail index.
•MENU to return to the Photos menu.
Viewing favorite photos
After you create your favorite photo list, you can
browse among your favorite photos quickly.
1Switch to USB mode. See “Switching to USB mode”
on page 41.
2Press S or T to highlight Favorite Photos, then
press ENTER or X. A thumbnail index of your
favorite photos opens with a control bar at the
bottom of the screen.
You select photos and navigate on the photo
screen in the same way you do when you are
browsing through photos. For more information,
see “Browsing photos” on page 41.
Note
Photos are shown in the order they appear
on the USB flash drive. They may not be
listed in file name order.
43
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

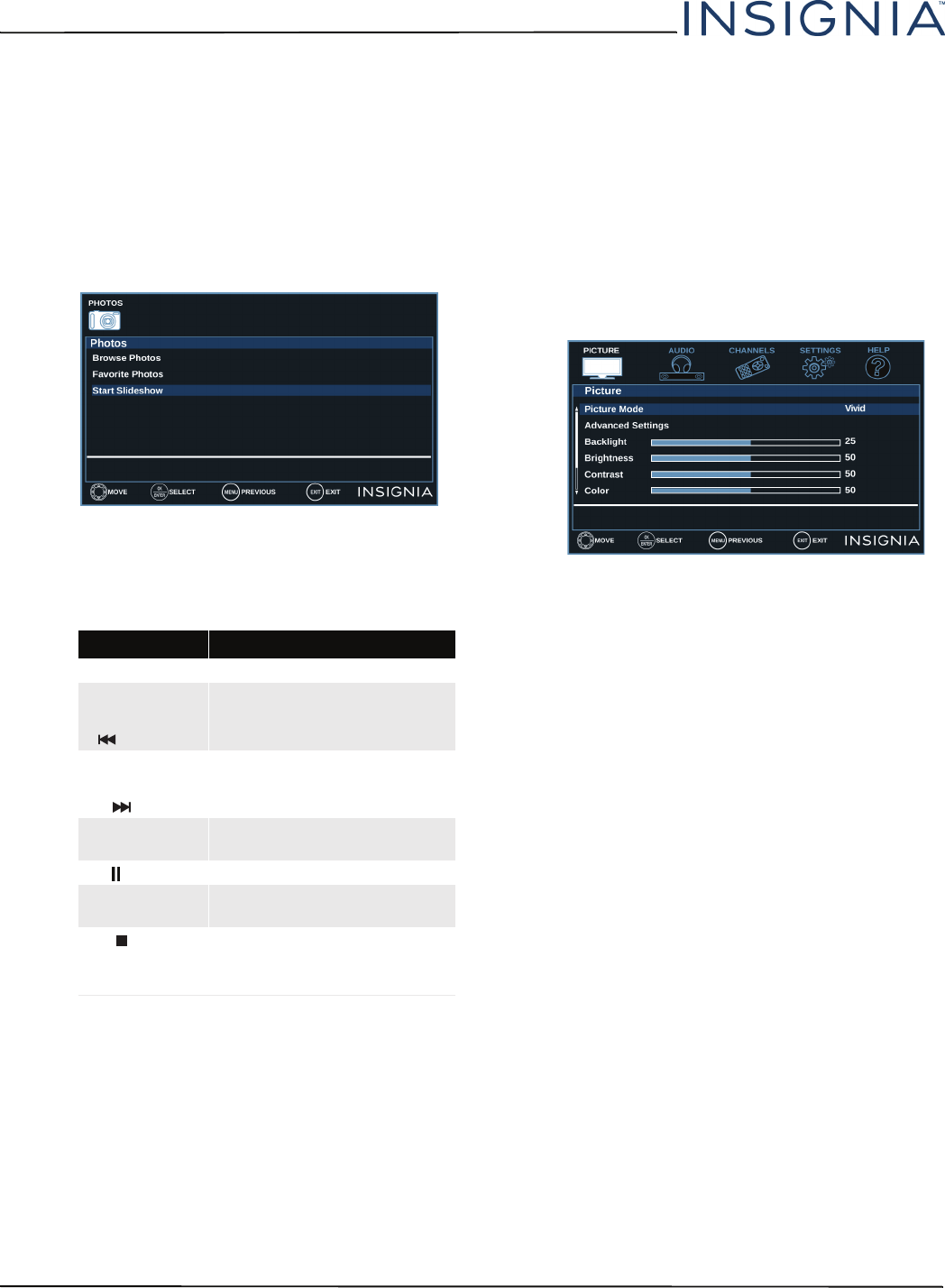

Viewing photos in a slideshow
You can view your photos in a slideshow.
1Switch to USB mode. See “Switching to USB mode”
on page 41.
2If the photos you want to view are in a folder on
the USB flash drive, select the folder. For
information about selecting a folder, see
“Browsing photos” on page 41 or “Viewing
favorite photos” on page 42.
3Press MENU.
4Press S or T to highlight Start Slideshow, then
press ENTER or X. A slideshow starts with the first
photo in the current folder.
5To control the slideshow:
Adjusting the picture
This section covers:
•Adjusting the TV picture
• Automatically adjusting the aspect ratio
• Setting the power on picture mode
Adjusting the TV picture
You can adjust various settings to improve the quality
of the TV picture. Also, you can reset all picture
settings to the factory default.
1Press MENU.
2Press T or ENTER to access the Picture menu.
Press... To...
MENU Press to open the Photos menu.
W (left arrow)
OR
(previous)
Return to the previous photo.
X (right arrow)
OR
(next)
Go to the next photo.
ENTER Pause the slideshow. Press
again to resume the slideshow.
(pause) Pause the slideshow.
X (play) When paused, press to resume
the slideshow.
(stop)
OR
EXIT
Press to stop the slideshow and
return to the thumbnail index.
44
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

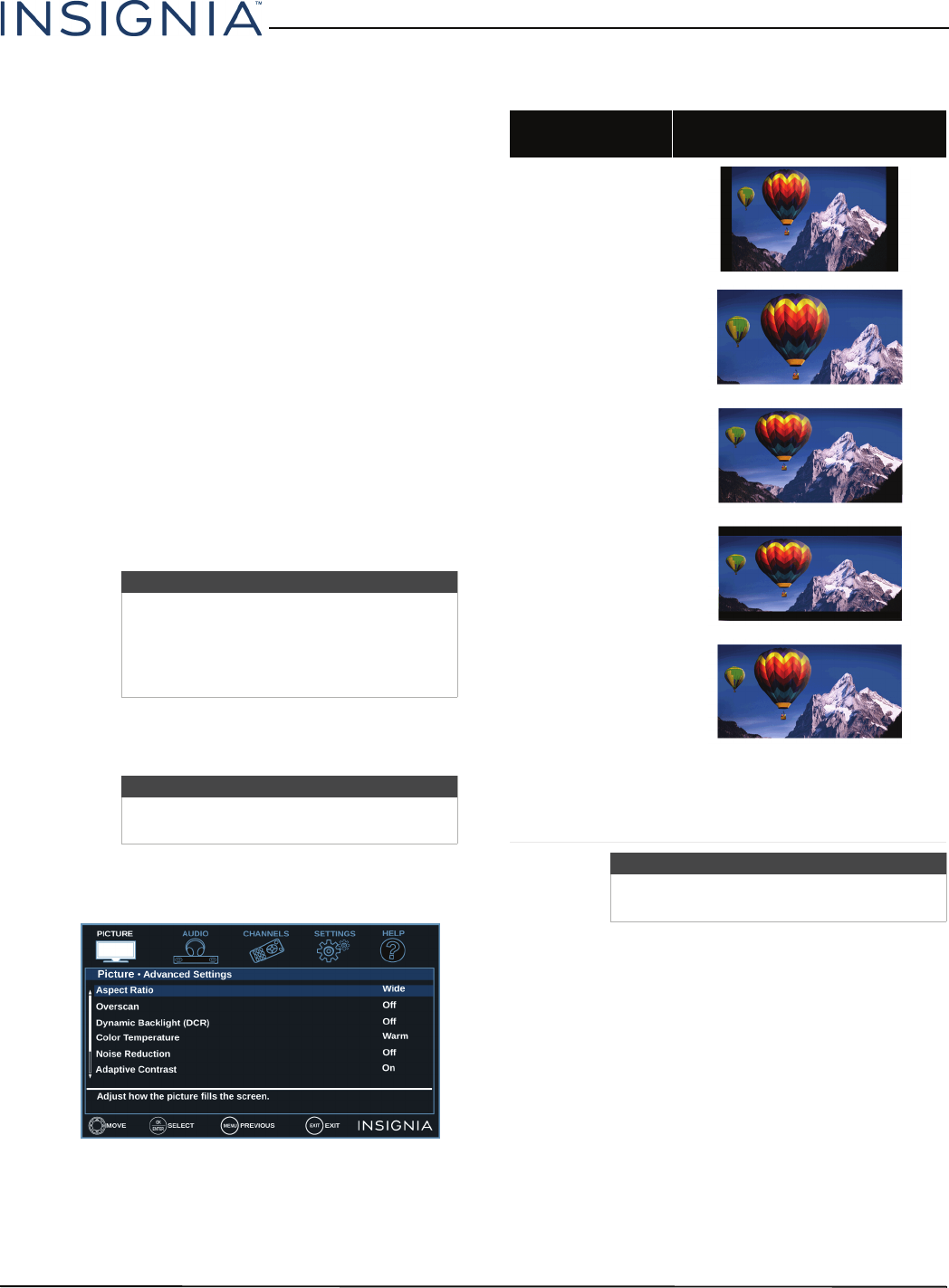

3Press S or T to highlight an option, then press
ENTER or X to access the option. You can select:
•Picture Mode—Selects the picture mode. You
can select:
•Vivid—(a bright and vivid picture).
Significantly increases the contrast,
brightness, and sharpness. This selection is
good for video games, animation, and in
bright light environments.
•Standard—(a standard picture). Moderately
increases the contrast, brightness, and
sharpness. This selection is good for standard
TV broadcasts.
•Energy Savings—(the backlight brightness
is decreased). Your TV has a backlight that
provides light for displaying a picture. By
reducing the amount of light, your TV uses
less energy.
•Movie—(a finely detailed picture). Adjusts
the brightness and contrast and lowers the
sharpness for a more realistic picture. This
selection is good for watching the highest
quality video such as Blu-ray Discs, DVDs, and
HDTV.
•Game—Adjusts the picture for the ultimate
gaming experience.
•Custom—(customized picture). Lets you
manually adjust picture settings such as
brightness, contrast, and sharpness.
•Advanced Settings—Opens the
Picture · Advanced Settings menu where you can
adjust additional video options.
•Aspect Ratio—Adjusts how the picture fills
the screen. You can select:
•Overscan—Extends text and images past
the screen edges to hide edge artifacts. You
can select On or Off.
•Dynamic Backlight (DCR)—Enhances the
contrast ratio between light and dark areas of
the picture. You can select Off, Low, or High.
•Color Temperature—Selects the color
temperature. You can select Cool (to
enhance the blues), Normal, or Warm (to
enhance the reds).
•Noise Reduction—Selects the noise
reduction mode to reduce picture noise
(snow). You can select Off, Low, Middle, or
High.
•Adaptive Contrast—Automatically adjusts
picture detail and brightness. You can select
On or Off.
Note
• You can also press GAME to select
Game mode.
•Game mode is only available when
the video input is set to HDMI or
Component/AV.
Note
You can also press PICTURE to select the
picture mode.
Aspect ratio
options Example
Normal:
Displays the image in the
original aspect ratio. You
may see black bars if the
original content is not
widescreen (16:9).
Zoom:
Expands the image to fill
the screen. The top and
bottom of the image may be
cropped.
Wide:
Use this option to view
content recorded in a
widescreen (16:9) aspect
ratio.
Cinema:
Stretches the image at the
edges, but keeps a clear
image in the center.
Auto:
Automatically adjusts the
image based on the screen
size and the TV program.
Select this option if you do
not know which aspect ratio
to choose.
Note: Auto is only
available when Auto
Aspect Ratio in the
Channels menu is set to On.
Note
You can also press ASPECT to select the
aspect ratio.
45
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

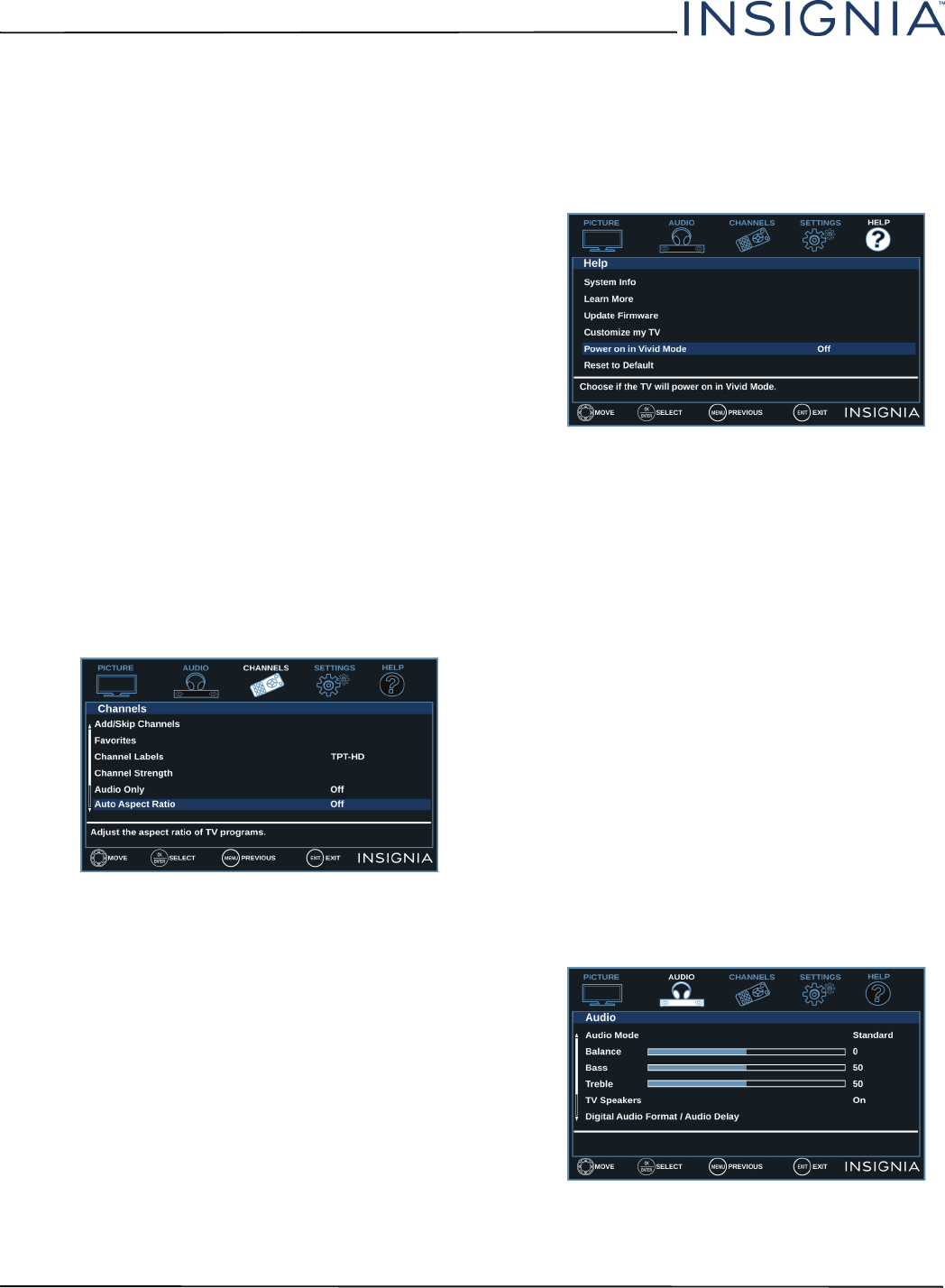

•Backlight—Sets the overall brilliance of the
screen.
•Brightness—Adjusts the brightness of the dark
areas of the picture.
•Contrast—Adjusts the brightness of the light
areas of the picture.
•Color—Adjusts the color intensity of the picture.
A low setting may make the color look faded. A
high setting may make the color look artificial.
•Tint—Adjusts the color balance of the picture.
Use this control to make skin tones look more
natural.
•Sharpness—Adjusts the color detail of images.
If you set this control too high, dark images may
appear with light or white edges.
•Reset Picture Settings—Resets all picture
settings to factory mode.
4Press W or X to adjust the option, or press S or T
to select a setting.
5Press MENU to return to the previous menu, or
press EXIT to close the menu.
Automatically adjusting the aspect ratio
Auto Aspect Ratio automatically changes how the
picture looks on the screen (aspect ratio) based on the
TV program you are viewing.
1Press MENU.
2Press W or X to highlight CHANNELS, then press T
or ENTER.
3Press S or T to highlight Auto Aspect Ratio, then
press ENTER or X.
4Press S or T to select On (automatically adjust the
aspect ratio) or Off (does not automatically adjust
the aspect ratio), then press ENTER.
5Press MENU to return to the previous menu, or
press EXIT to close the menu.
Setting the power on picture mode
You can set the picture mode your TV uses when you
turn it on.
1Press MENU.
2Press W or X to highlight HELP, then press T or
ENTER.
3Press S or T to highlight Power on in Vivid
Mode, then press ENTER or X.
4Press S or T to highlight On (when you turn on
your TV, it will be in Vivid picture mode) or Off
(when you turn on your TV, it will be in the picture
mode it was in before you turned it off ), then press
ENTER.
5Press MENU to return to the previous menu, or
press EXIT to close the menu.
Adjusting the sound
This section covers:
• Adjusting sound settings
• Selecting the audio out mode
• Playing TV audio only
Adjusting sound settings
You can adjust sound settings to improve the sound
quality. You also can reset all sound settings to the
factory default.
1Press MENU.
2Press W or X to highlight AUDIO, then press T or
ENTER.
3Press S or T to highlight an option, then press
ENTER or X to access the option. You can select:
46
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
•Audio Mode—Selects the sound mode. You can
select:
•Standard—Balances treble and bass. This
setting is good for watching standard TV
broadcasts.
•Theater—Enhances treble and bass for a rich
sound experience. This setting is good for
watching DVDs, Blu-ray discs, and HDTV.
•Music—Preserves the original sound. This
setting is good for listening to music.
•News—Enhances vocals for TV audio. This
setting is good for watching news
broadcasts.
•Custom—Lets you manually adjust sound
settings.
•Balance—Adjusts the balance between the left
and right audio channels.
•Bass—Adjusts the low sounds.
•Treble—Adjusts the high sounds.
•TV Speakers—Selects where to play TV audio.
When you connect headphones to your TV,
audio plays through both the headphones and
the TV speakers. You can select:
•Auto (default setting)—Automatically turns
off the TV speakers when you connect a
device to the /AUDIO OUT jack. When
you disconnect the device, the TV speakers
turn on automatically.
•On—Always plays the audio through the TV
speakers. If a device is connected to the
/AUDIO OUT jack, the audio is played
through both the TV speakers and the
device.
•Off—Turns off the TV speakers and plays the
audio only through the device connected to
the /AUDIO OUT jack. If you disconnect
the device, the TV speakers remain turned
off.
• Digital Audio Format/Audio Delay—Adjusts
the digital audio sent to an external audio
system. You can select:
•Audio Format—Selects the digital audio
format sent to an external audio system. You
can select:
•Pass Thru (to pass through the original
digital audio sound).
•PCM (to output audio in 2-channel
stereo).
•Audio Delay—Fine tunes the audio when it
is not in sync with the video.
•MTS/SAP—(Analog channels only) Selects the
audio mode. You can select:
•Mono—Select this option if there is noise or
static on weak stereo broadcasts.
•Stereo—Select this option for programs
broadcast in stereo.
•SAP—Select this option to listen to a
secondary audio program, if available.
•Audio Language—(Digital channels only)
Selects an alternate audio language, if available.
•Headphones/Audio Out—You can use the
/AUDIO OUT jack on the side of your TV to
connect headphones, a home theater system,
sound bar, or external speaker system. When a
device is connected to the /AUDIO OUT jack,
the TV speakers are muted. You can select:
•Headphones/Audio Out Variable—Select
this option to use the remote control that
came with your TV to control the audio from
headphones, a home theater system, a sound
bar, or an external speaker system you
connected to the /AUDIO OUT jack.
•Audio Out Fixed—Select this option to use
the remote control that came with the home
theater system, sound bar, or external
speaker system you connected to the
/AUDIO OUT jack to control the audio.
•Reset Audio Settings—Reset all audio settings
to factory defaults.
4Press S T W or X to adjust the option select a
setting, then press ENTER.
5Press MENU to return to the previous menu, or
press EXIT to close the menu.
Selecting the audio out mode
If your TV is on when you connect a device to the
/AUDIO OUT jack on the side of your TV, a screen
opens where you select which audio out mode you
want to use.
1Connect headphones, a home theater system,
sound bar, or external speaker system to the
/AUDIO OUT jack on the side of your TV.
2Press W or X to highlight the audio out mode you
want to use, then press ENTER. You can select:
•Headphones/Audio Out Variable—Select this
option to use the remote control that came with
your TV to control the audio from headphones, a
home theater system, or a sound bar you
connected to the /AUDIO OUT jack.
•Audio Out Fixed—Select this option to use the
remote control that came with the home theater
system, sound bar, or external speaker system
you connected to the /AUDIO OUT jack to
control the audio.
47
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

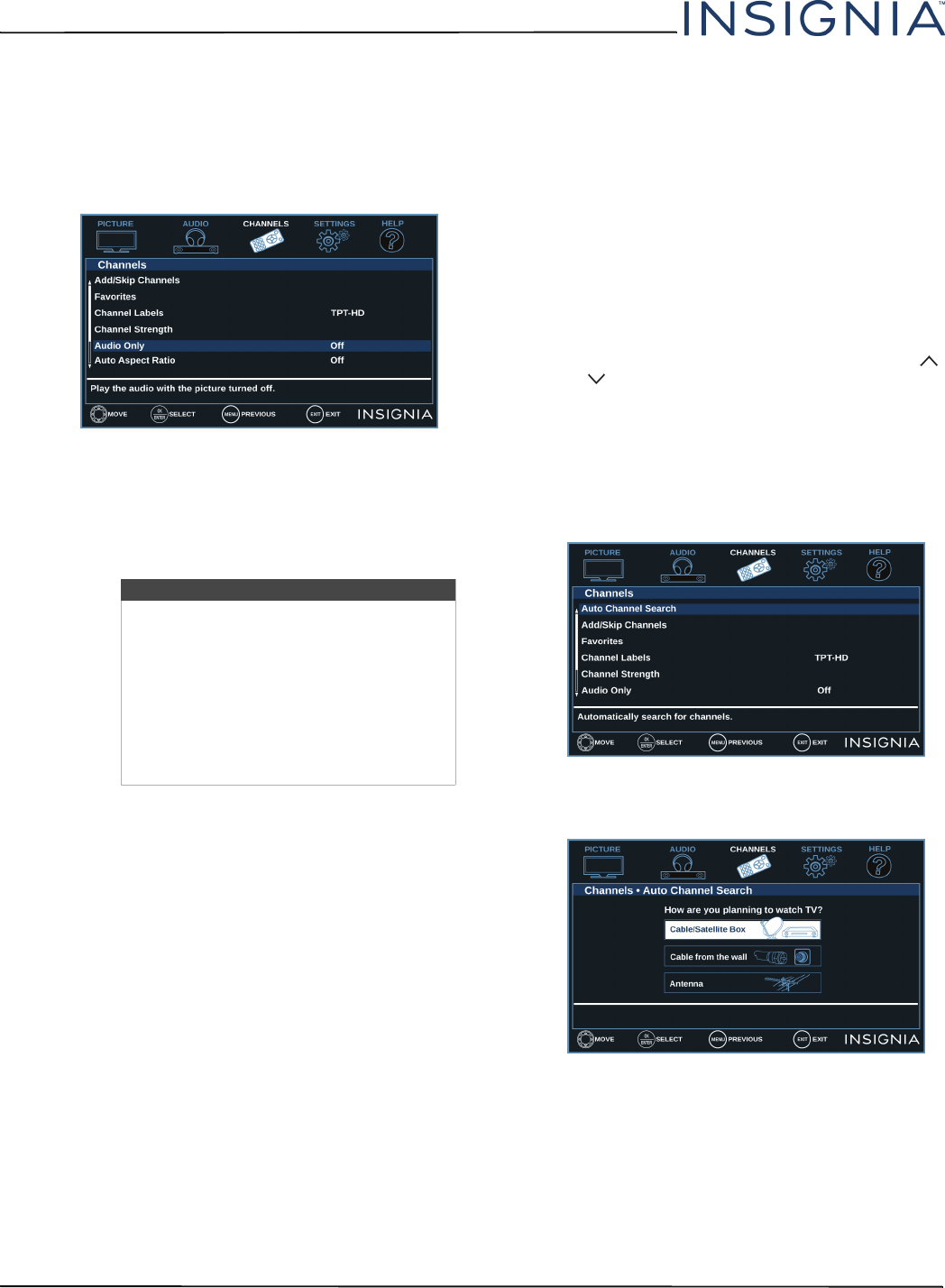

Playing TV audio only
You can turn off the picture on your TV and listen to
the program audio only.
1Press MENU.
2Press W or X to highlight CHANNELS, then press T
or ENTER.
3Press S or T to highlight Audio Only, then press
ENTER or X.
4Press S or T to select On.
5Press MENU, ENTER, or W to return to the previous
menu, or press EXIT to close the menu.
Changing channel settings
This section covers:
• Automatically scanning for channels
•Hiding channels
• Setting up a favorite channel list
•Viewing a favorite channel
• Adding or changing a channel label
• Checking the digital signal strength
Automatically scanning for channels
When you scan for channels, your TV searches for
channels with signals and stores the channel
information in the channel list. When you press CH
or CH , your TV goes to the next or previous
channel in the channel list.
If the TV signal source changes, for example you
change from an outdoor antenna to cable TV (no
box), you need to scan for channels.
1Press MENU.
2Press W or X to highlight CHANNELS, then press T
or ENTER.
3Press S or T to highlight Auto Channel Search,
then press ENTER or X.
4Press S or T to highlight Cable / Satellite Box,
Cable from the wall, or Antenna, then press
ENTER.
Notes
• The picture turns off in about five
seconds.
•Audio Only works only when the
input source is TV, and your TV is
receiving a broadcast signal.
• To exit audio only mode, press any
button. When you exit audio only
mode, the Audio Only option is
automatically reset to Off.
48
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

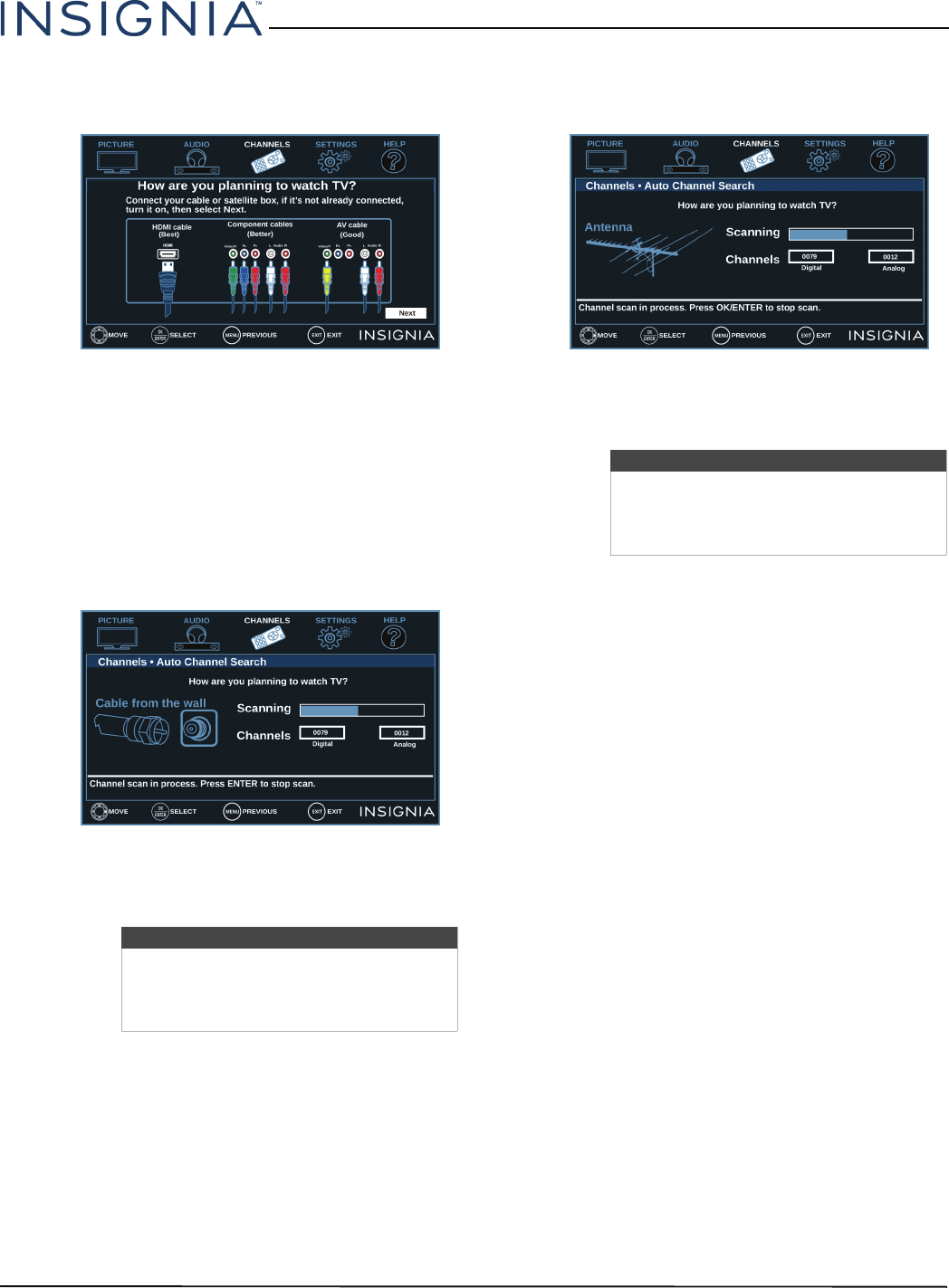

AIf you select Cable/Satellite Box, the screen
that opens shows you all the ways you can
connect a box to your TV.
Press X to highlight Next, then press ENTER.
When a message appears telling you setup is
complete, press EXIT to close the menu.
Press INPUT to open the INPUT SOURCE list,
then press S or T to select the video input
source you connected your TV to and press
ENTER. Your TV switches to the input source
you selected.
BIf you select Cable from the wall, your TV
scans for available channels. The scan may take
several minutes.
When the scan is complete, the on-screen
menu closes and your TV tunes to the first
channel it found when scanning.
CIf you select Antenna, your TV scans for
available channels. The scan may take several
minutes.
When the scan is complete, the on-screen
menu closes and your TV tunes to the first
channel it found when scanning.
Note
You can press EXIT to stop the auto
channel search, but you will need to run
the auto channel search again to create a
channel list.
Note
You can press EXIT to stop the auto
channel search, but you will need to run
the auto channel search again to create a
channel list.
49
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

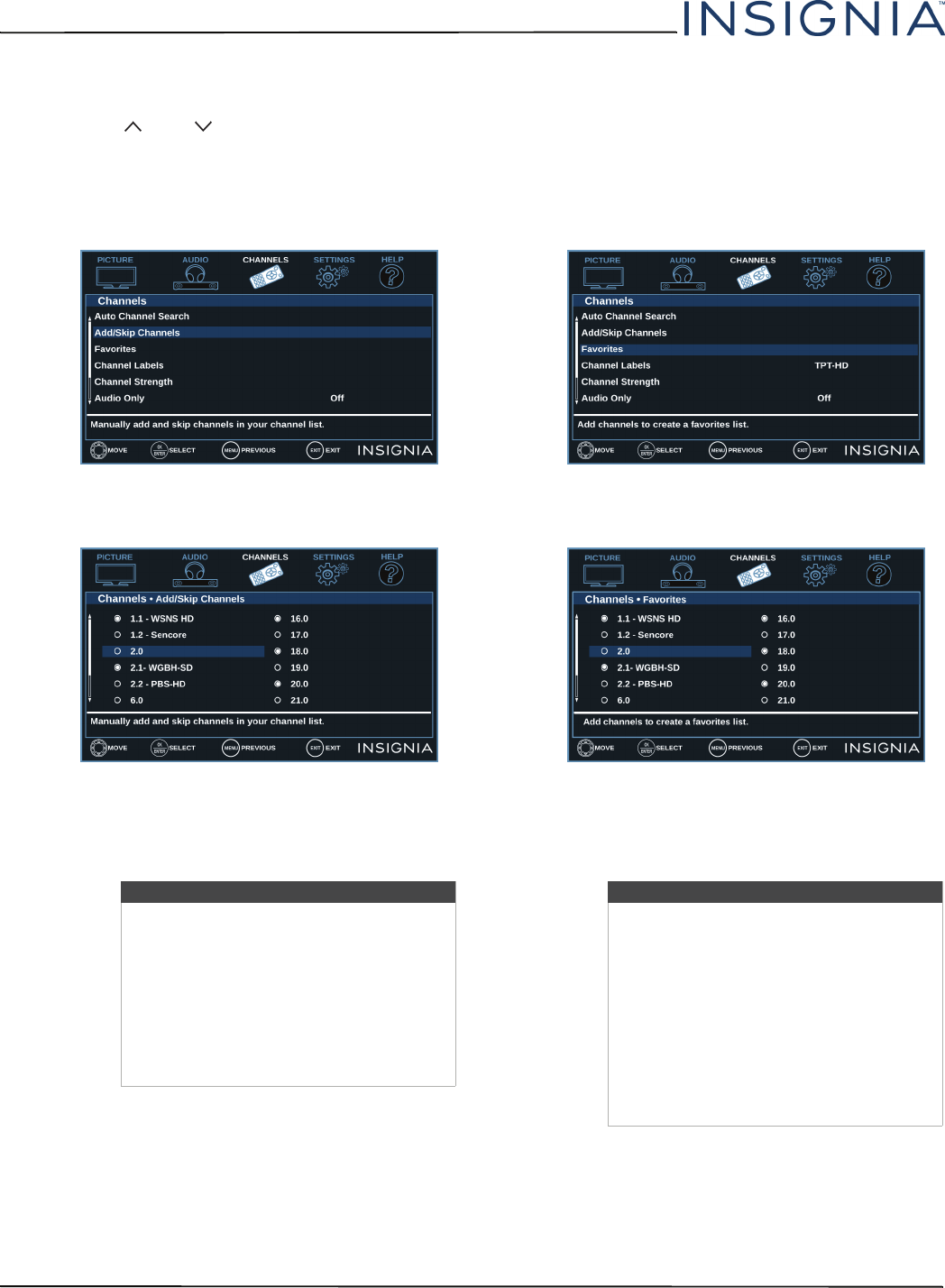

Hiding channels
You can hide channels in the channel list. When you
press CH or CH , your TV skips the hidden
channels. You can still tune to a hidden channel by
pressing the number buttons for the channel.
1Press MENU.
2Press W or X to highlight CHANNELS, then press T
or ENTER.
3Press S or T to highlight Add / Skip Channels,
then press ENTER or X.
4Press S T W or X to highlight the channel you
want to hide, then press ENTER. Each channel has
a circle to the left. When you hide a channel the
circle is empty.
5Press MENU to return to the previous menu, or
press EXIT to close the menu.
Setting up a favorite channel list
You can create a favorite channel list so you can
quickly browse through your favorite channels by
pressing FAVORITE, then selecting a channel from
the favorite channel list.
1Press MENU.
2Press W or X to highlight CHANNELS, then press T
or ENTER.
3Press S or T to highlight Favorites, then press
ENTER or X.
4Press S T W or X to highlight the channel you
want to add to the favorites list, then press ENTER.
Each channel has a circle to the left. When you add
a channel to the Favorite List, the circle is filled.
5Press MENU to return to the previous menu, or
press EXIT to close the menu.
Notes
• If you highlight a channel in the list for
two to four seconds, your TV displays
the channel in the background.
• A channel with a filled circle to the left
is not hidden. A channel with an
empty circle to the left is hidden.
• If the list has more than one page,
press S T W or X to scroll through the
pages.
Notes
• If you highlight a channel in the list for
two to four seconds, your TV displays
the channel in the background.
• To remove a channel from the
favorites list, highlight the channel,
then press ENTER. The filled circle is
replaced with an empty circle and the
channel is removed from the list.
• If the list has more than one page,
press S T W or X to scroll through the
pages.
50
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

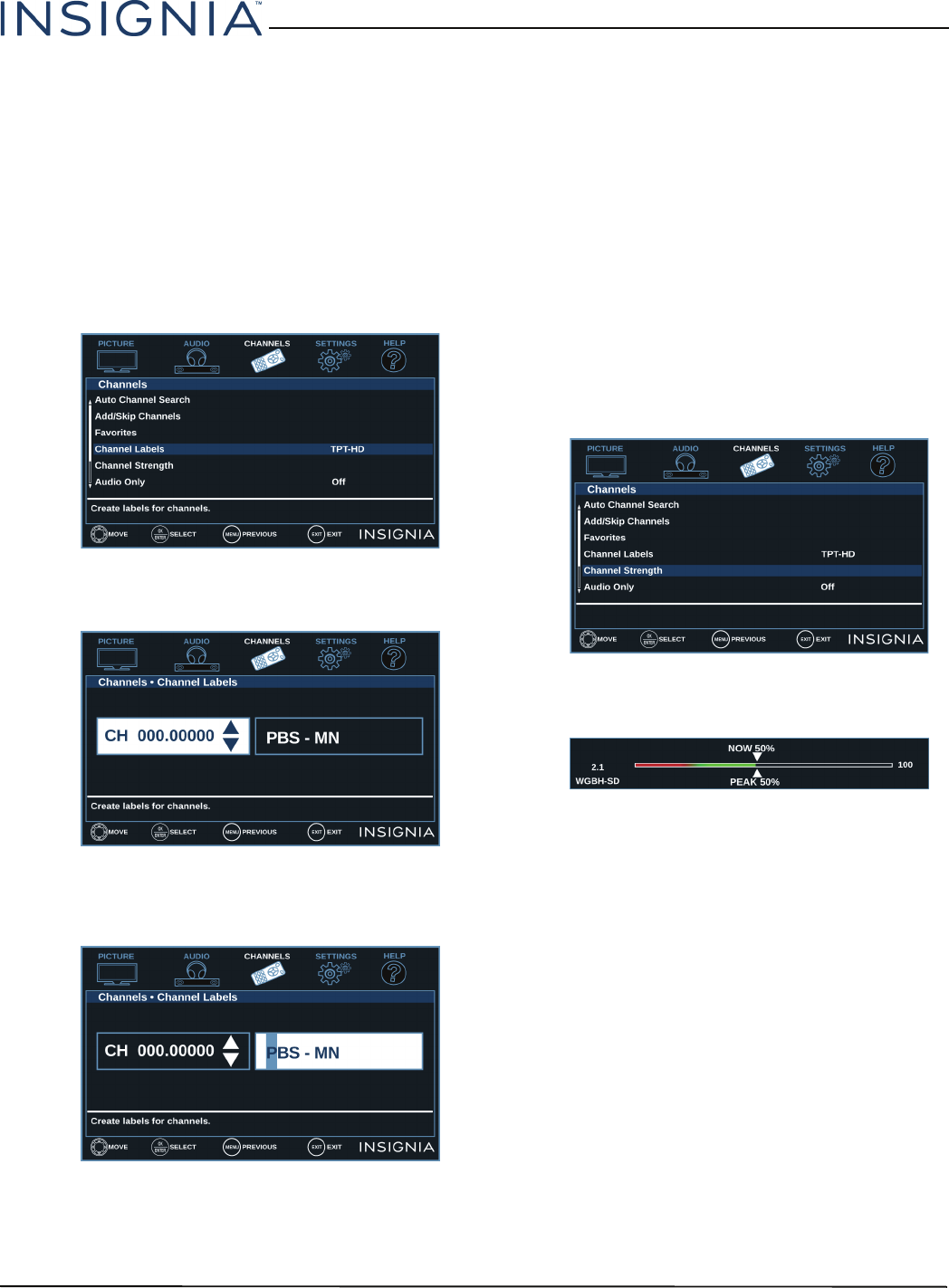

Viewing a favorite channel
1Press FAVORITE. The Favorite List opens.
2Press S or T to highlight a channel, then press
ENTER.
Adding or changing a channel label
If a channel is not already labeled, you can label the
channel to make it easier to identify. You can also
relabel a channel that is already labeled.
1Press MENU.
2Press W or X to highlight CHANNELS, then press T
or ENTER.
3Press S or T to highlight Channel Labels, then
press ENTER or X.
4Press S or T to select the channel you want to
label, then press X to move to the channel label
field.
5Press S or T to select a character, then press W or
X to move to the previous or next character
position. Repeat this step to enter additional
characters. You can enter as many as 11 characters
(letters, numbers, or symbols).
6When you have completed the label, press ENTER
or MENU to save your label and return to the
Channels menu.
7Press EXIT to close the menu.
Checking the digital signal strength
You can check the digital signal strength to determine
if you need to adjust your antenna or digital cable
input. The higher the signal strength, the less likely
you are to experience picture degradation.
1Press MENU.
2Press W or X to highlight CHANNELS, then press T
or ENTER.
3Press S or T to highlight Channel Strength, then
press ENTER or X.
4Press MENU to return to the previous menu, or
press EXIT to close the menu.
51
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

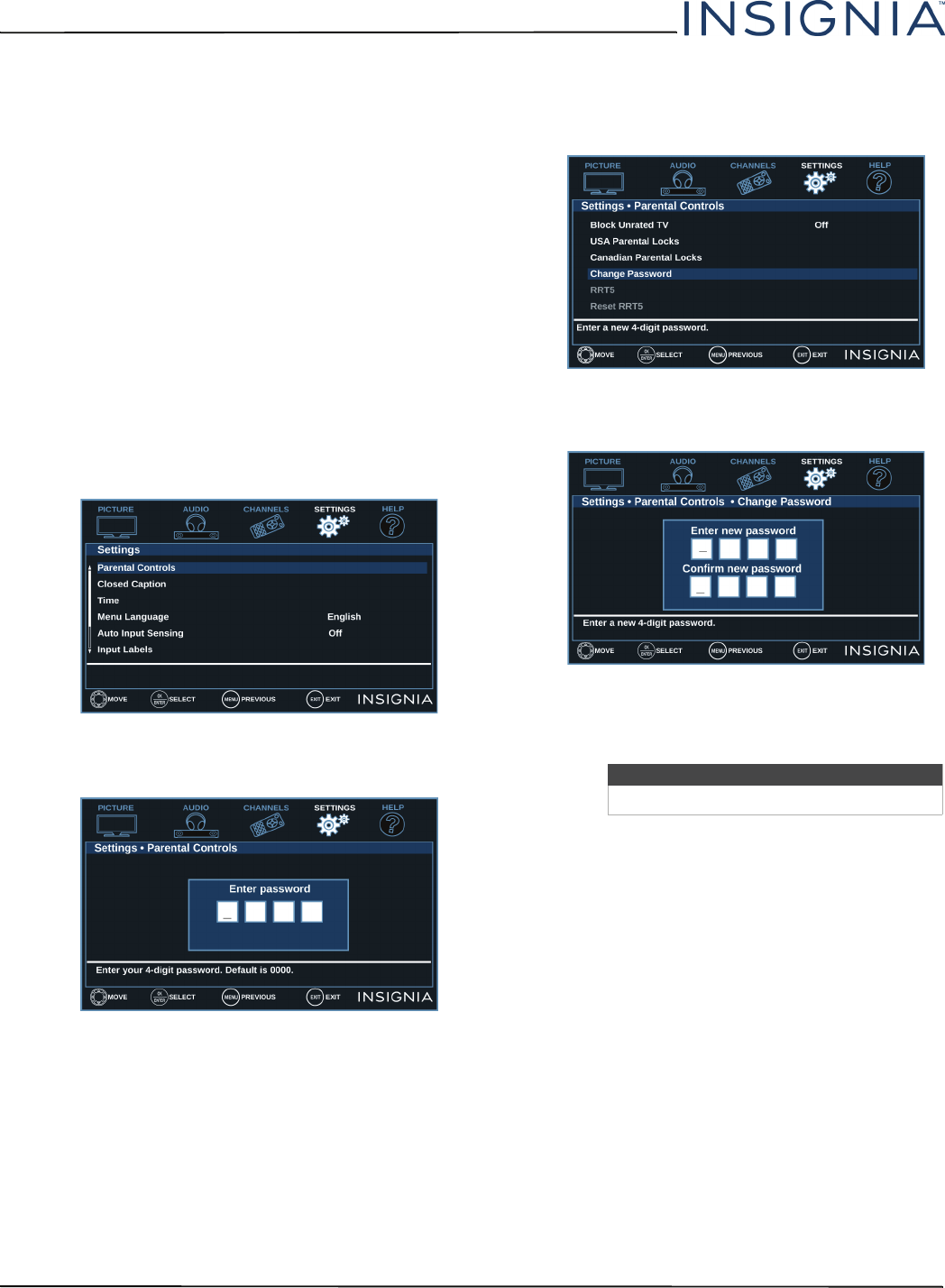

Setting parental controls
Parental controls let you prevent your children from
watching inappropriate material on TV. When set,
parental controls read the rating of the program (with
some exceptions, such as news and sports) and deny
access to programs that exceed the ratings level you
select. To watch programs that exceed the selected
rating, you must enter a password.
Parental controls include:
• Setting or changing the password
•Blocking unrated TV
• Setting parental control levels
• Downloading rating information
• Locking control buttons
Setting or changing the password
1Press MENU.
2Press W or X to highlight SETTINGS, then press T
or ENTER.
3Press S or T to highlight Parental Controls, then
press ENTER or X.
4Press the number buttons to enter the four-digit
password. The default password is 0000. You
should change the password to a number you can
remember.
5Press S or T to highlight Change Password, then
press ENTER or X.
6Press the number buttons to enter a password,
then enter the password again. A message tells
you that the password has been changed.
7Press MENU to return to the previous menu, or
press EXIT to close the menu.
Note
If you forget your password, enter 9999.
52
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

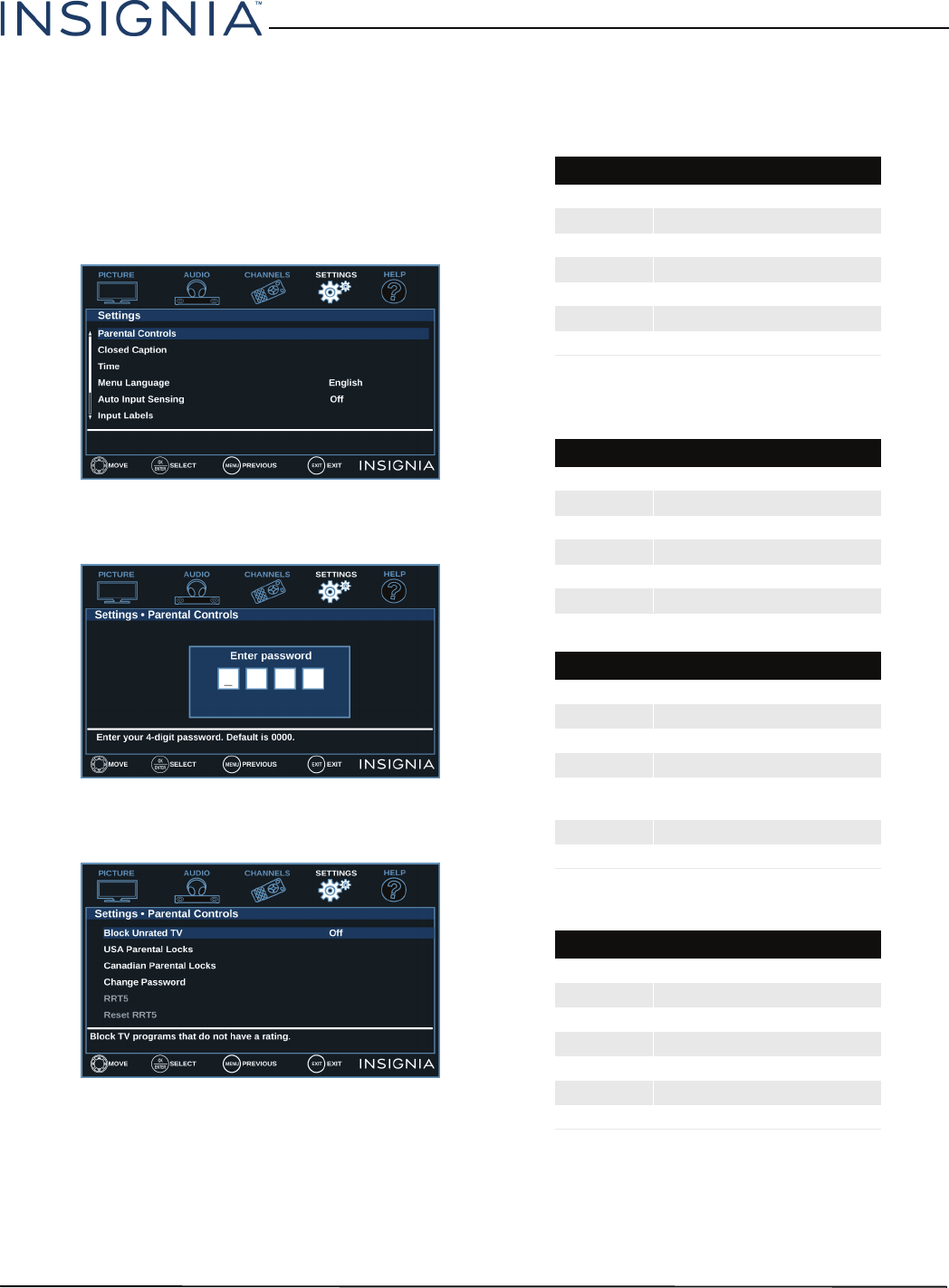

Blocking unrated TV
Some TV programs, such as news and sports shows
are not rated. When Block Unrated TV is turned on,
TV programs that do not have ratings are blocked.
When you try to watch a blocked program, you are
prompted to enter the parental controls password.
1Press MENU.
2Press W or X to highlight SETTINGS, then press T
or ENTER.
3Press S or T to highlight Parental Controls, then
press ENTER or X.
4Press the number buttons to enter the four-digit
password.
5Press S or T to highlight Block Unrated TV, then
press ENTER or X.
6Press S or T to select On (to block unrated TV) or
Off (to unblock unrated TV).
7Press ENTER, MENU, or W to return to the previous
menu, or press EXIT to close the menu.
Setting parental control levels
You can set parental controls for the U.S. and Canada.
U.S. rating levels
Some of the age-based TV Parental Guidelines ratings
also have content-based ratings.
Canadian rating levels
U.S. TV ratings
NONE Not rated
TV-Y All children
TV-Y7 Suitable for children 7 and older
TV-G General audiences
TV-PG Parental guidance suggested
TV-14 Parental guidance strongly suggested
TV-MA Mature audiences only
U.S. TV content ratings
All All ratings are blocked
FV Fantasy violence
L Strong language
SSexual situations
VViolence
DSuggestive dialog
U.S. movie (MPAA) ratings
None Movie not rated
GGeneral audiences
PG Parental guidance suggested
PG-13 Suitable for children 13 and older
R Parental guidance suggested for
children under 17
NC-17 Not suitable for children under 17
XAdults only
Canadian English ratings
EExempt programming
CSuitable for all children
C8+ Suitable for children 8 and older
GGeneral audiences
PG Parental guidance suggested
14+ Suitable for children 14 and older
18+ Adult only
53
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

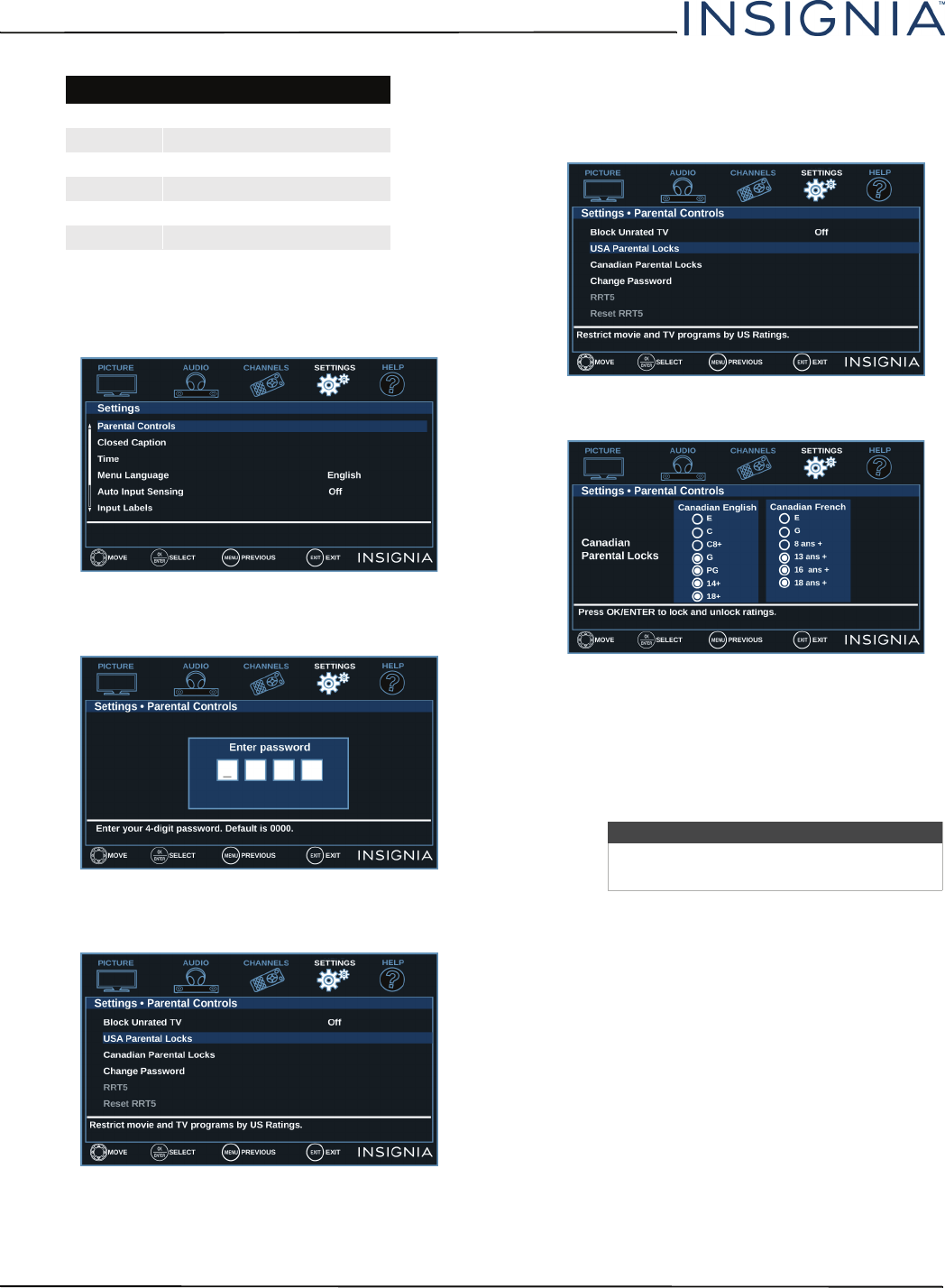

1Press MENU.
2Press W or X to highlight SETTINGS, then press T
or ENTER.
3Press S or T to highlight Parental Controls, then
press ENTER or X.
4Press the number buttons to enter the four-digit
password.
5Press S or T to highlight USA Parental Locks,
then press ENTER. (To set Canadian ratings, select
Canadian Parental Locks.)
USA Parental Locks
Canadian Parental Locks
6Press W or X to highlight:
•Movie Ratings or TV Ratings for USA ratings.
•Canadian English or Canadian French for
Canadian ratings.
7Press S or T to select the rating. If a rating has
sub-ratings, press W or X to highlight a sub-rating.
8Press ENTER to confirm. The circle next to a
blocked rating is filled.
9Press MENU to return to the previous menu, or
press EXIT to close the menu.
Canadian French ratings
EExempt programming
GGeneral audiences
8ans+ Suitable for children 8 and older
13ans+ Suitable for children 13 and older
16ans+ Suitable for children 16 and older
18ans+ Adult only
Note
When you block a rating, that rating and
all higher ratings are blocked.
54
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

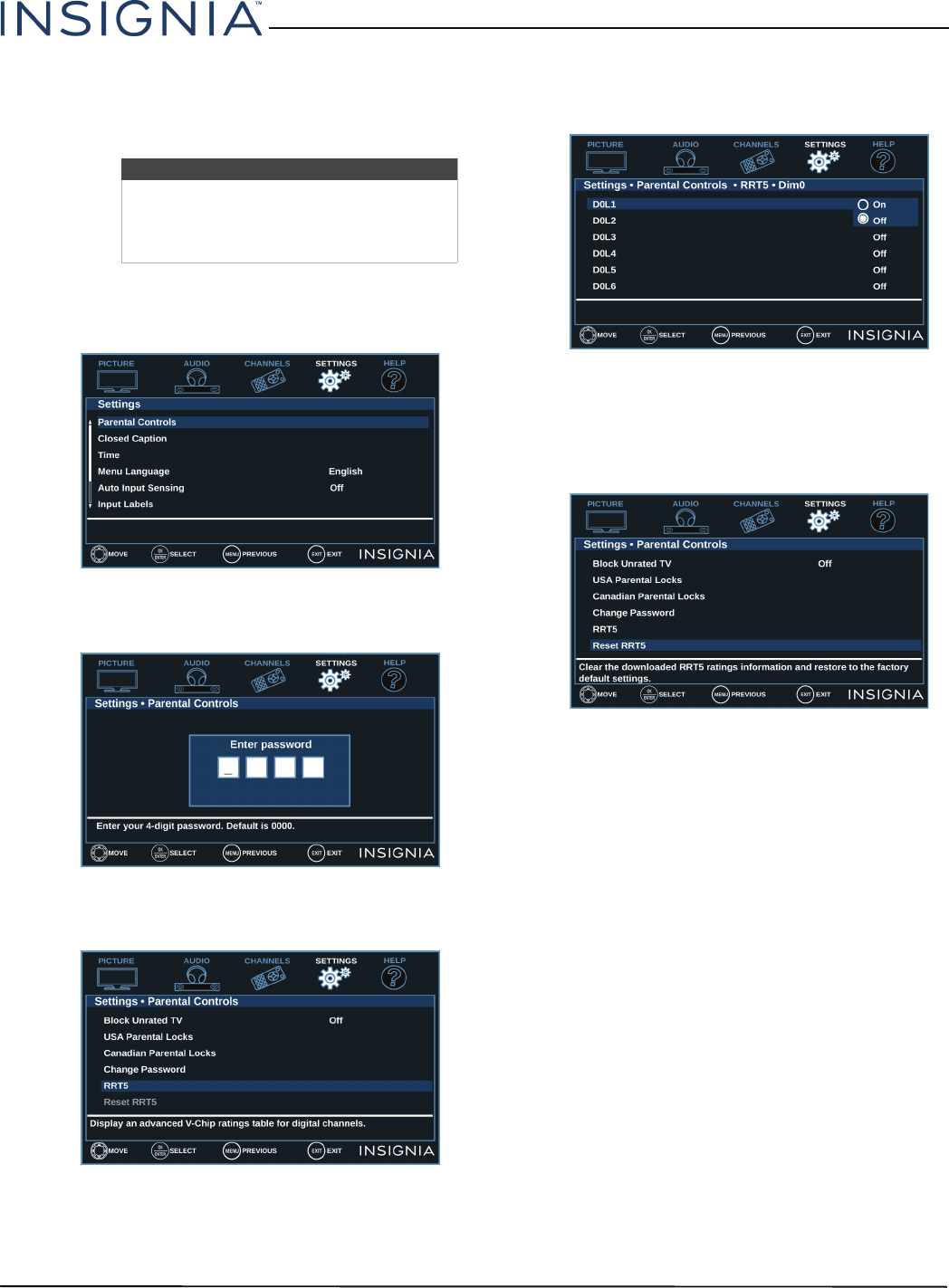

Downloading rating information
If the program you are viewing has downloadable
rating information, you can download the
information to use when setting parental controls.
1Press MENU.
2Press W or X to highlight SETTINGS, then press T
or ENTER.
3Press S or T to highlight Parental Controls, then
press ENTER or X.
4Press the number buttons to enter the four-digit
password.
5Press S or T to highlight RRT5, then press ENTER.
The screen that opens may vary depending on the
broadcaster.
6Press S T W or X to select the program and
content types you want to block, then press
ENTER.
7To reset the RRT5 information to the factory
default, press S or T to highlight Reset RRT5.
8Press ENTER.
9Press S or T to highlight OK or Cancel, then press
ENTER.
10 Press ENTER, MENU, or W to return to the previous
menu, or press EXIT to close the menu.
Note
If the program you are viewing does not
have RRT5 rating information, RRT5 is
grayed on the Settings · Parental Controls
menu and cannot be selected.
55
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

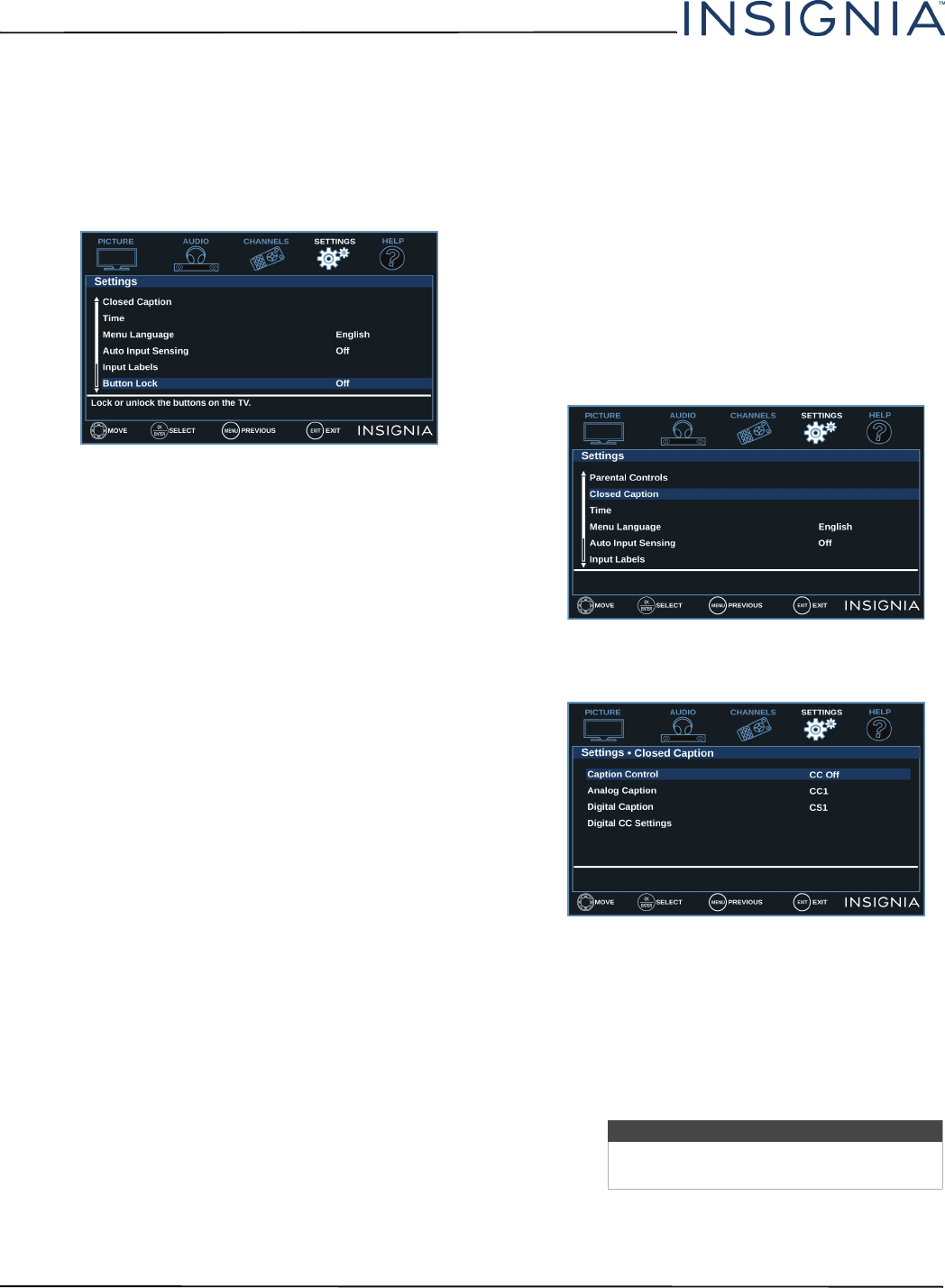

Locking control buttons
When the button lock is turned On, the buttons on
the side of your TV are locked, and you can only
operate your TV using the remote control.
1Press MENU.
2Press W or X to highlight SETTINGS, then press T
or ENTER.
3Press S or T to highlight Button Lock, then press
ENTER or X.
4Press S or T to select On (locks the buttons) or Off
(unlocks the buttons).
5Press MENU to return to the previous menu, or
press EXIT to close the menu.
Using closed captioning
Closed captioning displays a text version of the TV
program audio or displays information provided by
the broadcaster.
Closed caption controls include:
•Turning closed captioning on or off
•Selecting the analog closed captioning mode
•Selecting the digital closed captioning mode
•Customizing digital closed captioning settings
Turning closed captioning on or off
1Press MENU.
2Press W or X to highlight SETTINGS, then press T
or ENTER.
3Press S or T to highlight Closed Caption, then
press ENTER or X.
4Press S or T to highlight Caption Control, then
press ENTER or X.
5Press S or T to select CC Off (turns off closed
captioning), CC On (turns on closed captioning),
or CC on when mute (turns on closed captioning
when the sound is muted).
6Press ENTER, MENU, or W to return to the previous
menu, or press EXIT to close the menu.
Note
You can also press CCD to turn closed
captioning on or off.
56
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Selecting the analog closed captioning mode
Analog channels usually have one or more closed
captioning modes. The CC1 mode usually displays a
text version of the TV program audio in a small
banner. The other CC modes display information
provided by the broadcaster. The Text modes display
information in a box that covers half of the screen.
1Press MENU.
2Press W or X to highlight SETTINGS, then press T
or ENTER.
3Press S or T to highlight Closed Caption, then
press ENTER or X.
4Press S or T to highlight Analog Caption, then
press ENTER or X.
5Press S or T to select an analog caption setting.
You can select:
•CC1 through CC4—Closed captioning appears
in a small banner across the bottom of the
screen. CC1 is usually the “printed” version of the
audio. CC2 through CC4 display content
provided by the broadcaster.
•Text1 through Tex t4 —Closed captioning covers
half or all of the screen. Text1 through Tex t4
display content provided by the broadcaster.
6Press ENTER, MENU, or W to return to the previous
menu, or press EXIT to close the menu.
Selecting the digital closed captioning mode
Digital channels usually have one or more closed
captioning modes. The CC1 mode usually displays a
text version of the TV program audio in a small
banner. The other CC modes display information
provided by the broadcaster. CS1 mode displays a text
version of the audio in the same language as the
audio.
1Press MENU.
2Press W or X to highlight SETTINGS, then press T
or ENTER.
3Press S or T to highlight Closed Caption, then
press ENTER or X.
4Press S or T to highlight Digital Caption, then
press ENTER or X.
5Press S or T to select a digital caption setting. You
can select:
•CS1 through CS6—CS1 is usually the “printed”
version of the audio. CS2 through CS6 display
content provided by the broadcaster. You can
change the way digital closed captioning is
displayed on the screen. For more information,
see “Customizing digital closed captioning
settings” on page 57.
•CC1 through CC4—Closed captioning appears
in a small banner across the bottom of the
screen. CC1 is usually the “printed” version of the
audio. CC2 through CC4 display content
provided by the broadcaster.
6Press ENTER, MENU, or W to return to the previous
menu, or press EXIT to close the menu.
57
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

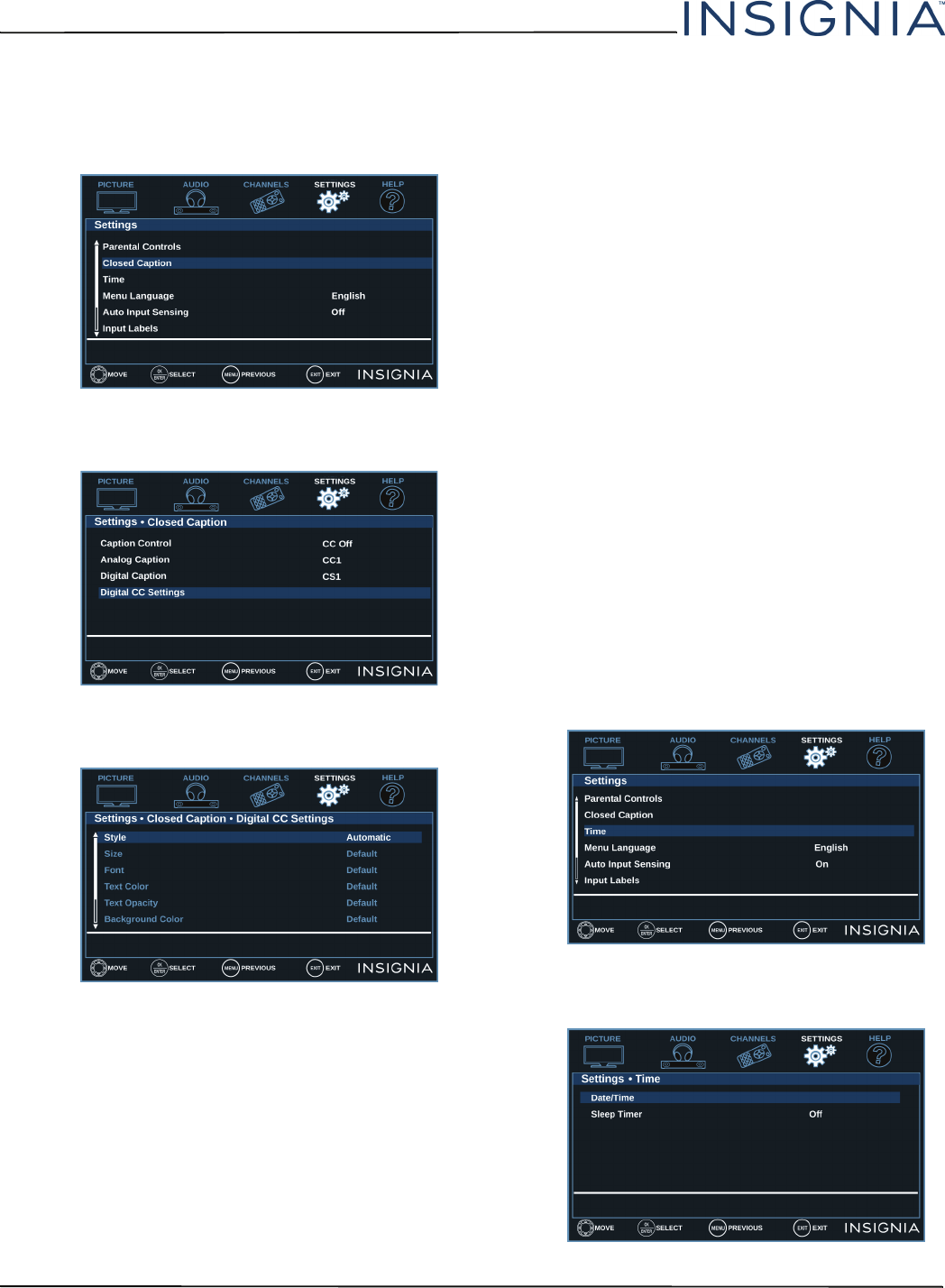

Customizing digital closed captioning settings
1Press MENU.
2Press W or X to highlight SETTINGS, then press T
or ENTER.
3Press S or T to highlight Closed Caption, then
press ENTER or X.
4Press S or T to highlight Digital CC Settings,
then press ENTER or X.
5Press ENTER, then press S or T to select Custom.
6Press S or T to highlight an option, then press
ENTER, MENU, or W. You can select:
•Size—Selects the font size.
•Font—Selects the font style.
•Text Color—Selects the color for the words.
•Text O pacity—Selects the opacity level for the
words.
•Background Color—Selects the color for the
background.
•Background Opacity—Selects the opacity level
for the background.
•Edge Effect—Selects the style of the letter edge.
•Edge Color—Selects the color of the letter edge.
7Press ENTER, MENU, or W to return to the previous
menu, or press EXIT to close the menu.
Adjusting time settings
This section includes:
• Setting the clock
• Setting the sleep timer
Setting the clock
If you skipped the steps in the Easy Setup wizard for
setting the date and time or if you move your TV to a
different time zone, you can reset the clock to the
correct time.
1Press MENU.
2Press W or X to highlight SETTINGS, then press T
or ENTER.
3Press S or T to highlight Time, then press ENTER
or X.
58
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

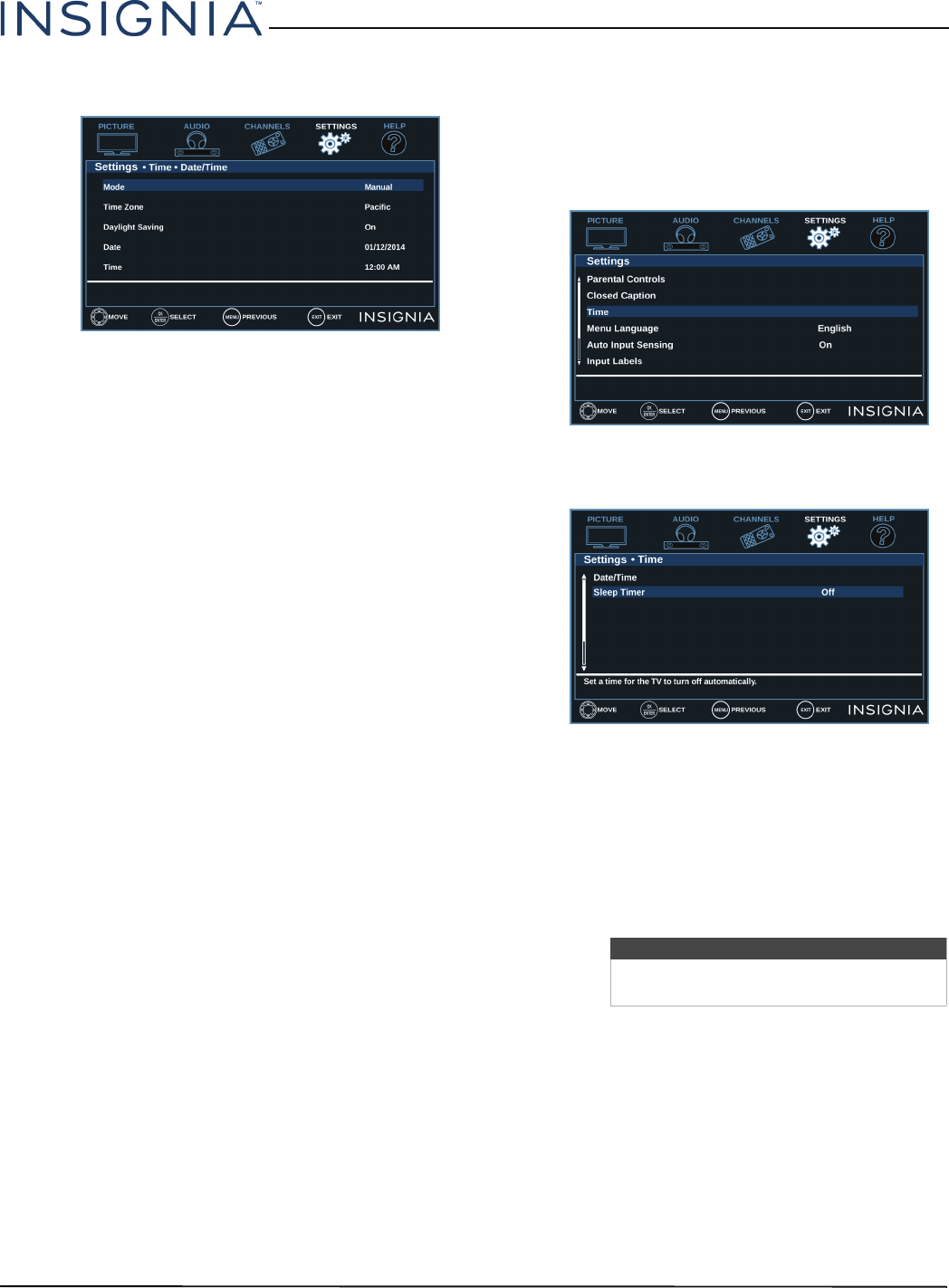

4Press S or T to highlight Date / Time, then press
ENTER.
5Press S or T to highlight Mode, then press ENTER
or X.
6Press S or T to highlight Manual (to set the
options manually) or Auto (the options are
automatically set by the TV signal source), then
press ENTER.
7Press S or T to highlight Time Zone, then press
ENTER or X.
8Press S or T to select your time zone, then press
ENTER. You can select Eastern, Central,
Mountain, Pacific, Alaska, Hawaii, Atlantic, or
Newfoundland.
9If your viewing area observes Daylight Saving
Time, press S or T to highlight Daylight Saving,
then press ENTER.
10 Press S or T to select On or Off, then press ENTER
to close the menu.
11 If you selected Manual for Mode:
• Press S or T to highlight Date, then press X to
access the setting. Press W or X to highlight
Month, Day, or Ye ar, then press S or T to adjust
the setting. When you are finished, press ENTER.
• Press S or T to highlight Time, then press X to
access the setting. Press W or X to highlight
Hour, Minute, or AM/PM field, then press S or T
to adjust the setting. When you are finished,
press ENTER.
12 Press ENTER, MENU, or W to return to the previous
menu, or press EXIT to close the menu.
Setting the sleep timer
You can specify the amount of time before your TV
automatically turns off.
1Press MENU.
2Press W or X to highlight SETTINGS, then press T
or ENTER.
3Press S or T to highlight Time, then press ENTER
or X.
4Press S or T to highlight Sleep Timer, then press
ENTER or X.
5Press S or T to select the amount of time before
your TV turns off automatically. You can select Off,
5, 10, 15, 30, 60, 90, 120, 180, or 240 minutes.
To turn off the sleep timer, select Off.
6Press ENTER, MENU, or W to return to the previous
menu, or press EXIT to close the menu.
Note
You can also press SLEEP to set the sleep
timer.
59
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

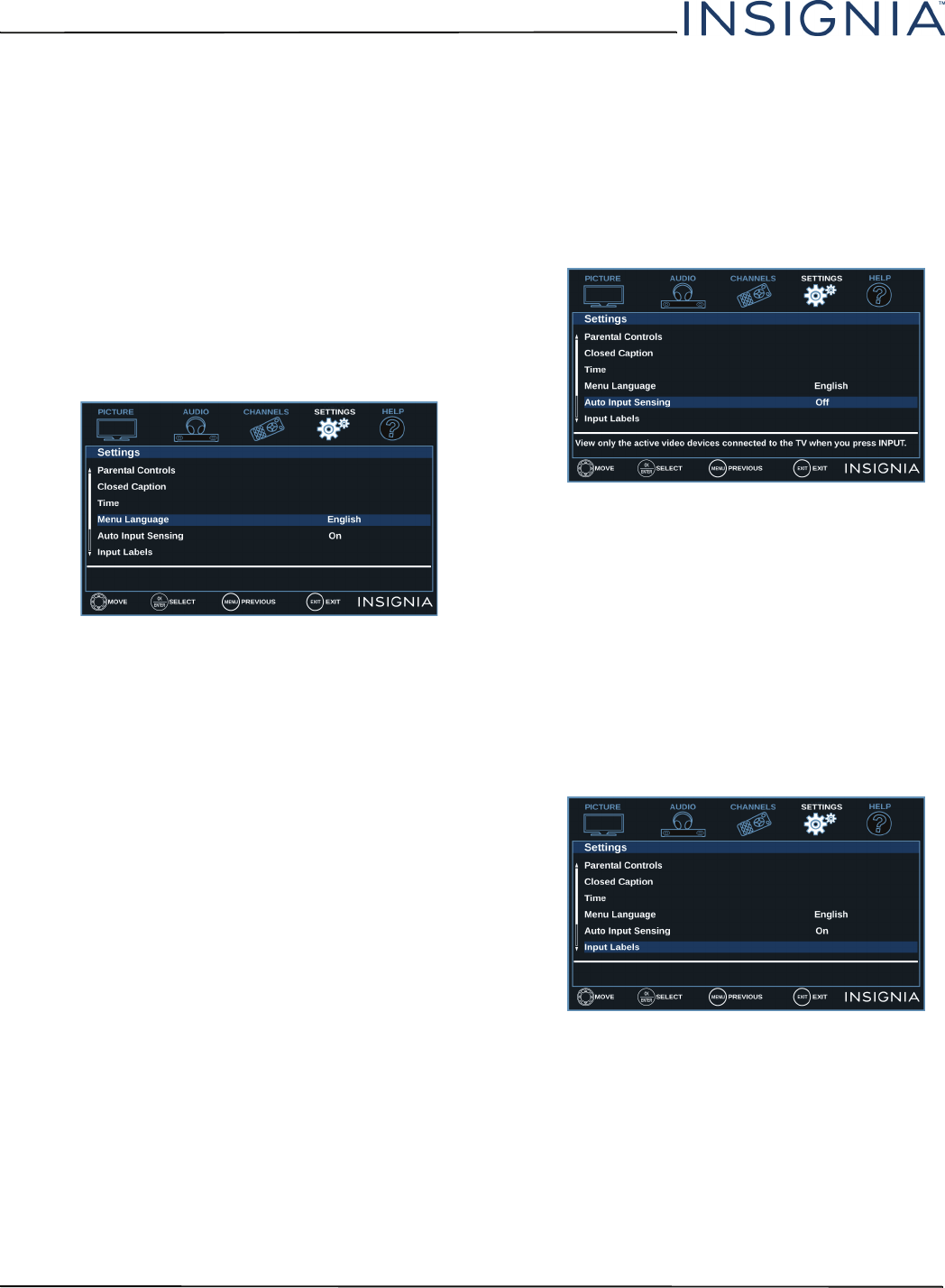

Adjusting menu settings
You can adjust how the TV menus look by:
• Selecting the menu language
• Turning the input sensor on or off
• Labeling an input source
Selecting the menu language
Your TV can display the on-screen menu in English,
French, or Spanish. When you set up your TV for the
first time, you selected the language. You can change
the menu language to a different language.
1Press MENU.
2Press W or X to highlight SETTINGS, then press T
or ENTER.
3Press S or T to highlight Menu Language, then
press ENTER or X.
4Press S or T to highlight a language, then press
ENTER. You can select English, Français, or
Español.
5Press ENTER, MENU, or W to return to the previous
menu, or press EXIT to close the menu.
Turning the input sensor on or off
When the input sensor feature is turned on, your TV
automatically detects which video jacks have devices
connected to them and turned on. Your TV uses this
information to determine what options you can select
on the INPUT SOURCE list when you press INPUT.
1Press MENU.
2Press W or X to highlight SETTINGS, then press T
or ENTER.
3Press S or T to highlight Auto Input Sensing,
then press ENTER or X.
4Press S or T to select On (turns on the input
sensor) or Off (turns off the input sensor).
5Press ENTER, MENU, or W to return to the previous
menu, or press EXIT to close the menu.
Labeling an input source
You can add a label to an input source to make it
easier to identify.
1Press MENU.
2Press W or X to highlight SETTINGS, then press T
or ENTER.
60
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

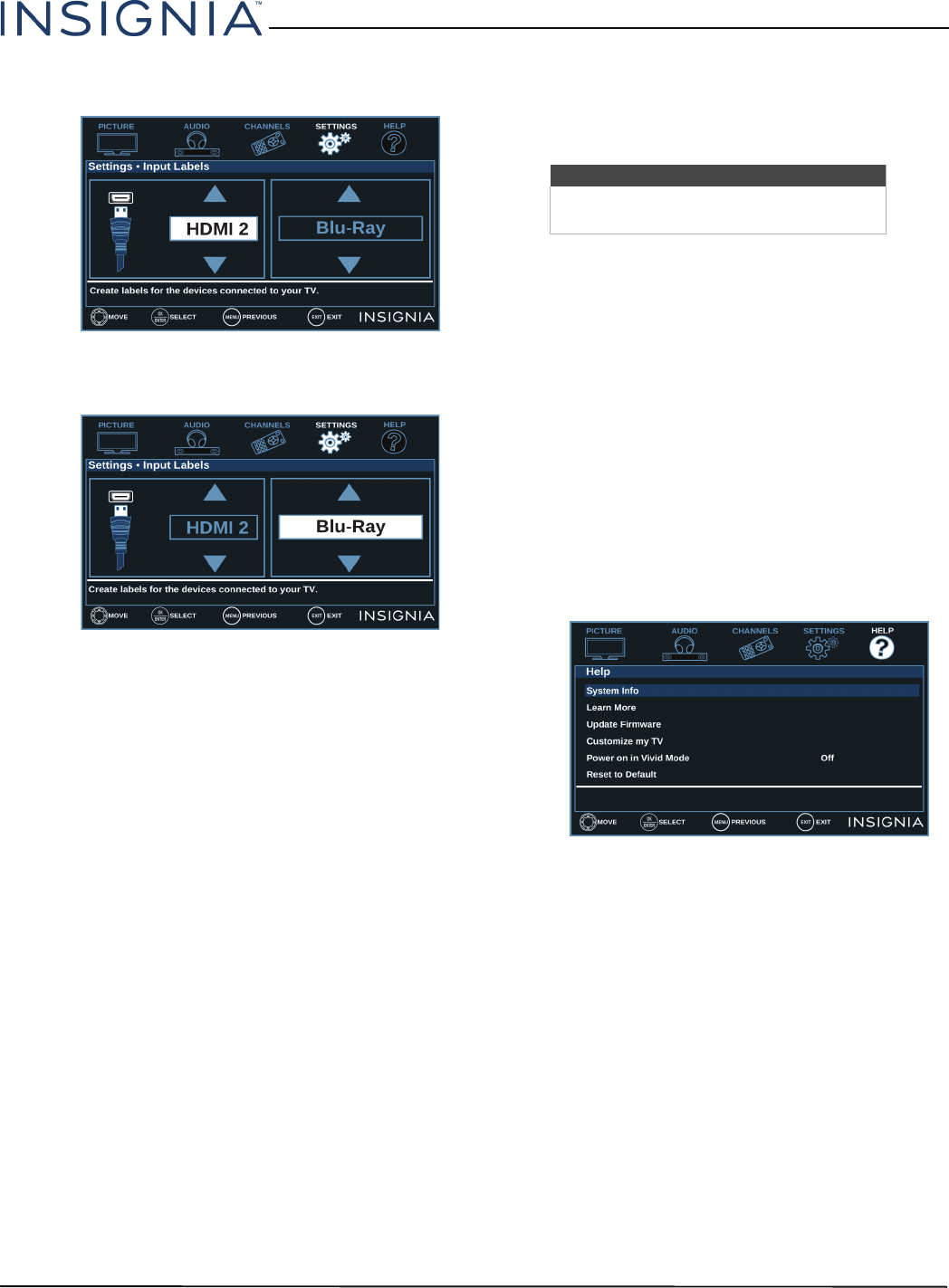

3Press S or T to highlight Input Labels, then press
ENTER or X.
4Press S or T to select the input source you want to
label, then press X to move to the label field.
5Press S or T to select a preset label or select
Custom to create your own label.
6If you select Custom, press ENTER, then S or T to
select characters (letters or numbers) and Wor X
to move character to character.
7When you have completed the label, press ENTER
to save your label. The next time you press INPUT,
your label appears in the INPUT SOURCE list.
8Press MENU to return to the previous menu, or
press EXIT to close the menu.
Maintaining
• Do not use your TV in areas that are too hot or too
cold, because the cabinet may warp or the screen
may malfunction. Your TV works best in
temperatures that are comfortable to you.
• Storage temperatures are 32° to 122°F (0° to 50°C).
• Working temperatures are 41° to 104°F (5° to 40°C).
• Do not place your TV in direct sunlight or near a
heat source.
Cleaning the TV cabinet
Clean the cabinet with a soft, lint-free cloth. If the
cabinet is especially dirty, moisten a soft, lint-free
cloth in a weak detergent solution, squeeze the
excess moisture from the cloth, then wipe the cabinet
with the cloth. Use a clean cloth to dry the cabinet.
Cleaning the TV screen
Clean the screen with a soft, lint-free cloth.
Troubleshooting
Use the following troubleshooting information to
solve common problems.
Troubleshooting topics include:
•Viewing system information
•Learning more
•Updating the TV firmware
•Customizing TV settings
•Restoring settings to the defaults
•Video and audio problems
•Remote control problems
•General problems
•INlink (CEC-compatible) device problems
Viewing system information
You may need to view system information during
troubleshooting.
1Press MENU.
2Press W or X to highlight HELP, then press T or
ENTER.
3Press S or T to highlight System Info, then press
ENTER or X.
4If your TV uses open source code, press ENTER to
display the open source code information.
5Press MENU to return to the previous menu, or
press EXIT to close the menu.
Warning
Do not try to repair your TV yourself.
Contact authorized service personnel.
61
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

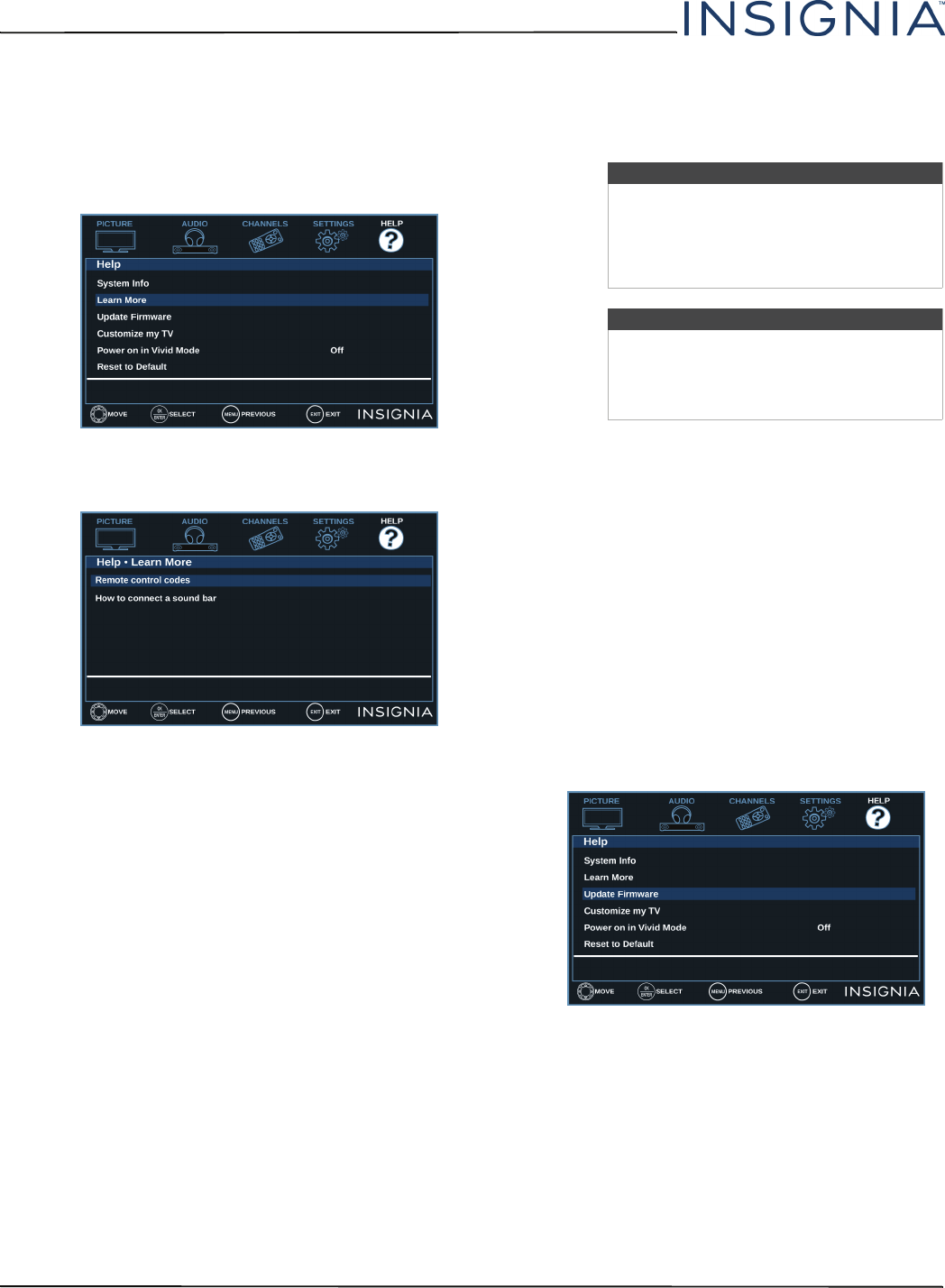

Learning more
You can learn more about Roku, MHL, remote control
codes, and connecting a sound bar.
1Press MENU.
2Press W or X to highlight HELP, then press T or
ENTER.
3Press S or T to highlight Learn More, then press
ENTER or X.
4Press S or T to highlight a topic, then press
ENTER. Your TV displays information about the
topic you selected.
5Press MENU to return to the previous menu, or
press EXIT to close the menu.
Updating the TV firmware
If your TV is behaving oddly and you have tried all the
solutions in the troubleshooting pages, you may need
to update the TV firmware.
1On the Help menu, select System Info, then write
down your model, revision, and firmware
information. See “Viewing system information” on
page 60.
2On a computer, go to www.insigniaproducts.com,
then click Support & Service. Enter
NS-32D220NA16 in the box under Manual,
Firmware, Drivers & Product Information, then
click X.
3Follow the instructions in the Firmware Installation
Guide on the Insignia website to download the
firmware update and copy it to a USB flash drive.
4Plug the USB flash drive into the USB port on the
side of your TV.
5Press MENU.
6Press W or X to highlight HELP, then press T or
ENTER.
7Press S or T to highlight Update Firmware, then
press ENTER or X. A message asks if you want to
update the TV firmware.
8Highlight OK, then press ENTER.
While your TV installs the firmware update, your
TV displays a status screen. Do not turn off your
TV until the update is complete.
Cautions
• Make sure that you have tried all other
solutions before you upgrade the
firmware.
• While the firmware is updating, do not
turn off your TV.
Note
To update the TV firmware, you need a:
• Computer with an available USB port
• High-speed Internet connection
•USB flash drive
62
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com

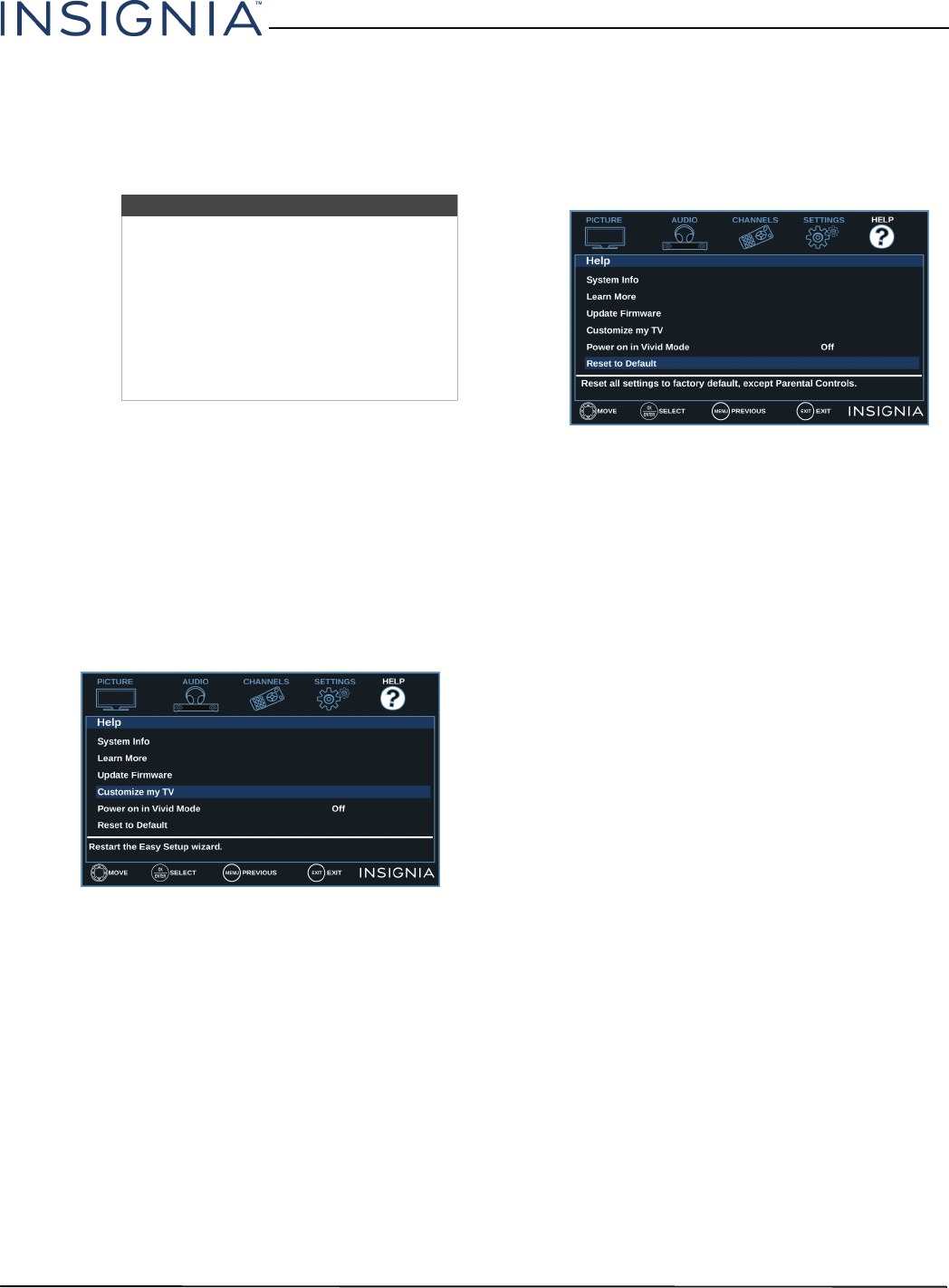

9When the update is complete, unplug the USB
flash drive, then press ENTER. Your TV turns off
then on to complete the update.
10 If the channel list has been deleted, you need to
scan for channels. For more information, see
“Automatically scanning for channels” on page 47.
Customizing TV settings
If you did not complete the customization part of the
Easy Setup wizard the first time you turned on your TV,
you can run the wizard again to customize settings.
When you run the Easy Setup wizard, your TV will not
reset any changes you made on the Picture, Audio,
Channels, or Settings menu. The wizard scans for
channels and replaces the channel information stored
on your TV.
1Press MENU.
2Press W or X to highlight HELP, then press T or
ENTER.
3Press S or T to highlight Customize my TV, then
press ENTER or X. A message asks if you want to
run the Easy Setup wizard.
4Press S or T to select OK (to reset) or Cancel (to
not reset), then press ENTER.
If you select OK, your TV turns off, then turns on
again. The Easy Setup wizard opens. Go through
the Easy Setup wizard. For more information, see
“Turning on your TV for the first time” on page 33.
OR
If you select Cancel or press MENU, your TV
returns to the Help menu without making any
changes. If you press EXIT, the on-screen menu
closes without making any changes.
Restoring settings to the defaults
When you restore default settings, all the settings you
have customized (except parental controls) are reset.
1Press MENU.
2Press W or X to highlight HELP, then press T or
ENTER.
3Press S or T to highlight Reset to Default, then
press ENTER or X.
4Press S or T to select OK (to reset) or Cancel (to
not reset), then press ENTER.
If you select OK, your TV turns off, then turns on
again. Go through the Easy Setup wizard. For more
information, see “Turning on your TV for the first
time” on page 33.
OR
If you select Cancel or press MENU, your TV
returns to the Help menu without making any
changes.
OR
If you press EXIT, the on-screen menu closes
without making any changes.
Note
• If you see a message that says the
firmware file is incorrect, make sure
that you have downloaded the correct
file for your model.
• If you see a message that says the
update failed or the TV screen is blank
and the power LED is blinking red
then blue, turn off your TV, turn it back
on, then run the upgrade again.
63
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Video and audio
Problem Solution
Picture does not
fill the screen.
There are black
bars around the
picture.
• Press ASPECT to change the
aspect ratio. See the “Aspect
Ratio” option in “Adjusting the
TV picture” on page 43.
No picture (screen
is not lit) and no
sound.
• Press on the TV or the
remote control.
• Make sure that the Audio Only
option is set to Off. See “Playing
TV audio only” on page 47.
• Make sure that the video cables
are connected correctly and
securely to your TV.
• Adjust the contrast and
brightness. See “Adjusting the
TV picture” on page 43.
• Make sure that the power
adapter is plugged into a
working outlet.
• Press INPUT and make sure that
the correct video input source is
selected. See “Selecting the
video input source” on page 35.
• Try another channel. The station
may be experiencing problems.
• Make sure that the antenna or
cable TV is connected correctly
and securely. See “Connecting a
cable or satellite box” on
page 13 or “Connecting an
antenna or cable TV (no box)”
on page 17.
• Check the closed caption
settings. Some TEXT modes can
block the screen. See “Using
closed captioning” on page 55.
Dark, poor, or no
picture (screen is
lit), but sound is
good.
• Try another channel. The station
may be experiencing problems.
• Make sure that the antenna or
cable TV is connected correctly
and securely. See “Connecting a
cable or satellite box” on
page 13 or “Connecting an
antenna or cable TV (no box)”
on page 17.
• Adjust the brightness. See
“Adjusting the TV picture” on
page 43.
• Press PICTURE to change to a
different picture mode. See
“Adjusting the TV picture” on
page 43.
• If you are using an antenna, the
digital channel signal may be
low. To check the digital
channel signal strength, see
“Checking the digital signal
strength” on page 50.
• If you are using an antenna and
the signal strength is low, adjust
the antenna or use a highly
directional outdoor antenna or
set-top antenna with a built-in
amplifier.
• Make sure that the video cables
are connected correctly and
securely to your TV.
• The video cable(s) you are using
may be bad. Try a new set.
No color, dark
picture, or color is
not correct.
• Try another channel. The station
may be experiencing problems.
• Adjust the color settings. See
“Adjusting the TV picture” on
page 43.
• Make sure that the video cables
are connected correctly and
securely to your TV.
• Make sure that the antenna or
cable TV is connected correctly
and securely. See “Connecting a
cable or satellite box” on
page 13 or “Connecting an
antenna or cable TV (no box)”
on page 17.
• If you are using an antenna, the
digital channel signal may be
low. To check the digital
channel signal strength, see
“Checking the digital signal
strength” on page 50.
• If you are using an antenna and
the signal strength is low, adjust
the antenna or use a highly
directional outdoor antenna or
set-top antenna with a built-in
amplifier.
Problem Solution
64
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Only snow (noise)
appears on the
screen.
• Try another channel. The station
may be experiencing problems.
• Make sure that the antenna or
cable TV is connected correctly
and securely. See “Connecting a
cable or satellite box” on
page 13 or “Connecting an
antenna or cable TV (no box)”
on page 17.
• If you are using an antenna, the
digital channel signal may be
low. To check the digital
channel signal strength, see
“Checking the digital signal
strength” on page 50.
• If you are using an antenna and
the signal strength is low, adjust
the antenna or use a highly
directional outdoor antenna or
set-top antenna with a built-in
amplifier.
Picture quality is
good on some
channels and poor
on others. Sound
is good.
• The problem may be caused by
a poor or weak signal from the
broadcaster or cable TV
provider.
• If you connect to cable without
a set-top box and experience
poor picture quality, you may
need to install a set-top box to
improve signal reception and
picture quality. Contact your
cable TV provider about
upgrading to a set-top box.
Problem Solution
Dotted lines or
stripes appear on
the screen.
• Make sure that the antenna or
cable TV is connected correctly
and securely. See “Connecting a
cable or satellite box” on
page 13 or “Connecting an
antenna or cable TV (no box)”
on page 17.
• If you are using an antenna, the
digital channel signal may be
low. To check the digital
channel signal strength, see
“Checking the digital signal
strength” on page 50.
• If you are using an antenna and
the signal strength is low, adjust
the antenna or use a highly
directional outdoor antenna or
set-top antenna with a built-in
amplifier.
• Make sure that the video cables
are connected correctly and
securely to your TV.
• The video cable(s) you are using
may be bad. Try a new set.
• Other devices (for example, a
surround sound receiver,
external speakers, fans, or hair
dryers) may be interfering with
your TV. Try turning off one
device at a time to determine
which device is causing
interference. After you have
determined which device is
causing interference, move it
further from the TV to eliminate
the interference.
Double images. • Use a highly directional outdoor
antenna, cable TV, or satellite
TV.
The picture has a
few bright or dark
spots.
• A few bright or dark spots on an
LCD screen is normal. It does
not affect the operation of
your TV.
Problem Solution
65
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Remote control
Good picture, but
no sound. •Increase the volume.
• Make sure that the sound is not
muted.
• Make sure that you do not have
headphones connected. When
headphones are connected, no
sound comes from the TV
speakers.
• Press AUDIO to change to a
different audio mode.
• If you are using a home theater
system, sound bar, or external
speaker system, make sure it is
turn on and is not muted.
• If you are using a home theater
system, sound bar, or external
speaker system, make sure that
you have selected the correct
output mode.
• If you are using a home theater
system, sound bar, or external
speaker system and have
connected it with a digital
optical cable, go to the Audio
menu, highlight Digital Audio
Format/Audio Delay, then
press ENTER. Set the Audio
Format option to PCM. See the
Digital Audio Format/Audio
Delay option in “Adjusting
sound settings” on page 45.
• Make sure that the audio cables
are connected correctly and
securely to your TV.
• Make sure that the antenna or
cable TV is connected correctly
and securely. See “Connecting a
cable or satellite box” on
page 13 or “Connecting an
antenna or cable TV (no box)”
on page 17.
• If you are using an antenna, the
digital channel signal may be
low. To check the digital
channel signal strength, see
“Checking the digital signal
strength” on page 50.
• The audio cables you are using
may be bad. Try a new set.
Poor picture. • Make sure that the room is not
too bright. Light reflecting off
the screen can make the picture
difficult to see.
• If an S-VHS camera or a
camcorder is connected while
another connected device is
turned on, the picture may be
poor. Turn off one or more
devices.
Problem Solution
Good sound, but
poor color. • Adjust the contrast, color, and
brightness settings. See
“Adjusting the TV picture” on
page 43.
Audio noise. • Other devices (for example, a
surround sound receiver,
external speakers, fans, or hair
dryers) may be interfering with
your TV. Try turning off one
device at a time to determine
which device is causing
interference. After you have
determined which device is
causing interference, move it
further from the TV to eliminate
the interference.
No output from
one of the
speakers.
• Adjust the audio balance. See
“Adjusting sound settings” on
page 45.
• Make sure that the audio cables
are connected correctly and
securely to your TV.
After images
appear. • Do not display a still image,
such as a logo, game, or
computer image, for an
extended period of time. This
can cause a permanent
after-image to be burned into
the screen. This type of damage
is not covered by your warranty.
Problem Solution
Remote
control does
not work.
• Make sure that the power adapter is
plugged into a working outlet.
• Make sure that there are no
obstructions between the remote
control and the remote control
sensor on the front of the TV.
• Point the remote control directly at
the remote control sensor on your
TV. For the location of the remote
control sensor, see “Aiming the
remote control” on page 31.
• The supplied batteries are wrapped
tightly in clear plastic. Make sure
that you have removed this plastic
from the batteries.
• Make sure that the batteries are
installed correctly. See “Installing
remote control batteries” on
page 31.
• Replace dead batteries with new
batteries. See “Installing remote
control batteries” on page 31.
Problem Solution
66
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
General
Trouble
programming
your existing
universal
remote
control.
• See instructions in “Programming
universal remote controls” on
page 32.
• Codes are subject to change. For
up-to-date codes, go to
www.insigniaproducts.com/remotecodes
• Replace dead batteries with new
batteries.
• Refer to the User Guide that
accompanied your universal remote
control and contact the
manufacturer if problems persist.
Problem Solution
No power. • Make sure that the power
adapter is plugged into a
working outlet.
• Unplug the power adapter, wait
60 seconds, then plug the
adapter back in and turn on
your TV.
• Other devices (for example, a
surround sound receiver,
external speakers, fans, or hair
dryers) may be interfering with
your TV. Try turning off one
device, at a time, then turning
on your TV to determine which
device is causing interference.
After you have determined
which device is causing
interference, move it further
from the TV to eliminate the
interference.
“No signal”
error message is
displayed.
• Press INPUT and make sure that
you have selected the correct
input for the device or service
you are trying to use.
• If you are using a cable or
satellite box, use the remote
that came with that box to
change channels.
After Auto
Channel Search,
there are no
channels.
• Reception can vary by channel
depending on the broadcast
power level of a given station.
Contact your cable or satellite
TV provider.
• Make sure that the antenna or
cable/satellite TV is connected
securely to your TV.
• Try replacing the cable between
the antenna/cable or
cable/satellite box and your TV.
Problem Solution
When I press
INPUT, I cannot
select my
device (it is
grayed out).
• Turn on the device. Your TV
automatically detects and
displays which video jacks have
devices connected to them
when the devices are turned on.
• Turn off Auto Input Sensing. See
“Turning the input sensor on or
off” on page 59.
One or more
channels do not
display.
• Make sure that the channels are
not blocked. See “Blocking
unrated TV” on page 52.
• Make sure that the channels are
not hidden. The channel may
have been deleted from the
channel list. You can tune to the
channel by pressing the
number buttons or you can add
the channel back to the channel
list. See “Hiding channels” on
page 49.
• If you are using a cable or
satellite box, use the remote
that came with that box to
change channels.
• Press INPUT and make sure that
you have selected the correct
input for the device or service
you are trying to use.
• If you are using an antenna, the
digital channel signal may be
low. To check the digital
channel signal strength, see
“Checking the digital signal
strength” on page 50.
Password is lost. •Enter 9999 to access parental
controls, then set a new
password. See “Setting or
changing the password” on
page 51.
Some settings
cannot be
accessed.
• If a setting is grayed, the setting
is not available in the current
video input mode (for example
TV mode). Change to a different
video input source. See
“Selecting the video input
source” on page 35.
TV cabinet
creaks. • When the TV is in use, the
temperature rises naturally and
may cause the cabinet to
expand or contract which can
cause a creaking noise. This is
not a malfunction.
Problem Solution
67
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
INlink (CEC-compatible) device
Control buttons
do not work. • Make sure that the Button Lock
option is set to Off. See
“Locking control buttons” on
page 55.
• Unplug the power adapter, wait
a few seconds, then plug the
adapter back in and turn on
your TV.
TV keeps
turning off. • Make sure that the sleep timer
is not turned on. See “Setting
the sleep timer” on page 58.
A retail banner
is displayed. • You selected Store Display
Mode when you ran the Easy
Setup wizard. Run the Easy
Setup wizard and select Home
User Mode on the Viewing
Environment screen. See
“Customizing TV settings” on
page 62.
Problem Solution
My TV is not
displaying the
video from the
connected CEC
device.
• Make sure that the HDMI cable
is connected securely to your
TV and the device.
• Make sure that the device is
connected to your TV with an
HDMI cable.
• Make sure that the device is a
CEC device. See the
documentation that came with
the device for more
information.
• Press INPUT and make sure that
the correct video input source is
selected. See “Selecting the
video input source” on page 35.
• Make sure that the INlink
feature is turned on. See
“Turning INlink on or off” on
page 38.
• Try adjusting the TV picture. See
“Adjusting the TV picture” on
page 43.
• If the device is not an Insignia
device, it may not be
compatible with your TV.
Problem Solution
My TV is not
playing the
audio from the
connected CEC
device.
• Make sure that the HDMI cable
is connected securely to your
TV and the device.
• Make sure that the device is
connected to your TV with an
HDMI cable.
• Make sure that the device is a
CEC device. See the
documentation that came with
the device.
• Make sure that the TV volume is
turned up and not muted.
• Try adjusting the TV sound. See
“Adjusting sound settings” on
page 45.
• Make sure that the TV speakers
are turned on and not muted.
See “Adjusting sound settings”
on page 45.
• Make sure that the INlink
feature is turned on. See
“Turning INlink on or off” on
page 38.
•If you have connected an HDMI
CEC audio receiver, adjust the
volume on the receiver. When
your TV detects an audio
receiver, the TV speakers turn
off and sound plays through
receiver speakers only.
• If the device is not an Insignia
device, it may not be
compatible with your TV.
• If you are using a home theater
system, sound bar, or external
speaker system, make sure that
it is turned on and is not muted.
• If you are using a home theater
system, sound bar, or external
speaker system, make sure that
you have selected the correct
output mode.
• If you are using a home theater
system, sound bar, or external
speaker system and have
connected with a digital optical
cable, go to the Audio menu,
highlight Digital Audio
Format/Audio Delay, then
press ENTER. Set the Audio
Format option to PCM. See the
Digital Audio Format/Audio
Delay option in “Adjusting
sound settings” on page 45.
Problem Solution
68
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
My TV’s remote
control does
not control the
device.
• Make sure that there are no
obstructions between the
remote control and the remote
control sensors on your TV and
the device.
• Depending on the device, all
the buttons may not work.
• Make sure that the INlink
feature is turned on. See
“Turning INlink on or off” on
page 38.
• If you are trying to control the
volume on an HDMI CEC audio
receiver using your TV remote
control, make sure that the TV
Speakers option on the Audio
menu is set to On. See
“Adjusting sound settings” on
page 45.
• If you are trying to control the
volume on an HDMI CEC audio
receiver using your TV remote
control, make sure that the
Audio Receiver option on the
INlink menu is set to On. See
“Turning Audio Receiver on or
off” on page 39.
• The device may not support this
feature. See the documentation
that came with the device for
more information.
The device does
not show up in
the INlink
Device list.
• Make sure that the device is
turned on.
• Make sure that the HDMI cable
is connected securely to your
TV and the device.
• Make sure that the device is
connected to your TV with an
HDMI cable.
• Make sure that the INlink
feature is turned on. See
“Turning INlink on or off” on
page 38.
• Make sure that the device is a
CEC device. See the
documentation that came with
the device.
• If the device is not an Insignia
device, it may not be
compatible with your TV.
Problem Solution
My device does
not turn off
when I turn off
my TV.
• Make sure that the INlink
feature is turned on. See
“Turning INlink on or off” on
page 38.
•Make sure that Device Auto
Power Off is set to On on the
INlink menu. See “Turning
Device Auto Power Off on or
off” on page 38.
• The device may not support this
feature. See the documentation
that came with the device for
more information.
My TV does not
turn on when I
turn on my
device.
• Make sure that the INlink
feature is turned on. See
“Turning INlink on or off” on
page 38.
•Make sure that TV Auto Power
On is set to On on the INlink
menu. See “Turning TV Auto
Power On on or off” on page 39.
• The device may not support this
feature. See the documentation
that came with the device for
more information.
Problem Solution
69
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
The Audio
Receiver
setting on the
INlink menu
keeps turning
back on after it
is turned off.
• When Audio Receiver is set to
Off and INlink Control is set to
On and you make an
adjustment to the audio
receiver (for example, turn the
volume knob or press a button),
Audio Receiver is
automatically set to On. To
prevent this from happening,
turn off the INlink feature. See
“Turning INlink on or off” on
page 38.
Two volume
bars appear
when adjusting
the volume.
• When you adjust the volume on
the audio receiver or with the
TV remote control, a double
volume bar appears, one for the
TV volume and one for the
audio receiver volume.
I cannot select
the Root Menu
option on the
INlink menu.
OR
The device’s
root menu does
not open when
I select Root
Menu on the
INlink menu.
• The device may not support this
feature. See the documentation
that came with the device for
more information.
Note
If the problem is not solved by using these
troubleshooting instructions, turn off your
TV, then turn it on again.
Problem Solution
70
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Specifications
Specifications are subject to change without notice.
Dimensions and weight
Screen
Display resolutions
Tuner
Inputs
Outputs
Audio
Power
Without stand 17.5 × 29 × 3.4 in. (44.5 × 73.6 × 8. 7 cm)
8.8 lbs. (4 kg)
With stand 19.2 × 29 × 6.4 in. (48.7 × 73.6× 16.4 cm)
9 lbs. (4.1 kg)
Screen size measured
diagonally 31.5 in.
Display type LED
Screen refresh rate 60Hz
Display resolution 720p
Panel resolution 1366 (H) × 768 (V)
Aspect ratio 16:9
Contrast ratio
(typical)–panel 3,000:1
Dynamic contrast ratio–
list value 500,000:1
TV Brightness (minimum)
cd/m2 160 nits
Comb filter 3d y/c digital
Response time 6.5 ms
Horizontal viewing angle 178°
Vertical viewing angle 178°
HDMI suggested resolutions 720p, 480p, 480i
Component video suggested
resolutions 720p, 480p, 480i
Analog NTSC
Digital ATSC, 8-VSB, Clear-QAM
HDMI
2 (side)
E-EDID compliant
HDCP compliant
Component video 1 (back)
Composite video 1 (back)
Shared with component Y
Shared audio (component
and composite) Yes
S-Video No
PC/VGA No
3.5mm PC audio input No
DVI No
USB
1 (side)
Output 5v/500ma
Supports JPEG and firmware upgrade
Antenna/Cable 1 (back)
Video No
Analog audio/Headphone 1 (side)
Digital audio 1 (optical) (side)
WiFi No
Ethernet No
DTS Tuning Package DTS Sound
Speakers Number: 2
Watts per channel: 5W
Power consumption On: 50W
Standby: <0.5W
Power input 12V, 5A
71
NS-32D220NA16 Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
Miscellaneous
Legal notices
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Warning
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
Cables
Connections to this device must be made with shielded cables with
metallic RF/EMI connector hoods to maintain compliance with FCC
Rules and Regulations.
Canadian Notice
CAN ICES-3 (B)/NMB-3(B)
Standard Television Receiving Apparatus — Appareil de réception
télévision ordinaire, Canada BETS-7 / NTMR-7
IC Statement
This device complies with Industry Canada licence—exempt RSS
standard(s).
Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired
operation of the device.
This equipment complies with IC radiation exposure limits set forth
for an uncontrolled environment.
Dolby License Notice and Trademark Acknowledgement
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
HDMI
HDMI, the HDMI logo, and High-Definition
Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
DTS Sound™
For DTS Patents, see http://patents.dts.com. Manufactured
under license from DTS Licensing Limited. DTS, the Symbol, &
DTS and the Symbol together are registered trademarks and
DTS Sound is a trademark of DTS, Inc. © DTS, Inc. All Rights
Reserved.
Open Source
Font name: Arimo
Version 1.23
Copyright 2013 Steve Matteson
Licensed under the Apache License, Version 2.0 (the “License”); you
may not use this file except in compliance with the License. You
may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an “AS IS” BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either
express or implied. See the License for the specific language
governing permissions and limitations under the License.
If you require additional information please call the Insignia
support line at 1-877-467-4289.
OSD languages English, French, Spanish
INlink Yes
Game Mode Yes
ENERGY STAR qualified No
Internet connectable No
V-Chip (version 2.0) Yes
Sleep timer Yes
Channel labeling Yes
VESA mount (mm)
(horizontal × vertical) 200 × 100
VESA mount screws M4 type
Note
The length of the wall-mount screws vary
depending on the wall-mount bracket you
purchased. See the instructions that came
with the wall-mount bracket for screw
lengths.
72
Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
One-year limited warranty -
Insignia Televisions
Definitions:
Insignia Products (“Insignia”) warrants to you, the original
purchaser of this new Insignia-branded television (“Product”), that
the Product shall be free of defects in the original manufacture of
the material or workmanship for a period of one (1) year from the
date of your purchase of the Product (“Warranty Period”). For this
warranty to apply, your Product must be purchased in the United
States or Canada from a Best Buy or Future Shop authorized dealer
of Insignia brand products only that are packaged with this
warranty statement.
How long does the coverage last?
The Warranty Period lasts for 1 year (365 days) from the date you
purchased the Product. Your purchase date is printed on the receipt
you received with the Product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the
material or workmanship of the Product is determined to be
defective by an authorized Insignia repair center or store personnel,
Insignia will (at its sole option): (1) repair the Product with new or
rebuilt parts; or (2) replace the Product at no charge with new or
rebuilt comparable products or parts. Products and parts replaced
under this warranty become the property of Insignia and are not
returned to you. If service of Products or parts are required after the
Warranty Period expires, you must pay all labor and parts charges.
This warranty lasts as long as you own your Insignia Product during
the Warranty Period. Warranty coverage terminates if you sell or
otherwise transfer the Product.
How to obtain warranty service?
If you purchased the Product at a Best Buy or Future Shop retail
store location and your television Product has a screen size of less
than 42 inches, please take your original receipt and the Product to
any Best Buy or Future Shop store. Make sure that you place the
Product in its original packaging or packaging that provides the
same amount of protection as the original packaging. If you
purchased the Product from a Best Buy or Future Shop online web
site, mail your original receipt and the Product to the address listed
on the web site. Make sure that you put the Product in its original
packaging or packaging that provides the same amount of
protection as the original packaging.
To obtain in-home warranty service for a television with a screen 42
inches or larger, in the United States call 1-888-BESTBUY, Canada
call 1-866-BESTBUY for Future Shop call 1-800-663-2275. Call agents
will diagnose and correct the issue over the phone or will have an
Insignia-approved repair technician dispatched to your home.
Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best
Buy or Future Shop branded retail stores or websites to the original
purchaser of the product in the country where the original
purchase was made.
What does the warranty not cover?
This warranty does not cover:
• Customer instruction/education
• Installation
•Set up adjustments
•Cosmetic damage
• Damage due to acts of God, such as power surges
•Accident(s)
• Misuse, unintentional or intentional
• Abuse, unintentional or intentional
• Negligence
• Commercial purposes/use, including but not limited to use in
a place of business or in communal areas of a multiple
dwelling condominium or apartment complex, or otherwise
used in a place of other than a private home.
• Modification of any part of the Product, including the antenna
• Plasma display panel damaged by static (non-moving) images
applied for lengthy periods (burn-in).
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage or power supply
• Outages, static or other problems with over-the-air reception
of television broadcast signals.
• Attempted repair by any person not authorized by Insignia to
service the Product
• Products sold “as is” or “with all faults”
• Consumables, including but not limited to batteries (i.e. AA,
AAA, C etc.)
• Products where the factory applied serial number has been
altered or removed
• Loss or Theft of this product or any part of the product
• Failures or Damage caused by any contact including but not
limited to liquids, gels or pastes.
• Up to three (3) pixel failures (dots that are dark or incorrectly
illuminated) grouped in an area smaller than one tenth (1/10)
of the display size or up to five (5) pixel failures throughout
the display. (Pixel based displays may contain a limited
number of pixels that may not function normally.)
• Problems with delay in motion or action of video images
while playing first-person style video games.
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS
YOUR EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. INSIGNIA
SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED
WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO,
LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR
LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS
WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND
IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING, BUT NOT
LIMITED TO, ANY IMPLIED WARRANTIES OF AND CONDITIONS OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH
ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED,
WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES,
PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE
LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS,
WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
Contact Insignia:
For customer service please call 1-877-467-4289
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Registered in some countries.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2015 Best Buy. All rights reserved.
Made in China
www.insigniaproducts.com (877) 467-4289
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Registered in some countries.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2015 Best Buy. All rights reserved.
Made in China
V2 FY16 ENGLISH
14-1315

Navigation menu
