USER GUIDE

Universal Laptop Charger

NS-PWLC591/NS-PWLC591-C

Before using your new product, please read these instructions to prevent any damage.

NS-PWLC591-NS-PWLC591-C_14-1281_MAN_V2_ENG.fm Page 1 Thursday, December 4, 2014 2:16 PM

2

NS-PWLC591/NS-PWLC591-C

www.insigniaproducts.com

Insignia NS-PWLC591/

NS-PWLC591-C

Universal Laptop Charger

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Safety information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Using the AC power adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

FAQ for Insignia Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Legal notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

One-year limited warranty - Insignia . . . . . . . . . . . . . . . . . . . . . . . .13

Introduction

Thank you for purchasing an Insignia universal laptop power

adapter. This adapter plugs into any AC power outlet anywhere

in the world, and provides a reliable power source to run your

laptop computer and charge its internal battery. Insignia

adapters are made using the highest quality components and

feature all of the necessary voltage and heat protection circuits

to ensure maximum levels of safety and efficiency.

NOTE: A physical adapter plug may be necessary to plug

into some AC power outlets outside of the United States,

but no voltage converter is needed anywhere in the world.

This adapter comes with a variety of numbered tips which

connect to the output cable of the adapter and control the

output voltage. To make sure that the proper voltage is delivered

to your laptop, you must always make sure that you are using the

NS-PWLC591-NS-PWLC591-C_14-1281_MAN_V2_ENG.fm Page 2 Thursday, December 4, 2014 2:16 PM

3

www.insigniaproducts.com

correct tip for your specific laptop model. Read the following

instructions and go to the Tip Wizard at http://bbyurl.us/tipfinder

to make sure you select the correct tip for your laptop.

CAUTION: This AC power adapter is not compatible with

Mac computers or laptops requiring more than 90 watts of

power.

Safety information

• Do not expose the power adapter to rain, moisture, or

excessive dust. It may cause shock hazards.

• Do not operate the adapter in direct sunlight.

• Operate the adapter in a well ventilated area. Maximum

ambient temperature around the power adapter must

not exceed 93.2° Fahrenheit (35° Celsius).

• Do not open the power adapter under any

circumstances. The power adapter is not intended to be

repaired in case of failure or component defect. There

are no internal serviceable parts.

• Discontinue use and contact our toll free help line for

assistance (877) 467-4289 if any of the following should

occur:

• The adapter shuts down when it is plugged into the

device (LED turns off).

• The adapter's LED light blinks when the adapter is

plugged into an AC power outlet.

• A cord or plug is damaged or frayed.

• Do not use with laptops that require more than 90 watts

of power.

• Make sure to use the correct tip for your laptop by going

to the Tip Wizard at http://bbyurl.us/tipfinder for a

complete listing of compatible models. Do not use a tip

that is not listed for your laptop.

• Keep away from children.

• The socket shall be installed near the adapter and shall

be easily accessible.

NS-PWLC591-NS-PWLC591-C_14-1281_MAN_V2_ENG.fm Page 3 Thursday, December 4, 2014 2:16 PM

4

NS-PWLC591/NS-PWLC591-C

www.insigniaproducts.com

Features

• Provides up to 90 watts of power

• Includes over-voltage, over-temperature, and short

circuit protection

• Powers laptops using a standard AC wall outlet

• Can be used anywhere in the world - no voltage

converter needed (an adapter plug may be necessary)

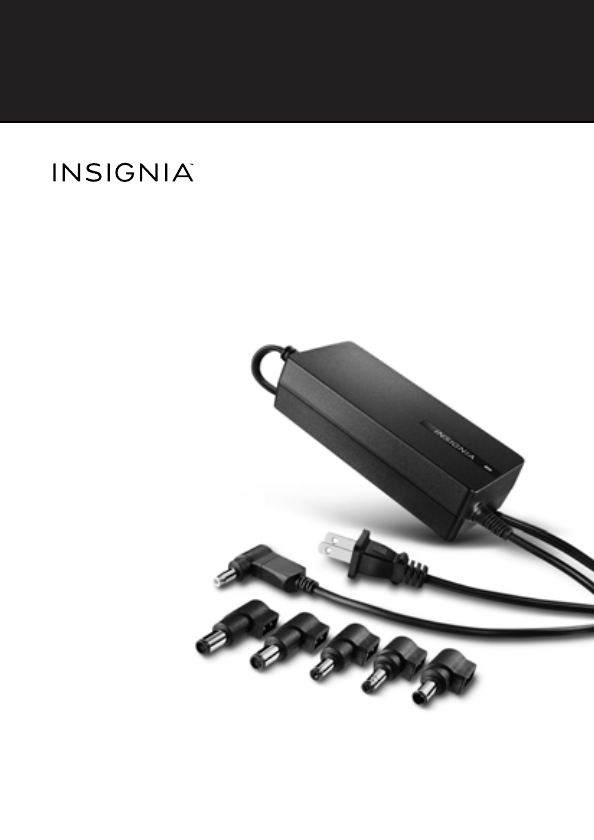

Package contents

• 90 Watt universal laptop power adapter with power

cord

•Six tips

•User Guide

NS-PWLC591-NS-PWLC591-C_14-1281_MAN_V2_ENG.fm Page 4 Thursday, December 4, 2014 2:16 PM

5

www.insigniaproducts.com

Using the AC power adapter

To use the AC power adapter:

1

Locate your laptop manufacturer and model from the

Tip Wizard at http://bbyurl.us/tipfinder.

2

Identify the correct tip number for your laptop model.

CAUTION: The use of an incorrect tip may damage your

laptop. Do not use this product if you cannot locate your

laptop model by using the Tip Wizard at http://bbyurl.us/

tipfinder. If you still have questions, contact our toll-free

help line for assistance at (877) 467-4289. This AC power

adapter is not compatible with Mac computers or laptops

requiring more than 90 watts of power.

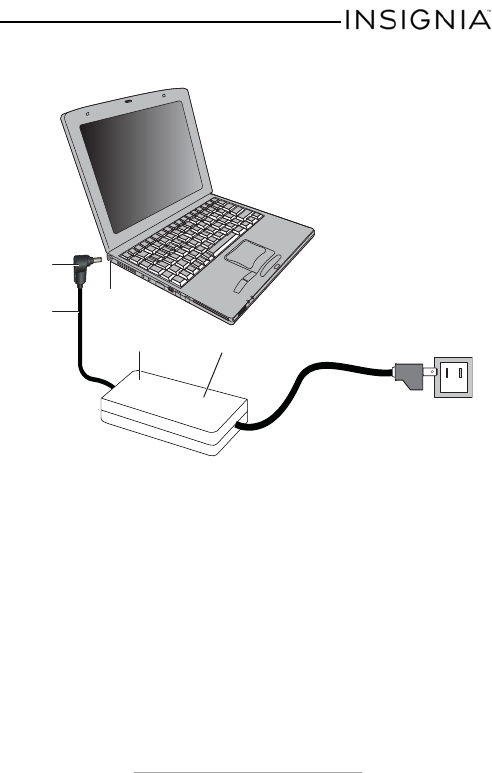

DC input

jack

Tip

Output

cable

AC adapter

AC power

outlet

LED

NS-PWLC591-NS-PWLC591-C_14-1281_MAN_V2_ENG.fm Page 5 Thursday, December 4, 2014 2:16 PM

6

NS-PWLC591/NS-PWLC591-C

www.insigniaproducts.com

NOTE: If the compatible tip for your device is not included

in the adapter package, one free tip can be ordered

through the Tip Wizard at http://bbyurl.us/tipfinder. Use

the Tip Wizard to locate the manufacturer and model and

you can order your complementary tip. If you are unable to

locate your laptop on the Tip Wizard or need assistance

please contact Insignia customer service at (877) 467-4289.

3

Locate the specified tip from the tip bundle provided.

Each tip is clearly numbered.

4

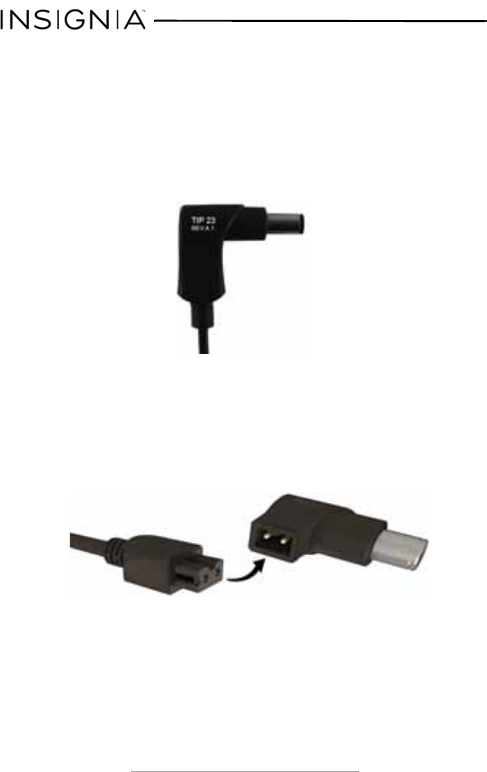

Connect the selected tip to the end of the output cable,

making sure that the pins on the tip are aligned with the

holes in the cable. The ridge on the inside of the tip

should align with the groove in the output cable

connector. Make sure that the tip is pushed all the way

into the output cable's connector.

5

Plug the AC cord into an AC power outlet. The LED on

the adapter turns on, indicating that the adapter is

powered and ready.

IMPORTANT: If the adapter's LED does not turn on, or if it

blinks, discontinue use and contact our toll free help line for

assistance at (877) 467-4289.

NS-PWLC591-NS-PWLC591-C_14-1281_MAN_V2_ENG.fm Page 6 Thursday, December 4, 2014 2:16 PM

7

www.insigniaproducts.com

6

Plug the tip connected to the output cable into the DC

input jack on the side or back of your laptop. The

adapter powers the laptop and charges its battery.

FAQ for Insignia Adapters

What tip should I use for my laptop?

You can determine the correct tip for your laptop by visiting the

Tip Wizard at http://bbyurl.us/tipfinder. Locate your laptop

manufacturer and model and the correct tip will be listed.

If you cannot find your specific laptop model please contact

Insignia customer service at (877) 467-4289 for additional

assistance.

My tip is not included, how do I order a new

one?

Go to the Tip Wizard at http://bbyurl.us/tipfinder for a complete

listing of compatible models. If the compatible tip for your

laptop is not included in the adapter package, one free tip can be

ordered through the Tip Wizard at http://bbyurl.us/tipfinder. Use

the Tip Wizard to locate your laptop manufacturer and model

and you can order your complimentary tip. If you are unable to

locate your laptop in the Tip Wizard please contact Insignia

customer service at (877) 467-4289.

How do I connect the tip to the adapter cable?

After you have selected the correct tip for your laptop, connect

the tip to the output cable, making sure that the ridge on the

inside of the tip aligns properly with the groove in the output

cable connector. Additionally, the pins on the inside of the tip

should be in line with the holes in the output cable. The tip

should be pushed firmly onto the cable until the tip and cable

meet and there is no gap.

NS-PWLC591-NS-PWLC591-C_14-1281_MAN_V2_ENG.fm Page 7 Thursday, December 4, 2014 2:16 PM

8

NS-PWLC591/NS-PWLC591-C

www.insigniaproducts.com

What other laptops can I use this adapter for?

The Insignia Universal Power Adapter is compatible with

thousands of laptop models. A complete list of compatible

laptops can be viewed through the Tip Wizard at http://

bbyurl.us/tipfinder.

Why doesn't the tip fit into my laptop?

If the tip does not appear to fit into your laptop you may have

selected the incorrect tip for your laptop. The tip should fit

snugly inside the DC input jack on the side or back of your

laptop. If the tip does not fit into the jack, do not force the tip.

Confirm you have selected the correct tip for your laptop by

visiting the Tip Wizard at http://bbyurl.us/tipfinder. If you need

additional assistance please contact Insignia customer service at

(877) 467-4289.

Will using an incorrect tip damage my laptop?

The tips are designed to be used with specific laptops and so you

should only use the tip that is designated specifically for your

laptop. The correct tip can be identified by using the online Tip

Wizard at http://bbyurl.us/tipfinder.

The use of an incorrect tip may cause performance issues,

including the inability to charge the internal battery or power

the laptop, or the display of an error message on the laptop

screen. It is also possible that the use of an incorrect tip could

damage your laptop. For these reasons, it is necessary to use the

tip designed specifically for your laptop.

My laptop is less than 90 watts (e.g. 65 watts).

Will this adapter damage my laptop?

No, using this power adapter will not damage your laptop. This

adapter only supplies as much power as required by the laptop,

up to a maximum of 90 watts.

NS-PWLC591-NS-PWLC591-C_14-1281_MAN_V2_ENG.fm Page 8 Thursday, December 4, 2014 2:16 PM

9

www.insigniaproducts.com

My laptop is more than 90 watts (e.g. 120

watts). Will this adapter damage my laptop?

This is a 90 watt adapter and it should NOT be used with laptops

that require more than 90 watts of power.

I notice that the adapter is warm when I use it. Is

this a problem?

During standard operation the adapter body may feel warm, and

this is normal. The adapter should always be placed in a

ventilated area in order to prevent over-heating.

If I leave the adapter plugged in when I'm not

using it does it waste energy?

This Insignia adapter meets EnergyStar and CEC V energy

requirements which means it is an energy-efficient product

designed to conserve power. When the adapter is plugged in

and not being used it draws less than 0.5W of power.

NS-PWLC591-NS-PWLC591-C_14-1281_MAN_V2_ENG.fm Page 9 Thursday, December 4, 2014 2:16 PM

10

NS-PWLC591/NS-PWLC591-C

www.insigniaproducts.com

Specifications

Legal notices

FCC Part 15

This device complies with Part 15 of the FCC Rules. Operation of

this product is subject to the following two conditions: (1) this

device may not cause harmful interference, and (2) this device

must accept any interference received, including interference

that may cause undesired operation.

This equipment has been tested and found to comply within the

limits for a class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by

AC wall socket input cable

5.78’ (178 cm)

DC power output cable

4.1’ (124 cm)

AC input voltage

100~240V~2.5 A 50-60Hz

DC output voltage

19 Volts DC

DC output current

4.74 Amps maximum continuous

Output power

90 W maximum (DC)

Weight

13.3 oz. (376 g)

Adapter dimensions

(LxWxH)

5.0 x 2.2 x 1.3 inches

(126 x 56 x 32 mm)

NS-PWLC591-NS-PWLC591-C_14-1281_MAN_V2_ENG.fm Page 10 Thursday, December 4, 2014 2:16 PM

11

www.insigniaproducts.com

turning the equipment off and on, the user is encouraged to try

to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

• Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

• Consult the dealer or an experienced technician for

help.

FCC warning

Changes or modifications not expressly approved by the party

responsible for compliance with the FCC Rules could void the

user’s authority to operate this equipment.

IC statement

This Class B digital apparatus complies with Canadian ICES-003;

Cet appareil numérique de la classe B est conforme à la norme

NMB-003 du Canada.

Copyright

Insignia is a trademark of Best Buy and its affiliated companies.

Registered in some countries. Distributed by Best Buy

Purchasing, LLC.

7601 Penn Ave South, Richfield, MN 55423

U.S.A.

© 2014 Best Buy. All rights reserved.

Made in China.

NS-PWLC591-NS-PWLC591-C_14-1281_MAN_V2_ENG.fm Page 11 Thursday, December 4, 2014 2:16 PM

12

NS-PWLC591/NS-PWLC591-C

www.insigniaproducts.com

NS-PWLC591-NS-PWLC591-C_14-1281_MAN_V2_ENG.fm Page 12 Thursday, December 4, 2014 2:16 PM

13

www.insigniaproducts.com

One-year limited warranty -

Insignia

Definitions:

The Distributor* of Insignia branded products warrants to you, the original

purchaser of this new Insignia-branded product (“Product”), that the

Product shall be free of defects in the original manufacturer of the material

or workmanship for a period of one (1) year from the date of your purchase

of the Product (“Warranty Period”).

For this warranty to apply, your Product must be purchased in the United

States or Canada from a Best Buy branded or Future Shop branded retail

store or online at www.bestbuy.com, www.bestbuy.ca, or

www.futureshop.ca and is packaged with this warranty statement.

How long does the coverage last?

The Warranty Period lasts for one year (365 days) from the date you

purchased the Product. Your purchase date is printed on the receipt you

received with the Product.

What does this warranty cover?

During the Warranty Period, if the original manufacture of the material or

workmanship of the Product is determined to be defective by an

authorized Insignia repair center or store personnel, Insignia will (at its sole

option): (1) repair the Product with new or rebuilt parts; or (2) replace the

Product at no charge with new or rebuilt comparable products or parts.

Products and parts replaced under this warranty become the property of

Insignia and are not returned to you. If service of Products or parts are

required after the Warranty Period expires, you must pay all labor and

parts charges. This warranty lasts as long as you own your Insignia Product

during the Warranty Period. Warranty coverage terminates if you sell or

otherwise transfer the Product.

How to obtain warranty service?

If you purchased the Product at a Best Buy or Future Shop retail store

location, please take your original receipt and the Product to any Best Buy

or Future Shop store. Make sure that you place the Product in its original

packaging or packaging that provides the same amount of protection as

NS-PWLC591-NS-PWLC591-C_14-1281_MAN_V2_ENG.fm Page 13 Thursday, December 4, 2014 2:16 PM

14

NS-PWLC591/NS-PWLC591-C

www.insigniaproducts.com

the original packaging. If you purchased the Product from a Best Buy or

Future Shop online web site (www.bestbuy.com, www.bestbuy.ca, or

www.futureshop.ca), mail your original receipt and the Product to the

address listed on the web site. Make sure that you put the Product in its

original packaging or packaging that provides the same amount of

protection as the original packaging.

To obtain warranty service, in the United States call 1-888-BESTBUY,

Canada call 1-866-BESTBUY for Future Shop call 1-800-663-2275. Call

agents may diagnose and correct the issue over the phone.

Where is the warranty valid?

This warranty is valid only in the United States and Canada at Best Buy or

Future Shop branded retail stores or websites to the original purchaser of

the product in the county where the original purchase was made.

What does the warranty not cover?

This warranty does not cover:

• Customer instruction/education

• Installation

•Set up adjustments

• Cosmetic damage

• Damage due to weather, lightning, and other acts of God, such

as power surges

• Accidental damage

•Misuse

•Abuse

•Negligence

• Commercial purposes/use, including but not limited to use in a

place of business or in communal areas of a multiple dwelling

condominium or apartment complex, or otherwise used in a

place of other than a private home.

• Modification of any part of the Product, including the antenna

• Display panel damaged by static (non-moving) images applied

for lengthy periods (burn-in).

• Damage due to incorrect operation or maintenance

• Connection to an incorrect voltage or power supply

• Attempted repair by any person not authorized by Insignia to

service the Product

• Products sold “as is” or “with all faults”

• Consumables, including but not limited to batteries (i.e. AA,

AAA, C etc.)

• Products where the factory applied serial number has been

altered or removed

• Loss or Theft of this product or any part of the product

NS-PWLC591-NS-PWLC591-C_14-1281_MAN_V2_ENG.fm Page 14 Thursday, December 4, 2014 2:16 PM

15

www.insigniaproducts.com

• Display panels containing up to three (3) pixel failures (dots that

are dark or incorrectly illuminated) grouped in an area smaller

than one tenth (1/10) of the display size or up to five (5) pixel

failures throughout the display. (Pixel based displays may

contain a limited number of pixels that may not function

normally.)

• Failures or Damage caused by any contact including but not

limited to liquids, gels or pastes.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR

EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. INSIGNIA SHALL NOT BE

LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE

BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT,

INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR

PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES

NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL

EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING, BUT

NOT LIMITED TO, ANY IMPLIED WARRANTIES OF AND CONDITIONS OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE

LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND

NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE

WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO

NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS,

SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY

GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER

RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Contact Insignia:

For customer service please call 1-877-467-4289

www.insigniaproducts.com

INSIGNIA is a trademark of Best Buy and its affiliated companies.

Registered in some countries.

Distributed by Best Buy Purchasing, LLC

7601 Penn Ave South, Richfield, MN 55423 U.S.A.

©2014 Best Buy. All rights reserved.

Made in China

NS-PWLC591-NS-PWLC591-C_14-1281_MAN_V2_ENG.fm Page 15 Thursday, December 4, 2014 2:16 PM

INSIGNIA is a trademark of Best Buy and its affiliated companies.

Registered in some countries.

Distributed by Best Buy Purchasing, LLC

7601 Penn Ave South, Richfield, MN 55423 U.S.A.

©2014 Best Buy. All rights reserved.

Made in China

1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico)

www.insigniaproducts.com

V2 ENGLISH

14-1281

NS-PWLC591-NS-PWLC591-C_14-1281_MAN_V2_ENG.fm Page 16 Thursday, December 4, 2014 2:16 PM
