Inspira Technologies A724 TABLET PC User Manual
Inspira Technologies LLC TABLET PC
User manual
Internet Tablet
Quick Start Guide
Please read carefully before use
A724
Page 2 Table Of Contents
English
THANK YOU ................................................... 3
Package Contents ........................................................3
Features..........................................................................4
GETTING TO KNOW THE TABLET ............... 5
About the Touchscreen ...............................................8
Protective Film ........................................................8
Touchscreen Actions..............................................8
About the Orientation Sensor .....................................9
Charging the Tablet ...................................................10
Inserting a Memory Card ..........................................10
Resetting the Tablet ....................................................11
GETTING STARTED ..................................... 12
Turning the Tablet On and Off .................................12
Turning the Screen On and Off (Standby) .......13
Unlocking the Screen ..........................................13
Home Screen at a Glance ........................................14
About Applications ....................................................15
Preinstalled Applications .....................................15
Installing Applications .........................................17
About Widgets ..........................................................17
About Notications ..................................................... 18
CONNECTING TO THE INTERNET ............. 19
Requirements ..............................................................19
Connect to a Wi-Fi Network ..................................... 20
BROWSING THE WEB ................................. 22
OPTIONAL CONNECTIONS ........................ 25
Connecting to a Computer ......................................25
Connecting Headphones .........................................26
Using the USB Full-Size Adapter..................................27
Connecting a Keyboard......................................27
Connecting a Storage Device............................27
SETTING THE SYSTEM OPTIONS .............. 28
SPECIFICATIONS ......................................... 29
SAFETY NOTICES ....................................... 30
WARRANTY...................................................34
ÂTable of Contents
Page 3 Thank You
English
ÂThank You
Congratulations on your purchase of the Internet Tablet.
This guide is provided to help you get started quickly with
your tablet; please read it carefully and save it for future
reference.
To view PDF documents, download and install
the free Adobe Acrobat reader from the Adobe
website at www.adobe.com.Package Contents
Please make sure that the items shown below are
included in the package. Should an item be missing,
please contact the local retailer from whom this product
was purchased.
Internet Tablet
USB cable
USB host/keyboard
adapter
Power adapter
Page 4 Thank You
English
Features
Browse the Web.
Visit your favourite websites
Check your e-mail
Keep in touch with friends and family
Watch YouTube™ videos
Browse the world’s most popular video-sharing
community
Discover thousands of apps for Android™
Games, applications and more with the installed
marketplace
Connect to the Internet wirelessly
High-speed Wi-Fi 802.11 b/g/n networking
Enjoy your media library anywhere
Portable powerhouse plays popular music, video and
photo formats
MicroSD memory card reader
Increase your storage capacity (up to 32 GB sup-
ported)
Built-in camera
Convenient front-facing camera
Automatic orientation detection
Read any way you want; the display adjusts
automatically!
Page 5 Getting To Know The Tablet
English
ÂGetting to Know the Tablet
Unit at a Glance
Name Description
1Camera Front-facing camera
1
Page 6 Getting To Know The Tablet
English
Name Description
2Power Key Press to turn the unit on, or to
turn the screen on and off.
3Headphone
jack
Audio output connection for
head-phones.
4USB Host Connect a storage device to the
tablet.
5Power jack
(DC input)
Charge and power the tablet
with the included power adapt-
er.
6 HDMI jack Connect to a TV or other display.
7 TF Card slot Load external microSD memory
cards here.
2
3
4
5
67
Page 7 Getting To Know The Tablet
English
Name Description
8Camera Back-facing camera.
9Speaker Speaker output is automati-
cally muted when using head-
phone jack.
98
Page 8 Getting To Know The Tablet
English
About the Touchscreen
Your tablet comes equipped with an easy-to-use touch-
screen.
Our capacitive multi-touchscreen requires gentle ngertip
touch on the glass screen to activate tablet’s functions.
Multiple ngers may be used to perform gestures (e.g.
2-nger picture zoom).
To avoid damaging the screen, do not touch it
with excessive force or with any object other
than your nger. For best response, make sure
your hands are clean before using the touch-
screen controls.
Protective Film
A thin lm has been applied to the touchscreen to protect
it during shipping. The protective lm should be removed
before use. To remove it, simply take a corner of the lm
and peel it away from the screen.
Touchscreen Actions
You can control the functions of the tablet by using
the touchscreen in combination with the three touch
keys located on the bezel. To control the tablet with the
touchscreen, use your ngertip to manipulate icons,
buttons, menu items, the on-screen keyboard and other
items displayed on the screen.
You can perform the following actions on the touchscreen
using your ngertip.
Touch: To activate an on-screen item (e.g.,
application icons, buttons, menu
items and the letter/symbols of the on-
screen keyboard), simply touch them
with your ngertip.
Touch and
Hold:
Some on-screen items have an
alternate action if you touch and
hold them (e.g., opening an alternate
menu, or activating the drag function).
To touch and hold an item, touch the
item and do not lift your ngertip until
the action occurs.
Drag: Drag an on-screen item to change its
position (e.g., an application icon on
the home screen).
To drag an item, touch and hold it for
a moment, then without lifting your
ngertip, move your ngertip on the
screen until the item reaches its target
destination.
Page 9 Getting To Know The Tablet
English
Swipe: To swipe, touch the screen and then
quickly move your ngertip across the
screen without lifting your ngertip.
Do not pause on the screen with your
ngertip at the initial point of contact
or you may accidentally drag an item
instead.
Double-tap: Quickly tap the screen twice on a
webpage or other application screen
to zoom (the application must support
the double-tap/zoom function). Within
the browser, double-tapping a web-
page section will cause the browser to
zoom and t that section to the width
of the screen.
About the Orientation Sensor
The tablet contains a sensor that will automatically
change the orientation of most screens as you rotate the
tablet. The sensor works best when the tablet is rotated
perpendicular to the ground (i.e., when the tablet is held
upright and not at on its back).
The orientation sensor can be turned on and off in the
Accessibility settings menu.
Page 10 Getting To Know The Tablet
English
Charging the Tablet
The current battery status will be always displayed in the
top right of the screen in the system information bar.The
battery icon will change in accordance with the battery
status.
When connected to the DC charger, the status area on
the top bar will display the charging icon. Note the
lightning symbol inside the battery icon.
To charge the battery:
1. Plug one end of the included power adapter into an
AC 100-240V outlet.
2. Plug the other end of the included power adapter into
the power jack on the tablet.
3. Disconnect the power adapter when the tablet is fully
charged.
The battery used in this device may cause a re
or chemical burn if mistreated. Do not disassemble,
incinerate or heat the device. Do not leave the
device in direct sunlight, or in a car with its
windows closed. Do not connect the device to a
power source other than that which is indicated
here or on the label as this may result in a re or
electric shock.
Battery protection and low battery may cause your
tablet fail to boot,please charge the battery.
Inserting a Memory Card
The tablet accepts microSD memory cards. Insert a
memory card into the microSD card slot to:
Increase the memory capacity of your tablet
Play media les stored on the memory card (e.g.,
music, video or photo les).
To insert a memory card:
1. Align the memory card with the card slot. The metal
contacts of the memory card should face down away
from the LCD screen.
2. Slide the card into the spring-loaded slot. Push the
card in until it clicks into place.
Do not attempt to insert objects other than a
microSD memory card into the card slot. A
compatible memory card should t easily into
the card slot. If you encounter resistance, check
the alignment of the card. Do not attempt to
force the card in.
Avoid touching the gold contacts of the memory
card.
Page 11 Getting To Know The Tablet
English
To release and remove a memory card:
1. UNMOUNT the memory card.
a. From the home screen, tap the Launcher Tab,
and then touch Settings to show the settings
menu.
b. Touch Storage to show the storage settings.
c. Touch Unmount Removable SD card to prepare
the memory card for safe removal.
2. Push the card further into the slot until you hear a
click. The card will spring out of the slot.
3. Grasp the card by its edge to remove it.
To avoid damage and data corruption, do not
remove a memory card while data is being
written to or read from the card. For example,
do not remove a card while playing a music le
stored on the card.
Resetting the Tablet
Reset the tablet if it should freeze, and not respond or
otherwise malfunction.
1. Disconnect your tablet if it is connected to a com-
puter.
2. Use a paper clip to gently press the <RESET> button
located on the back of the tablet.
Page 12 Getting Started
English
ÂGetting Started
Turning the Tablet on and off
To turn the tablet on:
Press and hold the Power key until the LCD screen
turns on. Wait until the Home screen appears; the
tablet is now ready for use.

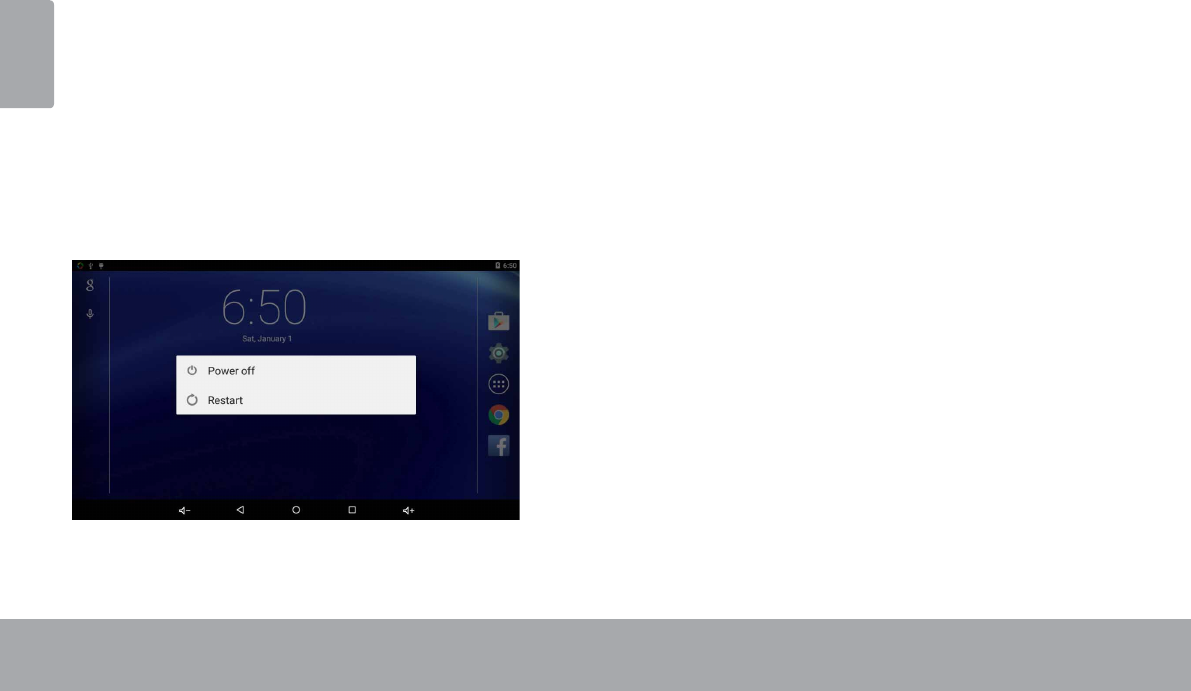

To turn the tablet off:
1. Press and hold the Power key until the conrmation
message appears.
2. Touch Power off to turn off the tablet.
Page 13 Getting Started
English
Turning the Screen On and Off (Standby)
When the tablet is on, you can turn off the screen to
conserve battery power. Simply press the Power key
once to turn the screen off. Press the Power key again to
turn the screen back on.
To conserve battery power, the screen can be
set to turn off automatically when the tablet is not
in use (between 15 seconds and 30 minutes).
This Sleep option can be found in the Display
menu.
Unlocking the Screen
When the screen turns off, you will have to unlock the
screen when you turn it back on.
To unlock the screen, touch and swipe up the Lock icon.
Page 14 Getting Started
English
If a password has been set, enter the password to nish
unlocking the screen. The Screen Unlock password can
be set in the Security settings menu.
WARNING: Please write down your password
lock pattern/PIN/Password. Misplacing or
forgetting this method will lock the user out.
Recovering the unit will reset the device
back to factory defaults. ALL YOUR DATA &
PROGRAMS WILL BE LOST.
Home Screen at a Glance
The home screen is the starting point for all of the
features of your tablet.
6
2
7
8
1
345
Name Description
1Notication
Bar
Shows notication icons such as
time, battery level and the net-
work signal strength; touch the
bar to open the full Notications
panel. Touch a Notication icon to
display more detail.
Page 15 Getting Started
English
Name Description
2 Google
search
Touch to search with Google
browser.
3Back
icon
Touch to go back to the previous
screen.
4Home icon Touch to go back to the central
Home screen.
5Recent Apps Touch to display the list of
thumbnail images of apps you
have worked on recently. Touch
an App to open it.
6Widgets Widgets are small applications
that you can use directly from
the home screen. For more in-
formation, refer to the “Widgets”
section on page 17.
7Launcher
Tab
Open the Launcher to view the
list of all Applications installed on
the tablet. Touch the Launcher
tab to open the Launcher.
8Icons Touch an icon to open an ap-
plication or folder.
About Applications
To open an application, touch the application icon on the
home screen or in the Launcher.
Launcher screen:
Preinstalled Applications
Some applications have been installed on your tablet for
your convenience. These applications include:
Page 16 Getting Started
English
Browse the web.
Display the calendar or record events
and appointments to manage your
schedule.
Perform simple mathematical
operations.
Take pictures or videos with the front-
facing camera.
View the current time, or set an
alarm.
Check your e-mail.
View and manage les stored on the
tablet.
View photos and videos, plus edit
photos.
Play music.
Access the Settings menu to adjust
the tablet’s options.
Play videos
Page 17 Getting Started
English
Installing Applications
You can also download and install additional applications
from the device’s applications marketplace, the web
browser, or other sources.
The tablet must be set to allow installation of applications
from non-market sources. The unknown sources option
can be set in the Application settings menu.
About Widgets
Widgets are self-contained applications that you can
place on the Home screens to access your favourite
features.
Adding Widgets to a Home Screen
1. Navigate to the Home screen on which you want to
place the Widget.
2. Touch the Launcher Tab.
3. Touch WIDGETS to show all widgets and then hold
on a widget icon to add it to the Home screen.
Removing Widgets
Touch and hold the Widget until the Remove icon ap-
pears on the top of the screen, then drag the Widget to
the Remove icon to remove it.
Page 18 Getting Started
English
About Notications
The icons that appear in the Notication bar at the top
left corner of the screen alert you when new messages
arrive or alarms or other application events occur.
View and respond to the notications by opening the full
Notications panel.
Touch the Notication bar to open the Notications
panel.
To respond to a notication:
Touch a notication in the list; the Notications panel will
close and the application associated with the notication
will launch.
To close the Notications panel:
Touch any other area of the screen except the
Notications panel , or;
Touch the Back icon.
Page 19 Connecting To The Internet
English
ÂConnecting to the Internet
This tablet can utilize Wi-Fi data networks to connect to the Internet.
Wireless Wi-Fi technology can provide Internet access at distances of over 300 feet; however, this distance can be
affected by your surrounding environment and Wi-Fi router.
Requirements
In order to connect to the Internet, you will need either of
the following:
A wireless router or access point with a broad-
band Internet connection
The wireless router must support Wi-Fi 802.11b/g/n
connections. If the router supports 802.11n, make sure that
it has been congured to accept 802.11b/g/n connections as
well.
A minimum connection speed of 64 Kbps is rec-
ommended. Faster speeds will enable a better
Internet experience.
You will need to know the name of your network (SSID),
as well as the password or other credentials if your
network is secured. These settings can usually be found
on the administration webpage of your wireless router.
Please refer to your wireless router’s documentation for
help, or ask your network administrator for details.
You may encounter open Wi-Fi networks, or “hot
spots.” These networks are usually congured
so that you can simply connect to them without
needing to know its settings; the tablet will obtain
all the information it needs from the router auto-
matically.
Page 20 Connecting To The Internet
English
Connect to a Wi-Fi network
The Notication bar displays icons that indicate your
tablet’s Wi-Fi status.
Connected to a Wi-Fi network (waves
indicate connection strength).
[no icon] There are no Wi-Fi networks in range, or
the Wi-Fi radio is off.
1. Turn on the Wi-Fi radio if it is not already on. To
turn on Wi-Fi:
a. Go to the Home screen:
Touch the Home icon.
b. Open the Launcher screen:
Touch the Launcher Tab, then touch Settings.
c. Open the Wi-Fi settings menu:
Touch WiFi.
d. Make sure that the Wi-Fi option box is set to ON:
Touch and slide the block right to enable the
Wi-Fi connection.
When the Wi-Fi is on, the tablet will look for and display a
list of available Wi-Fi networks.
If a network that you have previously connected
to is found, the tablet will connect to it.
If you do not see your network in the list, you
can force the tablet to re-scan. To scan for net-
works, tap the SCAN icon that is located on the
top right corner of the screen.
2. Select an available Wi-Fi network to connect to:
In the same Wi-Fi settings menu above, touch a network
in the list.
Page 21 Connecting To The Internet
English
If the network is open, the tablet will prompt you to
conrm connection to the network. Touch Connect to
conrm.
If the network is secured (as indicated by a Lock icon),
the tablet will prompt you to enter a password or other
credentials. Touch the Wireless password box to show
the on-screen keyboard and then use it to enter the
password. Touch Connect to conrm.
When you have successfully connected to a Wi-Fi net-
work, the Notications bar at the top right of the screen
will show a Wi-Fi signal indicator.
To learn about how to add a Wi-Fi network when
it is not in range or when the router is set to ob-
scure the network name (SSID); or to congure
advanced Wi-Fi options, please refer to the man-
ual.
Page 22 Browsing The Web
English
ÂBrowsing the Web
The Browser application lets you visit webpages and nd information on the web, keep up with the news, your friends,
or enjoy video from YouTube™, the world’s most popular video-sharing community.
To use Browser, the tablet must be connected to the
Internet. Read the section “Connecting to the Internet” to
learn how to connect to the Internet.
To open Browser, touch the Browser icon on the Home
screen or in the Launcher.
Name Description
1New Window
(+)
Creates a new browser win-
dow.
2Address Bar Displays the address (URL) of
the current page. Touch the
bar to enter a new address
or to search the web.
3Add Bookmark
icon
Touch to add bookmarks.
4Search icon Touch to search with Google
browser.
5Goto Bookmarks
icon
Touch to view bookmarks, to
view your most visited sites, or
to view your browser history.
Page 23 Browsing The Web
English
Some common Browser actions are described below.
To go to a webpage.
1. Touch the Address
bar at the top of the
Browser screen. The
keyboard will open
automatically. (If the
Address bar is not
visible, drag the page
down to return to the
top of the Browser
screen.)
2. Use the keyboard
to enter the address
(URL) of the webpage
(e.g., www.google.
com).
3. Touch Enter key to
open the webpage.
To bookmark a webpage.
Bookmark your favourite webpages in order to visit
them quickly without entering a URL.
1. Go to the web-
page that you
want to bookmark
2. Touch the Add
Bookmark icon.
3. If desired, you can
modify the name
of the bookmark
or its location
(URL address).
Otherwise, touch
OK to nish
adding the book-
mark.
Page 24 Browsing The Web
English
To go to a bookmarked webpage.
1. Touch the Goto
Bookmark icon.
2. Touch a bookmark
tile to open it.
To delete a bookmarked webpage.
1. Touch the Goto
Bookmark icon.
2. Touch and hold a
bookmark tile to
open the option
menu.
3. Touch “Delete bookmark“.
Browser menu
While viewing a webpage, touch the icon(as shown on
the right) to open the Browser Menu, the icon is located
on the top right corner of the screen, the options are:
Refresh: Refresh the current webpage.
Forward: Go to the next webpage.
New tab: Open the webpage in a new win-
dow, under a new tab.
Share page: Use Email to send the webpage URL.
Find on page: Search for content on the current
page.
Request desktop site: Switch between the computer
and android version of the desktop.
Page info: View information about the current page,
including the URL.
Settings: Customize the Browser.
Page 25 Optional Connections
English
ÂOptional Connections
Connecting to a Computer
Connect the tablet to a computer to transfer les.
1. Connect your tablet to the computer.
With the included USB cable:
Plug the small end of the cable into the USB 2.0 Hi-
speed connector of the tablet.
Plug the large end of the cable into an available USB
2.0 Hi-speed port on the computer.
The Tablet’s “mass storage mode” is compatible
with many operating systems including:
Microsoft® Windows® XP, Vista, 7 or higher and
Mac OS or Linux.
Page 26 Optional Connections
English
2. Mount the storage drive.
Touch Connected as a media device to mount
the tablet’s built-in storage, then touch Media
device(MTP), now you can copy les to/from your
computer.
Your tablet will be recognized by the computer as a
Removable Storage drive. Drag and drop les between
your tablet and the computer. To learn more about copy-
ing les, please refer to the documentation included with
your computer or operating system.
Connecting Headphones
Connect a pair of headphones (or earphones) to the
tablet to enjoy media in private.
Lower the volume level of the tablet before connecting
headphones and then slowly raise the volume to a
comfortable listening level.
The headphones must have a 3.5 mm (1/8 in) plug.
When headphones are connected, speaker output
will be disabled automatically.
Hearing experts advise against the constant
use of personal stereos played at high volume.
Constant exposure to high volumes can lead to
hearing loss. If you should experience ringing in
the ears or hearing loss, discontinue use and
seek medical advice.
Page 27 Optional Connections
English
Using the USB Full-Size Adapter
The USB full-size adapter can be used to connect and
use USB devices with the tablet. The adapter converts
the Micro USB port on the tablet into a USB On-the-Go
(OTG) connector.
Connecting a Keyboard
When you want to type for an extended period of time,
you may connect a full-size keyboard to the tablet.
Use the included USB full-size (Type A) adapter to
connect a keyboard to the tablet.
You may also use this connection to add a
mouse to the tablet.
The adapter supports one connection at a time.
To use a keyboard and mouse simultaneously,
you will need to add an external USB hub.
Connecting a Storage Device
Use the included USB full-size (Type A) adapter to
connect a storage device to the tablet (e.g., a USB ash
memory drive).
This connection supports a maximum storage
size of 32 GB. For additional storage capacity,
a microSD card can be added to the tablet.
Page 28 Setting The System Options
English
ÂSetting the System Options
Open the system settings menu to adjust how the tablet looks and functions.
Many applications will have their own settings; refer to the documentation provided by the application developer
to learn more.
To open the Settings menu:
1. From the Home screen, touch the Launcher Tab.
2. Touch Settings to open the Settings menu.
The settings are grouped by category. Touch a category to open and adjust its
settings on the right hand side.
Please refer to the manual for a description of the items in the
Settings menu.
Page 29 Specications
English
ÂSpecications
Processor ATM7059 ARM Cortex A9 1.5GHz
RAM 1GB
Storage 8GB ash built-in
microSD card slot (max. 32GB
supported)
Display 7.0” TN LCD (1024 x 600), capaci-
tive touchscreen
Networking Wi-Fi IEEE 802.11 b/g/n
Audio Output 3.5 mm headphone
PC Interface USB 2.0 Hi-speed
Additional Fea-
tures
Front/back-facing camera
Built-in microphone
Mono speakers
Operating Sys-
tem
Android™ 5.0
Power Rechargeable Li-poly battery
Power Adapter (DC 5V)
Playback Time
(hours) *
Up to 8 hours music, 3 hours
video, 3 hours web browsing
* Music was tested with a 128 kbps MP3 le; video was tested with a
1920 x 1080 MPEG-4/AVC le; browsing was tested with the screen
brightness set to default. Actual playback results may vary.
Page 30 Safety Notices
English
ÂSafety Notices
The lightning ash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the presence
of uninsulated “dangerous voltage” within the product’s
enclosure that may be of sucient magnitude to constitute a
risk of electric shock.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important opera-
tion and servicing instructions in the literature accompanying
the appliance.
For recycling or disposal information about this prod-
uct, please contact your local authorities or the Elec-
tronics Industries Alliance: www.eiae.org.
For Customer Use:
Enter below the serial number that is located on the rear of the unit. Retain this
information for future reference.
Model No.
Serial No.
WARNING: To prevent re or shock hazard, do not expose this device to rain
or moisture. Dangerous high voltage is present inside the enclosure. Do not open
the cabinet.
Protect your hearing: Hearing experts advise against the constant use
of personal stereos played at high volume. Constant exposure to high volumes can
lead to hearing loss. If you should experience ringing in the ears or hearing loss,
discontinue use and seek medical advice.
Note: If the product suddenly has no response or powers o, an electrostatic
discharge may be the cause. In this circumstance, please follow the procedures
below for recovery:
• Turn off the unit by pushing the reset button at the rear
of the tablet.
• Turn on the unit again.
Page 31 Safety Notices
English
FCC Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits
for Class B digital devices, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
Use of shielded cable is required to comply with Class B limits in Subpart B of Part
15 of the FCC rules.
You are cautioned that changes or modifications not
expressly approved by the party responsible for
compliance could void your authority to operate the
equipment.
Page 32 Safety Notices
English
Important Safety Instructions
1. Read Instructions: All the safety and operating instruc-
tions should be read before the product is operated.
2. Retain Instructions: The safety and operating instruc-
tions should be retained for future reference.
3. Heed Warnings: All warnings on the product and in
the operating instructions should be adhered to.
4. Follow Instructions: All operating and usage instruc-
tions should be followed.
5. Cleaning: Unplug this product from the wall outlet be-
fore cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
6. Attachments: Use only attachments recommended by
the manufacturer. Use of other attachments may be
hazardous.
7. Water and Moisture: Do not use this product near
water (e.g., near a bath tub, washbowl, kitchen sink,
laundry tub, in wet basements, or near a swimming
pool and the like).
8. Ventilation: Slots and openings in the cabinet are
provided for ventilation to ensure reliable operation of
the product and to protect it from overheating. These
openings should never be blocked by placing the
product on a bed, sofa, rug, or other similar surface.
This product should not be placed in a built-in installa-
tion such as a bookcase or rack unless proper ventila-
tion is provided or the manufacturer instructions have
been adhered to.
9. Power Sources: This product should be operated only
from the type of power source indicated on the rating
label. If you are not sure of the type of power supply to
your home, consult your product dealer or local power
company. For products intended to operate from bat-
tery power or other sources, refer to the operating
instructions.
10. Overloading: Do not overload wall outlets, extension
cords, or integral convenience receptacles as this can
result in a risk of re or electric shock.
11. Object and Liquid Entry: Never push objects of any
kind into this product through openings as they may
touch dangerous voltage points or shout-out parts that
could result in a re or electric shock. Never spill liquid
of any kind on the product.
12. Servicing: Do not attempt to service this product your-
self as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servic-
ing to qualied service personnel.
13. Damage Requiring Service: Unplug this product from
the wall outlet and refer servicing to qualied service
personnel under the following conditions: a) when the
power-supply or plug is damaged; b) if liquid has been
spilled or if objects have fallen into the product; c) if
the product has been exposed to rain or water; d) if
Page 33 Safety Notices
English
the product does not operate normally by following the
operating instructions. Adjust only those controls that
are covered by the operating instructions as improper
adjustment of other controls may result in damage
and will often require extensive work by a qualied
technician to restore the product to its normal operation;
e) if the product has been dropped or damaged in any
way; f) when the product exhibits a distinct change in
performance—this indicates a need for service.
14. Replacement Parts: When replacement parts are
required, be sure that your service technician has
used replacement parts specied by the manufacturer
or have the same characteristics as the original part.
Unauthorized substitutions may result in re, electric
shock, or other hazards.
15. Safety Check: Upon completion of any service or
repairs to this product, ask the service technician to
perform safety checks to ensure that the product is in
proper operating condition.
16. Heat: The product should be situated away from heat
sources such as radiators, heat registers, stoves, or
other products (including ampliers) that produce heat.
Page 34 Safety Notices
English
Warranty
Limited Warranty
The Astro Tab brand and its products are owned by Inspira Technologies LLC (“Astro Tab” or the “Company”). This is a limited warranty for
the product purchased and contained in this package (the “Product”). For Astro Tab to honor this limited warranty, the original retail purchaser
(“you”) must present a valid proof of purchase of the Product, such as a receipt.
This warranty is void if Company deems, in its discretion, that the Product may have been damaged through modication, improper use, end
user negligence, water damage, or tampering of the bar code of the Product unit. This warranty is a limited warranty for repair/replacement of
product, subject to the conditions set forth herein.
ASTRO QUEO IS NOT LIABLE FOR CONSEQUENTIAL, INDIRECT, INCIDENTAL, SPECIAL OR PUNITIVE DAMAGES AND COMPANY’S
TOTAL LIABILITY HEREUNDER SHALL NOT EXCEED AN AMOUNT GREATER THAN THE RETAIL PURCHASE PRICE OF THE
PRODUCT.
Subject to the applicable provisions set forth herein, with regard to this limited warranty, you are responsible for all costs in connection with the
shipping and handling of the Product to Astro Tab, and Astro Tab is likewise responsible for all shipping and handling of the Product back to
you. Astro Tab bears no risk of loss of the Product in connection with the transportation and shipment of the Product in any way relating to this
limited warranty.
90 DAYS Parts & Labor
Limited Manufacturer’s Warranty – Astro Tab warrants to you as the original retail purchaser of the Product, that should the Product have any
defect, under normal conditions, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company’s option) without
charge, if submitted to Astro Tab within a period of 90 days from the date of purchase of Product. This warranty only covers manufacturer
defects and the Product must be returned to Company in its original condition. Proof of Purchase, in the form of a valid receipt, is required.
1 YEAR Limited Parts
The 1 year limited parts warranty gives you the option to return Product to Astro Tab for repair/replacement. You will be responsible for labor
charges. This warranty does not cover any incidental or indirect costs incurred as a result of a defect in the Product, including any consequen-
tial, incidental or indirect damages.
Page 35 Safety Notices
English
Contact Us
Our email address is: support@inspira-tech.com
Please make sure to include the model number and brief description of the problem you are encountering.
