Inspira Technologies A735 Tablet PC User Manual

Inspira Technologies LLC Tablet PC

User Manual

Tablet PC Quick Start Guide Please read carefully before use A735

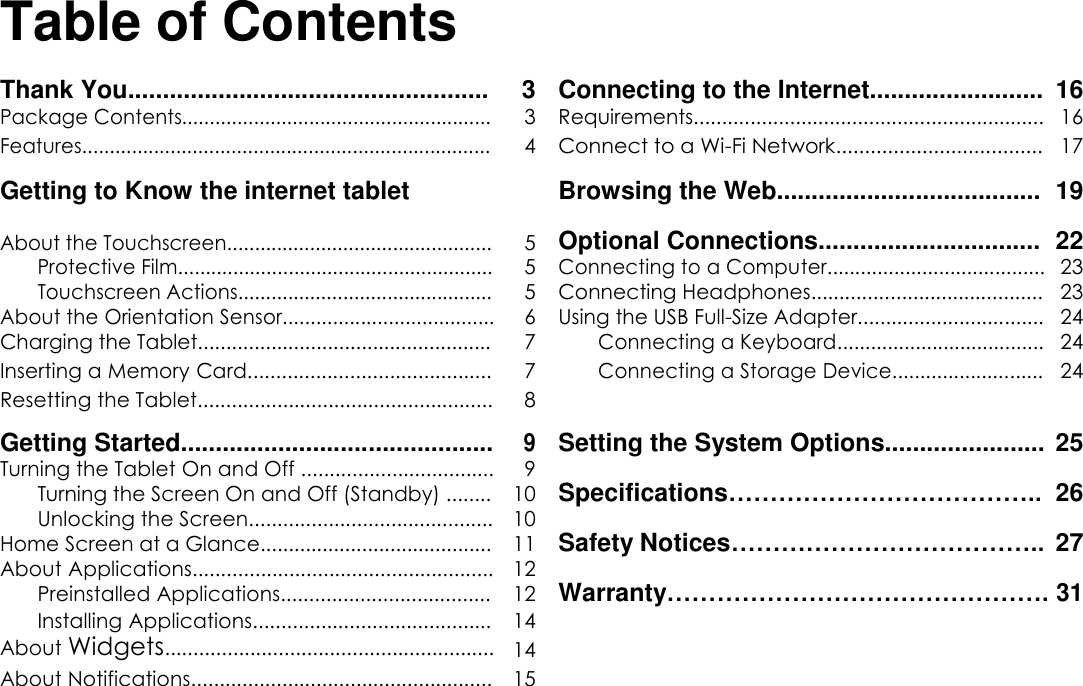

English Table of Contents Thank You.................................................... 3 Connecting to the Internet......................... 16 Package Contents........................................................ 3 Requirements.............................................................. 16 Features.......................................................................... 4 Connect to a Wi-Fi Network.................................... 17 Getting to Know the internet tablet Browsing the Web...................................... 19 Optional Connections................................ 22 About the Touchscreen................................................ 5 Protective Film......................................................... 5 Connecting to a Computer....................................... 23 Touchscreen Actions.............................................. 5 Connecting Headphones......................................... 23 About the Orientation Sensor...................................... 6 Using the USB Full-Size Adapter................................. 24 Charging the Tablet.................................................... 7 Connecting a Keyboard..................................... 24 Inserting a Memory Card........................................... 7 Connecting a Storage Device........................... 24 Resetting the Tablet.................................................... 8 Getting Started............................................. 9 Setting the System Options....................... 25 Turning the Tablet On and Off .................................. 9 Specifications……………………………….. 26 Turning the Screen On and Off (Standby) ........ 10 Unlocking the Screen........................................... 10 Safety Notices……………………………….. 27 Home Screen at a Glance......................................... 11 About Applications..................................................... 12 Warranty………………………………………. 31 Preinstalled Applications..................................... 12 Installing Applications.......................................... 14 About Widgets.......................................................... 14 About Notifications..................................................... 15 Page 2 Table of Contents
Thank You Congratulations on your purchase of the Internet Tablet. This guide is provided to help you get started quickly with your tablet; please read it carefully and save it for future reference. To view PDF documents, download and install the free Adobe Acrobat reader from the Adobe website at www.adobe.com. Package Contents Please make sure that the items shown below are included in the package. Should an item be missing, please contact the local retailer from whom purchased this product. ● Internet tablet ● USB cable ● USB host adapter ● Power adapter English Page 3 Thank You
English Features ● Automatic orientation detection Read any way you want; the display adjusts ● Browse the Web. automatically! Visit your favorite websites ● Check your e-mail Keep in touch with friends and family ● Watch YouTube™ videos Browse the world’s most popular video-sharing community ● Discover thousands of apps for Android™ Games, applications and more with the installed marketplace ● Connect to the Internet wirelessly High-speed Wi-Fi 802.11 b/g/n networking ● Enjoy your media library anywhere Portable powerhouse plays popular music, video and photo formats ● MicroSD memory card reader Increase your storage capacity (up to 32 GB sup- ported) ● Built-in camera Convenient front-facing camera Page 4 Thank You

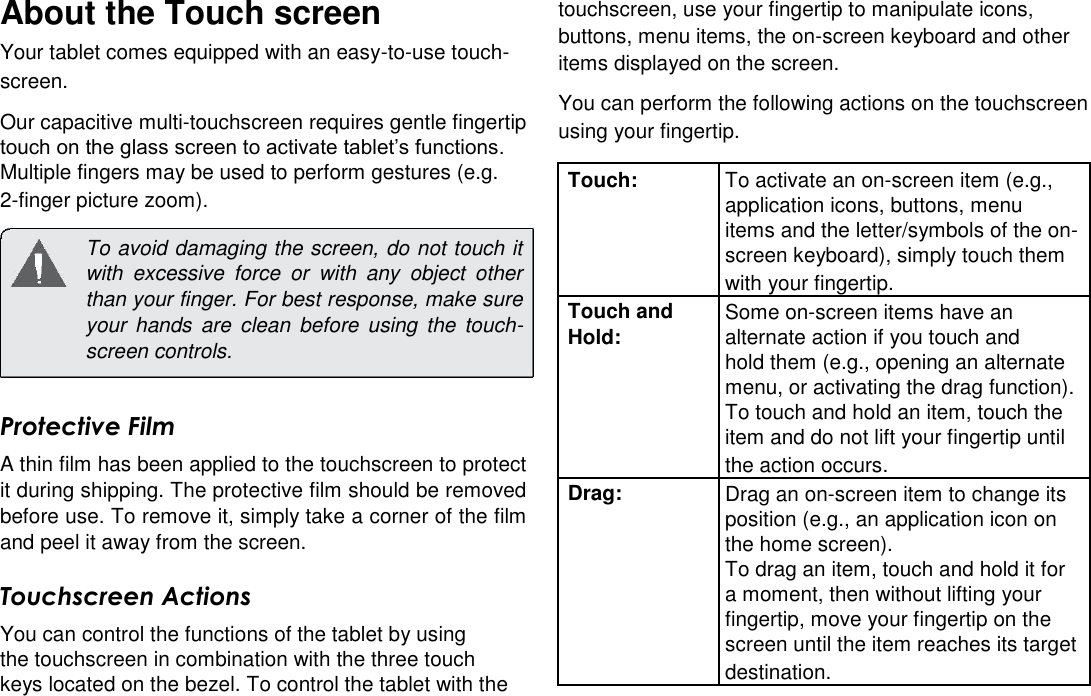

About the Touch screen Your tablet comes equipped with an easy-to-use touch-screen. English Our capacitive multi-touchscreen requires gentle fingertip touch on the glass screen to activate tablet’s functions. Multiple fingers may be used to perform gestures (e.g. 2-finger picture zoom). To avoid damaging the screen, do not touch it with excessive force or with any object other than your finger. For best response, make sure your hands are clean before using the touch-screen controls. Protective Film A thin film has been applied to the touchscreen to protect it during shipping. The protective film should be removed before use. To remove it, simply take a corner of the film and peel it away from the screen. Touchscreen Actions You can control the functions of the tablet by using the touchscreen in combination with the three touch keys located on the bezel. To control the tablet with the touchscreen, use your fingertip to manipulate icons, buttons, menu items, the on-screen keyboard and other items displayed on the screen. You can perform the following actions on the touchscreen using your fingertip. Touch: To activate an on-screen item (e.g., application icons, buttons, menu items and the letter/symbols of the on- screen keyboard), simply touch them with your fingertip. Touch and Some on-screen items have an Hold: alternate action if you touch and hold them (e.g., opening an alternate menu, or activating the drag function). To touch and hold an item, touch the item and do not lift your fingertip until the action occurs. Drag: Drag an on-screen item to change its position (e.g., an application icon on the home screen). To drag an item, touch and hold it for a moment, then without lifting your fingertip, move your fingertip on the screen until the item reaches its target destination. Page 5 Getting To Know The Internet Tablet

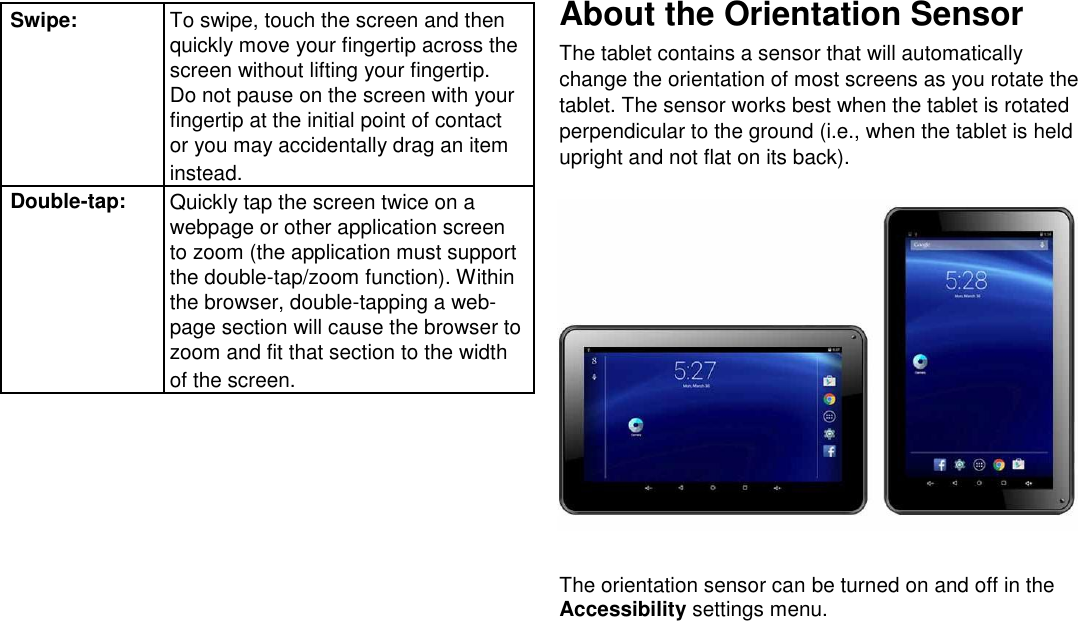

Swipe: To swipe, touch the screen and then quickly move your fingertip across the screen without lifting your fingertip. Do not pause on the screen with your fingertip at the initial point of contact or you may accidentally drag an item instead. Double-tap: Quickly tap the screen twice on a webpage or other application screen to zoom (the application must support the double-tap/zoom function). Within the browser, double-tapping a web- page section will cause the browser to zoom and fit that section to the width of the screen. About the Orientation Sensor The tablet contains a sensor that will automatically change the orientation of most screens as you rotate the tablet. The sensor works best when the tablet is rotated perpendicular to the ground (i.e., when the tablet is held upright and not flat on its back). The orientation sensor can be turned on and off in the Accessibility settings menu. Page 6 Getting To Know The Internet Tablet

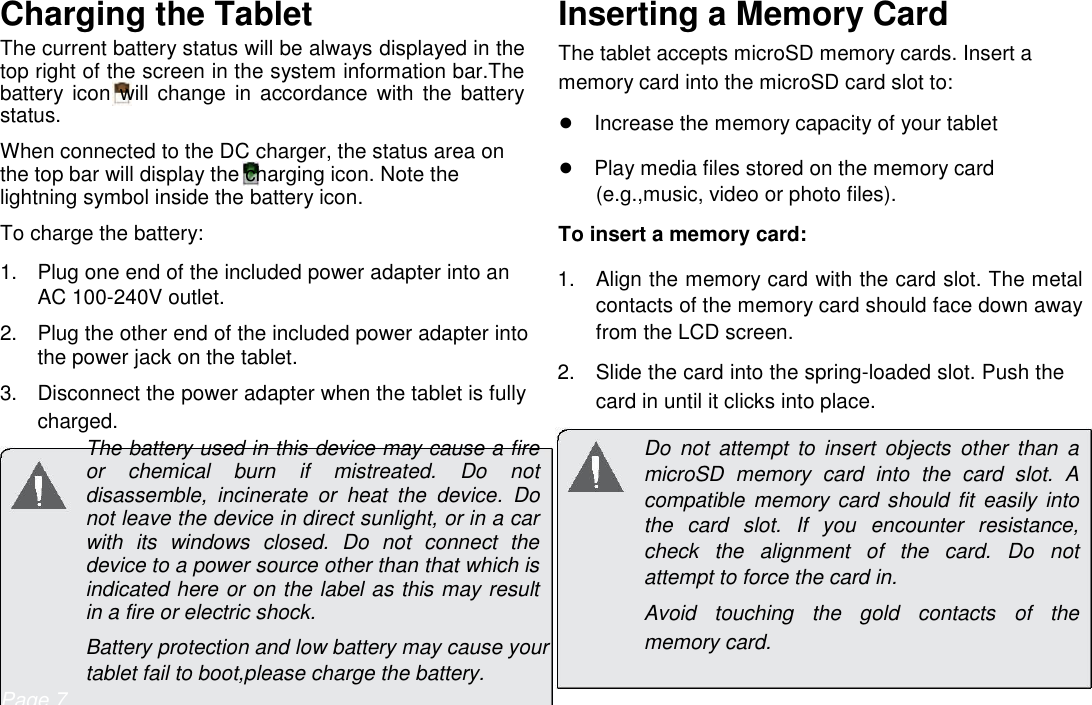

English Charging the Tablet The current battery status will be always displayed in the top right of the screen in the system information bar.The battery icon will change in accordance with the battery status. When connected to the DC charger, the status area on the top bar will display the charging icon. Note the lightning symbol inside the battery icon. To charge the battery: 1. Plug one end of the included power adapter into an AC 100-240V outlet. 2. Plug the other end of the included power adapter into the power jack on the tablet. 3. Disconnect the power adapter when the tablet is fully charged. Inserting a Memory Card The tablet accepts microSD memory cards. Insert a memory card into the microSD card slot to: ●Increase the memory capacity of your tablet ●Play media files stored on the memory card (e.g.,music, video or photo files). To insert a memory card: 1. Align the memory card with the card slot. The metal contacts of the memory card should face down away from the LCD screen. 2. Slide the card into the spring-loaded slot. Push the card in until it clicks into place. The battery used in this device may cause a fire or chemical burn if mistreated. Do not disassemble, incinerate or heat the device. Do not leave the device in direct sunlight, or in a car with its windows closed. Do not connect the device to a power source other than that which is indicated here or on the label as this may result in a fire or electric shock. Battery protection and low battery may cause your tablet fail to boot,please charge the battery. Do not attempt to insert objects other than a microSD memory card into the card slot. A compatible memory card should fit easily into the card slot. If you encounter resistance, check the alignment of the card. Do not attempt to force the card in. Avoid touching the gold contacts of the memory card. Page 7 Getting To Know The Internet Tablet
To release and remove a memory card: 1. UNMOUNT the memory card. a. From the home screen, tap the Launcher Tab, and then touch Settings to show the settings menu. b. Touch Storage to show the storage settings. c. Touch Unmount Removable SD card to prepare the memory card for safe removal. 2. Push the card further into the slot until you hear a click. The card will spring out of the slot. 3. Grasp the card by its edge to remove it. To avoid damage and data corruption, do not remove a memory card while data is being written to or read from the card. For example, do not remove a card while playing a music file stored on the card. Resetting the Tablet Reset the tablet if it should freeze, and not respond or otherwise malfunction. 1. Disconnect your tablet if it is connected to a com-puter. 2. Use a paper clip to gently press the <RESET> button located on the back of the tablet. English Page 8 Getting To Know The Internet Tablet

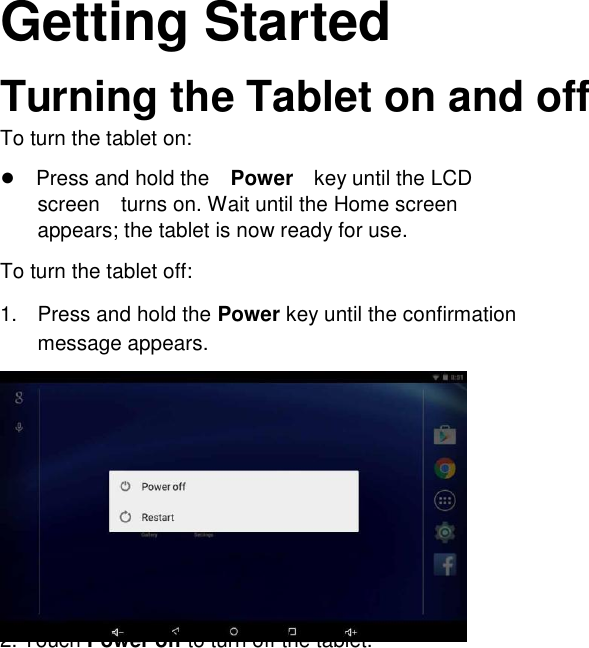

English Getting Started Turning the Tablet on and off To turn the tablet on: ●Press and hold thePowerkey until the LCD screenturns on. Wait until the Home screen appears; the tablet is now ready for use. To turn the tablet off: 1. Press and hold the Power key until the confirmation message appears. 2. Touch Power off to turn off the tablet. Page 9 Getting Started

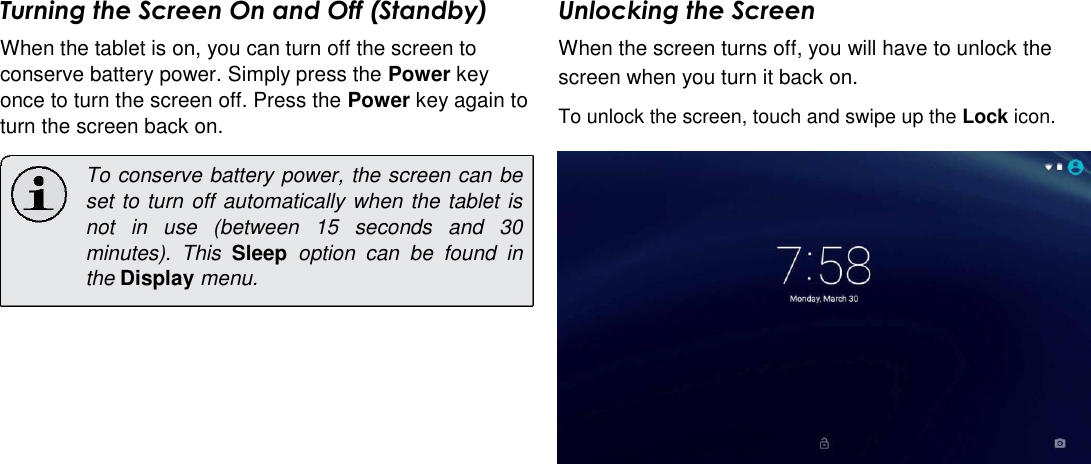

Turning the Screen On and Off (Standby) When the tablet is on, you can turn off the screen to conserve battery power. Simply press the Power key once to turn the screen off. Press the Power key again to turn the screen back on. To conserve battery power, the screen can be set to turn off automatically when the tablet is not in use (between 15 seconds and 30 minutes). This Sleep option can be found in the Display menu. Unlocking the Screen When the screen turns off, you will have to unlock the screen when you turn it back on. To unlock the screen, touch and swipe up the Lock icon. English Page 10 Getting Started

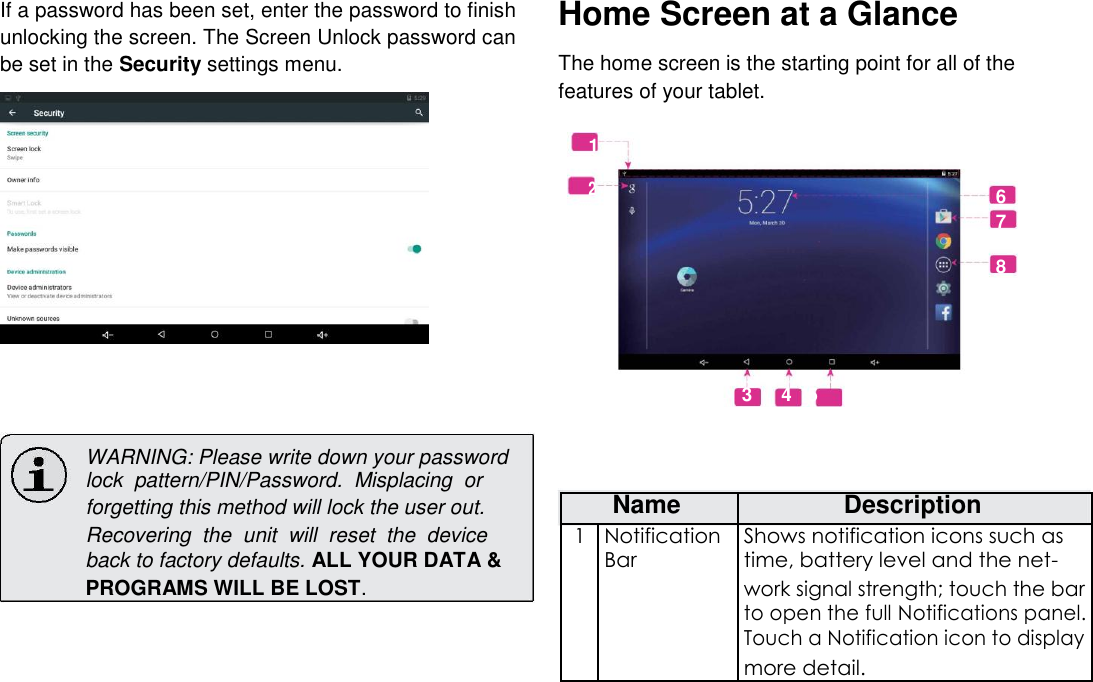

English If a password has been set, enter the password to finish unlocking the screen. The Screen Unlock password can be set in the Security settings menu. Home Screen at a Glance The home screen is the starting point for all of the features of your tablet. 1 2 6 7 8 3 4 5 WARNING: Please write down your password lock pattern/PIN/Password. Misplacing or forgetting this method will lock the user out. Name Description Recovering the unit will reset the device 1 Notification Shows notification icons such as back to factory defaults. ALL YOUR DATA & Bar time, battery level and the net- PROGRAMS WILL BE LOST. work signal strength; touch the bar to open the full Notifications panel. Touch a Notification icon to display more detail. Page 11 Getting Started

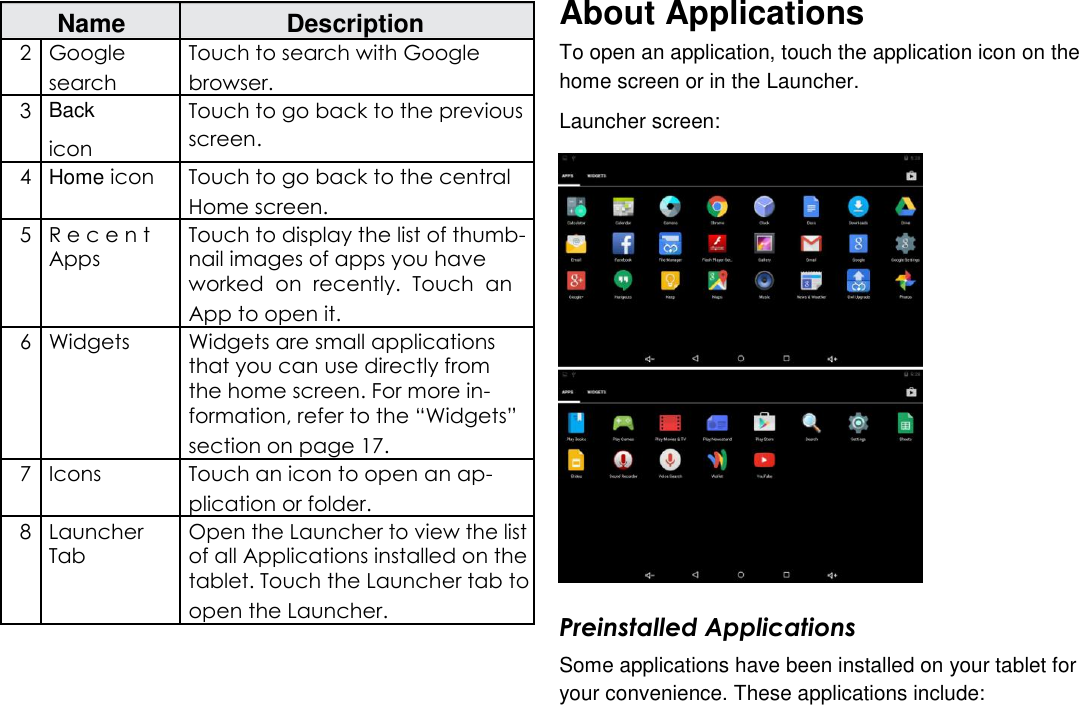

Name Description 2 Google Touch to search with Google search browser. 3 Back Touch to go back to the previous icon screen. 4 Home icon Touch to go back to the central Home screen. 5 R e c e n t Touch to display the list of thumb- Apps nail images of apps you have worked on recently. Touch an App to open it. 6 Widgets Widgets are small applications that you can use directly from the home screen. For more in- formation, refer to the “Widgets” section on page 17. 7 Icons Touch an icon to open an ap- plication or folder. 8 Launcher Open the Launcher to view the list Tab of all Applications installed on the tablet. Touch the Launcher tab to open the Launcher. About Applications To open an application, touch the application icon on the home screen or in the Launcher. Launcher screen: Preinstalled Applications Some applications have been installed on your tablet for your convenience. These applications include: English Page 12 Getting Started

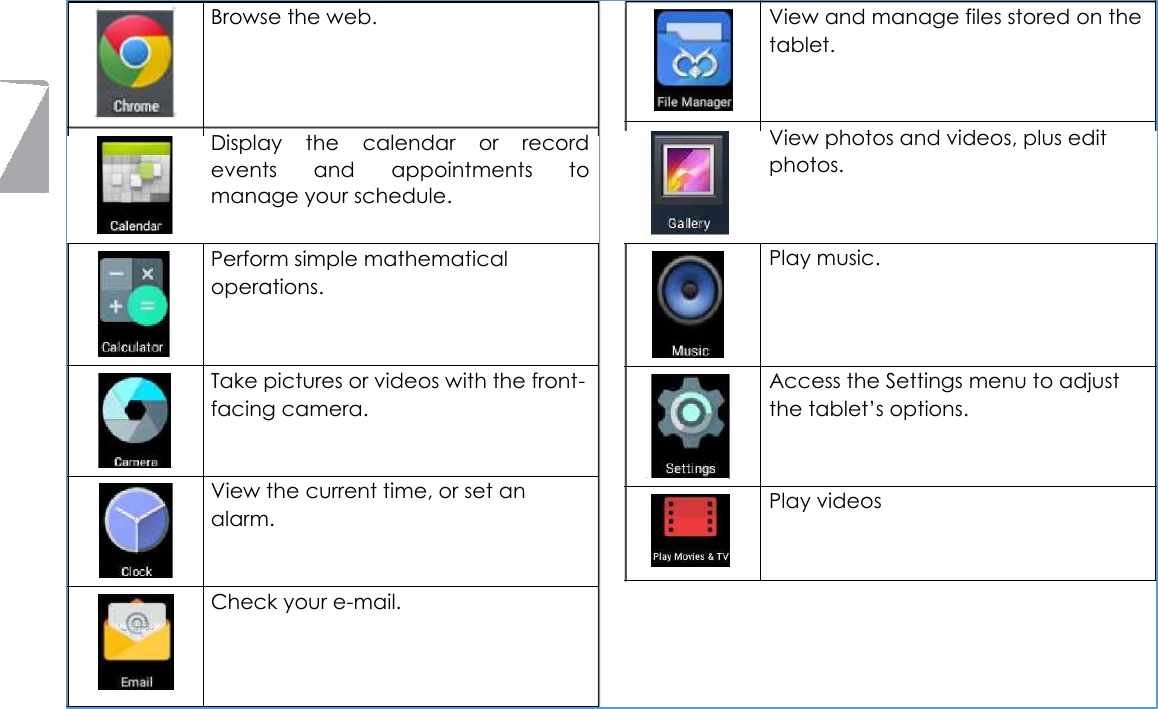

Browse the web. Display the calendar or record events and appointments to manage your schedule. Perform simple mathematical operations. Take pictures or videos with the front-facing camera. View the current time, or set an alarm. Check your e-mail. View and manage files stored on the tablet. View photos and videos, plus edit photos. Play music. Access the Settings menu to adjust the tablet’s options. Play videos Page 13 Getting Started
Installing Applications You can also download and install additional applications from the device’s applications marketplace, the web browser, or other sources. The tablet must be set to allow installation of applications from non-market sources. The unknown sources option can be set in the Application settings menu. Removing Widgets Touch and hold the Widget until the Remove icon ap - pears on the top of the screen, then drag the Widget to the Remove icon to remove it. English About Widgets Widgets are self-contained applications that you can place on the Home screens to access your favorite features. Adding Widgets to a Home Screen 1. Navigate to the Home screen on which you want to place the Widget. 2. Touch the Launcher Tab. 3. Touch WIDGETS to show all widgets and then hold on a widget icon to add it to the Home screen. Page 14 Getting Started

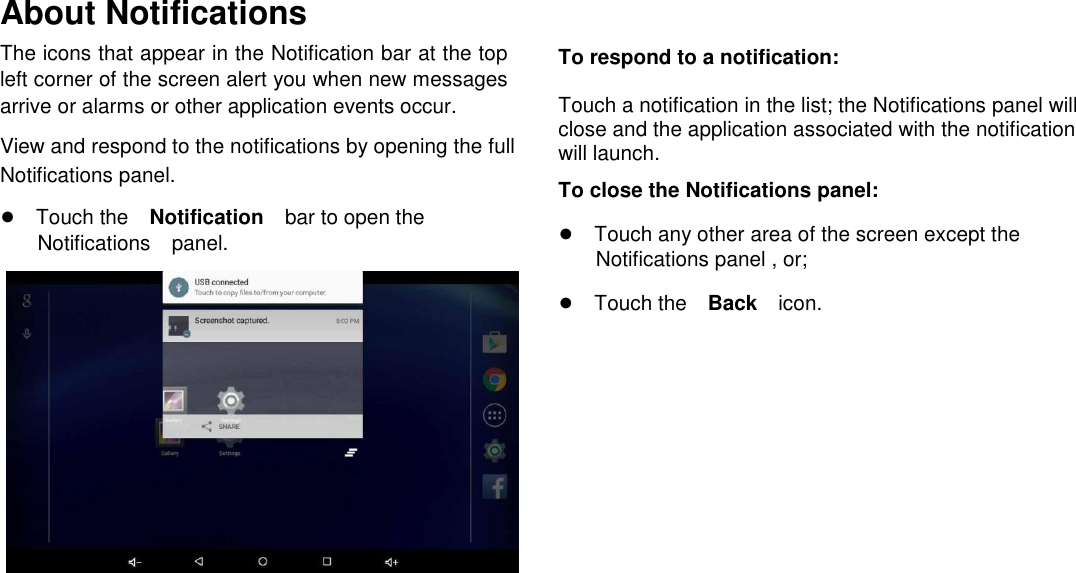

English About Notifications The icons that appear in the Notification bar at the top left corner of the screen alert you when new messages arrive or alarms or other application events occur. View and respond to the notifications by opening the full Notifications panel. ●Touch theNotificationbar to open the Notificationspanel. To respond to a notification: Touch a notification in the list; the Notifications panel will close and the application associated with the notification will launch. To close the Notifications panel: ●Touch any other area of the screen except the Notifications panel , or; ●Touch theBackicon. Page 15 Getting Started
Connecting to the Internet This tablet can utilize Wi-Fi data networks to connect to the Internet. Wireless Wi-Fi technology can provide Internet access at distances of over 300 feet; however, this distance can be affected by your surrounding environment and Wi-Fi router. Requirements Please refer to your wireless router’s documentation for help, or ask your network administrator for details. In order to connect to the Internet, you will need either of the following: You may encounter open Wi-Fi networks, or “hot A wireless router or access point with a broad- spots.” These networks are usually configured band Internet connection so that you can simply connect to them without The wireless router must support Wi-Fi 802.11b/g/n needing to know its settings; the tablet will obtain all the information it needs from the router auto- connections. If the router supports 802.11n, make sure that matically. it has been configured to accept 802.11b/g/n connections as well. A minimum connection speed of 64 Kbps is rec- ommended. Faster speeds will enable a better Internet experience. You will need to know the name of your network (SSID), as well as the password or other credentials if your network is secured. These settings can usually be found on the administration webpage of your wireless router. English Page 16 Connecting To The Internet

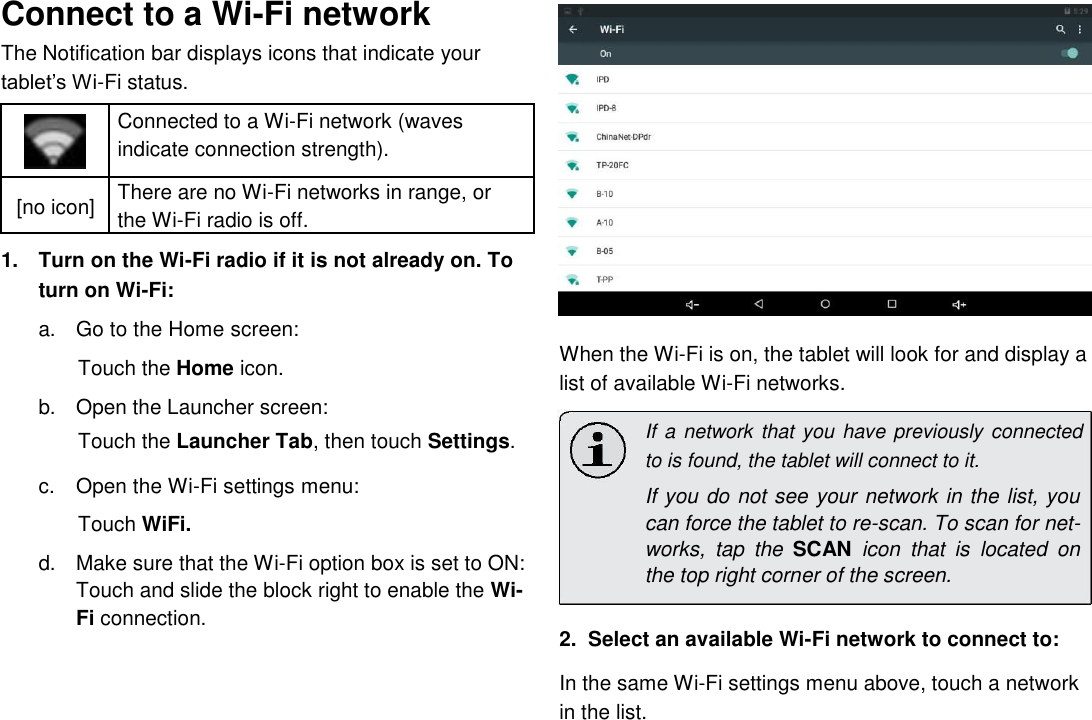

English Connect to a Wi-Fi network The Notification bar displays icons that indicate your tablet’s Wi-Fi status. Connected to a Wi-Fi network (waves indicate connection strength). [no icon] There are no Wi-Fi networks in range, or the Wi-Fi radio is off. 1. Turn on the Wi-Fi radio if it is not already on. To turn on Wi-Fi: a. Go to the Home screen: Touch the Home icon. b. Open the Launcher screen: Touch the Launcher Tab, then touch Settings. c. Open the Wi-Fi settings menu: Touch WiFi. d. Make sure that the Wi-Fi option box is set to ON: Touch and slide the block right to enable the Wi-Fi connection. When the Wi-Fi is on, the tablet will look for and display a list of available Wi-Fi networks. If a network that you have previously connected to is found, the tablet will connect to it. If you do not see your network in the list, you can force the tablet to re-scan. To scan for net-works, tap the SCAN icon that is located on the top right corner of the screen. 2. Select an available Wi-Fi network to connect to: In the same Wi-Fi settings menu above, touch a network in the list. Page 17 Connecting To The Internet

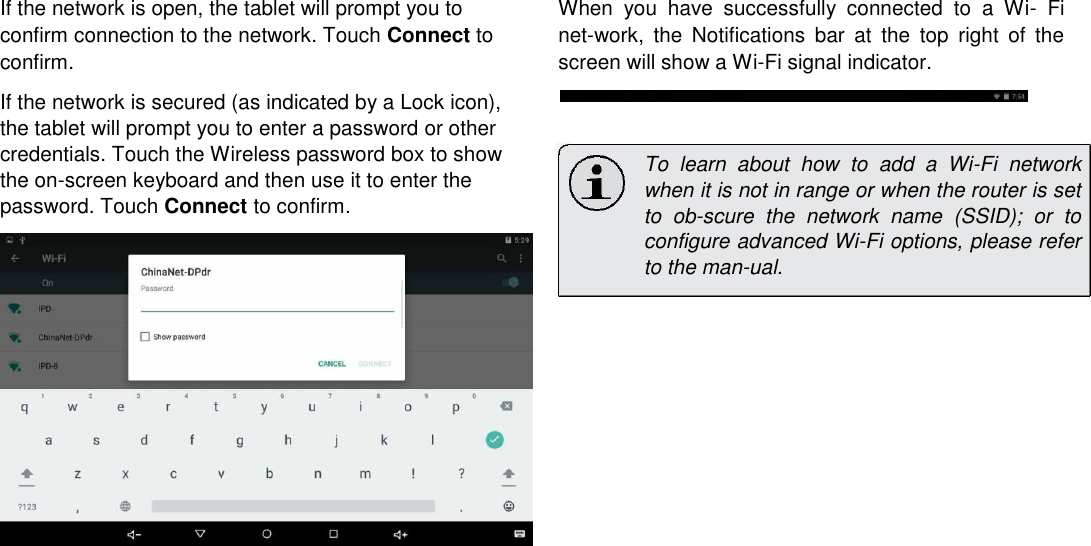

If the network is open, the tablet will prompt you to confirm connection to the network. Touch Connect to confirm. If the network is secured (as indicated by a Lock icon), the tablet will prompt you to enter a password or other credentials. Touch the Wireless password box to show the on-screen keyboard and then use it to enter the password. Touch Connect to confirm. When you have successfully connected to a Wi- Fi net-work, the Notifications bar at the top right of the screen will show a Wi-Fi signal indicator. To learn about how to add a Wi-Fi network when it is not in range or when the router is set to ob-scure the network name (SSID); or to configure advanced Wi-Fi options, please refer to the man-ual. English Page 18 Connecting To The Internet
Browsing the Web The Browser application lets you visit webpages and find information on the web, keep up with the news, your friends, or enjoy video from YouTube™, the world’s most popular video-sharing community. English To use Browser, the tablet must be connected to the Internet. Read the section ―Connecting to the Internet‖ to learn how to connect to the Internet. To open Browser, touch the Browser icon on the Home screen or in the Launcher. Name Description 1 Refresh Refresh the webpage. 2 New Window Creates a new browser win- (+) dow. 3 Address Bar Displays the address (URL) of the current page. Touch the bar to enter a new address or to search the web. 4 Add Bookmark Touch to add bookmarks. icon 5 Goto Book- Touch to view bookmarks, to marks icon view your most visited sites, or to view your browser history. Page 19 Browsing The Web

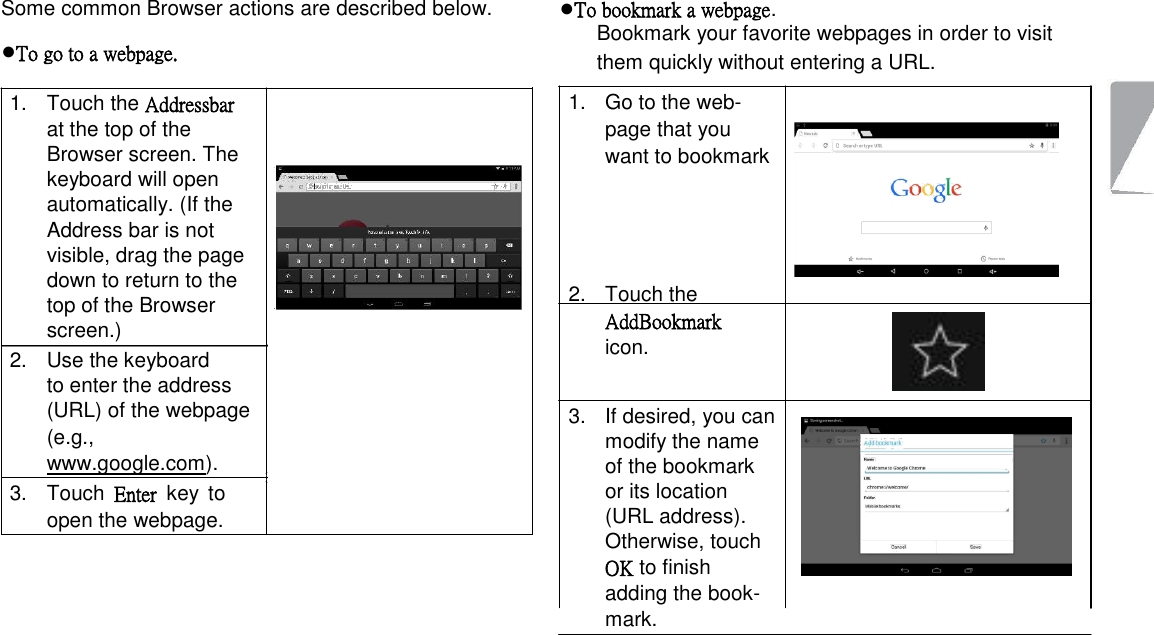

Some common Browser actions are described below. ●To go to a webpage. 1. Touch the Addressbar at the top of the Browser screen. The keyboard will open automatically. (If the Address bar is not visible, drag the page down to return to the top of the Browser screen.) 2. Use the keyboard to enter the address (URL) of the webpage (e.g., www.google.com). 3. Touch Enter key to open the webpage. ●To bookmark a webpage. Bookmark your favorite webpages in order to visit them quickly without entering a URL. 1. Go to the web-page that you want to bookmark 2. Touch the AddBookmark icon. 3. If desired, you can modify the name of the bookmark or its location (URL address). Otherwise, touch OK to finish adding the book-mark. Page 20 Browsing The Web

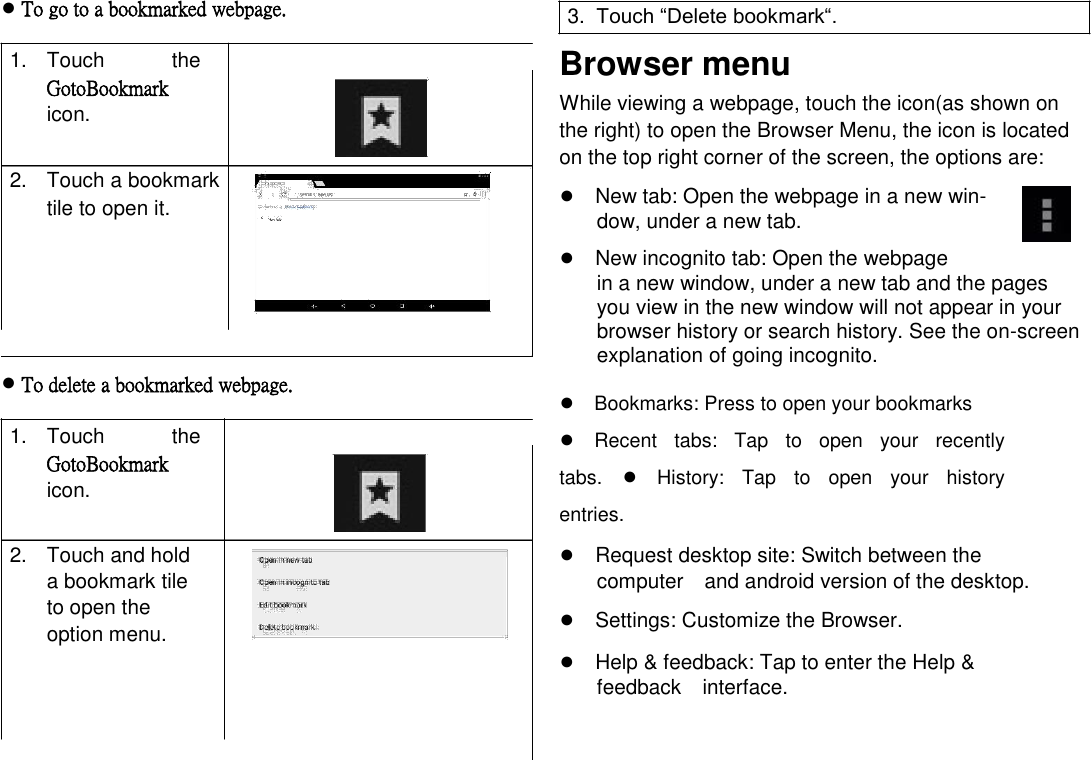

English ● To go to a bookmarked webpage. 1. Touch the GotoBookmark icon. 2. Touch a bookmark tile to open it. ● To delete a bookmarked webpage. 1. Touch the GotoBookmark icon. 2. Touch and hold a bookmark tile to open the option menu. 3. Touch ―Delete bookmark―. Browser menu While viewing a webpage, touch the icon(as shown on the right) to open the Browser Menu, the icon is located on the top right corner of the screen, the options are: ●New tab: Open the webpage in a new win-dow, under a new tab. ●New incognito tab: Open the webpage in a new window, under a new tab and the pages you view in the new window will not appear in your browser history or search history. See the on-screen explanation of going incognito. ●Bookmarks: Press to open your bookmarks●Recent tabs: Tap to open your recently tabs.●History: Tap to open your history entries. ●Request desktop site: Switch between the computerand android version of the desktop. ●Settings: Customize the Browser. ●Help & feedback: Tap to enter the Help & feedbackinterface.
Optional Connections Connecting to a Computer Connect the tablet to a computer to transfer files. 1. Connect your tablet to the computer. With the included USB cable: ●Plug the small end of the cable into the USB 2.0 Hi-speed connector of the tablet. ●Plug the large end of the cable into an available USB2.0 Hi-speed port on the computer. The Tablet’s “mass storage mode” is compatible with many operating systems including: Microsoft® Windows® XP, Vista, 7 or higher and Mac OS or Linux. English Page 22 Optional Connections

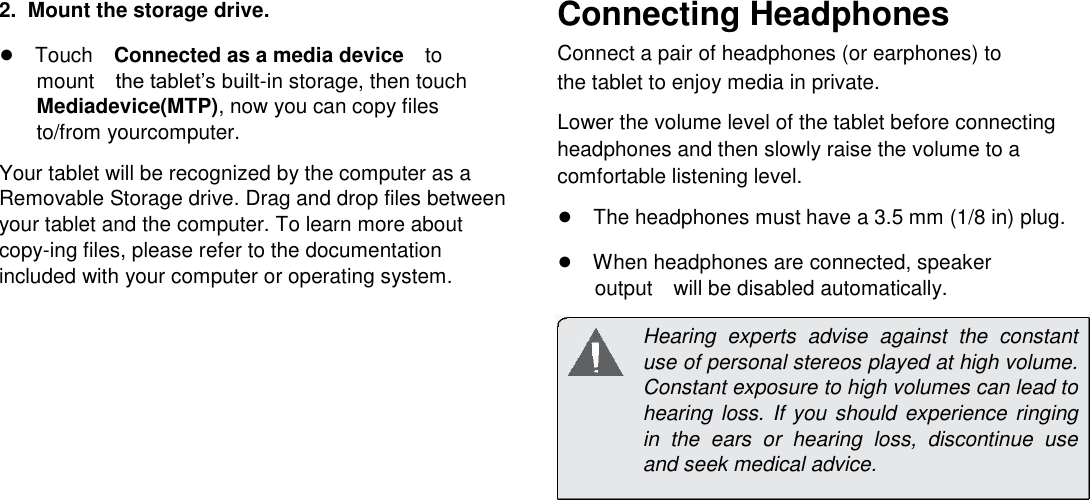

English 2. Mount the storage drive. ●TouchConnected as a media deviceto mountthe tablet’s built-in storage, then touch Mediadevice(MTP), now you can copy files to/from yourcomputer. Your tablet will be recognized by the computer as a Removable Storage drive. Drag and drop files between your tablet and the computer. To learn more about copy-ing files, please refer to the documentation included with your computer or operating system. Connecting Headphones Connect a pair of headphones (or earphones) to the tablet to enjoy media in private. Lower the volume level of the tablet before connecting headphones and then slowly raise the volume to a comfortable listening level. ●The headphones must have a 3.5 mm (1/8 in) plug. ●When headphones are connected, speaker outputwill be disabled automatically. Hearing experts advise against the constant use of personal stereos played at high volume. Constant exposure to high volumes can lead to hearing loss. If you should experience ringing in the ears or hearing loss, discontinue use and seek medical advice. Page 23 Optional Connections

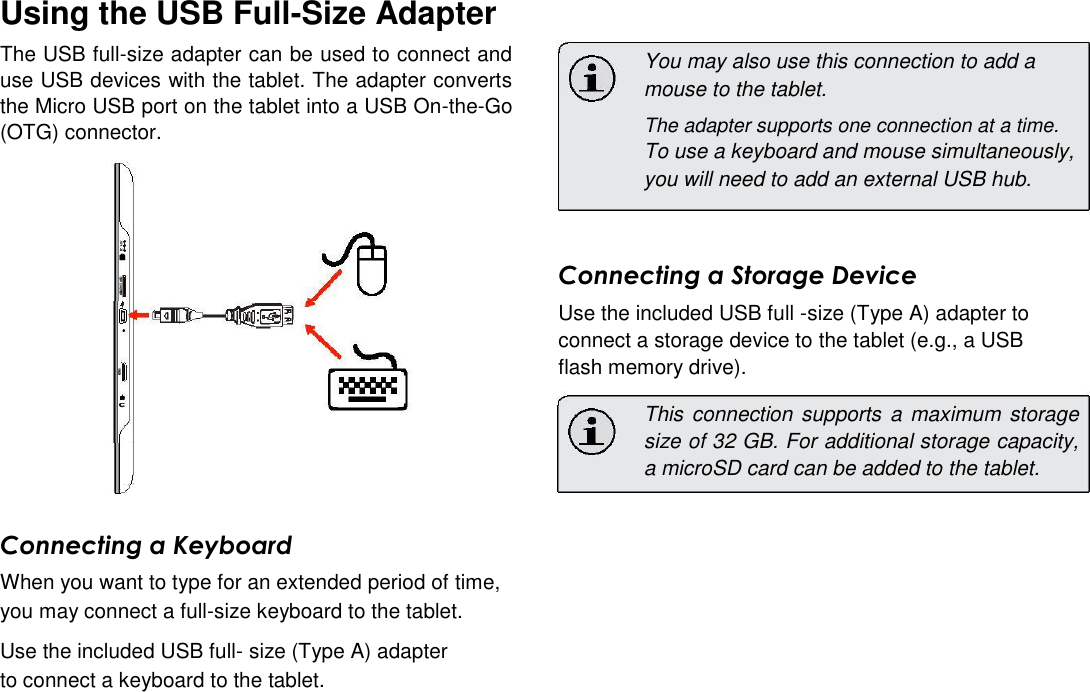

Using the USB Full-Size Adapter The USB full-size adapter can be used to connect and use USB devices with the tablet. The adapter converts the Micro USB port on the tablet into a USB On-the-Go (OTG) connector. You may also use this connection to add a mouse to the tablet. The adapter supports one connection at a time. To use a keyboard and mouse simultaneously, you will need to add an external USB hub. English Connecting a Storage Device Use the included USB full -size (Type A) adapter to connect a storage device to the tablet (e.g., a USB flash memory drive). This connection supports a maximum storage size of 32 GB. For additional storage capacity, a microSD card can be added to the tablet. Connecting a Keyboard When you want to type for an extended period of time, you may connect a full-size keyboard to the tablet. Use the included USB full- size (Type A) adapter to connect a keyboard to the tablet. Page 24 Optional Connections

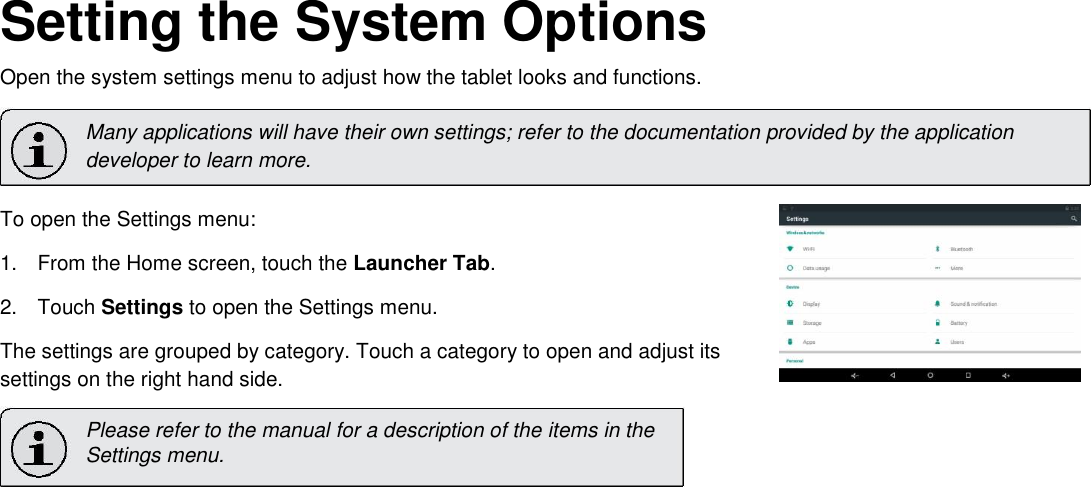

English Setting the System Options Open the system settings menu to adjust how the tablet looks and functions. Many applications will have their own settings; refer to the documentation provided by the application developer to learn more. To open the Settings menu: 1. From the Home screen, touch the Launcher Tab. 2. Touch Settings to open the Settings menu. The settings are grouped by category. Touch a category to open and adjust its settings on the right hand side. Please refer to the manual for a description of the items in the Settings menu. Page 25 Setting The System Options
Specifications Processor A33 ARM Cortex A7 1.5GHz RAM 1GB Storage 8GB flash built-in microSD card slot (max. 32GB supported) Display 7.0” TN LCD (1024 x 600), capaci- tive touchscreen Networking Wi-Fi IEEE 802.11 b/g/n Audio Output 3.5 mm headphone PC Interface USB 2.0 Hi-speed Additional Fea- Front/back-facing camera tures Built-in microphone Mono speakers Operating Sys- Android™ 5.1 Tem Power Rechargeable Li-poly battery Power Adapter (DC 5V) Playback Time Up to 15 hours music, 4 hours (hours) * video, 4 hours web browsing * Music was tested with a 128 kbps MP3 file; video was tested with a 1920 x 1080 MPEG-4/AVC file; browsing was tested with the screen brightness set to default. Actual playback results may vary. English Page 26 Specifications
Safety Notices The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated ―dangerous voltage‖ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important opera-tion and servicing instructions in the literature accompanying the appliance. For recycling or disposal information about this prod-uct, please contact your local authorities or the Elec-tronics Industries Alliance: www.eiae.org. For Customer Use: Enter below the serial number that is located on the rear of the unit. Retain this information for future reference. Model No. Serial No. WARNING: To prevent fire or shock hazard, do not expose this device to rainor moisture. Dangerous high voltage is present inside the enclosure. Do not open the cabinet. Protect your hearing: Hearing experts advise against the constant useof personal stereos played at high volume. Constant exposure to high volumes can lead to hearing loss. If you should experience ringing in the ears or hearing loss, discontinue use and seek medical advice. Note: If the product suddenly has no response or powers off, an electrostaticdischarge may be the cause. In this circumstance, please follow the procedures below for recovery: • Turn off the unit by pushing the reset button at the rear of the tablet. • Turn on the unit again. Page 27 Safety Notices

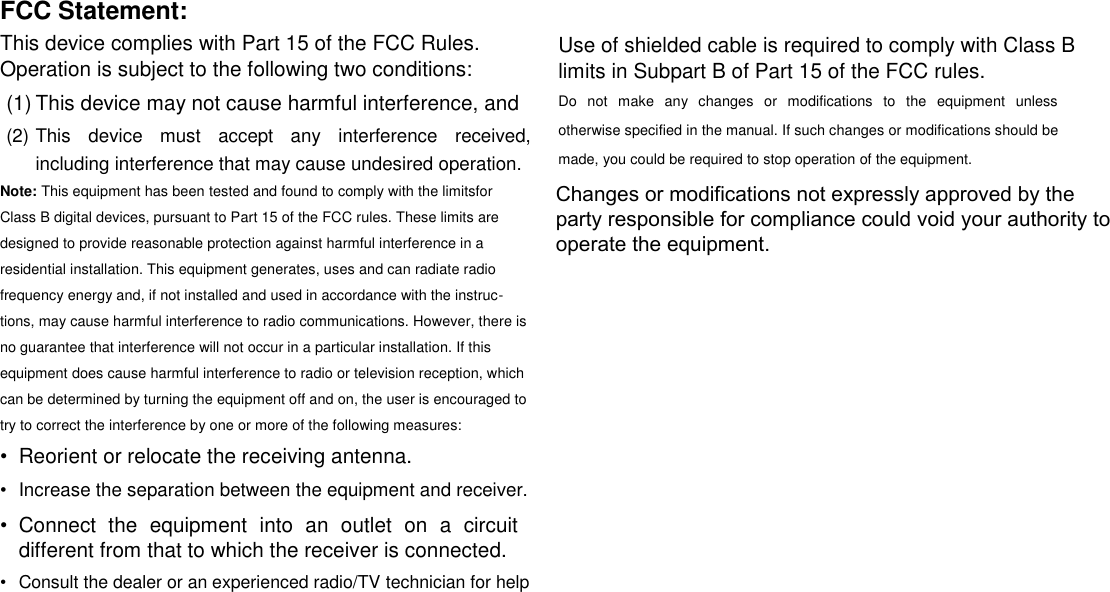

FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limitsfor Class B digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc-tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules. Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment. English Page 28 Safety Notices Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

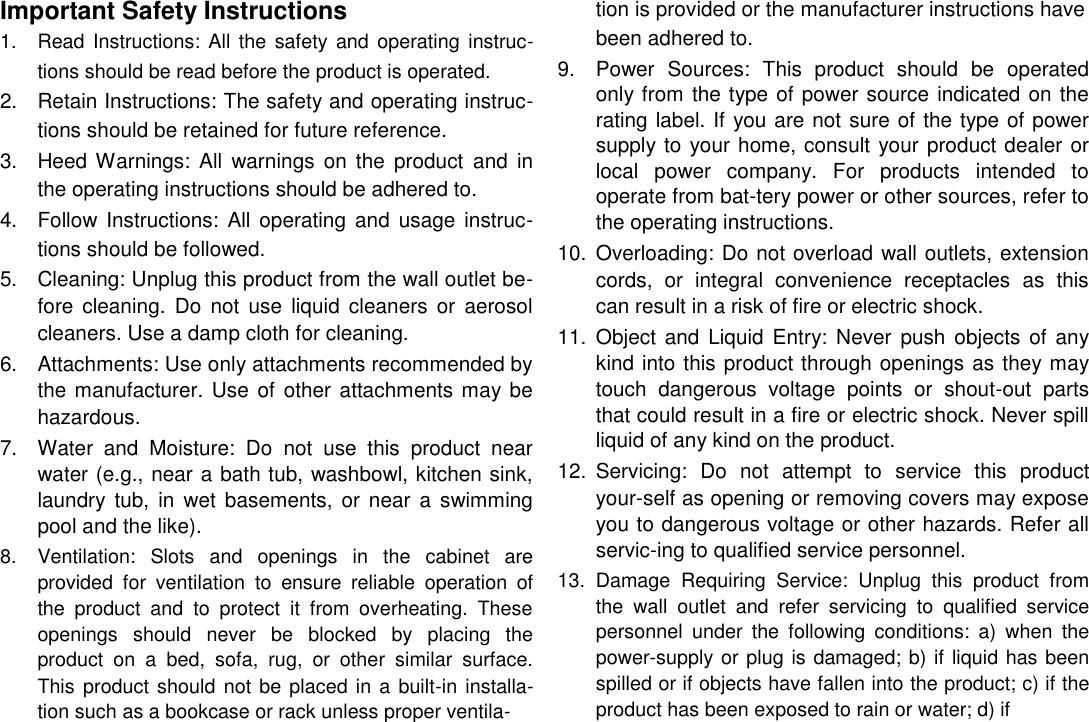

English Important Safety Instructions 1. Read Instructions: All the safety and operating instruc-tions should be read before the product is operated. 2. Retain Instructions: The safety and operating instruc-tions should be retained for future reference. 3. Heed Warnings: All warnings on the product and in the operating instructions should be adhered to. 4. Follow Instructions: All operating and usage instruc-tions should be followed. 5. Cleaning: Unplug this product from the wall outlet be-fore cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 6. Attachments: Use only attachments recommended by the manufacturer. Use of other attachments may be hazardous. 7. Water and Moisture: Do not use this product near water (e.g., near a bath tub, washbowl, kitchen sink, laundry tub, in wet basements, or near a swimming pool and the like). 8. Ventilation: Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installa-tion such as a bookcase or rack unless proper ventila- tion is provided or the manufacturer instructions have been adhered to. 9. Power Sources: This product should be operated only from the type of power source indicated on the rating label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from bat-tery power or other sources, refer to the operating instructions. 10. Overloading: Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 11. Object and Liquid Entry: Never push objects of any kind into this product through openings as they may touch dangerous voltage points or shout-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 12. Servicing: Do not attempt to service this product your-self as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servic-ing to qualified service personnel. 13. Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) when the power-supply or plug is damaged; b) if liquid has been spilled or if objects have fallen into the product; c) if the product has been exposed to rain or water; d) if Page 29 Safety Notices

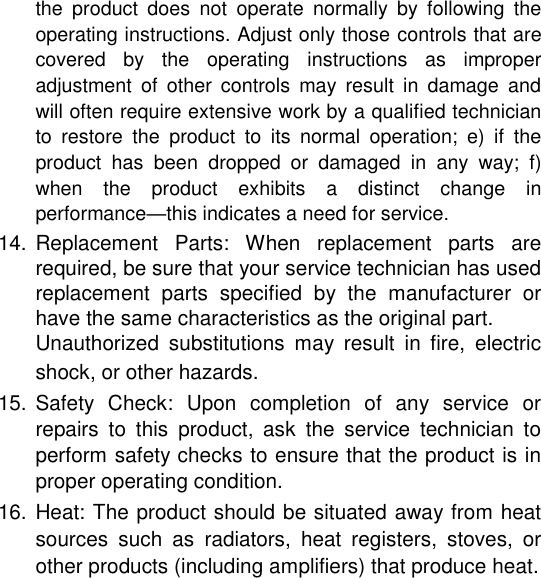

the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation; e) if the product has been dropped or damaged in any way; f) when the product exhibits a distinct change in performance—this indicates a need for service. 14. Replacement Parts: When replacement parts are required, be sure that your service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 15. Safety Check: Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to ensure that the product is in proper operating condition. 16. Heat: The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. English Page 30 Safety Notices

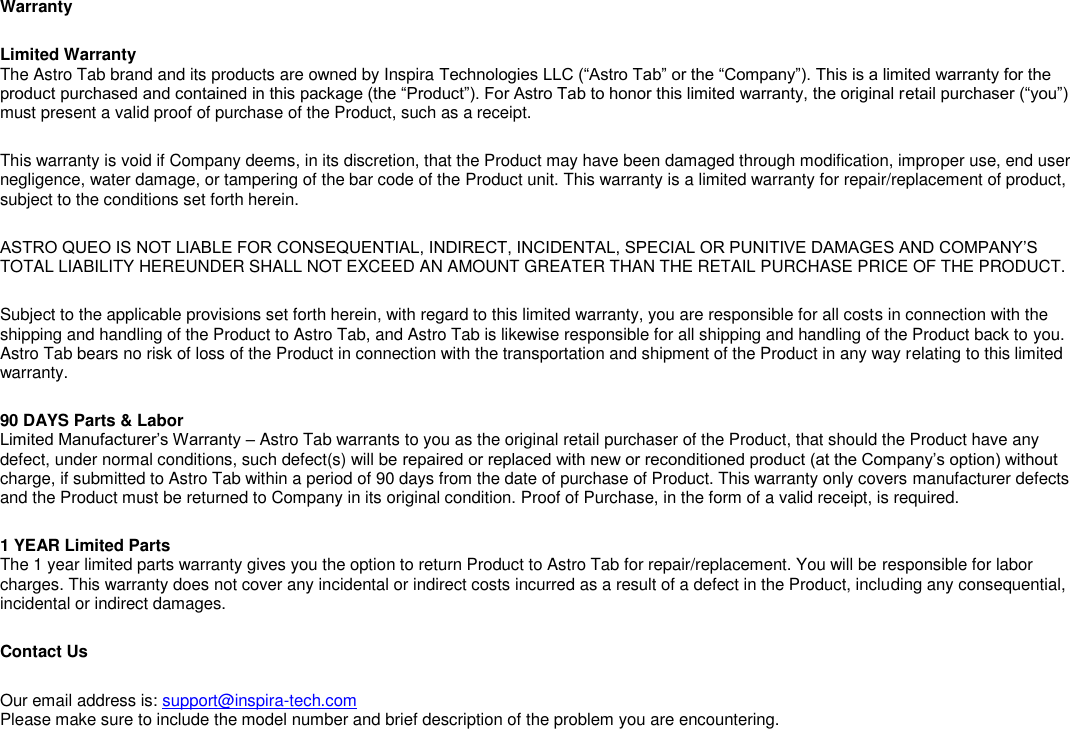

Warranty Limited Warranty The Astro Tab brand and its products are owned by Inspira Technologies LLC (―Astro Tab‖ or the ―Company‖). This is a limited warranty for the product purchased and contained in this package (the ―Product‖). For Astro Tab to honor this limited warranty, the original retail purchaser (―you‖) must present a valid proof of purchase of the Product, such as a receipt. This warranty is void if Company deems, in its discretion, that the Product may have been damaged through modification, improper use, end user negligence, water damage, or tampering of the bar code of the Product unit. This warranty is a limited warranty for repair/replacement of product, subject to the conditions set forth herein. ASTRO QUEO IS NOT LIABLE FOR CONSEQUENTIAL, INDIRECT, INCIDENTAL, SPECIAL OR PUNITIVE DAMAGES AND COMPANY’S TOTAL LIABILITY HEREUNDER SHALL NOT EXCEED AN AMOUNT GREATER THAN THE RETAIL PURCHASE PRICE OF THE PRODUCT. Subject to the applicable provisions set forth herein, with regard to this limited warranty, you are responsible for all costs in connection with the shipping and handling of the Product to Astro Tab, and Astro Tab is likewise responsible for all shipping and handling of the Product back to you. Astro Tab bears no risk of loss of the Product in connection with the transportation and shipment of the Product in any way relating to this limited warranty. 90 DAYS Parts & Labor Limited Manufacturer’s Warranty – Astro Tab warrants to you as the original retail purchaser of the Product, that should the Product have any defect, under normal conditions, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company’s option) without charge, if submitted to Astro Tab within a period of 90 days from the date of purchase of Product. This warranty only covers manufacturer defects and the Product must be returned to Company in its original condition. Proof of Purchase, in the form of a valid receipt, is required. 1 YEAR Limited Parts The 1 year limited parts warranty gives you the option to return Product to Astro Tab for repair/replacement. You will be responsible for labor charges. This warranty does not cover any incidental or indirect costs incurred as a result of a defect in the Product, including any consequential, incidental or indirect damages. Contact Us Our email address is: support@inspira-tech.com Please make sure to include the model number and brief description of the problem you are encountering.
