Inspira Technologies SC500 Action camera User Manual

Inspira Technologies LLC Action camera

User Manual

User Manual Product Name: Action Camera Model:SC500 Brand:LIVO Manufacture: SHENZHEN HENGLONGSHENG TECHNOLOGY CO. LIMITED

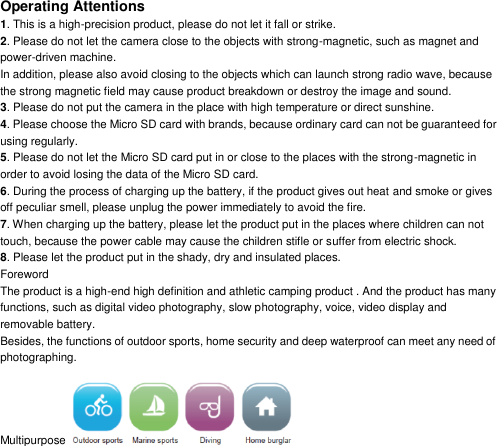

Operating Attentions 1. This is a high-precision product, please do not let it fall or strike. 2. Please do not let the camera close to the objects with strong-magnetic, such as magnet and power-driven machine. In addition, please also avoid closing to the objects which can launch strong radio wave, because the strong magnetic field may cause product breakdown or destroy the image and sound. 3. Please do not put the camera in the place with high temperature or direct sunshine. 4. Please choose the Micro SD card with brands, because ordinary card can not be guaranteed for using regularly. 5. Please do not let the Micro SD card put in or close to the places with the strong-magnetic in order to avoid losing the data of the Micro SD card. 6. During the process of charging up the battery, if the product gives out heat and smoke or gives off peculiar smell, please unplug the power immediately to avoid the fire. 7. When charging up the battery, please let the product put in the places where children can not touch, because the power cable may cause the children stifle or suffer from electric shock. 8. Please let the product put in the shady, dry and insulated places. Foreword The product is a high-end high definition and athletic camping product . And the product has many functions, such as digital video photography, slow photography, voice, video display and removable battery. Besides, the functions of outdoor sports, home security and deep waterproof can meet any need of photographing. Multipurpose

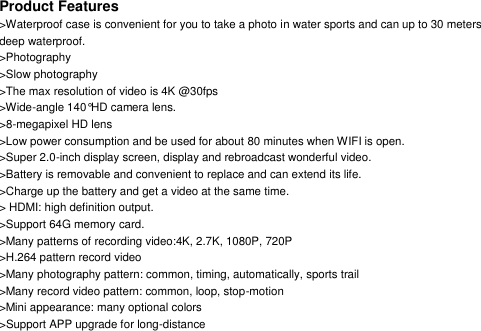

Product Features >Waterproof case is convenient for you to take a photo in water sports and can up to 30 meters deep waterproof. >Photography >Slow photography >The max resolution of video is 4K @30fps >Wide-angle 140°HD camera lens. >8-megapixel HD lens >Low power consumption and be used for about 80 minutes when WIFI is open. >Super 2.0-inch display screen, display and rebroadcast wonderful video. >Battery is removable and convenient to replace and can extend its life. >Charge up the battery and get a video at the same time. > HDMI: high definition output. >Support 64G memory card. >Many patterns of recording video:4K, 2.7K, 1080P, 720P >H.264 pattern record video >Many photography pattern: common, timing, automatically, sports trail >Many record video pattern: common, loop, stop-motion >Mini appearance: many optional colors >Support APP upgrade for long-distance

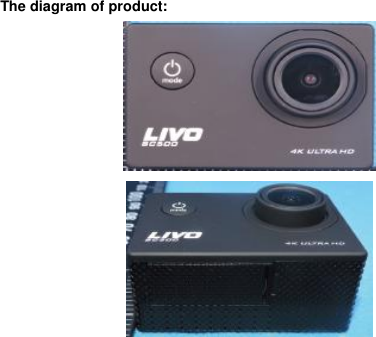

The diagram of product:

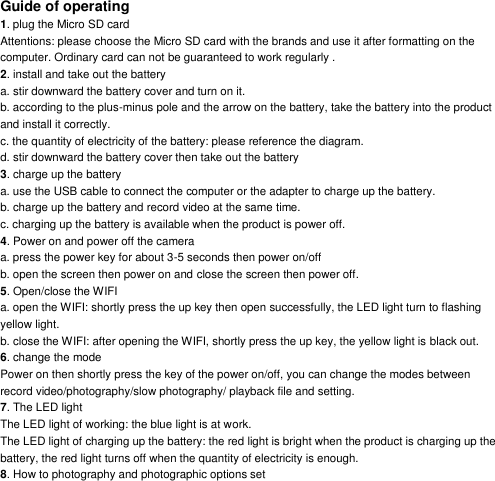

Guide of operating 1. plug the Micro SD card Attentions: please choose the Micro SD card with the brands and use it after formatting on the computer. Ordinary card can not be guaranteed to work regularly . 2. install and take out the battery a. stir downward the battery cover and turn on it. b. according to the plus-minus pole and the arrow on the battery, take the battery into the product and install it correctly. c. the quantity of electricity of the battery: please reference the diagram. d. stir downward the battery cover then take out the battery 3. charge up the battery a. use the USB cable to connect the computer or the adapter to charge up the battery. b. charge up the battery and record video at the same time. c. charging up the battery is available when the product is power off. 4. Power on and power off the camera a. press the power key for about 3-5 seconds then power on/off b. open the screen then power on and close the screen then power off. 5. Open/close the WIFI a. open the WIFI: shortly press the up key then open successfully, the LED light turn to flashing yellow light. b. close the WIFI: after opening the WIFI, shortly press the up key, the yellow light is black out. 6. change the mode Power on then shortly press the key of the power on/off, you can change the modes between record video/photography/slow photography/ playback file and setting. 7. The LED light The LED light of working: the blue light is at work. The LED light of charging up the battery: the red light is bright when the product is charging up the battery, the red light turns off when the quantity of electricity is enough. 8. How to photography and photographic options set

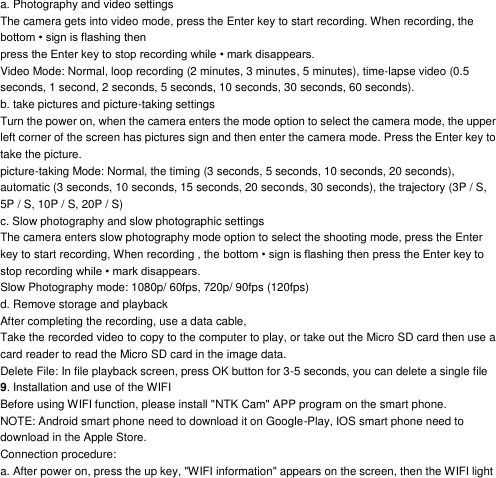

a. Photography and video settings The camera gets into video mode, press the Enter key to start recording. When recording, the bottom • sign is flashing then press the Enter key to stop recording while • mark disappears. Video Mode: Normal, loop recording (2 minutes, 3 minutes, 5 minutes), time-lapse video (0.5 seconds, 1 second, 2 seconds, 5 seconds, 10 seconds, 30 seconds, 60 seconds). b. take pictures and picture-taking settings Turn the power on, when the camera enters the mode option to select the camera mode, the upper left corner of the screen has pictures sign and then enter the camera mode. Press the Enter key to take the picture. picture-taking Mode: Normal, the timing (3 seconds, 5 seconds, 10 seconds, 20 seconds), automatic (3 seconds, 10 seconds, 15 seconds, 20 seconds, 30 seconds), the trajectory (3P / S, 5P / S, 10P / S, 20P / S) c. Slow photography and slow photographic settings The camera enters slow photography mode option to select the shooting mode, press the Enter key to start recording, When recording , the bottom • sign is flashing then press the Enter key to stop recording while • mark disappears. Slow Photography mode: 1080p/ 60fps, 720p/ 90fps (120fps) d. Remove storage and playback After completing the recording, use a data cable, Take the recorded video to copy to the computer to play, or take out the Micro SD card then use a card reader to read the Micro SD card in the image data. Delete File: In file playback screen, press OK button for 3-5 seconds, you can delete a single file 9. Installation and use of the WIFI Before using WIFI function, please install "NTK Cam" APP program on the smart phone. NOTE: Android smart phone need to download it on Google-Play, IOS smart phone need to download in the Apple Store. Connection procedure: a. After power on, press the up key, "WIFI information" appears on the screen, then the WIFI light
will flash; b. Open WIFI connection on your phone, search the WIFI SSID "Ultra HD-0a0e" and connected (the original password is 1234567890); c. Point and open "NTK Cam" APP program, you can preview the shooting screen on the APP, remote video, camera, file playback / download / delete / share. d. APP installation: the phone system requires Android 5.1 and above or IOS9 and above , scanning "NTK Cam" APP dimensional code, follow the prompts to complete the installation. Camera app：

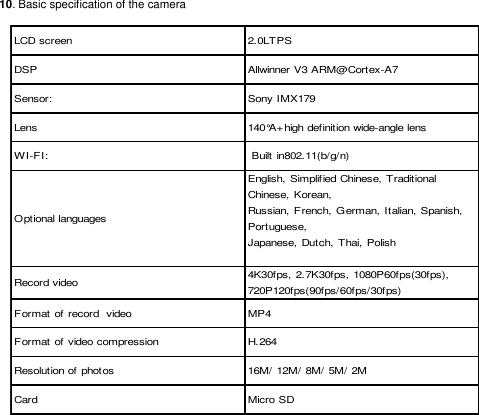

10. Basic specification of the camera LCD screen 2.0LTPSDSP Allwinner V3 ARM@Cortex-A7Sensor: Sony IMX179Lens 140°A+high definition wide-angle lensWI-FI: Built in802.11(b/g/n)Optional languagesEnglish, Simplified Chinese, TraditionalChinese, Korean,Russian, French, German, Italian, Spanish,Portuguese,Japanese, Dutch, Thai, PolishRecord video4K30fps, 2.7K30fps, 1080P60fps(30fps),720P120fps(90fps/60fps/30fps)Format of record video MP4Format of video compression H.264Resolution of photos 16M/ 12M/ 8M/ 5M/ 2MCard Micro SD

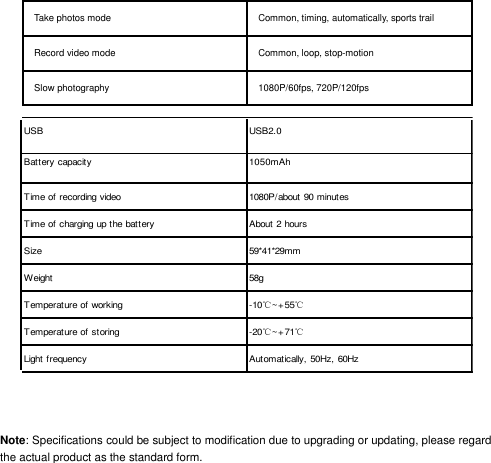

Take photos mode Common, timing, automatically, sports trail Record video mode Common, loop, stop-motion Slow photography 1080P/60fps, 720P/120fps Note: Specifications could be subject to modification due to upgrading or updating, please regard the actual product as the standard form. USB USB2.0Battery capacity 1050mAhTime of recording video 1080P/about 90 minutesTime of charging up the battery About 2 hoursSize 59*41*29mmWeight 58gTemperature of working -10℃~+55℃Temperature of storing -20℃~+71℃Light frequency Automatically, 50Hz, 60Hz

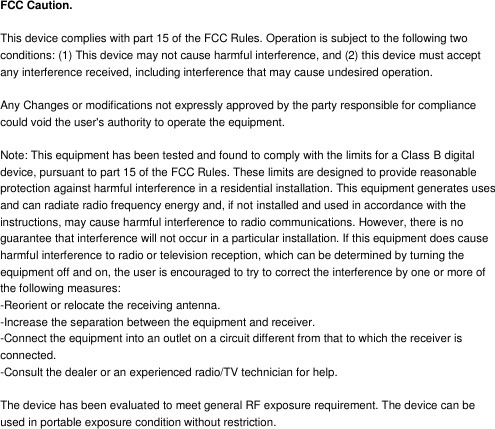

FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
