Installation & Operation Manual
Smoke 418CA
Wireless Smoke Detector
Smoke
418CA V0 1060828
-3-
Introduction
This is a supervised, wireless, smoke detector for use with Alarm systems. If the detector
detects a certain density of smoke then the horn of smoke detector will sound and will
send the signal to the control panel. For Smoke 418CA, once detector triggered, then it
will call all other smoke detectors to sound together (group call)
For completed home security system, please refer to wireless home security & medical
help system.
Product Description and Specification
*** For indoor use only ***
Specification: Package Content:
Frequency Range: 418MHz
Operating Range: Up to 100 feet line of sight
Operating Temp.: -10°C~ 50°C (14°F~122°F)
Battery: Panasonic CR123A * 1PC
1pc
1pc
1pc
2pcs
1pc
1pc
Smoke 418CA
Smoke Detector
Bracket Holder
Plastic Anchor &
Screw
CR123ALithium
Battery
Installation &
Operation Manual
Installation
1. Remove the bracket from the detector by rotating it counter-clockwise.
2. Place the bracket where you are going to install the detector. In each of key hole
slots, draw a mark to locate plastic anchor and screw. Using a 3/16-inch (5mm) drill
bit, drills two holes at the marks and insert plastic anchor, and attached the bracket
by using the screws.
3. Before insert the battery, put home security controller into learning mode.
4. Open the battery cover to insert the battery then press the program switch for 3
seconds. After that, the detector will include into the system. Fix the detector with
bracket by rotating it clockwise.

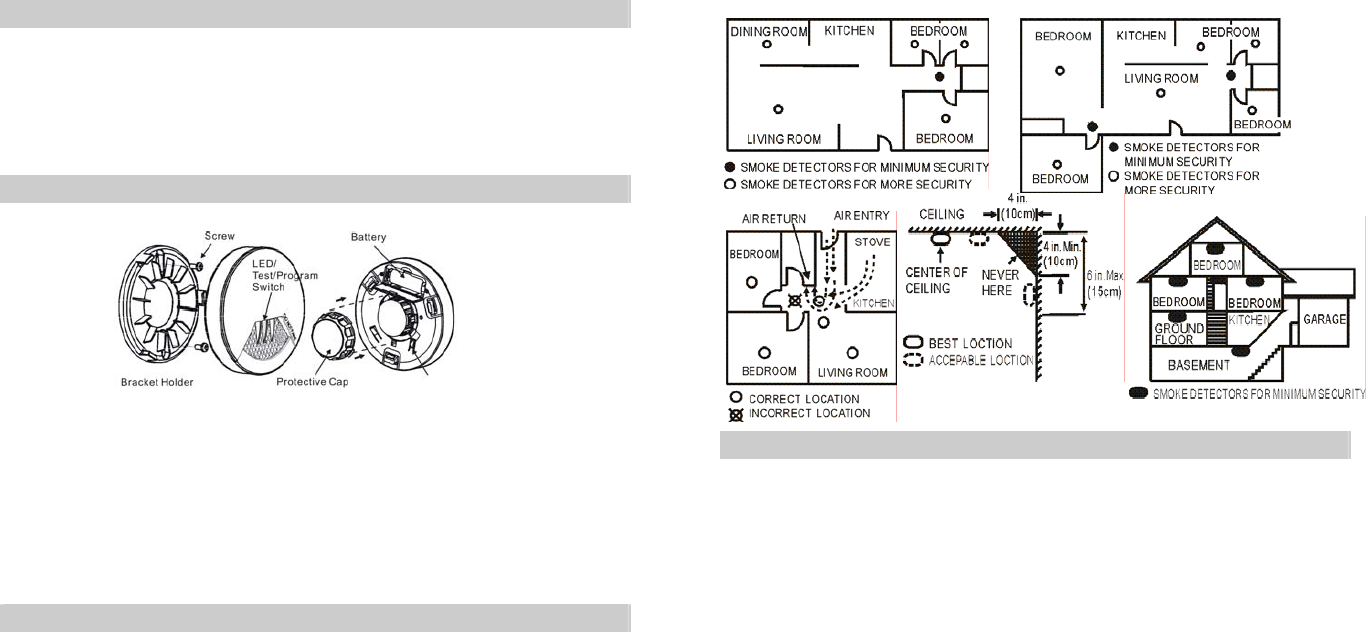

5. Suggestion of the Smoke Detector Location:
Operation
1. Stand-by Mode: The Red LED flashes one time every 6 minutes.
2. Alarm Mode (It’s the status when the alarm is triggered.): If a certain density of
smoke is detected, an audible alarm with 3 beeps will occure. The red LED will flash
continuously and rapidly. Meanwhile, the smoke detector will send an alarm report
to the control panel.
3. Error Mode: If the smoke detector beep and yellow LED flash three tmes every 43
seconds, it indicates the smoke detector is not working properly. Please requir to
repaire or service.
4. Low battery warning Mode: The yellow LED will flash once every 43 senods with
a short “beep” sound. The user needs to change the battery to disarm the low
battery warning. Meanwhile, the detector will send an alarm report to the control
panel.
5. Testing Mode: After inserted the battery, by pushing test switch for about 3 secords
to enter the testing mode. The Red LED will flash once every 11 seconds. The
detector will auto-quit testing mode after 10 minutes or push test switch again to
quit testing mode.
6. Self-Protection Mode: 1) If the detector removed from the bracket, the detector will
be triggered, the yellow LED will solid on and emit alarm sounds continuously til the
detector is mounted back to the bracket. 2) The user should mounted the detector
back to the bracket in 3 minutes after battery is installed, otherwise it will be also
triggered, the yellow LED will solid on and emit alarm sounds continuously till the
detector is mounted back to the bracket.
Install second-floor alarms at the top of first-to-second floor stairwell.
Install basement alarms at the bottom of the basement stairwell.
