Instant Care ICHW345FS Honeywell / 2Gig Compatible Fall Sensor User Manual

Instant Care, Inc. Honeywell / 2Gig Compatible Fall Sensor Users Manual

Users Manual

1
Fall Sensor (ICHW345-FS)
This fall sensor is designed to activate the Control Panel by manual button press or auto fall detection to
summon help in emergency condition.

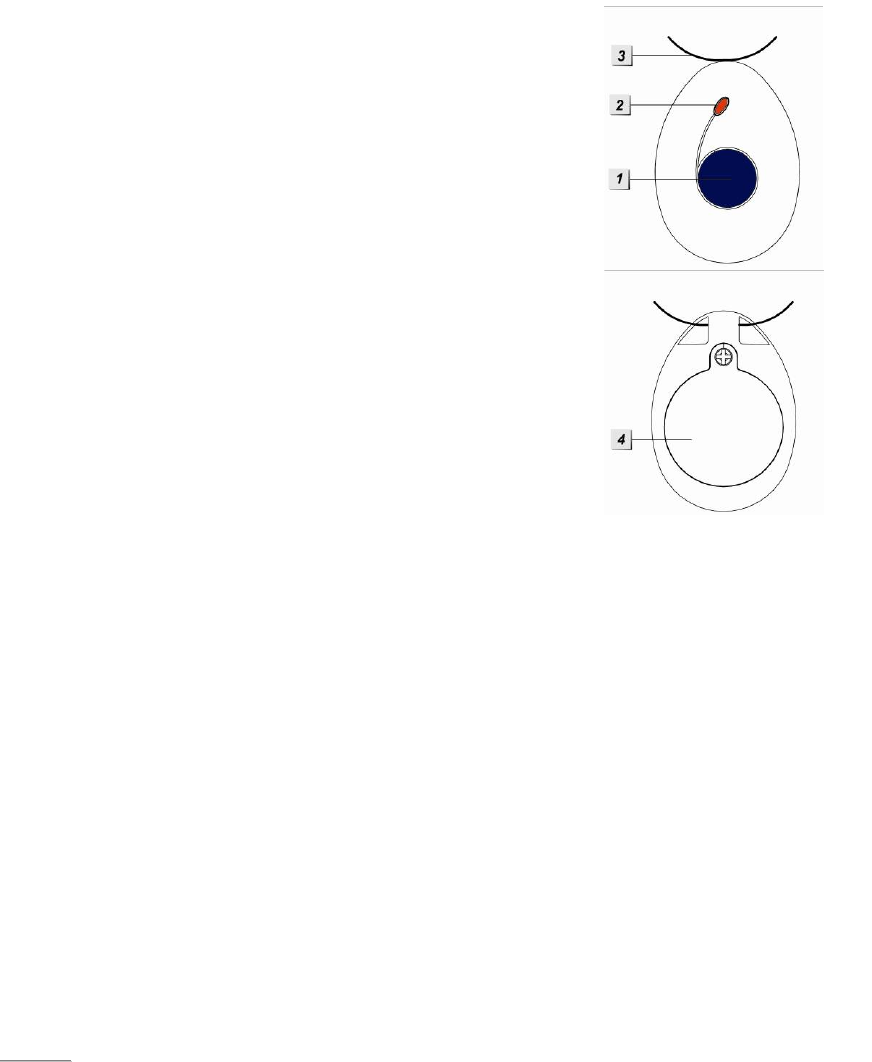

A. Identifying the Parts
1
1.
.
A
Ac
ct
ti
iv
ve
e/
/P
Pe
en
nd
da
an
nt
t
B
Bu
ut
tt
to
on
n
Press the Active Button to transmit signal
2
2.
.
R
Re
ed
d
L
LE
ED
D
LED OFF: In Standby Mode
LED ON: Transmitting signal
LED flashes: Transmitting signal when under low
battery
Quick flash for 5 seconds: Power on
3 flash: Low battery when powering on
3
3.
.
L
La
an
ny
ya
ar
rd
d
L
Lo
oo
op
p
4
4.
.
B
Ba
at
tt
te
er
ry
y
C
Co
om
mp
pa
ar
rt
tm
me
en
nt
t
C
Co
ov
ve
er
r
B. Low Battery Detection and Superivison
After the battery is inserted, Fall Sensor will automatically transmit a supervision signal every 70
minutes. If the Main Unit has not received the signal, it will then notify the user accordingly
(depend on the Main Unit setting).
C. Learn In Fall Sensor
Step 1. Put the Main unit into Learning Mode. Please refer to the manual of the Main unit.
Step 2. Press the Pendant Button on Fall Sensor, a radio signal will be transmitted to the main unit.
Step 3. Please refer to the operation manual of your main unit to complete learning.
D. Battery
The Fall Sensor uses one coin type CR2477 3V lithium battery as its power source.
If the battery voltage is low, a Low Battery signal will be sent to the Main unit to notify the user. Moreover,
when the battery is low, the LED will flash during signal transmissions instead of turning on to remind the
user to replace the battery.
<
<N
NO
OT
TE
E>
>
It is prohibited to learn-in Fall Sensor to the Main unit when Fall Sensor is in low battery status.
2
E. Fall Detection and Sleep Mode
If a fall is detected, the sensor will activate the Main Unit (transmitting the same code as pressing
the Active Button).
If the fall sensor remains staionlary for more than 3 hours, it will enter Sleep Mode. During Sleep
Mode, fall sensor cannot be triggered from movement.
If movement is detected during sleep mode, the fall sensor will start a 1-minute countdown to
return to normal operation mode. The fall sensor will only activate the Main Unit from movement
detection while in normal operation mode.
F. Usage Recommendation
Please do not cover the fall sensor with clothes (wear it so it is visible to the eye)
Carefully place the fall sensor on a desk while not in use to avoid accidental alarm trigger.
G. Changing the Battery
Remove the battery compartment cover by unscrewing the screw using a Philips screwdriver.
Carefully remove the coin battery using a Philips screwdriver.
Press the Active Button twice to fully discharge.
Insert the coin battery taking care of polarity.
Replace the battery compartment cover and tighten the screw lightly.
F
FC
CC
C
S
St
ta
at
te
em
me
en
nt
t
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
F
FC
CC
C
C
Ca
au
ut
ti
io
on
n:
:
To assure continued compliance, any changes or modifications not expressly approved by the party
responsible for compliance may void the user's authority to operate this equipment. (Example - use only
shielded interface cables when connecting to computer or peripheral devices).
