CS8076 User Manual HTML Version

Manual

CS8076 Stereo Headset

and

CS8082 Audio Adaptor

Bluetooth

User Manual

Index

1 How to open the folded headset and wear ..........................................................1

2 Charging and recharging the battery ....................................................................2

3 Low-battery indication .................................................................................................3

4 Turning on / Turning off the Headset and the Audio Adaptor ...............................3

...................................................................................4

. Stereo Headset paired with mobile phone Guide [ A ]..............5

1. Pairing ....................................................................................................5

2. Answering incoming calls / Rejecting incoming calls ................................6

3. Ending calls .......................................................................................................6

4. Last number redial ...............................................................................................6

5. Adjusting speaker volume .......................................................................6

6. Activating voice dialing ..........................................................................................6

7. Transfer call ........................ .................................................................7

. Stereo Headset paired with Stereo Audio Adaptor Guide [ B ] ........................7

1. Pairing .................................................................................................................7

2. Listening to music ...............................................................................................7

. Stereo Headset paired with USB Dongle Guide [ C ] ......................8

1. Pairing .................................................................................................................8

2. Listening to music ...............................................................................................8

. Stereo Headset paired with enabled PDA Guide [ D ] ....................9

1. Pairing .................................................................................................................9

2. Listening to music ...............................................................................................9

. Stereo Pendant paired with Audio Adaptor and

mobile phone Guide [ A & B ] ...........................................................10

1. Pairing ...............................................................................................................10

2. Listening to music .............................................................................................10

3. Monitoring mobile phone calls ............................................................................10

. Stereo Headset paired with USB .

dongle and mobile phone Guide [ A & C ] ........................11

1. Pairing ...............................................................................................................11

2. Listening to music ..............................................................................................11

3. Monitoring mobile phone calls ...........................................................................11

. Stereo Headset paired with .

enabled PDA and mobile phone Guide [ A & D ] ...............12

1. Pairing ...............................................................................................................12

2. Listening to music .............................................................................................12

3. Monitoring mobile phone calls ...........................................................................12

Accessories Table ................................................................................................12

FCC Interference Statement ..................................................................................13

．

Seven possible User Scenarios

III

VII

Bluetooth

Bluetooth Bluetooth

1 3

Http://www.abe-hk.com

!Charging and recharging the battery

Thank you for buying the new CS8076 Stereo Headset and the new

CS8082 Stereo Audio Adaptor pack. Before first time use, it is important

to charge the battery of each of them for 6 hours. During recharging, the LED shows

a steady red light. When the battery is fully charged, the Red LED is off.

Bluetooth

Headset

Audio Adaptor

AC Adaptor

DC Socket

CS8082

h Stereo Audio AdaptorBluetoot

LED

!Low-battery indication

When the battery is low, the LED of the Headset or that of the Audio Adaptor will

flash red instead of green. When the battery level is too low, the Headset or the

Audio Adaptor will automatically power off.

!Turning on / Turning off the Headset and the Audio Adaptor

When the Headset or the Audio Adaptor is powered off, press and hold till

the LED flashes green, which indicates the Headset or the Audio Adaptor is powered

up. When the Headset or the Audio Adaptor is powered up, press and ,

the LED will keep red for a while then off, which indicates it is powered down.

button

hold button

c. If the pairing is successful, the LED will flash green, which indicates it is in

Standby Mode and ready to answer and receive mobile phone calls from it. If

pairing does not occur as expected, turn the Headset and the mobile phone off.

Wait for 10 seconds and repeat the pairing process from the beginning.

2. Answering incoming calls / Rejecting incoming calls

a. When an incoming call is present, a ring tone will be heard from the earpiece of

the Headset. Press PLAY button will answer the call. Press button will

reject the call.

b. If the Headset is connected with your mobile phone and

another transmitter such as the Audio Adaptor simultaneously and

you are listening to the music using the earpiece, a ring tone will prompt you.

Press PLAY button will answer the call. Press button will reject the call and

you will continue listening to the music.

3. Ending calls

a. While a call is in session, press button will end the call.

b. If the Headset is connected with your mobile phone and

another transmitter such as the Audio Adaptor simultaneously, press

STOP button will end the call and you will continue listening to the music.

4. Last number redial

a. While the Headset and mobile are in Standby Mode, press and hold

the button for 2 second to redial the last dialed number.

b. If the Headset is connected with your mobile phone and

another transmitter such as the Audio Adaptor, press and hold the

Button for 2 second to redial the last dialed number. Press STOP button to end

thecallasnormal.

5. Adjusting speaker volume

a. While a call is in session, pressing and releasing VOL + / VOL - buttons will

adjust the speaker volume.

b. While the Headset is playing music, pressing / releasing

VOL+ / VOL - buttons will adjust the speaker volume.

6. Activating voice dialing

When the Headset is in standby mode, press and hold the button for 2

seconds until a long beep is heard. The Headset is connecting to your mobile

phone for voice dialing function. If the connection is successfully made, the

phone will ask for the name of the person you wish to call. The call will be

executed in a few seconds. If the connection is failed, the Headset will beep

and go back to standby mode. Before the Headset entering into voice dialing

mode, make sure the voice dialing function of the phone is enabled.

While the Headset is playing the music, continuously

pressing the button will stop the music playing and a long beep will be heard,

indicating that the Headset is connecting with mobile phone for voice dialing function.

If the connection is successfully made, the voice dialing can be executed according to

the mobile phone’s menu operations. ( If the connection is failed, the Headset will beep

and go back to music playing.)

[Advance function]

(ADVANCE FUNCTION)

Bluetooth

Remarks: Voice dialing function is not supported in Sony Ericsson K750i

I. Stereo Headset paired with Bluetooth mobile phone Guide[A]

1. Pairing

a. While the Headset is powered off, press and button for 4 seconds. The

LED will flash red and green alternatively, which indicates the Headset in

Pairing Mode. The Pairing Mode will last for one minute.

b. Follow the operating instructions of your mobile phone to start the

pairing process. Typically, this has to be done by going to a setup or connect

menu and then selecting the options to discover devices. It may take

several seconds to establish a connection. Your phone’s display

should indicate that it has found the model name “CS8076”; and prompt you for

a passkey or PIN. Enter a sequence of “0000”.

Bluetooth

hold

USB dongle

[C]

Bluetooth Bluetooth Audio Adaptor

[B]

Bluetooth mobile phone

[A ]

Bluetooth enabled PDA

[D]

Bluetooth

Stereo

Headset

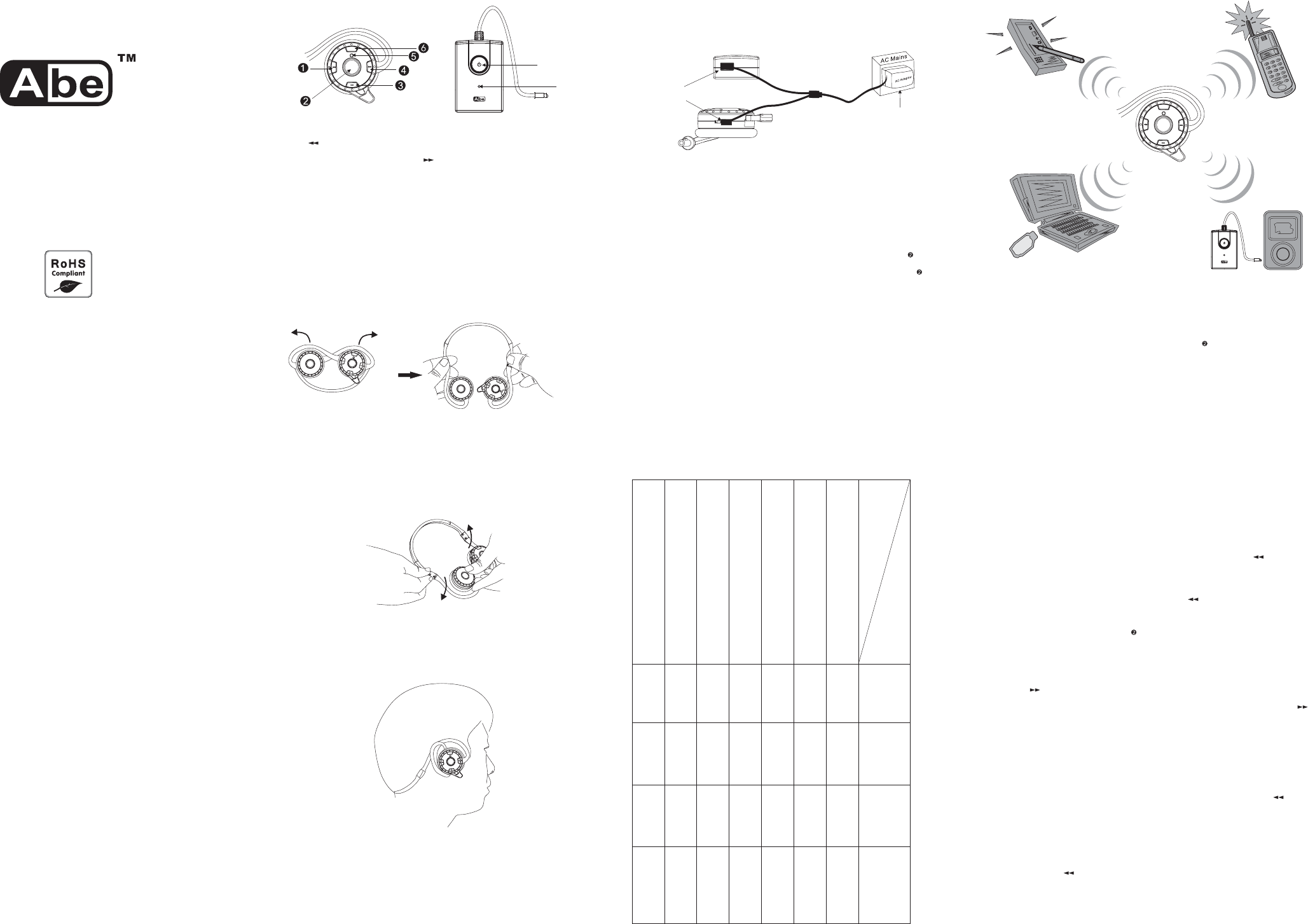

How to open the folded headset and wear

1)Unfold the folded headset until they are fully extended to the opened position(see

Figure.1 and Figure.2 )

3)Wear the headset (see drawing Figure. 4) with the headband behind your head.

Adjust the position until you feel the most comfort.

2)Rotate the earcups until they are in the locked position (see drawing Figure.3)

Figure. 1 . 2Figure

Figure. 3

Figure. 4

Backward

Reject the call

!Voice dialing

6. VOL +

3. VOL -

Power On/ Off

Play

Stop

Pairing

!Volume down

Forward

Call transfer

!Redial the last number

!LED

!Volume up

Environmental

friendly

PLAY/STOP

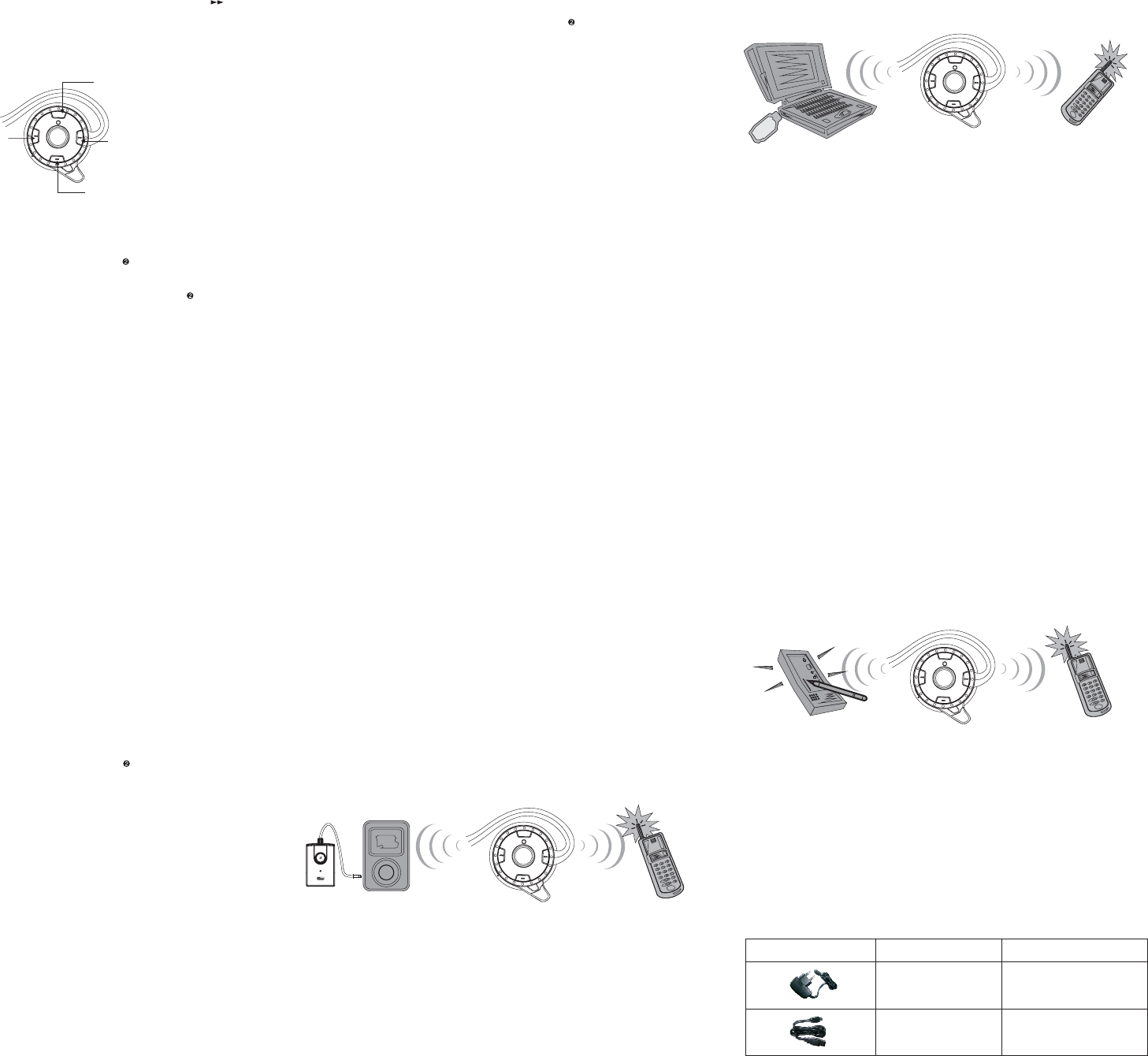

Seven possible User Scenarios:

There are seven (7) user scenarios for you to enjoy the Bluetooth wireless convenience:

Headset paired

with

Yes

[A]

Bluetooth

mobile phone

(not supplied)

Yes

[B]

Audio Adaptor

(supplied)

[C]

USB Bluetooth

Dongle

(not supplied)

Scenario

VI Mobile phone calls and music from the

audio source (Notebook/Desktop PC, etc.)

that the BT USB dongle is connected to.

IMobile phone calls only.

II Music only from the audio source (MP3,

iPod, etc.) that the Audio Adaptor is

connected to.

III Music only from the audio source

(Notebook PC, desktop PC, etc.) that the

Bluetooth USB dongle is connected to.

IV Music only from the PDA / mobile phone.

VMobile phone calls and audio source

(MP3, iPod, etc.) that the Audio Adaptor is

connected to.

VII Mobile phone calls and music from the

PDA / mobile phone.

[D]

Bluetooth enabled

PDA / mobile phone.

with A/V profile (not

supplied)

10 12

911 13

III. Stereo Headset paired with USB Bluetooth Dongle Guide[C]

1. Pairing

a. While the Headset is powered off, press and hold button for 4 seconds. The

LED will flash red and green alternatively, which indicates the Headset in

Pairing Mode. The Pairing Mode will last for one minute.

b. Put the Headset, the USB dongle and the PC close to each other,

c. Insert the USB Dongle into a USB port of your Notebook PC / desktop

PC to start the pairing process. Typically, this has to be done by executing a

application program supporting the Audio Visual (A/V) Profile, to

discover the Headset. It may take some time to search it depending on the

number of devices nearby.

0.5

to 3 meters.

d. Your PC will display the model name “CS8076” if it has found the Headset; and

ask for a passkey. Enter a sequence of “0000”. After successful pairing, follow

the instructions to establish the connection with the Headset.

e. If the pairing is successful, the LED will flash green, which indicates it is in

Standby Mode and ready to receive audio signals from the dongle. If pairing

does not occur as expected, turn the Headset and the PC off. Wait for 10

seconds and repeat the pairing process from the beginning.

2. Listening to music

a. Put the earpiece on.

b. Start a music application such as Windows Media Play or RealOne Player and

play the music; you will listen to the stereo music from the earpiece.

c. The speaker volume of the earpiece can be adjusted by pressing the VOL + /

VOL - buttons.

d. While listening to music (for example, song 2), press the Headset’s FORWARD

>> button will skip to next song (for example, song 3); press the BACKWARD <<

button will replay the current song (for example, song 2). Double press the

BACKWARD button will play the last song (for example, song 1). This remote

control function is supported only by the AVRCP profile of your

application program.

e. Turn the Headset off after use.

Bluetooth

d. The speaker volume of the earpiece can be adjusted by pressing and releasing

the VOL + / VOL- buttons.

e. Turn the Headset off after use. The Audio Adaptor will be turned off

automatically. Next time, you don’t need to pair them again. Turn them on, and

then they will be paired automatically and ready to transmit music from the

audio source.

IV. Stereo Headset paired with Bluetooth enabled PDA Guide[D]

1. Pairing

a. While the Headset is powered off, press and hold button for 4 seconds. The

LED will flash red and green alternatively, which indicates the Headset in Pairing

Mode. The Pairing Mode will last for one minute.

b. Put the Headset and the enabled PDA (with A/V profile) close to each

other,

c. Follow the operation instructions of your enabled PDA (with A/V

profile) to start the pairing process. Typically, this has to be done by going to a

setup or connect menu to discover the Headset. It may take some time to search

it depending on the number of devices nearby.

d. Your PDA will display the model name “CS8076” if it has found the Headset; and

ask for a passkey. Enter a sequence of “0000”. After successful pairing, follow

the instructions to establish the connection with the Headset.

e. If the pairing is successful, the LED will flash green, which indicates it is in

Standby Mode and ready to receive audio signals from the PDA. If pairing does

not occur as expected, turn the Headset and the PDA off. Wait for 10 seconds

and repeat the pairing process from the beginning.

0.5 to 3 meters.

2. Listening to music

a. Put the earpiece on.

b. Play the music on the PDA as normal; you will listen to the stereo music from the

earpiece.

c. The speaker volume of the earpiece can be adjusted by pressing the VOL+/

VOL-buttons.

d. While listening to music (for example, song 2), press the Headset’s FORWARD

>> button will skip to next song (for example, song 3); press the BACKWARD <<

button will replay the current song (for example, song 2). Double press the

BACKWARD button will play the last song (for example, song 1). This remote

control function is supported only by the AVRCP profile of your Bluetooth

application program.

e. Turn the Headset off after use.

Bluetooth

Advance functions: The following user scenarios provide you a true

wireless freedom to monitor the mobile phone call status while you

are enjoying stereo music at the same time. You don't even need to

putdownyourearpiece.

V. Stereo Headset paired with

Audio Adaptor and Bluetooth mobile phone Guide

[A&B]

1. Pairing

a. Follow the Pairing process [ B ] to pair the Headset and the Audio Adaptor.

b. After successful pairing, turn the Headset off. The Audio Adaptor will turn off

automatically.

C. Follow the pairing process [ A ] to pair the Headset and the mobile

phone.

d. After successful pairing, turn on the Audio Adaptor.

e. All three devices are in Standby Mode and the LED’s should flash green.

2. Listening to music

a. Follow the Listen to music process [ B ] to enjoy the music.

3. Monitoring mobile phone calls

a. Follow the ] in [ A ] to monitor phone calls.

Bluetooth

[Advance function

Bluetooth Audio Adaptor

[B] Bluetooth mobile phone

[A]

Bluetooth

Stereo Headset

* Advance functions are not supported in Sony Ericsson T610, T630

VII. Stereo Headset paired with

Bluetooth enabled PDA and Bluetooth mobile phone Guide

[A&D]

1. Pairing

a. Follow the Pairing process [ D] to pair the Headset and the enabled PDA.

b. After successful pairing, turn the Headset off.

c. Follow the pairing process [ A ] to pair the Headset and the mobile

phone.

d. After successful pairing, please follow the PDA application program

instructions to re-establish connection between the PDA and the

Headset.

e. All three devices are in Standby Mode and the LED’s should flash green.

2. Listening to music

a. Follow the Listen to music process [ D ] to enjoy the music.

3. Monitoring mobile phone calls

a. Follow the in [ A ] to monitor phone calls.

Bluetooth

[Advance function]

Accessories Table Description

A/C Switching Adaptor

Status

Provided

USB Charging cable Optional

Bluetooth mobile phone

[A]

Bluetooth enabled PDA

[D]

Bluetooth

Stereo Headset

VI. Stereo Headset paired with

USB Bluetooth dongle and Bluetooth mobile phone Guide

[A&C]

1. Pairing

a. Follow the Pairing process [ C ] to pair the Headset and the USB

dongle.

b. After successful pairing, turn the Headset off.

c. Follow the pairing process [ A ] to pair the Headset and the mobile

phone.

d. After successful pairing, please follow the PC application program

instructions to re-establish the connection between the

dongle and the Headset.

e. All three devices are in Standby Mode and the LED’s should flash green.

2. Listening to music

a. Follow the Listen to music process [ C ] to enjoy the music.

3. Monitoring mobile phone calls

a. Follow the in [ A ] to monitor phone calls

Bluetooth

Bluetooth Bluetooth

[Advance function]

USB dongle

[C]

Bluetooth Bluetooth mobile phone

[A]

Bluetooth

Stereo Headset

II. Stereo Headset paired with Stereo Audio Adaptor Guide[B]

1. Pairing

a. While the Headset is powered off, press and hold button for 4 seconds. The

LED will flash red and green alternatively, which indicates the Headset in

Pairing Mode. The Pairing Mode will last for one minute.

b. While the Stereo Audio Adaptor is powered off, press and hold button. The

LED will flash red and green alternatively, which indicates the Audio Adaptor is

in Pairing Mode. The Pairing Mode will last for one minute.

c. Put the Headset and the Audio Adaptor close to each other, 0.5 to 3 meters.

After a few seconds, their LED’s will turn into flashing green, which indicates

successful pairing. Both units are in Standby Mode and ready to transmit audio

signal, or music from the audio source.

2. Listening to music

a. After successful pairing, plug the jack of the Audio Adaptor to the 3.5 mm

socket of any audio source such as iPod, MP3, CD player, Notebook PC, or

others.

b. Put the earpiece on.

c. Play the music on the audio source as normal; you will listen to the stereo music

from the earpiece.

7. Transfer call

a. To transfer a call from the Headset to your mobile phone

If the mobile phone is enabled with the Hands-free profile, press the button

while the call is in session and it will be transferred to your mobile phone.

If the mobile phone is enabled with the Headset profile, follow the instructions

of your mobile phone manual to do call transfers.

b. To transfer a call from your mobile phone to the Headset

Follow the instructions of the mobile phone manual to do call transfers

Backward Forward

Volume

down

Federal Communication Commission

Interference Statement

This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one of

the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by

the party responsible for compliance could void the user's authority to

operate this equipment.

This equipment complies with FCC radiation exposure limits set forth

for an uncontrolled environment. End users must follow the specific

operating instructions for satisfying RF exposure compliance.

This transmitter must not be co-located or operating in conjunction with

any other antenna or transmitter.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

Intech Electronics CS8076 Bluetooth Stereo Headset User Manual MCB 8076010 0A MANUAL FOR 8

In Tech Electronics Ltd Bluetooth Stereo Headset MCB 8076010 0A MANUAL FOR 8

Manual

Navigation menu

Namespaces

Views

Navigation
