User Manual
CS8140
®
Bluetooth Neckloop Pendant

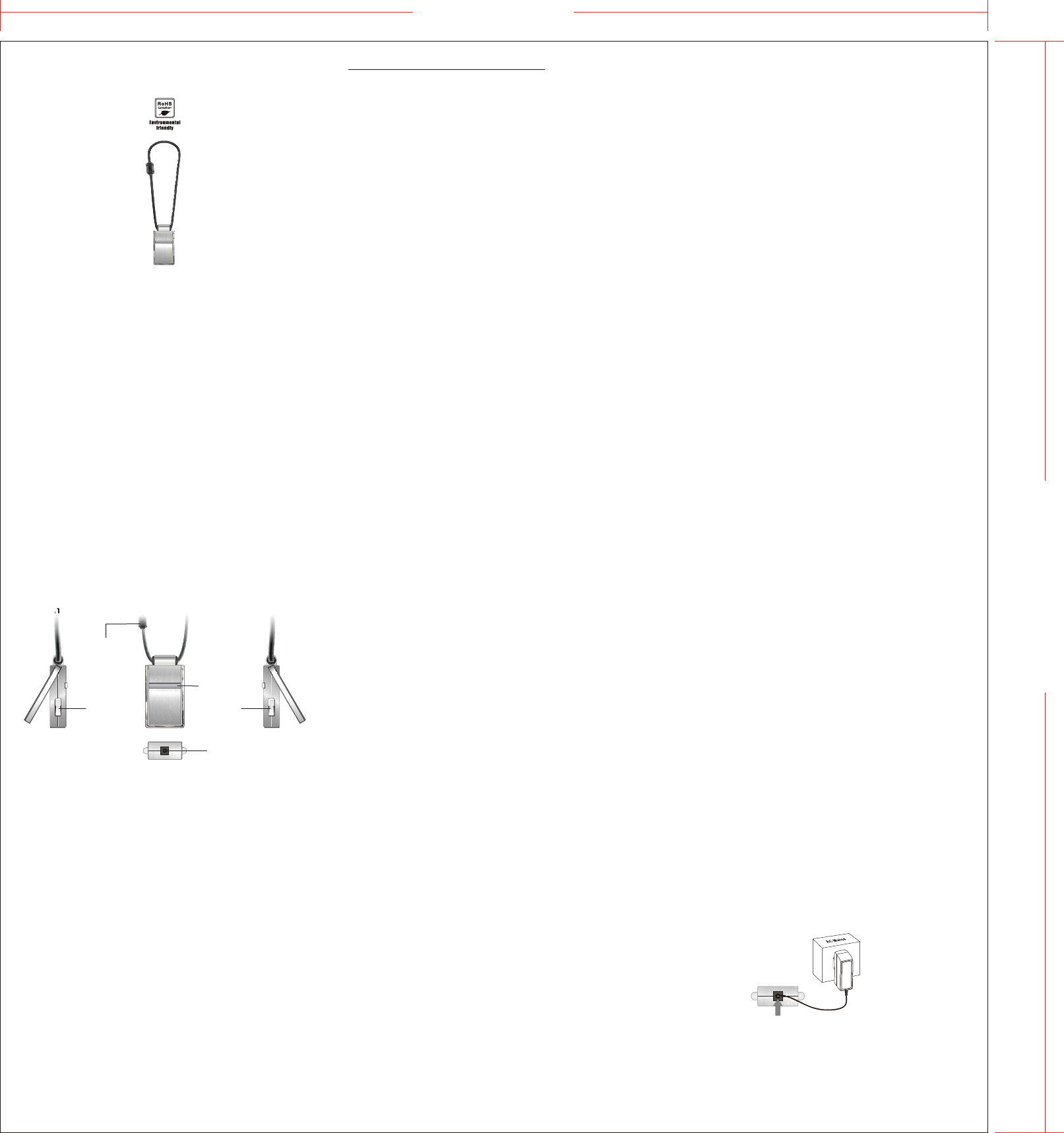

Pendant pictures
Wearing the pendant
Wear Neckloop Pendant over your head and around your neck.
Charging the battery
Thank you for buying the new Pendant CS8140 with Bluetooth
wireless technology. Before first time use, it is important to
charge the Pendant until the red LED turns off.
Volume
Down(S3)
Volume
Up(S2)
On/Off(S1)
Microphone
DC
Socket
Turning on the pendant
When the Pendant is powered down, press and hold S1 until
blue LED turns on indicates that the Pendant is powered up.
Blue LED will flash every 3 seconds.
Turning off the pendant
When the Pendant is powered up,press and hold S1 until red
LED turns on indicates that the Pendant is powered down.
Connection between Neckloop Pendant and hearing aid
The Pendant can communicate with your hearing aid when
your hearing aid is in T-coil mode or T-coil + MIC mode
(operation of your hearing aid, please refer to its user
manual).The Pendant will transfer mobile phone communic-
ation to your hearing aid wirelessly. We strongly recommend
you to switch your hearing aid to T-coil mode when you use
the Pendant.
Warning: Do not use Pendant when you use a pace maker
or any other devices that may be sensitive to magnetic/
inductive field.
Connecting to Bluetooth mobile phone
Pendant in pairing mode
Before start pairing, make sure the Pendant is fully charged
and the charging cable is disconnected from it. When the
Pendant is powered off,press and hold S1 until red and blue
LEDs flashing alternately. It indicates that the Pendant is in
Pairing Mode.
Following the operating instructions for your Bluetooth
mobile phone to start the pairing process. Typically, this
has to be done by going to a setup or connect menu and
then selecting the options to discover Bluetooth devices.
Bluetooth may take several seconds to establish a
connection.
Your phone’s display should indicate that it has found the
Pendant “NECKLOOP” and asks if you want to pair it. You
should confirm it.For Bluetooth mobile phone compliant with
2.1, its easy-pairing feature enables successful pairing
without asking for a passkey. For Bluetooth mobile phone
compliant with 2.0 or downward versions, phone’s display
would prompt you for a passkey or PIN. Enter a sequence
of “0000”.
The Pendant LED will flash blue every 3 seconds, indicating
successful pairing. Usually the phone will ask whether you
want to change the Pendant’s name. We recommend you to
keep the default name “NECKLOOP”.
If pairing doesn’t occur as expected. Turn off both Pendant
and Phone and wait for 10 seconds. Turn on Pendant and
phone again and repeat all steps from beginning. Pairing
does authorize the devices like mobile phones and
Pendant with each other and only needs to be performed
once.
Establishing Bluetooth link
After successful pairing, the Pendant and the mobile phone,
you may need to establish a Bluetooth link between them
according to the operation manual of your mobile phone. To
establish the link, press S1 shortly. Use Nokia 6130i as an
example, the mobile phone will show “ Do you accept
NECKLOOP request for connection?”Select YES to establish
the link. You are ready to make and answer calls on the
Pendant. For other phones, please follow the operation
manual to establish the link.
Please note:
If the Pendant is turned off, turning on the Pendant again will
auto reconnect the last used device. If the Pendant is disconn-
ected but powered on, press S1 shortly to connect the link
again. If there is abnormal loss of link happened (e.g. out of
range), the Pendant will automatically try to reconnect the
mobile phone several times.
Answering incoming calls
When you wear the Pendant and there is an incoming call
presented, the Pendant will ring. Press S1 will answer the call.
Attention: Some phones put the Bluetooth connection into
standby mode if it has not been used for some time. When
there is phone call in, only the mobile phone rings and it will
take a few seconds to transfer the call to Pendant. You have
to wait until you hear the ring tone from Pendant. If you press
S1 to take the call before you hear the ring tone from Pendant,
the Pendant will try to establish Bluetooth connection. This
will cause connection conflict between mobile phone and
Pendant.
Ending calls
While a call is in session on the Pendant, pressing S1 will disc-
onnect the call. After the call is disconnected, the blue LED will
flash normally again.
Call waiting
The call waiting feature only supports when the SIM card of
your mobile phone is with this function.
When a call (Call 1) is in session on Pendant and there is
another call (Call 2) coming. “Double” tone will be heard. Both
LEDs turn on simultaneously in every 2 seconds.
Muting the microphone
To mute the microphone during an active call, press both S2 &
S3 simultaneously for a second and the microphone will be
muted. A periodic beep tone will be heard when the mute
function is active.
To end the mute function:when the microphone is muted,press
both S2 & S3 simultaneously. Mute function is ended and the
periodic beep tone will stop.
Transferring calls (For Nokia N5700 or equivalent models)
When a call is in session, call can be transferred from the
Bluetooth phone to the Pendant and from the Pendant to the
Bluetooth phone.
To transfer a call from Bluetooth mobile phone to the Pendant:
press S1 once, the call will be transferred to Pendant.
To transfer a call from Pendant to Bluetooth mobile phone,
please follow the operating instructions of your mobile phone.
To make a new call using voice dial
Make sure the voice dialing function is set up in the mobile
phone and it is within the operating range of the Pendant.
Press S1 on the Pendant shortly.There is a beep tone on the
Pendant. Then use your recorded voice commands(e.g. By
saying the name of the person). The call will be connected
in a few seconds.
Redialing last dialed number (Mobile phones with
Handsfree profiles only )
To redial the last number, press and hold S3 until 4 tones
are heard. It indicates the redial is active.
Reject a call
To reject a call at the time when the Pendant rings, press
and hold S1 until you hear a tone.
Adjusting speaker volume
When a call is session,pressing and releasing S2 will increase
the speaker volume and pressing and releasing S3 will
decrease the speaker volume on the Pendant. There is a key
tone to indicate volume increase or decrease. However, a
warning tone will be heard when the volume level reaches its
maximum or minimum.
Noted:Not all functions may be available on all mobile phones
Low-battery indication
The Pendant LED will flash red instead of blue when the
battery level is low. There will also a short beep periodically.
After this indication you still have up to 15 minutes talk time.
When the battery level is too low, the Pendant will power off.
It can not power on again unless the charger is connected or
the battery is sufficiently charged.
Battery recharging
To recharge the battery, connect the charger cable to the
Pendant. During recharging, the LED shows a steady red
light. When the battery is fully charged, the red light will be
off.
The achievable talk time and standby time for the Pendant can
vary with different Bluetooth mobile phones due to different
implementation of power down modes.
Keep the Pendant away from the fire to avoid damage.
Warning:
For adaptor, the socket-outlet shall be installed near the
equipment and shall be easily accessible.
Pendant pictures.................................................................. 1
Wearing the pendant.............................................................1
Charging the battery..............................................................1
Turning on the pendant......................................................... 2
Turning off the pendant......................................................... 2
Connection between Neckloop Pendant and hearing aid.......... 2
Connecting to Bluetooth mobile phone................................... 3
Establishing Bluetooth link ....................................................4
Answering incoming calls...................................................... 5
Ending calls .........................................................................6
Call waiting......................................................................... . 6
Muting the microphone.......................................................... 7
Transferring calls (For Nokia N5700 or equivalent models).......7
To make a new call using voice dial.........................................8
Redialing last dialed number (Mobile phones with
Handsfree profiles only )........................................................8
Reject a call..........................................................................8
Adjusting speaker volume......................................................9
Low-battery indication...........................................................9
Battery recharging .............................................................10
LED status.......................................................................... 11
Trouble shooting guide........................................................ 12
Maintenance and care......................................................... 13
FCC Interference Statement .............................................. . 14
Declaration of Conformity...................................................1 7
To answer Call 2, press S2 for about 2 seconds. It will switch
between Call 1 & Call 2.
To reject Cal 2, press S1 shortly.
Both red/blue LEDs will turn on simultaneously every second
when Call 1 or Call 2 is in session.
When Call 2 is in session and Call 1 is on held in other line,
press S1 shortly will end Call 1.If you want to end Call 2, press
S3 for about 2 seconds.
19
21
20
22
13 17
15
14
16
18
11
12
Led status
LED Status
Remark:
When the battery level is low, the LED will not turn on until the
Pendant is charged up, which may takes several minutes.
1x1 Sec. Blue
1x2 Sec. Blue
1x3 Sec. Blue
Blinking red
Red LED on
Red LED off
Red/Blue Blinking
Red & Blue on simultaneously
Paired and connecting to BT device
Battery low (Max 15 Minutes left)
Under charging
Fully charged
Pairing-mode
Call waiting mode
Talking
Ready can be accessed by paired devices
Trouble shooting guide
No sound from mobile phone
1.Please check battery is powered.
2.Please check Pendant is turned on.
3.Please check your hearing aid is in T-coil mode or T-coil
+MIC mode.
4.Please check your mobile phone status.
Weak sound
1.Please check battery is powered.
2.Please check your mobile phone volume level and
mobile phone network signal is sound.
Maintenance and care
1.Keep the Pendant out of the reach of children
2.Store the Pendant is dry condition
3.Do not expose the Pendant to excessive moisture,
humidity or steam.
4.Avoid dropping or knocking the Pendant.
5.Avoid electric shock by keeping the Pendant away from
water.
6.Do not clean with harsh chemicals,cleaning solvents or
abrasive detergents.To clean,wipe with soft cloth slightly.
7.Do not leave the Pendant exposed to direct sun light or
other sources of heat
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules.These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio commun-
ications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
This marking indicates that this product should
not be disposed with other household wastes
throughout the EU. To prevent possible harm to
the environment or human health from uncontr-
olled waste disposal, recycle it responsibly to
promote the sustainable reuse of material
resources. To return your used device, please
use the return and collection systems or contact
the retailer where the product was purchased.
They can take this product for environmental
safe recycling.
Correct Disposal of this product
In-Tech Electronics Ltd
Unit A, 13/F, Wing Tai Centre, 12 Hing Yip Street,
Kwun Tong, Kowloon, Hong Kong.
The following manufacturer is responsible for this declaration:
Declaration of Conformity
We,
Company: IN-TECH ELECTRONICS LTD.
With our,
Product(s): BLUETOOTH NECKLOOP PENDANT
Model No.: CS8140
herewith confirm to comply with the requirements set out in the
Council Directive on the Approximation of the Laws of the Member
States relating to the R&TTE Directive (1995/5/EC) as well as to the
Low Voltage Directive 2006/95/EC. For the evaluation of above
mentioned Directives, the following standards were applied:
EMC
EN 301 489-17 V1.3.2 (2008-04)
EN 301 489-1 V1.8.1 (2008-04)
EN55022: 2006
EN61000-3-2: 2006
EN61000-3-3: 1995+A1+A2
EN50371:2002
EN 300 328 V1.7.1 (2006-10)
LVD EN 60950-1: 2006 + A11: 2009
FCC Caution:
Any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority
to operate this equipment.
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. End users must follow
the specific operating instructions for satisfying RF exposure
compliance. To maintain compliance with FCC RF exposure
compliance requirements, please follow operation instruction as
documented in this manual.
This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
