SACD & DVD AUDIO/VIDEO
PLAYER
DPS-8.3
Instruction Manual
Thank you for purchasing the Integra SACD &
DVD AUDIO/VIDEO PLAYER.
Please read this manual thoroughly before
making connections and plugging in the unit.
Following the instructions in this manual will
enable you to obtain optimum performance
and listening enjoyment from your new SACD
& DVD AUDIO/VIDEO PLAYER.
Please retain this manual for future reference.
E
Table of Contents
Getting Started
Connecting
Setting Up the Player
Basic Playback
Advanced Playback
Function Setup
Toubleshooting
Others
2
Getting Started
Getting Started
Important Safeguards .................................... 3
Precautions .................................................... 4
Notes on Discs ............................................... 6
Features/Supplied Accessories...................... 8
Before You Start ............................................. 9
Index to Parts and Controls ......................... 10
Connecting
Connecting to a TV ...................................... 15
• Using the supplied audio/video connection cable
• Making component video connections
• Making S-video connections
Connecting to an Amplifier (To Enjoy the Sound
Advantage of the DVD Player) ................ 17
• Making a digital connection with the amplifier
• Making discrete 5.1 channel ANALOG OUTPUT
connections
• Making discrete 2 channel ANALOG OUTPUT
connections
Operating Components not Reached by the
Remote Controller Signals (IR IN/OUT) .. 19
Connecting the Power/
Turning on the DVD Player ..................... 20
Setting Up the Player
Setting Up the Player ................................... 21

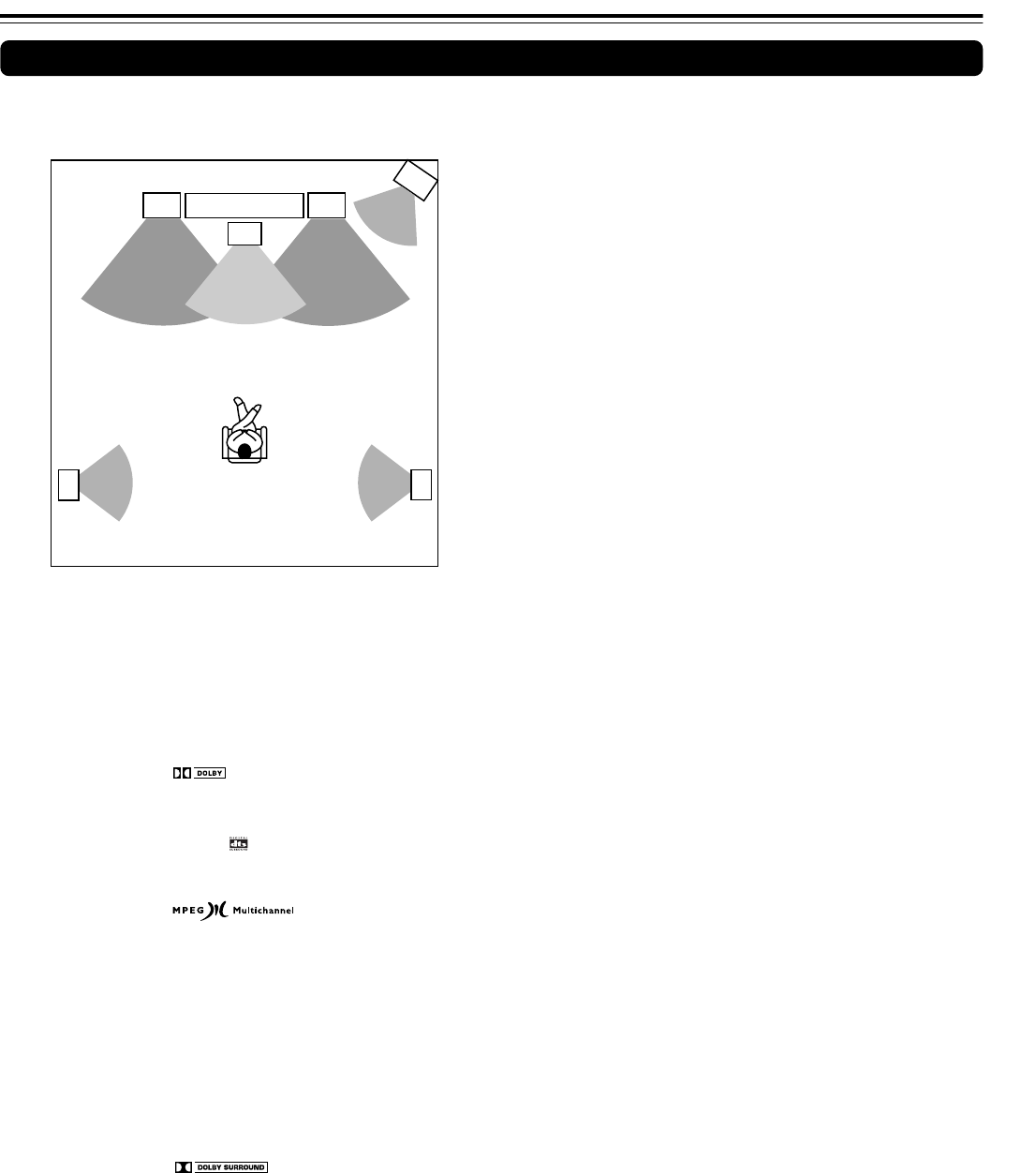

• Various sound formats and sound effects ............. 24
Basic Playback
Getting Started Using Your DVD Player....... 25
Others
Programming the Commands of Other Remote
Control Units into the Remote
Controller ................................................ 65
Register the Codes of Other Unit’s Remote
Controllers .............................................. 68
Troubleshooting ........................................... 71
Specifications ............................................... 74
Various Functions
Advanced Playback
Still Frame/Slow Play ................................... 29
Locating a Specific Title/Folder/Chapter/Track/
Location .................................................. 30
Repeat Play ................................................. 32
Random Play ............................................... 33
Playing in a Favorite Order .......................... 34
Selecting the Camera Angle ........................ 38
Selecting the Audio/Subtitle Language ........ 39
Continuing Playback from a Specified Location
(Last Memory) ......................................... 40
Memorizing Settings for Often Viewed DVDs
(Condition Memory) ................................ 41
Turning Off the Video Signal Output ............ 42
Listening through Headphones .................... 43
Viewing Disc Information ............................. 44
Function Setup
Adjusting Audio and Video Settings ............. 46
Using the Setup Screen Menus ............................... 46
Changing to the Setup Screen “Expert” Menu Mode 47
Adjusting the Dynamic Range of the Audio
Soundtrack ........................................................ 48
Setting the Audio 1 Options ..................................... 48
Setting the Audio 2 Options ..................................... 50
Setting the TV Screen Size...................................... 52
Setting the Video 1 Options ..................................... 53
Adjusting the Video Quality...................................... 54
Setting the Video 2 Options ..................................... 56
Setting the Language Options ................................. 57
Language Code List................................................. 60
Setting the Parental Lock Level ............................... 61
Country Code List .................................................... 63
Other Settings .......................................................... 63
Memorizing Settings (Function Memory) ................. 64
Recalling Memorized Settings ................................. 64
Resetting the Player to System Settings ................. 64
Advanced
Features
Table of Contents
3
Important Safeguards
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
AVIS
1. Read Instructions – All the safety and operating instructions
should be read before the appliance is operated.
2. Retain Instructions – The safety and operating instructions
should be retained for future reference.
3. Heed Warnings – All warnings on the appliance and in the
operating instructions should be adhered to.
4. Follow Instructions – All operating and use instructions should
be followed.
5. Cleaning – Unplug the appliance from the wall outlet before
cleaning. The appliance should be cleaned only as
recommended by the manufacturer.
6. Attachments – Do not use attachments not recommended by
the appliance manufacturer as they may cause hazards.
7. Water and Moisture – Do not use the appliance near water –for
example, near a bath tub, wash bowl, kitchen sink, or laundry
tub; in a wet basement; or near a swimming pool; and the like.
8. Accessories – Do not place the appliance on an unstable cart,
stand, tripod, bracket, or table. The appliance may fall, causing
serious injury to a child or adult, and serious damage to the
appliance. Use only with a cart, stand, tripod, bracket, or table
recommended by the manufacturer, or sold with the appliance.
Any mounting of the appliance should follow the manufacturer’s
instructions, and should use a mounting accessory
recommended by the manufacturer.
9. An appliance and cart
combination should be moved
with care. Quick stops,
excessive force, and uneven
surfaces may cause the
appliance and cart combination
to overturn.
10. Ventilation – Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the appliance and
to protect it from overheating, and these openings must not be
blocked or covered. The openings should never be blocked by
placing the appliance on a bed, sofa, rug, or other similar
surface. The appliance should not be placed in a built-in
installation such as a bookcase or rack unless proper ventilation
is provided. There should be free space of at least 5 cm (2 in.)
and an opening behind the appliance.
11. Power Sources – The appliance should be operated only from
the type of power source indicated on the marking label. If you
are not sure of the type of power supply to your home, consult
your appliance dealer or local power company.
12. Grounding or Polarization – The appliance may be equipped
with a polarized alternating current line plug (a plug having one
blade wider than the other). This plug will fit into the power
outlet only one way. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing the plug. If the
plug should still fail to fit, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of the
polarized plug.
13. Power-Cord Protection – Power-supply cords should be routed
so that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to
cords at plugs, convenience receptacles, and the point where
they exit from the appliance.
14. Lightning – For added protection for the appliance during a
lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the
antenna or cable system. This will prevent damage to the
appliance due to lightning and power-line surges.
15. Overloading – Do not overload wall outlets, extension cords, or
integral convenience receptacles as this can result in a risk of
fire or electric shock.
16. Object and Liquid Entry – Never push objects of any kind into
the appliance through openings as they may touch dangerous
voltage points or short-out parts that could result in a fire or
electric shock. Never spill liquid of any kind on the appliance.
17. Servicing – Do not attempt to service the appliance yourself as
opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service
personnel.
18. Damage Requiring Service – Unplug the appliance form the
wall outlet and refer servicing to qualified service personnel
under the following conditions:
A. When the power-supply cord or plug is damaged,
B. If liquid has been spilled, or objects have fallen into the
appliance,
C. If the appliance has been exposed to rain or water,
D. If the appliance does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the appliance to its normal operation,
E. If the appliance has been dropped or damaged in any way,
and
F. When the appliance exhibits a distinct change in
performance – this indicates a need for service.
19. Replacement Parts – When replacement parts are required, be
sure the service technician has used replacement parts
specified by the manufacturer or have the same characteristics
as the original part. Unauthorized substitutions may result in
fire, electric shock, or other hazards.
20. Safety Check – Upon completion of any service or repairs to
the appliance, ask the service technician to perform safety
checks to determine that the appliance is in proper operation
condition.
21. Wall or Ceiling Mounting – The appliance should be mounted
to a wall or ceiling only as recommended by the manufacturer.
22. Heat – The appliance should be situated away from heat
sources such as radiators, heat registers, stoves, or other
appliances (including amplifiers) that produce heat.
23. Liquid Hazards – The appliance should not be exposed to
dripping or splashing and no objects filled with liquids, such as
vases should be placed on the appliance.
PORTABLE CART WARNING
S3125A
4
Precautions
For Canadian model
NOTE: This class B digital apparatus complies with Canadian
ICES-003.
For models having a power cord with a polarized plug:
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
Modèle pour les Canadien
REMARQUE: Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
Sur les modèles dont la fiche est polarisee:
ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA
BORNE CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQU’AU FOND.
For U.S. model
The laser is covered by a housing which prevents exposure during
operation or maintenance. However, this product is classified as a
Laser Product by CDRH (Center for Devices and Radiological
Health) which is a department of the Food and Drug Administration.
According to their regulations 21 CFR section 1002.30, all
manufactures who sell Laser Products must maintain records of
written communications between the manufacturer, dealers and
customers concerning radiation safety. If you have any complaints
about instructions or explanations affecting the use of this product,
please feel free to write to the address on the back page of this
manual. When you write us, please include the model number and
serial number of your unit.
In compliance with Federal Regulations, the certification,
identification and the period of manufacture are indicated on the rear
panel.
FCC INFORMATION FOR USER
CAUTION:
The user changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
This unit contains a semiconductor laser system and is classified
as a “CLASS 1 LASER PRODUCT”. So, to use this model
properly, read this Instruction Manual carefully. In case of any
trouble, please contact the store where you purchased the unit.
To prevent being exposed to the laser beam, do not try to open
the enclosure.
DANGER:
VISIBLE LASER AND INVISIBLE LASER RADIATION WHEN
OPEN AND INTERLOCK FAILED OR DEFEATED. DO NOT
STARE INTO BEAM.
CAUTION:
THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR
ADJUSTMENTS OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
1. This unit is a CLASS 1 LASER PRODUCT and employs a
laser inside the cabinet.
2. To prevent the laser from being exposed, do not remove
the cover. Refer servicing to qualified personnel.
5
1. Regional Restriction Codes (Region Number)
Regional restriction codes are built into DVD Players and DVD-
Video media for each sales region. If the regional code of the
DVD Player does not match one of the regional codes on the
DVD-Video, playback is not possible.
The regional number can be found on the rear panel of the DVD
Player. (e.g.
2
for Region 2)
2. About This Manual
This manual explains the basic procedures for operating the
DVD Player. Some DVD-Video and DVD-Audio discs do not
support the full potential of the DVD technology. Your DVD
Player may therefore not respond to all operating commands.
Refer to instruction notes on discs.
A “ ” mark may appear on the TV screen during operation. It
means that the operation is not permitted by the DVD Player or
the disc.
3. Recording Copyright
Recording of copyrighted material for other than personal use is
illegal without permission of the copyright holder.
4. Power
WARNING
BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME,
READ THE FOLLOWING SECTION CAREFULLY.
The voltage of the available power supply differs according to
country or region. Be sure that the power supply voltage of the
area where the unit will be used meets the required voltage
(e.g., AC 100-240 V, 50/60 Hz) written on the rear panel.
5. Do not touch the unit with wet hands
Do not handle the unit or power cord when your hands are wet
or damp. If water or any other liquid enters the case, take the
unit to an authorized service center for inspection.
6. Location of the unit
•Place the unit in a well-ventilated location.
Take special care to provide plenty of ventilation on all sides of
the unit especially when it is placed in an audio rack. If
ventilation is blocked, the unit may overheat and malfunction.
•Do not expose the unit to direct sunlight or heating units as
the unit’s internal temperature may rise and shorten the life of
the pickup.
•Avoid damp and dusty places and places directly affected by
vibrations from the speakers. In particular, avoid placing the
unit on or above one of the speakers.
•Be sure the unit is placed in a horizontal position. Never place
it on its side or on a slanted surface as it may malfunction.
•When you place the unit near a TV, radio, or VCR, the
playback picture may become poor and the sound may be
distorted. In this case, place the unit away from the TV, radio,
or VCR.
7. Care
From time to time you should wipe the front and rear panels and
the cabinet with a soft cloth. For heavier dirt, dampen a soft cloth
in a weak solution of mild detergent and water, wring it out dry,
and wipe off the dirt. Following this, dry immediately with a clean
cloth.
Do not use rough material, thinners, alcohol or other chemical
solvents or cloths since these could damage the finish or remove
the panel lettering.
8. Notes on Handling
•When shipping the unit, use the original shipping carton and
packing materials. For maximum protection, repack the unit as
it was originally packed at the factory.
•Do not use volatile liquids, such as insect spray, near the unit.
Do not leave rubber or plastic products in contact with the unit
for a long time. They will leave marks on the finish.
•The top and rear panels of the unit may become warm after
a long period of use. This is not a malfunction.
•When the unit is not in use, be sure to remove the disc and
turn off the power.
•If you do not use the unit for a long period, the unit may not
function properly in the future. Turn on and use the unit
occasionally.
9. To Obtain a Clear Picture
The unit is a high technology, precision device. If the optical
pick-up lens and disc drive parts are dirty or worn down, the
picture quality becomes poor. To obtain a clear picture, we
recommend regular inspection and maintenance (cleaning or
parts replacement) every 1,000 hours of use depending on the
operating environment. For details, contact your nearest dealer.
10. Notes on Moisture Condensation
Moisture condensation damages the unit.
Please read the following carefully.
•What is moisture condensation?
Moisture condensation occurs, for example, when you pour a
cold drink into a glass on a warm day. Drops of water form on
the outside of the glass. In the same way, moisture may
condense on the optical pick-up lens inside the unit, one of
the most crucial internal parts of the unit.
•Moisture condensation occurs in the following cases.
–When you bring the unit directly from a cold place to a
warm place.
–When you use the unit in a room where you just turned on
the heater, or a place where the cold wind from the air
conditioner directly hits the unit.
–In summer, when you use the unit in a hot and humid place
just after you move the unit from an air conditioned room.
–When you use the unit in a humid place.
•Do not use the unit when moisture condensation may
occur.
If you use the unit in such a situation, it may damage discs
and internal parts. Remove the disc, connect the power cord
of the unit to the wall outlet, turn on the unit, and leave it for
two or three hours. After a few hours, the unit will have
warmed up and evaporated any moisture. Keep the unit
connected to the wall outlet and moisture condensation will
seldom occur.
6
This section shows you how to handle, clean, and store discs.
Notes on Discs
Disc mark
DVD videos
Playable Discs
This DVD Player can playback the following discs.
•You cannot playback discs other than those listed above.
•You cannot play discs such as CD-ROM etc., even if the
marks in the above table are labeled on those discs.
•This DVD Player uses the PAL/AUTO (Australian model
only) color system, and cannot playback DVD videos
recorded in any other color system (SECAM, etc.).
•Avoid using heart-shaped or octagonal discs. Playing
irregularly shaped discs may damage the internal
mechanism of the DVD Player.
•Do not use discs that have residue from adhesive tape,
rental discs that have peeling labels, or discs that have
custom labels or stickers. Otherwise, you may not be able
to eject the discs or the DVD Player may become
inoperative.
VIDEO CDs
Audio CDs
*3 *3
*1This unit can play DVD-R discs recorded as DVD video
format.
*2This unit can play DVD-RW discs recorded as DVD video
format. DVD-RW discs that were recorded with only one-
generation copy permission cannot be played.
*3This unit can play CD-R and CD-RW discs recorded in CD
Audio or Video CD format, or with MP3 audio files.
Playback of certain discs may not be possible. This may be
caused by a number of possibilities, including but not limited
to: whether or not the disc was not finalized, the type of disc
used, the type of recording; damaged or dirt on either the disc
or the player’s pick up lens.
* For details, refer to the operating instructions supplied with
your CD recorder.
Title 1 Title 2
Chapter 2
Chapter 2 Chapter 1
Chapter 1 Chapter 3
DVD Audio
Track 1 Track 2 Track 3 Track 4 Track 5
*1 *2
About VIDEO CDs
This DVD Player supports VIDEO CDs equipped with the PBC
(Version 2.0) function. (PBC is the abbreviation of Playback Control.)
You can enjoy two playback variations depending on the type of disc.
•VIDEO CD not equipped with PBC function (Version 1.1)
Sound and movies can be played on this DVD Player in the
same way as an audio CD.
•VIDEO CD equipped with PBC function (Version 2.0)
In addition to operation of the VIDEO CD not equipped with the
PBC function, you can enjoy playback with interactive software
and search function using the menu displayed on the TV
screen (Menu Playback). Some of the functions described in
this Instruction Manual may not work with some discs.
The Structure of the Disc Content
DVD-Video
Normally, the contents of DVD-Video are divided into titles,
and the titles are subdivided into chapters.
DVD-Audio
The contents of DVD-Audio are divided into groups, and the
groups are subdivided into tracks.
Video CD/CD
Video CD and CD are divided into tracks.
Group 1 Group 2
Track 1
Track 1 Track 2 Track 2 Track 3
Getting Started
7
Playback side
Cleaning Discs
•Fingerprints and dust on the disc cause picture and sound
deterioration. Wipe the disc from the center outwards with a
soft cloth. Always keep the disc clean.
•If you cannot wipe off the dust with a soft cloth, wipe the disc
lightly with a slightly moistened soft cloth and finish with a
dry cloth.
•Do not use any type of solvent such as thinner, benzine,
commercially available cleaners or antistatic spray for vinyl
LPs. It may damage the disc.
Storing Discs
•Do not store discs in a place subject to direct sunlight or
near heat sources.
•Do not store discs in places subject to moisture and dust
such as a bathroom or near a humidifier.
•Store discs vertically in a case. Stacking or placing objects
on discs outside of their case may cause warping.
Handling Discs
•Do not touch the playback side of the disc.
•Do not attach paper or tape to discs.
MP3 compatibility information
•The CD-ROM must be ISO 9660 compatible.
•Files should be MPEG1 Audio Layer 3 format, 44.1 or
48kHz, fixed bit-rate. Incompatible files will not play and
“UNPLAYABLE MP3 FORMAT” will be displayed.
•Not compatible with variable bit-rate (VBR) files.
•This system only plays tracks that are named with the file
extension “.mp3” or “.MP3”.
•This system is not compatible with multi-session discs. If
you try to play a multi-session disc, only the first session will
be played.
•Use CD-R or CD-RW media for recording your MP3 files.
The disc must be finalized in order to play.
•Audio encoded at 128Kbps should sound close to regular
audio CD quality. Although this system will play lower bit-
rate MP3 tracks, the sound quality becomes noticeably
worse at lower bit-rates.
•Only the first 8 characters of folder and track names
(excluding the “.mp3” extension) are displayed.
•This system can recognize a maximum of 250 folders and
250 tracks. Discs containing more than 250 folders or tracks
will not play.
Notes on Copyright
It is forbidden by law to copy, broadcast, show, broadcast on
cable, play in public, and rent copyrighted material without
permission.
DVD videos are copy protected, and any recordings made from
these discs will be distorted.
This product incorporates copyright protection technology that is
protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation
and other rights owners. Use of this copyright protection
technology must be authorized by Macrovision Corporation, and
is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
8
Features/Supplied Accessories
Remote controller (RC-499DV) [1]
Batteries (size AA/UM-3) [2]
*1Manufactured under licence from Lucasfilm Ltd. Lucasfilm and
THX are trademarks of Lucasfilm Ltd.
*2“DTS” and “DTS Digital Surround” are trademarks of Digital
Theater Systems, Inc.
*3Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the double-D symbol Ÿ are
trademarks of Dolby Laboratories.
THX Ultra
Before any home theatre component can be THX Ultra certified, it
must pass a rigorous series of quality and performance tests.
Only then can product feature the THX Ultra logo, which is your
guarantee that the Home Theatre products you purchase will give
you superb performance for many years to come.
Supplied Accessories
Make sure your box contains everything listed below.
If any pieces are missing, contact your nearest Integra dealer.
The number of accessories is indicated in brackets.
Features
THX*1 Ultra Certified
DTS*2/Dolby Digital*3/MPEG2/PCM Digital Audio Outputs
Advanced 192-kHz/24-Bit D/A Converters
Vector Linear Shaping Circuitry
RCA 6ch Multi-channel outputs
108-MHz/12-bit Video D/A Conversion
Progressive Component Video Outputs
Plays DVD-Audio and Video Discs, DVD-Rs,
DVD-RWs, MP3 CDs, CD-Rs, CD-RWs, Video CDs,
SACDs and Audio CDs
Pre-programmed and Learning Remote Control
Power cord [1]
Shape may vary depending on the area which it was
purchased.
S-video cable [1]
Cable which sends S-video images.
Audio/video connection cable [1]
The cable with the yellow plug is for video. The cable
with the red and white plugs are for audio.
z cable [1]
Cable used for system connections to an Integra/
Onkyo component with an z jack.
(The components will not function as a system with
only z connections. Be sure to connect the audio
connection cables correctly as well.)
9
Before You Start
Notes
•Do not mix new batteries with old batteries or different kinds of
batteries.
•To avoid corrosion, remove the batteries if the remote controller is
not to be used for a long time.
•Remove dead batteries immediately to avoid damage from
corrosion. If the remote controller does not operate smoothly,
replace both batteries at the same time.
•The life of the batteries supplied is about six months but this will
vary depending on usage.
30˚30˚
About 5 m
Remote control sensor
1Open the battery compartment cover.
2Insert the two R6 (size AA) batteries.
Be sure to match the + and – ends of the batteries
with the diagram inside the battery compartment.
3Close the battery compartment cover.
Inserting the Batteries
Using the Remote Controller
Point the remote controller toward the remote control
sensor.
Notes
•Place the unit away from strong light such as direct sunlight or
inverted fluorescent light which can prevent proper operation of the
remote controller.
•Using another remote controller of the same type in the same room
or using the unit near equipment which uses infrared rays may
cause operational interference.
•Do not put any object such as a book on the remote controller. The
buttons of the remote controller may be pressed by mistake and
drain the batteries.
•Make sure the audio rack doors do not have colored glass. Placing
the unit behind such doors may prevent proper remote controller
operation.
•If there is any obstacle between the remote controller and the
remote control sensor, the remote controller will not operate.
10
Index to Parts and Controls
For operational instructions, see the page indicated in brackets [ ].
■Front panel
Setup
MenuTop Menu
Return
Push to Enter
Cursor
Display
Clear
Random
Last Memory
Repeat
PlayStop
Pause
Open
/Close
Standby/On
Standby
On O
f
f
Video Circuit
Off
Dimmer
Power
Phones Level
Phones
SACD
DVD
CD
124537890-=~ !
6
#@$% ^&* )_(
DPS-8.3
1Power switch and Standby indicator [20]
Turns on the main power supply for the DPS-8.3.
The DPS-8.3 enters standby state and the Standby indicator
lights up. Pressing the switch again to the off position (— Off)
shuts down the main power supply into the DPS-8.3.
•Before turning on the power, make sure all cables are properly
connected.
2Standby/On button [20, 21, 25, 28, 46, 64]
When Standby/On button is pressed to On while the Power
switch is set to On, the DPS-8.3 turns on and the Standby
indicator turns off. The indicator around 0 button lights up.
Pressing the button again returns the DPS-8.3 to the standby
state. This state turns off the display, disables control functions.
3Video Circuit Off button and indicator [42]
Press to switch the video signal off.
4Last Memory button [40]
You can resume DVD or Video CD playback from the point you
last watched even if the disc is removed from the player. Press
Last Memory during playback to set a Last Memory point. When
you want to resume playback of that disc, press Last Memory in
the stop mode and playback starts from the memorized point.
Last Memory locations can be stored for up to 5 DVDs and 1
Video CD.
5Clear button [31-36, 39-41, 59]
Works in conjunction with a number of player functions. Use to
cancel repeat and random playback, and to edit programs.
6Disc indicator [25]
When playing a disc, the appropriate disc type indicator lights up.
7Disc tray [25]
When loading a disc, place discs in the disc tray with the label
side facing up.
8Top Menu button [26, 30]
Press to call up the top menu programmed on the DVD.
Depending on the DVD, the top menu may be identical to the
DVD menu.
9Cursor (2/3/5/∞) button/Enter button [21, 46]
Use 2/3/5/∞ to move through the options on menu screens and
to change settings. Use Enter to implement settings selected with
the cursor buttons or to set items highlighted in a menu.
0Menu button [26, 31, 38, 39, 58]
Use to display or close the DVD menu or MP3 Navigator screen.
-Open/Close button [25, 28]
Press to open and close the disc tray.
= Pause button [27]
Press during playback to pause. Press again to resume playback.
~Stop button [28]
Press to stop playback. Whenever a disc is loaded in the player,
the indicator above the Stop button lights up.
!Play button [25]
Press to start or resume playback. Whenever a disc is loaded in
the player, indicator above £ Play lights up.
@Dimmer button [45]
Toggle to control the lightness of the display (4 steps).
#Repeat button [32]
Use to set the repeat mode.
$Random button [33]
Press to play chapters/tracks in random order.
%Remote control sensor [9]
Point the remote control toward the remote sensor to operate the
player.
^Return button [26, 46, 59, 62]
Use to go one menu back (current settings are maintained). Use
Return when you do not want to change the option setting in a
menu.
&Setup button [21, 46, 64]
Press when the player is in either play or stop mode to open and
close the Setup screen.
*Display button [44, 45, 55]
Press during playback to display statistical disc information.
Press repeatedly to display different information.
(4/¢ button [26, 27]
Press to go back or advance to previous chapters/tracks. Press
and hold to perform fast-reverse/fast-forward playback scanning.
)Phones jack [43]
This is a standard stereo jack for connecting stereo headphones.
The audio for the ANALOG OUTPUT CH 1 and CH 2 are sent to
the headphone speakers.
_Phones Level dial [43]
Use to control the phones level. Turn the dial clockwise to
increase the phones level and counterclockwise to decrease it.
11
■Display
PROGRESSIVE
DVD
-AUDIO
SACD
V
CD
TITLE GROUP
CHP TRACK REMAIN
GUI
LAST
D.MIX
COND
LFECRL
S
R
SL
S
D
TOTAL
12 34
56789
@
=
-
0
!~ #$
1Ÿ D indicator
Lights when Dolby Digital sound is selected and played back. (Only
with DVDs recorded in Dolby Digital).
2Inserted disc indicator [25]
3TITLE/GROUP indicator
4GUI (Graphical User Interface) indicator
Lights when an on-screen menu operation is being performed. On-
screen menu helps you set up the player.
5CHP/TRACK indicator
6Angle icon indicator [38]
7REPEAT indicator [32]
8REMAIN indicator
Lights up to indicate the remaining time of titles, chapters and
tracks.
9L, C, R, LS, RS and LFE indicator [50]
Indicates the compatible audio channels for DVD playback.
L: Left front channel
C: Center channel
R: Right front channel
LS: Left surround channel
S: Surround channel (monoural)
RS: Right surround channel
LFE: LFE (Low Frequency Effect) channel
0LAST indicator [40]
-COND indicator [41]
=PROGRESSIVE indicator
Lights when progressive video signals are output.
~£/8 indicator
!DTS indicator
Lights when DTS is selected and played back. (Only with DVDs
recorded in DTS).
@Multifunctional indicator
(e.g. operating status and error messages)
#TOTAL indicator
Lights up to indicate the total number of titles, tracks and track
playback time.
$D.MIX indicator
Indicates when DVD audio, Dolby Digital, DTS or MPEG etc. audio
is downmixed (channel dowmixing) (e.g., when 5.1 channel sound
is downmixed to 2 channels).
12
Index to Parts and Controls
MODEL NO.
DPS-
8.3
SACD
&
DVD AUDIO/VIDEO PLAYER
REMOTE
CONTROL
COMPONENT
2
IR
DIGITAL
OUTPUT
OPTICAL COAXIAL
OUT
IN
S VIDEO VIDEO
YP
B
P
R
COMPONENT
1
VIDEO
OUTPUT
ANALOG
OUTPUT
L
R
L
R
SURR
11
+2
CH 1 CH 2 FRONT SURR 1 CENTER SURR 2
SUB
WOOFER
TRIG
-
GER
OU
T
RS-232
AC
INLET
12
V
YP
B
P
R
1234
@
~
79
80-=!
56
1VIDEO OUTPUT COMPONENT 1 jacks [16]
If your TV has component inputs, you can connect a component
video cable to your TV and to your DVD Player for ideal video
quality. The component Video Cable only carries the video signal;
remember to connect the left and right audio cables. If you connect
a TV that is compatible with a Progressive scan signal, you can
enjoy both Interlaced and Progressive scan.
2VIDEO OUTPUT S VIDEO jack [16]
If your TV or monitor has an S-video input, clear picture
reproduction is possible by connecting the player to your TV or
monitor via the S-Video jack.
You can switch between [S1] and [S2] S-video output from the
Setup menu.
3VIDEO OUTPUT VIDEO jack [15]
Connect to the video input on a TV or monitor or AV amplifier or
receiver with video input capability.
4VIDEO OUTPUT COMPONENT 2 jacks
If your TV has component inputs, you can connect a BNC video
cable to your TV and to your DVD Player for ideal video quality.
5RS-232 port
This port is to be used in conjunction with an external controller to
control the operation of the DPS-8.3 using an external device.
6AC INLET [20]
Use to connect the power cord to the wall outlet.
7ANALOG OUTPUT CH 1/CH 2 jacks [15-18]
Use to output two-channel audio (analog) to the audio stereo
inputs on a TV or stereo amplifier.
8ANALOG OUTPUT FRONT/SURR 1/CENTER/
SUBWOOFER jacks [18]
Use to output 5.1 channel audio (analog) to the 5.1 channel
discrete inputs on an amplifier. If you are connecting to a
receiver that has both digital and analog input jacks for DVD
player connection, it may be beneficial to make both connections.
9SURR 2 jacks [18]
Use when making connections to 7.1 channel analog inputs.
(Make sure the SURR 1/1+2 selector switch is set to 1+2.)
0 SURR 1/1+2 selector switch [18]
When using 2 channel surround, select 1, when using 4 channel
surround, select 1+2. Audio will be output 3dB lower when 1+2 is
selected. The same audio is output from SURR 1 and from
SURR 2.
-DIGITAL OUTPUT OPTICAL jack [17]
Use to output the digital audio signal recorded on discs. You can
output the digital signal via the optical output jack to an AV amplifier
or receiver.
= DIGITAL OUTPUT COAXIAL jack [17]
Use to output the digital audio signal recorded on discs. You can
output the digital signal via the coaxial output jack to an AV
amplifier or receiver.
~IR IN/OUT jacks [19]
If the DPS-8.3 is located inside a rack or cabinet that will not allow
infrared beams to reach the IR sensor, you will need to connect a
remote sensor to IR IN jack to be able to use the remote controller.
Then install the remote sensor in an unblocked location where you
can easily point the remote controller.
Using a mini-jack connector, connect IR emitter to the IR OUT jack
on the DPS-8.3 and then place the IR emitter on the remote sensor
of the component or facing it.
!12V TRIGGER jack
When the DPS-8.3 is turned on, this terminal outputs at 12 V/100
mA.
@z jack [17, 18]
Use to connect this player to another component bearing the z
mark. This lets you control this unit as though it were a component
in a system.
(The components will not function as a system with only z
connections. Be sure to connect the audio connection cables
correctly as well).
■Rear panel
Shapes of jacks vary depending on the area in which it was
purchased.
13
Remote controller (Operation buttons)
RC-499DV
M
o
d
e
O
n
S
t
a
n
d
b
y
I
n
p
u
t
S
e
l
e
c
t
o
r
Audio SEL
Video Off
Display Dimmer
TV
/
VCR
Step/Slow Pause Step/ Slow
Muting
Enter
A-B Picture Cond M Function M
Speed
Surround
Random Program Clear
Repeat
--
/
---
VOL
C
H
L
i
g
h
t
Search
123
456
789
+10 0
A
u
d
i
o
A
n
g
l
e
T
o
p
M
e
n
u
M
e
n
u
R
e
t
u
r
n
S
e
t
u
p
M
DIM
DIS
A
RPT RND
PGM
CLR
A
-
BPIC C.M F.
M
D
V
D
T
V
V
C
R
R
C
V
R
S
u
b
t
t
l
L
a
s
t
M
T
V
.
V
C
R
/
1
2
3
4
6
5
)
_
+
™
£
¢
∞
§
ª
–
•
º
¡
(
*
&
7
8
9
0
=
!
#
%^
-
~
@
$
≠
Ÿ
1 Send/Learn indicator [65]
Lights when the remote controller is sending a command to the
DVD Player or other preprogrammed component, and when
learning the command of another remote control unit.
2 On/Standby buttons [20]
Press On to turn the DVD Player on and Standby to put the DVD
Player in standby. (The Standby indicator lights up.)
30 button [25]
Press to open and close the disc tray.
4 DVD button [65]
Press to select the DVD mode. In this mode, the remote
controller is set to control the DVD Player.
5Angle button [38]
Press repeatedly to select a camera angle when a DVD-Video is
recorded with multiple angle playback.
6Audio button [39]
Press repeatedly to select an audio and/or language track
recorded on a DVD-Audio/Video.
7Top Menu button [26, 30]
Press to select the top menu on a DVD-Audio/Video. This menu
may be the same as the DVD menu.
8Return button [26]
Press to go back to a previous menu screen.
9Display button [44]
Press during playback to display statistical disc information.
Press repeatedly to display different information.
04 (skip back) button [27]
Press to return to previous titles, groups, chapters, or tracks.
-£ (play) button [28]
Press to start playback.
=1 (fast reverse) button [27]
Press to scan rapidly backward through the contents on a disc.
~7 (stop) button [28]
Press to stop playback.
!Step/Slow e button [29]
Press to perform slow reverse playback of a DVD.
@Speed button 2 [27]
Press repeatedly during playback or pause to switch the reverse
playback speed.
#Random button [33]
Press to start random playback.
$Repeat button [32]
Press to repeat playback.
%A-B button [32]
Press to repeat a specific section on a disc.
^Picture button [54]
Press to display the pre-programmed setting menu.
&Number buttons [34]
Use to enter numeric values
14
*Light button
Press to switch on/off the remote controller button lights.
(Subttl button [39]
Press repeatedly to select one of the subtitle languages recorded
on a DVD-Video.
)Last M button [40]
Press to resume playback from the point you last watched.
_Menu button [26]
Press to display the DVD menu.
+5/∞/2/3 and ENTER multi control [46]
Use to navigate menu screens and enter settings.
¡Setup button [21]
Press to display the Setup screen menu.
™Video Off button [42]
Press to turn off the video output circuitry for a more dedicated
audio performance.
£Dimmer button [45]
Press repeatedly to change the brightness of the front panel
display in four grades (including turning the front panel display
off).
The dimmer setting is restored to normal brightness whenever
the DVD Player is turned off.
¢¢ (skip forward) button [27]
Press to advance through titles, groups, chapters, or tracks.
∞¡ (fast forward) button [27]
Press to scan rapidly forward through the contents on a disc.
§Step/Slow E button [29]
Press to perform slow forward playback of a DVD or Video CD.
Pause button [27]
Press to pause.
•Speed button 3 [27]
Press repeatedly during playback or pause to switch the forward
playback speed.
ªClear button [32]
Press to clear entered values and settings.
ºProgram button [34]
Press to playback titles, chapters, or tracks in a specific order.
–Function M button [64]
You can store in memory settings. Press Function M to memorize
and recall the settings.
≠Cond M button [41]
You can store in memory the settings for DVDs. Press Cond M
during DVD playback to memorize the settings.
ŸSearch button [30]
Press to find the specific section on a disc where you want to
start playback.
Press RCVR to set the remote controller to operate an Integra/Onkyo
receiver. The following buttons can be used to operate an Integra/
Onkyo receiver. Refer to the manual supplied with your receiver for
details on each function.
Remote controller buttons that can be
used to control your Integra/Onkyo
receiver
RC-499DV
M
o
d
e
O
n
S
t
a
n
d
b
y
I
n
p
u
t
S
e
l
e
c
t
o
r
Audio SEL
Video Off
Display Dimmer
TV
/
VCR
Step/Slow Pause Step/ Slow
Muting
Speed
Surround
Random Program Clear
Repeat
VOL
C
H
L
i
g
h
t
A
u
d
i
o
A
n
g
l
e
T
o
p
M
e
n
u
M
e
n
u
R
e
t
u
r
n
S
e
t
u
p
M
DIM
DIS
A
D
V
D
T
V
V
C
R
R
C
V
R
S
u
b
t
t
l
L
a
s
t
M
T
V
.
V
C
R
/
3
7
9
5
-
~
!
1
2
6
4
8
0
=
1 On button
Press On to turn the receiver on.
2 Standby button
Press Standby to put the receiver in standby.
3Input Selector
Press to select the input. These buttons can be used in either DVD
or receiver mode.
4RCVR button
Press to switch to receiver mode.
5 2/3/5/∞/ENTER button
Use to navigate menu screens and enter settings.
6CH +/– buttons
Press to select the radio presets if the receiver has radio features.
7VOL 5/∞ buttons
Press to adjust the volume. These buttons can be used in either
DVD or receiver mode.
8Return button
Press to return to the previous menu during the receiver setup
screen.
9Setup button
Press to display/turn off the receiver setup menu.
0Audio SEL button
Press to switch audio inputs.
-Muting button
Press to mute/cancel mute function.
=Display button
Press to change the display.
~Dimmer button
Press repeatedly to change the brightness of the front panel
display.
!Surround Mode button
Press to switch listening modes (surround modes).
Index to Parts and Controls
15
MODEL NO.
DPS-
8.3
SACD
&
DVD AUDIO/VIDEO PLAYER
REMOTE
CONTROL
COMPONENT
2
IR
DIGITAL
OUTPUT
OPTICAL COAXIAL
OUT
IN
S VIDEO VIDEO
YPBPR
COMPONENT
1
VIDEO
OUTPUT
ANALOG
OUTPUT
L
R
L
R
SURR
11
+2
CH 1 CH 2 FRONT SURR 1 CENTER SURR 2
SUB
WOOFER
TRIG
-
GER
OU
T
RS-232
AC
INLET
12
V
YPBPR
Connecting to a TV
Before connecting
•Refer also to the instruction manual of the TV.
•When you connect the DVD Player to the TV, be sure to turn off the
power and unplug both units from the mains before making any
connections.
•Connect the DVD Player to the TV directly. If you connect the DVD
Player to a VCR, TV/VCR combination, or video selector, the playback
picture may be distorted as DVD videos are copy protected.
•Connect the plugs securely. Incomplete
Insert completely
: Signal flow
Be sure to set the TV Aspect after connection using
the Setup Navigator explained in “Setting Up the
Player” starting on page 21 or the function setting
menu explained in “Adjusting Audio and Video
Settings” starting on page 46.
Stereo audio/video connection cable
To audio and video input
L (White)
R (Red)
Using the supplied audio/video connection
cable
Using the supplied audio/video cable, make audio
connections from the ANALOG OUTPUT CH 1 or
CH 2 L and R jacks to the corresponding audio input jacks
on the TV. In the same manner, make video connection
from the VIDEO OUTPUT VIDEO jack to the corresponding
video input jack on the TV.
By making connections to a stereo system, you can
improve the quality of the sound. Using an audio cable
(not supplied), make audio connections from the ANALOG
OUTPUT CH 1 or CH 2 L and R jacks to the corresponding
jacks on the stereo component.
Note
Be sure to match the colors of the plugs on the cable with the
corresponding jacks on the DVD Player and the TV: yellow for
video, red for R (right) audio and white for L (left) audio.
If the TV audio is monaural, leave the red plug disconnected.
Video
(Yellow)
DO NOT connect
the mains lead at
this time.
Notes
•Connect the player’s video output directly to the television.
•Since the player is compatible to analog copy protection there
may be cases when recordings from the deck may be distorted
during playback.
•Progressive signals are not output from the players video or
S1/S2 video output jack.
Connecting
16
MODEL NO.
DPS-
8.3
SACD
&
DVD AUDIO/VIDEO PLAYER
REMOTE
CONTROL
COMPONENT
2
IR
DIGITAL
OUTPUT
OPTICAL COAXIAL
OUT
IN
S VIDEO VIDEO
YP
B
P
R
COMPONENT
1
VIDEO
OUTPUT
ANALOG
OUTPUT
L
R
L
R
SURR
11
+2
CH 1 CH 2 FRONT SURR 1 CENTER SURR 2
SUB
WOOFER
TRIG
-
GER
OU
T
RS-232
AC
INLET
12
V
YP
B
P
R
Making component video connections
If the TV or monitor has component video inputs, making
this type of video connection will produce the ideal picture
quality for the presentation of DVD-Video. Using a
component video cable (sold separately), connect the
VIDEO OUTPUT COMPONENT jacks to the corresponding
component video input jacks on the TV. Some TVs and
monitors use BNC jacks for the component video input.
When this is the case, make connections to the VIDEO
OUTPUT COMPONENT BNC jacks using a component
video cable that has BNC plugs. Actual labels for
component video inputs may vary depending on the TV
manufacturer. (e.g. Y, R-Y, B-Y or Y, CB, CR)
In some TVs or monitors, the color levels of the playback
picture may be reduced slightly or the tint may change. In
such a case, adjust the TV or monitor for optimum
performance.
By making connections to a stereo system, you can improve
the quality of the sound. Using an audio cable (not
supplied), make audio connections from the ANALOG
OUTPUT CH 1 or CH 2 L and R jacks to the corresponding
jacks on the stereo component.
Connecting to a TV
: Signal flow
Be sure to set the TV Aspect after connection using
the Setup Navigator explained in “Setting Up the
Player” starting on page 21 or the function setting
menu explained in “Adjusting Audio and Video
Settings” starting on page 46.
Stereo audio connection cable
To audio input
L (White)
R (Red)
DO NOT connect
the mains lead at
this time.
Component video cable
To component video input
Stereo audio connection cable
To audio input
Making S-video connections
If the TV or monitor has an S video input, make the S video
connection. The S video connection will provide higher
quality picture playback.
By making connections to a stereo system, you can
improve the quality of the sound. Using an audio cable (not
supplied), make audio connections from the ANALOG
OUTPUT CH 1 or CH 2 L and R jacks to the corresponding
jacks on the stereo component.
Notes
•If you make the S video connection, leave the yellow plug
disconnected.
•If the TV audio is monaural, leave the red plug disconnected.
S video connection cable
To S video input
L (White)
R (Red)
17
MODEL NO.
DPS-
8.3
SACD
&
DVD AUDIO/VIDEO PLAYER
REMOTE
CONTROL
COMPONENT
2
IR
DIGITAL
OUTPUT
OPTICAL COAXIAL
OUT
IN
S VIDEO VIDEO
YPBPR
COMPONENT
1
VIDEO
OUTPUT
ANALOG
OUTPUT
L
R
L
R
SURR
11
+2
CH 1 CH 2 FRONT SURR 1 CENTER SURR 2
SUB
WOOFER
TRIG
-
GER
OU
T
RS-232
AC
INLET
12
V
YPBPR
Connecting to an Amplifier (To Enjoy the Sound
Advantage of the DVD Player)
Before connecting
•Refer to the instruction manual of the amplifier.
•When you connect the DVD Player to the amplifier, be sure to turn off
the power and unplug both units from the mains before making any
connections. Otherwise, the speakers may be damaged.
•Connect the plugs securely.
Notes
•The remote controller supplied with Integra/Onkyo amplifier can
be used to operate the DVD player.
•The function of the upper and lower z connectors are the same.
Connect to either one.
•Connecting z cable only does not make the system operational.
You must also connect the audio cables as well.
•
When using the optical input jack, remove the protective cap and
keep it safely. When the jack is not used, replace the protective cap.
■Making a digital connection with the
amplifier
If your amplifier has a digital input jack, be sure to connect
it to either DIGITAL OUTPUT OPTICAL or COAXIAL jack
on the DVD player.
Note
DO NOT connect to the AC-3RF input (e.g. of a Dolby Digital
receiver) which is reserved only for video disc players.
To ensure proper delivery of sound, be sure to match the names
of the jacks on the DVD Player and the component being
connected to.
Although you can reproduce the DVD Player’s sound from the TV speakers with the connections on pages 15 and 16, connecting
with an amplifier provides you high quality dynamic sounds.
: Signal flow
Optical fiber connection cable
To Digital optical jack
Incomplete
Insert completely
Audio connection cables
To audio inputs
Be sure to set the digital output setting after
connection using the Setup Navigator explained in
“Setting Up the Player” starting on page 21 or the
function setting menu explained in “Adjusting
Audio and Video Settings” starting on page 46.
Coaxial cable
To coaxial inputs An amplifier with a Dolby
Digital/DTS/MPEG1/MPEG2
decoder
DO NOT connect
the mains lead at
this time.
z cable
To z jack
Note
If you listen to multichannel DVD-Audio through one of the digital
outputs, it will be downmixed to stereo. Also, high sampling rate
DVD-Audio (192kHz or 176.4kHz) will be downsampled to 96kHz,
88.2kHz, 48kHz, or 44.1 khz, depending on the disc. Multi channel
and high sampling rate DVD-Audio is only available through the
analog outputs.
Some DVD-Audio and all SACD audio is output only through the
analog outputs.
In order to enjoy Dolby Digital/DTS 5.1 channel sound, a separate
Dolby Digital decoder, and 5.1 channel (front right/left, center,
surround right/left) + subwoofer are required.
L (White)
R (Red)
18
MODEL NO.
DPS-
8.3
SACD
&
DVD AUDIO/VIDEO PLAYER
REMOTE
CONTROL
COMPONENT
2
IR
DIGITAL
OUTPUT
OPTICAL COAXIAL
OUT
IN
S VIDEO VIDEO
YP
B
P
R
COMPONENT
1
VIDEO
OUTPUT
ANALOG
OUTPUT
L
R
L
R
SURR
11
+2
CH 1 CH 2 FRONT SURR 1 CENTER SURR 2
SUB
WOOFER
TRIG
-
GER
OU
T
RS-232
AC
INLET
12
V
YP
B
P
R
: Signal flow
Audio connection cables
To audio inputs
z cable
To z jack
Making discrete 5.1 channel ANALOG
OUTPUT connections
The discrete ANALOG OUTPUT jacks are intended to deliver
up to 5.1 channels of multi channel audio from DVD-Video and
DVD-Audio sources. Connections can be made from the
ANALOG OUTPUT FRONT, SURR 1 (surround), CENTER,
and SUBWOOFER jacks to the corresponding input jacks on
an AV component with multi channel discrete audio input jacks.
An amplifier with 5.1
channel discrete input
DO NOT connect
the mains lead at
this time.
FRONT R
FRONT L
SURROUND L
SURROUND R
CENTER
SUBWOOFER
z cable
To z jack
Audio connection cables
To audio inputs
FRONT R
FRONT L An amplifier with discrete
2 channel input
Making discrete 2 channel ANALOG
OUTPUT connections
Use a separately sold audio cord to connect ANALOG
OUTPUT CH 1 or CH 2 L/R jacks for stereo sound.
Note
To ensure proper delivery of sound, be sure to match the names of
the jacks on the DVD Player and the component being connected to.
Do not connect the PHONO, or TUNER jacks of other components to
this player.
Notes
•To ensure proper delivery of sound, be sure to match the
names of the jacks on the DVD Player and the component being
connected to.
•When connecting to an amplifier with 5.1 channel analog sound
inputs, connect this unit’s SURR 1 jacks to the amplifier surround
inputs.
(Make sure the SURR 1/1+2 selector switch is set to 1).
•When connecting to an amplifier with 7.1 channel analog sound
inputs, connect this unit’s SURR 2 jacks to the amplifier’s
additional surround inputs.
(Make sure the SURR 1/1+2 selector switch is set to 1+2. The
same audio will be output from SURR 1 and from SURR 2).
Connecting to an Amplifier (To Enjoy the Sound Advantage of
the DVD Player)
19
Operating Components not Reached by the Remote
Controller Signals (IR IN/OUT)
In order to use the remote controller to control the DPS-8.3 from a
remote location, you will need to prepare a multi-room kit (sold
separately such as one of those given below:
•Integra’s Multi-Room System kit (IR Remote Controller Extension
System).
•Multiroom A/V distribution and control system such as those from
Niles® and Xantech®.
If the DPS-8.3 is located inside a cabinet or other enclosure
where the infrared rays from the remote controller cannot
enter, then operation with the remote controller will not be
possible. In such a case, it will be necessary to install a
remote sensor at a location outside of the cabinet for the
infrared rays from the controller to reach.
In this situation, you will need to use a commercially-available
IR emitter. Connect the mini plug of the IR emitter to the IR
OUT terminal on the DPS-8.3. Then place the IR emitter on
the remote sensor of the component or facing it. When the IR
emitter is connected, only the signal input to the IR IN
terminal is output to the IR OUT terminal. The signal input
from the remote sensor on the front of the
DPS-8.3 will not be output to the IR OUT terminal.
DPS-8.3
OUT
IN
IR
Make connection as shown below. Do not plug the equipment
into the power source until the connection is completed.
IR IN
DPS-8.3
In the
cabinet
Remote Controller
Connecting
block
IR Receiver
: Signal flow
IR IN
IR OUT
Connecting
block
IR Receiver
DPS-8.3
IR Emitter
Remote Controller
other
component
: Signal flow
Remote control
sensor
DPS-8.3
OUT
IN
IR
from connecting block
Mini plug cable
from connecting block
Mini plug cable
Mini plug
Emitter
Mini plug cable
IR Emitter
:Signal flow
If the remote controller signal does not
reach the DPS-8.3 remote sensor
If the remote controller signal does not
reach other components
20
Before connecting
•The DPS-8.3 is shipped with the main power (Power)
switch in the on position (_ On). When the power cord is
plugged in for the first time, the DPS-8.3 will automatically
enter the standby state and the Standby indicator will light
(same condition after step 2 below).
•Make sure that all the connections on pages 15-18 are complete
(the connection to a TV is required).
Connecting the Power/Turning on the DVD Player
AC INLET
1
2
3
Power
Standby/On
To the mains
■Setting the TV System (Australian model
only)
The default setting of this player is AUTO, and unless you notice that
the picture is distorted when playing some discs, you should leave it
set to AUTO.
If you experience picture distortion with some discs, set the TV
system to match your country or region’s system. Doing this,
however, may restrict the kinds of disc you can watch. The table
below shows what kinds of disc are compatible with each setting
(AUTO, PAL and NTSC).
1 Switch the player into standby.
2 Hold down ¢then press Standby/On until the display
indicates the new setting to switch the TV system.
The TV system changes as follows:
AUTO =NTSC
NTSC =PAL
PAL =AUTO
Note that you have to switch the player into standby before each
change.
About MOD. (Modulation) PAL
•SHRINK
Most models of the newly developed countdown PAL TV system
detect 50 Hz (PAL)/60 Hz (NTSC) and automatically switch
vertical amplitude, resulting in a display without vertical
shrinkage.
•If your PAL TV does not have a V-Hold control, you may not be
able to view NTSC disc because the picture may roll. If the TV
has a V-Hold control, adjust it until the picture stops rolling. On
some TVs, the picture may shrink vertically, leaving black bands
at the top and bottom of the screen. This is not a malfunction; it is
caused by the NTSC = PAL conversion.
Type
DVD
Video CD
CD, No disc
Format
NTSC
PAL
NTSC
PAL
Disc Output format
Position of TV SYSTEM mode
NTSC PAL AUTO
NTSC MOD. PAL NTSC
PAL PAL
NTSC MOD. PAL NTSC
NTSC PAL PAL
NTSC PAL NTSC or PAL
Plug the supplied power cord into
the AC INLET and then into the
power outlet on the wall.
•Do not use a power cord other than the
one supplied with the DPS-8.3. The
power cord supplied is designed for use
with the DPS-8.3 and should not be
used with any other device.
•Never have the power cord
disconnected from the DPS-8.3 while
the other end is plugged into the wall
outlet. Doing so may cause an electric
shock. Always connect by plugging into
the wall outlet last and disconnect by
unplugging from the wall outlet first.
Press Power to switch on the main
power.
The DVD Player enters standby mode.
The STANDBY indicator lights up.
•The buttons on the remote controller do
not operate if the Power switch is set to
Off.
•To switch off the main power, press
Power again.
Press Standby/On on the DVD
Player or On on the remote
controller.
The DVD Player turns on and the Standby
indicator turns off.
•To put the DVD Player in the standby
mode, press Standby/On on the DVD
Player, or Standby on the remote
controller. Be sure to set the volume to
minimum before putting the DVD Player
in the standby mode for the next use to
avoid sudden loud sound reproduction.
•While the Standby indicator lights up,
the DVD Player can receive signals from
the remote controller. However, if you
press Power on the DVD Player to
switch off the main power, the remote
controller cannot be used to turn on the
DVD Player.
•Setting the Standby button to standby
does not shut off the power completely.
21
General
A2 V2 Language
Audio1 Video1
Exit
Move Select
Setup using the Setup Navigator
Setup Navigator
Setup Navigator Start
Auto Start Off
SETUPENTER
Setting Up the Player
The Setup Navigator has been designed to simplify the
process of getting the DVD player ready to perform.
Designed as a series of on-screen multiple-choice
questions, the Setup Navigator automatically sets the
audio, video, and language settings according to how
the questions are answered. Once this procedure is
complete, it will be possible to begin using the DVD
player to enjoy DVDs.
The procedure on this page describes the operations
necessary to function within the Setup Navigator
screens. A detailed description of the contents of each
question that appears on the screen can be found on
the following pages.
Press On (Standby/On on the front
panel).
If there’s already a disc loaded and it starts
to play, press 7 to stop it.
Press SETUP.
When Setup is pressed for the first time,
the following screen appears. Though the
Setup Navigator may be used more than
once, this screen only appears the first
time Setup is pressed.
Use the cursor buttons (5/∞) to
make a selection.
•If you are going to use the Setup
Navigator, it is not necessary to change
the setting on the first screen. Please
proceed to the next step.
•If you do not want to set up the player
using the [Setup Navigator], use the
cursor button (∞) to select [Auto Start
Off] at this time.
The Setup Navigator function may still
be used at a later time in manual Setup
screen menu operation (page 46).
Press ENTER.
The selection is entered and the next
Setup Navigator screen appears.
Use steps 3 and 4 as a basis for entering
selections on the all of the Setup Navigator
screens described on the following pages.
■When setting up for the first time
Some DVDs start playing automatically when loaded in the
player. Because the Setup Navigator cannot be used if a disc
is playing, it is recommended to set up the player using the
Setup Navigator before loading a DVD for the first time. If a
DVD has been loaded, be sure to press 7 before proceeding.
■To change the answer to a prior question
Use the cursor button (2) to return to previous screens.
Please note, however, that you cannot go forward using the
cursor button (3), so it will be necessary to answer all the
questions that occur after the screen that was returned to.
■To exit the Setup Navigator
Press Setup while on any of the screens to exit the Setup
Navigator. Please note that if the Setup Navigator is exited
before all the questions are answered, no settings are
changed.
Note
On-screen information (
i
) appears to clarify the functions and
explain the options available.
2
1
3
4
Using the Setup Navigator
RC-499DV
M
o
d
e
O
n
S
t
a
n
d
b
y
I
n
p
u
t
S
e
l
e
c
t
o
r
Audio SEL
Video Off
Display Dimmer
TV
/
VCR
Step/Slow Pause Step/ Slow
Muting
A-B Picture Cond M Function M
Speed
Surround
Random Program Clear
Repeat
VOL
C
H
L
i
g
h
t
123
456
A
u
d
i
o
A
n
g
l
e
T
o
p
M
e
n
u
M
e
n
u
R
e
t
u
r
n
S
e
t
u
p
M
DIM
DIS
A
RPT RND
PGM
CLR
A
-
B PIC C.M F.
M
D
V
D
T
V
V
C
R
R
C
V
R
S
u
b
t
t
l
L
a
s
t
M
T
V
.
V
C
R
/
ENTER
Setup
On
2/3/5/∞
Setting Up the Player
22
Using the Setup Navigator
General
A2 V2 Language
Audio1 Video1
Exit
Move Select
Select the On Screen Language
Setup Navigator
OSD Language
Language
English
français
Deutsch
Italiano
Español
SETUPENTER
■Setting the OSD Language
(On-Screen Display Language)
The [OSD Language] screen establishes the OSD language,
or on-screen display language, which refers to the language
that is used by the player in menus and on-screen messages.
Additionally, the language that is established at this setting will
also be used for the default audio and subtitle language.
General
A2 V2 Language
Audio1 Video1
Exit
Move Select
Widescreen TV
16:9 aspect raito
Setup Navigator
TV Type
TV Connection
Widescreen(16:9)
Standard(4:3)
SETUPENTER
Settings: English
français
Deutsch
Italiano
Español
Notes
• The languages that can be selected may be different from those
shown above.
• In addition to setting the [OSD Language], the audio and subtitle
language are also set at this time. If you wish to change the
audio or subtitle language to a different language, make changes
in the Setup screen Language menu [Audio Language] and
[Subtitle Language] as needed (pages 57, 58).
Settings: Widescreen (16:9)
Standard (4:3)
Note
There are two screen formats that can be used to display
wide-screen format DVDs: letter box and pan & scan. When
[Standard (4:3)] is selected in the Setup Navigator, the letter box
screen format is automatically selected. To switch the preference to
the pan & scan format, make changes in the Setup screen Video 1
menu [TV Screen] setting (page 52).
■Setting the TV screen size
The [TV Type] screen establishes the size, or more
appropriately the width to height ration of your television or
monitor. The width-to-height ratio of conventional TVs is 4:3,
while the width-to-height ratio of wide screen and high-
definition TVs is 16:9. This width-to-height ratio is called the
aspect ratio.
Setting Up the Player
Settings: 2 Channel
5.1Channel
Not Connected
If you select [5.1Channel] audio connection, confirm which
speakers are connected to your amplifier.
■Setting the type of analog audio
connections
The [Amp Connection] screen establishes the type of analog
audio connection you made to your amplifier/receiver.
Note
If you connected the audio output directly to your TV, choose
[2 Channel].
DPS8.3.E.21-24.p65 02.9.12, 11:44 AM22
23
■Confirming the settings
The [Exit Setup Navigator] is the final screen in the Setup
Navigator.
General
A2 V2 Language
Audio1 Video1
Exit
Move Select
Digital jack not compatible with 96kHz
Setup Navigator
96kHz PCM Audio
Amp Connection No
Yes
Don't Know
SETUPENTER
General
A2 V2 Language
Audio1 Video1
Exit
Move Select
Changes are saved
Setup Navigator
Exit Setup Navigator
Save Changes
Delete Changes
Start Again
SETUPENTER
Settings: Save Changes
Select to have the player make all of the necessary
audio, video and language settings according to
your responses in the Setup Navigator.
Delete Changes
Select to exit the Setup Navigator without changing
any of the system settings.
Start Again
Select to return to the [OSD Language] screen of
the Setup Navigator and do the settings again.
■To change other player settings in the Setup
screen menus
The procedure for changing the settings in the Setup screen
menus is described on page 46.
■Setting digital audio connections to an AV
amplifier or decoder
The [Digital Jack] screen establishes whether digital
connections have been made to an AV amplifier, receiver, or
external decoder. As there are numerous options available,
please refer to the instructions supplied with the component
the player is connected to determine what digital audio
formats can be decoded. If you have made no digital
connections, select [Not Connected].
Settings: Dolby Digital
Dolby Digital/DTS
Dolby Digital/MPEG
Dolby D/DTS/MPEG
PCM
Not Connected
Warning
• Do not set [Digital Jack] to [Dolby Digital/DTS] or [Dolby D/DTS/
MPEG] if the amplifier does not have a DTS decoder. If you do
so, high volume sound may be output and damage your hearing
as well as speakers.
• Select [PCM] when you connect the player to a 2 channel digital
stereo amplifier. If you select other than [PCM], high volume
sound may be output and damage your hearing as well as
speakers.
■Setting compatibility with 96 kHz output
The [96 kHz PCM Audio] screen establishes whether or not
the AV component the player is connected to is capable of
processing an audio signal with a sampling rate of 96 kHz.
This screen only appears if connections have been made to
an external AV component as determined in previous screens.
General
A2 V2 Language
Audio1 Video1
Exit
Move Select
Compatible with Dolby Digital
Setup Navigator
Digital Jack
Amp Connection
Dolby Digital
Dolby Digital/DTS
Dolby Digital/MPEG
Dolby D/DTS/MPEG
PCM
Not Connected
SETUPENTER
Settings: No
Select if the connected AV component cannot
process an audio signal with a sampling rate of 96
kHz.
Yes
Select if the connected AV component can process
an audio signal with a sampling rate of 96 kHz.
Don’t Know
Select if you are uncertain whether the connected
AV component can process an audio signal with a
sampling rate of 96 kHz.
DPS8.3.E.21-24.p65 02.9.12, 11:44 AM23
24
Minimum speaker configuration for
DTS/Dolby Digital/MPEG2 surround sounds
Right
surround
speaker
Left
surround
speaker
Center
Speaker
The 5.1-channel digital surround format of DOLBY DIGITAL/
DTS/MPEG2 enables you to individually play five full-range
(20 Hz-20 kHz) channels (left and right front, center, two
surround channels) plus an LFE (Low Frequency Effect)
channel for the low-range effect sound. It will create a realistic
sound as heard in theaters and concert halls.
DOLBY DIGITAL Surround
DVD Video that have the
DIGITAL
mark are recorded using this
system.
DTS Surround
DVD Video and CD that have the mark are recorded using this
system.
MPEG2
DVD Video that have the mark are recorded using
this system. MPEG2 may have 8 channels. In this case, left and
right center speakers in addition to the above speaker configuration
are used.
DOLBY PRO LOGIC Surround
This surround format consists of 4 channels (left and right front,
center, and monaural surround channel) and emphasizes the center
channel. This format is very effective for panning music,
conversation, and three-dimensional sound movement output from
three front channels. It also simulates the atmosphere and surround
effects of the sound reflected from the side and rear walls of the
theater.
DVD Video that have the mark are recorded using
this system.
Various sound formats and sound effects
Setting Up the Player
Right
front
speaker
Left front
speaker
Subwoofer
25
Press On (Standby/On on the front
panel).
Press 0.
The disc tray comes out.
Load a disc.
Load a disc with the label side facing up,
using the disc tray guide to align the disc.
1
2
3
4
5Select the item you want to view.
•When a DVD is loaded:
Select the item with the cursor buttons
(2/3/5/∞) or the number buttons then
press ENTER.
•When a Video CD is loaded:
Use the number buttons to select the
item.
Notes
•Noise is output if you make digital audio connections to a
receiver or amplifier that does not have a built-in decoder. Check
that the digital audio output format selected in the audio menu
corresponds to the audio components you have made
connections to (pages 23, 48, 49).
•The TV screen size is factory set to present the wide screen
format (16:9 aspect ratio). If you have a standard TV screen (4:3
aspect ratio), this setting can be changed to match your TV
screen size in the Video 1 menu (pages 22, 52).
•Do not move the DVD Player during playback. Doing so may
damage the disc.
•Use 0 on the remote controller or DVD Player to open and close
the disc tray. Do not touch the disc tray while it is moving. Doing
so may cause the DVD Player to malfunction.
•Do not press down on the disc tray or put any objects other than
playable discs on the disc tray. Doing so may cause the DVD
Player to malfunction.
•In many instances, a menu screen appears when playback of a
movie is complete. Prolonged display of an on-screen menu may
damage your television set, permanently etching that image onto
its screen. To avoid this, be sure to press 7 once the movie is
complete.
■When an operation is prohibited
There are times when you are using the player and attempt to
perform an operation, but for some reason it cannot be
performed. When this occurs, one of the two following icons
appears on the screen.
The operation is prohibited by the player.
The operation is prohibited by the programming on the
disc.
Press £.
•The disc tray closes, and playback
begins.
•The appropriate disc indicator lights.
•MP3 only: It may take a few seconds for
the player to locate the track on the
disc, depending on the complexity of
the file structure. During this time,
“Please wait a moment” is displayed.
•Depending on the disc, a menu may be
displayed. If a menu is displayed,
proceed to step 5.
Playing SACDs, DVDs, Video CDs, CDs and MP3s
Getting Started Using Your DVD Player
Before you can start to enjoy the digital audio and video
on DVDs, be sure that you have either performed the
Setup Navigator procedure described in the previous
section or made the necessary settings in the Setup
screen menus as outlined in the next section to set up
the player to correspond to your home system. Having
made these settings, you are now ready to start using
the player to enjoy DVDs, Video CDs, CDs and MP3s.
Number
buttons
DVD VCD
CD
MP3
SACD
Warning
If the DVD Player is connected to the
TV or amplifier through the analog
audio jacks, do not play DTS-
encoded discs. Excessive noise may
be output from the analog stereo
jacks, which may damage the
connected equipment.
To reproduce DTS surround sounds,
digital connection to an amplifier with
a DTS decoder is needed.
■About the
SACD
,
DVD
,
DVD-V
,
DVD-A
,
VCD
, CD and
MP3
marks in the pages related to disc
operation
means the function or title is related to SACD operation.
means the function or title is related to both DVD-Video and
DVD-Audio operation.
means the function or title is related to DVD-Video
operation.
means the function or title is related to DVD-Audio
operation.
means the function or title is related to Video CD operation.
means the function or title is related to audio CD operation.
means the function or title is related to MP3 operation.
Basic Playback
£
0
RC-499DV
M
o
d
e
O
n
S
t
a
n
d
b
y
I
n
p
u
t
S
e
l
e
c
t
o
r
Audio SEL
Video Off
Display Dimmer
TV
/
VCR
Step/Slow Pause Step/ Slow
Muting
Enter
A-B Picture Cond M Function M
Speed
Surround
Random Program Clear
Repeat
--
/
---
VOL
C
H
L
i
g
h
t
Search
123
456
789
+10 0
A
u
d
i
o
A
n
g
l
e
T
o
p
M
e
n
u
M
e
n
u
R
e
t
u
r
n
S
e
t
u
p
M
DIM
DIS
A
RPT RND
PGM
CLR
A
-
B PIC C.M F.
M
D
V
D
T
V
V
C
R
R
C
V
R
S
u
b
t
t
l
L
a
s
t
M
T
V
.
V
C
R
/
2/3/5/∞
Top Menu
ENTER
Menu
--
/
---
123
456
789
+10 0
DVD
DVD-V
DVD-A
VCD
CD
MP3
SACD
26
Getting Started Using Your DVD Player
When a Menu Screen is Displayed
Menu screens are displayed for DVDs that have menu
screens or Video CDs that include Playback Control (PBC).
DVDs often contain extra information that can be accessed in
the DVD menu and sometimes makes navigating DVD menu
screens as enjoyable as watching the feature presentation.
Example: When a DVD that has menu screens is loaded
Example: When a Video CD that has Playback Control is
loaded
To Open or Return to the DVD or Video
CD Menu Screen
Although this differs depending on the disc, pressing Menu,
Top Menu or Return during DVD playback or Return during
Video CD playback displays the menu screen. Refer to the
DVD or Video CD disc jacket and accompanying
documentation for more information.
■To play Video CDs without displaying menu
screens
Video CDs with Playback Control (PBC) display a menu
screen when play is started. It is possible, however, to play
back Video CDs without displaying menu screens.
When a Video CD with PBC is loaded, press 7, and then the
number button of the track you want to play.
MP3 compatibility information
•The CD-ROM must be ISO 9660 compatible.
•Files should be MPEG1 Audio Layer 3 format, 44.1 or
48kHz, fixed bit-rate. Incompatible files will not play and
“UNPLAYABLE MP3 FORMAT” will be displayed.
•Not compatible with variable bit-rate (VBR) files.
•This system only plays tracks that are named with the file
extension “.mp3” or “.MP3”.
•This system is not compatible with multi-session discs. If
you try to play a multi-session disc, only the first session will
be played.
•Use CD-R or CD-RW media for recording your MP3 files.
The disc must be finalized in order to play.
•Audio encoded at 128Kbps should sound close to regular
audio CD quality. Although this system will play lower bit-
rate MP3 tracks, the sound quality becomes noticeably
worse at lower bit-rates.
•Only the first 8 characters of folder and track names
(excluding the “.mp3” extension) are displayed.
•This system can recognize a maximum of 250 folders and
250 tracks. Discs containing more than 250 folders or tracks
will not play.
1 Highlight Clips
2 Chapter List
3 Commercial Header
4 Subtitles
5 Soundtrack
6 Start Main Feature
1
2
3
4
5
6
7
8
Don't Tekno for an Answer
Bad Whack Naff Riff
dubmyheadbassman
Gooey Love Jingle
Praise the Day
G3, Ba-san
Abstract Jazz Phunk
Rock the Love Jive
Bertie B.& the Goans
Hood in the Boyz
Sleek Machine
Philip William
Formerly an Artist
Pfeuti
John Torn
Hot Monkey Stick
STANDARD VOCAL BEST
■To navigate a menu screen
•Although individual DVD titles may differ, when a menu
screen is displayed, use the cursor buttons (2/3/5/∞) and
ENTER on the remote control. The cursor buttons are used
to move around the options on the screen and ENTER is
used for selection.
•Occasionally, the number buttons may also be used to
make selections. If this is possible, using number buttons
serves to directly select an option on a menu screen. Only
number buttons are used to make selections on Video CD
menu screens.
•When the Video CD has more than one menu, pages can
be advanced to or returned to with 4 or ¢.
DVD VCD
DVD VCD
MP3
27
Forward and Reverse Scanning
Fast forward and reverse scanning
Press and hold ¡ or 1 during
playback to scan forwards or
backwards.
While “¡1” or “1 1” is displayed on-
screen blinking, release the button to
resume normal playback.
During DVD audio playback, “¡ 2” is
displayed on screen.
During MP3 playback, “¡” is displayed
on screen.
Variable speed scanning
1 Press (but don’t hold) ¡ or 1
during playback to start scanning.
“¡ 1” or “1 1” appears on screen.
2 Depending on the type of disc
playing, you can increase the
scanning speed by pressing ¡
or 1.
The scan speed is shown on-screen.
DVD-Video discs have three scanning
speeds;
1, 2 and 3.
DVD-Audio discs have two scanning
speeds;
2 and 3.
SACD, CD, and Video CDs have two
scanning speeds;
1 and 2.
MP3 have only one scanning speed.
3 Press £ to resume normal
playback.
RC-499DV
M
o
d
e
O
n
S
t
a
n
d
b
y
I
n
p
u
t
S
e
l
e
c
t
o
r
Audio SEL
Video Off
Display Dimmer
TV
/
VCR
Step/Slow Pause Step/ Slow
Muting
Speed
Surround
Random Program Clear
Repeat
VOL
C
H
L
i
g
h
t
A
u
d
i
o
A
n
g
l
e
T
o
p
M
e
n
u
M
e
n
u
R
e
t
u
r
n
S
e
t
u
p
M
DIM
DIS
A
RPT RND
PGM
CLR
D
V
D
T
V
V
C
R
R
C
V
R
S
u
b
t
t
l
L
a
s
t
M
T
V
.
V
C
R
/
£
¢/¡4/1
Step/Slow /
Speed 2/3
DVD VCD
CD
MP3
SACD
Chapter (Track) Skip Forward/Skip
Back
Advancing to the next chapter (track)
Press ¢.
Press to skip forward to the next chapter
(track).
Skipping back to the previous chapter
(track)
Press 4.
•Press once to skip back to the start of
the chapter (track) currently playing.
•Press twice to skip back to the start of
the previous chapter (track).
DVD VCD
CD
MP3
SACD
Pausing Playback
Press Pause.
Press to pause a disc that is playing.
•Press again to return to normal
playback.
DVD VCD
CD
MP3
SACD
Switching the Playback Speed
Press Speed 2/3.
Press Speed 2/3 repeatedly during
playback or pause to switch the reverse/
forward playback speed from slow to fast.
Sound is not output during slow/fast
reverse/forward playback.
DVD VCD
CD
MP3
SACD
Speed
Surround
28
Resuming Playback from where you
stopped
Use the resume feature to restart playback from the point that
the disc was stopped last time.
This features cannot be used with SACD, DVD Audio discs,
MP3s and CDs.
Press 7 once.
The display shows “RESUME” and the
stop position is memorized.
•The resume position remains
memorized as long as the disc is in the
player — even if you switch the power
off.
•Pressing 7 twice causes the disc to
return to the beginning when £ is
pressed again. The display shows the
disc type (DVDs or Video CDs).
Press £.
Playback starts from the resume position.
Notes
•The actual restart position may be slightly before or after the
resume position.
•If you want to remove the disc, but still want to resume playback
from the last stopped position, use the Last Memory feature
instead (page 40).
•The memorized resume position is erased when you open the
disc tray, or change the Parental Lock Level setting (page 61) or
On-screen Display (OSD) setting (page 57).
Stopping Playback and Switching
Power Off
Press 7.
Playback stops.
Press 0.
The disc tray comes out.
Remove the disc.
Press Standby (Standby/On on the
front panel).
The disc tray goes back in.
1
2
3
4
1
2
Getting Started Using Your DVD Player
RC-499DV
M
o
d
e
O
n
S
t
a
n
d
b
y
I
n
p
u
t
S
e
l
e
c
t
o
r
Audio SEL
Video Off
Display Dimmer
TV
/
VCR
Step/Slow Pause Step/ Slow
Muting
Speed
Surround
Random Program Clear
Repeat
VOL
C
H
L
i
g
h
t
A
u
d
i
o
A
n
g
l
e
T
o
p
M
e
n
u
M
e
n
u
R
e
t
u
r
n
S
e
t
u
p
M
DIM
DIS
A
RPT RND
PGM
CLR
D
V
D
T
V
V
C
R
R
C
V
R
S
u
b
t
t
l
L
a
s
t
M
T
V
.
V
C
R
/
£
On/Standby
0
7
DVD VCD
CD
MP3
SACD
DVD-V
VCD
29
Viewing slow playback
3 1/16 3 1/8
1/2 21/4 2
Still Frame/Slow Play
The video images on DVD and Video CD can be viewed
as a still frame, played back at slow speeds and even
advanced frame by frame.
Viewing a still frame
You can’t use slow reverse play with Video CDs.
During still frame playback, press
and hold Step/Slow e / E during
playback.
Press Step/Slow e / E repeatedly
to change the slow-motion speed.
There are four slow-motion play speeds:
■To return to normal playback
When viewing a slow playback, pressing £ restores normal
playback operation.
Viewing slow playback is unavailable from Video CDs.
1
2
Step/Slow
RC-499DV
M
o
d
e
O
n
S
t
a
n
d
b
y
I
n
p
u
t
S
e
l
e
c
t
o
r
Audio SEL
Video Off
Display Dimmer
TV
/
VCR
Step/Slow Pause Step/ Slow
Muting
A-B Picture Cond M Function M
Speed
Surround
Random Program Clear
Repeat
VOL
C
H
L
i
g
h
t
A
u
d
i
o
A
n
g
l
e
T
o
p
M
e
n
u
M
e
n
u
R
e
t
u
r
n
S
e
t
u
p
M
DIM
DIS
A
RPT RND
PGM
CLR
D
V
D
T
V
V
C
R
R
C
V
R
S
u
b
t
t
l
L
a
s
t
M
T
V
.
V
C
R
/
£
¢/¡4/1
Step/Slow /
Speed 2/3
DVD VCD
DVD-V VCD
Step/Slow
Step/Slow Step/Slow
Step/Slow
Step/Slow
Advanced Playback
Press , Step/Slow e / E.
When viewing a DVD, if the paused picture
shakes, select the [Field] setting in the
Setup screen Video 2 menu [Still Picture]
setting as described in the section on page
56.
■Frame by frame advance playback: Viewing
one frame at a time
You can’t use frame review with Video CDs.
1 Press , Step/Slow e / E.
2 Press Step/Slow e / E.
Step/Slow E: The picture advances one frame each time the
button is pressed.
Step/Slow e: The picture backs up a DVD a few frames each
time the button is pressed.
■To control still pictures
DVD-Audio may include still pictures, which are classified into two
large groups.
Slide show: Still pictures appear one after another
automatically consistent with the disc program.
Browsable pictures: You can display your favorite still picture
selected with the buttons on the remote control.
Press Step/Slow e / E to select a picture. (The order of
pictures vary depending on the disc.)
■To return to normal playback
When viewing a still frame playback, pressing or £
restores normal playback operation.
Notes
•There is no sound when viewing still frames or slow playback, or
when advancing one frame at a time.
•Still frame, slow play, or frame advance playback may not be
possible with certain titles. In this case, the mark is displayed.
Notes
•Press Speed 2/3 repeatedly during playback or pause to switch
the reverse/forward playback speed from slow to fast.
•Sound is not output during slow/fast reverse/forward playback.
DPS8.3.E.29-45.p65 02.9.12, 11:45 AM29
30
This player offers different ways of accessing the information
on a DVD, Video CD, CD, SACD or MP3. Using Search, you
can search for titles or chapters on a DVD-Video, groups or
tracks on a DVD-Audio, tracks on a Video CD, CD or folders
or tracks on a MP3 and even select the point in time to start
playback.
Press Search repeatedly to select
the type of search.
The type of search changes which each
press as follows.
3 Track 3 Time
Off 2
3 Track 3 Off
3 Folder 3 Track
Off 2
DVD-Video
Video CD
CD
MP3
* The Frame Search option in the Video 1
menu must be [On] to use this.
•DVD-Audio discs may also contain
still pictures. You can search for
certain types of still pictures by
pressing SEARCH and specifying
the still picture number.
Press the number button(s) of the
desired title, group, chapter or track
or of the specific time where you
would like to begin playback.
•To select number 3, press 3.
•To select number 10, press 1 and 0.
•To select number 87, press 8 and 7.
When performing a Time Search:
•To select 21 minutes, 43 seconds,
press 2, 1, 4, and 3.
•To select 1 hour, 14 minutes, press 7, 4,
0, and 0.
Searching for a Title, Group, Folder, Chapter, Track, or Location on a Disc
1
2
3
Locating a Specific Title/Group/Folder/
Chapter/Track/Location
Enter
Search
123
456
789
0
DVD VCD
CD
MP3
SACD
Press £.
Playback of the selected title, folder,
chapter or track starts. When Time Search
is performed, playback begins at the
appointed time. When Frame Search is
performed, the unit pauses at the
requested frame.
Notes
•For some discs, selection can be made using the top menu on the
DVD. In this case, press Top Menu to display the menu screen
and then make your selection.
•With some DVDs, the search operation may not be possible and
may stop shortly after being performed. In this case, the mark
is displayed.
•Time Search is not possible with SACDs, CDs and MP3s.
•When performing DVD or Video CD Time Search, playback may
start from a slightly different time than that specified.
•Time Search is not possible during when the disc is stopped.
•Search using Time Search is not possible during PBC playback of
Video CDs.
•PAL displays 25 frames per second, numbered 0–24, NTSC
displays 30 frames per second, numbered 0–29. The Frame
Search option in the Video 1 menu must be [On] to use this.
•In the case of multiple layered SACDs, track 01 does not always
indicated the first song on the disc.
■To perform a direct title or chapter/track
search using the number buttons
•Press the number buttons while the disc is stopped to
select a title or track number.
•Press the number buttons while the disc is playing to select
a chapter or track number.
•To select number 3, press 3.
•To select number 10, press 1 and 0.
•To select number 37, press +10, +10, +10 and 7.
■Playing bonus groups of DVD-Audio
Some DVD-Audio may include an extra content called “Bonus
Group”.
If you select it to play, a display appears to enter a key
number. Press the number buttons on the remote control to
enter the key number.
When the number is entered correctly, playback of the bonus
group starts.
To get key numbers, refer to instruction note of discs.
Notes
•A key number may be called in some cases such as when
removing the disc. Enter the key number again if necessary.
•When you use a bonus group in a programmed play such as
memory playback, enter the key number beforehand.
3 Title 3 Chapter
Off 2 Time/ 2
Time + Frame*
SACD
DVD-Audio
3 Group 3 Track
Off 2
31
Using the MP3 Navigator
MP3 Navigator
Exit
Play
Folder
Current : 3 1-1
Track
1.TRACK1~1
2.TRACK2~2
3.TRACK3~3
4.TRACK4~4
1.FOLDER~1
2.FOLDER~2
3.FOLDER~3
4.FOLDER~4
5.FOLDER~5
6.FOLDER~6
MENUENTER
Del PGM
CLEAR
1~41~10
MP3 Navigator
Exit
Play
Folder
Current : 3 1-1
Track
1.TRACK1~1
2.TRACK2~2
3.TRACK3~3
4.TRACK4~4
1.FOLDER~1
2.FOLDER~2
3.FOLDER~3
4.FOLDER~4
5.FOLDER~5
6.FOLDER~6
MENUENTER
Total number of Track
Total number of Folder
■Navigate using the following controls
Cursor buttons (2/3) Select folder and tracks from the
current screen.
Cursor buttons (5/∞) Select the previous/next of folders
and tracks. To move rapidly up or
down a long list of folders or tracks,
press and hold the Cursor buttons
(5/∞).
ENTER Play the currently selected folder or
track. MP3 tracks that are unplayable
on this system are automatically
skipped and the display shows
“UNPLAYABLE MP3 FORMAT”.
Menu Exit the MP3 Navigator
Program Add the currently selected track to
the program list. (Tracks in the
program list are marked .)
Pressing Program repeatedly will add
the track to the program list
repeatedly.
See “Programming MP3s” on page
35 for how to use program play.
Clear Clear the currently selected track
from the program list.
Use the MP3 Navigator to make searching for the track(s) you
want to play easier. You can also use it to add or clear tracks
from the program list.
Load a CD-R/CD-RW containing
MP3 tracks.
Press Menu to enter the MP3
Navigator screen.
The left side of the screen shows a list of
folders containing MP3 tracks.
If you display the MP3 Navigator when a
disc is playing, the currently playing folder
and track numbers are shown at the top
left of the screen.
On the right side is a list of MP3 tracks
from the first title in the list.
1
2
RC-499DV
M
o
d
e
O
n
S
t
a
n
d
b
y
I
n
p
u
t
S
e
l
e
c
t
o
r
Audio SEL
Video Off
Display Dimmer
TV
/
VCR
Step/Slow Pause Step/ Slow
Muting
Enter
A-B Picture Cond M Function M
Speed
Surround
Random Program Clear
Repeat
--
/
---
VOL
C
H
L
i
g
h
t
Search
123
456
789
+10 0
A
u
d
i
o
A
n
g
l
e
T
o
p
M
e
n
u
M
e
n
u
R
e
t
u
r
n
S
e
t
u
p
M
DIM
DIS
A
RPT RND
PGM
CLR
A
-
B PIC C.M F.
M
D
V
D
T
V
V
C
R
R
C
V
R
S
u
b
t
t
l
L
a
s
t
M
T
V
.
V
C
R
/
2/3/5/∞ENTER
Menu
Search
Program Clear
Number
buttons
MP3
32
Repeating a Title, Group, Folder,
Chapter or Track
Repeat play of a chapter/track
DVD
MP3
Press Repeat once during playback
of the chapter or track you want to
repeat.
Repeat play of a title/group/folder
Press Repeat twice during playback
of the title you want to repeat.
Repeat play of a disc
Press Repeat twice during playback
of the disc you want to repeat.
Press Repeat three times during
playback of the disc you want to
repeat.
■To repeat a program
Press Repeat once during program playback to repeat the
program.
■To cancel repeat play
Press Clear. Playback continues, but the repeat function is
canceled.
You can repeat an entire title, group, folder, chapter or
track, or just a part.
Repeating a Specific Segment
Repeat play of a specified section
Press A–B at the beginning and end
of the section you want to repeat.
•When A–B is pressed a second time,
the disc returns to the location where
A–B was pressed first and plays the
selected section repeatedly.
•You can only perform A–B repeat within
the same title, chapter, or track.
Return to a specified location on a disc
1 Press A–B at the desired
location.
2 When you want to return to the
specified location, press £.
■To cancel A–B repeat play
Press Clear. Playback continues, but the repeat function is
canceled.
■To clear the specified location
Press Clear to cancel repeat play or to clear the specified
location that was set using A–B.
Notes
•Repeat of a specific section/Return to a specific section is
unavailable for SACD discs.
•With some DVD discs, there may be times when repeat playback
is not possible. In these cases, the mark will appear on the
screen.
•With Video CDs, repeat play is not possible when the menu is
displayed (PBC playback). To perform repeat play, start playback
without displaying a menu by pressing the track number to be
repeated when the disc is stopped, and then press Repeat.
•You cannot use A-B repeat when listening to an MP3.
•If you switch camera angle during repeat play, repeat play is
cancelled
Repeat Play
Repeat
RPT
A-B
A
-
B
RC-499DV
M
o
d
e
O
n
S
t
a
n
d
b
y
I
n
p
u
t
S
e
l
e
c
t
o
r
Audio SEL
Video Off
Display Dimmer
TV
/
VCR
Step/Slow Pause Step/ Slow
Muting
A-B Picture Cond M Function M
Speed
Surround
Random Program Clear
Repeat
VOL
C
H
L
i
g
h
t
123
456
A
u
d
i
o
A
n
g
l
e
T
o
p
M
e
n
u
M
e
n
u
R
e
t
u
r
n
S
e
t
u
p
M
DIM
DIS
A
RPT RND
PGM
CLR
A
-
B PIC C.M F.
M
D
V
D
T
V
V
C
R
R
C
V
R
S
u
b
t
t
l
L
a
s
t
M
T
V
.
V
C
R
/
Clear
A-B
Repeat
£
DVD VCD
CD
MP3
SACD
DVD VCD
CD
VCD
CD
MP3
SACD
33
Random playback of chapters within
one title or tracks within one group
Press Random once.
“Random Chapter” appears on the screen,
and chapters within the title will be played
back in random order.
Random playback of titles or groups
Press Random twice.
“Random Title” appears on the screen, and
titles will be played back in random order.
Random playback of tracks
Press Random.
“Random” appears on the screen, and
random playback begins.
Play titles, groups, chapters, or tracks on a disc in
random order.
■To change titles, chapters, or tracks during
random play
•Press ¢ or Random and the next randomly selected title,
chapter, or track starts playing.
•Press 4 and playback of the current title, chapter, or track
starts again from the beginning.
■To stop random play
Press Clear. This returns you to normal playback of chapters/
tracks in order from the chapter/track currently playing.
Notes
•With Video CDs, random play is not possible during playback
when the menu is displayed (PBC playback). To perform random
play, start playback without displaying a menu by pressing a track
number button while in the stop mode, and then press Random.
•Random play of programmed chapters/tracks is not possible.
•In the case of DVDs, random playback may not be possible with
some discs.
•Repeat playback of random playback is not possible. In these
cases, the mark will appear on the screen.
•Random playback for SACD is unavailable.
Playing in Random Order
Random Play
Random
RND
RC-499DV
M
o
d
e
O
n
S
t
a
n
d
b
y
I
n
p
u
t
S
e
l
e
c
t
o
r
Audio SEL
Video Off
Display Dimmer
TV
/
VCR
Step/Slow Pause Step/ Slow
Muting
A-B Picture Cond M Function M
Speed
Surround
Random Program Clear
Repeat
VOL
C
H
L
i
g
h
t
123
456
789
A
u
d
i
o
A
n
g
l
e
T
o
p
M
e
n
u
M
e
n
u
R
e
t
u
r
n
S
e
t
u
p
M
DIM
DIS
A
RPT RND
PGM
CLR
A
-
B PIC C.M F.
M
D
V
D
T
V
V
C
R
R
C
V
R
S
u
b
t
t
l
L
a
s
t
M
T
V
.
V
C
R
/
Clear
Random
DVD VCD
CD
MP3
34
A program with a maximum of 24 steps can be memorized.
Press Program.
The Program screen appears.
Exit
Move Play
Current: Title
Title
Program Memory Off
7
1
Chapter
(Chapter 1~18)
1
Program Chapter Program Title
PROGRAMENTER
Exit
Move Play
Current: Title
Program Memory Off
2(/20)
Program Chapter Program Title
PROGRAMENTER
PROGRAMENTER
Exit
Move Play
Current: Title
Title
Program Memory Off
7
1
Chapter
(Chapter 1~18)
1
Program Chapter Program Title
09 07 18
Exit
Move Play
Current: Title
Program Memory Off
2(/20)
Program Chapter Program Title
09 07 18
PROGRAMENTER
You can combine your favorite titles, groups, folders,
chapters or tracks and play them in any order.
■To program a pause in a program
Press instead of a number button.
“8” appears on the screen and the pause can be programmed.
A pause cannot be programmed as the first or last position in a
program, and two or more pauses cannot be programmed in
succession.
■To delete a number
Use the cursor buttons (5/∞/2/3) to highlight the incorrect
number and then press Clear.
The number is deleted. If the number was before another number,
the later numbers are reordered automatically.
■To insert a number
Use the cursor buttons (5/∞/2/3) to highlight the number to
be placed after the new number and then press the number
button(s) of the number to be inserted.
The new number is inserted before the previously selected number.
■To stop program play
Press 7.
Notes
•When programming chapters, chapters not programmed may
appear on the screen. This is not a malfunction.
•Programming may not be possible with certain DVD discs. On
these types of discs, the mark will appear on the screen when
programming is attempted.
•Only chapters within the same title can be programmed during
chapter programming.
•You cannot program while menu or top menu is displayed.
Use the cursor buttons (2/3) to
select either [Program Chapter] or
[Program Title].
Once the program type is selected.
Use the cursor button (∞) to enter
the program window.
When [Program Chapter] is selected, you
must also select what title the chapters to
be programmed are in. Use the cursor
button (5) to highlight [Title] and then use
the number buttons to enter the title
number to be used.
In the program window, use the
number buttons to enter the
numbers of the titles or chapters in
the order you want to program them
in.
•To program DVD titles/chapters 9, 7,
and 18 in order, press 9, 7, +10 and 8.
Programming DVDs
Playing in a Favorite Order
1
2
3
4
5
Program
PGM
--
/
---
123
456
789
+10 0
Press ENTER or £.
•Playback starts in the set order.
•Press Program to return to the previous
display. The program will not begin until
£ is pressed.
DVD
35
A program with a maximum of 24 steps can be memorized.
Press Program to enter the
[MP3 Program] screen.
If you added tracks to the program list from
the “Using the MP3 navigator” on page 31,
the tracks are displayed here.
ENTER PROGRAM
MP3 Program
Exit
PlayMove
Folder : 001~25
– – –:– – –– – –:– – –– – –:– – –– – –:– – –
– – –:– – –– – –:– – –– – –:– – –– – –:– – –
– – –:– – –– – –:– – –– – –:– – –– – –:– – –
– – –:– – –– – –:– – –– – –:– – –– – –:– – –
– – –:– – –– – –:– – –– – –:– – –– – –:– – –
– – – – – – – – : – – – – – – – –
Total number of folder and track
Folder name Track name
ENTER PROGRAM
MP3 Program
Exit
PlayMove
Track 001~10
001:– – –– – –:– – –– – –:– – –– – –:– – –
– – –:– – –– – –:– – –– – –:– – –– – –:– – –
– – –:– – –– – –:– – –– – –:– – –– – –:– – –
– – –:– – –– – –:– – –– – –:– – –– – –:– – –
– – –:– – –– – –:– – –– – –:– – –– – –:– – –
FOLDER1~ : – – – – – – – –
From this screen you can enter folder and
track numbers directly to build up a
program list.
Use the number buttons to enter a
three-digit folder number.
The number of folders on the disc is
displayed in the top-left of the screen.
Once you’ve entered a valid folder number,
the name of the folder appears.
Press ENTER.
The list will begin playback in the
programmed order.
Press Program to exit the [MP3 Program]
list with out playback.
Note
You can also use the MP3 Navigator to program tracks (page 31).
■Navigate using the following controls
Cursor button Navigate the program list.
Clear Clear the currently selected item in the
program list.
ENTER Start playing the program list.
Program Exit the [MP3 Program] screen.
Programming MP3s
1
2
3
Program
PGM
--
/
---
123
456
789
+10 0
RC-499DV
M
o
d
e
O
n
S
t
a
n
d
b
y
I
n
p
u
t
S
e
l
e
c
t
o
r
Audio SEL
Video Off
Display Dimmer
TV
/
VCR
Step/Slow Pause Step/ Slow
Muting
Enter
A-B Picture Cond M Function M
Speed
Surround
Random Program Clear
Repeat
--
/
---
VOL
C
H
L
i
g
h
t
Search
123
456
789
+10 0
A
u
d
i
o
A
n
g
l
e
T
o
p
M
e
n
u
M
e
n
u
R
e
t
u
r
n
S
e
t
u
p
M
DIM
DIS
A
RPT RND
PGM
CLR
A
-
B PIC C.M F.
M
D
V
D
T
V
V
C
R
R
C
V
R
S
u
b
t
t
l
L
a
s
t
M
T
V
.
V
C
R
/
2/3/5/∞Enter
Program
£
Clear
MP3
Number
buttons
36
A program with a maximum of 24 steps can be memorized.
Press Program.
The program screen appears. When a
SACD, Video CD or CD is loaded, the
cursor appears in the program window.
Exit
Move Play
Current: Track
Total Time
1(/10)
0.00
Program Track
PROGRAMENTER
Use the number buttons to enter the
numbers of the tracks in the order
you want to program them in.
•To program tracks 9, 7, and 18 in order,
press 9, 7, +10 and 8.
•To edit the program, refer to the
procedures on the previous page.
Press ENTER or £.
•Playback starts in the specified track
order.
•To stop the program play, press 7.
Notes
•To program a pause, or to add or delete a number, refer to the
procedures for “Programming DVDs” on page 34.
•You cannot program when playing a Video CD using menu
selections (during PBC).
•You cannot program SACD tracks numbered greater than 100.
Programming SACDs, Video CDs, CDs Additional programming options
1
2
3
--
/
---
123
456
789
+10 0
Program
PGM
VCD
CD
DVD VCD
CD
MP3
SACD
Playing in a Favorite Order
SACD
After you have made a program, it is then possible to confirm,
add, or clear the contents of the program.
■To confirm the contents of a program
On a CD or Video CD track program, press Program to
confirm.
The program screen displays the current program.
On a DVD, select the program type (title, group, chapter or
track) with the cursor buttons (2/3).
The current DVD title, group, chapter or track program can then be
confirmed on the appropriate program screen.
■To add to a program
1 Press Program.
2 Press a number button to add a new title, group, chapter, or
track at the end of the program.
3 Press Program to exit the program screen.
■To delete a program
1 Press Program.
2 Select the program with the cursor buttons (2/3), then
press Clear.
3 Press Program to exit the program screen.
Notes
•The complete program will be deleted even if the disc tray is open
or power off (standby).
•Pressing Clear when the disc is stopped will clear all programs.
DPS8.3.E.29-45.p65 02.9.12, 11:45 AM36
37
■To add a title/group/chapter/track to a
program
Press and hold Program for about 2 seconds.
The current title/group/chapter/track number appears on-screen
together with the program step number. If there isn’t already a
program then a new one will be created.
■To save a program in memory
This player can memorize the programs on up to 24 DVD-Video
discs. By turning the [Program Memory] to [On], the player will save
your program and recall it the next time you use the same DVD.
When the program memory exceeds 24, programs will be erased in
chronological order from the oldest program in memory.
1 Use the cursor button (∞) to highlight [Program Memory]
and use the cursor button (3) to select [On].
Chapter 07 3 Program 03
■To confirm the contents of a program
Press Program.
Notes
•When using this function to program DVDs, the program being
created corresponds to the Program screen (chapter or title) that
appears when Program is pressed. Be sure to check that the
appropriate program type is selected.
•You cannot make a program containing chapters in different titles.
2 Press ENTER.
The program is saved in memory.
Note
When a DVD with a program stored in memory is loaded, program
playback may start automatically.
■To erase a program saved in memory
The player erases programs in chronological order when the
maximum number of programs that can be held in memory is
exceeded. To prevent the player from erasing older programs that
you may still use regularly, or when you don’t want to use a program
anymore, it is possible to manually erase programs stored in
memory.
1 Load a DVD that has a program stored in memory.
2 Press Program.
The program screen appears.
3 Use the cursor button (∞) to highlight [Program Memory]
and use the cursor buttons (3/∞) to select [Off].
4 Press ENTER.
The program is cleared from memory.
RC-499DV
M
o
d
e
O
n
S
t
a
n
d
b
y
I
n
p
u
t
S
e
l
e
c
t
o
r
Audio SEL
Video Off
Display Dimmer
TV
/
VCR
Step/Slow Pause Step/ Slow
Muting
Enter
A-B Picture Cond M Function M
Speed
Surround
Random Program Clear
Repeat
--
/
---
VOL
C
H
L
i
g
h
t
Search
123
456
789
+10 0
A
u
d
i
o
A
n
g
l
e
T
o
p
M
e
n
u
M
e
n
u
R
e
t
u
r
n
S
e
t
u
p
M
DIM
DIS
A
RPT RND
PGM
CLR
A
-
B PIC C.M F.
M
D
V
D
T
V
V
C
R
R
C
V
R
S
u
b
t
t
l
L
a
s
t
M
T
V
.
V
C
R
/
2/3/5/∞Enter
Program
£
Clear
Number
buttons
38
You can select a camera angle when viewing DVDs with
the multi-angle option.
Press Angle during playback.
The camera angle changes each time you
press the button.
\
«
»
|
Angle : 1/4 Angle : 2/4
Angle : 3/4
Angle : 4/4
■To check whether or not a disc is recorded
with angles
The jacket of discs that are recorded with angles will be marked with
. When locations on discs that are recorded with angles are
played back, the indicator can be displayed.
To cancel the angle mark, set [Angle Indicator] to [Off] in the Setup
screen Video menu (page 56).
Notes
•You can use the Multi-Angle function only with discs featuring
recordings of images shot from different camera angles.
•During Multi-Angle playback, the indicator in the display
lights.
•For some discs, selection can be made using the DVD menu. In
this case, press Menu to display the DVD menu screen and then
make your selection.
•If you change the camera angle during still playback, the DVD
player resumes normal playback.
Viewing from a Desired Camera Angle (Multi-Angle)
Selecting the Camera Angle
RC-499DV
M
o
d
e
O
n
S
t
a
n
d
b
y
I
n
p
u
t
S
e
l
e
c
t
o
r
Audio SEL
Video Off
Display Dimmer
TV
/
VCR
Step/Slow Pause Step/ Slow
Muting
A-B Picture Cond M Function M
Speed
Surround
Random Program Clear
Repeat
VOL
C
H
L
i
g
h
t
123
456
A
u
d
i
o
A
n
g
l
e
T
o
p
M
e
n
u
M
e
n
u
R
e
t
u
r
n
S
e
t
u
p
M
DIM
DIS
A
RPT RND
PGM
CLR
A
-
BPIC C.M F.
M
D
V
D
T
V
V
C
R
R
C
V
R
S
u
b
t
t
l
L
a
s
t
M
T
V
.
V
C
R
/
Angle
DVD-V
39
Audio : 1 English
Dolby Digital
5.1CH Audio : 2 Spanish
HELLO
HOLA
Dolby Digital
5.1CH
Notes
•You cannot switch languages if there is only one language
recorded on the disc.
•Switching the audio language may not be possible with some
titles. In this case, the mark is displayed.
•For some titles, selection can be made using the DVD menu.
In these cases, press Menu to display the DVD menu screen and
then make your selection.
•
When you erase the resume position or replace a disc, the DVD
player returns to the automatic setting in the setting menu (page
57).
■Changing Audio Type
For enjoyment of karaoke or similar format Video CDs, CDs and
MP3s, it is possible to select stereo audio, or either right or left
channel mono depending on the requirements of the source.
Press Audio repeatedly during playback to switch the audio
type.
Audio output changes from [1/L] (Left channel) to
[2/R] (Right channel) to [Stereo].
Audio : 1/L Audio : 2/R
Audio : Stereo
Note
With karaoke and other discs, set the appropriate audio type for
singing and accompaniment after referring to information on the disc
jacket or accompanying material.
HELLO! HOLA!
Subtitle :1 English Subtitle :2 Spanish
Selecting a Subtitle Language
(Multi-Language Subtitles)
You can select a desired subtitle language with DVDs that
have subtitle data in multiple languages recorded on them.
Press Subttl (subtitle) repeatedly
during playback.
Pressing Subttl once displays the currently
selected subtitle language. Subsequent
presses rotates through the subtitle
languages available on the DVD.
Notes
•The subtitle language cannot be switched if the subtitle language
is not recorded, or if only one language is recorded.
•Switching the subtitle language may not be possible with some
discs. In this case, the mark will be displayed.
•To clear subtitles during playback, press Subttl and then press
Clear, or press Subttl until [Off] appears.
•For some discs, subtitle language selection can be made using
the menu on the DVD. In this case, press Menu to display the
DVD menu screen and then make your selection.
•
When you erase the resume position or replace a disc, the DVD
player returns to the automatic setting in the setting menu (page
58).
Selecting the Audio/
Subtitle Language
RC-499DV
M
o
d
e
O
n
S
t
a
n
d
b
y
I
n
p
u
t
S
e
l
e
c
t
o
r
Audio SEL
Video Off
Display Dimmer
TV
/
VCR
Step/Slow Pause Step/ Slow
Muting
A-B Picture Cond M Function M
Speed
Surround
Random Program Clear
Repeat
VOL
C
H
L
i
g
h
t
A
u
d
i
o
A
n
g
l
e
T
o
p
M
e
n
u
M
e
n
u
R
e
t
u
r
n
S
e
t
u
p
M
DIM
DIS
A
RPT RND
PGM
CLR
A
-
BPIC C.M F.
M
D
V
D
T
V
V
C
R
R
C
V
R
S
u
b
t
t
l
L
a
s
t
M
T
V
.
V
C
R
/
Audio Subttl
Clear
DVD-V
DVD-V
Changing the Audio Language
(Multi-Language Function)
Dolby Digital, PCM, and other audio data can be recorded on
DVDs in a number of languages or audio tracks, letting you
choose the desired language or audio.
Press Audio repeatedly to select the
desired language.
Pressing Audio once displays the currently
selected language. Subsequent presses
rotates through the audio languages
available on the DVD.
40
Memorizing a Last Memory location to
return to later
Press Last M during play.
The “LAST” indicator lights on the player
and “Last Memory” is displayed on the
screen.
Press Standby to turn the power to
standby, or stop playback with 7.
Once memorized, the memorized point will
be recalled even if the power is turned off,
or if the disc is ejected. Points on up to 5
discs can be memorized, and those points
are recalled the next time any of the discs
are played back.
•A Last Memory point can be memorized
for only one disc at a time as the
function is only effective until the Video
CD is removed from the player.
Continuing Playback from a
Specified Location (Last Memory)
The Last Memory function is convenient when you want
to continue viewing a disc from the point where you were
watching before. Unlike the resume function, the Last
Memory function is effective even if the DVD is removed
from the player (Last Memory locations saved for Video
CDs are effective only if the disc remains loaded in the
player).
Last Memory may not work reliably with some Video CDs
that feature PBC.
Resuming playback from where Last
Memory was pressed
Load a disc that has a Last Memory
point memorized.
Some DVDs will start playback
automatically when loaded. In this case,
press 7 to stop playback.
Press Last M while in the stop
mode.
The disc begins playback at the
memorized point.
•Last Memory mode may not function for
some DVDs.
•You can use Last Memory for up to five
discs (after that the one used least
recently is deleted to make space for a
new one).
•Even with a disc you have memorized
with Last Memory, playback begins at
the start of the disc if you press £.
•This function is for playback of DVDs or
Video CDs only. You cannot use it with
CDs and MP3s.
■To clear the Last Memory location
1 Load a disc that has a Last Memory point memorized.
Some DVDs will start playback automatically when loaded. In this
case, press 7 to stop playback.
2 Press Last M while in the stop mode.
The disc begins playback at the memorized point.
3 Once the picture appears, press Last M again.
4 While “Last Memory” is displayed on the screen, press
Clear. The “LAST” indicator disappears from the display.
1
2
1
2
RC-499DV
M
o
d
e
O
n
S
t
a
n
d
b
y
I
n
p
u
t
S
e
l
e
c
t
o
r
Audio SEL
Video Off
Display Dimmer
TV
/
VCR
Step/Slow Pause Step/ Slow
Muting
A-B Picture Cond M Function M
Speed
Surround
Random Program Clear
Repeat
VOL
C
H
L
i
g
h
t
A
u
d
i
o
A
n
g
l
e
T
o
p
M
e
n
u
M
e
n
u
R
e
t
u
r
n
S
e
t
u
p
M
DIM
DIS
A
RPT RND
PGM
CLR
A
-
BPICC.MF.
M
D
V
D
T
V
V
C
R
R
C
V
R
S
u
b
t
t
l
L
a
s
t
M
T
V
.
V
C
R
/
7
£
Standby
Last M
Clear
DVD-V
VCD
DVD-V
VCD
41
Memorizing Settings for Often
Viewed DVDs (Condition Memory)
You can store in memory settings for DVDs you often
watch. Settings remain in memory even if you remove the
disc from the player, or switch power to the player to
standby. If you load a disc that has its settings
memorized, “COND” appears in the display. When you
start playing the disc, the memorized settings are
automatically recalled.
■When a disc that has memorized settings is
loaded
“Condition Memory” will appear on the screen, and the
previously memorized settings will be selected.
■Erasing the recorded contents
Load a disc that has memorized settings, and press Clear
while “Condition Memory” is being displayed. The disc’s
recorded data will be erased.
Notes
•Settings are stored in memory for use any time.
•You can use Condition Memory for up to 15 discs (after that the
one used least recently is deleted to make space for a new one).
•If you make changes to any of the settings memorized in
Condition Memory, press Cond M during playback to memorize
new settings.
•Switching of the multi-language mode etc., is automatic on some
discs.
Memorizing Settings for DVDs
Press Cond M during playback.
Settings are memorized for the disc
currently playing.
The following six settings are memorized:
On Screen Display (page 56)
Video Adjust (page 54)
Multi-Angle (page 38)
Multi-language (pages 57)
Multi-Language subtitles (page 39, 58)
Parental Lock Level (page 61-62)
“Condition Memory” is displayed on
screen. “COND” illuminates in the display
to indicate that settings have been
memorized.
Cond M
C.M
RC-499DV
M
o
d
e
O
n
S
t
a
n
d
b
y
I
n
p
u
t
S
e
l
e
c
t
o
r
Audio SEL
Video Off
Display Dimmer
TV
/
VCR
Step/Slow Pause Step/ Slow
Muting
A-B Picture Cond M Function M
Speed
Surround
Random Program Clear
Repeat
VOL
C
H
L
i
g
h
t
123
456
789
A
u
d
i
o
A
n
g
l
e
T
o
p
M
e
n
u
M
e
n
u
R
e
t
u
r
n
S
e
t
u
p
M
DIM
DIS
A
RPT RND
PGM
CLR
A
-
BPICC.MF.
M
D
V
D
T
V
V
C
R
R
C
V
R
S
u
b
t
t
l
L
a
s
t
M
T
V
.
V
C
R
/
Cond M
Clear
DVD-V
42
Turning Off the Video Signal Output
The DVD Player can be set playing audio exclusively. In
this case, you can obtain sound of better quality, as the
DVD Player does not process video signals. (All the
video output jacks send no video signals.)
Notes
•Some discs cannot be played without some on-screen menu
interaction. If this is the case, be sure to perform the on-screen
procedures as indicated before turning off the video signal
processing circuitry.
•The Video Circuit Off setting is canceled whenever the DVD
Player is turned off.
Switching the video signal off
Press Video Circuit Off on the DVD
Player repeatedly.
The Video Circuit Off indicator lights up.
To turn on the video circuitry, press the
button again.
DVD-V
Video Circuit
Off
Setup
MenuTop Menu
Return
Push to Enter
Cursor
Display
Clear
Random
Last Memory
Repeat
PlayStop
Pause
Open
/Close
Standby/On
Standby
On O
f
f
Video Circuit
Off
Dimmer
Power
Phones Level
Phones
SACD
DVD
CD
Video Circuit Off
DPS-8.3
RC-499DV
M
o
d
e
O
n
S
t
a
n
d
b
y
I
n
p
u
t
S
e
l
e
c
t
o
r
Audio SEL
Video Off
Display Dimmer
TV
/
VCR
Step/Slow Pause Step/ Slow
Muting
A-B Picture Cond M Function M
Speed
Surround
Random Program Clear
Repeat
VOL
C
H
L
i
g
h
t
A
u
d
i
o
A
n
g
l
e
T
o
p
M
e
n
u
M
e
n
u
R
e
t
u
r
n
S
e
t
u
p
M
DIM
DIS
A
RPT RND
PGM
CLR
A
-
BPIC C.M F.
M
D
V
D
T
V
V
C
R
R
C
V
R
S
u
b
t
t
l
L
a
s
t
M
T
V
.
V
C
R
/
Video Off
43
Listening through Headphones
Listening through Headphones
Connect the plug of the stereo
headphones to the Phones jack on
the DVD player.
Adjusting the phones level
Turn the dial clockwise to increase
the phones level and
counterclockwise to decrease it.
You can connect stereo headphones to the DVD Player.
DVD VCD
CD
MP3
SACD
DVD VCD
CD
MP3
SACD
Phones jack
Phones
Phones Level
Setup
MenuTop Menu
Return
Push to Enter
Cursor
Display
Clear
Random
Last Memory
Repeat
PlayStop
Pause
Open
/Close
Standby/On
Standby
On O
f
f
Video Circuit
Off
Dimmer
Power
Phones Level
Phones
SACD
DVD
CD
Phones Level
DPS-8.3
Setup
MenuTop Menu
Return
Push to Enter
Cursor
Display
PlayStop
Pause
Open
/Close
Phones Level
Phones
DPS-8.3
44
Press Display during while a disc is
playing. Press Display repeatedly to
change the information being
displayed.
The disc information is displayed
superimposed over the video image on the
screen.
Press and hold Display to display
the time remaining on the disc.
When you release the button, the
information disappears.
The display changes for each type of disc as follows each time
the button is pressed.
DVD-Video
Play
Title
3–29 49.58
101.04–51.06/
Play
Chapter
3–32 54.53
1.510.21/
Play
Chapter
3–32 54.53
1.51–1.30/
Play
Tr. Rate:
3–32 54.53
6.3
«
«
«
«
current title/chapter number elapsed time of current title
current title/chapter number elapsed time of current title
remaining time of current title remaining total time of
current title
elapsed time of current chapter elapsed total time of
current chapter
current title/chapter number elapsed time of current title
remaining time of current chapter remaining total time of
current chapter
current title/chapter number elapsed time of current title
transmission rate level meter transmission rate level
Display off
Video CD (with PBC disabled)
Play
All
3/12 10.53
70.19–59.26/
Play
Track
3 10.53
5.233.56/
Play
Track
3 10.53
5.231.27/
«
«
«
current track number/
total number of tracks Video CD's total elapsed time
current track number Video CD's total elapsed time
Video CD's remaining time Video CD's total time
elapsed time of current track total time of current tracks
current track number Video CD's total elapsed time
remaining time of current track total time of current tracks
Display off
Viewing Disc Information
Use Display to get current information about the disc
currently loaded. You can get information about the titles
and chapters on a DVD-Video, groups and tracks on a
DVD-Audio or tracks on a SACD, Video CD or CD or
folders and tracks on a MP3. When viewing DVDs, you
can also check the digital bitstream transmission rate.
Viewing Disc Information during while a disc is playing
Display
DIS
DVD VCD
CD
MP3
SACD
Play
Track
1–1 1.19
2.18–0.59/
Play
Group
1–1 1.19
2.18–1.19/
Play
Tr. Rate:
1–1 1.19
8.9
«
«
«
current group/track number elapsed time of current track
current group/track number elapsed time of current track
remaining time of current track remaining total time of
current track
elapsed time of current track remaining total time of
current track
current group/track number elapsed time of current track
transmission rate level meter transmission rate level
Display off
DVD-Audio
Notes
•The transmission rate level displays the amount of picture
information recorded on DVDs. Higher amounts of transmission
data indicate higher amounts of picture information, but does not
necessarily mean a higher quality picture.
•If a 24 frame progressive video signal is programmed, it will be
displayed.
45
Viewing Disc Information during while
a disc is stopped
Press Display during while a disc is
stopped to display DVD title and
chapter information or Video CD
and CD track information or MP3
folder and track information. Press
Display again to turn the display off.
Information about the titles and chapters or
folders and tracks on a disc is displayed.
When the information exceeds the space
on the screen, use the cursor buttons
(2/3) to move to other screens.
MP3
Video CD, SACD
and CD
DISPLAY
Exit
Title Chapter Title Chapter
01 06
07
08
09
10
02
03
04
05
1 ~ 30
1 ~ 21
1 ~ 46
1 ~ 12
1 ~ 8
1 ~ 10
1 ~ 13
1 ~ 5
1 ~ 4
1 ~ 8
1/2
Information: DVD
Titles and number of chapters in each title
DISPLAY
Total time 72 . 04
Track Time Track Time
01 06
07
08
09
10
02
03
04
05
5 . 23
4 . 55
6 . 13
5 . 45
5 . 10
6 . 51
3 . 18
6 . 50
4 . 16
3 . 22
1/2
Information: Compact Disc
Exit
Total playing time of disc, tracks and track times
Exit
Folder
001
002
003
004
005
Folder
001
002
003
004
005
Track
1 ~ 10
1 ~ 13
1 ~ 5
1 ~ 4
1 ~ 8
Track
1 ~ 9
1 ~ 11
1 ~ 3
1 ~ 22
1 ~ 15
1/2
Information: MP3
Folders and number of tracks in each folder
DISPLAY
Play
Track
16/20 0.05
TRACK1~1
Play
Folder
2/10 0.05
FOLDER~1
Play
Track
2–16 0.05
2.30
–2.25
Play
Tr. Rate:
2–16 0.05
128kbps
«
«
«
«
current track number/
total number of tracks in folder
current folder number/
total number of folder
elapsed time of current track
elapsed time of current track
track name
folder name
current folder number/
current track number
current folder number/
current track number
elapsed time of current track
elapsed time of current track
remaining time of
current track
total time of
current track
transmission rate level
Display off
MP3
SACD/CD
Play
Track
3 0.03
3.32–3.29/
Play
All
1/10 1.13
66.32–66.20/
«
«
current track number elapsed time of current track
current track number current total time of tracks
remaining time of current track remaining total time of
current tracks
CD's remaining time CD's total time
Display off
Notes
•Depending on the format and type of disc being used, not all
screens may be displayed.
•When playing Video CDs in PBC mode or unfinalized CD-Rs not
all the above information is displayed.
DVD-Video
Display
DIS
RC-499DV
M
o
d
e
O
n
S
t
a
n
d
b
y
I
n
p
u
t
S
e
l
e
c
t
o
r
Audio SEL
Video Off
Display Dimmer
TV
/
VCR
Step/Slow Pause Step/ Slow
Muting
A-B Picture Cond M Function M
Speed
Surround
Random Program Clear
Repeat
VOL
C
H
L
i
g
h
t
A
u
d
i
o
A
n
g
l
e
T
o
p
M
e
n
u
M
e
n
u
R
e
t
u
r
n
S
e
t
u
p
M
DIM
DIS
A
RPT RND
PGM
CLR
A
-
B PIC C.M F.
M
D
V
D
T
V
V
C
R
R
C
V
R
S
u
b
t
t
l
L
a
s
t
M
T
V
.
V
C
R
/
3
Display Dimmer
DVD VCD
CD
MP3
SACD
■Using Dimmer function
Press Dimmer to change the display brightness.
Each time Dimmer is pressed, the display brightness of the unit
changes as shown below.
Normal → Dim → Very Dim → Display Off → Normal
While the display is off, if you perform a button operation, the display
momentarily switches to Very Dim.
DVD-Audio
DISPLAY
Exit
Group Track Group Track
01 06
07
08
09
02
03
04
05
1 ~ 1
1 ~ 1
1 ~ 1
1 ~ 1
1 ~ 1
1 ~ 1
1 ~ 1
1 ~ 1
1 ~ 4
1/1
Information: DVD
Groups and number of tracks in each group
Before inputting the key number, the bonus
group will be displayed in gray.
46
Use the cursor buttons (5/∞) to
select the setting you want to
change.
The options available for each setting
appear to the right when the setting is
selected. The current setting appears with
the setting indicator lit.
Example
Adjusting Audio and Video Settings
SETUP
—
—
—
—
—
V2Video1 General
A2 Language
Exit
Move
Audio DRC
Dolby Digital Out
DTS Out
Linear PCM Out
MPEG Out
Digital Out
SACD Playback
Audio1
Off
On
DTS 3 PCM
Down Sample On
MPEG 3 PCM
On
2ch Area
Example
—
—
—
—
—
V2Video1 General
A2 Language
Exit
Move
Audio DRC
Dolby Digital Out
DTS Out
Linear PCM Out
MPEG Out
Digital Out
SACD Playback
Audio1
Off
Dolby Digital
Dolby Digital 3PCM
Down Sample On
MPEG 3 PCM
On
2ch Area
SETUP
The procedure on this page describes how to operate the
menus on the Setup screen. These menus are used to set
and adjust a number of system settings. The various
functions that can be adjusted are covered throughout
this manual. The procedure on this page provides a basic
outline for using the Setup screen menus.
Use the cursor buttons (2/3) to
select the menu you want.
As each menu is selected with the cursor,
the settings appear below the menu
heading.
Use the cursor buttons (∞) to enter
the menu.
The top item within the menu becomes
highlighted.
Use the cursor buttons (3) to enter
the setting options.
•Not all menu options can be changed
while a disc is playing. In these cases,
the options appear grayed out on the
screen and cannot be adjusted. To
change these settings, press 7 first
before pressing Setup.
•Operating the menu after pressing 7
may cancel the resume function.
•Some menu options are not immediately
effective if set while a disc is playing.
To make these settings effective, stop
playback and then start again, or
change the settings while the disc is
stopped.
Use the cursor buttons (5/∞) to
select a new setting and press
ENTER to set the new setting in
memory.
Press Return or the cursor button
(2) to exit the options without
making any changes.
Press Setup to close the Setup
screen.
The Setup screen closes.
Using the Setup Screen Menus
Press On (Standby/On on the front
panel).
Press Setup.
The Setup screen appears.
1
2
3
4
5
6
7
8
9
R
r
Function Setup
Example
47
Changing to the Setup Screen “Expert”
Menu Mode
The Setup screen menus are divided into two levels, [Basic]
and [Expert], to make this unit more convenient to operate for
different levels of users. The [Basic] menu mode contains
functions that may be considered necessary for the basic
operations of this player and helpful on-screen information
identified by the i mark. The [Expert] menu mode adds to the
[Basic] menu mode additional functions of the player that can
be adjusted to further personalize performance of the player.
In this manual, functions that are contained in the [Expert]
menu mode are identified by the
Expert
icon.
Make changes to the [Setup Menu Mode] setting in the Setup
screen General menu.
Color of indicator Disc format(s)
Blue DVD only
All compatible formats
SACD/DVD-Audio/CD
Green
Orange
■When setting up for the first time
It is recommended to set up player using the Setup Navigator
(page 22). If you selected [Auto Start Off] when the Setup
Navigator appeared, you may still set up the player using the
Setup Navigator in the General menu screen.
If you choose not to use the Setup Navigator, be sure to make
the necessary settings in the Setup screen Audio 1, Audio 2,
Video 1, Video 2 and Language menus as described on the
following pages.
Some DVDs start playing automatically when loaded in the
player. If a DVD has been loaded, be sure to press 7 before
proceeding.
Note
The next time you press Setup, you’ll see the menu screen that you
exited from last time.
■How to interpret the setting indicator colors
in the Setup screen menus
When setting up the system, or when making adjustments, it is
convenient to know what settings are applicable to the
different disc formats. When the settings appear for each
menu option, the currently selected setting appears with the
setting indicator highlighted in one of three colors: blue,
orange or yellow. These colors correspond to what formats the
menu option effects as shown in the table below.
Notes
• If a setting applicable only to DVDs is changed while a SACD,
Video CD or CD is loaded, a blue DVD icon appears in the upper
right hand corner of the screen to indicate that the setting is not
applicable to the currently loaded disc. The setting will be
effective the next time a DVD is loaded.
• If you turn off the DVD player during setup, the settings are
canceled. Press Setup to finish the setup.
• The memorized resume position may be erased by setup.
• The Setup screen always shows the latest settings.
Settings: Expert (Factory setting)
Basic
Note
On-screen information only appears in the [Basic] menu mode.
RC-499DV
M
o
d
e
O
n
S
t
a
n
d
b
y
I
n
p
u
t
S
e
l
e
c
t
o
r
Audio SEL
Video Off
Display Dimmer
TV
/
VCR
Step/Slow Pause Step/ Slow
Muting
A-B Picture Cond M Function M
Speed
Surround
Random Program Clear
Repeat
VOL
C
H
L
i
g
h
t
A
u
d
i
o
A
n
g
l
e
T
o
p
M
e
n
u
M
e
n
u
R
e
t
u
r
n
S
e
t
u
p
M
DIM
DIS
A
RPT RND
PGM
CLR
A
-
B PIC C.M F.
M
D
V
D
T
V
V
C
R
R
C
V
R
S
u
b
t
t
l
L
a
s
t
M
T
V
.
V
C
R
/
2/3/5/∞ENTER
Setup
Yellow DVD/Video CD
DPS8.3.E.46-64.p65 02.9.12, 11:46 AM47
48
This player is capable of digital audio output for Dolby Digital,
DTS, MPEG, and signals with a sampling rate of 96 kHz.
Make settings in the Setup screen Audio menu to reflect the
capabilities of the components that you have made digital
connections to.
Notes
•If you have already completed the Setup Navigator screen
operations, the settings on this page have already been set by
the player.
•If you have made only stereo line connections (analog) using the
supplied audio cord, it is not necessary to make any changes in
this menu.
■Dolby Digital Out
This player is capable of outputting the Dolby Digital surround
sound audio signal. If the player is connected to an AV
component that has a built-in Dolby Digital decoder, select
[Dolby Digital]. This player can also convert the Dolby Digital
signal to a digital Linear PCM signal, the same digital signal
output from a CD. Select [Dolby Digital 3 PCM] if you have
made connections to an amplifier or receiver with a Dolby Pro
Logic decoder or a Digital Analog Converter (DAC).
Adjusting the Dynamic Range of the
Audio Soundtrack
Audio DRC stands for Audio Dynamic Range Compression.
When [Audio DRC] is [On], soft sounds such as dialog can be
heard more clearly without making loud sounds even louder.
When [Audio DRC] is set to [Off], there is no effect on the
audio source.
Make changes to the [Audio DRC] setting in the Setup screen
Audio menu.
SETUP
—
—
—
—
—
V2Video1 General
A2 Language
Exit
Move
Audio DRC
Dolby Digital Out
DTS Out
Linear PCM Out
MPEG Out
Digital Out
SACD Playback
Audio1
Off
On
DTS 3 PCM
Down Sample On
MPEG 3 PCM
On
2ch Area
Settings: Off (Factory setting)
On
Notes
•Audio DRC is only effective with Dolby Digital audio sources.
•The level of Audio DRC may differ depending on the DVD.
•If you have set the [Dolby Digital Out] to [PCM] and the [Digital
Out] setting to [On], the Audio DRC effect is output through the
digital out jack.
•The effect of Audio DRC depends on your speakers and AV
amplifier settings.
Settings: Dolby Digital (Factory setting)
Dolby Digital 3 PCM
Setting the Audio 1 Options
Adjusting Audio and Video Settings
49
■DTS Out
This player is capable of outputting DTS digital audio for DVDs
recorded in DTS. If this player is connected to an AV
component that has a built-in DTS decoder, select [DTS]. If
your system is not equipped to decode DTS, select [DTS 3
PCM]. Refer to the operating instructions supplied with your
audio components if you are unsure about compatibility with
DTS.
—
—
—
—
—
—
V2Video1 General
A2 Language
Exit
Move
Audio DRC
Dolby Digital Out
DTS Out
Linear PCM Out
MPEG Out
Digital Out
SACD Playback
Audio1
Off
Dolby Digital
DTS
DTS3 PCM
MPEG 3 PCM
On
2ch Area
SETUP
—
—
—
—
—
—
V2Video1 General
A2 Language
Exit
Move
Audio DRC
Dolby Digital Out
DTS Out
Linear PCM Out
MPEG Out
Digital Out
SACD Playback
Audio1
Off
Dolby Digital
DTS 3 PCM
Down Sample On
Down Sample Off
On
2ch Area
SETUP
■MPEG Out
This player is capable of outputting the MPEG digital
bitstream. If the player is connected to an AV component that
has a built-in MPEG decoder, select the [MPEG] setting.
Otherwise, select [MPEG 3 PCM] to convert the digital signal
to the PCM signal, (the digital signal output from a CD).
Settings: DTS
DTS 3 PCM (Factory setting)
Note
If you have made digital audio connections to component(s) not
equipped to decode the DTS digital bitstream, be sure to select [DTS
3 PCM]. DTS signals are converted to Linear PCM signals then
output. If a DTS signal is output without decoding, the output is
digital noise that could potentially cause damage to your speakers.
Settings: Down Sample On (Factory setting)
Down Sample Off
Notes
•On DVDs that contain copy protection, the 96 kHz signal may
only be output from the analog audio jacks.
•Even when set to [Down Sample Off], some discs will be down
mixed to 48 kHz/44.1 kHz and not output digitally.
•High sampling rate DVD audio discs (192 kHz or 176.4 kHz)
always output audio down sampled to 96 kHz or 88.2 kHz through
digital outputs.
Settings: MPEG
MPEG 3 PCM (Factory setting)
■Linear PCM Out
If your AV amplifier (or other connected component) is
compatible with high sampling rates (96 kHz), set this to
[Down Sample Off], otherwise set it to [Down Sample On]
(96 kHz audio is converted to a more compatible 48 kHz/
44.1kHz). Check the manual that came with the other
component if you’re unsure whether it is 96 kHz compatible.
■Digital Out
Expert
Depending on your preferences and the type of connections
made, you may opt not to have the digital audio signal output
at all. When this setting is set to [Off] there is no signal output
from the digital audio output jacks.
Make changes to the [Digital Out] setting in the Setup screen
Audio menu in the [Expert] menu mode (page 47).
Note
•DVD audio does not allow for downmixing. In this case, digital
audio will not be output.
Settings: On (Factory setting)
Off
Note
You cannot output SACD audio digitally.
DPS8.3.E.46-64.p65 02.9.12, 11:46 AM49
50
Setting the Audio 2 Options
■Audio Out
If you connected this player to your amplifier using the 5.1
channel analog outputs (front, surround, center and subwoofer
outs), set this to [5.1 Channel]; if you connected only the
stereo outs, set to [2 Channel].
■Speaker Setting
You only need to make this setting if you connected this player
to your amplifier using the 5.1 channel analog outputs.
Follow the on-screen displays to describe which speakers are
in your system and their sizes and positions.
Set the size of your speakers in the Size screen. The front left/
right (L/R) speakers have a fixed setting of [Large]. The center
(C), left surround (LS) and right surround (RS) speakers can
each be set to [Large], [Small] or [Off]. Set a speaker to
[Large] if the main speaker cone is 12 cm or more; set to
[Small] if the it’s less than 12 cm. Note that the LS and RS
speakers cannot be set independently.
The subwoofer (SW) can only be set to [On] or [Off].
The graphic on the right of the screen represents your speaker
setup, with the currently selected speaker’s name highlighted
in blue, and the speakers set to [On] highlighted in yellow.
Set the distance from your main listening position to each
speaker in the [Distance] screen. The distance setting for any
speaker that was set to [Off] in the [Size] screen will be grayed
out. For the other speakers, enter the distance to the nearest
0.1m (10cm). You can set the distance for the L/R speakers
between 0.3m and 9m. Note that you must set the C and SW
speakers within 2m of the L/R setting. The LS and RS
speakers must be set within –6m and +2m of the L/R setting.
The graphic on the right of the screen represents your speaker
setup, with the currently selected speaker’s name highlighted
in blue, and the speakers set to [On] highlighted in yellow.
Settings: 2 Channel (Factory setting)
5.1 Channel
Notes
• Even if you set [Audio Out] to [5.1 Channel], you’ll only get sound
from all speakers when playing a multi-channel DVD-Audio disc,
SACD or Dolby Digital, DTS or MPEG encoded DVD disc.
• If you set to 2 Channel, Dolby Digital, DTS and MPEG audio is
mixed down to two channels so you still hear all the audio
recorded on the disc.
• Some DVD-Audio discs don’t allow down-mixing of audio. These
discs always output multi-channel audio regardless of the setting
made here.
—
—
Audio2 Video1 Language General
A1 V2
Exit
Move
Audio Out
Speaker Setting
Gain Setting
CD Digital Direct
2 Channel
5.1 Channel
Fix
Off
SETUP
—
—
—
—
Audio2 Video1 Language General
A1 V2
Exit
Move
Audio Out
Speaker Setting
Gain Setting
CD Digital Direct
2 Channel
Start
Fix
Off
SETUP
Select
ENTER
Exit
Select
Distance
Return
Audio2 Video1 Language General
A1 V2
Speaker Setting
L/R
C
LS
RS
SW
Size
—Large
—Large
—Large
—Large
—On
LRC
SW
LS RS
SETUPENTER
Factory Settings: Center: Large
Subwoofer: On
Surround: Large
Distance: All 10FT (USA models only)
All 3.0m (Other than USA
models)
Notes
•When the subwoofer (SW) is set to on, the LFE (low frequency
effect) signals are input from the subwoofer.
•When listening to a DVD audio source, the C, LS, and RS
speakers will automatically be set to the [Large] size setting.
However, the sound will not be affected by the change. Listening
to another source will return the speakers to their original
settings.
•For DVD-Audio only, if the C, LS, or RS speakers is set to [Off],
the audio is automatically downmixed to stereo unless the DVD
audio software does not permit down mixing.
•The distance setting is unavailable for SACD discs.
Adjusting Audio and Video Settings
■SACD Playback
Expert
SACD discs can be divided up into several different areas
stereo audio, 5.1 channel audio, and, (for hybrid SACDs),
standard CD audio. The SACD Playback setting enables you
to select which area of the disc you want to play.
Note
If you select an area that isn’t on the disc loaded, a different area of
the disc will play. For example, if you choose standard CD audio but
the disc loaded is not a hybrid SACD, the stereo audio will play.
Settings: 2ch Area (Factory setting)
Playback of the 2 channel area.
Multi-ch Area
Playback of the multi-channel area.
Set Audio Out to 5.1 Channel for multi-channel
playback (see below).
CD Area
Playback of the CD layer.
—
—
—
—
V2Video1 General
A2 Language
Exit
Move
Audio DRC
Dolby Digital Out
DTS Out
Linear PCM Out
MPEG Out
Digital Out
SACD Playback
Audio1
Off
Dolby Digital
DTS 3PCM
Down Sample On
2ch Area
Multi-ch Area
CD Area
SETUP
Setting the Audio 1 Options
51
■Gain Settings
Expert
You may want to make this setting if you connected this player
to your amplifier using the 5.1 channel analog outputs.
Under the default setting, all channels are output at the
relative volumes they were recorded at. Change the setting to
[Variable] if you want to adjust the relative volume levels of
any of the speakers. Adjustment is in the range of –6dB to
+6dB, in steps of 0.5dB.
When set to [Variable], the overall output level may sound
quieter than when set to [Fix]. This is not a malfunction.
—
—
Audio2 Video1 Language General
A1 V2
Exit
Move SETUP
Select
ENTER
Audio Out
Speaker Setting
Gain Setting
CD Digital Direct
2 Channel
Fix
Variable
Settings: Fix (Factory setting)
Variable
Notes
•Gain settings are not effective when playing a CD with CD Digital
Direct set to [On].
•When set to [Variable], the overall output level is set to –6.0dB.
Adjust the relative volume levels of [C (center)], [LS (left
surround)], [RS (right surround)], and [SW (subwoofer)] in the
range of –6.0dB to +6.0dB from the value. The maximum output
level (+6.0dB) which is set to [Variable] is same as the output
level when set to [Fix].
Therefore, when set to [Variable], the output level sounds quieter
than the output level when set to [Fix], in almost all cases.
When Variable is selected, the following screen appears:
Press the cursor button (3) to display the Test Tone screen.
■CD Digital Direct
Expert
Setting this to [On] increases CD audio quality by bypassing
certain audio circuits in the player that audio signal would
otherwise pass through. However, this must be set to [Off] for
proper playback of DTS encoded CDs.
Settings: On
Off (Factory setting)
Note
If this setting is set to [On] when a DTS CD is playback, noise is
produced.
Exit
Select
Gain
Return
Audio2 Video1 Language General
A1 V2
L
C
R
RS
LS
SW
Test Tone
—Off
—Off
—Off
—Off
—Off
—Off
L R
SW
LS RS
SETUPENTER
RETURN
Exit
Select
Test Tone
Return
Audio2 Video1 Language General
A1 V2
L
C
R
RS
LS
SW
Gain Setting
—0.0 dB
—0.0 dB
—0.0 dB
—0.0 dB
—0.0 dB
—0.0 dB
L R
SW
LS RS
SETUPENTER
RETURN
To help you gauge the correct gain levels, set the [Test Tone]
to [On] (test tone from just that speaker) or [Auto] (test tone
from each speaker in turn, excluding the subwoofer) then
adjust the gain so that all speakers appear to be the same
volume from your listening position.
Follow the on-screen displays to select speakers and set the
channel levels.
Press the cursor (5) to select [Test Tone], then press the left
cursor button (2) to select the Gain Settings.
•You can adjust the [Test Tone] setting only when the player
is stopped.
•Many AV amplifiers allow you to make similar settings at the
amplifier stage. In this case, set the channel levels at the
player or the amplifier, not both.
•As the test tone plays through a speaker, its name is
highlighted in yellow on-screen.
Note
You can't use the test tone function when the Audio Out setting is 2
Channel (see page 50). The test tone will not work with the disc tray
open, or while a disc is playing.
52
The width-to-height ratio of conventional TVs is 4:3, while the
width-to-height ratio of wide screen and high-definition TVs is
16:9. This width-to-height ratio is called the aspect ratio.
When viewing software recorded in different aspect ratios, the
image’s height to width ratio can be switched to match the TV
or monitor being used.
Make changes to the TV screen size in the [TV Screen] setting
in the Setup screen Video 1 menu. Please note that changes
to the [TV Screen] setting cannot be made when a disc is
playing. Stop playback of the disc before attempting to make
any changes.
When viewing a wide screen TV or monitor
Standard screen format DVD
When viewing a standard screen
format DVD on a wide screen
TV, black bars may be
automatically placed at the side
of the screen to adjust to the
DVD format.
“Wide” setting
Wide screen format DVD
Please note that there are some
wide screen letter box formats
that place black bars at the top
and bottom of the screen. This is
not a malfunction.
“Wide” setting
“Wide” setting
Standard screen format DVD
(unnatural stretched effect)
If you are viewing a standard
screen format DVD on a wide
screen TV, the picture may
appear ‘stretched’ on the
screen. To remedy this
condition, change your wide
screen TV to display a standard
(4:3) screen. Refer to the
instructions supplied with your
wide screen TV or monitor for
more information.
DVD screen size format
Setting and Appearance
Standard screen format DVD
If you have a standard TV, the
standard screen format will be
presented regardless of the
setting.
When viewing a standard size TV or monitor
Wide screen format DVD
The Pan & Scan presentation
crops both sides of the wide
screen presentation to use the
full standard TV screen.
“Letter Box” setting
Wide screen format DVD
The Letter box presentation
places black bars at the top and
bottom portions of the screen to
provide the full wide screen
presentation of a movie on a
standard TV (4:3 aspect ratio).
“Pan & Scan” setting
Any setting
Wide screen format DVD
(unnatural squeezed effect)
If you are viewing a wide screen
format DVD on a standard TV
and the [TV Screen] setting is
set to [16:9 (Wide)], the picture
may appear ‘squeezed’ on the
screen. To remedy this
condition, select either [4:3
(Letter Box)] or [4:3 (Pan &
Scan)].
Setting and Appearance
“Wide” setting
DVD screen size format
—
—
Audio1 Video1 Language General
A2 V2
Exit
Move
TV Screen
Component
S-Viveo Out
Frame Search
Screen Saver
4:3(Letter Box)
4:3(Pan&Scan)
16:9(Wide)
16:9(Compressed)
Off
SETUP
Settings: 4:3 (Letter Box)
4:3 (Pan & Scan)
16:9 (Wide) (Factory setting)
16:9 (Compressed)
Notes
•If [Standard (4:3)] is selected in the Setup Navigator screen,
[4:3 (Letter Box)] is selected on this screen. If you prefer the
pan & scan format, change the settings on this screen.
•Whether the aspect can be switched or not depends on the disc.
Please refer to the information written on the disc jacket, etc.
•Some discs may not include the screen format selected in the [TV
Screen] setting. When this occurs, the standard TV screen format
available on the disc is automatically selected.
•If your TV doesn’t have settings to change the aspect ratio of the
picture, set this player to [16:9 (Compressed)].
■Differences in screen sizes and DVD
formats
The number of screen size formats currently available can be
somewhat confusing. If set incorrectly, the video presentation
may not appear as it should. The following diagrams and
descriptions are intended to help you set your TV screen size
in a way that will allow you to fully enjoy the digital video of
DVD.
The settings in the [TV Screen] setting are perhaps most
applicable when the DVD you are watching is programmed in
the wide screen format. If you have a standard TV, select
either [4:3 (Letter Box)] or [4:3 (Pan & Scan)] based on your
personal preference. If you have a wide screen TV, select
[16:9 (Wide)].
Setting the TV Screen Size
Adjusting Audio and Video Settings
Wide screen format DVD
If your TV does not have
settings for how 4:3 sources
look, choose the [16:9
(Compressed)] setting.
“Compressed” setting
53
—
—
—
Audio1 Video1 Language General
A2 V2
Exit
Move
TV Screen
Component Video
S-Video Out
Frame Search
Screen Saver
16:9(Wide
)
Interlaced
S1
S2
Off
SETUP
Settings: S1
S2 (Factory Setting)
■Turning the Screen Saver On and Off
Expert
As a protective function against residual images on the TV
screen or monitor, a phenomenon referred to as “screen burn”,
the screen saver appears when the same screen has been
displayed for a length of time. By default, the screen saver is
turned on. However, the screen saver function can be turned
on and off at your discretion.
Make changes to the [Screen Saver] setting in the Setup
screen [Video 1] menu in the [Expert] menu mode (page 47).
Settings: On
Off (Factory setting)
Note
Pressing 8(or £ ) displays a playback screen, and pressing 8
(or £ ) again resumes playback.
■Switching the S-Video Output
Expert
You can switch the kind of S-Video signal output from the
S-Video outputs. If you connected your TV with an S-Video
cord, in rare cases the TV picture may appear stretched. In
this case switch the output from [S2] to [S1].
Make changes in the [S-Video Out] in the Setup screen [Video
1] menu in the [Expert] menu mode (page 47).
■Component Video
Compared to a standard interlaced TV picture, a progressive
scan TV is capable of stable, flicker-free images.
Set only if you connected the COMPONENT VIDEO OUT to a
progressive-scan compatible TV or monitor.
Make changes to the [Component Video] settings in the setup
screen [Video 1] menu.
—
—
—
Audio1 Video1 Language General
A2 V2
Exit
Move
TV Screen
Component Video
Video Out
S-Video Out
Frame Search
Screen Saver
16:9(Wide
)
Progressive
Interlace
S2
Off
Off
SETUP
•Progressive – Use this setting with TVs and monitors that have
progressive scan component video inputs. Check the TV’s
instruction manual if you are not sure about this.
•Interlace – (factory setting) use this setting with regular TVs that
are not compatible with progressive scan. Check the TV’s
instruction manual if you are not sure about this.
Notes
•This function only works when the color system recorded on the
disc is NTSC.
•If this player is set to output progressive-scan video, it’s possible
that the picture will appear stretched when playing discs recorded
in 4:3 format. This happens when the TV’s aspect ratio is set
[Full]. To see the picture in its correct aspect ratio, change the TV
setting to [Normal].
•If your TV doesn’t have settings to change the aspect ratio of the
picture, set this player to [16:9 (Compressed)].
•If you connect a TV that is not compatible with a progressive scan
signal and choose one of the progressive scan settings, you will
not be able to see any picture at all. With your TV connected
using either the composite or S-Video terminals, choose the
[Interlace] settings in the [Component Video] menu.
■Frame Search
Expert
Set this to [On] if you want to be able to do frame-accurate
searching of DVD discs. On the default setting, the time &
frame search is not available.
Settings: On
Off (Factory setting)
Setting the Video 1 Options
DPS8.3.E.46-64.p65 02.9.12, 11:46 AM53
54
■Adjusting the picture quality settings
– To create your own setting (1)
1 Use the cursor button (3) to select [Start] then press
ENTER.
2 Use the cursor button (∞) to select [Video Setup] then
press ENTER.
3 Use the cursor buttons (2/3) to select the setting to [On] or
[Off].
4 Use the cursor buttons (5/∞) to select the setting to adjust.
You can adjust any or all of the following picture quality
factors:
•Prog. Motion – When using progressive scan, this adjusts
the motion and still picture quality.
•PureCinema – When watching DVD movies, PureCinema
optimizes the picture quality. The default setting is [Auto1],
but if the picture appears unnatural, then set to [Auto2],
[On] or [Off] as desired and adjust the Prog. Motion setting.
•YNR – Adjusts the amount of noise reduction (NR) applied
to the Y (brightness) component.
•CNR – Adjusts the amount of noise reduction (NR) applied
to the C (color) component.
•MNR (Mosquito Noise Reduction) – Adjusts the amount of
noise reduction applied to the mosquito noise (video
artifacts on the edge of the image resulting from MPEG
compression).
•BNR (Block Noise Reduction) – Adjusts the amount of
noise reduction applied to the block noise.
•Sharpness High – Adjusts the sharpness of the high-
frequency (finely detailed) elements in the picture.
•Sharpness Mid – Adjusts the sharpness of the mid-
frequency (less detailed) elements in the picture.
•Detail – Adjusts how sharp edges appear in the picture.
•White Level – Adjusts the intensity of white in the picture.
•Black Level – Adjusts the intensity of black in the picture.
•Black Setup – For correction of floating black color.
•Gamma – Adjusts the brightness of the darker images in
the picture.
•Hue – Adjusts the overall color balance between red and
green.
You can either select a preprogrammed setting designed to
match certain program types or make adjustments to match
your own preferences and save them in the player’s memory.
Make changes to the [Video Adjust] setting in the Setup
screen Video 2 menu.
■Selecting a preprogrammed setting
1 Use the cursor button (3) to select [Start] then press
ENTER.
—
—
—
—
—
Video2
A2 Language General
Audio1 V1
Exit
Move
Background
Video Adjust
Still Picture
On Screen Display
Angle Indicator
Black
Start
Auto
On
On
SETUP
2 Press ENTER.
TV (CRT) (Factory Setting)
Optimized setting for a standard television set.
PDP
Optimized for a plasma display.
Professional
Optimized for a professional monitor.
Memory 1, Memory 2, and Memory 3
These are user programmable settings. See “Adjusting the
picture quality settings” on pages 54 and 55 for more information.
3 Use the cursor buttons (2/3/5/∞) to select one of the
preprogrammed picture quality settings.
If there is a DVD or Video CD playing, the effects of each setting
can be viewed while it is highlighted on the screen. This may be
useful in selecting an appropriate setting.
4 Press ENTER.
The new selection is set.
Notes
•You may also press the Picture button on the remote control to
display the preprogrammed settings menu.
•Each picture quality setting is defined by a number of individual
settings, described in “Adjusting the picture quality settings” on
this page and page 55.
•Depending on the disc and the TV/monitor, you may not see the
effect clearly.
•If [Letter Box (4:3)] or [Pan & Scan] is selected, there may be
cases when the screen automatically changes to wide (16:9) after
entering the [TV Screen] setting. This is not a malfunction. Close
the [TV Screen] setting and the screen returns to its set size.
Adjusting the Video Quality
Adjusting Audio and Video Settings
55
DISPLAY
ENTER
Memory
Move Select
Off 1 2 3
Check
■Adjusting the picture quality settings
– To create your own setting (2)
1 Use the cursor button (3) to select [Start] then press
ENTER.
•Chroma Level – Adjusts how saturated colors appear.
•Chroma Delay – Compensates for misalignment of the Y
(brightness) and the C (color) components.
Adjusts the brightness of the darker images in the picture.
Only effective with progress scan signals.
5 Use the cursor buttons (2/3) to adjust the settings.
Adjust these while a disc is playing to see the effect of
changes immediately.
6 Repeat steps 4 and 5 to make adjustments to other
settings.
If you would like to save the settings in the player’s memory, be
sure to select either [1], [2], or [3] in the [Memory] setting to
establish which memory location to save the new settings in.
Please note that if you select a location where settings have
already been saved, the old settings will be replaced by the new
ones.
2 Use the cursor button (∞) to select [Video Setup] and press
ENTER.
3 Press Display.
4 Use the cursor buttons (5/∞) to select the setting and use
the cursor buttons (2/3) to adjust the settings.
Adjust these while a disc is playing to see the effect of changes
immediately.
5 To memorize the setting, select [Memory 1, 2, or 3], then
press ENTER.
The previous setting will be erased.
7 When you are finished making adjustments, press ENTER
to establish the new settings.
Note
Depending on the disc and your TV/monitor, the effect of these
settings may not be clear.
■PureCinema (DVD-Video only)
Video on a DVD discs may be either video material (originally
shot on video) or film material (originally shot on film). Video
material has a frame rate of 30 frames/sec. (NTSC),
compared with 24 frames/sec. for film. This player converts
film material to 60 frames/sec. (in progressive scan mode).
PureCinema adjusts the picture so that it matches more
closely the picture quality of a cinema screen.
You can see whether video on a DVD disc is film or video
material by displaying the video transmission rate (see page
44). If a hash mark (#) appears above the transmission rate
display, it is film material.
56
■Changing the Background of the Screen
You can select a background to appear when the player is in
the stop mode.
Make changes to the [Background] setting in the Setup screen
Video 2 menu.
—
SETUP
Video2
A2 Language General
Audio1 V1
Exit
Move
Gray
Black
Background
Video Adjust
Still Picture
On Screen Display
Angle Indicator
Auto
On
On
—
—
—
Video2
A2 Language General
Audio1 V1
Exit
Move
Background
Video Adjust
Still Picture
On Screen Display
Angle Indicator
Gray
t
Field
Frame
Auto
SETUP
■Selecting the Type of Paused Image to
Display
Expert
This function lets you view a clear still-image when DVD
playback is paused.
Make changes in the [Still Picture] setting in the Setup screen
Video 2 menu in the [Expert] menu mode (page 47).
Settings: Field (Picture shake will be eliminated during a
paused picture.)
Frame (Select to obtain higher picture quality.)
Auto (Selects [Field] or [Frame] automatically
according to the disc.) (Factory setting)
Settings: Gray (Factory setting)
Black
■Setting the Position of the On-screen
Display
Expert
You can select to turn on the on screen display, or
alternatively, choose to turn them off completely with the [Off]
setting.
Make changes in the [On Screen Display] in the Setup screen
Video 2 menu in the [Expert] menu mode (page 47).
Settings: On (Factory setting)
Off
Note
This setting is only effective with DVDs that contain a 4:3 aspect
ratio video presentation.
■Turning the angle indicator on and off
Expert
When a picture recorded in different angles is played back
is displayed on the screen. This setting lets you see clearly
whether the playback picture is recorded in multiple angles or
not.
Turn the angle indicator on or off in the [Angle Indicator]
setting in the Setup screen Video 2 menu in the [Expert] menu
mode (page 47).
Settings: On ( is displayed) (Factory setting)
Off (Not Displayed)
Note
Even when the [Angle Indicator] setting is set to [Off], the
indicator in the display panel of the player lights during multi-angle
playback. Therefore, it is possible to know when the multi-angle
function can be used without having to display the icon on the
screen.
Setting the Video 2 Options
Adjusting Audio and Video Settings
DPS8.3.E.46-64.p65 02.9.12, 11:46 AM56
57
DVDs have the capacity to contain a great deal of audio
information, which includes the ability to hold up to 8 different
language tracks and subtitle information in as many as 32
different languages. This section outlines the variety of audio
language and subtitle options available with this player.
Please note that if you have completed the Setup Navigator,
the audio and subtitle language options have automatically
been set in accordance with the [OSD Language] (the
language that appears on the screen).
Note
DVDs differ in content and do not all contain multiple language or
subtitle information. Therefore making settings in this section may
have no effect on some DVDs.
■Setting the On-screen Display (OSD)
Language
This setting is used to establish the language that operation
indicators and on-screen messages and operations display.
Change this setting in the Setup screen Language menu [OSD
Language] setting.
—
—
—
Language
A2 V2 General
Audio1 Video1
Exit
Move
OSD Language
Audio Language
Subtitle Language
Auto Language
DVD Language
Subtitle Display
Subtitle Off
English
français
Deutsch
Italiano
Español
On
Selected Subtitle
SETUP
Settings: English (Factory setting)
français
Deutsch
Italiano
Español
Notes
•The menu settings may be different from those shown above.
•The [OSD Language] setting is factory set to [English]. If you
want English to be displayed, it is not necessary to adjust this
setting.
■Selecting an audio language preference
The audio language that you normally listen to can be
selected from the various audio languages on a DVD. Even
when the audio language is changed during playback by
pressing Audio, the language selected at this setting will be
selected as the default when the DVD is changed.
Make changes to the [Audio Language] setting in the Setup
screen Language menu.
You cannot make this setting with a disc playing.
Settings: English (Factory setting)
French
German
Italian
Spanish
Other (For details on how to select other
languages, see “When [Other] is selected” on page
59).
Note
The menu settings may be different from those shown above.
Setting the Language Options
58
■Selecting a subtitle language preference
The subtitle language that you will normally display can be
selected from the subtitles programmed on a disc. Even when
the subtitle language is changed during playback by pressing
Subttl, the language selected at this setting will be selected
when the disc is changed.
Make changes to the [Subtitle Language] setting in the Setup
screen Language menu.
You cannot make this setting with a disc playing.
Language
A2 V2 General
Audio1 Video1
SETUP Exit
Move
OSD Language
Audio Language
Subtitle Language
Auto Language
DVD Language
Subtitle Display
Subtitle Off
English
English
French
German
Italian
Spanish
Other
—
Settings: English (Factory setting)
French
German
Italian
Spanish
Other
(For details on how to select other languages,
see “When [Other] is selected” on page 59).
—
—
—
—
—
—
Language
A2 V2 General
Audio1 Video1
Exit
Move
OSD Language
Audio Language
Subtitle Language
Auto Language
DVD Language
Subtitle Display
Subtitle Off
English
English
English
On
Off
On
Selected Subtitle
SETUP
Note
The menu settings may be different from those shown above.
■Setting Auto Language to control subtitle
and audio language based on program
content
When the Auto Language function is used, foreign movies are
shown with the original audio soundtrack and subtitles in the
language selected in the [Subtitle Language] menu option.
Domestic films are shown with the original audio soundtrack
and no subtitles. (This setting may not be effective with all
DVD discs.)
Make changes to the [Auto Language] setting in the Setup
screen Language menu.
You cannot make this setting with a disc playing.
■Selecting a DVD menu language preference
Expert
In addition to containing different audio languages, DVD may
also contain menu screens in different languages as well.
Setting a DVD language preference, sets the selected
language as a default when DVDs with menu information in
that language are encountered.
Selecting [w/ Subtitle Language] automatically assigns the
language selected in the [Subtitle Language] setting.
Make changes to the [DVD Language] setting in the Setup
screen Language menu in the [Expert] menu mode (page 47).
You cannot make this setting with a disc playing.
Settings: w/ Subtitle Language (Factory setting)
English
French
German
Italian
Spanish
Other (For details on how to select other
languages, see “When [Other] is selected” on page
59).
Notes
•The menu settings may look different from the one shown above.
•If this function is not effective, the languages that can be selected
may also be selected in the DVD menu. Press Menu to open the
DVD menu and make your selection accordingly.
Setting the Language Options
Adjusting Audio and Video Settings
Settings: On (Factory setting)
Off
Note
The Auto Language function operates only when this function is set
to [On], and the language set for the [Audio Language] and [Subtitle
Language] settings is the same.
59
—
—
—
—
Language
A2 V2 General
Audio1 Video1
Exit
Move
OSD Language
Audio Language
Subtitle Language
Auto Language
DVD Language
Subtitle Display
Subtitle Off
English
English
English
On
On
Off
Assist Subtitle
SETUP
—
—
—
—
—
—
SETUP
Language
A2 V2 General
Audio1 Video1
Exit
Move
OSD Language
Audio Language
Subtitle Language
Auto Language
DVD Language
Subtitle Display
Subtitle Off
English
English
English
On
English
With Audio
Selected Subtitle
■When [Other] is selected
When you want to select one of the 136 languages as the
main audio language, follow the steps below when the
following screen appears.
The language code list can be found on page 60.
Code (0~2)
1001
ja: Japanese
List of Languages
1 Use the cursor buttons to select [Other] and press ENTER.
The language selection screen appears.
2 Use the cursor buttons (2/3) to select either [List of
Languages] or [Code].
3 If you select [List of Languages], use the cursor buttons (5/
∞) to select the language.
For languages which are only shown as a code, please refer to
“Language Code List” on page 60.
If you select [Code], use the cursor buttons (5/∞) to input
the numbers of the input code.
Use the cursor buttons (2/3) to change the position of the
cursor. You can also use the number buttons to enter the code.
4 Press ENTER to set the new language.
To exit the screen without making any changes, press Return.
■Selecting subtitles, assist subtitles or no
subtitles
Expert
Use this function to turn the subtitles on or off. Additionally,
some DVDs provide assist subtitles that provide additional
explanations of scenes in addition to the standard subtitles for
viewers who are hard of hearing. Select [Assist Subtitle] to
display these subtitles on DVDs where this function is offered.
Make changes to the [Subtitle Display] setting in the Setup
screen Language menu in the [Expert] menu mode (page 47).
You cannot make this setting with a disc playing.
Settings: On (Factory setting)
Off
Assist Subtitle
Notes
•If there is no subtitle information recorded on the DVD, no
subtitles are displayed even if this function is set to [On].
•This setting serves as a default as whether or not to display
subtitles. Even if this option is set to [Off], subtitles can be
displayed by pressing Subttl. Similarly, if this option is set to [On],
the subtitles can be turned off by pressing Subttl and then Clear.
■Forcing subtitles to be displayed
Expert
Even when the subtitles are turned off, some DVDs will
nevertheless display them on the screen. This setting allows
you to select the language of the subtitles to be displayed with
this type of DVD.
Select [With Audio] to display the subtitles in the same
language as the currently selected [Audio Language]. Select
[Selected Subtitle] to display the subtitles in the language set
in the [Subtitle Language] setting.
Make changes to the [Subtitle Off] setting in the Setup screen
Language menu in the [Expert] menu mode (page 47).
You cannot make this setting with a disc playing.
Settings: With Audio
Selected Subtitle (Factory setting)
60
Language Code List
Language codes are used when setting the audio and subtitle
language preferences (page 57– 59).
Japanese (ja)
English (en)
French (fr)
German (de)
Italian (it)
Spanish (es)
Chinese (zh)
Dutch (nl)
Portuguese (pt)
Swedish (sv)
Russian (ru)
Korean (ko)
Greek (el)
Afar (aa)
Abkhazian (ab)
Afrikaans (af)
Amharic (am)
Arabic (ar)
Assamese (as)
Aymara (ay)
Azerbaijani (az)
Bashkir (ba)
Byelorussian (be)
Bulgarian (bg)
Bihari (bh)
Bislama (bi)
Bengali (bn)
Tibetan (bo)
Breton (br)
Catalan (ca)
Corsican (co)
Czech (cs)
Welsh (cy)
Danish (da)
Bhutani (dz)
Esperanto (eo)
Estonian (et)
Basque (eu)
Persian (fa)
Finnish (fi)
Fiji (fj)
Faroese (fo)
Frisian (fy)
Irish (ga)
Scots-Gaelic (gd)
Galician (gl)
Guarani (gn)
1001
0514
0618
0405
0920
0519
2608
1412
1620
1922
1821
1115
0512
0101
0102
0106
0113
0118
0119
0125
0126
0201
0205
0207
0208
0209
0214
0215
0218
0301
0315
0319
0325
0401
0426
0515
0520
0521
0601
0609
0610
0615
0625
0701
0704
0712
0714
Language Input-code
Gujarati (gu)
Hausa (ha)
Hindi (hi)
Croatian (hr)
Hungarian (hu)
Armenian (hy)
Interlingua (ia)
Interlingue (ie)
Inupiak (ik)
Indonesian (in)
Icelandic (is)
Hebrew (iw)
Yiddish (ji)
Javanese (jw)
Georgian (ka)
Kazakh (kk)
Greenlandic (kl)
Cambodian (km)
Kannada (kn)
Kashmiri (ks)
Kurdish (ku)
Kirghiz (ky)
Latin (la)
Lingala (ln)
Laothian (lo)
Lithuanian (lt)
Latvian (lv)
Malagasy (mg)
Maori (mi)
Macedonian (mk)
Malayalam (ml)
Mongolian (mn)
Moldavian (mo)
Marathi (mr)
Malay (ms)
Maltese (mt)
Burmese (my)
Nauru (na)
Nepali (ne)
Norwegian (no)
Occitan (oc)
Oromo (om)
Oriya (or)
Panjabi (pa)
Polish (pl)
Pashto, Pushto (ps)
Quechua (qu)
0721
0801
0809
0818
0821
0825
0901
0905
0911
0914
0919
0923
1009
1023
1101
1111
1112
1113
1114
1119
1121
1125
1201
1214
1215
1220
1222
1307
1309
1311
1312
1314
1315
1318
1319
1320
1325
1401
1405
1415
1503
1513
1518
1601
1612
1619
1721
Language Input-code
Rhaeto-Romance (rm)
Kirundi (rn)
Romanian (ro)
Kinyarwanda (rw)
Sanskrit (sa)
Sindhi (sd)
Sangho (sg)
Serbo-Croatian (sh)
Sinhalese (si)
Slovak (sk)
Slovenian (sl)
Samoan (sm)
Shona (sn)
Somali (so)
Albanian (sq)
Serbian (sr)
Siswati (ss)
Sesotho (st)
Sundanese (su)
Swahili (sw)
Tamil (ta)
Telugu (te)
Tajik (tg)
Thai (th)
Tigrinya (ti)
Turkmen (tk)
Tagalog (tl)
Setswana (tn)
Tonga (to)
Turkish (tr)
Tsonga (ts)
Tatar (tt)
Twi (tw)
Ukrainian (uk)
Urdu (ur)
Uzbek (uz)
Vietnamese (vi)
Volapük (vo)
Wolof (wo)
Xhosa (xh)
Yoruba (yo)
Zulu (zu)
1813
1814
1815
1823
1901
1904
1907
1908
1909
1911
1912
1913
1914
1915
1917
1918
1919
1920
1921
1923
2001
2005
2007
2008
2009
2011
2012
2014
2015
2018
2019
2020
2023
2111
2118
2126
2209
2215
2315
2408
2515
2621
Language Input-code
Adjusting Audio and Video Settings
61
This player lets you set the Parental Lock if the DVD has a
parental lock level recorded on it. With Parental Lock capable
discs, you can block access to material you feel is
inappropriate for your children. Refer to the DVD disc jacket
and the accompanying documentation to see if a particular
disc contains a parental lock level.
Make changes to the [Parental Lock] setting in the Setup
screen General menu. Please note that changes to the
Parental Lock level cannot be made when a disc is playing.
Stop playback of the disc before attempting to make any
changes.
You cannot select [Level] or [Country Code] until you have
registered a password. Select [Password] to register a new
password. See “Entering the password” on the this page for
how to register a new password.
General
A2 V2 Language
Audio1 Video1
Exit
+/–
Move
Return
ENTER
RETURN
Prental Lock: Register Code Number
General
A2 V2 Language
Audio1 Video1
Exit
Prental Lock: Register Code Number
+/–
Move
Return
SETUP
RETURN
ENTER
1019
—
—
—
General
A2 V2 Language
Audio1 Video1
Exit
Move
Setup Menu Mode
Setup Navigator
Parental Lock
Bonus Group
Auto Disc Menu
Group Playback
Expert
Password
Level
Country Code
Single
SETUP
Settings: Password
(For information, refer to “Entering the Password”
on the this page.)
Level
(For information, refer to “Setting the Parental Lock
Level” on the following page.)
Country Code
(For information, refer to “Setting the Country Code”
on the following page.)
When a DVD with a set Parental Lock level is loaded
Playback cannot be started until the code number has been correctly
input by using the cursor buttons (2/3/5/∞) or the number buttons,
and ENTER has been pressed.
■Entering the Password
When you select either [Level] or [Country Code], it is
necessary to register the password (4-digit code number).
You’ll be asked to confirm your existing password before
registering a new one. Use the following steps at any time you
are asked to enter or confirm your password.
1 Use the cursor buttons (5/∞) or the number buttons to
select a number between 0 and 9.
You can also use the number buttons to enter the numbers
directly. When entering your password for the first time, or
changing it, you will be asked to reenter your password. When
using the number buttons to confirm the password, the numbers
appear as asterisks, and the cursor advances automatically to the
next position.
2 Use the cursor buttons (2/3) to move the cursor to a
different position in the password.
When all four numbers of the password have been entered,
“ENTER” appears on the screen.
3 Press ENTER to set the password.
The password is entered.
Notes
•Be sure not to forget your password. If you should forget it, reset
the system, and enter a new password. To reset the system, see
“Resetting the Player to System Settings” (page 64). Please note
that this procedure resets the system, and clears all saved
settings, not just the password.
•Some discs lock out violent scenes. Refer to instruction notes on
discs.
Setting the Parental Lock Level
62
General
A2 V2 Language
Audio1 Video1
Exit
Return
Move Select
Parental Lock: Level Change
SETUPENTER
RETURN
1
Level 234 6785Off
■Setting the Parental Lock Level
Change the Parental Lock level to a higher or lower level
according to the settings printed on the DVD disc jacket or
accompanying documentation. If you use the Condition
Memory function to save the settings for a particular disc, the
Parental Lock level is saved as well. Because it is saved in
memory, Parental Lock levels can be set for individual discs
according to their content rather than a set level for all DVDs.
1 Select [Level] in the [Parental Lock] setting and press
ENTER.
The screen changes to the password input screen. You cannot
select [Level] until you have registered a password. To enter the
password, refer to “Entering the Password” on the previous page.
2 Use the cursor buttons (2/3) to adjust the Parental Lock
Level.
The lock icons appear “unlocked” up to the selected level to
indicate that access is available.
3 Press ENTER to set the new level.
The new Parental Lock level is set and the screen returns to the
General menu screen. To go back to the General menu screen
without making any changes, press Return.
■Changing the Password
Change your password whenever you feel it is necessary.
However, if you forget your existing password, you cannot
enter this screen to change it.
1 Select [Password Change] in the [Parental Lock] setting
and press ENTER.
The screen changes to the password input screen. To enter the
password, refer to “Entering the Password” on the previous page.
2 Use the cursor buttons (2/3/5/∞) or the number buttons to
enter the new password.
3 When the new password has been entered, press ENTER.
The new password is set and the screen returns to the General
menu screen. To go back to the General menu screen without
making any changes, press Return.
■Setting the Country Code
Change your Country Code whenever you feel it is necessary.
However, if you forget your existing password, you cannot
enter this screen to change it.
1 Select [Country Code] in the [Parental Lock] setting and
press ENTER.
The screen changes to the password input screen. To enter the
password, refer to “Entering the Password” on the previous page.
The Country Code selection screen appear.
us
List of Codes
Code (0~2)
2119
2 Use the cursor buttons (2/3) to select either [List of
Codes] or [Code].
3 If you select [List of Codes], use the cursor buttons (5/∞)
to select the country.
For country codes which are only shown as a code, please refer
to “Country Code List” on page 63.
If you select [Code], use the cursor buttons (5/∞) to input
the numbers of the input code.
Use the cursor buttons (2/3) to change the position of the
cursor. You can also use the number buttons to enter the code.
4 Press ENTER to set the new Country Code.
To exit the screen without making any changes, press Return.
Setting the Parental Lock Level
Adjusting Audio and Video Settings
63
ARGENTINA
AUSTRALIA
AUSTRIA
BELGIUM
BRAZIL
CANADA
CHILE
CHINA
DENMARK
FINLAND
FRANCE
GERMANY
HONG KONG
INDIA
INDONESIA
ITALY
JAPAN
KOREA, REPUBLIC OF
MALAYSIA
MEXICO
NETHERLANDS
NEW ZEALAND
NORWAY
PAKISTAN
PHILIPPINES
PORTUGAL
RUSSIAN FEDERATION
SINGAPORE
SPAIN
SWEDEN
SWITZERLAND
TAIWAN, PROVINCE
OF CHINA
THAILAND
UNITED KINGDOM
UNITED STATES OF
AMERICA
0118
0121
0120
0205
0218
0301
0312
0314
0411
0609
0618
0405
0811
0914
0904
0920
1016
1118
1325
1324
1412
1426
1415
1611
1608
1620
1821
1907
0519
1905
0308
2023
2008
0702
2119
Country Input-code Country-code
ar
au
at
be
br
ca
cl
cn
dk
fi
fr
de
hk
in
id
it
jp
kr
my
mx
nl
nz
no
pk
ph
pt
ru
sg
es
se
ch
tw
th
gb
us
■Auto Disc Menu
Expert
This specifies whether the menu (Top menu) is automatically
displayed after loading a disc. Set to [On] if you want the
menu displayed automatically, or [Off] if you don’t want it
displayed.
Other Settings
■Group Playback
Expert
DVD-Audio discs can have up to 9 groups of tracks. When set
to [Single], the selected group plays and then the disc stops, or
returns to the menu screen. Use Group Search (page 30) to
select the group to play. (You cannot use the track skip 4/
¢ or scan buttons 1/¡ in this mode.)
Set to [All] if you want to play all the groups on a disc
consecutively.
Settings: All
Single (Default setting)
Notes
•You can also select groups to play from the disc main menu.
•Even if the player is set to [All] but you select a group to play from
the disc menu, only that group will play. If you stop playback, all
groups will play again when you restart playback.
•Even if the player is set to [Single] and all groups are selected,
only one group will playback.
—
—
—
General
A2 V2 Language
Audio1 Video1
Exit
Move
Setup Menu Mode
Setup Navigator
Parental Lock
Bonus Group
Auto Disc Menu
Group Playback
Expert
Off (us)
On
Off
SETUP
■Bonus Group
Expert
Some DVD-Audio discs have an extra ‘bonus’ group that
requires a 4-digit key number to access. See the disc
packaging for details and the key number. When you try and
play the bonus group, the key number input screen will
automatically appear, although it is also available from the
General menu. Input the number and press ENTER.
General
A2 V2 Language
Audio1 Video1
Exit
+/–
Move
Return
Bonus Group: Key Number Input
ENTER
—
—
—
—
General
A2 V2 Language
Audio1 Video1
Exit
Move
Setup Menu Mode
Setup Navigator
Parental Lock
Bonus Group
Auto Disc Menu
Group Playback
Expert
Off (us)
Start
On
Single
SETUP
Settings: On (Default setting)
Off
Note
Some DVD discs display a menu automatically regardless of this
setting. If you press £ while a disc is loading, this setting is ignored.
Note
If you eject the disc, switch the power off, or unplug the power, you
will need to re-enter the key number.
Country Code List
64
Adjusting Audio and Video Settings
Memorizing Settings (Function
Memory)
Up to 5 settings can be memorized.
Press Setup.
The Setup screen appears.
Use the cursor buttons (2/3) to
select the menu you want.
Use the cursor buttons (5/∞) to
select the setting to be memorized.
As each menu is selected with the cursor,
the settings appear below the menu
heading.
Press ENTER.
Press Function M.
“FM” will appear on the screen, and the
setting will be memorized.
■To clear the Function Memory
Press Function M again.
Note
Some settings cannot be memorized.
1
2
3
4
Recalling Memorized Settings
Press Function M.
Only memorized settings are displayed.
Use the cursor buttons (5/∞) to
select the menu to be recalled.
Press ENTER.
Function M
F.
M
1
2
3
Resetting the Player to System Settings
To reset the player, press and hold 7 on the front panel.
Then press Standby/On to turn the unit from standby to
on.
All program memory, saved settings from functions such as
“Video Memory”, “Last Memory” and “Condition Memory” are
cleared, TV System is reset to AUTO and all Setup screen
menus are returned to factory settings.
RC-499DV
M
o
d
e
O
n
S
t
a
n
d
b
y
I
n
p
u
t
S
e
l
e
c
t
o
r
Audio SEL
Video Off
Display Dimmer
TV
/
VCR
Step/Slow Pause Step/ Slow
Muting
A-B Picture Cond M Function M
Speed
Surround
Random Program Clear
Repeat
VOL
C
H
L
i
g
h
t
A
u
d
i
o
A
n
g
l
e
T
o
p
M
e
n
u
M
e
n
u
R
e
t
u
r
n
S
e
t
u
p
M
DIM
DIS
A
RPT RND
PGM
CLR
A
-
BPIC C.M F.
M
D
V
D
T
V
V
C
R
R
C
V
R
S
u
b
t
t
l
L
a
s
t
M
T
V
.
V
C
R
/
2/3/5/∞ENTER
Setup
Function M
5
Function M
F.
M
65
This remote controller features a learning function that allows you to program the remote codes of other remote control
units for more singular control of your home entertainment system. A number of commands can be programmed for
operation for when the remote controller is in DVD mode and when it is in Receiver mode. Please follow the procedure in
this section to program your remote controller to your preferences.
Programming the Commands
of Other Remote Control Units into the Remote Controller
12
3
Place the remote controller and the
other remote control unit of the
other component facing each other
at a distance of 5 to 15 cm apart.
While pressing and holding down
the desired Mode button (VCR or
TV) on the remote controller, press
Search and then release both
buttons.
When you press and hold down the
desired Mode button, the Send/Learn
indicator lights up. When you press
Search, the indicator turns off. When you
release both buttons, the indicator lights
up again.
Press and release the button on the
remote controller to which you want
to transfer the new command.
The buttons that can be selected in this
step depend on the mode (other than
Mode (DVD, RCVR, TV, VCR)).
If you press the wrong button by mistake,
press the same button again. The Send/
Learn indicator flashes three times and the
remote controller exits the programming
mode. When this is the case, start again at
step 1.
RC-499DV
M
o
d
e
O
n
S
t
a
n
d
b
y
I
n
p
u
t
S
e
l
e
c
t
o
r
Audio SEL
Video Off
Display Dimmer
TV
/
VCR
Step/Slow Pause Step/ Slow
Muting
Enter
A-B Picture Cond M Function M
Speed
Surround
Random Program Clear
Repeat
--
/
---
VOL
C
H
L
i
g
h
t
Search
123
456
789
+10 0
A
u
d
i
o
A
n
g
l
e
T
o
p
M
e
n
u
M
e
n
u
R
e
t
u
r
n
S
e
t
u
p
M
DIM
DIS
A
RPT RND
PGM
CLR
A
-
BPICC.MF.
M
D
V
D
T
V
V
C
R
R
C
V
R
S
u
b
t
t
l
L
a
s
t
M
T
V
.
V
C
R
/
VCR
Search
Send/Learn
TV
5 to 15 cm
RC-499DV
Programming procedure
The first step in the procedure is to determine whether the new command is to be learned in the DVD
mode or in the Receiver mode. Generally speaking, this should be decided by the command being
learned. After deciding which mode is to be used, you will then transfer the individual commands from the
other remote control unit to the RC-499DV remote controller one at a time. Each command is then
programmed to one of the available buttons on the RC-499DV remote controller.
Even after the commands have been programmed, keep the other remote control unit in a safe place in the
case that the programmed commands should be lost (e.g., when the batteries run down). If the commands
are lost, it will then be necessary to program them again.
Others
66
6
7
Programming procedure
4
5
Press and hold down the button on
the other remote control unit that
corresponds to the command you
want to program until the Send/
Learn indicator flashes twice to
indicate that the command has
been successfully programmed.
After flashing twice, the Send/Learn
indicator lights up again.
Repeat steps 3 and 4 to program
other commands within the same
mode. Repeat step 2 to 4 to
program commands to the other
mode.
Press the Mode button (VCR or TV)
that you pressed in step 2 to
complete the programming.
Use the remote controller to
perform the newly learned
command to confirm that it was
learned correctly.
Notes
•Some buttons have already been programmed to control
functions of an Integra/Onkyo receiver. Therefore, it is
recommended to program additional functions of the receiver that
are not already programmed in the remote controller.
•If no buttons are pressed for more than 30 seconds during the
programming, or if you perform an invalid operation, the
Send/Learn indicator flashes three times quickly and the remote
controller exits the programming mode. Resume programming
from step 2.
•If you perform an invalid operation during programming, the
Send/Learn indicator flashes three times quickly and the remote
controller exits the programming mode. Resume from Step 2.
•When you want to program a command to a button to which you
have already programmed a command, simply follow the same
procedure and programming for that button will be overwritten.
•The remote controller uses infrared rays to send its commands,
as do most other remote control units. Though most remote
control units can be memorized by the remote controller, be
aware that some remote control units use a system that is quite
different from the remote controller and therefore may not be able
to be programmed.
•Some remote control units have a single button that performs
multiple functions (for example, the function may change each
time the button is pressed). If this is the case, each function must
be programmed to a separate button on the remote controller.
•Once you have programmed the commands from the other
remote control unit, refer to the instructions supplied with the
other component to operate.
•Make sure that both the remote controller and the other remote
control unit have new batteries. If either of them has batteries
that are low, you may not be able to program the commands of
the other remote control unit properly into the remote controller.
•Removing the batteries from the remote controller for at least 10
minutes erases all of the commands that have been programmed
in the remote controller.
Programming the Commands of Other Remote
Control Units into the Remote Controller
67
Erasing the programmed command
from one button
You can only erase memorized commands and not
preset ones.
Press and hold down the desired
Mode button for the command,
press the Search button, and then
release both buttons.
When you release the buttons, the
Send/Learn indicator lights.
Press and release the button for the
command you wish to erase.
When you press the button, the Send/
Learn indicator turns off. When you
release the button, the lamp lights again.
Press and release the same button
again.
The Send/Learn indicator flashes twice.
The memorized command is erased.
Note
If no button is pressed for more than 30 seconds during the
programming, the Send/Learn indicator flashes three times quickly,
and the remote controller exits the programming mode. Resume
from Step 1.
1
2
3
Erasing all the commands
programmed under a Mode button
Press and hold down the desired
Mode button, press the Search
button twice, and then release both
buttons.
When you release the buttons, the
Send/Learn indicator flashes twice slowly
and then lights again.
Press and release the same Mode
button again.
When you release the button, the Send/
Learn indicator flashes twice slowly. This
erases all the commands memorized to
the Mode button.
Notes
•If no button is pressed for more than 30 seconds, the Send/Learn
indicator flashes three times quickly and the remote controller
exits the programming mode. Resume Step 1.
•If you perform an invalid operation during programming, the
Send/Learn indicator flashes three times quickly and the remote
controller exits the programming mode. Resume from Step 1.
•If many commands have been programmed to the Mode button,
then the Send/Learn indicator may remain lit for some time
during Step 2. This is not a malfunction.
1
2
RC-499DV
M
o
d
e
O
n
S
t
a
n
d
b
y
I
n
p
u
t
S
e
l
e
c
t
o
r
Audio SEL
Video Off
Display Dimmer
TV
/
VCR
Step/Slow Pause Step/ Slow
Muting
Enter
A-B Picture Cond M Function M
Speed
Surround
Random Program Clear
Repeat
--
/
---
VOL
C
H
L
i
g
h
t
Search
123
456
789
+10 0
A
u
d
i
o
A
n
g
l
e
T
o
p
M
e
n
u
M
e
n
u
R
e
t
u
r
n
S
e
t
u
p
M
DIM
DIS
A
RPT RND
PGM
CLR
A
-
BPICC.MF.
M
D
V
D
T
V
V
C
R
R
C
V
R
S
u
b
t
t
l
L
a
s
t
M
T
V
.
V
C
R
/
VCR
Search
Send/Learn
TV
68
Register the Codes of Other Unit's Remote
Controllers
Register the codes of other unit's (TV
or VCR) remote controllers
Use this feature to register the remote codes of other
remote control units. Please look up your TV/VCR from
list of remote control codes starting on page 69.
While pressing and holding down
the desired Mode button (VCR or
TV) on the remote controller press
+10 and then release both buttons.
When you press and hold down the
desired Mode button, the Send/Learn
indicator lights up. When you press the
Display button, the indicator turns off.
When the Send/Learn indicator turns off,
release the buttons and the indicator lights
up again.
Use the number buttons on the
remote controller to input the
TV/VCR three digit remote control
code.
The Send/Learn indicator flashes twice
slowly to indicate that the command has
been successfully programmed.
If you perform an invalid operation, the
Send/Learn indicator flashes three times
quickly. Follow the same procedure again.
1
2
POWER
POWER
Program Channel +
Program Channel –
Volume +
Volume –
TV/VCR
Mute
1
2
3
4
5
6
7
8
9
+10, --/---
0
ENT, OK
RC-499DV button names
TV
POWER
POWER
Program Channel +
Program Channel –
TV/VCR
Play
Stop
FF
FR
1
2
3
4
5
6
7
8
9
+10
0
ENT, OK
PAUSE
VCR
(ON)
(STANDBY)
CH +
CH –
VOL%
VOLfi
A/AUDIO SEL/TV/VCR
VIDEO OFF/M/MUTING
£
7
¡
1
1
2
3
4
5
6
7
8
9
+10
0
ENTER/SEARCH
(PAUSE)
Operate other units with the registered
codes
If you are unable to operate other units with the
RC-499DV remote, perform the registration procedures
again.
RC-499DV
M
o
d
e
O
n
S
t
a
n
d
b
y
I
n
p
u
t
S
e
l
e
c
t
o
r
Audio SEL
Video Off
Display Dimmer
TV
/
VCR
Step/Slow Pause Step/ Slow
Muting
Enter
A-B Picture Cond M Function M
Speed
Surround
Random Program Clear
Repeat
--
/
---
VOL
C
H
L
i
g
h
t
Search
123
456
789
+10 0
A
u
d
i
o
A
n
g
l
e
T
o
p
M
e
n
u
M
e
n
u
R
e
t
u
r
n
S
e
t
u
p
M
DIM
DIS
A
RPT RND
PGM
CLR
A
-
BPICC.MF.
M
D
V
D
T
V
V
C
R
R
C
V
R
S
u
b
t
t
l
L
a
s
t
M
T
V
.
V
C
R
/
VCR
Search
Send/Learn
TV
Erasing Registered codes
1
2
Remove the batteries from the
remote controller.
While pressing and holding down
the On and Standby buttons,
reinsert the batteries.
Press the Search button.
3
Note
The above procedure will completely remove all registered codes
from the remote controller.
69
AIWA
AKAI
AUDIO SONIC
BELL&HOWELL
BLAUPUNKT
BRIONVEGA
CENTURION
COLTINA
CORONAD
CROWN
DAEWOO
DUAL
EMERSON
FENNER
FERGUSON
FISHER
FUNAI
FUJITSU GENERAL
GE•PANA
GE•RCA
GOLD STAR
GOODMANS
GRUNDIG
HITACHI
HYPER
INNO-HIT
IRRADIO
JVC
KENDO
KTV
LUXOR
MAGNAVOX
MARANTZ
MARK
MATSUI
MITSUBISHI
MIVAR
NEC
NOKIA
NOKIA OCEANIC
NORDMENDE
OKANO
ORION
PANASONIC
PHILIPS
PIONEER
PROSCAN
QUASAR
RADIOSHARK
RCA
100, 101
102, 103, 104
105
106
107
108, 109
110
111, 112, 113
114
115, 116
117, 118, 119, 120, 121
122
123, 124, 125, 126, 127
128, 129
130, 131
132
133, 134, 135
136, 137, 138
139, 140
141
142, 143
144
145, 146
147, 148, 149, 150
151
152
103
153, 154, 155, 156, 157
158
159, 160
161
162, 163
164
165
166, 167, 168, 169
170, 171, 172, 173
174, 175
176, 177
178, 179, 180, 181
181
182, 183
152
184, 185, 186
187, 188, 189, 190
162, 191, 152
192, 193
194
195
196
141, 197, 198, 110, 199, 200
■ TV
Brand Remote Code
Preset Settings
SABA
SAMSUNG
SANYO
SCHNEIDER
SEARS
SELECO
SHARP
SONY
SYMPHONIC
TELEFUNKEN
THOMSON
TOSHIBA
UNIVERSUM
ZENITH
201, 182, 183
202, 203, 204, 205, 206, 207, 208
209, 210, 211, 212
103
213
214, 215
216, 217
218, 219, 220, 221, 222, 223
224, 225
201, 226, 227
228
213, 229
230
231, 232
Brand Remote Code
Note
In the case of multiple codes, register one at a time to find the
proper code.
70
AIWA
AKAI
BAIRD
BELL&HOWELL
BLAUPUNKT
CGM
COLTINA
DAEWOO
DIGTAL
EMERSON
FENER
FISHER
FUJITSU GENERAL
FUNAI
G.E.
GO VIDEO
GOLDSTAR
GOODMANS
GRUNDIG
HITACHI
JVC
LOEWE
MAGNAVOX
MITSUBISHI
NEC
NOKIA
NORDMENDE
OKANO
ORION
PANASONIC
PHILIPS
PHONOLA
PIONEER
RCA
SABA
SAMSUNG
SANYO
SCOTT
SELECO
SHARP
SHINTOM
SIEMENS
SONY
SYMPHONIC
TEKNICA
TELEFUNKEN
TOSHIBA
WHITE WESTINGHOUSE
WATSON
ZENITH
300, 301, 302
303, 304, 305, 306, 307
308
309
310
311, 312, 313
314
315, 316
317
318, 319, 320, 321, 322
323
324, 325, 326, 327
328
329
331, 330
332, 336, 337
333, 334
335
338
331, 382, 339, 340, 341
342, 343, 344, 345, 346, 347, 348, 349, 350
351, 352
353, 354, 355
356, 357, 358, 359, 360, 361, 362, 363, 364
365, 366, 367
313
368, 369, 370
371, 372
319, 373
374, 375, 376, 377, 378
353, 379, 380
311
381
382
383
384, 385, 386, 387, 388, 389, 390
391, 392, 393
394
395
396, 397, 398, 399
400
401
402, 403, 404, 405, 406, 407, 408, 409
410, 411, 412, 413, 423
414
414, 415
416, 417
418, 419, 420
333
421
422
■ VCR
Brand Remote Code
Register the Codes of Other Unit's Remote Controllers
Preset Settings
71
Causes
Symptoms
Check the following guide for the possible cause of a problem before contacting service. Refer also to the respective
instruction manuals of the connected components and TV.
Pages
DVD Player
Troubleshooting
Remedies
Troubleshooting
The DVD Player doesn’t
switch on.
The disc tray comes back
out automatically, shortly
after the disc tray is closed.
The DVD Player does not
start playback.
The playback picture is
occasionally distorted.
Brightness is unstable or
noise is visible on the
playback picture.
The picture from the DVD
Player doesn’t appear on
the TV screen.
Settings are canceled.
Playback doesn’t follow the
course of the disc’s
programs.
The buttons on the remote
controller and DVD Player
do not operate.
mark appears on
screen.
mark appears on
screen.
When making changes in
the Setup screen menus,
is displayed.
Some settings in the Setup
Menu do not appear.
Can't perform frame
search, or the frame
number is not displayed.
•The mains lead is disconnected.
•The main power is set to OFF.
•There is external noise in the computer
circuits of the DVD Player.
•The disc is not placed properly on the disc
tray.
•The disc is dirty or warped.
•Region number does not conform with this
unit.
•No disc is inserted.
•An unplayable disc is inserted.
•The disc is placed upside down.
•The disc is not placed within the disc tray
guide.
•The disc is dirty.
•The parental lock function is activated.
•The disc is dirty.
•It is in fast forward or fast reverse
playback.
•Copy protection is activated.
•The TV is not set to receive the output
signals from the DVD Player.
•The DVD Player is not properly
connected.
•When the power is turned off by power
failure or by unplugging the power cord,
settings will be canceled.
•The DVD Player is in repeat playback
mode, memory playback mode, or
random playback mode, etc.
•Power supply fluctuations or other
abnormalities such as static electricity
may interrupt correct operation.
•The selected function does not operate for
that disc.
•The operation is prohibited by the player.
•There is a SACD, Video CD, CD or MP3
loaded in the player and the setting that
was changed only applies to DVD
performance.
•The [Setup Menu Mode] is set to [Basic].
•Check that the [Frame Search] option is
set to [On].
•You can only use frame search with DVD-
Video discs.
•Frame numbers are only displayed with
DVD-Video discs, and only when the disc
is paused or during frame advance/
reverse.
•Check the connection of the mains lead.
•Turn on the main power.
•Switch off the main power, then switch it
on again. If not recovered, disconnect the
mains lead, then connect it again.
•Use the disc tray guide to align the disc.
•Refer to “Notes on Discs”.
•If the region number on the disc does not
match the number on the player, the disc
cannot be used.
•Insert a disc. (Check that “DVD,” “VCD,”
or “CD” is lit in the DVD Player’s display.)
•Check the playable discs.
•Place the disc with the playback side
down.
•Place the disc within the proper guide on
the disc tray.
•Eject the disc and clean it.
•Deactivate the parental lock function or
change the parental lock level.
•Eject the disc and clean it.
•Sometimes a small amount of picture
distortion may appear. This is not a
malfunction.
•Connect the DVD Player directly to the
TV. Avoid connecting the DVD Player to
the TV through a VCR.
•Set the TV to the DVD Player’s input.
•Check the connections to the DVD
Player.
•Before unplugging the power cord, press
Standby/On and check that “--OFF--”
disappears in the display.
•Resume normal playback.
•Switch off the main power, then switch it
on again. If not recovered, disconnect the
mains lead, then connect it again.
–
–
•The setting will be effective the next time
a DVD is loaded.
•Set the [Setup Menu Mode] to [Expert].
•Set the [Frame Search] to [On] in the
setup screen. –
–
20
20
–
25
6
5
25
5
25
25
6
61-62
6
–
15, 16
–
15, 16
–
32-36
20
–
–
47
47
53
–
–
72
Causes RemediesSymptoms Pages
DVD Player
Troubleshooting
Frame search doesn't find
the frame number input, or
some frames are skipped
when using frame
advance.
SACD audio cannot be
output digitally.
No surround sound is
output.
The surround sound level
is low.
Cannot output 192kHz or
176.4 kHz digital audio.
Cannot output 96kHz or
88.2 kHz digital audio.
No DTS audio output.
Noticeable difference in
DVD, SACD and CD
volume.
Picture disturbance during
playback or dark.
No sound is reproduced.
The screen is stretched or
aspect does not change.
•You may experience this with discs
recorded in 24 frames/second
progressive scan format. With these
discs, the player 'misses' one frame every
six frames. For this reason, the frame
numbers do not appear continuous when
using frame advance, and it may not be
possible to display the exact frame you
searched for.
–
•The audio is connected to SURR 2.
•The selector switch is set to SURR 1+2.
•The player does not output digital audio at
these sampling rates.
•Some discs are digital copy protected and
do not output high sampling rate digital
audio.
–
–
•DVDs, SACDs and CDs use different
recording methods.
•This player is compatible with
Macro-Vision System copy guard. Some
discs include a copy protection signal and
when this type of disc is played back,
stripes etc., may appear on some
sections of the picture depending on the
TV.
•The Setup screen Audio menu [Linear
PCM Out] setting is set to [Down Sample
Off].
•The Setup screen Audio menu [Digital
Out] is set to [Off].
•A wrong sound signal conversion method
is selected.
•The pause mode is engaged.
•The volume level of TV or amplifier is set
to minimum.
•The DVD or CD is recorded in DTS audio.
•The multi aspect setting is not
appropriate.
•The TV is connected with an S-video
cord.
•The player does not actually drop any
frames that are recorded on the disc
during operation. This is not a
malfunction.
•SACD audio cannot be output digitally.
Select analog input for amplifier inputs for
analog sound.
•Connect to SURR 1.
•Set the selector switch to SURR 1.
–
•Check that the [Linear PCM] settings is
not set to [Down Sample On].
•If this unit is connected to a non-DTS
compatible amplifier or decoder using a
digital audio cable, set [DTS Out] to
[DTS 3 PCM] in the Setup menu. If you
do not do this, noise will be output if you
try and play a DTS disc.
•If this unit is connected to a DTS-
compatible amplifier or decoder using a
digital audio cable, check the amplifier
settings, and that the cable is properly
connected.
•This is not a malfunction.
•This is not a malfunction.
•Either connect using the analog outputs,
or set [Linear PCM Out] in the Audio
menu to [Down Sample On].
•Set [Digital Out] to [On].
•Check the current sound signal
conversion method, and select the right
setting.
•Press £ or 8 to exit the pause mode.
•Increase the volume level.
•DTS audio is only output from the digital
output jacks. Connect the digital output on
the player to the digital input on a receiver
or amplifier with a built in DTS decoder to
hear DTS audio.
•Change the aspect setting in the [TV
Screen] setting in the Setup screen Video
1 menu to the screen type most
appropriate to the TV or monitor you are
using.
•If you connected your TV with an S-Video
cord, in rare cases the TV picture may
appear stretched. In this case switch the
output from [S2] to [S1].
–
–
19
19
–
49
–
–
–
–
49
49
48, 49
–
–
18
52
53
73
Causes RemediesSymptoms Pages
DVD Player
Remote Controller
The disc containing the
MP3 tracks won't play.
Some MP3 tracks appear
to be missing from a disc.
The buttons on the DVD
Player operates but the
buttons on the remote
controller do not operate.
•The disc containing the MP3 tracks is not
formatted in ISO 9660.
•The disc is not recorded in MP3 (MPEG-1
Audio Layer 3) format with a 32, 44.1 or
48kHz fixed bit rate.
•The track name does not end in “.mp3” or
“.MP3”.
•More than 251 folders and tracks are
recorded on a disc.
•A multi-session disc is inserted.
•No batteries are inserted in the remote
controller.
•The batteries are worn out.
•The remote controller is not pointed at the
remote sensor of the DVD Player.
•The remote controller is too far from the
DVD Player.
•Check that the track(s) are in the MPEG1
Audio Layer 3 format.
•Check that the sampling rate of the
track(s) are 44.1 or 48kHz.
•This system will not recognize file that
does not end in ".mp3" or ".MP3" as an
MP3 track. Change the track name.
•This player only recognizes the first 250
folders and tracks on a disc. If there are
more folders/tracks than this, you will not
be able to play them.
•This player is not compatible with multi-
session discs. If the disc is multi-session,
you will only be able to play tracks
recorded onto the first session.
•Insert new batteries.
•Replace with new batteries.
•Point the remote controller at the remote
sensor of the DVD Player.
•Operate the remote controller within 5 m.
–
–
7
7
7
9
9
9
9
Because the unit contains a microcomputer to provide advanced functions, it may malfunction due to external noise or static
electricity. If this happens, press the Power switch on the unit and then press it again after about five seconds.
74
Specifications
General
Power supply USA & Canadian models AC 120 V, 60 Hz
Australian model AC 230 – 240 50, Hz
Power consumption USA & Canadian models 43 W
Australian model 39 W
Power consumption in standby mode USA & Canadian models 9.3 W
Australian model 9.9 W
Weight 5.0 kg, 11.0 lbs.
External dimensions 435 × 91 × 317 mm (W/H/D), 17-1/8" × 3-9/16" × 12-1/2"
DVD Player
Signal system USA & Canadian models Standard NTSC
Australian model PAL/AUTO
Regional restriction code USA & Canadian areas 1
Australian areas 4
Laser Semiconductor laser, wavelength 650/780 nm
Frequency range (digital audio) DVD linear sound: 48 kHz sampling 4 Hz to 22 kHz
96 kHz sampling 4 Hz to 44 kHz
DVD-Audio: 192 kHz sampling 4 Hz to 96 kHz
Audio CD: 4 Hz to 20 kHz
SACD: 4 Hz to 96 kHz
Signal-to-noise ratio (digital audio) More than 118 dB
Audio dynamic range (digital audio) More than 100 dB
Harmonic distortion (digital audio) Less than 0.001 %
Wow and flutter Below measurable level (less than ±0.001 % (W.PEAK))
Operating conditions Temperature: 5°C to 35°C, Operation status: Horizontal
Outputs
Video output 1.0 V (p-p), 75 Ω, negative sync., pin jack × 2
S-video output (Y) 1.0 V (p-p), 75 Ω, negative sync., Mini DIN 4-pin × 2
(C) 0.286 V (p-p), 75 Ω
Component Signal output (Y) 1.0 V (p-p), 75 Ω, negative sync., pin jack × 1, BNC × 1
(Pb)/ (Pr) 0.7 V (p-p), 75 Ω
Audio output (digital output Optical) – 22.5 dBm × 2
Audio output (digital output Coaxial) 0.5 V (p-p), 75 Ω, pin jack × 1
Audio output (analog audio) 2.0 V (rms), 440 Ω, pin jack (L, R) × 2
Audio output (5.1 channel analog audio) 2.0 V (rms), 440 Ω, pin jack (Lo/Lt, Ro/Rt, SL1, SR1, C, SW) × 1
1.4 V (rms), 440 Ω, pin jack (SL2, SR2) × 1
Specifications and features are subject to change without notice.
