Integrated Engineering MPROX-03 Inductive proximity card reader User Manual User manual

Integrated Engineering BV Inductive proximity card reader User manual

User manual

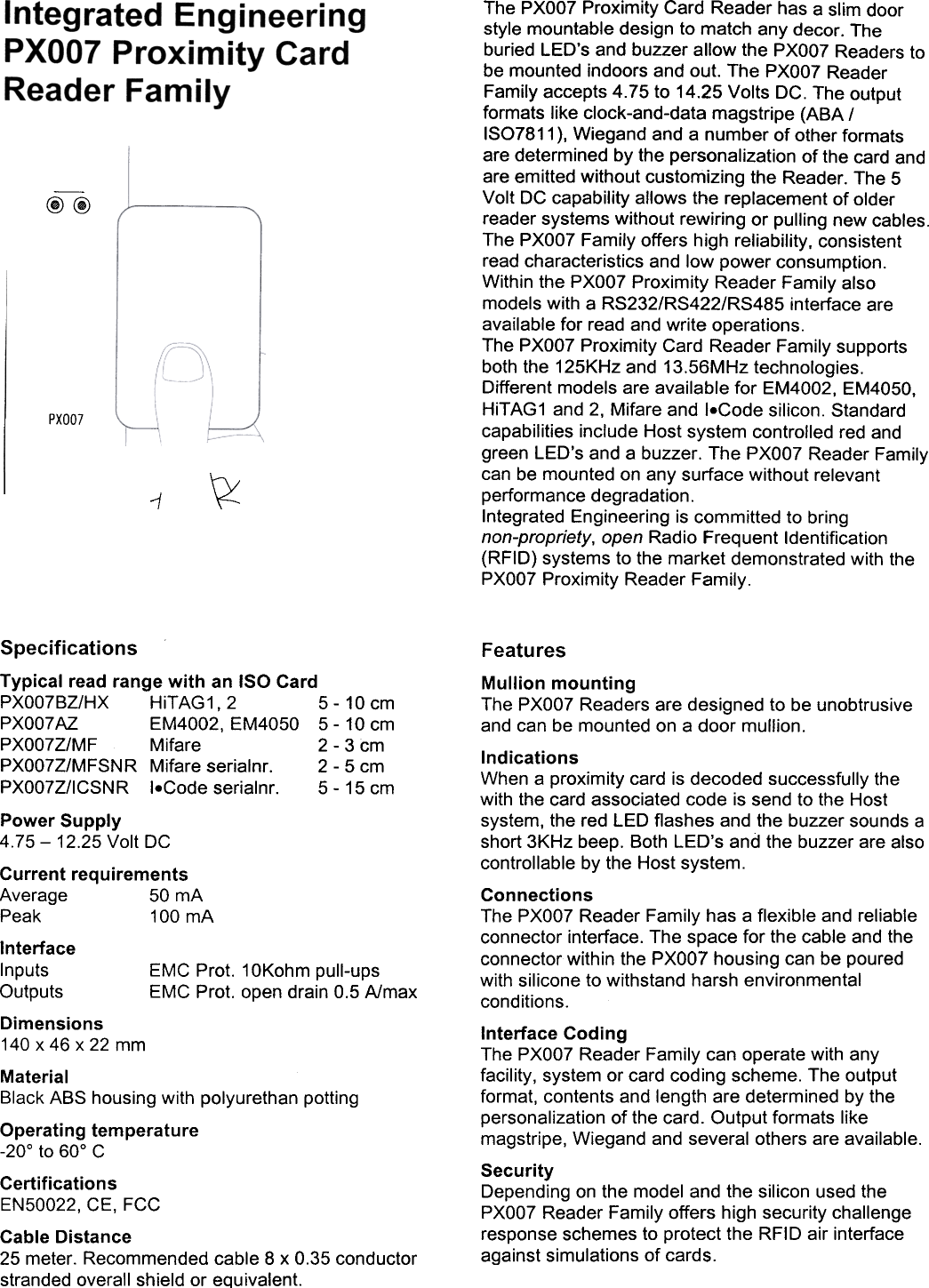

@@PXOO7~1The PXOO7 Proximity Card Reader has a slim doorstyle mountable design to match any decor. Theburied LED's and buzzer allow the PXOO7 Readers tobe mounted indoors and out. The PXOO7 ReaderFamily accepts 4.75 to 14.25 Volts DC. The outputformats like clock-and-data magstripe (ABA /ISO7811 ), Wiegand and a number of other formatsare determined by the personalization of the card andare emitted without customizing the Reader. The 5Volt DC capability allows the replacement of olderreader systems without rewiring or pulling new cables.The PXOO7 Family offers high reliability, consistentread characteristics and low power consumption.Within the PXOO7 Proximity Reader Family alsomodels with a RS232/RS422/RS485 interface areavailable for read and write operations.The PXOO7 Proximity Card Reader Family supportsboth the 125KHz and 13.56MHz technologies.Different models are available for EM4002, EM4050,HiTAG1 and 2, Mifare and I.Code silicon. Standardcapabilities include Host system controlled red andgreen LED's and a buzzer. The PXOO7 Reader Familycan be mounted on any surface without relevantperformance degradation.Integrated Engineering is committed to bringnon-propriety, open Radio Frequent Identification(RFID) systems to the market demonstrated with thePXOO7 Proximity Reader Family.SpecificationsTypical read range with an ISO CardPXO07BZ/HX HiTAG1, 2 5- 10 cmPXO07AZ EM4002, EM4050 5- 10 cmPXO07Z/MF Mifare 2 -3 cmPXO07Z/MFSNR Mifare serialnr. 2- 5 cmPXO07Z/ICSNR I.Code serialnr. 5- 15 cmPower Supply4.75- 12.25 Volt DCCurrent requirementsAverage 50 mAPeak 100 mAInterfaceInputs EMC Prot. 10Kohm pull-upsOutputs EMC Prot. open drain 0.5 A/maxDimensions140 x 46 x 22 mmMaterialBlack ABS housing with polyurethan pottingOperating temperature-20° to 60° CCertificationsEN50022, CE, FCCCable Distance25 meter. Recommended cable 8 x 0.35 conductorstranded overall shield or equivalent.FeaturesMullion mountingThe PXOO7 Readers are designed to be unobtrusiveand can be mounted on a door mullion.IndicationsWhen a proximity card is decoded successfully thewith the card associated code is send to the Hostsystem, the red LED flashes and the buzzer sounds ashort 3KHz beep. Both LED's and the buzzer are alsocontrollable by the Host system.ConnectionsThe PXOO7 Reader Family has a flexible and reliableconnector interface. The space for the cable and theconnector within the PXOO7 housing can be pouredwith silicone to withstand harsh environmentalconditions.Interface CodingThe PXOO7 Reader Family can operate with anyfacility, system or card coding scheme. The outputformat, contents and length are determined by thepersonalization of the card. Output formats likemagstripe, Wiegand and several others are available.SecurityDepending on the model and the silicon used thePXOO7 Reader Family offers high security challengeresponse schemes to protect the RFID air interfaceagainst simulations of cards.

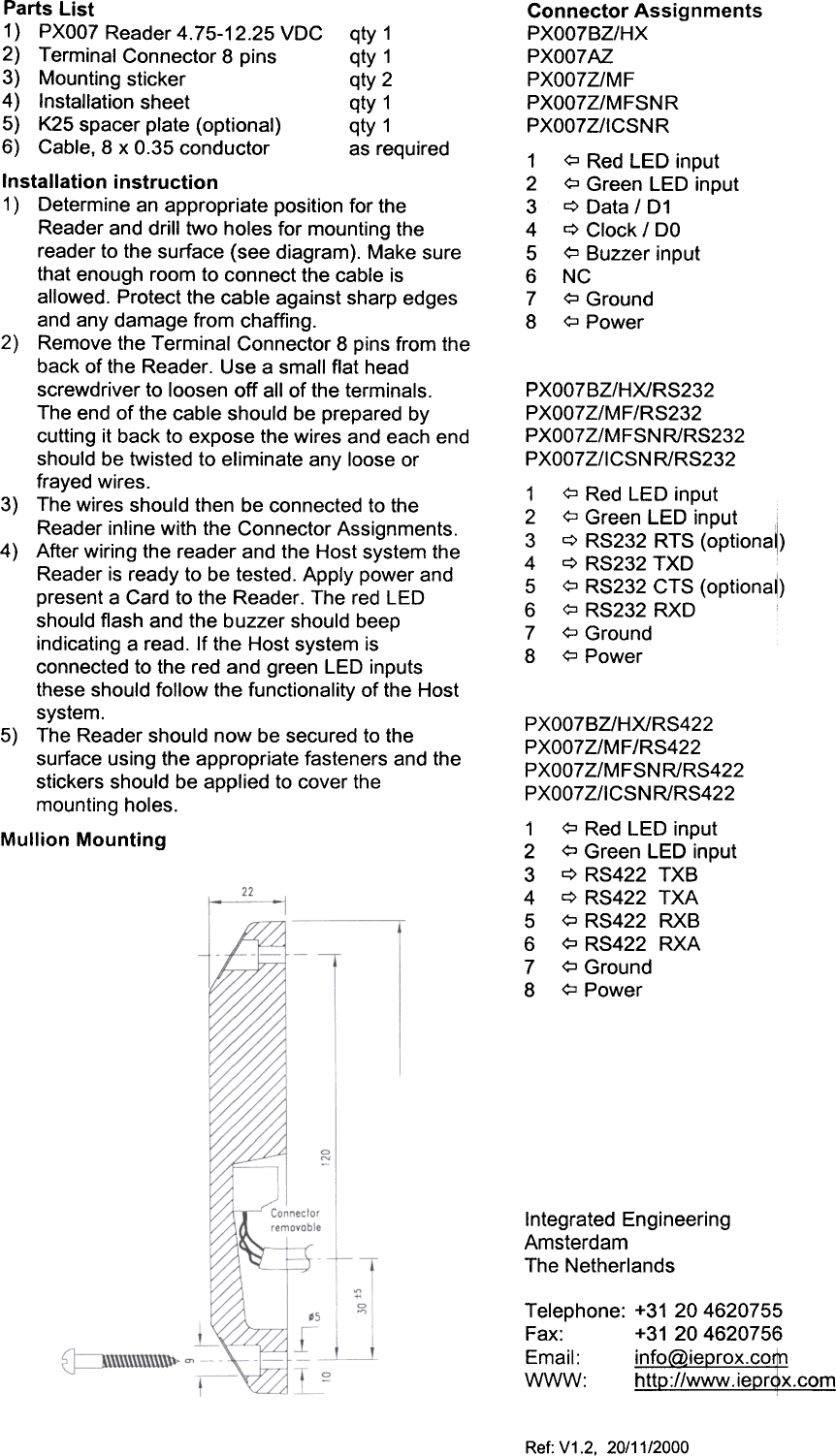

Connector AssignmentsPXOO7BZ/HXPXOO7AZPXOO7Z/MFPXOO7Z/MFSNRPXOO7Z/ICSNR1 <;::J Red LED input2 <;::J Green LED input3 q Data / D14 q Clock / DO5 <;::J Buzzer input6 NC7 <;::J Ground8 <;::JPowerPXOO7BZ/HX/RS232PXOO7Z/MF/RS232PXOO7Z/MFSNR/RS232PXOO7Z/ICSN R/RS2321 <:::J Red LED input2 <:::J Green LED input i3 q RS232 RTS (optiona~)4 q RS232 TXD5 <:::J RS232 CTS (optionaO6 <:::J RS232 RXD7 <:::J Ground8 <:::J PowerPXOO7BZ/HX/RS422PXOO7Z/MF/RS422PXOO7Z/MFSNR/RS422PXOO7Z/ICSNR/RS4221 ? Red LED input2 ? Green LED input3 c::> RS422 TXB4 c::> RS422 TXA5 ? RS422 RXB6 ? RS422 RXA7 ? Ground8 ?PowerParts List1) PXO07 Reader 4.75-12.25 VDC qty 12) Terminal Connector 8 pins qty 13) Mounting sticker qty 24) Installation sheet qty 15) K25 spacer plate (optional) qty 16) Cable, 8 x 0.35 conductor as requiredInstallation instruction1) Determine an appropriate position for theReader and drill two holes for mounting thereader to the surface (see diagram). Make surethat enough room to connect the cable isallowed. Protect the cable against sharp edgesand any damage from chaffing.2) Remove the Terminal Connector 8 pins from theback of the Reader. Use a small flat headscrewdriver to loosen off all of the terminals.The end of the cable should be prepared bycutting it back to expose the wires and each endshould be twisted to eliminate any loose orfrayed wires.3) The wires should then be connected to theReader inline with the Connector Assignments.4) After wiring the reader and the Host system theReader is ready to be tested. Apply power andpresent a Card to the Reader. The red LEDshould flash and the buzzer should beepindicating a read. If the Host system isconnected to the red and green LED inputsthese should follow the functionality of the Hostsystem.5) The Reader should now be secured to thesurface using the appropriate fasteners and thestickers should be applied to cover themounting holes.Mullion MountingIntegrated EngineeringAmsterdamThe NetherlandsTelephone: +31 204620755Fax: +31 204620756Email: info@ieprox.co$}WWW: http://www.iepr~x.comRef: V1.2, 20/11/2000
