Integrated Engineering SMARTPROX11 13.56 MHz inductive proximity Card Reader User Manual P4E SMARTPROX11 user manual

Integrated Engineering BV 13.56 MHz inductive proximity Card Reader P4E SMARTPROX11 user manual

user manual

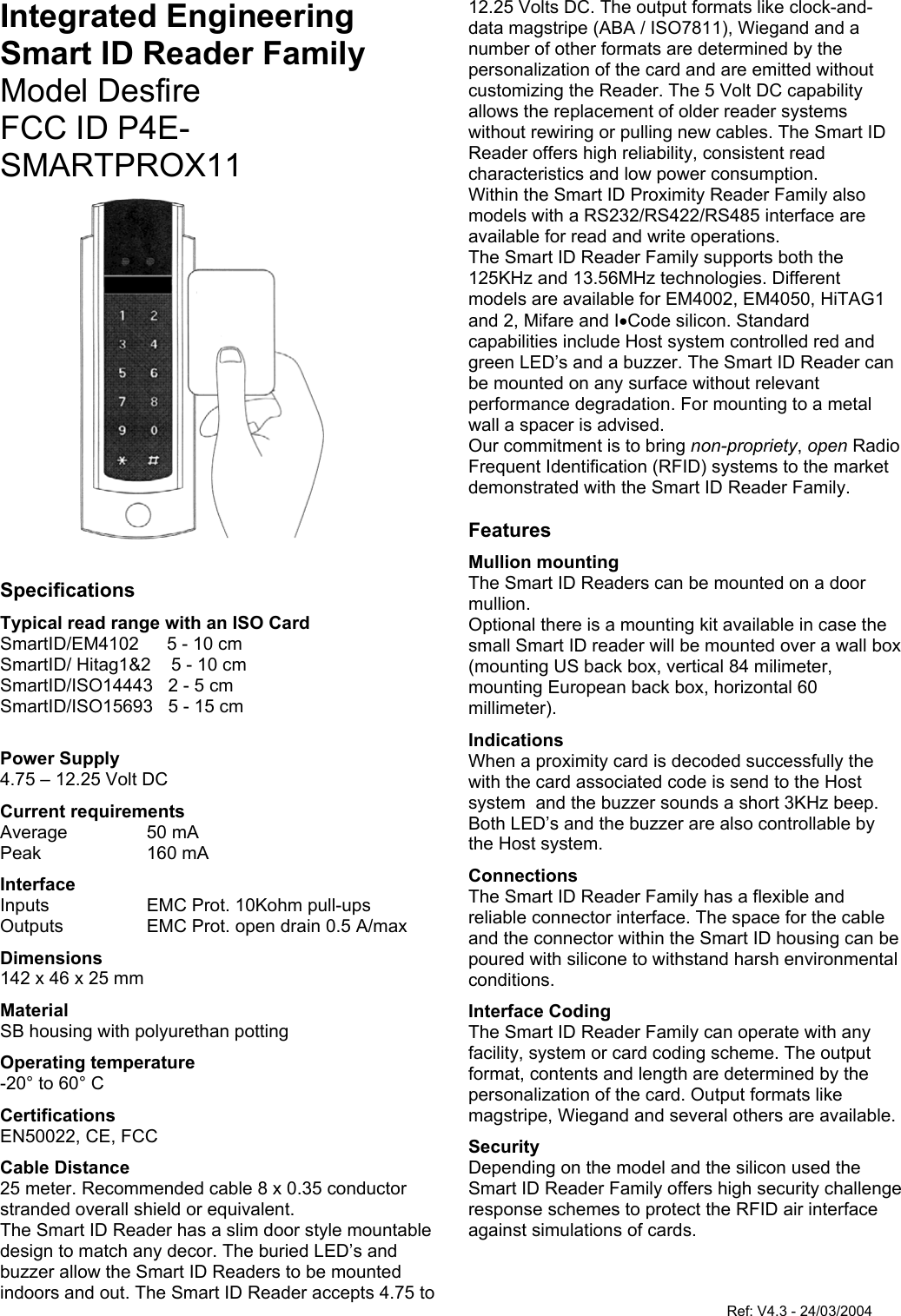

Integrated Engineering Smart ID Reader Family Model Desfire  FCC ID P4E-SMARTPROX11   Specifications Typical read range with an ISO Card SmartID/EM4102      5 - 10 cm SmartID/ Hitag1&2    5 - 10 cm SmartID/ISO14443   2 - 5 cm SmartID/ISO15693   5 - 15 cm  Power Supply 4.75 – 12.25 Volt DC Current requirements Average 50 mA Peak 160 mA Interface Inputs  EMC Prot. 10Kohm pull-ups  Outputs  EMC Prot. open drain 0.5 A/max Dimensions 142 x 46 x 25 mm Material SB housing with polyurethan potting Operating temperature -20° to 60° C Certifications EN50022, CE, FCC Cable Distance 25 meter. Recommended cable 8 x 0.35 conductor stranded overall shield or equivalent. The Smart ID Reader has a slim door style mountable design to match any decor. The buried LED’s and buzzer allow the Smart ID Readers to be mounted indoors and out. The Smart ID Reader accepts 4.75 to 12.25 Volts DC. The output formats like clock-and-data magstripe (ABA / ISO7811), Wiegand and a number of other formats are determined by the personalization of the card and are emitted without customizing the Reader. The 5 Volt DC capability allows the replacement of older reader systems without rewiring or pulling new cables. The Smart ID Reader offers high reliability, consistent read characteristics and low power consumption.  Within the Smart ID Proximity Reader Family also models with a RS232/RS422/RS485 interface are available for read and write operations.  The Smart ID Reader Family supports both the 125KHz and 13.56MHz technologies. Different models are available for EM4002, EM4050, HiTAG1 and 2, Mifare and I•Code silicon. Standard capabilities include Host system controlled red and green LED’s and a buzzer. The Smart ID Reader can be mounted on any surface without relevant performance degradation. For mounting to a metal wall a spacer is advised. Our commitment is to bring non-propriety, open Radio Frequent Identification (RFID) systems to the market demonstrated with the Smart ID Reader Family.  Features Mullion mounting The Smart ID Readers can be mounted on a door mullion.  Optional there is a mounting kit available in case the small Smart ID reader will be mounted over a wall box   (mounting US back box, vertical 84 milimeter, mounting European back box, horizontal 60 millimeter). Indications When a proximity card is decoded successfully the with the card associated code is send to the Host system  and the buzzer sounds a short 3KHz beep. Both LED’s and the buzzer are also controllable by the Host system. Connections The Smart ID Reader Family has a flexible and reliable connector interface. The space for the cable and the connector within the Smart ID housing can be poured with silicone to withstand harsh environmental conditions. Interface Coding The Smart ID Reader Family can operate with any facility, system or card coding scheme. The output format, contents and length are determined by the personalization of the card. Output formats like magstripe, Wiegand and several others are available. Security Depending on the model and the silicon used the Smart ID Reader Family offers high security challenge response schemes to protect the RFID air interface against simulations of cards.    Ref: V4.3 - 24/03/2004

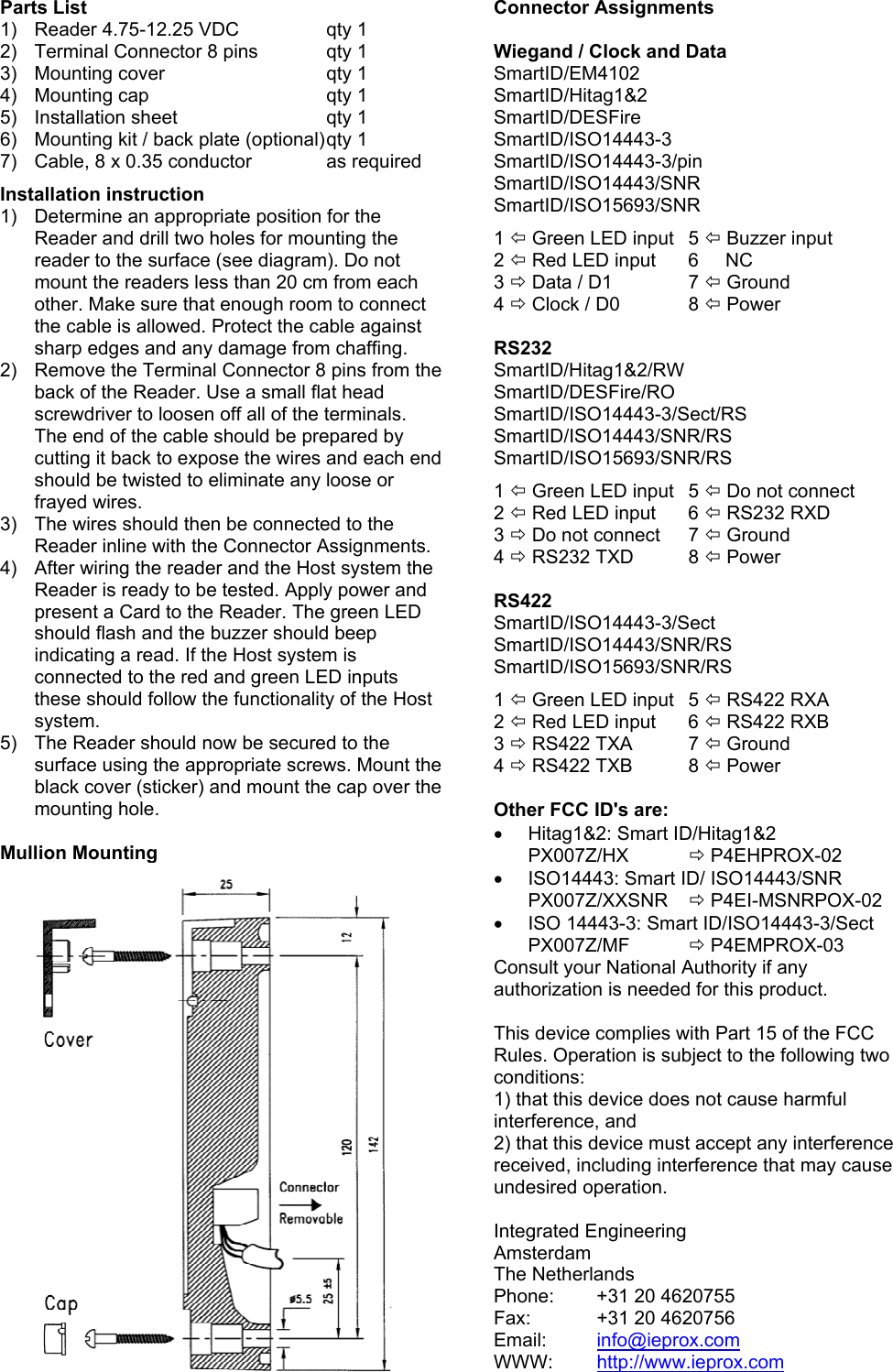

Parts List 1)  Reader 4.75-12.25 VDC  qty 1 2)  Terminal Connector 8 pins  qty 1 3)  Mounting cover  qty 1 4)  Mounting cap  qty 1 5)  Installation sheet  qty 1 6)  Mounting kit / back plate (optional) qty 1 7)  Cable, 8 x 0.35 conductor  as required  Installation instruction 1)  Determine an appropriate position for the Reader and drill two holes for mounting the reader to the surface (see diagram). Do not mount the readers less than 20 cm from each other. Make sure that enough room to connect the cable is allowed. Protect the cable against sharp edges and any damage from chaffing.  2)  Remove the Terminal Connector 8 pins from the back of the Reader. Use a small flat head screwdriver to loosen off all of the terminals. The end of the cable should be prepared by cutting it back to expose the wires and each end should be twisted to eliminate any loose or frayed wires. 3)  The wires should then be connected to the Reader inline with the Connector Assignments. 4)  After wiring the reader and the Host system the Reader is ready to be tested. Apply power and present a Card to the Reader. The green LED should flash and the buzzer should beep indicating a read. If the Host system is connected to the red and green LED inputs these should follow the functionality of the Host system. 5)  The Reader should now be secured to the surface using the appropriate screws. Mount the black cover (sticker) and mount the cap over the mounting hole.   Mullion Mounting  Connector Assignments  Wiegand / Clock and Data SmartID/EM4102 SmartID/Hitag1&2 SmartID/DESFire SmartID/ISO14443-3 SmartID/ISO14443-3/pin SmartID/ISO14443/SNR SmartID/ISO15693/SNR 1 ! Green LED input  5 ! Buzzer input 2 ! Red LED input  6     NC 3 " Data / D1    7 ! Ground 4 " Clock / D0   8 ! Power  RS232 SmartID/Hitag1&2/RW SmartID/DESFire/RO SmartID/ISO14443-3/Sect/RS SmartID/ISO14443/SNR/RS SmartID/ISO15693/SNR/RS 1 ! Green LED input  5 ! Do not connect 2 ! Red LED input   6 ! RS232 RXD 3 " Do not connect  7 ! Ground 4 " RS232 TXD  8 ! Power  RS422 SmartID/ISO14443-3/Sect SmartID/ISO14443/SNR/RS SmartID/ISO15693/SNR/RS 1 ! Green LED input  5 ! RS422 RXA 2 ! Red LED input  6 ! RS422 RXB 3 " RS422 TXA  7 ! Ground 4 " RS422 TXB  8 ! Power  Other FCC ID's are: •  Hitag1&2: Smart ID/Hitag1&2 PX007Z/HX    " P4EHPROX-02 •  ISO14443: Smart ID/ ISO14443/SNR PX007Z/XXSNR  " P4EI-MSNRPOX-02  •  ISO 14443-3: Smart ID/ISO14443-3/Sect PX007Z/MF   " P4EMPROX-03  Consult your National Authority if any  authorization is needed for this product.  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) that this device does not cause harmful interference, and 2) that this device must accept any interference received, including interference that may cause undesired operation.  Integrated Engineering Amsterdam The Netherlands Phone:  +31 20 4620755 Fax:  +31 20 4620756 Email:  info@ieprox.com WWW:  http://www.ieprox.com
