New World. New Thinking.TM

www.lenovo.com

©Lenovo China 2009

P/N: 147002750

Printed in China

S10-3 UserGuide V1.0 cover_1-4

Lenovo

IdeaPad S10-3

User Guide V1.0

First Edition (November 2009)

•

Notes

S10-3 UserGuide V1.0 cover_2-3

If your product is not working correctly,

DO NOT RETURN IT TO THE STORE.

For technical assistance, contact a Lenovo support

specialist 24 hours a day by calling toll free 1-877-4

LENOVO (1-877-453-6686).

Additionally, you can find support information and updates

on the Lenovo Web site located at

http://consumersupport.lenovo.com.

* Only for the users from the United States.

Before using this information and the product it supports, be sure to read Important safety

information on page iii and Notices in Appendix E first.

•Some instructions in this guide may assume that you are using Windows® 7. If you are using

other Windows operating system, some operations may be slightly different. If you are using

other operating systems, some operations may not apply to you, but it won’t substantially affect

your use of this computer.

•The features described in this guide are common to most models. Some features may not be

available on your computer and/or your computer may include features that are not described in

this user guide.

LENOVO products, data, computer software, and services have been developed exclusively at private expense

and are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and

restricted rights to use, reproduction and disclosure. LIMITED AND RESTRICTED RIGHTS NOTICE: If

products, data, computer software, or services are delivered pursuant a General Services Administration “GSA”

contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.

Dear user,

Thank you for purchasing your new Lenovo notebook computer!

Before using this product, make sure to read this user guide carefully.

We are pleased that you have chosen Lenovo for your mobile computing

needs. To help you master the usage of your new computer quickly, we

have prepared this user guide. In this manual you will find information on

the system configuration, basic operating instructions, and important

notices. We have done our best to avoid any errors in making sure that the

information provided in this manual is accurate and reliable. However, due

to the short length of the user guide it is impossible to cover all topics in

great depth. For this reason, we apologize for any omissions you might

find.

Lenovo is always trying to improve the performance and reliability of its

products. For that reason, the hardware and software components shown

within the user guide might not perfectly match those of your system.

However, any inconsistencies between what is described in the user guide

and the operations of your computer should not substantially affect your

use.

Thank you for your cooperation.

S10-3 UserGuide V1.0_en.book Page 1 Tuesday, November 10, 2009 11:04 AM

Explanation of hard disk capacity

Dear user,

While using your computer, you may find that the nominal hard disk

capacity indicated is somewhat different from the disk capacity

displayed by the operating system. For example, a nominal 40GB hard

disk will appear as less than 40GB in the operating system. This

discrepancy is not an error in hard disk installation nor any other

problem, but a normal phenomenon of computers. This phenomenon is

primarily due to the following reasons:

I. Different standards used by the manufacturer and operating

system when calculating hard disk capacity

Hard disk manufacturers use a radix of 1000, i.e., 1G = 1,000MB, 1MB =

1,000KB, 1KB = 1,000 bytes. However, when identifying hard disk capacity,

operating systems use a radix of 1024, i.e., 1GB = 1,024MB, 1MB = 1,024KB,

1KB = 1,024 bytes. The standard adopted by your computer is that of the

hard disk manufacturers. Since the standards adopted by the hard disk

manufacturer and operating system are different, the hard disk capacity

displayed by the operating system will be different from the nominal hard

disk capacity.

For example, if the hard disk is nominally X G, even when it is completely

empty, the capacity displayed by the operating system will be:

X × 1000 × 1000 × 1000/ (1024 × 1024 × 1024) ≈ X × 0.931 G

S10-3 UserGuide V1.0_en.book Page 2 Tuesday, November 10, 2009 11:04 AM

In addition, if a portion of the hard disk space has been used for some

specific purpose, then the capacity indicated by the operating system will

be even less than X × 0.931 G.

II. A portion of the hard disk space is used for specific purposes

Lenovo computers may come with preinstalled OneKey Rescue system, so

the hard disk has a special portion partitioned before delivery, which is

used to store hard disk mirror and OneKey Rescue system program files.

The size of the reserved space for this partition varies according to the

model, operating system and software of the computer. For the sake of

safety, this partition is not apparent, which is commonly referred to as a

“hidden partition”.

In addition, after the hard disk is partitioned or formatted, the system will

assign a certain amount of hard disk space for the system files.

For the above reasons, the available hard disk space indicated by the

operating system is always less than the computer’s nominal hard disk

capacity.

S10-3 UserGuide V1.0_en.book Page 3 Tuesday, November 10, 2009 11:04 AM

S10-3 UserGuide V1.0_en.book Page 4 Tuesday, November 10, 2009 11:04 AM

Important safety information...... iii

Important safety information....iii

Chapter 1. Getting to know your

computer ....................................... 1

Top view........................................ 1

Left-side view ...............................3

Right-side view.............................4

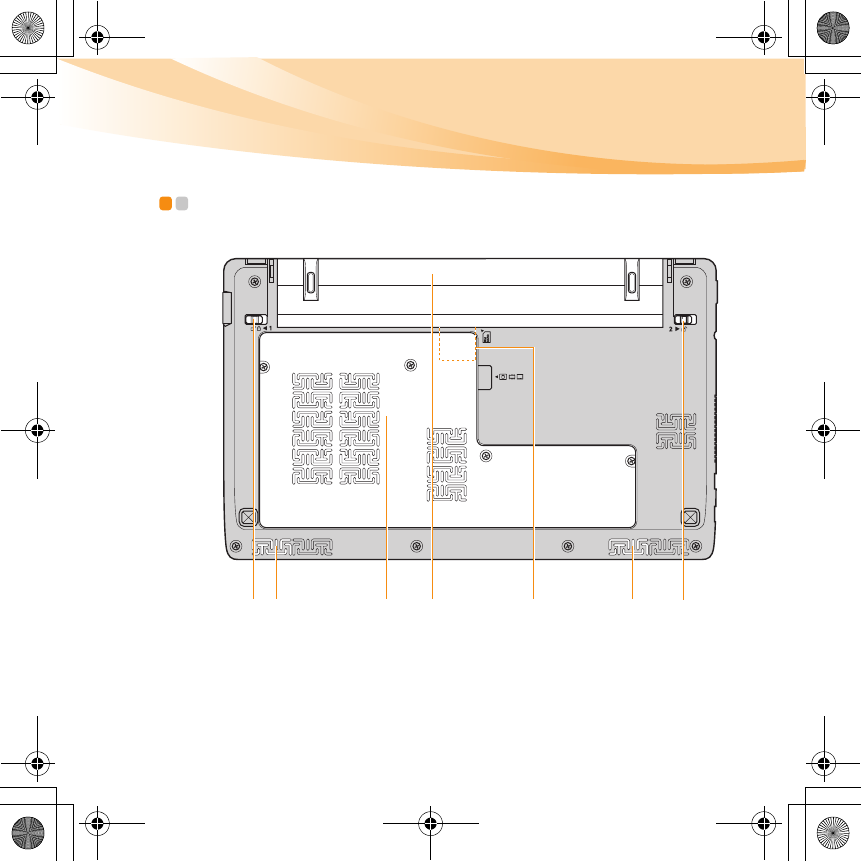

Bottom view.................................. 5

Chapter 2. Learning the

basics ............................................ 7

First use..........................................7

Using AC adapter and

battery ..........................................10

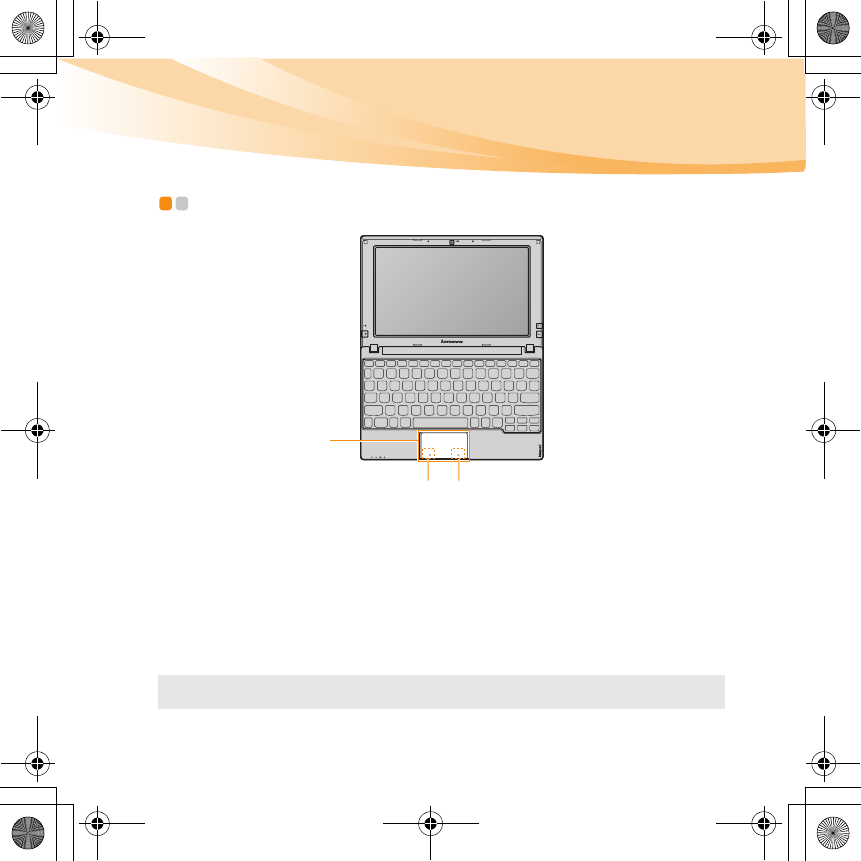

Using the touchpad.................... 13

Using the keyboard....................14

Special buttons............................ 17

System status indicators............19

Securing your computer............ 20

Connecting external devices.....22

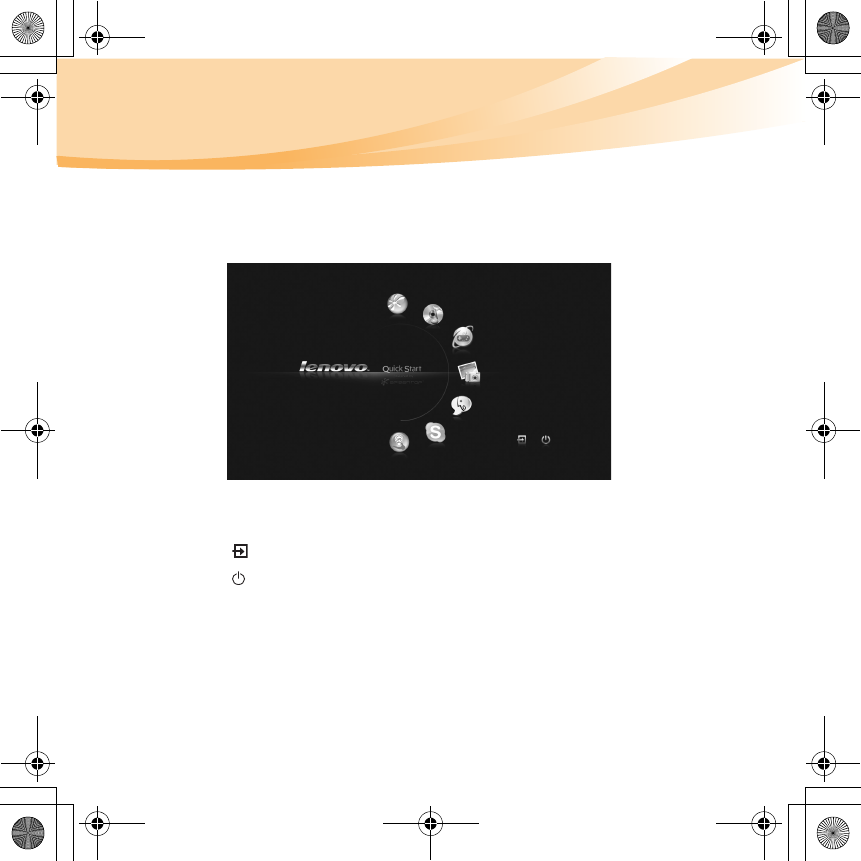

Using Lenovo Quick Start

(select models only) ................... 25

Chapter 3. Using the Internet .... 27

Wired connection .......................27

Wireless connection ...................29

Chapter 4. OneKey Rescue

system..........................................34

OneKey Rescue system .............34

Chapter 5. Troubleshooting .......37

Frequently asked questions......37

Troubleshooting .........................40

Chapter 6. Upgrading and

replacing devices ........................48

Replacing the battery.................48

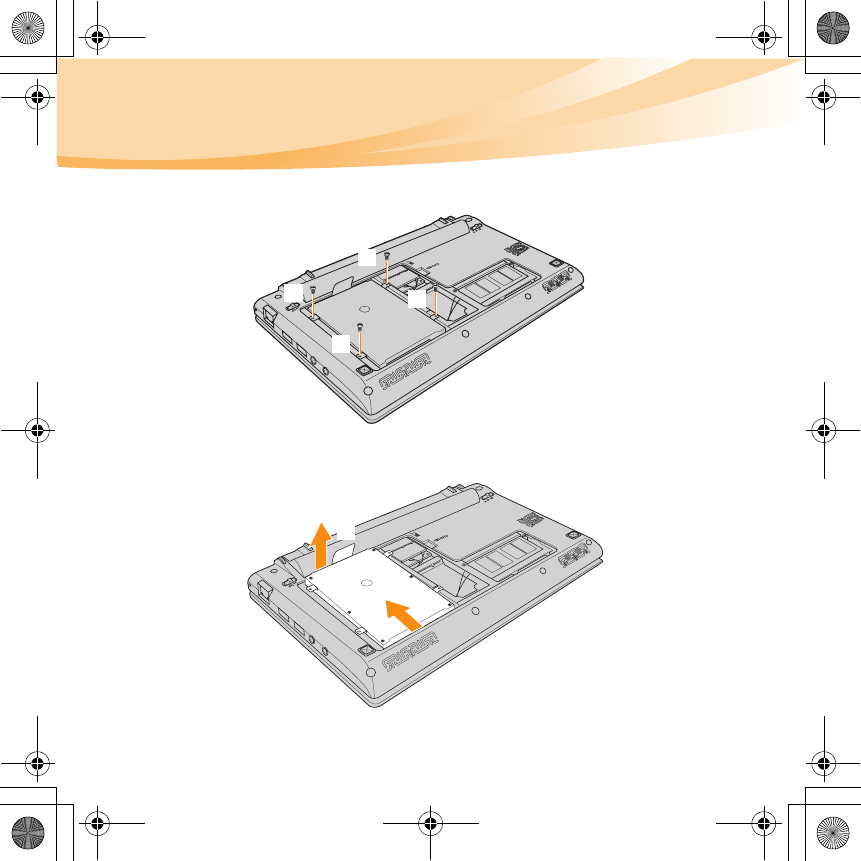

Replacing the hard disk drive ..50

Replacing memory .....................54

Appendix A. Getting help and

service..........................................58

Getting help on the Web ...........59

Calling the customer support

center............................................59

Getting help around the

world............................................62

Lenovo warranty service

telephone numbers.....................62

Appendix B. Use, and care

Information ..................................63

Caring your computer ...............63

Accessibility and comfort..........69

Maintenance................................71

Contents

S10-3 UserGuide V1.0_en.book Page i Tuesday, November 10, 2009 11:04 AM

Contents

Appendix C. Lenovo limited

warranty ...................................... 76

Warranty information ............... 86

Appendix D. Customer replaceable

units (CRUs)................................ 90

Appendix E. Notices................... 92

Notices......................................... 92

ENERGY STAR model

information ................................. 95

Wireless related information.... 97

Electronic emissions notices... 101

WEEE and recycling

statements ................................. 108

Turkish statement of

compliance................................ 108

EU WEEE statements .............. 109

Japan recycling statements..... 110

Notice for users in the

U.S.A.......................................... 112

Notice on deleting data from your

hard disk ................................... 112

Appendix F. Features and

specifications ........................... 114

Trademarks............................... 116

Index.......................................... 117

S10-3 UserGuide V1.0_en.book Page ii Tuesday, November 10, 2009 11:04 AM

iii

Important safety information

Important safety information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

This information can help you safely use your notebook personal

computer. Follow and retain all information included with your computer.

The information in this document does not alter the terms of your purchase

agreement or the Lenovo Limited Warranty. For more information, see

“Appendix C. Lenovo limited warranty” on page 76.

Read this first

Personal computers are electronic devices. Power cords, power adapters,

and other features can create potential safety risks that can result in

physical injury or property damage, especially if misused.

The safety risks are categorized as follows:

Danger:

Physical injury or even death may be caused.

Attention:

Property damage or even minor injury may be caused.

To protect yourself from hazards and create a safer computer work

environment, follow the instructions hereafter.





S10-3 UserGuide V1.0_en.book Page iii Tuesday, November 10, 2009 11:04 AM

Important safety information

Unpack

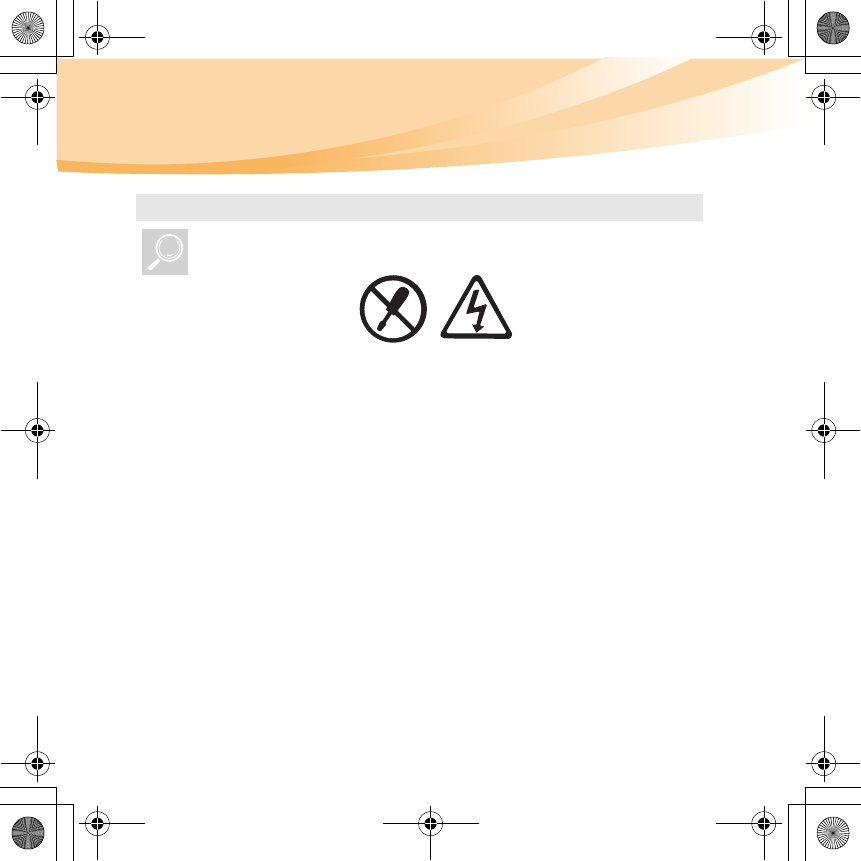

Inspect the covers of the computer and the AC adapter, especially

parts with the following labels attached for any crack or damage.

Danger:

• Hazardous voltage, current, and energy levels are present

inside any component that has this label attached.



S10-3 UserGuide V1.0_en.book Page iv Tuesday, November 10, 2009 11:04 AM

Important safety information

Working place

Do NOT use the computer in humid places such as a bathroom.

Keep the computer and other parts away from liquids.

Danger:

• An electric shock may be caused by spilled liquid.

Do NOT use the computer during a lightning storm.

Attention:

• Lightning storms may damage the computer and result in an

electric shock.

Ensure your computer and other components maintain good

ventilation.

Danger:

• Placing the working computer or other parts on a bed, sofa or

other flexible surface may block the ventilation slots causing

overheating of your computer or other parts and increases the

risk of fire.

Turn off wireless devices where they may cause interference, such as in

a hospital or at an airport.







S10-3 UserGuide V1.0_en.book Page v Tuesday, November 10, 2009 11:04 AM

Important safety information

Correct usage procedures

Use ONLY the power cord, power adapter and battery pack shipped

with the computer. Never use these devices with another product.

Be sure the power outlet is suitable for the plug and provides the

correct voltage and current for the product you are using.

Danger:

• An unsuitable power supply may damage your computer and

can cause an electric shock or fire.

Do NOT use a power outlet, power cord, power adapter or battery

pack that appears to be damaged or corroded.

Do NOT share an electrical outlet with other home or commercial

appliances that draw large amounts of electricity.

If power strips are used, the load should NOT exceed the power strip’s

input rating. Unplug the power cord if there are any cracking, hissing,

or popping sounds, or if a strong odor comes from the computer.

Danger:

• Overloading the power supply may cause unstable voltages

which might damage the computer, data, attached devices, or

even cause a fire.



S10-3 UserGuide V1.0_en.book Page vi Tuesday, November 10, 2009 11:04 AM

Important safety information

vii

Do NOT wrap the power cord around the power adapter or other

objects.

Do NOT squeeze or pinch the cord, or place heavy objects on it.

Attention:

• Stressing the cord may cause the cord to fray, crack or crimp

which may present a safety hazard.

Avoid keeping your hands, your lap, or any other part of your body in

contact with a hot section of the working computer for any extended

length of time.

Attention:

• Extended contact with your body, even through clothing, could

cause discomfort or even a skin burn.

Do not drop, bump, scratch, hit or place heavy objects on the liquid

crystal display (LCD) of your computer.

Attention:

• Direct contact with liquid crystal material from a broken LCD is

hazardous; if contact occurs, rinse with large amount of running

water for more than 15 minutes.



S10-3 UserGuide V1.0_en.book Page vii Tuesday, November 10, 2009 11:04 AM

viii

Important safety information

Service and upgrades

Do NOT attempt to service a product yourself unless instructed to do

so by the customer support center or your documentation.

Attention:

• DO NOT take risks or attempt to diagnose the situation

yourself. Contact the customer support center for further

guidance. For a list of service and support phone numbers,

go to http://consumersupport.lenovo.com.

Lenovo provides documentation with instructions when it is

appropriate for customers to install options or replace units (CRUs).

Closely follow all instructions when installing or replacing parts.

Disconnect the attached power cords, battery pack, and all the cables

before you open the device covers, unless instructed otherwise in the

installation and configuration procedures.

Keep the covers closed whenever the computer is plugged in.



S10-3 UserGuide V1.0_en.book Page viii Tuesday, November 10, 2009 11:04 AM

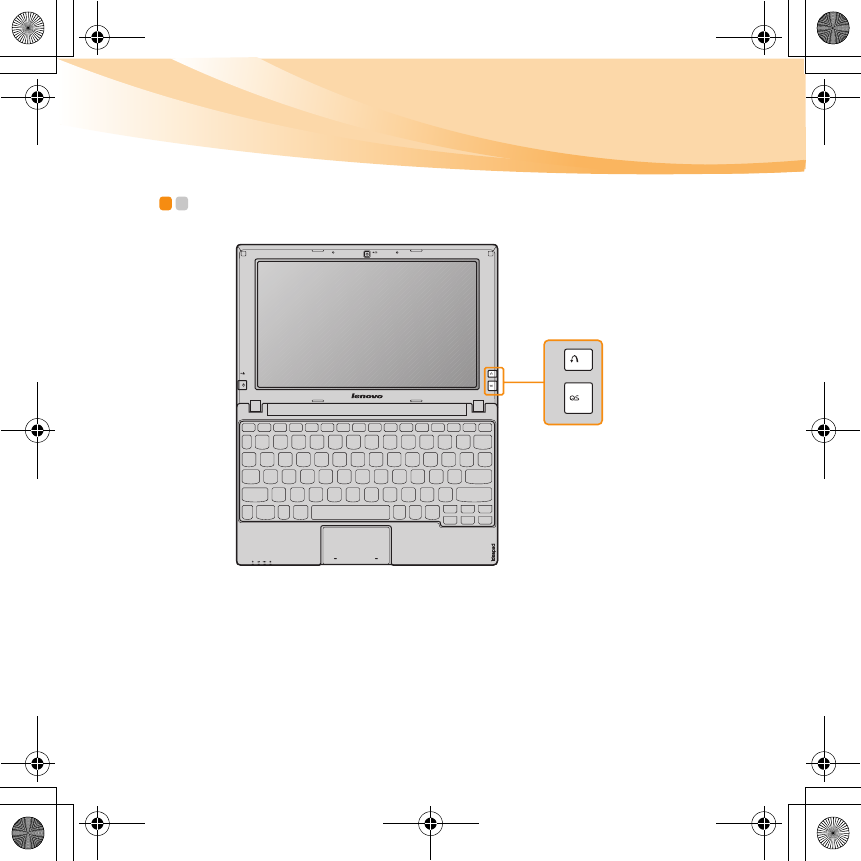

Chapter 1. Getting to know your computer

Top view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Note: The illustrations in this manual may differ from the actual product. Please refer to

the actual product.

S10-3 UserGuide V1.0_en.book Page 1 Tuesday, November 10, 2009 11:04 AM

Chapter 1. Getting to know your computer

Attention:

•Do NOT open the display panel beyond 130 degrees. When closing the display

panel, be careful NOT to leave pens or any other objects in between the display

panel and the keyboard. Otherwise, the display panel may be damaged.

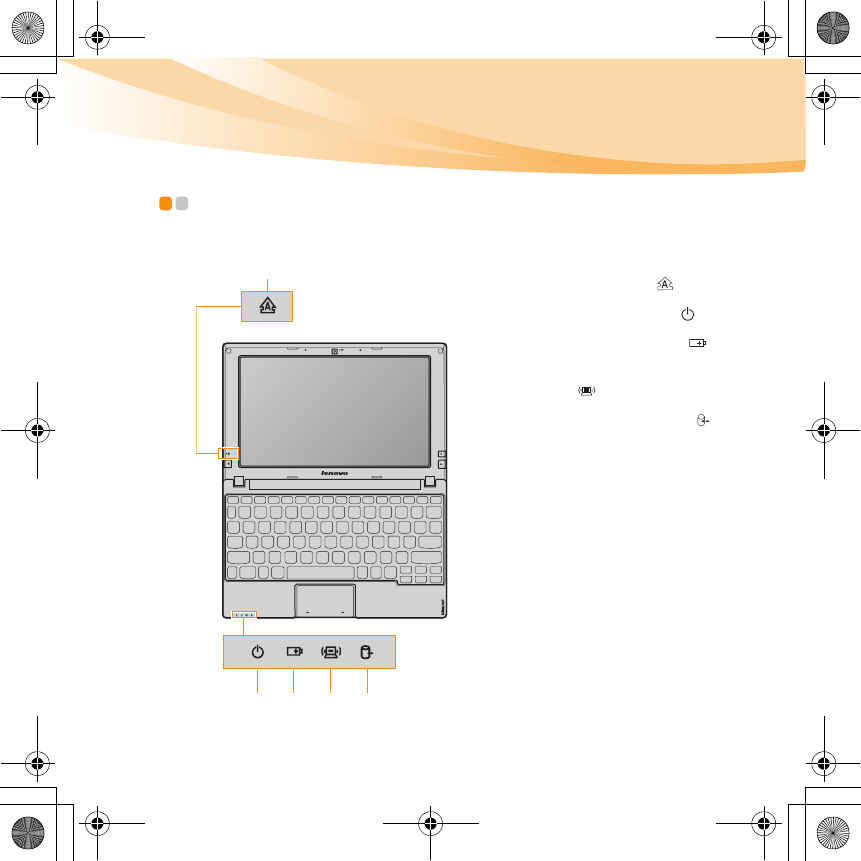

System status

indicators

For details, see “System status indicators” on page 19.

Power button Press this button to turn on the computer.

Integrated

camera

Use the camera for video communication.

Built-in

microphone

The built-in microphone (with noise reduction) can be used

for video conferencing, voice narration, or simple audio

recordings.

Computer

display

The LCD display with LED backlight provides brilliant

visual output.

OneKey Rescue

system button

Press this button to open OneKey Rescue system (If

OneKey Rescue system has been preinstalled) when the

computer is powered off.

Note: For details, see “Chapter 4. OneKey Rescue system” on page 34.

Quick Start

button

When the computer is powered-off, press this button to enter

the Lenovo Quick Start if it has been installed.

One-piece

touchpad

The touchpad functions as a conventional mouse with

built-in left-click and right-click buttons.

Note: For details, see “Using the touchpad” on page 13.

Wireless module

antennas (select

models only)

The built-in antennas ensure optimal reception of wireless

communication radio.





















S10-3 UserGuide V1.0_en.book Page 2 Tuesday, November 10, 2009 11:04 AM

Chapter 1. Getting to know your computer

Left-side view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

VGA port Connects to external display devices.

AC power

adapter jack

Connect the AC adapter here.

Note: For details, see “Using AC adapter and battery” on page 10.

USB port Connects to USB devices.

Note: For details, see “Connecting a universal serial bus (USB) device” on page 24.

Fan louvers Dissipate internal heat.

Note: Make sure that none of the fan louvers are blocked or else overheating of the

computer may occur.

Memory card slot Insert memory cards (not supplied) here.

Note: For details, see “Using memory cards (not supplied)” on page 22.

Integrated

wireless device

switch

Use this switch to turn on/off the wireless radio of all

wireless devices on your computer.

fedab













S10-3 UserGuide V1.0_en.book Page 3 Tuesday, November 10, 2009 11:04 AM

Chapter 1. Getting to know your computer

Right-side view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Headphone jack Connects to external headphones.

Attention:

•Listening to music at high volume over extended periods of time

may damage your hearing.

Microphone jack Connects to external microphones.

USB port Connects to USB devices.

Note: For details, see “Connecting a universal serial bus (USB) device” on page 24.

RJ-45 port

Connects to an Ethernet network.

Note: For details, see “Wired connection” on page 27.

Kensington slot Attach a security lock (not supplied) here.

Note: For details, see “Attaching a security lock (not supplied)” on page 20.

edab













S10-3 UserGuide V1.0_en.book Page 4 Tuesday, November 10, 2009 11:04 AM

Chapter 1. Getting to know your computer

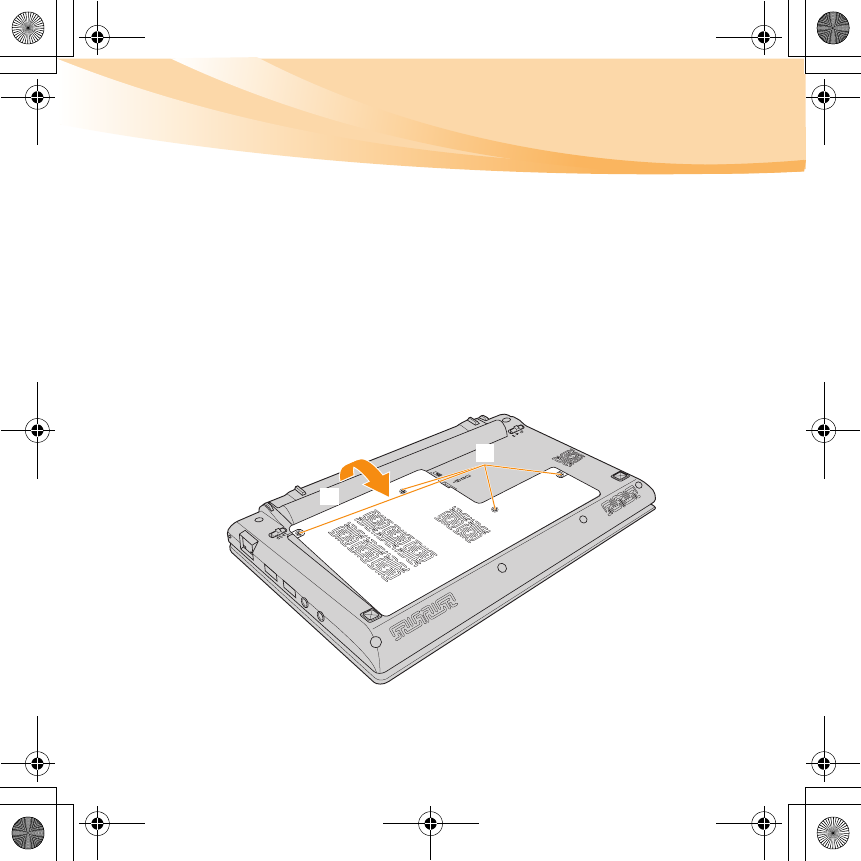

Bottom view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

ab cb

S10-3 UserGuide V1.0_en.book Page 5 Tuesday, November 10, 2009 11:04 AM

Chapter 1. Getting to know your computer

Battery latch -

manual

The manual battery latch is used to keep the battery pack

secured in place.

Speakers The stereo speakers provide rich and powerful sound.

Hard disk/

Memory/Mini PCI

ExpressCard slot

compartment

Battery pack For details, see “Using AC adapter and battery” on page 10.

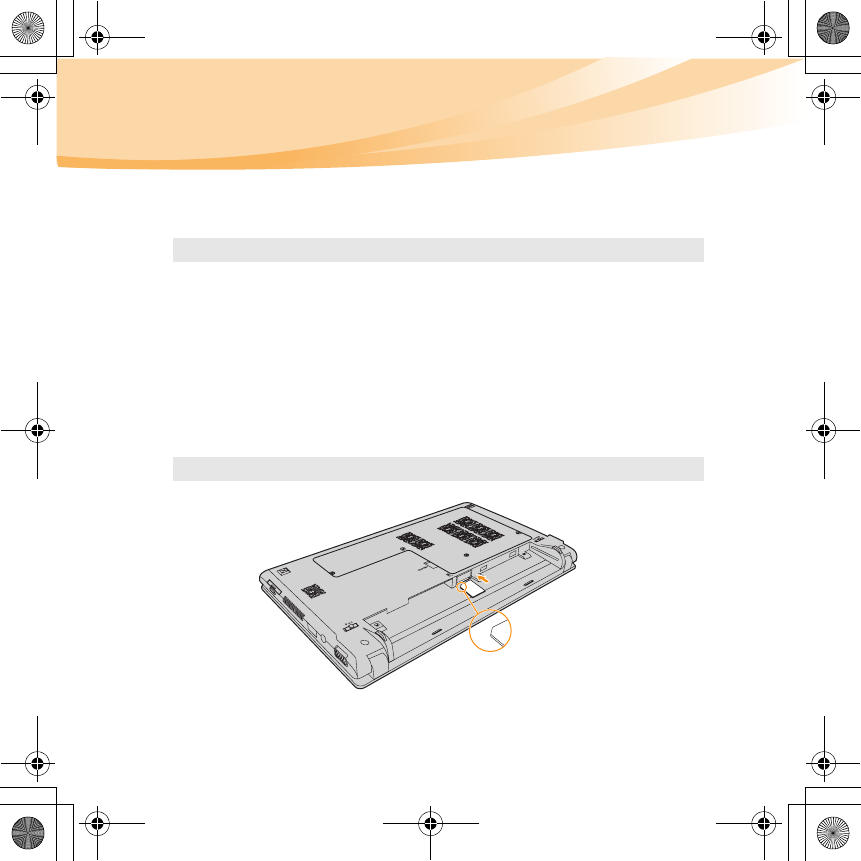

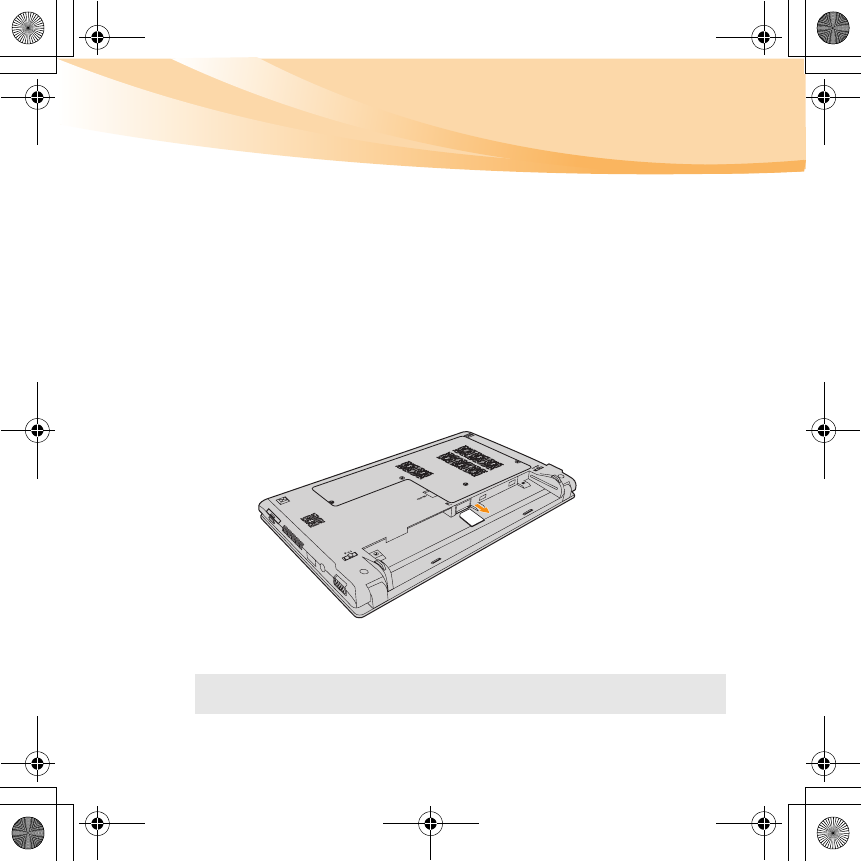

SIM card slot

(select models

only)

Insert a SIM card (not supplied) for using Mobile

Broadband.

Notes:

•After removing the battery pack, you can insert a SIM card into this slot.

•For details, see “Using Mobile Broadband (select models only)” on page 31

Battery latch -

spring loaded

The spring-loaded battery latch keeps the battery pack

secured in place.













S10-3 UserGuide V1.0_en.book Page 6 Tuesday, November 10, 2009 11:04 AM

Chapter 2. Learning the basics

First use

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Read the manuals

Read the supplied manuals before using your computer.

Connect to the power

The supplied battery pack is not fully charged at purchase.

To charge the battery and begin using your computer, insert the battery

pack and connect the computer to an electrical outlet. The battery is

automatically charged while the computer is running on AC power.

Install the battery pack

Refer to the supplied Setup Poster to install the battery pack.

Connect the computer to an electrical outlet

Connect the power cord to the AC adapter.

Connect the AC adapter to the AC power adapter jack of the computer.

Plug the power cord into an electrical outlet.

S10-3 UserGuide V1.0_en.book Page 7 Tuesday, November 10, 2009 11:04 AM

Chapter 2. Learning the basics

Turn on the computer

Press the power button to turn on the computer.

Configure the operating system

You may need to configure the operation system when it is first used. The

configuration process may include the procedures below.

• Accepting the end user license agreement

• Configuring the Internet connection

• Registering the operating system

• Creating a user account

Putting your computer into sleep state or shutting it down

When you finish working with your computer, you can put it into sleep

state or shut it down.

Putting your computer into sleep state

If you will be away from your computer for only a short time, put the

computer into sleep state.

When the computer is in sleep state, you can quickly wake it to resume use,

and bypass the startup process.

S10-3 UserGuide V1.0_en.book Page 8 Tuesday, November 10, 2009 11:04 AM

Chapter 2. Learning the basics

To put the computer into sleep state, do one of the following.

•Click and select Sleep from the Start menu.

•Press Fn + F1.

To wake the computer, do one of the following.

• Press the power button.

• Press any key on the keyboard.

Shutting down your computer

If you are not going to use your computer for a day or two, shut it down.

To shut down your computer, click and select Shut down from the Start

menu.

Note: Wait until the power indicator light starts blinking (indicating that the

computer is in sleep state) before you move your computer. Moving your

computer while the hard disk is spinning can damage the hard disk, causing

loss of data.

S10-3 UserGuide V1.0_en.book Page 9 Tuesday, November 10, 2009 11:04 AM

Chapter 2. Learning the basics

Using AC adapter and battery - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Checking battery status

You can determine the percentage of battery power remaining by checking

the battery icon in the notification area.

Charging the battery

When you find that the battery power is low, you need to charge the

battery or replace it with a fully charged one.

You need to charge the battery in any of the following situations:

• When you purchase a new battery

• If the battery status indicator starts blinking

• If the battery has not been used for a long time

Note: As each computer user has different habits and needs, it is difficult to predict

how long a battery charge will last. There are two main factors:

• The amount of energy stored in the battery when you commence work.

• The way you use your computer: for example, how often you access the

hard disk drive and how bright you make the computer display.

S10-3 UserGuide V1.0_en.book Page 10 Tuesday, November 10, 2009 11:04 AM

Chapter 2. Learning the basics

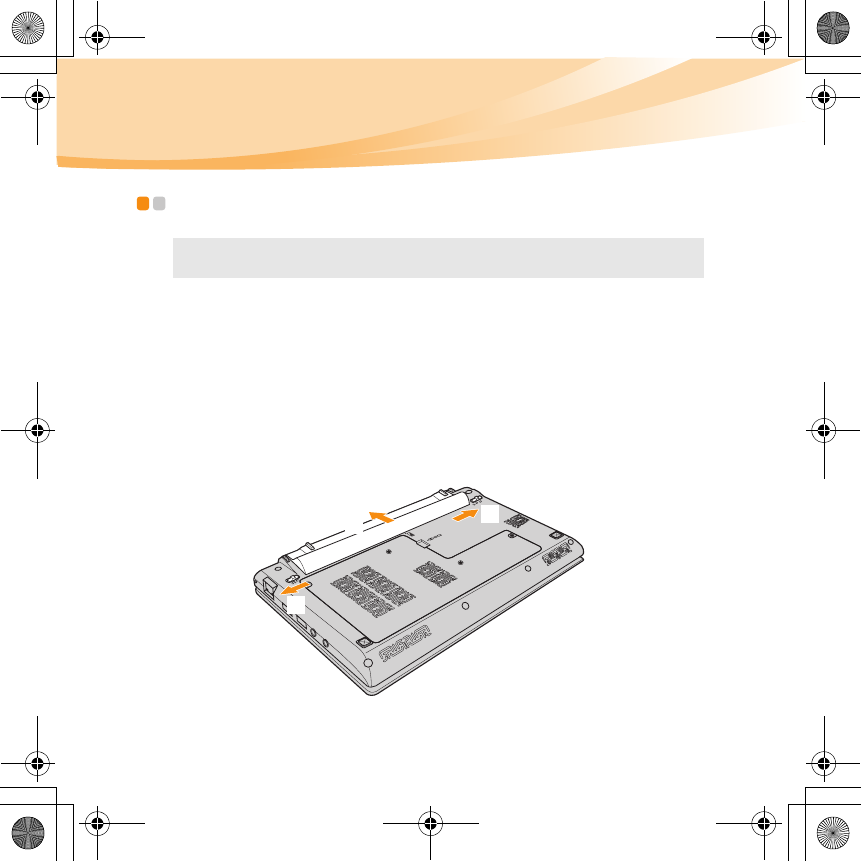

Removing the battery pack

If you are not going to use the computer for an extended period of time, or

if you need to send your computer to Lenovo for service, etc., remove the

battery pack from the computer. Before removing the battery pack, make

sure the computer has been shut down.

Notes:

•You are advised to insert the battery pack when using your computer to prevent

small particles from entering the inside of your computer.

•To increase the life of the battery pack, the computer does not start recharging

the battery immediately after it drops from fully charged.

•Charge the battery at a temperature between 50 °F and 80 °F (10 °C-30 °C).

•Full charge or discharge is not required.

S10-3 UserGuide V1.0_en.book Page 11 Tuesday, November 10, 2009 11:04 AM

Chapter 2. Learning the basics

Handling the battery

If the rechargeable battery pack is replaced with an incorrect type, there may

be danger of an explosion. The battery pack contains a small amount of

harmful substances. To avoid possible injury

and detriment to the

environment, pay attention to the following points:

• Replace only with a battery of the type recommended by Lenovo.

• Keep the battery pack away from fire.

• Do not expose the battery pack to water or rain.

• Do not attempt to disassemble the battery pack.

• Do not short-circuit the battery pack.

• Keep the battery pack away from children.

• Do not put the battery pack in trash that is disposed of in landfills. When

disposing of the battery, comply with local ordinances or regulations and

your company’s safety standards.

S10-3 UserGuide V1.0_en.book Page 12 Tuesday, November 10, 2009 11:04 AM

Chapter 2. Learning the basics

Using the touchpad - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

One-piece touchpad To move the cursor on the screen, slide your

fingertip over the pad in the direction in which you

want the cursor to move.

Bottom left area The function corresponds to that of the left mouse

button on a conventional mouse, which can be

implemented by clicking this area.

Bottom right area The function corresponds to that of the right mouse

button on a conventional mouse, which can be

implemented by clicking this area.

Note: You can enable/disable the touchpad using Fn+F6.







S10-3 UserGuide V1.0_en.book Page 13 Tuesday, November 10, 2009 11:04 AM

Chapter 2. Learning the basics

Using the keyboard - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Your computer has a numeric keypad and function keys incorporated in its

standard keyboard.

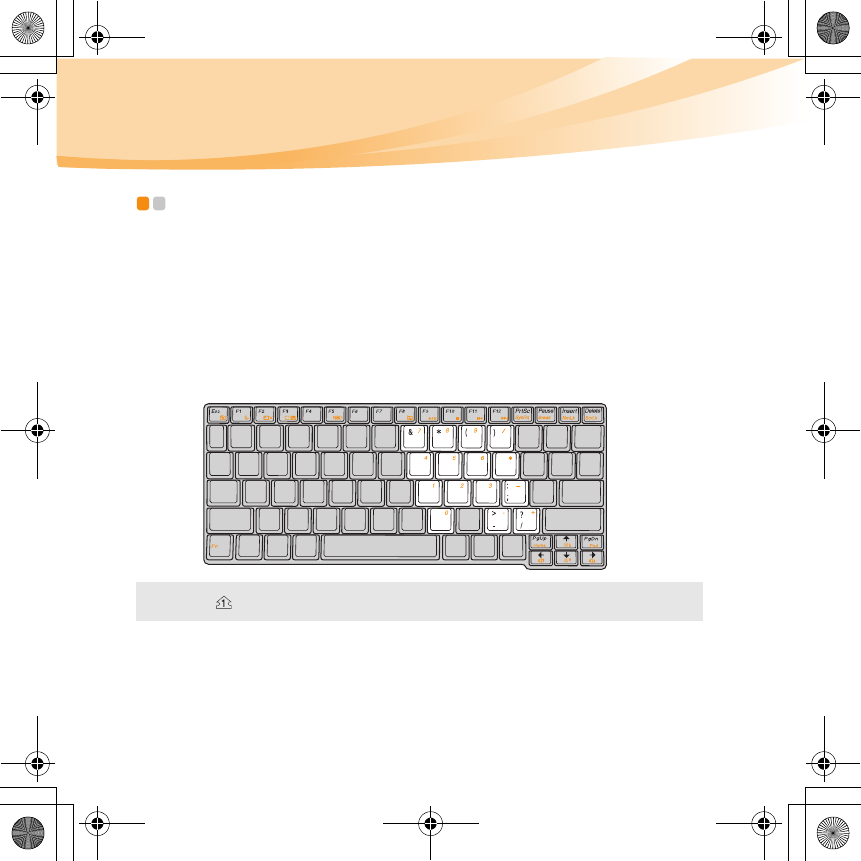

Numeric keypad

The keyboard has keys that, when enabled, work as a 10-key numeric

keypad.

To enable or disable the numeric keypad, press Fn+Insert.

Note: The indicator will light on if the numeric keypad is enabled.

7890

S10-3 UserGuide V1.0_en.book Page 14 Tuesday, November 10, 2009 11:04 AM

Chapter 2. Learning the basics

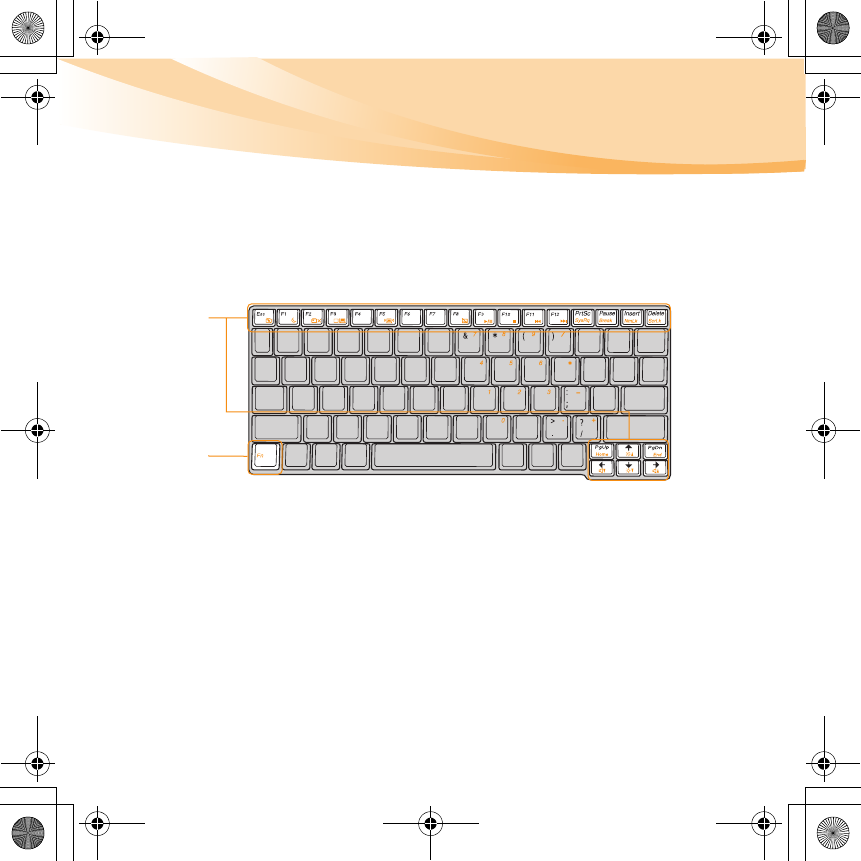

Function key combinations

Through the use of the function keys, you can change operational features

instantly. To use this function, press and hold Fn ; then press one of the

function keys .





7890

S10-3 UserGuide V1.0_en.book Page 15 Tuesday, November 10, 2009 11:04 AM

Chapter 2. Learning the basics

The following describes the features of each function key.

Fn + Esc: Turn on/off the integrated camera.

Fn + F1: Enter sleep mode.

Fn + F2: Turn on/off the LCD screen.

Fn + F3: Open the interface for the display device switch

to select notebook or external display.

Fn + F4: Open the interface for display resolution settings.

Fn + F5: Open the interface for integrated wireless devices

settings (enable/disable).

Fn + F6: Enable/Disable the touchpad.

Fn + F7: Start/Pause playback of Windows Media Player.

Fn + F8: Stop playback of Windows Media Player.

Fn + F9: Skip to the previous track.

Fn + F10: Skip to the next track.

Fn + F11: Activate the F12 function.

* You can press Fn+F11 during computer startup to open

the boot selection menu.

Fn + PrtSc: Activate the system request.

Fn + Pause: Activate the break function.

Fn + Insert: Enable/Disable the numeric keypad.

Fn + Delete: Enable/Disable the Scroll Lock.

Fn + ↑／↓ :Increase/Decrease display brightness.

Fn + →／← :Increase/Decrease volume level.

S10-3 UserGuide V1.0_en.book Page 16 Tuesday, November 10, 2009 11:04 AM

Chapter 2. Learning the basics

Special buttons - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

S10-3 UserGuide V1.0_en.book Page 17 Tuesday, November 10, 2009 11:04 AM

Chapter 2. Learning the basics

OneKey Rescue system button

• When the computer is powered off, press this button to enter the

OneKey Rescue system if Lenovo OneKey Rescue system has been

preinstalled.

• Under Windows operating systems, press this button to start Lenovo

OneKey Recovery.

Quick Start button

• When the computer is powered-off, press this button to enter Lenovo

Quick Start if it has been installed.

• Under Windows operating systems, press this button to launch a self-

defined program, file or a Website.

Note:

For details, see “OneKey Rescue system” on page 34.

Note:

For details, see “Using Lenovo Quick Start (select models only)” on page 25.

Note: To re-define the Quick Start button, select Self-defined program setting

(start → All Programs → Lenovo → Energy Management → Self-defined

program setting).

S10-3 UserGuide V1.0_en.book Page 18 Tuesday, November 10, 2009 11:04 AM

Chapter 2. Learning the basics

System status indicators - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

These indicators inform you of the computer status.

b c d e

aCaps lock indicator

Power status indicator

Battery status indicator

Wireless communication

indicator

Hard disk drive indicator











S10-3 UserGuide V1.0_en.book Page 19 Tuesday, November 10, 2009 11:04 AM

Chapter 2. Learning the basics

Securing your computer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

This section provides information about how to help protect your

computer from theft and unauthorized use.

Attaching a security lock (not supplied)

You can attach a security lock to your computer to help prevent it from

being removed without your permission. For details on installing the

security lock, please refer to the instructions shipped with the security lock

that you have purchased.

Refer to the “Right-side view” on page 4 for the location of the Kensington

slot.

Notes:

•Before purchasing any security product, verify that it is compatible with this

type of security keyhole.

•You are responsible for evaluating, selecting, and implementing the locking

devices and security features. Lenovo offers no comment, judgement, or

warranty regarding the function, quality or performance of locking devices and

security features.

S10-3 UserGuide V1.0_en.book Page 20 Tuesday, November 10, 2009 11:04 AM

Chapter 2. Learning the basics

Using VeriFace™

VeriFace is a face recognition software which takes a digital snapshot,

extracts key features of your face, and creates a digital map that becomes

the system’s “password”.

If you want to activate VeriFace for the first time, click the VeriFace icon on

the desktop to register your facial image.

For more instructions on VeriFace, see the help file on your software.

Using passwords

Using passwords helps prevent your computer from being used by others.

Once you set a password and enable it, a prompt appears on the screen

each time you power on the computer. Enter your password at the prompt.

The computer cannot be used unless you enter the correct password.

For details about how to set the password, see the help to the right of the

screen in BIOS Setup Utility.

Notes:

•The face registration and verification works best in an environment with steady

and even light.

•You can determine whether to use this function when you log on the system.

Note: This password can be from one to seven alphanumeric characters in any

combination.

Note: To enter BIOS Setup Utility, press F2 when the Lenovo logo appears on the

screen while the computer is starting up.

S10-3 UserGuide V1.0_en.book Page 21 Tuesday, November 10, 2009 11:04 AM

Chapter 2. Learning the basics

Connecting external devices - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Your computer has a wide range of built-in features and connection

capabilities.

Using memory cards (not supplied)

Your computer supports the following types of memory cards:

• Secure Digital (SD) card

• High Capacity Secure Digital (SDHC) card

• MultiMediaCard (MMC)

• Memory Stick (MS)

• Memory Stick PRO (MS PRO)

Notes:

•Insert ONLY one card in the slot at a time.

•This card reader does not support SDIO devices (e.g., SDIO Bluetooth, etc.).

S10-3 UserGuide V1.0_en.book Page 22 Tuesday, November 10, 2009 11:04 AM

Chapter 2. Learning the basics

Inserting a memory card

Push the dummy card until you hear a click. Gently pull the dummy

card out of the memory card slot.

Slide the memory card in until it clicks into place.

Removing a memory card

Push the memory card until you hear a click.

Gently pull the memory card out of the memory card slot.

Note: The dummy card is used for preventing dust and small particles from

entering the inside of your computer when the memory card slot is not in use.

Retain the dummy card for future use.

Note: Before removing the memory card, disable it via Windows safely remove

hardware and eject media utility to avoid data corruption.

S10-3 UserGuide V1.0_en.book Page 23 Tuesday, November 10, 2009 11:04 AM

Chapter 2. Learning the basics

Connecting a universal serial bus (USB) device

Your computer comes with three USB ports compatible with USB devices.

Connecting a Bluetooth enabled device (select models only)

If your computer has an integrated Bluetooth adapter card, it can connect to

and transfer data wirelessly to other Bluetooth enabled devices, such as

notebook computers, PDAs and cell phones. You can transfer data between

these devices without cables at up to 10 meters range in open space.

Enabling Bluetooth communications on your computer

Slide the integrated wireless device switch to .

Press Fn + F5 to make configuration.

Note: When using a high power consumption USB device such as USB ODD, use

the external device’s power adapter. Otherwise, the device may not be

recognized, and system shut down may result.

Note: The actual maximum range may vary due to interference and transmission

barriers. To get the best possible connection speed, place the device as near

your computer as possible.

Notes:

•When you do not need to use the Bluetooth function, turn it off to save battery

power.

•You need to pair the Bluetooth enabled device with your computer before you can

transfer data between them. Read the documentation supplied with the Bluetooth

enabled device for details on how to pair the device with your computer.

S10-3 UserGuide V1.0_en.book Page 24 Tuesday, November 10, 2009 11:04 AM

Chapter 2. Learning the basics

Using Lenovo Quick Start

(select models only) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

With a boot time of just a few seconds, Lenovo Quick Start offers a handy

environment that allows you to enjoy an instant access to functions such as

Web browsing, instant messaging and other entertainment functions

without entering the traditional operating system.

Notes:

•If Lenovo Quick Start is not installed, a prompt notice will appear on the screen

when you start it.

•The Web browser of Lenovo Quick Start is designed for you to get an instant

access to online information and does not fully support video streaming. You

may experience low frame rate when watching online video in Lenovo Quick

Start. To view online video, restart the computer to your Windows operating

system and use Internet Explorer to play the online video.

S10-3 UserGuide V1.0_en.book Page 25 Tuesday, November 10, 2009 11:04 AM

Chapter 2. Learning the basics

Starting Lenovo Quick Start

Press the QS button when the computer is powered-off. The following will

appear on the screen after a few seconds.

Exiting Lenovo Quick Start

• Click to restart the computer.

• Click to turn off the computer.

S10-3 UserGuide V1.0_en.book Page 26 Tuesday, November 10, 2009 11:04 AM

Chapter 3. Using the Internet

As a global network, the Internet connects computers worldwide,

providing services such as e-mailing, information searching, electronic

commerce, Web browsing and entertainment.

You can connect the computer to the Internet in the following ways:

Wired connection: uses physical wiring to connect.

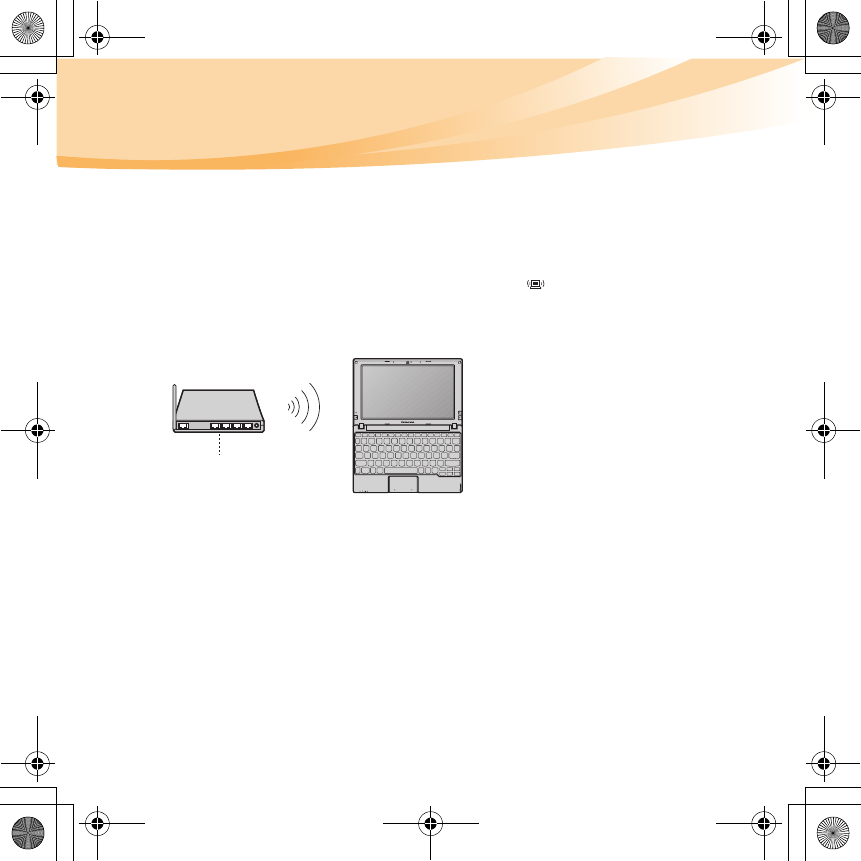

Wireless network technology: connect without wiring.

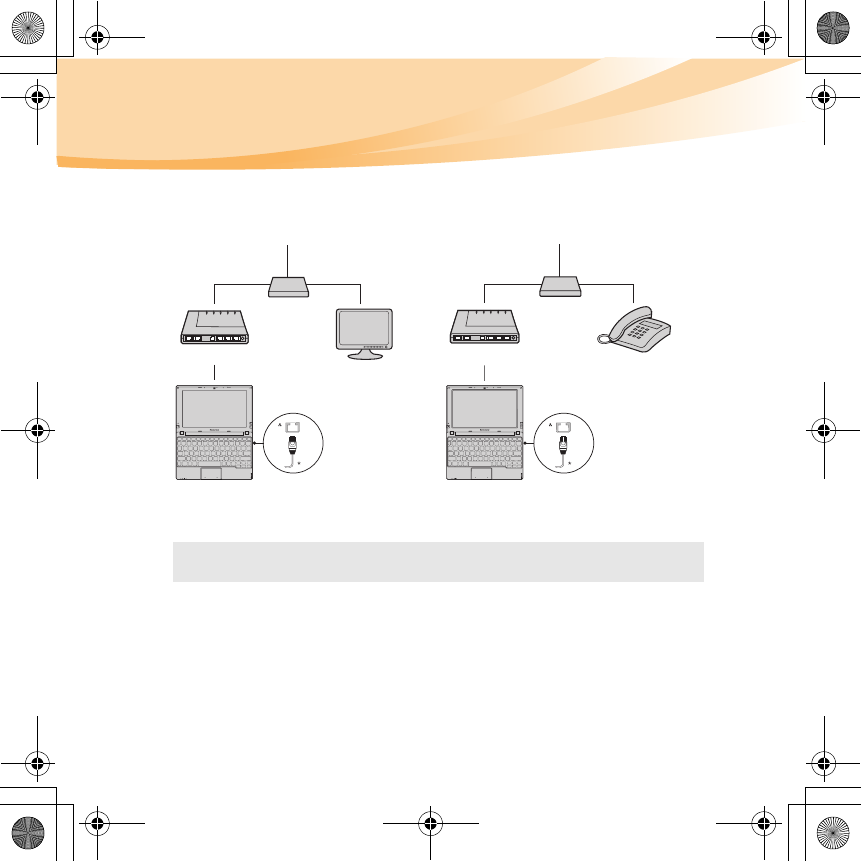

Wired connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Wired connections are a reliable and safe way to connect the computer to

the Internet. Generally, the following two accessing methods are widely

used.

Cable Cable Internet services use a cable modem connected to

the residential cable TV line.

DSL DSL is a family of related technologies that bring

high-speed network access to homes and small

businesses over ordinary telephone lines.

S10-3 UserGuide V1.0_en.book Page 27 Tuesday, November 10, 2009 11:04 AM

Chapter 3. Using the Internet

Hardware connection:

Cable DSL

Software configuration

Consult your Internet Service Provider (ISP) for details on how to configure

your computer.

Note: The above diagrams are for reference only. Actual connection method may

vary.

TV cable

Splitter *

Cable modem *

* Not supplied.

Telephone line

Splitter *

DSL modem *

S10-3 UserGuide V1.0_en.book Page 28 Tuesday, November 10, 2009 11:04 AM

Chapter 3. Using the Internet

Wireless connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Wireless connections provide mobile access to the Internet, allowing you to

stay online anywhere the wireless signal covers.

Divided by the signal scales, wireless connection to the Internet can be built

based on the following standards.

Wi-Fi Wi-Fi networks cover a small physical area, like a home,

office, or small group of buildings. An access point is

necessary for the connection.

WiMAX WiMAX networks connect several Wireless LAN systems

to cover a metropolitan area, providing high-speed

broadband access without the need for cables.

Mobile Broadband The Mobile Broadband network provides Internet access

to computers, cell phones and other devices over a large

geographic area. Mobile networks are used for data

transmission, and access is usually provided by a mobile

network operator. A Mobile Broadband SIM card is

necessary for the connection.

Note: Your computer may not support all wireless connection methods.

S10-3 UserGuide V1.0_en.book Page 29 Tuesday, November 10, 2009 11:04 AM

Chapter 3. Using the Internet

Using Wi-Fi/WiMax (select models only)

Enabling wireless connection

To enable wireless communications, do the following:

Slide the integrated wireless device switch to .

Press Fn + F5 to make configuration.

Hardware connection

Software configuration

Consult your Internet Service Provider (ISP) and search Windows Help and

Support Center for details on how to configure your computer.

Access point *

Wi-Fi/WiMax network

* Not supplied

S10-3 UserGuide V1.0_en.book Page 30 Tuesday, November 10, 2009 11:04 AM

Chapter 3. Using the Internet

Using Mobile Broadband (select models only)

Before getting started with Mobile Broadband, you first need to choose a

mobile network operator and make sure you are in the coverage area of the

network. After that, you also need:

• To activate the Mobile Broadband service through your local mobile

network operator. You will get a Subscriber Identity Module (SIM) card

after activation. For instructions on inserting the SIM card, refer to

“Inserting the SIM card” on page 32.

Notes:

•Various standards are in use by mobile operators to provide Mobile Broadband

services. The Lenovo Mobile Broadband module may support one or more of the

following standards:

GSM (Global System for Mobile Communications)

TD-SCDMA (Time Division-Synchronous Code Division Multiple Access)

SCDMA (Synchronous Code Division Multiple Access)

EV-DO (Evolution Data Optimized)

HSPA (High Speed Packet Access)

•Mobile Broadband is a subscription service. Refer to your local mobile network

operator for availability, cost and other information.

•A SIM card is a type of smart card used by mobile network operators to identify

their service subscribers on the mobile network. You will get the SIM card from

your mobile network operator after you have activated the Mobile Broadband

service.

S10-3 UserGuide V1.0_en.book Page 31 Tuesday, November 10, 2009 11:04 AM

Chapter 3. Using the Internet

• A connection management utility to connect/disconnect to your Mobile

Broadband network.

Inserting the SIM card

To insert the SIM card:

Turn off the computer; then disconnect the AC adapter and all cables

from the computer.

Close the computer display and turn it over.

Remove the battery.

Insert the SIM card to the card slot until it clicks into place as shown in

the illustration.

Note: In general, your mobile service provider provides this utility.

Note: Inserting the SIM card in the wrong direction may damage the SIM card slot.

Notched Corner

S10-3 UserGuide V1.0_en.book Page 32 Tuesday, November 10, 2009 11:04 AM

Chapter 3. Using the Internet

Put the battery back in place. Turn the computer over and reconnect

the cables.

Removing the SIM card

To remove the SIM card:

Turn off the computer, then disconnect the AC adapter and all cables

from the computer.

Close the computer display and turn it over.

Remove the battery.

Push the SIM card in until you hear a click, and then pull the SIM card

out.

Put the battery back in place. Turn the computer over and reconnect

the cables.

Note: Never insert or remove the SIM card while the computer is on. Doing so may

cause permanent damage to the SIM card as well as the SIM card reader.

S10-3 UserGuide V1.0_en.book Page 33 Tuesday, November 10, 2009 11:04 AM

Chapter 4. OneKey Rescue system

OneKey Rescue system - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Introduction

The Lenovo OneKey Rescue system is an easy-to-use application that can

be used to back up the data on your system partition (C drive) for easy

restore when required. You can run Lenovo OneKey Recovery under the

Windows operating system, and the OneKey Rescue system without

starting the Windows operating system.

Attention:

In order to utilize the features of the OneKey Rescue system, your hard

disk already includes a hidden partition by default to store the system

image file and OneKey Rescue system program files. This default partition

is hidden for security reasons and is the reason the available disk space is

less than it claims. The exact available hard disk space depends on the file

size of the mirror image file (based on the size of operating system and

pre-installed software).



S10-3 UserGuide V1.0_en.book Page 34 Tuesday, November 10, 2009 11:04 AM

Chapter 4. OneKey Rescue system

Using Lenovo OneKey Recovery (Within Windows operating

system)

In Windows operating system, double click the OneKey Recovery system

Icon on the desktop to launch Lenovo OneKey Recovery.

Within the program, you can back up the system partition on the hard disk

drive, other storage devices, or by creating recovery discs.

For more instructions, see the help file of Lenovo OneKey

Recovery.

Notes:

•The backup process and creation of recovery discs may take some time, connect

the AC adapter and battery pack to your computer.

•After the recovery discs are burned, please number them so that you can use

them in the correct order.

•Computers without an integrated optical drive support the creation of recovery

discs; however an appropriate external optical drive is needed to physically

create the recovery discs.

S10-3 UserGuide V1.0_en.book Page 35 Tuesday, November 10, 2009 11:04 AM

Chapter 4. OneKey Rescue system

Using Lenovo OneKey Rescue system (Without Windows

operating system)

In the event that the operating system cannot be loaded, follow the steps

below to access OneKey Rescue system.

• Shut down your computer.

• Press the key to launch OneKey Rescue system.

Within the program, you can choose to restore your system partition to the

original factory status, or to a previously generated backup.

Note: The recovery process is irreversible. Make sure to back up any critical data

before using the recovery feature.

S10-3 UserGuide V1.0_en.book Page 36 Tuesday, November 10, 2009 11:04 AM

Chapter 5. Troubleshooting

Frequently asked questions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

This section lists frequently asked questions and tell where you can find detailed

answers. For details about each publication included in the package with your

computer, see Lenovo IdeaPad S10-3 Setup Poster.

What safety precautions should I follow when using my computer?

See “Important safety information” on page iii of this guide.

How can I prevent problems with my computer?

See “Appendix B. Use, and care Information” on page 63 of this guide.

More tips can be found in Chapter 1 and 2.

What are the main hardware features of my new computer?

More information can be found in Chapter 1 and 2.

Where can I find the detailed specifications for my computer?

See http://consumersupport.lenovo.com.

I need to upgrade a device or I need to replace one of the following: the hard

disk drive, memory, or the keyboard.

See “Appendix D. Customer replaceable units (CRUs)” on page 90 of this

guide.

S10-3 UserGuide V1.0_en.book Page 37 Tuesday, November 10, 2009 11:04 AM

Chapter 5. Troubleshooting

Where are the recovery discs?

Your computer did not come with a recovery disc. For an explanation of

the alternative recovery methods offered by Lenovo, see “Chapter 4.

OneKey Rescue system” on page 34.

How can I contact the customer support center?

See “Appendix A. Getting help and service” on page 58 of this guide.

Where can I find warranty information?

For the warranty applicable to your computer, including the warranty

period and type of warranty service, see “Appendix C. Lenovo limited

warranty” on page 76.

How can I install the device drivers?

A compatible device driver is a requirement to ensure correct operation

and performance of each component in your computer. If your computer

is pre-installed with an operating system, Lenovo provides all the driver

you need in your hard disk.

What can I do if the backup process fails?

If you can start the backup feature without a problem, but it fails during

the backup process, please try the following steps:

Close other applications, then restart the backup process.

Check if the destination media is damaged, try to select another path

and then try again.

S10-3 UserGuide V1.0_en.book Page 38 Tuesday, November 10, 2009 11:04 AM

Chapter 5. Troubleshooting

When do I need to restore the system to the factory status?

You can use this feature when your system fails or you need to re-install

your operating system. This will restore your computer back to the initial

status when you first booted up your computer after receiving it from

the store. If there is critical data on your current partition, back it up

before you run this recovery feature.

S10-3 UserGuide V1.0_en.book Page 39 Tuesday, November 10, 2009 11:04 AM

Chapter 5. Troubleshooting

Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

If you do not find your problem here, see Chapter 2. The following section only

describes problems that might negate the need to refer to the more

comprehensive information in Chapter 2.

Display problems

When I turn on the compu-

ter, nothing appears on the

screen.

•If the screen is blank, make sure that:

- The battery is installed correctly.

- The AC adapter is connected to the computer and

the power cord is plugged into a working electrical

outlet.

- The computer power is on. (Press the power

button again for confirmation.)

- The memory is installed correctly.

•If these items are properly set, and the screen

remains blank, have the computer serviced.

When I turn on the

computer, only a white

cursor appears on a blank

screen.

•Restore backed-up files to your Windows

environment or the entire contents of your hard disk

to the original factory contents using OneKey

Recovery. If you still see only the cursor on the

screen, have the computer serviced.

S10-3 UserGuide V1.0_en.book Page 40 Tuesday, November 10, 2009 11:04 AM

Chapter 5. Troubleshooting

My screen goes blank while

the computer is on.

•Your screen saver or power management may be

enabled. Do one of the following to exit from the

screen saver or to resume from sleep or hibernation

mode:

- Touch the touchpad.

- Press any key on the keyboard.

- Press the power button.

-Press Fn+F2 to confirm whether the LCD screen

has been turned off.

A Password problem

I forgot my password. •If you forget your user password, you must take

your computer to a Lenovo authorized servicer or a

marketing representative to have the password

changed.

•If you forget your HDD password, a Lenovo

authorized servicer cannot reset your password or

recover data from the hard disk. You must take your

computer to a Lenovo authorized servicer or a

marketing representative to have the hard disk drive

replaced. Proof of purchase is required, and a fee will

be charged for parts and service.

•If you forget your supervisor password, a Lenovo

authorized servicer cannot reset your password. You

must take your computer to a Lenovo authorized

servicer or a marketing representative to have the

system board replaced. Proof of purchase is

required, and a fee will be charged for parts and

service.

S10-3 UserGuide V1.0_en.book Page 41 Tuesday, November 10, 2009 11:04 AM

Chapter 5. Troubleshooting

Keyboard problems

A number appears when

you enter a letter.

•The numeric lock function is on. To disable it, press

Fn + Insert.

Sleep or hibernation problems

The computer enters sleep

mode unexpectedly.

•

If the processor overheats, the computer automatically

enters sleep mode to allow the computer to cool and to

protect the processor and other internal components.

Check the settings for sleep mode.

The computer enters sleep

mode immediately after

Power-on self-test (POST).

•Make sure that:

- The battery is charged.

- The operating temperature is within the acceptable

range. See “Appendix B. Use, and care

Information” on page 63.

Note: If the battery is charged and the temperature is within range, have the computer

serviced.

The critical low-battery error

message appears, and the

computer immediately turns

off.

•The battery power is getting low. Connect the AC

adapter to the computer, or replace the battery with

a fully charged one.

S10-3 UserGuide V1.0_en.book Page 42 Tuesday, November 10, 2009 11:04 AM

Chapter 5. Troubleshooting

The computer does not

return from sleep mode and

does not work.

•If the computer does not return from sleep mode, it

may have entered hibernation mode automatically

because the battery is depleted. Check the power

indicator.

•If your computer is in sleep mode connect the AC

adapter to the computer, then press any key or the

power button.

•If your computer is in hibernation mode or power-off

state. Connect the AC adapter to the computer, then

press the power button to resume operation.

Note:

If the system still does not return from sleep mode, your system has stopped

responding, and you cannot turn off the computer, reset the computer. However,

unsaved data may be lost. To reset the computer, press and hold the

power button

for 4 seconds or more. If the computer is still not reset, remove the AC adapter and

the battery.

S10-3 UserGuide V1.0_en.book Page 43 Tuesday, November 10, 2009 11:04 AM

Chapter 5. Troubleshooting

Computer screen problems

The screen is blank. •Do the following:

- If you are using the AC adapter, or using the

battery, and the battery status indicator is on, press

Fn +↑to make the screen brighter.

- If the Power indicator is blinking, press the power

button to resume from the sleep mode.

- If the problem persists, follow the solution in the

following problem “The screen is unreadable or

distorted.”

The screen is unreadable or

distorted.

•Make sure that:

- The display device driver is installed correctly.

- The screen resolution and color quality are

correctly set.

- The monitor type is correct.

Incorrect characters appear

on the screen.

•Did you install the operating system or application

program correctly? If they are installed and

configured correctly, have the computer serviced.

S10-3 UserGuide V1.0_en.book Page 44 Tuesday, November 10, 2009 11:04 AM

Chapter 5. Troubleshooting

Sound problems

No sound can be heard

from the speaker even

when the volume is turned

up.

•Make sure that:

- The Mute function is off.

- The headphone jack is not used.

- Speakers are selected as the playback device.

Battery problems

Your computer shuts down

before the battery status

indicator shows empty.

-or-

Your computer operates

after the battery status

indicator shows empty.

•Discharge and recharge the battery.

The operating time for a

fully charged battery is

short.

•For details, see “Handling the battery” in Chapter 2.

The computer does not

operate with a fully charged

battery.

•The surge protector in the battery might be active.

Turn off the computer for one minute to reset the

protector, then turn on the computer again.

The battery does not

charge.

•For details, see “Handling the battery” in Chapter 2.

A hard disk drive problem

The hard disk drive does

not work.

•In the Boot menu in BIOS Setup Utility, make sure

that the hard disk drive is included in the Boot order

correctly.

S10-3 UserGuide V1.0_en.book Page 45 Tuesday, November 10, 2009 11:04 AM

Chapter 5. Troubleshooting

A startup problem

The Microsoft® Windows

operating system does not

start.

•Use the OneKey Rescue system to help solve or

identify your problem. For details on the OneKey

Rescue system, see “Chapter 4. OneKey Rescue

system” on page 34.

OneKey Rescue system problems

Backup cannot be made. •You are not currently using a Windows operating

system.

•There is not enough space to store the backed up

data. You will need to free more hard disk space on

your system partition (C drive).

Fail to restore system

partition to factory default.

•The system partition, such as the partition size or the

drive capacity of C, has been modified.

Intel 112BNHU Intel Centrino Wireless-N 1000 User Manual S10 3 UserGuide V1 0 EN

Intel Mobile Communications Intel Centrino Wireless-N 1000 S10 3 UserGuide V1 0 EN

Contents

Users Manual 2

Navigation menu

Namespaces

Views

Navigation
