Basics

5 Configure the IP settings.

•

When using DHCP, select

Obtain an IP address

automatically

•

When not using DHCP, contact the network administrator

for the IP address. To use a static IP address, select

Use the

following IP address

and set the IP address manually.

6 Select

to save the settings.

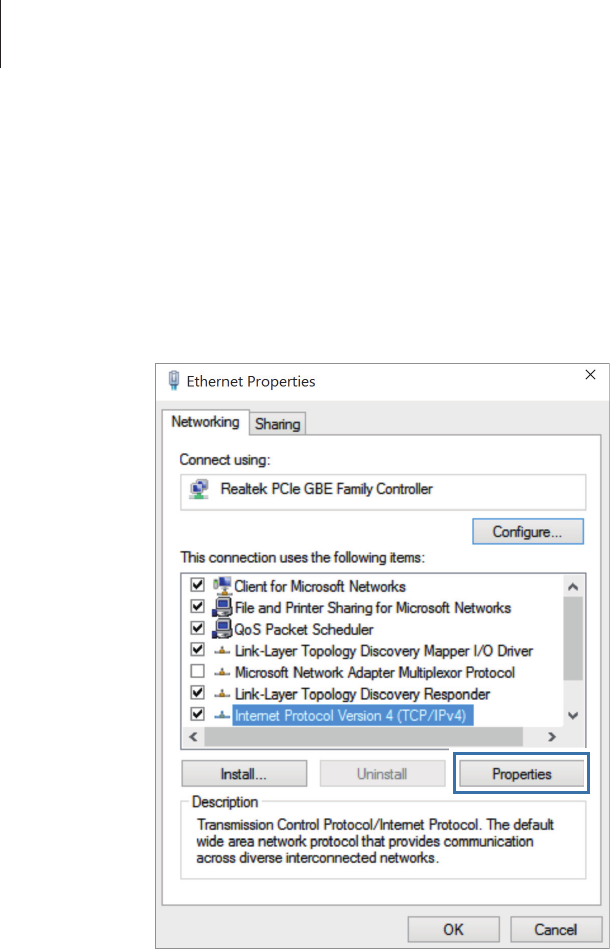

4 Select

Internet Protocol Version 4 (TCP/IPv4)

from the

list below

This connection uses the following items

→

Properties

•

The Network Component name may differ depending on

the operating system.

•

To add a network item such as a client, service, or protocol,

select

Install...

under the list of network items.

Basics

•

When connected to a 100 Mbps/1 Gbps wired LAN, a

message appears informing the user of connection to

a 10 Mbps/100 Mbps wired LAN when the computer

wakes from sleep mode. This happens because

restoring the network takes about 3 seconds. When the

network is restored, the computer will be connected to

the 100 Mbps/1 Gbps LAN.

•

When the system is running on battery power, it may

take a few seconds for the connection to be established

when connecting a LAN cable. This is the result of

power saving features designed to reduce battery

consumption.

•

When the system is running on battery power, the

speed of a wired LAN is decreased automatically

to reduce battery consumption. In this case, a

1 Gbps/100 Mbps LAN would function at the speed of a

100 Mbps/10 Mbps connection.

Wake on LAN (WOL) feature

Activate the system remotely from sleep mode when a signal,

such as a magic packet command, is received via a wired LAN.

1 On the desktop, right-click the Start button ( ) and select

Control Panel

→

Network and Internet

→

Network and

Sharing Center

→

Change adapter settings

2 Right-click

Ethernet

and select

Properties

3 Select

Configure...

→

Power Management

→

Allow this

device to wake the computer

→

4 Restart the computer.

•

If the computer wakes up from sleep mode inadvertently,

disable the Wake on LAN feature.

•

This feature may not work while using other power saving

features. To disable other sleep functions, right-click the

Start button ( ) and select

Control Panel

→

Hardware

and Sound

→

Power Options

Basics

Connecting to a Wi-Fi network

1 On the taskbar, select .

AP List

Wireless LAN

Connect the computer to a wireless network to use the Internet.

The descriptions below are for computer models with

a Wireless LAN card or device. A Wireless LAN device is

optional. The pictures in this manual may differ from the

actual product depending on the wireless LAN device

model.

About Access Point (AP)

An Access Point (AP) is a network device that bridges wired

and wireless LANs and corresponds to a wireless hub in a wired

network. Multiple devices can be connected to an AP.

Basics

Deactivating the Wi-Fi feature

When you are not using the Wi-Fi feature, turn it off to save battery

power.

1 Select on the taskbar.

2 Select the connected network name to turn it off. The Wi-Fi

feature is deactivated.

Airplane mode

This disables all wireless functions on your computer. You can use

only non-network services.

To activate

Airplane mode

, on the taskbar, select

→

Airplane

mode

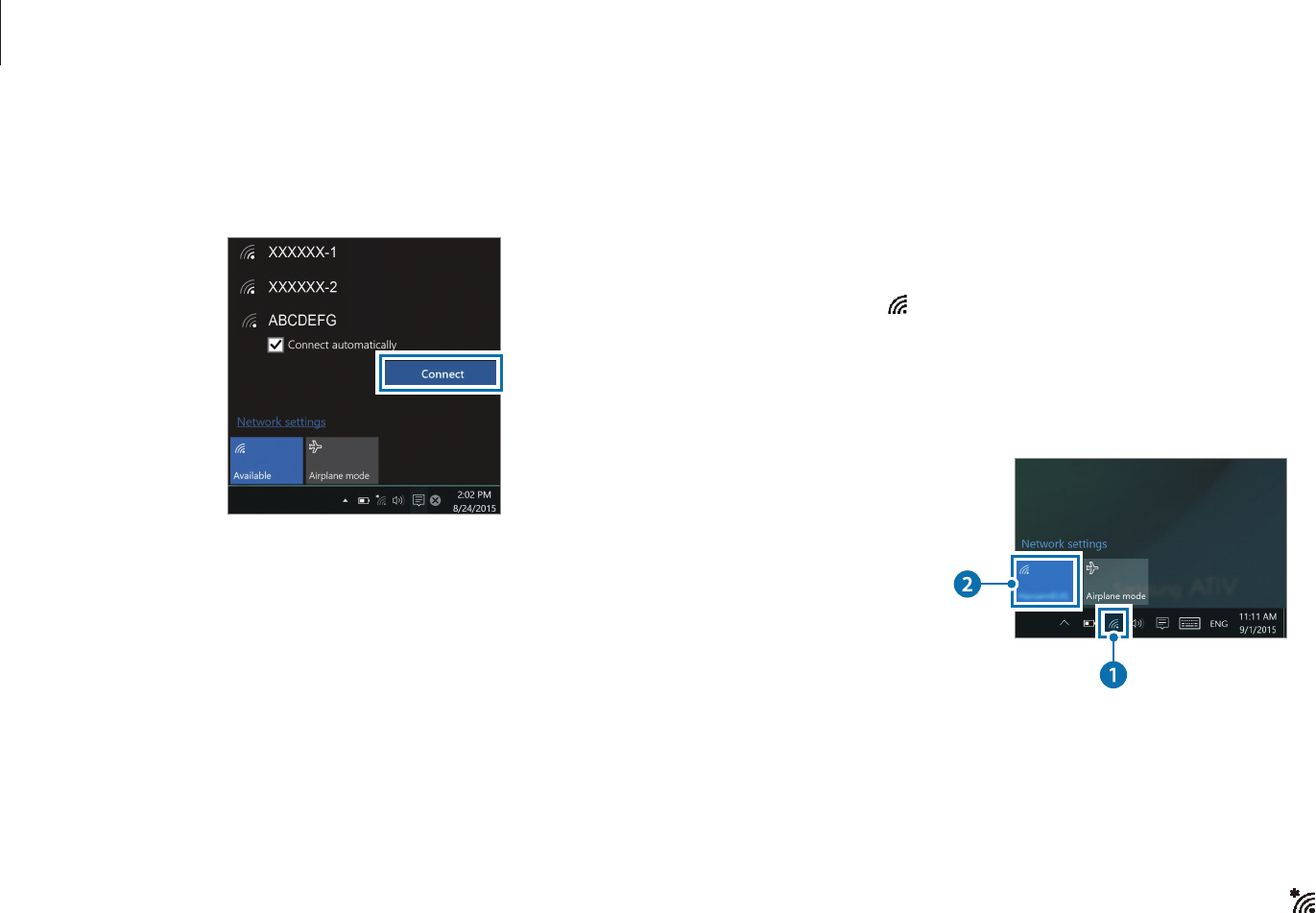

2 Select a network from the list of detected wireless networks

and select

Connect automatically

→

Connect

3 Enter a password, if necessary, and select

Once the computer has been connected to a wireless

network, it will attempt to connect to it automatically when

it is available. If you require a network password, contact the

system administrator.

Basics

Using the security slot (For 15.6

inch models)

You can secure the computer by connecting a lock and cable to

the security slot.

Tie the lock and cable to a fixed object and install the other end of

the cable to the security slot.

To use this feature, you must purchase a lock and cable

(sold separately). Your product may differ from the one

shown above. For more information, refer to your lock’s

manual.

Applications

Using applications

•

Images and features may differ depending on the

model and the application version.

•

Some applications may not be supported depending

on the model.

•

Applications that are provided by Samsung can be

installed from

Samsung Update

•

Third-party software related services

For descriptions about and service requests for

third-party applications, please contact the relevant

manufacturer. Some troubleshooting actions in

response to service requests may not work depending

on the application manufacturer.

Applications

Menu Description

Quick Settings

•

Set quick settings.

Convenience

•

Set system settings.

Power Management

•

Set power-related settings.

Network

•

Set network functions and settings.

Display

•

Set the screen brightness and color.

Audio

•

Set sound settings.

Input

•

Set input functions and settings.

Privacy Protection

•

Set security functions and settings.

My Log-in

•

Set personal log-in settings.

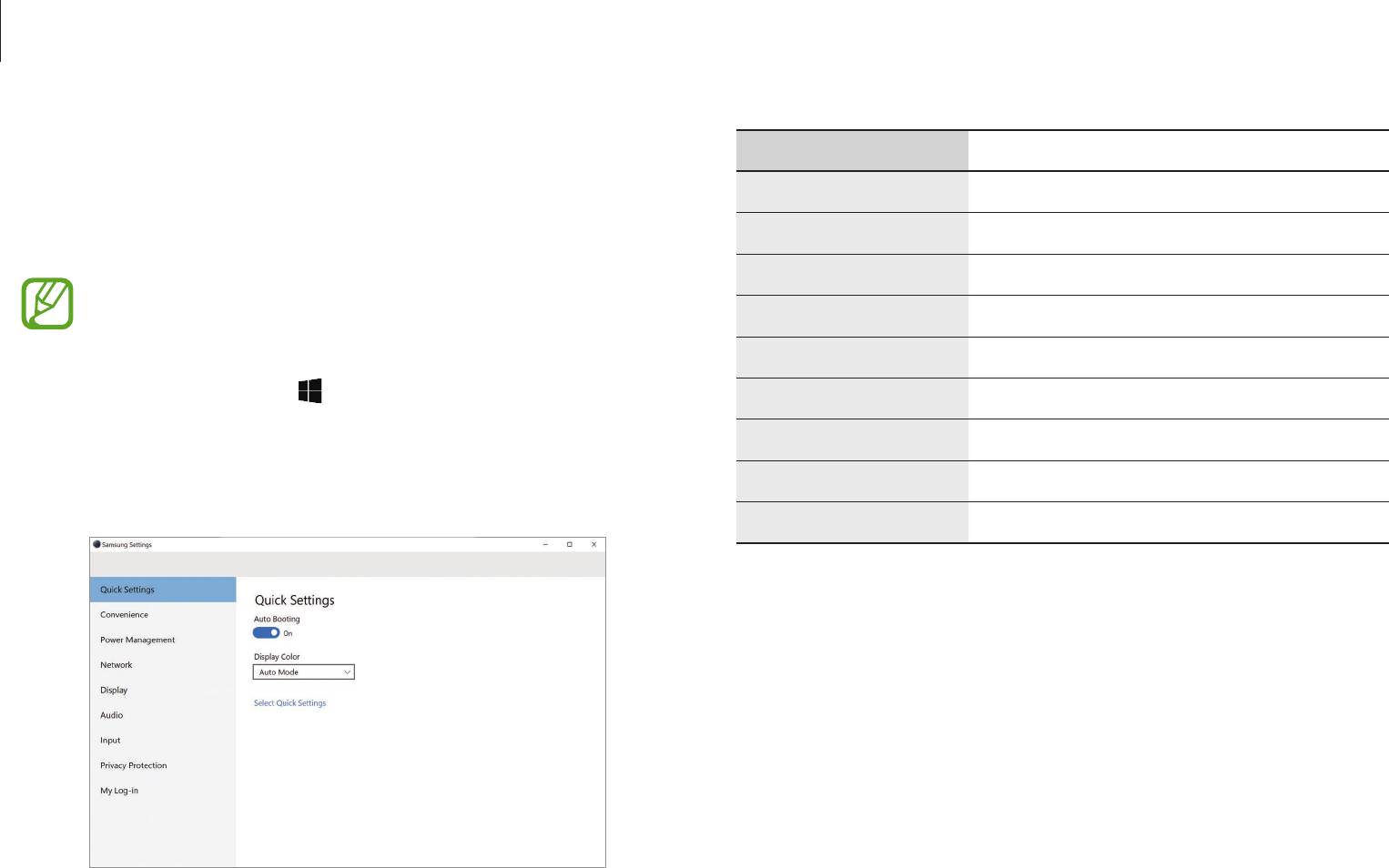

Samsung Settings

, a Samsung-integrated settings application,

offers various settings functions.

Images and features may differ depending on the model

and the application version.

1 Select the Start button ( )

→

All apps

→

Samsung

→

Samsung Settings

2 Select an option to configure the corresponding function.

Applications

3 Select

Install & Update

4 Select items to update and select

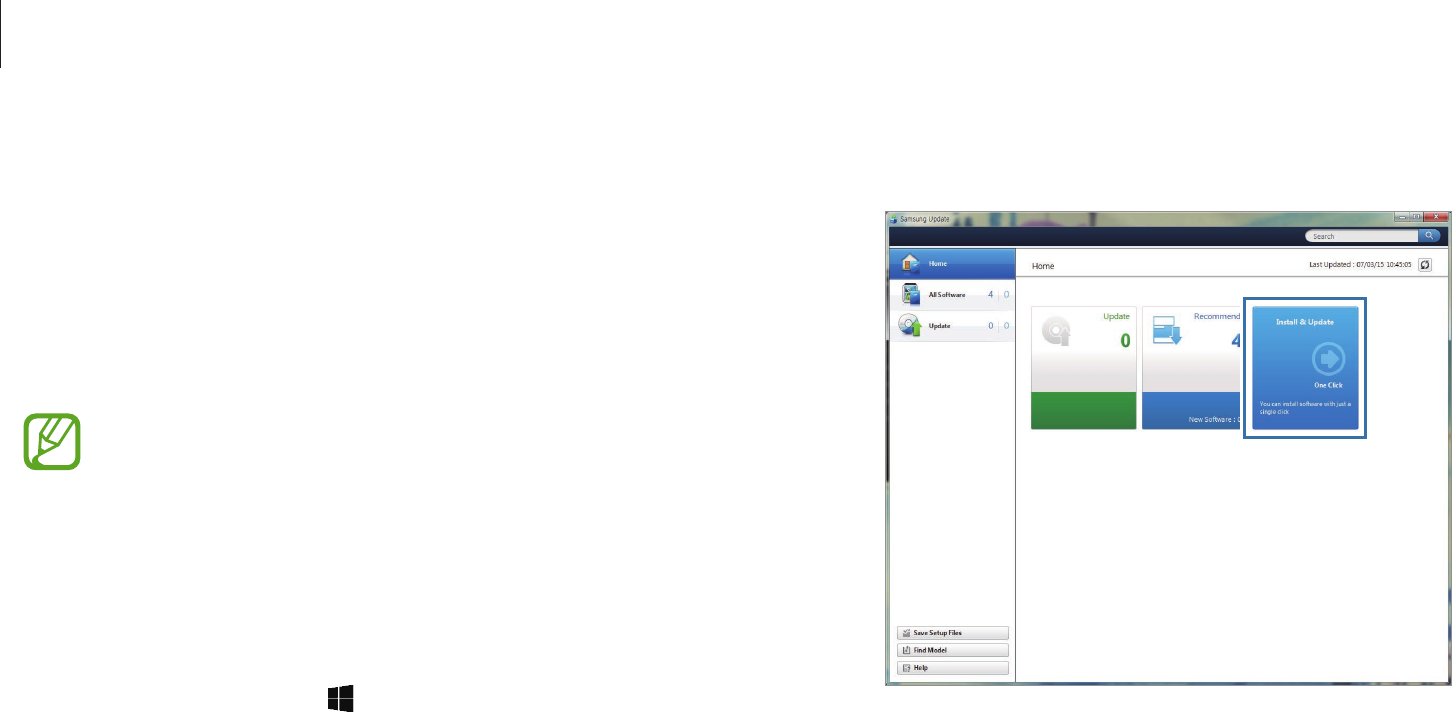

Samsung Update

Install and update Samsung applications and drivers on the

computer easily and conveniently. This application enables the

user to search for or download the BIOS, drivers, and applications

over the Internet. Keep the computer performing better and more

stably with

Samsung Update

•

To check for available updates, the computer must be

connected to the Internet.

•

Only applications that have been installed with this

application can be updated.

•

Images and features may differ depending on the

model and the application version.

1 Select the Start button ( )

→

All apps

→

Samsung

→

Samsung Update

2 Read and agree to the User Agreement.

This step appears only when the application runs for the first

time.

Applications

Installing Samsung PC Help

1 On a smartphone, tap

Play Store

and search for

Samsung PC

Help

2 Tap

INSTALL

→

to complete the setup.

Using Samsung PC Help

1 On a smartphone, tap

Samsung PC Help

2 On the

Samsung PC Help

main screen, select a menu to

display the available content.

You may incur additional charges when you access

content.

Samsung PC Help (Self-help

application)

Use

Samsung PC Help

to access help-related content for

Samsung computers from a smartphone.

Watch the

Samsung PC Help

videos to become familiar with new

functions or to find solutions to problems.

For more information, visit www.samsungpchelp.com.

Settings & Upgrade

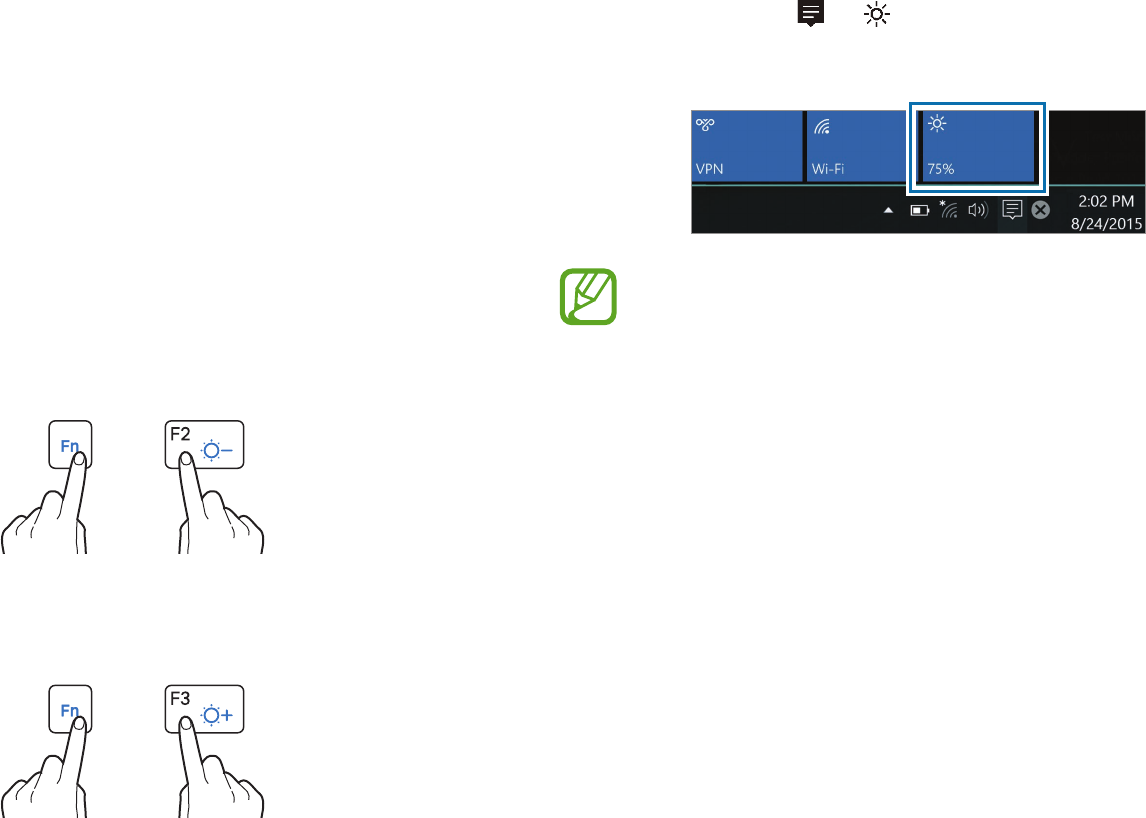

LCD brightness

Adjust the LCD brightness to reduce eye strain and save power.

Controlling brightness using the keyboard

•

To dim the LCD screen, press and hold the

key and press

the

key.

•

To brighten the LCD screen, press and hold the

key and

press the

key.

Controlling brightness using the taskbar

On the taskbar, select

→

. You can adjust the level of

brightness.

•

The LCD screen is automatically set to the brightest

level when the AC adapter is connected. The LCD screen

automatically becomes dimmer when the AC adapter is

disconnected.

•

The computer has an automatic screen brightness

adjustment to extend the battery usage time. When

necessary, the screen brightness is gradually adjusted.

Settings & Upgrade

2 Select

Display

→

Display Color

, and then select an option.

•

Auto mode

: Optimizes the screen automatically for the

currently running program.

•

Dynamic

: Makes scenes more vivid and clear.

•

Standard

: Appropriate for normal environments and

convenient for most situations.

•

Photo Editing

: Appropriate for viewing photos.

•

Reading

: Appropriate for reading documents.

Changing display mode

Select the optimal screen settings based on your activity.

Some options may not be available depending on the

model.

1 Select the Start button ( )

→

All apps

→

Samsung

→

Samsung Settings

Settings & Upgrade

•

To mute or unmute the volume, press and hold the

key and

press the

key.

Controlling volume using the taskbar

1 Select on the taskbar.

2 Drag the adjustment bar to the desired volume.

Volume adjustment bar

Volume

Adjust the system volume or sound volume when playing music

or video.

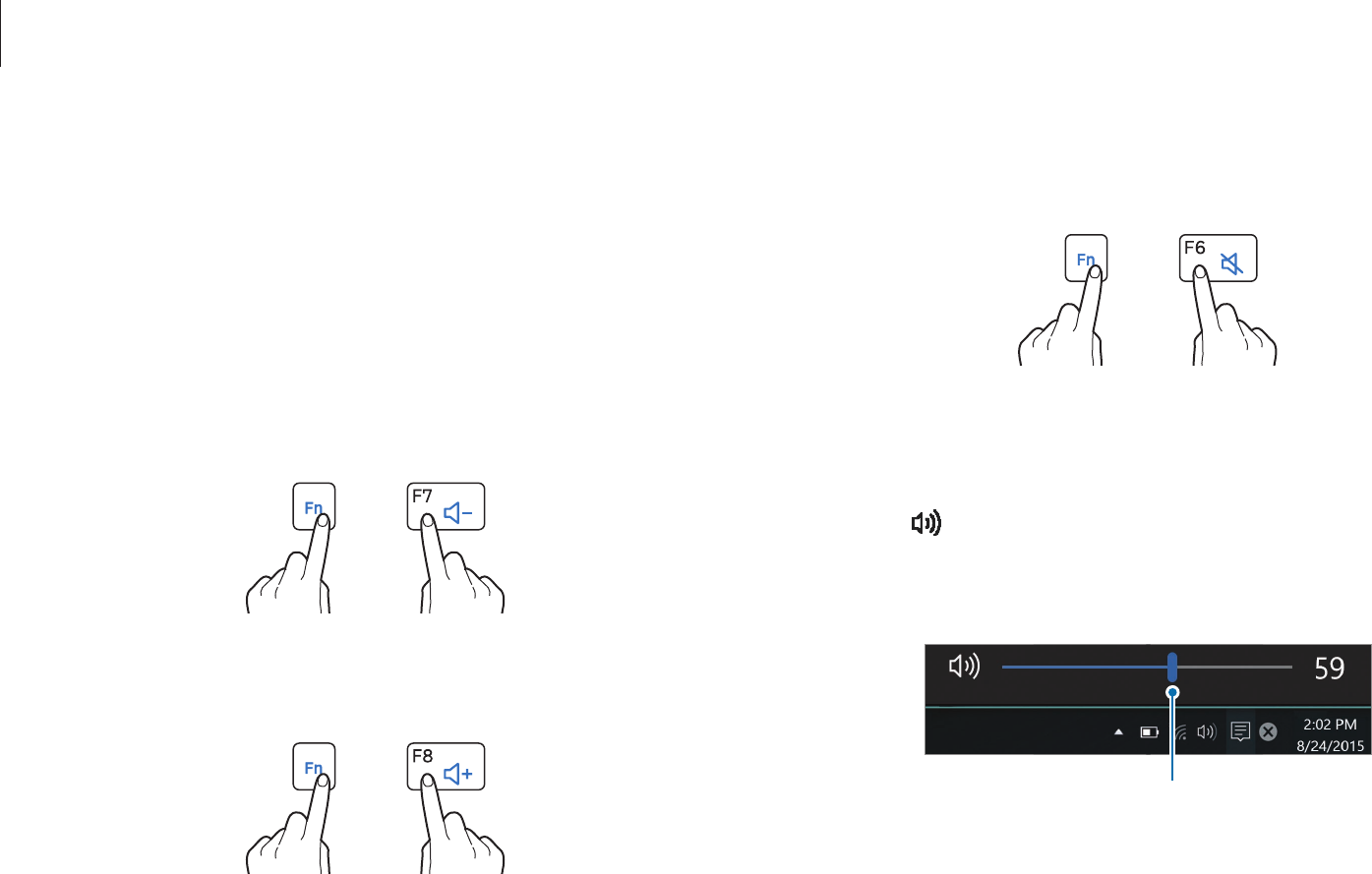

Controlling volume using the keyboard

•

To turn down the volume, press and hold the

key and press

the

key.

•

To turn up the volume, press and hold the

key and press

the

key.

Settings & Upgrade

Entering the BIOS screen

1 Turn on the computer.

2 Before the Samsung logo appears, press the

key several

times.

•

If the computer is password-protected, press the

key

several times before the password screen appears.

•

If the password screen or the Windows start screen

appears, restart the computer and try again.

BIOS (Setup utility)

Define a boot password, change the boot priority, or configure the

installed chipsets.

•

Incorrect settings may cause the system to malfunction

or crash.

•

The BIOS setup screens, menus, and items may appear

differently depending on the model and BIOS version.

•

BIOS setup functions are subject to upgrades.

Settings & Upgrade

Number Name

•

Setup items

•

Setup tools

–

Help

: View the help for BIOS set up.

–

Default

: Return to the default settings.

–

Restore

: Cancel changes.

–

Save

: Save settings.

–

Exit

: Exit BIOS setup.

•

Help

•

Setup menu

–

SysInfo

: View the basic specifications of

the computer.

–

Advanced

: Configure the chipsets and

additional functions.

–

Security

: Configure security functions.

–

Boot

: Configure peripherals and boot-

related settings.

The BIOS setup screen appears only in English.

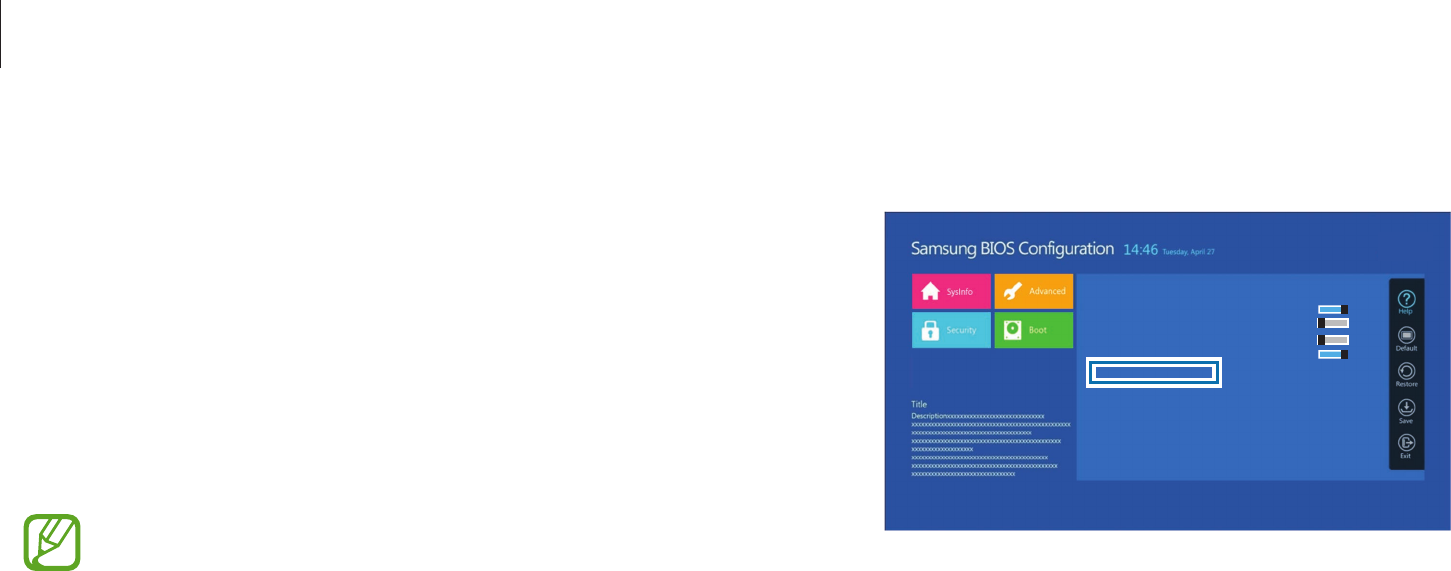

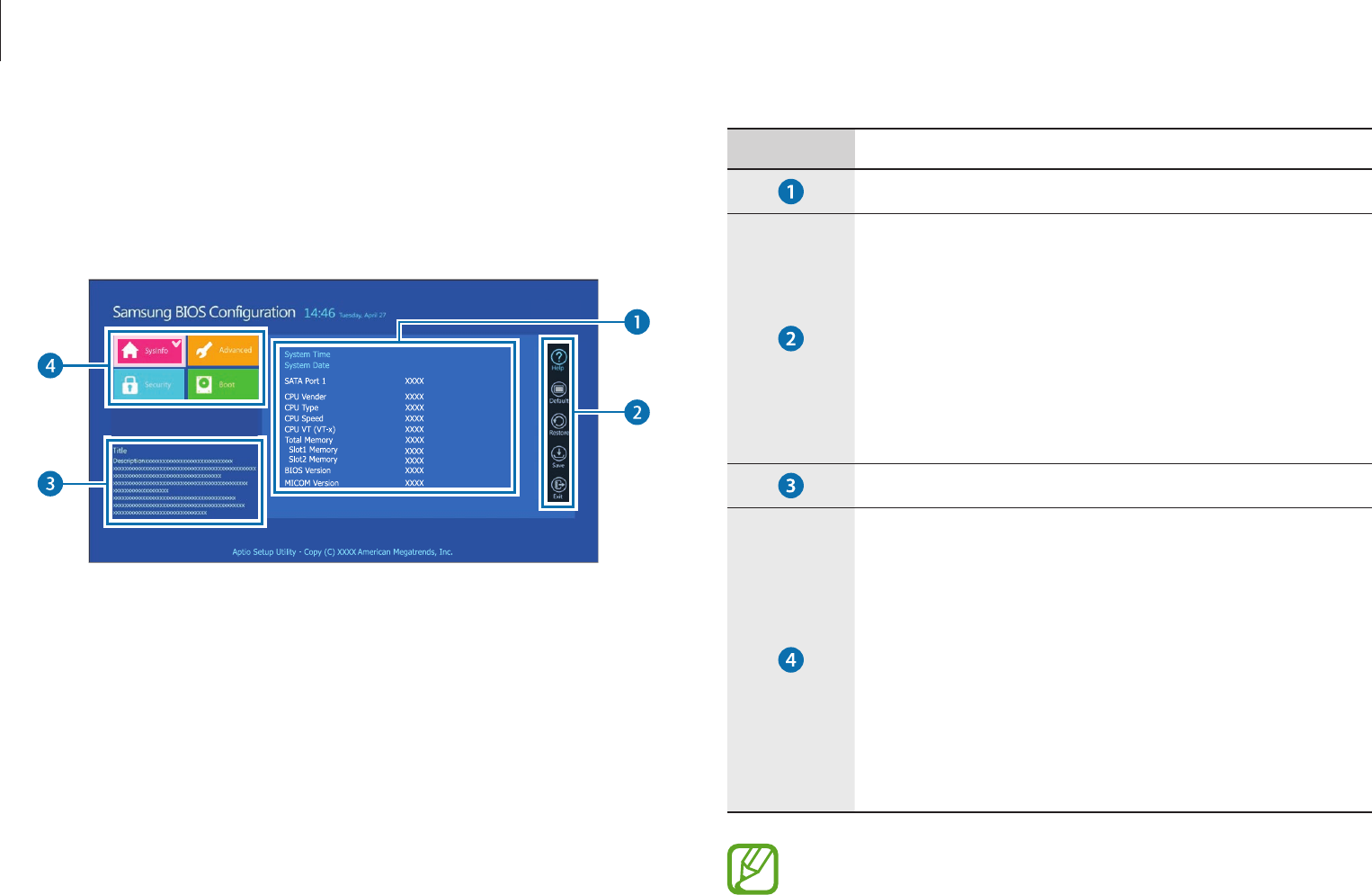

The BIOS screen

The BIOS setup screen appears as shown below.

You can change BIOS settings using the keyboard or mouse.

Settings & Upgrade

Setting passwords

There are three password settings available:

Supervisor Password

User Password

, and

HDD Password

•

Supervisor Password

(low security level): This password is

required when turning on the computer or entering the BIOS

setup.

•

User Password

(low security level): This password is required

to enter the BIOS setup. This password will be deactivated

automatically if the

Supervisor Password

is disabled.

•

HDD Password

(high security level): This password is required

to access the hard disk drive (HDD) from another computer.

This password may not be supported, depending on the

model.

Boot password

Setting a password with the BIOS enhances protection against

viruses and hacking attacks.

•

Do not forget your password or expose it to others.

•

If you forget the

Supervisor Password

HDD

Password

, request assistance from the Samsung

Service Center. In this case, a service fee will be charged.

•

If you forget the

User Password

, disable the

Supervisor

Password

, and the

User Password

is also automatically

disabled.

Settings & Upgrade

5 Enter a password and select

The password can be up to 20 characters.

6 Enter the password again to confirm it and select

7 Select

Save

→

Yes

to save and restart.

•

To enable the

Password On Boot

option, set a

Supervisor Password

and enter the password when

starting up the computer.

•

To change the

HDD Password

after setting it, restart

the computer.

•

For some models, if the password entered message

appears in the Setup Notice window, select

complete the setup.

Setting a boot password

1 Turn on the computer.

2 Before the Samsung logo appears, press the

key several

times.

3 Access the

Security

menu.

4 Select a password type (

Supervisor Password

User

Password

, or

HDD Password

If you cannot select an item or the

HDD Password Frozen

message appears, turn off the computer and turn it on again.

Then, press the

key several times before the Samsung logo

appears to enter the BIOS setup screen.

Settings & Upgrade

Boot priority

Change the boot priority from the BIOS setup.

1 Turn on the computer.

2 Before the Samsung logo appears, press the

key several

times.

3 Access the

Boot

menu.

4 Select

Boot Device Priority

5 Select an option menu to open the list.

6 Select an option.

7 Select

Save

→

Yes

to save and restart.

Select

Exit

→

Yes

to restart without saving the changes.

Removing a password

1 Turn on the computer.

2 Before the Samsung logo appears, press the

key several

times.

3 Access the

Security

menu.

4 Select a password type (

Supervisor Password

User

Password

, or

HDD Password

5 Enter the current password and select

6 Without entering any characters, select

→

For some models, to cancel the password, select

Cancel

the Setup Notice window.

Settings & Upgrade

3 Select

Advanced

→

Smart Battery Calibration

Aptio Setup Utility - Copy (C) XXXX American Megatrends, Inc.

Smart Battery Calibration >

Touch Pad Mouse On

USB Charge In Sleep Mode Off

USB S3 Wake-up Off

BIOS Adaptive Brightness On

4 The Battery Calibration function is activated and the battery is

forcefully discharged. To stop the operation, press the

Esc

key.

This operation requires 3–5 hours depending on the battery

capacity and the remaining battery charge.

Using the Battery Calibration Function

When charging/discharging the battery repeatedly for a short

time only, the battery usage time may be reduced by the

difference between the actual battery charge and the remaining

charge display.

In this case, the actual battery charge and the remaining charge

display will be the same by discharging the battery completely

using the Battery Calibration function, and then recharging it

again.

The screen images and terms may differ from the actual

product depending on the computer model and driver

version.

1 Disconnect the AC power adapter after turning off the

computer.

2 Turn the computer back on, and press the

key to enter the

Setup screen.

Settings & Upgrade

Charging the battery

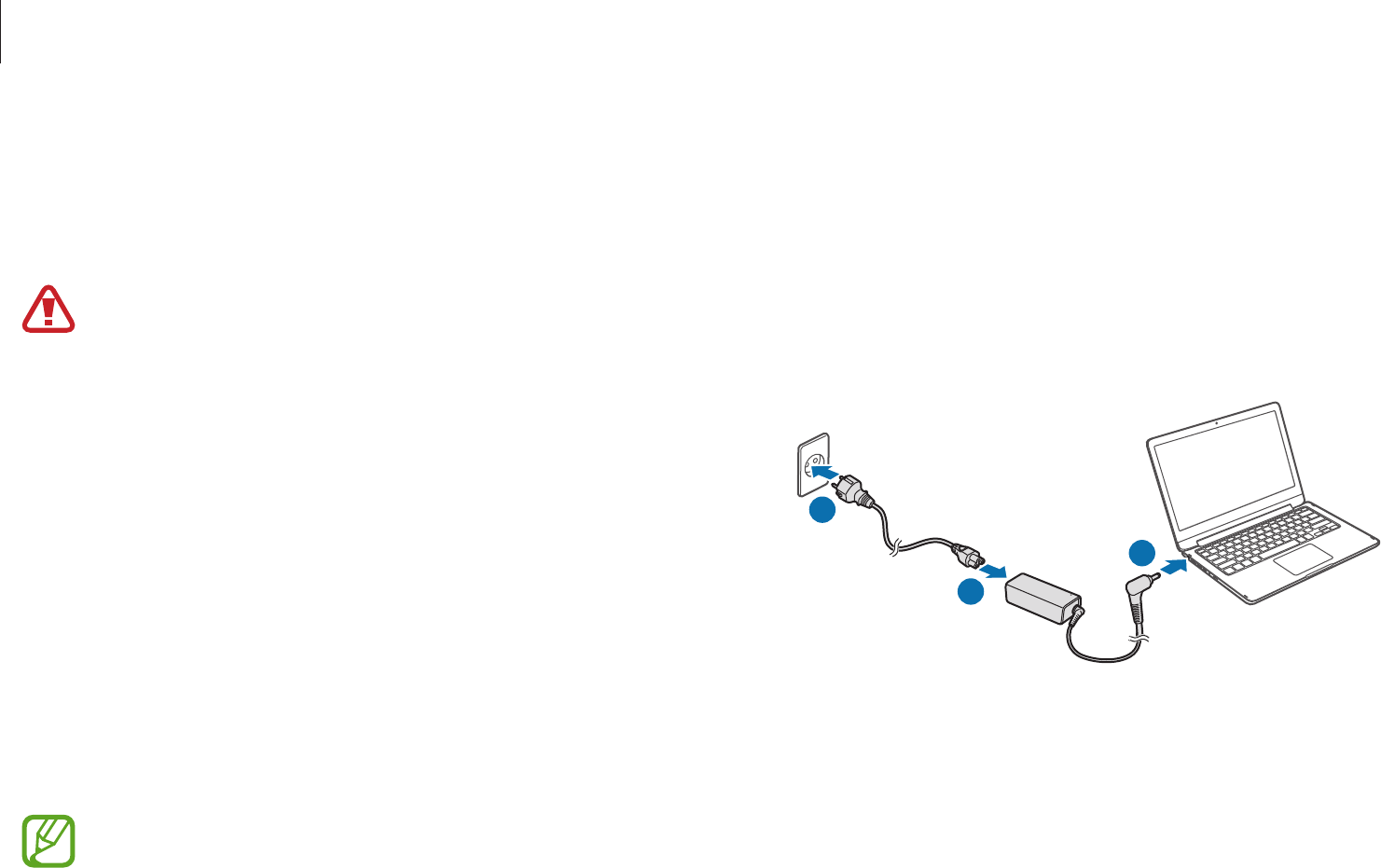

1 Connect the power cable to the AC adapter.

2 Connect the AC adapter to the DC jack of the computer.

3 Plug the power cable into an electric socket.

Battery

Fully charge the battery using the AC adapter before using the

computer for the first time.

•

Use only Samsung-approved AC adapters, batteries,

and cables. Unapproved adapters or cables can cause

the battery to explode or damage the computer.

•

Incorrectly connecting the charger may cause serious

damage to the computer.

•

This computer is equipped with an internal battery.

The battery is not user-serviceable or user-replaceable.

•

To safely remove or replace the battery, take the device

to a Samsung Service Center. You will be charged for

this service.

•

You can use the computer while it is charging, but

the battery charging time may increase. If the battery

temperature rises too much, the charging may stop as a

safety measure.

To restore the battery power after cutting it, connect the

AC adapter.

Settings & Upgrade

Battery status

Move the cursor over the battery icon on the taskbar to view the

current battery charge.

Viewing the current battery charge when the

computer is turned off

Connect or disconnect the AC adapter from the computer to view

the current battery charge when the computer is turned off.

10:00

2013/7/1

4 When the battery is fully charged, the power LED turns green.

Disconnect the AC adapter from the computer.

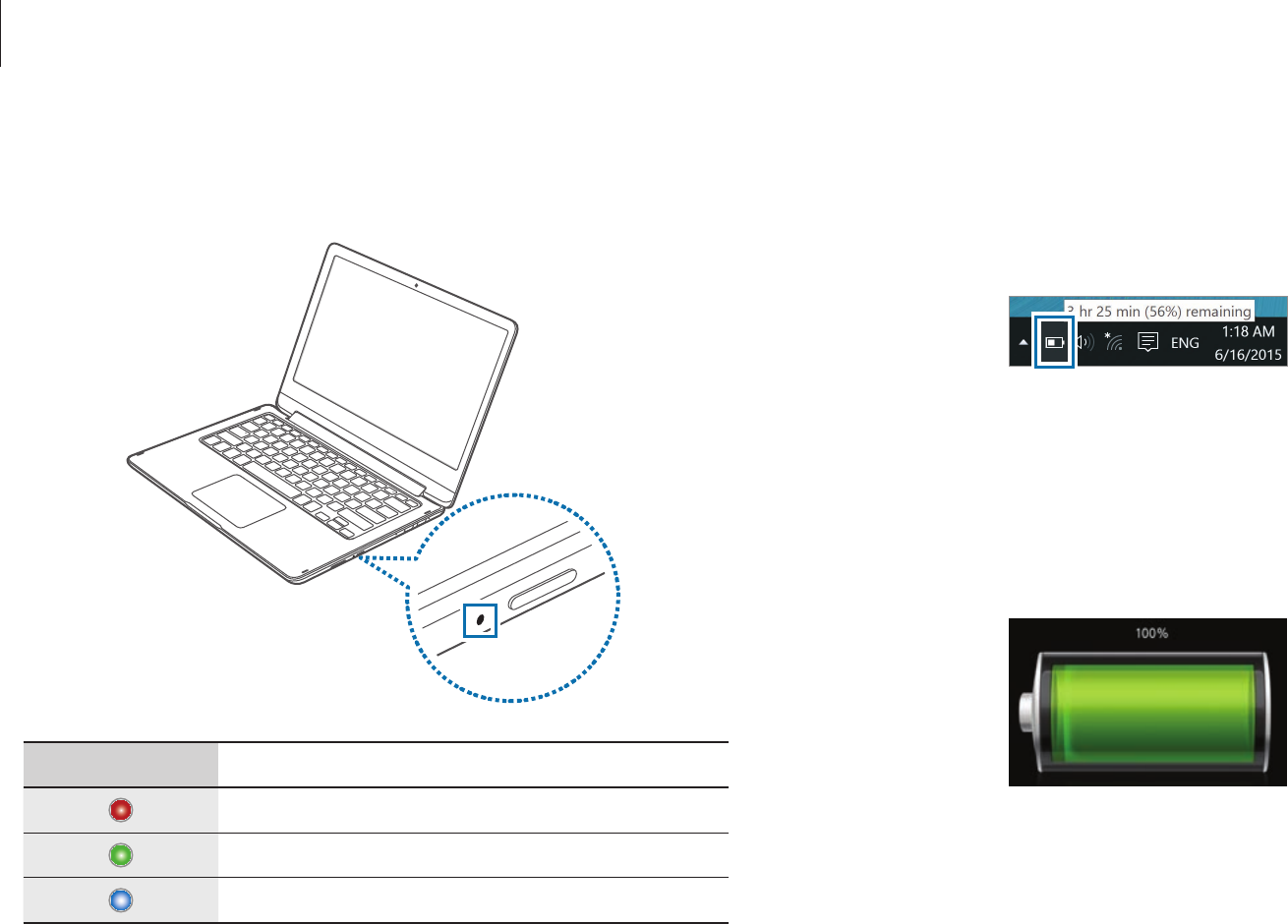

Power LED Status

•

Red

: Charging

•

Green

: Fully charged

•

Blue

: Turned on

5 Unplug it from the electric socket.

Settings & Upgrade

When battery expiration is imminent

Batteries are consumable parts and the remaining battery life is

currently low. Continued use may result in charge or discharge

failures. Whether or not batteries can be used is determined

based on safety evaluations. Please replace it with a new battery

(genuine) to prevent data loss and ensure safe usage.

When the battery has expired

Batteries are consumable parts and the current battery cannot be

used as the battery life has expired. Please replace it with a new

battery (genuine) to prevent data loss and ensure safe usage.

Whether or not batteries can be used is determined based on

safety evaluations. To prevent data loss while replacing batteries,

please be sure to save your work first.

Instruction messages related to battery life are displayed

properly when the

Samsung Settings

application is

installed on your computer. The messages may vary

depending on the model and software version.

Saving battery power

On the taskbar, select

→

Battery saver

mode is activated.

Battery saver

mode is disabled when the AC adapter is

connected.

Battery usage time

Batteries are replaceable items and over time the battery’s

capacity to hold a charge and its power level is reduced. If a

battery can only hold its charge for half of the time that it could

when new, it is recommended to purchase a new, replacement

battery.

Checking battery life instruction messages

When the battery has expired, an instruction message may appear

on the screen. To prevent the computer from losing data and to

use the computer safely, follow the on-screen instructions.

Troubleshooting

Samsung Recovery

When a problem occurs with the computer, it is easy to restore

the computer back to the factory default settings by using the

Samsung Recovery

application (Recovery/Backup). It is also

possible to restore the computer to a previously backed up point.

Back up important data regularly before a problem occurs with

the computer.

•

The

Samsung Recovery

application may not be

provided in models with less than 64 GB of storage. If

you cannot access the Samsung Recovery application,

refer to Windows recovery function.

•

Some functions may differ or may be unavailable

depending on the version. Refer to the application’s

help information.

•

Run the

Samsung Recovery

application with

administrator privileges.

•

The

Samsung Recovery

application (Recovery/Backup)

is not available when using CD/DVD drives.

•

Recovering the computer erases the data or

applications saved after a backup point. Therefore, back

up important data regularly before a problem occurs

with the computer.

•

When you launch the application for the first time, read

and accept the Terms and Conditions when they display

on the screen.

Troubleshooting

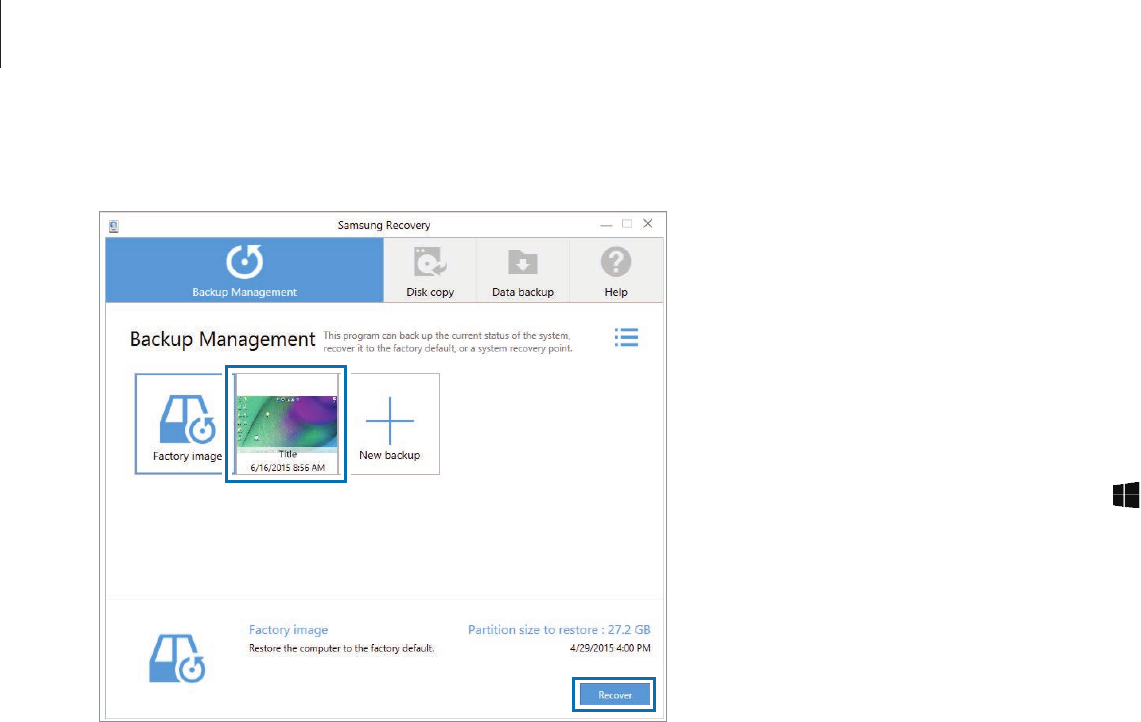

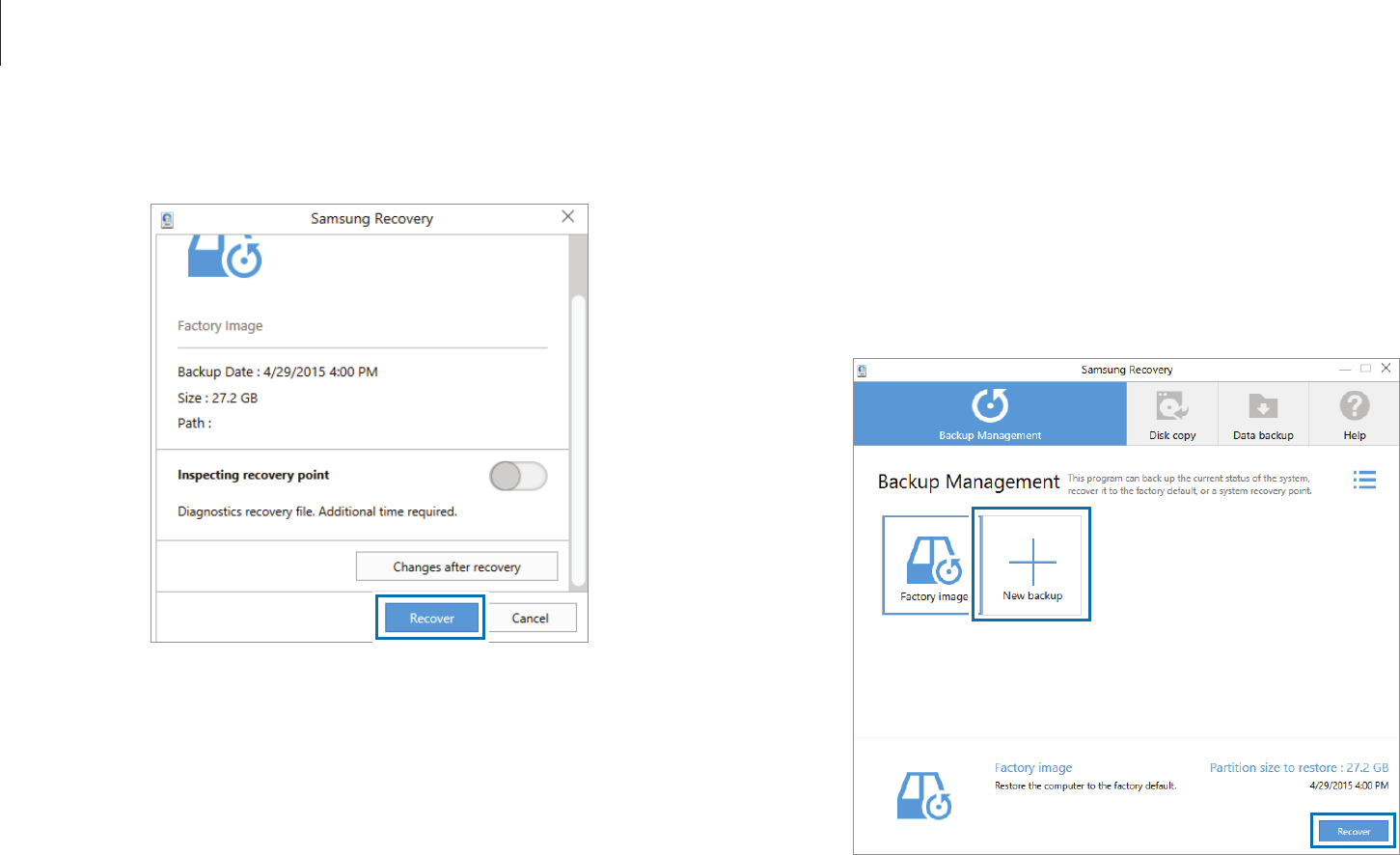

2 Select

Backup Management

→

Factory image

→

Recover

Recovering to factory default

You can restore the computer to its factory default settings. If

necessary, back up important data to an external storage device

before restoring the system. See Backing up the current system.

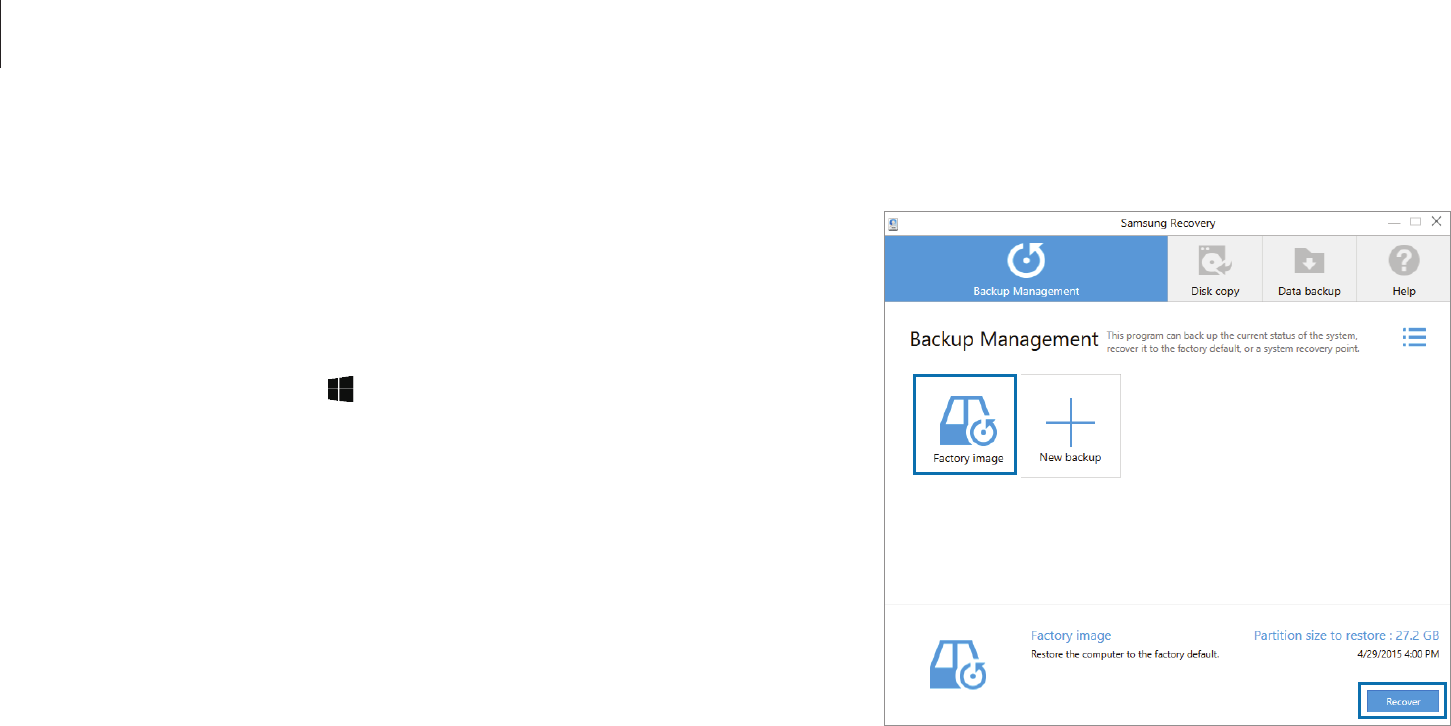

When the computer starts Windows

Select the Start button ( )

→

All apps

→

Samsung

→

Samsung Recovery

When the computer does not start Windows

Turn on the computer and press the

key several times

before the Samsung logo appears.

Troubleshooting

Backing up the current system

Back up important data to an alternate internal drive or an

external storage device regularly to prevent data loss.

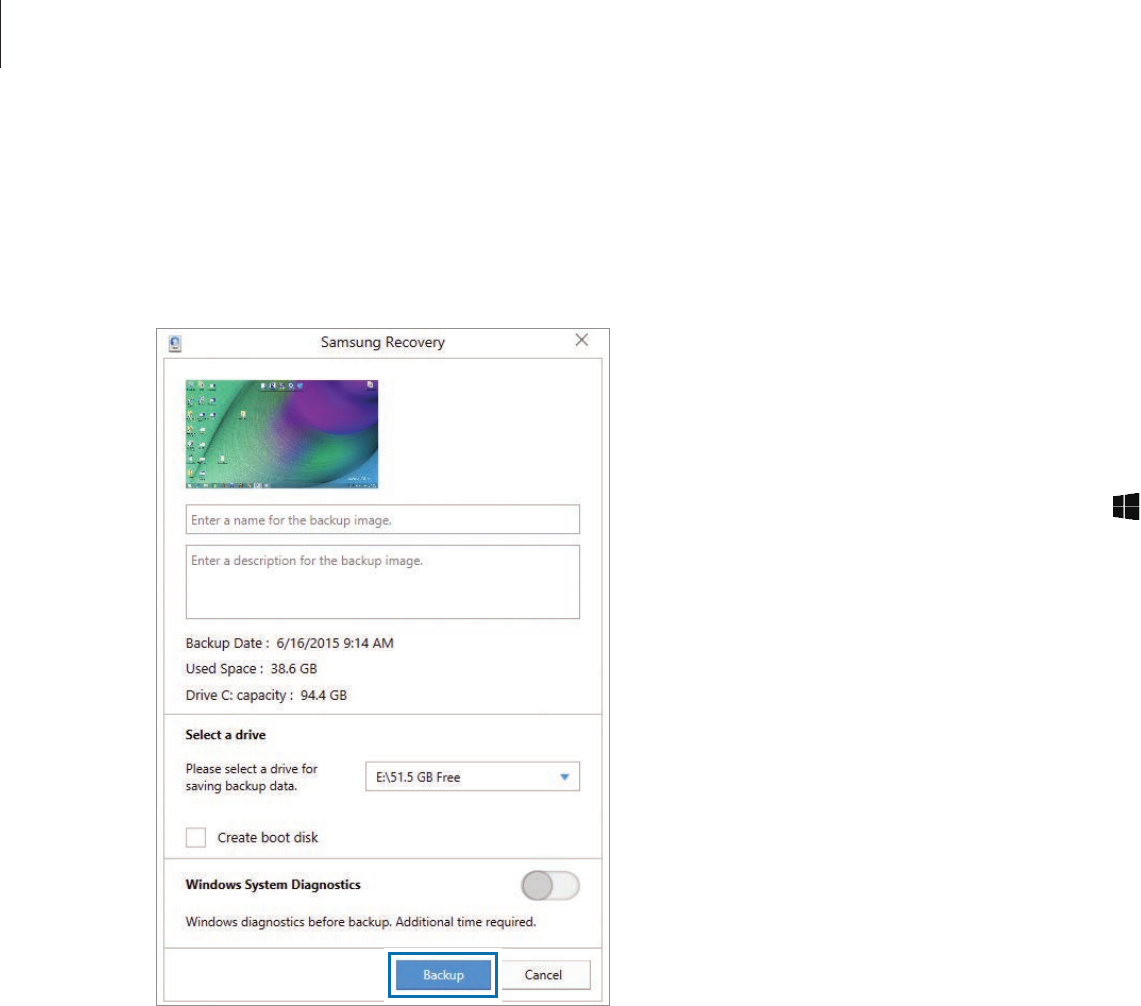

1 Select

Backup Management

→

New backup

3 Select

Recover

4 Follow the on-screen instructions to complete the recovery.

Troubleshooting

3 Follow the on-screen instructions to complete the backup.

Recovering after a backup

Select a backup point saved on an alternate internal drive or an

external storage device to recover the computer to that point.

1 When backing up to an external storage device, connect the

device to the computer.

2 Select the Start button ( )

→

All apps

→

Samsung

→

Samsung Recovery

2 Select a drive from the drive list

→

Backup

•

When backing up to an external storage device, connect

the device to the computer and then select the external

drive.

Troubleshooting

Copying the drive (making a disk image)

To replace the drive, move the data to the new drive by making a

disk image. The new drive must be large enough to hold the data

from the current drive. Purchase an external hard drive connector

separately to connect the new drive to the computer.

1 Connect the new drive to the computer with an external hard

drive connector.

2 Select the Start button ( )

→

All apps

→

Samsung

→

Samsung Recovery

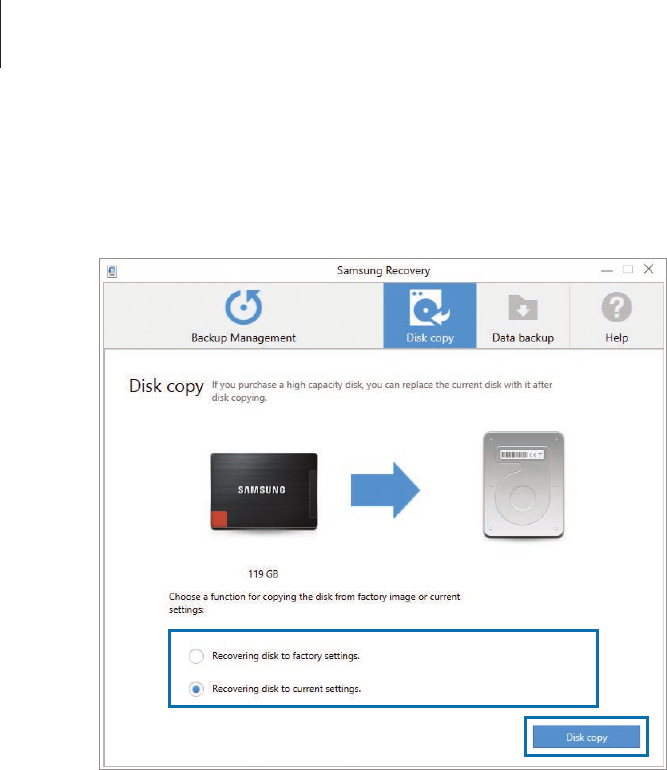

3 Select

Disk copy

3 Select

Backup Management

→

a backup image

→

Recover

4 Follow the on-screen instructions to complete data recovery.

Troubleshooting

5 After the data is saved to another drive, open the cover at the

bottom of the computer and replace the existing drive with

the new one.

If the computer does not have a hard drive or memory cover,

contact the nearest Samsung Service Center for assistance.

You will be charged for this service.

4 Select a recovery point

→

Disk copy

The data on the disk is copied to the new disk.

Troubleshooting

Q&A

When experiencing problems with the computer, try these

solutions.

Windows

How can I uninstall an application?

1 On the desktop, right-click the Start button ( ) and select

Control Panel

→

Uninstall a program

2 On the list, right-click an application to delete, and then select

Uninstall

Windows recovery function

If the

Samsung Recovery

application is not supported by the

computer, reinstall Windows using the recovery function of

Windows.

Reinstalling Windows will erase all data saved on the

computer. Back up application and personal data to an

external storage device before reinstalling Windows.

1 Select the Start button ( )

→

Settings

→

Update & security

→

Recovery

2 Select

Reset this PC

→

Get started

3 Select

Keep my files

Remove everything

After the system is recovered, select the Start button ( )

→

All apps

→

Samsung

→

Samsung Update

to install

the required Samsung applications.

Troubleshooting

Samsung Recovery

What is a Recovery Area?

The computer has an additional partition for restoring data or

saving backup files (only for models with the

Samsung Recovery

application). This partition is called a Recovery Area and it

includes a recovery image comprised of the operating system and

applications.

How can I start my computer in DOS?

To start the computer in DOS via a USB device:

1 Turn on the computer.

2 Before the Samsung logo appears, press the

key several

times.

3 Select the

Boot

menu.

4 Set

Fast BIOS Mode

Off

5 Set

Secure Boot Control

Off

6 Set

OS Mode Selection

CSM mode

and then restart the

computer.

Troubleshooting

What is a recovery image?

This refers to the operating system, drivers, and software that are

converted to a data image. It is required to recover the computer

and is embedded in the computer’s HDD. However, this is not

provided for storage devices where the capacity is less than 64 GB,

due to their small capacities.

How can I restore a computer that does not have the

Samsung Recovery application?

Restore the computer with the recovery function provided by

Windows. Refer to the Recover Functionality item in the help for

more details.

Why is the capacity representation of the hard disk

drive (HDD) in Windows different from the product

specifications?

The capacity of the storage device (HDD or SSD) of the

manufacturer is calculated assuming that 1 KB = 1,000 Bytes.

However, the operating system (Windows) calculates the storage

device capacity assuming that 1 KB = 1,024 Bytes, and therefore

the capacity representation of the HDD in Windows is smaller than

the actual capacity. The capacity representation in Windows may

be smaller than the actual capacity because some applications

occupy a certain area of the HDD outside of Windows.

For models with the

Samsung Recovery

application, the HDD

capacity representation in Windows may be smaller than the

actual capacity because the

Samsung Recovery

application

uses a hidden area of 5–20 GB of the HDD to save the recovery

image, and that hidden area is not counted towards the total

size available to Windows. The size of the

Samsung Recovery

application varies by model.

Troubleshooting

Miscellaneous

The camera and the microphone are not working.

How do I turn them on again?

When recording protect mode is activated, the camera and

microphone will not work.

To turn recording protect mode off, select the Start button ( )

→

All apps

→

Samsung

→

Samsung Settings

→

Privacy

Protection

→

Block Recording

, and set the slide bar to

Medium

or below.

The computer does not turn on automatically when

the LCD panel is opened.

To turn on the computer, the LCD panel should be opened greater

than a certain angle.

The angle may differ depending on the model.

If the computer LED does not turn on automatically, press the

Power button.

Appendix

Product specifications

The system specifications may differ depending on the derived

model. For detailed system specifications, refer to the product

catalog.

Item Specification

Operating

environment

•

Temperature: -5–40°C for storage,

10–35°C when operating

•

Humidity: 5–90% for storage,

20–80% when operating

AC/DC rating

•

Input: 100–240 VAC, 50–60 Hz

•

Output: 19 VDC, 2.1 A,

19 VDC, 3.16 A

PC rating

•

19 VDC, 2.1 A (40 W),

19 VDC, 3.16 A (60 W)

•

Optional components may not be provided or different

components may be provided depending on the

model.

•

The system specifications are subject to change without

notice.

•

The Storage device capacity of a computer in which

Samsung Recovery

is installed, is smaller than the

product specification.

•

For some models, SSDs and HDDs are not available

due to the computer’s design. Also, memory cannot be

added. To replace the memory or storage, contact the

Samsung Service Center.

•

The amount of memory that Windows can use may be

smaller than the actual amount of memory available.

Appendix

•

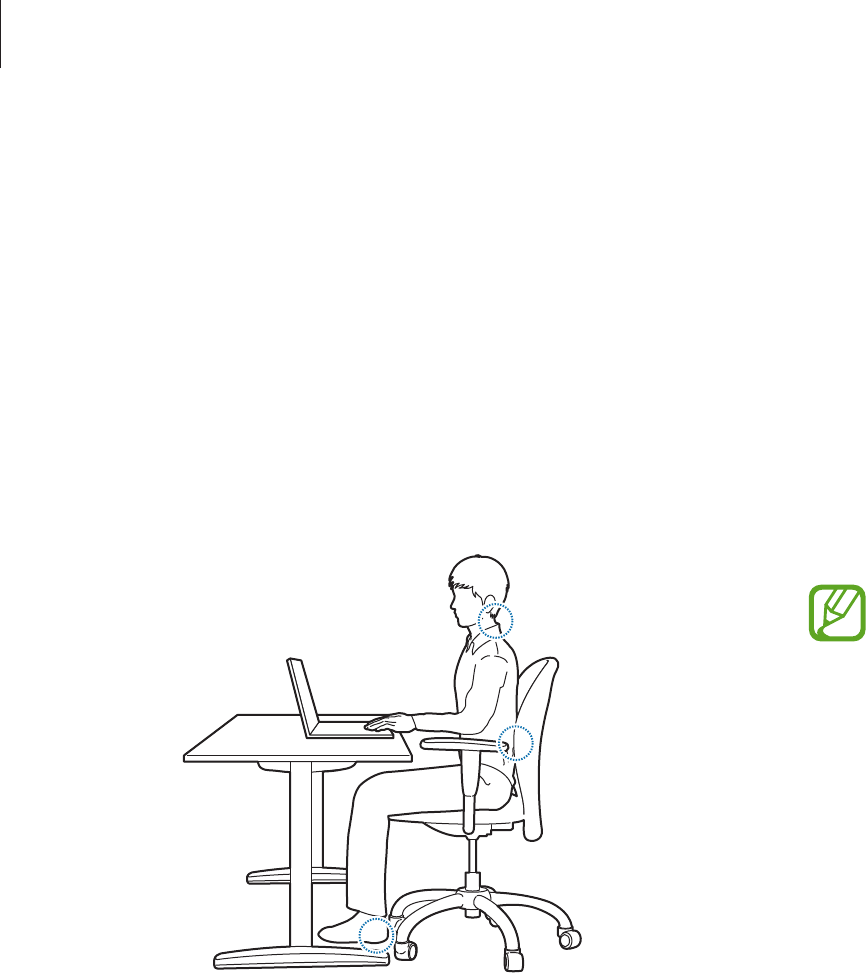

Use an adjustable chair with firm, comfortable support.

•

Adjust the height of your chair so that thighs are horizontal to

the floor and feet are flat on the floor.

•

The back of the chair should support the lower back. Adjust

the backrest to fit your body properly.

•

Sit back fully in your chair and straighten the back and neck.

Avoid leaning forward or craning your neck toward the

computer screen.

•

Avoid using the computer while lying down or on your lap.

If the computer’s temperature increases, there is a danger of

burn injury.

•

The instructions in this manual have been prepared

so that they can be applied to the range of needs of

general users. If the user is not included in the range,

the recommendations should be applied according to

the user’s needs.

•

Images may differ from actual products.

Ergonomic tips

Maintaining the proper posture during computer use is very

important to prevent physical injury. Improper or prolonged

keyboard use may result in repetitive strain injury. Viewing the

monitor screen for extended periods of time may result in eye

strain. Therefore, please follow these guidelines carefully when

setting up and using the computer.

Back and neck

Appendix

•

When using the keyboard and touchpad, the shoulders

should be relaxed. The upper arm and forearm should form an

angle that is slightly greater than a right angle, with the wrist

and hand in almost a straight line.

•

Use a light touch when typing or using the touchpad and

keep the hands and fingers relaxed. Avoid rolling the thumbs

under your palms or supporting the wrists on the desk while

typing.

•

Use an external keyboard and mouse when using the

computer for long periods. When using an external keyboard

and mouse, position the devices at the same height as the

computer and within comfortable reach.

Arms and hands

Appendix

•

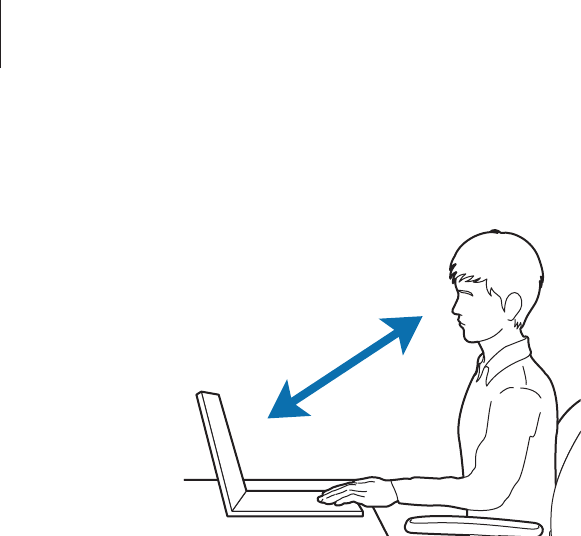

Position the screen at least 50 cm away from your eyes.

•

Adjust the height of the screen so that its top edge is equal to

or just below the level of your eyes.

•

Avoid setting the screen’s brightness settings excessively high.

•

Keep the screen clean.

•

If wearing glasses, clean them before using the computer.

•

When referring to printed content while typing, use a static

paper holder to hold the paper at about the same height as

the monitor.

Eye position and display illumination

50 cm

Appendix

Operating conditions

•

Take at least a 10 minute break every hour.

•

Avoid using the computer in dark locations. Use the computer

with as much ambient light as you would when reading a

book.

•

Indirect illumination is recommended. Use a curtain to

prevent reflections and glare on the screen.

•

While operating a computer and talking on the phone, use a

headset. Using the computer while holding a phone on your

shoulder or with your neck may lead to muscle strain or injury.

•

Keep frequently used items within reach.

•

Only use the computer within the temperature and humidity

ranges specified in this manual.

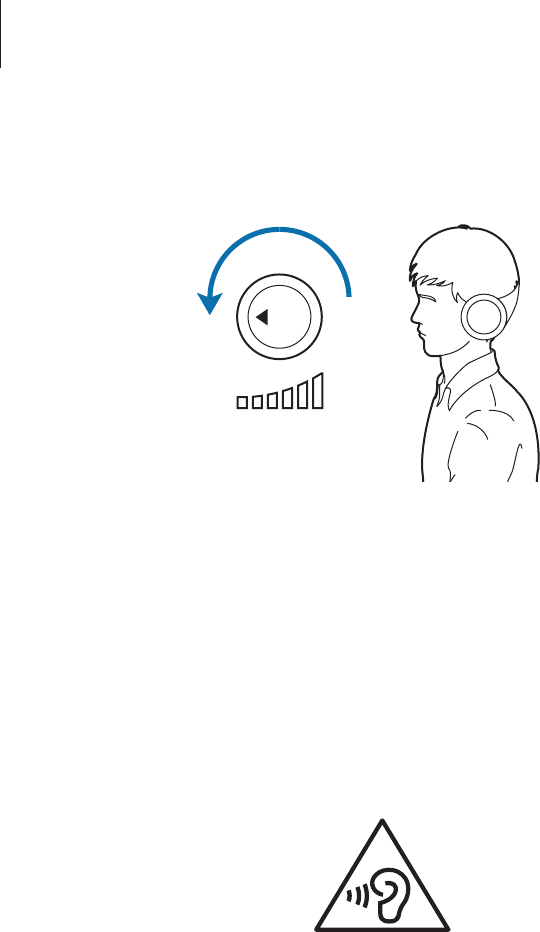

Hearing and volume control

VOLUME

Check your volume!

•

Ensure that volume is not too loud before using headphones.

•

Avoid using headphones for long periods of time.

•

Default audio settings can be changed by software and driver

updates without your knowledge. Always recheck equalizer

and volume settings before listening to audio.

•

To prevent possible hearing damage, do not listen at high

volume levels for long periods.

Appendix

•

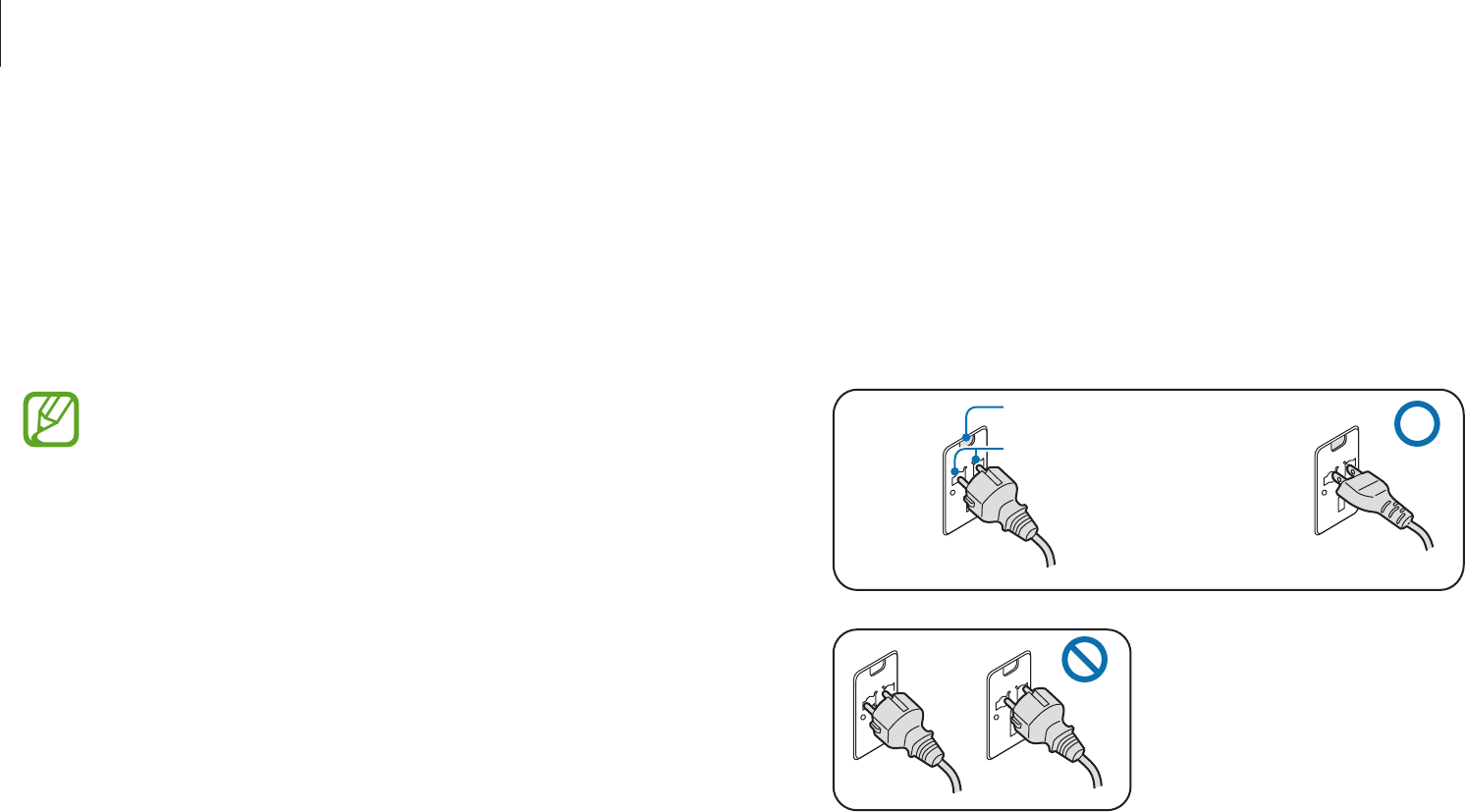

You must insert the power plug when the power indicator

light (LED) is lit green. If the plug is connected properly, the

power indicator light remains green.

Otherwise, the power indicator light turns off. In this case,

disconnect the plug, verify that the power indicator light is

green and then reconnect the power plug.

Power Indicator Light (LED)

Center Holes

220 V Power Plug 110 V Power Plug

Good Example O

Wrong Example X

Powering your device

Charging the battery on an airplane

Power outlets may vary by airplane. Choose the connection

method that fits your circumstances.

The power plug and auto adapter figures may differ from

the actual products.

Using an AC power plug

Insert the power plug pins into the center of the power outlet.

•

If the pins are not inserted into the centers of the holes, they

will not be fully connected. In this case, reconnect the power

plug.

Appendix

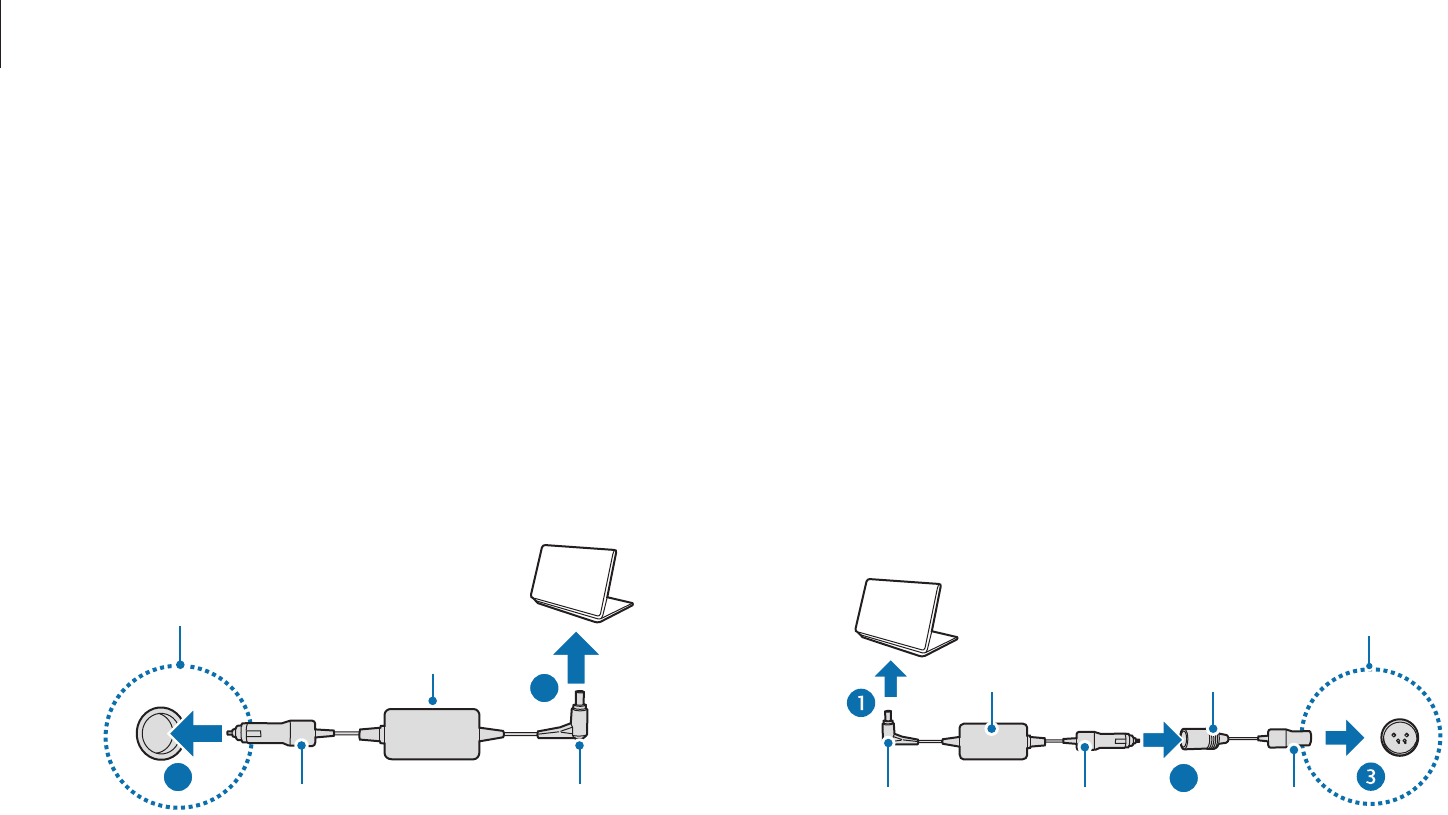

Using an airplane charging converter

Depending on the type of airplane you are traveling on, use the

auto adapter and charging converter. Insert the airplane power

input jack into the airplane’s power outlet.

1 Connect the auto adapter’s DC plug to the computer.

2 Connect the airplane charging converter (optional) to the

auto adapter (optional).

3 Insert the airplane power input jack into the power outlet.

Auto adapter Charging converter

Power outlet of the airplane

DC plug Cigar plug DC jack

Using an auto adapter

When a 12 VDC power supply is available a cigarette lighter socket

will be provided. Use the optional auto adapter to use the 12 VDC

power supply.

1 Insert the cigarette lighter socket of the auto adapter into the

cigarette lighter socket.

2 Connect the DC plug of the auto adapter to the power input

port of the computer.

Auto adapter

Cigar socket of the airplane

DC plug

Cigar plug

Appendix

Warning

Failure to follow the instructions marked with this symbol may

result in physical injury or fatality.

Installation related

15 cm

Keep the computer at least 15 cm away from

any object.

Failure to do so may cause computer

malfunction or damage, or physical injury.

Do not place or use the computer on slanted or

vibrating surfaces.

Failure to do so may result in computer

malfunction or damage.

To avoid suffocation, keep the plastic bag away

from infants and children.

Putting a plastic bag over the head may result in

suffocation.

Safety precautions

This safety information relates to computer use. Some of the

content may be not applicable to your computer. To prevent injury

or damage to your computer, read the safety information before

using it.

•

Since this is commonly applied to Samsung Computers,

some pictures may differ from actual products.

•

The term “product,” as used in this manual, refers to

basic components, such as the computer, battery,

adapter, and optional accessories provided by

Samsung.

NP v3.8

Appendix

Connect the power cord to the AC adapter

firmly.

An improper connection may result in a fire.

Use only the provided AC adapter.

Using a third-party adapter may cause the screen

to flicker.

Use only properly earthed electric sockets or

extension cords.

Unearthed electric sockets or extension cords

may cause electric shock. Any connection to

unearthed electric sockets or extension cords

may produce an electric field from a current leak.

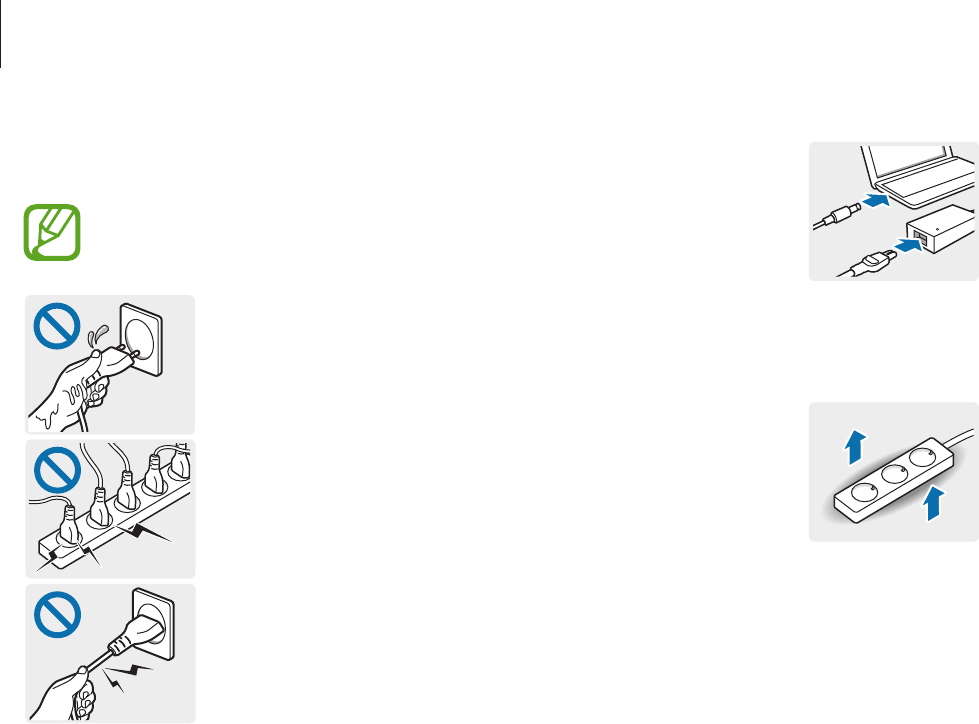

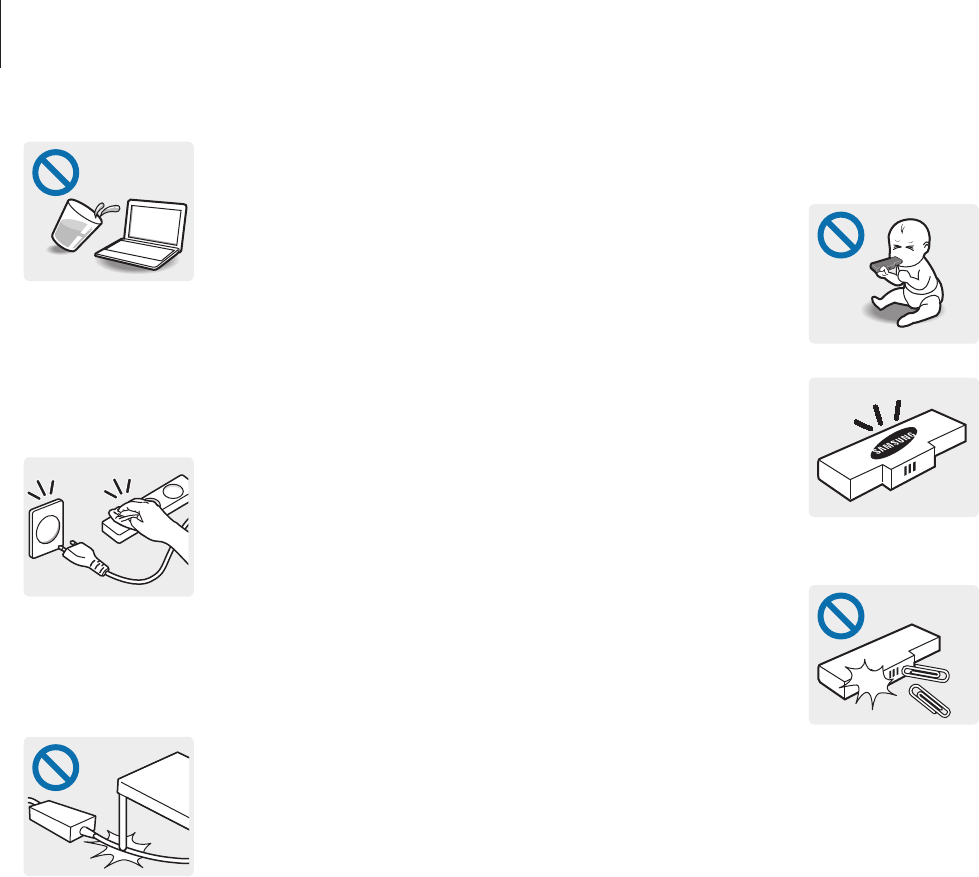

Power related

The power plug and wall outlet figures may differ

depending on the country and the product model.

Handle the power cord with care.

•

Do not touch with wet hands.

•

Do not use a damaged or improperly

connected power cord.

•

Do not overload a multi-outlet or an

extension cord beyond the specified

voltage/current capacity.

•

Firmly insert the power cable into the AC

adapter.

•

Do not unplug the power cord by pulling

on the cable.

•

Unplug the wall-mount AC adapter

(integrated plug and power adapter) from

the wall outlet while holding the body and

pulling it in the direction of the arrow.

Failure to do so may result in electric shock

or fire.

Appendix

Battery usage related

Keep the battery, AC adapter, and the power

cord away from infants, children, and pets.

Failure to do so may result in electric shock or

damage.

Use only Samsung-approved batteries, AC

adapters, and accessories.

Batteries or AC adapters that are not approved

by Samsung may malfunction from a defective

safety device, resulting in an explosion or fire.

Take care not to allow metal objects such as a

key or clip to touch the battery terminal (metal

parts).

This may cause excessive current and result in

fire, burns, or damage to the battery.

If water or other substances enters the

computer, the DC jack, or the AC adapter,

disconnect the power cable and contact

a Samsung Service Center. For notebook

computers that are supplied with an optional

removable battery, disconnect the battery.

Failure to do so may result in electric shock or

fire.

Do not let dust accumulate on the power cord

or the electric socket. Regularly clean the

power cord and the electric socket. Wipe the

power cord and the electric socket with a dry

cloth.

Failure to do so may result in electric shock or

fire.

Do not bend or damage the power cable or

the AC adapter with a heavy or sharp-edged

object.

A damaged cable or cord may result in electric

shock or fire.

Appendix

Usage related

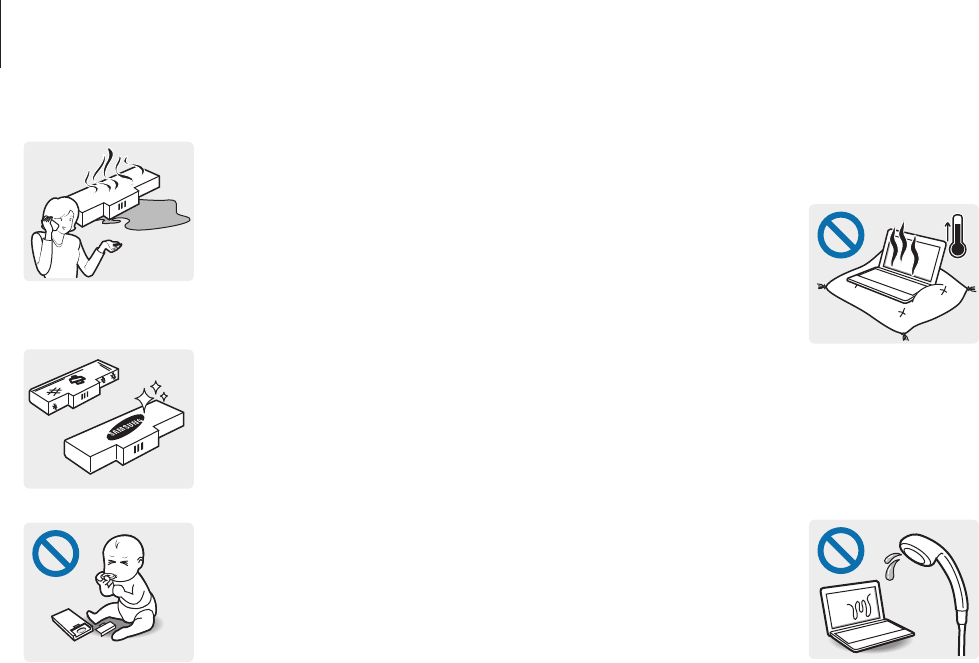

Do not use the computer on heated floors or

electric pads, or on beds, blankets, or cushions

that block the ventilation of the computer.

In such environments, be careful not to block the

vent of the computer, which is normally at the

side or bottom of the computer. A blocked vent

causes the computer to overheat, resulting in an

explosion, fire, burns, or computer malfunction.

Do not use the computer in humid locations,

such as a bathroom.

Failure to do so may result in computer

malfunction or electric shock. Use the computer

within the recommended temperature and

humidity range (10–35°C, 20–80% RH).

If the computer or the computer battery leaks,

emits strange odors, or swells, immediately

stop using the computer and contact a

Samsung Service Center.

Failure to do so may result in an explosion or fire.

Replace a run-down battery with a new,

Samsung-approved battery.

When removing the real time clock (RTC)

battery, keep it away from infants and children.

If a child swallows the battery, the child may

suffocate. If this happens, immediately contact a

doctor.

Appendix

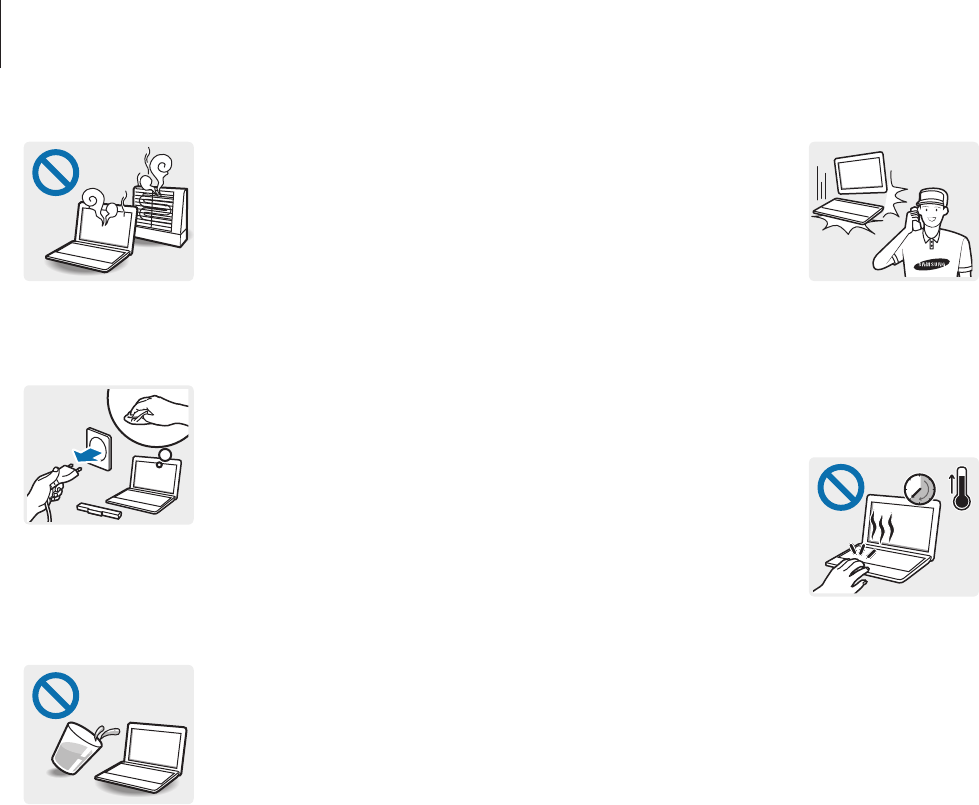

If the computer is dropped or broken,

disconnect the power cord and contact

a Samsung Service Center. For notebook

computers that are supplied with an external

removable battery, disconnect the battery as

well.

Using a broken computer may result in electric

shock or fire.

Do not touch the computer vents or the

connected AC adapter for extended periods

while the computer is on.

Contact with the vent or the connected AC

adapter for extended periods may result in low-

temperature burns, such as redness on the skin.

Never heat the computer (or the battery) or

put the computer (or the battery) into a fire. Do

not put or use the computer (or the battery)

in a hot location, such as in a sauna or inside a

vehicle when the outside temperature is high.

There is a danger of an explosion or fire.

Before cleaning the computer, disconnect all

the cables that are connected to the computer.

For notebook computers that are supplied with

an optional removable battery, disconnect the

battery.

Failure to do so may result in electric shock or

fire.

Keep the computer away from water or liquid.

Water or liquid entering the computer may

short-circuit the computer, resulting in electric

shock or fire.

Appendix

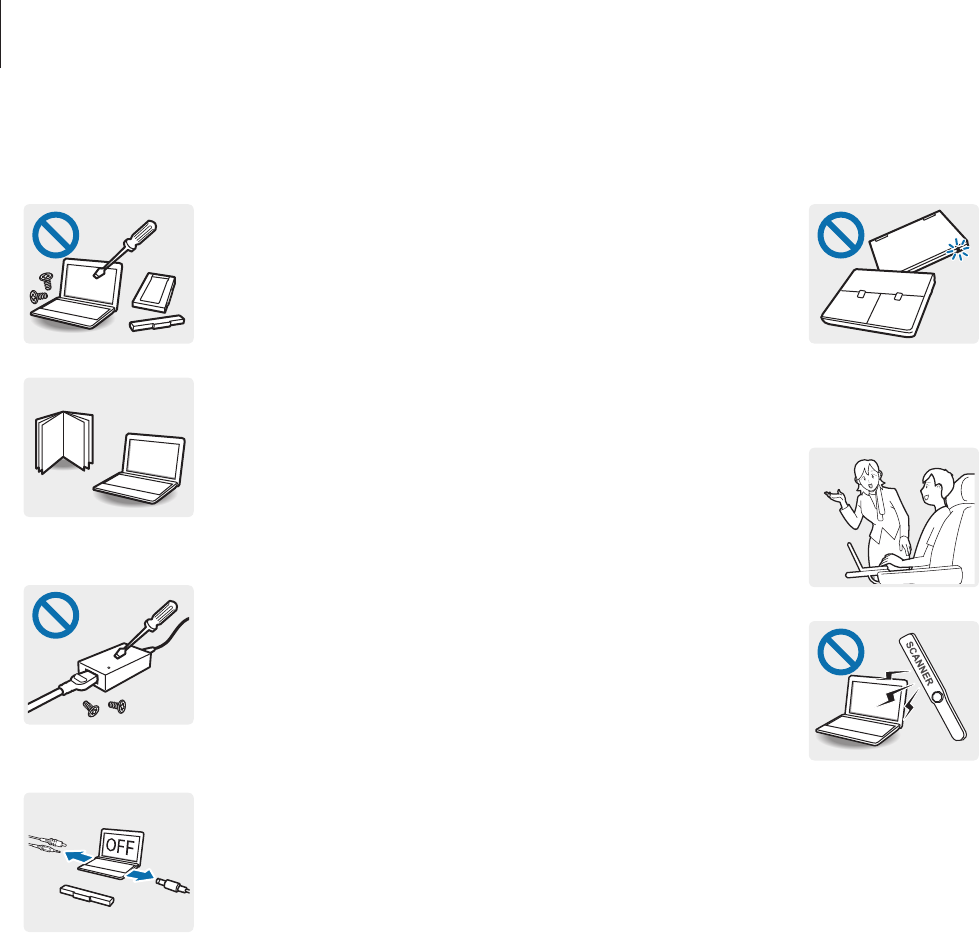

Storage and movement related

Do not store the computer in an enclosed

space, such as a computer bag, while it is

running.

Failure to do so may result in fire. Completely

shut down the computer before putting the

computer into an enclosed space.

When using wireless communication (LAN,

Bluetooth, etc.) always follow applicable

instructions. For example, airlines and

hospitals have strict requirements.

Avoid exposing a drive to magnetic fields.

Security devices with magnetic fields include

airport walk-through devices and security

wands. The airport security devices that check

carry-on luggage, such as conveyor belts,

use X-rays instead of magnetism and will not

damage a drive.

Upgrade related

Do not attempt to upgrade the computer,

unless you are qualified.

Otherwise, contact a Samsung Service Center or

an authorized technician.

Follow the specified instructions contained in

the manual for user maintenance.

Do not disassemble any other parts by yourself.

Failure to do so may result in computer

malfunction, electric shock, or fire.

Do not disassemble the power supply

unit, the AC adapter, or the battery in any

circumstances.

Failure to do so may result in electric shock, fire,

or an explosion.

Shut down the computer and disconnect all

cables before disassembling the computer. If

the notebook has a removable battery, remove

the external battery.

Failure to do so, may cause electric shock.

Appendix

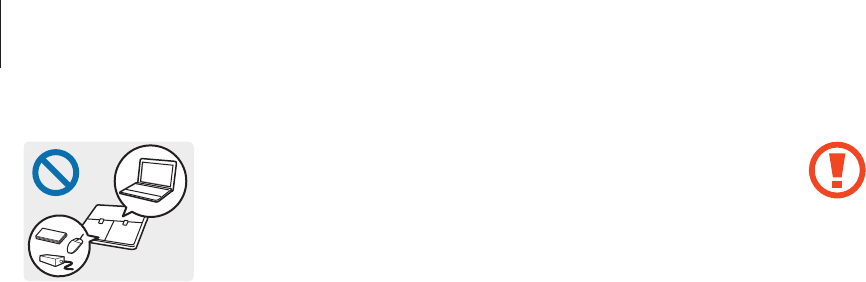

Caution

Failure to follow instructions marked with this symbol may result

in minor physical injury or damage to the computer.

Installation related

Do not block the ports (holes), vents, etc. of the product and do

not insert objects.

Damage to a component within the computer may cause electric

shock or fire.

When using the computer on its side, ensure the vents are clear

and facing upwards.

Failure to do so, may cause the internal temperature of the

computer to rise and the computer to malfunction or halt.

When carrying the notebook computer with

other items, such as the adapter, mouse, books

etc., take care not to press anything against the

notebook computer.

If a heavy object is pressed against the notebook

computer, a white spot or stain may appear on

the LCD. Therefore, take care not to apply any

pressure to the notebook.

In this case, place the notebook computer in

a separate compartment away from the other

objects.

Appendix

Only use a Samsung-authorized battery.

Failure to do so may cause an explosion.

Keep the battery terminals away from metal objects such as car

keys or paper clips.

If metal objects touch the battery terminals, it may cause excessive

current and result in fire or damage to the battery.

Charge the battery according to the instructions in the manual.

Failure to do so may cause an explosion or fire.

Do not heat the product (or battery) or expose it to heat (e.g.

inside a vehicle during the summer).

There is a danger of explosion or fire.

Do not place heavy objects on the product.

This may cause a problem with the computer. In addition, the

object may fall and cause injury or damage the computer.

Connect the power cord to the nearest socket outlet when

charging the computer.

If a problem occurs and disconnection from the socket outlet is

delayed, there is a danger of electric shock or fire.

Dispose of worn-out batteries properly.

•

There is a danger of fire or explosion.

•

The battery disposal method may differ depending on

your country and region. Dispose of the used battery in an

appropriate way.

Do not throw or disassemble the battery and do not put it into

water.

This may cause an injury, fire or explosion.

Appendix

In case of lightning, immediately turn the system off, disconnect

the power cord from the wall outlet and phone line from

modem. Do not use the modem or phone.

There is a danger of electric shock or fire.

Connect only permitted devices to the connectors or ports of

the computer.

Failure to do so, may cause electric shock and fire.

Close the LCD panel only after checking if the notebook

computer is turned off.

The temperature may rise and it may cause deformation of the

product.

Do not press the eject button while the CD-ROM drive is in

operation.

You might lose data and the disc might be suddenly ejected and

could cause an injury.

Usage related

Use the pen for its intended purpose only.

Using the pen for abnormal actions such as poking eyes or ears

may cause physical injury.

Do not place a candle, light cigar, etc. over or on the product.

There is a danger of fire.

Make sure to have the product tested by a safety service

engineer after repairing the product.

Authorized Samsung Repair Centers will carry out safety checks

after a repair. Using a repaired product without testing it for safety

may cause an electric shock or fire.

Appendix

Do not insert the fingers into the PC Card Slot.

There is a danger of injury or electric shock.

Use recommended computer cleansing solutions when

cleaning the product and only use the computer when it is

completely dry.

Failure to do so may cause electric shock or fire.

You should not use a paper clip to perform an emergency

disc ejection while the disc is in motion. Make sure to use the

emergency disc eject method only when the Optical Disc Drive

has stopped.

There is a danger of injury.

Do not place your face close to the Optical Disc Drive tray when

it is operating.

There is a danger of injury due to an abrupt ejection.

Do not drop, hit, or apply excessive force to the computer.

Failure to do so may result in physical injury or data loss.

Do not allow the antenna and a source of electricity, such as a

socket outlet, to come into contact.

There is a danger of electric shock.

When handling computer parts, follow the instructions on the

manual supplied with the parts.

Failure to do so, may cause damage to the product.

If the computer emits smoke or there is a burning smell,

disconnect the power plug from the wall outlet and contact a

Samsung Service Center immediately. Disconnect the power

supply and remove the battery if one is fitted.

There is a danger of fire.

Do not use a damaged or modified CD.

There is a danger of damaging the product or personal injury.

Appendix

Upgrade Related

Take care when touching the product or parts.

The device may be damaged or you may be injured.

Take care not to throw or drop the computer or its components.

This may cause injury or damage to the product.

Make sure to close the computer cover before connecting the

power after a reassembly.

There is a danger of electric shock if your body touches an internal

part.

Only use parts authorized by Samsung.

Failure to do so, may cause fire or damage the product.

Never disassemble or repair the product by yourself.

If the computer is serviced or repaired by an unqualified person,

the warranty will not cover the repair fees. There is a danger of

accident. Use authorized Samsung Service Centers.

To connect a device that is not manufactured or authorized

by Samsung, enquire at a Samsung Service Center before

connecting the device.

There is a danger of damaging the product.

Keep the computer away from magnetic material.

•

Magnetic materials may cause computer malfunction or cause

the battery to discharge.

•

To avoid damaging the computer or magnetic stripe cards,

such as credit cards, keep magnetic stripe cards away from the

computer.

Do not use your computer in a hospital or on an aircraft that can

be interfered with by radio frequency.

•

Avoid using your computer within a 15 cm range of a

pacemaker, if possible, as your computer can interfere with

the pacemaker.

•

To minimize possible interference with a pacemaker, use your

computer only on the side of your body that is opposite the

pacemaker.

•

If you use medical equipment, contact the equipment

manufacturer before using your computer to determine

whether or not the equipment will be affected by radio

frequencies emitted by the computer.

•

When in a hospital, turn off your computer and follow all

hospital regulations. Radio frequencies emitted from the

computer may affect medical equipment.

Appendix

Cautions on preventing data loss (hard disk

management)

Take care not to damage the data on a hard disk drive.

•

A hard disk drive is so sensitive to external impact that an

external impact may cause loss of data on the surface of the

disk.

•

Take extra care, because moving the computer or an impact

on the computer when it is turned on may damage the data

on the hard disk drive.

•

Samsung is not liable for any loss of data on the hard disk

drive.

Storage and movement related

Properly shut down, disconnect and secure the computer cables

before moving it.

Failure to do so may damage the computer or cause someone to

trip over a loose cable.

For long periods of inactivity or storage, discharge the battery

and separate it from the computer (for external or removable

battery types).

This will extend the battery’s lifespan.

Do not operate or look at the computer while driving a vehicle.

There is a danger of a traffic accident. Please concentrate on

driving.

Appendix

LCD bad pixels

Samsung observes strict specifications regarding the quality

and reliability of the LCD. However, there is a small chance that

a few pixels may be bad. A large number of bad pixels can cause

problems with the display, but a small number of bad pixels does

not generally affect computer performance.

Samsung’s quality standards for bad pixels are as follows:

•

Bright dot: 2 or fewer

•

Black dot: 4 or fewer

•

Combination (bright and dark): 4 or fewer

Cleaning the LCD screen

Clean the LCD screen with a soft cloth dampened with computer

cleansing detergent. When cleaning the screen, move the cloth in

one direction. Do not use excessive force. Doing so may damage

the LCD screen.

Situations that may damage the data of a hard disk drive and

the hard disk drive itself.

•

The data may be lost when an external impact is applied to

the disk while disassembling or assembling the computer.

•

The data may be lost when the computer is turned off or reset

by a power failure while the hard disk drive is operating.

•

The data may be lost and irrecoverable due to a computer

virus.

•

The data may be lost if the power is turned off while running

an application.

•

Sudden impact or movement to the computer while the hard

disk drive is operating, may cause files to be corrupted or bad

sectors on the hard disk.

To prevent data loss due to damage to the hard disk drive,

please back up the data frequently.

Appendix

Setting up the system

•

Read and follow all instructions marked on the product and

in the documentation before operating the system. Retain all

safety and operating instructions for future use.

•

Do not use this product near water or a heat source such as a

radiator.

•

Set up the system on a stable work surface.

•

The product should be operated only with the type of power

source indicated on the rating label.

•

Ensure that the electrical outlet to power the equipment is

easily accessible in case of fire or short circuit.

•

If the computer has a voltage selector switch, make sure that

the switch is in the proper position for your area.

•

Openings in the computer case are provided for ventilation.

Do not block or cover these openings. Make sure you provide

adequate space, at least 6 inches (15 cm), around the system

for ventilation when setting up your work area. Never insert

objects of any kind into the computer ventilation openings.

Important safety information

Safety instructions

The system is designed and tested to meet the latest standards for

safety of information technology equipment. However, to ensure

safe use of this product, it is important that the safety instructions

marked on the product and in the documentation are followed.

Always follow these instructions to help guard against

personal injury and damage to the system.

Appendix

Care during use

•

Do not walk on the power cord or allow anything to rest on it.

•

Do not spill anything on the computer or its components.

The best way to avoid spills is to not eat or drink near the

computer or its components.

•

Some products have a replaceable CMOS battery on the

system board. There is a danger of explosion if the CMOS

battery is replaced incorrectly. Replace the battery with the

same or equivalent type recommended by the manufacturer.

Dispose of batteries according to the manufacturers

instructions. If the CMOS battery requires replacement ensure

that a qualified technician performs the task.

•

When the computer is turned off, a small amount of electrical

current still flows through the computer.

To avoid electrical shock, always unplug all power cables,

remove the battery and modem cables from the wall outlets

before cleaning the system.

•

Ensure that the fan vents on the bottom of the casing are

clear at all times. Do not place the computer on a soft surface,

doing so will block the bottom vents.

•

When using an extension cord with this system, make sure

that the total power rating on the products plugged into the

extension cord does not exceed the extension cord power

rating.

•

For Notebooks with glossy display bezels the user should

consider the placement of the Notebook as the bezel may

cause reflections from surrounding light and bright surfaces.

Appendix

Operating instructions

1 When installing and operating devices please refer to safety

requirements in the user manual.

2 Devices can be used only with the equipment specified in the

technical specifications of the devices.

3 If any smell of burning or smoke is detected from the

computer the unit should be switched off and the battery

removed. The unit should be checked by a qualified

technician before reuse.

4 Service and repair of devices should be carried out by

authorized service centers.

5 Do not allow the portable computer to operate with the base

resting directly on exposed skin for extended periods of time.

The surface temperature of the base will rise during normal

operation (particularly when AC Power is present). Allowing

sustained contact with exposed skin can cause discomfort or

eventually a burn.

•

Unplug the system from the wall outlet and contact a

Samsung Service Center if:

–

The power cord or plug is damaged.

–

Liquid has been spilled into the computer.

–

The computer does not operate properly when the

operating instructions are followed.

–

The computer was dropped or the casing is damaged.

–

The computer performance changes.

Appendix

Battery disposal

Do not put rechargeable batteries or products powered by

non-removable rechargeable batteries in the garbage.

Contact the Samsung Service Center for information on how to

dispose of batteries that you cannot use or recharge any longer.

Follow all local regulations when disposing of old batteries.

THERE IS RISK OF EXPLOSION IF BATTERY IS REPLACED BY

AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE

INSTRUCTIONS.

Replacement parts and

accessories

Use only replacement parts and accessories recommended by

manufacturer.

To reduce the risk of fire, use only No. 26 AWG or larger

telecommunications line cord.

Do not use this product in areas classified as hazardous.

Such areas include patient care areas of medical and

dental facilities, oxygen rich environments, or industrial

areas.

Appendix

•

Laser Safety Note: Use of controls or adjustments or

performance of procedures other than those specified

in this manual may result in hazardous radiation

exposure. To prevent exposure to laser beams, do not

try to open the enclosure of a CD or DVD drive.

•

Class 1M laser radiation when operating part is open.

Do not view directly with optical instruments.

•

Class 3B invisible laser radiation when open.

Avoid exposure to the beam.

Connect and disconnect the AC adapter

The socket-outlet shall be installed near the equipment and shall

be easily accessible.

Do not unplug the power cord by pulling the cable only.

Laser safety

All systems equipped with CD or DVD drives comply with the

appropriate safety standards, including IEC 60825-1. The laser

devices in these components are classified as “Class 1 Laser

Products” under a US Department of Health and Human Services

(DHHS) Radiation Performance Standard. Should the unit ever

need servicing, contact an authorized service location.

Appendix

General requirements

The requirements listed below are applicable to all countries:

•

All power cord sets must be approved by an acceptable

accredited agency responsible for evaluation in the country

where the power cord set will be used.

•

The power cord set must have a minimum current capacity

of 7A and a nominal voltage rating of 125 or 250 volts AC, as

required by each country’s power system (USA only).

•

The appliance coupler must meet the mechanical

configuration of an EN 60 320/IEC 320 Standard Sheet C7

(or C5) connector, for mating with appliance inlet on the

computer.

Power cord requirements

The power cord set (all plug, cable and AC adapter plug) you

received with your computer meets the requirements for use in

the country where you purchased your equipment.

Power cord sets for use in other countries must meet the

requirements of the country where you use the computer. For

more information on power cord set requirements, contact your

authorized dealer, reseller, or service provider.

Appendix

The RF field strength of the wireless device or devices that may

be embedded in the notebook are well below all international

RF exposure limits as known at this time. Because the wireless

devices (which may be embedded into the notebook) emit less

energy than is allowed in radio frequency safety standards and

recommendations, manufacturer believes these devices are safe

for use. Regardless of the power levels, care should be taken to

minimize human contact during normal operation.

Some circumstances require restrictions on wireless devices.

Examples of common restrictions are listed on the next page:

Regulatory compliance

statements

Wireless guidance

(If fitted with 2.4 G band or 5 G band)

Low power, Radio LAN type devices (radio frequency (RF) wireless

communication devices), operating in the 2.4 GHz/5 GHz Band,

may be present (embedded) in the notebook system. The

following section is a general overview of considerations while

operating a wireless device.

Additional limitations, cautions, and concerns for specific

countries are listed in the specific country sections (or country

group sections). The wireless devices in the system are only

qualified for use in the countries identified by the Radio Approval

Marks on the system rating label. If the country you will be using

the wireless device in, is not listed, please contact your local Radio

Approval agency for requirements. Wireless devices are closely

regulated and use may not be allowed.

Appendix

•

Every country has different restrictions on the use of

wireless devices. Since your system is equipped with

a wireless device, when traveling between countries

with your system, check with the local Radio Approval

authorities prior to any move or trip for any restrictions

on the use of a wireless device in the destination

country.

•

If the system came equipped with an internal

embedded wireless device, do not operate the wireless

device unless all covers and shields are in place and the

system is fully assembled.

•

Wireless devices are not user serviceable. Do not modify

them in any way. Modification to a wireless device will

void the authorization to use it. Please contact the

manufacturer for service.

•

Only use drivers approved for country in which the

device will be used. See the manufacturer System

Restoration Kit, or contact the manufacturer’s technical

support for additional information.

•

Radio frequency wireless communication can interfere

with equipment on commercial aircraft. Current

aviation regulations require wireless devices to be

turned off while traveling in an airplane.

802.11ABGN (also known as wireless Ethernet or Wi-Fi)

and Bluetooth communication devices are examples of

devices that provide wireless communication.

•

In environments where the risk of interference to other

devices or services is harmful or perceived as harmful,

the option to use a wireless device may be restricted

or eliminated. Airports, Hospitals, and Oxygen or

flammable gas laden atmospheres are limited examples

where use of wireless devices may be restricted or

eliminated. When in environments where you are

uncertain of the sanction to use wireless devices, ask

the applicable authority for authorization prior to use or

turning on the wireless device.

Appendix

Explosive Device Proximity Warning

Do not operate a portable transmitter (such as a wireless

network device) near unshielded blasting caps or in

an explosive environment unless the device has been

modified to be qualified for such use.

Use On Aircraft Caution

Regulations of the FCC and FAA prohibit airborne

operation of radio-frequency wireless devices because

their signals could interfere with critical aircraft

instruments.

Other wireless devices

Safety notices for other devices in the wireless network:

Refer to the documentation supplied with wireless Ethernet

adapters or other devices in the wireless network.

United States of America

USA and Canada Safety Requirements and Notices

Do not touch or move antenna while the unit is transmitting or

receiving.

Do not hold any component containing the radio such that the

antenna is very close to touching any exposed parts of the body,

especially the face or eyes, while transmitting.

Do not operate the radio or attempt to transmit data unless the

antenna is connected; if not, the radio may be damaged.

Use in specific environments:

The use of wireless devices in hazardous locations is limited by the

constraints posed by the safety directors of such environments.

The use of wireless devices on airplanes is governed by the Federal

Aviation Administration (FAA).

The use of wireless devices in hospitals is restricted to the limits

set forth by each hospital.

Appendix

This equipment has been tested and found to comply

with the limits for a Class B digital device pursuant to Part

15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses,

and can radiate radio frequency energy. If not installed

and used in accordance with the instructions, it may

cause harmful interference. If this equipment does cause

harmful interference to radio or television reception,

which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and

receiver.

•

Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV

technician for help.

The Part 15 radio device operates on a non-interference

basis with other devices operating at this frequency. Any

changes or modification to said product not expressly

approved by Intel could void the user’s authority to

operate this device.

Unintentional emitter per FCC Part 15

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) this device may not

cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause

undesired operation.

Appendix

Intentional emitter per FCC Part 15

(If fitted with 2.4 G band or 5 G band)

Low power, Radio LAN type devices (radio frequency (RF) wireless

communication devices), operating in the 2.4 GHz/5 GHz Band,

may be present (embedded) in the notebook system. This section

is only applicable if these devices are present. Refer to the system

label to verify the presence of wireless devices.

Wireless devices that may be in the system are only qualified for

use in the United States of America if an FCC ID number is on the

system label.

This device is restricted to indoor use due to its operation in the

5.15 to 5.25 GHz frequency range. FCC requires this product to be

used indoors for the frequency range 5.15 to 5.25 GHz to reduce

the potential for harmful interference to co-channel Mobile

Satellite systems. High power radars are allocated as primary users

of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar

stations can cause interference with and/or damage this device.

If necessary, the user should consult the dealer or an experienced

radio/television technician for additional suggestions. The user

may find the following booklet helpful: “Something About

Interference.”

This is available at FCC local regional offices. Our company is not

responsible for any radio or television interference caused by

unauthorized modifications of this equipment or the substitution

or attachment of connecting cables and equipment other than

those specified by our company. The correction will be the

responsibility of the user. Use only shielded data cables with this

system.

Appendix

100

Health and safety information

Exposure to Radio Frequency (RF) Signals

Certification Information

This product can contain an embedded radio transmitter and

receiver. It is designed and manufactured not to exceed the

exposure limits for radio frequency (RF) energy set by the Federal

Communications Commission (FCC) of the U.S. government. These

FCC exposure limits are derived from the recommendations of two

expert organizations, the National Council on Radiation Protection

and Measurement (NCRP) and the Institute of Electrical and

Electronics Engineers (IEEE). In both cases, the recommendations

were developed by scientific and engineering experts drawn from

industry, government, and academia after extensive reviews of the

scientific literature related to the biological effects of RF energy.

Before a new model is available for sale to the public, it must be

certified to the FCC that it does not exceed the exposure limit

established by the FCC. Evaluation per each model is performed

in positions and locations (e.g. at the bottom on the body) as

required by the FCC.

Operation of this device is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including

interference that may cause undesired operation of the device.

Wireless devices are not user serviceable. Do not modify

them in any way.

Modification to a wireless device will void the

authorization to use it. Contact manufacturer for service.

Appendix

101

For corresponding model only

The Specific Absorption Rate (SAR) is a measure of the rate of

absorption of RF energy by the human body expressed in units

of watts per kilogram (W/kg). The FCC wireless devices to comply

with a safety limit of 1.6 watts per kilogram (1.6 W/kg).

SAR level of this device while operating can be well below the

maximum value. This is because the device is designed to operate

at multiple power levels so as to use only the power required to

reach the network. In general, the closer you are to a wireless base

station antenna, the lower the power output.

For body worn operation, this model meets the FCC RF exposure

guidelines when used with Samsung accessory designated for this

product. Non-compliance with the above restrictions may result in

violation of FCC RF exposure guidelines.

RF exposure or SAR information can be viewed on-line at

www.fcc.gov/oet/ea/fccid/. This site uses this product FCC ID

number on the outside of the product. Sometimes it may be

necessary to remove the battery pack to find number. Once

you have the FCC ID number for a particular product, follow the

instructions on the website and it should provide RF exposure

information or values for typical or maximum SAR for particular

product.

Appendix

102

The term “IC” before the equipment certification number only

signifies that the Industry Canada technical specifications were

met. To reduce potential radio interference to other users, the

antenna type and its gain should be so chosen that the equivalent

isotropically radiated power (EIRP) is not more than that required

for successful communication. To prevent radio interference

to the licensed service, this device is intended to be operated

indoors and away from windows to provide maximum shielding.

Equipment (or its transmit antenna) that is installed outdoors is

subject to licensing.

(If fitted with 2.4 G band or 5 G band)

Low power, Radio LAN type devices (radio frequency (RF) wireless

communication devices), operating in the 2.4 GHz/5 GHz Band,

may be present (embedded) in your notebook system. This

section is only applicable if these devices are present. Refer to the

system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for

use in Canada if an Industry Canada ID number is on the system

label.

Canada

Unintentional emitter per ICES-003

This digital apparatus does not exceed the Class B limits for radio

noise emissions from digital apparatus as set out in the radio

interference regulations of Industry Canada.

Intentional emitter per RSS 210

This device complies with RSS 210 of Industry Canada. Operation

is subject to the following two conditions: (1) this device may

not cause interference, and (2) this device must accept any

interference, including interference that may cause undesired

operation of this device.

Appendix

103

The power output of the wireless device (or devices), which may

be embedded in your notebook, is well below the RF exposure

limits as set by Industry Canada.

Operation of this device is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including

interference that may cause undesired operation of the device.

To prevent radio interference to licensed service, this

device is intended to be operated indoors and away from

windows to provide maximum shielding. Equipment (or

its transmit antenna) that is installed outdoors is subject to

licensing.

Wireless devices are not user serviceable. Do not modify

them in any way. Modification to a wireless device will

void the authorization to use it. Contact manufacturer for

service.

When using IEEE 802.11a wireless LAN, this product is restricted to

indoor use due to its operation in the 5.15 to 5.25 GHz frequency

range. Industry Canada requires this product to be used indoors

for the frequency range of 5.15 to 5.25 GHz to reduce the potential

for harmful interference to co-channel mobile satellite systems.

High power radar is allocated as the primary user of the 5.25 to

5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can

cause interference with and/or damage to this device.

The maximum allowed antenna gain for use with this device

is 6dBi in order to comply with the E.I.R.P limit for the 5.25 to

5.35 GHz and 5.725 to 5.85 GHz frequency range in point-to-point

operation.

Appendix

104

European Union

European Union CE marking and compliance notices

Products intended for sale within the European Union are

marked with the Conformité Européene (CE) Marking, which

indicates compliance with the applicable Directives and European

standards and amendments identified below. This equipment also

carries the Class 2 identifier.

The following information is only applicable to systems labeled

with the CE mark .

European Directives

This Information Technology Equipment has been tested and

found to comply with the following European directives:

•

EMC Directive 2004/108/EC

•

Low Voltage Directive 2006/95/EC

•

R&TTE Directive 1999/5/EC

Brazil

Este produto esta homologado pela ANATEL, de acordo com

os procedimentos regulamentados pela Resolucao 242/2000, e

atende aos requisitos tecnicos aplicados.

Este equipamento opera em caráter secundário, isto é, não

tem direito a proteção contra interferência prejudicial, mesmo

de estações do mesmo tipo, e não pode causar interferência a

sistemas operando em caráter primário.

Appendix

105

Wireless devices that may be in your system are only qualified for

use in the European Union or associated areas if a CE mark

with a Notified Body Registration Number and the Alert Symbol is

on the system label.

The power output of the wireless device or devices that may be

embedded in you notebook is well below the RF exposure limits

as set by the European Commission through the R&TTE directive.

The low band 5.15–5.35 GHz is for indoor use only.

See 802.11b and 802.11g restrictions for specific countries

or regions within countries under the heading “European

Economic Area Restrictions” below.

Samsung Electronics (UK) Ltd, Euro QA Lab.

Blackbushe Business Park Saxony Way, Yateley,

Hampshire GU46 6GG United Kingdom

European radio approval information (for products

fitted with EU-approved radio devices)

This Product is a Notebook computer; low power, Radio LAN type

devices (radio frequency (RF) wireless communication devices),

operating in the 2.4 GHz/5 GHz band, may be present (embedded)

in your notebook system which is intended for home or office use.

This section is only applicable if these devices are present. Refer to

the system label to verify the presence of wireless devices.

Appendix

106

Nation Description

Eesti[Estonian]

Käesolevaga kinnitab

Samsung seadme Notebook

PC vastavust direktiivi 1999/5/

EÜ põhinõuetele ja nimetatud

direktiivist tulenevatele teistele

asjakohastele sätetele.

English

Hereby, Samsung, declares

that this Notebook PC is in

compliance with the essential

requirements and other

relevant provisions of Directive

1999/5/EC.

Español[Spanish]

Por medio de la presente

Samsung declara que el

Notebook PC cumple con

los requisitos esenciales

y cualesquiera otras

disposiciones aplicables

o exigibles de la Directiva

1999/5/CE.

EU R&TTE compliance statements

Nation Description

Česky[Czech]

Samsung tímto prohlašuje,

že tento Notebook PC je ve

shodě se základními požadavky

a dalšími příslušnými

ustanoveními směrnice 1999/5/

ES.

Dansk[Danish]

Undertegnede Samsung

erklærer herved, at følgende

udstyr Notebook PC overholder

de væsentlige krav og øvrige

relevante krav i direktiv 1999/5/

EF.

Deutsch[German]

Hiermit erklärt Samsung, dass

sich das Gerät Notebook PC

in Übereinstimmung mit den

grundlegenden Anforderungen

und den übrigen einschlägigen

Bestimmungen der Richtlinie

1999/5/EG befindet.

Appendix

107

Nation Description

Latviski[Latvian]

Ar šo Samsung deklarē, ka

Notebook PC atbilst Direktīvas

1999/5/EK būtiskajām prasībām

un citiem ar to saistītajiem

noteikumiem.

Lietuvių[Lithuanian]

Šiuo Samsung deklaruoja,

kad šis Notebook PC atitinka

esminius reikalavimus ir

kitas 1999/5/EB Direktyvos

nuostatas.

Nederlands[Dutch]

Hierbij verklaart Samsung dat

het toestel Notebook PC in

overeenstemming is met de

essentiële eisen en de andere

relevante bepalingen van

richtlijn 1999/5/EG.

Nation Description

Ελληνική[Greek]

ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Samsung

ΔΗΛΩΝΕΙ ΟΤΙ Notebook PC

ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ

ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ

ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ

ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.

Français[French]

Par la présente Samsung

déclare que l’appareil

Notebook PC est conforme aux

exigences essentielles et aux

autres dispositions pertinentes

de la directive 1999/5/CE.

Italiano[Italian]

Con la presente Samsung

dichiara che questo Notebook

PC è conforme ai requisiti

essenziali ed alle altre

disposizioni pertinenti stabilite

dalla direttiva 1999/5/CE.

Appendix

108

Nation Description

Português[Portuguese]

Samsung declara que este

Notebook PC está conforme

com os requisitos essenciais e

outras disposições da Directiva

1999/5/CE.

Slovensko[Slovenian]

Samsung izjavlja, da je ta

Notebook PC v skladu z

bistvenimi zahtevami in

ostalimi relevantnimi določili

direktive 1999/5/ES.

Slovensky[Slovak]

Samsung týmto vyhlasuje, že

Notebook PC spĺňa základné

požiadavky a všetky príslušné

ustanovenia Smernice

1999/5/ES.

Nation Description

Malti[Maltese]

Hawnhekk, Samsung, jiddikjara

li dan Notebook PC jikkonforma

mal-ħtiāijiet essenzjali u ma

provvedimenti oħrajn relevanti

li hemm fid-Dirrettiva 1999/5/

EC.

Magyar[Hungarian]

Alulírott, Samsung nyilatkozom,

hogy a Notebook PC megfelel

a vonatkozó alapvetõ

követelményeknek és az

1999/5/EC irányelv egyéb

elõírásainak.

Polski[Polish]

Niniejszym Samsung

oświadcza, Ŝe Notebook PC

jest zgodny z zasadniczymi

wymogami oraz pozostałymi

stosownymi postanowieniami

Dyrektywy 1999/5/EC.

Appendix

109

Nation Description

Norsk[Norwegian]

Samsung erklærer herved

at utstyret Notebook

PC er i samsvar med de

grunnleggende krav og øvrige

relevante krav i direktiv 1999/5/

EF.

Türkiye[Türkçe]

Bu belge ile, Samsung bu

Notebook PC’nin 1999/5/

EC Yönetmeliğinin temel

gerekliliklerine ve ilgili

hükümlerine uygun olduğunu

beyan eder.

Nation Description

Suomi[Finnish]

Samsung vakuuttaa täten

että Notebook PC tyyppinen

laite on direktiivin 1999/5/EY

oleellisten vaatimusten ja sitä

koskevien direktiivin muiden

ehtojen mukainen.

Svenska[Swedish]

Härmed intygar Samsung

att denna Notebook PC står

I överensstämmelse med de

väsentliga egenskapskrav och

övriga relevanta bestämmelser

som framgår av direktiv

1999/5/EG.

Íslenska[Icelandic]

Hér með lýsir Samsung yfir því

að Notebook PC er í samræmi

við grunnkröfur og aðrar kröfur,

sem gerðar eru í tilskipun

1999/5/EC.

Appendix

110

Manufacturer information

Samsung Electronics Co., Ltd.

129, Samsung-Ro, Yeongtong-Gu, Suwon-City, Gyeonggi-Do,

443-742, Korea

Samsung Electronics Suzhou Computer Co., Ltd.

No. 198, Fangzhou Road, Suzhou Industrial Park, Jiangsu Province,

215021, China

Tel: +86-0512-6253-8988

Samsung Electronics Vietnam Co., Ltd.

Yen Phong 1, I.P Yen Trung Commune, Yen Phong Dist., Bac Ninh

Province, Vietnam

For the web or the phone number of the Samsung Service Center,

see the Warranty or contact the retailer where you purchased your

product.

To view the EU Declaration of Conformity

for this product (in English only), go to:

www.samsung.com/uk/support/main/supportMain.do or

www.samsung.com/uk/support then search the model number of

the product.

If the Declaration of Conformity for the model you are interested

in is not available on our web-site, please contact your distributor

or below address.

doc.eu@samsung.com

Appendix

111

Due to the fact that the frequencies used by

802.11b/802.11g wireless LAN devices may not yet be

harmonized in all countries, 802.11b/802.11g products

are designed for use only in specific countries or regions,

and are not allowed to be operated in countries or regions

other than those of designated use.

As a user of these products, you are responsible for

ensuring that the products are used only in the countries

or regions for which they were intended and for verifying

that they are configured with the correct selection of

frequency and channel for the country or region of use.

Any deviation from permissible settings and restrictions in

the country or region of use could be an infringement of

local law and may be punished as such.

European economic area restrictions

Local restriction of 802.11b/802.11g radio usage

Note to integrator: The following statements on local restrictions

must be published in all end-user documentation provided with

the system or product incorporating the wireless product.

Appendix

112

RTC caution

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended

by the manufacturer. Discard used batteries according to the

Manufacturer’s instruction.

The European variant is intended for use throughout the European

Economic Area. However, authorization for use is further restricted

in particular countries or regions within countries, as follows:

General

European standards dictate maximum radiated transmit power

of 100 mW effective isotropic radiated power (EIRP) and the

frequency range 2400–2483.5 MHz.

The low band 5.15–5.35 GHz is for indoor use only.

Belgium

For private use outdoors in public spaces, no registration is

necessary for distances less than 300 m. For distances greater

than 300 m, you must register with the Belgian Institute for Postal

services and Telecommunications (BIPT). For commercial use

outdoors, you must obtain a license from the BIPT. For registration

or licensing, please contact the BIPT.

For other languages, refer to the corresponding manuals.

France

The low band 5.15–5.35 GHz is for indoor use only.

Appendix

113

WEEE symbol information

Correct disposal of this product (Waste Electrical &

Electronic Equipment)

(Applicable in countries with separate collection

systems)

This marking on the product, accessories or literature indicates

that the product and its electronic accessories (for example,

charger, headset, USB cable) should not be disposed of with other

household waste at the end of their working life.

To prevent possible harm to the environment or human health

from uncontrolled waste disposal, please separate these items

from other types of waste and recycle them responsibly to

promote the sustainable reuse of material resources.

Household users should contact either the retailer where

they purchased this product, or their local government office,

for details of where and how they can take these items for

environmentally safe recycling.

Business users should contact their supplier and check the terms

and conditions of the purchase contract. This product and its

electronic accessories should not be mixed with other commercial

wastes for disposal.

For information on Samsung’s environmental commitments

and product specific regulatory obligations e.g. REACH visit:

samsung.com/uk/aboutsamsung/samsungelectronics/

corporatecitizenship/data_corner.html

India only

For more information on safe disposal and recycling visit our

website www.samsung.com/in or contact our Helpline numbers -

18002668282, 180030008282.

This product is RoHS compliant.

Appendix

114

USA only

This Perchlorate warning applies only to primary CR (Manganese

Dioxide) Lithium coin cells in the product sold or distributed ONLY

in California USA.

“Perchlorate Material- special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate.”

Dispose unwanted electronics through an approved recycler.

To find the nearest recycling location, go to our website:

www.samsung.com/recyclingdirect

or call, (877) 278-0799.

For battery recycling go to call2recycle.org; or call 1-800-822-8837.

Warning: This product contains chemicals known to the state of

California to cause cancer, birth defects, or other reproductive

harm.

Correct disposal of batteries in this product

(Applicable in countries with separate collection

systems)

This marking on the battery, manual or packaging indicates that

the batteries in this product should not be disposed of with other

household waste at the end of their working life. Where marked,

the chemical symbols Hg, Cd or Pb indicate that the battery

contains mercury, cadmium or lead above the reference levels

in EC Directive 2006/66. If batteries are not properly disposed

of, these substances can cause harm to human health or the

environment.

To protect natural resources and to promote material re-use,

please separate batteries from other types of waste and recycle

them through your local, free battery return system.

Appendix

115

Samsung package Take-Back

program

In partnering with select recyclers, Samsung offers packaging

take-back at no cost to you.

Simply call the following number for the locations nearest you.

CRT Processing, LLC

(877) 278-0799

Kathy Severson – Logistics contact

Dispose unwanted electronics through an approved recycler.

To find the nearest recycling location, go to our website:

www.samsung.com/recyclingdirect or call, (877) 278-0799

Some content may differ from the computer depending on the region, service provider, software version, or computer model, and is

subject to change without prior notice.

English. 05/2016. Rev. 1.1www.samsung.com

Intel 8260D2 Intel Dual Band Wireless-AC 8260 User Manual 2

Intel Mobile Communications Intel Dual Band Wireless-AC 8260 2

Contents

User Manual 2

Navigation menu

Namespaces

Views

Navigation
