Intel® WiFi Adapter Information Guide
index.htm[4/10/2015 2:35:47 PM]
Intel® WiFi Adapter Information Guide
This version of Intel® PROSet/Wireless WiFi Software is compatible with the adapters listed below. However, note
that newer features provided in this software release are generally not supported for older, legacy adapters.
The following adapters are supported on this release for Windows* 8 and Windows* 8.1 with Windows* 7 drivers
from Intel®:
Intel® Centrino® Wireless-N 100
Intel® Centrino® Wireless-N 130
Intel® Centrino® Wireless-N 1000
Intel® Centrino® Wireless-N 1030
Intel® Centrino® Advanced-N 6200
Intel® Centrino® Advanced-N 6230
The following adapters are supported on this release for Windows* 8 with Windows* 8 drivers from Intel®:
Intel® Centrino® Wireless-N 105
Intel® Centrino® Wireless-N 135
Intel® Centrino® Wireless-N 2200
Intel® Centrino® Wireless-N 2230
Intel® Centrino® Wireless-N + WiMAX 6150
Intel® Centrino® Advanced-N 6205
Intel® Centrino® Advanced-N 6235
Intel® Centrino® Advanced-N + WiMAX 6250
Intel® Centrino® Ultimate-N 6300
Intel® Dual Band Wireless-AC 7260
Intel® Dual Band Wireless-N 7260
Intel® Wireless-N 7260
Intel® Dual Band Wireless-AC 3160
Intel® Dual Band Wireless-AC 7265
Intel® Dual Band Wireless-N 7265
Intel® Wireless-N 7265
Intel® Dual Band Wireless-AC 8260
The following adapters are supported on this release for Windows* 8.1 with Windows* 8 drivers from Intel®:
Intel® Centrino® Wireless-N 105
Intel® Centrino® Wireless-N 135
Intel® Centrino® Wireless-N 2200
Intel® Centrino® Wireless-N 2230
Intel® Centrino® Wireless-N + WiMAX 6150
Intel® Centrino® Advanced-N 6205
Intel® Centrino® Advanced-N 6235
Intel® Centrino® Advanced-N + WiMAX 6250
Intel® Centrino® Ultimate-N 6300
The following adapters are supported on this release for Windows* 8.1 with Windows* 8.1 drivers from Intel®:
Intel® Dual Band Wireless-AC 7260
Intel® Dual Band Wireless-N 7260
Intel® Wireless-N 7260
Intel® Dual Band Wireless-AC 3160
Intel® Dual Band Wireless-AC 7265
Intel® Dual Band Wireless-N 7265
Intel® Wireless-N 7265
Intel® Tri-Band Wireless-AC 17265
Intel® Dual Band Wireless-AC 8260
With your WiFi network card, you can access WiFi networks, share files or printers, or even share your Internet
![](/img.php?id=2775127&img=bg2.png)
Intel® WiFi Adapter Information Guide
index.htm[4/10/2015 2:35:47 PM]
connection. All of these features can be explored using a WiFi network in your home or office. This WiFi network
solution is designed for both home and business use. Additional users and features can be added as your networking
needs grow and change.
This guide contains basic information about Intel adapters. It includes information about several adapter properties
that you can set to control and enhance the performance of your adapter with your particular wireless network and
environment. Intel® wireless adapters enable fast connectivity without wires for desktop and notebook PCs.
Adapter Settings
Regulatory Information
Specifications
Important Information
Support
Warranty
Glossary
Depending on the model of your Intel WiFi adapter, your adapter is compatible with 802.11a, 802.11b, 802.11g, and
802.11n (draft 2.0) wireless standards. Operating at 5GHz or 2.4GHz frequency at data rates of up to 450 Mbps,
you can now connect your computer to existing high-speed networks that use multiple access points within large or
small environments. Your WiFi adapter maintains automatic data rate control according to the access point location
and signal strength to achieve the fastest possible connection. All of your wireless network connections are easily
managed by the WiFi connection utility. Profiles that are set up through the WiFi connection utility provide enhanced
security measures with 802.1X network authentication.
Information in this document is subject to change without notice.
© 2004–2014 Intel Corporation. All rights reserved. Intel Corporation, 5200 N.E. Elam Young Parkway,
Hillsboro, OR 97124-6497 USA
The copying or reproducing of any material in this document in any manner whatsoever without the written
permission of Intel Corporation is strictly forbidden. Intel® is a trademark or registered trademark of Intel
Corporation or its subsidiaries in the United States and other countries. Other trademarks and trade names may be
used in this document to refer to either the entities claiming the marks and names or their products. Intel disclaims
any proprietary interest in trademarks and trade names other than its own. Microsoft and Windows are registered
trademarks of Microsoft Corporation. Windows Vista is either a registered trademark or trademark of Microsoft
Corporation in the United States and/or other countries.
*Other names and brands may be claimed as the property of others.
Intel Corporation assumes no responsibility for errors or omissions in this document. Nor does Intel make any
commitment to update the information contained herein.
"IMPORTANT NOTICE FOR ALL USERS OR DISTRIBUTORS:
Intel wireless LAN adapters are engineered, manufactured, tested, and quality checked to ensure that they meet all
necessary local and governmental regulatory agency requirements for the regions that they are designated and/or
marked to ship into. Because wireless LANs are generally unlicensed devices that share spectrum with radars,
satellites, and other licensed and unlicensed devices, it is sometimes necessary to dynamically detect, avoid, and
limit usage to avoid interference with these devices. In many instances Intel is required to provide test data to prove
regional and local compliance to regional and governmental regulations before certification or approval to use the
product is granted. Intel's wireless LAN's EEPROM, firmware, and software driver are designed to carefully control
parameters that affect radio operation and to ensure electromagnetic compliance (EMC). These parameters include,
without limitation, RF power, spectrum usage, channel scanning, and human exposure.
For these reasons Intel cannot permit any manipulation by third parties of the software provided in binary format
with the wireless LAN adapters (e.g., the EEPROM and firmware). Furthermore, if you use any patches, utilities, or
code with the Intel wireless LAN adapters that have been manipulated by an unauthorized party (i.e., patches,
utilities, or code (including open source code modifications) which have not been validated by Intel), (i) you will be
solely responsible for ensuring the regulatory compliance of the products, (ii) Intel will bear no liability, under any
theory of liability for any issues associated with the modified products, including without limitation, claims under the
warranty and/or issues arising from regulatory non-compliance, and (iii) Intel will not provide or be required to
![](/img.php?id=2775127&img=bg3.png)
Intel® WiFi Adapter Information Guide
index.htm[4/10/2015 2:35:47 PM]
assist in providing support to any third parties for such modified products.
Note: Many regulatory agencies consider Wireless LAN adapters to be "modules", and accordingly, condition system-
level regulatory approval upon receipt and review of test data documenting that the antennas and system
configuration do not cause the EMC and radio operation to be non-compliant."
February 12, 2015
![](/img.php?id=2775127&img=bg4.png)
Adapter Settings
adaptusr.htm[4/10/2015 2:35:48 PM]
Back to Contents
Adapter Settings
The Advanced tab displays the device properties for the WiFi adapter installed on your computer.
How to Access
At the Intel® PROSet/Wireless WiFi Connection Utility, Advanced Menu click Adapter Settings. Select the
Advanced tab.
WiFi Adapter Settings Description
Name Description
802.11ac Mode
(5GHz)
The 802.11ac standard builds on 802.11n standard. 802.11ac Mode delivers up to 867Mbps
(theoretical) by increasing channel bandwidth to 80MHz and adding higher density modulation
(256 QAM). Select Enabled or Disabled to set the 802.11ac mode of the WiFi adapter. Enabled
is the default setting. This setting applies to 802.11ac capable adapters only.
802.11n
Channel Width
(2.4 GHz)
Set high throughput channel width to maximize performance. Set the channel width to Auto or
20MHz. Use 20MHz if 802.11n channels are restricted. This setting applies to 802.11n capable
adapters only.
NOTE: This setting does not apply to the Intel® Wireless WiFi Link 4965AGN (uses 20 MHz
channel width only).
802.11n
Channel Width
(5.2 GHz)
Set high throughput channel width to maximize performance. Set the channel width to Auto or
20MHz. Use 20MHz if 802.11n channels are restricted. This setting applies to 802.11n capable
adapters only.
NOTE: This setting does not apply to the following adapters:
Intel® WiFi Link 1000
Intel® Wireless WiFi Link 4965AGN
802.11n Mode The 802.11n standard builds on previous 802.11 standards by adding multiple-input multiple-
output (MIMO). MIMO increases data throughput to improve transfer rate. Select Enabled or
Disabled to set the 802.11n mode of the WiFi adapter. Enabled is the default setting. This
setting applies to 802.11n capable adapters only.
NOTE: To achieve transfer rates greater than 54 Mbps on 802.11n connections, WPA2*-AES
security must be selected. No security (None) can be selected to enable network setup and
troubleshooting.
An administrator can enable or disable support for high throughput mode to reduce power-
consumption or conflicts with other bands or compatibility issues.
Ad Hoc
Channel
802.11b/g
Select Enabled or Disabled.
Ad Hoc QoS
Mode Quality of Service (QoS) control in ad hoc networks. QoS provides prioritization of traffic from the
access point over a wireless LAN based on traffic classification. WMM (Wi-Fi Multimedia) is the
QoS certification of the Wi-Fi Alliance (WFA). When WMM is enabled, the WiFi adapter uses WMM
to support priority tagging and queuing capabilities for Wi-Fi networks.
WMM Enabled (Default)
WMM Disabled
Bluetooth® Enable or disable Bluetooth® AMP. AMP stands for alternate MAC/PHY and uses the 802.11 (Wi-
![](/img.php?id=2775127&img=bg5.png)
Adapter Settings
adaptusr.htm[4/10/2015 2:35:48 PM]
AMP Fi) as the high-speed transport. If disabled, Bluetooth HS is turned off.
HT Mode/VHT
Mode/Disabled This settings lets you select HT Mode (High Throughput mode), VHT Mode (Very High Throughput
Mode) or to disable both modes. HT Mode supports 802.11n compatibility, whereas VHT Mode
supports 802.11ac compatibility.
Fat Channel
Intolerant This setting communicates to access points that this WiFi adapter does not prefer 40MHz
channels in the 2.4GHz band. The default setting is for this to be turned off (disabled), so that
the adapter does not send this notification. If the access point continues to use 40MHz channels,
the WiFi adapter will also use 40MHz channels if the 802.11n Channel Width (2.4GHz) setting is
AUTO.
NOTE: This setting does not apply to the following adapters:
Intel® Wireless WiFi Link 4965AG_
Intel® PRO/Wireless 3945ABG Network Connection
Mixed mode
protection Use to avoid data collisions in a mixed 802.11b and 802.11g environment. Request to
Send/Clear to Send (RTS/CTS) should be used in an environment where clients may not hear
each other. CTS-to-self can be used to gain more throughput in an environment where clients
are in close proximity and can hear each other.
Preferred Band In an environment with other radiating devices nearby (such as microwave ovens, cordless
telephones, access points, or client devices), in order to reduce interference you may prefer the
5GHz band over the 2.4GHz band, or vice-versa. Your choices are:
No Preference
Prefer 2.4GHz band
Prefer 5GHz band
Here are the various Wi-Fi bands:
802.11 legacy - 2.4GHz
802.11a - 3.7GHz and 5GHz
802.11b - 2.4GHz
802.11g - 2.4GHz
802.11n - 2.4GHz and 5GHz
802.11ac - 5GHz
802.11ad - 60GHz
Roaming
AggressivenessThis setting lets you define how aggressively your wireless client roams to improve connection to
an access point. There are five available settings.
3. Medium: This is the default. A balanced setting between not roaming and performance.
1. Lowest: Your wireless client will not roam. Only significant link quality degradation
causes it to roam to another access point.
5. Highest: Your wireless client continuously tracks the link quality. If any degradation
occurs, it tries to find and roam to a better access point.
Transmit
Power Default Setting: Highest power setting.
Lowest: Minimum Coverage: Set the adapter to the lowest transmit power. Enables you to
expand the number of coverage areas or confine a coverage area. Reduces the coverage area in
high traffic areas to improve overall transmission quality and avoids congestion and interference
with other devices.
Highest: Maximum Coverage: Set the adapter to a maximum transmit power level. Select for
maximum performance and range in environments with limited additional WiFi radio devices.
NOTE: The optimal setting is for a user to always set the transmit power at the lowest possible
level that is still compatible with the quality of their communication. This allows the maximum
number of wireless devices to operate in dense areas and reduce interference with other devices
that it shares the same radio spectrum with.
![](/img.php?id=2775127&img=bg6.png)
Adapter Settings
adaptusr.htm[4/10/2015 2:35:48 PM]
NOTE: This setting takes effect when either Network (Infrastructure) or Device to Device (ad
hoc) mode is used.
Wake on Magic
Packet This setting, enabled, wakes the computer from a sleep state when it receives a "magic packet"
from a sending computer. The magic packet contains the MAC address of the intended
destination computer.
Enabling turns on Wake on Magic Packet. Disabling turns off Wake on Magic Packet. Disabling
this only disables the magic packet feature, not Wake on Wireless LAN.
Wake on
Pattern Match This feature wakes the computer from a sleep state when a particular wake pattern is received at
the adapter. This feature is supported by the Window* 7 and Windows 8. Such patterns typically
are:
Wake on new incoming TCP connection for IPv4 and IPv6 (TCP SYN IPv4 and TCP SYN
IPv6).
Wake on 802.1x re-authentication packets.
Disabling this only disables the pattern match feature, not Wake on Wireless LAN.
Wireless Mode Select which mode to use for connection to a wireless network:
802.11a only: Connect the wireless WiFi adapter to 802.11a networks only. Not
applicable for all adapters.
802.11b only: Connect the wireless WiFi adapter to 802.11b networks only. Not
applicable for all adapters.
802.11g only: Connect the wireless WiFi adapter to 802.11g networks only.
802.11a and 802.11g: Connect the WiFi adapter to 802.11a and 802.11g networks only.
Not applicable for all adapters.
802.11b and 802.11g: Connect the WiFi adapter to 802.11b and 802.11g networks only.
Not applicable for all adapters.
802.11a, 802.11b, and 802.11g: (Default) - Connect to either 802.11a, 802.11b or
802.11g wireless networks. Not applicable for all adapters.
OK Saves settings and returns to the previous page.
Cancel Closes and cancels any changes.
Back to Top
Back to Contents
Trademarks and Disclaimers
![](/img.php?id=2775127&img=bg7.png)
Regulatory Information
regs.htm[4/10/2015 2:35:49 PM]
Back to Contents
Regulatory Information
This section provides regulatory information for the following wireless adapters:
Intel® Centrino® Wireless-N 100
Intel® Centrino® Wireless-N 105
Intel® Centrino® Wireless-N 130
Intel® Centrino® Wireless-N 135
Intel® Centrino® Wireless-N 1000
Intel® Centrino® Wireless-N 1030
Intel® Centrino® Wireless-N 2200
Intel® Centrino® Wireless-N 2230
Intel® Centrino® Wireless-N + WiMAX 6150
Intel® Centrino® Advanced-N 6200
Intel® Centrino® Advanced-N 6205
Intel® Centrino® Advanced-N 6230
Intel® Centrino® Advanced-N 6235
Intel® Centrino® Advanced-N + WiMAX 6250
Intel® Centrino® Ultimate-N 6300
Intel® Dual Band Wireless-AC 7260
Intel® Dual Band Wireless-N 7260
Intel® Wireless-N 7260
Intel® Dual Band Wireless-AC 3160
Intel® Dual Band Wireless-AC 3165
Intel® Dual Band Wireless-AC 7265
Intel® Dual Band Wireless-N 7265
Intel® Wireless-N 7265
Intel® Tri-Band Wireless-AC 17265
Intel® Wireless Gigabit Sink W13100
Intel® Dual Band Wireless-AC 8260
NOTE: Due to the evolving state of regulations and standards in the wireless LAN field (IEEE 802.11 and
similar standards), the information provided herein is subject to change. Intel Corporation assumes no
responsibility for errors or omissions in this document.
Intel WiFi/WiMAX Wireless Adapters
Information in this section supports the following wireless adapters:
Intel® Centrino® Wireless-N + WiMAX 6150
Intel® Centrino® Advanced-N + WiMAX 6250
See Specifications for complete wireless adapter specifications.
NOTE: In this section, all references to the "wireless adapter" refer to all adapters listed above.
The following information is provided:
Information for the User
Regulatory Information
Information for OEMs and Host Integrators
INFORMATION FOR THE USER
Safety Notices
![](/img.php?id=2775127&img=bg8.png)
Regulatory Information
regs.htm[4/10/2015 2:35:49 PM]
USA FCC Radio Frequency Exposure
The FCC with its action in ET Docket 96-8 has adopted a safety standard for human exposure to radio frequency (RF)
electromagnetic energy emitted by FCC certified equipment. The wireless adapter meets the Human Exposure
requirements found in FCC Part 2, 15C, 15E along with guidance from KDB 447498, KDB 248227 and KDB 616217.
Proper operation of this radio according to the instructions found in this manual will result in exposure substantially
below the FCC’s recommended limits.
The following safety precautions should be observed:
Do not touch or move antenna while the unit is transmitting or receiving.
Do not hold any component containing the radio such that the antenna is very close or touching any exposed
parts of the body, especially the face or eyes, while transmitting.
Do not operate the radio or attempt to transmit data unless the antenna is connected; this behavior may cause
damage to the radio.
Use in specific environments:
The use of wireless adapters in hazardous locations is limited by the constraints posed by the safety
directors of such environments.
The use of electronic devices equipped with wireless adapters on airplanes is governed by rules for each
commercial airline operator.
The use of wireless adapters in hospitals is restricted to the limits set forth by each hospital.
Explosive Device Proximity Warning
Warning: Do not operate a portable transmitter (including this wireless adapter) near unshielded blasting caps
or in an explosive environment unless the transmitter has been modified to be qualified for such use.
Antenna Warnings
Warning: The wireless adapter is not designed for use with high-gain directional antennas.
Use On Aircraft Caution
Caution: Regulations of commercial airline operators may prohibit airborne operation of certain electronic
devices equipped with radio-frequency wireless devices (wireless adapters) because their signals could interfere with
critical aircraft instruments.
Caution: 60 GHz/802.11ad equipment is not permitted on aircraft per FCC §15.255. OEM and host integrators
should consider this FCC rule in host devices.
Other Wireless Devices
Safety Notices for Other Devices in the Wireless Network: See the documentation supplied with wireless
adapters or other devices in the wireless network.
Local Restrictions on 802.11a, 802.11b, 802.11d, 802.11g, 802.11n, 802.11ac, and 802.16e Radio Usage
Caution: Due to the fact that the frequencies used by 802.11a, 802.11b, 802.11d, 802.11g, 802.11n, 802.11ac,
and 802.16e wireless LAN devices may not yet be harmonized in all countries, 802.11a, 802.11b, 802.11d, 802.11g,
802.11n, 802.11ac, and 802.16e products are designed for use only in specific countries, and are not allowed to be
operated in countries other than those of designated use. As a user of these products, you are responsible for
ensuring that the products are used only in the countries for which they were intended and for verifying that they
are configured with the correct selection of frequency and channel for the country of use. The device transmit power
control (TPC) interface is part of the Intel® PROSet/Wireless WiFi Connection Utility Software. Operational
restrictions for Equivalent Isotropic Radiated Power (EIRP) are provided by the system manufacturer. Any deviation
from the permissible power and frequency settings for the country of use is an infringement of national law and may
be punished as such.
![](/img.php?id=2775127&img=bg9.png)
Regulatory Information
regs.htm[4/10/2015 2:35:49 PM]
Wireless Interoperability
The wireless adapter is designed to be interoperable with other wireless LAN products that are based on direct
sequence spread spectrum (DSSS) radio technology and to comply with the following standards:
IEEE Std. 802.11b compliant Standard on Wireless LAN
IEEE Std. 802.11g compliant Standard on Wireless LAN
IEEE Std. 802.11a compliant Standard on Wireless LAN
IEEE Std. 802.11n draft 2.0 compliant on Wireless LAN
IEEE 802.16e-2005 Wave 2 compliant
Wireless Fidelity certification, as defined by the Wi-Fi Alliance
WiMAX certification as defined by the WiMAX Forum
The Wireless Adapter and Your Health
The wireless adapter, like other radio devices, emits radio frequency electromagnetic energy. The level of energy
emitted by the wireless adapter, however, is less than the electromagnetic energy emitted by other wireless devices
such as mobile phones. The wireless adapter operates within the guidelines found in radio frequency safety
standards and recommendations. These standards and recommendations reflect the consensus of the scientific
community and result from deliberations of panels and committees of scientists who continually review and interpret
the extensive research literature. In some situations or environments, the use of the wireless adapter may be
restricted by the proprietor of the building or responsible representatives of the applicable organization. Examples of
such situations may include:
Using the wireless adapter on board airplanes, or
Using the wireless adapter in any other environment where the risk of interference with other devices or
services is perceived or identified as being harmful.
If you are uncertain of the policy that applies to the use of wireless adapters in a specific organization or
environment (an airport, for example), you are encouraged to ask for authorization to use the adapter before you
turn it on.
REGULATORY INFORMATION
USA - Federal Communications Commission (FCC)
This wireless adapter is restricted to indoor use due to its operation in the 5.15 to 5.25 and 5.470 to 5.75GHz
frequency ranges. No configuration controls are provided for Intel® wireless adapters allowing any change in the
frequency of operations outside the FCC grant of authorization for U.S. operation according to Part 15.407 of the
FCC rules.
Intel® wireless adapters are intended for OEM integrators only.
Intel® wireless adapters cannot be co-located with any other transmitter unless approved by the FCC.
This wireless adapter complies with Part 15 of the FCC Rules. Operation of the device is subject to the following two
conditions:
This device may not cause harmful interference.
This device must accept any interference that may cause undesired operation.
Class B Device Interference Statement
This wireless adapter has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This wireless adapter generates, uses, and can radiate radio frequency energy. If the
wireless adapter is not installed and used in accordance with the instructions, the wireless adapter may cause
harmful interference to radio communications. There is no guarantee, however, that such interference will not occur
in a particular installation. If this wireless adapter does cause harmful interference to radio or television reception
(which can be determined by turning the equipment off and on), the user is encouraged to try to correct the
interference by taking one or more of the following measures:
![](/img.php?id=2775127&img=bga.png)
Regulatory Information
regs.htm[4/10/2015 2:35:49 PM]
Reorient or relocate the receiving antenna of the equipment experiencing the interference.
Increase the distance between the wireless adapter and the equipment experiencing the interference.
Connect the computer with the wireless adapter to an outlet on a circuit different from that to which the
equipment experiencing the interference is connected.
Consult the dealer or an experienced radio/TV technician for help.
NOTE: The adapter must be installed and used in strict accordance with the manufacturer's instructions
as described in the user documentation that comes with the product. Any other installation or use will
violate FCC Part 15 regulations.
Safety Approval Considerations
This device has been safety approved as a component and is for use only in complete equipment where the
acceptability of the combination is determined by the appropriate safety agencies. When installed, consideration
must be given to the following:
It must be installed into a compliant host device meeting the requirement of UL/EN/IEC 60950-1 2nd edition
including the general provisions of enclosure design 1.6.2 and specifically paragraph 1.2.6.2 (Fire Enclosure).
The device shall be supplied by a SELV source when installed in the end-use equipment.
A heating test shall be considered in the end-use product for meeting the requirement of UL/EN/IEC 60950-1
2nd edition.
Low Halogen
Applies only to brominated and chlorinated flame retardants (BFRs/CFRs) and PVC in the final product. Intel
components as well as purchased components on the finished assembly meet JS-709 requirements, and the PCB /
substrate meet IEC 61249-2-21 requirements. The replacement of halogenated flame retardants and/or PVC may
not be better for the environment.
Japan
5GHz 帯は室内でのみ使用のこと
Korea
해당 무선설비는 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없음.
해당 무선 설비는 5150-5250MHz 대역에서 실내에서만 사용할 수 있음.
Mexico
La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo
no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la
que pueda causar su operación no deseada.
Taiwan
![](/img.php?id=2775127&img=bgb.png)
Regulatory Information
regs.htm[4/10/2015 2:35:49 PM]

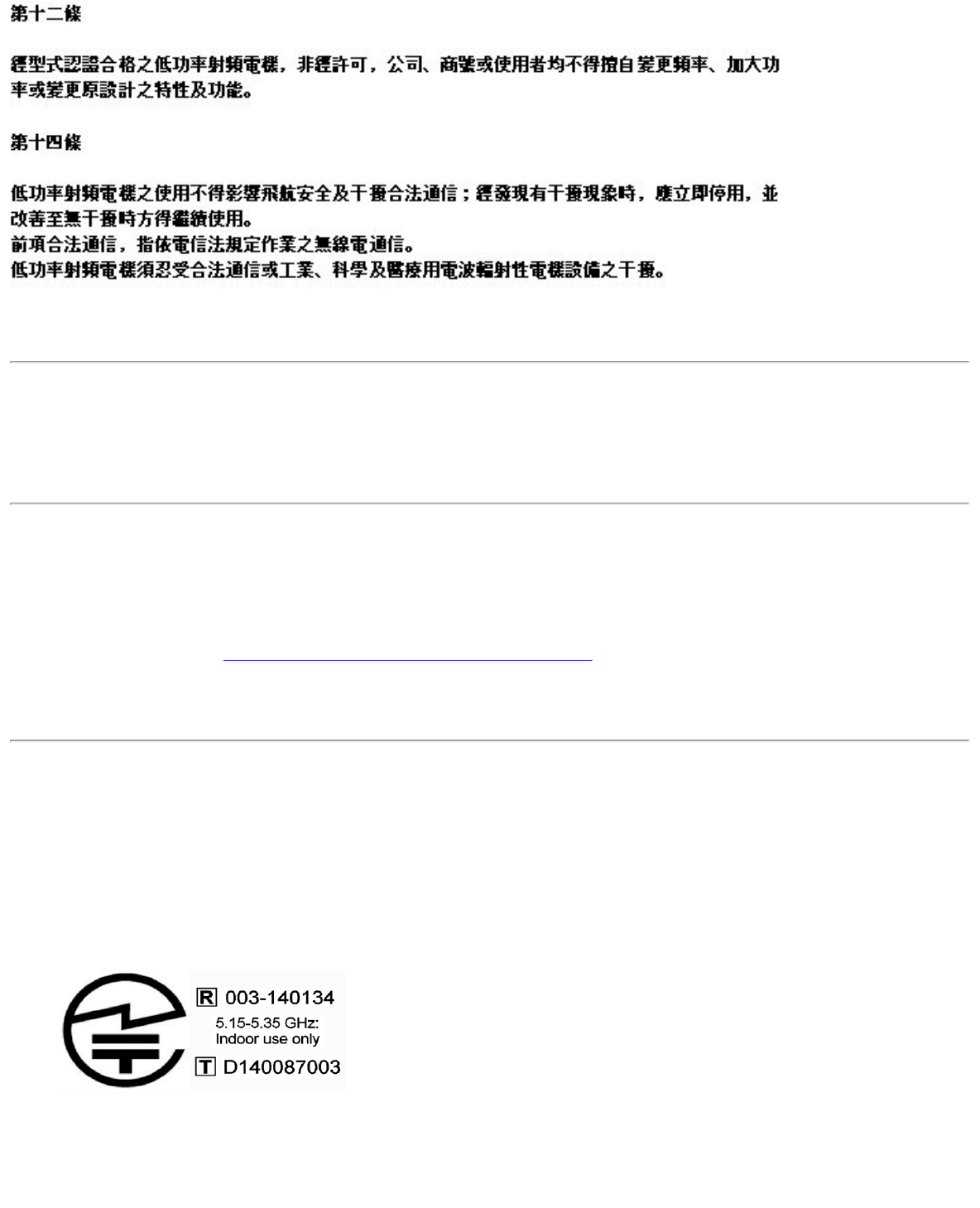

在5.25-5.35 秭赫頻帶內操作之無線資訊傳輸設備 限於室內使用。
Radio Approvals
To determine whether you are allowed to use your wireless network device in a specific country, please check to see
if the radio type number that is printed on the identification label of your device is listed in the manufacturer's OEM
Regulatory Guidance document.
Modular Regulatory Certification Country Markings
A list of countries requiring regulatory markings is available. Note that the lists include only countries requiring
marking but not all certified countries. To find the regulatory country marking information for your adapter, perform
these steps:
1. Open this web site: http://www.intel.com/support/wireless/wlan/
2. Click on the link for your adapter.
3. Click Document and Guides.
4. Under Regulatory Information, click Regulatory documents for your adapter.
Regulatory ID
Due to the very small size of the 7265D2W (12x16), the marking has been placed in this user manual because the
product label on the device is considered too small to be readable.
USA: Model 7265D2W, FCC ID: PD97265D2
Canada: Model 7265D2W, IC: 1000M-7265D2
Japan: Model 7265D2W:
Korea: Model 7265D2W, MSIP-CRM-INT-7265D2W
Taiwan: Model 7265D2W,
![](/img.php?id=2775127&img=bgc.png)
Regulatory Information
regs.htm[4/10/2015 2:35:49 PM]
China: Model 7265D2W, CMIIT ID: 2014AJ3467 (M)
Australia: Model 7265D2W,
Due to the very small size of the 17265NGW/13100NGW, the marking has been placed in this user manual because

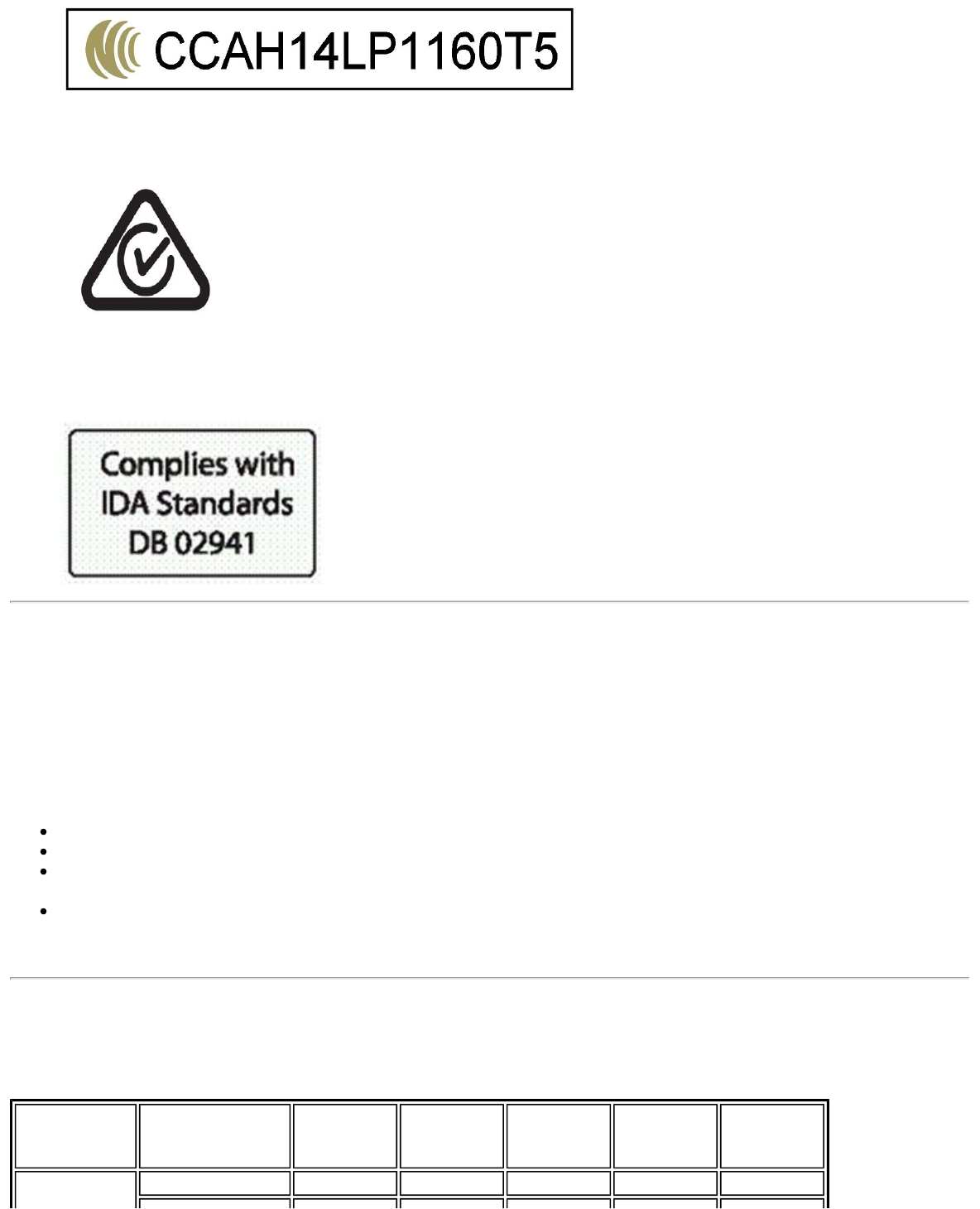

the product label on the device is considered too small to be readable.

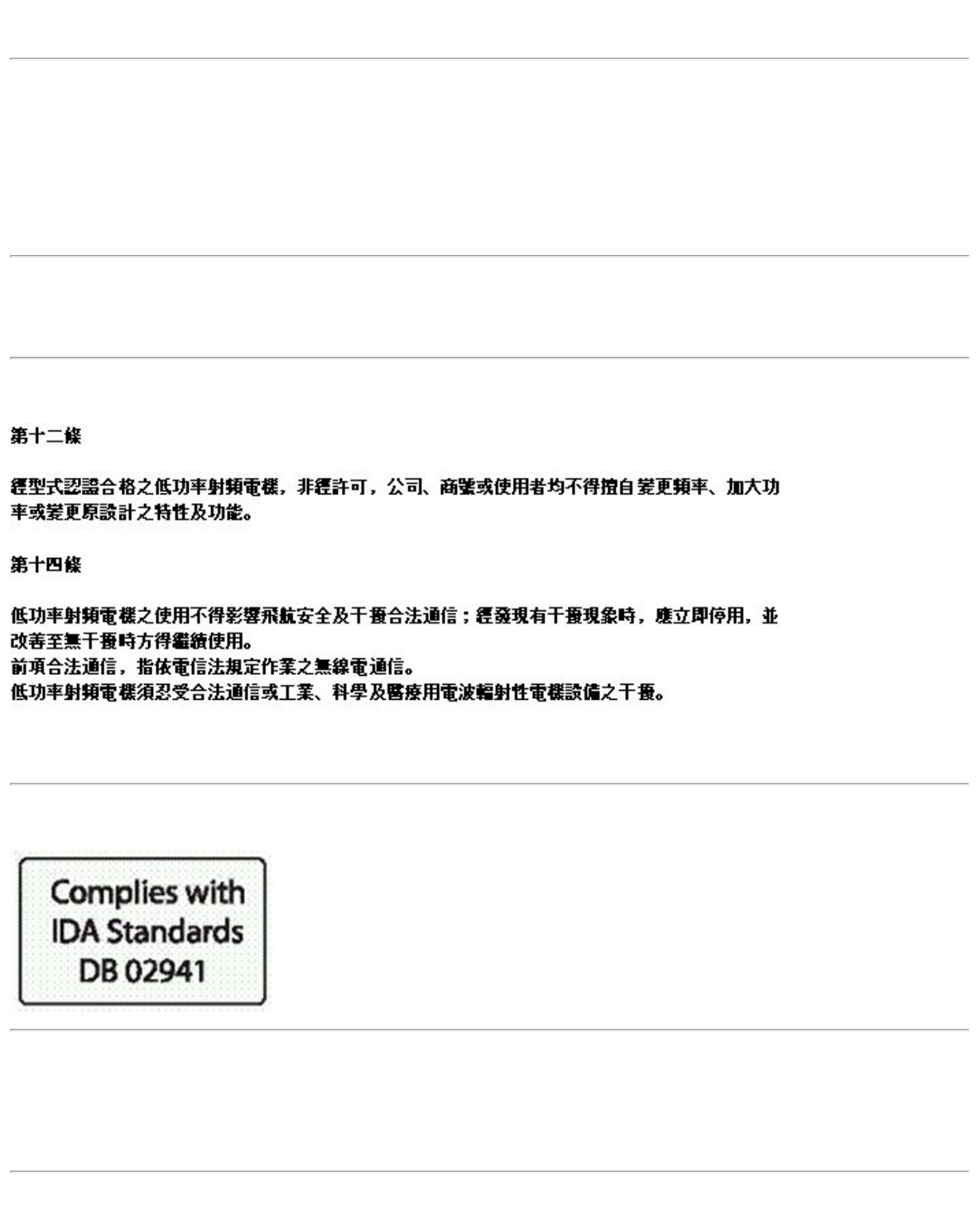

Singapore: Model 17265NGW/13100NGW:
INFORMATION FOR OEMs and HOST INTEGRATORS
The guidelines described within this document are provided to OEM integrators installing Intel® wireless adapters in
notebook and tablet PC host platforms. Adherence to these requirements is necessary to meet the conditions of
compliance with FCC rules, including RF exposure. When all antenna type and placement guidelines described herein
are fulfilled the Intel® wireless adapters may be incorporated into notebook and tablet PC host platforms with no
further restrictions. If any of the guidelines described herein are not satisfied it may be necessary for the OEM or
integrator to perform additional testing and/or obtain additional approval. The OEM or integrator is responsible to
determine the required host regulatory testing and/or obtaining the required host approvals for compliance.
Intel® wireless adapters are intended for OEMs and host integrators only.
The Intel® wireless adapter FCC Grant of Authorization describes any limited conditions of modular approval.
The Intel® wireless adapters must be operated with an access point that has been approved for the country of
operation.
Changes or modification to Intel® wireless adapters by OEMs, integrators or other third parties is not
permitted. Any changes or modification to Intel® wireless adapters by OEMs, integrators or other third parties
will void authorization to operate the adapter.
Antenna Type and Gains
Only antennas of the same type and with equal or less gains as shown below may be used with the Intel® wireless
adapters. Other types of antennas and/or higher gain antennas may require additional authorization for operation.
Antenna
Type Antenna
Location
(Main/Aux)
2.4GHz
Peak Gain
in dBi*
2.6GHz
Peak Gain
in dBi*
5.2GHz
Peak Gain
in dBi*
5.5GHz
Peak Gain
in dBi*
5.7GHz
Peak Gain
in dBi*
PIFA Main
![](/img.php?id=2775127&img=bgd.png)
Regulatory Information
regs.htm[4/10/2015 2:35:49 PM]
Aux 3.24 3.47 3.73 4.77 4.77
MIMO
*All antenna gains include cable loss.
Antenna Placement Within the Host Platform
To ensure RF exposure compliance the antenna(s) used with the Intel® wireless adapters must be installed in
notebook or tablet PC host platforms to provide a minimum separation distance from all persons, in all operating
modes and orientations of the host platform, with strict adherence to the table below. The antenna separation
distance applies to both horizontal and vertical orientation of the antenna when installed in the host system.
Intel® Wireless Adapter Minimum required antenna-to-user
separation distance
Intel® Centrino® Wireless-N + WiMAX 6150 18 mm
Intel® Centrino® Wireless-N + WiMAX 6350 17 mm
Simultaneous Transmission of Intel® Wireless Adapters with Other Integrated or
Plug-In Transmitters
Based upon FCC Knowledge Database publication number 616217 when there are multiple transmitting devices
installed in a host device, an RF exposure transmitting assessment shall be performed to determine the necessary
application and test requirements. OEM integrators must identify all possible combinations of simultaneous
transmission configurations for all transmitters and antennas installed in the host system. This includes transmitters
installed in the host as mobile devices (>20 cm separation from user) and portable devices (<20 cm separation from
user). OEM integrators should consult the actual FCC KDB 616217 document for all details in making this
assessment to determine if any additional requirements for testing or FCC approval is necessary.
Information To Be Supplied to the End User by the OEM or Integrator
The following regulatory and safety notices must be published in documentation supplied to the end user of the
product or system incorporating the Intel® wireless adapter, in compliance with local regulations. Host system must
be labeled with "Contains FCC ID: XXXXXXXX", FCC ID displayed on label.
The Intel® wireless adapter must be installed and used in strict accordance with the manufacturer's instructions as
described in the user documentation that comes with the product. Intel Corporation is not responsible for any radio
or television interference caused by unauthorized modification of the devices included with the wireless adapter kit
or the substitution or attachment of connecting cables and equipment other than that specified by Intel Corporation.
The correction of interference caused by such unauthorized modification, substitution or attachment is the
responsibility of the user. Intel Corporation and authorized resellers or distributors are not liable for any damage or
violation of government regulations that may arise from the user failing to comply with these guidelines.
Local Restriction of 802.11a, 802.11b, 802.11g, 802.11n, and 802.11e Radio Usage
The following statement on local restrictions must be published as part of the compliance documentation for all
802.11a, 802.11b, 802.11g and 802.11n products.
Caution: Due to the fact that the frequencies used by 802.11a, 802.11b, 802.11g, 802.11n, and 802.16e
wireless LAN devices may not yet be harmonized in all countries, 802.11a, 802.11b, 802.11g, 802.11n, and 802.16e
products are designed for use only in specific countries, and are not allowed to be operated in countries other than
those of designated use. As a user of these products, you are responsible for ensuring that the products are used
only in the countries for which they were intended and for verifying that they are configured with the correct
selection of frequency and channel for the country of use. Any deviation from the permissible power and frequency
settings for the country of use is an infringement of national law and may be punished as such.
![](/img.php?id=2775127&img=bge.png)
Regulatory Information
regs.htm[4/10/2015 2:35:49 PM]
Intel WiFi Adapters, 802.11n Compliant
The information in this section applies to the following products:
Intel® Centrino® Wireless-N 100
Intel® Centrino® Wireless-N 105
Intel® Centrino® Wireless-N 130
Intel® Centrino® Wireless-N 135
Intel® Centrino® Wireless-N 1000
Intel® Centrino® Wireless-N 1030
Intel® Centrino® Wireless-N 2200
Intel® Centrino® Wireless-N 2230
Intel® Centrino® Advanced-N 6200
Intel® Centrino® Advanced-N 6205
Intel® Centrino® Advanced-N 6230
Intel® Centrino® Advanced-N 6235
Intel® Centrino® Ultimate-N 6300
Intel® Dual Band Wireless-AC 7260
Intel® Dual Band Wireless-N 7260
Intel® Wireless-N 7260
Intel® Dual Band Wireless-AC 3160
Intel® Dual Band Wireless-AC 3165
Intel® Dual Band Wireless-AC 7265
Intel® Dual Band Wireless-N 7265
Intel® Wireless-N 7265
Intel® Tri-Band Wireless-AC 17265
Intel® Wireless Gigabit Sink W13100
Intel® Dual Band Wireless-AC 8260
See Specifications for complete wireless adapter specifications.
NOTE: In this section, all references to the "wireless adapter" refer to all adapters listed above.
The following information is provided:
Information for the User
Regulatory Information
Information for OEMs and Host Integrators
Statements of European Compliance
INFORMATION FOR THE USER
Safety Notices
USA FCC Radio Frequency Exposure
The FCC with its action in ET Docket 96-8 has adopted a safety standard for human exposure to radio frequency (RF)
electromagnetic energy emitted by FCC certified equipment. The wireless adapter meets the Human Exposure
requirements found in FCC Part 2, 15C, 15E along with guidance from KDB 447498, KDB 248227 and KDB 616217.
Proper operation of this radio according to the instructions found in this manual will result in exposure substantially
below the FCC’s recommended limits.
The following safety precautions should be observed:
Do not touch or move antenna while the unit is transmitting or receiving.
Do not hold any component containing the radio such that the antenna is very close or touching any exposed
parts of the body, especially the face or eyes, while transmitting.
Do not operate the radio or attempt to transmit data unless the antenna is connected; this behavior may cause
damage to the radio.
Use in specific environments:
![](/img.php?id=2775127&img=bgf.png)
Regulatory Information
regs.htm[4/10/2015 2:35:49 PM]
The use of wireless adapters in hazardous locations is limited by the constraints posed by the safety
directors of such environments.
The use of wireless adapters on airplanes is governed by the Federal Aviation Administration (FAA).
The use of wireless adapters in hospitals is restricted to the limits set forth by each hospital.
Explosive Device Proximity Warning
Warning: Do not operate a portable transmitter (including this wireless adapter) near unshielded blasting caps
or in an explosive environment unless the transmitter has been modified to be qualified for such use.
Antenna Warnings
Warning: The wireless adapter is not designed for use with high-gain directional antennas.
Use On Aircraft Caution
Caution: Regulations of commercial airline operators may prohibit airborne operation of certain electronic
devices equipped with radio-frequency wireless devices (wireless adapters) because their signals could interfere with
critical aircraft instruments.
Caution: 60 GHz/802.11ad equipment is not permitted on aircraft per FCC §15.255. OEM and host integrators
should consider this FCC rule in host devices.
Other Wireless Devices
Safety Notices for Other Devices in the Wireless Network: See the documentation supplied with wireless
adapters or other devices in the wireless network.
Local Restrictions on 802.11a, 802.11b, 802.11d, 802.11g, 802.11n, and 802.11ac Radio Usage
Caution: Due to the fact that the frequencies used by 802.11a, 802.11b, 802.11d, 802.11g, 802.11n, and
802.11ac wireless LAN devices may not yet be harmonized in all countries, 802.11a, 802.11b, 802.11d, 802.11g,
802.11n, and 802.11ac products are designed for use only in specific countries, and are not allowed to be operated
in countries other than those of designated use. As a user of these products, you are responsible for ensuring that
the products are used only in the countries for which they were intended and for verifying that they are configured
with the correct selection of frequency and channel for the country of use. The device transmit power control (TPC)
interface is part of the Intel® PROSet/Wireless WiFi Connection Utility Software. Operational restrictions for
Equivalent Isotropic Radiated Power (EIRP) are provided by the system manufacturer. Any deviation from the
permissible power and frequency settings for the country of use is an infringement of national law and may be
punished as such.
Wireless Interoperability
The wireless adapter is designed to be interoperable with other wireless LAN products that are based on direct
sequence spread spectrum (DSSS) radio technology and to comply with the following standards:
IEEE Std. 802.11b compliant Standard on Wireless LAN
IEEE Std. 802.11g compliant Standard on Wireless LAN
IEEE Std. 802.11a compliant Standard on Wireless LAN
IEEE Std. 802.11n compliant Standard on Wireless LAN
IEEE Std. 802.11ac draft compliant on Wireless LAN
Wireless Fidelity certification, as defined by the Wi-Fi Alliance
The Wireless Adapter and Your Health
The wireless adapter, like other radio devices, emits radio frequency electromagnetic energy. The level of energy
emitted by the wireless adapter, however, is less than the electromagnetic energy emitted by other wireless devices
such as mobile phones. The wireless adapter operates within the guidelines found in radio frequency safety
![](/img.php?id=2775127&img=bg10.png)
Regulatory Information
regs.htm[4/10/2015 2:35:49 PM]
standards and recommendations. These standards and recommendations reflect the consensus of the scientific
community and result from deliberations of panels and committees of scientists who continually review and interpret
the extensive research literature. In some situations or environments, the use of the wireless adapter may be
restricted by the proprietor of the building or responsible representatives of the applicable organization. Examples of
such situations may include:
Using the wireless adapter on board airplanes, or
Using the wireless adapter in any other environment where the risk of interference with other devices or
services is perceived or identified as being harmful.
If you are uncertain of the policy that applies to the use of wireless adapters in a specific organization or
environment (an airport, for example), you are encouraged to ask for authorization to use the adapter before you
turn it on.
REGULATORY INFORMATION
USA - Federal Communications Commission (FCC)
This wireless adapter is restricted to indoor use due to its operation in the 5.15 to 5.25 and 5.470 to 5.75GHz
frequency ranges. No configuration controls are provided for Intel® wireless adapters allowing any change in the
frequency of operations outside the FCC grant of authorization for U.S. operation according to Part 15.407 of the
FCC rules.
Intel® wireless adapters are intended for OEM integrators only.
Intel® wireless adapters cannot be co-located with any other transmitter unless approved by the FCC.
This wireless adapter complies with Part 15 of the FCC Rules. Operation of the device is subject to the following two
conditions:
This device may not cause harmful interference.
This device must accept any interference that may cause undesired operation.
NOTE: The radiated output power of the adapter is far below the FCC radio frequency exposure limits.
Nevertheless, the adapter should be used in such a manner that the potential for human contact during
normal operation is minimized. To avoid the possibility of exceeding the FCC radio frequency exposure
limits, you should keep a distance of at least 20cm between you (or any other person in the vicinity), or
the minimum separation distance as specified by the FCC grant conditions, and the antenna that is built
into the computer. Details of the authorized configurations can be found at http://www.fcc.gov/oet/ea/
by entering the FCC ID number on the device.
Class B Device Interference Statement
This wireless adapter has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This wireless adapter generates, uses, and can radiate radio frequency energy. If the
wireless adapter is not installed and used in accordance with the instructions, the wireless adapter may cause
harmful interference to radio communications. There is no guarantee, however, that such interference will not occur
in a particular installation. If this wireless adapter does cause harmful interference to radio or television reception
(which can be determined by turning the equipment off and on), the user is encouraged to try to correct the
interference by taking one or more of the following measures:
Reorient or relocate the receiving antenna of the equipment experiencing the interference.
Increase the distance between the wireless adapter and the equipment experiencing the interference.
Connect the computer with the wireless adapter to an outlet on a circuit different from that to which the
equipment experiencing the interference is connected.
Consult the dealer or an experienced radio/TV technician for help.
NOTE: The adapter must be installed and used in strict accordance with the manufacturer's instructions
as described in the user documentation that comes with the product. Any other installation or use will
violate FCC Part 15 regulations.
![](/img.php?id=2775127&img=bg11.png)
Regulatory Information
regs.htm[4/10/2015 2:35:49 PM]
Safety Approval Considerations
This device has been safety approved as a component and is for use only in complete equipment where the
acceptability of the combination is determined by the appropriate safety agencies. When installed, consideration
must be given to the following:
It must be installed into a compliant host device meeting the requirement of UL/EN/IEC 60950-1 2nd edition
including the general provisions of enclosure design 1.6.2 and specifically paragraph 1.2.6.2 (Fire Enclosure).
The device shall be supplied by a SELV source when installed in the end-use equipment.
A heating test shall be considered in the end-use product for meeting the requirement of UL/EN/IEC 60950-1
2nd edition.
Low Halogen
Applies only to brominated and chlorinated flame retardants (BFRs/CFRs) and PVC in the final product. Intel
components as well as purchased components on the finished assembly meet JS-709 requirements, and the PCB /
substrate meet IEC 61249-2-21 requirements. The replacement of halogenated flame retardants and/or PVC may
not be better for the environment.
Canada – Industry Canada (IC)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Cet appareil se conforme aux normes Canada d'Industrie de RSS permis-exempt. L'utilisation est assujetti aux deux
conditions suivantes: (1) cet appareil ne peut pas causer d'interférences, et (2) cet appareil doit accepter des
interférences , y compris des interférences qui peuvent causer desopérations non désirées de l'appareil.
Caution: When using IEEE 802.11a wireless LAN, this product is restricted to indoor use due to its operation in the
5.15- to 5.25-GHz frequency range. Industry Canada requires this product to be used indoors for the frequency
range of 5.15GHz to 5.25GHz to reduce the potential for harmful interference to co-channel mobile satellite systems.
High power radar is allocated as the primary user of the 5.25- to 5.35-GHz and 5.65 to 5.85-GHz bands. These
radar stations can cause interference with and/or damage to this device. The maximum allowed antenna gain for
use with this device is 6dBi in order to comply with the E.I.R.P limit for the 5.25- to 5.35 and 5.725 to 5.85GHz
frequency range in point-to-point operation. To comply with RF exposure requirements all antennas should be
located at a minimum distance of 20cm, or the minimum separation distance allowed by the module approval, from
the body of all persons.
Attention: l'utilisation d'un réseau sans fil IEEE802.11a est restreinte à une utilisation en intérieur à cause du
fonctionnement dans la bande de fréquence 5.15-5.25 GHz. Industry Canada requiert que ce produit soit utilisé à
l'intérieur des bâtiments pour la bande de fréquence 5.15-5.25 GHz afin de réduire les possibilités d'interférences
nuisibles aux canaux co-existants des systèmes de transmission satellites. Les radars de puissances ont fait l'objet
d'une allocation primaire de fréquences dans les bandes 5.25-5.35 GHz et 5.65-5.85 GHz. Ces stations radar
peuvent créer des interférences avec ce produit et/ou lui être nuisible. Le gain d'antenne maximum permissible pour
une utilisation avec ce produit est de 6 dBi afin d'être conforme aux limites de puissance isotropique rayonnée
équivalente (P.I.R.E.) applicable dans les bandes 5.25-5.35 GHz et 5.725-5.85 GHz en fonctionnement point-à-
point. Pour se conformer aux conditions d'exposition de RF toutes les antennes devraient être localisées à une
distance minimum de 20 cm, ou la distance de séparation minimum permise par l'approbation du module, du corps
de toutes les personnes.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference
to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that necessary for successful communication.
Selon les règlements de Canada d'Industrie, cet émetteur de radio peut seulement fonctionner en utilisant une
antenne du type et de gain maximum (ou moindre) que le gain approuvé pour l'émetteur par Canada d'Industrie.
![](/img.php?id=2775127&img=bg12.png)
Regulatory Information
regs.htm[4/10/2015 2:35:49 PM]
Pour réduire lesinterférences radio potentielles avec les autres utilisateurs, le type d'antenne et son gain devraient
être choisis de façon à ce que la puissance isotrope rayonnée équivalente(P.I.R.E.) ne soit pas supérieure à celle qui
est nécessaire pour une communication réussie.
European Union
The low band 5.15 - 5.35GHz is for indoor use only.
This equipment complies with the essential requirements of the European Union directive 1999/5/EC. See
Statements of European Union Compliance.
European Union Declarations of Conformity
To view the European Union Declaration of Conformity for your adapter, perform these steps.
1. Open this web site: http://developer.intel.com/design/litcentr/ce_docs/index.htm.
2. Under the Wireless Products menu select your adapter.
3. Click Go.
To view additional regulatory information for your adapter, perform these steps:
1. Open this web site: http://www.intel.com/support/wireless/wlan/
2. Click on the link for your adapter.
3. Click Document and Guides.
4. Under Regulatory Information, click Regulatory documents for your adapter.
Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances Directive (RoHS) Compliant
All products described herein are compliant with the European Union's RoHS Directive.
For CE Mark-Related Questions related to the wireless adapter, contact:
Intel Corporation Attn: Corporate Quality 2200 Mission College Blvd. Santa Clara, CA 95054-1549 USA
Japan
5GHz 帯は室内でのみ使用のこと
Korea
해당 무선설비는 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없음.
해당 무선 설비는 5150-5250MHz 대역에서 실내에서만 사용할 수 있음.
Mexico
La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo
![](/img.php?id=2775127&img=bg13.png)
Regulatory Information
regs.htm[4/10/2015 2:35:49 PM]
no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la
que pueda causar su operación no deseada.
Morocco
The operation of this product in the radio channel 2 (2417 MHz) is not authorized in the following cities: Agadir,
Assa-Zag, Cabo Negro, Chaouen, Goulmima, Oujda, Tan Tan, Taourirt, Taroudant and Taza.
The operation of this product in the radio channels 4, 5, 6 et 7 (2425 - 2442 MHz) is not authorized in the following
cities: Aéroport Mohamed V, Agadir, Aguelmous, Anza, Benslimane, Béni Hafida, Cabo Negro, Casablanca, Fès,
Lakbab, Marrakech, Merchich, Mohammédia, Rabat, Salé, Tanger, Tan Tan, Taounate, Tit Mellil, Zag.
Pakistan
"PTA APPROVED MODEL"
Taiwan
在5.25-5.35 秭赫頻帶內操作之無線資訊傳輸設備 限於室內使用。
Singapore
Radio Approvals
To determine whether you are allowed to use your wireless network device in a specific country, please check to see
if the radio type number that is printed on the identification label of your device is listed in the manufacturer's OEM
Regulatory Guidance document.
![](/img.php?id=2775127&img=bg14.png)
Regulatory Information
regs.htm[4/10/2015 2:35:49 PM]
Modular Regulatory Certification Country Markings
A list of countries requiring regulatory markings is available. Note that the lists include only countries requiring
marking but not all certified countries. To find the regulatory country marking information for your adapter, perform
these steps:
1. Open this web site: http://www.intel.com/support/wireless/wlan/
2. Click on the link for your adapter.
3. Click Document and Guides
4. Under Regulatory Information, click Regulatory documents for your adapter.
Regulatory ID
Due to the very small size of the 7265D2W (12x16), the marking has been placed in this user manual because the
product label on the device is considered too small to be readable.
USA: Model 7265D2W, FCC ID: PD97265D2
Canada: Model 7265D2W, IC: 1000M-7265D2
Japan: Model 7265D2W:
Korea: Model 7265D2W, MSIP-CRM-INT-7265D2W
Taiwan: Model 7265D2W,
China: Model 7265D2W, CMIIT ID: 2014AJ3467 (M)
Australia: Model 7265D2W,
Due to the very small size of the 17265NGW/13100NGW, the marking has been placed in this user manual because
the product label on the device is considered too small to be readable.
Singapore: Model 17265NGW/13100NGW:
![](/img.php?id=2775127&img=bg15.png)
Regulatory Information
regs.htm[4/10/2015 2:35:49 PM]
INFORMATION FOR OEMS and HOST INTEGRATORS
The guidelines described within this document are provided to OEM integrators installing Intel® wireless adapters in
notebook and tablet PC host platforms. Adherence to these requirements is necessary to meet the conditions of
compliance with FCC rules, including RF exposure. When all antenna type and placement guidelines described herein
are fulfilled the Intel® wireless adapters may be incorporated into notebook and tablet PC host platforms with no
further restrictions. If any of the guidelines described herein are not satisfied it may be necessary for the OEM or
integrator to perform additional testing and/or obtain additional approval. The OEM or integrator is responsible to
determine the required host regulatory testing and/or obtaining the required host approvals for compliance.
Intel® wireless adapters are intended for OEMs and host integrators only.
The Intel® wireless adapter FCC Grant of Authorization describes any limited conditions of modular approval.
The Intel® wireless adapters must be operated with an access point that has been approved for the country of
operation.
Changes or modification to Intel® wireless adapters by OEMs, integrators or other third parties is not
permitted. Any changes or modification to Intel® wireless adapters by OEMs, integrators or other third parties
will void authorization to operate the adapter.
Antenna Type and Gains
Only antennas of the same type and with equal or less gains as shown below may be used with the Intel® wireless
adapters. Other types of antennas and/or higher gain antennas may require additional authorization for operation.
Antenna
Type Antenna
Location
(Main/Aux)
2.4GHz
Peak Gain
in dBi*
2.6GHz
Peak Gain
in dBi*
5.2GHz
Peak Gain
in dBi*
5.5GHz
Peak Gain
in dBi*
5.7GHz
Peak Gain
in dBi*
PIFA Main
Aux 3.24 3.47 3.73 4.77 4.77
MIMO
*All antenna gains include cable loss.
Antenna Placement Within the Host Platform
To ensure RF exposure compliance the antenna(s) used with the Intel® wireless adapters must be installed in
notebook or tablet PC host platforms to provide a minimum separation distance from all persons, in all operating
modes and orientations of the host platform, with strict adherence to the table below. The antenna separation
distance applies to both horizontal and vertical orientation of the antenna when installed in the host system.
Wireless Adapter Minimum required antenna-to-user
separation distance
Intel® Centrino® Wireless-N 100 9 mm
Intel® Centrino® Wireless-N 105 9 mm
Intel® Centrino® Wireless-N 130 8 mm
Intel® Centrino® Wireless-N 135 9 mm
![](/img.php?id=2775127&img=bg16.png)
Regulatory Information
regs.htm[4/10/2015 2:35:49 PM]
Intel® Centrino® Wireless-N 1000* 20 mm
Intel® Centrino® Wireless-N 1030 8 mm
Intel® Centrino® Wireless-N 2200 9 mm
Intel® Centrino® Wireless-N 2230 6 mm
Intel® Centrino® Advanced-N 6200* 20 mm
Intel® Centrino® Advanced-N 6205 12 mm
Intel® Centrino® Advanced-N 6230 12 mm
Intel® Centrino® Advanced-N 6235 8 mm
Intel® Centrino® Ultimate-N 6300 13 mm
Intel® Dual Band Wireless-AC 7260 8 mm
Intel® Dual Band Wireless-N 7260 8 mm
Intel® Wireless-N 7260 8 mm
Intel® Dual Band Wireless-AC 3160 8 mm
Intel® Dual Band Wireless-AC 3165 8 mm
Intel® Dual Band Wireless-AC 7265 8 mm
Intel® Dual Band Wireless-N 7265 8 mm
Intel® Wireless-N 7265 8 mm
Intel® Tri-Band Wireless-AC 17265 8 mm
Intel® Dual Band Wireless-AC 8260 8 mm
* This wireless adapter may be installed in mobile devices only
(requires > 20 cm antenna separation from the body of user).
For WiFi/Bluetooth combination adapters it is recommended that a 5 cm separation distance between transmitting
antennas be provided within the host system to maintain an adequate separation ratio for simultaneous WiFi and
Bluetooth transmission. For less than 5 cm separation the separation ratio must be verified according to FCC
publication KDB 447498 for the specific adapter.
Additional regulatory authorization process may be required if wishing to place the 60 GHz/802.11ad RFEM (antenna
array) closer than 20 cm to the user.
Simultaneous Transmission of Intel® Wireless Adapters with Other Integrated or
Plug-In Transmitters
Based upon FCC Knowledge Database publication number 616217, when there are multiple transmitting devices
installed in a host device, an RF exposure transmitting assessment shall be performed to determine the necessary
application and test requirements. OEM integrators must identify all possible combinations of simultaneous
transmission configurations for all transmitters and antennas installed in the host system. This includes transmitters
installed in the host as mobile devices (>20 cm separation from user) and portable devices (<20 cm separation from
user). OEM integrators should consult the actual FCC KDB 616217 document for all details in making this
assessment to determine if any additional requirements for testing or FCC approval is necessary.
Information To Be Supplied to the End User by the OEM or Integrator
The following regulatory and safety notices must be published in documentation supplied to the end user of the
product or system incorporating the Intel® wireless adapter, in compliance with local regulations. Host system must
be labeled with "Contains FCC ID: XXXXXXXX", FCC ID displayed on label.
The wireless adapter must be installed and used in strict accordance with the manufacturer's instructions as
described in the user documentation that comes with the product. For country-specific approvals, see Radio
Approvals. Intel Corporation is not responsible for any radio or television interference caused by unauthorized
modification of the devices included with the wireless adapter kit or the substitution or attachment of connecting
![](/img.php?id=2775127&img=bg17.png)
Regulatory Information
regs.htm[4/10/2015 2:35:49 PM]
cables and equipment other than that specified by Intel Corporation. The correction of interference caused by such
unauthorized modification, substitution or attachment is the responsibility of the user. Intel Corporation and
authorized resellers or distributors are not liable for any damage or violation of government regulations that may
arise from the user failing to comply with these guidelines.
Local Restriction of 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ad Radio Usage
The following statement on local restrictions must be published as part of the compliance documentation for all
802.11a, 802.11b, 802.11g, 802.11n, and 802.11ad products.
Caution: Due to the fact that the frequencies used by 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ad
wireless LAN devices may not yet be harmonized in all countries, 802.11a, 802.11b, 802.11g and 802.11n products
are designed for use only in specific countries, and are not allowed to be operated in countries other than those of
designated use. As a user of these products, you are responsible for ensuring that the products are used only in the
countries for which they were intended and for verifying that they are configured with the correct selection of
frequency and channel for the country of use. Any deviation from permissible settings and restrictions in the country
of use could be an infringement of national law and may be punished as such.
Statements of European Compliance
Each of the adapters listed below comply with the essential requirements of the European Union directive 1999/5/EC.
Intel® Centrino® Wireless-N 100
Intel® Centrino® Wireless-N 105
Intel® Centrino® Wireless-N 130
Intel® Centrino® Wireless-N 135
Intel® Centrino® Wireless-N 1000
Intel® Centrino® Wireless-N 1030
Intel® Centrino® Wireless-N 2200
Intel® Centrino® Wireless-N 2230
Intel® Centrino® Advanced-N 6200
Intel® Centrino® Advanced-N 6205
Intel® Centrino® Advanced-N 6230
Intel® Centrino® Advanced-N 6235
Intel® Centrino® Ultimate-N 6300
Intel® Dual Band Wireless-AC 7260
Intel® Dual Band Wireless-N 7260
Intel® Wireless-N 7260
Intel® Dual Band Wireless-AC 3160
Intel® Dual Band Wireless-AC 3165
Intel® Dual Band Wireless-AC 7265
Intel® Dual Band Wireless-N 7265
Intel® Wireless-N 7265
Intel® Tri-Band Wireless-AC 17265
Intel® Wireless Gigabit Sink W13100
Intel® Dual Band Wireless-AC 8260
Back to Top
Back to Contents
Trademarks and Disclaimers
![](/img.php?id=2775127&img=bg18.png)
Specifications
specs.htm[4/10/2015 2:35:51 PM]
Back to Contents
Specifications
This section provides specification information for the family of Intel® wireless adapters. The following list may not
be all inclusive.
Intel® Centrino® Wireless-N 100
Intel® Centrino® Wireless-N 105
Intel® Centrino® Wireless-N 130
Intel® Centrino® Wireless-N 135
Intel® Centrino® Wireless-N 1000
Intel® Centrino® Wireless-N 1030
Intel® Centrino® Wireless-N 2200
Intel® Centrino® Wireless-N 2230
Intel® Centrino® Wireless-N + WiMAX 6150
Intel® Centrino® Advanced-N 6200
Intel® Centrino® Advanced-N 6205
Intel® Centrino® Advanced-N 6230
Intel® Centrino® Advanced-N 6235
Intel® Centrino® Advanced-N + WiMAX 6250
Intel® Centrino® Ultimate-N 6300
Intel® Dual Band Wireless-AC 7260
Intel® Dual Band Wireless-N 7260
Intel® Wireless-N 7260
Intel® Dual Band Wireless-AC 3160
Intel® Dual Band Wireless-AC 3165
Intel® Dual Band Wireless-AC 7265
Intel® Dual Band Wireless-N 7265
Intel® Wireless-N 7265
Intel® Dual Band Wireless-AC 8260
Intel® Tri-Band Wireless-AC 17265
Intel® Wireless Gigabit Sink W13100
Intel® Centrino® Wireless-N 100, Intel® Centrino® Wireless-N 105,
Intel® Centrino® Wireless-N 130 and
Intel® Centrino® Wireless-N 135
Form Factor PCI Express* Half-Mini Card
Dimensions Half-Mini Card: Width 1.049 in x Length 1.18 in x Height 0.18 in (26.64 mm x 30 mm x 4.5
mm)
Antenna Interface
Connector Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
Connector Interface 52-pin Mini Card edge connector
Voltage 3.3 V
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)
WiFi
Frequency
Modulation 2.4 GHz (802.11b/g/n)
Frequency band 2.400 - 2.4835 GHz (dependent on country)
![](/img.php?id=2775127&img=bg19.png)
Specifications
specs.htm[4/10/2015 2:35:51 PM]
Modulation BPSK, QPSK, 16 QAM, 64 QAM CCK, DQPSK, DBPSK
Wireless Medium 2.4 GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
IEEE 802.11n Data
Rates MIMO Configuration: 1X1
Tx/Rx: 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30,
28.9, 21.7, 15, 14.4, 7.2 Mbps
IEEE 802.11g Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data
Rates 11, 5.5, 2, 1 Mbps
Bluetooth Support Intel® Centrino® Wireless-N 100: None
Intel® Centrino® Wireless-N 105: None
Intel® Centrino® Wireless-N 130: Bluetooth 2.1, 2.1 + EDR, 3.0, 3.0+HS
Intel® Centrino® Wireless-N 135: Bluetooth 4.0 (Bluetooth Low-Energy and Bluetooth
3.0 +HS)
General
Operating Systems Windows* 7 (32-bit and 64-bit), Windows* 8 (32-bit and 64-bit), Windows* 8.1 (32-bit and
64-bit)
Wi-Fi Alliance*
certification Wi-Fi* certification for 802.11b, 802.11g, 802.11n, WPA-Personal, WPA-Enterprise, WPA2-
Personal, WPA2-Enterprise, WMM, WPS
Cisco Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
IEEE Feature Sets IEEE 802.11b, 802.11g, 802.11n, 802.11e, 802.11i, 802.11d, 802.11h
Architecture Infrastructure or ad hoc (peer-to-peer) operating modes
Security WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, AES-CCMP 128-bit, WEP
128-bit and 64-bit; 802.1X: EAP-SIM, LEAP, PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-
AKA
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Centrino® Wireless-N 1000
WiFi / WiMAX
Form Factor PCI Express* Mini Card and Half-Mini Card
SKUs Intel® Centrino® Wireless-N 1000 - 1X2 MC/HMC
Dimensions Mini Card: Width 2.0 in x Length 1.18 in x Height 0.18 in (50.80 mm x 30 mm x 4.5
mm)
Half-Mini Card: Width 1.049 in x Length 1.18 in x Height 0.18 in (26.64 mm x 30 mm x
4.5 mm)
Antenna Interface
Connector Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
Connector Interface 52-pin Mini Card edge connector
Voltage 3.3 V
Operating Temperature 0 to +80 degrees Celsius
Humidity 50% to 90% non-condensing (at temperatures of 25 ºC to 35 ºC)
WiFi
![](/img.php?id=2775127&img=bg1a.png)
Specifications
specs.htm[4/10/2015 2:35:51 PM]
Frequency Modulation 2.4 GHz (802.11b/g/n)
Frequency band 2.41-2.474 GHz (dependent on country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM, CCK, DQPSK, DBPSK
Wireless Medium 2.4 GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
IEEE 802.11n Data Rates 300, 270, 243, 240, 180, 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65,
60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2 Mbps
IEEE 802.11g Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data Rates 11, 5.5, 2, 1 Mbps
WiFi General
Operating Systems Microsoft Windows* XP (32 and 64 bit) and Windows Vista* (32 and 64 bit), Ubuntu
Linux*
Wi-Fi Alliance*
certification Wi-Fi* certification for 802.11b, 802.11g, 802.11n, WPA-Personal, WPA-Enterprise,
WPA2-Personal, WPA2-Enterprise, WMM, WPS
Cisco Compatible
Extensions certification Cisco Compatible Extensions, v4.0
WLAN Standard IEEE 802.11g, 802.11b, 802.11n, 802.11d, 802.11e, 802.11i,
Architecture Infrastructure or ad hoc (peer-to-peer) operating modes
Security WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, 802.1X: EAP-SIM,
LEAP, PEAP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-AKA
Encryption AES-CCMP 128-bit, WEP 128-bit and 64-bit, CKIP, TKIP
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Centrino® Wireless-N 2200 and Intel® Centrino® Wireless-N
2230
Form Factor PCI Express* Half-Mini Card
Dimensions Half-Mini Card: Width 1.049 in x Length 1.18 in x Height 0.18 in (26.64 mm x 30 mm x 4.5
mm)
Antenna Interface
Connector Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
Connector Interface 52-pin Mini Card edge connector
Voltage 3.3 V
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)
WiFi
Frequency
Modulation 2.4 GHz (802.11b/g/n)
Frequency band 2.400 - 2.4835 GHz (dependent on country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM CCK, DQPSK, DBPSK
Wireless Medium 2.4 GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
IEEE 802.11n Data
Rates MIMO Configuration: 2X2
Tx/Rx: 300, 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3,
![](/img.php?id=2775127&img=bg1b.png)
Specifications
specs.htm[4/10/2015 2:35:51 PM]
30, 28.9, 21.7, 15, 14.4, 7.2 Mbps
IEEE 802.11g Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data
Rates 11, 5.5, 2, 1 Mbps
Bluetooth Support Intel® Centrino® Wireless-N 2200: None
Intel® Centrino® Wireless-N 2230: Bluetooth 4.0 (Bluetooth Low-Energy and Bluetooth
3.0 +HS)
General
Operating Systems Windows* 7 (32-bit and 64-bit), Windows* 8 (32-bit and 64-bit), Windows* 8.1 (32-bit and
64-bit)
Wi-Fi Alliance*
certification Wi-Fi* certification for 802.11b, 802.11g, 802.11n, WPA-Personal, WPA-Enterprise, WPA2-
Personal, WPA2-Enterprise, WMM, WPS
Cisco Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
IEEE Feature Sets IEEE 802.11b, 802.11g, 802.11n, 802.11e, 802.11i, 802.11d, 802.11h
Architecture Infrastructure or ad hoc (peer-to-peer) operating modes
Security WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, AES-CCMP 128-bit, WEP
128-bit and 64-bit; 802.1X: EAP-SIM, LEAP, PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-
AKA
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Centrino® Wireless-N 1030 and Intel® Centrino® Advanced-N
6230
Form Factor PCI Express* Half-Mini Card
Dimensions Half-Mini Card: Width 1.049 in x Length 1.18 in x Height 0.18 in (26.64 mm x 30 mm x 4.5 mm)
Antenna
Interface
Connector
Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna
Diversity On-board diversity
Network
Standards 802.11a/b/g/n (varies by adapter) and Bluetooth 3.0 + HS
Connector
Interface 52-pin Mini Card edge connector
Voltage 3.3 V
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)
WiFi Network
Standards Intel® Centrino® Wireless-N 1030: 802.11b/g/n
Intel® Centrino® Advanced-N 6230: 802.11a/g/n
Frequency
Modulation 5 GHz (802.11a/n) 2.4 GHz (802.11b/g/n)
Frequency band 5.15 GHz - 5.85 GHz (dependent on country) 2.400 - 2.4835 GHz (dependent on country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM CCK, DQPSK, DBPSK
Wireless 5 GHz UNII: Orthogonal Frequency Division 2.4 GHz ISM: Orthogonal Frequency Division
![](/img.php?id=2775127&img=bg1c.png)
Specifications
specs.htm[4/10/2015 2:35:51 PM]
Medium Multiplexing (OFDM) Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
IEEE 802.11n
Data Rates Intel® Centrino® Advanced-N 6230:
Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117, 115.5,
90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
Intel® Centrino® Wireless-N 1030:
Rx (Mbps): 300, 270, 243, 240, 180
Rx/Tx (Mbps): 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3,
30, 28.9, 21.7, 15, 14.4, 7.2
IEEE 802.11a
Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g
Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b
Data Rates 11, 5.5, 2, 1 Mbps
Bluetooth Bluetooth Version 3.0 + HS
General
Operating
Systems Microsoft Windows* XP (32-bit and 64-bit)
Windows Vista* (32-bit and 64-bit)
Windows* 7 (32-bit and 64-bit)
Windows* 8 (32-bit and 64-bit)
Windows* 8.1 (32-bit and 64-bit)
Wi-Fi Alliance*
certification Wi-Fi* certification for 802.11b, 802.11g, 802.11a, 802.11h, 802.11d, WPA-Personal, WPA-
Enterprise, WPA2-Personal, WPA2-Enterprise, WPS, WMM, WMM Power Save, EAP-SIM, LEAP,
PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-AKA, P2P
Cisco
Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
WLAN Standard IEEE 802.11g, 802.11b, 802.11a, 802.11n
Architecture Infrastructure or ad hoc (peer-to-peer) operating modes
Security WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, AES-CCMP 128-bit, WEP 128-
bit and 64-bit; 802.1X: EAP-SIM, LEAP, PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-AKA
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Centrino® Advanced-N 6235
Form Factor PCI Express* Half-Mini Card
Dimensions Half-Mini Card: Width 1.049 in x Length 1.18 in x Height 0.18 in (26.64 mm x 30 mm x 4.5 mm)
Antenna
Interface
Connector
Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna
Diversity On-board diversity
Network
Standards 802.11a/b/g/n and Bluetooth 4.0
Connector
Interface 52-pin Mini Card edge connector
![](/img.php?id=2775127&img=bg1d.png)
Specifications
specs.htm[4/10/2015 2:35:51 PM]
Voltage 3.3 V
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency
Modulation 5 GHz (802.11a/n) 2.4 GHz (802.11b/g/n)
Frequency band 5.15 GHz - 5.85 GHz (dependent on country) 2.400 - 2.4835 GHz (dependent on country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM CCK, DQPSK, DBPSK
Wireless
Medium 5 GHz UNII: Orthogonal Frequency Division
Multiplexing (OFDM) 2.4 GHz ISM: Orthogonal Frequency Division
Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
IEEE 802.11n
Data Rates Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117, 115.5,
90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
IEEE 802.11a
Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g
Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b
Data Rates 11, 5.5, 2, 1 Mbps
Bluetooth Bluetooth Version 4.0 (3.0 +HS )
General
Operating
Systems Windows* 7 (32-bit and 64-bit), Windows* 8 (32-bit and 64-bit), Windows* 8.1 (32-bit and 64-
bit)
Wi-Fi Alliance*
certification Wi-Fi* certification for 802.11b, 802.11g, 802.11a, 802.11h, 802.11d, WPA-Personal, WPA-
Enterprise, WPA2-Personal, WPA2-Enterprise, WPS, WMM, WMM Power Save, EAP-SIM, LEAP,
PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-AKA, P2P
Cisco
Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
WLAN Standard IEEE 802.11g, 802.11b, 802.11a, 802.11n
Architecture Infrastructure or ad hoc (peer-to-peer) operating modes
Security WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, AES-CCMP 128-bit, WEP 128-
bit and 64-bit; 802.1X: EAP-SIM, LEAP, PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-AKA
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Centrino® Advanced-N + WiMAX 6250 and Intel® Centrino®
Wireless-N + WiMAX 6150
Form Factor PCI Express* Half-Mini Card
Dimensions Half-Mini Card: Width 1.049 in x Length 1.18 in x Height 0.18 in (26.64 mm x 30 mm x 4.5 mm)
Antenna
Interface
Connector
Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna
Diversity On-board diversity
Connector
Interface 52-pin Mini Card edge connector
Voltage 3.3 V
![](/img.php?id=2775127&img=bg1e.png)
Specifications
specs.htm[4/10/2015 2:35:51 PM]
Operating
Temperature
0 to +80 degrees Celsius
Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)
WiFi
Frequency
Modulation Intel® Centrino® Advanced-N + WiMAX 6250
2.4 GHz (802.11b/g/n), 5 GHz (802.11a/n)
Intel® Centrino® Wireless-N + WiMAX 6150
2.4 GHz (802.11b/g/n)
Frequency band 5.15 GHz - 5.85 GHz (dependent on country) 2.400 - 2.4835 GHz (dependent on country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM CCK, DQPSK, DBPSK
Wireless
Medium 5 GHz UNII: Orthogonal Frequency Division
Multiplexing (OFDM) 2.4 GHz ISM: Orthogonal Frequency Division
Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
IEEE 802.11n
Data Rates Intel® Centrino® Wireless-N + WiMAX 6150
MIMO Configuration: 1X2
Rx: 300, 270, 243, 240, 180 Mbps
Rx/Tx: 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9,
21.7, 15, 14.4, 7.2 Mbps
Intel® Centrino® Advanced-N + WiMAX 6250
MIMO Configuration: 2X2
Tx/Rx: 300, 270, 243, 240, 180, 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65,
60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2 Mbps
IEEE 802.11a
Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g
Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b
Data Rates 11, 5.5, 2, 1 Mbps
General
Operating
Systems Microsoft Windows* XP (32-bit and 64-bit)
Windows Vista* (32-bit and 64-bit)
Windows* 7 (32-bit and 64-bit)
Windows* 8 (32-bit and 64-bit)
Windows* 8.1 (32-bit and 64-bit)
Wi-Fi Alliance*
certification Wi-Fi* certification for 802.11b, 802.11g, 802.11a, 802.11h, 802.11d, WPA-Personal, WPA-
Enterprise, WPA2-Personal, WPA2-Enterprise, WMM, WMM Power Save, EAP-SIM, LEAP, PEAP,
TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-AKA
Cisco
Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
IEEE Feature
Sets Intel® Centrino® Wireless-N + WiMAX 6150:
IEEE 802.11b, 802.11g, 802.11n, 802.11e, 802.11i, 802.11h, 802.11d
Intel® Centrino® Advanced-N + WiMAX 6250:
802.11a, IEEE 802.11b, 802.11g, 802.11n, 802.11e, 802.11i, 802.11h, 802.11d
Architecture Infrastructure or ad hoc (peer-to-peer) operating modes
Security WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, AES-CCMP 128-bit, WEP 128-
bit and 64-bit; 802.1X: EAP-SIM, LEAP, PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-AKA
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
![](/img.php?id=2775127&img=bg1f.png)
Specifications
specs.htm[4/10/2015 2:35:51 PM]
WiMAX
General
Operating
Systems Microsoft Windows* XP (32-bit and 64-bit)
Windows Vista* (32-bit and 64-bit)
Windows* 7 (32-bit and 64-bit)
Windows* 8 (32-bit and 64-bit)
Windows* 8.1 (32-bit and 64-bit)
Standard
Compliance 802.16e-2005 Corrigenda 2 (D4)
WiMAX System
Profile Feature
set
Intel® Centrino® Wireless-N + WiMAX 6150:
Mobile WiMAX release 1, Wave II. Supports 3A and 1A/B profiles
Intel® Centrino® Advanced-N + WiMAX 6250:
Mobile WiMAX release 1, Wave II. Supports 3A, 5A/C, 1A/B, and 5BL profiles
Security Key Management Protocol (PKMv2)
Encryption 128-bit CCMP (Counter-Mode/CBC-MAC) based on AES encryption
WiMAX
Frequency band Intel® Centrino® Wireless-N + WiMAX 6150: 2.3-2.4 GHz / 2.496-2.690 GHz
Intel® Centrino® Advanced-N + WiMAX 6250: 2.3-2.4 GHz / 2.496-2.690 GHz / 3.4-3.8 GHz
Modulation UL - QPSK, 16 QAM
DL - QPSK, 16 QAM, 64 QAM
Wireless
Medium Duplex mode: TDD operations Scalable OFDMA (SOFDMA): 512 and 1024 FFT
sub-carrier permutation: PUSC Intel® Centrino® Wireless-N + WiMAX 6150:
Channel bandwidths: 5 and 10 MHz
Intel® Centrino® Advanced-N + WiMAX 6250:
Channel bandwidths: 5, 7, 8.75 and 10 MHz
WiMAX Network
Release Feature
set
SPWG/NWG Release 1.5
Rate
Performance Intel® Centrino® Wireless-N + WiMAX 6150:
Up to 10 Mbps DL and 4 Mbps UL @ peak rate
(OTA performance, 10MHz channel)
Intel® Centrino® Advanced-N + WiMAX 6250:
Up to 20 Mbps DL and 6 Mbps UL @ peak rate
(OTA performance, 10MHz channel)
RF Transmitter
Output Power Compliance with Power class 2
Intel® Centrino® Advanced-N 6200, Intel® Centrino® Advanced-N
6205 and Intel® Centrino® Ultimate-N 6300
Form Factor Intel® Centrino® Advanced-N 6200, Intel® Centrino® Ultimate-N 6300:
PCI Express* Full-Mini Card and Half-Mini Card.
Intel® Centrino® Advanced-N 6205: PCI Express* Half-Mini Card.
Dimensions Full-Mini Card: Width 2.00 in x Length 1.18 in x Height 0.18 in (50.95 mm x 30 mm x 4.5 mm)
Half-Mini Card: Width 1.049 in x Length 1.18 in x Height 0.18 in (26.64 mm x 30 mm x 4.5 mm)
Antenna Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
![](/img.php?id=2775127&img=bg20.png)
Specifications
specs.htm[4/10/2015 2:35:51 PM]
Interface
Connector
Antenna
Diversity On-board diversity
Connector
Interface 52-pin Mini Card edge connector
Voltage 3.3 V
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency
Modulation 5 GHz (802.11a/n) 2.4 GHz (802.11b/g/n)
Frequency band 5.15 GHz - 5.85 GHz (dependent on country) 2.400 - 2.4835 GHz (dependent on country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM CCK, DQPSK, DBPSK
Wireless
Medium 5 GHz UNII: Orthogonal Frequency Division
Multiplexing (OFDM) 2.4 GHz ISM: Orthogonal Frequency Division
Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
IEEE 802.11n
Data Rates Intel® Centrino® Ultimate-N 6300:
Tx/Rx: 450, 405, 360, 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120,
117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2 Mbps
Intel® Centrino® Advanced-N 6200, Intel® Centrino® Advanced-N 6205:
Tx/Rx: 300, 270, 243, 240, 180, 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60,
57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2 Mbps
IEEE 802.11a
Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g
Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b
Data Rates 11, 5.5, 2, 1 Mbps
General
Operating
Systems Microsoft Windows* XP (32-bit and 64-bit)
Windows Vista* (32-bit and 64-bit)
Windows* 7 (32-bit and 64-bit)
Windows* 8 (32-bit and 64-bit)
Windows* 8.1 (32-bit and 64-bit)
Wi-Fi Alliance*
certification Wi-Fi* certification for 802.11b, 802.11g, 802.11a, 802.11h, 802.11d, WPA-Personal, WPA-
Enterprise, WPA2-Personal, WPA2-Enterprise, WMM, WMM Power Save, EAP-SIM, LEAP, PEAP,
TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-AKA
Cisco
Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
WLAN Standard IEEE 802.11g, 802.11b, 802.11a, 802.11n
Architecture Infrastructure or ad hoc (peer-to-peer) operating modes
Security WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, AES-CCMP 128-bit, WEP 128-
bit and 64-bit; 802.1X: EAP-SIM, LEAP, PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-AKA
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
![](/img.php?id=2775127&img=bg21.png)
Specifications
specs.htm[4/10/2015 2:35:51 PM]
Intel® Dual Band Wireless-AC 7260
Form Factors Half-Mini Card and M.2 (Next Generation Form Factor - NGFF)
Electrical interfaces PCIe and USB 2.0 for both form factors
Antenna Interface
Connector Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
IEEE 802.11
Networking Standards 802.11ac, 802.11abgn, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency
Modulation 5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)
Frequency band 5.15GHz - 5.85GHz (dependent on country) 2.400 - 2.4835GHz (dependent on country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM CCK, DQPSK, DBPSK
Wireless Medium 5GHz UNII: Orthogonal Frequency Division
Multiplexing (OFDM) 2.4GHz ISM: Orthogonal Frequency Division
Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
Spatial streams Intel® Dual Band Wireless-AC 7260: 2 X 2
Data Rates All data rates are theoretical maximums.
IEEE 802.11ac Data
Rates Intel® Dual Band Wireless-AC 7260: Up to 867 Mbps
IEEE 802.11n Data
Rates Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117,
115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
IEEE 802.11a Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data
Rates 11, 5.5, 2, 1 Mbps
Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE)
General
Operating Systems Windows* 7 (32-bit and 64-bit), Windows* 8 (32-bit and 64-bit), Windows* 8.1 (64-bit)
Wi-Fi Alliance*
certification Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0,
Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.
Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
Cisco Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
Security
Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA
Authentication
Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
Encryption 64-bit and 128-bit WEP, AES-CCMP, TKIP
Wi-Fi Direct*
Encryption and
Authentication
WPA2, AES-CCMP
![](/img.php?id=2775127&img=bg22.png)
Specifications
specs.htm[4/10/2015 2:35:51 PM]
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Dual Band Wireless-N 7260
Intel® Wireless-N 7260
Form Factors Half-Mini Card, M.2 (Next Generation Form Factor - NGFF)
Electrical
interfaces PCIe, USB 2.0 for both form factors
Antenna Interface
Connector Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
IEEE 802.11
Networking
Standards
Intel® Dual Band Wireless-N 7260
Model 7260HMW AN - 802.11agn, 2x2, Bluetooth 4.0, PCIe, USB, HMC
Model 7260NGW AN - 802.11agn, 2x2, Bluetooth 4.0, PCIe, USB, M.2
Model 7260HMW NB - 802.11agn, 2x2, PCIe, USB, HMC
Model 7260NGW NB - 802.11agn, 2x2, PCIe, USB, M.2
Intel® Wireless-N 7260
Model 7260HMW BN - 802.11agn, 2x2, PCIe, USB, M.2
Model 7260NGW BN - 802.11bgn, 2x2, Bluetooth 4.0, PCIe, USB, M.2
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency
Modulation
(See above, not
all bands
supported by all
adapters)
5GHz (802.11a/n) 2.4GHz (802.11b/g/n)
Frequency band 5.15GHz - 5.85GHz
(dependent on country) 2.400 - 2.4835GHz (dependent on country)
Modulation BPSK, QPSK, 16 QAM, 64
QAM CCK, DQPSK, DBPSK
Wireless Medium 5GHz UNII: Orthogonal
Frequency Division
Multiplexing (OFDM)
2.4GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
802.11n spatial
streams All adapters: 2 X 2 spatial streams
Data Rates All data rates are theoretical maximums.
IEEE 802.11n
Data Rates Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117,
115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
IEEE 802.11a
Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g
Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b
Data Rates 11, 5.5, 2, 1 Mbps
Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE) supported by the following
![](/img.php?id=2775127&img=bg23.png)
Specifications
specs.htm[4/10/2015 2:35:51 PM]
adapters
Model 7260HMW AN
Model 7260NGW AN
Model 7260NGW BN
General
Operating
Systems Windows* 7 (32-bit and 64-bit), Windows 8 (32-bit and 64-bit), Windows* 8.1 (64-bit)
Wi-Fi Alliance*
certification Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0, Protected
Management Frames. Wi-Fi Direct* for peer-to-peer device connections.
Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
Cisco Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
Security
Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA
Authentication
Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
Encryption 64-bit and 128-bit WEP, AES-CCMP, TKIP
Wi-Fi Direct*
Encryption and
Authentication
WPA2, AES-CCMP
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Dual Band Wireless-AC 3160
Form Factors Half-Mini Card and M.2 (Next Generation Form Factor - NGFF)
Electrical interfaces PCIe and USB 2.0 for both form factors
Antenna Interface
Connector Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
IEEE 802.11
Networking Standards 802.11ac, 802.11abgn, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w
Operating Temperature 0 to +80 degrees Celsius
Humidity 50% to 90% non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency
Modulation 5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)
Frequency band 5.15GHz - 5.85GHz (dependent on country) 2.400 - 2.4835GHz (dependent on country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM CCK, DQPSK, DBPSK
Wireless Medium 5GHz UNII: Orthogonal Frequency Division
Multiplexing (OFDM) 2.4GHz ISM: Orthogonal Frequency Division
Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
Spatial streams Intel® Dual Band Wireless-AC 3160: 1 X 1
Data Rates All data rates are theoretical maximums.
IEEE 802.11ac Data
Rates Intel® Dual Band Wireless-AC 3160: Up to 433 Mbps
IEEE 802.11n Data
Rates Tx/Rx (Mbps): 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45,
43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
![](/img.php?id=2775127&img=bg24.png)
Specifications
specs.htm[4/10/2015 2:35:51 PM]
IEEE 802.11a Data
Rates
54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data
Rates 11, 5.5, 2, 1 Mbps
Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE)
General
Operating Systems Windows* 7 (32-bit and 64-bit), Windows 8 (32-bit and 64-bit), Windows* 8.1 (64-bit)
Wi-Fi Alliance*
certification Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0,
Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.
Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
Cisco Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
Security
Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA
Authentication
Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
Encryption 64-bit and 128-bit WEP, AES-CCMP, TKIP
Wi-Fi Direct*
Encryption and
Authentication
WPA2, AES-CCMP
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Dual Band Wireless-AC 3165 (Model 3165NGW)
Form Factors M.2 (Next Generation Form Factor - NGFF)
Electrical interfaces PCIe and USB 2.0
Antenna Interface
Connector Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
IEEE 802.11
Networking Standards 802.11abgn, 802.11ac, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w
Operating Temperature 0 to +80 degrees Celsius
Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency
Modulation 5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)
Frequency band 5.15GHz - 5.85GHz (dependent on country) 2.400 - 2.4835GHz (dependent on country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM CCK, DQPSK, DBPSK
Wireless Medium 5GHz UNII: Orthogonal Frequency Division
Multiplexing (OFDM) 2.4GHz ISM: Orthogonal Frequency Division
Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
Spatial streams Intel® Dual Band Wireless-AC 3165: 1 X 1
Data Rates All data rates are theoretical maximums.
IEEE 802.11ac Data
Rates Intel® Dual Band Wireless-AC 3165: Up to 433 Mbps
![](/img.php?id=2775127&img=bg25.png)
Specifications
specs.htm[4/10/2015 2:35:51 PM]
IEEE 802.11n Data
Rates
Tx/Rx (Mbps): 150, 144, 135, 130, 120, 117, 115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45,
43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
IEEE 802.11a Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data
Rates 11, 5.5, 2, 1 Mbps
Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE)
General
Operating Systems Windows* 7 (32-bit and 64-bit), Windows* 8 (32-bit and 64-bit), Windows* 8.1 (64-bit)
Wi-Fi Alliance*
certification Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0,
Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.
Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
Cisco Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
Security
Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA
Authentication
Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
Encryption 64-bit and 128-bit WEP, AES-CCMP, TKIP
Wi-Fi Direct*
Encryption and
Authentication
WPA2, AES-CCMP
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Dual Band Wireless-AC 7265 (Model 7265NGW)
Form Factors M.2 (Next Generation Form Factor - NGFF)
Electrical interfaces PCIe and USB 2.0
Antenna Interface
Connector Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
IEEE 802.11
Networking Standards 802.11abgn, 802.11ac, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency
Modulation 5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)
Frequency band 5.15GHz - 5.85GHz (dependent on country) 2.400 - 2.4835GHz (dependent on country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM CCK, DQPSK, DBPSK
Wireless Medium 5GHz UNII: Orthogonal Frequency Division
Multiplexing (OFDM) 2.4GHz ISM: Orthogonal Frequency Division
Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
Spatial streams Intel® Dual Band Wireless-AC 7265: 2 X 2
![](/img.php?id=2775127&img=bg26.png)
Specifications
specs.htm[4/10/2015 2:35:51 PM]
Data Rates All data rates are theoretical maximums.
IEEE 802.11ac Data
Rates Intel® Dual Band Wireless-AC 7265: Up to 867 Mbps
IEEE 802.11n Data
Rates Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117,
115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
IEEE 802.11a Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data
Rates 11, 5.5, 2, 1 Mbps
Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE)
General
Operating Systems Windows* 7 (32-bit and 64-bit), Windows* 8 (32-bit and 64-bit), Windows* 8.1 (64-bit)
Wi-Fi Alliance*
certification Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0,
Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.
Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
Cisco Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
Security
Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA
Authentication
Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
Encryption 64-bit and 128-bit WEP, AES-CCMP, TKIP
Wi-Fi Direct*
Encryption and
Authentication
WPA2, AES-CCMP
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Dual Band Wireless-N 7265 (Models 7265NGW AN and 7265NGW
NB)
Intel® Wireless-N 7265 (Model 7265NGW BN)
Form Factors M.2 (Next Generation Form Factor - NGFF)
Electrical
interfaces PCIe, USB 2.0
Antenna Interface
Connector Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
IEEE 802.11
Networking
Standards
Intel® Dual Band Wireless-N 7265
Model 7265NGW AN - 802.11agn, 2x2, Bluetooth 4.0, PCIe, USB, M.2
Model 7265NGW NB - 802.11agn, 2x2, PCIe, USB, M.2
Intel® Wireless-N 7265
Model 7265NGW BN - 802.11bgn, 2x2, Bluetooth 4.0, PCIe, USB, M.2
Operating 0 to +80 degrees Celsius
![](/img.php?id=2775127&img=bg27.png)
Specifications
specs.htm[4/10/2015 2:35:51 PM]
Temperature
Humidity 50% to 90% non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency
Modulation
(See above, not
all bands
supported by all
adapters)
5GHz (802.11a/n) 2.4GHz (802.11b/g/n)
Frequency band 5.15GHz - 5.85GHz
(dependent on country) 2.400 - 2.4835GHz (dependent on country)
Modulation BPSK, QPSK, 16 QAM, 64
QAM CCK, DQPSK, DBPSK
Wireless Medium 5GHz UNII: Orthogonal
Frequency Division
Multiplexing (OFDM)
2.4GHz ISM: Orthogonal Frequency Division Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
802.11n spatial
streams All adapters: 2 X 2 spatial streams
Data Rates All data rates are theoretical maximums.
IEEE 802.11n
Data Rates Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117,
115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
IEEE 802.11a
Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g
Data Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b
Data Rates 11, 5.5, 2, 1 Mbps
Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE) supported by the following
adapters
Model 7265HMW AN
Model 7265NGW AN
Model 7265NGW BN
General
Operating
Systems Windows* 7 (32-bit and 64-bit), Windows 8 (32-bit and 64-bit), Windows* 8.1 (64-bit)
Wi-Fi Alliance*
certification Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0, Protected
Management Frames. Wi-Fi Direct* for peer-to-peer device connections.
Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
Cisco Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
Security
Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA
Authentication
Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
Encryption 64-bit and 128-bit WEP, AES-CCMP, TKIP
Wi-Fi Direct*
Encryption and
Authentication
WPA2, AES-CCMP
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
![](/img.php?id=2775127&img=bg28.png)
Specifications
specs.htm[4/10/2015 2:35:51 PM]
Intel® Tri-Band Wireless-AC 17265 (17265NGW/17265NGW LC)
Form Factors M.2 Type 3030
Electrical interfaces M.2 Key 1-DP: 2xPCIe, USB, DP. Interface to Intel® Wireless Gigabit-Antenna M10041
Module using X-FL, and one dedicated for Bluetooth
Antenna Interface
Connector X.FL; Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
IEEE 802.11
Networking Standards 802.11ac, 802.11ad, 802.11abgn, 802.11a, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency
Modulation 60GHz (802.11ad) 5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)
Frequency band 57GHz - 64GHz
(dependent on
country)
5.15GHz - 5.85GHz (dependent
on country) 2.400 - 2.4835GHz (dependent on
country)
Modulation DPSK, BPSK, QPSK,
16 QAM, BPSK, QPSK, 16 QAM, 64 QAM,
256 QAM CCK, DQPSK, DBPSK
Wireless Medium DMG control PHY,
DMG SC PHY 5GHz UNII: Orthogonal
Frequency Division Multiplexing
(OFDM)
2.4GHz ISM: Orthogonal
Frequency Division Multiplexing
(OFDM)
Channels 1, 2 and 3, subject
to country rules All channels as defined by the relevant specification and country
rules.
Spatial streams N/A Intel® Tri-Band Wireless-AC 17265
Data Rates All data rates are theoretical maximums.
IEEE 802.11ac Data
Rates Intel® Tri-Band Wireless-AC 17265: Up to 867 Mbps
IEEE 802.11ad Data
Rates 4620, 3850, 3080, 2503, 2310, 1925, 1540, 1251, 1155, 963, 770, 385 Mbps
IEEE 802.11n Data
Rates Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117,
115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
IEEE 802.11a Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data
Rates 11, 5.5, 2, 1 Mbps
Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE)
General
Operating Systems Microsoft Windows 7*, Microsoft Windows 8.1* with connected standby
Wi-Fi Alliance*
certification Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0,
Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.
Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
Cisco Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
![](/img.php?id=2775127&img=bg29.png)
Specifications
specs.htm[4/10/2015 2:35:51 PM]
Security
Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA
Authentication
Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
Encryption 64-bit and 128-bit WEP, AES-CCMP, AES-CGMP, TKIP
Wi-Fi Direct*
Encryption and
Authentication
WPA2, AES-CCMP
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Dual Band Wireless-AC 8260
Form Factors Half-Mini Card and M.2 (Next Generation Form Factor - NGFF)
Electrical interfaces PCIe and USB 2.0 for both form factors
Antenna Interface
Connector Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066
Antenna Diversity On-board diversity
IEEE 802.11
Networking Standards 802.11ac, 802.11abgn, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w
Operating
Temperature 0 to +80 degrees Celsius
Humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency
Modulation 5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)
Frequency band 5.15GHz - 5.85GHz (dependent on country) 2.400 - 2.4835GHz (dependent on country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM CCK, DQPSK, DBPSK
Wireless Medium 5GHz UNII: Orthogonal Frequency Division
Multiplexing (OFDM) 2.4GHz ISM: Orthogonal Frequency Division
Multiplexing (OFDM)
Channels All channels as defined by the relevant specification and country rules.
Spatial streams Intel® Dual Band Wireless-AC 8260: 2 X 2
Data Rates All data rates are theoretical maximums.
IEEE 802.11ac Data
Rates Intel® Dual Band Wireless-AC 8260: Up to 867 Mbps
IEEE 802.11n Data
Rates Tx/Rx (Mbps): 300, 270, 243, 240, 216.7, 195, 180, 173.3, 150, 144, 135, 130, 120, 117,
115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7, 15, 14.4, 7.2
IEEE 802.11a Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g Data
Rates 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data
Rates 11, 5.5, 2, 1 Mbps
Bluetooth Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE)
General
Operating Systems Windows* 7 (32-bit and 64-bit), Windows* 8 (32-bit and 64-bit), Windows* 8.1 (64-bit)
Wi-Fi Alliance*
certification Wi-Fi CERTIFIED* for 802.11ac, a/b/g, n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0,
Protected Management Frames. Wi-Fi Direct* for peer-to-peer device connections.
Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
![](/img.php?id=2775127&img=bg2a.png)
Specifications
specs.htm[4/10/2015 2:35:51 PM]
Cisco Compatible
Extensions
certification
Cisco Compatible Extensions, v4.0
Security
Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA
Authentication
Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
Encryption 64-bit and 128-bit WEP, AES-CCMP, TKIP
Wi-Fi Direct*
Encryption and
Authentication
WPA2, AES-CCMP
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
Intel® Wireless Gigabit Sink W13100
Form Factors M.2 Type 3030
Electrical interfaces M.2 Key 1-DP: 2xPCIe, USB, DP. Interface to Intel® Wireless Gigabit-Antenna M10041
Module using X-FL, and one dedicated for Bluetooth
Antenna Interface
Connector X.FL
Antenna Diversity On-board diversity
IEEE 802.11 Networking
Standards 802.11ac, 802.11ad, 802.11abgn, 802.11a, 802.11d, 802.11e, 802.11i, 802.11h,
802.11w
Operating Temperature 0 to +80 degrees Celsius
Humidity 50% to 90% RH non-condensing (at temperatures of 25 ºC to 35 ºC)
Frequency Modulation 60GHz (802.11ad)
Frequency band 57GHz - 64GHz (dependent on country)
Modulation DPSK, BPSK, QPSK, 16 QAM,
Wireless Medium DMG control PHY, DMG SC PHY
Channels 1, 2 and 3, subject to country rules
Spatial streams Intel® Wireless Gigabit Sink W13100
Data Rates All data rates are theoretical maximums.
IEEE 802.11ad Data Rates 4620, 3850, 3080, 2503, 2310, 1925, 1540, 1251, 1155, 963, 770, 385 Mbps
General
Operating Systems Microsoft Windows 7*, Microsoft Windows 8.1* with connected standby
Architecture Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
Cisco Compatible
Extensions certification Cisco Compatible Extensions, v4.0
Security
Authentication WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA
Authentication Protocols PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
Encryption 64-bit and 128-bit WEP, AES-CCMP, AES-CGMP, TKIP
Wi-Fi Direct* Encryption
and Authentication WPA2, AES-CCMP
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
![](/img.php?id=2775127&img=bg2c.png)
Important Information
safety.htm[4/10/2015 2:35:52 PM]
Back to Contents
Important Information
Safety Information
Third Party Software Notices
Safety Information
It is important that you read the safety information regarding your WiFi adapter. Please see the User's Guide for
safety and regulatory notices.
Third Party Software Notices
Portions of Intel® PROSet/Wireless WiFi Connection Utility include software under the following terms:
OpenSSL License
Copyright (c) 1998-2006 The OpenSSL Project. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the
following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following
disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following
acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL
Toolkit. (http://www.openssl.org/)"
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products
derived from this software without prior written permission. For written permission, please contact openssl-
core@openssl.org.
5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names
without prior written permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes
software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)"
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT "AS IS" AND ANY EXPRESSED OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,
OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF
THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
This product includes cryptographic software written by Eric Young (eay@cryptsoft.com). This product includes
software written by Tim Hudson (tjh@cryptsoft.com).
Original SSLeay License
Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com)
All rights reserved.
![](/img.php?id=2775127&img=bg2d.png)
Important Information
safety.htm[4/10/2015 2:35:52 PM]
This package is an SSL implementation written by Eric Young (eay@cryptsoft.com). The implementation was written
so as to conform with Netscape's SSL.
This library is free for commercial and non-commercial use as long as the following conditions are adhered to. The
following conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code; not just
the SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except
that the holder is Tim Hudson (tjh@cryptsoft.com).
Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be removed. If this package
is used in a product, Eric Young should be given attribution as the author of the parts of the library used. This can
be in the form of a textual message at program startup or in documentation (online or textual) provided with the
package.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the
following conditions are met:
1. Redistributions of source code must retain the copyright notice, this list of conditions and the following
disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following
acknowledgement: "This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)"
The word 'cryptographic' can be left out if the routines from the library being used are not cryptographic
related.
4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code)
you must include an acknowledgement: "This product includes software written by Tim Hudson
(tjh@cryptsoft.com)"
THIS SOFTWARE IS PROVIDED BY ERIC YOUNG "AS IS:' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
The license and distribution terms for any publicly available version or derivative of this code cannot be changed.
i.e. this code cannot simply be copied and put under another distribution license [including the GNU Public License.]
zlib.h -- interface of the 'zlib' general purpose compression library, version 1.2.3, July
18th, 2005
Copyright (C) 1995-2005 Jean-loup Gailly and Mark Adler
This software is provided 'as-is', without any express or implied warranty. In no event will the authors be held liable
for any damages arising from the use of this software. Permission is granted to anyone to use this software for any
purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following
restrictions:
1. The origin of this software must not be misrepresented; you must not claim that you wrote the original
software. If you use this software in a product, an acknowledgment in the product documentation would be
appreciated but is not required.
2. Altered source versions must be plainly marked as such, and must not be misrepresented as being the original
software.
3. This notice may not be removed or altered from any source distribution.
Jean-loup Gailly jloup@gzip.org
Mark Adler madler@alumni.caltech.edu
![](/img.php?id=2775127&img=bg2e.png)
Important Information
safety.htm[4/10/2015 2:35:52 PM]
Adapter Driver
Portions of the driver include software under the following terms:
WPA Supplicant
Copyright (c) 2003-2007, Jouni Malinen <jkmaline@cc.hut.fi> and contributors. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the
following conditions are met:
Redistributions of source code must retain the above copyright notice, this list of conditions and the following
disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
Neither the name of Jouni Malinen nor the names of its contributors may be used to endorse or promote
products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR
IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR
CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY
WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
__________
Copyright (c) 2001, Dr Brian Gladman <brg@gladman.me.uk>, Worcester, UK.
All rights reserved.
LICENSE TERMS
The free distribution and use of this software in both source and binary form is allowed (with or without changes)
provided that:
1. Distributions of this source code include the above copyright notice, this list of conditions and the following
disclaimer;
2. distributions in binary form include the above copyright notice, this list of conditions and the following
disclaimer in the documentation and/or other associated materials;
3. the copyright holder's name is not used to endorse products built using this software without specific written
permission.
DISCLAIMER
This software is provided 'as is' with no explicit or implied warranties in respect of its properties, including, but not
limited to, correctness and fitness for purpose.
Issue Date: 29/07/2002
This file contains the definitions required to use AES (Rijndael) in C.
Portions Licensed from Devicescape Software, Inc.
Intel® PROSet/Wireless WiFi Connection Utility contains software licensed from Devicescape Software, Inc. Copyright
(c) 2004 - 2008 Devicescape Software, Inc. All rights reserved.
"Odd Button" Artistic License
![](/img.php?id=2775127&img=bg2f.png)
Important Information
safety.htm[4/10/2015 2:35:52 PM]
Portions of this software contain the standard version of "Odd Button" licensed under the Artistic License. The source
code for "Odd Button" may be found online at http://sourceforge.net/projects/oddbutton.
Back to Top
Back to Contents
Trademarks and Disclaimers
![](/img.php?id=2775127&img=bg30.png)
Customer Support
support.htm[4/10/2015 2:35:53 PM]
Back to Contents
Customer Support
Intel support is available online or by telephone. Available services include the most up-to-date product information,
installation instructions about specific products, and troubleshooting tips.
Online Support
Technical Support: http://www.intel.com/support
Network Product Support: http://www.intel.com/network
Corporate Web Site: http://www.intel.com
Back to Top
Back to Contents
Trademarks and Disclaimers
![](/img.php?id=2775127&img=bg31.png)
Warranty Information
warranty.htm[4/10/2015 2:35:53 PM]
Back to Contents
Warranty Information
One-Year Limited Hardware Warranty
Limited Warranty
In this warranty statement, the term "Product" applies to the wireless adapters listed in Specifications.
Intel warrants to the purchaser of the Product that the Product, if properly used and installed, will be free from
defects in material and workmanship and will substantially conform to Intel’s publicly available specifications for the
Product for a period of one (1) year beginning on the date the Product was purchased in its original sealed
packaging.
SOFTWARE OF ANY KIND DELIVERED WITH OR AS PART OF THE PRODUCT IS EXPRESSLY PROVIDED "AS IS",
SPECIFICALLY EXCLUDING ALL OTHER WARRANTIES, EXPRESS, IMPLIED (INCLUDING WITHOUT LIMITATION,
WARRANTIES OF MERCHANTABILITY, NON-INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE), provided
however, that Intel warrants that the media on which the software is furnished will be free from defects for a period
of ninety (90) days from the date of delivery. If such a defect appears within the warranty period, you may return
the defective media to Intel for replacement or alternative delivery of the software at Intel's discretion and without
charge. Intel does not warrant or assume responsibility for the accuracy or completeness of any information, text,
graphics, links or other items contained within the software.
If the Product which is the subject of this Limited Warranty fails during the warranty period for reasons covered by
this Limited Warranty, Intel, at its option, will:
REPAIR the Product by means of hardware and/or software; OR
REPLACE the Product with another product, OR, if Intel is unable to repair or replace the Product,
REFUND the then-current Intel price for the Product at the time a claim for warranty service is made to Intel
under this Limited Warranty.
THIS LIMITED WARRANTY, AND ANY IMPLIED WARRANTIES THAT MAY EXIST UNDER APPLICABLE STATE,
NATIONAL, PROVINCIAL OR LOCAL LAW, APPLY ONLY TO YOU AS THE ORIGINAL PURCHASER OF THE PRODUCT.
Extent of Limited Warranty
Intel does not warrant that the Product, whether purchased stand-alone or integrated with other products, including
without limitation, semi-conductor components, will be free from design defects or errors known as "errata." Current
characterized errata are available upon request. Further, this Limited Warranty does NOT cover: (i) any costs
associated with the replacement or repair of the Product, including labor, installation or other costs incurred by you,
and in particular, any costs relating to the removal or replacement of any Product soldered or otherwise
permanently affixed to any printed circuit board or integrated with other products; (ii) damage to the Product due to
external causes, including accident, problems with electrical power, abnormal, mechanical or environmental
conditions, usage not in accordance with product instructions, misuse, neglect, accident, abuse, alteration, repair,
improper or unauthorized installation or improper testing, or (iii) any Product which has been modified or operated
outside of Intel’s publicly available specifications or where the original product identification markings (trademark or
serial number) have been removed, altered or obliterated from the Product; or (iv) issues resulting from
modification (other than by Intel) of software products provided or included in the Product, (v) incorporation of
software products, other than those software products provided or included in the Product by Intel, or (vi) failure to
apply Intel-supplied modifications or corrections to any software provided with or included in the Product.
How to Obtain Warranty Service
To obtain warranty service for the Product, you may contact your original place of purchase in accordance with its
instructions or you may contact Intel. To request warranty service from Intel, you must contact the Intel Customer
Support ("ICS") center in your region (http://www.intel.com/support/wireless/) within the warranty period during
normal business hours (local time), excluding holidays and return the Product to the designated ICS center. Please
be prepared to provide: (1) your name, mailing address, email address, telephone numbers and, in the USA, valid
![](/img.php?id=2775127&img=bg32.png)
Warranty Information
warranty.htm[4/10/2015 2:35:53 PM]
credit card information; (2) proof of purchase; (3) model name and product identification number found on the
Product; and (4) an explanation of the problem. The Customer Service Representative may need additional
information from you depending on the nature of the problem. Upon ICS's verification that the Product is eligible for
warranty service, you will be issued a Return Material Authorization ("RMA") number and provided with instructions
for returning the Product to the designated ICS center. When you return the Product to the ICS center, you must
include the RMA number on the outside of the package. Intel will not accept any returned Product without an RMA
number, or that has an invalid RMA number, on the package. You must deliver the returned Product to the
designated ICS center in the original or equivalent packaging, with shipping charges pre-paid (within the USA), and
assume the risk of damage or loss during shipment. Intel may elect to repair or replace the Product with either a
new or reconditioned Product or components, as Intel deems appropriate. The repaired or replaced product will be
shipped to you at the expense of Intel within a reasonable period of time after receipt of the returned Product by
ICS. The returned Product shall become Intel’s property on receipt by ICS. The replacement product is warranted
under this written warranty and is subject to the same limitations of liability and exclusions for ninety (90) days or
the remainder of the original warranty period, whichever is longer. If Intel replaces the Product, the Limited
Warranty period for the replacement Product is not extended.
WARRANTY LIMITATIONS AND EXCLUSIONS
THIS WARRANTY REPLACES ALL OTHER WARRANTIES FOR THE PRODUCT AND INTEL DISCLAIMS ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NON-INFRINGEMENT, COURSE OF DEALING AND
USAGE OF TRADE. Some states (or jurisdictions) do not allow the exclusion of implied warranties so this
limitation may not apply to you. ALL EXPRESS AND IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE
LIMITED WARRANTY PERIOD. NO WARRANTIES APPLY AFTER THAT PERIOD. Some states (or jurisdictions) do
not allow limitations on how long an implied warranty lasts, so this limitation may not apply to you.
LIMITATIONS OF LIABILITY
INTEL’S RESPONSIBILITY UNDER THIS OR ANY OTHER WARRANTY, IMPLIED OR EXPRESS, IS LIMITED TO REPAIR,
REPLACEMENT OR REFUND, AS SET FORTH ABOVE. THESE REMEDIES ARE THE SOLE AND EXCLUSIVE REMEDIES
FOR ANY BREACH OF WARRANTY. TO THE MAXIMUM EXTENT PERMITTED BY LAW, INTEL IS NOT RESPONSIBLE FOR
ANY DIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY
OR UNDER ANY OTHER LEGAL THEORY (INCLUDING WITHOUT LIMITATION, LOST PROFITS, DOWNTIME, LOSS OF
GOODWILL, DAMAGE TO OR REPLACEMENT OF EQUIPMENT AND PROPERTY, AND ANY COSTS OF RECOVERING,
REPROGRAMMING, OR REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH A SYSTEM CONTAINING
THE PRODUCT), EVEN IF INTEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states (or
jurisdictions) do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations or exclusions may not apply to you. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY BY STATE OR JURISDICTION. ANY AND ALL
DISPUTES ARISING UNDER OR RELATED TO THIS LIMITED WARRANTY SHALL BE ADJUDICATED IN THE
FOLLOWING FORUMS AND GOVERNED BY THE FOLLOWING LAWS: FOR THE UNITED STATES OF AMERICA,
CANADA, NORTH AMERICA AND SOUTH AMERICA, THE FORUM SHALL BE SANTA CLARA, CALIFORNIA, USA AND
THE APPLICABLE LAW SHALL BE THAT OF THE STATE OF DELAWARE. FOR THE ASIA PACIFIC REGION (EXCEPT FOR
MAINLAND CHINA), THE FORUM SHALL BE SINGAPORE AND THE APPLICABLE LAW SHALL BE THAT OF SINGAPORE.
FOR EUROPE AND THE REST OF THE WORLD, THE FORUM SHALL BE LONDON AND THE APPLICABLE LAW SHALL BE
THAT OF ENGLAND AND WALES IN THE EVENT OF ANY CONFLICT BETWEEN THE ENGLISH LANGUAGE VERSION
AND ANY OTHER TRANSLATED VERSION(S)OF THIS LIMITED WARRANTY (WITH THE EXCEPTION OF THE
SIMPLIFIED CHINESE VERSION), THE ENGLISH LANGUAGE VERSION SHALL CONTROL.
IMPORTANT! UNLESS OTHERWISE AGREED IN WRITING BY INTEL, THE INTEL PRODUCTS SOLD HEREUNDER ARE
NOT DESIGNED, OR INTENDED FOR USE IN ANY MEDICAL, LIFE SAVING OR LIFE SUSTAINING SYSTEMS,
TRANSPORTATION SYSTEMS, NUCLEAR SYSTEMS, OR FOR ANY OTHER MISSION CRITICAL APPLICATION IN WHICH
THE FAILURE OF THE INTEL PRODUCT COULD CREATE A SITUATION WHERE PERSONAL INJURY OR DEATH MAY
OCCUR.
WEEE
![](/img.php?id=2775127&img=bg34.png)
Glossary
glossary.htm[4/10/2015 2:35:53 PM]
Back to Contents
Glossary
Term Definition
802.11 The 802.11 standard refers to a family of specifications developed by the IEEE for wireless LAN
technology. The 802.11 specifies an over-the-air interface between a wireless client and a base
station or between two wireless clients and provides 1 or 2 Mbps transmission in the 2.4 GHz
band using either frequency hopping spread spectrum (FHSS) or direct sequence spread
spectrum (DSSS).
802.11a The 802.11a standard specifies a maximum data transfer rate of 54 Mbps and an operating
frequency of 5 GHz. The 802.11a standard uses the Orthogonal Frequency Division Multiplexing
(OFDM) transmission method. Additionally, the 802.11a standard supports 802.11 features such
as WEP encryption for security.
802.11b 802.11b is an extension to 802.11 that applies to wireless networks and provides 11 Mbps
transmission (with a fallback to 5.5, 2 and 1 Mbps) in the 2.4 GHz band. 802.11b uses only
DSSS. Throughput data rate 5+ Mbps in the 2.4 GHz band.
802.11g The 802.11g standard specifies a maximum data transfer rate of 54 Mbps, an operating frequency
of 2.4GHz, and WEP encryption for security. 802.11g networks are also referred to as Wi-Fi*
networks.
802.11n A task group of the IEEE 802.11 committee has defined a new draft specification that provides for
increased throughput speeds of up to 540 Mbps. The specification provides for Multiple-Input-
Multiple-Output (MIMO) technology, or using multiple receivers and multiple transmitters in both
the client and access point, to achieve improved performance.
802.1X 802.1X is the IEEE Standard for Port-Based Network Access Control. This is used in conjunction
with EAP methods to provide access control to wired and wireless networks.
AAA Server Authentication, Authorization and Accounting Server. A system to control access to computer
resources and track user activity.
Access Point
(AP) A device that connects wireless devices to another network. For example, a wireless LAN, Internet
modem or others.
Ad Hoc Network A communication configuration in which every computer has the same capabilities, and any
computer can initiate a communication session. Also known as a peer-to-peer network, a device
to device network or a computer-to-computer network.
AES-CCMP Advanced Encryption Standard - Counter CBC-MAC Protocol is the new method for privacy
protection of wireless transmissions specified in the IEEE 802.11i standard. AES-CCMP provides a
stronger encryption method than TKIP. The AES algorithm is capable of using cryptographic keys
of 128, 192, and 256 bits to encrypt and decrypt data in 128-bit blocks. AES-CCMP uses the AES
block cipher, but restricts the key length to 128 bits. AES-CCMP incorporates two sophisticated
cryptographic techniques (counter mode and CBC-MAC) to provide improved security between
the mobile client and the access point.
Authentication Verifies the identity of a user logging onto a network. Passwords, digital certificates, smart cards
and biometrics are used to prove the identity of the client to the network. Passwords and digital
certificates are also used to identify the network to the client.
Available
network One of the networks listed under Available networks on the Wireless Networks tab of the Wireless
Network Connection Properties (Windows* XP environment). Any wireless network that is
broadcasting and is within receiving range of the WiFi adapter appears on the list.
BER Bit Error Rate. The ratio of errors to the total number of bits being sent in a data transmission
from one location to another.
Bit Rate The total number of bits (ones and zeros) per second that a network connection can support. Note
that this bit rate will vary, under software control, with different signal path conditions.
Broadcast SSID Used to allow an access point to respond to clients on a wireless network by sending probes.
BSSID A unique identifier for each wireless client on a wireless network. The Basic Service Set Identifier
(BSSID) is the Ethernet MAC address of each adapter on the network.
![](/img.php?id=2775127&img=bg35.png)
Glossary
glossary.htm[4/10/2015 2:35:53 PM]
CA (Certificate
Authority) A corporate certification authority implemented on a server. In addition, Internet Explorer's
certificate can import a certificate from a file. A trusted CA certificate is stored in the root store.
CCX (Cisco
Compatible
eXtension)
Cisco Compatible Extensions Program ensures that devices used on Cisco wireless LAN
infrastructure meet the security, management and roaming requirements.
Certificate Used for client authentication. A certificate is registered on the authentication server (for example,
RADIUS server) and used by the authenticator.
CKIP Cisco Key Integrity Protocol (CKIP) is a Cisco proprietary security protocol for encryption in 802.11
media. CKIP uses a key message integrity check and message sequence number to improve
802.11 security in infrastructure mode. CKIP is Cisco's version of TKIP.
Client computer The computer that gets its Internet connection by sharing either the host computer's connection
or the access point's connection.
DSSS Direct Sequence Spread Spectrum. Technology used in radio transmission. Incompatible with
FHSS.
EAP Short for Extensible Authentication Protocol, EAP sits inside of Point-to-Point Protocol's (PPP)
authentication protocol and provides a generalized framework for several different authentication
methods. EAP is supposed to head off proprietary authentication systems and let everything from
passwords to challenge-response tokens and public-key infrastructure certificates all work
smoothly.
EAP-AKA EAP-AKA (Extensible Authentication Protocol Method for UMTS Authentication and Key Agreement)
is an EAP mechanism for authentication and session key distribution, using the Universal Mobile
Telecommunications System (UMTS) Subscriber Identity Module (USIM). The USIM card is a
special smart card used with cellular networks to validate a given user with the network.
EAP-FAST EAP-FAST, like EAP-TTLS and PEAP, uses tunneling to protect traffic. The main difference is that
EAP-FAST does not use certificates to authenticate.
Provisioning in EAP-FAST is negotiated solely by the client as the first communication exchange
when EAP-FAST is requested from the server. If the client does not have a pre-shared secret
Protected Access Credential (PAC), it can request to initiate a provisioning EAP-FAST exchange to
dynamically obtain one from the server.
EAP-FAST documents two methods to deliver the PAC: manual delivery through an out-of-band
secure mechanism, and automatic provisioning.
Manual delivery mechanisms can be any delivery mechanism that the administrator of the
network feels is sufficiently secure for their network.
Automatic provisioning establishes an encrypted tunnel to protect the authentication of the
client and the delivery of the PAC to the client. This mechanism, while not as secure as a
manual method may be, is more secure than the authentication method used in LEAP.
The EAP-FAST method can be divided into two parts: provisioning, and authentication. The
provisioning phase involves the initial delivery of the PAC to the client. This phase only needs to
be performed once per client and user.
EAP-GTC The EAP-GTC (Generic Token Card) is similar to the EAP-OTP except with hardware token cards.
The request contains a displayable message, and the response contains the string read from the
hardware token card.
EAP-OTP EAP-OTP (One-Time Password) is similar to MD5, except it uses the OTP as the response. The
request contains a displayable message. The OTP method is defined in RFC 2289.
EAP-SIM Extensible Authentication Protocol-Subscriber Identity Module (EAP-SIM) authentication can be
used with:
Network Authentication types: Open, Shared, and WPA*-Enterprise, WPA2*-Enterprise.
Data Encryption types: None, WEP and CKIP.
A SIM card is a special smart card that is used by Global System for Mobile Communications
(GSM) based digital cellular networks. The SIM card is used to validate your credentials with the
![](/img.php?id=2775127&img=bg36.png)
Glossary
glossary.htm[4/10/2015 2:35:53 PM]
network
EAP-TLS A type of authentication method that uses EAP and a security protocol called the Transport Layer
Security (TLS). EAP-TLS uses certificates that use passwords. EAP-TLS authentication supports
dynamic WEP key management.
EAP-TTLS A type of authentication method that uses EAP and Tunneled Transport Layer Security (TTLS).
EAP-TTLS uses a combination of certificates and another security method such as passwords.
Encryption Scrambling data so that only the authorized recipient can read it. Usually a key is needed to
interpret the data.
FHSS Frequency-Hop Spread Spectrum. Technology used in radio transmission. Incompatible with
DSSS.
File and printer
sharing A capability that allows a number of people to view, modify, and print the same file(s) from
different computers.
Fragmentation
threshold The threshold at which the wireless adapter breaks the packet into multiple frames. This
determines the packet size and affects the throughput of the transmission.
GHz
(Gigahertz) A unit of frequency equal to 1,000,000,000 cycles per second.
Host computer The computer that is directly connected to the Internet via a modem or network adapter.
Infrastructure
network A wireless network centered around an access point. In this environment, the access point not
only provides communication with the wired network, but also mediates wireless network traffic
in the immediate neighborhood.
IEEE Institute of Electrical and Electronics Engineers (IEEE) is an organization involved in defining
computing and communications standards.
Internet
Protocol (IP)
address
The address of a computer that is attached to a network. Part of the address designates which
network the computer is on, and the other part represents the host identification.
LAN (Local Area
Network) A high-speed, low-error data network covering a relatively small geographic area.
LEAP (Light
Extensible
Authentication
Protocol)
A version of Extensible Authentication Protocol (EAP). LEAP is a proprietary extensible
authentication protocol developed by Cisco that provides a challenge-response authentication
mechanism and dynamic key assignment.
MAC (Media
Access
Control)
Address
A hardwired address applied at the factory. It uniquely identifies network hardware, such as a
wireless adapter, on a LAN or WAN.
Mbps
(Megabits-per-
second)
Transmission speed of 1,000,000 bits per second.
MHz
(Megahertz) A unit of frequency equal to 1,000,000 cycles per second.
MIC (Michael) Message Integrity Check (commonly called Michael).
MS-CHAP An EAP mechanism used by the client. Microsoft Challenge Authentication Protocol (MS-CHAP)
Version 2, is used over an encrypted channel to enable server validation. The challenge and
response packets are sent over a non-exposed TLS encrypted channel.
ns(Nanosecond) 1 billionth (1/1,000,000,000) of a second.
OFDM Orthogonal Frequency Division Multiplexing.
Open
authentication Allows any device network access. If encryption is not enabled on the network, any device that
knows the Service Set Identifier (SSID) of the access point can gain access to the network.
PEAP Protected Extensible Authentication Protocol (PEAP) is an Internet Engineering Task Force (IETF)
draft protocol sponsored by Microsoft, Cisco, and RSA Security. PEAP creates an encrypted tunnel
similar to the tunnel used in secure web pages (SSL). Inside the encrypted tunnel, a number of
other EAP authentication methods can be used to perform client authentication. PEAP requires a
![](/img.php?id=2775127&img=bg37.png)
Glossary
glossary.htm[4/10/2015 2:35:53 PM]
TLS certificate on the RADIUS server, but unlike EAP-TLS there is no requirement to have a
certificate on the client. PEAP has not been ratified by the IETF. The IETF is currently comparing
PEAP and TTLS (Tunneled TLS) to determine an authentication standard for 802.1X authentication
in 802.11 wireless systems. PEAP is an authentication type designed to take advantage of server-
side EAP-Transport Layer Security (EAP-TLS) and to support various authentication methods,
including user passwords and one-time passwords, and Generic Token Cards.
Peer-to-Peer
mode A wireless network structure that allows wireless clients to communicate directly with each other
without using an access point.
Power save
mode The state in which the radio is periodically powered down to conserve power. When the portable
computer is in Power Save mode, received packets are stored in the access point until the
wireless adapter wakes up.
Preferred
network One of the networks that has been configured. Such networks are listed under Preferred networks
on the Wireless Networks tab of the Wireless Network Connection Properties (Windows* XP
environment).
RADIUS
(Remote
Authentication
Dial-In User
Service)
RADIUS is an authentication and accounting system that verifies user's credentials and grants
access to requested resources.
RF (Radio
Frequency) The international unit for measuring frequency is Hertz (Hz), which is equivalent to the older unit
of cycles per second. One MegaHertz (MHz) is one million Hertz. One GigaHertz (GHz) is one
billion Hertz. For reference: the standard US electrical power frequency is 60 Hz, the AM
broadcast radio frequency band is 0.55 -1.6 MHz, the FM broadcast radio frequency band is 88-
108 MHz, and microwave ovens typically operate at 2.45 GHz.
Roaming Movement of a wireless node between two micro cells. Roaming usually occurs in infrastructure
networks built around multiple access points. Current wireless network roaming is only supported
in the same subnet of a network.
RTS threshold The number of frames in the data packet at or above which an RTS/CTS (request to send/clear to
send) handshake is turned on before the packet is sent. The default value is 2347.
Shared key An encryption key known only to the receiver and sender of data. This is also referred to as a pre-
shared key.
SIM (Subscriber
Identity
Module)
A SIM card is used to validate credentials with the network. A SIM card is a special smart card
used by GSM-based digital cellular networks.
Silent mode Silent Mode Access Points or Wireless Routers have been configured to not broadcast the SSID for
the wireless network. This makes it necessary to know the SSID in order to configure the wireless
profile to connect to the access point or wireless router.
Single Sign On Single Sign On feature set allows the 802.1X credentials to match your Windows log on user name
and password credentials for wireless network connections.
SSID (Service
Set Identifier) SSID or network name is a value that controls access to a wireless network. The SSID for your
wireless network card must match the SSID for any access point that you want to connect with. If
the value does not match, you are not granted access to the network. Each SSID may be up to
32 alphanumeric characters long and is case-sensitive.
stealth A stealth access point is one that has the capability and is configured to not broadcast its SSID.
This is the WiFi network name that appears when a DMU (Device Management Utility, such as
Intel® PROSet/Wireless WiFi Connection Utility) scans for available wireless networks. Although
this can enhance wireless network security, it is commonly considered a weak security feature. To
connect to a stealth access point, a user must specifically know the SSID and configure their DMU
accordingly. The feature is not a part of the 802.11 specification, and is known by differing names
by various vendors: closed mode, private network, SSID broadcasting.
TKIP (Temporal
Key Integrity
Protocol)
Temporal Key Integrity protocol improves data encryption. Wi-Fi Protected Access* uses its TKIP.
TKIP provides important data encryption enhancements including a re-keying method. TKIP is
part of the IEEE 802.11i encryption standard for wireless networks. TKIP is the next generation of
WEP, the Wired Equivalency Protocol, which is used to secure 802.11 wireless networks. TKIP
provides per packet key mixing, a message integrity check and a re-keying mechanism, thus
![](/img.php?id=2775127&img=bg38.png)
Glossary
glossary.htm[4/10/2015 2:35:53 PM]
fixing the flaws of WEP.
TLS (Transport
Layer Security) A type of authentication method using the Extensible Authentication Protocol (EAP) and a security
protocol called the Transport Layer Security (TLS). EAP-TLS uses certificates which use
passwords. EAP-TLS authentication supports dynamic WEP key management. The TLS protocol is
intended to secure and authenticate communications across a public network through data
encryption. The TLS Handshake Protocol allows the server and client to provide mutual
authentication and to negotiate an encryption algorithm and cryptographic keys before data is
transmitted.
TTLS (Tunneled
Transport
Layer Security)
These settings define the protocol and the credentials used to authenticate a user. In TTLS, the
client uses EAP-TLS to validate the server and create a TLS-encrypted channel between the client
and server. The client can use another authentication protocol. Typically password-based
protocols challenge over this encrypted channel to enable server validation. The challenge and
response packets are sent over a non-exposed TLS encrypted channel. TTLS implementations
today support all methods defined by EAP, as well as several older methods (CHAP, PAP, MS-
CHAP and MS-CHAP-V2). TTLS can easily be extended to work with new protocols by defining new
attributes to support new protocols.
WEP (Wired
Equivalent
Privacy)
Wired Equivalent Privacy, 64- and 128-bit (64-bit is sometimes referred to as 40-bit). This is a
low-level encryption technique designed to give the user about the same amount of privacy that
he would expect from a LAN. WEP is a security protocol for wireless local area networks (WLANs)
defined in the 802.11b standard. WEP is designed to provide the same level of security as that of
a wired LAN. WEP aims to provide security by data over radio waves so that it is protected as it is
transmitted from one end point to another.
WEP Key Either a pass phrase or hexadecimal key.
The pass phrase must be 5 ASCII characters for 64-bit WEP or 13 ASCII characters for 128-bit
WEP. For pass phrases, 0-9, a-z, A-Z, and ~!@#$%^&*()_+|`-={}|[]\:";'<>?,./ are all valid
characters.
The hex key must be 10 hexadecimal characters (0-9, A-F) for 64-bit WEP or 26 hexadecimal
characters (0-9, A-F) for 128-bit WEP.
Wi-Fi*
(Wireless
Fidelity)
Is meant to be used generically when referring of any type to 802.11 network, whether 802.11b,
802.11a, or dual-band.
WiMAX WiMAX, the Worldwide Interoperability for Microwave Access, is a telecommunications technology
aimed at providing wireless data over long distances in a variety of ways, from point-to-point
links to full mobile cellular type access. It is based on the IEEE 802.16 standard. The name
WiMAX was created by the WiMAX Forum, which was formed in June 2001 to promote
conformance and interoperability of the standard. The forum describes WiMAX as "a standards-
based technology enabling the delivery of last mile wireless broadband access as an alternative to
cable and DSL."
Wireless router A stand-alone wireless hub that allows any computer that has a wireless network adapter to
communicate with another computer within the same network and to connect to the Internet.
WLAN (Wireless
Local-Area
Network)
A type of local-area network that uses high-frequency radio waves rather than wires to
communicate between nodes.
WPA* (Wi-Fi
Protected
Access)
This is a security enhancement that strongly increases the level of data protection and access
control to a wireless network. WPA is an interim standard that will be replaced with the IEEE's
802.11i standard upon its completion. WPA consists of RC4 and TKIP and provides support for
BSS (Infrastructure) mode only. WPA and WPA2 are compatible.
WPA2* (Wi-Fi
Protected
Access 2)
This is the second generation of WPA that complies with the IEEE TGi specification. WPA2 consists
of AES encryption, pre-authentication and PMKID caching. It provides support for BSS
(Infrastructure) mode and IBSS (ad hoc) mode. WPA and WPA2 are compatible.
WPA-Enterprise Wi-Fi Protected Access-Enterprise applies to corporate users. A new standards-based,
interoperable security technology for wireless LAN (subset of IEEE 802.11i draft standard) that
encrypts data sent over radio waves. WPA is a Wi-Fi standard that was designed to improve upon
the security features of WEP as follows:
Improved data encryption through the temporal key integrity protocol (TKIP). TKIP uses a
![](/img.php?id=2775127&img=bg39.png)
Glossary
glossary.htm[4/10/2015 2:35:53 PM]
hashing algorithm to scramble the encryption keys and adds an integrity-checking feature
to ensure that the keys have not been tampered with.
User authentication, which is generally missing in WEP, through the extensible
authentication protocol (EAP). WEP regulates access to a wireless network based on a
computer's hardware-specific MAC address, which is relatively simple to be sniffed out and
stolen. EAP is built on a more secure public-key encryption system to ensure that only
authorized network users can access the network.
WPA is an interim standard that will be replaced with the IEEE's 802.11i standard upon its
completion.
WPA-Personal Wi-Fi Protected Access-Personal provides a level of security in the small network or home
environment.
WPA-PSK (Wi-Fi
Protected-
Access Pre-
Shared Key)
WPA-PSK mode does not use an authentication server. It can be used with the data encryption
types WEP or TKIP. WPA-PSK requires configuration of a pre-shared key (PSK). You must enter a
pass phrase or 64 hex characters for a pre-shared key of length 256-bits. The data encryption
key is derived from the PSK.
Back to Top
Back to Contents
Trademarks and Disclaimers
