CA810 Motherboard Product Guide
Revision History
Contents
1 Motherboard Features
2 Installing and Replacing Motherboard Components
3 Using the Setup Program
4 Technical Reference
A Error Messages
- BIOS Beep Codes
- BIOS Error Messages
B Regulatory and Integration Information

CA810

Motherboard

Product Guide

Order Number: 738718-001

Revision History

Revision Revision History Date

-001 Final version. April 1999

If an FCC declaration of conformity marking is present on the board, the following statement applies:

FCC Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device

may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

For questions related to the EMC performance of this product, contact:

Intel Corporation

5200 N.E. Elam Young Parkway

Hillsboro, OR 97124

1-800-628-8686

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment to an outlet on a circuit other than the one to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Canadian Department of Communications Compliance Statement:

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the

Radio Interference Regulations of the Canadian Department of Communications.

Le présent appareil numerique német pas de bruits radioélectriques dépassant les limites applicables aux appareils

numériques de la classe B prescrites dans le Réglement sur le broullage radioélectrique édicté par le ministére des

Communications du Canada.

Disclaimer

Intel Corporation (Intel) makes no warranty of any kind with regard to this material, including, but not limited to, the implied

warranties of merchantability and fitness for a particular purpose. Intel assumes no responsibility for any errors that may

appear in this document. Intel makes no commitment to update nor to keep current the information contained in this

document. No part of this document may be copied or reproduced in any form or by any means without prior written

consent of Intel.

An Intel product, when used in accordance with its associated documentation, is "Year 2000 Capable" when, upon

installation, it accurately stores, displays, processes, provides, and/or receives date data from, into, and between the

twentieth and twenty-first centuries, including leap year calculations, provided that all other technology used in combination

with said product properly exchanges date data with it.

†Third-party brands and trademarks are the property of their respective owners.

iii

Contents

1 Motherboard Features

Feature Summary.................................................................................................................7

Components......................................................................................................................... 8

Microprocessor..................................................................................................................... 9

Main Memory ....................................................................................................................... 9

Graphics Subsystem .......................................................................................................... 10

Intel 82810 GMCH..................................................................................................... 10

GMCH DC-100 (Optional).......................................................................................... 11

Audio Subsystem ............................................................................................................... 12

Creative Sound Blaster AudioPCI 64V Audio Controller ............................................ 12

Crystal Semiconductor CS4297 Stereo Audio Codec ................................................ 12

Audio Connectors...................................................................................................... 12

Audio Drivers and Utilities.......................................................................................... 13

Speaker.............................................................................................................................. 13

LAN Subsystem (Optional)................................................................................................. 13

Intel 82559 LAN Controller ...................................................................................... 13

LAN Subsystem Software.......................................................................................... 14

RJ-45 LAN Connector LEDs...................................................................................... 14

PCI Enhanced IDE Interface .............................................................................................. 14

Input/Output (I/O) Controller............................................................................................... 15

Real-Time Clock.................................................................................................................15

USB Support ...................................................................................................................... 16

BIOS .................................................................................................................................. 16

Intel 82802AB Firmware Hub (FWH) ....................................................................... 16

PCI Auto Configuration.............................................................................................. 16

IDE Auto Configuration.............................................................................................. 16

Security Passwords ................................................................................................... 17

Expansion Slots.................................................................................................................. 17

Power Management Features ............................................................................................ 17

Wake on LAN Technology ......................................................................................... 18

Instantly Available Technology .................................................................................. 19

Resume on Ring........................................................................................................ 20

Battery................................................................................................................................ 20

2 Installing and Replacing Motherboard Components

Before You Begin ............................................................................................................... 21

How to Install and Remove the Motherboard...................................................................... 22

How to Install a Motherboard Support Standoff.................................................................. 23

How to Remove the Processor........................................................................................... 27

How to Install Memory........................................................................................................ 27

How to Remove Memory.................................................................................................... 30

How to Replace the Battery................................................................................................ 30

How to Connect IDE Drives................................................................................................ 32

How to Clear the Passwords .............................................................................................. 32

CA810 Motherboard Product Guide

How to Set Jumpers........................................................................................................... 33

BIOS Setup Configuration Jumper Block................................................................... 34

USB Port 0 Configuration Jumper Block (Optional) ................................................... 34

3 Using the Setup Program

BIOS Setup Program Modes.............................................................................................. 35

Function Keys..................................................................................................................... 36

Accessing the Setup Program............................................................................................ 36

Upgrading the BIOS .................................................................................................. 37

Obtaining the BIOS Upgrade File .............................................................................. 37

Recording the Current BIOS Settings........................................................................ 37

Creating a Bootable Diskette..................................................................................... 38

Creating the BIOS Upgrade Diskette......................................................................... 38

Upgrading the BIOS ........................................................................................................... 39

Recovering the BIOS.......................................................................................................... 39

Changing the BIOS Language............................................................................................ 40

4 Technical Reference

Motherboard Connectors.................................................................................................... 41

Back Panel Connectors ............................................................................................. 42

Midboard Connectors ................................................................................................ 43

Front Panel Connectors............................................................................................. 44

Motherboard Resources..................................................................................................... 45

Memory Map ......................................................................................................................45

DMA Channels ................................................................................................................... 45

I/O Map .............................................................................................................................. 46

Interrupts............................................................................................................................ 48

A Error Messages

BIOS Beep Codes.............................................................................................................. 49

BIOS Error Messages ........................................................................................................ 49

B Regulatory and Integration Information

Regulatory Compliance ...................................................................................................... 51

Product Certification Markings............................................................................................ 52

Installation Precautions ...................................................................................................... 52

Installation Instructions.......................................................................................................53

Ensure Electromagnetic Compatibility (EMC) ............................................................ 53

Ensure Chassis and Accessory Module Certifications ............................................... 53

Prevent Power Supply Overload................................................................................ 54

Place Battery Marking on the Computer .................................................................... 54

Use Only for Intended Applications............................................................................ 54

Figures

1. Motherboard Components............................................................................................... 8

2. Using the Wake on LAN Technology Connector............................................................ 18

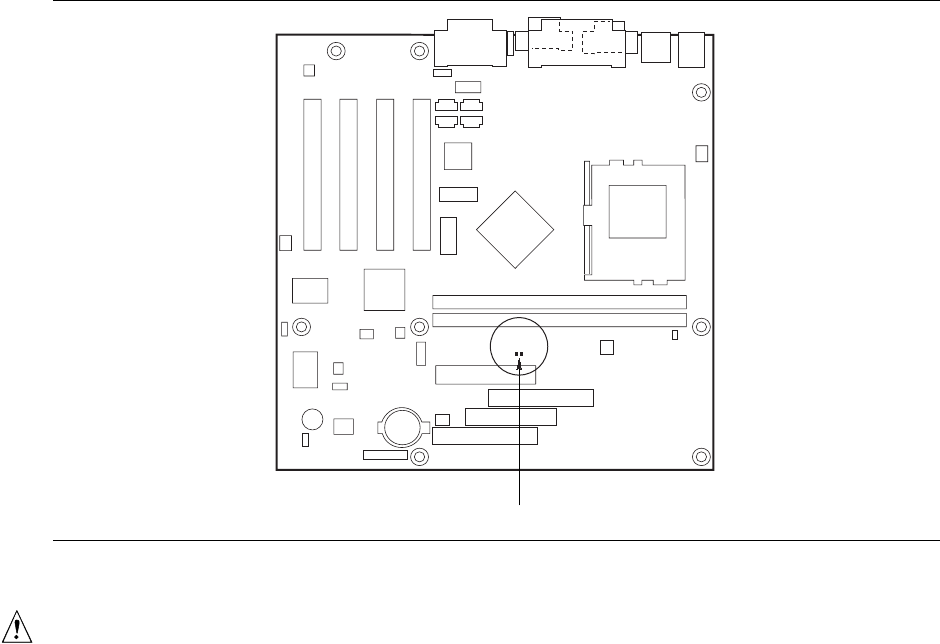

3. Location of Standby Power Indicator LED ..................................................................... 19

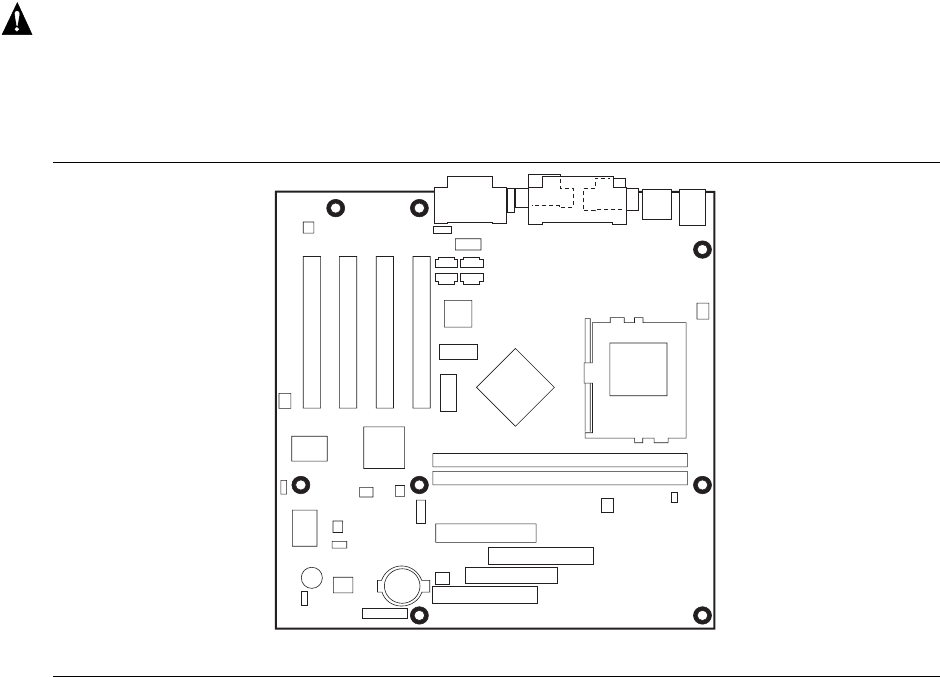

4. Mounting Screw Holes................................................................................................... 22

Contents

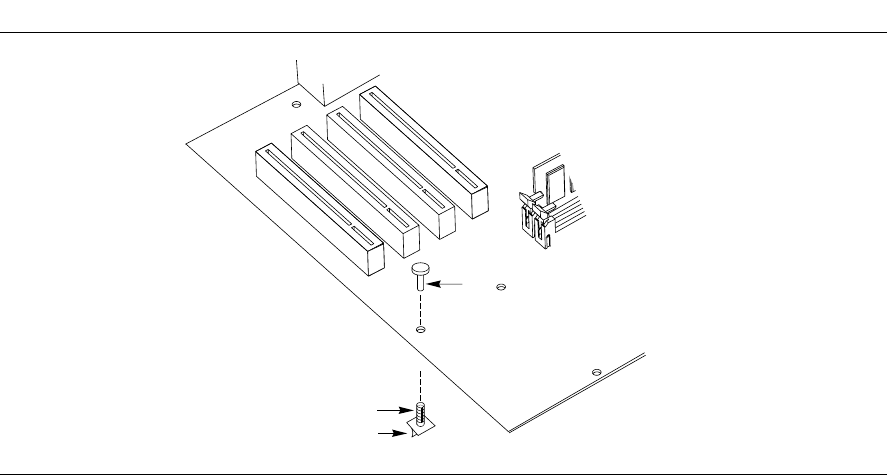

5. Motherboard Support Standoff in a Standard ATX Chassis........................................... 23

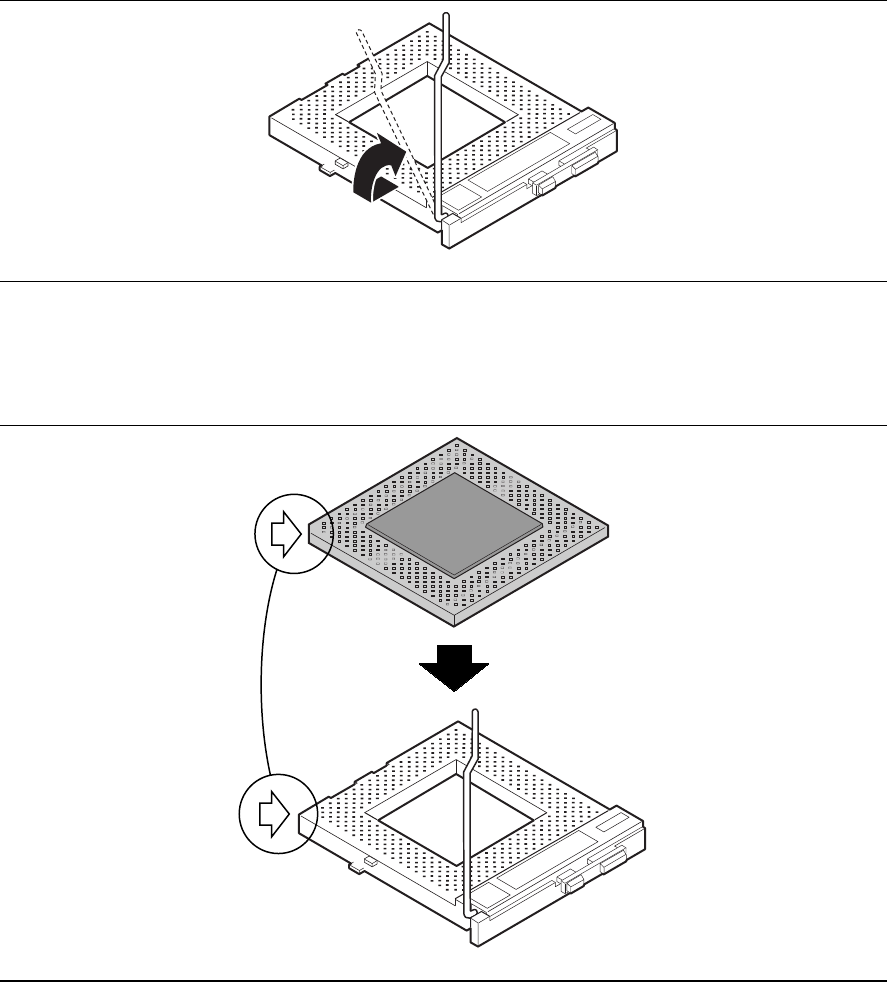

6. Raising the Socket Handle ............................................................................................ 24

7. Inserting the Processor into the Socket ......................................................................... 24

8. Closing the Handle ........................................................................................................ 25

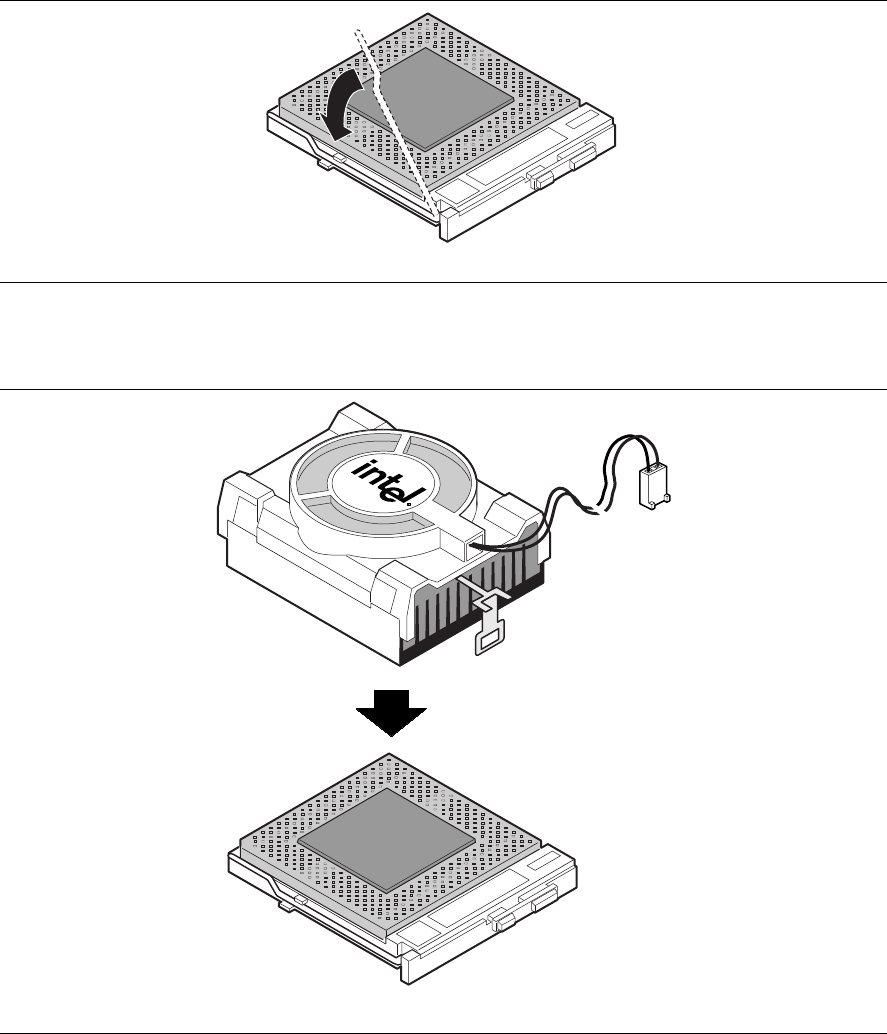

9. Attaching the Heatsink to the Processor........................................................................ 25

10. Attaching the Fan Heatsink Clip .................................................................................. 26

11. Connecting the Processor Fan Cable to the Processor Fan Connector....................... 26

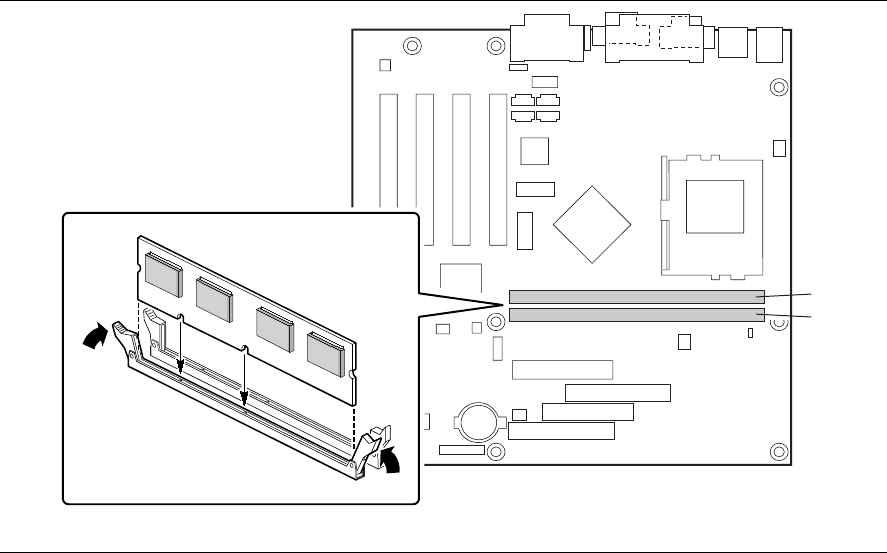

12. Installing a DIMM......................................................................................................... 29

13. Removing the Battery.................................................................................................. 31

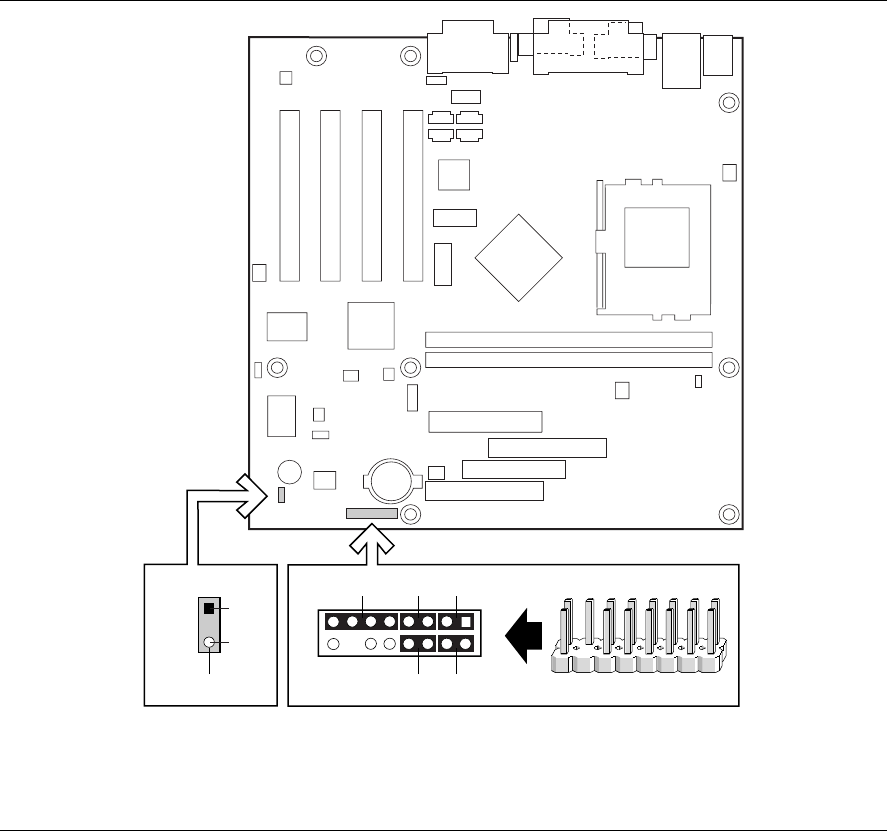

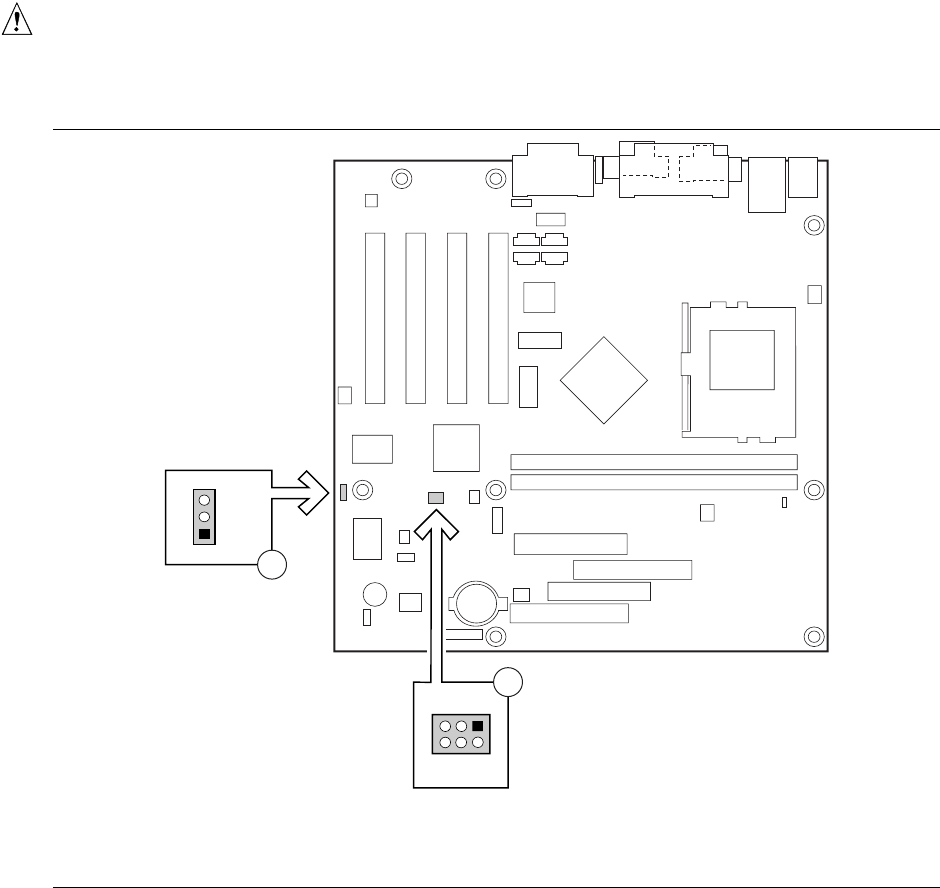

14. Location of Configuration Jumper Block ...................................................................... 33

15. Connector Groups....................................................................................................... 41

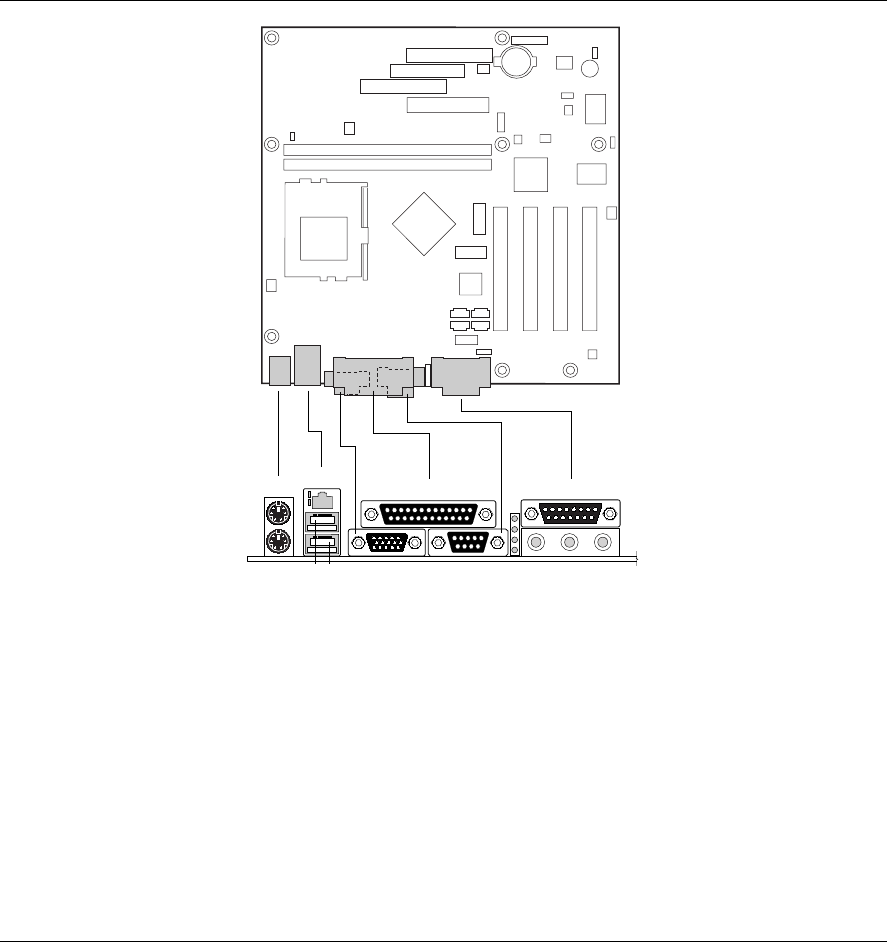

16. Back Panel Connectors and Indicators........................................................................ 42

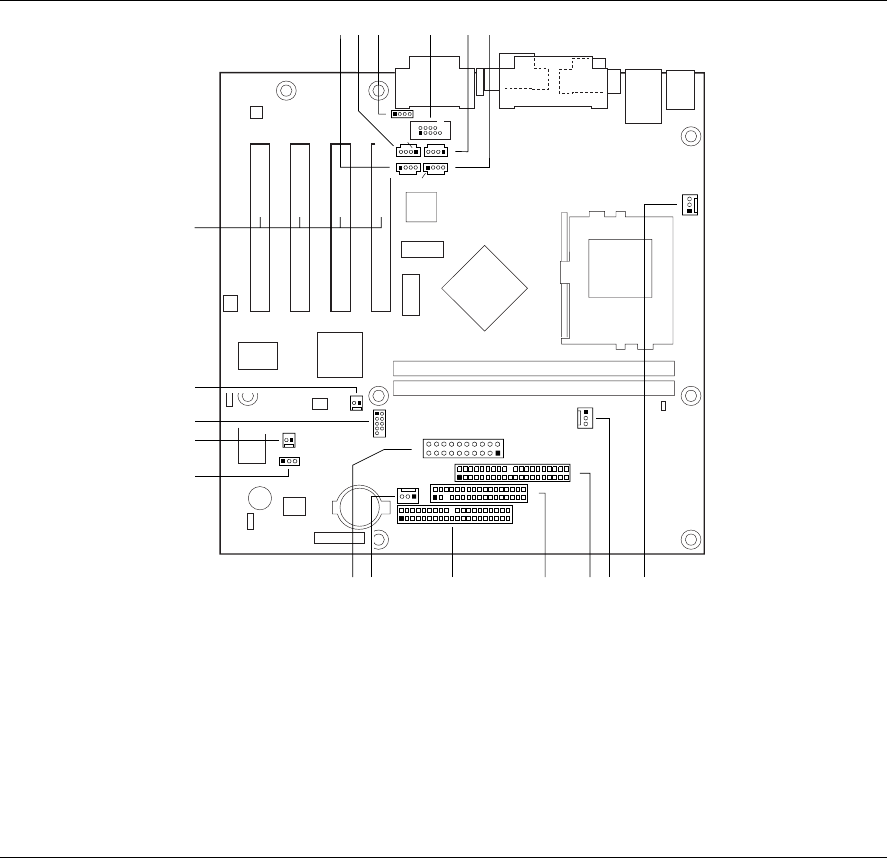

17. Midboard Connectors .................................................................................................. 43

18. Front Panel Connectors............................................................................................... 44

Tables

1. Processors Supported by the Motherboard.................................................................... 9

2. Intel 82810 GMCH Refresh Rates................................................................................ 11

3. RJ-45 LAN Connector LEDs ........................................................................................ 14

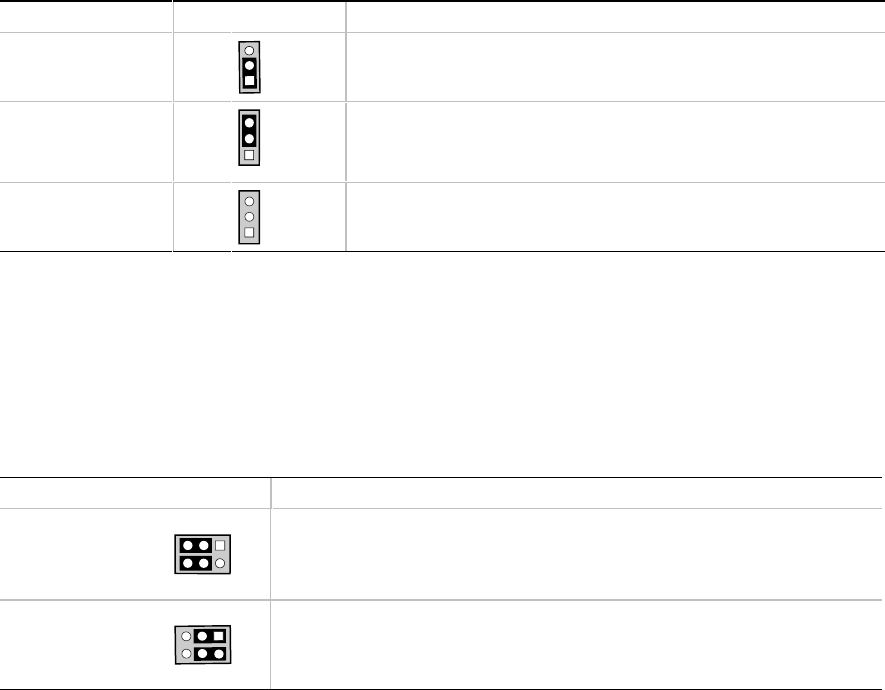

4. Jumper Settings for BIOS Setup Program Modes........................................................ 34

5. USB Port 0 Configuration Jumper Settings .................................................................. 34

6. Setup Menu Screens ................................................................................................... 36

7. Setup Function Keys.................................................................................................... 36

8. System Memory Map................................................................................................... 45

9. DMA Channels............................................................................................................. 45

10. I/O Map........................................................................................................................ 46

11. Interrupts ..................................................................................................................... 48

12. Beep Codes................................................................................................................. 49

13. BIOS Error Messages.................................................................................................. 49

14. Safety Regulations....................................................................................................... 51

15. EMC Regulations......................................................................................................... 51

CA810 Motherboard Product Guide

1 Motherboard Features

Feature Summary

Form Factor MicroATX (9.6 inches by 9.6 inches)

Processor Support for Intel® Celeron™ processor, in a 370-pin Plastic Pin Grid Array

(PPGA) package, with 66-MHz host bus speed

Chipset The Intel® 82810 chipset consisting of:

• Intel® 82810 Graphics/Memory Controller Hub (GMCH)

• Intel® 82801AA I/O Controller Hub (ICH)

• Intel® 82802AB 4 Mbit Firmware Hub (FWH)

Memory • Two 168-pin dual inline memory module (DIMM) sockets

• Support for up to 512 MB of 100-MHz, non-ECC, unbuffered synchronous

DRAM (SDRAM)

 16 MB and 256 MB using 16 MB/64 Mbit technology

 512 MB using 128 Mbit technology

• Support for serial presence detect (SPD) and non-SPD DIMMs

I/O Control SMSC LPC47B272 super I/O controller

Peripheral Interfaces • Two serial ports (header only for second serial port)

• Two Universal Serial Bus (USB) ports

• One parallel port

• PS/2† keyboard

• PS/2 mouse

Audio • Creative Sound Blaster† AudioPCI 64V audio controller

• Crystal Semiconductor CS4297 AC ’97 stereo audio codec

• Sony/Phillips Digital Interface Format (S/P-DIF) connector with Creative Sound

Blaster AudioPCI 64V audio subsystems (optional)

Video Intel 82810 Graphics/Memory Controller Hub (integrated in the chipset)

Intel 82810 DC-100 Graphics/Memory Controller Hub (optional)

Expansion capabilities Four PCI slots

Power Management • Supports Advanced Power Management (APM)

• Supports Advanced Configuration and Power Management Interface (ACPI)

including Suspend to RAM (STR)

BIOS • Intel/AMI BIOS

• Intel 82802AB Firmware Hub (FWH) 4 Mbit flash memory

Other features • Speaker

• SCSI HD Activity LED connector (optional)

• Hardware monitor (optional)

• Chassis intrusion detection (optional)

• Enhanced diagnostics LEDs (optional)

• Intel® 82559 PCI LAN controller with RJ-45 LAN connector (optional)

✏NOTE

For information about Intel

motherboards, including technical product specifications, BIOS

upgrades, and device drivers, go to the Intel World Wide Web site at:

http://support.intel.com/support/motherboards/desktop

CA810 Motherboard Product Guide

Components

Figure 1 shows the major components on the motherboard.

OM07766

F I

GEB

AA XQSZ T R

A Crystal Semiconductor CS4297 audio codec T Power supply connector

B ATAPI-style CD-ROM connector U Fan 1 (chassis) connector

C Video source line in connector (optional) V USB front panel connector (optional)

D Legacy CD-ROM connector (optional) W Battery

E Serial port B header X Front panel connector

F Auxiliary line in connector (optional) Y SCSI HD Activity LED connector (optional)

G Telephony connector (optional) Z Intel 82802AB Firmware Hub (FWH)

H Enhanced diagnostics LEDs (optional) AA Speaker

I Back panel connectors BB Alternative 1x3 front panel power LED connector

J Intel 82559 LAN controller (optional) CC Wake on LAN† technology connector (optional)

K Fan 3 (processor) connector DD SMSC LPC47B272 super I/O controller

L 370-pin PPGA processor socket EE Chassis intrusion connector (optional)

M Intel 82810 Graphics/Memory Controller Hub

(GMCH)

FF Configuration jumper block

N DIMM sockets GG USB front panel jumper block (optional)

O Hardware monitor (optional) HH Creative Sound Blaster AudioPCI 64V audio

controller

P Fan 2 connector (optional) II Intel 82801AA I/O Controller Hub (ICH)

Q Secondary IDE connector JJ Sony/Phillips Digital Interface Format connector

(optional)

R Primary IDE connector KK Video memory (optional)

S Diskette drive connector LL PCI slots

Figure 1. Motherboard Components

Motherboard Features

✏NOTE

Components labeled optional do not come on all CA810 motherboards.

Microprocessor

The motherboard supports the 370-pin PPGA socketed Celeron processors listed in Table 1. All

supported onboard memory can be cached.

Table 1. Processors Supported by the Motherboard

Processor Speed Host Bus Frequency Cache Size

466 MHz

433 MHz

400 MHz

366 MHz

333 MHz

300A MHz

66 MHz

128 KB

For the latest information on processor support for the CA810 motherboard, refer to the Intel

boxed motherboard web site at:

http://support.intel.com/support/motherboards/desktop/

For instructions on installing or upgrading the processor, see Chapter 2.

Main Memory

The motherboard has two sockets for installing DIMMs. Minimum memory size is 32 MB;

maximum memory size is 512 MB. Due to the video requirements of the CA810 motherboard,

minimum memory for the Windows NT† 4.0 operating system is 64 MB. For optimal video

performance, it is recommended that 64 MB of memory be installed. See Chapter 2 for types of

memory supported and installation instructions.

All supported onboard memory is cacheable.

✏NOTE

Some of the system memory is dedicated to video.

CA810 Motherboard Product Guide

Graphics Subsystem

The graphics subsystem features the Intel 82810 Graphic/Memory Controller Hub (GMCH).

Visit Intel’s World Wide Web site for information about graphics drivers:

http://support.intel.com/support/motherboards/desktop/

Intel 82810 GMCH

The Intel 82810 GMCH supports the following features:

• Integrated graphics controller

 3-D Hyper Pipelined architecture

 Full 2-D hardware acceleration

 Motion video acceleration

• 3-D graphics visual and texturing enhancements

• Display

 Integrated 24-bit 230 MHz RAMDAC

 DDC2B compliant

• Video

 Hardware motion compensation for software MPEG2 decode

• Integrated graphics memory controller

Motherboard Features

Table 2 lists the refresh rates supported by the CA810 motherboard.

Table 2. Intel 82810 GMCH Refresh Rates

Resolution Color 60 (Hz) 70 (Hz) 72 (Hz) 75 (Hz) 85 (Hz)

640x200 16 x

640x350 16 x

640x400 256 x x x x

64 K x x x x

16 M x

640x480 16 x x x x

256xxxxx

32 K x x x

64 Kxxxxx

16 Mxxxxx

800x600 256 x xxxx

32 K x x x

64 Kxxxxx

16 Mxxxxx

1024x768 256 x x x x

32 K x x x

64 Kxxxxx

16 Mxxxxx

1056x800 16 x

1280x1024 256 x xxxx

32 K x x

64 Kxxxxx

16 Mxxxxx

GMCH DC-100 (Optional)

In addition to all the features of the GMCH, the optional GMCH DC-100 supports 4 MB of

display cache on the motherboard.

CA810 Motherboard Product Guide

Audio Subsystem

The audio subsystem consists of these devices:

• Creative Sound Blaster AudioPCI 64V digital controller

• Crystal Semiconductor CS4297 AC ’97 stereo audio codec

• Back panel and onboard audio connectors

Creative Sound Blaster AudioPCI 64V Audio Controller

The Creative Sound Blaster AudioPCI 64V audio controller features:

• Interfaces to the PCI bus as a Plug and Play device

• 100% DOS legacy compatible

• Access to main memory (through the PCI bus) for wavetable synthesis support – does not

require a separate wavetable ROM device

• PC 98 and PC 99 compliant

• Optional Sony/Phillips digital interface format (S/P-DIF)

Crystal Semiconductor CS4297 Stereo Audio Codec

The Crystal Semiconductor CS4297 stereo audio codec features:

• High performance 18-bit stereo full-duplex audio codec with up to 48 kHz sampling rate

• Connects to the Sound Blaster AudioPCI 64V using a five-wire digital interface

Audio Connectors

The audio connectors include the following:

• CD-ROM (legacy-style 2 mm connectors)

• ATAPI-style connectors

 CD-ROM audio

 Auxiliary line in

 Telephony (optional)

 Video line in (optional)

• Back panel connectors

 Line out

 Line in

 Mic in

 MIDI/Game Port

✏NOTE

The line out connector, located on the back panel, is designed to power either headphones or

amplified speakers only. Poor audio quality may occur if passive (non-amplified) speakers are

connected to this output.

Motherboard Features

Audio Drivers and Utilities

Audio drivers and utilities are available from Intel’s World Wide Web site:

http://support.intel.com/support/motherboards/desktop

Speaker

A 47 Ω inductive speaker is mounted on the motherboard. The speaker provides audible error

code (beep code) information during the power-on self test (POST).

LAN Subsystem (Optional)

The Intel 82559 Fast Ethernet Wired for Management (WfM) PCI LAN subsystem provides both

10Base-T and 100Base-TX connectivity. Features include:

• 32-bit, 33 MHz direct bus mastering on the PCI bus

• Shared memory structure in the host memory that copies data directly to/from host memory

• 10Base-T and 100Base-TX capability using a single RJ-45 connector with connection and

activity status LEDs

• IEEE 802.3µ Auto-Negotiation for the fastest available connection

• Jumperless configuration; the LAN subsystem is completely software-configurable

Intel 82559 LAN Controller

The Intel 82559 PCI LAN controller’s features include:

• CSMA/CD Protocol Engine

• PCI bus interface

• DMA engine for movement of commands, status, and network data across the PCI bus

• Integrated physical layer interface, including:

• Jumperless configuration; the LAN subsystem is completely software-configurable

 Complete functionality necessary for the 10Base-T and 100Base-TX network interfaces;

when in 10 Mbit/sec mode, the interface drives the cable directly

 A complete set of Media Independent Interface (MII) management registers for control

and status reporting

 802.3µ Auto-Negotiation for automatically establishing the best operating mode when

connected to other 10Base-T or 100Base-TX devices, whether half- or full-duplex capable

• Integrated power management features, including:

 Support for APM

 Support for Wake on LAN technology

 Support for ACPI D3 state

CA810 Motherboard Product Guide

LAN Subsystem Software

The Intel 82559 Fast Ethernet WfM PCI LAN software and drivers are available from Intel’s

World Wide Web site.

RJ-45 LAN Connector LEDs

Two LEDs are built into the RJ-45 LAN connector. Table 3 describes the LED states when the

board is powered up and the LAN subsystem is operating.

Table 3. RJ-45 LAN Connector LEDs

LED Color LED State Indicates

Green Off 10 Mbit/sec speed is selected.

On 100 Mbit/sec speed is selected.

Yellow Off LAN link is not established.

On (steady state) LAN link is established.

On (brighter and pulsing) The computer is communicating with another computer on

the LAN.

PCI Enhanced IDE Interface

The PCI enhanced IDE interface handles the exchange of information between the processor and

peripheral devices like hard disks, CD-ROM drives, and Iomega Zip† drives inside the computer.

The interface supports:

• Up to four IDE devices (such as hard drives)

• ATAPI devices (such as CD-ROM drives)

• PIO Mode 3 and PIO Mode 4 devices

• Ultra ATA/33 and Ultra ATA/66

• Logical block addressing (LBA) of hard drives larger than 528 MB and extended cylinder head

sector (ECHS) translation modes

• Support for laser servo (LS-120) drives

Motherboard Features

Input/Output (I/O) Controller

The SMSC LPC47B272 super I/O controller handles the exchange of information between the

processor and external devices, such as a mouse, keyboard, or printer that are connected to the

computer. The controller features the following:

• Low pin count (LPC) interface

• Two serial ports

• Infrared port (IrDA 1.1 compliant)

• One parallel port with Extended Capabilities Port (ECP) and Enhanced Parallel Port (EPP)

support

• PS/2–style mouse and keyboard interfaces

• Interface for one 1.2 MB, 1.44 MB, or 2.88 MB diskette drive

• Intelligent power management, including a programmable wake up event interface

• Dual game port interface

• MPU-401 MIDI support

• Fan control:

 Two pulse width modulation (PWM) fan speed control outputs

 Two fan tachometer inputs

The BIOS Setup program provides configuration options for the I/O controller.

Real-Time Clock

The motherboard has a time-of-day clock and 100-year calendar that will rollover to 2000 at the

turn of the century. A battery on the motherboard keeps the clock current when the computer is

turned off.

✏NOTE

The recommended method of accessing the date in systems with Intel motherboards is indirectly

from the Real-Time Clock (RTC) via the BIOS. The BIOS on Intel motherboards and baseboards

contains a century checking and maintenance feature that checks the least two significant digits of

the year stored in the RTC during each BIOS request (INT 1Ah) to read the date and, if less than

80 (i.e., 1980 is the first year supported by the PC), updates the century byte to 20. This feature

enables operating systems and applications using the BIOS date/time services to reliably

manipulate the year as a four-digit value.

For more information on proper date access in systems with Intel motherboards please see:

http://support.intel.com/support/year2000/paper.htm

CA810 Motherboard Product Guide

USB Support

The motherboard has two USB ports. One of the USB ports can be routed to a front panel

connector. You can connect two USB peripheral devices directly to the computer without an

external hub. To attach more than two devices, connect an external hub to either of the built-in

ports. The motherboard supports the standard universal host controller interface (UHCI) and takes

advantage of standard software drivers written to be compatible with UHCI.

✏NOTE

Computer systems that have an unshielded cable attached to a USB port might not meet FCC

Class B requirements, even if no device or a low-speed USB device is attached to the cable. Use a

shielded cable that meets the requirements for a high-speed USB device.

BIOS

The BIOS provides the power-on self-test (POST), the BIOS Setup program, the PCI and IDE

auto-configuration utilities, and the video BIOS.

The BIOS can be upgraded by following the instructions in Section 3.

Intel® 82802AB Firmware Hub (FWH)

The BIOS is stored in the Intel 82802AB Firmware Hub. The firmware hub contains a nonvolatile

memory core based on Intel® flash technology. In addition to storing the system BIOS, the

firmware hub incorporates logic features such as a hardware random number generator (RNG).

These logic features enable protection for storing and updating platform information relating to

security and manageability.

PCI Auto Configuration

If you install a PCI add-in board in your computer, the PCI auto-configuration utility in the BIOS

automatically detects and configures the resources (IRQs, DMA channels, and I/O space) for that

add-in board. You do not need to run the BIOS Setup program after you install a PCI add-in

board.

IDE Auto Configuration

If you install an IDE device (such as, a hard drive) in your computer, the IDE auto-configuration

utility in the BIOS automatically detects and configures the device for your computer. You do not

need to run the BIOS Setup program after installing an IDE device.

Motherboard Features

Security Passwords

The BIOS includes security features that restrict whether the BIOS Setup program can be accessed

and who can boot the computer. A supervisor password and a user password can be set for Setup

and for booting the computer, with the following restrictions:

• The supervisor password gives unrestricted access to view and change all Setup options. This

is supervisor mode.

• If only the supervisor password is set, pressing <Enter> at the password prompt of the Setup

program gives the user restricted access to Setup.

• If both the supervisor and user passwords are set, you must enter either the supervisor

password or the user password to access Setup.

• Setting a user password restricts who can boot the computer. The password prompt is

displayed before the computer is booted. If only the supervisor password is set, the computer

boots without asking for a password. If both passwords are set, you can enter either password

to boot the computer.

Expansion Slots

The motherboard has four PCI expansion slots.

Power Management Features

Power management is implemented at several levels, including:

• Software support:

 Advanced Power Management (APM)

 Advanced Configuration and Power Interface (ACPI)

• Hardware support:

 Wake on LAN technology

 Instantly Available technology

 Resume on Ring

If the board is used with an ACPI-aware operating system, the BIOS can provide ACPI support.

Otherwise, it defaults to APM support.

CA810 Motherboard Product Guide

Wake on LAN Technology

The optional Wake on LAN technology connector can be used with PCI bus network adapters that

have a remote wake up connector, as shown in Figure 2. Network adapters that are PCI 2.2

compliant assert the wakeup signal through the PCI bus signal PME# (pin A19 on the PCI bus

connectors). The optional onboard LAN subsystem also supports remote wakeup using the PME#

signal.

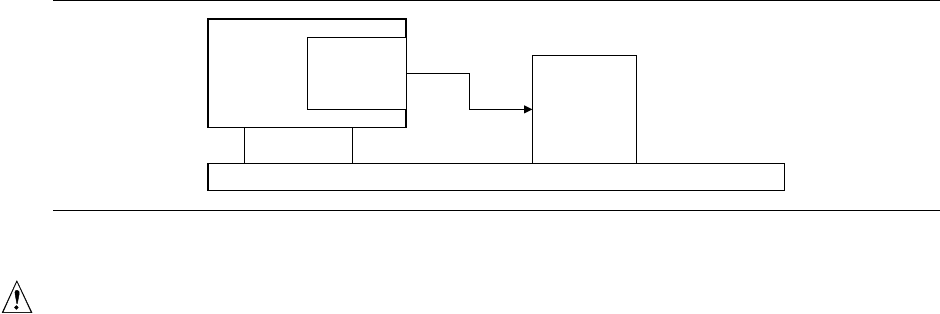

Motherboard

PCI Slot

Wake on

LAN

technology

connector

Network

Interface

Card

Remote

Wake up

connector

Figure 2. Using the Wake on LAN Technology Connector

CAUTION

For Wake on LAN technology, the 5-V standby line for the power supply must be capable of

delivering +5 V

5% at 720 mA. Failure to provide adequate standby current when implementing

Wake on LAN technology can damage the power supply.

Motherboard Features

Instantly Available Technology

Instantly Available technology enables the board to enter the ACPI S3 (Suspend-to-RAM) sleep

state. While in the S3 sleep state, the computer will appear to be off. When signaled by a wake up

device or event, the system quickly returns to its last known wake state.

The optional standby power indicator (located between the DIMM sockets and power connector)

provides an indication that power is still present to the DIMMs and PCI bus connectors, even when

the computer appears to be off. Figure 3 shows the location of the standby power LED.

OM07804

DS8E1

Standby Power Indicator

Figure 3. Location of Standby Power Indicator LED

CAUTION

For Instantly Available technology, the 5-V standby line for the power supply must be capable of

delivering +5 V

5 % at 720 mA. Failure to provide adequate standby current when using this

feature can damage the power supply.

CA810 Motherboard Product Guide

Resume on Ring

The operation of Resume on Ring can be summarized as follows:

• Resumes operation from either the APM sleep mode or the ACPI S1 state

• Requires only one call to access the computer

• Detects incoming call similarly for external and internal modems; does not use the Wake on

Ring connector

• Requires modem interrupt be unmasked for correct operation

Battery

A battery on the motherboard keeps the clock and the values in CMOS RAM current when your

computer is turned off. See Chapter 2 for instructions on how to replace the battery.

2 Installing and Replacing Motherboard

Components

This chapter tells you how to:

• Install and remove the motherboard

• Install and remove the processor

• Install and remove memory

• Replace the battery

• Connect IDE drives

• Clear passwords

• Set jumpers

Before You Begin

CAUTION

Before you install this motherboard in a chassis, see Appendix B for regulatory requirements and

precautions.

• Always follow the steps in each procedure in the correct order.

• Set up a log to record information about your computer, such as model, serial numbers,

installed options, and configuration information.

• Use an antistatic wrist strap and a conductive foam pad when working on the motherboard.

WARNINGS

The procedures in this chapter assume familiarity with the general terminology associated with

personal computers and with the safety practices and regulatory compliance required for using

and modifying electronic equipment.

Disconnect the computer from its power source and from any telecommunications links,

networks, or modems before performing any of the procedures described in this chapter.

Failure to disconnect power, telecommunications links, networks, or modems before you open

the computer or perform any procedures can result in personal injury or equipment damage.

Some circuitry on the motherboard can continue to operate even though the front panel power

button is off.

CAUTION

Electrostatic discharge (ESD) can damage components. Perform the procedures described in this

chapter only at an ESD workstation. If such a station is not available, you can provide some ESD

protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer

chassis.

CA810 Motherboard Product Guide

How to Install and Remove the Motherboard

Refer to your chassis manual for instructions on installing and removing the motherboard. On a

microATX chassis, the motherboard is secured to the chassis by eight screws. Figure 4 shows the

locations of the mounting screw holes. On a standard ATX chassis, the motherboard is secured to

the chassis by seven screws and the provided standoff (see Figure 5).

✏NOTES

You will need a Phillips (#2 bit) screwdriver.

Refer to Appendix B for regulatory requirements and installation instructions and precautions.

WARNING

This procedure should be done only by qualified technical personnel. Disconnect the computer

from its power source before doing the procedures described here. Failure to disconnect the

power before you open the computer can result in personal injury or equipment damage.

OM07790

Figure 4. Mounting Screw Holes

Installing and Replacing Motherboard Components

How to Install a Motherboard Support Standoff

The CA810 motherboard fits in a microATX chassis, but it can also be installed in a standard ATX

chassis. When it is installed in a standard ATX chassis, one of the motherboard support positions

might not have a corresponding standoff in the chassis. The following steps describe how to install

an additional standoff in a standard ATX chassis and how to secure the motherboard to this added

standoff. The Figure 5 shows the standoff (B), its associated adhesive pad (C), and a standoff

retention pin (A).

OM08553

Figure 5. Motherboard Support Standoff in a Standard ATX Chassis

Do the following steps to install the added standoff for the motherboard:

1. Trial fit the added standoff (B) in the motherboard (in the position indicated in Figure 5), then

position the motherboard in the ATX chassis on the existing standoffs, noting the required

mounting location for the new standoff in the chassis.

2. Remove the motherboard, clean the mounting location, then remove the protective paper

covering the adhesive (C) at the base of the added standoff (B).

3. Remount the motherboard in the chassis and press down on the added standoff (B) until the

adhesive secures it to the chassis.

4. When final fitting the motherboard into the chassis, position the motherboard at the same

height on the added standoff (B) as the other standoffs. Press the standoff retention pin (A)

into the added standoff to lock the motherboard at that height.

CA810 Motherboard Product Guide

How to Install the Processor

To install a processor, follow these instructions:

1. Observe the precautions in “Before You Begin” (see page 21).

2. Locate the processor socket and raise the socket handle completely (see Figure 6).

PGA370

OM07801

Figure 6. Raising the Socket Handle

3. Aligning the pins of the processor with the socket, insert the processor into the socket

(see Figure 7).

PGA370

OM07802

Figure 7. Inserting the Processor into the Socket

Installing and Replacing Motherboard Components

4. Close the handle completely (see Figure 8).

OM07803

PGA370

Figure 8. Closing the Handle

5. Place the fan heatsink on top of the processor (see Figure 9).

PGA370

OM07800

Figure 9. Attaching the Heatsink to the Processor

CA810 Motherboard Product Guide

6. Attach the fan heatsink clips to the processor socket (see Figure 10).

PGA370

OM07798

A Fan Heatsink Clip

B Processor Socket

Figure 10. Attaching the Fan Heatsink Clip

7. Connect the processor fan cable to the processor fan connector (see Figure 11).

PGA370

OM07799

J3J1

Figure 11. Connecting the Processor Fan Cable to the Processor Fan Connector

Installing and Replacing Motherboard Components

How to Remove the Processor

To remove the processor, follow these instructions:

1. Observe the precautions in “Before You Begin” (see page 21).

2. Disconnect the processor fan cable.

3. Detach the fan heatsink clips.

4. Raise the socket handle completely.

5. Remove the processor.

How to Install Memory

You can install from 32 MB to 512 MB of memory in the DIMM sockets. The board has two

DIMM sockets arranged as banks 0 and 1. As shown in Figure 11 on page 26, the DIMM socket

closest to the processor is for bank 0. The motherboard supports the following memory features:

✏NOTE

On the CA810 motherboard, the minimum memory required is 64 MB for the Windows NT 4.0

operating system.

For optimal video performance, it is recommended that 64 MB of memory be installed.

• 168-pin 3.3 V DIMMs with gold-plated contacts

• 100 MHz 4-clock unbuffered SDRAM DIMMs

• Non-ECC (64-bit) memory

• A minimum of 32 MB (required); a maximum of 512 MB. For optimal video performance,

use at least 64 MB of system memory.

• Module sizes: 16 MB, 32 MB, 64 MB, 128 MB, 256 MB, and 512 MB

• DIMMs with Serial Presence Detect (SPD) or non-SPD data structure

CAUTION

Because the main system memory is also used as video memory, the CA810 motherboards require

100MHz SDRAM DIMMs even though the processor front side bus is 66 MHz. It is highly

recommended that SPD DIMMs be used, since this allows the chipset to accurately configure

memory settings for optimum performance. If non-SPD memory is installed, the BIOS will attempt

to correctly configure the memory settings, but performance and reliability may be impacted.

CA810 Motherboard Product Guide

The motherboard supports single- or double-sided DIMMs in the following sizes:

DIMM Size Non-ECC Configuration

16 MB 2 Mbit x 64

32 MB 4 Mbit x 64

64 MB 8 Mbit x 64

128 MB 16 Mbit x 64

256 MB 32 Mbit x 64

When adding memory, be aware that:

• You can install DIMMs in either of the two banks. That is, if only one DIMM is being

installed, it can be placed in either DIMM socket.

• You can use different sizes of DIMMs in different banks.

• The BIOS detects the size and type of installed memory.

Installing and Replacing Motherboard Components

Figure 12 shows the location of the DIMM sockets.

OM07791

Figure 12. Installing a DIMM

To install DIMMs, follow these steps:

1. Observe the precautions in “Before You Begin” (see page 21).

2. Turn off all peripheral devices connected to the computer. Turn off the computer. Unplug the

computer.

3. Remove the computer cover and locate the empty DIMM sockets.

4. Holding the DIMM by the edges, remove it from its antistatic package.

5. Make sure the clips at either end of the socket are pushed away from the socket.

6. Position the DIMM above the socket. Align the two small notches in the bottom edge of the

DIMM with the keys in the socket.

7. Insert the bottom edge of the DIMM into the socket (as shown in Figure 12).

8. When the DIMM is seated, push down on the top edge of the DIMM until the retaining clips

snap into place. Make sure the clips are firmly in place.

9. Replace the computer cover.

CA810 Motherboard Product Guide

How to Remove Memory

To remove a DIMM, follow these steps:

1. Observe the precautions in "Before You Begin" (see page 21).

2. Turn off all peripheral devices connected to the computer. Turn off the computer. Unplug the

computer.

3. Remove the computer cover.

4. Gently spread the retaining clips at each end of the socket. The DIMM pops out of the socket.

5. Hold the DIMM by the edges, lift it away from the socket, and store it in an antistatic package.

6. Reinstall and reconnect any parts you removed or disconnected to reach the DIMM sockets.

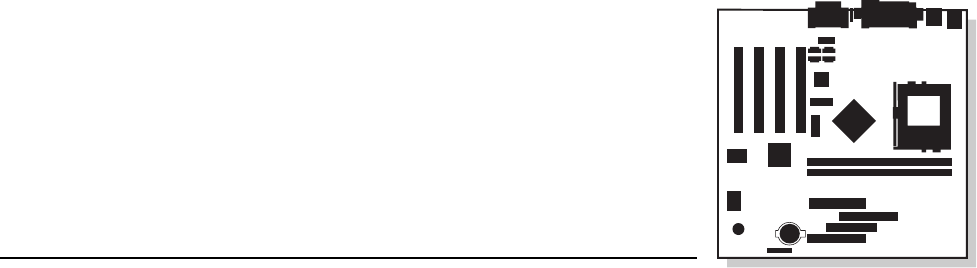

How to Replace the Battery

When your computer is turned off, a lithium battery maintains the current time-of-day clock and

the values in CMOS RAM current. Figure 13 on page 31 shows the location of the battery.

The battery should last about seven years. When the battery begins to die, it loses voltage; when

the voltage drops below a certain level, the BIOS Setup program settings stored in CMOS RAM

(for example, the date and time) might not be accurate. Replace the battery with an equivalent

one.

WARNING

Danger of explosion if the battery is incorrectly replaced. Replace only with the same or

equivalent type recommended by the equipment manufacturer. Discard used batteries according

to manufacturer’s instructions.

ATTENTION

Il y a danger d’explosion s’il y a remplacement incorrect de la batterie. Remplacer uniquement

avec une batterie du méme type ou d’un type recommandé par le constructeur. Mettre au rébut

les batteries usagées conformément aux instructions du fabricant.

ADVARSEL!

Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri

af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren.

ADVARSEL

Lithiumbatteri - Eksplosjonsfare. Ved utskifting benyttes kun batteri som anbefalt av

apparatfabrikanten. Brukt batteri returneres apparatleverandøren.

VARNING

Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som

rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion.

Installing and Replacing Motherboard Components

VAROITUS

Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan

laitevalmistajan suosittelemaan tyyppiin. Hävitä käjtetty paristo valmistajan ohjeiden

mukaisesti.

To replace the battery, follow these steps:

1. Observe the precautions in “Before You Begin” (see page 21).

2. Turn off all peripheral devices connected to the computer. Turn off the computer.

3. Remove the computer cover.

4. Locate the battery on the motherboard (see Figure 13).

5. With a medium flat-bladed screwdriver, gently pry the battery free from its socket. Note the

orientation of the “+” and “-” on the battery.

6. Install the new battery in the socket, orienting the “+” and “-” correctly.

7. Replace the computer cover.

OM07792

Figure 13. Removing the Battery

✏NOTE

If your local ordinances permit, you may dispose of individual batteries as normal trash. Do not

expose batteries to excessive heat or fire. Keep all batteries away from children.

CA810 Motherboard Product Guide

How to Connect IDE Drives

The Intel boxed motherboard package includes an IDE cable. It is capable of connecting two

drives to the motherboard.

The cable supports the Ultra ATA/66 interface and is backward compatible with drives using

slower IDE transfer protocols. If an Ultra ATA/66 drive and a drive using any other IDE

transfer protocol are attached to the same cable, the maximum transfer rate for either drive is

33 MB/second.

When building a system with both Ultra ATA/66 drives and slower drives, attach the

Ultra ATA/66 drives to one channel with the Ultra ATA/66 cable. Attach the slower drives

to the other channel with another cable.

How to Clear the Passwords

This procedure assumes that the motherboard is installed in the computer and the configuration

jumper block is set to normal mode.

1. Observe the precautions in “Before You Begin” (see page 21).

2. Turn off all peripheral devices connected to the computer. Turn off the computer. Unplug the

computer.

3. Remove the computer cover.

4. Find the configuration jumper block (see Figure 14).

5. Place the jumper on pins 2-3 as shown below.

6. Replace the cover, plug in the computer, turn on the computer, and allow it to boot.

7. The computer starts the Setup program. Setup displays the Maintenance menu.

8. Use the arrow keys to select Clear Passwords. Press <Enter> and Setup displays a pop-up

screen requesting that you confirm clearing the password. Select Yes and press <Enter>.

Setup displays the Maintenance Menu again.

9. Press <F10> to save the current values and exit Setup.

10. Turn off the computer. Unplug the computer.

11. Remove the computer cover.

12. To restore normal operation, place the jumper on pins 1-2 as shown below.

13. Replace the cover, plug in the computer, and turn on the computer.

Installing and Replacing Motherboard Components

How to Set Jumpers

CAUTION

Always turn off the power and unplug the power cord from the computer before changing the

jumper. Moving the jumper with the power on may result in unreliable computer operation.

OM07760

J7A1

J7B2

A BIOS Setup configuration jumper block

B USB port configuration jumper block (optional)

Figure 14. Location of the Jumper Blocks

CA810 Motherboard Product Guide

BIOS Setup Configuration Jumper Block

This three-pin jumper block, shown in Figure 14, enables all motherboard configuration to be done

in BIOS Setup. Table 4 shows the jumper settings for the Setup program modes.

Table 4. Jumper Settings for BIOS Setup Program Modes

Function / Mode Jumper Setting Configuration

Normal

1-2

The BIOS uses current configuration information and passwords

for booting.

Configure

2-3

After the Power-On Self-Test (POST) runs, the BIOS displays the

Maintenance Menu. Use this menu to clear passwords and to

change optional memory settings.

Recovery

none

The BIOS attempts to recover the BIOS configuration. A

recovery diskette is required.

USB Port 0 Configuration Jumper Block (Optional)

This 6-pin jumper block, shown in Figure 14, enables configuration of USB Port 0. Table 5

describes the jumper settings for configuring USB Port 0.

Table 5. USB Port 0 Configuration Jumper Settings

Jumper Setting Configuration

2-3 and 5-6

USB Port 0 signals are routed to the back panel

1-2 and 4-5

USB Port 0 signals are routed for a front panel USB connector

3 Using the Setup Program

You can use the BIOS Setup program to change the configuration information and boot sequence

for the computer. This chapter tells you how to:

• Access the BIOS Setup program

• Upgrade the BIOS

• Recover the BIOS

• Change the BIOS language

• Clear passwords

For more information about the BIOS Setup program’s menus, options, and defaults settings, see

the CA810 Motherboard Technical Product Specification available on the World Wide Web site:

http://support.intel.com/support/motherboards/desktop

✏NOTE

For reference purposes, you should write down the current Setup settings. When you make

changes to the settings, update this record.

BIOS Setup Program Modes

The BIOS Setup program has three modes of operation:

• Normal mode for normal operations

• Configure mode for clearing passwords (See Chapter 2 for instructions)

• Recovery mode for recovering the BIOS data

The BIOS Setup program operating mode is controlled by the setting of the configuration jumper

block. The jumper is set to normal mode at the factory.

CA810 Motherboard Product Guide

✏NOTE

The Setup menus described in this section apply to CA810 motherboards with BIOS identifier

8C1A100A.86A. Motherboards with other BIOS identifiers might have differences in some of the

Setup menu screens.

Table 6 is an overview of the menu screens in the BIOS Setup program.

Table 6. Setup Menu Screens

Setup Menu Screen Description

Maintenance Clears the Setup passwords. This menu is only available in configure mode.

Main Displays system information.

Advanced Specifies advanced features available through the chipset.

Security Specifies passwords and security features.

Power Specifies power management features.

Boot Specifies boot options and power state controls.

Exit Saves or discards changes to the BIOS Setup program options.

Function Keys

Table 7 shows the function keys available for menu screens.

Table 7. Setup Function Keys

Setup Key Description

<Esc> Exits the menu.

<←> or <→> Selects a different menu screen.

<↑> or <↓> Moves cursor up or down.

<F9> Load the default configuration values for the current menu.

<F10> Save the current values and exit Setup.

<Enter> Executes command or selects the submenu.

Accessing the Setup Program

To enter the Setup program, turn the computer on and immediately press <F2> until you see the

message:

Entering SETUP

Using the Setup Program

Upgrading the BIOS

Before you upgrade the BIOS, prepare by:

• Obtaining the BIOS upgrade file

• Recording the current BIOS settings

• Creating a bootable diskette

• Creating the BIOS upgrade diskette

Obtaining the BIOS Upgrade File

You can upgrade to a new version of the BIOS by using the BIOS upgrade file. The BIOS upgrade

file is a compressed self-extracting archive that contains all the files you need to upgrade the

BIOS. The BIOS upgrade file contains:

• New BIOS files

• BIOS recovery files

• Intel® Flash Memory Update Utility

You can obtain the BIOS upgrade file through your computer supplier or from the Intel World

Wide Web site:

http://support.intel.com/support/motherboards/desktop/

✏NOTE

Please review the instructions distributed with the update utility before attempting a BIOS

upgrade.

The Intel Flash Memory Update Utility allows you to:

• Upgrade the BIOS in flash memory.

• Update the language section of the BIOS.

Recording the Current BIOS Settings

1. Boot the computer and press <F2> when you see the message:

Press <F2> Key if you want to run SETUP

NOTE

Do not skip step 2. You will need these settings to configure your computer at the end of the

upgrade procedure.

2. Write down the current settings in the BIOS Setup program.

CA810 Motherboard Product Guide

Creating a Bootable Diskette

✏NOTE

If your drive A is an LS-120 diskette drive, you must use a 1.44-MB diskette as the bootable BIOS

upgrade diskette. The computer is unable to recover a BIOS from an LS-120 diskette.

To create a bootable diskette using a DOS system:

• Place an unformatted diskette in the diskette drive and format the diskette using the /s option.

Example: format a: /s

• Alternatively, place a formatted diskette in the diskette drive and use the sys command.

Example: sys a:

To create a bootable diskette using a non-DOS system:

1. Obtain the BIOS upgrade file through your computer supplier or from the Intel World Wide

Web site:

http://support.intel.com/support/motherboards/desktop/

2. Copy the BIOS upgrade file to a temporary directory on your hard disk.

3. Change to the temporary directory.

4. To extract the files, double click on the BIOS upgrade file, for example, CABIOSxx.EXE.

5. One of the extracted files is MK_BOOTZ.EXE. Double click on this file to extract the

README.TXT file.

6. Follow the directions in the README.TXT file.

Creating the BIOS Upgrade Diskette

1. Obtain the BIOS upgrade file through your computer supplier or from the Intel World Wide

Web site:

http://support.intel.com/support/motherboards/desktop/

2. Copy the BIOS upgrade file to a temporary directory on your hard disk.

3. From the C:\ prompt, change to the temporary directory.

4. To extract the file, type the name of the BIOS upgrade file, for example, CABIOSxx.EXE

5. Press <Enter>. The extracted file contains the following files:

LICENSE.TXT

BIOINSTR.TXT

BIOS.EXE

MK_BOOTZ.EXE

6. Read the LICENSE.TXT file, which contains the software license agreement, and the

BIOINSTR.TXT file, which contains the instructions for the BIOS upgrade.

7. Insert the bootable diskette into drive A.

8. To extract the BIOS.EXE file to the diskette, change to the temporary directory that holds the

BIOS.EXE file and type:

BIOS A:

9. Press <Enter>.

10. The diskette now holds the new BIOS files, the Intel Flash Update Utility, and the recovery

files.

Technical Reference

Upgrading the BIOS

CAUTION

Not updating the system boot block when updating the BIOS may result in an untested system

configuration. Some BIOS upgrade releases may require updating the system boot block. To find

out if you need to update the boot block, go to the Intel website at:

http://www.developer.intel.com/design/motherbd

1. Boot the computer with the BIOS upgrade diskette in drive A. Press <Enter> to go to the

Main menu. The flash memory update utility screen appears.

2. Select Update flash memory area from a file. Press <Enter>.

3. Select Update System BIOS. Press <Enter>.

4. Use the arrow keys to select the correct .bio file. Press <Enter>.

5. When the utility asks for confirmation that you want to flash the new BIOS into memory,

select Continue with programming. Press <Enter>.

6. When the utility displays the message Reboot Warning, remove the diskette. Press

<Enter>.

7. As the computer boots, check the BIOS identifier (version number) to make sure the upgrade

was successful. If a logo appears, press <Esc> to view the POST messages.

8. To enter the BIOS Setup program, press <F2> when you see the message:

Press <F2> to Run SETUP

9. For proper operation, load the BIOS Setup program defaults. To load the defaults, press <F9>.

10. To accept the defaults, press <Enter>.

11. In Setup, enter the settings you wrote down before beginning the BIOS upgrade.

12. To save the settings, press <F10>.

13. To accept the settings, press <Enter>.

14. Turn off the computer and reboot.

Recovering the BIOS

It is unlikely that anything will interrupt the BIOS upgrade; however, if an interruption occurs, the

BIOS could be damaged. The following steps explain how to recover the BIOS if an upgrade fails.

The following procedure uses recovery mode for the Setup program. See Chapter 3 for more

information on Setup modes.

NOTE

Because of the small amount of code available in the boot block area, there is no video support.

You will not see anything on the screen during this procedure. Monitor the procedure by listening

to the speaker and looking at the diskette drive LED.

1. Turn off the computer, disconnect the computer’s power cord, and disconnect all external

peripherals.

2. Remove the computer cover and locate the configuration jumper block (J7A1) (see Figure 1).

CA810 Motherboard Product Guide

3. Remove the jumper from all pins as shown below to set recovery mode for Setup.

4. Insert the bootable BIOS upgrade diskette into diskette drive A.

5. Replace the computer cover, connect the power cord, turn on the computer, and allow it to

boot. The recovery process will take a few minutes.

6. Listen to the speaker.

• Two beeps and the end of activity in drive A indicate successful BIOS recovery.

• A series of continuous beeps indicates failed BIOS recovery.

7. If recovery fails, return to step 1 and repeat the recovery process.

8. If recovery is successful, turn off the computer, and disconnect its power cord.

9. Remove the computer cover and continue with the following steps.

10. On the jumper block (J7A1), reinstall the jumper back on pins 1-2 as shown below to set

normal mode for Setup.

11. Leave the upgrade diskette in drive A, replace the computer cover, and connect the computer’s

power cord.

12. Turn on the computer and continue with the BIOS upgrade (see page 39).

Changing the BIOS Language

You can use the BIOS upgrade utility to change the language the BIOS uses for messages and the

Setup program. Use a bootable diskette containing the Intel Flash Memory Update Utility and

language files (see “Upgrading the BIOS” on page 39).

1. Boot the computer with the bootable diskette in drive A. The BIOS upgrade utility screen

appears.

2. Select Update Flash Memory From a File.

3. Select Update Language Set. Press <Enter>.

4. Select drive A and use the arrow keys to select the correct .lng file. Press <Enter>.

5. When the utility asks for confirmation that you want to flash the new language into memory,

select Continue with Programming. Press <Enter>.

6. When the utility displays the message upgrade is complete, remove the diskette. Press

<Enter>.

7. The computer will reboot and the changes will take effect.

4 Technical Reference

Motherboard Connectors

The motherboard’s connectors can be divided into three groups, as shown in Figure 15.

OM07764

Back panel connectors

(see page 42)

Midboard connectors

(see page 43)

Front panel connectors

(see page 44)

Figure 15. Connector Groups

CAUTION

Many of the midboard and front panel connectors provide operating voltage (+5 V DC and

+12 V DC, for example) to devices inside the computer chassis, such as fans and internal

peripherals. These connectors are not overcurrent protected. Do not use these connectors for

powering devices external to the computer chassis. A fault in the load presented by the external

devices could cause damage to the computer, the interconnecting cable, and the external devices

themselves.

CA810 Motherboard Product Guide

Back Panel Connectors

Figure 16 shows the back panel connectors on the motherboard.

OM07762

BDF

KIML

A PS/2 keyboard or mouse

B PS/2 keyboard or mouse

C RJ-45 LAN connector with indicator

LEDs (optional):

- Speed

Top: Green

Off: 10 Mbps

On: 100 Mbps

- Link

Bottom: Yellow

On: Link

Blink: Packets transferred

D USB port 0

E USB port 1

F VGA port

G Parallel port

H Serial port A

I Enhanced Diagnostics LED (optional)

J MIDI/Game port

K Audio line out

L Audio line in

M Mic in

Figure 16. Back Panel Connectors and Indicators

✏NOTE

The line out connector, located on the back panel, is designed to power either headphones or

amplified speakers only. Poor audio quality may occur if passive (non-amplified) speakers are

connected to this output.

Technical Reference

Midboard Connectors

Figure 17 shows the location of the midboard connectors.

OM07805

233

240

K I

E FA B C

M L

A ATAPI-style CD-ROM J Diskette drive

B Video source line in (optional) K Primary IDE

C Legacy CD-ROM (optional) L Fan 1 (chassis)

D Serial port B header M Power

E Auxiliary line in (optional) N Wake on LAN technology (optional)

F Telephony (optional) O SCSI HD Activity LED (optional)

G Fan 3 (processor) P USB front panel (optional)

H Fan 2 (optional) Q Chassis intrusion (optional)

I Secondary IDE R PCI slots

Figure 17. Midboard Connectors

CA810 Motherboard Product Guide

Front Panel Connectors

Figure 18 shows the location of the front panel connectors.

OM07767

J9A2

GRN

YLW

15 1

216

J10B1

A Infrared port D Power LED

B Reset switch E On/Off switch

C Hard drive activity LED F Alternate 1x3 front panel power LED

Figure 18. Front Panel Connectors

Technical Reference

Motherboard Resources

Memory Map

Table 8. System Memory Map

Address Range (decimal) Address Range (hex) Size Description

1024 K - 524288 K 100000 – 1FFFFFFF 511 MB Extended Memory

960 K - 1024 K F0000 - FFFFF 64 KB Runtime BIOS

896 K - 960 K E0000 - EFFFF 64 KB Reserved

800 K - 896 K C8000 - DFFFF 96 KB Available high DOS memory (open

to ISA and PCI bus)

640 K - 800 K A0000 - C7FFF 160 KB Video memory and BIOS

639 K - 640 K 9FC00 - 9FFFF 1 KB Extended BIOS data (movable by

memory manager software)

512 K - 639 K 80000 - 9FBFF 127 KB Extended conventional memory

0 K - 512 K 00000 - 7FFFF 512 KB Conventional memory

DMA Channels

Table 9. DMA Channels

DMA Channel Number Data Width System Resource

0 8- or 16-bits Audio

1 8- or 16-bits Audio / parallel port

2 8- or 16-bits Diskette drive

3 8- or 16-bits Parallel port (for ECP or EPP)/audio

4 DMA controller

5 16-bits Open

6 16-bits Open

7 16-bits Open

CA810 Motherboard Product Guide

I/O Map

Table 10. I/O Map

Address (hex) Size Description

0000 - 000F 16 bytes DMA controller

0020 - 0021 2 bytes Programmable Interrupt Control (PIC)

0040 - 0043 4 bytes System timer

0060 1 byte Keyboard controller byte—reset IRQ

0061 1 byte System speaker

0064 1 byte Keyboard controller, CMD/STAT byte

0070 -0071 2 bytes System CMOS / Real Time Clock

0072 - 0073 2 bytes CMOS Bank 1

0080 - 0090 DMA controller

0094 – 009F DMA controller

00A0 - 00A1 2 bytes PIC

00B2 - 00B3 2 bytes APM control

00C0 - 00DE 31 bytes DMA

00F0 – 00FF Numeric data processor

0170 - 0177 8 bytes Secondary IDE channel

01F0 - 01F7 8 bytes Primary IDE channel

One of these ranges:

0200 – 0207

0208 – 020F

0210 – 0217

0218 – 021F

Can vary from 1 byte

to 8 bytes

Audio / game port

0220 - 022F 16 bytes Audio (Sound Blaster Pro†-compatible)

0240 - 024F 16 bytes Audio (Sound Blaster Pro-compatible)

0240 - 024F 16 bytes Audio (Sound Blaster-compatible)

0278 - 027F* 8 bytes LPT2

0228 - 022F* 8 bytes LPT3

02E8 - 02EF* 8 bytes COM4/video (8514A)

02F8 - 02FF* 8 bytes COM2

One of these ranges:

0320 - 0327

0330 - 0337

0340 - 0347

0350 - 0357

8 bytes MPU-401 (MIDI)

0376 1 byte Secondary IDE channel command port

continued

Technical Reference

Table 10. I/O Map (continued)

Address (hex) Size Description

0377, bits 6:0 7 bits Secondary IDE channel status port

0378 - 037F 8 bytes LPT 1

0388- 038B 6 bytes AdLib† (FM synthesizer)

03B0 – 03BB 4 bytes Intel 82810 – DC100 Graphics Controller Hub (GCH)

03C0 – 03DF 2 bytes Graphics Controller Hub (GCH)

03CC 1 byte Video (VGA)

03CE – 03CF 2 bytes Video (VGA)

03D4 – 03D5 2 bytes Video (VGA)

03DA 1 byte Video (VGA)

03E8 – 03EF 8 bytes COM3

03F0 - 03F5 6 bytes Diskette channel 1

03F6 1 byte Primary IDE channel command port

03F8 - 03FF 8 bytes COM1

One of these ranges:

0530 – 0537

0E80 – 0E87

0F40 – 0F47

8 bytes Windows Sound System

0800 – 087F Motherboard resources

9000 – 9FFF Intel 82810AA PCI bridge

LPTn + 400h 8 bytes ECP port, LPTn base address + 400h

0CF8 - 0CFB* 4 bytes PCI configuration address register

0CF9** 1 byte Turbo and reset control register

0CFC - 0CFF 4 bytes PCI configuration data register

EF00 – EF3F 64 bytes Windows Sound System

FFA0 - FFA7 8 bytes Primary bus master IDE registers

FFA8 - FFAF 8 bytes Secondary bus master IDE registers

32 contiguous bytes starting on a 32-byte

divisible boundary

Intel 82559 LAN controller

64 contiguous bytes starting on a 64-byte

divisible boundary

Onboard audio controller

* Dword access only

** Byte access only

CA810 Motherboard Product Guide

Interrupts

Table 11. Interrupts

IRQ System Resource

NMI I/O channel check

0 Reserved, interval timer

1 Reserved, keyboard buffer full

2 Reserved, cascade interrupt from slave PIC

3 COM2* (user available if COM2 is not present)

4COM1*

5 LPT2 (Plug and Play option)/audio/user available

6 Diskette drive controller

7LPT1*

8 Real time clock

9 User available

10 User available

11 User available

12 Onboard mouse port (if present, else user available)

13 Reserved, math coprocessor

14 Primary IDE (if present, else user available)

15 Secondary IDE (if present, else user available)

* Default, but can be changed to another IRQ.

A Error Messages

BIOS Beep Codes

Whenever a recoverable error occurs during power-on self-test (POST), the BIOS displays an error

message describing the problem. The BIOS also issues a beep code (one long tone followed by

two short tones) during POST if the video configuration fails (a faulty video card or no card

installed) or if an external ROM module does not properly checksum to zero.

Table 12. Beep Codes

Number of Beeps Description

1 Refresh failure

2 Parity can not be reset

3 First 64 K memory failure

4 Timer not operational

5 Processor failure (Reserved; not used)

6 8042 GateA20 cannot be toggled (memory failure or not present)

7 Exception interrupt error

8 Display memory R/W error

9 ROM checksum error (Reserved; not used)

10 CMOS Shutdown register test error

11 Invalid BIOS (such as, POST module not found)

BIOS Error Messages

Table 13. BIOS Error Messages

Error Message Explanation

GA20 Error An error occurred with Gate-A20 when switching to protected

mode during the memory test.

Pri Master HDD Error

Pri Slave HDD Error

Sec Master HDD Error

Sec Slave HDD Error

Could not read sector from corresponding drive.

Pri Master Drive - ATAPI Incompatible

Pri Slave Drive - ATAPI Incompatible

Sec Master Drive - ATAPI Incompatible

Sec Slave Drive - ATAPI Incompatible

Corresponding drive is not an ATAPI device. Run Setup to make

sure device is selected correctly.

A: Drive Error

B: Drive Error

No response from diskette drive.

continued

CA810 Motherboard Product Guide

Table 13. BIOS Error Messages (continued)

Error Message Explanation

CMOS Battery Low The battery may be losing power. Replace the battery soon.

CMOS Display Type Wrong The display type is different than what has been stored in CMOS.

Check Setup to make sure type is correct.

CMOS Checksum Bad The CMOS checksum is incorrect. CMOS memory may have

been corrupted. Run Setup to reset values.

CMOS Settings Wrong CMOS values are not the same as the last boot. These values

have either been corrupted or the battery has failed.

CMOS Date/Time Not Set The time and/or date values stored in CMOS are invalid. Run

Setup to set correct values.

DMA Error Error during read/write test of DMA controller.

FDC Failure Error occurred trying to access diskette drive controller.

HDC Failure Error occurred trying to access hard disk controller.

Checking NVRAM..... NVRAM is being checked to see if it is valid.

Update OK! NVRAM was invalid and has been updated.

Updated Failed NVRAM was invalid but was unable to be updated.

Keyboard Is Locked The system keyboard lock is engaged. The system must be

unlocked to continue to boot.

Keyboard Error Error in the keyboard connection. Make sure keyboard is

connected properly.

KB/Interface Error Keyboard interface test failed.

Memory Size Decreased Memory size has decreased since the last boot. If no memory

was removed, then memory may be bad.

Memory Size Increased Memory size has increased since the last boot. If no memory was

added, there may be a problem with the system.

Memory Size Changed Memory size has changed since the last boot. If no memory was

added or removed, then memory may be bad.

No Boot Device Available System did not find a device to boot.

Off Board Parity Error A parity error occurred on an offboard card. This error is followed

by an address.

On Board Parity Error A parity error occurred in onboard memory. This error is followed

by an address.

Parity Error A parity error occurred in onboard memory at an unknown

address.

NVRAM / CMOS / PASSWORD

cleared by Jumper

NVRAM, CMOS, and passwords have been cleared. The system

should be powered down and the jumper removed.

<CTRL_N> Pressed CMOS is ignored and NVRAM is cleared. User must enter Setup.

B Regulatory and Integration Information

This appendix contains:

• Safety standards, electromagnetic compatibility regulations, and product certification markings

for this motherboard

• Instructions and precautions for integrators who are installing this motherboard in a chassis

Regulatory Compliance

This motherboard complies with the following safety and EMC regulations when correctly

installed in a compatible chassis

Table 14. Safety Regulations

Regulation Title

UL 1950/CSA950, 3rd edition,

Dated 07-28-95

Bi-National Standard for Safety of Information Technology Equipment

including Electrical Business Equipment. (USA and Canada)

EN 60950, 2nd Edition, 1992 (with

Amendments 1, 2, 3, and 4)

The Standard for Safety of Information Technology Equipment

including Electrical Business Equipment. (European Community)

IEC 950, 2nd edition, 1991 (with

Amendments 1, 2, 3, and 4)

The Standard for Safety of Information Technology Equipment

including Electrical Business Equipment. (International)

EMKO-TSE (74-SEC) 207/94 Summary of Nordic deviations to EN 60950. (Norway, Sweden,

Denmark, and Finland)

Table 15. EMC Regulations

Regulation Title

FCC Class B Title 47 of the Code of Federal Regulations, Parts 2 and 15, Subpart B,

pertaining to unintentional radiators. (USA)

CISPR 22, 2nd Edition, 1993

(Class B)

Limits and methods of measurement of Radio Interference

Characteristics of Information Technology Equipment. (International)

VCCI Class B (ITE) Implementation Regulations for Voluntary Control of Radio Interference

by Data Processing Equipment and Electronic Office Machines.

(Japan)

EN55022 (1994) (Class B) Limits and methods of measurement of Radio Interference

Characteristics of Information Technology Equipment. (Europe)

EN50082-1 (1992) Generic Immunity Standard; Currently compliance is determined via

testing to IEC 801-2, -3, and -4. (Europe)

ICES-003 (1997) Interference-Causing Equipment Standard, Digital Apparatus, Class B

(Including CRC c.1374) (Canada)

AS/NZ 3548 Australian Communications Authority (ACA), Standard for

Electromagnetic Compatibility

CA810 Motherboard Product Guide

Product Certification Markings

This printed circuit assembly has the following product certification markings:

• UL Joint Recognition Mark: Consists of small c followed by a stylized backward UR and

followed by a small US (Component side)

• Manufacturer’s recognition mark: Consists of a unique UL recognized manufacturer’s logo,

along with a flammability rating (94V-0) (Solder side)

• UL File Number for motherboards: E139761 (Component side)

• PB Part Number: Intel bare circuit board part number (Solder side) 730515-004

• Battery “+ Side Up” marking: located on the component side of the board in close proximity

to the battery holder

• FCC Logo/Declaration: (Solder side)

• ACA (C-Tick) mark: Consists of a unique letter C, with a tick mark; followed by N-232.

Located on the component side of the motherboard and on the shipping container.

• CE Mark: (Component side) The CE mark should also be on the shipping container

Installation Precautions

When you install and test the motherboard, observe all warnings and cautions in the installation

instructions.

To avoid injury, be careful of:

• Sharp pins on connectors

• Sharp pins on printed circuit assemblies

• Rough edges and sharp corners on the chassis

• Hot components (like processors, voltage regulators, and heat sinks)

• Damage to wires that could cause a short circuit

Observe all warnings and cautions that instruct you to refer computer servicing to qualified

technical personnel.

WARNING

Do not open the power supply. Risk of electric shock and burns from high voltage and rapid

overheating. Refer servicing of the power supply to qualified technical personnel.

Regulatory and Integration Information

Installation Instructions

CAUTION

Follow these guidelines to meet safety and regulatory requirements when installing this board

assembly.

Read and adhere to all of these instructions and the instructions supplied with the chassis and

associated modules. If the instructions for the chassis are inconsistent with these instructions or

the instructions for associated modules, contact the supplier’s technical support to find out how

you can ensure that your computer meets safety and regulatory requirements. If you do not follow

these instructions and the instructions provided by chassis and module suppliers, you increase

safety risk and the possibility of noncompliance with regional laws and regulations.

Ensure Electromagnetic Compatibility (EMC)

Before computer integration, make sure that the power supply and other modules have passed

EMC testing using a motherboard with a processor from the same family and operating at the same

(or higher) speed as the processor on this motherboard.

In the installation instructions for the host chassis, power supply, and other modules pay close

attention to the following:

• Certifications

• External I/O cable shielding and filtering

• Mounting, grounding, and bonding requirements

• Keying connectors when mismating of connectors could be hazardous

If the power supply and other modules have not passed applicable EMC testing before integration,

EMC testing must be conducted on a representative sample of the newly completed computer.

Ensure Chassis and Accessory Module Certifications

Make sure that the chassis, any added subassembly, such as a board or drive assembly, and internal

or external wiring, are certified for the region(s) where the end-product will be used. Marks on the

product are proof of certification. Certification marks are as follows:

In Europe

The CE marking signifies compliance with all relevant European requirements. If the chassis does

not bear the CE marking, obtain a supplier’s Declaration of Conformity to the appropriate

standards required by the European EMC Directive and Low Voltage Directive. Other directives,

such as the Machinery and Telecommunications Directives, might also apply depending on the

type of product. No regulatory assessment is necessary for low voltage DC wiring used internally

or wiring used externally when provided with appropriate overcurrent protection. Appropriate

protection is provided by a maximum 8-A current limiting circuit or a maximum 5-A fuse or

positive temperature coefficient (PTC) resistor. All Intel motherboards now have PTCs on all

external ports that provide DC power externally.

CA810 Motherboard Product Guide

In the United States

A certification mark by a Nationally Recognized Testing Laboratory (NRTL) such as UL, CSA, or

ETL signifies compliance with safety requirements. External wiring must be UL Listed and

suitable for the intended use. Internal wiring must be UL Listed or Recognized and rated for

applicable voltages and temperatures. The FCC mark (Class A for commercial or industrial only

or Class B for residential) signifies compliance with electromagnetic interference requirements.

In Canada

A nationally recognized certification mark such as CSA or cUL signifies compliance with safety

requirements. No regulatory assessment is necessary for low voltage DC wiring used internally or

wiring used externally when provided with appropriate overcurrent protection. Appropriate

protection is provided by a maximum 8-A current limiting circuit or a maximum 5-A fuse or

positive temperature coefficient (PTC) resistor. All Intel motherboards now have PTCs on all

external ports that provide DC power externally.

Prevent Power Supply Overload

Unless the power supply has inherent overcurrent protection, do not overload the power supply

output. To avoid overloading the power supply, make sure that the calculated total current load of

all the modules within the computer is less than the output current rating of the power supply. If

you do not do this, the power supply could overheat, catch fire, or damage the insulation that

separates hazardous AC line circuitry from low-voltage user accessible circuitry. If the load drawn

by a module cannot be determined by the markings and instructions supplied with the module,

contact the module supplier’s technical support.

Place Battery Marking on the Computer

There is insufficient space on this motherboard to provide instructions for replacing and disposing

of the battery. The following warning must be placed permanently and legibly on the chassis as

near as possible to the battery.

WARNINGS

Danger of explosion if battery is incorrectly replaced.

Replace with only the same or equivalent type recommended by the manufacturer. Dispose of

used batteries according to the manufacturer’s instructions.

Use Only for Intended Applications

This motherboard was evaluated for use in computers that will be installed in offices, homes,

schools, computer rooms, and similar locations. The suitability of this product for other

applications, (such as medical, industrial, alarm systems, and test equipment) might require further

evaluation.

Intel CA810 Motherboard Product Guide User Manual To The Ee645f36 Ccef 4db0 96bf 6d1dca0255a8

Navigation menu

Versions of this User Manual:

Views

Navigation
